HT840 User Manual HTML Version

User manual

HT840

VHF submersible marine handheld transceiver

OWNERS MANUAL

Class I,ll &lll

Groups A TO G.

DIV l&ll T4

V/01

INTRINSICALLY SAFE

CLASSES I, II & III

GROUPS A TO G. DIV I & II T4

WARNING:

SUBSTITUTION OF COMPONENTS MAY

IMPAIR INTRINSIC SAFETY

USE DNLY WITH ENTEL BATTERY CNB840E

DO NOT CHARGE OR RECHARGE BATTERY

IN HAZARDOUS LOCATIONS

Submersible

Dependable

Tough

The HT840 transceiver displays "CE" on the serial number label,

indicating its compliance with the essential requirements of the EEC

directive for Electromagnetic Compatibility.

CE COMPLIANCE STATEMENT

This device complies with part 15 of the FCC rules. Operation is subject

to the following two conditions: (1) This device does not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may undersired operation..

DECLARATION OF CONFORMITY

We, Entel UK Limited.

Of:-

4 Elstree Gate, Elstree Way,

Borehamwood, Herts.

WD6 1JD

United Kingdom.

Declare under our sole responsibility that the product:-

HT840 VHF Marine Submersible Transceiver

Serial Number......................................

to which this declaration relates is in accordance with directive 95/5/EC and

conforms to the following standards or other nominative documents :-

EN 301 178-2 V 1.1.1 (2000-08), EN60950 August 1992, A11 1997

EN 60945 1997 & ETS 300 698 Annex B December 1996(Version D only)

following the provisions of the R&TTE directive.

M. Austin

Quality Manager

5th March 2004

European Versions:-

USA Versions:-

1.1 INTRODUCTION

1.2 PACKING LIST

1.3 OPTIONAL ACCESSORIES

1.3.1 ATTACHING AUDIO ACCESSORIES

1.4 CONTROLS AND INDICATORS

1.5 INDICATORS

1.6 RECEPTION

1.7 TRANSMITTING

1.8 INT, USA, & CANADIAN MODES

1.9 NOAA WEATHER CHANNELS

2.0 SCAN

2.1 EMERGENCY CHANNELS

2.2 CHANNEL 9

2.3 CHANNEL A/B INSTANT ACCESS

2.3.1 PROGRAMMING A/B INSTANT ACCESS BUTTONS

2.4 OPERATION OF A/B INSTANT ACCESS BUTTONS

2.5 VOICE SCRAMBLER

2.6 VOX (voice operated transmit)

2.7 SIMPLEX/DUPEX CHANNEL USE

2.8 BATTERY CHARGING

2.8.1 OPTIONAL RAPID CHARGER

2.9 BATTERY REMOVAL/INSTALLATION

3.0 BATTERY INDICATOR

3.1 BATTERY SAFETY

3.2 TROUBLE SHOOTING

3.3 GLOSSARY OF TERMS

3.4 CHANNEL CHART

(INT, USA, CANADIAN AND private)

3.5 SPECIFICATION

(General, receive and transmit)

3.5.1 PRIVATE CHANNELS

TABLE OF CONTENTS

The Entel HT840 is a professional marine handheld transceiver

that operates on the VHF marine band. The HT840 has 58 marine

international channels, 10 weather, and 36 dealer programmable

private channels. The 58 marine channels are switchable to

comply with USA, International or Canadian regulations, this is

done via the keypad. It has an emergency channel 16 button,

which can be immediately selected from any channel by pressing

the red 16/9 key. Weather channels can also be accessed

immediately by pressing WX key.

1.1 INTRODUCTION

The supplied package: (U.S.T.C Certified, intrinsically safe)

ඖ HT840

ඖ CNB840E

ඖ CAT40IS

ඖ CBH940

ඖ Owners manual

1.2 PACKING LIST

The HT840 includes the following features: Scan, A/B quick access

channels, voice scrambler, battery life indicator, vox (voice

operated transmit), low battery indicator, large LCD with back light,

Marine transceiver

1800mAh rechargeable lithium-Ion battery pack

Flexible antenna

Spring loaded belt clip

The HT840 is supported by a wide range of essential accessories.

For an up to date list visit our web site at www.entel.co.uk

CSA640E

CSB640E

CST640E

CCA230

CCA12

CNB840E

CMP840

EA19/840

EA15/840

EA12/840

CHP1/840

EPT40/840

CHP800/HD

CHP800/HS

CHP800D

CXR5/840

CXR16/840

EHP840

CLC940

CAT40IS

CBH940

Single pod intelligent rapid charger, 110/230v operation

Six pod intelligent rapid charger, 110/230v operation

3 or 6 pod battery conditioner/analyser

230v drop in trickle charger. (Also available as 110v -CCA110)

12v drop in trickle charger

7.4V 1800mAh rechargeable lithium-Ion battery pack, with rear clip

Submersible, noise cancelling speaker microphone (heavy duty)

Earpiece microphone with PTT button

Covert style ear/microphone with transparent acoustic tube

D Shape earpiece microphone with in-line PTT

Single earpiece headset with in-line PTT(vox)

Bone conductive earpiece microphone

Heavy duty double ear defender for hardhat with PTT (vox)

Heavy duty single ear defender for hardhat and PTT (vox)

Heavy duty double ear defender with headband and PTT (vox)

Skull microphone (vox)

Throat microphone (vox)

Covert style earpiece

Heavy duty leather case with belt loop & carry strap

Flexible antenna

Spring loaded rear clip

1.3 OPTIONAL ACCESSORIES (U.S.T.C Certified)

Accessories suitable for vox operation have been marked (vox)

NOTE: DO NOT CHARGE OR REMOVE THE BATTERY PACK IN

THE HAZARDOUS AREA LOCATION.

NOTE: THE USE OF NON ENTEL APPROVED ACCESSORIES WILL

INVALIDATE YOUR U.S.T.C INTRINSICALLY SAFE APPROVAL

Locate accessory connector cover marked "ACC" Lift cover and

rotate (screw) the connector as shown in the diagram below.

1.3.1 ATTACHING AUDIO ACCESSORIES

ྙPOWER SWITCH/VOLUME CONTROL

Powers the transceiver on and off, and adjusts volume level.

ྚSQUELCH CONTROL

To set the squelch, rotate the control fully anti-clock wise,

then rotate the control clockwise until the white noise stops.

If you occasionally get breakthrough of unwanted noise,

rotate the control a little further clockwise.

ྛPUSH TO TALK SWITCH

Hold down to transmit, release to receive.

1.4 CONTROLS AND INDICATORS

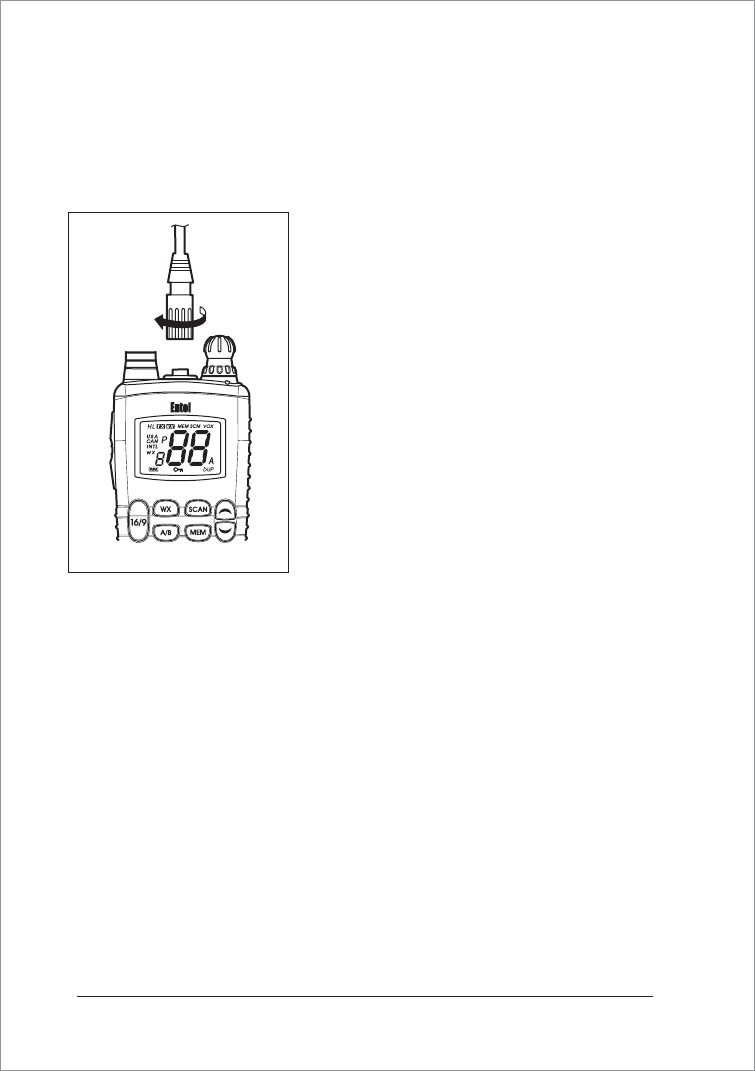

Figure 1. Attaching the accessory connector

Note: The accessory socket is waterproof

without the ACC cover in place. However, when

not using an audio accessory we strongly

advise keeping the ACC cover firmly pressed in

its recess to prevent foreign objects from getting

into the socket.

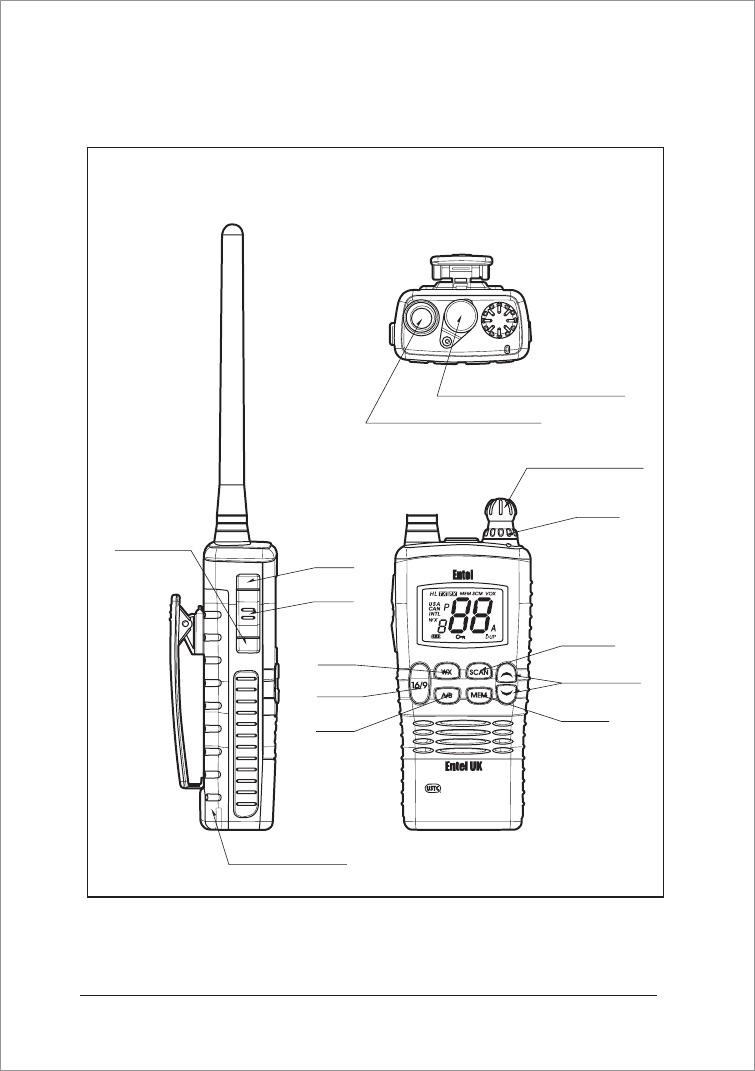

Figure 2. Controls and Connectors

ྙ POWER SWITCH

ྚ SQL

ྛ PTT

ྜ UP/DOWN

ྜྷ 16/9

ྞ WX

ྟ SCAN

ྠ MEM

ྡA/B

ྡྷ H/L

ྣ LAMP/KEY

LOCK

ྤANTENNA CONNECTOR

ྥ BATTERY PACK

ྦACCESSORY CONNECTOR

INTRINSICALLY SAFE

CLASSES I, II & III

GROUPS A TO G. DIV I & II T4

WARNING:

SUBSTITUTION OF COMPONENTS MAY

IMPAIR INTRINSIC SAFETY

USE DNLY WITH ENTEL BATTERY CNB840E

DO NOT CHARGE OR RECHARGE BATTERY

IN HAZARDOUS LOCATIONS

ྜUP/DOWN buttons

Select the desired channel by pressing the UP/DOWN buttons.

For fast channel selection hold down for more than 1 second.

ྜྷ16/9 button

A momentary press of this button recalls channel 16 from any

location. Holding this button for 1 second recalls channel 9.

ྞWX button

Immediately recalls the weather channels.

ྟSCAN button

Starts scanning programmed channels.

ྠMEM button

Memorises a desired channel for scanning.

ྡA/B button

Immediately recalls up to 2 user-defined channels.

ྡྷH/L button

Press this button for one second to toggle between high and

low power. (1 & 5 watts)

ྣLAMP/KEY LOCK

Momentarily pressing this button illuminates the LCD display.

Holding this button for over 1 second activates the key lock.

To deactivate press button again.

ྤANTENNA CONNECTOR

Connects the supplied flexible antenna or an optional external

aerial adaptor.

ྥBATTERY PACK

Rechargeable lithium-Ion battery pack provides DC power

source to the transceiver.

ྦACCESSORY CONNECTOR

To connect any HT840 approved audio accessory.

CHANNEL DISPLAY

The operating channel.

H/L

H indicates high power (5 watts) L indicates low power (1 watt)

USA/CAN/INTL

Indicates the channel set for; USA, Canadian, and International

waters.

A Indicator

A ship-to-ship channel in U.S.A or Canadian mode whose

counterpart in the International mode is a public correspondence

(marine operator) channel.

NOAA weather channel (U.S,A & Canadian waters only)

TX Indicator

Indicates transmission in progress

VOX

Voice operated mode enabled

SCAN

SCAN mode in progress

MEM

Indicated channel is memorised for scanning

1.5 INDICATORS

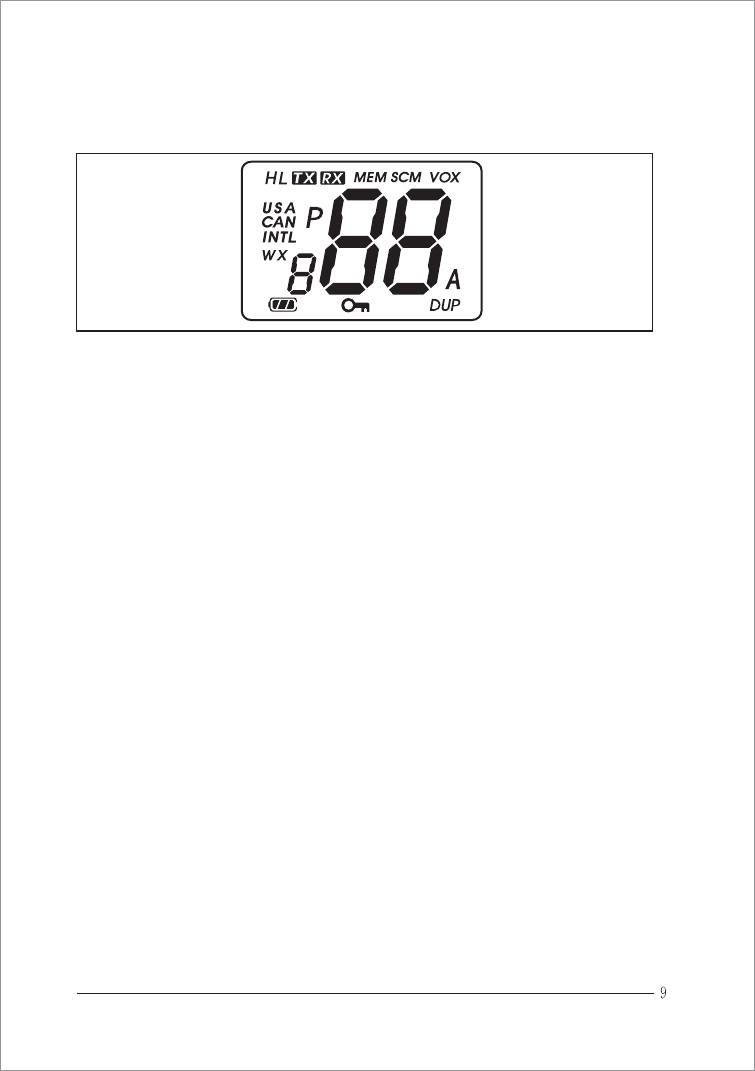

Figure 3. LCD indications

SCM

Scrambler mode enabled (versions A & B only)

LAMP /

The keypad is locked, with the exception of the [PTT], [H/L] and

[LAMP] buttons.

BATTERY LIFE INDICATOR

The lithium-Ion battery of your transceiver is continually monitored

for your convenience and safety.

1. Turn the transceiver on by rotating the volume control in a

clockwise direction. A power on tone is generated after 1

second to indicate the transceiver has passed its

self-diagnostic test. During standby the LED indicator will

pulse amber every 3 seconds, to further verify its circuitry is

functioning correctly. Select the desired audio level by further

rotating the control clockwise. After power on, the transceiver

will always default to the last channel selected.

2. Turn the squelch control fully counter clockwise, then rotate

clockwise until the white noise stops. This condition is known as

the "squelch threshold" If the control is turned clockwise past

this point, weak signals may not be received.

No noise or signal is heard until a signal is received that

exceeds the squelch threshold.

3. Select the desired channel using the [UP/DOWN] buttons.

A full listing of channels can be found on page 22.

Sometimes, a slight adjustment of the squelch threshold is needed

as some channels have a higher noise level than others.

4. When receiving a signal the LED indicator illuminates green.

A "RX" indication is also displayed on the LCD.

1.6 RECEPTION

1.7 TRANSMITTING

1. Perform steps 1 through 3 of RECEPTION.

2. Before transmitting, monitor the channel and make sure it is

clear.

3. For communications over short distances, press the [H/L] key

and select low power (1 watt) Transmitting on 1 watt prolongs

battery life, and should be selected whenever possible.

4. When receiving a signal, wait until the signal stops before

transmitting. The transceiver cannot transmit and receive

simultaneously.

5. Press the [PTT] (push-to-talk) switch to begin your transmission.

To confirm transmission in progress the LCD indicator illuminates

TX and the LED illuminates RED.

6. Holding the transceiver 1 inch from your mouth speak slowly

and clearly into the microphone.

7. When the transmission is finished, release the [PTT] switch.

1.8 INT, USA, & CANADIAN MODES

In compliance with worldwide license regulations

the following version of HT840 are available:

Version A : INT, USA, & Canadian modes

Version B, C and D : INT mode only

1. In the case of version A only ; to change the channel set of the

transceiver, hold down the [WX] key, The mode changes from

U.S.A to Canadian to International.

2. Refer to the marine channel charts in this booklet for allocated

channels in each mode.

1.9 NOAA WEATHER CHANNELS

(Applicable to version A model only)

1. To receive a weather channel, press the [WX] key.

The transceiver enters into weather channel mode.

2. There are 10 weather channels. Use the UP or DOWN buttons

to select the desired weather channel.

3. To exit from the weather channels, press the [WX] key.

The transceiver recalls the previous working channel.

2.0 SCAN

1. Select the desired channel to be scanned using

the & buttons.

2. Press the [MEM] button to store the channel into the transceivers

memory. [MEM] is displayed on the LCD.

This channel is now memorised to be scanned.

3. To scan further channels, repeat steps 1 & 2.

4. To delete a channel from the transceivers scan memory,

simply press [MEM] button again whilst the memorised channel

is displayed. [MEM] disappears.

5. All channels programmed remain in the transceivers scan

memory, even if the power is switched off.

6. Adjust the squelch control until the white noise is eliminated.

7. To start scanning, press the [SCAN] key. The scan proceeds from

the lowest to the highest programmed channel number and

stops on channels when a transmission is received.

8. To stop the scan at any time, press the [SCAN] key.

2.1 EMERGENCY CHANNELS

To select the emergency channel, press the [16/9] button from

any channel. Channel 16 appears on the display. To recall the

previous channel used, press the [16/9] button once again.

2.3 CHANNEL A/B INSTANT ACCESS

For your convenience, two user assigned channels can be

programmed for instant access. If the [A/B] key is pressed and no

channel A or B has been assigned, a short beep will be heard.

2.2 CHANNEL 9

Channel 9 is used as a hailing channel for initial, non-emergency

contact with other vessels. Hold down the [16/9] key for 1

second to select channel 9.

2.4 OPERATION OF A/B INSTANT ACCESS BUTTONS

Pressing the [A/B] button will toggle between A, B and the previous

selected working channel. Channel A is represented by the "A"

to the left of the channel number on the LCD, and channel B

is represented by "b". NOTE: Do not confuse this "A" with the one

that is sometimes displayed to the right hand side of the channel

number (in U.S.A and Canadian modes)

2.3.1 PROGRAMMING A/B INSTANT ACCESS BUTTONS

1. Hold down the [A/B] key and turn on the transceiver.

2. The letter A will appear on the display, and dashes "_ _"

indicate that no channel has been designated channel A.

3. Press the [UP/DOWN] key until the desired channel number is

displayed.

4. With the desired channel number displayed, press the [MEM]

key once. The "A" will stop flashing, indicating that the displayed

channel is now designated channel A.

5. Press the A/B button again. The letter "b" will appear on the

display. Repeat steps 2 through to 4.

6. Switch transceiver off and on to exit this mode and save

changes.

NOTE: Should you later wish to delete any stored channels simply

press "MEM" key whilst in A/B programming mode.

( HT840 versions A & B only )

Press the [SCAN] key and switch the transceiver on simultaneously.

"SCM" will be displayed on the LCD confirming that the voice

scrambler of your HT840 is now activated.

To exit scramble mode simply switch the radio off and on.

**Legislation for the use of a scrambler (encryption) varies from

country to country. We recommend that you check with your

dealer prior to using this feature.

In VOX mode the transceiver will react to your voice, and transmit

automatically without you having to press the PTT button.

There is always a slight delay for the electronic switching, and

consideration will need to be given. To get optimum performance

from the VOX feature you should use a noise cancelling headset

or earpiece microphone (see accessory options)

2.5 VOICE SCRAMBLER

Press the [MEM] button and switch the transceiver on.

VOX will be displayed on the LCD, along with "oFF" which indicates

VOX is switched off, 1 is for low sensitivity, 5 is for normal sensitivity,

and 9 is for high sensitivity. Use the [UP/DOWN] button to select the

desired level,press MEM to confirm, the transceiver is now set to VOX.

To switch VOX off, go back into VOX programming mode by holding

the "MEM" button whilst switching on. Press the UP/DOWN button

until the vox level is "OFF".

2.6 VOX(voice operated transmit)

NOTE: The scrambler cannot be enabled on channel 16 & 9.

If you have a license to use a specific simplex or semi-duplex

channel, contact your dealer who may be able to program your

channel using the transceivers private channel memory.

2.7 SIMPLEX/DUPLEX CHANNEL USE

Your transceiver has been factory programmed in accordance

with FCC (USA), industry Canada and International regulations.

The mode of operation cannot be altered from simplex to duplex

or vice versa. Simplex or duplex mode is automatically activated,

depending on the channel and the channel set and whether USA,

Canadian, or International mode is selected.

Refer to the channel charts listed later in this user manual.

2.8 OPTIONAL TRICKLE CHARGER -model CCA230

1. Connect the CWC640 AC adaptor to the charger pod.

The LED status light will illuminate green indicating ready for

charge.

2. Turn the transceiver off.

3. Insert the battery pack into the pod, either with or

without the transceiver attached. The LED status light changes

from green to RED and trickle charge begins.

4. A fully discharged battery pack will take approximately 6 hours

to charge, depending on the remaining power condition. When

charge is complete, the LED status light turns green.

NOTE: The CWC640 AC adaptor can be replaced by the CMC640

12v charger cable. Charge time remains at 6 hours.

2.8.1 OPTIONAL RAPID CHARGER-model CSA640E

1. Connect the CSA640E to a

mains supply(110 to 230V).

When switching on the LED

flashes orange briefly to

confirm self-diagnostic

test complete.

2. Turn the transceiver off.

3. Insert the battery pack into

the CSA640E charger, either with or without the transceiver

attached. The LED will illuminate red to indicate rapid charge

in progress.

4. Charge time for a fully discharged battery pack will take up to

120 minutes. On completion the LED turns green.

2.9 BATTERY REMOVAL/INSTALLATION

1. Turn the transceiver off.

2. Using a coin, rotate the battery screw anti-clockwise 2 or 3 turns.

**Ensure that you do not hold the battery pack when

unscrewing the release screw!

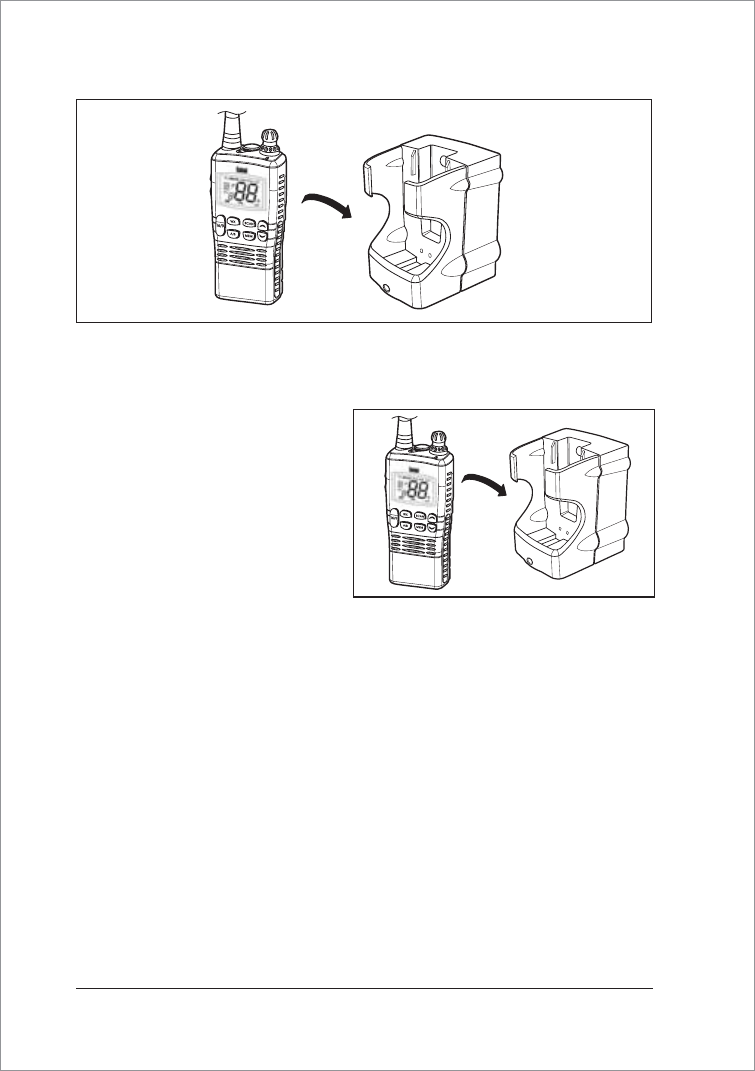

Figure 4. OPTIONAL CCA230 trickle charger

DC12V

Figure 4-1.

OPTIONAL CSA640E

rapid charger

110-230VAC

3.0 BATTERY INDICATOR

For your safety and convenience your

transceiver continually monitors the

battery pack and gives an indication

on the LCD:

3 Segments : 12hours

2 Segments : 1hour

1 Segment : 20mins

3.1 BATTERY SAFETY

The battery pack of your transceiver contains lithium-Ion cells.

This type of battery stores a charge powerful enough to be

dangerous if misused or abused, especially when removed from

the transceiver. Please observe the following precautions

detailed on page 19.

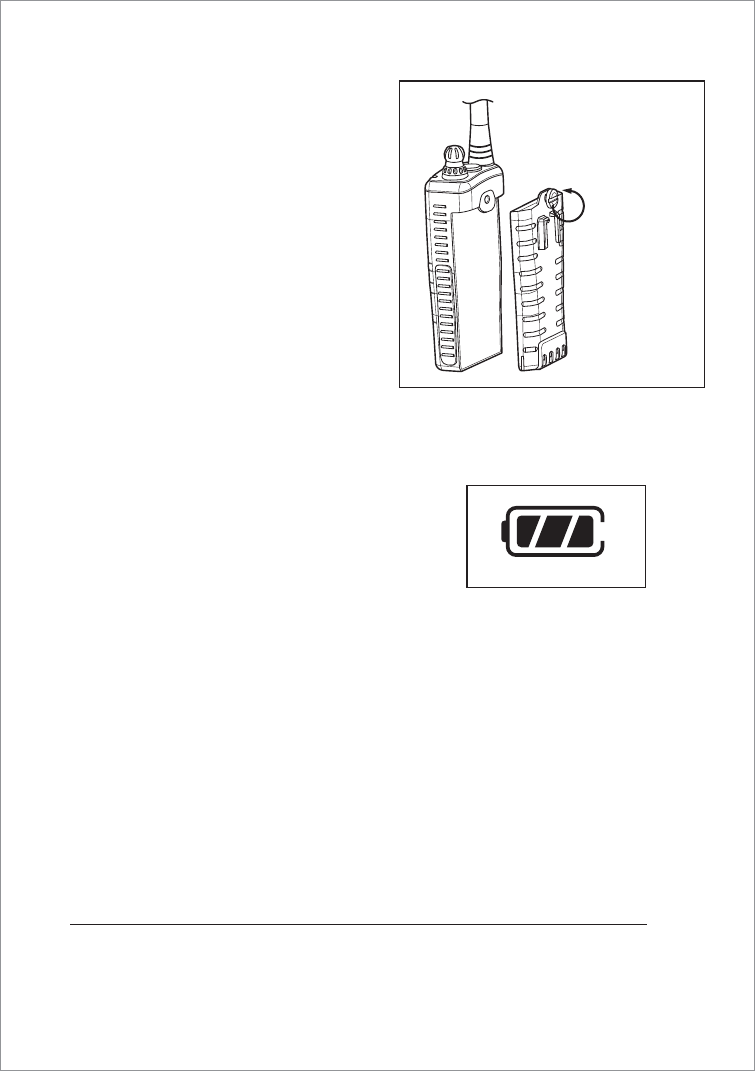

Figure 6. Battery Indicator

Figure 5. Battery removal / attachment

To remove rotate the screw

anti-clockwise

3.To attach battery, locate the

bottom section of the battery and

press the battery against the

transceiver, and rotate the battery

screw clockwise.

NOTE: The HT840 must only be

used with the CNB840E battery

pack manufactured by Entel UK.

Failure to comply will invalidate

your USTC Certification.

Lithium-Ion battery packs must be recycled or disposed of

properly. For requirements in your area, check with the dealer

from whom you purchased your transceiver.

DO NOT OVERCHARGE

When using the CWC640 do not charge the transceiver for more

than 8 hours. Heat generated by overcharging can shorten battery

life and cause other battery pack component failures

DO NOT INCINERATE

Do not dispose of your CNB840E battery in a fire or incinerator.

The heat of fire may cause battery cells to explode and/or

release dangerous gases.

DO NOT SHORT BATTERY PACK TERMINALS

Shorting the terminals that power the transceiver can cause sparks,

severe over heating, burns, and battery cell damage.

If the short is of sufficient duration, it is possible to melt the battery

components. Do not place a loose battery pack on or near a

metal surface or objects such as paper clips, keys, tools etc.

When the battery pack is installed on the transceiver, the terminals

that transfer current to the transceiver are not exposed.

The terminals that are exposed on the battery pack when it is

mounted on the transceiver are charging terminals only and do

not constitute a hazard.

DISPOSE OF BATTERY PACKS PROPERLY

TROUBLESHOOTING CHART

SYMPTOM

Transceiver not

switching on

Battery needs charging

Battery is exhausted

Charge the battery pack

Replace the battery pack

The scan key does not

start the scan

No channels

memorised (MEM)

Squelch is not adjusted

Use the MEM key to enter

desired channels into scan

memory

Adjust the squelch to

threshold or to the point

where the white noise just

disappears.

REMEDYPROBABLE CAUSE

3.2 TROUBLE SHOOTING

Cannot change any

function

Key lock is switched on Turn key lock off

LED on CCA230 & CWC640

does not illuminate when

charging

Defective battery,

CCA230, or CWC640

Dirty terminal contact

on CCA230

Contact your dealer

Clean contacts with dry

clean cloth

No transmit or Hi power

can be selected

Some channels are low

power only

Battery pack exhausted

Change to high power

channel

Recharge the battery pack

Transceiver transmits

without pressing PTT button

Buttons seem to work

intermittently

VOX has been enabled Hold MEM button for 2 secs,

use UP or DOWN button

and select 0 to turn

VOX off.

3.3 GLOSSARY OF TERMS

Canadian ChannelsGChannels designated as defined and

regulated by Industry Canada, (RIC), Marine Communications

& Traffic Services.

DuplexGTransmit and receive on different frequencies

EncryptionGscrambled audio, for extra privacy

FMGFrequency modulation

International channelsGChannel designations as defined for use

in International waters by the International Telecommunications

Union (ITU)

Marina channelsGSpecial channels reserved for marinas located

in selected European countries. These channels are

pre-programmed in the transceiver as P1 & P2.

Private channelsGChannels, which are assigned by regulatory

agencies governing VHF radio use for a specific region or country.

These channels are prefixed with a "P" and can only be programmed

into the transceiver by authorised dealers.

PTTGPress to talk (transmit)G

RXGReceive

SimplexGTransmit and receive on the same frequency

SquelchGTo suppress background noise

TXGTransmit

TransceiverGA device that can transmit and receive

U.S.A channelsGChannel designations as defined by the Federal

Communications Commission, (FCC)

VOXGVoice Operated Transmit

VHFGVery High Frequency (30MHz to 300 MHz)

**Based on duty cycle of 5%TX, 5%RX, 90%STANDBY

3.4 CHANNEL CHART(INT, USA, CANADIAN AND PRIVATE)

VHF MARINE CHANNEL CHART

CHANNEL USETX RXU C I S/DCH

01A X S 156.050

Port Operation and Commercial. VTS in selected areas

01 X X

D 156.050 160.650

Public Correspondence (Marine Operator)

02 D 156.100 160.700

03A X S 156.150

US Government only, Coast Guard

U.S. Government only, Canadian Coast Guard

U.S. Government only

03 D 156.150 160.750

04A X S 156.200

Pacific coast: Coast Guard, East Coast: Commercial fishing

04 X D 156.200 160.800

Public Correspondence (Marine Operator), Port operation,

ship movement

Public Correspondence (Marine Operator), Port operation,

ship movement

Public Correspondence (Marine Operator), Port operation,

ship movement

Boater Calling channel, Commercial & Non-commercial

(Recreational)

Canadian Coast Guard Only, Interational: Port operation and

shipment

US and Canadian Coast Guard Liaison and Maritime Safety

Information Broadcasts announced on channel 16

05A X X S 156.250

05 X D 156.250 160.850

06 X X X

XXX

S 156.300

Inter-ship Safety

Inter-ship Navigation Safety (Bridge-to-bridge)

Port operation. VTS in Seattle

Port operation, ship movement

Coast Guard

Port operation. VTS in selected areas.

07A X X S 156.350

Commercial

Commercial, non-commercial, ship movement (1W)

Commercial. VTS in selected areas.

Commercial (Inter-ship only)

07 X D 156.350 160.950

08 S 156.400

09 S 156.450

10 S 156.500

11 S 156.550

12 S 156.600

13 S 156.650

14 S 156.700

15 X X S 156.750

16 S 156.800

International Distress, Safety and Calling

17 S 156.850

State Controlled (1W)

18A X X S 156.900

18 X D 156.900 161.500

19A X S 156.950

US: Commercial

19A X S 156.950

19 X D 156.950 161.550

20A X S 157.000

Port Operation

20 X X D 157.000 161.600

21A X X S 157.050

21 X D 157.050 161.650

22A X X S 157.100

22 X D 157.100 161.700

23A X S 157.150

23 X X

D 157.150 161.750

24 X D 157.200 161.800

25 X D 157.250 161.850

26 X D 157.300 161.900

27 X D 157.350 161.950

28 X D 157.400 162.000

VHF MARINE CHANNEL CHART

CHANNEL USETX RXU C I S/DCH

60 X X D

60A XX

S 160.075

156.025 160.625

Public Correspondence (Marine Operator)

61 D 156.075 160.675

62A X S 156.125

U.S. Government only-Environmental protection operations.

U.S. Government only, Canadian Coast Guard Only

62 D 156.125 160.725

63A X S 156.175

63 X D 156.175 160.775

Public Correspondence (Marine Operator), Port operation,

ship movement

Public Correspondence (Marine Operator), Port operation,

ship movement

Public Correspondence (Marine Operator), Port operation,

ship movement

Public Correspondence (Marine Operator), Port operation,

ship movement

Public Correspondence (Marine Operator), Port operation,

ship movement

Public Correspondence (Marine Operator), Port operation,

ship movement

U.S. Government only, Canadian Coast Guard-Pacific

Coast, Commercial Fishing-East Coast

Public Correspondence (Marine Operator), Port operation,

ship movement

Public Correspondence (Marine Operator), Port operation,

ship movement

US: Commercial. Used for Bridge-to-bridge communications in lower

Mississippi River. Inter-ship only, Canada: Commercial fishing, S&R

US: Non-commercial (Recreational), Canada: Commercial

fishing only. International: Port operations and Ship movement

US: Port Operations, Canada: Commercial fishing only

fishing only. International: Port operations and Ship movement

US: Port Operations, Canada: Commercial fishing only

fishing only. International: Port operations and Ship movement

US, Canada: Non-commercial (Recreational),

International: Port operations and Ship movement

64A X X S 156.225

64 X D 156.225 160.825

65A X X

XXX

S 156.275

Digital selective calling (voice communications not allowed)

Port operation and Ship movement

Port operation, ship movement

65 X D

Non-commercial (Recreational)

Non-commercial (Inter-ship only)

Non-commercial (Recreational)

66A S 156.325

66 D

67 S 156.375

68 S 156.425

69 S 156.475

70 S 156.525

71 S 156.575

72 S 156.625

73 S 156.675

74 S 156.725

77 S 156.875

78A X X S 156.925

78 X D 156.925 161.525

79A X X

S 156.975

Commercial

79 X D

80A S 157.025

80 X D

81A X X

S 157.075

81 X D 157.075 161.675

82A S 157.125

82 X D

83A X X

157.175

157.225

83 D 157.175 161.775

84A X

84 X D 157.225 161.825

156.275 160.875

156.325 160.925

157.125 161.725

156.975 161.575

157.025 161.625

Pacific coast: Coast Guard; East Coast: Commercial fishing only

Port Operation and Commercial. VTS in selected areas.

U.S. Government only, Canadian Commercial Fishing

Port Operations

Port Operations (Inter-ship only)

VHF MARINE CHANNEL CHART

CHANNEL USETX RXU C I S/DCH

XXX

85A

85 D

86A S

157.275

157.325

157.375

86 D

87A

87 D

157.275 161.875

157.325 161.925

157.375 161.975

Public correspondence (Marine Operator)

XXX

Weather (receive only)

88A S 157.425

88 D

WX01 D

WX02 D --- 162.400

--- 162.550

--- 162.475

--- 162.425

--- 162.450

--- 162.500

--- 162.525

--- 161.650

--- 161.775

--- 163.275

WX03 D

WX04 D

WX05 D

WX06 D

WX07 D

157.425 162.025

WX08 D

WX09 D

WX10 D

Public correspondence (ship-to-coast)

Commercial, Inter-ship Only

NOTES

Use this page to record important information, such as the

serial number of your HT840, and any private channels

programmed by your dealer.

5W / 1W (High / Low)

·5.0khz

65dB

-70 dB

TX/RX 156.000 - 163.275MHz

16K0F3E

58 ( EXP. 36 )

7.4V DC

Transmit 1.5A (High). 0.75A(Low)

Receive 200mA,

Standby 40mA

15 hours (High)

19 hours (Low)

+/-0.0005%

-20¶C to +50¶C

59(W)mm Ý 130(H)mm Ý 33(D)mm

296g (10.43 oz )

EN 300 178-2 V1.1.1 (2000-08)

EN 60950 August 1992, A11 1997

EN 60945 1997

ETS 300 698 Annex December 1996

3.5 SPECIFICATION(General, receive and transmit)

Performance specifications are nominal, unless otherwise

indicated, and are subject to change without notice.

GENERAL

TRANSMITTER

RF output power (at 7.4V DC)

Maximum frequency deviation

Spurious emissions

Adjacent channel power

Frequency Range

Type of emission

Number of channels

DC Power supply

Current drain

Duty cycle based on (5%-5%-90%)

Frequency stability

Temperature range

Dimensions

Weight

RF type approval

LVD

EMC

ATIS

Receive system

Intermediate frequency

Sensitivity (12dB SINAD)

Adjacent channel selectivity

Spurious response rejection

Intermodulation rejection ratio

Hum and noise

Audio output (at 7.4V DC)

Double conversion superheterodyne

1st 21.7MHz

2nd 450khz

-119dBm

-74dB

-70dB

-68dB

-48dB

500mW(<5% distortion)

distortion with an 8ȳ load

RECEIVER

3.5.1 PRIVATE CHANNELS

The HT840 has the capacity for a further 36 private channels.

These channels are dealer programmable only.

USTC Certified

Intrinsically Safe

Classes I, ll & lll

GROUPS A TO G. DIV I & II T4

ඖThe HT840 must always be used within the terms of its certification

ඖ Keep HT840 away from aggresive substances. If used in a hostile

environment, extra protection may be needed.

ඖTo prevent ignition of hazardous atmospheres, batteries must only

be charged or changed in an area known to be non hazardous.

ඖ No unauthorised repairs are permitted. Details of authorised service

centres are available from Entel UK.

Certification

.......................

...............................................

..................................................

................................................

.....................................................................

..........................

FOR USA VERSION:-

SAFETY TRAINING INFORMATION

WARNING.

Your Entel radio generates RF electromagnetic energy during transmit mode. This radio is

designed for and classified as "Occupational Use Only", meaning it must be used only

during the course of employment by individuals aware of the hazards, and the ways to

minimize such hazards. This radio is NOT intended for use by the "General Population" in

an uncontrolled environment.

Use only Entel approved accessories. Use of accessories other than those specified may

result in RF exposure levels exceeding the FCC requirements for wireless RF exposure.

CAUTION.

To ensure that your exposure to RF electromagnetic energy is within the FCC allowable

limits for occupational use, always adhere to the following guidelines:-

ඖ

DO NOT operate the radio without a proper antenna attached, as this may damaged the

radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the

antenna supplied with this radio by the manufacturer or antenna specifically authorized by

the manufacturer for use with this radio.

ඖ

DO NOT transmit for more than 50% of total radio use time ("50% duty cycle").

Transmitting more than 50% of the time can cause FCC RF exposure compliance

requirements to be exceeded. The radio is transmitting when the "TX indicator" lights red.

You can cause the radio to transmit by pressing the "PTT" switch.

ඖ

ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when

transmitting and only use approved accessories to ensure FCC RF exposure compliance

requirements are not exceeded. To provide the recipients of your transmission the best

sound quality, hold the transceiver at least 5 cm (2 inches) from your mouth, and slightly

off to one side. The information listed above provides the user with the information needed

to make him or her aware of RF exposure, and what to do to ensure that this radio

operates within the FCC RF exposure limits.

Electromagnetic Interference/Compatibility

During transmissions, your Entel radio generates RF energy that can possibly cause

interference with other devices or systems. To avoid such interference, turn off the radio in

areas where signs are posted to do so. DO NOT operate the transmitter in areas that are

sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.

Occupational/Controlled Use

The radio transmitter is used in situations in which persons are exposed as a consequence

of their employment. These persons should be made fully aware of the potential for

exposure so they can exercise control over their exposure.

Changes or modifications to this device, not expressly Approved by Entel UK could

invalidate your authority to Operate this device under FCC regulations.

Copy Right Entel UK Ltd, London

Registered Community Design Application 000044375

U.S Design Patent Pending No. 29/183,829

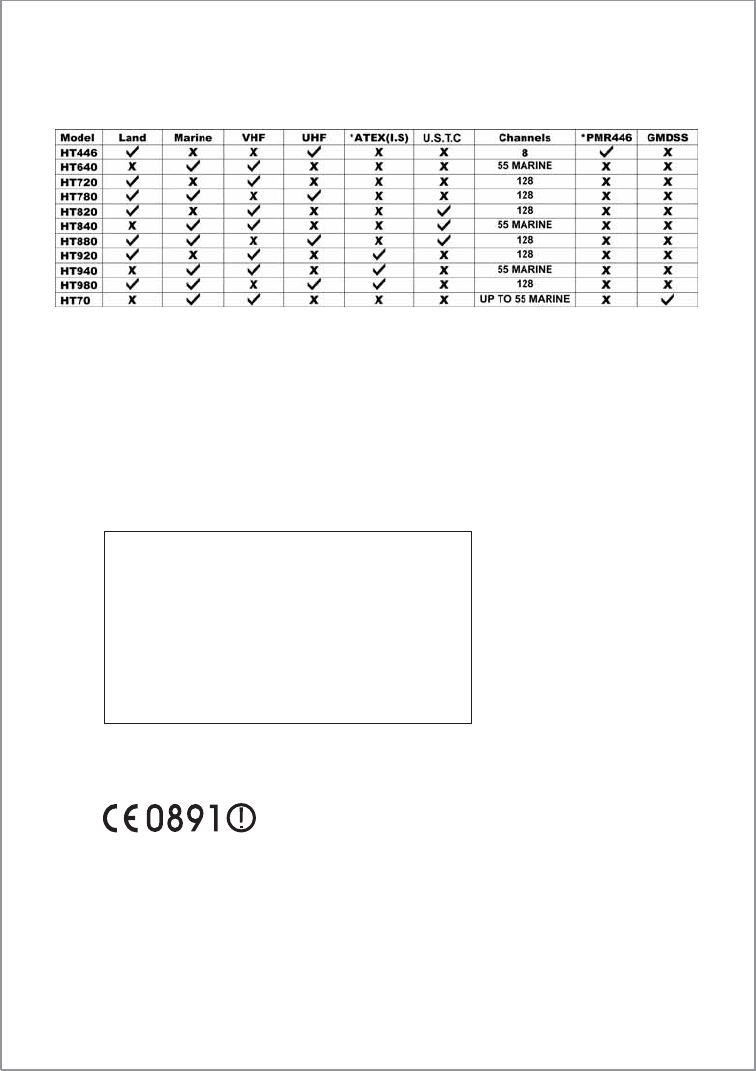

Complete HT Series application guide for land and marine models:-

I.S = intrinsically safe for hazardous applications

*only for use in Europe

̱GER

̱AUT

̱GBR

̱IRL

̱FRA

̱NED

̱BEL

̱LUX

̱ESP

̱POR

̱ITA ̱NOR

̱GRE ̱SUI

̱SWE

̱DEN

̱FIN

Entel UK HT840 Hand held marine radio User Manual 01p1

Entel UK Limited Hand held marine radio 01p1

User manual

Navigation menu

Namespaces

Views

Navigation
