RC45P User Guide
![](/img.php?id=1314001&img=bg1.png)
Page 1 v3
Entone RAP (Remote Antenna Package) Installation Guide
The Entone RAP (Remote Antenna Package) contains a radio frequency URC (Universal Remote
Control) and a TRAM (TV Remote Antenna Module). By installing the Entone RAP, you can
control the Entone STB in a remote room and enjoy TV service from Entone STB anywhere in
your home.
The Entone RAP contains the following components:
Entone RF URC Entone radio frequency URC (Universal Remote
Control)
2 x AA size batteries for the URC
TRAM TV Remote Antenna Module
1. TRAM Installation (in remote room)
Please follow the following diagram to install the TRAM. The TRAM is used to enhance the URC
radio frequency transmission using the TV coax cable network in your home.
Plug the TRAM into the TV
coax network wall outlet.
Connect the TV coax cable
to the TRAM and the TV.
2. Connecting STB to the TV coax network
Connect the Entone STB to the TV coax network wall outlet according to whether you are using an
Entone Janus F1 or Amulet F1 STB.
2.1 Janus F1 Connection
Connect the Janus
F1 “MATV” output
to the TV coax
network as shown.
2.2 Amulet F1 Connection
Connect the Amulet
F1 “ANTENNA
OUTPUT” and
“COAX” output to
the TV coax network
as shown using a 3-
way splitter (which is
not provided).
![](/img.php?id=1314001&img=bg2.png)
Page 2 v3
3. Remote Registration
You may need to register the Entone URC to the STB before you can use the URC. The URC
registration procedures may vary for different middleware and TV service running in the Entone
STB. Please refer to the TV service user guide for detailed URC registration procedures.
Below lists the general URC registration procedures (NOTE: Refer to your TV service user guide
for exact URC registration procedures):

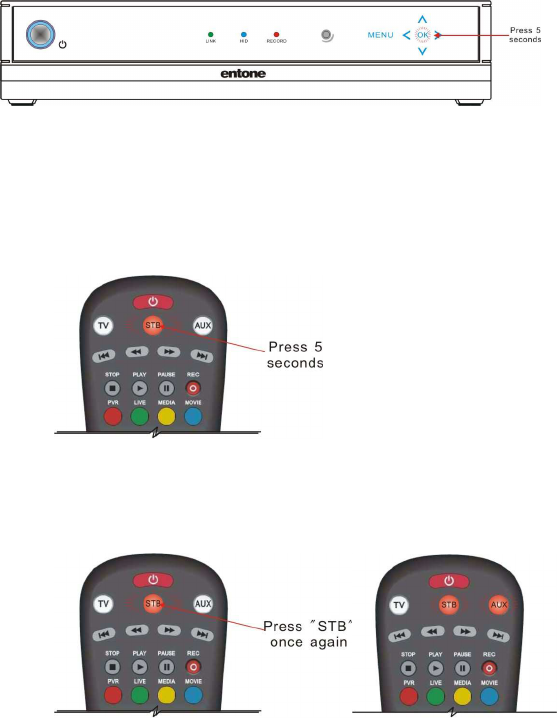

3.1 Start the URC registration in the Entone STB by the following procedure:
Press and hold the “OK” button on the STB front panel for 5 seconds until the
touch panel backlight is flashing. The STB is now in URC registration mode.
NOTE: If registration is not completed in 30 seconds, the touch panel backlight
will stop flashing.
3.2 Start the URC registration mode in the URC by the following procedure:
Press “STB” button once on the URC.
Press and hold the “STB” button on the URC for 5 seconds until the “STB” button
backlight is on.
Press “STB” button once again. Both the “STB” and “AUX” button backlight will
illuminate.
Press “1” or “2” to register the URC to stream 1 or stream 2 (depending on the
middleware). Upon successful registration, the STB POWER indicator will flash
once and the touch panel backlight will stop flashing.
Note:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment
