Amulet 6

mediA RecoRdeR

Quick Start Guide

QUICK START GUIDEAMULET MEDIA RECORDER

protected by copyright. No part of this publication may be reproduced, stored in a retrieval system, or

transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise,

without the prior written consent of Amino Communications Ltd, Buckingway Business Park, Anderson

Road, Swavesey, Cambridge, CB24 4UQ, United Kingdom.

DISCLAIMER

IF THIS PRODUCT DIRECTS YOU TO COPY MATERIALS, YOU MUST HAVE PERMISSION FROM THE COPY-

RIGHT OWNER OF THE MATERIALS TO AVOID VIOLATING THE LAW WHICH COULD RESULT IN DAMAGES

OR OTHER REMEDIES.

TRADEMARKS

Amino and connecting the home are trademarks of Amino Communications Ltd. All other trademarks or

registered trademarks belong to their respective owners.

This item incorporates copy protection technology that is protected by U.S. patents and other intellec-

tual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

CHANGES

The material in this document is for information only and is subject to change without notice. While

reasonable eorts have been made in the preparation of this document to assure its accuracy, Amino

Communications Ltd. assumes no liability resulting from the use of the information contained herein.

Amino Communications Ltd. reserves the right to make changes in the product design without reserva-

tion and without notication to its users.

P/N: 99-xxxxxx-xx - V0.1

Table of Contents

OVERVIEW

2 Safety Instructions

4 What’s Included

6 Front Panel

7 Rear Panel

CONNECTING VIDEO

8 High-Denition TVs

9 Standard-Denition TVs

CONNECTING AUDIO

10 Stereo

11 Surround Sound

CONNECTING NETWORK

12 Ethernet or MoCA

POWERING UP

13 Setting up Remote Control

13 Using IR Extender Receiver

14 Connecting to Power Source

15 Declaration of Conformity

QUICK START GUIDE

AMULET MEDIA RECORDER

Important Safety Instructions

• WARNING: To reduce the risk of re or electric shock, do not expose this ap-

paratus to rain or moisture.

• The apparatus shall not be exposed to dripping or splashing and that no ob-

jects lled with liquids, such as vases, shall be placed on the apparatus.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manu-

facturer’s instructions.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade or the

third prongs are provided for your safety. If the provided plug does not t into

your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specied by the manufacturer.

• Unplug this apparatus during lightning storms or when unused for long peri-

ods of time.

• Refer all servicing to qualied service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects have fallen into the ap-

paratus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

• To reduce the risk of electric shock, DO NOT remove cover or back panel. No

user serviceable parts inside. Refer servicing to qualied personnel.

Important Safety Instructions (Continued)

• To help prevent electric shock, plug the power cable into properly grounded

sources. Use only properly grounded extension cords and adaptors, if they are

needed.

• The AC main plug is used as the disconnect device, the disconnect device shall

remain readily operable.

• Make sure nothing is lying on any of the cables.

• Be sure the cables are located where they will not be stepped on or tripped

over.

• Do not spill food or liquids onto the unit.

• Do not push any objects into the free slots. Doing so will damage the unit, can

cause re or electrical shock, and can short out interior components.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including ampliers) that produce heat.

• Do not block cooling vents.

• Do not place the equipment in a closed-in wall unit.

• When you disconnect a cable, pull on its connector or on its strain relief loop,

not on the cable itself. Some cables have a connector with locking tabs; if

you are disconnecting this type of cable, press in on the locking tabs before

disconnecting the cables.

• When you connect a cable, make sure both connectors are correctly oriented

and aligned before connecting to avoid bending connector pins.

• For PLUGGABLE EQUIPMENT, the socket-outlet should be installed near the

equipment for easy access.

• Changes or modications not expressly approved by the party responsible

could void the user’s authority to operate this device.

Operating Information

Operating Temperature: 0 °C (32 °F) to 35 °C (95 °F)

QUICK START GUIDE

AMULET MEDIA RECORDER

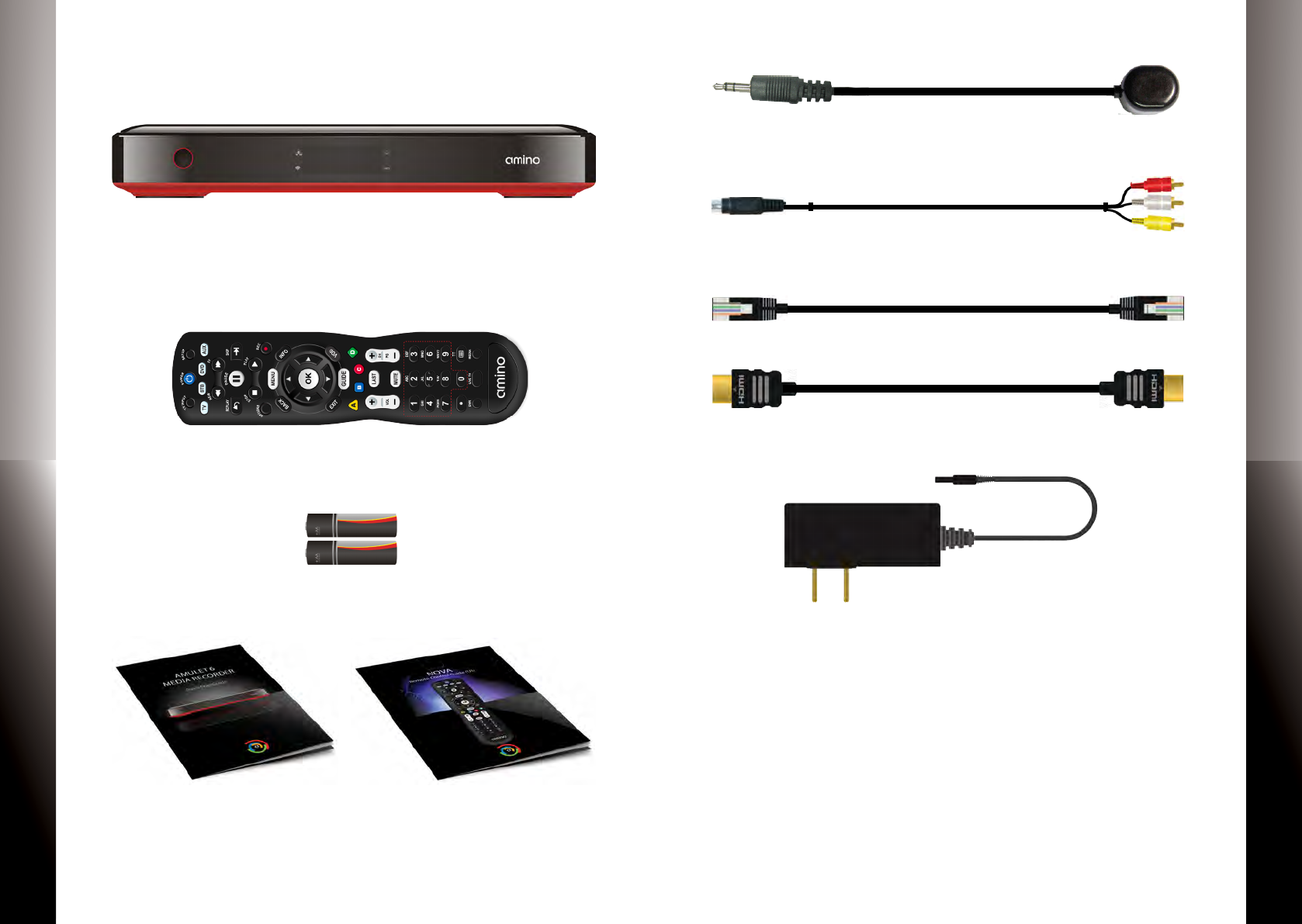

What’s Included

2 Batteries for

Remote Control

Amulet Quick Start Guide Remote Control Guide*

Amulet Media Recorder

Ethernet Cable (Optional)

HDMI Cable (Optional)

Additional items that may be required (not included):

• Ethernet Cable

• HDMI Cable

• Digital Audio Cable

• Network Router

AC Power Adapter

DIN-to-RCA Cable

*The Remote Control may vary and is dependent on your service provider.

IR Extender Receiver (Optional)

IR Remote Control*

QUICK START GUIDE

AMULET MEDIA RECORDER

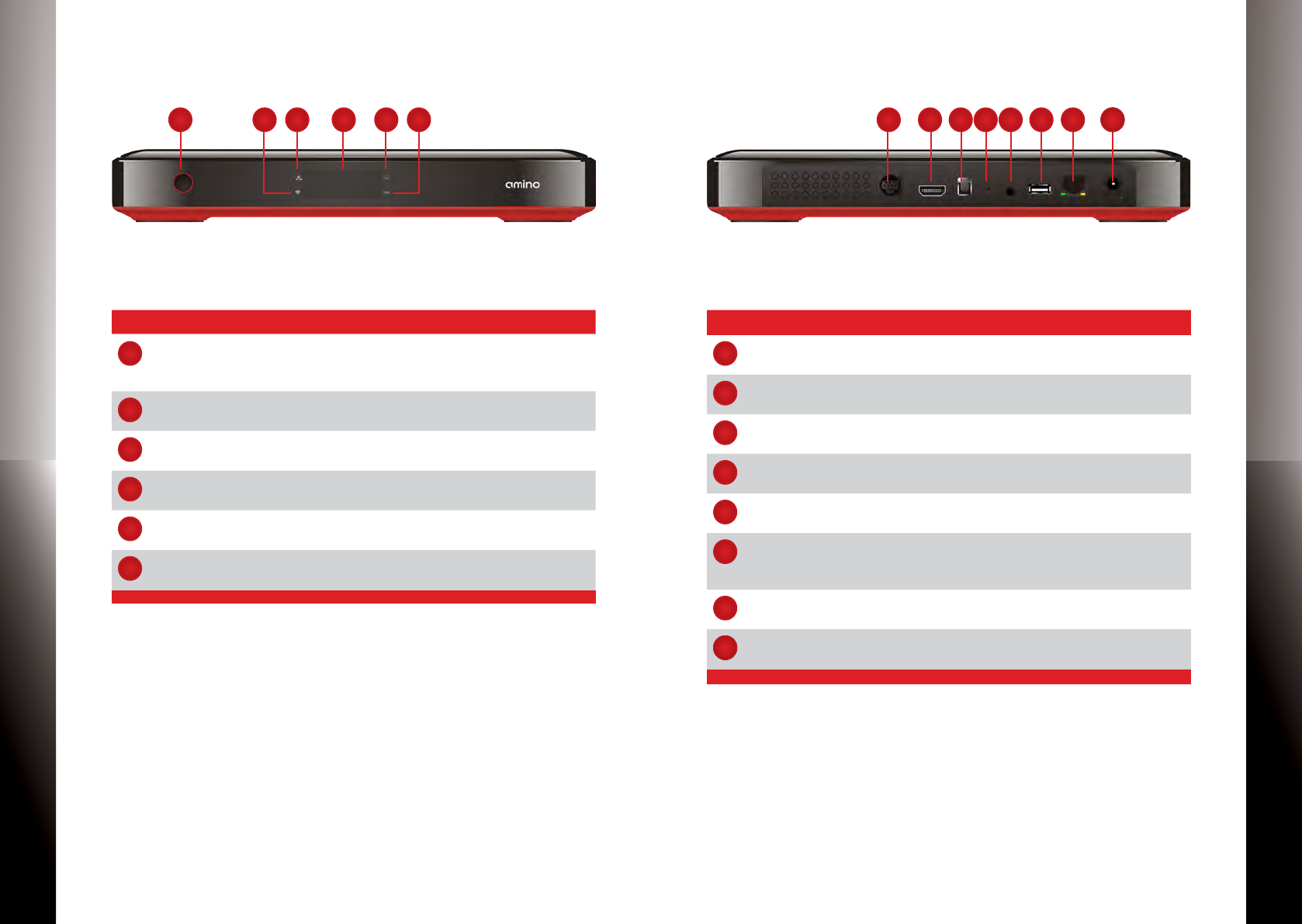

Amulet — Front Panel

Name Description

Power LED Solid blue indicates the unit is on

Solid red indicates the unit is in standby mode

Flashing blue indicates the unit is starting up

Wi-Fi Indicator Blue dot indicates Wi-Fi network is connected

Network LED Solid green indicates network is connected

Clock Displays current time set by your service provider. May

not display time while device is booting up.

Record Indicator Blue dot indicates a TV program is currently recording

HD Indicator Blue dot indicates current program is playing in HD

(720p or higher) resolution

Amulet — Rear Panel

Name Description

A/V OUT 9-Pin DIN conector for connecting to video output us-

ing DIN-to-RCA cable

HDMI Digital video and audio port for connecting to a high-

denition TV (HDTV)

Digital Audio S/PDIF digital optical audio TOSLINK output

Reset Reset the device factory settings with a thin metal

probe

IR Extender Jack To connect IR Extender Receiver

USB To connect USB 3.0 devices such as USB Flash Drive

and External Hard Drive

(max 900mA load)

Ethernet Plug for wired network connection

8Power DC power jack (100-240V, Output 12V/2A)

Availability of certain features is dependent on your service provider. Availability of certain features is dependent on your service provider.

125

QUICK START GUIDE

AMULET MEDIA RECORDER

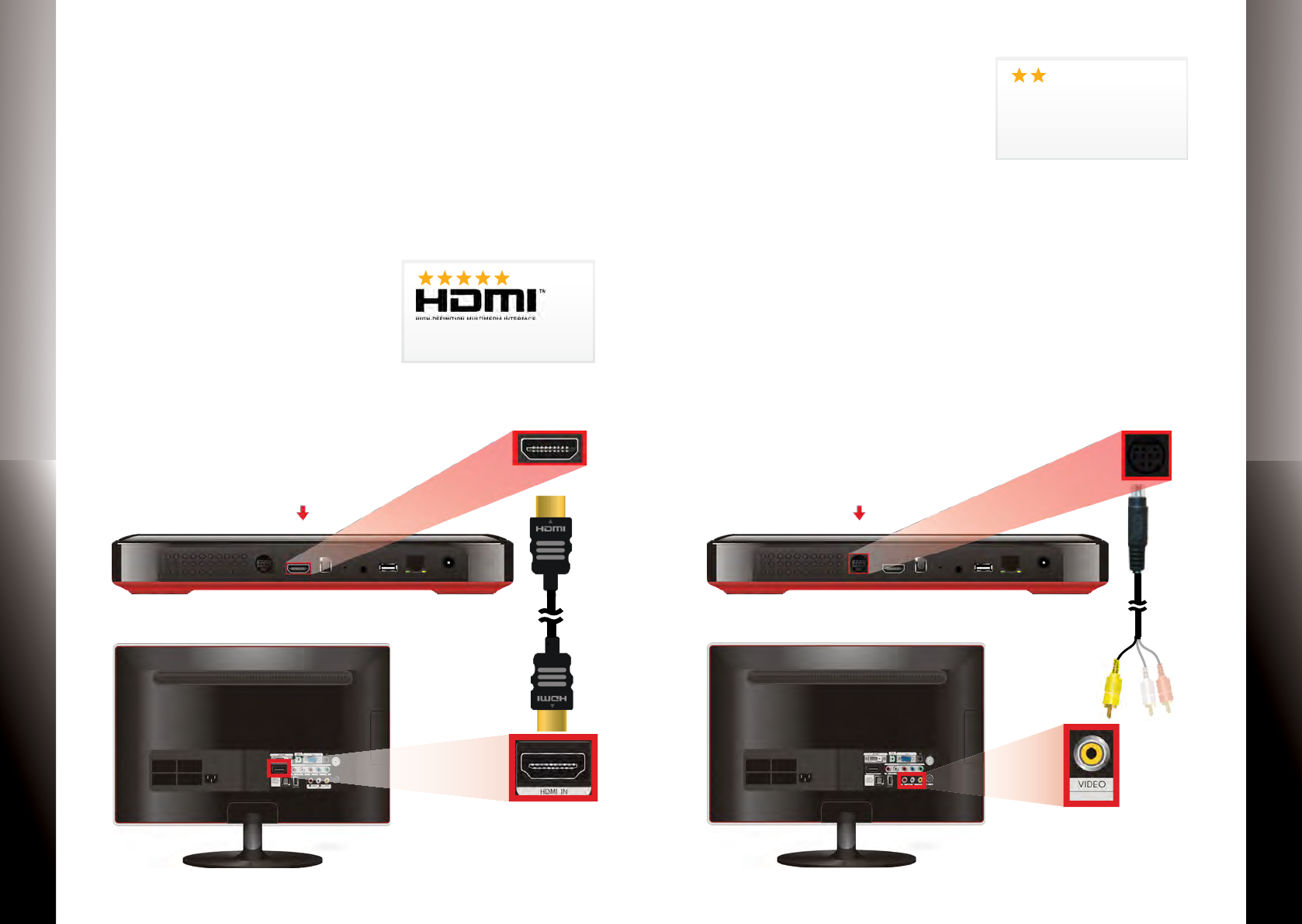

STEP 1: CONNECTING VIDEO

Amulet provides two video options for connecting to your TV:

HDMI and Composite Video.

Select a video option then proceed to Step 2.

Make sure your TV is turned on and the correct video input is

selected.

Option 1: HDMI (Recommended)

If your TV has an HDMI connection,

use an HDMI cable (may not be

included) and connect Amulet to the

HDMI IN port on your TV. This connection provides both video

and audio so you do not need a separate audio connection.

Proceed to “Connecting Network” on page 12”.

Delivers the best video & audio

quality via a single cable

S-VIDEO

Cable is optional and

may not be included

Option 2: Composite Video

Use the DIN-to-RCA cable provided

and connect the yellow cable to the

yellow VIDEO IN port on your TV.

Then proceed to the next step (“Connecting Audio”) to con-

nect the red/white cables.

If you have already selected HDMI or Component Video as

your video connection, then do not use this cable.

Composite Video

Delivers good picture quality

Cable included

S-VIDEO

QUICK START GUIDE

AMULET MEDIA RECORDER

1110

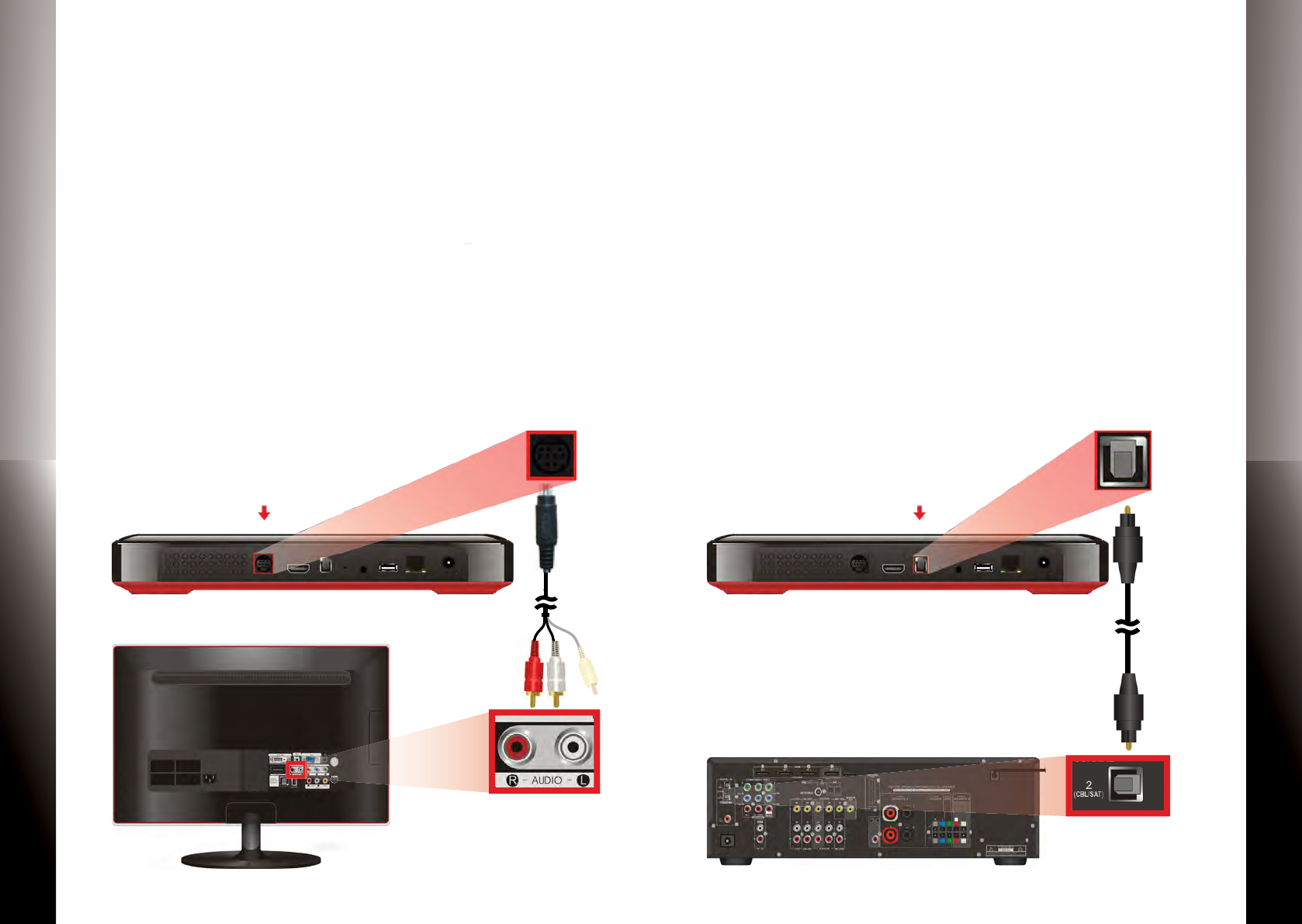

STEP 2: CONNECTING AUDIO

Amulet has two audio options: Stereo or Surround Sound.

Select an audio option and proceed accordingly.

NOTE: If you have already selected HDMI as your video con-

nection, then skip this audio section and proceed to “Connect-

ing Network” on page 12.

Option 1: Stereo

Use the DIN-toRCAx6 cable provided and connect the 3.5mm

jack to the Amulet A/V Out port and the red and white cables

to the AUDIO IN port on your TV.

S-VIDEO

Cable included Cable not included

Option 2: Surround Sound

If your TV is connected to an A/V Receiver that supports Dolby

Digital 5.1 Surround Sound, use a digital audio cable (sold

separately) to connect Amulet to the OPTICAL AUDIO IN port

on your A/V Receiver.

QUICK START GUIDE

AMULET MEDIA RECORDER

1312

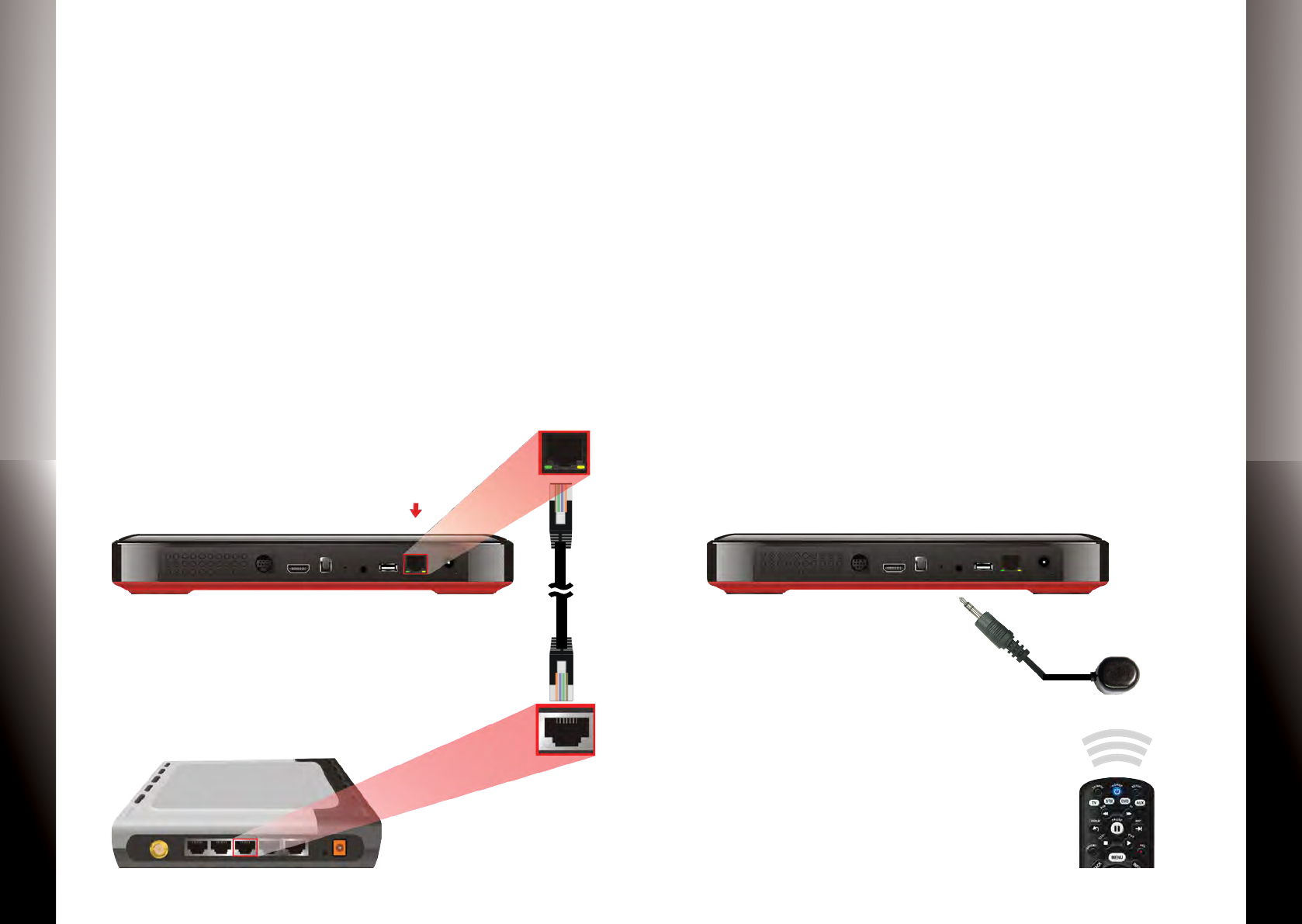

STEP 3: CONNECTING NETWORK

Select from one of the following networking options.

Option #1

Connect to a Wireless Network via a Wireless Network Router

or Access Point

Note: Internal Wi-Fi is an optional feature for Amulet. Please

contact your service provider for the availability and detailed

instructions on the wireless network conguration.

Option #2

Connect an Ethernet cable (sold separately) from Amulet to a

cable/DSL modem or Network Router.

Router not included

Cable is optional and

may not be included

STEP 4: POWERING UP

Setting Up Remote Control

1. Open the battery cover by pressing down on the battery

cover latch and sliding it o.

2. Insert the batteries, matching the “+” and “-” marks on the

batteries with the interior of the remote control.

3. Snap on the battery cover to close.

NOTE: Refer to the Remote Control Guide for more details

about other remote control features.

Using IR Extender Receiver

The remote control uses InfraRed (IR) light signals to control

the Amulet. IR signals cannot go through walls or other solid

objects. If the line of sight of your Amulet is blocked, then you

can use the IR Extender Receiver provided to extend the reach

of IR signals from the remote control.

QUICK START GUIDE

AMULET MEDIA RECORDER

1514

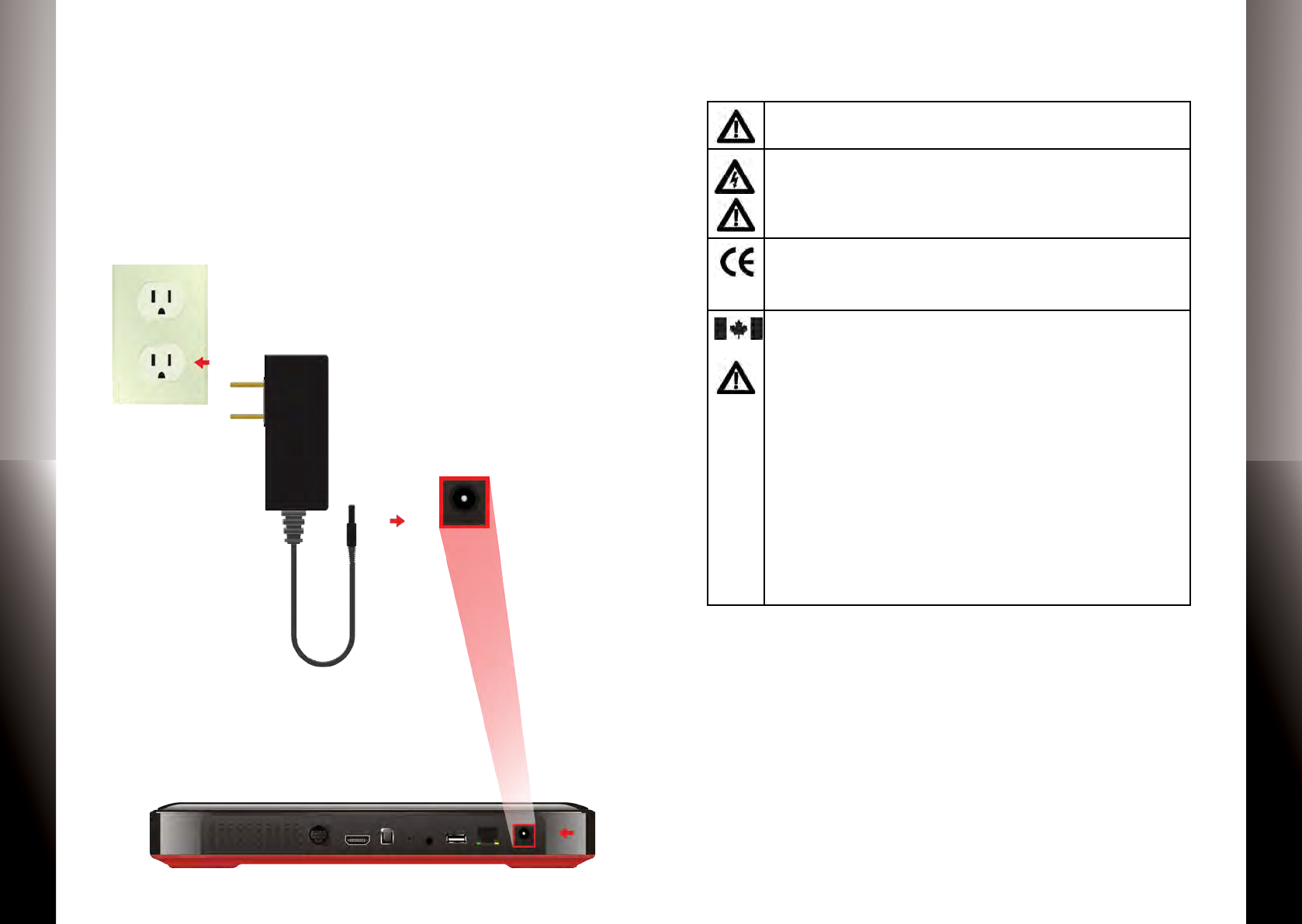

Connecting to Power Source

1. Connect the power cord to the POWER port on the back of

the Amulet.

2. Plug the AC power adapter to a power outlet.

3. Follow the on-screen instructions.

NOTE: Make sure your TV is turned on and the correct video

input is selected.

Declaration of Conformity

To ensure proper use of this product, please read this manual carefully and retain it for fu-

ture reference. Should the unit require maintenance, contact an authorized service location.

WARNING: This symbol indicates the presence of uninsulated dangerous voltage within the

product’s enclosure that constitutes a risk of electric shock. Do not open the product’s case.

CAUTION: This symbol indicates you must take care; there is risk of damage to the equip-

ment or to yourself.

Declaration of Conformity (Europe Only)

This product is in conformity with the Council Directives:

•EMCDirective2004/108/EC

•LowvoltageDirective2006/95/EC

Industry Canada statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils

radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes:

(1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit

accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonc-

tionnement indésirable.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

Déclaration d’exposition aux radiations:

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour

un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un mini-

mum de 20 cm de distance entre la source de rayonnement et votre corps.

QUICK START GUIDE

AMULET MEDIA RECORDER

1716

Declaration of Conformity (Continued)

To prevent re or shock hazard, do not expose this product to rain or moisture. To reduce

the risk of electric shock, DO NOT remove the cover or back. No user serviceable parts are

inside. For servicing refer to qualied personnel.

Declaration of Conformity (United States Only)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired opera-

tion. This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the Federal Communication Commission (FCC) Rules.

These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions, may cause harm-

ful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment OFF

and ON, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandthereceiver.

•Connecttheequipmenttoadierentcircuitfromthattowhichthereceiveriscon-

nected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCC Caution: Any changes or modications not expressly approved by the party responsi-

ble for compliance could void the user’s authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna

or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

®The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are

trademarks or registered trademarks of HDMI Licensing LLC in the United States and other

countries.

Manufactured under licence from DolbyLaboratories. Dolby and the double D symbol are

trademarks of Dolby Laboratories.

Notes

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AND INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

product, and service names may be trademarks or service marks of others. All information contained in this document is subject to change

without notice. Information contained in this document is provided on an as is basis. In no event will Amino be liable for damages arising

directly or indirectly from any use of the information contained in this document. Subject to change without notice.

Entone Technologies 50-0101-QT-44 High Definition IP TV receiver User Manual

Entone Technologies (HK) Limited High Definition IP TV receiver

User Manual.pdf

Navigation menu

Namespaces

Views

Navigation
