PLink System Datasheet
Document PN: 50680
www.enttec.com/plink
1
ID:2172 Version:8

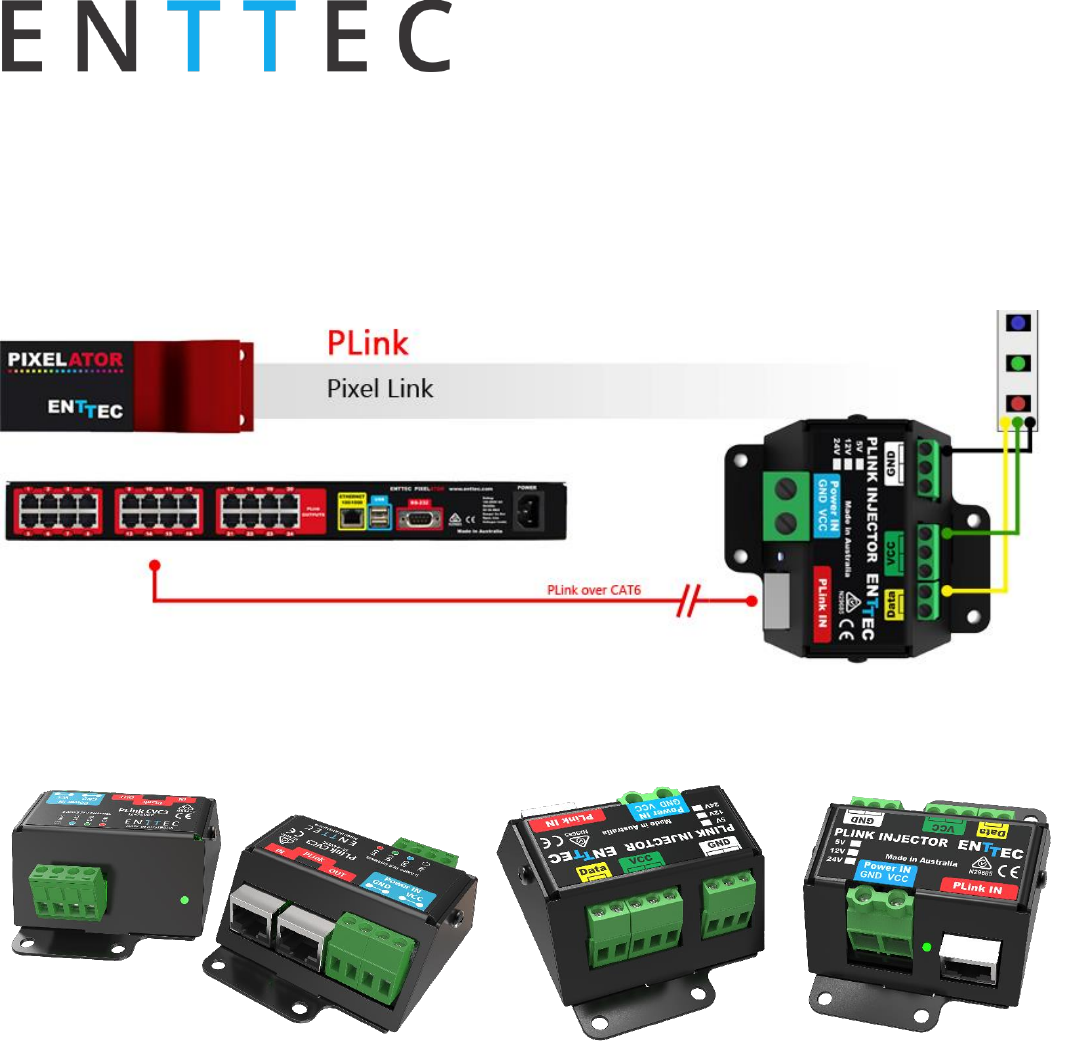

ENTTEC PLink (Pixel Link)
PIXEL L E D STRIPS/ DO T S A ND TAP E CO NTRO L SYSTEM
Features
• Each PLink port can drive up to 340 RGB individual
pixels (2 DMX universes)
• PLink accessories are compatible with ENTTEC
PIXIE DRIVER and PIXELATOR.
• External DC power supply
• Data extensions up to 300 meters over Cat6 cable
• CVC3 Supports standard RGB Tape such as ENTTEC
9VL4
• Injectors support RGB pixel strips based on
WS2812, WS2812B and APA-104 LEDs.
• Small, light and easy to hide design
• Scalable design for large projects
• Ideal for custom shape pixel LED installations
• High power screw terminal connectors
• Easy wiring using Cat6 standard connections
PLink System Datasheet
Document PN: 50680
www.enttec.com/plink
2
ID:2172 Version:8
Specifications
Item
Injector
(5V)
Injector
(12-24V)
Pixielinker
(5V)
PN
73546
73544
73545
73920
Input Voltage
5V DC
12-24V
DC
5V DC
12-
24VDC
Maximum
Total
Output Power
110 Watt
130 Watt
N/A
240W
Maximum
Output
Current Per
Pin (Screw
Terminal)
10Amp
10Amp
N/A
5 Amp
per
channel
Data Input
PLINK
WS2811,
WS2812
WS2812b,
APA-104
PLINK
Data Output
Protocol
WS2811, WS2812,
WS2812b, APA-104
PLINK
PLINK
Data Output
Capability
Per PLink Port
340 RGB Pixels
1020 DMX channels (~2 Universes)
Operating
Temperature
-10° to 45° C
Protection
Rating
IP20

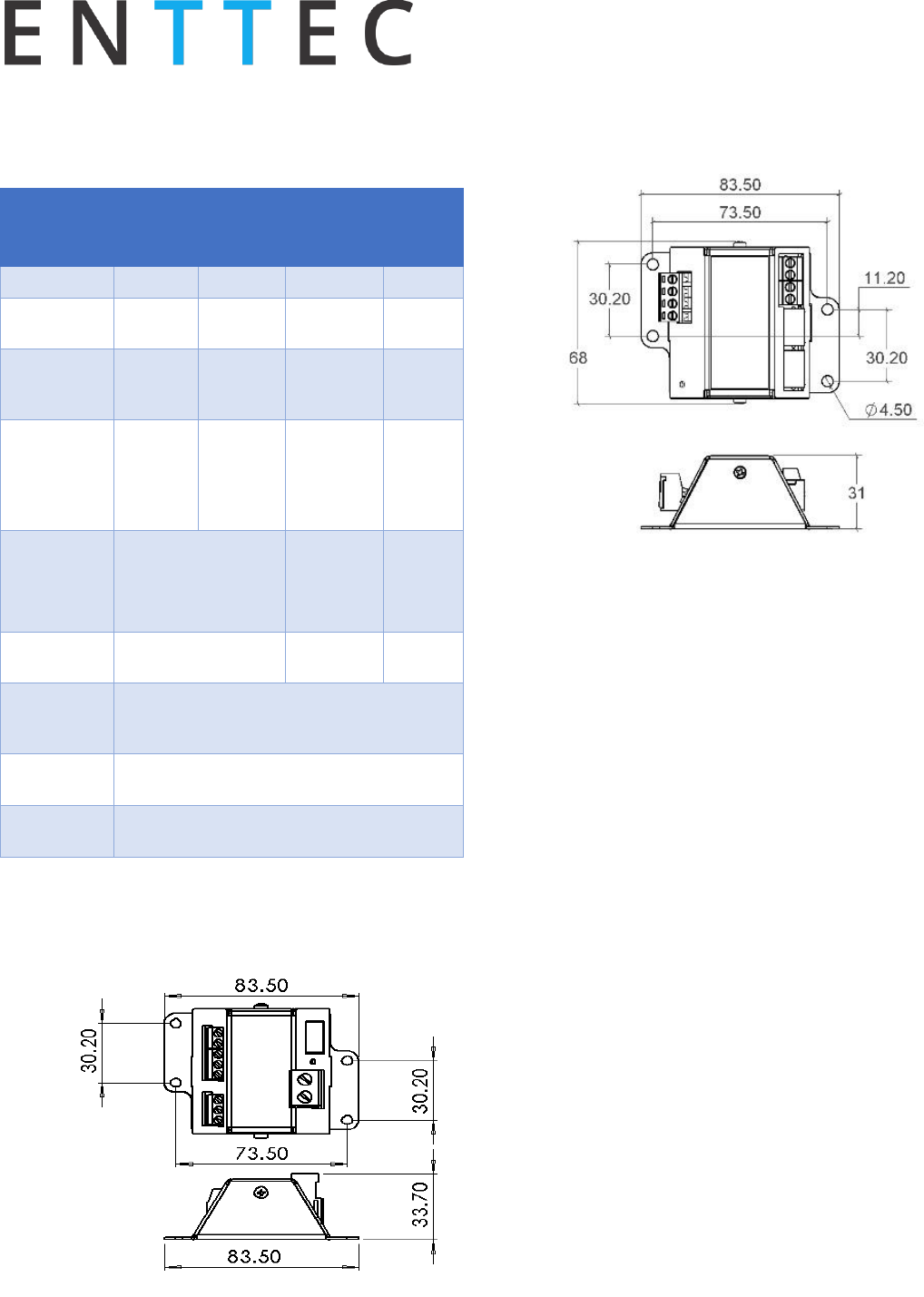

Mechanical
73920
Safety
Never plug PLink ports in to Ethernet outlets
Do not remove covers, there are no serviceable
parts inside
Make all the connections before you plug in the
main power supply
Do not exceed the ratings of the device
73546 & 73544
PLink System Datasheet
Document PN: 50680
www.enttec.com/plink
3
ID:2172 Version:8

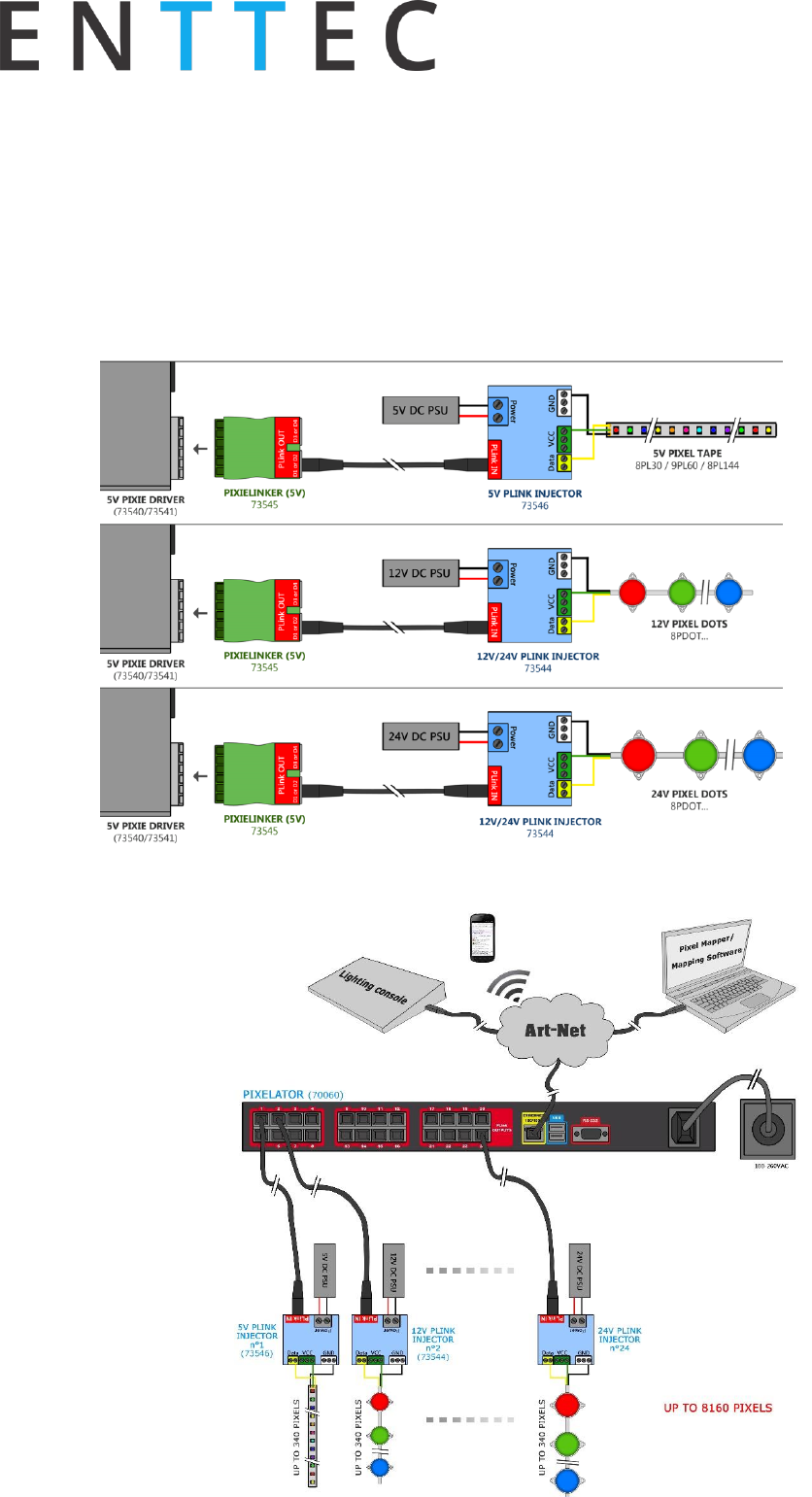

PIXEL APPLICATION DIAGRAMS
WI T H P IX I E DR IV E R
WI T H P IX E L ATO R
PLink System Datasheet
Document PN: 50680
www.enttec.com/plink
4
ID:2172 Version:8

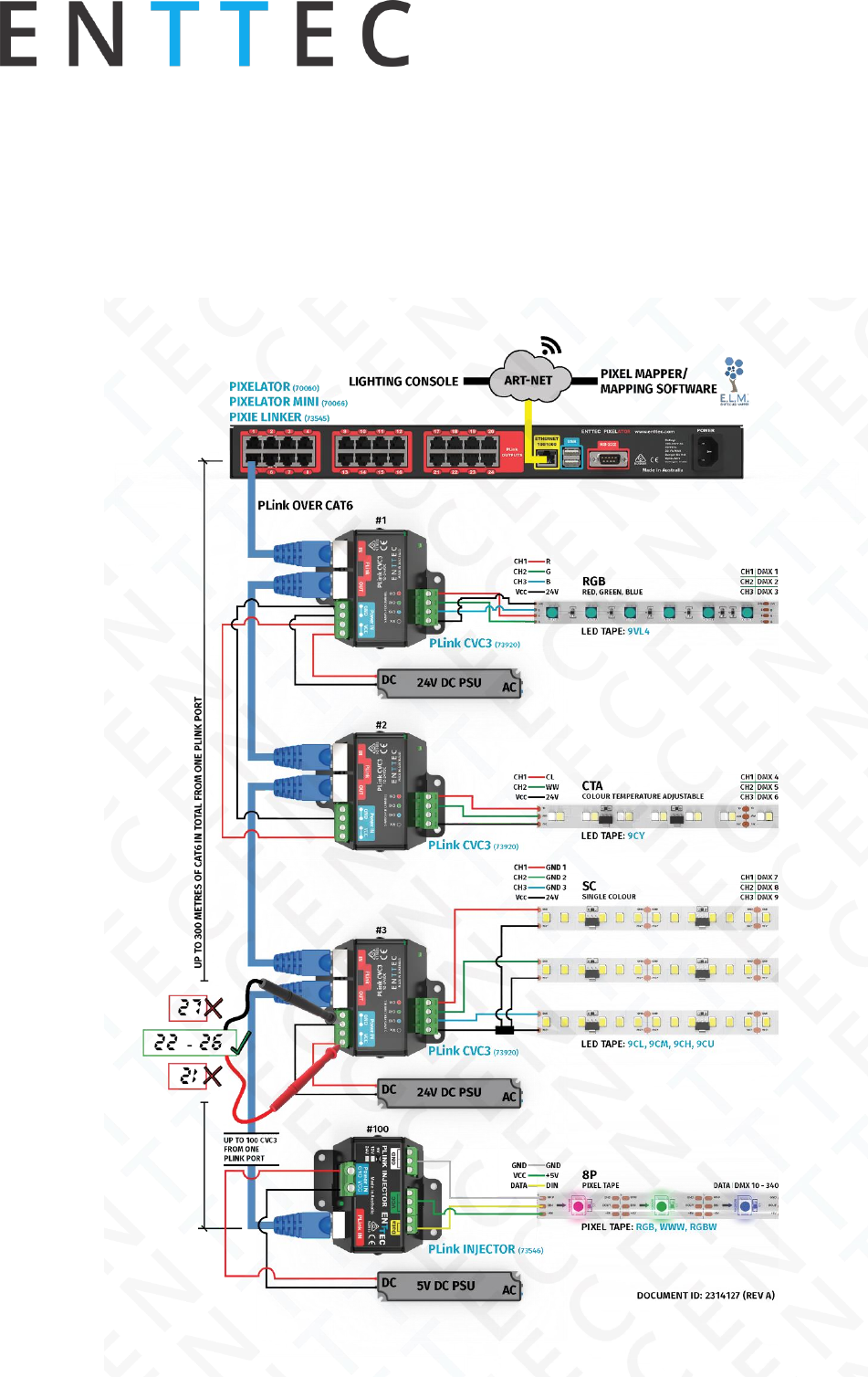

LED TAPE APPLICATION
DIAGRAMS
