OWNER’S MANUAL
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
50-1096
Sienna
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certied kit is used.
WHAT TO DO IF YOU SMELL GAS
• Open windows/extinguish any open
ame.
• Do not try to light any appliance.
• Do not touch any electrical switch or
use any phone in your building.
• Immediately call your gas supplier
from a neighbour’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
WARNING
If the information in this manual is not followed exactly, a re or explosion may result
causing property damage, personal injury or loss of life. Installation and service must be
performed by a qualied installer, service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapours and liquids in the
vicinity of this or any other appliance.
Massachusetts installations (Warning): This product must be installed by a licensed
plumber or gas tter when installed within the Commonwealth of Massachusetts.
Other Massachusetts code requirements: Flexible connector must not be longer than
36in., a shut off valve must be installed; only direct vent sealed combustion products
are approved for bedrooms/bathrooms. A carbon monoxide detector is required in all
rooms containing gas red direct vent appliances.
![](asset-2.png)
FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER,
PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:
• All ENVIRO gas-red appliances must be installed
in accordance with their instructions. Carefully read all
the instructions in this manual rst. Consult the building
authority having jurisdiction to determine the need for
a permit prior to commencing the installation.
• NOTE: Failure to follow these instructions could
cause a malfunction of the replace, which could
result in death, serious bodily injury, and/or property
damage.
• Failure to follow these instructions may also void
your re insurance and/or warranty.
GENERAL
• Installation and repair should be done by a
qualied service person. The appliance should be
inspected before the rst use and, at least, annually
by a qualied service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative the
control compartments, burners and circulating air
passageways of the appliance be kept clean.
• Due to high temperatures, the appliance should
be located out of high trafc areas and away from
furniture and draperies.
Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burn or clothing
ignition.
• Young children should be carefully supervised
when in the same room as the appliance.
• Clothing or other ammable materials should not
be placed on or near the appliance.
FOR YOUR SAFETY
• Installation and service must be performed by a
qualied installer, service agency or gas supplier.
• This installation must conform to local codes or, in
the absence of local codes, to the current CAN/CGA-
B149 installation code (Canada) or National Fuel Gas
Code ANSI Z223.1.2 (USA)
• To prevent injury, do not allow anyone who is
unfamiliar with the stove to operate it.
• To prevent injury, if the pilot or pilot and
burners have gone out on their own, open the
glass door and wait 5 minutes to air out before
attempting to re-light the stove.
• Always keep the area around these appliances
clear of combustible material, gasoline and other
ammable liquids and vapours.
• These appliances should not be used as a drying
rack for clothing or for hanging Christmas stockings/
decorations.
• Due to the paint curing on the stove, a faint odor
and slight smoking will likely be noticed when the
stove is rst used. Open a window until the smoking
stops.
Always connect this gas stove to a vent system and
vent to the outside of the building envelope. Never
vent to another room or inside the building. Make sure
the specied vent pipe is used, properly sized and of
adequate height to provide sufcient draft. Inspect
the venting system annually for blockage and signs of
deterioration.
WARNING: Failure to position the parts in accordance
with the diagrams in this booklet, or failure to use only
parts specically approved with this appliance, may
result in property damage or personal injury.
WARNING: Do not operate with the glass front
removed, cracked or broken. Replacement of the
glass should be done by a licensed or qualied service
person.
• Never use solid fuels such as wood, paper,
cardboard, coal, or any ammable liquids, etc., in this
appliance.
• Do not use this heater if any part has been under
water. Immediately call a qualied service technician
to inspect the heater and to replace any part of the
control or gas control systems that have been under
water.
• Do not abuse the glass by striking it or slamming
the door shut.
Safety Precautions
2
![](asset-3.png)
Table of Contents
3
Safety Precautions.....................................................................................................2
Table of Contents......................................................................................................3
Codes And Approvals.................................................................................................4
Specications............................................................................................................5
Rating Label Location......................................................................................5
Dimensions....................................................................................................5
Operating Instructions...............................................................................................7
Pilot Lighting Instructions................................................................................7
Remote Controls - Optional.............................................................................7
Burner Lighting...............................................................................................7
Turn Off Unit..................................................................................................8
Blower Speed.................................................................................................8
Normal Sounds During Operation.....................................................................8
Adjusting Venturi Air Settings..........................................................................8
Maintenance And Service...........................................................................................9
Cleaning The Glass.........................................................................................9
Cleaning The Firebox......................................................................................9
Replacing The Glass.......................................................................................9
Cleaning The Plated Surfaces..........................................................................9
Glass Door Removal......................................................................................10
Burner & Blower Removal..............................................................................10
Fuel Conversion............................................................................................11
Initial Installation.....................................................................................................13
Clearances to Combustibles...........................................................................13
Minimum Fireplace Size.................................................................................14
B-Vent Model................................................................................................14
Automatic Flue Gas Spill Switch - B-Vent Model Only........................................14
Direct Vent Model.........................................................................................15
Preparing Your Sienna For Installation............................................................15
Venting Fireplace Inserts...............................................................................16
Electrical Requirements.................................................................................17
Gas Line Connection......................................................................................18
Converting A Direct Vent Fireplace To A B-Vent Fireplace.................................19
Secondary Installation..............................................................................................20
Installation of Surround Panel........................................................................20
Log Set and Ember Installation......................................................................21
Removing The Brick Panel.............................................................................24
Trouble Shooting.....................................................................................................25
Parts List- Unit Components.....................................................................................26
Parts Diagram - Components....................................................................................27
Parts Diagram - Burner.............................................................................................28
Parts List - Options..................................................................................................29
Parts Diagram - Options...........................................................................................30
Warranty.................................................................................................................31
Installation Data Sheet.............................................................................................32
![](asset-4.png)
DIRECT VENT: This type is identied by the sufx DV. This appliance draws all of its air for combustion from
outside the dwelling, through a specially designed vent pipe system.
This appliance has been tested and approved for installations from 0 feet to 4500 feet (1372 m) above sea level.
BV: This Vented appliance draws all of its combustion air from the dwelling and must be vented using listed B or L
vent. May also be vented through a conventional chimney using a chimney liner kit.
This appliance has been tested and approved for installations from 0 feet to 4500 feet (1372 m) above sea level.
In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas Association
guidelines which state: the sea level rated input of Gas Designed Appliances installed at elevations above 2000
(610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level. Refer also to local authorities or
codes which have jurisdiction in your area regarding the de-rate guidelines.
In Canada: When the appliance is installed at elevations above 4500 feet (1372 m), the certied high altitude
rating shall be reduced at the rate of 4% for each additional 1000 feet (305 m).
• This appliance has been tested by INTERTEK (Warnock Hersey) and found to comply with the established
VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows:
VENTED GAS FIREPLACE HEATER (SIENNA BV/DV; NG/LPG)
TESTED TO: ANSI Z21.88a-2003/CSA 2.33a-2003 VENTED GAS FIREPLACE HEATERS
CAN/CGA 2.17-M91 GAS FIRED APPLIANCES FOR HIGH ALTITUDES
CSA P.4.1-02 TESTING METHOD FOR MEASURING ANNUAL FIREPLACE EFFICIENCY
4
Codes And Approvals
This ENVIRO SIENNA Fireplace:
• Has been certied for use with either natural or propane gases. (See rating
label.)
• Is not for use with solid fuels.
• Is approved for bedroom or bed sitting room. (IN CANADA: must be installed
with a listed wall thermostat. IN USA: see current ANSI Z223.1 for installation
instructions.)
• Must be installed in accordance with local codes. If none exist, use current
installation code CAN/CGA B149 in Canada or ANSI Z223.1/NFPA 54 in the USA.
• Must be properly connected to an approved venting system and not connected to
a chimney ue serving a separate solid-fuel burning appliance.
• Is not approved for closet or recessed installations.
IMPORTANT NOTICE (Regarding rst re up): When the unit is turned on
for the rst time, it should be turned onto high without the fan on for the rst 4
hours. This will cure the paint, logs, gasket material and other products used in
the manufacturing process. It is advisable to open a window or door, as the unit
will start to smoke and can irritate some people. After the unit has gone through
the rst burn, turn the unit off including the pilot, let the unit get cold then remove
the glass door and clean it with a good gas replace glass cleaner, available at
your local ENVIRO dealer.
![](asset-5.png)
Specifications

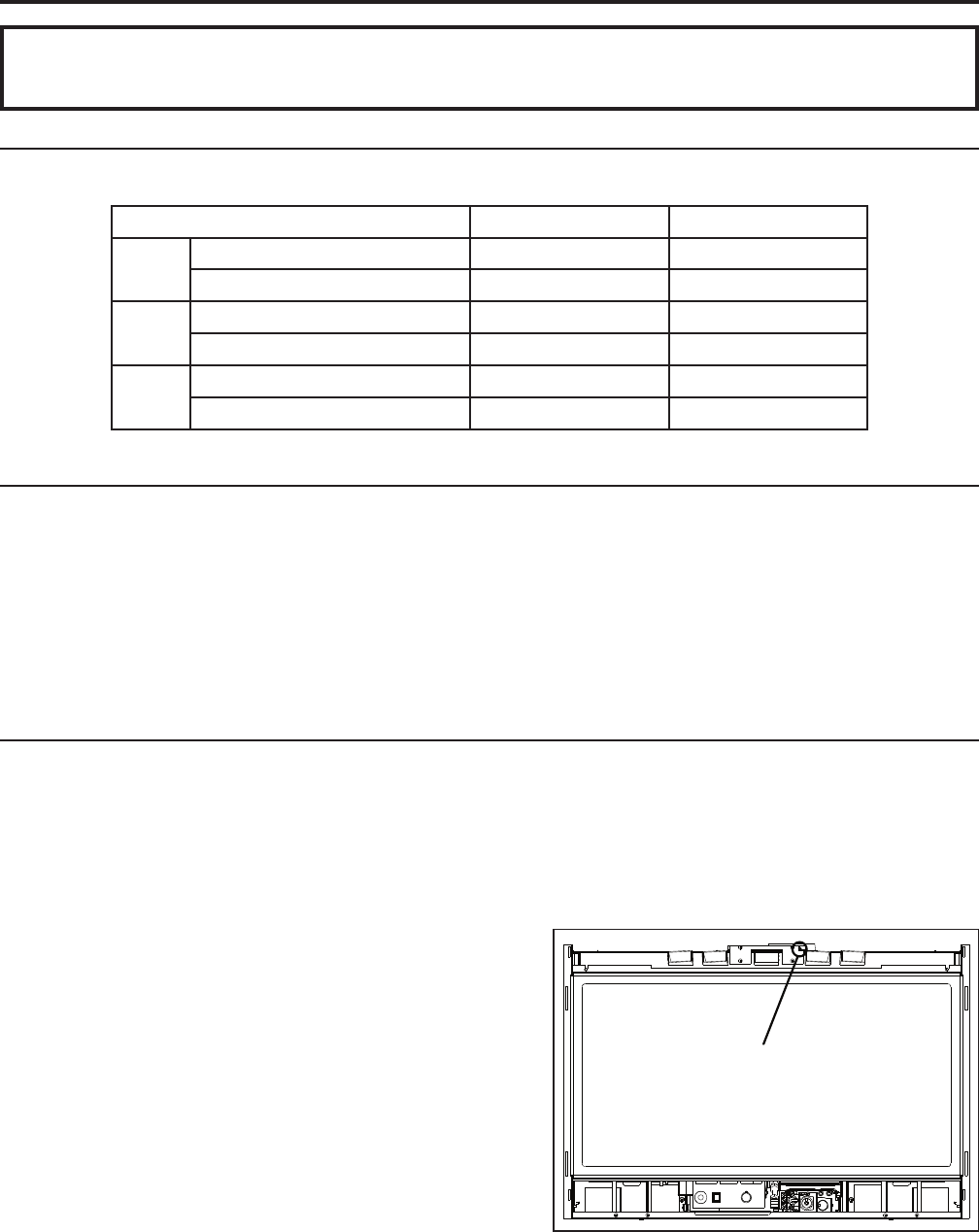

RATING LABEL LOCATION:
The rating label is located under the control panel and is attached to a rectangular metal sheet that is
chained to the replace.

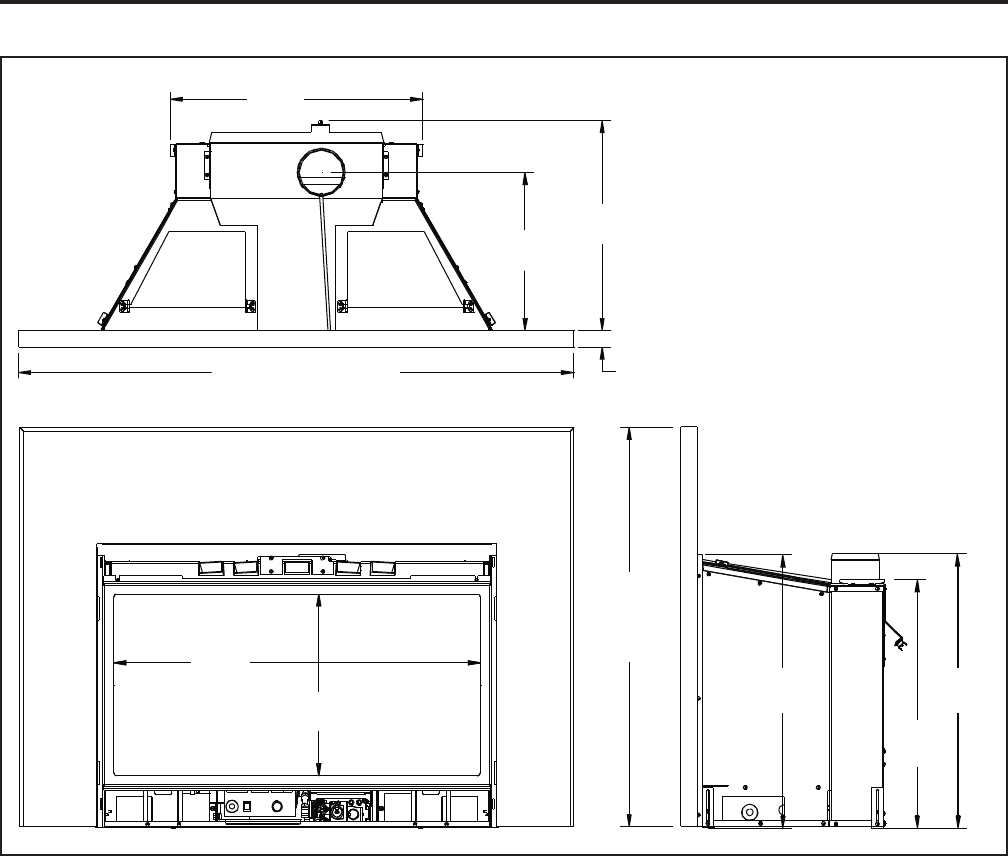

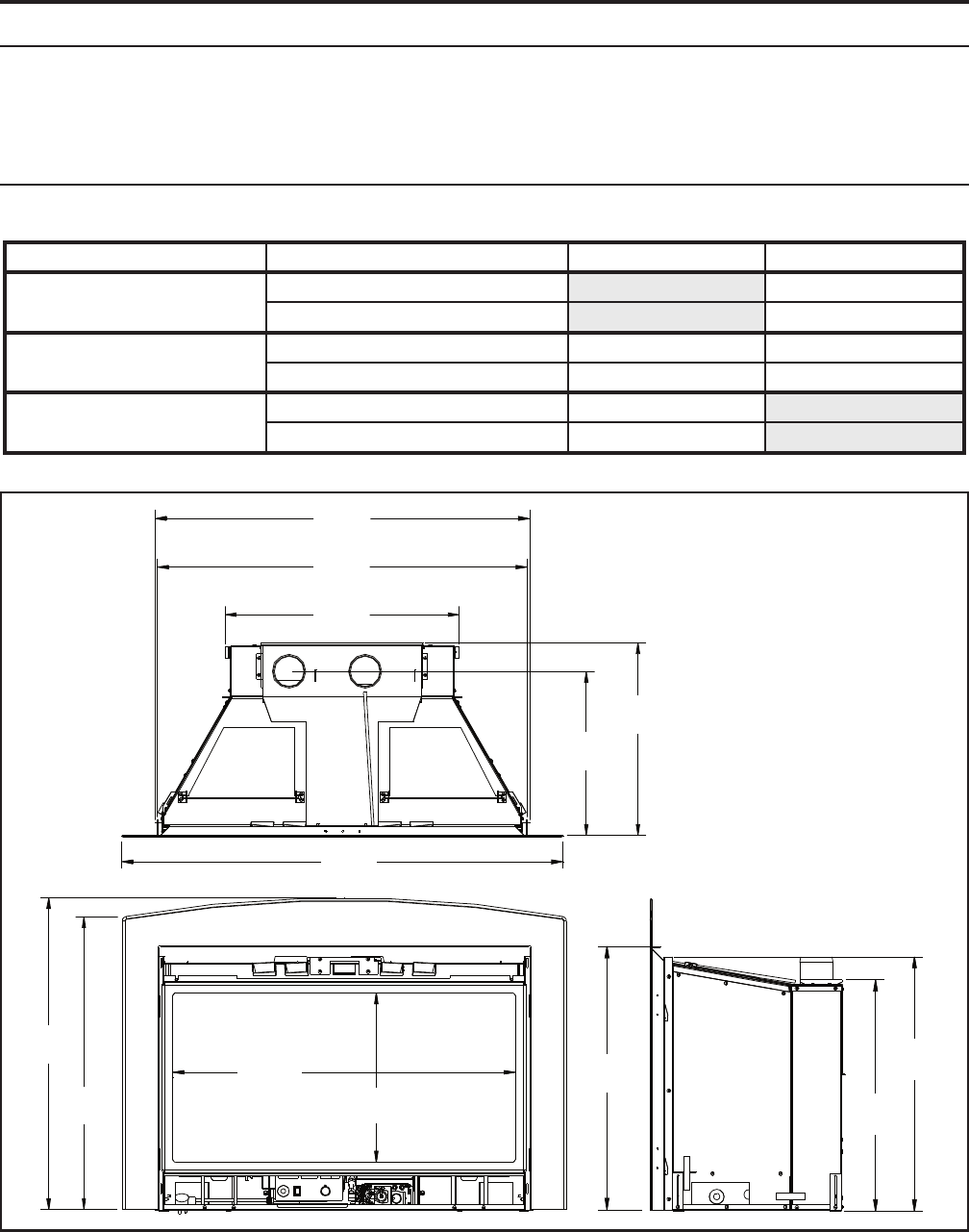

DIMENSIONS:
Surround Style Distance Direct Vent B-Vent
Arched Surround From Flue To Surround 14 11
/
16” (376 mm) 14 9
/
16” (370 mm)
From Back/Sensor To Surround 17 5
/
16” (439 mm) 18 ” (479 mm)
33” x 46” (840 x 1930 mm)
Surround
From Flue To Surround 14 ” (369 mm) 14 ” (365 mm)
From Back/Sensor To Surround 17 1
/
16” (434 mm) 18 11
/
16” (474 mm)
33” x 46” (840 x 1930 mm)
Surround with Trim
From Flue To Trim 13 ” (337 mm) 13 1
/
16” (333 mm)
From Back/Sensor To Trim 15 13
/
16” (402 mm) 17 ” (441 mm)
5
33 9/16"
(852 mm)
33 1/8"
(841 mm)
21"
(533 mm)
39 1/2"
(1004 mm)
14 11/16"
(374 mm)
17 5/16"
(439 mm)
27 3/4"
(705 mm)
26 1/8"
(663 mm)
15 1/16"
(383 mm)
30 1/2"
(775 mm)
20 5/8"
(523 mm)
22 11/16"
(576 mm)
23 7/16"
(596 mm)
Shown: Direct Vent with
arched surround panel
Flue
Back
Figure 1: Sienna exterior dimensions; example 1.
Table 1: Sienna exterior dimensions. (Shaded dimensions shown in Figure 1 & 2.)
![](asset-6.png)
6
Specifications
15 1/16"
(383 mm)
30 1/2"
(775 mm)
With Trim
33 3/16"
(343 mm)
Without Trim
33" (338 mm)
20 5/8"
(523 mm)
22 3/4"
(577 mm)
22 11/16"
(576 mm)
With Trim 46 1/8" (1171 mm)
Without Trim 46" (1168 mm)
21"
(533 mm)
13 1/16"
(333 mm)
13/8"
(36 mm)
17 3/8"
(441 mm)
Shown: B-Vent with
33" x 46" (84cm x 193 cm)
surround panel with trim
Flue
Sensor
Figure 2: Sienna exterior dimensions; example 2.
![](asset-7.png)
7
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION
MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE.

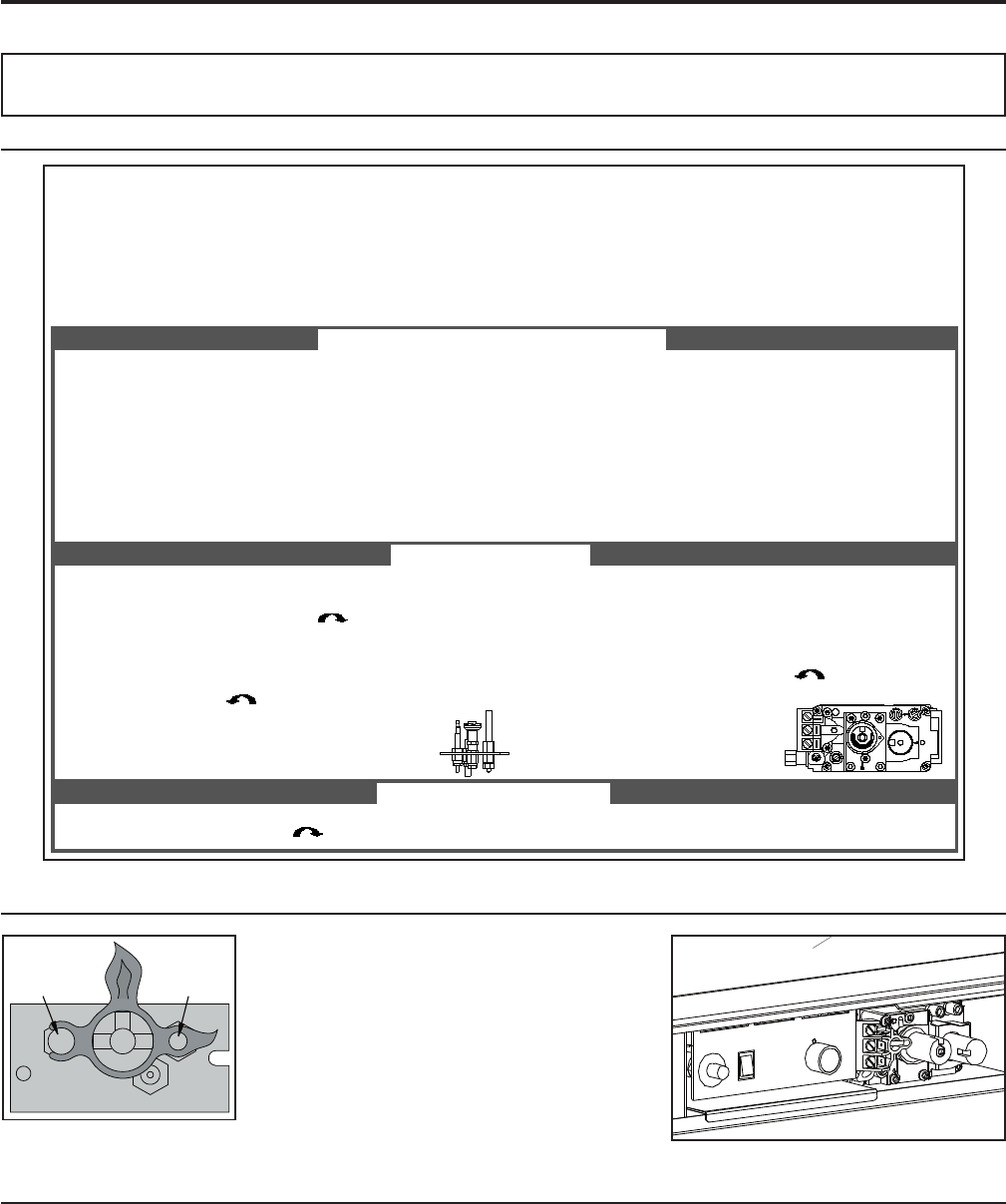

PILOT LIGHTING INSTRUCTIONS:
Figure 3. Lighting instruction label.
1. STOP! Read the safety information above on this label.
2. Turn off all electrical power to this appliance.
3. Turn off the gas control knob clockwise to the off position.
4. Open door. Wait fIve (5) minutes to clear out any gas. Close door. If
you smell gas STOP! Follow “B” in the above safety information. If
you do not smell gas go to the next step.
5. Find pilot-located to the left under the front log. Turn the gas control
knob counter-clockwise to “PILOT”. Push the gas control in fully
and hold, keep knob depressed for about 30 seconds after
the pilot is lit. Release knob. If pilot goes out, repeat
steps 4 through 5.
CAUTION: Hot while operating. Do not touch, severe burns may result. Keep children, clothing,
furniture, gasoline or other flammable vapors away.
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A) This appliance is equipped with a pilot, which must be lit by hand by
following these instructions exactly.
B) BEFORE LIGHTING smell all around the appliance area for gas and next to
the floor because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance. Do not touch any electrical switch: do not
use any phone in your building. Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppliers instructions. If you cannot reach
your gas supplier, call the fire department.
C) Use only your hand to push in or turn the gas control knob;
NEVER use tools. If the knob will not push in or turn by hand, do
not try to repair it. Call a qualified service technician. Force or
attempted repair may result in a fire or explosion.
D) Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
LIGHTING INSTRUCTIONS
WARNING: this gas valve has a lockout device, which will not allow the
pilot burner to be relit until the thermocouple has cooled. If the knob does
not pop up when released, stop and immediately call your service
technician or gas supplier.
If the pilot does not stay lit after several tries, turn the gas control knob
to “OFF” and call your service technician or gas supplier.
6. Turn the gas control knob counter clockwise to the “ON”
position. Flip the burner switch to “ON” THEN TURN THE “HI/LOW”
knob to the desired setting.
7. Turn on the electrical power to the unit.
TO TURN OFF GAS TO APPLIANCE
1. Flip burner switch to “OFF”
2. Turn the gas control knob clockwise to the “OFF” position.
3. Turn off all electrical power to the appliance if service is to be performed.
CAUTION: Do not operate this fireplace with the glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or
qualified person! This appliance needs fresh air for safe operation and must be installed with provisions for combustion and ventilation air. See
installation and operating instructions manual. Keep burner and control compartment clean.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage, or loss of life. Refer to owner's
information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier.
See installation and operating instructions accompanying appliance. Installation and service must be performed by a qualified installer, service agency,
or the gas supplier.
O
L
I
T
P
TP TH TP TH
IN OUT
H
I
L
O
N
O
F
O
F
L
I
P
T
O
Figure 4. Pilot ame.
Operating Instructions
For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating
Figure 5. Control panel.

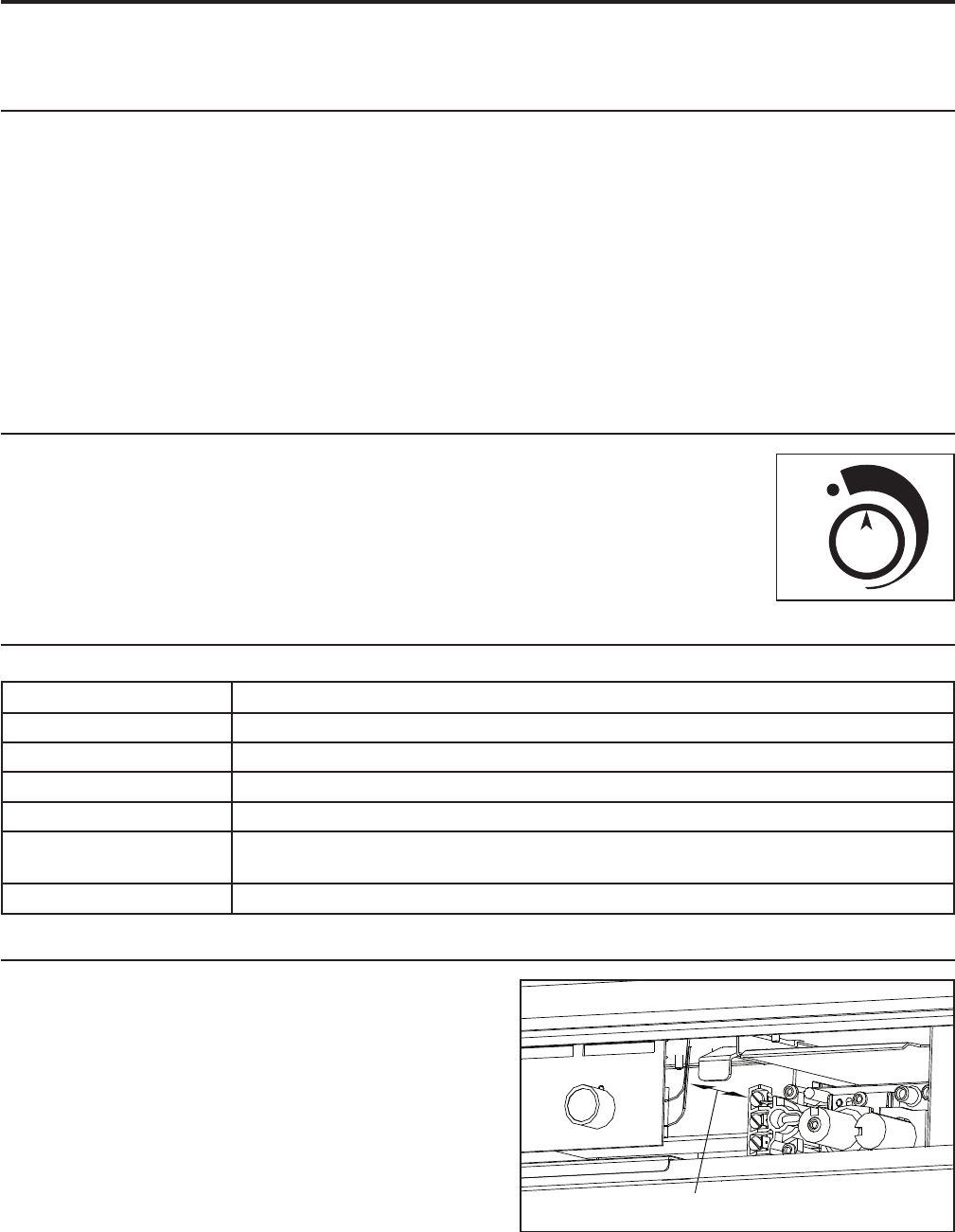

BURNER LIGHTING:
1. Make sure the pilot is lit.
2. Turn gas control knob COUNTER
CLOCKWISE to ON.
3. Flip the burner switch to ON.
4. Turn HI/LO knob to the desired ame
height.
5. Turn on all electrical power to the unit.
NOTE: Check that all burner holes are lit.
REMOTE CONTROLS - OPTIONAL:
This replace can use an optional remote control or an optional cordless wall thermostat. If either of
these are to be used to control the replace for the majority of the time, leave the ON/OFF switch (on the
control panel) in the remote/thermostat position. Consult the instructions included with the remote/wall
thermostat for operation guidelines.
![](asset-8.png)
8
Operating Instructions
For Your Safety, Read Safety Precautions And
Lighting Instructions Before Operating
TURN OFF UNIT:
Flip switch to OFF to turn off burners only.
If the replace is to be turned off for the season, or for servicing, turn the gas shut off valve to OFF. If
the unit is going to be serviced, turn off the electrical power to the unit as well.
NOTE: When the unit is turned on for the rst time, it should be turned onto high, with the fan OFF,
for the rst two to four hours. This will cure the paint, logs, gasket material, and other products used
in the manufacturing process. It is advised that a door or window be opened, as the unit will start to
smoke, which can irritate some people. After the unit has gone through the rst burn, turn the unit OFF,
including the pilot, and let the unit get completely cold. Then remove the glass and clean it with a good
gas replace glass cleaner, available at your local Enviro dealer. See “DOOR REMOVAL” and “CLEANING THE
GLASS” sections.
BLOWER SPEED:
The blower will come on only when the replace is up to temperature (approximately
20 minutes). Turning the fan control knob will change the speed of the fan. To turn
the blower off, turn the knob COUNTER-CLOCKWISE until it “clicks” off (Figure 6).
It is advisable not to operate the blower below 1/3 speed as it puts a strain on the
windings of the blower and running the blower at lower speeds could also cause
premature fan failure.
NORMAL SOUNDS DURING OPERATION:
Table 2: Normal Sounds.
Component Sound & Reason
Focus & Fascia Creaking when heating up or cooling down.
Burner Light pop or poof when turned off; this is more common with LP units.
Temperature Sensor Clinking when it senses to turn the blower on or off.
Pilot Flame Quiet whisper while the pilot ame in on.
Blower / Fan Air movement that increase and decreases with the speed of the blower. The
blower is pushing the heat from the replace into the room.
Gas Control Valve Dull click when turning on or off, this is the valve opening and closing.
Figure 6. Fan control.
ADJUSTING VENTURI AIR SETTINGS:
There is one venturi adjustment.
Use this venturi adjustment lever, shown in Figure 7, to
achieve a proper and efcient ame.

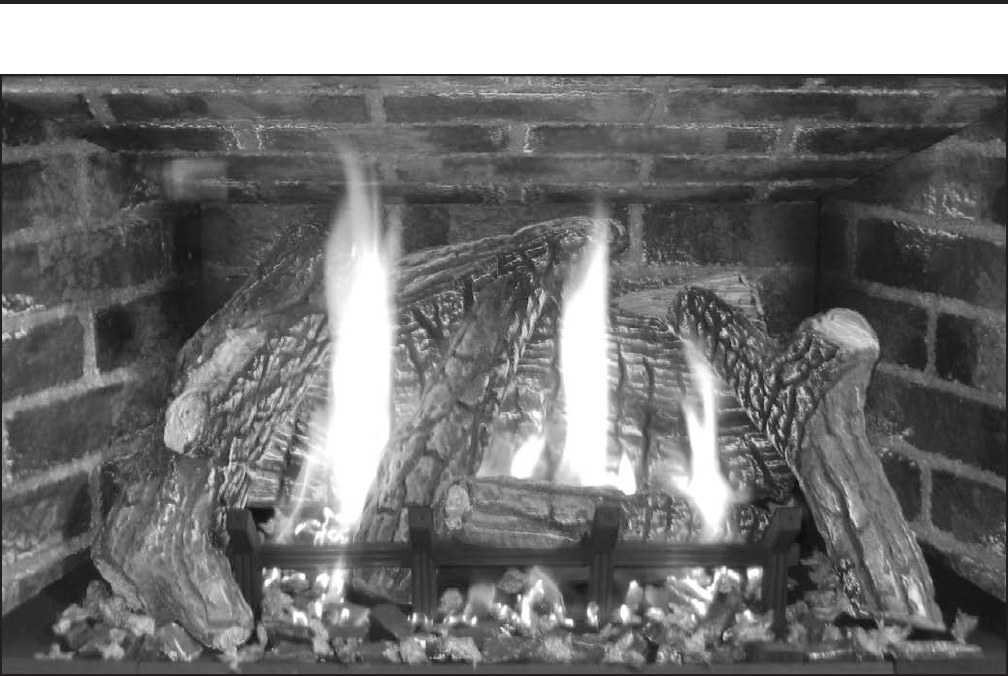

Adjust lever until the ame pattern is similar to Figure
36. Suggested pull out distances are ” (13 mm)
minimum for Natural Gas and ” (22 mm) minimum
for Propane.
Pull out the venturi adjustment to increase primary air at the venturi tube.
Push in the venturi adjustment to decrease primary air at the venturi tube.
Figure 7: Adjusting the venturi air setting.
![](asset-9.png)
9
Maintenance And Service
Warning: Failure to position the parts in accordance with this manual, or failure to use only parts
specically approved with this appliance, may result in property damage or personal injury.
At least once a year, run through the following procedures to ensure the system is clean and working
properly. Check the burner to see if all the ports are clear and clean. Check the pilot to make sure it is
not blocked by anything. The pilot ame should be blue with little or no yellow on the tips.
The venting system must be periodically examined; it is recommended the examination is done by a
qualied agency.
CLEANING THE GLASS:
When the replace is cool, remove the face of the replace along with the glass door. See MAINTENANCE
AND SERVICE - GLASS DOOR REMOVAL. Check the gasket material on the back of the glass, making sure that
it is attached and intact.
During a cold start up, condensation will sometimes form on the glass. This is a normal condition with all
replaces. However, this condensation can allow dust and lint to cling to the glass surface. Initial paint
curing of the appliance can leave a slight lm behind the glass, a temporary problem. The glass will need
cleaning after the replace has cooled off from the rst burn and about two weeks after rst burn. Use
a mild glass cleaner and a soft cloth. Abrasive cleaners will damage the glass and plated
surfaces. Depending on the amount of use, the glass should require cleaning no more than two or three
times a season. Do not clean the glass when it is hot.
CLEANING THE FIREBOX:

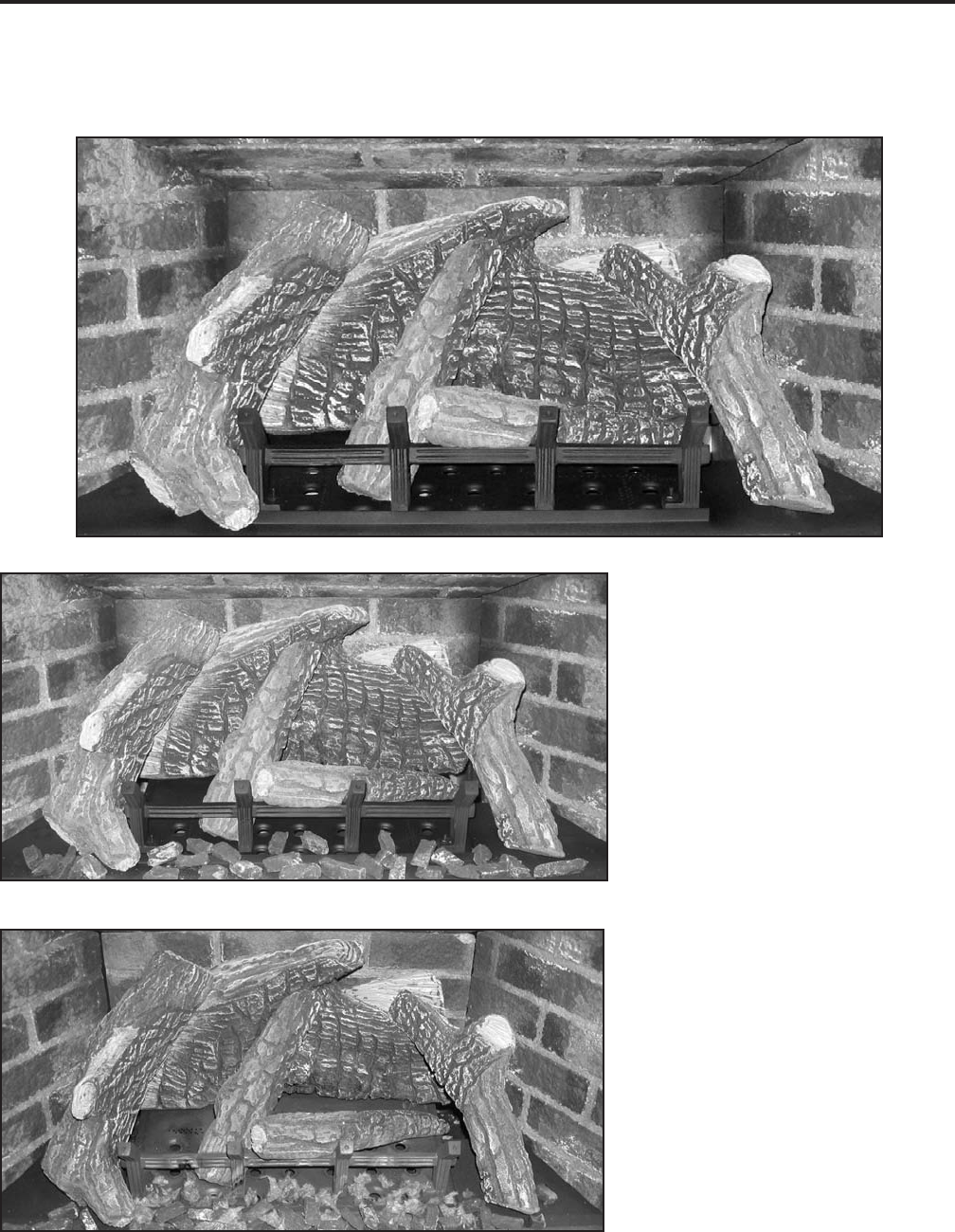

Remove the logs carefully, as they are very fragile. Gently remove all the embers and rock wool and place
on a paper towel. Vacuum the bottom of the rebox thoroughly. Carefully clean any dust off the logs and
remove any lint from the burner and pilot. At this time, inspect the burner pan for cracking or severe
warping. If a problem is suspected, contact the dealer. Check the logs for deterioration or large amounts
of soot; a small amount on the bottom side of the logs is normal. Replace the logs and embers as in the
SECONDARY INSTALLATION - LOG SET AND EMBER INSTALLATION section. If new/more embers and rock wool are
required, contact your nearest ENVIRO dealer.
REPLACING THE GLASS:
The glass in the replace is a high temperature ceramic. If the glass is damaged in any way, a factory
replacement is required (see PARTS LIST). Wear gloves when handling damaged glass door assembly
to prevent personal injury. When the glass door assembly is being transported, it must be wrapped in
newsprint and tape and/or a strong plastic bag. Do not operate with the glass front removed, cracked
or broken. Removal and replacement of the glass from the door must be done by a licensed or qualied
service person. The glass must be purchased from an ENVIRO dealer. No substitute materials
are allowed.
CLEANING THE PLATED SURFACES:
Painted faces should be wiped with a damp cloth periodically. If a plated face has been purchased, it
should be unpacked/unwrapped carefully to avoid getting anything on the surface of the nish, including
cleaners, polish and nger prints. It is important to note that ngerprints and other marks can leave
a permanent stain on plated nishes. To avoid this, give the face a quick wipe with denatured
alcohol on a soft cloth BEFORE lighting the replace. Never clean the face when it is hot. Do
not use other cleaners as they may leave a residue, which can become permanently etched into the
surface.
![](asset-a.png)
Maintenance And Service
QUALIFIED INSTALLERS ONLY
GLASS DOOR REMOVAL:
Blower / Fan
Gas & Electrical
Tray Complete
Burner Top with
Grate Attached
Log Support
Tray

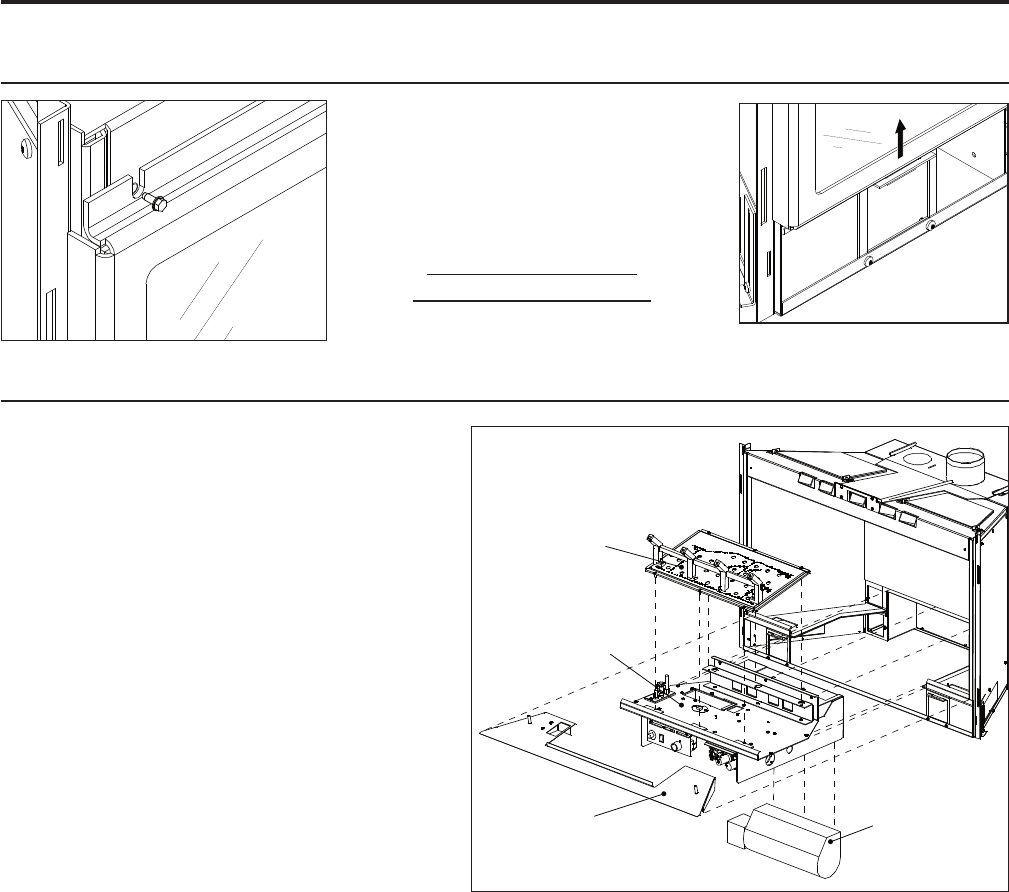

Figure 10: Removing burner and gas tray.
1. Turn the unit off and allow the unit to cool
completely.
2. Remove the fascia or louvers, open the door
(see MAINTENANCE AND SERVICE - GLASS DOOR
REMOVAL), and remove the log set.
3. Remove the log support tray by lifting the
back of the tray up and pull it out from under
the lip. Take care to not knock the pilot and
the side brick panels.
4. Remove the centre and top brick panels (see
SECONDARY INSTALATION - REMOVING THE BRICK
PANEL).
5. Turn gas supply off and remove gas
connection. Disconnect the wiring from the
side of the appliance.
6. Remove the three (3) T-20 screws just
above the burner top on the back rewall
(see Figure 10) and the two (2) screws on
each side below the burner top. Carefully
Figure : Top bolts for glass door.
Figure 9: Bottom hooks for
glass door.
10
Open the door by removing the two (2)
5/16’’ bolts located at the top outside
corners of the glass frame (see Figure
8). Lift the bottom of the door up and
remove from unit (see Figure 9).
CAUTION GLASS MAY
SEPARATE FROM DOOR.
remove the complete gas and electrical tray assembly from the rebox, ensuring that no wires or gas
lines are damaged.
7. Remove the blower and housing from the gas tray assembly by removing the three (3) fastening screws
located on the back of the gas tray assembly. Pull the fan out from under the gas tray. Disconnect the
wiring from the fan temperature sensor and remove fan.
8. Hook up wires from the new blower to main wiring harness and fan temperature sensor. Install the
blower in the reverse order as described in Step 7.
6. Reinstall the completed gas tray into the rebox, being careful not to damage any wires or gas lines.
Properly secure the gas tray assembly in the rebox. Hook up gas lines and wiring harness. Perform a
gas leak check on all gas line with a soap and water solution or an approved method.
7. Return unit to original location if moved. Re-install the log support tray, the brick panels, the logset
(see SECONDARY INSTALATION - LOG SET AND EMBER INSTALLATION), the door and the fascia or louvers.
8. Check burner and blower assembly for proper operation.
Caution: Bleed lines before lighting and light pilot with door open.
BURNER & BLOWER REMOVAL:
![](asset-b.png)
Maintenance And Service
FUEL CONVERSION:
TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY
Please read and understand these instructions before installing.
Figure 11: Removing
valve cap.
a) Remove the main burner orice with a inch deep socket.
b) Put a bead of pipe-thread sealant or approved Teon tape on the orice
threads before installing into the brass elbow.
c) Install the new orice(s) from the kit into the brass elbow.
6. Convert the pilot injector:
a) Pull the pilot hood straight up to access the pilot injector.
b) Using a 5/32” or 4 mm Allen key, remove the pilot injector.
c) Install the new pilot injector supplied with this conversion kit. Simply screw
the new injector inside the pilot hood using the Allen key,
d) Reinstall the hood by placing the hood on the assembly, line up the key
way, and snap into place.

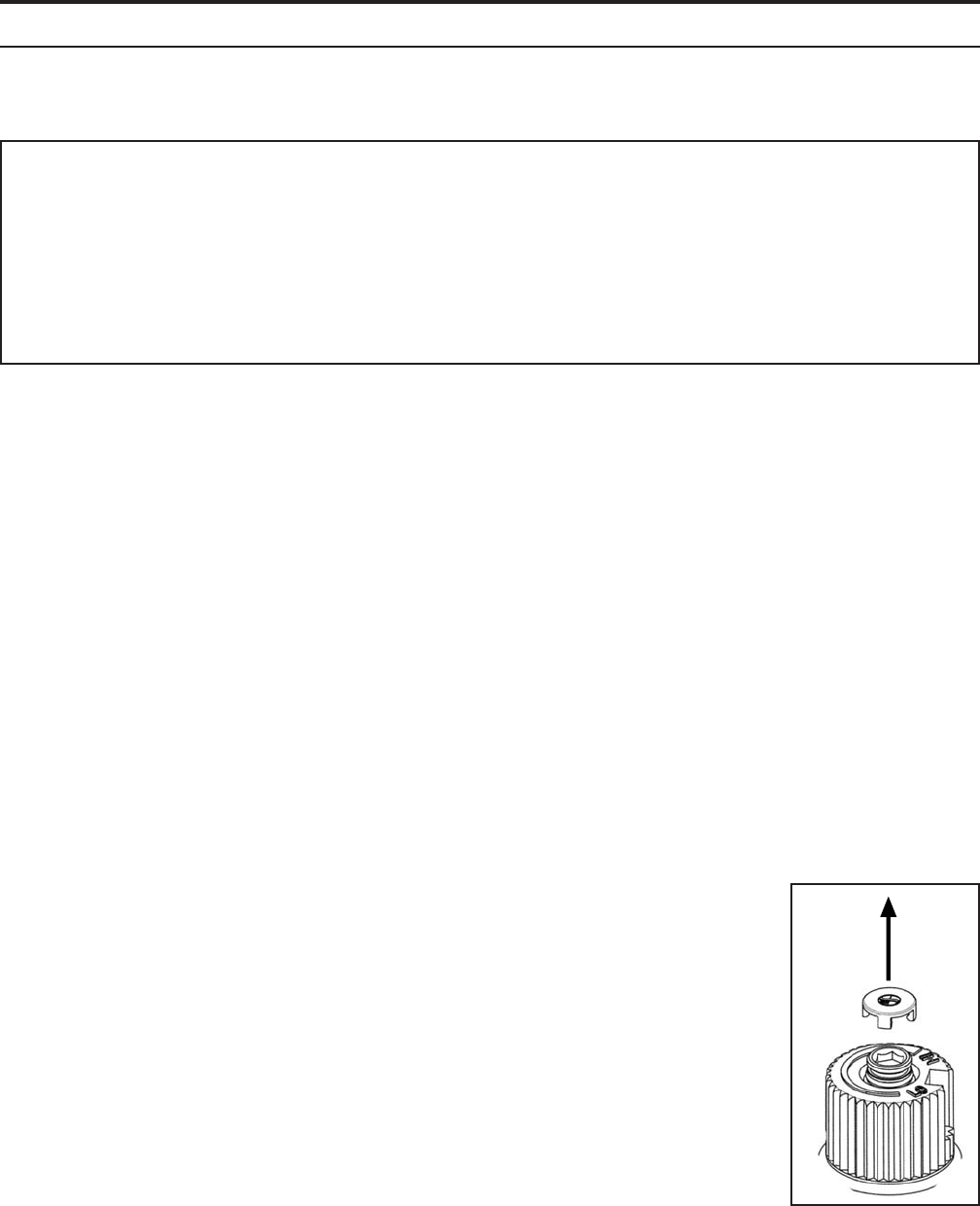

7. Convert the SIT gas valve:
a) Remove the black protection cap from the HI/LO knob by hand shown in
Figure 11.
11
Warning: This conversion kit shall be installed by a qualied service agency in accordance
with the manufacturer’s instructions and all applicable codes and requirements of the
authority having jurisdiction. If the information in these instructions is not followed
exactly, a re, explosion or production of carbon monoxide may result causing property
damage, personal injury or loss of life. The qualied service agency is responsible for
the proper installation of this kit. The installation is not proper or complete until the
operation of the converted appliance is checked as specied in the manufacturer’s
instructions supplied with the kit.
Kit Parts List:
1 - Orice (NG #32 DMS or LP #49 DMS)
1 - Pilot Injector (NG 0.62 mm; LP 0.35 mm)
1 - Installation instruction sheet
1 - Conversion label
Carefully inspect all parts supplied with this conversion kit. If any parts have been damaged or are
missing, contact your dealer, distributor or courier company to have them replaced before starting this
installation.
Conversion Kit Installation:
1. Turn control knob on the gas valve to the “OFF” position and shut the gas supply off at the shut-off
valve upstream of the unit. CAUTION: The gas supply must be shut off prior to disconnecting the
electrical power and before proceeding with the conversion. Allow the valve and unit to cool down
to room temperature.
2. Remove the glass as shown in the MAINTENANCE AND SERVICE - GLASS DOOR REMOVAL.
3. Carefully remove the log set and ember material if they are installed.
4. Remove the burner as shown in the MAINTENANCE AND SERVICE - BURNER AND BLOWER REMOVAL.
5. Convert the burner orice(s):
![](asset-c.png)
12
Maintenance And Service
c) Check that the screw is clean and if necessary
remove dirt.
d) Flip the screw (refer to Figure 13).
e) Using the Allen wrench as shown in Figure 12,
rotate the screw clockwise until a torque of 9 inch
lbs. WARNING! Do not over tighten the screw.
It is recommended that you grip the wrench by
the short side.
f) Verify that if the conversion is from NG to LPG,
the screw must be re-assembled with the red o-
ring visible (refer to Figure 14). If the conversion
is from LPG to NG, the red o-ring of the screw
must be not visible.
g) Re-attach the black protection cap that was
removed in step a (Figure 11).
Figure 13: Flip valve
screw.
Red o-ring
is not visible
Red o-ring
is visible
LPG Configuration
8. Reinstall the burner, brick panels,
log set, embers, and glass door. Also
refer to SECONDARY INSTALLATION -
INSTALLING LOG SET AND EMBERS. When
re-installing the burner, ensure that
the burner to pilot hood relationship
is similar to what is shown in Figure
15. On some units you will need to
pay special attention when installing Figure 14: O-ring on valve screw.
the burner that the venturi adjustment rod is properly installed into
the venturi adjustment piece welded to the burner venturi tube
9. Reconnect the main gas line if it was disconnected and open the
shut-off valve at the gas line to the unit.
10. Use a small brush to apply a warm soapy water solution to all gas
connections (use a half dish soap and half warm water). If a gas leak
is present, bubbling will occur. Gas leaks can be repaired by using an
approved pipe thread sealant or approved Teon tape. NEVER USE
AN OPEN FLAME WHEN TESTING FOR LEAKS.
11. Reconnect the electrical power to the unit.

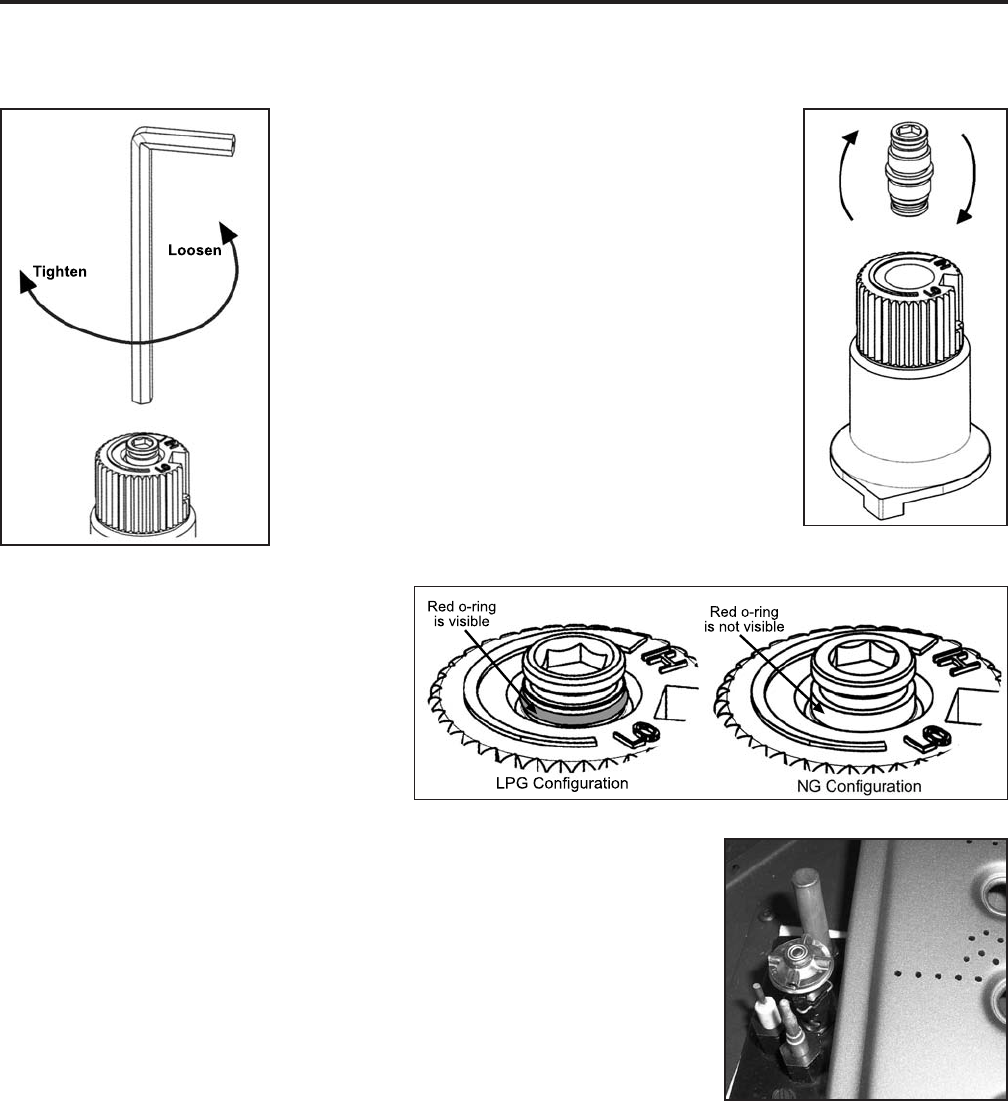

Loosen
Tighten
Figure 12: Removing valve
screw.
b) Insert a 5/32” or 4 mm Allen wrench into the hexagonal key-way of the screw (see Figure 12), rotate
it counter-clockwise until it is free and extract it.
12. Relight the main burner in both the “HI” and “LO” positions to verify proper burner ignition and
operation and proper ame appearance. Also refer to SECONDARY INSTALLATION - LOG SET AND EMBERS
INSTALLATION for a flame appearance picture.
13. MAKE SURE that the conversion label is installed on or close to the rating label to signify that the
unit has been converted to a different fuel type.
Figure 15: Burner to pilot hood
relationship.
![](asset-d.png)
Initial Installation
WARNING: Operation of this heater when not connected to a properly installed and maintained
venting system can result in carbon monoxide (CO) poisoning and possible death.
CLEARANCES TO COMBUSTIBLES:
Maintain sufcient clearances for operation, service and maintenance.
• A clearance of 25 ” (648 mm) minimum is required from the center of the unit to the sidewalls.
10" (254mm) Mantle
2" (51mm)
Mantle
39" (991 mm)
minimum to
bottom of unit
43" (1092 mm)
minimum to
bottom of unit
Figure 16: Mantle width and height.
• A 2” (51 mm) wide mantel can be mounted at a
minimum height of 39” (991 mm) from the bottom
of unit.
• A 10” (254 mm) wide mantel can be mounted at a
minimum height of 43” (1092 mm) from the bottom
of unit.
• If installed at oor level, a minimum 16” (406 mm)
non-combustible material must be installed in front
of the unit.
• If installed on a 12” (305 mm) wide hearth raised a
minimum height of 6” (152 mm), no oor protection
is required.
• Refer to Figure 9 for additional required oor
protection dimensions with different width hearths.
Sienna
0" (0mm)
5" (127mm)
6" (152mm)
7" (178mm)
8" (203mm)
9" (229mm)
10" (254mm)
11" (279mm)
12" (305mm)
13" (330mm)
14" (356mm)
15" (381mm)
16" (406mm)
Hearth Height
of 6" (152mm)
Non-combustible
floor protection required
in front of corresponding
hearth width
6" (152mm)
11" (279mm)
12" (305mm)
EXAMPLE: If the Sienna is raised
6" (152mm) and has 4" (102mm)
wide hearth in front of it then 12"
(305mm) of non-combustible
floor protection is require to
be installed in front of the
hearth.
Figure 17: Floor protection distance required.
13
![](asset-e.png)
14
Initial Installation
Check draft with a match
or smoke in a " (6 mm)
tube located here.
MINIMUM FIREPLACE SIZE:
Description of Fireplace Dimension Direct Vent B-Vent
Width At Back 23 ” (591 mm) 23 ” (591 mm)
At Front 35” (889 mm) 35” (889 mm)
Height With Surround Only 23 ” (603 mm) 23 ” (603 mm)
With Surround with Trim 23” (584 mm) 23” (584 mm)
Depth With Surround Only 18” (457 mm) 19” (483 mm)
With Surround with Trim 16 ” (419 mm) 17 ” (445 mm)
B-VENT MODEL:
WARNING: This appliance has been designed to operate by drawing combustion air and dilution air
from the room. It is also designed to draw room air for proper heat circulation from the sides of the
unit. Blocking or modifying the louvers in any way can create hazardous situations, either through poor
venting or by overheating. It is important that this unit has sufcient air circulation for proper venting
and combustion. Provisions must be made for the supply of adequate combustion and ventilation air.
These openings must not be blocked. The appliance must not be connected to a chimney ue servicing
a separate solid fuel-burning appliance.
AUTOMATIC FLUE GAS SPILL SWITCH - B-VENT MODEL ONLY:
NOTE: This heater must be properly connected to a venting system. This heater is equipped
with a vent safety shutoff system designed to protect against improper venting of combustion
products. This safety switch is located on the rear of the appliance. If the switch trips more
than once, the venting should be inspected by a qualied service technician for possible
blockage or severe down draft conditions.
WARNING: Operation of this heater when not connected to a properly installed and maintained
venting system can result in carbon monoxide (CO) poisoning and possible death.
The draft hood must be in the same pressure zone as
the air inlet. Inspect for draft from the front of the unit
at the ” tube shown in Figure 18. Check for a draft
using smoke; a vacuum or suction into the tube will
indicate proper drafting. If air is blowing out of the tube
the problem must be corrected before the unit can be
started.
This model can be vented with 4” aluminum or stainless
steel ex vent and/or certied Type B Gas Vent. The
ue collar of the appliance will t inside of a standard
4” vent and may be fastened directly to the vent. Check
periodically that the vent is unrestricted and an adequate
draft is present when the unit is in operation. Figure 18: Draft check.
Table 3: Minimum dimensions of replace for Sienna to be installed into.
![](asset-f.png)

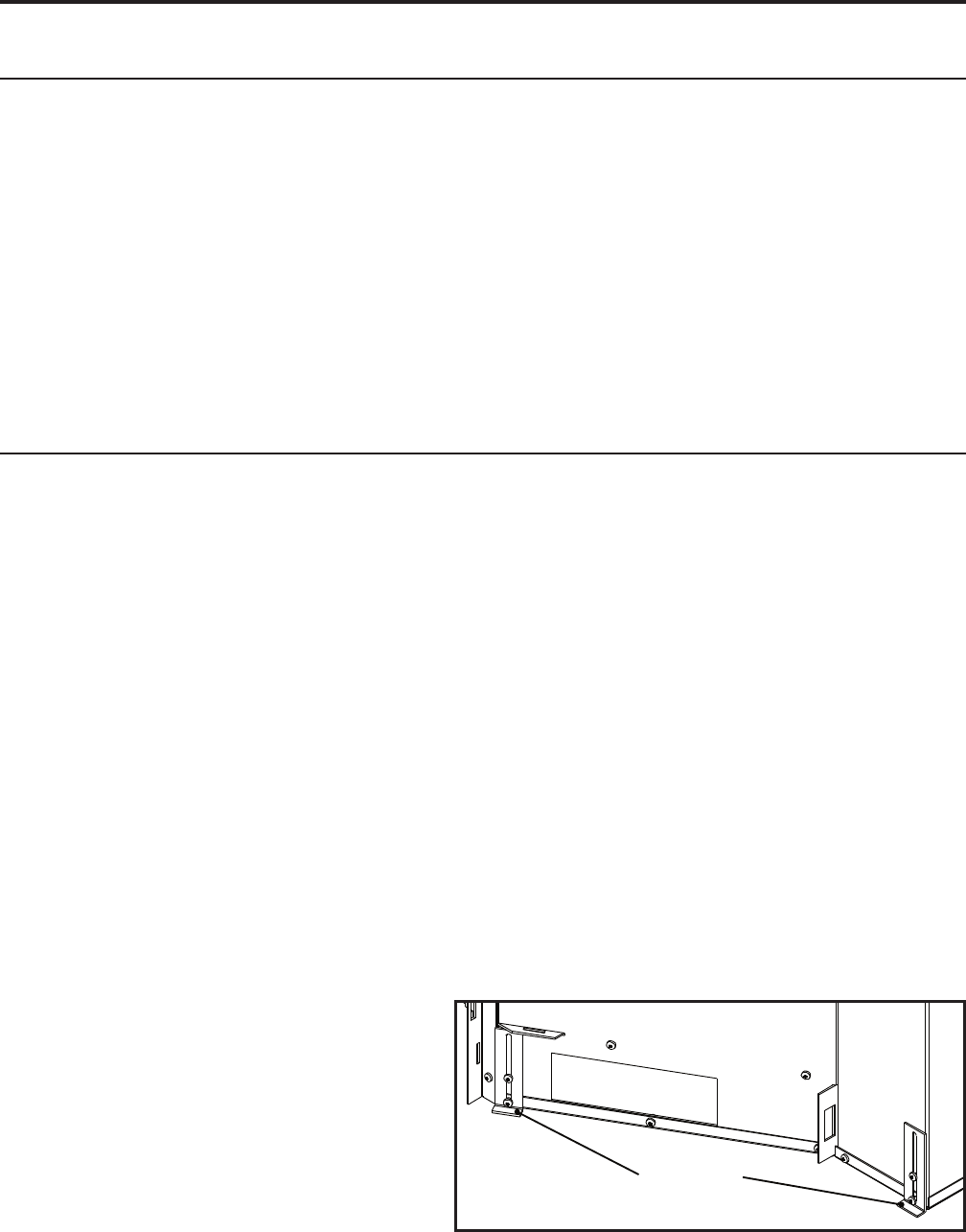

Initial Installation
QUALIFIED INSTALLERS ONLY
DIRECT VENT MODEL:
WARNING: This appliance has been designed to draw room air for proper heat circulation
from the sides of the unit. Blocking or modifying the louvers in any way can create hazardous
situations.
This model is vented with two (2) 3” aluminum or stainless steel ex vent leading into a co-linear to
co-axial vent adaptor and using a vertical termination cap. The ue collars of this model will t inside of
standard 3” vent and may be fastened directly to the vent. The Exhaust vent is on the right of the ue
connector. The Air Intake is on the left side of the vent collar plate (this outlet is not in the center, it is off
to one side of the vent collar plate.)
Check periodically that the vents are unrestricted. Also ensure that all direct vent pipes have been
properly sealed and installed after routine inspection or cleaning. The air intake and exhaust pipes must
be installed in the correct locations on the removable connector.
PREPARING YOUR SIENNA FOR INSTALLATION:
• Remove the packaging from the appliance and surround panels; check to make sure there is no
damage. Carefully check the glass door. Do not use the unit if it is damaged. In the event damage is
found, please report it to both the courier and your dealer as soon as possible.
• Carefully clean the replace and ue before installing the stove. Failure to do so may result in fumes
or dirt being blown into the room and may cause a re leading to death or serious injury.
1. Remove the unit from the box and remove all packaging material from the appliance.
2. Remove door. See MAINTENANCE AND SERVICE - GLASS DOOR REMOVAL.
3. Remove log and ember set and all wrapping material from the stove. Remove wrapping material from
log and embers and check for any damage. If damage is observed, do not use unit and contact your
local dealer.
4. Remove the vent collar plate from the top of the stove by unscrewing the two (2) T-20 Torx screws
located on the center top of the stove. Slide the collar plate backwards. If the replace that the unit
is to be installed into is high, the collar plate does not need to be removed. Properly secure the vent
collar plate to the exible vent pipe liner(s) previously installed in the chimney. Be careful not to over-
stretch the liner(s).
5. Place the unit part way into the replace. Connect the replace insert’s exible gas line to the
household gas supply, using locally approved methods. Place the electric cable so it can be connected
to the power supply.
15
6. As you push the unit into its nal position
in the replace, if the vent collar plate was
removed, reinstall it to the stove by sliding
it along the draft hood and secure with the
screw.
7. Adjust the leveling legs to ensure the unit
is level. There are two (2) leveling legs on
each side (shown in Figure 19).
Leveling Legs
two (2) on each side
Figure 19: Leveling legs position.
![](asset-10.png)
16
Install sealed throat connector or
flashing to prevent leakage of room air
up through chimney.
DV Only: Before installing vent
liners, mark each liner on both ends
to designate which is the intake and
the exhaust.
Measure the height of the chimney
beforehand and purchase the
appropriate kit. Never attempt to over-
stretch a flexible liner to accommodate
the height of the chimney.
DV Only: Maximum height allowed
for the vent is 35ft (10.67m).
Any flue damper must be removed or
blocked permanently in the open
position.
The chimney must be clean, in good
working order and constructed of non-
combustible materials.
Make sure that all chimney cleanouts
are tight fitting and will not permit air to
leak into the chimney
Initial Installation
QUALIFIED INSTALLERS ONLY
VENTING FIREPLACE INSERTS:
The ENVIRO SIENNA may be installed and vented into any solid fuel replace that has been installed
in accordance with the National, Provincial/State and local building codes and has been constructed of
non-combustible materials. Before starting refer to INITIAL INSTALLATION - PREPARING YOUR SIENNA FOR
INSTALLATION and INITIAL INSTALLATION - CONVERTING A DIRECT VENT FIREPLACE TO A B-VENT FIREPLACE.
An approved chimney liner and rain cap must be used. A throat connector or ashing must be installed
to ensure a tight seal, top performance, safety and efciency. Carefully follow the manufacturer’s
instructions that accompany the chimney liner kit.
Remove the vent collar plate from the top of the insert and connect it securely with sheet metal screws
and/or hose clamps. Check for any tears in the liner at this point. IMPORTANT: The screws that hold
the vent collar plate in its approved position must be installed.

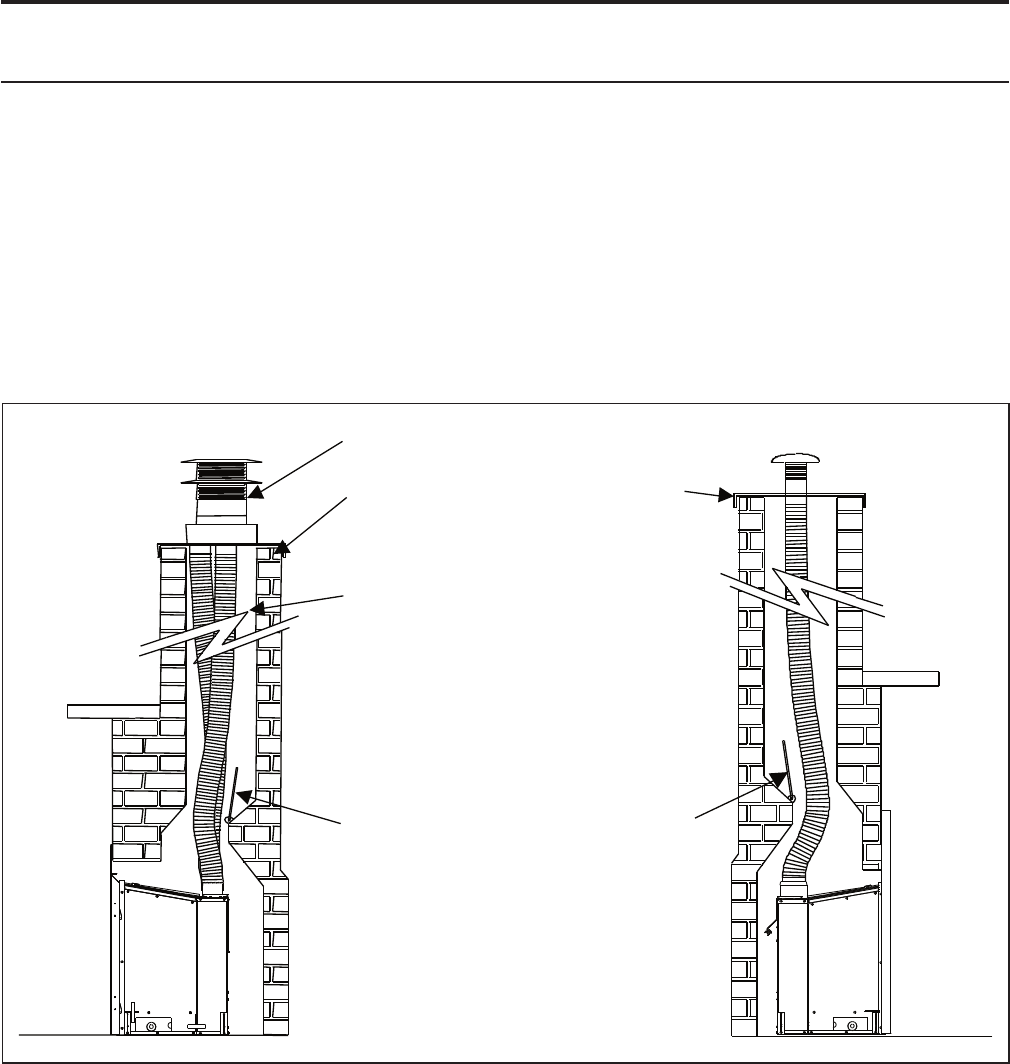

Figure 20: Installation of Sienna DV and BV.
![](asset-11.png)
17
Initial Installation
QUALIFIED INSTALLERS ONLY
ELECTRICAL REQUIREMENTS:
Fan Control
Black
White
White
Black
Green/Yellow
Green
Black
Power Cord
120V AC
FAN
120oF (49oC)
Temperature Sensor
CNT2
CNT3
CNT1
CNT4
The fan is thermostatically controlled and it will
not operate if the appliance is cold. A few minutes
after the appliance is lit and the variable speed
control is set at a desired setting, the fan will
automatically turn on. The fan will automatically
turn off after the appliance has cooled down.
The replace must be electrically connected and
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code Part 1, Safety Standards
For Electrical Installations, or The National
Electrical Code ANSI / NFPA 70 in the US.
WARNING: The electrical grounding instructions
must be followed. The fan kit is equipped with a
three-prong (grounding) plug for your protection
against shock hazard, and should be plugged
directly into a properly grounded three-prong
outlet. DO NOT cut or remove the grounding
prong from this plug.
COOL/HEAT
PROGRAM
DOWN
UP
70°F
70°F
ON
OFF
Optional
Remote
Control
Purple
Grey
Optional
Wall Switch
Optional
Thermostat
Pilot
Adjustment
Screw
ON/OFF/REMOTE
Thermostat Switch
Blue
Thermopile
Thermocouple
Manifold
Pressure
Tap
Inlet
Pressure
Tap
Gas
Control
Valve
Blue
BV Only
300oF (149oC)
Temperature
Sensor
(DV has only
connectors)

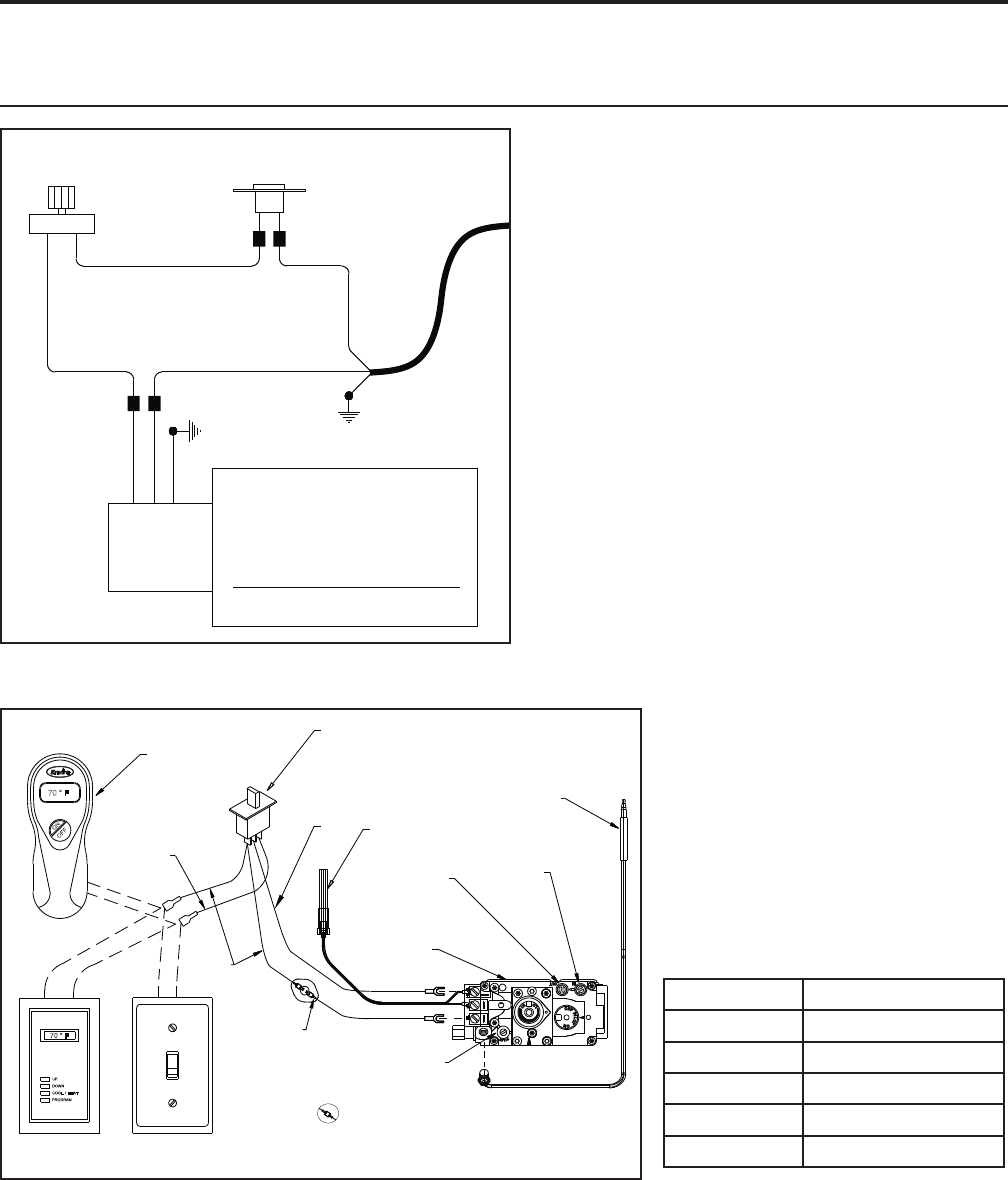

Figure 22: Wiring of a valve and thermostat.
Table 4. Recommended Thermostat
Wire Size.
Wire Size Max. Length
14 gauge 100 ft (30.48 m)
16 gauge 60 ft (18.29 m)
18 gauge 40 ft (12.00 m)
20 gauge 25 ft (7.62 m)
22 gauge 18 ft (5.49 m)
Figure 21: Fan wiring diagram.
CAUTION: When servicing controls,
label all wires prior to disconnection.
Wiring errors can cause improper
and dangerous operation. Verify
proper operation after servicing.
![](asset-12.png)
Initial Installation
QUALIFIED INSTALLERS ONLY
GAS LINE CONNECTION:
Warning: Only persons licensed to work with gas piping may make the necessary gas connections to
this appliance.
Gas Line Connection:
•This replace is equipped with a certied exible pipe located on the right side of the unit, terminating
in a ” male NPT tting. Consult the local authorities for local codes or use the CAN/CGA B149 (1 or 2)
installation code in Canada. In the US, gas installations follow either local codes or the current edition of
the National Fuel Gas Code ANSI Z223.1.
•The efciency of this unit is a product thermal efciency rating determined under continuous operating
conditions and was determined independently of any installed system.
The appliance and its’ shut-off valves must be
disconnected from the gas supply piping system
during any pressure testing where the pressure
exceeds psig (3.45 KPa) or the valve will be
damaged.
The unit must be isolated from the gas supply
piping system by closing its’ individual manual
shut off valve during any pressure testing of the
gas supply piping system at pressures equal to
or less than psig (3.45 KPa).
Always check for gas leaks with a soap and
water solution after completing the required
pressure test.
O
L
I
T
P
TP TH TP TH
IN OUT
H
I
L
O
N
O
F
O
F
L
I
P
T
O
Main Burner Natural Gas Propane Gas
Orice: #32 DMS #49 DMS
Venturi Setting: ” Min. ” Min.
Manifold Press: 3.8 W.C. (0.95 KPa) 11.0 W.C. (2.74 KPa)
Min. Manifold Press: 1.2 W.C. (0.30 KPa) 2.7 W.C. (0.67 KPa)
Max. Supply Press: 7.0 W.C. (1.74 KPa) 13.0 W.C. (3.28 KPa)
Min. Supply Press: 5.0 W.C. (1.24 KPa) 12.0 W.C. (2.98 KPa)
Max. Input: 41,000 BTU/hr
(12.0 KW)
41,000 BTU/hr
(12.0 KW)
Min. Input: 23,000 BTU/hr
(6.7 KW)
21,000 BTU/hr
(6.1 KW)
TO TEST VALVE PRESSURES:
The pressure taps are located on the top right
of the valve.
• Turn set screw one (1) turn counter-clockwise
to loosen.
• Place 5/16 in (8 mm) I.D. hose over the
pressure taps.
• Check pressures using a manometer.
• When nished, release pressure, remove
hose and tighten set screw.
NEVER USE AN OPEN FLAME FOR LEAK TESTING.

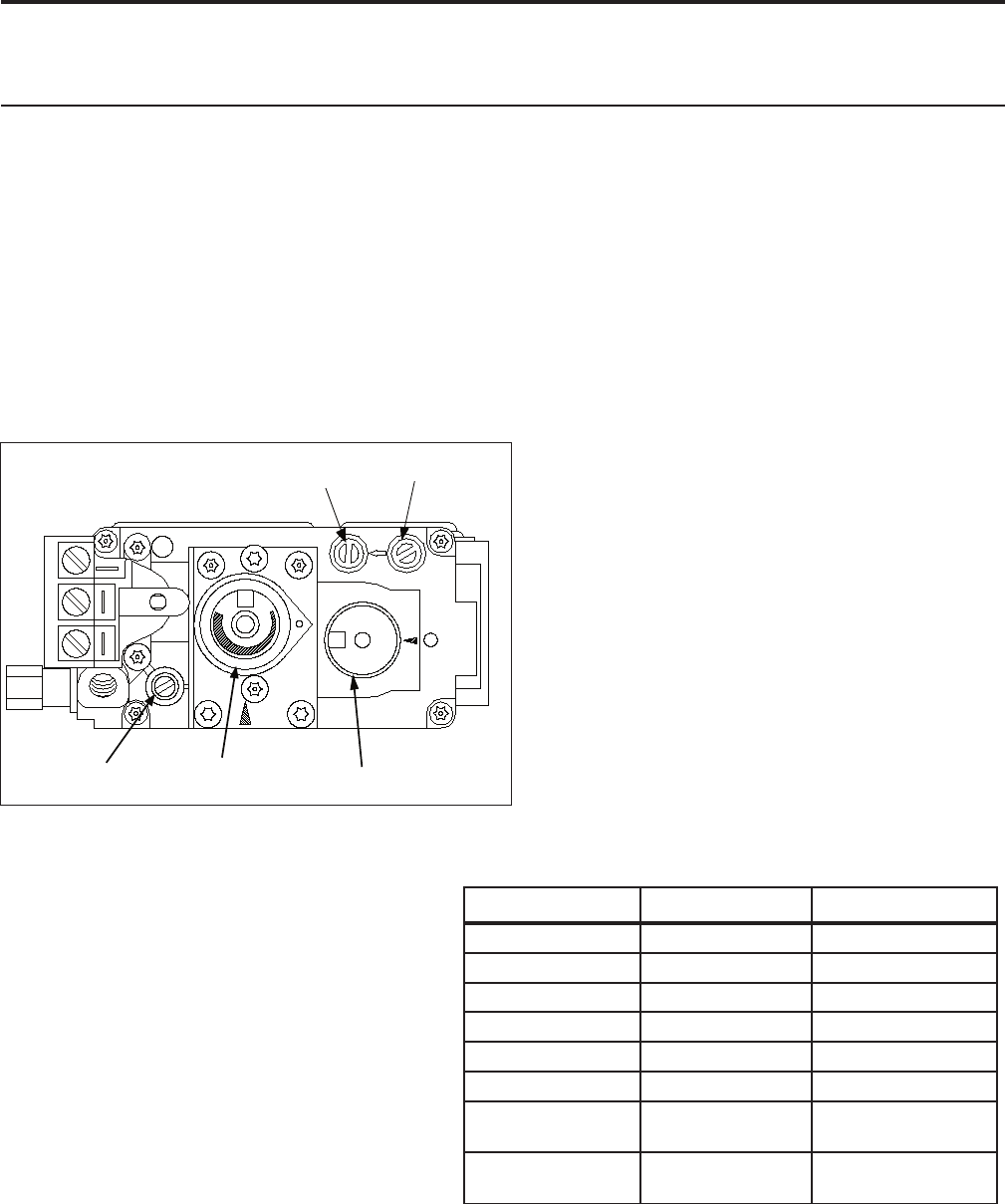

Figure 23: Fully labeled gas valve.
Table 5: Orice and Pressure Information.
18
![](asset-13.png)
19
Initial Installation
QUALIFIED INSTALLERS ONLY
CONVERTING A DIRECT VENT FIREPLACE TO A B-VENT FIREPLACE:
Direct Vent
Connector Assembly
Fresh Air
Inlet Covers
1. Remove the Direct Vent
chimney connector assembly
by taking out the two (2) T-20
screws at the front of the unit.
Push the assembly out from
under the brackets at the back
and remove (see Figure 24).
2. Remove the two (2) fresh air
inlet covers from each side.
Cover locations shown in
Figure 24.
3. Slide the B-Vent chimney
connector assembly into the
same position the Direct Vent
chimney connector assembly
was in. Ensure the tabs are
under the brackets at the back
and the holes at the front line
up. Secure into place with the
two (2) T-20 screws at the
front of the unit.
4. Disconnect the two (2) blue
wires at the opening to the
right of the unit and connect
them to the 300°F (149°C)
manual reset spill switch at
the rear of the B-Vent chimney
connector with the wires
supplied. Refer to Figure 25.
5. Test re the appliance and
ensure proper operation. A
venturi adjustment could be
required to achieve an efcient
ame. Improper operation
or adjustment could result in
Carbon Monoxide production
causing personal injury or
property damage.

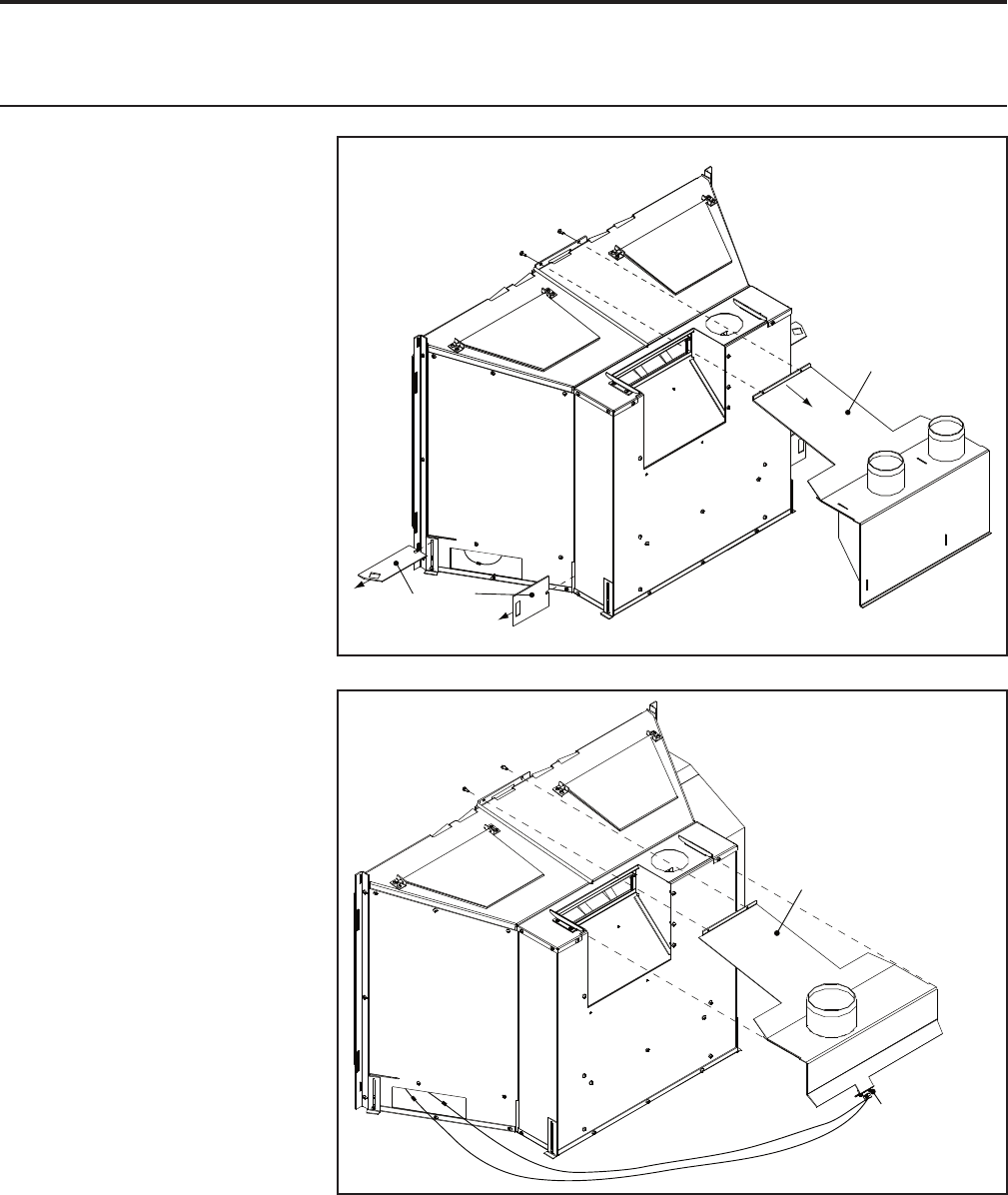

Figure 24: Converting to a BV replace.
B-Vent
Connector Assembly
300°F (149°C)
manual reset
spill switch
Figure 25: Converting to a BV replace.
![](asset-14.png)
Secondary Installation
Figure 29: Filler panel with trim installation.

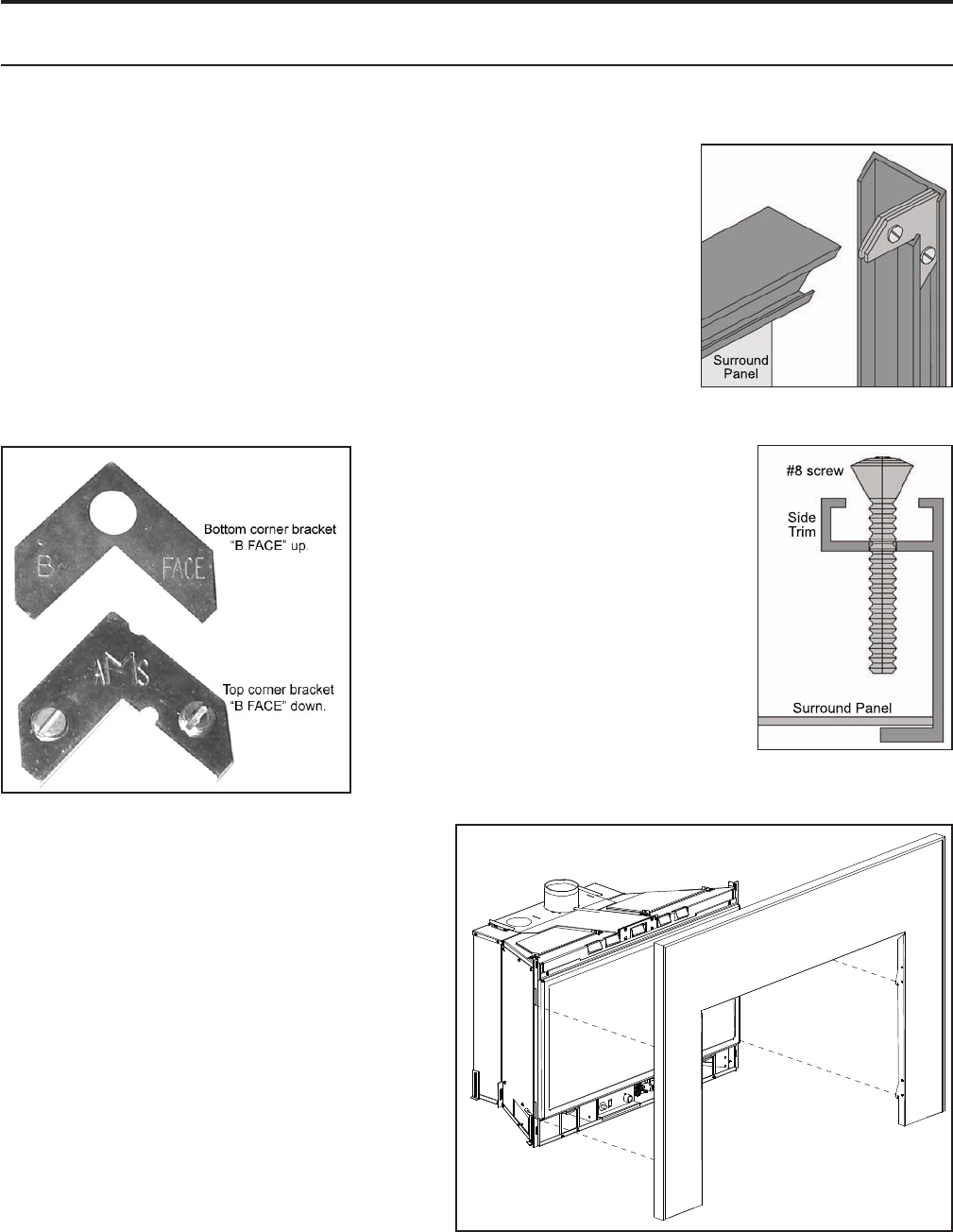

INSTALLATION OF SURROUND PANEL:
The Sienna must have one of the panels installed around the unit; the unit panel, the ller panel, or the
ller panel with trim. If you have trim for your ller panel, the trim must be installed before installing the
ller panel onto the unit.
Figure 28: Screw to
hold the trim against
the surround.
Surround Panel
Side
Trim
#8 screw
Surround
Panel
Figure 26: Corner brackets
for trim.
1. Attach one side trim to the top trim using a corner bracket (see Figure
26) to secure pieces together. There are two (2) main pieces to each
corner bracket (see Figure 27). When installing the corner pieces into
the trim the “B FACE” sides must face each other and the screw heads
are to face out. With the bracket in place and the top and a side trim
snug together use a at head screwdriver to turn the two (2) screws in
the bracket in to tighten it into the trim.
2. Slide the two (2) attached trim pieces onto the surround panel.
3. Attach the other side trim piece to the top trim using the same method
used in Step 1.
4. Place the second side of the trim
on the surround panel in the same
manner use on the rst side and
secure in the same manner.
5. On the side trims there are holes 2” (50
mm) from either end. Using a Phillips
screwdriver to place a #8 screw 1”
long in each hole and tighten (refer
to Figure 28). This will keep the trim
tight against the surround.
NOTE: The notch at the bottom of the
left trim is so the power cord can be
run to the outside of the panel.
INSTALLATION: Lift the surround upright in
front of the replace with the four (4) hooks
pointing towards the replace. Slide the hooks
into their corresponding slots (see Figure 29).
Ensure the hooks are pushed all the way into
the slots and the notch on the hook must be on
the bottom of the slot. The surround should be
wiped with a damp cloth periodically.
REMOVAL: Lift the surround straight up in
order to unhook the notch on the hooks from
the bottom of the slots. Pull the surround out
away from the replace. Place the surround
where it will not be damaged.
20
Figure 27: Two pieces of corner bracket.
![](asset-15.png)
21
Secondary Installation
LOG SET AND EMBER INSTALLATION:
NOTE: The logs are fragile and should be handled gently.
The placement of the logs is not arbitrary. If they are positioned incorrectly, the ames can be “pinched”
and will not burn correctly. The burner, and a few of the logs come with locator pins, notches and ledges,

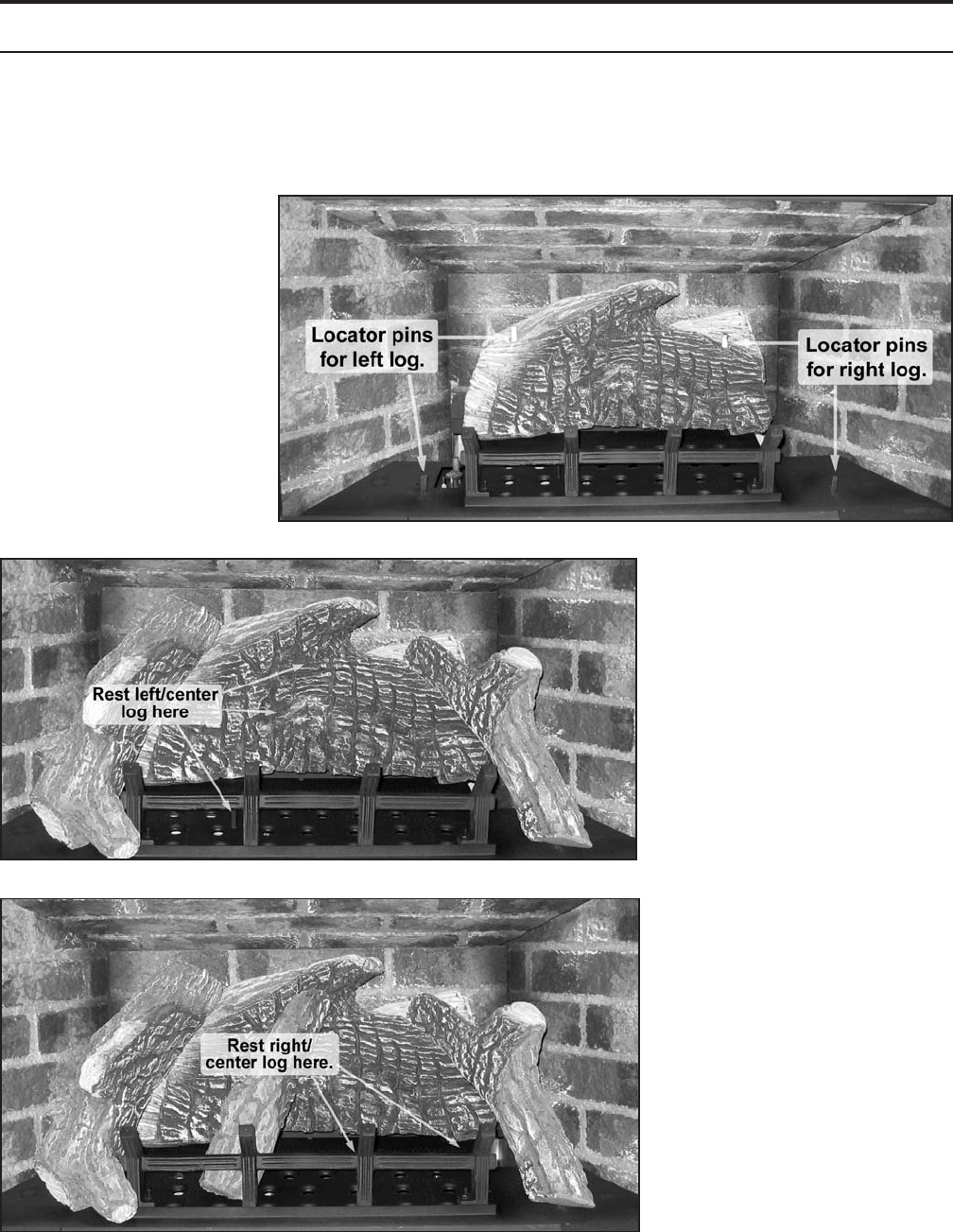

which make alignment easier. Using the pictures provided, carefully set the logs in place (see Figures 30
through 35).
Figure 30. Empty rebox with grate and locator pins.
Figure 31. First Stage Log Set Installation.
Figure 32. Second Stage Log Set Installation.
Figure 31: The left log and
the right log both have two
(2) holes in them that will rest
over their corresponding two
(2) locator pins pointed out in
Figure 30.
Figure 32: The bottom of the
left/center log will rest over
the locator pin on the burner
and against the grate. The top
half of the log must rest against
the back log, see Figure 31. The
center spot shown in Figure 31
is a knot in the back log for the
left/center log to rest against.
Ensure the log does not block
any burn ports.
Figure 30: The rst log to
be placed is the back log.
It leans on the back of the
rebox, push it back as far
back as you can.
![](asset-16.png)
Secondary Installation
Figure 33. Third Stage Log Set Installation.
Figure 35. Fifth Stage Log Set Installation.
Figure 34. Fourth Stage Log Set Installation.
Figure 34: Once the logs are in
position the provided rock wool can
be placed irregularly in front of the
burner.
Figure 35: Place the embers
irregularly onto and around the front
of the burner to create a realistic
look. The ceramic ber comes in
chunks that can be ripped into
smaller pieces.
WARNINGS: DO NOT pack this
ember material as this could create
an unsafe condition. The pieces
should be lightly placed so they don’t
block any of the burner ports.
DO NOT allow any of the embers to
rest against the pilot assembly.
Caution: Use only the type of
ember material supplied with this
replace. Due to the irregular size
of the ember material, there may
be more than required. Use of other
foreign materials on the burners may
create dangerous conditions.
Figure 33: The front end of the right/center log has a notch in it that is to rest around the right/center
post of the grate. The back end of the log rests on the burner tray (see Figure 32). Ensure the log does
not block any burn ports.
22
![](asset-17.png)
23
Secondary Installation
Figure 36. Sienna complete log set-up with embers burning.
NOTE: While the glass is still removed, it is recommended that the gas line be purged by lighting the
pilot.
When lighting the replace for the rst time since the log set and embers have been installed/replaced,
watch for ignition at ALL the burner ports. If a long delay is noticed, turn the appliance off and wait for
it to cool down. Remove the glass and rearrange the ember material, making sure none of the burner
ports air holes are blocked.
Never operate the replace with the glass door removed.
![](asset-18.png)
Secondary Installation

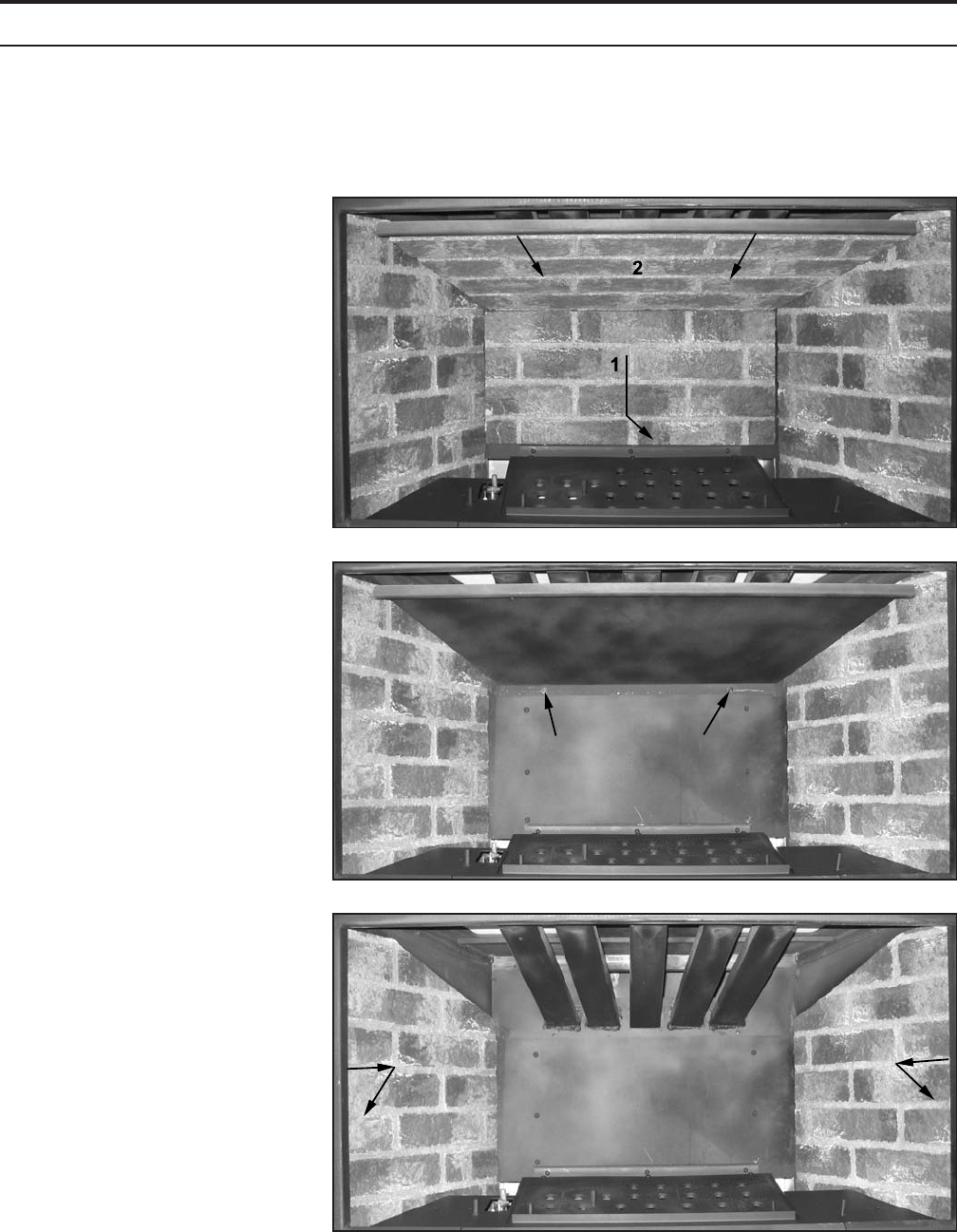

REMOVING THE BRICK PANEL:
The brick panel set is fragile, handle with extreme care.
The brick panel set comes pre-installed. The centre and top panel are the only panels that need to be
removed if the complete gas and electrical tray assembly must be removed. The side panels may remain
installed unless they are to be replaced.
1. Turn the unit off and allow the
unit to cool completely.
2. Remove the fascia or louvers,
open the door, and remove the
log set.
3. Pull out the bottom of the
centre panel while pushing up
on the top panel.
4. With the center panel out, the
top panel will easily come out.
Just slide the top edge back out
of the top lip in the rebox.
If the side and front panels must
be removed, continue with steps
5, 6, 7, and 8.
5. Lift the front panel, located on
the rebox bottom, from one
end and remove the panel at
an angle through the re box
opening.
6. Remove the log support tray by
lifting the back of the tray up
and pull it out from under the
lip. Take care not to knock the
pilot and the side brick panels.
7. Remove the two (2) T-20
screws holding the bottom of
the bafe (shown in Figure
38).
8. Pull the panels out of the lips
at the front of the rebox and
carefully remove the panel from
the unit (shown in Figure 39).
To re-install, follow the above
steps in reverse. Ensure that
the front and side panels are
pushed as far forward as they
can be before continuing with the
installation. Figure 39: Brick Panel Installation.
Figure 38: Brick Panel Installation.
1
2
Figure 37: Brick Panel Installation.
24
![](asset-19.png)
25
Trouble Shooting
Problem Possible Cause Solution
The main burner
does not ignite
when called for.
The gas valve may not be on. • Check that the gas control knob is in the “ON” position.
Thermostat is not calling for
heat.
• Adjust the thermostat several degrees above ambient temperature.
Problem with gas valve. • Use a DC voltmeter to measure the voltage across the TPTH and
TP terminals. Main operator voltage: Open circuit ≥ 325mV Closed
circuit ≥ 100mV
• If voltage is not present, check the control circuit for proper
operation.
• If proper control system voltage is present, replace the gas control.
Spark will not
light the pilot
after repeatedly
pressing the
spark ignitor.
Defective piezo ignitor. • Check connections to ignitor.
• If ignitor connections are good but no spark, replace ignitor.
Broken spark electrode. • Check for broken ceramic insulation, replace electrode if broken.
Misaligned spark electrode. • If spark is not arcing from electrode to pilot, loosen the screws on the
pilot base adjust and tighten.
Pilot will not
remain lit.
Problem with thermocouple
circuit.
• Check for proper connection of the thermocouple to the rear of the
valve. If loose, fully tighten.
• Check pilot for full ame impingement around thermocouple. If ame
is too small, check gas pressure, adjust pilot rate screw, check pilot
head for damage.
• Check thermocouple voltage at valve. It must be greater than 5 mV.
If low, replace thermocouple.
Air in gas line (pilot dies while
knob is depressed).
• Bleed line.
• Check gas line pressure.
• Contact dealer.
Burners will not
remain lit.
Problem with thermopile
circuit.
• Check gas line pressure .
• Check for ame impingement on thermopile. If low, see “Pilot will not
remain lit”.
• Check thermopile for minimum of 300 mV when burner is switched
on.
• Check wiring to thermostat for breaks.
BV ONLY: Check for spillage at draft hood that may trip spill switch
Flame lifting Leak in vent pipe • Check for leaks in vent connections.
Improper vent conguration • Check vent conguration with manual.
Terminal may be recirculating
ue gases
• Check to see if terminal is on correctly.
• May need to install high wind termination cap.
• Contact dealer.
Glass fogs up Normal Condition: after the appliance warms up the glass will clear.
**Due to additives in gas, glass may get hazy during operation** Clean as needed.
Blue Flames Normal during start up: ames will yellow as the replace heats up.
Flames are
burning “dirty” or
sooting
Flame impingement • Check log positioning.
• Increase primary air by opening the venturi shutter and/or by
opening the vent restrictor.
See also “Burners will not remain lit.”
Remote control
doesn’t work
Problem with the remote • One or more of the batteries are dead. See remote control
instructions.
Problem with replace • The on/off switch is turned to OFF.
• The gas control valve is turned to PILOT or OFF.
• The pilot has gone out.
BV ONLY:
Insufcient air
for combustion
• Air tight house.
• A vacuum in room due to
other air-moving device.
• Supply make up air to the unit.
![](asset-1a.png)
Parts List- Unit Components
Reference
Number
Part Description Part
Number
1 120°F Ceramic Fan Temperature Sensor EC-001
2 300°F (149°C) Manual Reset Spill Switch (Normally Closed) EC-003
3 S.I.T. Nova Valve Convertible 50-1421
4 Thermocouple EC-009
4 Spark Electrode with Ignitor Cable EC-011
4 Thermopile EC-012
4 Pilot Orice NG Threaded EC-019
4 Pilot Orice LP Threaded EC-020
5 Pilot Gasket EC-021
6 S.I.T. Piezo Ignitor EC-023
7 Burner Switch EC-026
8 Fan Controller - 115V EC-039
9 Domestic Power Cord - 115V EC-042
10 Convection Blower - 115V EC-069
SIT Pilot ” Tube with End Furrels (1 piece) 30-043
11 Blank Orice #73 50-343
Embers 50-491
On/Off Remote Control Kit 50-559
Programmable Wall Mounted Remote Control 50-583
12 Dual Bulb Door Gasket (10 feet) 50-634
13 Grate 50-916
14 Three Flame Pilot Hood 50-925
15 Burner 50-1089
16 DV Flue Connector 50-1090
17 Relief Door Gasket 50-1091
18 Brick Panels (set of 4) 50-1092
19 Log Support 50-1093
Sienna Owner’s Manual 50-1096
20 Door, Glass, & Gasket 50-1112
21 Log Set with Embers 50-1114
22 Burner Tray Complete 50-1115
23 Air Intake Covers 50-1116
24 BV Vent Connector 50-1117
Conversion Kit from LP to NG Convertible 50-1440
Conversion Kit from NG to LP Convertible 50-1441
S.I.T. Valve Conversion Screw W/oring 50-1450
S.I.T. Valve Conversion Screw Cap 50-1451
26
![](asset-1b.png)
27

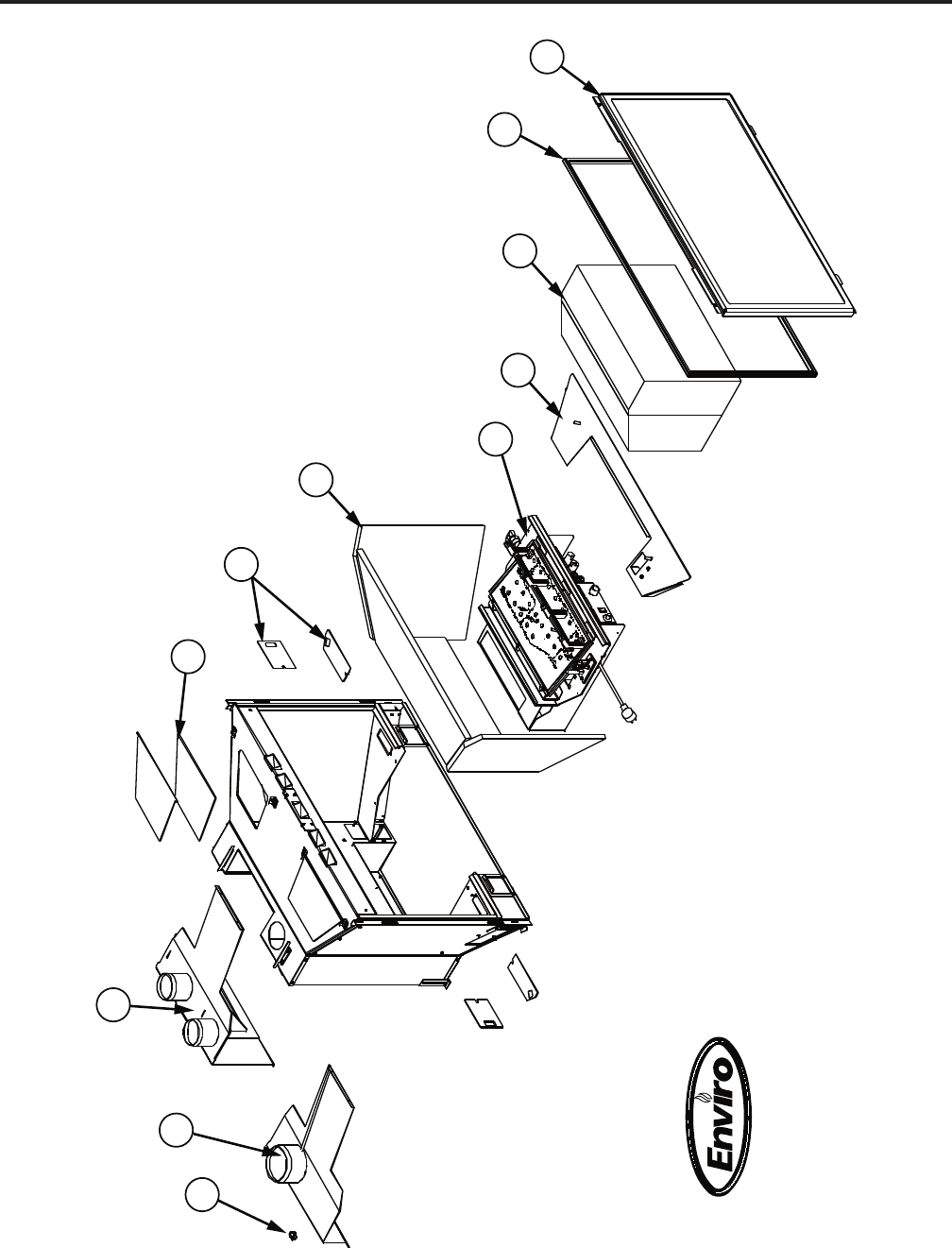

Parts Diagram - Components
SIENNA - Components
October 2004
![](asset-1c.png)

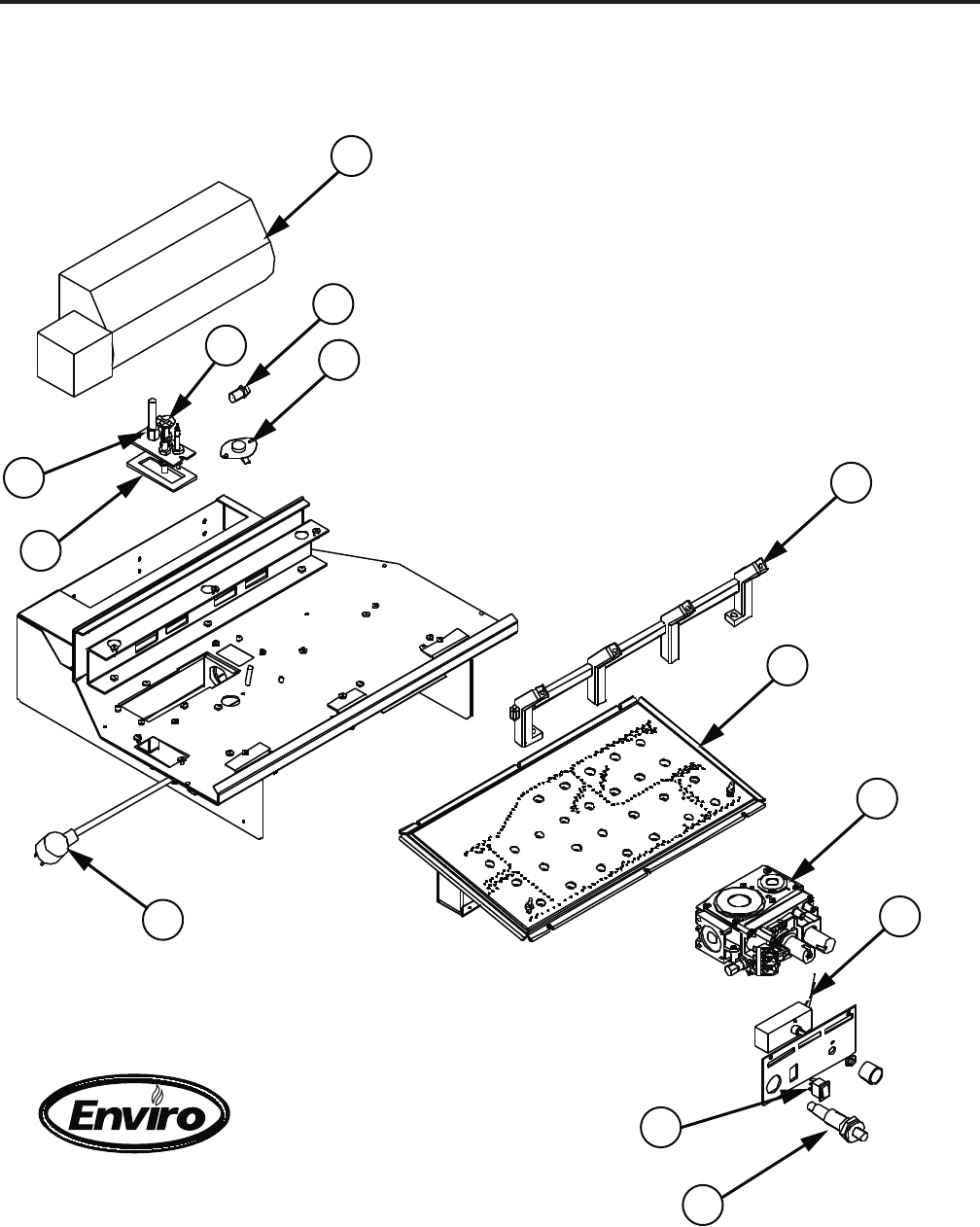

Parts Diagram - Burner
SIENNA - Burner
October 2004
28
![](asset-1d.png)
29
Parts List - Options
Reference
Number Option Description Part
Number
1A The Cottage Trim Kit - Gold 50-548
1A The Cottage Trim Kit - Pewter 50-549
1A The Cottage Trim Kit - Antique Copper 50-550
1A The Cottage Trim Kit - Painted Charcoal 50-694
2A Cape Cod Doors 50-1097
3A Unit Panel & Keystone 50-1108
4A Cottage 50-1109
5A Filler Panel 50-1110
6A Louvers (set of 2) 50-1111
7A Panel Trim Set 46” x 30” (117cm x 76cm) - Black 50-1113
![](asset-1e.png)

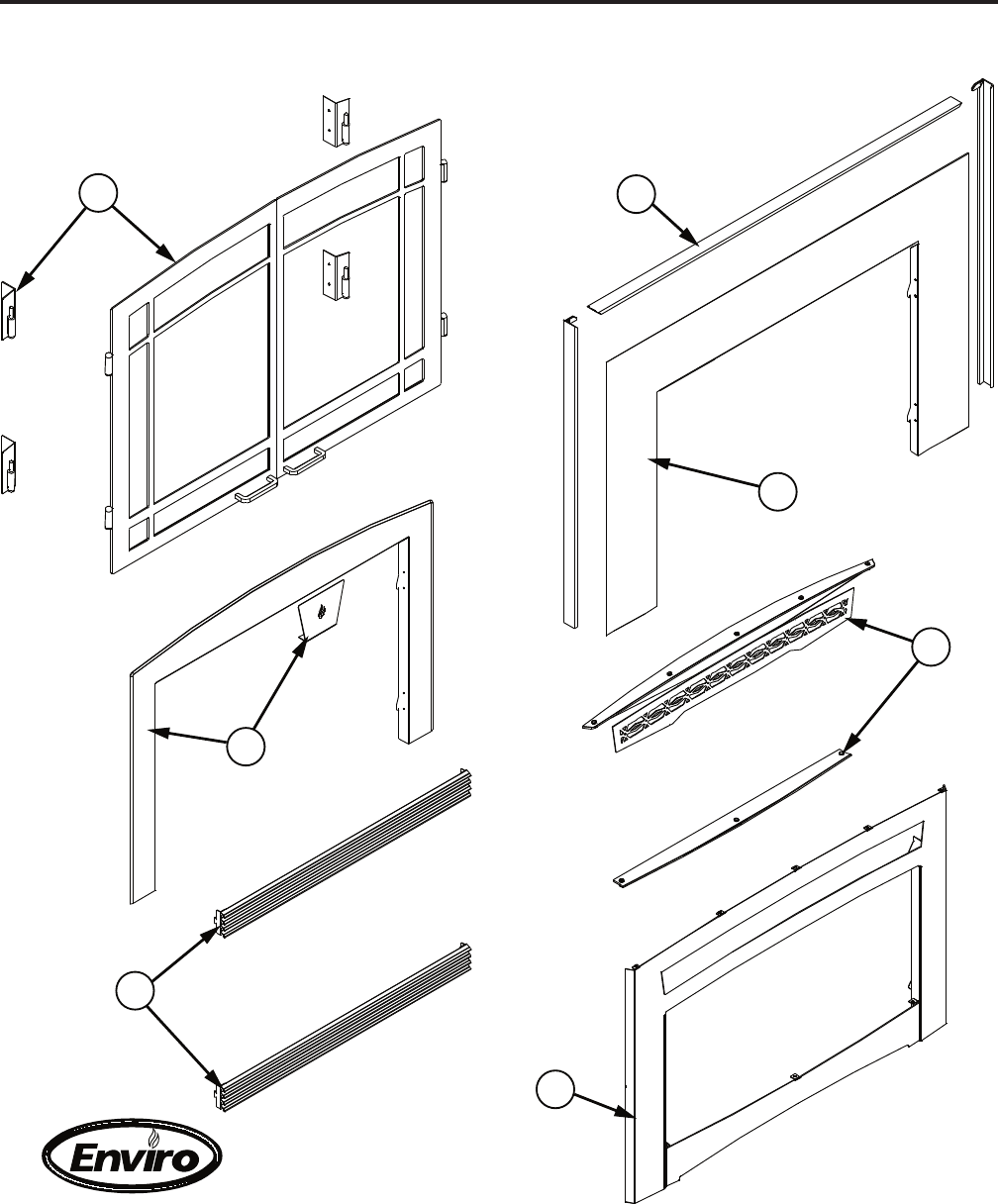

Parts Diagram - Options
SIENNA - Options
October 2004
30
![](asset-1f.png)
31
Warranty
Sherwood Industries Ltd. offers a Limited Lifetime Warranty on this gas product. This Limited Lifetime
Warranty covers the appliance for a period of seven years from the date of installation. This warranty
applies only to the original owner in the original location.
Covered under the lifetime warranty are: the surround, the chassis and the heat exchanger. These steel
components are covered against manufacturer’s defects for seven (7) years and the labour for the rst
year. The following exclusions apply: over-ring due to incorrect setup or tampering, or damage caused
by incorrect installation, usage or abuse. The unit must be properly installed by a qualied technician or
installer, and must meet all local and national gas and building code requirements.
We also cover against manufacturer’s defects, under our Limited Lifetime warranty, the following
components: Log Set, Burners and Glass.
The following exclusions apply:
Plating - Damage caused by scratching, marring, chemicals, ngerprints, abrasive cleaners or discoloration
with age. Items with Antique Copper that have had a green discoloration of the nish. If discoloration
occurs, please follow the cleaning instructions as outlined in the “Maintaining Face and Surround Finishes”
section.
Glass - use of harsh or abrasive cleaners, striking the glass or surface contaminates.
Logset - Damage caused by incorrect handling or misuse.
Burners - damage caused by improper or continuous operation under incorrect conditions.
Sherwood Industries Ltd. offers a two-year warranty on all the electrical components and gas components,
against manufacturing defects. Paint is also covered against aking. This offer includes parts and labour
for one year, and parts only thereafter.
Your dealer shall make all claims under this warranty in writing. When ling a warranty claim, please
complete the following information on an ofcial warranty claim form:
TO THE DEALER:
Name, address and telephone number of purchaser and date of purchase, date of installation, name of
installer and dealer, nature of complaint, defects or malfunction, description and part number of any parts
replaced.
TO THE DISTRIBUTOR:
Sign and verify that work and information are correct.
This warranty covers defects in materials and workmanship only if the product has been installed according
to the manual’s instructions. If the product is damaged or broken as a result of misuse or mishandling,
the warranty does not apply. The warranty does not cover removal and reinstallation costs.
Sherwood Industries Ltd. reserves the right to repair or replace the defective product. The shipping costs
are to be paid by the consumer. All warranties by the manufacturer are set forth and no claim shall be
made against the manufacturer on any oral warranty or representation.
Sherwood Industries Ltd. and its’ employees or representatives will not assume any damages, either
directly or indirectly, caused by improper usage, operation installation, servicing or maintenance of this
appliance.
Sherwood Industries Ltd. reserves the right to make changes without notice. Please complete and mail
the warranty registration card and have the installer ll in the installation data sheet in the back of the
manual for warranty and future reference.
![](asset-20.png)
Installation Data Sheet
The following information must be recorded by the installer for warranty purposes and future reference.
NAME OF OWNER:
_________________________________________
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
NAME OF DEALER:
_________________________________________
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
MODEL:___________________________________
SERIAL NUMBER:___________________________
DATE OF PURCHASE: _____________ (dd/mm/yyyy)
DATE OF INSTALLATION:___________(dd/mm/yyyy)
� DIRECT VENT � B-VENT
� NATURAL GAS (NAT) � PROPANE(LPG)
INLET GAS PRESSURE:_________in wc
MAIN BURNER ORIFICE:__________# DMS
PILOT ORIFICE #_________OR________in diam.
INSTALLER’S SIGNATURE:
_________________________________________
NAME OF INSTALLER:
_________________________________________
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
MANUFACTURED BY:
SHERWOOD INDUSTRIES LTD.
6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3
www.envirore.biz
March 20, 2006
C-11075
32
