EN9410

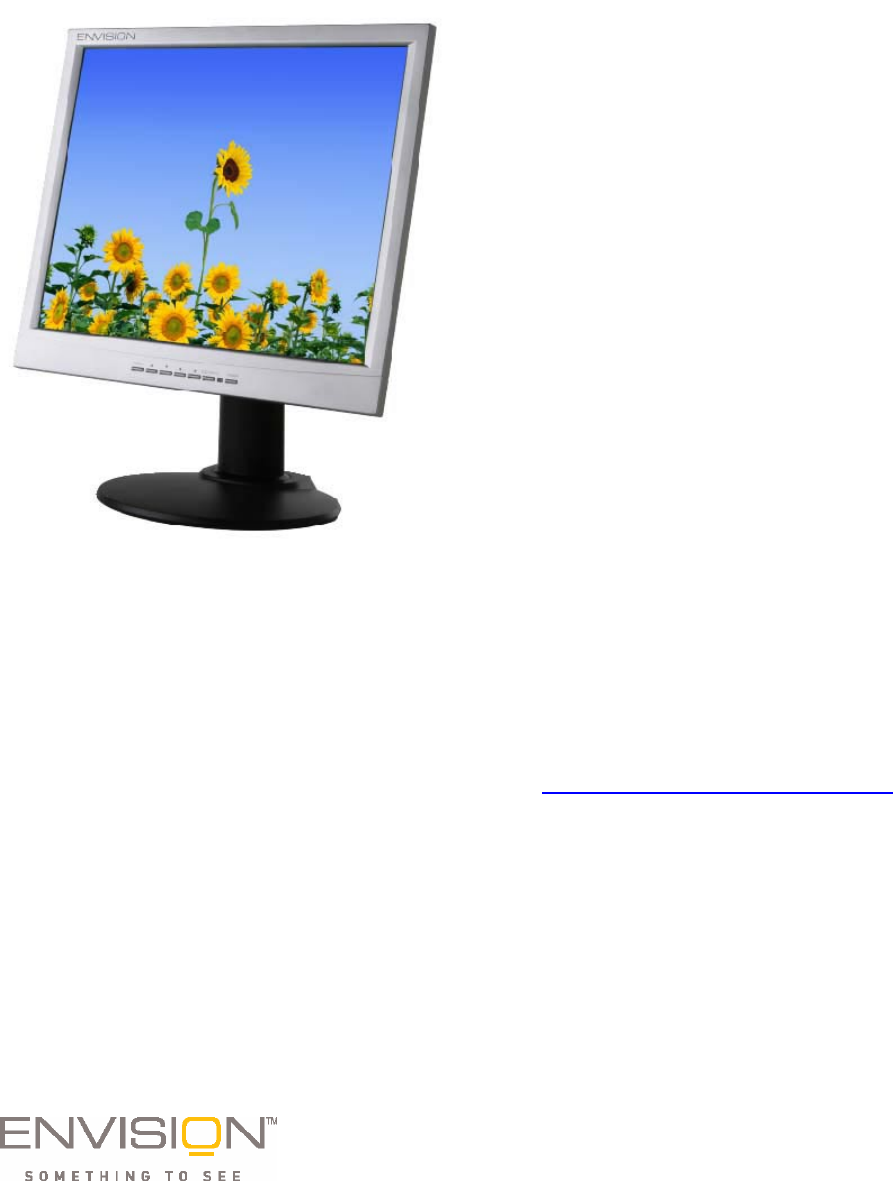

19” TFT LCD Monitor
User’s Manual
By Envision Peripherals
Inc.
www.ENVISIONdisplay.com
i
FOR YOUR SAFETY
Before operating the monitor, please read this manual thoroughly. This manual
should be retained for future reference.
FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
As an ENERGY STAR
Partner Envision Peripherals Inc. has determined
that this product meets the ENERGY STAR
guidelines for energy efficiency.
WARNING:
To prevent fire or shock hazard, do not expose the monitor to rain or moisture.
Dangerously high voltages are present inside the monitor. Do not open the cabinet.
Refer servicing to qualified personnel only.
ii
PRECAUTIONS:
• Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen
sink, laundry tub, swimming pool or in a wet basement.
• Do not place the monitor on an unstable cart, stand, or table. If the monitor
falls, it can injure a person and cause serious damage to the appliance. Use
only a cart or stand recommended by the manufacturer or sold with the
monitor. If you mount the monitor on a wall or shelf, use a mounting kit
approved by the manufacturer and follow the kit instructions.
• Slots and openings in the back and bottom of the cabinet are provided for
ventilation. To ensure reliable operation of the monitor and to protect it from
overheating, be sure these openings are not blocked or covered. Do not
place the monitor on a bed, sofa, rug, or similar surface. Do not place the
monitor near or over a radiator or heat register. Do not place the monitor in a
bookcase or cabinet unless proper ventilation is provided.
• Do not install the monitor in a location near heat sources such as radiators or
air ducts, or in a place subject to direct sunlight, or excessive dust or
mechanical vibration or shock.
• The monitor should be operated only from the type of power source
indicated on the label. If you are not sure of the type of power supplied to
your home, consult your dealer or local power company.
• The monitor is equipped with a three-pronged grounded plug, a plug with a
third (grounding) pin. This plug will fit only into a grounded power outlet as a
safety feature. If your outlet does not accommodate the three-wire plug,
have an electrician install the correct outlet or ground the appliance safely.
Do not defeat the safety purpose of the grounded plug.
• Unplug the unit during a lightning storm or when it will not be used for long
period of time. This will protect the monitor from damage due to power
surges.
• Do not overload power strips and extension cords. Overloading can result in
fire or electric shock.
• Never push any object into the slot on the monitor cabinet. It could short
iii
circuit parts causing a fire or electric shock. Never spill liquids on the
monitor.
• Do not attempt to service the monitor by yourself. Opening or removing
covers can expose you to dangerous voltages and other hazards. Please
refer all servicing to qualified service personnel.
• Do not pull or bend the power cable and signal cable or place the monitor or
any heavy objects on the cables. If the cables are damaged, they may cause
fire or electric shock.
• If you notice any abnormal phenomenon such as strange noise, smoke or
smells, unplug the monitor and contact your dealer or the nearest service
center immediately.
• When moving the monitor, always turn off the switch, unplug the monitor,
and disconnect the signal cable. If the cables are not properly disconnected
when moving the monitor, it may cause fire or electric shock.
• Do not touch the plug with wet hands. Pulling or inserting the plug with wet
hands may cause electric shock.
• To disconnect the power cable or signal cable, always pull the cable by the
plug. Never pull on the cable as this may cause fire or electric shock.
• To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate configured receptacles marked between
100 - 240V AC, Min. 5A.
• The wall socket shall be installed near the equipment and shall be easily
accessible.
ERGONOMICS RECOMMENDATIONS
Do not operate the monitor in a dark room or against a bright background. For optimal
viewing comfort, the monitor should be just below eye level and 30-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged period of time, a
ten-minute-break per hour is recommended.
iv
GENERAL NOTES
The following symptoms are normal with LCD monitor and do not indicate a problem.
• Due to the nature of the fluorescent light, the screen may flicker during initial
use. Turn off the Power Switch and then turn it on again to make sure the
flicker disappears.
• You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
• The LCD panel used in this monitor is a very high technology product with
3,932,160 thin film transistors giving you fine picture details. Occasionally, a
few non-active pixels may appear on the screen as a fixed point of red,
green, blue, white or black. Please note that this does not indicate a
defective panel.
• Due to the nature of the LCD screen, an after-image of the previous screen
may remain after switching the image when the same image has been
displayed for a long time. The monitor will slowly recover from this.
• LCD monitors have a fixed size & number of pixels. Due to this, an
interpolation is necessary to operate the monitor in a resolution below its
native resolution which may slightly de-grade the display quality. Therefore,
it is highly recommended to operate this monitor at its native resolution of
1280x1024 @ 60Hz.
v
OTHER NOTES
• The screen surface is very soft. Do not rub, touch or tap the screen surface
with sharp object such as pen or pencil. This contact may scratch or
damage the screen. These damages are not covered under the warranty.
• Turn your computer OFF before installing your new monitor. Refer to your
computer manual for the proper shut down procedure.
• Save the original shipping carton and packing materials, as they will come in
handy if you ever have to ship your monitor.
• For maximum protection, repackage your monitor as it was originally packed
at the factory.
• To keep the monitor looking new, periodically clean the case & surface of the
TFT-LCD panel with a soft non-fibrous cloth lightly dampened with a glass
cleaner. Do not use any paper products to clean the screen. Never spay the
glass cleaner directly on the monitor. Never use strong solvents such as
thinner, benzene, or abrasive cleaners, since these will damage the case &
panel. As a safety precaution, always unplug the monitor before cleaning it.
vi
Disclaimer
Envision Peripherals Inc. makes no representations or warranties, either expressed
or implied, with respect to the contents hereof and specifically disclaims any
warranties, merchantability or fitness for any particular purpose. Further, Envision
Peripherals Inc. reserves the right to revise this publication and to make changes
from time to time in the contents hereof without obligation to notify any person of such
revision or changes.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks remain the property of their respective owners.
Reference Information
For future reference, write the following information about your monitor in
the space below. The serial number is found on the back of the product or
on the bottom of its stand.
Monitor Information
Product Name: EN9410
Serial Number:
Date of Purchase:
Dealer Information
Dealer:
Telephone
Number:
Address:
vii
Table of Contents
1
1 Important Safety Instructions ...........................................i
2
2 Features.............................................................................2
3
3 Unpacking the Monitor.....................................................3
Installation and Removal of the Base…………………….3
4 Hardware Installation .......................................................4
5
5 Windows driver installation .............................................5
6 Setting the Display Resolution........................................6
Choosing the Best Resolution ..............................6
Supported Graphics Modes and Refresh Rate
Selection ...............................................................7
7
7 Adjusting the Monitor..................................................9-12
8
8 Frequently Asked Questions ....................................13-15
9
9 Specifications ............................................................16-17
1
1
1
Important Safety Instructions
Please read the following safety instructions before installing or cleaning your
Envision monitor:
1. Unplug the monitor’s power cable from the wall outlet before cleaning. Do
not use liquid or aerosol cleaners. Use a soft cloth to clean the monitor
housing.
2. Slots and openings on the back or top of the cabinet are provided for
ventilation. They must not be blocked or covered. This product should
never be placed near or over a radiator or other heat source, or used in a
built-in installation unless proper ventilation is provided.
3. Never push objects of any kind, or spill liquid of any kind into this product.
4. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltages or other hazards.
5. If any abnormal operation or accident (such as dropping the unit) occurs,
disconnect the monitor from the wall power outlet and contact qualified
service personnel.
2
2
2
Features
Your Envision EN9410 Monitor features:
♦ SXGA (1280 x 1024 pixel) Resolution LCD Panel
♦ High Brightness – 250 cd/m
2
(typical)
♦ High Contrast Ratio – 500:1 (typical)
♦ True Colour Display
With FRC support for 16.7M colours, the Envision EN9410 monitor offers
you better image quality.
♦ High Quality Expansion
With any resolution within the monitor’s specified range, your Envision
EN9410 monitor can expand the image to full screen.
♦ Auto Adjustment Function
The auto-adjustment key automatically optimises the image.
♦ Plug and Play Compatibility with Microsoft
Windows
95, 98, 2000,
Me and XP
♦ Space Saving - only 199 mm deep
♦ Light Weight - only 5.3 kg
♦ Lower Power Consumption
50 W maximum during operation
♦ Power Saving
Power management complies with EPA ENERGY STAR standard. When
the system is idle (in monitor off mode), the monitor automatically cuts its
power consumption to less than 1 W.
♦ On Screen Display
Allows you to adjust all settings simply using on-screen menus.
3
3
3
Unpacking the Monitor
Please check that the following items are included with your monitor. If they are
missing or damaged, please contact your place of purchase
immediately
.
Monitor
1 pc
1 pc
1 pc
1 pc
Signal Cable
Power Cable
QSG
(Quick Start
Guide)
CD User’s
Manual
Installation and Removal of the Base
1. Installation 2. Removal
* Lay the monitor face down on the
edge of a table. Make sure to use a
soft padding to protect the screen of
the monitor.
Ta bl e
4
4
4
Hardware Installation
Your monitor is equipped with an automatic power supply with a voltage range
from 100 to 240 Volts AC at a frequency of 50 to 60 Hz. Make sure that your
local power supply is within the supported range. If you are unsure, please
contact your electricity supplier.

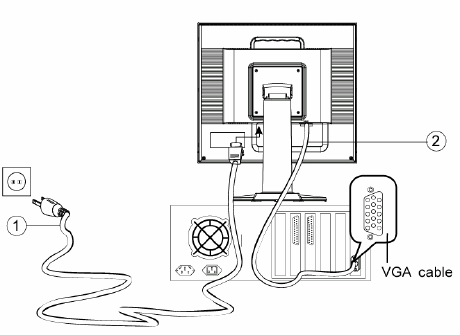

To install your Envision EN9410 monitor:
1. Make sure that the power to the computer and the power to the monitor are
both turned off.
2. Connect the D-sub video cable from the monitor’s VGA input connector to
the VGA output connector of the computer‘s graphics card.
3. Connect the power cord from the monitor’s power jack to an AC power
socket. Please make sure, that you have easy access to the power socket
so you can disconnect the unit from the power socket should you need to.
1.
Power cable
2.
D-sub Video Cable
5
5
5
Windows driver Installation
The Envision EN9410 is fully Windows compatible so no specific windows
drivers are required to be loaded.
Windows 98, ME, and 2000
The first time you start Windows after connecting your new monitor, the system
will detect the monitor and automatically start the Add New Hardware wizard.
Just follow the prompts to load the native Plug and Play drivers.
Windows XP
The first time you start Windows after connecting your new monitor Windows
XP will automatically load the native Plug and Play drivers.
6
6
6
Setting the Display Resolution
Choosing The Best Resolution
All Liquid Crystal Displays (LCDs) have a fixed resolution that is the same as
the maximum resolution that may be displayed on the LCD. In the case of the
EN9410 the LCD resolution is 1280 x 1024 pixels. This is also known as the
“native” resolution of the monitor. Lower resolutions can be displayed at full
screen through an interpolation circuit. Because the lower resolution must be
expanded, the quality of the displayed image is not as good as that available
when the native resolution is displayed. For optimal performance from any LCD
monitor, you must use the monitor’s native resolution.
If you are using Windows 95, 98, 2000, Me, XP or NT 4.0, you can change the
resolution as follows:
1. Double-click the Display icon in the control panel.
2. From the Display Properties dialogue box, select the Settings tab.
There is a slider on the right-hand side in the middle of the dialogue box
that alters the displayed resolution. Set the resolution to 1280 x 1024.
3. For Windows NT users only: select a refresh rate of either 60Hz or 75 Hz
and click Test. A test pattern will be displayed. Make sure that there are
no error messages shown by the monitor. If an error message is
displayed, check the resolution and refresh rate settings or choose a
different refresh rate.
4. Click OK to close Display Properties.
7
Supported Graphics Modes and Refresh Rate Selection
There is no need to choose the highest possible refresh rate when using an
LCD monitor. It is not technically possible for an LCD monitor to flicker. Even at
a refresh rate of 60 Hz you will get an absolutely flicker-free image.
For best results, it is important that you set the graphics adaptor to use one of
the monitor’s preset display modes shown in Table 1 on the next page. Other
graphics signals may be displayed poorly or not at all. Note that the EN9410’s
preset modes correspond to VESA or Apple Macintosh standard graphics
signals for these resolutions. All recent models of graphics adaptor should be
able to support these modes. For the native resolution of 1280 x 1024 pixels,
for example, refresh rates of 60, 70 and 75 Hertz are supported.
With Windows 95, 98, ME, 2000 or XP you can change the refresh rate of the
graphics signal as follows:
1. Double click the Display icon in the control panel.
2. From the Display Properties dialogue box, select the Settings tab and
click the Advanced Properties button.
3. For Windows 95, 98, and ME select the Adapter tab, for 2000 and XP
select the Monitor tab. The refresh rate selection field is located in the
centre, at the bottom of the dialogue box.
4. Choose a refresh rate that corresponds with one of the factory modes from
the table below.
5. Click Apply, and then OK twice.
Please Note:
• Graphics modes that are not listed in the table may not be supported. For
an optimal picture it is recommended that you choose a graphics mode
with a resolution of 1280 x 1024 pixels that is listed in Table 1 on the next
page. Resolutions of 640 x 480, 800 x 600, 1024 x 768 and 1280 x 1024
pixels are supported. The default setting may require some adjustment
before use.
• The displayed image may show some distortion or noise that can be
8
caused by the signal from the VGA card if it does not correspond with the
usual standard. This is not however, a problem with the monitor. If it is still
visible after using the Automatic adjustment, you can usually improve the
displayed image by manually adjusting the phase, horizontal position and
pixel frequency settings using the "Geometry" menu. See Chapter 7,
Adjusting the Monitor, for more details.
• When you shut Windows down you may see interference lines on your
screen. This caused by the manner in which Windows controls the
graphics card at this point and is normal with all LCD monitors.
• To extend the service life of the product, we recommend that you use your
computer's power management functions to turn the monitor off after
extended idle periods.
Incoming display mode (Input timing)
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Dot Clock
Frequency
(MHz)
Remark
640x350 31.47 70.08 25.17 DOS
720x400 31.47 70.08 28.32 DOS
640x480 31.47 60.00 25.18 DOS
640x480 37.86 72.80 31.5 VESA
640x480 37.50 75.00 31.5 VESA
800x600 35.16 56.25 36.00 VESA
800x600 37.88 60.32 40.00 VESA
800x600 48.08 72.19 50.00 VESA
800x600 46.86 75.00 49.50 VESA
1024x768 48.36 60.00 65.00 VESA
1024x768 56.48 70.10 75.00 VESA
1024x768 58.036 71.916 78.00 VESA
1024x768 60.02 75.00 78.75 VESA
1280x1024 64.00 60.00 108.00 VESA
1280x1024 80.00 75.00 135 VESA
Table 1
9
7
7
Adjusting the Monitor
Picture Optimisation
The easiest way to obtain an optimal picture is by using the Auto button for 2
seconds. This only works reliably if the graphics adaptor is set to use one of the
monitor’s factory modes (see Table 1 in the previous chapter) and if you are
displaying a suitable stationary image (such as the windows desktop).
The monitor will remember the settings obtained by the auto calibration
settings and use them whenever you turn the monitor on. Note that you may
need to readjust the monitor if it is connected to a different computer or if the
computer’s graphics adaptor is replaced.
If you are still not satisfied with the result, you can enhance the image by using
the monitor’s manual adjustment functions.
OSD Adjustment
Adjustments to the displayed image are made using the On-Screen Display
(OSD) and the buttons on the front of the monitor.
10
(from left to right)
Menu Enter OSD menu.
Enter submenus or select items within OSD menu.
c Move the selection cursor upwards within the OSD menu.
d Move the selection cursor downwards within the OSD menu.
e Adjust OSD functions. (Decrease)
f Adjust OSD functions. (Increase)
SELECT
/AUTO
Automatically adjust the vertical, horizontal position, pixel
phase and pixel clock.
Exit OSD menu/submenus.
POWER Power button
OSD MENU:

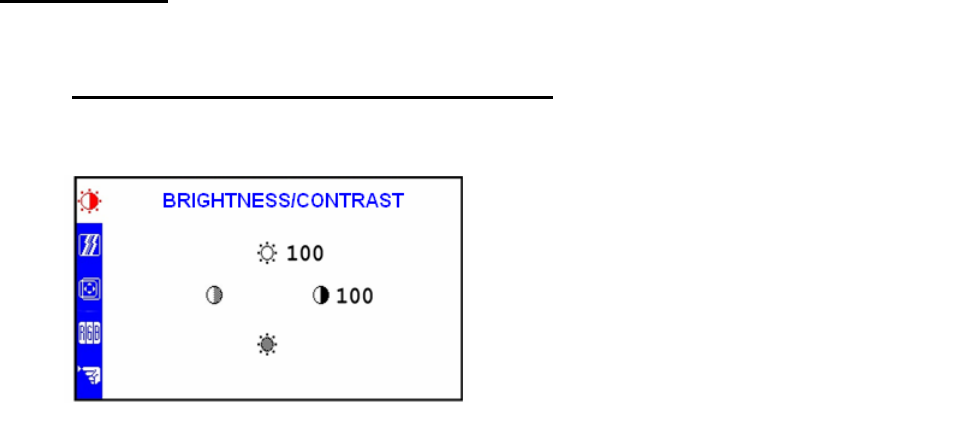

Brightness & Contrast Adjustment
Brightness:
Adjust the brightness of the
display.
Contrast:
Adjust the difference between the
light and dark are
as.
11

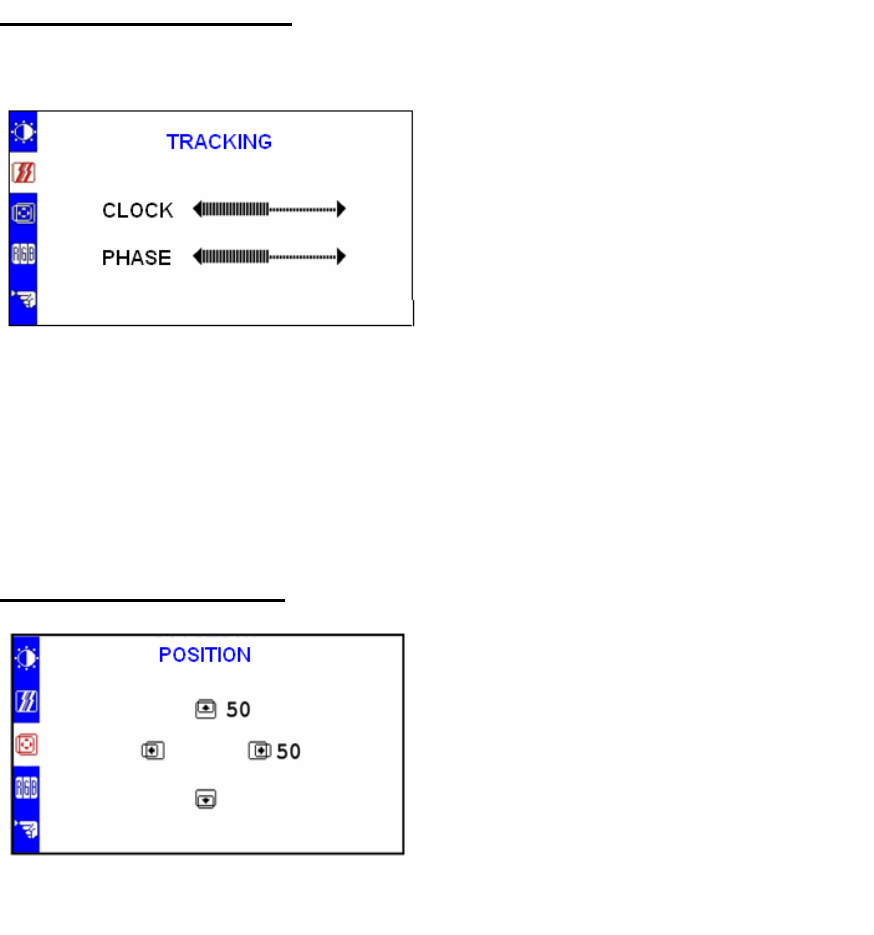

Tracking Adjustment
Position Adjustment
CLOCK:
Adjust to minimize any vertical
bars or stripes visible on the
screen background. The
horizontal screen size will also
change.
PHASE:
Adjust to remove any horizontal
distortion, and clear or sharpen
the image of characters.
V-Position:
Adjust the vertical position
of the picture.
H-Position:
Adjust the horizontal
position of the picture.
12

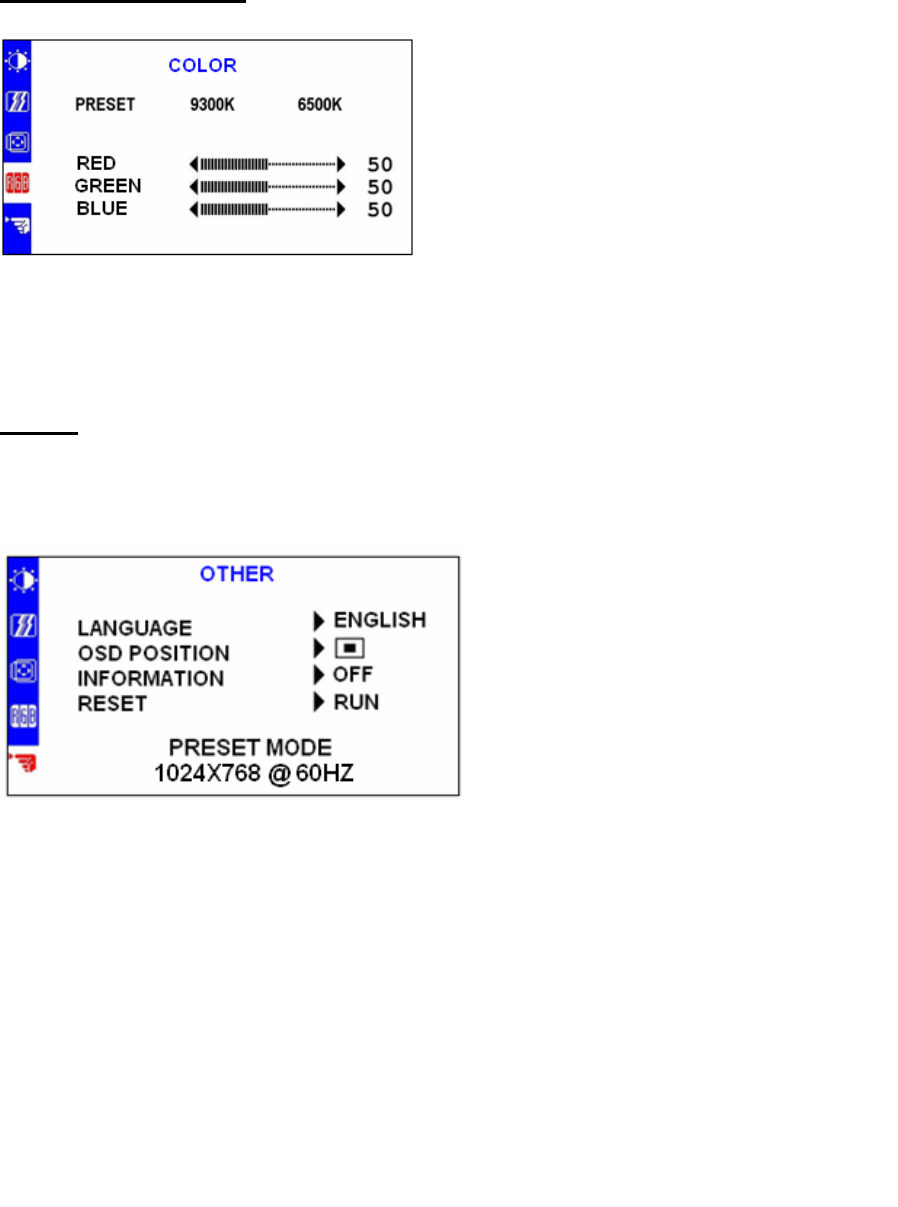

Color Adjustment
Other
There are three items for
color adjustment:
9300K: Bluish white
6500K: Reddish white
User defined:
Red, Green, Blue. Adjust to
set your own color level.
LANGUAGE:
Multi- Language selection
OSD POSITION:
Adjust the OSD window
position on the screen.
INFORMATION:
“ON” When changing screen
resolution setting( for example:
horizontal/ vertical refresh rate),
display information is briefly
shown on the screen and vice
versa.
RESET:
Recall to factory settings
13
8
8
Frequently Asked Questions
The image is blurred, how can I get the best quality picture?
♦
Read chapter 6, Setting the Display Resolution, and select a graphics
signal with the correct resolution and refresh rate. Then read chapter 7,
Adjusting the Monitor, and make adjustments to the displayed image
based on these instructions.
♦
Have you used a VGA extension cable?
If so, remove the extension cable and check the displayed image. Has the
image quality improved? Optimise the image using the procedures in
chapter 7 with the extension cable removed. Reconnect the extension
cable once the image has been optimised. Depending on the
characteristics and type of the extension cable, some blurring or distortion
may occur due to conduction losses of the extension cable. You can
minimise these losses by using an extension cable with better conduction
quality or with a built-in booster.
♦
Does the blurring only occur at resolutions lower than the native
(maximum) resolution?
Please read chapter 6, Setting the Display Resolution. Select a graphics
signal that uses the monitor’s the native resolution (1280 x 1024 pixels).
Why does the image look yellow, blue or pink instead of showing the
correct colours?
♦
The most common cause of this problem is a loose VGA signal cable or
connector. Check that the cable is securely connected to the computer.
♦
Check the VGA signal cable for damage. If any pins are bent or broken off,
contact your dealer or an authorized Envision Peripherals Inc. service
agent
14
No image is displayed, what can I do?
♦
Check that the light (LED) next to the monitor’s power button is lit and is
green in colour. If the LED is green, press the MENU button on the monitor
to access the On Screen Display. If the message NON PRESET MODE
appears there, please read chapter 6, Setting the Display Resolution and
reset the graphics card to one of the monitor’s supported graphics signals.
♦
If the LED is orange the monitor is in power saving mode. Press a button
on the computer keyboard or move the mouse to wake the computer. If that
does not help, check that the VGA cable is securely plugged into the
computer. Also check the pins of the VGA cable’s connector. If any pins are
bent or broken off, then contact your dealer (see Chapter 10 for details).
♦
If the LED is not lit at all, check that the monitor is plugged into the power
supply mains socket and that the power switch is turned on. Check that the
monitor’s power switch is also turned on.
The image is or distorted, flashes or flickers:
♦
Check that the monitor’s signal cable is securely connected to the
computer.
♦
Read the chapters 6 and 7 of this manual, then select the correct
resolution, refresh rate and make adjustments based on these instructions.
The image is displaced in one direction:
♦
Use the Hor. Position (horizontal position) adjustment in the Geometry
menu of the monitor’s OSD to reposition the image.
♦
Read the chapters 6 and 7 and then select the correct resolution, refresh
rate and make adjustments based on these instructions.
The display shows NO SIGNAL error message:
♦
Check that the monitor’s signal cable is securely connected to the
computer.
♦
The monitor is in power saving mode. Press a button on the computer
keyboard or move the mouse to wake the computer. If that does not help,
check that the VGA cable is securely plugged into the computer.
15
The display shows OUT OF FREQUENCY error message:
♦
Read chapter 6, Setting the Display Resolution, and select a graphics
signal with the correct resolution and refresh rate.
16
9
9
Specifications
Model: Envision EN9410
Display Characteristics
Display Type 19“ active matrix Thin Film
Transistor Liquid Crystal Display
Viewable Diagonal Area 43.3 cm / 19”
Native (Maximum) Resolution 1,280 x 1,024 pixels
Colors 16.7 million (6bpp+dithering)
Contrast Ratio 500:1 (typical)
Brightness 250 cd/m² (typical)
Response Time 16 ms (typical)
Viewing Angle (Horizontal, Vertical) 140° , 130°(typical)
Dot Pitch 0.294 mm
User Interface
Controls Mains power switch, Automatic
image adjustment, 6 OSD buttons
On-Screen Display Functions Contrast, Brightness, Vert. & Hor.
Image Position, Phase, Pixel
Clock, Colour Management, OSD
Position, OSD Language, Status
Indicator
17
Input Signal
Line Frequency 31 - 83kHz multi-frequency
Image Frequency (Refresh Rate) 56 - 75Hz
Within the parameters detailed in
chapter 7
Video Signal RGB analogue (Positive polarity)
0.7 Vpp/75 Ohm
Synchronization TTL separate, composite TTL
Signal Connection 15-pin mini D-sub cable
Physical Characteristics
Power Management Energy Star
Maximum Power Consumption 50 Watts
Power Saving Mode < 1 Watts
Operating Voltage Automatic switched mode power
supply, 100 - 240 V, 50 - 60 Hz
Dimensions (W x H x D) 426 x 437 x 199mm
Weight 5.3 kg
Temperature (Operating) 5°C - 40°C
Air Humidity (Operating) 20% - 85%
Regulatory Certification
Safety CSA, cULus, TUV/GS
EMI/EMC FCC, CE,
Other

Navigation menu
