EpiCom SXP-2280 CDMA 2000 1x Fixed Wireless Phone User Manual
EpiCom Co., Ltd. CDMA 2000 1x Fixed Wireless Phone
EpiCom >
User Manual
SXP-2280 CDMA 1XRTT
FIXED WIRELESS PHONE
800 MHz CDMA
TECHNICAL MANUAL
Copyright@2007 SungilTelecom Co.,Ltd

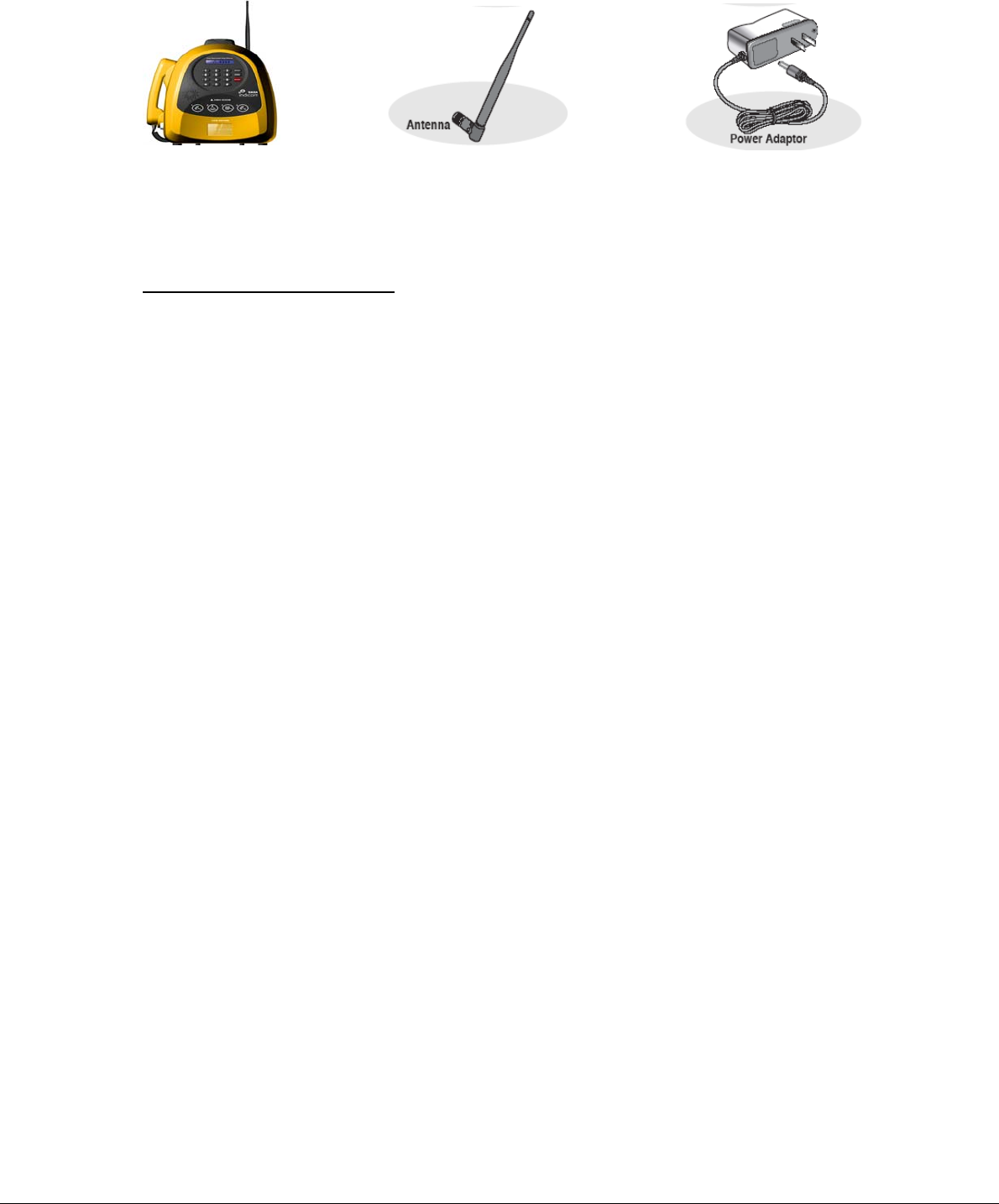

Before installing your SXP-2280, carefully remove the contents from the shipping carton and check
for evidence of shipping damage. If damage is found, contact your Authorized Sungil Distributor or
shipping agent immediately.
SAFE OPERATION INSTRUCTIONS
IMPORTANT! Before installing or operating this product, read the SAFETY AND GENERAL
INFORMATION section of this guide.
9 Install the unit indoors.
9 Install the unit on a hard, flat surface for proper ventilation.
9 Do not expose the unit to rain or moisture
9 Do not place the unit on or close to sources of heat.
IMPORTANT NOTICES
TERMS AND CONDITIONS FOR USE OF SXP-2280 PRODUCTS ("Product")
These Terms and Conditions are a legal contract between you and Sungil Corporation for the title to and
use of the Product.
BY RETAINING AND USING THE PRODUCT AFTER RECEIPT OF IT, YOU AGREE TO THE TERMS
AND CONDITIONS INCLUDING WARRANTY DISCLAIMERS, LIMITATIONS OF LIABILITY AND
INDEMNIFICATION PROVISIONS BELOW. IF YOU DO NOT AGREE TO THE TERMS AND
CONDITIONS, DO NOT USE THE PRODUCT AND IMMEDIATELY RETURN THE UNUSED PRODUCT
FOR A COMPLETE REFUND. You agree to accept sole responsibility for any misuse of the Product by
you; and, in addition, any negligent or illegal act or omission of your or your agents, contractors, servants,
employees, or other users of the Product so long as the Product was obtained from you, in the use and
operation of the Product.
Sungil Telecom Ltd.
Corporate Headquarters
321 Gongdan-dong, Gumi City, Kyongbuk
730-030, Korea
Sales and Technical Support
Tel: +82-31-714-0038 · Fax: +82-31-714-9174
E-mail: sales@sungiltel.com · http://www.sungiltel.com
2006 Sungil Telecom Co. Ltd., All Rights Reserved

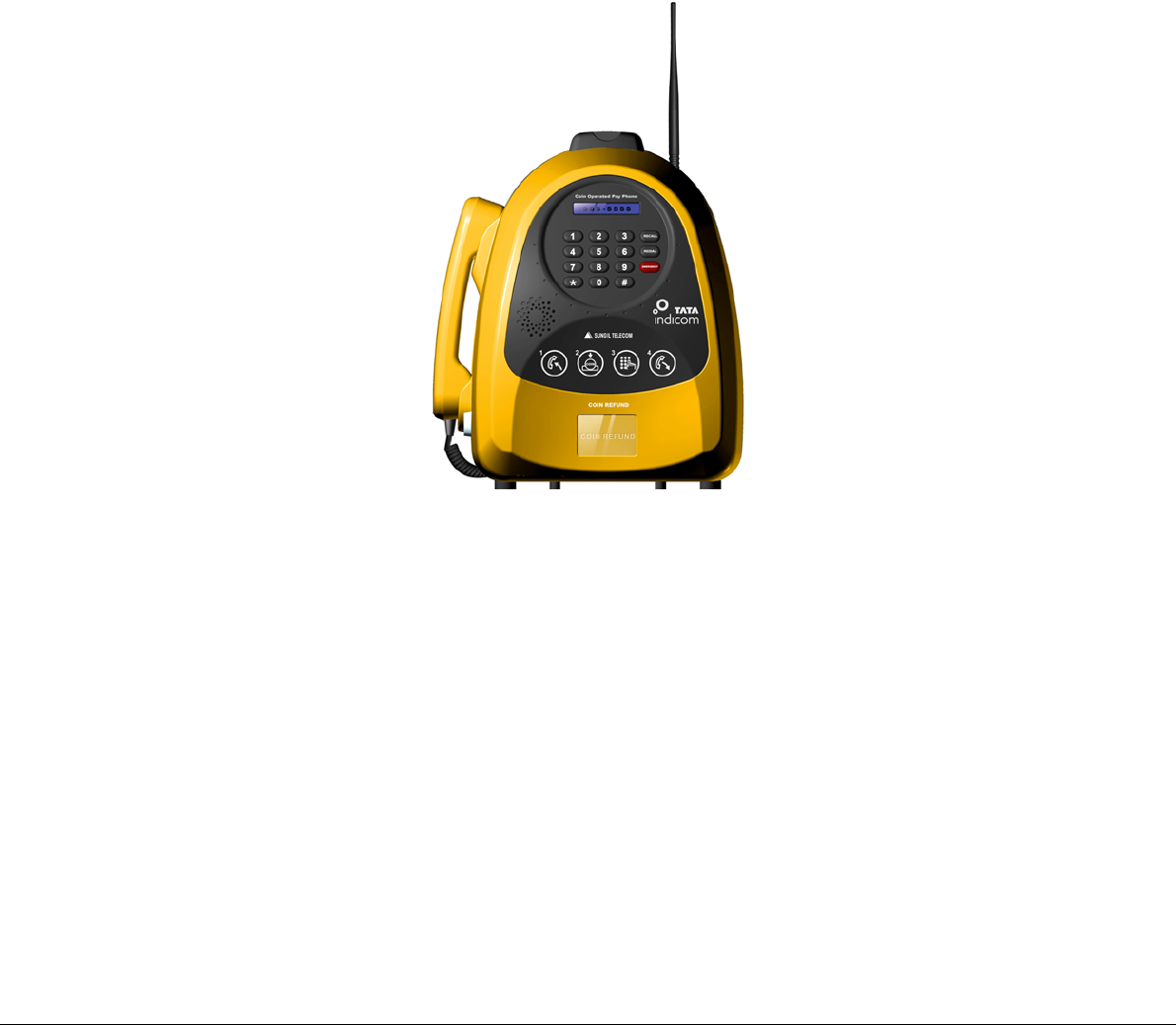

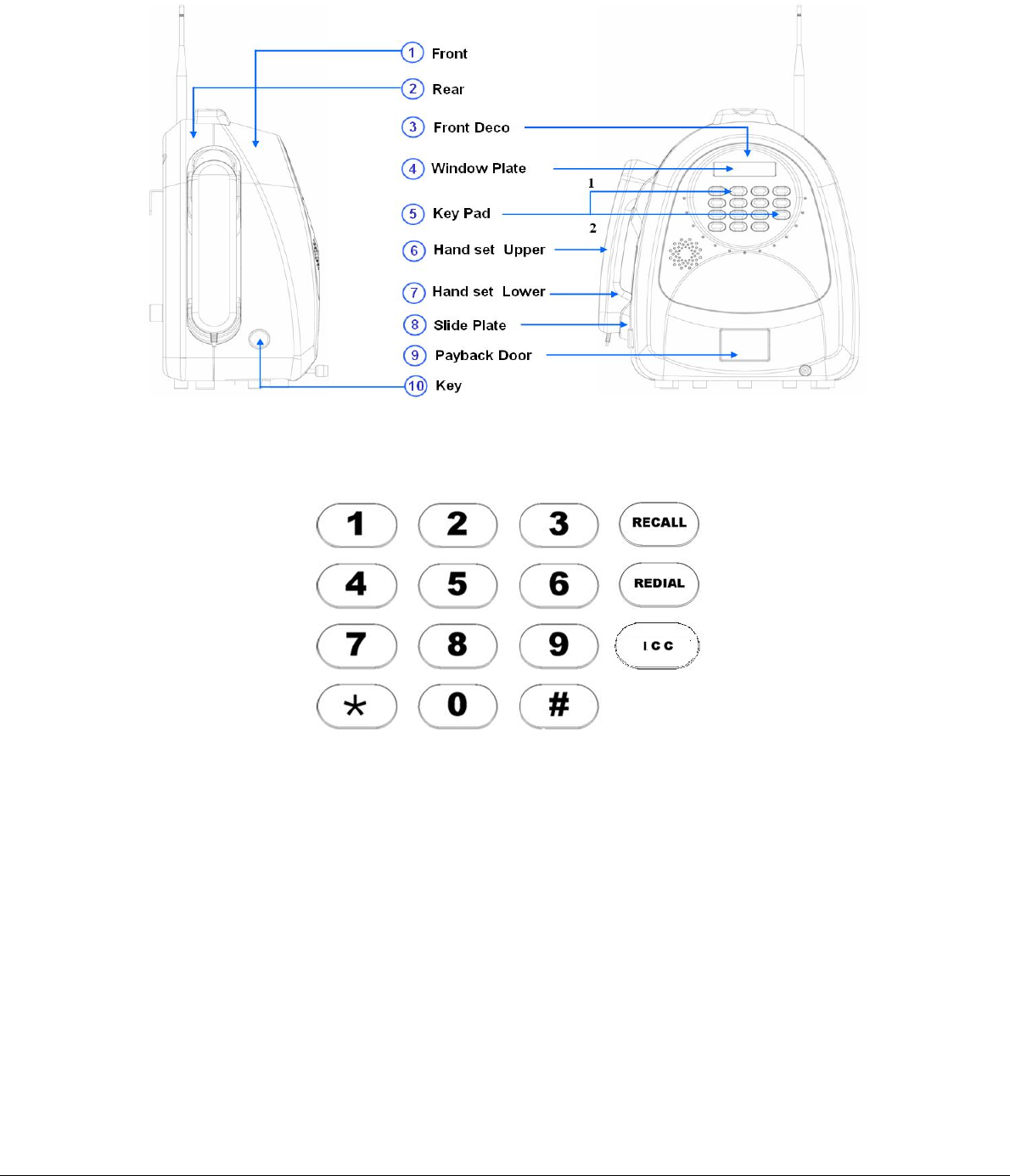

1.1 ICCB Construction
1.2 Button Layout
ICCB has 15 keys which are numeric keys(0-9), *, # , Recall , Redial and ICC key. Each key is
used to make call but under specific menu internally, *, #, Redial, Recall and ICC key could be
used as function key.
0-9 : Number Button
*,#,Recall,Redial and ICC : Used at not only making call but also operation as follows,
*: The Cancel / Previous key to cancel what a user did or go previous menu.
#: The Store/Confirmation key to store/confirm what a user did like editing in editor.
Recall: The up key for item selection on the menu.
Redial: The down key for item selection on the menu.
ICC: ICC stands for Indian Calling Card and this key has specific number for each region. This
key is able to work only under “Insert Coin” status on LCD and don’t work at other status.
1.3 Coin Selector
The below picture is shown coin selector structure. The specification of it is as follows.
- Supports 1 Rs and 5 Rs.
- Maximum two coins for 1Rs and 5Rs. Under maximum insertion like two 1Rs and two 5Rs,
when a user inserts coin, it will be refunded.
- If a user inserts coins within 1 sec between coins, they will be just refund to avoid coins
jam.
1.4 Coin Box
A coin box installed at bottom of ICCB can store 500 coins for 5Rs. internally, whenever coins
drop into coin box, Coin Counter increase by one and it let “Box Full” message come out when it
would reach 500 coins and a user cannot make a call under this message. At this moment, a
shop keeper (an operator ) can initial this coin counter with removing coins from coin box. To
initialize coin counter, a operator should go “Programming Mode” menu and make counter zero.
2. Menu Construction
2.1 Menu Tree
Root Menu Sub Menu Description
To enter to the programming mode (ICCB Mode)
1) Open the ICCB.
2) To enter to this menu, Please follow below instructions.
On-Hook handset -> Press Programming mode button on the main board -> Off-Hook handset.
3) First menu, “1.Cash Record” will be displayed (ICCB Mode).
Programming
Mode
(ICCB
Mode) 1:Cash Record
1:Cumu. Coins Show to Cumulative Coins
2:Current Coins Show to Current Coins
3:Cumu. Reset Reset Cumulative Coins
4:Current Reset Reset Current Coins
5:Daily Coins Show to Daily Coins
6:Last Call List Show to list for last call
2:Local Prefix 92 CODE ______
3:MT code option MT code YES
MT code NO
4:Tariff 1:Enter code
2:Tariff View
5:ICC NUMBER
6:Display
1:Show Option Selection to Banner or Date&Time
2:Banner Editing the Banner “TATA Indicom”
3:Date&Time
a) AM/ PM Type
b) 24 Hours Type
c) Day of Week Type
7:Sound
1:Earpiece Vol
2:Ringer Vol
3:Speaker Vol
4:Key beep Vol
5:Ring Tone
6:Service Alert
8:S/W Version
9:Password Tariff Password
To enter to the CDMA mode
1) Press the short keys follows “624709247*2690”
2) The message on LCD will be displayed “Enter Code ****”.
3) Enter your password “0000” ( It can be changed )
4) First menu, “1.Setting” will be displayed.
CDMA Mode
Menu
1:Setting 1:Voice Privacy
2:DTMF Tone
3:Password
4:AutoCall Time
2:Version
1:S/W Version
2:H/W Version
3:PRL ID
1) To enter to Conversation Menu.
2) Press the “Redial” Button on Conversation
3) You can show the LCD message “1.Voice Privacy”
Conversation
Menu
1.Voice Privacy
2.DTMF Tone
To enter to NAM Mode Menu.
1) Press the short keys follows “47*869#*75259#”
2) The message on LCD will be displayed “PASSWORD ______”.
3) Enter your password “000000” ( It can be changed )
4) First menu, “1.GENERAL” will be displayed.
01. General
01. ESN
(Electronic Serial Number) Read Only
02. CAI Ver
(Common Air Interface) Read Only
03.SO
(Service Option)
EVRC
(Enhanced Variable Rate Codec)
MSM6000 Chip just supported the
EVRC.
04. SCM
(Station Control Mark) .
05. LOCK CODE Read Only
06. SLOT MODE
07. SLOT CYCLE INDEX
08. RC (Radio Configuration) For CDG2 Testing
09. SPC CHANG
10. SPC VALUE
02. Setup NAM
01. Current NAM You can selection the NAM1 or NAM2
02. NAM 1
03. NAM 2
01. NAM 1
or
02. NAM 2
01. MCC (Mobile Country Code) * 3 digit
02. MNC (Mobile Network Code) * 2 digit
03.MIN *10 digit
04.PHONE NO# (Directory Number) * 10 digit
05. ACCOLC (ACCess OverLoad Class) 0~ 15
06.PRIMARY CH. 01. Primary CH System A
02. Primary CH System B
07.SECOND CH. 01. Secondary CH System A
02. Secondary CH System B
08. ACQ SID
09. LOCK SID
10.H-S/NID Enable CDMA HOME SID Enable
Yes or No
11. HOME SID/NID Home SID1~20
Home NID1~20
12.SID/NID LOCK LOCK Home SID1~20
LOCK Home NID1~20
13. CDMAPREF SYSTEM
14. PRL ENABLE
15. PRL ID
16. OTAPA ENABLE
17. MOB_TERM_HOME
18. MOB_TERM_FOR_SID
19. MOB_TERM_FOR_NID
2.2 Short Key List
Key Items Action Keys Description
A-Key *75259#147*359#
To enter A-Key.
CDMA Mode Menu 624709247*2690 To enter to CDMA Menu.
NAM Mode Menu 47*869#*75259# To enter to NAM Mode Menu.
Set ICCB Password
to default value.
Program mode
push button + 5
times pressing
emergency button +
'1036'
Whenever Shop keeper would forget ICCB
Password, he can use it to make a password
as default “3842”
Set CDMA Menu
Password to
default values.
Program mode
push button + 5
times pressing
emergency button +
'4263'
Whenever Shop keeper would forget CDMA
mode Password, he can use it to make a
password as default “0000”
Master Clear ##**90 or
##**47*869#90
In the factory, for product’s initialization for
menu’s values.
Current Coin Count *1* It will display how many coins are there in box
currently.
Conversation Menu Conversation state
+ Redial button
To see the conversation menu on conversation
as follows
1) Voice Privacy
2) DTMF Tone
Conversation
Volume for
earpiece
Emergency button To adjust earpiece volume level.
NAM Mode Menu 47*869#*75259# To enter NAM mode
1) General
2) Setup NAM
A. Current NAM
B. NAM1 => JUST USED
C. NAM2
For examples, you can change to the PRL
enabled/Disable, HOME SID/NID or MIN
number.
2.3 ICCB User Mode Display
ICCB User Mode (Normal Call)
1 Handset On-Hook
or
or
According to Display Menu in CDMA Menu, you can change display type
like the upper. Default is logo as “TATA Indicom”.
2 Handset Off-Hook
- This screen request for insertion coin to make call. But registered free call
numbers are available.
- During 45 secs, you didn’t anything. Some alarm will be occurred on
handset.
3 After Insertion coin.
4 Dial numbers
- From Left, what you dialed will be displayed. Automatically it will make a
call in 4 secs after dialing numbers.
5 Not match with Tariff
6 Making Call
(In case of Ordinary Call)
7 Connected Call.
(in case of Ordinary Call)
- On conversation, Value, time will be displayed( 00Rs Time 0:00 )
- Will display remained time and coin will be dropped in the inside box. At
INSERT COIN
PLEASE DIAL
114
00Rs Time 00:60
TATA Indicom
MM/DD/YY hh:mm
Calling…
Not Available
this time, whenever every 10 is remained, Alarm will be made one time
and after then after 2 secs until call ends, Alarm will be made.
- During alarm sound, If you would insert coin, Alarm sound will disappeared
no more.
- In case of local call, After current 60 secs would be used up, just inserted
coin will be dropped to the box and new 60 secs will be displayed and
you can keep talking without stoping..
- If you don’t insert coin at this time, Call will end and screen will go to
“Insert Coin” screen.
( INSERT COIN )
- Available talking time for each inserted coin will be displayed as much as
value which was set on Call duration menu on ICCB mode.
% In case of international call, it is 10 secs.
8 Conversation Menu
(by Pressing Redial Button)
- On the conversation, If you press Redial Button, Conversation Menu
will come up as follows.
9 Ending call
- Totally elapsed time will be displayed during 15 sec. ( Need to be
discussed with PTB team )
10 Incoming
11 Recalll
- In case ICCB has remained time after call.
Disaply text should be discussed with PTB team.
Conv. Menu
1.Voice Privacy
2.DTMF Tone
00:00
Incoming Call.
12 Redial
- in case of only IDLE state, Pressing Redial key can dialed last numbre
which was made successfully.
- In case of no history, nothing is happened.
2.4 ICCB User Mode Display for Emergency Call and Toll Free
ICCB User Mode (Emergency Call)
1 Emergency button
- If you press Emergency button, “Please Dial…” will be displayed in
stead of “Insert Coin” message on LCD
- Be used at Virtual calling card number and real emergency number
like 100,101.
2 Dial numbers
- Available emergency numbers are 100, 101, 102.
- If dialed number is not emergency number, “Not available..” message
will be displayed.
3 Try to make call
- On Calling, "Emergecny Call…" will be displayed
- In case of Toll free number, “Toll Free Call…” will be displayed
( It should be discussed with JP)
4 During Conversation
- Only Time will be displayed. ( Time 0:00 )
Emergency Call…
Time 00:60
100
Toll Free Call…
2.5 ICCB Menu ( Programming Mode)
To enter to the ICCB Programming Mode
1) Open the Coin Box
2) To enter to this menu, Please follow below instructions.
On-Hook handset -> Press Programming mode button on the board -> Off-Hook handset.
3) The message on LCD will be displayed “Enter Code ****”.
4) Enter your password “3842” ( it can be changed )
5) First menu, “1.Local Prefix” will be displayed (ICCB Mode)
Press '#': Saved and go back to the programming mode.
Press ‘*’: Go back to the programming mode.
Menu Display Sub Menu Display Description
1:Cash Record 1: Cumu. Coins
Press ‘#’
Cumu.Tot 0000000
Press ‘Recall’ or
‘Redial’
Press ‘*’ or ‘#’
Press ‘1’, show to cumulative coins collected since
installation.
Press ‘Recall’, Menu Next Up as follows
Press ‘Redial’. Menu Next Down as follows
Cumu.Tot 0000000
Cumu.Use 0000000
Cumu.5Rs 0000000
Cumu.1Rs 0000000
Press ‘*’, Go back to the root menu.
Press ‘#’,Saved and go back to the root menu
2: Current Coins
Press ‘#’
Curr.Tot 00000
Press ‘Recall’ or
‘Redial’
Press ‘*’ or ‘#’
Press ‘2’, show to current coins collected in the cash
box.
Press ‘Recall’, Menu Next Up as follows
Press ‘Redial’. Menu Next Down as follows
Curr.Tot 00000
Curr.Use 00000
Curr.5Rs 00000
Curr.1Rs 00000
Press ‘*’, Go back to the root menu.
Press ‘#’,Saved and go back to the root menu
% It counts the collected coins upto 700, After it shows
BOXFULL.
3:Cumu. Reset
Press ‘#’
Press ‘3’, You can erase cumulative coin counter
Del Cumu.Coins?
Press ‘*’, Go back to the root menu.
Press ‘#’,resetting the current coin counter.
4: Current Reset
Press ‘#’
Press ‘4’, You can erase current coin counter.
Del Cur.Coins?
Press ‘*’, Go back to the root menu.
Press ‘#’,resetting the current coin counter.
5: Daily Coins
Press ‘#’
Day 0000Rs 000Cn
Press ‘*’ or ‘#’
Press ‘5’, show to day total rupee with coin counts.
Press ‘*’, Go back to the root menu.
Press ‘#’,Saved and go back to the root menu
5: Last Call List
Press ‘#’
01: Phone number
Press ‘1’ or ‘2’, ‘#’
Press ‘5’, show to last calls information with number, time
and rupee about up to 10 calls.
Press ‘1’, Move Next Up for last calls.
Press ‘2’, Move Next Down for last calls.
01: Phone number
Press ‘#’ => Show to the information as follows
Rs 0000 Coin 000
Press ‘*’, Go back to the root menu.
Press ‘#’,Saved and go back to the root menu
2:Local Prefix 92 Code XXXXXXX
3:
MT Code Option
MT code Yes
Press ‘Recall’, ‘Redial’
Press ‘*’ or ’#’
Press ‘Recall’, Move up to the next mode.
Press ‘Redial’, Move Down to the next mode.
MT code Yes
Press ‘*’, Go back to the root menu.
Press ‘#’
Enter Code 56
Press ‘1~9,0’, If you want to change the MT code, press
the number.
Press ‘#’, Updated the option
MT code No
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the option
4:Tariff
Press ‘#’
1:Enter Code
Press ‘#’
You can make tariff
Enter PWD XXXX
Input No XXXXXXX
Press ‘#’
Input sec XXX
Press ‘*’ or ’#’
2:View Tariff
Press ‘#’
01:91 20s
Press ‘Recall’, ‘Redial’
Press ‘*’ or ’#’
You can show Tariff
5:ICC Number press free call number
6:Display
1: Show Option
Press ‘#’
Show Date&Time
Press ‘Recall’, ‘Redial’
Press ‘*’ or ’#’
Press ‘1’. Entering the Show Option menu.
Press ‘Recall’, Move up to the next mode.
Press ‘Redial’, Move Down to the next mode.
Show Blank
Show Banner
Show Date&Time
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the option
2: Banner
Press ‘#’
‘ TATA Indicom ’
Press ‘*’ or ‘#’
Press ‘2’, You can show to currently banner.
Press ‘#’, Entering the editing mode
Press ‘Redial’, insert space
Press ‘Emergency.’, Big or Small alpha mode
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the option
3: Date&Time
Press ‘#’
DTSet DayOfWeek
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘3’, Entering the Date&Time menu
Press ‘Recall’, Move up to the next mode.
Press ‘Redial’, Move Down to the next mode.
DTime DayOfWeek
DTime 24Hours
DTime AM/PM
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the option.
7:Sound
1: Earpiece Vol.
Press ‘#’
EarVol. >>>>
Press ‘Recall’, ‘Redial’
Press ‘1’, Entering the volume of earpiece menu
Press ‘Recall’, Volume Up
Press ‘Redial’. Volume Down
Press ‘*’, Go back to the root menu.
Press ‘*’ or ‘#’ Press ‘#’, Updated the volume level.
2: Ringer Vol.
Press ‘#’
RingerVol. >>>>
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘2’, Entering the volume of ringer menu
Press ‘Recall’, Volume Up
Press ‘Redial’. Volume Down
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the volume level.
3: Speaker Vol.
Press ‘#’
SpeakerVol. >>>>
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘3’, Entering the volume of speaker menu
Press ‘Recall’, Volume Up
Press ‘Redial’. Volume Down
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the volume level.
4: Key Beep Vol.
Press ‘#’
KeyBeepVol. >>>>
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘4’, Entering the volume of key beep menu
Press ‘Recall’, Volume Up
Press ‘Redial’. Volume Down
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the volume level.
5: Ring Tone.
Press ‘#’
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘5’, Entering the ring tone selection menu
Press ‘Recall’, Up
Press ‘Redial’. Down
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the ring tone items.
6: Service Alert.
Press ‘#’
SvcAlert On
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘6’, Entering the Service Alert menu
Press ‘Recall’, Service Alert is On
Press ‘Redial’, Service Alert is Off
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the option
8:S/W Version You can show to the s/w version.
9:Password New xxxx
Press ‘#’
Re-Enter xxxx
Press ‘*’ or ‘#’
You can show to the current password, default -> 3842
Press ‘#’, Entering the next mode for entering the new
password
Press ‘1~9,0’, If you want to change the new password,
press the number.
We should be re-enter the new password.
Press ‘#’, Updated the new password.
2.5 CDMA Mode Menu
To enter to the CDMA mode
1) Press the short keys as follows “624709247*2690”
2) The message on LCD will be displayed “Enter Code ****”.
3) Enter your password “0000” ( It can be changed )
4) First menu, “1.Setting” will be displayed.
Menu Display Sub Menu Display Description
1.Setting
Press ‘1’
1: Voice Privacy
Press ‘#’
V.P. Enhanced
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘1’, Entering the Voice Privacy Menu.
Press ‘Recall’, Changed the option to ‘Standard’ as follows
V.P. Standard
Press ‘Redial’, Changed the option to ‘Enhanced’ as follows
V.P. Enhanced
Press ‘#’, Go back to the root menu.
2: DTMF Tone
Press ‘#’
DTMF Tone Short
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘2’, Entering the DTMF Tone Menu.
Press ‘Recall’, Changed the option to ‘Short’ as follows
DTMF Tone Short
Press ‘Redial’, Changed the option to ‘Long’ as follows
DTMF Tone Long
Press ‘#’, Go back to the root menu.
3: Password
Press ‘#’
New xxxx
Press ‘#’
Re-Enter xxxx
Press ‘*’ or ‘#’
Press ‘3’, Entering the next mode for entering the new
password.
Press ‘1~9,0’, If you want to change the new password, press
the number.
We should be re-enter the new password.
Press ‘#’, Updated the new password.
4: Auto Call Time
Press ‘#’
AutoCallTime XX
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘4’, Entering the auto send time menu for orig. call
Press ‘Recall’, Up for time count
Press ‘Redial’. Down for time count
Press ‘*’, Go back to the root menu.
Press ‘#’, Updated the auto send time.
2.Version
Press ‘2’
1: S/W Version
Press ‘#’
S/W:XXXXXXXXXX
Press ‘*’
Press ‘1’, Entering the S/W Version menu.
Press ‘*’, Go back to the root menu.
2: H/W Version
Press ‘#’
H/W:XXXXXXXXXX
Press ‘*’
Press ‘2’, Entering the H/W Version menu.
Press ‘*’, Go back to the root menu.
3: PRL ID
Press ‘#’
PRL ID:XXXXXXXX
Press ‘*’
Press ‘3’, Entering the PRL ID menu.
Press ‘*’, Go back to the root menu.
0.Hidden
Press ‘0’
1: Debug Screen
Press ‘#’
Debug Screen
Press ‘#’
Press ‘1’, Entering the Debug Screen menu.
You can enter the debug mode and you can show to the
system information on CDMA network as follows.
R 100 E 07 T 00
S 01243 N 00012
C 1011 PN 122
B 3.998V
Press ‘*’, Go back to the root menu.
2: Test Call
Press ‘#’
TCall xxxxxxx
Press ‘Recall’, ‘Redial’
Press ‘recall’
Press ‘*’ or ‘#’
Press ‘2’, Entering the Test Call menu.
Press ‘Recall’, Move up to the test call item.
Press ‘Redial’, Move down to the test call item.
Press ‘recall’, We can call on the selected option item.
Press ‘*’, Go back to the root menu.
% Below show to the selected item,
Markov~Loopback
3: Audible Tone
Press ‘#’
A.Tone xxxxxxxx
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘3’, Entering the Audible Tone menu.
Press ‘Recall’. Move up to a tone item.
Press ‘Redial, Move down to a tone item.
Press ‘#’, Updated the tone item.
% Below show to the selected item.
Korea,
LatinAmerica,
East Europe,
China/Siri,
Nicaragua,
India
4: Mirroring
Press ‘#’
Do Mirroring
Press ‘Recall’, ‘Redial’
Press ‘*’ or ‘#’
Press ‘4’, Entering the mirroring menu.
Press ‘Recall’, Do mirroring
Press ‘Redial’, RestoreMirroring
Press ‘#’, Updated the selected item.
Battery Backup Failure
If you’re using the battery, the unit must be connected to AC power for at least 3 hours to fully charge
the battery before it will provide back-up power to your SXP-2280. Verify that the battery has been
charged for at least 3 hours and that the power source and its corresponding circuit breaker are
functioning properly. Then, examine the battery for physical damage and corrosion. Replace the battery
if necessary.
Item Description
Capacity 3.7V Li-ion(Nominal) / 1700mAh
Talk Time Duration Over 3 Hours (Min) ( on SCI = 2)
Standby Time Duration Over 140 Hours ( on SCI = 2)
Charging Time Duration 3 Hours (Max) ( on SCI = 2)
GENERAL INFORMATION AND SAFETY
Your SXP-2280 Fixed Wireless Phone (FWP) functions as both a radio transmitter and receiver. When it
is ON, the FWP receives and sends out radio frequency (RF) energy. The CDMA 800 unit operates in
the frequency range between 824 and 894 MHz. When you use your SXP-2280, the cellular system
handling your call controls the power level at which your unit transmits. Nominal power output is 230
mW.
WARNING!
Only Authorized Service Personnel should remove the cover of your SXP-2280. For further assistance,
contact your Authorized Sungil Representative. Please have your unit’s model and serial number ready.
The duration of your calls and operate your phone in the most power-efficient manner.
Temperature Environment
Operating Temperature: From -20°C to +60°C ; Up to 95% relative humidity (non-condensing).
Storage Temperature: From -25°C to +75°C; Up to 95% relative humidity (non-condensing).
Antenna Care and Replacement
Do not use the SXP-2280 with a damaged antenna. If a damaged antenna comes into contact with the
skin, a minor burn may result. Have your antenna replaced by a qualified technician immediately.
Use only a manufacturer-approved antenna. Unauthorized antennas, modifications, or attachments could
damage the SXP-2280 .
Driving
Check the laws and regulations on the use of cellular products in the areas where you drive. Some
jurisdictions prohibit your using a cellular device while driving a vehicle. Even if your jurisdiction does not
have such a law, we strongly suggest that, for safety reasons, the driver use extreme caution when
operating the cellular device while the vehicle is in motion. Always obey the law.
Exposure to electronic Devices
Most modern electronic equipment is shielded from RF energy. However, RF energy from cellular devices
may affect inadequately shielded electronic equipment.
RF energy may affect improperly installed or inadequately shielded electronic operating and entertainment
systems in motor vehicles. Check with the manufacturer or its representative to determine
if these systems are adequately shielded from external RF energy. You should also check with the
manufacturer of any equipment that has been added to your vehicle.
Consult the manufacturer of any personal medical devices (such as pacemakers, hearing aids, etc.) to
determine if they are adequately shielded from external RF energy.
Turn your SXP-2280 OFF in health care facilities when any regulations posted in the areas instruct you to
do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF
energy.
Aircraft
Turn OFF your SXP-2280 before boarding any aircraft.
• Use it on the ground only with crew permission.
• Do not use it in the air.
To prevent possible interference with aircraft systems, U.S. Federal Aviation Administration (FAA)
regulations require you to have permission from a crew member to use your cellular phone (or any other
cellular product) while the plane is on the ground. To prevent interference with aircraft systems,
FCC regulations prohibit using your cellular device while the plane is in the air.
Children
Do not allow children to play with your SXP-2280 to prevent damage to the unit.
Blasting Areas
Construction crews often use remote control RF devices to activate off explosives. Therefore, to avoid
interfering with blasting operations, turn your SXP-2280 OFF when in a "blasting area" or in areas posted:
"Turn off two-way radio."
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in
the instruction manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
RF Exposure Guidelines
During transmitter operation, in order to meet RF Maximum Permissible Exposure Safety
Guidelines, a minimum distance of 20cm shall be maintained between antenna and personnel.
