User Manual
1

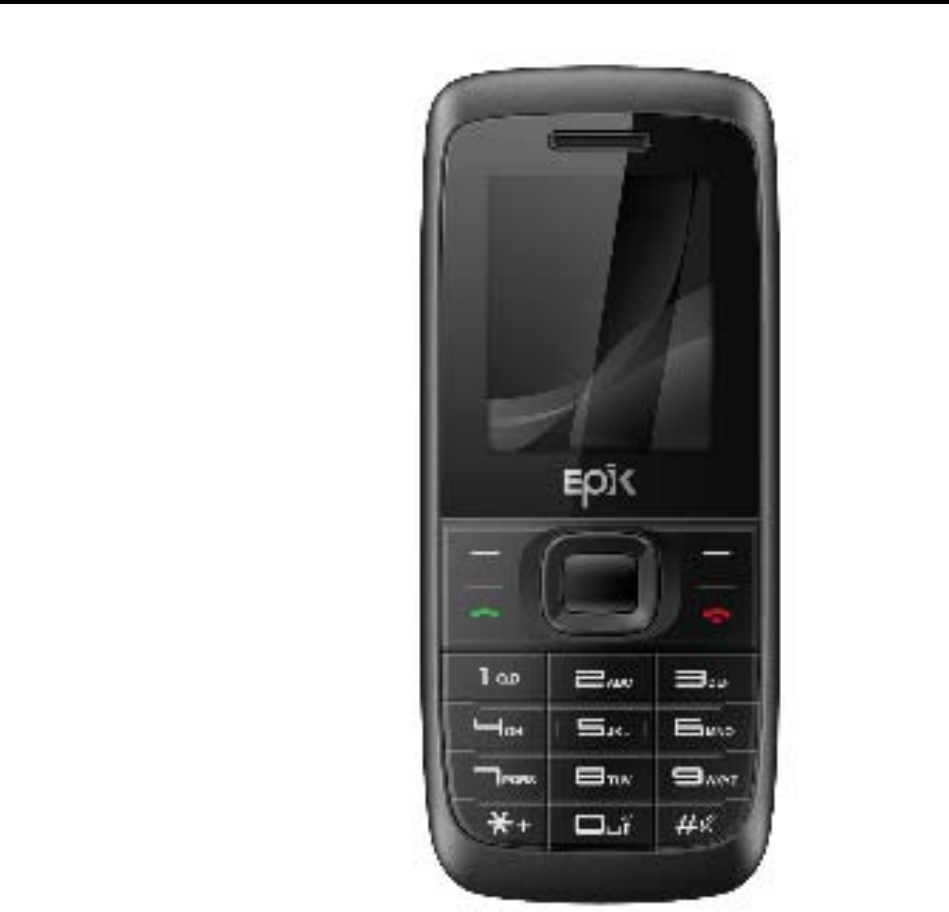

Moblie Appearance picture
Model name：E3
2
Notice:
The actual condition for mobile phones using has the
relation to the network of the local environmental
conditions, SIM card and the way using.
Warning:
For the consequences result by violating the
following recommendations or using mobile phones
In accurately, the manufacturers has no responsibility.
Explain: If relate to the upgrades, without notice. The
Company has the right for the final interpretation of
this statement.
Technical Specifications
For the network: GSM850/1900Mhz
3
Table of Contents
Moblie Appearance picture .......................... 1
1.Quick start .................................................. 8
Icon Explain .................................................... 8
Install SIM card .............................................. 8
Install T-flash card .......................................... 9
Installing Battery ............................................. 9
Battery Charging ............................................ 9
Switching on ................................................. 10
2.Call function ..............................................11
Dialing telephone ......................................... 11
Receiving telephone ..................................... 11
Call in the menu ........................................... 12
3.Menu functions ........................................ 13
SMS ............................................................. 13
Call center .................................................... 13
Phonebook ................................................... 15
Camera ........................................................ 17
Multimedia .................................................... 18
Profiles ......................................................... 19
Extras ........................................................... 22
Bluetooth ...................................................... 23
File manager ................................................ 24
Settings ........................................................ 26
Services ....................................................... 30
FM radio ....................................................... 31
4.Input methods .......................................... 33
5.Phone maintenance ................................ 35
4
6.Accessories ............................................. 37
7.Safety Information ................................... 38
5
Foreword
Honorific mobile phones user, thank you for choosing our
mobile phone!
Our cellular phones is according with the communication
industry standards of PRC, and also according with the
standards of European, and are approved for GSM
networks.
Your phone may be used internationally with various
networks depending on your roaming arrangements with
your service provider.
To use this phone you must subscribe to a GSM service
from a provider. We have included many features in this
device but their function depends on the features
available with your subscribed wireless network. Please
contact your service provider for more information.
We strongly recommend you carefully read and
understand this manual before using your phone in order
to keep it under best conditions for your effective usage
and utmost satisfaction.
Safety
Never attempt to disassemble your phone. You alone are
responsible for how you use your phone and any
consequences of its use.
As a general rule, always switch off your phone wherever
the use of a phone is prohibited.
Use of your phone is subject to safety measures designed
to protect users and their environment.
Do not use your phone in damp areas (bathroom,
swimming pool…). Protect it from liquids and other
moisture.
Do not expose your phone to extreme temperatures lower
than -10°C and higher than +40°C.
The physicochemical processes created by chargers
6
impose temperature limits when charging the battery. Your
phone automatically protects the batteries in extreme
temperatures.
Do not leave your phone within the reach of small children
(certain removable parts may be accidentally ingested).
Electrical safety
Only use the chargers listed in the manufacturer’s
catalogue. Using any other charger may be dangerous; it
would also invalidate your warranty. Line voltage must be
exactly the one indicated on the charger’s serial plate.
Aircraft safety
When traveling by plane, you will need to switch your
phone off when so instructed by the cabin crew or the
warning signs. Using a mobile phone may be dangerous
to the operation of the aircraft and may disrupt the phone
network.
Its use is illegal and you could be prosecuted or banned
from using cellular networks in the future if you do not
abide by these regulations.
Explosive materials
Please comply with warning signs at petrol station when
personnel asking you to switch your phone off. You will
need to comply with radio equipment usage restrictions in
places such as chemical plants, fuel depots and at any
location where blasting operations are under way.
Electronic equipment
To avoid the risk of demagnetization, do not let electronic
devices close to your phone for a long time.
Electronic medical equipment
Your phone is a radio transmitter which may interfere with
electronic medical equipment or implants, such as hearing
aids, pacemakers, insulin pumps, etc. It is recommended
that a minimum separation of 15 cm be maintained
between the phone and an implant. Your doctor or the
7
manufacturers of such equipment will be able to give you
any advice you may need in this area.
Hospitals
Always make sure that your phone is switched off in
hospitals when so instructed by warning signs or by
medical staff.
Road safety
Do not use your phone when driving. In order to give your
full attention to driving, stop and park safely before making
a call. You must comply with any current legislation.
Distance of operation
This phone model has been tested and meets
radiofrequency exposure guidelines when used
As follows:
·Against the ear: place or receive a phone call and hold
the phone as you would a wire line telephone.
8
1. Quick start
Icon Explain
Icon Function description
Network signal strength:
number of the more stronger the signal;
Battery capacity
number of the more power the more full;
SMS
SIM have unread SMS
Missed call
SIM have missed calls
Used profiles
Different icons show different icon:
General, Silent, Outdoor
Headset
Plug in headset
Alarm
Alarm function opened
Key lock
Show key and screen lock
Install SIM card
This phone supports two SIM cards. Find SIM card’s
groove in the back of the phone and slide it completely
9
there. During installation, please make sure the chip is
facing downwards and pay attention to slot direction.
Note：
1. Keep SIM card out of children’s touch.
2. Any abrasion or folding could easily damage
SIM card, so please be extremely careful when you
insert, Remove and preserve it.
3. Please make sure that you have cut off the
power supply and have taken out battery
before you remove SIM card.
Install T-flash card
1. First switch off the phone and remove the battery.
2. Push the metal card holder toward the bottom of the
phone and lift the released end of the holder.
3. Place the memory card into the holder with the metal
contacts face down and push the holder until it locks into
place.
Note:
1.To avoid damaging memory card, please do not
plug memory card fast or frequently.
2. Please regularly backup information in the
cards on other equipment when you use Cards
like T-flash! Improper use or other uncertain
factors may cause the damage or loss to the
content in the cards.
Installing Battery
Align the battery chip with the metallic salient point in
battery jar, insert the battery until it is inserted into the
battery jar. Slide battery cover into back of the phone until
it is locked.
Battery Charging
Unclose dustproof soft gum of attachment mode on the
bottom of the phone, insert one end of the charger, i.e.,
the charging plug into attachment mode and the other end
10
into electrical outlet, Screen will display the charging sign.
After charging is finished, just pull out the plug.
Switching on
Long press the Red key to switch your phone on
1. If there is no SIM card, SIM card is defective, or SIM
card contact is loose, you will be prompt with a warning
after powering on, shut down and check your SIM and its
installation.
2. If inserted SIM card only into the phone, meanwhile
phone code and PIN code is turn on. When switched on,
after entering the PIN code and phone code, the phone
enter the standby mode by the current SIM.
3. If the phone detected authorized network, the screen
will display network name and signal strength；If there is
no authorized network is found，the phone can only make
emergency calls or use non-communications features.
11
2. Call function
Dialing telephone
1. Direct dial
In standby mode, press the corresponding numeric keys
to enter the phone number that you want to dial, including
necessary area codes. Short Press the Right soft key
[Clear] to delete one character, and Long Press delete all
inputs, press the Green key to dial.
2. Making an International Call:
To make an international call, press the [*] key until the
prefix symbol "＋" of international call displays in screen.
3. Dialing from Phonebook
Enter the Phonebook via the menu, use the Up/Down
Navigator keys to scroll to the desired contact, or press
the first letter of the name of the desired contact as saved
in your phonebook for quick access to names beginning
with the letter then scroll to the desired, press the green
key to dial.
4. Dialing from Call history
Enter the Call center (press the Green key from standby
or via the menu), use the Up/ Down navigator keys to
scroll to the desired contact, press the green key to dial.
5. Dial emergency service
You can directly dial the emergency service number
without SIM card. Different networks use different urgency
service numbers, so for details please inquire the network
operation company.
Receiving telephone
When there is an incoming call, the phone will give
corresponding alert, if your network supports caller ID, the
screen will display caller’s name or number (depending on
whether there is information of the caller in your
12
phonebook).
1. Press the green key or press the Left soft key and
confirm [Answer] to answer the incoming call.
2. If function of [call center/call settings/Advanced setting/
Answer mode] is selected as [Any-key], press the any key
to answer the incoming call except the Right soft key or
the Red key.
3. If you do not want to answer an incoming call, press the
Red key or the Right soft key [Reject] to reject it.
You can also press the Red key to end a call.
4. During a call, you can press the Left/Right navigator
key to adjust receiver volume.
Call in the menu
During a call, press the right soft key can also open / close
the mute function. press the OK key can also open / close
the handfree function. press the left soft key into the
options:
- Hold/Retrieve single call*: The current call on hold or
resume the call
- End single call*: end off the current call.
- Phonebook: enter the phonebook list of interfaces.
- SMS: access to the message menu.
- Call history: access to call history list.
-Volume: you can press the navigation to adjust the call
volume.
Note:
Denotes menu items only appear in specific
circumstances.
Such as: [Swap] exist only in the state of the phone
and call the phone only appears to be suspended. At
the same time for the conferencing, you need to the
appropriate service provider to subscribe..
13
3. Menu functions
SMS
Message service is a network dependent function, which
allows you to send, receive and edit all kinds of messages.
Please contact the network operator for more details.
Write message
Edit a new message, save or send it to the recipient.
Note:
To send SMS, you need to set the correct SMS
service center number which can be obtained from
network provider.
While editing, press the # key to change input method, a
text message can be up to 612 characters in length.
Press the OK Key, into add recipient interface, you can
enter number and add from phonebook, you can add one
number or more number, press the Left Soft key [Options]
to select options when editing:
- Send to: Enter the destination number is sent, or press
OK into the address book to find the necessary records,
you can select the type of SIM card, confirmed, you can
send
- Input method: you can select input method.
- Save: Save the edited message to the outbox
- Advanced: you can select insert number, insert name.
Inbox
Received SMS messages can be stored either in phone or
in SIM memory, and are accessed here.
When you have received a message, the tones or
vibration to alert you and message mark will also be
shown on the screen. Press the Left soft key [Read] or the
OK key to read the new message, press the Right soft key
[Back] to return, and you can also access the inbox to
read the new message.
14
If the message memory is full, the indication “Memory full”
and the message icon will be shown on the screen and
flashed. Before you can receive new messages, delete
some of your old messages in the inbox folder. If the
capacity of new messages is beyond the capacity of the
inbox, the information will be lost and incomplete.
In message list, press the left soft key or OK key to read
the selected message, press the Left soft key to make the
following menu:
-Reply: Reply SMS to the message sender directly.
-Call Sender: Select to call the sender number
-Forward: forward the current message to other number.
-Delete: Delete the messages.
-Save to phonebook: Save the information in the sender
number to the phonebook.
-Advanced: you can use number of message to call or
save.
Not send SMS will be stored in the mail within, the
operation is the same with inbox
Drafts
Not send SMS, will be stored in the mail within, the
operation is the same with inbox
Outbox
Not send SMS or sent successfully SMS, will be stored in
the mail within, the operation is the same with inbox
Sent messages
If SMS sent successfully, then be stored in the letter box.
Automatically save messages need to select [SMS
Settings → Save sent message], other operation is the
same with inbox
SIM settings
SIM setting: you can setting SIM parameter, including the
center number, Validity period and Message type.
Delivery report: Open the function, after a successful send
15
text messages, the system will return to report.
Reply path: If the network allows, open the function, the
recipient receives a text message, the system will send a
confirmation message.
Voicemail server: When you can not answer the phone,
automatically incoming calls to voice mail number, you
can let the other party to your message, a message stored
in the network's voice mail system, and afterwards, you
can access the voice mail system to listen to a message.
Into the voice mail sub-menu, you can see the current
voice message (up to the establishment of two voice mail)
Voice mail function needs the support of network operator,
you may need to subscribe to the service. For details,
please contact with the operator.
Memory status: can view the memory storage status.
Save sent message: open the function, After the
success of SMS will be automatically saved in the Outbox.
Preferred storage: you can choose to give priority to
messages stored in SIM card or mobile phone.
Call center
This phone can record all received, dialed and missed
calls as well as their call time. Only when related function
is supported by network and phone is switched on and in
network service area, it can record the answered and
missed calls. Call records may be accessed by pressing
the Green key from standby or accessing through the
menu.
Access the Call Center menu using the normal menu path,
the submenus are as follow:
Call history
Press the left/right navigation key to view the call history
Once on the call records list, press the Green key to make
a call; press the OK key to view the details of current call
16
record; press the left soft key to make the following
options:
- View: View the details of current call record.
- Call: call current record.
- Send text message: send SMS to the select number
- Save to phonebook: Store the number as a phonebook
entry.
- Edit before call: edit the select record before call.
- Delete: Delete the current call record.
Call settings:
Call timers
View all time for the Last call time; Total received time;
Total dialed time and all call time; and press the left soft
key can reset all time.
Call waiting:
You can choose to Activate, Deactivate or Query status of
this feature.
Activate this feature, if you call any other incoming call,
the phone beeps, and the screen will display the caller
number or name and call waiting information.
Call divert:
This feature allows you to play to your phone calls
transferred to your voice mailbox or another phone
number you specify. This function needs the support of
network operator, please contact the network operator.
Transfer in the following ways, each way can be set to
enable, disable, and query status. When turned on, the
on-screen prompts to transfer the phone number.
Divert all voice calls: Transfer all voice calls to your
settings in the phone number or voice mail
Divert if unreachable: When your phone is off or not on the
network service area, the transfer of all voice calls to your
phone number or set voice mail
Divert if no answer: No answer transfer all voice calls to
17
your phone number or set voice mail
Divert if busy: When the call is busy, the transfer of all
voice calls to your phone number or set voice mail
Divert all data calls: Transfer all the data calls to the
phone number you set, this function is supported by the
network operator, please contact the network operator.
Cancel all diverts: cancel all call forwarding type.
Answer mode:
Any key: Select the feature, all incoming calls, in addition
to the red key and right soft keys, all keys can answer the
call
Auto answer when headset: Enable this feature, when the
phone is in headset mode, there are about 2 seconds
after the incoming call, the phone will automatically
answer the call.
Phonebook
The Phone for your well-prepared high-capacity phone
storage space. You can use the phone's contacts feature
to save the contact name, number and caller ring-tone.
The phone can save 200 phonebook records, SIM card
number of records stored phone numbers vary because of
their capacity.
Add new contact
-To SIM：New records added to the SIM, each name can
only be stored under a number.
-To Phone：you can input name, number and set caller
ring-tone. This Records stored in your phone.
Quick search
In order to facilitate you to quickly search the phone book
to the desired number, the phone prompts you to quickly
find features.
18
In the contact list interface, you press # key to switch input
method, enter the contact name of the first characters to
locate search.
After searching for the name, press the Green key to dial
the number and press the Red key to end dialing.
Browse contacts
In the phonebook list screen, press the up / down
navigation key to select the contact record, press the
green key to dial the number in the record, then the red
key to end the dialing. Press the OK Key to display the
details of the selected record. In the phonebook list
screen, select either the phonebook record, press the left
key to perform the following operation:
- View: view the select
- Send text message: send SMS to the select number
- Call: call the select number
- Edit: you can edit the select record
- Delete: Delete the select record
- Copy: this record can copy to “SIM” or “phone”
- Mark several: you can mark one or several contacts to
delete.
- Phonebook settings:
Memory Status: Query "SIM", "phone" memory
address book using status
Camera
Your phone is fitted with camera allows you to take photos
whenever possible. You can store the pictures in phone or
customize the wallpaper.
In the multimedia menu, select the camera into the
camera preview screen, Press the OK key to take photo,
press the right soft key to return, press the left soft key to
option:
Switch to video recorder: select the function can
19
directly switch to video preview screen.
Photos: select the function into image viewer.
Camera settings: Press the OK key to adjust the
following options, including Anti-flicker and Delay timer,
Profile that is complete, press the left soft key or the OK
key to confirm the current setting.
Image settings: can set the image quality and image
size.
White balance: can set white balance
Scene mode: can set the photo mode as auto or night.
Storage: Can choose phone or memory card as the
storage location
Restore default: select the function and confirmed, the
camera parameters can be restored to the default location
After taking pictures, press the back button to return
camera preview screen, press the left soft key to enter
options, can take pictures to send or delete
Multimedia
Image viewer
This feature is convenient for users to view the photos
stored in albums, press the OK key to open the picture,
press the left soft key to open the option menu:
View: open the current image to view.
Image information: can display the current image
information.
Use as: you can select the image use as wallpaper.
Send ：Pictures can be selected through "Bluetooth"
method to send.
Rename: Change the name of the selected picture.
Delete：Delete the select image.
Storage：Can choose phone or memory card as the
storage location
20
Note:
When no pictures in Image viewer, the options menu
only displays the browse style and storage.
Video recorder
In the multimedia menu, select the video recorder into the
video preview screen, press the left soft key into options
menu:
Switch to camera: select the function can directly
switch to camera preview screen.
Camcorder settings: Press the OK key to adjust the
following options; Anti-flicker.
Video settings: Can set the video quality.
Storage: Can choose camera phone or memory card as
the storage location.
Press the OK key to start recorder, recording, press the
OK key to pause or resume recording; Press the right soft
key to stop recording, the screen will be auto save video
and auto back to the video preview screen.
Video player
This feature can be played stored in the mobile or U disk,
supported formats to 3gp, mp4, avi file player.
In the multimedia menu, select the video player into the
video list, press left soft key open the option menu:
Play：Play the current video file
Send: can be selected video through "Bluetooth" method
to send.
Rename：Change the name of the selected video.
Delete：Delete the select video.
Storage：Can choose phone or memory card as the
storage location
Audio player
Play the audio files saved in the phone or memory card.
In playing interface, press the OK key to start or pause
21
playing, press the up navigation key into the play list
screen, press the down navigation key to stop play,
press the left/right navigation key to switch
previous/next song; press the */# key to adjust the
volume,
In playing interface, press the red key or the right soft key
to exit player interface, Phone into the background playing
mode, while the idle screen shows the name of the music.
Press the left soft key into the play list, play the left soft
key into option menu:
Play：play the current song.
Details：can view the current song information, include
song size and time.
Refresh list: can refresh the play list.
Settings：
Pre. Playlist: Press the left/right navigation key to switch
phone or memory card.
List auto gen.: Select this option enabled, each time the
player list will automatically update.
Repeat: You can choose play mode repeat all, repeat one
or off.
Shuffle: When you select on, the player will not play in
order by list.
Background play: Select ON when playing the exit music
player can continue playing.
Sound recorder
Enter the recording screen, press the left key into options
menu:
New record: when you choose the function, start new
record, In recording, press the left soft key to pause/
continue record, press the right soft key to stop record, the
screen will be prompted to save video, press the left soft
key to save and return to the record screen, press the
22
right soft key to not save and directly Back to the record
screen.
Play*: can play the current recording.
Rename*: Change the name of the current recorder file
Delete*: Delete the current recording.
List: Display recorder files list
Settings: you can set storage location and audio quality.
Use as*: You can set the current recorder as coming call
ring-tone.
Send*: Can be current recorder through “Bluetooth”
method to send
Profiles
The phone provides you with three profiles: General,
Silent, Outdoor. It’s help you according to the different
events and environments in different custom ring tones.
according to different location, choose a different profile,
then you only need to personalize your profile and activate.
Note: The factory setting various modes set has been
done and has been the general pattern of the default start
Activate: Start the selected profile.
Customize: You can set all kinds of effects to your own
needs. In the Settings screen, press the down navigation
key to move the highlight to the item needs to be set.
Ring type: Press the OK key to select: Repeat or Beep
once
Ringtone: There are five built-in ring tones to choose for
you, and you may also to choose your favorite audio file
as your ring-tone from file management.
Ring-tone volume: Press the left/right navigation key to
adjust the ring-tone volume.
Message: There are five built-in ring tones to choose for
you.
Message volume: Press the left/right navigation key to
23
adjust the ring-tone volume.
Keypad: Press the Up/Down navigation key to select click,
or tone.
Key-tone volume: Press the left/right navigation key to
adjust the key-tone volume.
System alert: You can set whether to open system alert
tone.
Reset: restore the default settings
Extras
Calculator
Into the calculator, the calculator interface:
Press 0 - 9 numeric keys to enter the number to be
calculated,
Press the navigation key to select the location on the
screen corresponding to add, subtract, multiply and divide
symbols for computing
Press the # key for a decimal point.
Press the right soft key to clear the last bit can be input or
the result (no input figures, has withdrawn from the
calculator function)
Press the left soft key or the OK button to display the
results.
Calendar
Choose to enter the calendar, the screen will display the
system date on the calendar month, and have a
background box marked the current date. Press the
navigation key to select the date, calendar information on
the screen will be updated accordingly.
Select any date, press the left soft key to enter options to
the following:
Jump to date: Jump the selected date.
Go to today: the date of the input query calendar
information.
24
Alarm
You can use the phone as alarm clock, this feature allows
you to set time arrives, make the phone ring to remind
issue.
When the alarm is turned on state, the alarm symbol is
displayed in the top of the screen.
When the alarm clock for reminders, press the left soft key
to terminate the alarm reminder, press the right soft key is
the alarm clock to sleep.
World clock
In this menu, press the left / right navigation key to view
some cities in the world relative to the current time the
phone correspond to time.
Torch
Into the flashlight interface, select on, torch light; select off,
torch dark.
On the idle screen, long press the [0] key, Torch on or off
quickly.
Bluetooth
The phone supports Bluetooth, users can turn the feature
on according to demand.
Bluetooth technology can connect electronic devices
wirelessly. Because Bluetooth communicate by radio, so
in your phone and another Bluetooth device do not need
to in the opposite direction, please maintain the maximum
distance that between two devices is not more than 10
meters during communicating. In some countries or
regions may be developed within a number of provisions
restricting the use of Bluetooth devices, please contact
your local authorities.
Power: Press the OK key or the left soft key to open or
close the Bluetooth function. If close some function, then
you will end all the Bluetooth connection. Bluetooth
25
connection will consume battery power, reducing cell
phone operation time, when using the phone to perform
other operations, please consider this factor.
Visibility: Press the OK key or the left soft key to switch
on or off, if you select on, other Bluetooth devices can find
the phone; if you select off, other Bluetooth devices can’t
find the phone.
My device: Select to add new equipment, search for
Bluetooth devices within range of the signal. After the
Bluetooth device is found, you can select the matching
connections.
Search audio device: Search within signal range of
Bluetooth hands-free devices, such as Bluetooth
headsets.
My name: Display the Bluetooth device name of the
machine can access to vies and edit.
Advanced:
Audio path: set the audio path, is leave in phone or
forward to Bluetooth headsets.
Storage: set storage location in phone or memory card.
My address: Display the Bluetooth device address.
File manager
In document management, you can open files in the
Phone or SD card, you can select file or folder to press the
left soft key into [Options], you can do the
following(Perform different file operations are also
different, depending on the specific operation by the file):
- Open: open the file or folder.
- New Folder: the folder in the selected directory New
Folder.
- Rename: you can rename the select folder.
- Delete: delete the selected file or folder.
26
- use as: if the selected file is audio files, can set the file
use as SIM incoming call; if the selected file is image file,
can set the file use as wallpaper, Power on display or
Power off display.
- Send: the select file can send by Bluetooth.
- Copy: you can copy the select file to other folders.
- Move: you can move the select file to other folders.
- Details: you can view the select file information.
Note:
Memory card as the default save path, order to facilitate
the use of multimedia features.
Settings
LCD backlight
Under this function can be press the left or right navigation
key to adjust the brightness and LCD backlight time.
Phone settings
Time and date
Set home city: You can choose a phone provided in the
city as the current time zone of your location
Set time/date: Under this you can set the phone to the
current date and time. The phone allows you to set the
date range of calendar 2000 to 2030.
Set format: Under this you can set the time and date
display format
Language
Under this you can choose the language provided by the
phone.
Shortcuts
Select this option to enter the functions directly that you
often want to use.
Scroll to a listed function and press the OK key or the Left
soft key to select [Add], scroll to a desired function from
the list of available functions, then use the Left/Right
27
navigator keys to select 1-10 order and press the OK key
to add.
You can also select [Edit, Delete, Delete all, Change order]
options to set the function.
Display
Wallpaper: The standby interface is used to set the
background wallpaper.
You can choose from the built-in wallpaper can also be
selected from File Manager image file.
Screen auto lock:
Under this you can set the time to open or close the
keyboard lock keyboard lock feature. Set the keyboard
lock time, the idle screen, mobile phone within the set time
the keyboard does not perform any operation, it will be
automatically locked, then you can press the left soft key+
[*] key to unlock.
Power on display: The animation can be set to boot, you
can choose preset animation for mobile phones, but also
into the File Manager, select the desired animation.
Power off display: The animation can be set to shutdown,
set with the power on display
Show date and time: You can set the idle screen time
display on or off.
Flight mode
This optional mode in which the phone is normal mode or
flight mode, flight mode if you choose, the phone can only
use some of the functions of non-communications
Security settings
SIM security
You can use the PIN code, PIN2 code, set the boot
password and set security features to protect information
security.
PIN password (PIN1) is the SIM card PIN. If the user don’t
changes the password, the original password is 1234 or
28
0000. If you enable the boot PIN code, then after each
start 4-digit PIN code is necessary to input, PIN code can
be amended, to protect their SIM card is not used by
others. Note that, if the input PIN code wrong three times,
the phone card will automatically lock and unlock
prompted to enter PUK code, this time close to the edge
of danger, so if unauthorized modification of the PIN code,
we must bear in mind.
PUK password (PUK1) from consists of 8 digits, which
users can not change. PIN code when the phone is locked,
and when prompted enter the PUK password, do not act
rashly, because the PUK code input opportunities is only
10 times and if enter the wrong words for 10 times, SIM
card will be permanently locked, that is scrapped. Part of
the SIM card PUK code is never used when the user
comes with the card, while the other part of the network
operators will need to obtain the PIN code if you do not
know the PUK code locked, do not random input, then the
correct way is to call the SIM card hotline operators, after
a simple user data are verified, you can obtain the PUK
password to unlock the phone lock, the service is free of
charge.
Note：Please use this feature with caution, if forget
PUK password, please contact the network operator.
If input PUK code in error for 10 times consecutively ,
SIM card will be scrapped.
PIN lock
Under this you can enable or disable PIN password, PIN
code on or off are required to enter the correct PIN
password. When open this feature, every time you turn
the phone prompts you to enter the PIN password.
Change PIN
If the current PIN password is already open, you can
make changes to the PIN password. First enter the old
29
PIN password, after repeated twice to determine and
identify new password.
Change PIN2
PIN2 （PersonalIdentificationNumber2 ）password is to
enter a particular function (such as setting a fixed number,
set the call billing, etc.) to enter the personal identification
number.
Pin2 password is provided by suppliers for SIM card to
another password, used to qualify the dial personal
identification password, Mainly used to eliminate the call
cost information, set the phone calls and the billing
currency unit, the cost limit function, limited dial-up
("Security settings "---" limited dial-up" can only be opened
after the phone call which can be used to set the number
and do not call this). My phone's SIM card predictive value
is 12345. Pin2 after input error password 3 will be locked,
needed Puk2 to unlock.
PIN2 password is used to set the phone billing. If you
enter three times wrong, the phone will need PUK2 unlock
password, the process described in the previous PIN
password, PUK password the same. However, both the
password and network SIM card billing and modify the
internal data, it will not open, and even if PIN2 password
locked, it will not affect the normal use of mobile phones.
Thus PIN2 password, and not to deliberately ignore PUK2
password.
Note:
Please use this feature with caution, If input PUK
code in error for 10 times consecutively, SIM card
will be scrapped..
Phone security
Under this password there you can set the phone to avoid
unauthorized use of your mobile phone
30
Phone lock
Under this you can enable or disable phone password,
phone password on or off are required to enter the correct
phone password. When open this feature, every time you
turn the phone prompts you to enter the phone password.
Change password
You can make changes to the phone password. First enter
the old phone password, after repeated twice to determine
and identify new password.
Network settings
Can be set automatically or manually select the network,
select Automatic, the phone will be SIM card based on the
network where the first selection, select Manual, you need
to select the SIM card registered with the network
operator can use the same network.
Restore settings
Reset the parameter value mobile phone, make your
phone reset to default settings. Please enter a privacy
password (initial password is 0000), restore factory
settings.
Services
Internet service
Homepage: This is the WAP settings you set in the
homepage address, if you have no other set will have a
direct connection to the phone pre-set or the default home
page.
Bookmarks: In this menu, the display has all the
bookmarks in the bookmark, you can add and save you
frequently visit the site name and address for future quick
access.
Search or Input URL: Enter the need to access the WAP
services, and URL addresses, complete, can be
connected to the WAP site you want to connect. From the
31
surface in the bookmarks, web history, other than to
provide you a flexible way to access the network.
Settings:
Data account: Into the function, you can set correspond
SIM card data account.
Browser options: Clear the temporary buffer information
and cookie, it’s can avoid congestion and improve web
browsing speed, periodically clear.
Preferences: You can set the appropriate parameters,
including the display time, display pictures, cache and
cookie.
SIM Toolkit
The phone supports value-added services provided by the
SIM, different network operators to provide different types
of services, and the menu is shown only if your SIM card
supports. The name and contents of the menu depend on
the available services. Ask your network availability, price,
and information on the SIM card service operators
Advisory.
FM radio
FM radio is supported by the phone.
In FM radio interface, press the OK key to open/close FM.
press the up navigation key to open/close auto tuning
function, when open this feature, press the left/right
navigation key to move forward / backward auto search
until the search to the channel so far. when close the
automatic search function, you can use the manual to
search for the channel, press the left/right navigation key
to move forward /backward 0.1MHZ. Press the */# key to
adjust play volume. Press the right soft key or red key to
exit FM radio, and FM plays in the background.
Press the left soft key to the option menu:
32
Channel list：Display channel list
Manual input：Manual enter frequency to identify, Radio
interface automatically skip to the frequency to listen.
Search：Can auto search channel and save channel
Note: Quality of radio subscription is possible
influenced by environment like indoor or under shield.
You can improve this situation as following: stand
closer to the window, adjust the position of earphone
line or adjust the channel manually.
33
4. Input methods
This phone provides diversified input modes for you to
enter letter information when editing SMS and adding
phonebook.
Use the # key to switch between different input methods.
When editing the key controls:
The Right soft key: Press to clear one character, long
press to clear all.
The End/Power key: Return to the idle screen.
[*] key: In every input status, press this key to call out
punctuation and symbol input frame.
Smart ABC(abc) input method
Smart ABC(abc) input method, the input method has
association functions so that you can simply press each
letter once to change the word order. Representatives of
each key on the keyboard character, the input method will
automatically compare phone language database, and
select the correct word, so it needs more than the
traditional input method saves time, smart input general
methods of operation:
Every key is used to input its corresponding character and
automatically change to compose word according to
previous key's corresponding character. Fast and
repeatedly press the Up/Down Navigator keys until your
requisite character or word appear, and you can select it.
You can press the left soft key to select the word or
character, then press [0] key to confirm and enter the full
word.
ABC (abc) input method
Each key is used to input several characters. Fast and
repeatedly press key until your required character
appears.
When you need to input English punctuation and some
34
special signs, press the [*] numeric key to call out special
sign input box in English input status
Press the [0] key to input blank once.
The Numeric input method
To input numerical values, press the respective numeric
keys.
35
5. Phone maintenance
Mobile is a high-precision electronic products, please
carefully maintained. The following suggestions can help
you maintain phone, to extend the lifespan:
- Phone and its accessories should be placed out of the
reach of children.
- Keep the device dry. Rain, humidity or moisture will
corrode the circuit board. If the phone is accidentally
flooded, shall promptly remove the battery, and
immediately sent to a local authorized service center for
processing.
- Do not place your phone in dusty places, this may affect
the normal use of mobile phones.
- LCD display is easily damaged cell phone parts, mobile
phone dropped onto the ground should be avoided or be
strong vibration; prohibit the use of sharp objects to touch
the screen.
-Do not place the phone where the temperature is too high.
High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt plastic shell
phone.
- Do not place the phone where the temperature is too low.
Otherwise, when the phone temperature to normal
temperature, moisture will be generated internally, could
damage the device electronic circuit boards.
- Do not drop, knock or severe shaking the phone, so as
not to damage the internal circuit boards and precision
mobile structure.
- Do not use chemicals, cleaning solvents or strong
detergents to clean the device, apply a soft cloth soaked
in soapy water and gently scrub.
- Do not use paint pigment cell phone to avoid moving
parts and be stuck to proper operation.
36
- Use a clean soft lens cleaning cloth. Such as: camera
lens.
- Replacement antenna, use only the supplied or
designated by the antenna. Use of unauthorized antennas,
cell phone accessories or modifications, could damage
the device and may violate regulations governing radio
devices.
37
6. Accessories
Use only batteries, chargers, and accessories approved
by the manufacturer with this device. Use of any other
types will invalidate the warranty and may be dangerous.
Check with your dealer for available accessories. You may
opt to buy:
Charger Plug, charger cable
Charger plug used to connect with the charger cable for
charging on wall outlets. Also you can use the charger
cable to connect with the other devices such as the
personal computers to charge the phone.
Charging time is about 2 to 3 hours. The charging
condition is displayed on screen. You may use your phone
while charging.
Earphone
A mini, practical, hands-free device; you can use its button
to answer and end calls. Some models may also come
with a volume control knob.
Do not plug or unplug the earphone when connecting
dialed or incoming calls.
Please to adjust the incoming call alert volume to the
felicitousness before you plug in the earphone.
38
7. FCC Warming
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
FCC ID:2AO6ZE3
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and
receiver.
---Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV
technician for help.
39
Specific Absorption Rate (SAR) information:
This wireless phone meets the government's
requirements for exposure to radio waves. The guidelines
are based on standards that were developed by
independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards
include a substantial safety margin designed to assure the
safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR
limit of USA (FCC) is 1.6 W/kg averaged over one gram of
tissue. Device types:E3 has also been tested against this
SAR limit. The highest SAR value reported under this
standard during product certification for use at the ear is
1.35W/kg and when properly worn on the body is
1.55W/kg. This device was tested for typical body-worn
operations with the back of the handset kept 5mm from the
body.
