Notations Used in This User’s Guide
Features of the Projector
Contents
Before Using the Projector
Basic Operations
Advanced Operations
- Functions for Enhancing Projection
- Using the Configuration Menu Functions
  - List of Functions
  - Using the Configuration Menus
Troubleshooting

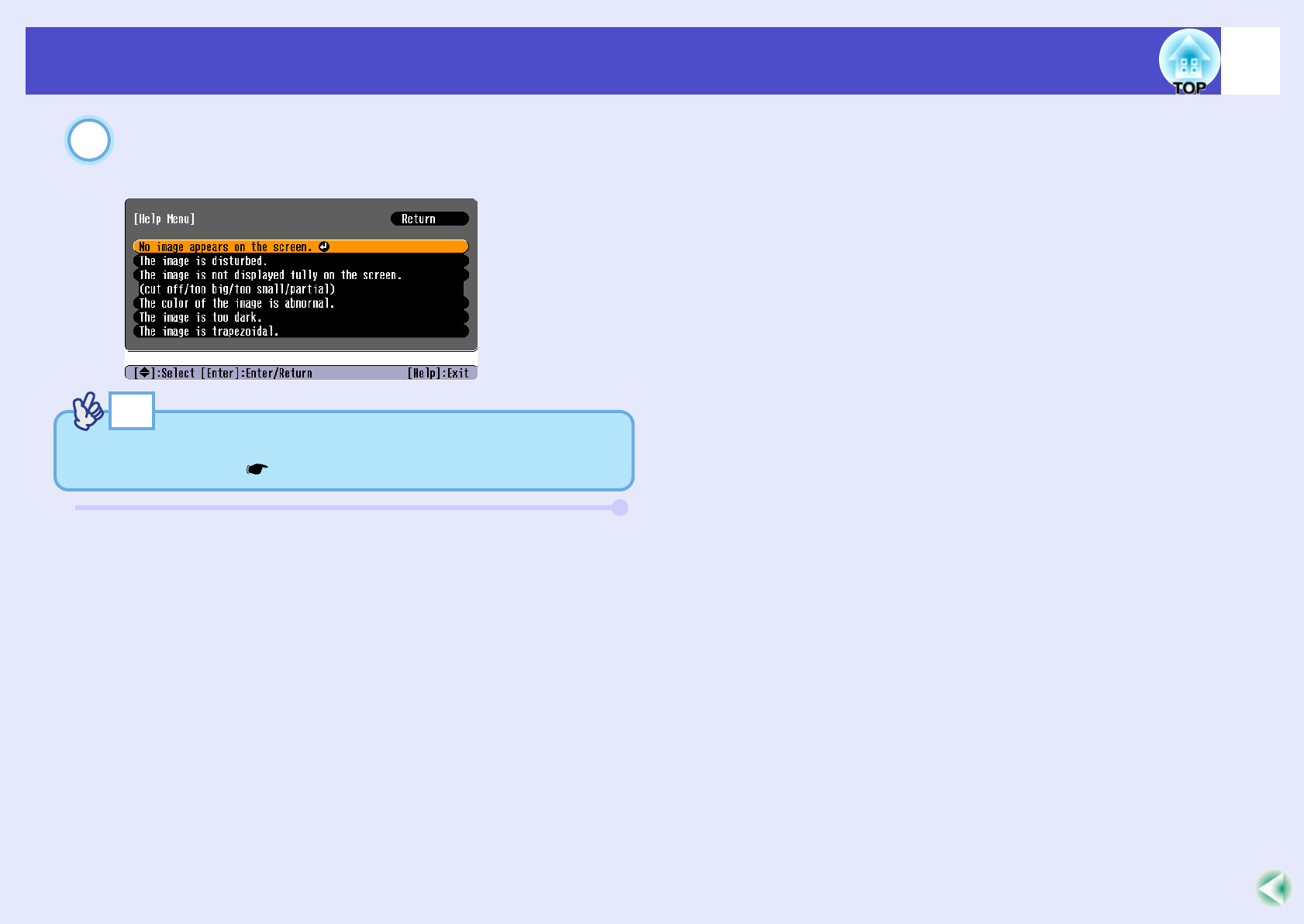

- Using the Help
- Problem Solving
  - Reading the Indicators
  - When the Indicators Provide No Help
Appendices

User’s Guide

Notations Used in This User’s Guide

When "unit" or "projector" appears in the text of this User’s Guide, it may refer to items which are accessories or optional equipment

in addition to the main projector unit itself.

Indicates procedures which may result in damage or injury if sufficient care is not taken.

Indicates additional information and points which may be useful to know regarding a topic.

Indicates a page where useful information regarding a topic can be found. Click on the page number to

display that page.

Indicates that an explanation of the underlined word or words in front of this symbol appears in the

glossary of terms. Click the underlined word or words to display the corresponding entry in the

"Glossary" section of the "Appendices". p.94

Indicates operating methods and the order of operations.

The procedure indicated should be carried out in the order of the numbers.

CAUTION

TIP

PROCEDURE

Features of the Projector

The following six preset colour modes are provided so that you can easily

obtain the optimum images simply by selecting the image quality.

In addition, if projecting onto blackboards rather than projection screens in

places such as schools, you can select the "Blackboard" setting to allow

images to be projected in their natural tints.

Troublesome colour adjustments can thus be avoided.

p.44, p.52, p.55

• Dynamic • Presentation • Theatre

• Living Room • sRGB • Blackboard

The brightness of the lamp can be set to one of two settings. If projecting

images in a dark room or onto a small screen and the images are too bright,

change the setting to "Low".

In addition, when the setting is changed to "Low", the amount of power

consumed and noise produced are reduced and the operating life of the lamp

can be extended.

• Reduction in power consumption of approximately 20%

• Reduction in operating noise of approximately 10%

• Approximately 1.5 times longer lamp life

p.61

The vertical angle of the projector is detected, so that any vertical keystone

distortion in the projected images can be automatically corrected. p.38

Colour mode function

Presentation

Theatre

Living Room

Brightness Control

Automatic keystone correction function

Features of the Projector

The projector has a compact body with a footprint the size of an A4 page (24

(D) × 31.5 (W) × 8.7 (H) cm (9.45 (D) × 12.4 (W) × 3.43 (H) in.) and is light

in weight (approximately 2.9 kg. (6.4 lbs)), making it easy to carry.

Clear and attractive images can be obtained even in bright locations.

The accessory remote control can be used for operations such as pausing

projection (see "Freeze" on p.47) and zooming in on important areas of

an image (see "E-Zoom" on p.49). In addition, the remote control can be

used to move the pointer around on the computer screen during projection

(see "Wireless Mouse Function" on p.19). If using the wireless mouse

function, you can use the remote control to scroll back and forth through

pages when projecting a PowerPoint presentation.

If the password Protect function is employed, a password can be used to

limit operation of the projector and changing of settings. This means that the

projector cannot be used if it is taken without authorisation, and thus serves

as a theft-prevention feature. p.27

Compact and lightweight while producing beautiful,

crisp images

Easy to Operate

Password protect function assists administration

and theft prevention

[XXXXXXX]

XXXX XXX XXXXX.

#XXXX XX XXX "XXXX XXXX" XXX XX.

[0-9]:XXXX

Contents

Notations Used in This User’s Guide .................................... 1

Features of the Projector....................................................... 2

Before Using the Projector

Part Names and Functions.................................................... 7

Front/Top .................................................................................... 7

Control Panel .............................................................................. 8

Rear ............................................................................................. 9

Base........................................................................................... 10

Remote Control......................................................................... 11

Before Using the Remote Control ....................................... 12

Using the Remote Control and Remote Operating Range ........ 12

Installation ........................................................................... 14

Setting Up the Projector............................................................ 14

Screen Size and Projection Distance......................................... 15

Connecting to a Computer .................................................. 16

Eligible Computers ................................................................... 16

Projecting Images from the Computer...................................... 17

Using the Remote Control to Operate the Mouse Pointer

(Wireless Mouse Function) ..................................................... 19

Connecting to an External Monitor........................................... 21

Connecting to a Video Source............................................. 22

Projecting Composite Video Images ........................................ 22

Projecting S-Video Images ....................................................... 23

Projecting Component Video Images ....................................... 23

Projecting RGB Video Images.................................................. 24

Playing Sound from the Video Equipment........................... 25

Preventing theft (Password Protect).................................... 27

When Password Protect is enabled ........................................... 27

Setting Password Protect........................................................... 28

Basic Operations

Turning On the Projector......................................................32

Connecting the Power Cable ..................................................... 32

Turning On the Power and Projecting Images .......................... 33

Turning Off the Projector......................................................35

Adjusting the Screen Image.................................................37

Adjusting the Image Size (Zoom Function).............................. 37

Focusing the Screen Image ....................................................... 37

Adjusting the Image Angle and Automatic Keystone

Correction Function ................................................................. 38

Manually Correcting Keystone Distortion ................................ 40

Adjusting the Image Quality .................................................41

Adjusting Computer Images and RGB Video Images .............. 41

Selecting the Projection Quality

(Colour Mode Selection).......................................................... 44

Advanced Operations

Functions for Enhancing Projection .....................................46

A/V Mute................................................................................... 46

Freeze ........................................................................................ 47

Wide-screen Projection of Images from Video Equipment

(Changing the Aspect Ratio).................................................... 48

E-Zoom...................................................................................... 49

Using the Configuration Menu Functions.............................50

List of Functions........................................................................ 51

Using the Configuration Menus ................................................ 66

Contents

Troubleshooting

Using the Help..................................................................... 69

Problem Solving .................................................................. 71

Reading the Indicators .............................................................. 71

When the Indicators Provide No Help ...................................... 74

Appendices

Maintenance........................................................................ 83

Cleaning .................................................................................... 83

Replacing Consumables............................................................ 84

Saving a User's Logo .......................................................... 90

Optional Accessories........................................................... 93

Glossary .............................................................................. 94

List of ESC/VP21 Commands ............................................. 97

Command List........................................................................... 97

Communication Protocol .......................................................... 97

Cable Layouts ........................................................................... 98

USB Connection Setup ............................................................. 99

List of Supported Monitor Displays.................................... 100

Specifications .................................................................... 101

Appearance ....................................................................... 102

Index.................................................................................. 103

Before Using the Projector

This chapter describes the procedures for setting up the projector before use.

Part Names and Functions................................... 7

• Front/Top ...............................................................................7

• Control Panel.........................................................................8

• Rear ........................................................................................9

• Base.......................................................................................10

• Remote Control ...................................................................11

Before Using the Remote Control ..................... 12

• Using the Remote Control and

Remote Operating Range ...................................................12

•Using the Remote Control ......................................................... 12

•Remote Operating Range........................................................... 13

Installation........................................................... 14

• Setting Up the Projector .....................................................14

• Screen Size and Projection Distance..................................15

Connecting to a Computer................................. 16

• Eligible Computers .............................................................16

• Projecting Images from the Computer..............................17

•If the Monitor Port is a Mini D-Sub 15-pin Port ....................... 17

•If the Monitor Port is a 13w3 Port ............................................. 17

•If the Monitor Port is a 5BNC Port............................................ 18

• Using the Remote Control to Operate the Mouse Pointer

(Wireless Mouse Function) ............................................... 19

• Connecting to an External Monitor .................................. 21

Connecting to a Video Source ........................... 22

• Projecting Composite Video Images ................................. 22

• Projecting S-Video Images................................................. 23

• Projecting Component Video Images ............................... 23

• Projecting RGB Video Images........................................... 24

Playing Sound from the Video Equipment........ 25

Preventing theft (Password Protect) ................. 27

• When Password Protect is enabled ................................... 27

•When "Power ON Protect" is enabled (ON) ..............................27

•When "User's Logo Protect" is enabled (ON) ............................28

• Setting Password Protect ................................................... 28

Part Names and Functions

Front/Top

•Control panel p.8

•Zoom ring p.37

Adjusts the image size.

•Remote control light-receiving

area p.12

Receives signals from the remote control.

•Power indicator p.71

Flashes or lights in different colours to

indicate the operating status of the projector.

• (Warning) indicator p.72

The colour and ON status (illuminated/

flashing) indicates problems with the

projector.

•Front adjustable foot p.38

Extend and retract to adjust the projection

angle when the projector is placed on a

surface such as a shelf.

•Lens cover

Attach when not using the projector to

prevent the lens from becoming dirty or

damaged. •Foot adjust button p.38

Another foot adjust button is located on

the right side.

Press both foot adjust buttons when

extending and retracting the front

adjustable feet.

•Air exhaust vent

•Focus ring p.37

Adjusts the image focus.

•Speaker

Part Names and Functions

Control Panel

•[Power] button p.33, p.35

Turns the projector power on and off.

•[Source] button p.34

Switches the input source between the [Computer1/

Component Video1] port, [Computer2/Component

Video2] port, [S-Video] port and [Video] port each

time the button is pressed.

When pressed while a help menu is being displayed,

it accepts the menu item that is currently selected.

p.69

•[Keystone] button p.40

Press to correct keystone distortion in images.

When pressed while a help menu is being

displayed, it selects items in the menu. p.69

•[Help] button p.69

Each time this button is pressed, it displays and

hides the online help menu that can assist you if

you have a problem.

Part Names and Functions

Rear

•Remote control light-receiving

area p.12

Receives signals from the remote control.

•Power inlet p.32

Connects to the power cable.

•[Computer1/Component Video1] port

•[Computer2/Component Video2] port

p.17, p.23, p.24

Input analogue RGB video signals from a computer

and RGB video signals and component video

signals from other video sources.

•[Video] port p.22

Inputs composite video signals to the

projector from other video sources.

•[S-Video] port p.23

Inputs S-Video signals to the projector

from other video sources.

•[USB] port p.19, p.98

Connects the projector to a computer via the

USB cable when using the wireless mouse

function.

Computer images cannot be projected by

the projector by using the USB cable to

connect the computer.

•Security lock ( ) p.95

•[Monitor Out] port p.21

Outputs the projected analogue video signals or

RGB video signals to an external monitor from

the source that is connected to the [Computer1/

Component Video1] port. This feature is not

available for video equipment signals.

•[Control (RS-232C)] port p.98

Connects the projector to a computer using

an RS-232C cable. This port is for control

use and should not be used by the customer.

•[Audio2] port p.25

Inputs audio signals from a video source.

•[Audio1] port p.25

Inputs audio signals from a computer, RGB

video or component video equipment.

Part Names and Functions

Base

•Lamp cover p.86

Open this cover when replacing the lamp

inside the projector.

•Remote control holder p.12

Store the accessory remote control in here

when not using it.

•Air filter (air intake vent)

p.83, p.89

This prevents dust and other foreign

particles from getting inside the projector

when air is drawn in. It should be cleaned

and replaced periodically.

•Suspension bracket fixing points (4 points)

p.14, p.102

Install the optional ceiling mount here when suspending the

projector from a ceiling.

•Air intake vent p.83

Clean the air filters periodically.

•Air intake vent p.83

Part Names and Functions

Remote Control

•Numeric buttons p.27

Use these buttons to enter a password when using

Password Protect.

•Remote control light-emitting area p.12

Outputs remote control signals.

•[A/V Mute] button p.46

The audio and video are turned turn on or off each time

the button is pressed.

•[E-Zoom] button ( ) p.49

Enlarges parts of images without changing the size of the

projection area.

•[Enter] button p.20, p.66, p.69

Accepts a menu or help item or displays the next screen or

menu when viewing a configuration menu or help menu.

Acts as a mouse left-click when using the wireless mouse

function.

•[Esc] button p.20, p.67

Stops the current function.

Displays the previous screen or menu while viewing a

configuration menu.

Acts as a mouse right-click when using the wireless

mouse function.

•[Auto] button p.41

Automatically adjusts and optimises analogue RGB

computer video signals.

•[Menu] button p.66

Displays and hides the configuration menu.

•[Power] button p.33, p.35

Turns the projector power on and off.

•Input select buttons p.34

[Computer1/2]:

Switches between images that are being input to the

[Computer1/Component Video1] port and the

[Computer2/Component Video2] port.

[S-Video/Video]:

Switches the signal source being input from the [S-

Video] port and the [Video] port.

•[Color Mode] button p.44

Selects the colour mode. The colour mode changes in the

order of Dynamic, Presentation, Theatre, Living Room,

sRGB and Blackboard each time the button is pressed.

•[ ][ ][ ][ ] buttons p.20, p.66, p.69

When a configuration menu or help menu is displayed,

these buttons select menu items and setting values.

When pressed while using the wireless mouse function,it

moves the pointer in the direction of tilt.

•[E-Zoom] button ( ) p.49

Reduces the part of images that have been enlarged using

the [ ] button.

•[Freeze] button p.47

Images are paused or unpaused each time the button is

pressed.

•[Page down]/[Page up] buttons p.19

When using the remote control as a wireless mouse, press

these buttons to scroll back and forth through pages in a

PowerPoint file.

Before Using the Remote Control

Using the Remote Control and Remote Operating

Range

When using the remote control for the first time, pull out the insulating

tape that is protruding from the battery holder. When the insulating tape is

pulled out, the remote control can then be used.

The remote control is used in the following way.

PROCEDURE

Point the remote control light-emitting area toward one of

the remote control light-receiving areas on the projector

and operate the remote control buttons.

Using the Remote Control

Insulating tape

Remote control

light-receiving

area (front)

Remote control

light-receiving

area (back)

Remote control

light-emitting area

TIP

•Do not allow sunlight or light from fluorescent lamps to shine

directly onto the projector's remote control light-receiving areas,

otherwise it may interfere with the reception of signals from the

remote control.

•If delays in the responsiveness of the remote control occur or if it

does not operate after it has been used for some time, it probably

means that the battery is getting flat. If this happens, replace the

battery with a new one. p.84

•When not using the remote control, place it into the remote control

holder underneath the projector so that it does not get lost.

Hook a finger into the middle

of the remote control holder

and pull it downwards.

After placing the remote control into

the holder, push the remote control

holder in until it clicks into place.

Before Using the Remote Control

Use the remote control within the ranges indicated below. If the distance or

angle between the remote control and the remote control light-receiving

area is outside the normal operating range, the remote control may not

work.

Remote Operating Range

Operating distance Operating angle

Approx. 6 m (20 ft.) Approx. ±30º horizontally

Approx. ±15º vertically

Remote control

light-receiving area

Remote control

light-emitting area

Approx. 30º Approx. 30º Approx. 30º

Operating angle (horizontal)

Operating

distance

approx.

6 m (20 ft.)

Approx. 30º

Approx. 15º Approx. 15º

Approx. 15º

Operating angle (vertical)

When suspended from the ceiling

Operating distance

approx. 6 m (20 ft.)

Operating distance

approx. 6 m (20 ft.)

Approx. 15º

Operating distance

approx. 6 m (20 ft.)

Operating distance

approx. 6 m (20 ft.)

Installation

Setting Up the Projector

The projector supports the following four different projection methods,

allowing you to choose the best method for displaying your images.

* A special method of installation is required for suspending the projector

from the ceiling. Please contact your supplier if you would like to use

this installation method. The optional ceiling mount is required when

installing the projector on the ceiling. p.93

CAUTION

Before setting up the projector, be sure to first read the separate

Safety Instructions/World-Wide Warranty Terms.

• Front projection (Front projection)

• Rear projection using a translucent screen (Rear projection)

• Front/ceiling projection (Front/Ceiling projection)

• Rear/ceiling projection using a translucent screen (Rear/Ceiling projection)

TIP

When using ceiling projection or projection using a translucent

screen, set the "Projection" command in the "Advanced" menu to

match the installation method. p.62

Installation

Screen Size and Projection Distance

The distance between the projector's lens and the screen determines the

actual image size.

While referring to the following table, position the projector so that the

images are projected onto the screen at the optimum size.

The values should be used as a guide for setting up the projector. The

actual values will vary depending on projection conditions and the zoom

setting.

* When installing against a wall, leave a space of about 20 cm (7.9 in.)

between the projector and the wall.

Recommended distance 89–1050 cm (2.9–34.4 ft.)

4:3 Screen size

(cm (in.))

Projection distance

(cm (ft.))

Distance from

centre of lens

to bottom

edge of

screen

(cm (in.))

Shortest

(wide)

Longest

(tele)

30" (61 × 46 (24.0 × 18.1)) 89 (2.9) 103 (3.4) 4 (1.6)

40" (81 × 61 (31.9 × 24.0)) 120 (3.9) 138 (4.5) 6 (2.2)

50" (100 × 76 (39.4 × 30.0)) 151 (4.9) 173 (5.7) 7 (2.7)

60" (120 × 90 (47.2 × 35.4)) 181 (5.9) 208 (6.8) 8 (3.3)

80" (160 × 120 (63.0 × 47.2)) 243 (8.0) 278 (9.1) 11 (4.4)

100" (200 × 150 (78.7 × 59.1)) 304 (10.0) 349 (11.4) 14 (5.5)

200" (410 × 300 (161.4 × 118.1))

610 (20.0) 699

(

22.9

)28 (10.9)

300" (610 × 460 (240.2 × 181.1))

916 (30.1) 1050

(

34.4

)42 (16.4)

Screen

90º Centre of

lens

TIP

•The projector's lens allows a zoom ratio of up to about 1.2. The

image size at the maximum zoom setting is about 1.2 times bigger

than the image size at the minimum zoom setting.

•The image size will be reduced when keystone correction is carried

out.

Connecting to a Computer

Eligible Computers

The projector cannot be connected to some types of computer, or

projection of images may not be possible even if actual connection is

possible. Make sure that the computer you intend to use satisfies the

conditions given below.

• Condition 1: The computer must have an image signal output port.

Check that the computer has a port such as an "RGB port", "monitor port"

or "CRT port" which can output image signals.

If the computer has a built-in monitor, or if using a laptop computer, it

may not be possible to connect the computer to the projector, or

alternatively you may need to purchase a separate external output port.

Refer to the documentation for your computer under a heading such as

"Connecting an external monitor" or similar for further details.

• Condition 2: The display resolution and frequency of the computer

must be listed in the "List of Supported Monitor Displays". See

"Appendices: List of Supported Monitor Displays" p.100.

Some computers allow you to change the output resolution, so if

necessary, change the resolution to one that matches a setting in the "List

of Supported Monitor Displays", while referring to the documentation

provided with the computer.

CAUTION

When connecting the projector to a computer, be sure to check the

following.

•Turn off the power for both the projector and the computer before

connecting them. If the power for either device is on at the time of

connection, damage may result.

•Check the shapes of the cable connectors and the device ports before

making the connections. If you try to force a connector to fit a device

port with a different shape or number of terminals, damage to the

connector or port may result.

•Do not bind the power cable and the connecting cable together. If the

power cable and the connecting cable are bound together, image

interference or errors in operation may result.

TIP

•You may need to purchase a separate adapter depending on the

shape of the computer's port. Refer to the documentation provided

with the computer for further details.

•If the computer and projector are too far away from each other for

the accessory computer cable to reach, use the optional VGA-HD15

PC cable. See "Appendices: Optional Accessories" p.93

Connecting to a Computer

Projecting Images from the Computer

The shape and specifications of the computer's monitor port will determine

what type of cable should be used. Check the following to see which type

of port your computer has.

Use the accessory computer cable to make the connection.

Some workstation-type computers have a 13w3 monitor port.

In such cases, use a commercially-available 13w3 ⇔ D-Sub 15-pin cable

to make the connection.

If the Monitor Port is a Mini D-Sub 15-pin Port

Computer cable

(accessory)

To monitor port

To [Computer1/Component

Video1]

or [Computer2/Component

Video2] port (blue)

TIP

•After projection starts, change the "Input Signal" setting in the

"Image" menu to either "Computer1" or "Computer2" to match the

signals from the port being used for the connection. p.52

•If more than one external component is connected to the projector,

after projection starts, use the [Computer1/2] button on the remote

control or the [Source] button on the projector's control panel to

select the Computer port as the input source. p.34

If the Monitor Port is a 13w3 Port

13w3 cable

(commercially-available)

To monitor port

To [Computer1/Component

Video1]

or [Computer2/Component

Video2] port (blue)

TIP

•After projection starts, change the "Input Signal" setting in the

"Image" menu to either "Computer1" or "Computer2" to match the

signals from the port being used for the connection. p.52

•If more than one external component is connected to the projector,

after projection starts, use the [Computer1/2] button on the remote

control or the [Source] button on the projector's control panel to

select the Computer port as the input source. p.34

•Some workstations may require a special cable. Consult the

workstation manufacturer for further details.

Connecting to a Computer

Use the optional VGA- HD15/BNC PC Cable to make the connection.

See "Appendices: Optional Accessories" p.93

If the Monitor Port is a 5BNC Port

To monitor port

VGA- HD15/BNC PC Cable

(optional)

To [Computer1/Component

Video1]

or [Computer2/Component

Video2] port (blue)

TIP

•After projection starts, change the "Input Signal" setting in the

"Image" menu to either "Computer1" or "Computer2" to match the

signals from the port being used for the connection. p.52

•If more than one external component is connected to the projector,

after projection starts, use the [Computer1/2] button on the remote

control or the [Source] button on the projector's control panel to

select the Computer port as the input source p.34

Connecting to a Computer

Using the Remote Control to Operate the Mouse

Pointer (Wireless Mouse Function)

You can use the remote control as a wireless mouse to control the mouse

pointer on the computer screen. To do this, you must use the accessory

USB cable to connect the USB port of the computer to the [USB] port at

the rear of the projector.

* When using the remote control as a wireless mouse, the [Page down] and

[Page up] buttons on the remote control can be used to scroll back and

forth through pages when projecting a PowerPoint presentation.

Computer Mouse used Applicable cable

Windows 98/2000/Me/

XP Home Edition/

XP Professional

USB mouse USB cable (accessory)

Macintosh

(OS 8.6–9.2/X/10.0–10.2) USB mouse USB cable (accessory)

USB cable

(accessory)

To [USB] port

To USB port

TIP

•The USB cable can only be connected to computers with a standard

USB interface. If using a computer which is running Windows, the

computer must have had a full version of Windows 98/2000/Me/XP

Home Edition/XP Professional installed. If the computer is running

a version of Windows 98/2000/Me/XP Home Edition/XP

Professional that has been upgraded from an earlier version of

Windows, correct operation cannot be guaranteed.

•It may not be possible to use the mouse function under some versions

of both the Windows and Macintosh operating systems.

•Some computer settings may have to be changed in order for the

mouse function to be used. Consult the documentation for the

computer for further details.

Connecting to a Computer

Once the connection has been made, the mouse pointer can be operated as

follows.

Moving the mouse pointer

Press the [ ], [ ], [ ] or [ ] button to

move the mouse pointer in the direction

of the button pressed.

Left click

Press the [Enter] button.

If you press the [Enter] button twice in

rapid succession, it has the effect of a

double-click.

Right click

Press the [Esc] button.

Drag and drop

While holding down the [Enter] button,

press the [ ], [ ], [ ] or [ ] button to

drag items. Release the [Enter] button

to drop the items being dragged at the

desired position.

TIP

•If the mouse button settings have been reversed at the computer, the

operation of the remote control buttons will also be reversed.

•The wireless mouse function cannot be used while the following

functions are being used.

· While a configuration menu is being displayed

· While a help menu is being displayed

· While the E-Zoom function is being used

· While a user's logo is being captured

Connecting to a Computer

Connecting to an External Monitor

Analogue RGB images and RGB video images from a computer that are

being input to the [Computer1/Component Video1] port can be viewed on

an external computer monitor at the same time they are being projected by

the projector, so that the images can be checked at times such as when

giving presentations.

If the images being projected are from a source that is connected to the

[Computer2/Component Video2] port, these images cannot be output to an

external monitor.

Connect the external monitor using the cable that is provided with the

monitor.

Cable provided with monitor To [Monitor Out] port (black)

Monitor port

TIP

•Video images cannot be output to an external monitor.

•The setting gauge for keystone correction and the configuration

menus and help menus are not output to the external monitor.

Connecting to a Video Source

Projecting Composite Video Images

Use the accessory A/V cable to make the connection.

CAUTION

When connecting the projector to other video sources, take the

following precautions.

•Turn off the power for both the projector and the video source before

connecting them. If the power for either device is on at the time of

connection, damage may result.

•Check the shapes of the cable connectors and the device ports before

making the connections. If you try to force a connector to fit a device

port with a different shape or number of terminals, a malfunction or

damage to the connector or port may result.

•Do not bind the power cable and the connecting cable together. If the

power cable and the connecting cable are bound together, image

interference or errors in operation may result.

To video output port

(yellow)

To [Video] port (yellow)

A/V cable (yellow)

(accessory)

To audio output

port p.25

To [Audio2] port p.25

TIP

If more than one external component is connected to the projector,

after projection starts, press the [S-Video/Video] button on the remote

control or the [Source] button on the projector's control panel until

"Video" is displayed in the projected image. p.34

Connecting to a Video Source

Projecting S-Video Images

Use a commercially-available S-Video cable to make the connections.

Projecting Component Video Images

Use the optional component video cable to make the connection.

See "Appendices: Optional Accessories" p.93

S-Video cable

(commercially-available)

To [S-Video] port

To S-Video output port

TIP

If more than one external component is connected to the projector,

after projection starts, press the [S-Video/Video] button on the remote

control or the [Source] button on the projector's control panel until

"S-Video" is displayed in the projected image. p.34

Component video cable

(optional)

To component video

output port

To [Computer1/Component

Video1]

or [Computer2/Component

Video2] port (blue)

Connecting to a Video Source

Projecting RGB Video Images

Use the accessory computer cable to make the connections.

TIP

•If the source is connected to the [Computer1/Component Video1]

port, after projection starts, change the "Input Signal" setting in the

"Image" menu to either "Component Video1 (YCbCr )" or

"Component Video1 (YPbPr )" to match the signals from the video

equipment. p.55

•If the source is connected to the [Computer2/Component Video2]

port, after projection starts, change the "Input Signal" setting in the

"Image" menu to either "Component Video2 (YCbCr)" or

"Component Video2 (YPbPr)" to match the signals from the video

equipment. p.55

•If more than one external component is connected to the projector,

after projection starts, press the [Computer1/2] button on the remote

control or the [Source] button on the projector's control panel to

select the signal being input until "Component Video1 (YCbCr)",

"Component Video1 (YPbPr)", "Component Video2 (YCbCr)" or

"Component Video2 (YPbPr)" is displayed in the projected image.

p.34

To RGB output port

Computer cable

(accessory)

To [Computer1/Component

Video1]

or [Computer2/Component

Video2] port (blue)

TIP

•After projection starts, change the "Input Signal" setting in the

"Image" menu to either "Computer1" or "Computer2" to match the

signals from the port being used for the connection. p.52

•If more than one external component is connected to the projector,

after projection starts, use the [Computer1/2] button on the remote

control or the [Source] button on the projector's control panel to

select the signal to be projected so that "Computer1" or

"Computer2" is displayed on the screen. p.34

Playing Sound from the Video Equipment

The projector has a built-in speaker with a maximum output of 1 W. You can

output sound from the connected video equipment (such as a computer or

video deck) through the projector's built-in speaker if the video equipment has

an audio output port.

Select the audio cable that is used for this connection from the following,

depending on the shape of the other equipment's port.

• If connecting to a stereo mini jack (such as the audio output port of a

computer): Use a commercially-available stereo mini jack audio cable to

make the connection.

• If connecting to an RCA pin jack ×2 (red/white) (such as the audio output

port of video equipment): Use the accessory A/V cable to make the

connection.

The default setting for the "Audio Input" command in the "Audio" menu is

"Audio1" when analogue RGB images from a computer or RGB video images

or component video images are being input, and "Audio2" when composite

video and S-Video images are being input. Change the setting depending on

the equipment being connected, or select the appropriate audio input port.

When connecting to the [Audio1] port

When connecting to the [Audio2] port

TIP

•You can adjust the volume after projection has started. p.26

•If using a commercially-available 2RCA (L/R)/stereo mini-jack

audio cable, use one that is marked as "No resistance".

To audio output port

To [Audio1] port

Stereo mini jack audio cable

(commercially-available)

To audio output port

To [Audio2] port

A/V cable (white/red)

(accessory)

Playing Sound from the Video Equipment

Use the following procedure to adjust the volume of the sound output.

PROCEDURE

Press the [Menu] button on the remote control, and

then select "Volume" from the "Audio" menu.

For details on this operation, refer to "Using the Configuration

Menus". p.66

Use the [ ] and [ ] buttons to adjust the volume.

The volume is increased or reduced each time a button is

pressed.

After making the adjustment, press the [Menu] button

to exit the configuration menu.

Preventing theft (Password Protect)

When the Password Protect function is activated, people who do not know the

password cannot use the projector to project images when the power is turned

on. Furthermore, the company logo and administrator's name that are

displayed when the power is turned on cannot be changed. This means that the

projector cannot be used if it is taken without authorisation, and thus serves as

a theft-prevention feature.

When Password Protect is enabled

When the power is turned on, the password entry screen is displayed. The

buttons shown in the frame below operate as numeric keypad buttons while

the password entry screen is displayed.

Use the numeric keypad buttons to enter the password that has been set. If

the password is entered correctly, projection will then start.

When "Power ON Protect" is enabled (ON)

Remote control

Numeric buttons

TIP

•If an incorrect password is entered three times in succession, the

message "The projector’s operation will be locked." will be displayed

for approximately five minutes, and then the projector will switch to

standby mode. If this happens, disconnect the power plug from the

electrical outlet and then reinsert it and turn the projector's power

back on. A window requesting you to enter the password will be

displayed, so enter the correct password.

If you happen to forget the password, make a note of the "request

code: xxxx" number that appears in the Password screen and

contact the nearest address provided in the "International Warranty

Conditions" section of the Safety Instructions/World-Wide Warranty

Terms booklet.

•If the above operation should happen to be repeated nine times

without a correct password being entered, the following message will

be displayed and the projector's power will not be able to be turned

on.

"The projector's operation will be locked. Contact the nearest

address provided in the "International Warranty Conditions" section

of the Safety Instructions/World Wide Warranty Terms booklet."

Preventing theft (Password Protect)

If an attempt is made to carry out any of the following user logo

operations, a message is displayed and the setting can not be changed. To

change the setting, set "User’s Logo Protect" to "OFF" first. p.29

• Capturing a user's logo

• Changing the setting for the "Background Color" command in the

"Setting" menu from "Logo" to "Black" or "Blue", or from "Black" or

"Blue" to "Logo"

• Changing the "Startup Screen" setting in the "Advanced" menu ("ON" or

"OFF")

Setting Password Protect

Use the following procedure to set Password Protect.

PROCEDURE

Hold down the [Freeze] button for approximately 7

seconds.

The "Password Protect" menu will be displayed.

Turn "Power ON Protect" on.

(1) Select "Power ON Protect", and then press the [Enter]

button.

(2) Select "ON", and then press the [Enter] button.

(3) Press the [Esc] button.

The next time the "Timer" setting is made, you can set the time

that the projector can be used without needing to enter a

password.

If setting the time, continue on to the next step. If not setting the

time, continue on to step 5.

Select "Timer" and then press the [Enter] button.

When "User’s Logo Protect" is enabled (ON)

Remote control

TIP

•If Password Protect has already been enabled, the "Password"

screen will be displayed.

If the password has been entered correctly, the "Password Protect"

menu will be displayed.

See "When Password Protect is enabled" p.27

•If Password Protect is set to "ON", attach the accessory Password

Protect sticker to your preferred position on the projector as a theft-

prevention measure.

TIP

The portion of the length of time set that has already been used can be

checked using the "Time-elapsed" command.

Preventing theft (Password Protect)

Enter the length of time to be set using up to three

digits.

Press the numeric keypad buttons to enter a setting time within

the range of 0 to 999 hours, and then press the [Enter] button. If

you make a mistake entering the time, press the [Esc] button

and re-enter the time.

A message will appear after this.

When you have finished using the "Password Protect" menu,

the countdown for the elapsed time will start.

Turn "User’s Logo Protect" on.

(1) Select "User’s Logo Protect", and then press the [Enter]

button.

(2) Select "ON", and then press the [Enter] button.

(3) Press the [Esc] button.

To set a password, select "Password" and then press

the [Enter] button.

The message "Change the password?" will be

displayed, so select "Yes" and then press the [Enter]

button.

The default setting for the password is "0000", but you should

be sure to change this to your own desired password.

If you select "No", the screen shown at step 1 will be displayed

again.

Enter a 4-digit password.

Use the numeric keypad buttons to enter a 4-digit password.

The password entered will be displayed as "* * * *".

When the 4th digit is entered, the following confirmation screen

will be displayed.

Re-enter the password that you entered in step 8.

The message "The new password is stored." will be displayed.

If you enter the password incorrectly, a message will be

displayed prompting you to re-enter the password.

TIP

If the length of time is set to "0", you will need to enter the password

each time the power is turned on, otherwise projection will not be

possible.

Preventing theft (Password Protect)

Once the setting is complete, press the [Menu]

button.

TIP

•When the time period has elapsed and the password is entered,

projection will start again, the "Time-elapsed" setting will be reset to

"0" and the countdown will start again.

•Make a note of the password so that you do not forget it and keep it

in a safe place.

•If you lose the remote control, you will not be able to enter the

password. Keep the remote control in a safe place at all times.

Basic Operations

This chapter describes basic operations such as turning the projector on and off and adjusting the projected images.

Turning On the Projector.................................... 32

• Connecting the Power Cable ..............................................32

• Turning On the Power and Projecting Images .................33

Turning Off the Projector ................................... 35

Adjusting the Screen Image .............................. 37

• Adjusting the Image Size (Zoom Function)......................37

• Focusing the Screen Image .................................................37

• Adjusting the Image Angle and Automatic Keystone

Correction Function............................................................38

• Manually Correcting Keystone Distortion........................40

Adjusting the Image Quality............................... 41

• Adjusting Computer Images and RGB Video Images .... 41

•Automatic Setup .........................................................................41

•Adjusting the Tracking ...............................................................42

•Adjusting the Sync .....................................................................43

• Selecting the Projection Quality

(Colour Mode Selection) .................................................... 44

Turning On the Projector

Turn on the power to start projecting images.

Connecting the Power Cable

PROCEDURE

Check that the power is turned off for the projector

and all components connected to the projector.

Connect the computer or other video source to the

projector. p.16, p.22

Remove the lens cover.

Hook your finger under the top of the lens cover and pull to

remove it.

Connect the accessory power cable to the projector.

Check that the power cable connector is facing the same way as

the power inlet on the projector, and then insert the power cable

connector securely into the projector.

Connect the other end of the power cable to an

earthed electrical outlet.

Wait until the Power indicator lights orange.

CAUTION

Be sure to read the separate Safety Instructions/World-Wide Warranty

Terms before projecting images.

Lit orange

TIP

The projector's control panel and remote control buttons cannot be

operated while the Power indicator is flashing orange.

Turning On the Projector

Turning On the Power and Projecting Images

PROCEDURE

Check that the Power indicator has stopped flashing

and is lit orange.

Turn on the power for all equipment connected to the

projector.

For a video source, press the [Play] button at the video source to

start playback if necessary.

Press the [Power] button on either the projector's

control panel or the remote control to turn on the

power for the projector.

A beep will sound to indicate that the projector is starting up.

The Power indicator flashes green.

After a short period it stops flashing and lights steadily, and

projection starts.

Wait until the Power indicator lights green (it normally takes

about 40 seconds to change).

TIP

The Password Protect setting may cause the password entry screen to

be displayed each time the power is turned on.

If this happens, enter the password. p.27

Lit orange

Remote control

Changes from flashing to lit green

TIP

•If the Power indicator is flashing green, operation of the [Power]

buttons is disabled.

•Depending on the settings, the message "No Signal." may appear.

See "Setting" - "Message" p.58

Turning On the Projector

If more than one external device is connected to the

projector, use the remote control or projector control

panel buttons to select the image source to be

projected while referring to the following table.

* The items selected using the "Input Signal" command in the "Image"

menu will appear.

Port

Button to press Display at top-right

of screen

Remote

control Projector

Computer1/

Component

Video1

[Computer1/2]

The image

source changes

each time

[Source] is

pressed.

If no S-Video

signal source is

connected, "S-

Video" will not

appear.

Computer1*

Component Video1

(YCbCr ) *

Component Video1

(YPbPr ) *

Computer2/

Component

Video2

Computer2*

Component Video2

(YCbCr ) *

Component Video2

(YPbPr ) *

S-Video [S-Video/

Video]

S-Video

Video Video

ProjectorRemote control

TIP

•If only one signal source has been connected, the signals from that

source will be projected without needing to press any of the buttons

on the remote control or the projector's control panel.

•If the "No Signal." message does not disappear, check the

connections again.

•If a laptop computer or a computer with an LCD screen has been

connected to the projector, the images may not be projected straight

away. After starting projection, check that the computer has been set

up to output signals externally.

The following table shows examples of how to toggle output settings.

For details, refer to the section of the documentation provided with

your computer under a heading such as "External output",

"Connecting an external monitor" or similar.

•If the same still picture is projected for a long period of time, the

projected image may become burned in on the computer screen. You

should avoid leaving the same image displayed for long periods.

NEC Panasonic Toshiba IBM Sony Fujitsu Macintosh

[Fn]+[F3] [Fn]+[F3] [Fn]+[F5] [Fn]+[F7] [Fn]+[F7] [Fn]+[F10]

After startup, change

the Control Panel

adjustments so that

Mirroring is active

Turning Off the Projector

Follow the procedure below to turn off the power of the projector.

PROCEDURE

Turn off the power for the signal sources that are

connected to the projector.

Check that the power for all connected components has been

turned off.

Press the [Power] button.

The following confirmation message will appear.

If you do not want to turn off the power, press any button except

the [Power], [Page down] or [Page up] button.

If you do not press any button, the message will disappear

automatically after seven seconds. (The power will not turn off

at this time.)

Press the [Power] button once more.

The lamp will switch off. The Power indicator will flash orange

and cool-down will start.

The cool-down period lasts for about 20 seconds.

When cool-down is complete, the Power indicator lights

orange.

ProjectorRemote control

CAUTION

If the message "The projector is overheating. Clean or replace the air

filter and lower the room temperature." appears on the screen, press

the [Enter] button on either the projector's control panel to turn the

power off and then clean the air filters. p.83

ops

ng an

s orange

TIP

If the Power indicator is flashing orange, operation of the [Power]

buttons is disabled. Wait until the indicator lights continuously.

Turning Off the Projector

If not using the projector for a long period, unplug the

power cable from the electrical outlet.

Attach the lens cover.

Attach the lens cover to the lens when not using the projector,

in order to stop the lens from getting dusty or dirty.

CAUTION

Do not disconnect the power cable from the outlet while the Power

indicator is still flashing orange, otherwise it may result in errors in

projector operation and reduce the lamp unit operating life.

Lens cover

Adjusting the Screen Image

These functions correct and adjust the projected images so that the optimum

images can be obtained.

Adjusting the Image Size (Zoom Function)

The size of the projected image is basically determined by the distance

from the projector to the screen. p.15

The following procedures explain how to adjust the screen image once the

projector itself has been set up.

PROCEDURE

Adjust by turning the zoom ring.

The image can be enlarged in this way to 1.2 times the normal size.

If you would like to enlarge the image further, move the projector

further away from the screen. p.15

Focusing the Screen Image

PROCEDURE

Turn the focus ring to adjust the image focus.

TIP

The E-Zoom function lets you enlarge parts of the image. p.49

Turn to "W" (wide) to

enlarge the images.

Zoom ring

Turn to "T" (tele) to

reduce the images.

Focus ring

TIP

•If the surface of the lens is dirty or misted over as a result of

condensation, it may not be possible to adjust the focus correctly. If

this happens, clean or de-mist the lens. p.77, p.83

•If the projector is positioned outside the normal projecting range of

89–1050 cm (2.9–34.4 ft.), it may not be possible to obtain the correct

focus. If you have trouble obtaining the correct focus, check the

projection distance.

Adjusting the Screen Image

Adjusting the Image Angle and Automatic Keystone

Correction Function

The projector should be set up so that it is as perpendicular to the screen as

possible.

If it is not possible to set up the projector so that it is perpendicular to the

screen, it can be set up at a slight vertical angle instead. You can extend or

retract the front adjustable feet to adjust the upward projection angle

within a maximum range of 10°.

PROCEDURE

While pressing the two foot adjust buttons at either side,

lift up the front of the projector so that the front adjustable

feet can extend.

Extend the front adjustable feet until the desired angle is obtained,

and then release the foot adjust buttons.

To retract the front adjustable feet, gently push down on the projector

while pressing the two foot adjust buttons.

Seen from the side

Seen from above

Centre of

lens

Foot adjust buttons (side)

TIP

If the projector is tilted horizontally, turn the bases of the front

adjustable feet to adjust the angle. When the projector is tilted

horizontally, the correction may not be carried out correctly. p.39

Extend Retract

Front

adjustable foot

Adjusting the Screen Image

When the projector is tilted vertically, it will cause keystone distortion to

appear in the image. However, the projector is equipped with an automatic

keystone correction function that can automatically correct this keystone

distortion as long as the vertical angle of tilt is within a range of

approximately 15º *. Automatic keystone correction is carried out

approximately one second after the projectors power is turned on and the

projector has been positioned.

* This value applies when the zoom ring is turned to the maximum "T"

setting. If the zoom ring is turned to the "W" setting, the available angle

of tilt for automatic adjustment will be less.

15º

Approx. 15º above

Approx. 15º below

TIP

•Automatic keystone correction is not carried out when the

"Projection" command in the "Advanced" menu is set to "Front".

•If you would like to make further adjustments after automatic

keystone correction has been carried out, you can use the [Keystone]

button on the projector's control panel. p.40

•When keystone correction is carried out, the projected image will

become smaller.

• If the images become uneven in appearance after keystone correction

is carried out, decrease the sharpness setting. p.51, p.54

•If automatic keystone correction is not required, set "Auto

Keystone" in the "Setting" menu to "OFF". p.58

Adjusting the Screen Image

Manually Correcting Keystone Distortion

The projector is provided with an automatic keystone correction function

which detects the vertical angle of the projector and carries out keystone

correction automatically. If further correction adjustment is required after

automatic keystone correction has been carried out, use the [Keystone]

buttons on the projector's control panel to make the adjustment.

PROCEDURE

Projector Projector

If the bottom of the

image is elongated

If the top of the

image is elongated

TIP

•When keystone correction is carried out, the projected image will

become smaller.

•If the images become uneven in appearance after keystone

correction is carried out, decrease the sharpness setting.

p.51, p.54

•Keystone correction can also be carried out using the configuration

menu. p.58

•If the value displayed in the gauge on the screen stops changing

when keystone correction is being carried out, it indicates that the

limit for keystone correction has been reached. Check that the

projector has not been set up at an angle which exceeds the proper

limit.

Adjusting the Image Quality

The quality of the screen images can be adjusted as follows.

Adjusting Computer Images and RGB Video Images

Automatic setup detects analogue RGB signals coming from a connected

computer, and automatically adjusts these signals so that the optimum

images can be obtained.

Automatic setup involves adjustment of the following three items:

Tracking , Position and Sync. (Synchronization) .

Automatic Setup

TIP

•If "Auto Setup" in the "Image" menu is set to "OFF" (the default

setting for this item is "ON"), automatic setup is not carried out. If

you press the [Auto] button on the remote control while computer or

RGB video signals are being projected, adjustment will then be

carried out.

• If you press the [Auto] button while the E-Zoom or Freeze function is

being used or while a configuration menu or help menu is being

displayed, the function will be cancelled when you press the [Auto]

button, and then the adjustment will be carried out.

•Sometimes the signals may not be adjusted correctly depending on

the type of computer or RGB video signals being output. In such

cases, use the configuration menu commands to adjust the tracking

and sync settings manually. p.42, p.43

Remote control

Adjusting the Image Quality

If vertical stripes appear in the projected

computer or RGB video images, and this cannot

be fixed using automatic setup, you will need to

adjust the tracking manually using the

following procedure.

PROCEDURE

Press the [Menu] button on the remote control, and then

select "Tracking" from the "Image" menu.

For details on this operation, refer to "Using the Configuration

Menus". p.66

Press the [ ] and [ ] buttons to set the tracking value

to a value that causes the vertical stripes to

disappear from the image.

The tracking value increases or decreases each time a button is

pressed.

After making the adjustment, press the [Menu] button

to exit the configuration menu.

Adjusting the Tracking

TIP

The image will flash when continuous tracking adjustment is carried

out, but this is normal.

Adjusting the Image Quality

If flickering, fuzziness or interference appear in

computer or RGB video images, and this cannot

be fixed using automatic setup, you will need to

adjust the sync. (synchronization) manually

using the following procedure.

PROCEDURE

Press the [Menu] button on the remote control, and

then select "Sync." from the "Image" menu.

For details on this operation, refer to "Using the Configuration

Menus". p.66

Press the [ ] and [ ] buttons to set the sync value to

a value that causes the flickering, fuzziness or

interference to disappear from the image.

The sync value increases or decreases each time a button is

pressed.

After making the adjustment, press the [Menu] button

to exit the configuration menu.

Adjusting the Sync

TIP

•If you adjust the sync without adjusting the tracking first, it will not

be possible to get the best adjustment results. Incorrect tracking

adjustment may not be noticeable with some types of picture.

However, pictures with lots of lines and shading will tend to show

incorrect tracking adjustments more clearly, so be sure to check the

tracking adjustment first.

•It may also be possible to fix flickering and fuzziness by adjusting the

brightness, contrast , sharpness and keystone correction settings.

Adjusting the Image Quality

Selecting the Projection Quality

(Colour Mode Selection)

The following six preset colour modes are available for use depending on

the characteristics of the images that are being projected. You can easily

obtain the optimum image quality simply by selecting the colour mode that

corresponds to the projected images. The brightness of the images will

vary depending on which colour mode is selected.

The default setting for the colour mode is as follows.

When computer or RGB video images are being input: "Presentation"

When other images are being input: "Dynamic"

PROCEDURE

The colour mode changes as follows each time the [Color

Mode] button is pressed.

The current setting appears in the top-right corner of the screen each

time the colour mode is changed.

Mode Application

Dynamic Brightness is emphasised, so that images are fresher and have

greater modulation than in Presentation mode.

Presentation Brightness is emphasised to produce images that are ideal for

presentations.

Theatre Movie images are optimised using natural tints.

Living Room Brightness is emphasised to produce images that are ideal for

projecting TV images, etc. in bright rooms.

sRGB Images conform to the sRGB colour standard. If the connected

source has a sRGB mode, set both the projector and the

Blackboard Images with natural tints can be obtained when projecting

onto a blackboard (green).

Living RoomsRGBBlackboard

Dynamic Presentation Theatre

Remote control

TIP

The colour mode can also be set using the "Color Mode" command in

the "Image" menu. p.52, p.55

Advanced Operations

This chapter describes functions for enhancing the projection of images, and how to use the configuration menus.

Functions for Enhancing Projection ................. 46

• A/V Mute..............................................................................46

• Freeze ...................................................................................47

• Wide-screen Projection of Images from Video Equipment

(Changing the Aspect Ratio) ..............................................48

• E-Zoom.................................................................................49

Using the Configuration Menu Functions ........ 50

• List of Functions..................................................................51

•"Image" Menu............................................................................ 51

•"Audio" Menu............................................................................ 57

•"Setting" Menu .......................................................................... 58

•"User’s Logo" Menu .................................................................. 60

•"Advanced" Menu...................................................................... 61

•"Info" Menu ............................................................................... 64

•"Reset All" Menu....................................................................... 65

• Using the Configuration Menus.........................................66

Functions for Enhancing Projection

This section describes the various useful functions that can be used to enhance

presentations.

A/V Mute

This function momentarily pauses the image and sound.

For example, it can be used when you do not want to show details of

operations such as selecting different files while computer images are

being projected.

However, if you use this function when projecting moving images, the

images and sound will still continue to be played back by the source, and

you cannot return to the point where the mute function was activated.

PROCEDURE

Press the [A/V Mute] button.

The image and sound will then be paused.

Projection starts again when the [A/V Mute] button on the remote

control is pressed.

You can also continue normal projection by pressing the [Esc]

button.

You can use the "Background Color" function in the "Setting" menu

to set the screen appearance when the images and sound have been

paused to any one of the following three settings. p.58

Remote control

Default setting

Solid black Solid blue User's logo

TIP

•The default user's logo is the EPSON logo. To change the user's

logo, you need to record your own logo. p.90

•When the A/V Mute function is being used, the "Brightness

Control" setting in the "Advanced" menu to will automatically

change to "Low". When the A/V mute function is cancelled, the

"Brightness Control" setting will return to the original setting.

Functions for Enhancing Projection

Freeze

This function pauses only the projected images. The sound keeps playing

without pausing.

The image source will still be playing back the images even while

projection is paused, and so it will not be possible to resume projection

from the point where it was paused.

PROCEDURE

Press the [Freeze] button.

The images will then be paused.

To continue projecting the images, press the [Freeze] button once

more.

You can also continue normal projection by pressing the [Esc]

button.

Remote control

TIP

•Pressing the [Freeze] button also clears configuration menu displays

and help messages.

•The freeze function still works while the E-Zoom function is being

used.

Functions for Enhancing Projection

Wide-screen Projection of Images from Video

Equipment (Changing the Aspect Ratio)

This function changes the aspect ratio of images from 4:3 to 16:9 when

component video images (YCbCr and YPbPr ), S-Video or

composite video images are being projected.

Images which have been recorded in digital video or onto DVDs can be

viewed in 16:9 wide-screen format.

PROCEDURE

Press the [Menu] button on the remote control, and

then select "Aspect Ratio" from the "Image" menu.

For details on this operation, refer to "Using the Configuration

Menus". p.66

Press the [ ] and [ ] buttons to set the aspect ratio to

either "4:3" or "16:9", and then press the [Enter]

button.

After making the adjustment, press the [Menu] button

to exit the configuration menu.

When images in squeeze

mode are projected at 16:9

When images in squeeze

mode are projected at 4:3

Functions for Enhancing Projection

E-Zoom

This function lets you enlarge and reduce a part of projected images such as

graphs and tables.

PROCEDURE

Press the [E-Zoom ] button.

A cursor (cross) indicating the centre point for the area to be

enlarged will appear on the screen.

Move the cross to the area of the image that is to be

enlarged or reduced.

Press the [ ], [ ], [ ] and [ ] buttons on the remote control to

move the cross.

When the [ ] button is pressed, the image is enlarged

with the cross at its centre. When the [ ] button is

pressed, the enlarged image is then reduced.

The enlargement ratio will appear on the screen.

You can scroll around the image by pressing the [ ], [ ], [ ]

and [ ] buttons.

To cancel the E-Zoom, press the [Esc] button.

Remote control

Cross

Shows enlargement ratio

TIP

The selected area can be enlarged to between 1– 4 times, in 25 steps of

0.125.

Using the Configuration Menu Functions

The configuration menus can be used to carry out a variety of settings and adjustments.

The menus have a hierarchical structure, with a main menu that is divided into sub-menus, which are further divided into other sub-menus.

The remote control is used to operate the menus. Refer to "Using the Configuration Menus" p.66 for details on using the menus.

Main menu Sub-menu (Image)

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

List of Functions

• The functions in the "Image" menu apart from "Input Signal", "Auto Setup" and "Video Signal" cannot be adjusted while no image signal is being input.

• The functions which appear in the "Image" menu will change depending on the type of input source being used for the image signal. Functions which are not

available in the "Image" menu for a particular input source cannot be adjusted.

"Image" Menu

Computer (Analogue-RGB)/RGB video Sub-menu Function Default

Position Moves the image display position vertically and horizontally.

•Press the [Enter] button on the remote control and make the

adjustment using the display position adjustment screen that

appears.

Depends on

connection

Tracking Adjusts computer images when vertical stripes appear in the

images.

Depends on

connection

Sync. Adjusts computer images when flickering, fuzziness or

interference appear in the images.

•Flickering and fuzziness may also appear when the

brightness, contrast , sharpness or keystone settings are

adjusted.

•You can obtain the best results if you adjust the tracking

first and then adjust the sync.

Depends on

connection

Brightness Adjusts the image brightness. Median value

(0)

Contrast Adjusts the difference between light and shade in the images. Median value

(0)

Sharpness Adjusts the image sharpness. Median value

(0)

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

Color

Mode

Corrects the vividness of the image colour. The settings can

be saved separately for each type of source (computer or

video source). You can select from six different quality

settings depending on the surroundings.

•Dynamic : Brightness is emphasised, so that images are

fresher and have greater modulation than in

Presentation mode.

•Presentation : Brightness is emphasised to produce images

that are ideal for presentations.

•Theatre : Images are optimised using natural tints. It

emphasises colour gradations (differences

between light and dark) when projecting

images that are very dark or very light and

bright, to make such images easier to see.

•Living Room: Brightness is emphasised to produce images

that are ideal for projecting TV images, etc.

in bright rooms.

•sRGB : Images conform to the sRGB standard.

If set to "sRGB", the Abs. Color Temp. for

the "Color Adjustment" command in the

"Advanced" menu will be set to 6500K.

•Blackboard : Images with natural tints can be obtained

when projecting onto a blackboard (green).

Presentation

Input

Signal

Selects the input signal in accordance with the source being

used.

The default setting varies according to the signal input

source.

If signals from the [Computer1/Component Video1] port are

being input: Computer1

If signals from the [Computer2/Component Video2] port are

being input: Computer2

•When projecting computer or RGB video images, select

"Computer1" or "Computer2".

Depends on

input source

Auto Setup Selects whether the automatic adjustment function for

automatically optimising images when the input source is

changed is turned "ON" or "OFF".

Sub-menu Function Default

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

Reset Resets all adjustment values for the "Image" menu functions

except for the "Input Signal" setting to their default settings.

•Press the [Enter] button on the remote control to reset the

settings.

•Select "Reset All" to return all settings for menus such as

"Image" and "Audio" to their default settings. p.65

Sub-menu Function Default

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

Component video (YCbCr , YPbPr )

Video (Composite video , S-Video )

Sub-menu Function Default

Position Moves the image display position vertically and horizontally.

•Press the [Enter] button and make the adjustment using the

display position adjustment sub-menu that appears.

Depends on

connection

Brightness Adjusts the image brightness. Median value

(0)

Contrast Adjusts the difference between light and shade in the images. Median value

(0)

Color (Not available for RGB video)

Adjusts the colour intensity for the images.

Median value

(0)

Tint (Not available for RGB video)

(Adjustment is only possible when component video or

NTSC signals are being input.)

Adjust the image tint.

Median value

(0)

Sharpness Adjusts the image sharpness. Median value

(0)

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

Color

Mode

Corrects the vividness of the image colour. The settings can

be saved separately for each type of source (computer or

video source). You can select from six different quality

settings depending on the surroundings.

•Dynamic : Brightness is emphasised, so that images are

fresher and have greater modulation than in

Presentation mode.

•Presentation : Brightness is emphasised to produce images

that are ideal for presentations.

•Theatre : Images are optimised using natural tints. It

emphasises colour gradations (differences

between light and dark) when projecting

images that are very dark or very light and

bright, to make such images easier to see.

•Living Room: Brightness is emphasised to produce images

that are ideal for projecting TV images, etc.

in bright rooms.

•sRGB : Images conform to the sRGB standard.

If set to "sRGB", the Abs. Color Temp. for

the "Color Adjustment" command in the

"Advanced" menu will be set to 6500K.

•Blackboard : Images with natural tints can be obtained

when projecting onto a blackboard (green).

Dynamic

Input

Signal

(Adjustment is only possible when component video signals

are being input.)

Selects the input signal in accordance with the source being

used.

The default setting varies according to the signal input

source.

If signals from the [Computer1/Component Video1] port are

being input: Computer1

If signals from the [Computer2/Component Video2] port are

being input: Computer2

Depends on

input source

Sub-menu Function Default

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

Video

Signal

(Adjustment is only possible when composite video/S-Video

signals are being input.)

Sets the video signal format.

•Press the [Enter] button on the remote control, and choose

the setting from the video signal format selection sub-menu

which appears.

•When set to "Auto", the video signal format is set

automatically.

Auto

Aspect

Ratio

Sets the aspect ratio for projected images. Depends on

connection

Reset Resets all adjustment values for the "Image" menu functions

except for the "Input Signal" and "Video Signal" setting to

their default settings.

•Press the [Enter] button on the remote control to reset the

settings.

•Select "Reset All" to return all settings for menus such as

"Image" and "Audio" to their default settings. p.65

Sub-menu Function Default

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

"Audio" Menu Sub-menu Function Default

Volume Adjusts the volume. Median value

(10)

Audio

Input

Selects the input source (port) for audio signals at the rear of

the projector.

The default setting varies depending on the type of signal

being input (for computer, RGB video and component video

input signals: Audio1; for video and S-Video input signals:

Audio2) Therefore, if audio signals are being input to a

different port from the default port, you will need to select

the audio signal input source.

Depends on

connection

Reset Resets all adjustment values for the "Audio" menu functions

to their default settings.

•Press the [Enter] button on the remote control to reset the

settings.

•Select "Reset All" to return all settings for menus such as

"Image" and "Audio" to their default settings. p.65

TIP

The "Audio" menu settings are saved individually for each input signal source.

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

"Setting" Menu Sub-menu Function Default

Keystone Corrects vertical keystone distortion in images.

•When keystone correction is carried out, the projected

image will become smaller.

•If the images become uneven in appearance after keystone

correction is carried out, decrease the sharpness setting.

Median value

(0)

Auto

Keystone

Sets the function for automatically detecting the projector

angle and correcting keystone "ON" or "OFF" when the

projector is tilted vertically.

This function is only enabled when the "Projection"

command in the "Advanced" menu is set to "Front". If it is

set to something other than "Front", this menu cannot be

selected.

Message Sets whether display of the following messages is turned

"ON" or "OFF".

•Signal name when the video signal is switched

•Colour mode name when the colour mode is switched

•When no image signals are being input

•When an incompatible signal is input

•When the air filter needs replacing

Back-

ground

Color

Sets the screen status when the [A/V Mute] button on the

remote control is being pressed or when no image signals are

being input to "Black", "Blue" or "Logo".

•To change the user's logo, you need to record your own

logo. p.90

•If the "User's Logo Protect" function of Password Protect

has been set to "ON", the "Logo" setting cannot be changed

from "Logo" to "Black" or "Blue", or from "Black" or

"Blue" to "Logo". Cancel the Password Protect function

before changing these settings. p.29

Blue

Sleep

Mode

Sets the energy saving operation when no signal is being

input.

•When set to "ON", projection stops automatically and then

after the cool-down period is finished, the projector

changes to sleep mode if no operations are carried out for

30 minutes while the "No Signal." message is being

displayed. (The Power indicator lights orange.)

•Projection starts again when the [Power] button is pressed.

OFF

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

Reset Resets all adjustment values for the "Setting" menu functions

to their default settings.

However, if "Background Color" has been set to "Logo", the

setting cannot be returned to the default setting if the "User’s

Logo Protect" function of Password Protect has been set to

"ON".

•Press the [Enter] button on the remote control to reset the

settings.

•Select "Reset All" to return all settings for menus such as

"Image" and "Audio" to their default settings. p.65

Sub-menu Function Default

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

"User’s Logo" Menu Sub-menu Function Default

Execute Records a user's logo. p.90

•Press the [Enter] button on the remote control and follow

the procedure appearing on the screen.

•A user's logo cannot be recorded if the "User’s Logo

Protect" function of Password Protect has been set to "ON".

Cancel the Password Protect function before recording a

user's logo.

EPSON logo

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

"Advanced" Menu Sub-menu Function Default

Brightness

Control

This lets you set the lamp brightness to one of two settings.

Select "Low" if the images being projected are too bright

such as when projecting images in a dark room or onto a

small screen.

When "Low" is selected, the brightness of the images is

reduced, the amount of electricity consumed and noise

produced during projection are reduced and the lamp's

operating life is extended.

High

Startup

Screen

Sets whether the startup screen is displayed or not.

To change the user's logo, you need to record your own user's

logo. p.90

This cannot be changed from enabled ("ON") to disabled

("OFF") if the "User’s Logo Protect" function of Password

Protect has been set to "ON". Cancel the Password Protect

function before changing the setting.

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

Color

Adjustment

Adjusts the absolute Abs. Color Temp. and intensity of

each RGB (red, green, blue) colour for each input source.

•Abs. Color Temp.: Lets you adjust bright colours within a

range from reddish tinges to bluish

tinges.

If the colour temperature is lower,

colours appear reddish and color tones

appear softer.

If the colour temperature is higher,

colours appear bluish and colour tones

appear sharper. Press the [Enter] button

on the remote control and make the

adjustment in the colour adjustment sub-

menu that appears.

•RGB : Press the [Enter] button on the remote

control, select "R" (Red), "G" (Green) or

"B" (Blue) and make the adjustment in

the colour adjustment sub-menu that

appears.

The settings can be made while viewing

the projected image on the screen.

(This item cannot be selected if "sRGB" has been selected as

the "Color Mode" setting in the "Image" menu.)

Abs. Color

Temp.:

Depends on

connection

Projection Sets the projection position for the projector.

•Front : Select when the projector is in front of the

screen.

•Front/Ceiling: Select when the projector is in front of the

screen and suspended from the ceiling.

•Rear : Select when the projector is behind the

screen.

•Rear/Ceiling : Select when the projector is behind the

screen and suspended from the ceiling.

Front

Sub-menu Function Default

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

COM Port This can be set to either "RS-232C" or "USB", depending on

the port that is being used for communication with a

computer.

When this setting is changed, turn off the power

momentarily, and when the cool-down period has finished,

turn the power back on again. The new setting will be

applied after the power turns back on.

RS-232C

Language Sets the language for message displays.

•Press the [Enter] button on the remote control and select the

language.

English

(Varies

depending on

country of

purchase)

Reset Resets all adjustment values for the "Advanced" menu

functions except for the "Language" setting to their default

settings.

•Press the [Enter] button on the remote control to reset the

settings.

•Select "Reset All" to return all settings for menus such as

"Image" and "Audio" to their default settings. p.65

Sub-menu Function Default

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

• The "Info" menu shows the setting details for the current image source.

• The "Lamp Hours" item appears as 0H for 0–10 hours, and after that, it appears in units of 1 hour.

"Info" Menu

Computer (Analogue-RGB)/RGB Video/

Component video (YCbCr , YPbPr )

Video (Composite video , S-Video )

Sub-menu Function Default

Lamp

Hours

Displays the cumulative lamp operating time for both "High"

and "Low" brightness operation.

•When the lamp warning period is reached, the display

characters appear in red.

Lamp-

Hours

Reset

Initialises the lamp operating time. When this command is

selected, the cumulative lamp operating time is reset to the

initial default value.

Source Displays the input source which is currently being projected.

Input

Signal

Displays the input signal settings.

(Does not appear when the input source is composite video

or S-video.)

Video

Signal

Shows the video signal format.

(Not displayed for computer, RGB video or component

video images)

Frequency Displays the horizontal and vertical scanning frequencies.

(Does not appear when the input source is composite video

or S-video.)

SYNC

Polarity

Displays the sync polarity.

(Does not appear when the input source is composite video

or S-video.)

SYNC

Mode

Displays the sync attributes.

(Does not appear when the input source is composite video

or S-video.)

Resolution Displays the input resolution.

(Does not appear when the input source is composite video

or S-video.)

Refresh

Rate

Displays the refresh rate.

(Does not appear when the input source is composite video

or S-video.)

Using the Configuration Menu FunctionsUsing the Configuration Menu Functions

"Reset All" Menu Sub-menu Function Default

Execute Resets all items in all menus to their default settings.

•Press the [Enter] button on the remote control to reset the

settings.

•Select "Reset" in an individual sub-menu such as the

"Image" or "Audio" menu to reset only the settings for the

items in each sub-menu.

•The "Input Signal", "User’s Logo", "Lamp Hours" and

"Language" settings will not return to their default values.

•If "Background Color" has been set to "Logo", the setting

cannot be returned to the default setting if the "User’s Logo

Protect" function of Password Protect has been set to "ON".

Using the Configuration Menu Functions

Using the Configuration Menus

The configuration menus can be operated using the remote control only.

PROCEDURE

Press the [Menu] button.

The configuration menu appears.

Select a menu item.

Press the [ ] or [ ] button to move to an item to be selected.

Confirm the selection.

Press the [Enter] button to confirm the selection of a menu item.

The selected sub-menu will then be displayed.

Remote control

Using the Configuration Menu Functions

Select a sub-menu item.

Press the [ ] and [ ] buttons to select the sub-menu item to be

set, and then press the [Enter] button.

The items appearing in the "Image" menu and the "Info" menu

will vary depending on the type of input source being projected.

Change the setting.

•Press the [ ], [ ], [ ] and [ ] buttons to change the setting.

: Current setting value

: Currently-selected setting item

•If you press the [Enter] button at items with a displayed, the

setting screen for that item will be displayed.

After making the setting, press the [Enter] button to accept the

setting. The will change to green.

Select other menu items in the same way.

Press the [Esc] button once to return to the previous level.

Alternatively, select "Return" and then press the [Enter] button.

Close the menu.

Press the [Menu] button.

4 5

TIP

Refer to "List of Functions" for details on the functions of each menu

item. p.51

Troubleshooting

This chapter describes how to identify problems and what to do if a problem is found.

Using the Help..................................................... 69

Problem Solving.................................................. 71

• Reading the Indicators........................................................71

•Power Indicator.......................................................................... 71

• (Warning) Indicator ........................................................... 72

• When the Indicators Provide No Help ..............................74

•Problems relating to images ...................................................... 75

•Problems when projection starts................................................ 80

•Other problems .......................................................................... 81

Using the Help

If a problem occurs with the projector, the Help function uses on-screen

displays to assist you in solving the problem. It uses a series of menus in a

question and answer format.

PROCEDURE

Press the [Help] button.

The help menu will be displayed.

Select a menu item.

If using the control panel, the [ Select ] buttons function as

the up and down keys.

If using the remote control, press the [ ] and [ ] buttons to

select an item.

Confirm the selection.

Press the [Enter] button to confirm the selection of a menu item.

ector

Remote control Projector

Using the Help

Repeat the operations in steps 2 and 3 to proceed

through the menu to more detailed items.

The help menu is cleared when the [Help] button is pressed.

TIP

If the Help function does not provide a solution to the problem, refer

to "Problem Solving" p.71

Problem Solving

If you are having a problem with the projector, first check the projector's indicators and refer to "Reading the Indicators" below.

If the indicators do not show clearly what the problem might be, refer to "When the Indicators Provide No Help". p.74

Reading the Indicators

The projector is provided with the following two indicators which alert you to the operating status of the projector.

The following tables show what the indicators mean and how to remedy problems that they indicate.

If both indicators are off, check that the power cable is connected correctly and that power is being supplied normally.

Power Indicator

: lit : flashing

Status Cause Remedy or Status

Standby condition (Not abnormal)

Projection starts again when the [Power] button is pressed.

You can disconnect the power plug from the electrical outlet when the status light is in this

condition.

Cool-down in progress (Not abnormal)

Please wait.

•The cool-down period lasts about 20 seconds.

•The [Power] button will not operate if it is pressed while cool-down is in progress. Press the

button again after cool-down ends when the indicator stops flashing.

Projection in progress (Not abnormal)

Warning indicator

Power indicator

Orange

Green

Problem Solving

Warm-up in progress (Not abnormal)

Please wait.

Warm-up time is approximately 40 seconds.

After warm-up is complete, indicator stops flashing.

(Warning) Indicator

: lit : flashing

Status Cause Remedy or Status

Internal temperature error

(overheating)

The lamp will turn off automatically and projection will stop. Wait for about 5 minutes without

operating the projector. After about 5 minutes have elapsed, unplug the power cable and then

check the following two points.

•Check that the air filter and air exhaust vent are clear, and that the projector is not positioned

against a wall. p.15

•If the air filters are blocked, clean or replace them. p.83, p.89

When the power cable is plugged back in, the projector will return to its previous state, so press

the [Power] button to turn the power back on.

If the projector continues to overheat even after the above points have been checked, or if the

indicators show a problem when the power is turned back on, stop using the projector, disconnect

the power cable from the electrical outlet, and contact your dealer or the nearest address provided at

"International Warranty Conditions" in Safety Instructions/World-Wide Warranty Terms booklet.

Lamp timer failure/

Lamp out

Take out the lamp and check if it is broken. p.86

If the lamp is not broken, reinstall it, then reconnect the power cable and press the [Power] button

on either the projector's control panel or the remote control to turn the power back on.

If the indicators still show a problem, stop using the projector, disconnect the power cable from

the electrical outlet, and contact your dealer or the nearest address provided at "International

Warranty Conditions" in Safety Instructions/World-Wide Warranty Terms booklet.

If the lamp is broken replace it with a new lamp, or contact your local dealer for further advice.

If replacing the lamp yourself, be careful to avoid pieces of broken glass.

(Projection cannot be carried out until the lamp is replaced.)

Check that the lamp and the lamp cover are securely installed. If the lamp or lamp cover is not

securely installed, the lamp will not switch on.

Internal error/

Fan related error/

Sensor error

Stop using the projector, disconnect the power cable from the electrical outlet, and contact your

dealer or the nearest address provided in the "International Warranty Conditions" section of the

Safety Instructions/World-Wide Warranty Terms booklet.

: lit : flashing

Status Cause Remedy or Status

Green

Red

(0.5-second intervals)

Red

(1-second intervals)

Problem Solving

High-speed cooling in progress (This is not an abnormality, but if the temperature rises too high again, projection will stop

automatically.)

•Check that the air filters and air exhaust vent are clear and that they are not up against a surface

such as a wall. p.15

•If the air filters are blocked, clean or replace them. p.83, p.89

: lit : flashing

Status Cause Remedy or Status

Orange

TIP

•If the projector is not operating properly even though the indicators are all showing normal, refer to "When the Indicators Provide No Help"

on the following page.

•If an indicator is showing a status which does not appear in the previous tables, contact your dealer or the nearest address provided at

"International Warranty Conditions" in Safety Instructions/World-Wide Warranty Terms booklet.

Problem Solving

When the Indicators Provide No Help

If any of the following problems occur and the indicators do not offer a solution, refer to the pages given for each problem.

No images appear p.75

Projection does not start, the projection area is completely black, the

projection area is completely blue, etc.

Projection stops automatically p.75

The message "Not Supported." is displayed. p.76

The message "No Signal." is displayed. p.76

Images are fuzzy or out of focus. p.77

Interference or distortion appear in images. p.77

Problems such as interference, distortion or black & white checked

patterns appear.

Image is truncated (large) or small p.78

Only part of the image is displayed.

Image colours are not right p.79

The whole image appears purplish or greenish, images are black &

white, colours appear dull, etc.

(Computer monitors and LCD screens have different colour

reproduction performance, so that the colours projected by the

projector and the colours appearing on the monitor may not

necessarily match, but this is not a sign of a problem.)

Images appear dark p.80

Nothing appears on the external monitor p.80

Problems relating to images

Power does not turn on p.80

No sound can be heard or the

sound is faint p.81

The remote control does not work

p.81

Problems when projection starts

Other problems

Check Remedy

Is the audio source connected correctly? Check that the cable is connected to the correct [Audio] port. p.25

Has the volume been adjusted to the

minimum setting?

Adjust the volume so that sound can be heard.

"Audio" - "Volume" p.57

Is A/V Mute mode active? Press the [A/V Mute] button on the remote control to cancel the A/V mute function. p.46

Is the "Audio Input" setting correct? Set the "Audio Input" command to the port being used for audio input.

"Audio" - "Audio Input" p.57

Check Remedy

Is the remote control light-emitting area

facing towards the remote control light-

receiving area when it is operated?

Face the remote control towards the remote control light-receiving area.

The operating angle for the remote control is approximately ±30º horizontally and approximately

±15º vertically. p.13

Is the remote control too far from the

projector?

The operating range for the remote control is approximately 6m. p.13

Is direct sunlight or strong light from

fluorescent lamps shining onto the remote

control light-receiving area?

Set the projector up in a location where strong light will not shine onto the remote control light-

receiving area.

Is the battery dead or has it been inserted the

wrong way?

Insert a new battery and make sure that it is inserted correctly. p.84

Has the battery insulating tape been

removed?

Pull out the insulating tape. p.12

Appendices

This chapter provides information on maintenance procedures to ensure the best level of performance from the

projector.

Maintenance ........................................................ 83

• Cleaning ...............................................................................83

•Cleaning the Projector Case....................................................... 83

•Cleaning the Lens ...................................................................... 83

•Cleaning the Air Filters and Air Intake Vent ............................. 83

• Replacing Consumables......................................................84

•Inserting the Battery .................................................................. 84

•Lamp Replacement Period......................................................... 85

•Replacing the Lamp................................................................... 86

•Resetting the Lamp Operating Time.......................................... 88

•Replacing the Air Filter ............................................................. 89

Saving a User's Logo ......................................... 90

Optional Accessories ......................................... 93

Glossary .............................................................. 94

List of ESC/VP21 Commands............................. 97

• Command List .................................................................... 97

• Communication Protocol ................................................... 97

• Cable Layouts ..................................................................... 98

•Serial connection ........................................................................98

•USB connection..........................................................................98

• USB Connection Setup....................................................... 99

List of Supported Monitor Displays ................ 100

•Computer/RGB Video ..............................................................100

•Component Video/RGB Video.................................................100

•Composite Video/S-Video........................................................100

Specifications.................................................... 101

Appearance........................................................ 102

Index................................................................... 103

Maintenance

This section describes maintenance tasks such as cleaning the projector and

replacing consumable parts.

Cleaning

You should clean the projector if it becomes dirty or if the quality of

projected images starts to deteriorate.

Clean the projector case by wiping it gently with a soft cloth.

If the projector is particularly dirty, moisten the cloth with water

containing a small amount of neutral detergent, and then firmly wring the

cloth dry before using it to wipe the projector case. Then wipe the case

again with a soft, dry cloth.

Use a commercially-available air blower, or use a lens cleaning paper to

gently wipe the lens.

If the air filters become clogged with dust, or if the message "The projector

is overheating. Clean or replace the air filter and lower the room

temperature." appears on the screen, clean the air filters and the air intake

vent.

If the air filters become clogged with dust, it can cause overheating and

damage the projector.

Turn the projector upside-down and use a vacuum cleaner to clean the air

intake vent.

Cleaning the Projector Case

Cleaning the Lens

CAUTION

Be sure to read the separate Safety Instructions/World-Wide Warranty

Terms before cleaning.

CAUTION

Do not use volatile substances such as wax, alcohol or thinner to

clean the projector case. These can cause the case to warp and make

the coating finish peel off.

CAUTION

Do not rub the lens with harsh materials or subject the lens to shocks,

as it can easily become damaged.

Cleaning the Air Filters and Air Intake Vent

TIP

•If the air filters are broken or if the warning message reappears after

they have been cleaned, they should be replaced. Replace with the

accessory air filter or another new air filter. See "Appendices:

Optional Accessories". p.93

•Spare lamps are provided with a spare air filter. The air filter should

also be replaced when the lamp is replaced.

Maintenance

Replacing Consumables

This section describes how to replace the remote control battery, the lamp

and the air filter.

Use the following type of battery as a replacement.

1 CR2025 lithium battery

PROCEDURE

Remove the battery holder.

While pushing the catch of the battery holder inwards, pull the

battery holder out.

Remove the old battery and insert the new battery.

Check the position of the (+) mark inside the battery holder to

ensure that the battery is inserted the correct way.

Insert the battery holder into the remote control.

Push the battery holder in until it clicks.

Inserting the Battery

CAUTION

Be sure to read the Safety Instructions/World-Wide Warranty Terms

before handling the battery.

Catch

Old battery

New battery

mark

TIP

Dispose of used batteries in accordance with local waste disposal

regulations.

Maintenance

It is time to replace the lamp when:

• The message "Replace the Lamp." appears on the screen when

projection starts

• When the (Warning) indicator is flashing red at 0.5-second

intervals

• The projected image gets darker or starts to deteriorate.

Lamp Replacement Period

A message will be displayed.

Flashes red at 0.5-second intervals

TIP

•The lamp replacement message is set to appear after the following

periods of time in order to maintain the initial brightness and quality

of the projected images.

· When used continuously at high luminance: Approx. 1900 hours

· When used continuously at low luminance : Approx. 2900 hours

"Brightness Control" p.61

•If you continue to use the lamp after this period, the possibility of the

lamp breaking becomes greater. When the lamp replacement

message appears, replace the lamp with a new one as soon as

possible, even if it is still working.

•Depending on the characteristics of the lamp and on the way it has

been used, the lamp may become darker or stop working before the

lamp warning message appears. You should always have a spare

lamp ready in case it is needed.

•Contact your dealer for a spare lamp.

Maintenance

PROCEDURE

Turn the projector power off, wait for the cool-down

period to end, then disconnect the power cable.

The cool-down period lasts for about 20 seconds.

Wait until the lamp has cooled down, then remove the

lamp cover from the base of the projector.

It takes approximately one hour for the lamp to cool down by

itself after the cool-down period has finished.

Insert the screwdriver that is supplied with the spare lamp or

some other flat-tipped screwdriver into the hollow between the

projector and the lamp cover, and turn it to release the lock.

Slide the screwdriver in until the mark on the lamp cover and

the mark on the projector are aligned. Then lift up the lamp

cover to remove it.

Loosen the two lamp fixing screws.

Use the screwdriver that is supplied with the spare lamp or

some other flat-tipped screwdriver to loosen the two lamp

fixing screws that are securing the lamp to the projector.

Replacing the Lamp

CAUTION

•If you are replacing the lamp because it has stopped working, it is

possible that the lamp is broken.

If replacing the lamp of a projector which has been installed to the

ceiling, you should always assume that the lamp is broken and be

extremely careful when removing the lamp cover.

•Wait until the lamp has cooled down sufficiently before removing the

lamp cover. It takes a further one hour after the cool-down period

has finished for the lamp to be cool enough.

Maintenance

Take out the lamp.

Hold the lamp as shown in the illustration below and lift it up

and out of the projector.

If the lamp is broken replace it with a new lamp, or contact your

local dealer for further advice. If replacing the lamp yourself,

be careful to avoid pieces of broken glass.

Install the new lamp.

Hold the lamp so that it faces the correct way to fit into the

projector, then insert the lamp until it clicks into place and

tighten the two fixing screws.

Install the lamp cover.

Insert the two cover tabs into the projector until the mark on

the lamp cover is aligned with the mark on the projector,

then slide the lamp cover in until it clicks into place.

2Insert the cover so that

the mark and the

mark are aligned.

TIP

•Install the lamp securely. If the lamp cover is removed, the lamp

turns off automatically as a safety precaution. Moreover, the lamp

will not turn on if the lamp or the lamp cover is not installed

correctly.

•Spare lamps are provided with a spare air filter. The air filter should

also be replaced when the lamp is replaced. p.89

•Dispose of used lamps properly in accordance with your local

regulations.

Maintenance

The projector has a built-in counter which keeps track of the lamp

operating time. When the cumulative operating time reaches a certain

point, it causes the replacement warning message to be displayed.

Therefore, the counter needs to be reset after the lamp has been replaced

with a new one. You can do this using the configuration menu.

PROCEDURE

Connect the power cable, turn on the projector's

power, and then press the [Menu] button.

The configuration menu will be displayed.

Select "Lamp-Hours Reset" from the "Info" menu and

then press the [Enter] button.

Select "Yes" and then press the [Enter] button.

The lamp operating time will then be reset.

Resetting the Lamp Operating Time

TIP

Do not reset the lamp operating time except after the lamp has been

replaced, otherwise the lamp replacement period will not be indicated

correctly.

Remote Control

Maintenance

The air filter can be replaced even if the projector is installed to a ceiling.

PROCEDURE

Turn the projector power off, wait for the cool-down

period to end, then disconnect the power cable.

The cool-down period lasts for about 20 seconds.

Put your finger into the recess in the knob of the air

filter cover, and lift up the air filter cover to remove it.

Replace the air filter with a new one.

Remove the old air filter, and install the new air filter. Place the

new air filter so that it does not slip into the air intake vent.

Install the air filter cover.

First insert the tabs, then press down on the opposite side until it

clicks into place.

Replacing the Air Filter

Knob

Tabs

TIP

Dispose of used air filters properly in accordance with your local

regulations.

Saving a User's Logo

You can record the image that is currently being projected as a user's logo.

PROCEDURE

Project the image that you would like to use as a

user's logo, and then press the [Menu] button.

Select the "User’s Logo" menu, and then press the

[Enter] button.

Select "Yes" in the sub-menu, then press the [Enter]

button.

TIP

When a user's logo is recorded, the previous user's logo will be

erased.

Remote Control

TIP

•If the "User’s Logo Protect" function of "Password Protect" is set to

"ON", a message is displayed and the user's logo can not be

recorded. To record a user's logo, set "User’s Logo Protect" to

"OFF" first. p.29

•If keystone correction or E-Zoom have been carried out, they will be

cancelled when the "User’s Logo" menu is selected.

TIP

When you press the [Enter] button, the images will be displayed at the

original image signal resolution, so that if you are projecting images

that have a resolution that is different from the number of pixels on

the projector's panel, and if you are projecting video images, the

display size will change.

Saving a User's Logo

The image to be recorded and a selection marquee

box will be displayed. Move the marquee box to select

the part of the image to use.

Press the [ ], [ ], [ ] and [ ] buttons to select the part of the

image to use as the user's logo, and then press the [Enter]

button.

Select "Yes" at the confirmation screen, and then

press the [Enter] button.

Select the zoom rate in the Zoom rate setting screen,

and then press the [Enter] button.

TIP

User's logos can be saved at up to 480

360 dots in size.

Saving a User's Logo

Select "Yes" at the confirmation screen, and then

press the [Enter] button.

The image will then be saved. Once the image has been saved,

the message "Completed" will be displayed.

TIP

•Saving the user's logo may take a few moments (about 15 seconds).

Do not use the projector or any other sources which are connected to

the projector while the user's logo is being saved, otherwise it may

result in errors in projector operation.

•Once a user's logo has been saved, the logo setting cannot be

returned to the factory default.

Optional Accessories

The following optional accessories are available for purchase if required. This list of optional accessories is current as of July 2003. Details of accessories are

subject to change without notice.

* A special method of installation is required in order to suspend the projector from the ceiling. Please contact the place of purchase if you would like to use

this installation method.

Soft carry case ELPKS16

Use this case if you need to carry the projector by hand.

Spare lamp ELPLP27

Use as a replacement for spent lamps.

Filter kit ELPAF05

(5 air filters)

These is the same as the projector's accessory air filters.

60" screen ELPSC07

80" screen ELPSC08

100" screen ELPSC10

A portable roll-type screen. (Aspect ratio 4:3)

50" portable screen ELPSC06

A compact screen which can be carried easily. (Aspect ratio 4:3)

VGA-HD15 PC cable ELPKC02

(1.8 m (6 ft.) - for mini D-Sub 15-pin/mini D-Sub 15-pin)

This is the same computer cable as the projector's accessory computer

cable.

VGA-HD15 PC cable ELPKC09

(3 m (9.8 ft.) - for mini D-Sub 15-pin/mini D-Sub 15-pin)

VGA-HD15 PC cable ELPKC10

(20 m (65.6 ft.) - for mini D-Sub 15-pin/mini D-Sub 15-pin)

Use this extension cable if the accessory computer cable is too short.

Remote control unit ELPST13

This is the same remote control as the projector's accessory remote

control.

VGA-HD15/BNC PC Cable ELPKC11

(1.8 m (6 ft.) - for mini D-Sub 15-pin/5BNC)

Use in order to connect the projector to a computer with a 5BNC port.

Component video cable ELPKC19

(3 m (9.8 ft.) - for mini D-Sub 15-pin/RCA male × 3)

Use to connect a component video source.

Ceiling mount * ELPMB12

Use when installing the projector to a ceiling.

Ceiling plate * ELPFC03

Pipe 370 (370 mm (14.57 in.)/silver)* ELPFP04

Pipe 570 (570 mm (22.44 in.)/silver)* ELPFP05

Pipe 770 (770 mm (30.31 in.)/silver)* ELPFP06

Use when installing the projector to a high ceiling or a ceiling with

veneer panels.

Image presentation camera ELPDC02

ELPDC03

ELPDC04

Use when projecting books, OHP films and slides.

Glossary

Following is an explanation of some of the terms used in this guide which may be unfamiliar or which are not explained in the text of this guide itself. Further

information can be obtained by referring to other commercially-available publications.

5BNC A port used to input analogue video signals.

Abs. Color Temp. The temperature of an object which is emitting light. If the absolute colour temperature is high, the colours tend to take on a

bluish tinge. If the absolute colour temperature is lower, the colours tend to take on a reddish tinge.

Aspect ratio The ratio between an image's length and its height. HDTV images have an aspect ratio of 16:9 and appear elongated. The

aspect ratio for standard images is 4:3.

Component video Video signals which have the video brightness signals and colour signals separated, in order to provide better image quality.

In high-definition TV (HDTV), it refers to images which consist of three independent signals: Y (luminance signal), and Pb

and Pr (colour difference signals).

Composite video Video signals which have the video brightness signals and colour signals mixed together. The type of signals commonly used

by household video equipment (NTSC, PAL and SECAM formats).

The carrier signal Y (luminance signal) and chroma (colour) signal which are contained in the colour bar are overlapped to

form a single signal.

Contrast The relative brightness of the light and dark areas of an image can be increased or decreased in order to make text and

graphics stand out more clearly, or to make them appear softer. Adjusting this particular property of an image is called

"contrast adjustment".

Cool-down This is the process by which the projector's lamp is cooled down after it has become hot through use. Cool-down is carried out

automatically when the [Power] button is pressed to turn off the power. Do not disconnect the power cable while cool-down is

in progress, otherwise the cool-down process will not work properly. If the cool-down period is not allowed to finish normally,

the projector's lamp and internal components will remain at high temperatures, and this may shorten the operating life of the

lamp or cause problems with the operation of the projector.

Dolby Digital A sound format developed by Dolby Laboratories. Normal stereo is a 2-channel format which uses two speakers. Dolby

Digital is a 6-channel (5.1-channel) system which adds to this a centre speaker two rear speakers and a sub-woofer.

EMP Link 21L A utility software program that allows the projector to be connected to a computer so that the computer can be used to control

the projector. For details on acquiring the software and for instructions on using the software and compatible projector

models, please visit the Web site http://www.epson.co.uk/support/download/projector.htm.

HDTV An abbreviation for High-Definition Television. It refers to high-definition systems which satisfy the following conditions.

•Vertical resolution of 750p or 1125i or greater (p = progressive scanning , i = interlaced scanning )

•Screen aspect ratio of 16:9

•Dolby Digital audio reception and playback (or output)

Interlaced scanning A method of image scanning whereby the image data is divided into fine horizontal lines which are displayed in sequence

starting from left to right and then from the top to the bottom of the screen. The even-numbered lines and odd-numbered lines

are displayed alternately.

Progressive scanning A method of image scanning whereby the image data from a single image is scanned sequentially from top to bottom to create

a single image.

Glossary

Refresh rate The light-emitting element of a display maintains the same luminosity and colour for an extremely short time. Because of this,

the image must be scanned many times per second in order to refresh the light-emitting element. The number of refresh

operations per second is called the "refresh rate", and is expressed in hertz (Hz).

Resize display This function is used to project computer images that have a resolution more than or less than the projector's panel resolution

to be projected so that they fill the whole of the projection area.

SDTV An abbreviation for Standard Definition Television. It refers to standard television systems which do not satisfy the conditions

for High-Definition Television.

Security lock A device consisting of a projector case with a hole in it that a commercially-available theft-prevention cable can be passed

through in order to secure the device to a table or pillar. This projector is compatible with the Microsaver Security System

manufactured by Kensington.

Squeeze mode In this mode, wide-screen images in 16:9 mode are compressed in the horizontal direction so that they are stored on the

recording medium as 4:3 images.

When these images are played back by the projector in squeeze mode, they are restored to their original 16:9 format.

sRGB An international standard for colour intervals that was formulated so that colours which are reproduced by video equipment

can be handled easily by computer operating systems (OS) and the Internet.

SVGA A type of video signal with a resolution of 800 (horizontal) × 600 (vertical) dots which is used by IBM PC/AT-compatible

computers.

S-Video A video signal which has the luminance component and colour component separated in order to provide better image quality.

It refers to images which consist of two independent signals: Y (luminance signal), and C (colour signal).

SXGA A type of video signal with a resolution of 1280 (horizontal) × 1024 (vertical) dots which is used by IBM PC/AT-compatible

computers.

Sync. (Synchronization) The signals output from computers and RGB video equipment have a specific frequency. If the projector frequency does not

match this frequency, the resulting images will not be of a good quality. The process of matching the phases of these signals

(the relative position of the crests and troughs in the signal) is called "synchronisation". If the signals are not synchronized,

problems such as flickering, blurriness and horizontal interference can occur.

Tr a ck i n g The signals output from computers and RGB video equipment have a specific frequency. If the projector frequency does not

match this frequency, the resulting images will not be of a good quality. The process of matching the frequency of these

signals (the number of crests in the signal) is called "tracking". If tracking is not carried out correctly, wide vertical stripes will

appear in the projected images.

USB An abbreviation for Universal Serial Bus. USB is an interface for connecting personal computers to peripheral devices which

only support relatively low data transmission speeds.

UXGA A type of video signal with a resolution of 1600 (horizontal) × 1200 (vertical) dots which is used by IBM PC/AT-compatible

computers.

VGA A type of video signal with a resolution of 640 (horizontal) × 480 (vertical) dots which is used by IBM PC/AT-compatible

computers.

Glossary

XGA A type of video signal with a resolution of 1024 (horizontal) × 768 (vertical) dots which is used by IBM PC/AT-compatible

computers.

YCbCr The carrier signal which is contained in the colour bar signal used in modern TV transmissions. The name comes from the Y

(luminance) signal and the CbCr (chroma (colour)) signals.

YPbPr The carrier signal which is contained in the colour bar signal used in high-definition TV (HDTV) transmissions. The name

comes from the Y (luminance) signal and the PbPr (colour difference) signals.

List of ESC/VP21 Commands

Command List

When a power ON command is sent to the projector, the power for the

projector turns on. When the projector is in a command ready state, it

returns the "3Ah" (:) code. Furthermore, when command processing is

complete, the projector also returns a ":" code.

The ":" code status can be used to determine whether the projector is ready

or busy. If command processing terminates with an error, an error message

is output and then the ":" code is sent.

Communication Protocol

Item Command

Power ON/OFF ON PWR ON

OFF PWR OFF

Signal selection

Computer1 SOURCE 11

Component Video1 (YCbCr) SOURCE 14

Component Video1 (YPbPr) SOURCE 15

Computer2 SOURCE 21

Component Video2 (YCbCr) SOURCE 24

Component Video2 (YPbPr) SOURCE 25

Video SOURCE 41

S-Video SOURCE 42

A/V Mute ON/OFF ON MUTE ON

OFF MUTE OFF

A/V Mute Selection

Black MSEL 00

Blue MSEL 01

User’s Logo MSEL 02

•Standard baud rate : 9600 bps

•Data length : 8 bits

•Parity : None

•Stop bit : 1 bit

•Flow control : None

•Connector shape : D-Sub 9-pin (male)

•Projector input port : Control (RS-232C)

List of ESC/VP21 Commands

Cable Layouts

Serial connection

•Connector shape : D-Sub 9 pin (male)

•Projector input connector : Control (RS-232C)

<At projector> (PC serial cable) <At computer> Signal Function

GND 5 5 GND GND Signal wire ground

RD 2 3 TD TD Transmit data

TD 3 2 RD RD Receive data

DTR 4 6 DSR DSR Data set ready

DSR 5 4 DTR DTR Data terminal ready

USB connection

•Connector shape : USB (type B)

(type B)

List of ESC/VP21 Commands

USB Connection Setup

In order to control the projector using ESC/VP21 commands via a USB

connection, the following preparations must be carried out.

PROCEDURE

Download the EMP Link 21L utility software from the

EPSON web site to the computer being used.

For details on acquiring the software, please visit the Web site

http://www.epson.co.uk/support/download/projector.htm.

The USB driver (USB-Com Driver) will be downloaded

together with the utility software, so install this USB

driver into the computer that is to be used.

Refer to the EMP Link21L User's Guide that is downloaded

together with the utility software for instructions on installing

the USB driver.

Change the "COM Port" setting in the "Advanced"

menu to "USB".

Turn the projector's power off.

After the cool-down period has finished, turn the

projector's power back on.

Once the projector's power has turned back on, communication

via a USB Connection will then be possible.

CAUTION

If the power cable is disconnected before cool-down has finished, the

communication port will not be changed.

100

List of Supported Monitor Displays

* Connection is not possible if the equipment does not have a VGA output

port.

The projection of some signals not listed in the table may still be possible.

However, not all functions may be supported.

Computer/RGB Video

Signal Refresh rate

(Hz)

Resolution

(dots)

Resolutions for

resize display

(dots)

EMP-74 EMP-54

PC98 640×400 1024×640 800×500

VGA 60 640×480 1024×768 800×600

VGACGA 640×400 1024×640 800×500

VGAEGA 640×350 1024×560 800×438

VGA text 720×400 1024×568 800×444

720×350 1024×498 800×388

VESA 60/72/75/85,iMac* 640×480 1024×768 800×600

SVGA 56/60/72/75/

85,iMac* 800×600 1024×768 800×600

XGA 43i/60/70/75/

85,iMac* 1024×768 1024×768 800×600

SXGA 70/75/85 1152×864 1024×768 800×600

SXGA 60/75/85 1280×960 1024×768 800×600

SXGA 43i/60/75/85 1280×1024 960×768 750×600

UXGA 48i/60 1600×1200 1024×768 -

MAC13" 640×480 1024×768 800×600

MAC16" 832×624 1024×768 800×600

MAC19" 1024×768 1024×768 800×600

MAC19" 60 1024×768 1024×768 800×600

MAC21" 1152×870 1016×768 794×600

SDTV (625i) 50 720×540 1024×768 800×600

SDTV(525i) 60 640×480 1024×768 800×600

SDTV(525p) 60 640×480 1024×768 800×600

HDTV (750p)

60 1280×720 1024×576 800×450

HDTV(1125i) 60 1920×1080 1024×576 800×450

Component Video/RGB Video

Signal Refresh

rate (Hz)

Resolutions (dots)

EMP-74 EMP-54

Aspect

ratio

4:3

Aspect

ratio

16:9

Aspect

ratio

4:3

Aspect

ratio

16:9

SDTV

(525i)

(D1) 60 1024×768 1024×576 800×600 800×450

SDTV (625i) 50 1024×768 1024×576 800×600 800×450

SDTV (525p)

(D2) 60 1024×768 1024×576 800×600 800×450

HDTV

(750p)

16:9 (D4) 60 1024×768 1024×576 800×600 800×450

HDTV (1125i)

16:9 (D3) 60 1024×768 1024×576 800×600 800×450

Composite Video/S-Video

Signal Refresh

rate (Hz)

Resolutions (dots)

EMP-74 EMP-54

Aspect

ratio

4:3

Aspect

ratio

16:9

Aspect

ratio

4:3

Aspect

ratio

16:9

TV (NTSC) 60 1024×768 1024×576 800×600 800×450

TV (PAL,

SECAM) 60 1024×768 1024×576 800×600 800×450

101

Specifications

* The USB interface complies with the USB 1.1 standard. The USB connector is not guaranteed to

operate correctly with all USB-compatible devices.

Product name Multimedia Projector EMP-74/54

Dimensions 315 (W) × 87 (H) × 240 (D) mm

(12.4 (W) × 3.43 (H) × 9.45 (D) in.) (not including feet)

Panel size 0.7 inches

Display method Polysilicon TFT active matrix

Resolution EMP-74 : XGA 786,432 pixels (1024 (W) × 768 (H) dots) × 3

EMP-54 : SVGA 480,000 pixels (800 (W) × 600 (H) dots) × 3

Focus adjustment Manual

Zoom adjustment Manual (approx. 1:1.2)

Lamp (light source) UHE lamp, 200 W, Model No.: ELPLP27

Max. audio output 1W monaural

Speaker 1

Power supply 100–240VAC 50/60Hz 3.2–1.6A

Operating temperature +5º– +35ºC (41º–95ºF ) (No condensation)

Storage temperature -10º– +60ºC (14º–140ºF ) (No condensation)

Weight Approx. 2.9 kg (6.4 lbs)

Connectors Monitor Out : 1Mini D-Sub 15-pin (female) Black

Computer1/

Component Video1:

1Mini D-Sub 15-pin (female) Blue

Computer2/

Component Video2:

1Mini D-Sub 15-pin (female) Blue

S-Video: 1Mini DIN 4-pin

Video: 1 RCA pin jack

USB*: 1USB connector (B series)

Audio1: 1 Stereo mini jack

Audio2: 1 Stereo mini jack

Control (RS-232C) : 1D-Sub 9-pin (male)

Safety

USA

UL1950 3rd Edition

Canada

CSA C22.2 No.950-95 (cUL)

European Community

The Low Voltage Directive (73/23/EEC)

IEC60950 2nd Edition, +Amd.1, +Amd.2, +Amd.3,

+Amd.4

EMC

USA

FCC 47CFR Part15B Class B (DoC)

Canada

ICES-003 Class B

European Community

The EMC Directive (89/336/EEC)

EN55022, 1998 Class B

EN55024, 1998

IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,

IEC61000-4-5,

IEC61000-4-6, IEC61000-4-8, IEC61000-4-11,

IEC61000-3-2, IEC61000-3-3

Australia/New Zealand

AS/NZS 3548:1995, A1:1997, A2:1997 Class B

CISPR Pub.22:1993, A1:1995, A2:1996, Class B

102

Appearance

Units: mm

4-M4×8

Centre of projector

104

5329

57.7

315

78.5

49.4*

2.9

Centre of lens

240

*Distance from center of lens to suspension bracket fixing point

103

Index

General Terms

13w3 Port..................................... 17

5BNC Port ................................... 18

Abs. Color Temp. ........................ 62

"Advanced" Menu ....................... 61

Air exhaust vent............................. 7

Air filter ....................................... 10

Air intake vent ............................. 10

Analogue-RGB ....................... 51, 64

Aspect ratio.................................. 48

[Audio1] port ............................ 9, 25

[Audio2] port ............................ 9, 25

"Audio" Menu.............................. 57

Auto Keystone ............................. 58

Automatic Setup .......................... 41

Auto Setup .............................. 41, 52

A/V cable................................ 22, 25

A/V Mute................................ 46, 58

Background Color ....................... 58

Battery holder .............................. 84

Blackboard.........................44, 52, 55

Brightness ............................... 51, 54

Brightness Control....................... 61

Cleaning the Air Filter .................83

Cleaning the Lens.........................83

Cleaning the Projector Case.........83

Color.............................................54

Color Adjustment .........................62

Color Mode ....................... 44, 52, 55

Component video .........................23

COM Port .....................................63

Composite video...........................22

[Computer1/Component Video1]

port ...............................................9

[Computer2/Component Video2]

port ...............................................9

Computer cable ...................... 17, 24

Connecting to a Computer ...........16

Connecting to a Video Source......22

Contrast .................................. 51, 54

Control Panel..................................8

[Control (RS-232C)] port............... 9

Cool-down.............................. 35, 71

Cross.............................................49

Dynamic ............................ 44, 52, 55

Eligible computers....................... 16

EMP Link21L .............................. 99

ESC/VP21.................................... 97

E-Zoom ........................................ 49

Focus............................................ 37

Focus ring ...................................... 7

Foot adjustment ........................... 38

Freeze........................................... 47

Frequency .................................... 64

Glossary ....................................... 94

HDTV ........................................ 100

Help function ............................... 69

High ............................................. 61

"Image" Menu.............................. 51

Image size ...............................15, 37

Indicators ..................................7, 71

"Info" Menu..................................64

Input resolution ............................64

Input Signal .......................52, 55, 64

Inserting the Battery .....................84

Keystone................................. 38, 58

Lamp cover...................................10

Lamp Hours..................................64

Lamp-Hours Reset.................. 64, 88

Lamp replacement period.............85

Language ......................................63

Lens cover ......................................7

Living Room .....................44, 52, 55

Low...............................................61

Main menu....................................50

Manually Correcting Keystone

Distortion....................................40

Menu.............................................50

Message........................................58

Mini D-Sub 15-pin port................17

[Monitor Out] port..........................9

Mouse pointer...............................19

104

Index

Numeric buttons .......................... 11

Operating distance

(Remote control)........................ 13

Operating range

(Remote control)........................ 13

Operating temperature ............... 101

Optional accessories .................... 93

Overheating ................................. 72

Part Names and Functions ............. 7

Password Protect ......................... 27

Password Protect stickers ............ 28

Port ........................................... 9, 34

Position ..............................41, 51, 54

Power cable ................................. 32

Power indicator.............................. 7

Power inlet..................................... 9

Power ON Protect........................ 27

Presentation .......................44, 52, 55

Projecting Images ........................ 33

Projection..................................... 62

Projection angle ........................... 39

Projection distance....................... 15

Refresh Rate .................................64

Remote control .................. 11, 12, 19

Remote control light-emitting

area .............................................11

Remote control light-receiving

area ........................................... 7, 9

Replacing the Air Filter................89

Replacing the Lamp .....................86

Request code ................................27

"Reset All" Menu .........................65

Resized display...........................100

Resolution ..................................100

RGB..............................................62

RGB Video...................................24

Screen size....................................15

Security lock...................................9

"Setting" Menu.............................58

Setting Up the Projector ............... 14

Sharpness................................ 51, 54

Sleep mode ...................................58

Source...........................................64

Speaker..................................... 7, 25

Specifications .............................101

Squeeze mode...............................48

sRGB ................................. 44, 52, 55

Startup screen............................... 61

Stereo mini jack audio cable........ 25

Storage temperature ................... 101

Sub-menu..................................... 50

Supported Monitor Displays...... 100

Suspension bracket

fixing point..........................10, 102

S-Video ............................. 23, 54, 64

[S-Video] port................................ 9

Sync ........................................41, 51

SYNC Mode ................................ 64

SYNC Polarity ............................. 64

Theatre .............................. 44, 52, 55

Tint............................................... 54

Tracking..................................41, 51

Translucent screen ....................... 14

Turning off................................... 35

USB cable .................................... 19

USB connection ........................... 99

USB mouse .................................. 19

[USB] port ..................................... 9

User’s Logo ............................46, 90

"User’s Logo" Menu.................... 60

User’s Logo Protect ..................... 28

Using the Configuration Menu

Functions ....................................50

Video ...................................... 54, 64

Video Signal........................... 56, 64

[Video] port ....................................9

Volume .........................................57

Warning indicator...........................7

When Having Some Trouble........71

Wide-screen Projection ................48

Wireless Mouse Function.............19

Workstation ..................................17

YCbCr ...............................34, 54, 64

YPbPr ................................34, 54, 64

Zoom ring.......................................7

105

We :EPSON AMERICA, INC.

Located at :3840 Kilroy Airport Way

MS: 3-13

Long Beach, CA 90806

Tel :562-290-5254

Declare under sole responsibility that the product identified herein,

complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital

device. Each product marketed, is identical to the representative unit

tested and found to be compliant with the standards. Records maintained

continue to reflect the equipment being produced can be expected to be

within the variation accepted, due to quantity production and testing on a

statistical basis as required by 47CFR 2.909. Operation is subject to the

following two conditions : (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Trade Name :EPSON

Type of Product :Projector

Model :EMP-74/54

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

or television reception. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

interference to radio and television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this

equipment will invalidate the FCC Certification or Declaration of this device

and may cause interference levels which exceed the limits established by

the FCC for this equipment. It is the responsibility of the user to obtain and

use a shielded equipment interface cable with this device. If this

equipment has more than one interface connector, do not leave cables

connected to unused interfaces. Changes or modifications not expressly

approved by the manufacturer could void the user’s authority to operate

the equipment.

DECLARATION of CONFORMITY

According to 47CFR, Part 2 and 15

Class B Personal Computers and Peripherals; and/or

CPU Boards and Power Supplies used with Class B

Personal Computers

106

stored in a retrieval system, or transmitted in any form or by any means,

electronic, mechanical, photocopying, recording, or otherwise, without

the prior written permission of SEIKO EPSON CORPORATION. No

patent liability is assumed with respect to the use of the information

contained herein. Neither is any liability assumed for damages resulting

from the use of the information contained herein.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable

to the purchaser of this product or third parties for damages, losses,

costs, or expenses incurred by purchaser or third parties as a result of:

accident, misuse, or abuse of this product or unauthorized modifications,

repairs, or alterations to this product, or (excluding the U.S.) failure to

strictly comply with SEIKO EPSON CORPORATION’s operating and

maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable against any

damages or problems arising from the use of any options or any

consumable products other than those designated as Original EPSON

Products or EPSON Approved Products by SEIKO EPSON

CORPORATION.

General Notice:

EPSON is a registered trademark of SEIKO EPSON CORPORATION.

Macintosh, Mac, and iMac are registered trademarks of Apple

Computer, Inc.

IBM is a registered trademark of International Business Machines

Corporation.

Windows and Windows NT are trademarks of Microsoft Corporation in

the United States of America.

Dolby is registered trademarks of Dolby Laboratories.

Other product names used herein are also for identification purposes

only and may be trademarks of their respective owners. EPSON

disclaims any and all rights in those marks.

Epson Emp 74 Users Manual English

Navigation menu

Versions of this User Manual:

Views

Navigation
