EPSON AMERICA, INC.
EPSON
Product Support Bulletin
Subject:
EPSON Endeavor C and Sound Blaster Discovery CD 16
Date: 04/08/94
Page(s): 1 of 5
PSB No: S-0171
Originator: JAM
The purpose of this bulletin is to provide information regarding the installation and
compatibility of the Sound Blaster Discovery CD 16.
1.
Hardware Configuration: Product Code
CPU:
Memory:
Additional:
BIOS Rev:
FDD:
HDC:
HDD:
Video:
Display:
Epson Endeavor C, 80486sx/25 Processor
4.0 Mb Standard
not applicable
AMI/Seiko Epson Corp. D486-6080-112593-KF
Mitsumi D-359T3, 1.44Kb 3.5" disk drive
Integrated on Main Logic Board
Conner CP-3104
Cirrus GD5442 Video chip, 512KB, Upgradeable to 1 MB
[ External VGA port provided on rear of unit ]
Epson Professional Series VGA monitor
(A804241)
2. Operating Systems:
Microsoft DOS Version 6.2
Microsoft Windows Version 3.1
Microsoft DOS was loaded in a default mode.
3. Windows Installation:
Microsoft Windows Version 3.1 installed. ‘Express Setup’ (Microsoft
Recommended) installation routine used for the install.
4. Compatibility:
The system is compatible with the Sound Blaster Discovery CD 16 Multimedia
system by Creative Labs Incorporated using Microsoft DOS version 6.2.
Installation time approximately 30 minutes.
The system was also tested with Microsoft DOS version 6.0 and Microsoft DOS
version 5.0. The Sound Blaster Discovery CD 16 Multimedia product is
compatible with those operating systems.
PSB No: S-0171
Page: 2 of 5
The following information is provided for reference purposes only. The
AUTOEXEC.BAT and the CONFIG.SYS files are actual examples of the tested
system.
5.
Memory Allocation information,
c:\>chkdsk
Volume MS-DOS-6 created 12-16-1993 10:OOa
Volume Serial Number is 1A259203
104515584 bytes total disk space
4042752
bytes in 6 hidden files
163840
bytes 68 directories
78866432
bytes
in 1876 user files
21442560 bytes available on disk
2048 bytes in each allocation unit
51033 total allocation units on disk
10470 available allocation units on disk
655360 bytes total memory
532080 largest executable program size
6. AUTOEXEC.BAT file information:
@ECHO OFF
SET BLASTER=A220 I5 D1 H5 P330 T6
SET SOUND=C:\SB16
C:\SB16\SB16SET /M:220 /VOC:220 /CD:220 /MIDI:220 /LINE:220 /TREBLE:0
C:\SB16\SBCONFIG.EXE/S
C:\WINDOWS\SMARTDRV.EXE /X
PROMPT $p!$g
PATH C:\WINDOWS;C:\DOS;
SET TEMP=C:\DOS
C:\DOS\MSCDEX.EXE /D:MSCD001 /V /M:15
C:\DOS\MOUSE
C:\
7.
CONFIG.SYS file information:
DEVICE=C:\DOS\SETVER.EXE
DEVICE=C:DOS\HIMEM.SYS
DOS=HIGH
FILES=10
STACKS=9,256
DEVICE=C:\SB16\DRV\SBCD.SYS /D:MSCD001 /P:220
SHELL=C:\DOS\COMMAND.COM C:\DOS\ /p
PSB No: S-0171
Page: 3 of 5
8. General Installation Tips:
Hardware:
The Discovery CD 16 uses a Sound Blaster 16 sound card. The product was
used in its default configuration. The following are the factory defaults:
Feature:
Jumper position: Setting used:
Base I/O address
IOS0 closed 220( H)ex
Midi address
IOS1 closed 330( H)ex
Board Interrupt
IS0 open
IS1 closed IRQ5
8-bit DMA channel
DAS0 open
DAS1 closed
Channel 1
16-bit DMA channel DBS0 closed
DBS1 closed Channel 5
Joystick port JYEN closed
Enabled
Audio Output Amp OPSL pins 2 & 3 closed Audio amplified internally:
OPSR pins 2 & 3 closed no external amp needed
These settings can be found in the ‘GETTING STARTED’ manual that comes
with the product. The system uses a Matsushita model CR-563-B CD-ROM
drive.
From the factory the drive ID is set to 0. This jumper is on the rear of the
drive between the power connector and the data/ribbon cable.
PSB No: S-0171
Page: 4 of 5
The Discovery CD 16 Multimedia system comes with 5 3.5” diskettes. Three
diskettes are for the sound card, one is for a ‘Text-to-Speech’ application, and
one disk is for the CD-ROM device driver and utilities.
The Sound Blaster files are copied to the hard disk drive by an INSTALL.EXE
utility on disk 1. The utility will prompt the installer for the second and third
disks. The routine will modify the AUTOEXEC.BAT and CONFIG.SYS files.
Upon completion, the user is prompted to re-boot the system so that the
changes can take effect. The utility will also modify the Windows SYSTEM.INI
file. When you run Windows, a SB routine will modify and add the Sound
Blaster utilities to a new Program group. The routine will re-start Windows so
that the changes can take effect. The sound card can be tested in a DOS
environment by running TESTSB16. This file is located in the sound blaster
sub-directory SB16.
The utility will test the existence and functionality of the following areas:
I/O Address: IRQ: DMA channels:
220H 51,5
DSP Version:
4.05
The bold face values above are typical for the default configuration. The Sound
card passed all of the tests listed below:
2-operator FM Music
4-Operator FM Music
8-Bit Sound
16-Bit Sound
The CD-ROM files are copied to the hard disk drive by an INSTALL.EXE utility
on the disk 1. The routine will modify the AUTOEXEC.BAT and CONFIG.SYS
files.
Upon completion, the user is prompted to re-boot the system so that the
changes can take effect. To install CD-ROM into Windows, the user must
manually add the ‘QuickCD’ to the Sound Blaster 16 program group. Open the
‘Sound Blaster 16’ group, and from Program Manager File select New. Program
Item should have the bullet marked. Select the OK button. From the Program
Item Properties box select the Browse button. Scroll to the C:\SB16\PLAYCD
sub-directory. Select QCD.EXE as the file name and click the OK button. This
bring you back to the Program Item Properties box. For a Description enter
QCD. Click on the Change Icon button and choose a CD symbol for the icon
button. Click on the OK button and the QuickCD icon is present in the Sound
Blaster 16 program group. Insert an analog/music CD into player. If you click
on the CD icon without a disc installed you will get the following warning:
‘Ensure that you have a CD audio ready in your drive and CD MCI driver
installed in your system. The system is ready for use.
PSB No: S-0171
Page: 5 of 5
9.
MultiMedia Kit Applications tested:
1. Aldus PhotoStyler SE
2. San Diego
Zoo
Presents... The Animals
3. Software Toolworks Multimedia Encyclopedia
4. Just Grandma and Me - Broderbund
5. Where in the world is Carmen SanDiego?
Miscellaneous packages tested:
6. DOS Version “Eye of the Beholder II”
7. DOS Version “Wolfenstein 3-D’
8. MS Dinosaurs for Windows
9. DOS Version ‘Battle Chess”
10. Company Address:
Creative Labs Inc.
1901 McCarthy Boulevard,
Milpitas, CA 95035
Phone:
408 428-6622
Fax:
408 428-6633
BBS:
408 428-6660
Baud:
300 to 14400 (V.32N.42 bis)
Data bits: 8
Parity:
none
Stop bits: 1
Misc: (405) 742-6622 Technical Support
11. Anomalies/Issues:
Ok
Ok
Ok
Ok
Ok
Ok
Ok
Ok
Ok
This Product Support Bulletin was specifically generated to address concerns
about compatibility of the Sound Blaster Kit in this system running under DOS
6.0. As documented the system is fully functional in that operating environment.
Concern was also expressed about using the DOS 6.0 memory manager
EMM386.EXE. Various packages that must run in expanded memory were
tested and experienced no errors.
Note: There is a known compatibility issue recording a digital file from any audio
input device at a sampling rate of 44Khz. The problem is apparent on
various PCs.
The issue is NOT problem on this system.
A large
digital file was created using SB 16 Mixer and SB Wave Studio from
Windows. The file was approximately 20Mb large after sampling a
dynamic ROCK source. Playback of the file rendered no dropouts of the
original material. The process is compatible on this system.
EPSON AMERICA, INC.
Product Support Bulletin
Subject:
Common Questions and Answers for the Epson Endeavor 486C Computers
Date: 10/08/93 PSB No: S-0164
Page(s): 1 of 10 Originator: MTD
GENERAL
Q1. What is the Epson Endeavor 486C computer?
A.
The Epson Endeavor 4SX/25C, 4DX/33C and 4DX2/50C represent an enhancement to
the new Endeavor family of entry-level computer products. Along with an affordable
price, the new Endeavor series offers Intel™ i486™ processing power and upgrade
solutions for a wide range of computing applications. In addition to the performance
that these systems offer, users will appreciate the convenience of a small footprint, and
complete system integration. Key features include:
l Choice of Intel 486SX/25, 486DX/33 or 486DX2/50 processor
l Built-in math coprocessor (4DX/33 and 4DX2/50); math coprocessor support in the
4SX/25 model
l Intel OverDriveTM Support (4SX/25 and 4DX/33)
l Zero Insertion Force (ZIF) socket for easy processor upgrades
l 8KB internal cache (built-in CPU)
l 0KB SRAM secondary cache installed on main system board;
upgradable up to 256KB using 8KB or 32KB SRAM (optional)
l Small-footprint case incorporates
- Four ISA 16-bit option slots (three full-length, one third-length)
- Three drive bays; two external, one internal
- Built-in Super VGA video support
- Two serial, Bi-directional Parallel, Mouse and Keyboard ports
- Built-in floppy and IDE hard drive controller/interface
l Choice of 120MB Quantum, 170MB Conner or 240MB Quantum Hard
Disk Drive
PSB No: S-0164
Page: 2 of 10
What is the Epson Endeavor 486C Computer?
(continued)
l 4MB Base RAM, parity checked. 0 wait states; expandable to 36MB
with SIMMS on main board
l VGA video (512KB on main board; upgradeable to 1 MB) Cirrus logic
GD5442 video display controller
l Alternate VGA feature connector for additional graphics capabilities
l System and video BIOS can be relocated in shadow RAM for increased
system performance
l ROM based system SETUP
l Password security
l Virus warning abilities included in BIOS
l Bundled with MS-DOS® 6.0, Microsoft® WindowsTM 3.1 and a mouse
(MS-DOS and Windows are pre-loaded on the hard drive)
Q2. What is the target market for this computer?
A.
The Epson Endeavor 4SX/25C, 4DX/33C and 4DX2/50C computers are
targeted at the following markets.
l Home office and small-business users seeking maximum performance
at today’s low prices.
l Work at home users who need an efficient and cost-effective system
that’s compatible with all their business software.
l Businesses in search of a low-cost network node that can handle
current and future applications.
Q3. What interfaces and controllers are integrated on the motherboard?
A.
The Epson Endeavor 4SX/25C, 4DX/33C and 4DX2/50C computers come
standard with a built-in IDE hard disk drive interface, a floppy disk drive
controller, a super VGA video adapter, alternate VGA feature connector,
two serial interfaces, a bi-directional parallel interface, a PS/2 style mouse
port and PS/2 style keyboard port all integrated on the main system board.
PSB No: S-0164
Page: 3 of 10
Q4. What /eve/s of password security are provided with the Epson Endeavor
486C computer?
A.
The Endeavor 486C series of computers offer two levels of password
security to ensure that unauthorized users do not change the system’s
SETUP configuration or obtain access to the system.
- Password security to obtain system access
- Password security to access SETUP menus
CPU
Q5. What microprocessors are being offered with the Epson Endeavor 486C
series computer?
A.
The Epson Endeavor 4SX/25C comes standard with an Intel™ i486SX™
microprocessor (CPU) running at 25MHz. The Epson Endeavor 4DX/33C
comes standard with an Intel™ i486DX™ CPU running at 33MHz. The
Epson Endeavor 4DX2/50C comes standard with an Intel™ DX2/50™ CPU
running at 50MHz. Common features of the different microprocessors
include backward compatibility with the 8088, 8086, 80286, and 80386
CPUs and a built-in 8KB cache. For system flexibility, the built-in CPU
cache can be disabled via SETUP.
The™ i486DX/33 and DX2/50 CPUs contains an on-chip numeric
coprocessor to increase the speed of floating point operations. This
coprocessor is backward compatible with the 387DX and 387SX math
coprocessors and complies to ANSI/IEEE standard 754-1985.
Q6. What processor upgrades are available in the Epson Endeavor 486C
computer?
A.
The Epson Endeavor 4SX/25C computer can be upgraded by installing an
Intel™ i487SX™ or Intel Overdrive CPU in the processor socket. Both of
these CPUs improve system performance by adding a numeric coprocessor
to speed up floating point calculations. The Intel Overdrive CPU doubles
the processor’s internal speed to further increase system performance.
The Epson Endeavor 4DX/33C computer can be upgraded by installing an
Intel Overdrive CPU in the processor socket. Like the Intel Overdrive CPU
for the 4SX/25, the Intel Overdrive CPU for the 4DX/33 also doubles the
processor’s internal speed to further increase system performance.
PSB No: S-0164
Page: 4 of 10
BIOS
Q7. What BIOS comes with the Epson Endeavor 486C computer?
A.
The Epson Endeavor 486C series computers incorporate an AMI/Seiko
Epson BIOS that contains both the system and video BIOS. This BIOS is
contained in a single EPROM device that is installed in a pluggable socket
on the computer’s main system board (motherboard).
Q8. How is SETUP accessed and what information is contained in setup?
A.
To access SETUP, press the “DEL” key after POST (Power On Self-Test)
completes the memory test but before the computer loads the operating
system. There are two pages of setup information.
STATUS PAGE
- System Date and Time
- Floppy Drive Type Selection A: B: (360K, 1.2M, 720K, 1.44M and None)
-
HDD Drive Type Selection C: D: (Type Number or User-Defined)
- Video Type (Not Installed, CGA80, VGA/PGA/EGA, CGA40, and Mono)
- System Speed (Fast/Slow)
-
Boot Sequence (Drive A,C or C/A)
- Floppy Seek (Enable/Disable)
- Virus Protection (Enabled/Disabled)
OPTIONS PAGE
-
Shadow Setup (System, Video or System/Video)
- Keyboard Setup (Test, Numlock On/Off, Rate, and Delay)
- Peripherals Setup
Serial Port Address
3f8h, 2f8h IRQ4/IRQ3 (Com1/Com2, Com1+Com2) or (Disabled)
- Parallel Port Address
378h, 0278h (Uni-LPT1/2 Bi-LPT1/2), or (Disabled)
- PS/2 Mouse (Enabled/Disabled)
- On-B/D FDC Select (Enabled/Disabled)
- IDE HDC Select (Enabled/Disabled)
PSB No: S-0164
Page: 5 of 10
VIDEO
Q9. What video adapter comes standard (built-in) with the Epson Endeavor
A.
Q10.
A.
486C computer?
The Epson Endeavor 486C series computers utilize a Cirrus GD5422 VGA
graphics controller as its built-in video adapter. These computers include
512KB of video memory which may be upgraded to a full 1 MB of memory
by installing pluggable memory chips.
The Cirrus VGA graphics controller is 100% hardware and BIOS-
compatible with IBM® VGA display standards.
What type of RAM chips are used to upgrade the video memory to a
full 1MB on the Epson Endeavor 486C computer?
Increasing the Epson Endeavor 486C series computer’s video memory
requires four 256K x 4 bit, 70ns 20-pin DRAM ZIP (Zig-zag lnline
Package) chips. These chips install on the computer’s main logic board in
sockets VM00, VM01, VM02 and VM03.
To ensure compatibility, we have tested the following DRAM ZIP chips and
confirmed that they operate properly when upgrading the video memory:
Supported Video ZIP Chips
MANUFACTURER PART NUMBER
Goldstar®
GM71C4256AZ-70
Micron®
MT4C42562-6, MT4C4256Z-7
Samsung®
KM44C256CZ-6, KM44C256CZ-7
PSB No: S-0164
Page: 6 of 10
Q11.
What video modes are supported by the Epson Endeavor 486C
computer?
List below is a table that shows the Epson Endeavor 486C series
computer’s supported video modes and the memory requirements to obtain
each mode:
Mode Resolution
Colors
Memory
Rewired
VGA 640 x480
16
512KB
Extended,
640 x480 256
512KB
512KB memory required 640 x 480 32,768*
512KB
640 x480 65,536*
512KB
800
x600
16
512KB
800
x600 256
512KB
Extended,
640 x 480 16,777,216**
1MB
1 MB
memory required 800 x 600 32,768*
1MB
800 x 600 65,536*
1MB
1024 x 768
16
1MB
1024 x 768 256
1MB
1024 x 768 256
1MB
Note:
“*” indicates a Hi-Color mode and “**” indicates True Color mode.
Q12.
What software video drivers are provided with the Epson Endeavor
486C computer?
There are two diskettes included that feature video drivers for many popular
software programs and also include video utilities. The key drivers included are:
Lotus 1-2-3 Rel. 2.x,3, Lotus Symphony Rel. 2.0, Windows 3.1, WordPerfect 5.1
The VGA video utilities included are: CLMODE and SETRES. These utilities
are useful when customizing system settings such as video modes or refresh
rates.
PSB No: S-0164
Page: 7 of 10
MEMORY
Q13.
What is the standard memory configuration and maximum amount of
system memory that can be used in the Epson Endeavor 486C
computer?
A.
The Epson Endeavor 486C series computers come standard with 4MB of
system memory. This memory is soldered on the main system board.
There are two SIMM sockets on the main system board. These sockets
accept 1 MB, 4MB or 16MB SIMMs. Optional SlMMs may be purchased to
increase the computer’s memory up to a maximum of 36MB.
NOTE: The SlMMs used must be 70ns or faster, 32 or 36-bit, 72-pin, fast
page mode type.
Q14.
What are the valid system memory configurations for the Epson
Endeavor 486C computer?
A.
The following table shows the possible SIMM configurations for the Epson
Endeavor 486C series computers; do not install memory in any other
configuration.
*
Standard memory on the system board
**
SIMMS can occupy either socket
PSB No: S-0164
Page: 8 of 10
MEMORY (continued)

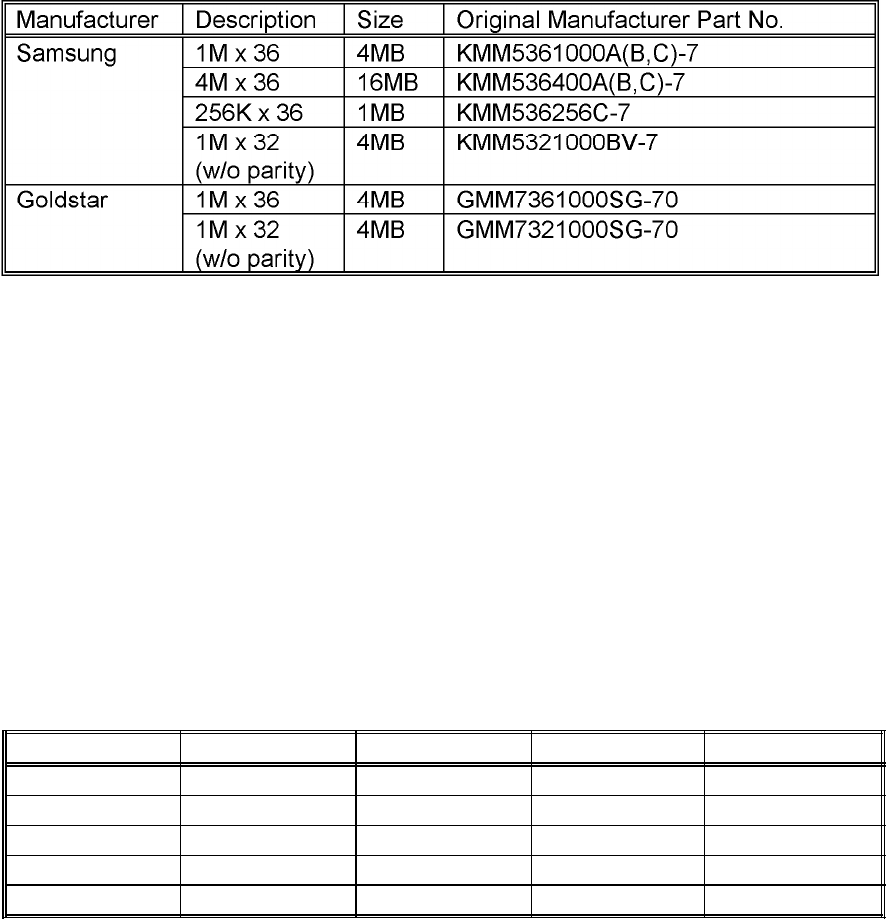

Supported SlMMs
CACHE
Q15.
Can the Endeavor 486C computers include secondary cache?
A.
Yes. The system board is capable of supporting up to 256KB of external
SRAM cache memory.
There are ten CACHE sockets on the main system board. These sockets
accept 8KB or 32KB SRAM chips installed in the sockets of BANK0 and
BANK1. BANK0 must be filled before BANK1.
The SRAM type used for sockets U15 and U16 must match the type
installed in the banks.
Cache size
Bank 0
Bank 1
U15 U16
0KB
32KB
4x8KB
0
1x8KB 1x8KB
64KB
4x8KB 4x8KB 1x8KB 1x8KB
128KB
4x32KB
0
1x32KB 1x32KB
256KB
4x32KB 4x8KB 1x32KB 1x32KB
PSB No: S-0164
Page: 9 of 10
CACHE (continued)
Supported Cache Memory SRAM DIP Chips
Socket
1
Manufacturer
1
Original Manufacturer Part No.
U15, 16
1
Alliance
1
AS7C256-15PC
(15-ns) Winbond W24257AK-15
Samsung
KM68257BP-15
U17-20,
56-59
Micron
-
Alliance
Winbond
MT5C42568-15
AS7C256-20PC
W24256(7)AK-20
(20ns) UMC
Samsung
Micron
UM61256-20
KM68257BP-20
MT5C42568-15
(Build To Order)
Q16.
What are installable options from Epson?
RAM
VIDEO RAM
SRAM
CHOICE OF FDD’s
CHOICE OF HDD’s
TBU
FAX MODEM
SCANNER I/F
MULTI-MEDIA
SCSI I/F
PSB No: S-0164
Page: 10 of 10
MASS STORAGE
Q17.
What factory floppy and hard disk drive configurations are offered
with the Epson Endeavor 486C computer?
A.
The Epson Endeavor 4SX/25C, 4DX/33C and 4DX2/50C computers are
available in three factory configurations. All three configurations come
standard with a 1.44MB floppy disk drive.
The Epson Endeavor 486C series computers is built to customer’s order
by the factory.
LAN COMPATIBILITY
Q18.
What local Area Networks have been tested on the Epson Endeavor
486C computer?
A.
The system is tested and approved as Novell NetWare “Workstations” with
the following Novell products:
Netware (v2.2) NetWare 3270 LAN Workstation (v2.0)
Netware (v3.11) OnLAN/PC (v1.3)
Netware Lite (v1.1) NetWare Link/64 (v1.1)
DR DOS (v6.0) NetWare Link/T1 (v1.1)
Novell Print Server (v1.21) NetWare Link/X.25 (v1.00)
Netware Access Server (v1.3) NetWare Asyn Remote Router (v1.2a)
LAN Workplace for DOS (v4.01) NetWare Asyn Comm Server (v3.0)
NETWORK BOARDS TESTED
Q19.
What Network boards have been tested on the Epson Endeavor 486C
computer?
TEST PRODUCTS NAME MANUFACTURER
Etherlink II
Etherlink III
Etherlink 16
IBM Token Ring Adapter 16/4
IBM Token Ring Adapter II
NE1000
NE2000
NE2100
RX NET
SMC ARCNET 190ST
3Com
3Com
3Com
IBM
IBM
Novell
Novell
Novell
Novell
SMC

Navigation menu
