The Epson R-D1 offers the convenience of digital imaging technology

with the classic features of a traditional rangefinder camera to produce

high-quality photographs and an enjoyable shooting experience.

Traditional rangefinder design

If you are already familiar with rangefinder photography, you will be

up to speed in no time with the R-D1. If you are new to this type of

camera, you will quickly discover the benefits of time-tested

rangefinder design, such as:

❏Parallax-corrected bright-line frames within the viewfinder for

better composition

❏Unobstructed and clear view of a subject during exposure

❏Relatively silent and shock-free operations as compared to a single

lens reflex (SLR) camera

Wide variety of lenses available

The R-D1 is equipped with an EM mount, which accepts a wide variety

of M-type bayonet lenses originally introduced for film-based

rangefinder cameras. This opens up a world of possibilities with

hundreds of lenses to choose from, both vintage and contemporary.

With an adapter ring, L-mount lenses can also be used with the R-D1,

further enhancing its shooting potential.

Note:

The lenses you own and use on a film-based rangefinder camera may

produce unexpected results when used with the R-D1.

Life-size magnification

The R-D1 comes with a viewfinder with 1.0x magnification, so what

you see through the viewfinder is at the same size as seen with a naked

eye. Using both eyes you can easily see what is happening outside the

viewfinder. With the R-D1 you will focus more on what you are

shooting, not what you are shooting with.

Print optimized images

The pictures you take using the R-D1 can be saved in unprocessed RAW

format, which can be postprocessed for printing using the bundled

software. We at Epson believe that photographic images, be they

film-based or digital, are best expressed on printed media. The R-D1

reflects this philosophy.

Warnings, Cautions, and Notes

Observe the following while you read this manual:

wWarnings must be followed carefully to avoid bodily injury.

cCautions must be observed to avoid damage to your equipment.

Notes contain important information and useful tips on the operation of your

product.

6Getting Started

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

Chapter 1

Getting Started

Unpacking Your Camera

Make sure you have these items:

Camera body Lens hole cover

Battery Strap

Battery charger Power cord

(for battery charger)

User’s Guide CD-ROMs:

EPSON PhotoRAW/EPSON RAW

Plug-in

Adobe® Photoshop® 2.0 (may

not be included in some regions)

Getting Started 7

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

1

1

1

1

1

1

1

1

1

1

Camera Parts and Functions

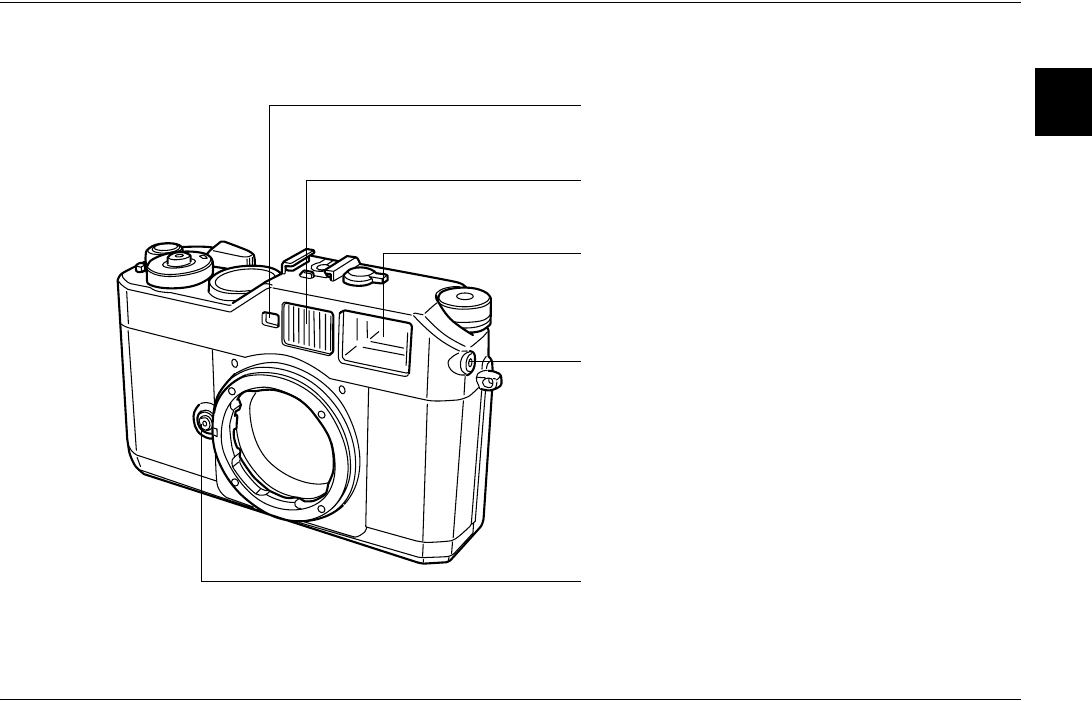

Front View

Rangefinder window

Images from this window are used to display the image

superimposing field in the center of the finder frame.

Bright-line frame illumination window

Receives light to illuminate bright-line frames in the

viewfinder.

Viewfinder window

Images from this window are displayed in the viewfinder.

X-sync contact

Used to connect an external flash unit. (See the flash’s

manual for details on how to attach the flash.)

Lens release button

Used to unmount the lens. (See“Mounting and Removing

Lenses” on page 15 for details on how to attach or remove

the lens.)

8Getting Started

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

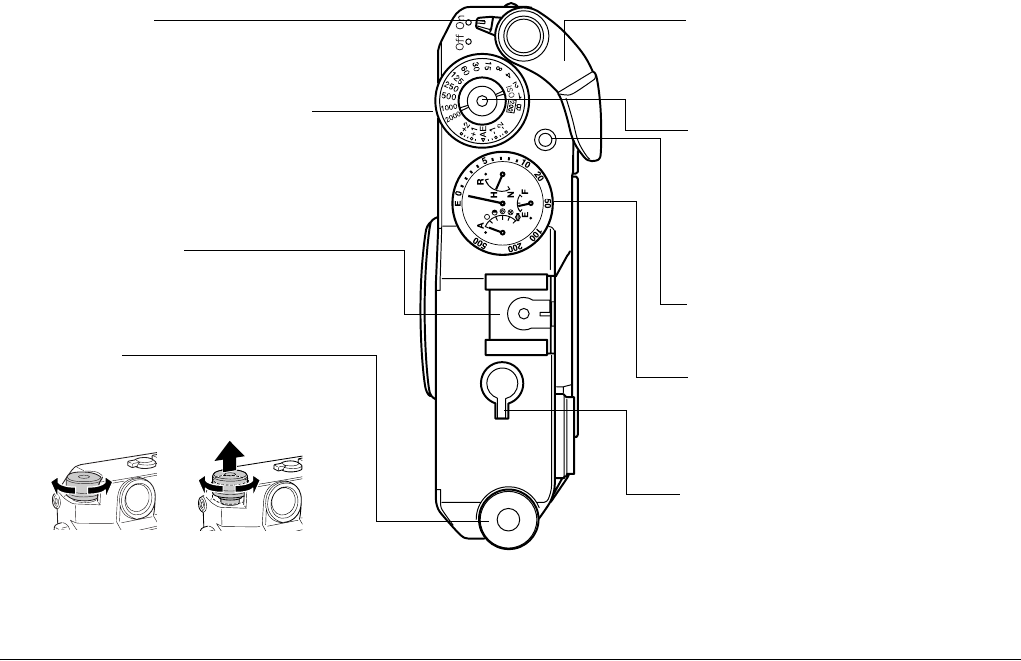

Top View

Accessory shoe

Used to mount optional equipment such as

a flash or external viewfinder. (See the flash

manual or viewfinder manual for details on

how to attach them.)

Jog dial

Scrolls through the menu items and pictures

displayed on the LCD monitor. (See “Viewing

and Managing Photos” on page 26 and

“Customizing the Settings” on page 34.)

Lower position Upper position

Power switch

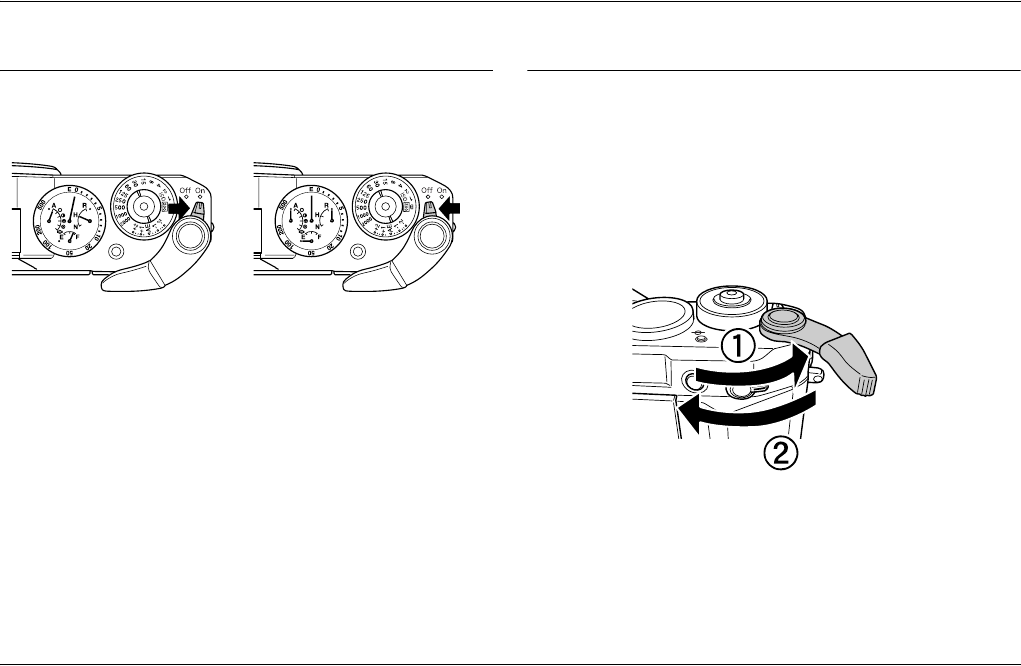

Switches the power on or off. (See “Turning

the Camera On and Off” on page 18 for

details.)

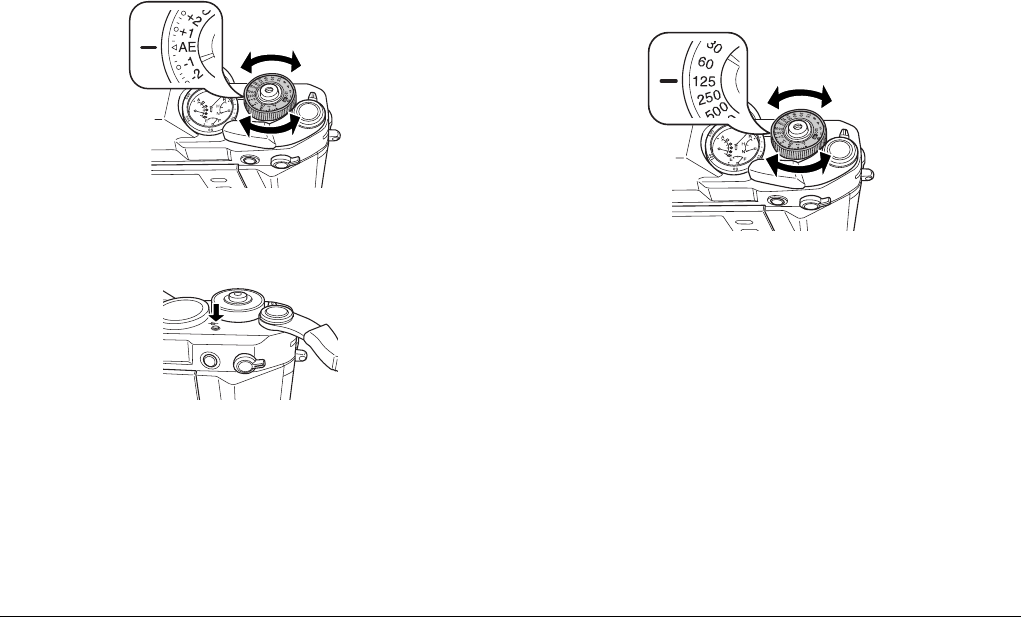

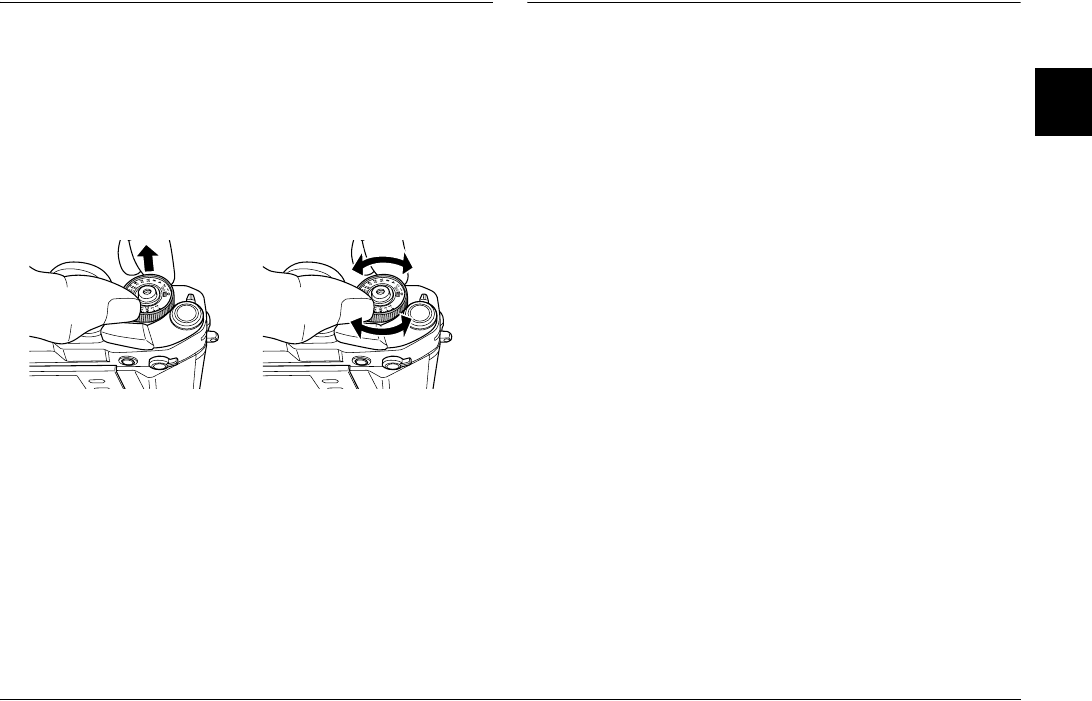

Shutter speed/ISO sensitivity dial

Sets the shutter speed, exposure

compensation (in AE mode), and ISO

sensitivity (when pulled up). (See “Setting the

Exposure” on page 21 and “Setting ISO

Sensitivity” on page 21 for details.)

Shutter charge lever

Used to cock the shutter before taking

each picture. (See “Taking a Picture” on

page 18 for details.)

Shutter release button

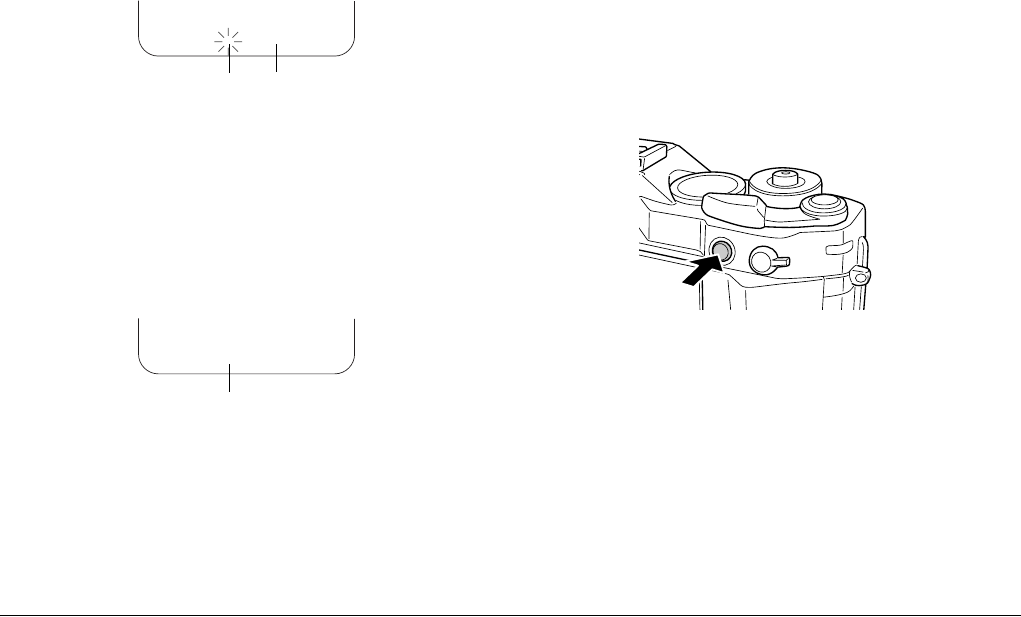

Releases the shutter. If pressed halfway

(without releasing the shutter), the

metered and selected shutter speeds are

displayed at the bottom of the viewfinder.

Also used to recover from the power save

mode.

Dial-lock release button

Unlocks the shutter speed dial from the AE

position.

Status gauge

Displays the current settings: white

balance, remaining battery power, the

number of remaining shots, and image

quality. (See “Status Gauge” on page 10

for details.)

Frame selector lever

Selects a bright-line frame for 28 mm,

35 mm, or 50 mm lens. (See “Selecting the

Focal Length” on page 16 for details.)

Getting Started 9

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

1

1

1

1

1

1

1

1

1

1

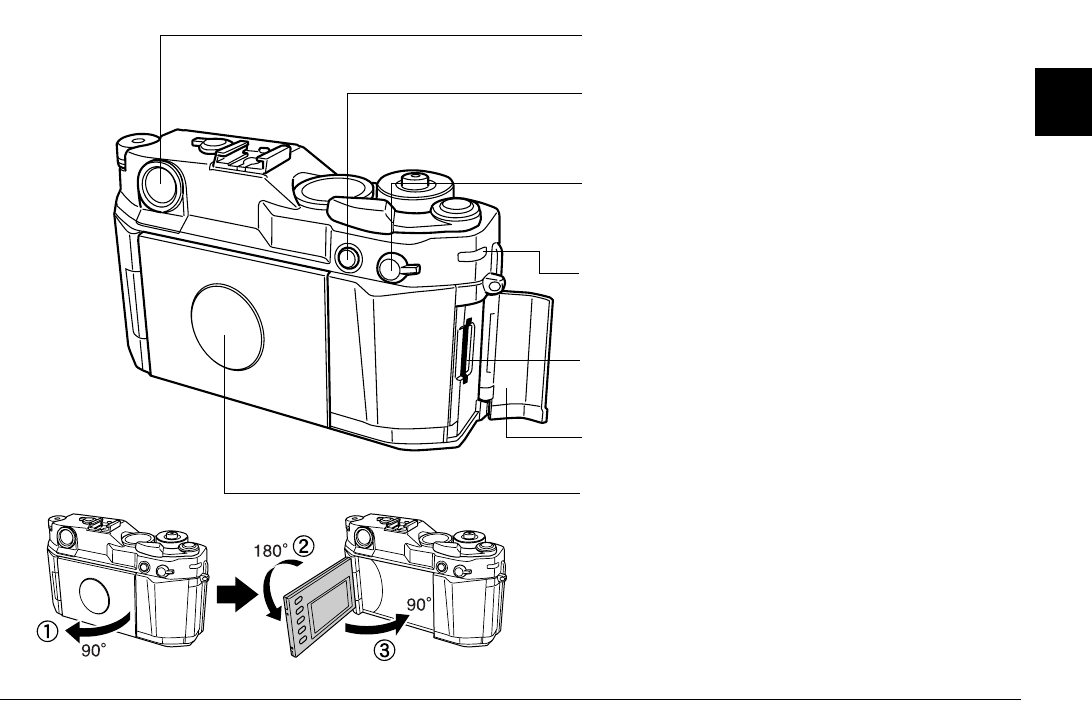

Back View

Rangefinder eyepiece

Used to compose your pictures and to focus on the subject.

AE-lock button

Locks the shutter speed at the metered value when using

automatic exposure. (See “Locking the Exposure Setting

(AE-lock)” on page 24 for details.)

Quality (Q) / White Balance (WB) lever

Used to set image quality or white balance. (See “Setting

Image Quality” and “Setting White Balance” on page 19 for

details.)

Memory card access light

Lights when a picture is being saved in the memory card.

Flashes when there is an error or battery is low.

Memory card slot

Accepts an SD memory card of up to 2 GB capacity. (See

“Using a Memory Card” on page 13 for details.)

Memory card slot cover

Protects the memory card and memory card slot.

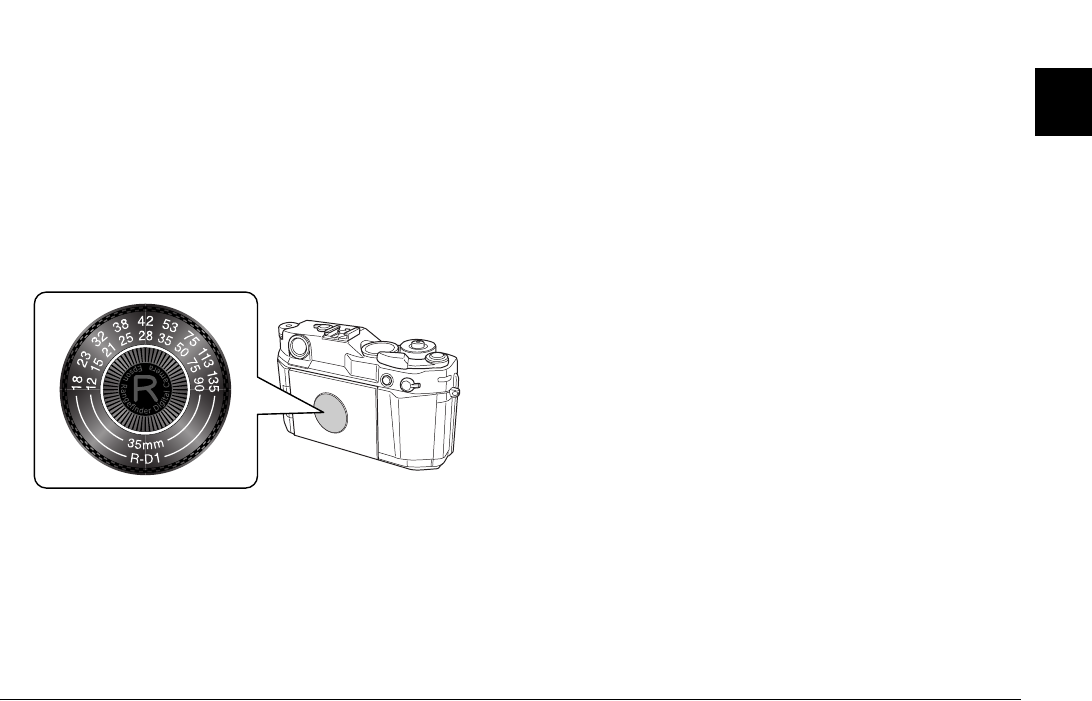

Focal length conversion table

Lists equivalent 35 mm focal lengths for the attached lenses.

(See “Determining the Effective Focal Length” on page 17

for details.)

10 Getting Started

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

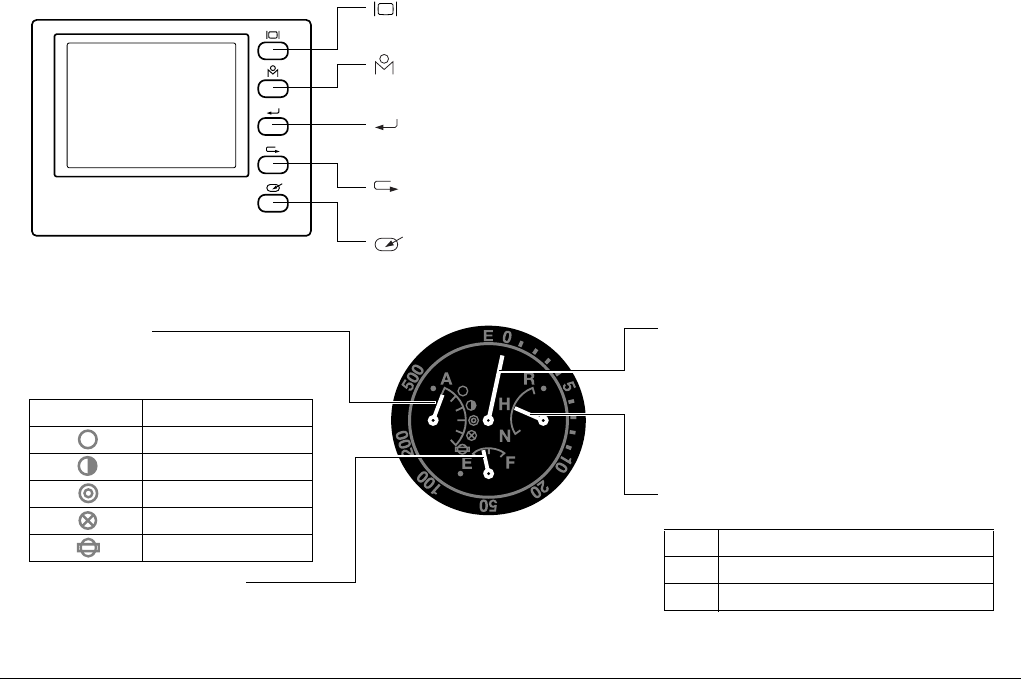

LCD Monitor

Status Gauge

(CANCEL) button

Returns to the previous menu without making any settings.

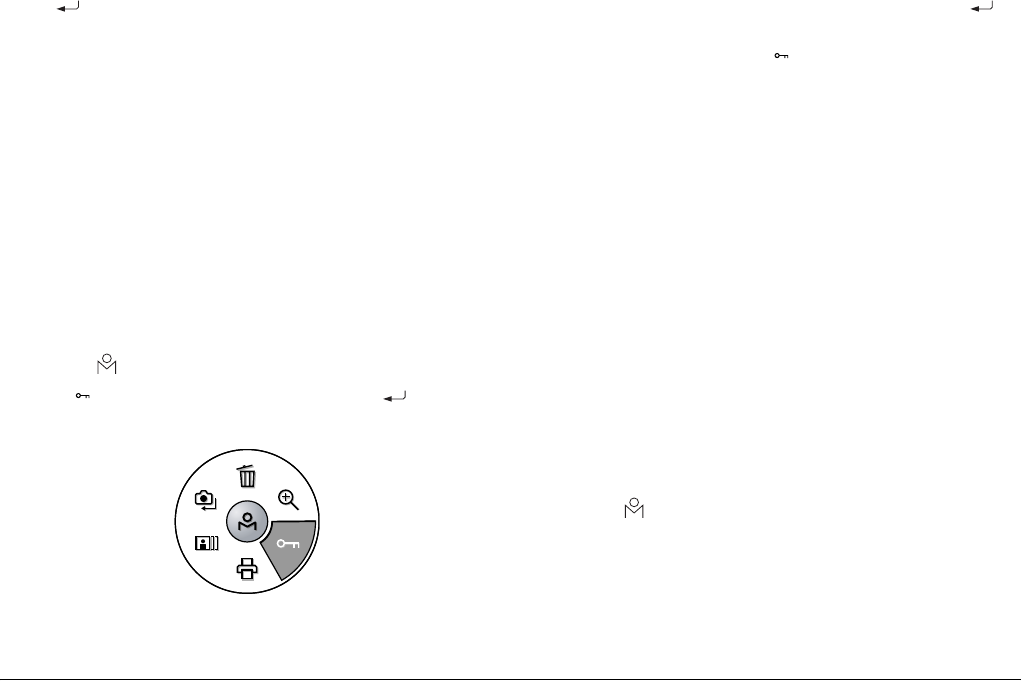

(USER) button

Executes the preassigned function from the following: Delete, Lock, Magnify, Print, and Film.

(LCD) button

Switches between the shooting mode and the playback mode.

(MENU) button

Displays the main menu on the LCD monitor when in the playback mode.

(ENTER) button

Sets the selected item or settings when in the playback mode. Also toggles between single and

tile display modes.

White balance

Indicates the white balance setting. (See

“Setting White Balance” on page 19 for

details).

Remaining battery power

Indicates the remaining battery power.

The current battery level is indicated on the

scale from E (Empty) to F (Full).

AAuto

Sunny

Shade

Cloudy

Incandescent

Fluorescent

The number of remaining shots

Indicates the number of remaining shots you can

take (up to 999). The needle points to ‘E’ if there

is no memory card or when an error occurs.

Note: The actual number of shots you can take is

not limited to 999 and varies with the size of the

memory card used.

Image quality

Indicates the image quality setting. (See “Setting

Image Quality” on page 20 for details)

* Selected in the Settings menu (see page 35).

R RAW/RAW+JPEG (High) *

HJPEG (High)

NJPEG (Normal)

Note: Status gauge can be calibrated

if needed. See “Calibrating the Status

Gauge” on page 42 for details.

Getting Started 11

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

1

1

1

1

1

1

1

1

1

1

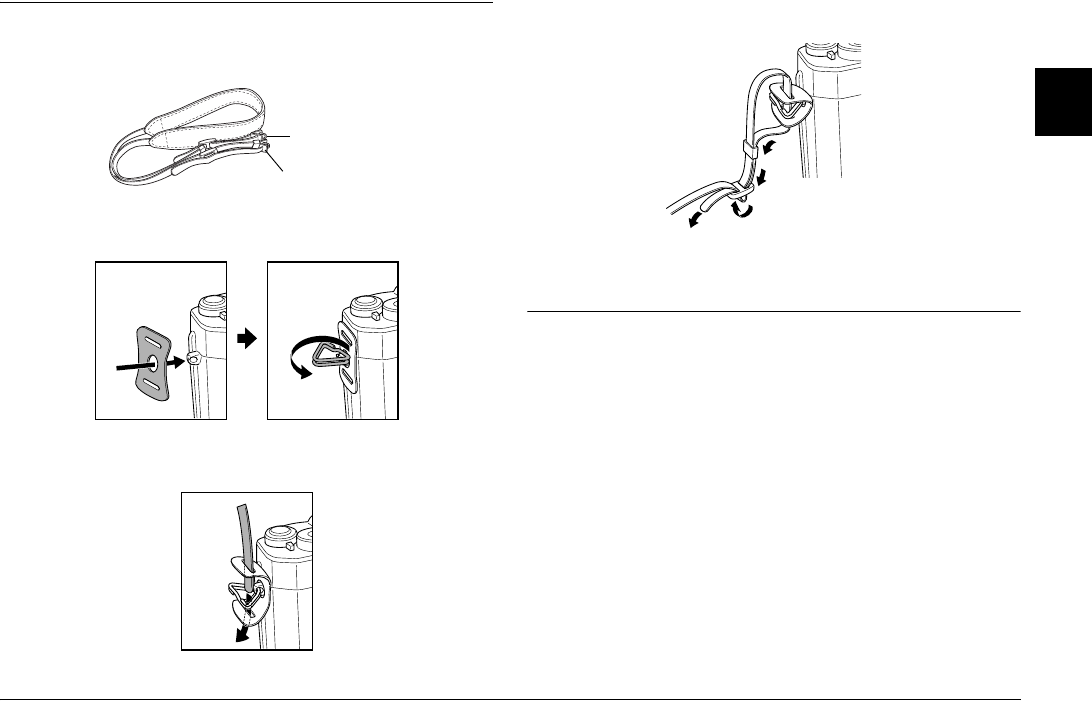

Attaching the Strap to the Camera

1. Remove the protective pads and metal rings from the strap.

2. Attach the protective pad and the metal ring to one side of the

camera.

3. Lace the end of the strap through the holes in the protective pad

and the metal ring.

4. Lace the strap end through the two plastic fasteners.

5. Repeat these steps to attach the other end of the strap to the other

side of the camera.

Using the Battery

cCaution:

Only use the Epson lithium-ion battery (EU-85). Do not use any other

make or model of battery under any circumstances.

Charging the Battery

The camera comes with a lithium-ion battery (model EU 85). Be sure to

charge it before using the camera for the first time, or if you have not

used it for a long time. It takes approximately 3.5 hours to fully charge

a new or empty battery.

Metal ring

Protective pad

12 Getting Started

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

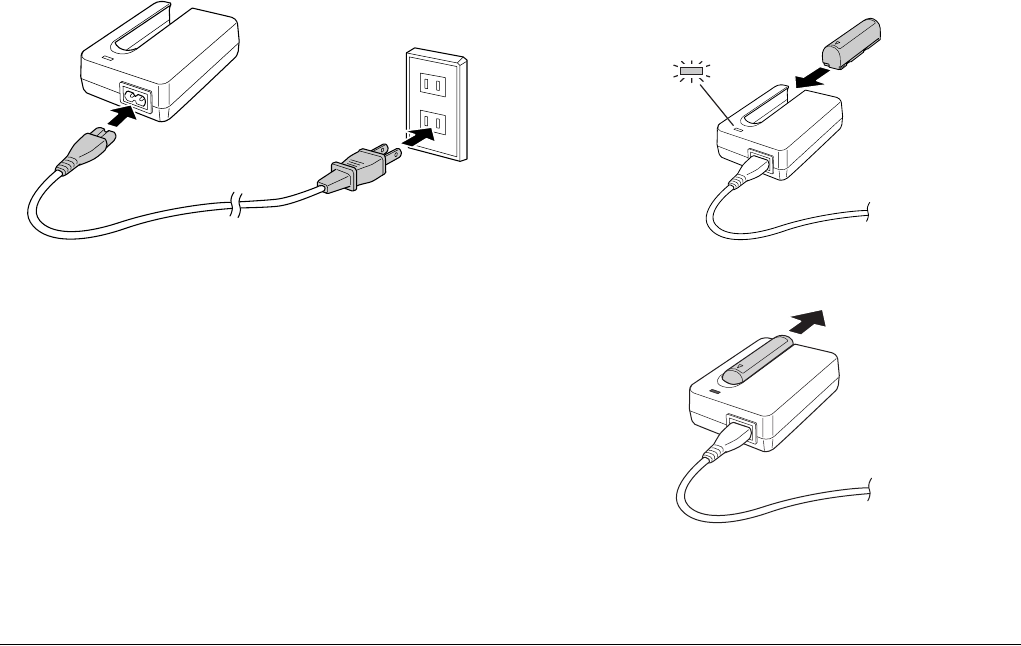

1. Connect the power cord to the battery charger, then plug it into an

electrical outlet.

2. Insert the battery into the battery charger with the terminal end

first. The red indicator light on the charger lights up to indicate the

battery is being charged.

3. When the indicator light turns off, the battery is fully charged.

Remove the battery from the charger.

4. Disconnect the battery charger from the power outlet.

Getting Started 13

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

1

1

1

1

1

1

1

1

1

1

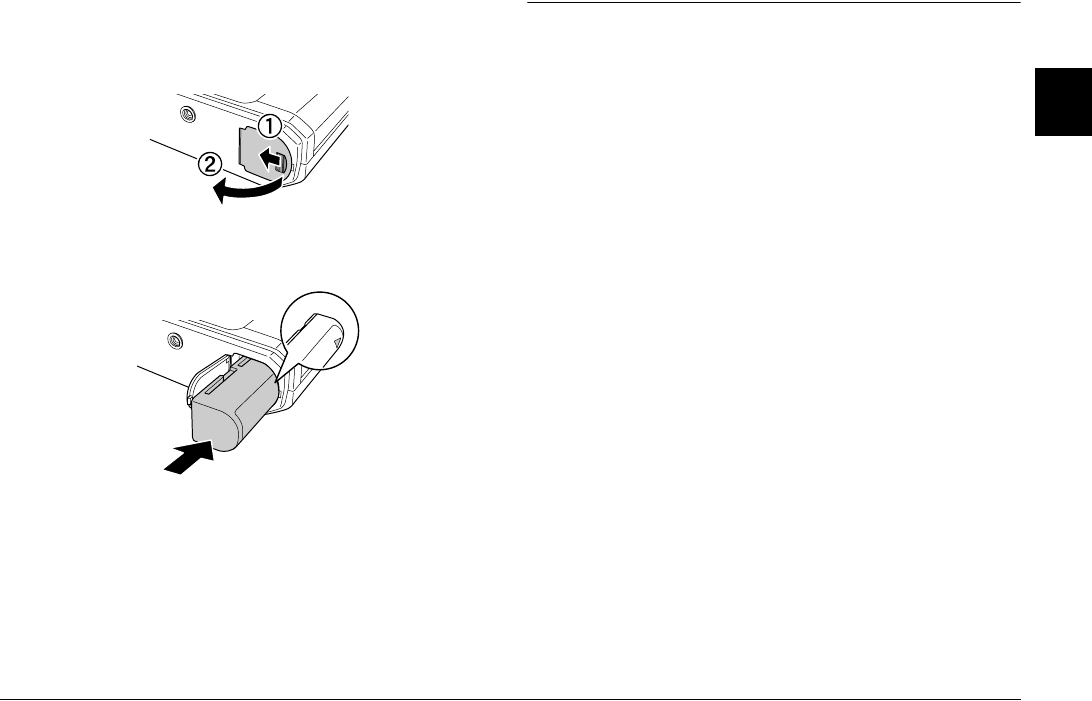

Installing the Battery in the Camera

1. Make sure the camera’s power switch is in the Off position, then

open the battery cover.

2. Insert the battery into the camera as far as it will go, making sure

the orientation of the battery is correct.

3. Close the battery cover until it clicks.

Note:

You can check the amount of battery power remaining in the camera by

checking the status gauge. (See page 10.)

Using a Memory Card

You cannot take pictures unless a memory card is installed in the

camera. The camera accepts SD memory cards of up to 2 GB capacity.

cCaution:

❏Make sure there is no dirt or dust on the memory card terminal. If

it is dirty, you may not be able to read from or write to the card.

❏Never insert or remove a memory card while the memory card

access light is on. This may cause data in the card to be lost or

damaged, or render the memory card unusable.

❏Keep the memory card slot cover closed except when you insert or

remove the memory card. This protects the memory card and the

slot from dust particles and static shock; otherwise data on the

memory card may be lost or damaged.

❏Static shock to the memory card may cause the camera to

malfunction.

Note:

❏Be sure to read the documentation included with the card to make sure

you use it correctly.

❏If the memory card has been already formatted with a computer or another

digital camera, you may not be able to save images on the card. If this

happens, reformat the card using this camera. For instructions, see

“Formatting the Memory Card” on page 42.

DUMMY

DUMMY

14 Getting Started

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

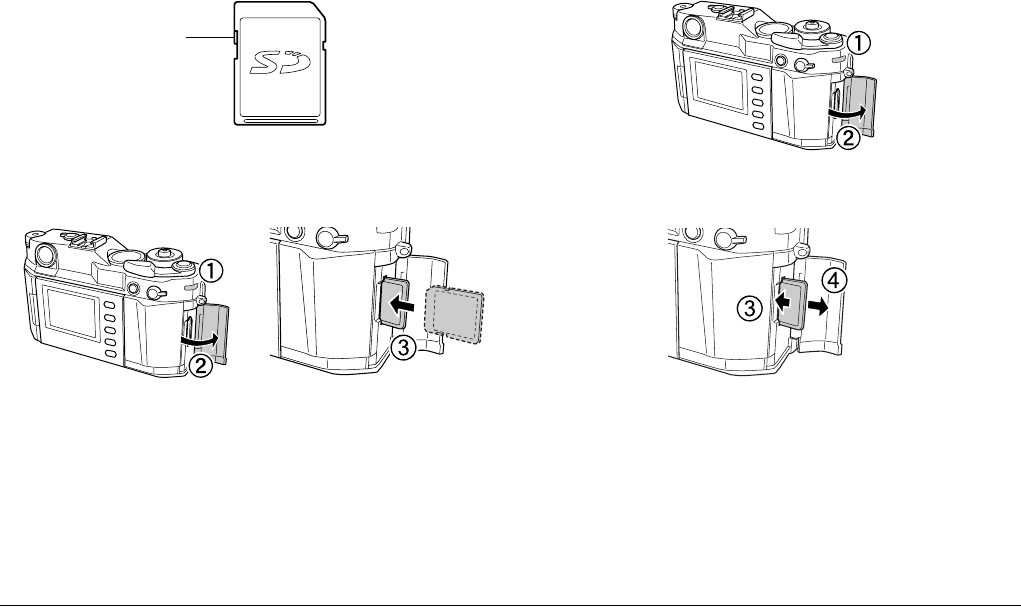

Inserting a Memory Card

1. Make sure that the memory card is not locked. Slide the write

protect switch to unlock the card if needed.

2. Make sure that the memory card access light is off, then open the

memory card slot cover. Insert the memory card all the way into

the slot until it clicks.

3. Close the memory card cover.

Removing the Memory Card

1. Make sure the memory card access light is off, then open the

memory card slot cover.

2. Push in the memory card until it clicks, then release your finger.

The memory card pops out.

Note:

If the memory card is not ejected, push it again.

3. Remove the card and close the memory card cover.

Write protect

switch

DUMMY

DUMMY

DUMMY

Getting Started 15

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

1

1

1

1

1

1

1

1

1

1

Mounting and Removing Lenses

The camera accepts a wide variety of M-type bayonet mount

(M-mount) lenses. You can also use L-type screw mount (L-mount)

lenses by attaching a third-party adapter ring.

Incompatible Lenses

Certain lenses are not compatible with the camera due to physical

constraints:

❏Lenses that project more than 20.5 mm into the camera body.

These lenses cannot be used because they may touch the inner

parts of the camera. Some models known to be incompatible

include:

❏Hologon 15 mm F8

❏Super Angulon 21 mm F3.4

❏Super Angulon 21 mm F4

❏Elmarit 28 mm F2.8 (earliest model)

❏Summicron 50 mm (Dual Range Summicron)

❏Collapsible lenses.

However collapsible lenses such as the Hektor 50 mm F2.5 or the

Elmar 50 mm F3.5 can be used with the camera as long as the lens

barrel is not pushed into the camera body. Be very careful if using

these types of lenses.

❏Lenses that have an auxiliary viewfinder lens.

These lenses cannot be used effectively because the baseline length

is different from the one used for this camera.

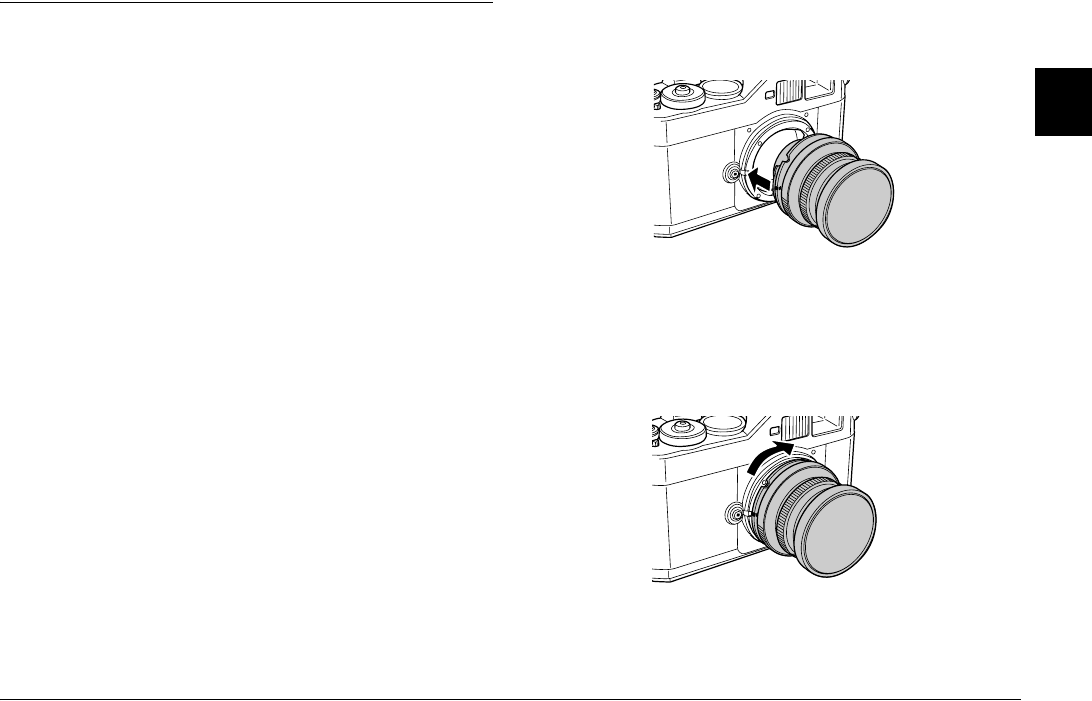

Mounting an M-mount Lens

1. Align the dot on the lens with the red dot on the lens release button.

cCaution:

❏Do not touch the inner parts of the camera.

❏Beware of dust particles entering the camera body.

2. Insert the lens into the camera body, then turn the lens clockwise

until it clicks.

16 Getting Started

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

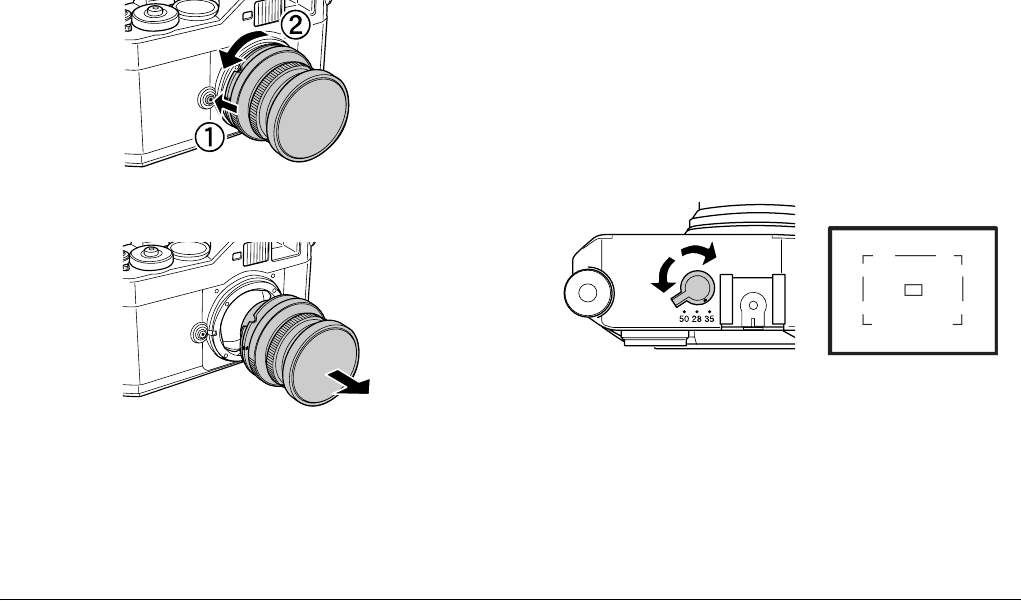

Removing an M-mount Lens

1. Press the lens release button and turn the lens body

counterclockwise.

2. Pull the lens straight out.

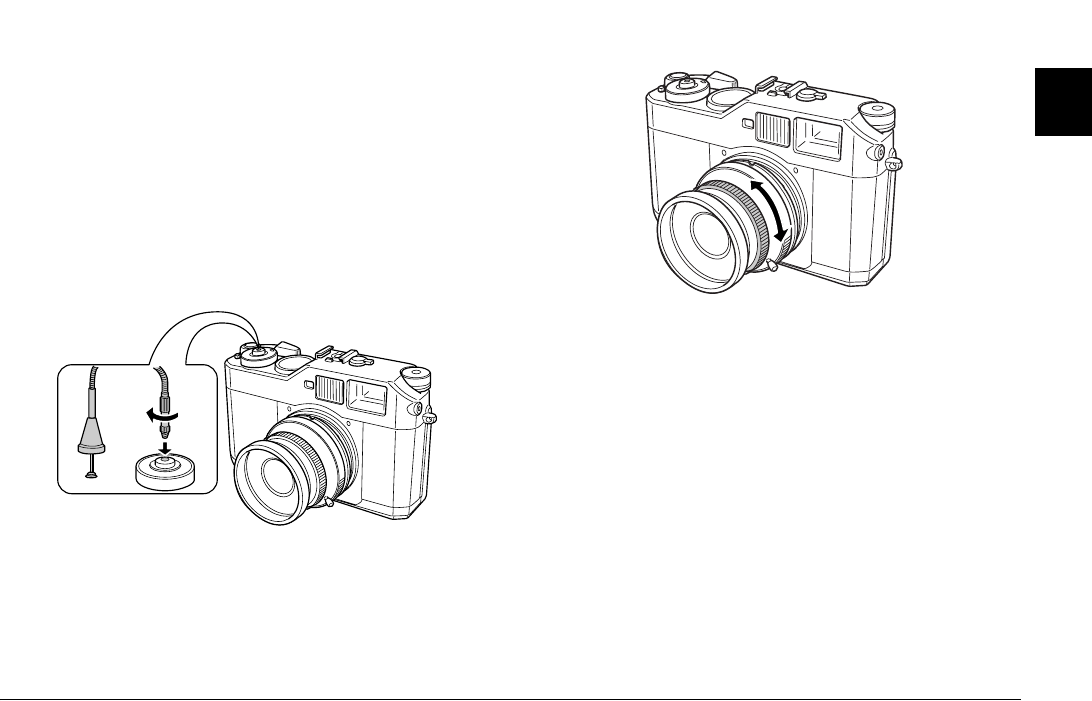

Mounting and Removing an L-mount Lens

For an L-mount lens, you need an optional M-bayonet adapter ring.

Attach the adapter ring to the lens, then install the lens on the camera

as you would an M-mount lens. When you want to remove the lens,

the procedure is the same as for an M-mount lens.

Selecting the Focal Length

You need to select the focal length of the mounted lens in order to

display the correct bright-line frame that indicates the field of view

covered by the lens. The automatic parallax correction feature allows

you to capture what you see in the selected bright-line frame. Turn the

frame selector lever to select 28 mm, 35 mm, or 50 mm to match the

focal length of the lens being used.

Getting Started 17

R4CH410

User’s Guide Rev.C

03_GET.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

1

1

1

1

1

1

1

1

1

1

Determining the Effective Focal Length

The CCD sensor in this camera is an APS-C size, about 34% smaller

than the area covered by 35 mm film. This effectively increases the

working focal length of the attached lens by 1.53x to produce the

equivalent 35 mm focal length.

For example, if you use a 50 mm lens with this camera, the effective

focal length would be 50 × 1.53 = 76.5 mm. This is particularly helpful

when you are using a telephoto lens, because you can use a 200 mm

lens to achieve the same field of view of a 300 mm lens, which is heavier

and more expensive.

The focal length conversion table on the rear panel of the camera shows

equivalent 35 mm focal lengths of the lenses attached to the camera.

DUMMY

18 Taking Photos

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

04_TAKE.FM A5 size

12/11/06

Chapter 2

Taking Photos

Turning the Camera On and Off

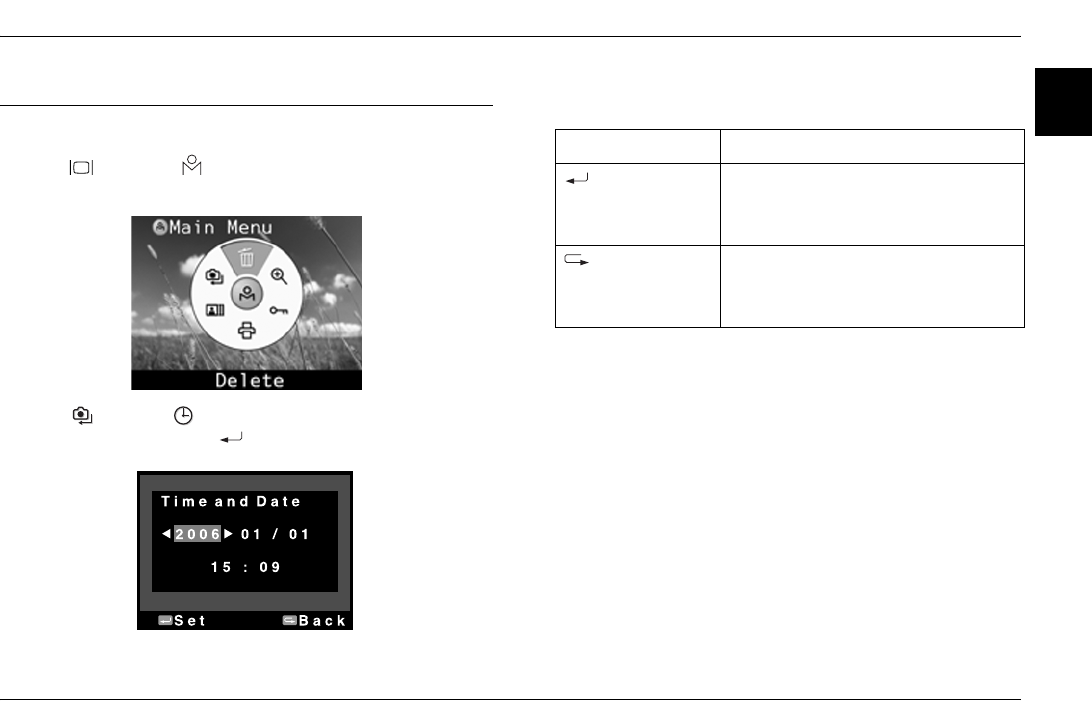

When you turn on the camera the first time, you need to set the current

date (month, day, and year) and time (hours and minutes) on the LCD

monitor. Once these settings are made, the camera automatically

records the date and time for each picture taken.

For instructions, see “Setting the Time and Date” on page 41.

cCaution:

Never turn off the power while the memory card access light is on. This

may cause data in the card to be lost or damaged, or render the memory

card unusable. Under certain circumstances, the memory card access

light may remain on for several seconds after taking a picture (for

example, if you turn on noise reduction and take a long exposure).

Taking a Picture

1. Make sure the camera is turned on and a memory card is installed.

2. Before taking a picture, you may need to adjust the white balance,

image quality setting, ISO sensitivity, exposure, and focus, as

described on the following pages.

3. When you are ready to shoot, push the shutter charge lever as far

as it will go to the right to cock the shutter.

Note:

The shutter charge lever can be left in the “ready” position when shooting

a series of pictures.

DUMMY

Turn on Turn off

Taking Photos 19

R4CH410

User’s Guide Rev.C

04_TAKE.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

2

2

2

2

2

2

2

2

2

2

4. Gently press the shutter release button. You should hear a clacking

sound that indicates the shutter release.

Setting White Balance

The white balance feature adjusts the camera for different types of

ambient light. You can either set the white balance to be adjusted

automatically, or select the particular setting to suit the ambient light

type.

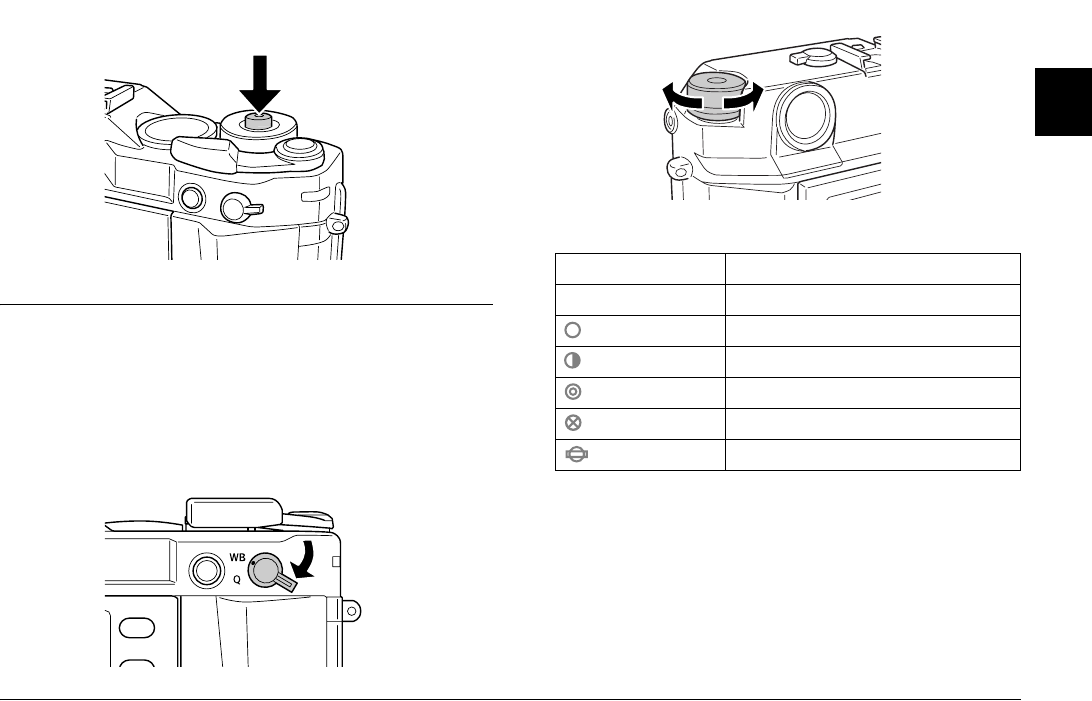

1. Pull down and hold the Q/WB lever at the WB position.

2. Rotate the jog dial to select the desired white balance setting.

The selected setting is indicated on the status gauge:

3. Release the Q/WB lever.

DUMMY

Setting Description

A (Auto) Automatically determined

(Sunny) Outdoors on a sunny day

(Shade) In the shade on a sunny day

(Cloudy) Cloudy day without visible sun

(Incandescent) Incandescent light

(Fluorescent) Fluorescent light

20 Taking Photos

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

04_TAKE.FM A5 size

12/11/06

Setting Image Quality

Image quality determines the format in which the image is saved, the

size of the image as it will be displayed on a computer screen, and the

file size of image stored in a memory card. Select the image quality

according to how you plan to use the image data.

Image Format

Images can be saved in RAW format, JPEG format, or both file types at

the same time if RAW+JPG is selected as the Raw Setting in the

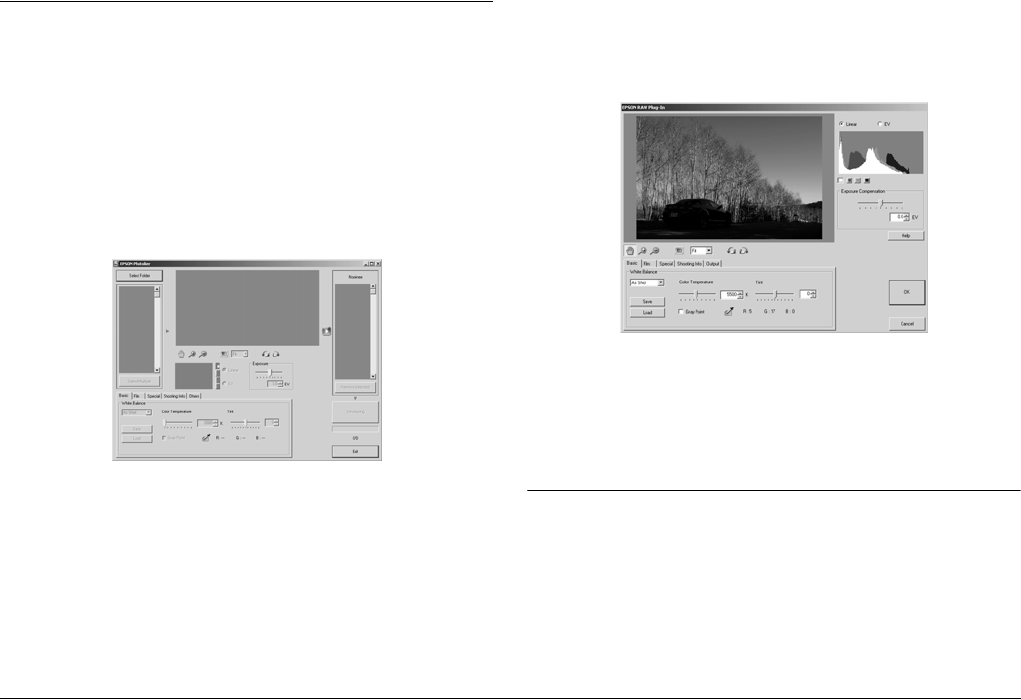

Settings menu (see page 35). To open or process RAW images, you need

to install the software on the CD-ROM that came with your camera.

Because they are uncompressed, RAW images take up a lot of storage

space, but are also well suited for image processing and printing on

paper. For more information, see “Opening RAW Images on Your

Computer” on page 38.

JPEG is a universal image format that can be viewed on most computers

without using proprietary software. Files saved in JPEG format are

compressed and smaller than those saved in RAW format. They do lose

varying degrees of picture quality when compressed, and are less

suited for postprocessing because resaving a JPEG file further degrades

its quality. JPEG format is fine for viewing on a regular computer screen

and can also produce good quality prints if saved in a high enough

resolution.

Set the image quality as follows:

1. Pull up and hold the Q/WB lever at the Q position.

2. Rotate the jog dial to select the desired image quality setting on the

status gauge:

* 13 MB if RAW+JPEG is selected as the RAW Setting in the Settings

menu. See page 35 for more information.

3. Release the Q/WB lever.

Setting Format Image Size File Size

R RAW 3,008 x 2,000 10 MB*

H JPEG (High) 3,008 x 2,000 3 MB

N JPEG (Normal) 2,240 x 1,488 1.5 MB

Taking Photos 21

R4CH410

User’s Guide Rev.C

04_TAKE.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

2

2

2

2

2

2

2

2

2

2

Setting ISO Sensitivity

The ISO sensitivity setting determines the camera’s sensitivity to

available light. As ISO sensitivity is increased, less light is required to

expose an image, which permits faster shutter speeds. This is helpful

for shooting fast moving subjects without blurring, but it also amplifies

any digital noises caught in an image, which can produce a picture with

a grainy appearance.

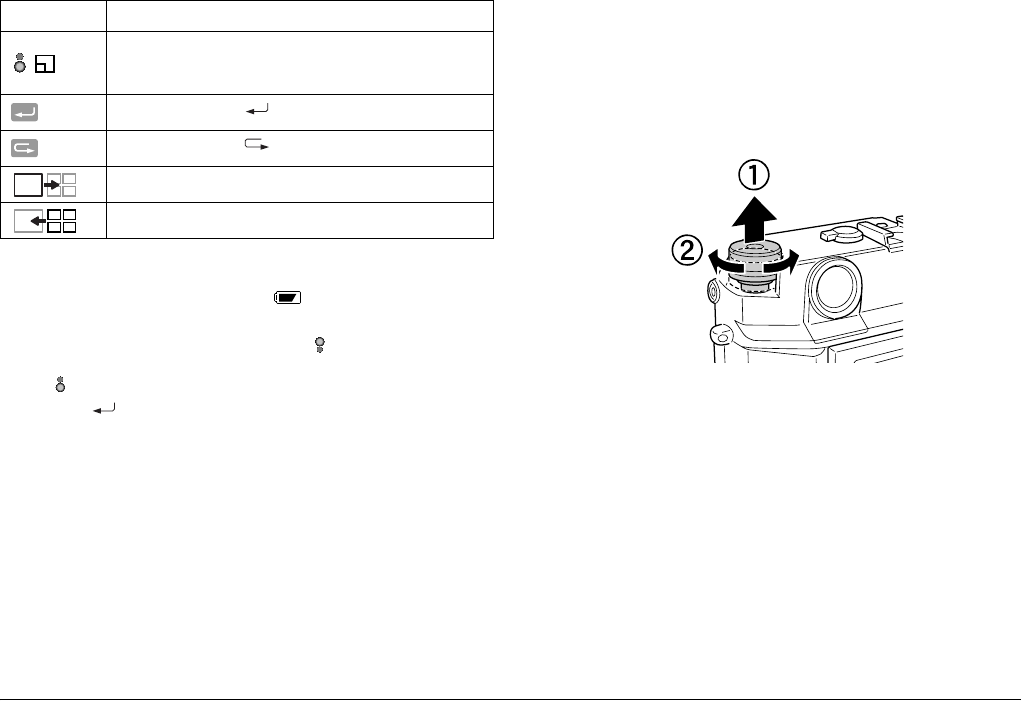

To set ISO sensitivity, pull up and rotate the outer ring of the shutter

speed dial to select 200, 400, 800, or 1600.

Setting the Exposure

You can set the exposure automatically or manually. Automatic

exposure is a convenient feature that works sufficiently under most

conditions. With manual exposure, you have more control over how

your pictures will be exposed.

Setting the Shutter Speed Automatically

Use the aperture priority automatic exposure (AE) feature to

automatically set the shutter speed for the selected aperture setting.

This is useful when you want to control the depth of field or to produce

special effects, or when you simply want to take point-and-shoot

snapshots.

The AE feature works sufficiently most of the time, but under certain

conditions you can also apply exposure compensation within the range

of +2 EV to -2 EV in 1/3 EV increments. You may, for example, increase

the compensation value by one notch (+1/3 EV) to overexpose a subject

standing in a bright background. Likewise, if your subject is too bright

for the background, you would lower the EV to underexpose the

subject.

22 Taking Photos

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

04_TAKE.FM A5 size

12/11/06

Follow these steps:

1. To use automatic exposure, rotate the shutter speed dial to the AE

position.

2. If you need to select an exposure compensation setting, first release

the dial from the AE position by pressing the dial-lock release

button.

3. While holding the button down, rotate the dial to the desired

position.

Setting the Shutter Speed Manually

You can specify the shutter speed from 1 to 1/2000 sec., or B (Bulb).

To set the shutter speed, rotate the shutter speed dial to the desired

shutter speed value.

Note:

❏If the dial is in the AE position, press the dial-lock release button before

attempting to rotate it.

❏To avoid blurring, set the shutter speed faster than "1/focal length (mm)."

If using a slower shutter speed, the use of a tripod is recommended.

❏For brighter subjects, fast moving subjects or with a higher ISO

sensitivity, a higher shutter speed is recommended.

Taking Photos 23

R4CH410

User’s Guide Rev.C

04_TAKE.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

2

2

2

2

2

2

2

2

2

2

B (Bulb) Setting

The bulb setting is used for shooting night pictures or astronomical

objects. With this setting, the shutter stays open as long as the shutter

release button is depressed.

Note:

❏When you set NR (Noise Reduction) to Hi (High) in the Film Settings

screen and set the exposure at more than 2 seconds, noise reduction is

automatically performed after taking a photo. Do not turn the power off

until the SD card access light goes out. If you turn the power off before

the noise reduction procedure is complete, the image is saved without noise

reduction.

❏When taking photos in B shooting mode, use a tripod and shutter release

cable to prevent the picture from blurring. Install the cable as shown in

the illustration below.

Using a Flash

You can use an optional flash unit when shooting pictures under low

light conditions. The syncro speed of the flash is 1/125 second. Set the

shutter speed dial to 125 when using a flash.

For more information, see the documentation included with your flash.

Setting the Aperture

Rotate the lens aperture ring to the desired value.

For more information, see the documentation included with your lens.

Using the Light Meter

The camera has a built-in light meter that calculates the best shutter

speed for the amount of light available through the lens. Press the

shutter release button halfway to view the metered shutter speed (in

red) at the bottom of the viewfinder, then adjust the exposure settings

as needed.

The metered value is displayed in the range of 1 (1 second) through

2000 (1/2000 second). For any value higher than one second, 1 is

displayed in the viewfinder. Likewise, for values lower than 1/2000

second, 2000 is displayed in the viewfinder.

24 Taking Photos

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

04_TAKE.FM A5 size

12/11/06

With Manual Exposure

When manual exposure is selected, the manually selected shutter speed

is lit and the metered speed flashes.

You can rotate the shutter speed dial and/or the aperture ring on the

lens to match the metered value, at which point only one shutter speed

will be displayed in the viewfinder. Or you can disregard the meter

reading and do your own exposure adjustments.

With Automatic Exposure

When AE is selected, the metered shutter speed is lit. If you are using

exposure compensation, the shutter speed flashes to indicate that it is

a compensated value.

Locking the Exposure Setting (AE-lock)

You can lock the exposure setting at the metered value using the

AE-lock button. This is useful, for example, when you create a single

panoramic picture from a series of images, to make sure they all have

the same level of exposure.

To lock the exposure setting, point to the subject when using the AE

mode and press the AE-lock button. The exposure setting remains

locked until the AE-lock button is released.

50060

Flashes Lights

60

Lights or flashes

Taking Photos 25

R4CH410

User’s Guide Rev.C

04_TAKE.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

2

2

2

2

2

2

2

2

2

2

Focusing

The camera’s viewfinder has a magnification of 1.0x, which allows you

to keep both eyes open when focusing on your subject.

When focusing, keep your eye in the center of the rangefinder eyepiece

for the best result.

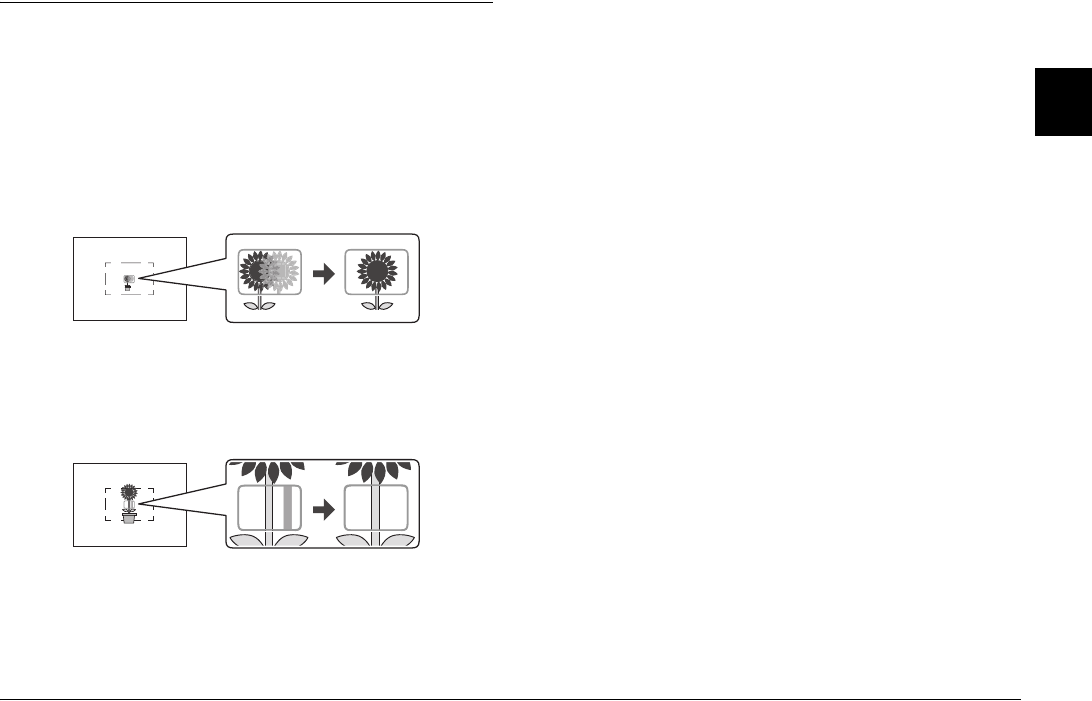

To focus on a subject, rotate the lens focusing ring until the

double-image converges in the center of the bright-line frame.

If a subject has a distinct vertical line (e.g., a tree or a tower), rotate the

focus ring until the lines merge into a single continuous line. This

usually produces sharper images as straight lines are easier to focus on.

26 Viewing and Managing Photos

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

05_VIEW.FM A5 size

12/11/06

Chapter 3

Viewing and Managing Photos

Opening the LCD Monitor

1. Pull open the rear panel using the notch at the bottom.

2. Gently rotate the panel clockwise until the LCD monitor faces

outward.

3. Push the panel back into place.

cCaution:

❏Do not pick up or handle the camera by the rear panel.

❏Do not operate the camera while the rear panel is left open.

DUMMY

Notch

DUMMY

DUMMY

Viewing and Managing Photos 27

R4CH410

User’s Guide Rev.C

05_VIEW.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

3

3

3

3

3

3

3

3

3

3

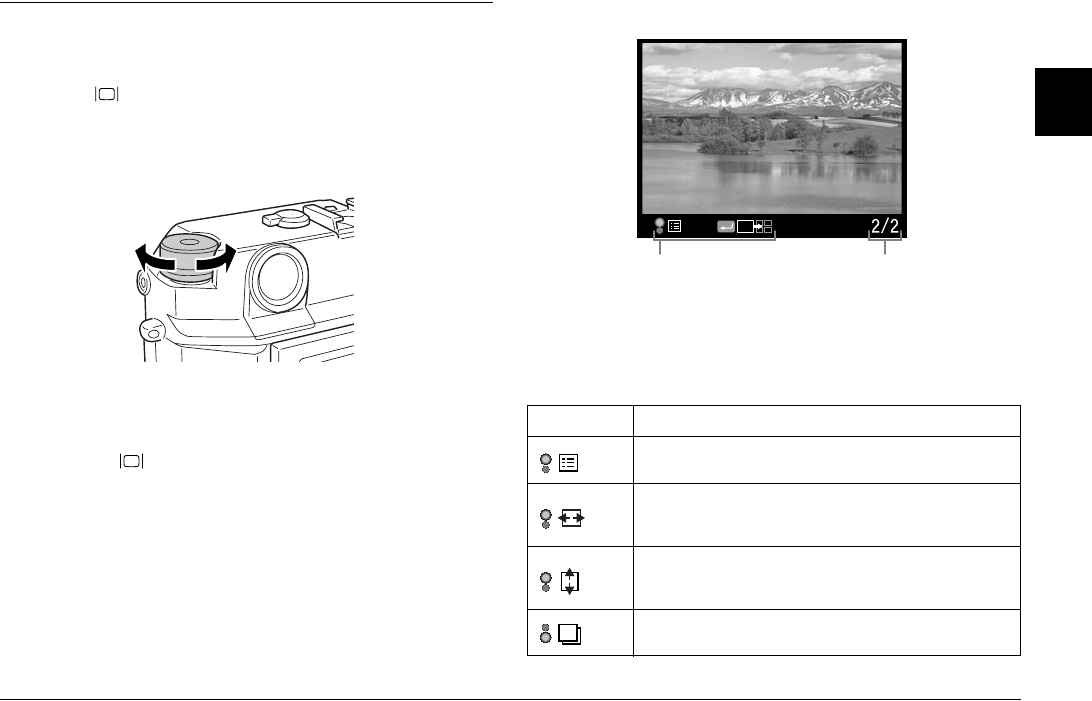

Viewing Images

1. Make sure the camera is on.

2. Press the (LCD) button. The camera enters playback mode and

displays the newest recorded image.

3. Rotate the jog dial (lower position) clockwise or counterclockwise

to display the image you want to view.

Note:

If you do any of the following while the camera is in playback mode, the

LCD monitor is turned off and the camera returns to shooting mode:

❏Press the (LCD) button

❏Press the shutter release button

❏Invert the LCD monitor

Image display

Monitor Icons

The icons displayed at the bottom of the LCD monitor indicate the

following functions or operations.

Icon Description

Indicates you can select the menu option by rotating the

jog dial (upper position) clockwise or counterclockwise.

Indicates you can scroll the image horizontally by

rotating the jog dial (upper position). Displayed only for

the Magnify feature.

Indicates you can scroll the image vertically by rotating

the jog dial (upper position). Displayed only for the

Magnify feature.

Indicates you can display the previous or next image by

rotating the jog dial (lower position).

Monitor icons Current image/

total images

(up to 9999)

28 Viewing and Managing Photos

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

05_VIEW.FM A5 size

12/11/06

Note:

❏When the battery is running low, the (battery) icon appears above

the jog dial icon.

❏When the jog dial is in the upper position, the (upper) icon at the bottom

left corner turns green. Likewise, when the jog dial is in the lower position,

the (lower) icon turns green.

❏Press the (ENTER) button to toggle between the single and tile

display modes.

Viewing Photo Information

Follow these steps to see more photo information:

1. Display an image on the LCD monitor.

2. Pull up the jog dial to the upper position, then rotate it to display

the desired set of information about the image.

The following sets of information are available:

❏General information

❏Exposure histogram

❏Highlight

❏Composition grid

❏Detailed information

Indicates you can magnify or shrink the image by

rotating the jog dial (lower position). Displayed only for

the Magnify feature.

Appears when the (ENTER) button is active.

Appears when the (CANCEL) button is active.

Indicates single display mode.

Indicates tile display mode (thumbnails of four images).

Icon Description

Viewing and Managing Photos 29

R4CH410

User’s Guide Rev.C

05_VIEW.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

3

3

3

3

3

3

3

3

3

3

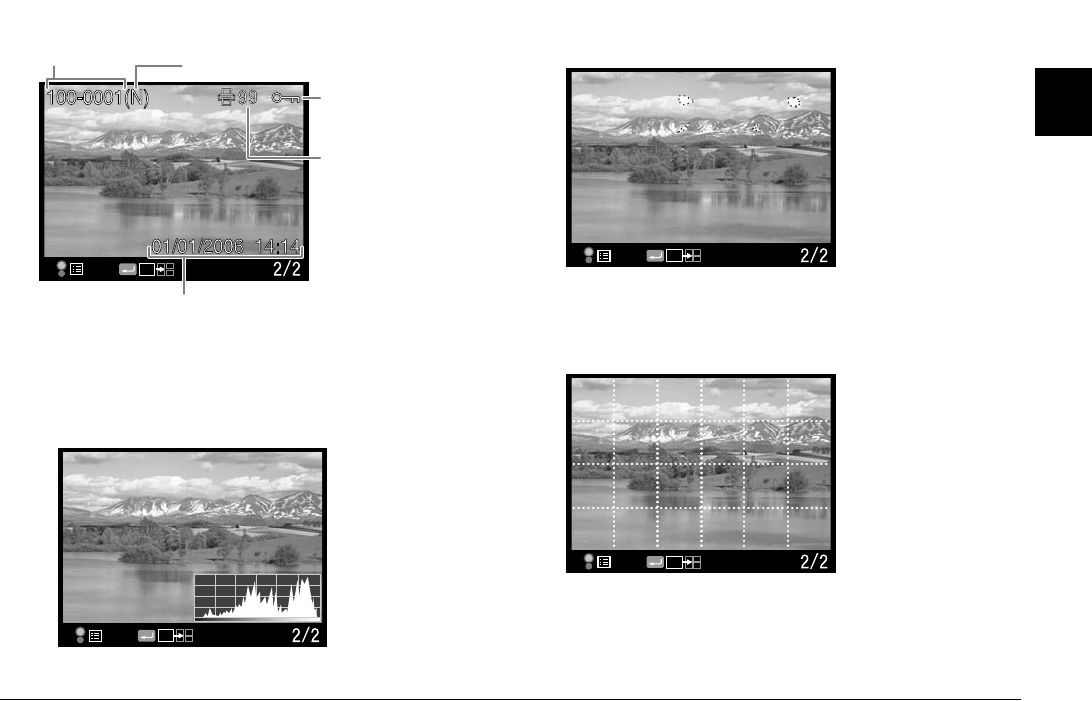

General Information

Exposure Histogram

Shows the densities of shadow and highlight areas occupied

in the image.

Highlight

Outlines and flashes highlight areas.

Composition Grid

Shows the grid to aid composition.

File sequence

number Image quality

Indicates this

image is locked

Number of prints

(if DPOF is set)

Date and time this

image was taken

30 Viewing and Managing Photos

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

05_VIEW.FM A5 size

12/11/06

Detailed Information

Lists detailed information about camera settings.

Listed information includes the following:

❏File name (file number and format)

❏Image size (image quality)

❏Color (color/monochrome) setting. If monochrome is set, the color

of the filter is also displayed.

❏Shutter speed. If the image was taken using the AE feature, AE and

the exposure compensation value (if used) are displayed.

❏ISO sensitivity

❏White balance

❏Film setting

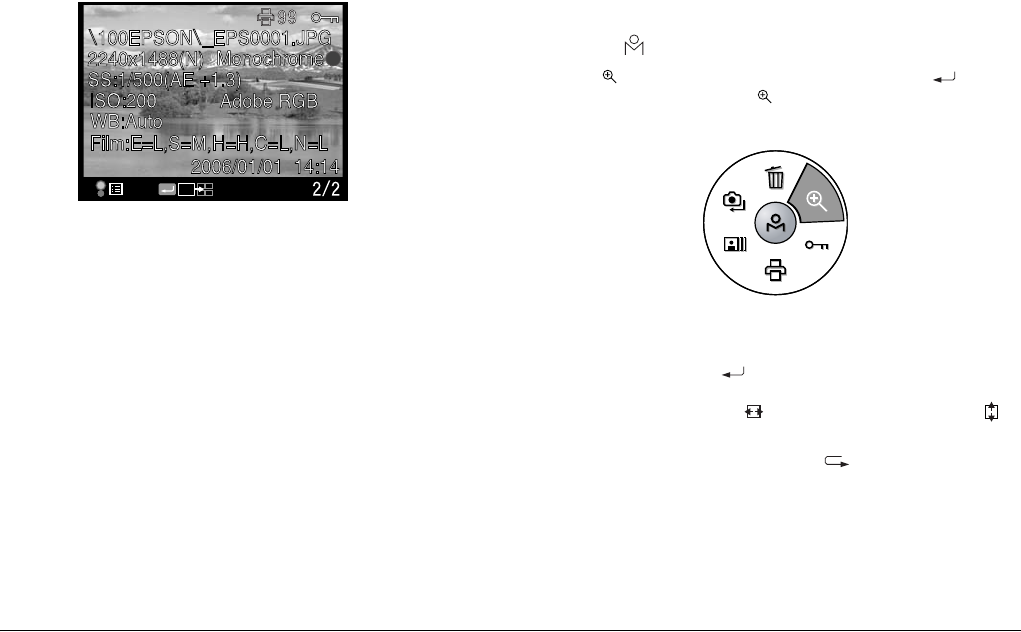

Magnifying Images

Follow these steps to zoom in on an image displayed on the LCD

monitor (up to 16x).

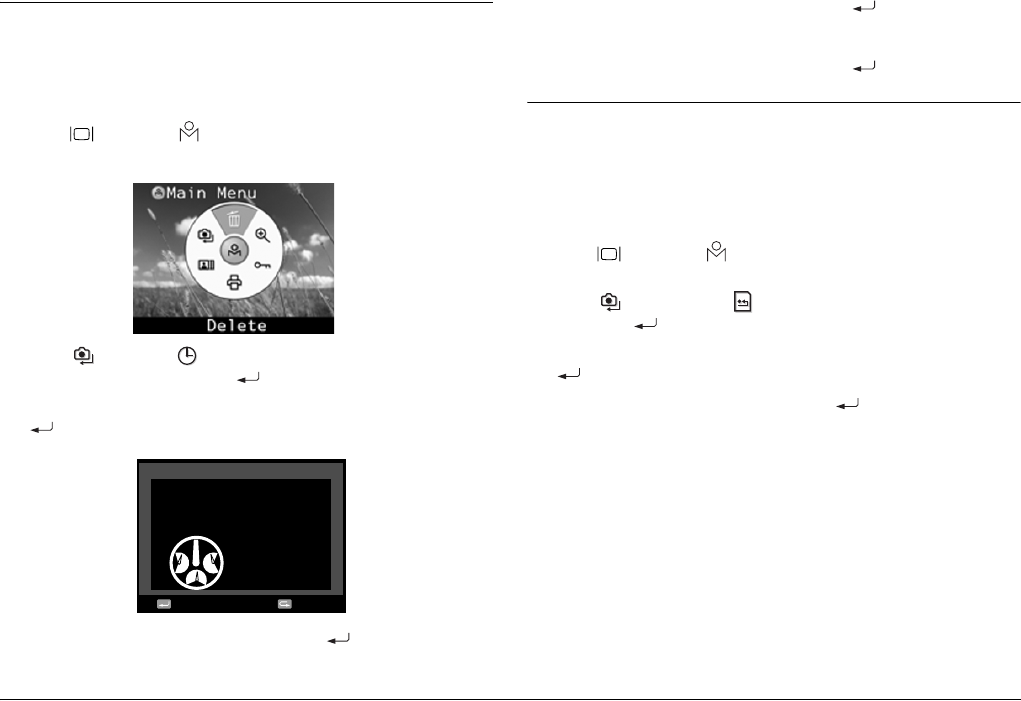

1. Display an image on the LCD monitor.

2. Press the (MENU) button.

3. Select (Magnify) using the jog dial, then press the (ENTER)

button. The Magnify mode ( ) icon is displayed at the top left

corner of the screen.

4. Rotate the jog dial (lower position) to enlarge or reduce the image.

5. To view different areas of the image, rotate the jog dial (upper

position) and press the (ENTER) button to switch the direction

from vertical to horizontal, or vice versa. The current direction

setting is indicated by the (horizontal direction) icon or

(vertical direction) icon at the bottom left of the screen.

6. To return to the main menu, press the (CANCEL) button once

or twice.

Viewing and Managing Photos 31

R4CH410

User’s Guide Rev.C

05_VIEW.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

3

3

3

3

3

3

3

3

3

3

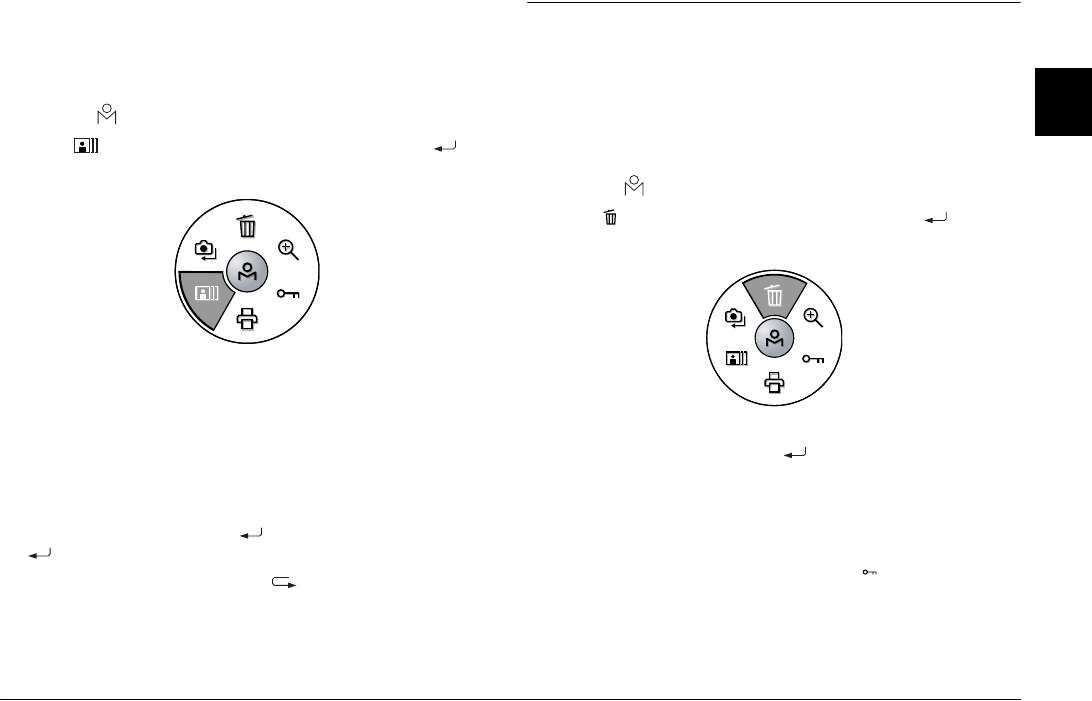

Running a Slide Show

This feature allows you to view all the images in a slide show format,

with a three-second interval between images.

1. Display an image on the LCD monitor.

2. Press the (MENU) button.

3. Select (Slide Show) using the jog dial, then press the

(ENTER) button.

4. Select the order in which you want the images to be displayed:

❏Rotate the jog dial clockwise to start the slide show from the

oldest image recorded. The forward playback (r) icon is

displayed at the bottom of the screen.

❏Rotate the jog dial counterclockwise to start the slide show

from the newest image back to the oldest one. The reverse

playback (l) icon is displayed at the bottom of the screen.

To pause the slide show, press the (ENTER) button. To restart, press

the (ENTER) button again.

To return to the main menu, press the (CANCEL) button.

Managing Images

Deleting Images

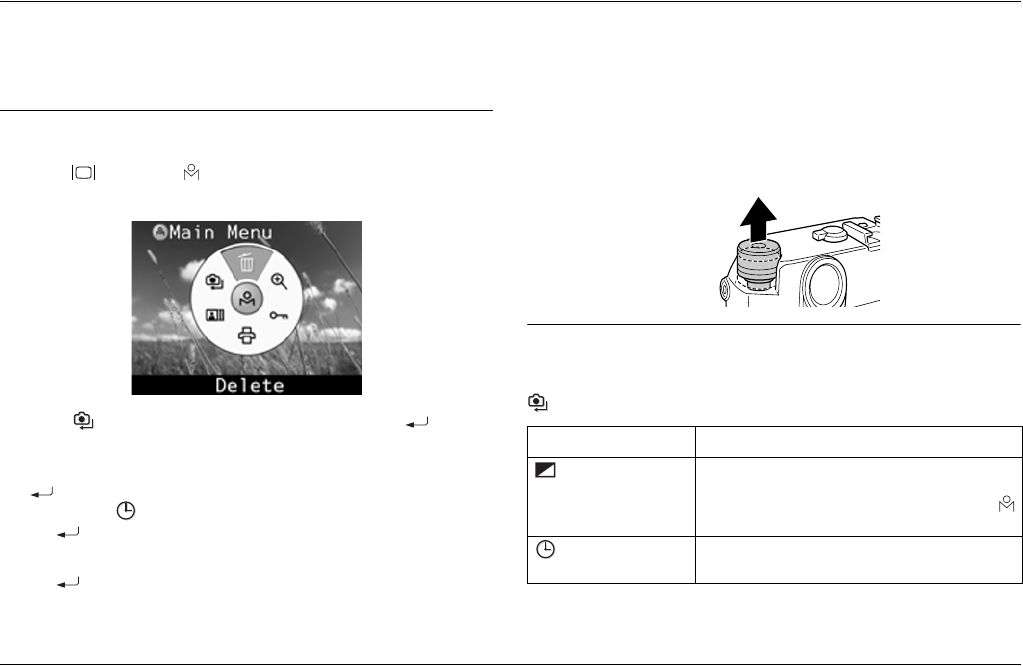

In playback mode, you can delete the currently displayed image or all

the images saved on the memory card.

1. Display an image on the LCD monitor.

2. Press the (MENU) button.

3. Select (Delete) using the jog dial, then press the (ENTER)

button.

4. Select Delete 1 image or Delete all images using the jog dial

(upper position), then press the (ENTER) button. You see the

confirmation screen.

Note:

❏If you select Delete 1 image, you can select an image you want to

delete by rotating the jog dial (lower position).

❏You cannot delete images that have a lock ( ) icon. See the next

section, “Locking/Unlocking Images” on page 32 for details.

❏If the memory card is locked, the message “Cannot delete. The SD

card is write-protected” is displayed. Remove the card from the

camera, then unlock the card and try again.

32 Viewing and Managing Photos

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

05_VIEW.FM A5 size

12/11/06

5. In the confirmation screen, select OK using the jog dial, then press

the (ENTER) button.

cCaution:

This operation cannot be undone.

Note:

This procedure does not securely delete the data from the memory card. To

securely "flush" the memory card so that no data can be recovered from the

card using third-party data recovery software, use Full Format to format the

card. For instructions, see “Formatting the Memory Card” on page 42.

Locking/Unlocking Images

Use this feature to protect images from accidental deletion.

Note:

Locked images are read-only and cannot be modified.

1. Display an image on the LCD monitor.

2. Press the (MENU) button.

3. Select (Lock) using the jog dial, then press the (ENTER)

button. You see the Lock menu.

4. Select Lock/Unlock 1 image, Lock all images, or Unlock all

images using the jog dial (upper position), then press the

(ENTER) button.

When the image is locked, the lock ( ) icon is displayed at the top right

of the image.

If you select Lock/Unlock 1 image, you can select an image you want

to lock by rotating the jog dial (lower position).

If you select Lock/Unlock 1 image for a locked image, the image will

be unlocked.

cCaution:

If you format a memory card that contains images, all the data on the

card will be lost, including locked images.

Selecting Photos to be Printed

(DPOF Setting)

This feature allows you to specify the number of prints for the images

you want to print from a printer, application, or photo lab that supports

Digital Print Order Format (DPOF).

Note:

This feature is not available for images saved in RAW format.

1. Display an image on the LCD monitor.

2. Press the (MENU) button.

Viewing and Managing Photos 33

R4CH410

User’s Guide Rev.C

05_VIEW.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

3

3

3

3

3

3

3

3

3

3

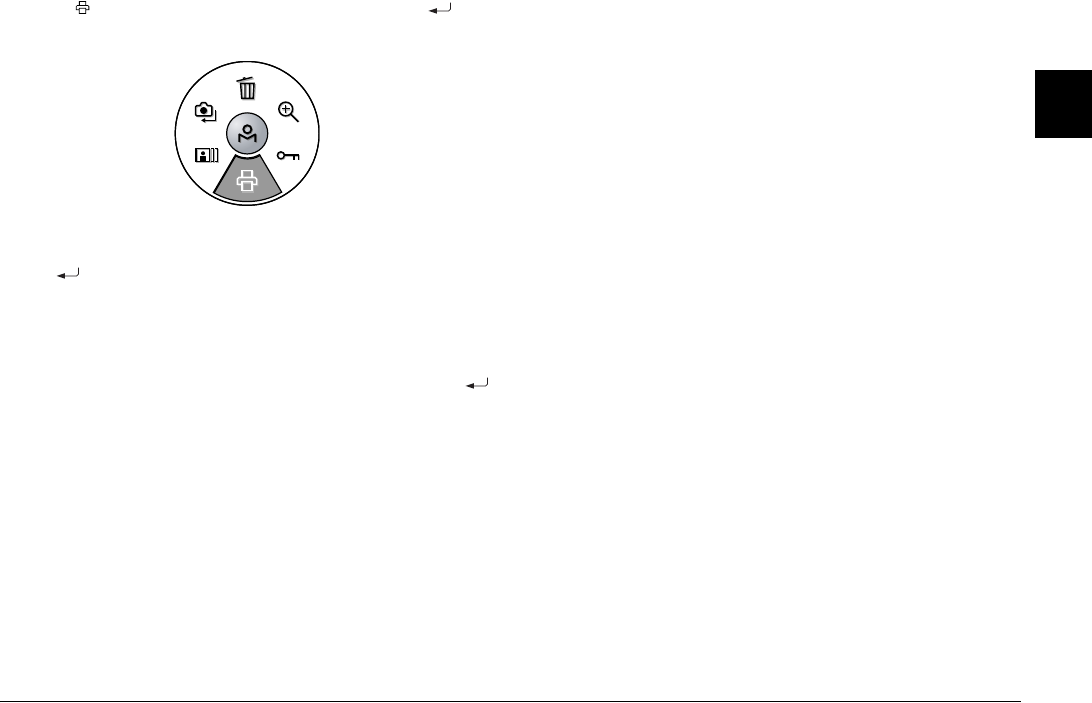

3. Select (Print Order) using the jog dial, then press the

(ENTER) button.

4. Select Set DPOF for one for the displayed image, or Set DPOF for

all for all the images using the jog dial (upper position), then press

the (ENTER) button.

Note:

❏To select another image, rotate the jog dial in the lower position.

❏To view the current DPOF setting, select View current DPOF.

5. Specify the number of prints using the jog dial, then press the

(ENTER) button.

34 Customizing the Settings

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

06_SETNG.FM A5 size

12/11/06

Chapter 4

Customizing the Settings

You can use the LCD screen to adjust camera settings.

Accessing the Settings Menu

1. Press (LCD) then (MENU) to display the main menu on the

LCD monitor.

2. Select (Settings) using the jog dial, then press the (ENTER)

button to display the Settings menu.

3. Select the desired setting using the jog dial, then press the

(ENTER) button. The selected setting is displayed.

If you select (Basic Setup), select the desired setting and press

the (ENTER) button again.

4. Change the value or select the item using the jog dial, then press

the (ENTER) button.

Using the Jog Dial

Rotate the jog dial clockwise or counterclockwise to display the

previous or next menu or photo. The jog dial is used in either the raised

or lowered position, depending on the menu or function. To use the jog

dial in the raised position, pull it up as shown below.

Setting Items

Settings Menu

Setting Description

(Color Setting) Selects whether to save images in Color or

Monochrome. For Monochrome, you can

select the Monochrome Filter by pressing the

(MENU) button.

(Basic Setup) Displays the Basic Setup menu. See “Basic Setup

Menu” on page 36.

Customizing the Settings 35

R4CH410

User’s Guide Rev.C

06_SETNG.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

4

4

4

4

4

4

4

4

4

4

(Format SD Card) Formats the memory card. You can select

Quick Format or Full Format. See “Formatting

the Memory Card” on page 42 for details.

(Initialize Settings) Resets the current settings (except date and

time) to their default settings as shown below.

Setting Default Value

Color Color

Film Standard

Date YYYY/MM/DD

Power Save Timer 5min

Sequential Numbering On

LCD Brightness 5/8

Language English

USER Button Delete

(Long Exp Noise

Reduction)

Reduces noise that appears in an image taken

with a long exposure. The shooting time may

become longer depending on shooting

conditions.

(Color Space) Selects the color space from sRGB or Adobe

RGB. Adobe RGB is a wider color space than

sRGB and encompasses the colors that can be

printed with CMYK inks. Select Adobe RGB if you

have a printer that supports it.

(RAW Setting) Sets the image format recorded when shooting

in RAW mode. You can select RAW format only,

or both RAW and JPEG (high resolution) format

in a single file. RAW+JPEG provides the

convenience of viewing the JPEG image on

most computers while retaining the RAW data

for postprocessing, at an increase in image size

and memory card access time.

Setting Description

(Film Setting) Allows you to quickly switch film profiles to best

suit the shooting subject or environment. For

each film profile (Film1, Film2, or Film3), you can

assign Edge Enhance, Saturation, Tint, Contrast,

and NR (Noise Reduction). By default, Film1 is

preset for portrait, Film2 for landscape, and

Film3 for night pictures. Use Standard if no

particular profile is required.

Setting Description

36 Customizing the Settings

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

06_SETNG.FM A5 size

12/11/06

Basic Setup Menu

Setting Description

Time and Date Sets the current date and time

(year, month, day, hours and minutes).

See “Setting the Time and Date” on page 41.

Date Format Selects date display format from the following:

YYYY/MM/DD (default setting),

MM/DD/YYYY,

DD/MM/YYYY

Power Save Timer Selects the length of time before the camera

enters the power save mode, in which the LCD

monitor is turned off automatically to reduce

power consumption.

The available settings are 3min, 5min (default

setting), 10min, or 20min.

Press any button to exit the power save mode.

Sequential Numbering Specifies whether to save images with a

sequential number (as part of the file name).

On (default): sequential numbers continue

even if the memory card is replaced.

Off: sequential numbers end and a new

sequence of numbers starts when the memory

card is replaced.

LCD Brightness Changes brightness of the LCD monitor.

Also shows the firmware version.

Language Selects the language for messages and menus

displayed on the LCD monitor from the

following: Japanese, English, French, German,

Italian, Spanish, Dutch, T (Traditional)-Chinese

Calibrate Needles Displays the Needle Calibration menu to adjust

the status gauge needles: E (number of

remaining shots), R (image quality), E

(remaining battery power), and A (white

balance).

Dead Pixel Correction Corrects non-functional pixels so they are less

conspicuous in photographed images. Repeat

this procedure every few months, or if you

notice missing (black) pixels or hot (white)

pixels. For the pixels that cannot be corrected

with this setting, try Long Exp Noise Reduction

(see page 35).

Note:

Be sure to attach the lens cap before executing

this feature. Otherwise, correct pixels may be

incorrectly calibrated. Also make sure the

battery has enough power left when using this

feature. You cannot execute this function with

a near-empty battery.

Quick View Displays the image on the LCD monitor (i.e.,

enters the playback mode) automatically

when you release the shutter. You can select

the time period during which each image is

displayed on the LCD monitor: 3 sec or 10 sec.

Quick View is canceled and the LCD monitor is

turned off if you do any of the following:

❏Press the (LCD) button

❏Press the (MENU) button

❏Press the (USER) button

❏Press the shutter release button

❏Turn off the camera

Setting Description

Customizing the Settings 37

R4CH410

User’s Guide Rev.C

06_SETNG.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

4

4

4

4

4

4

4

4

4

4

Assign USER Button You can assign one of the following functions

to the (USER) button: Delete, Lock,

Magnify, Print, and Film. By default, Delete is

assigned to this button.

Note:

The (USER) button does not function in the

tile display mode.

Setting Description

38 Opening RAW Images on Your Computer

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

07_SOFT.FM A5 size

12/11/06

Chapter 5

Opening RAW Images on Your Computer

Software Overview

To open RAW format images, you need to install the Epson PhotoRAW

software included on the CD-ROM that came with your camera:

❏EPSON PhotoRAW is a standalone application that can process

multiple RAW images at one time using the batch feature.

❏EPSON RAW Plug-In lets you process your images using Adobe

Photoshop (versions 7, CS, CS2, and Elements 2 and 3).

System Requirements

Windows: OS: Microsoft® Windows® 98 Second Edition,

Me, 2000 Professional, XP Home Edition, XP

Professional

Hardware: Pentium® III 1 GHz or faster (Pentium 4 2

GHz or faster is recommended)

Memory: 256 MB or more (1 GB or more is

recommended)

Hard Disk: 10 MB or more is required for installation

500 MB or more is required for operation

Display: XGA (1024 × 768) or higher, 24-bit color or

higher

Macintosh®: OS: Mac® OS 10.2 or later

Hardware: PowerPC® G4 or higher (PowerPC G5 is

recommended)

Memory: 256 MB or more (1GB or more is

recommended)

Hard disk: 10 MB or more is required for installation

500 MB or more is required for operation

Display: 1024 × 768 or higher, 16-bit color or higher

(24-bit color is recommended)

Opening RAW Images on Your Computer 39

R4CH410

User’s Guide Rev.C

07_SOFT.FM A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

5

5

5

5

5

5

5

5

5

5

Installing the Software

To install the software, you need administrator privileges.

EPSON PhotoRAW

1. Insert the software CD-ROM into your CD-ROM drive.

The EPSON Installer Program dialog box appears automatically.

Note:

If it does not appear, click the CD-ROM icon, and then select Open from

the File menu. Then double-click EPSETUP. EXE.

2. Follow the on-screen instructions until all the software is installed.

When you see a message that the installation is complete, click

Finish.

Uninstalling PhotoRAW

If you need to uninstall PhotoRAW, do one of the following:

❏Click Start, point to Settings, and select Control Panel,

Add/Remove Programs, and then click EPSON PhotoRAW.

❏Click Start, point to Programs, and select EPSON PhotoRAW, and

then click Uninstall.

EPSON RAW Plug-In

1. Insert the software CD-ROM into the CD-ROM drive.

Windows:

The EPSON Installer Program dialog box appears automatically.

Note:

If it does not appear, click the CD-ROM icon, and then select Open from

the File menu. Then double-click EPSETUP. EXE.

Macintosh:

Double-click Install EPSON RAW Plug-In icon inside the EPSON

folder.

2. Follow the on-screen instructions until the software is installed.

When you see a message that the installation is complete, click

Finish or Quit.

Note:

EPSON RAW Plug-In program is automatically installed in the plug-in

folder for Adobe Photoshop. If the plug-in folder for Adobe Photoshop is

not detected automatically, specify the folder manually.

Uninstalling RAW Plug-In

If you need to uninstall the RAW Plug-in, follow the instructions below.

Windows:

Click Start, point to Settings, and select Control Panel, Add/Remove

Programs, and then click EPSON RAW Plug-In.

Macintosh:

Delete the EPSON folder in the plug-in folder of Adobe Photoshop.

40 Opening RAW Images on Your Computer

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

07_SOFT.FM A5 size

12/11/06

Opening a RAW Image

Be sure to copy your RAW image files to your hard disk before trying

to open and process them. Working with them while they are still on

the memory card will take a very long time.

Using EPSON PhotoRAW

Click Start, point to All programs (or Programs), and select EPSON

PhotoRAW, and then click EPSON PhotoRAW.

EPSON PhotoRAW starts and the main window is displayed.

Using EPSON RAW Plug-In

For Windows

1. Start Adobe Photoshop.

2. Click File and point to Open. The Open dialog box is displayed.

3. Select the desired RAW file, then click the Open button.

For Macintosh

Start Adobe Photoshop and open the RAW file you want to process.

The main window for EPSON RAW Plug-In is displayed.

Note:

❏If the EPSON RAW Plug-In does not start automatically even if you select

a RAW file, select Open from the File menu, and select EPSON RAW

Plug-In from the Format drop-down list. Then select the RAW file.

❏You cannot select a RAW file from a sub folder.

Finding More Information

For more information about the bundled software, see the online help.

Maintenance and Troubleshooting 41

R4CH410

User’s Guide Rev.C

08_MAINT.fm A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

6

6

6

6

6

6

6

6

6

6

Chapter 6

Maintenance and Troubleshooting

Setting the Time and Date

1. Press (LCD), then (MENU) to display the main menu on the

LCD monitor.

2. Select (Settings), (Basic Setup), then Time and Date using

the jog dial, then press the (ENTER) button.

3. Use the following to set the time and/or date:

Note:

If you remove the battery from the camera, the date and time settings will be

lost after approximately two days.

Jog dial Changes the value.

(ENTER) button Moves the cursor forward.

Pressing this button on the minutes slot

applies the change and returns to the

previous menu.

(CANCEL) button Moves the cursor backward.

Pressing this button on the year slot returns

to the previous menu without setting time

or date.

42 Maintenance and Troubleshooting

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

08_MAINT.fm A5 size

12/11/06

Calibrating the Status Gauge

The gauge readings may deviate slightly from the set positions over

time. If this happens, follow the steps below to calibrate the gauge

needles.

1. Press (LCD) then (MENU) to display the main menu on the

LCD monitor.

2. Select (Settings), (Basic Setup), then Calibrate Needles

using the jog dial, then press (ENTER).

3. Select the needle you want to calibrate using the jog dial, then press

(ENTER).

4. Select l or r using the jog dial, then press (ENTER) repeatedly

to adjust the needle position on the status gauge.

5. Select Finish using the jog dial, then press (ENTER).

6. Repeat steps 2 through 4 if you want to calibrate the other needles.

7. Select Finish using the jog dial, then press (ENTER).

Formatting the Memory Card

Format the memory card when you want to erase all the data on the

card, or if the memory card has been formatted with a computer or

another digital camera and you cannot save any images on the card.

Follow these steps:

1. Press (LCD) then (MENU) to display the main menu on the

LCD monitor.

2. Select (Settings) then (Format SD Card) using the jog dial,

then press (ENTER).

3. Select Quick Format or Full Format using the jog dial, then press

(ENTER). The confirmation screen is displayed.

4. Select OK using the jog dial, then press (ENTER).

The formatting starts and the message “Formatting...” is displayed.

After the memory card is formatted, the screen returns to the

Settings menu.

Note:

❏When you format the memory card, all the data on the card will be lost,

including the locked images.

❏If the memory card is locked, the message “Cannot format. The SD card

is write-protected” is displayed. Remove the card from the camera, then

unlock the card and try again.

S e lect B a c k

Needle Calibration

Finish

Please calibrate

carefully.

Maintenance and Troubleshooting 43

R4CH410

User’s Guide Rev.C

08_MAINT.fm A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

6

6

6

6

6

6

6

6

6

6

cCaution:

Do not remove the memory card from the camera while the card is being

formatted.

Note:

Quick Format does not securely delete the data from the memory card. To

securely “flush” the memory card so that no data can be recovered from the

card, use Full Format to format the card.

Cleaning the Camera Body

Clean your camera thoroughly several times a year to keep it in good

working condition. Before you perform any maintenance procedure on

the camera, be sure to read the safety instructions on page 48. Then

follow these guidelines to clean the camera:

❏Be sure to turn off the camera before cleaning.

❏Use a clean, dry cloth to keep the camera free of dust.

❏Do not use abrasive cleaners.

❏If necessary, clean the battery contacts with a dry cloth.

Cleaning the CCD Sensor

If dark spots appear on the same place on all the pictures you take, there

may be dust particles on the CCD image sensor inside the camera. To

clean the CCD sensor, you need a hand blower and a cable shutter

release with a shutter lock feature.

cCaution:

❏Do not use blower cans that use compressed air.

❏Do not touch the sensor with your finger or a cloth. Doing so may

damage the sensor and may affect image quality.

❏Do not let the blower tip enter the camera body or touch the sensor

surface. The shutter or sensor may be damaged if the shutter is

accidentally released.

1. Remove the memory card from the camera.

2. Turn the shutter speed dial to B and attach the cable release.

3. Insert a fully charged battery and turn on the camera.

cCaution:

Do not use a low battery. If the battery dies and the shutter closes during

cleaning, the camera may be damaged.

4. Cock the shutter, then remove the lens or lens hole cover.

5. Lock the shutter open using the cable release.

6. Blow off the dust carefully using the hand blower.

7. After cleaning, unlock the cable release and close the shutter.

8. Attach the lens or lens hole cover and remove the cable release.

44 Maintenance and Troubleshooting

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

08_MAINT.fm A5 size

12/11/06

Storing the Camera

If you are not planning to use the camera for a long period of time,

remove the battery and store it at room temperature in a dry location.

Store the camera in its case. Do not store the camera in following

conditions:

❏Direct sunlight or bright light

❏High humidity

❏High heat

❏Excessive dirt or dust

❏Excessive vibrations

❏Strong magnetic fields

Troubleshooting

Error Messages

Other Problems

Message Remedy

Cannot delete. The image is

locked.

Unlock the image using the lock

function in the main menu, then try

again.

Cannot delete. The SD card is

write-protected.

Remove the card from the camera,

release the write-protect switch from

the lock position, and try again.

Cannot lock. The SD card is

write-protected.

The memory card is write-protected.

Remove it from the camera, release

the write-protect switch from the lock

position, and try again.

Cannot unlock. The SD card is

write-protected.

Remove the card from the camera,

release the write-protect switch from

the lock position, and try again.

Problem Remedy

Permanent black or white spots

(dead pixels) appear in

pictures taken with the

camera.

Use the Dead Pixel Correction feature

to correct the dead pixels. See “Basic

Setup Menu” on page 36 for details.

Due to the nature of the CCD sensor,

dead pixels cannot be completely

eliminated.

The shutter cannot be released

and the memory card access

light flashes.

The battery power is too low. Charge

the battery and try again.

Maintenance and Troubleshooting 45

R4CH410

User’s Guide Rev.C

08_MAINT.fm A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

6

6

6

6

6

6

6

6

6

6

Where To Get Help

Epson provides these technical support services:

Internet Support

Visit Epson’s support website for solutions to common problems. You

can download documentation, get FAQs and troubleshooting advice,

or e-mail Epson with your questions.

Speak to a Support Representative

Before you call Epson for support, please have the following

information ready:

❏Product name (Epson Rangefinder Digital Camera R-D1)

❏Product serial number (located on the camera body)

❏Proof of purchase (such as a store receipt) and date of purchase

❏Description of the problem

Then call:

U.S.: (562) 276-4315, 6AM to 6 PM, Pacific Time, Monday through

Friday.

Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time, Monday through

Friday.

Toll or long distance charges may apply.

Purchase Supplies and Accessories

You can purchase camera accessories from an Epson authorized

reseller. To find the nearest reseller, call 800-GO-EPSON

(800-463-7766). Or you can purchase online at www.epsonstore.com

(U.S. sales) or www.epson.ca (Canadian sales).

46 Appendix

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

09_APSPE.fm A5 size

12/11/06

Appendix

Standards and Approvals

Camera

Lithium-ion Battery

Battery Charger

Specifications

General

Image Format

EMC Directive 89/336/EEC EN55022 Class B

EN55024

EMC Directive 89/336/EEC EN55022 Class B

EN55024

Low Voltage Directive 73/23/EEC

EMC Directive 89/336/EEC

EN60950

EN55022 Class B

EN55024

Model type: Lens-interchangeable rangefinder digital

camera

Dimensions: Height: 88.5 mm (3.54 in.)

Width: 142 mm (5.68 in.)

Depth: 39.5 mm (1.58 in.)

Weight: Approx. 560 g (1.2 lb)

Temperature: Operating: 5 to 35°C

Storage: –20 to 60°C

Humidity:

(without condensation)

Operating: 30 to 80%

Storage: 10 to 80%

External interfaces: Memory card slot (for SD memory card up

to 2 GB)

X-sync contact (for external flash unit)

Recording format: RAW, JPEG

File type: Exif 2.21, DCF 2.0, DPOF 1.1 compliant

Image size/

typical file size:

JPEG: 2240 × 1488 pixels/1.5 MB

JPEG: 3008 × 2000 pixels/3 MB

RAW (12-bit)/10 MB

Appendix 47

R4CH410

User’s Guide Rev.C

09_APSPE.fm A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

Optical System

Display Functions

Viewfinder Indicators

Power Supply

JPEG compression ratio: Locked at 1/4

PRINT image matching: Supports PRINT Image Matching III

Image sensor: Primary-color filter CCD

(APS size: 23.7 × 15.6 mm)

Pixels: 6.1 M

Lens mount: EM mount (M-type bayonet mount; L-type

screw mount with an optional adapter

ring)

Viewfinder: Real image range finder type see-through

viewfinder

Viewfinder magnification: 1.0x

Rangefinder: Combined coincidence-type

(interlocking range: 0.7 m to infinity)

Rangefinder baseline

length: 38.2 mm

Visual field frame: 28/35/50 mm bright frame switching, auto

parallax compensation

Frame coverage: 85% (at 3 m)

Shutter: Electronically controlled vertically

traveling focal plane shutter

Shutter speed: 1/2000–1 sec, bulb

Flash: Synchronous: 1/125 sec or slower

Supported only in synchronized shooting

Metering: TTL screen surface direct actual-aperture

center-weighted averaged metering

Exposure control: Automatic exposure (AE) with aperture

priority and AE-lock/manual

Exposure compensation

range: +/-2.0EV in 1/3EV steps (AE mode only)

ISO sensitivity: 200/400/800/1600

35 mm equivalent focal

length multiplier: 1.53x

LCD monitor: Type 2 low-temperature polysilicon color

LCD

235 K pixels

Status gauge: Analog needle indicators

Shutter speed: 1/2000–1 sec. (flashing metered/lit: set on

dial)

Bright-line frames: for 50/28/35 mm lenses

Battery type: Lithium-ion

Model: EU-85

Output voltage: 3.7 V

Capacity: 1500 mAh

48 Appendix

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

09_APSPE.fm A5 size

12/11/06

Battery Charger

Optional Accessory

The following option is available for the camera.

❏Lithium-ion battery (Model: EU-85)

Important Safety Instructions

Read all of these instructions before using this product, and keep this

guide handy for later reference. Follow all warnings and instructions

marked on this product and the options.

When using the camera

❏Follow all warnings and instructions marked on this product.

❏Do not insert objects into any openings.

❏Do not touch the components inside this product unless instructed

to do so in the user documentation. Never force this product’s

components into place. Although this product is designed to be

sturdy, rough handling can damage it.

❏Protect the camera from rapid temperature change.

❏Never spill liquid onto this product.

❏If this product emits unusual noises, odors, or smoke, cancel the

current operation and turn it off immediately. Remove the battery

from the product. Contact our Customer Support.

❏To prevent fire or electric shock, do not cover this product with a

blanket or other covering that may give off a static electric shock.

❏To prevent fire or electric shock, do not expose this product or its

options to rain or moisture.

❏To prevent fire or explosion, do not use this product where

flammable or volatile gas is stored.

❏Do not use this product outdoors during a thunderstorm.

Battery charge life-cycle: Number of shots possible

Under shooting conditions 1*: Up to about

1000 shots

Un de r s ho ot in g c on dit ion s 2 ** : U p t o a bo ut

360 shots (compliant with the CIPA

standard)

* Shooting conditions 1:

Shooting six pictures per minute at a

regular interval then turning the camera

off for one minute before turning it on

again and repeating this procedure, while

the flash is off, a shutter speed of 1/250,

ISO of 200, image quality of N (JPEG:

2240 ×1488 pixels) and WB on Sunny.

** Shooting conditions 2:

Turning on the camera and waiting 30

seconds before taking the first picture,

then taking nine more pictures at 30

second intervals before turning off the

camera and removing the battery for

10 minutes and repeating this procedure,

while using the flash - which is attached to

the accessory shoe - on full for every

second shot, with a shutter speed of 1/125,

ISO of 200, image quality of H (JPEG:

3008 ×2000 pixels) and WB on Auto.

Model: A281H

Input voltage: 100–240 VAC, 50/60Hz

Charging method: Constant voltage, constant current

Appendix 49

R4CH410

User’s Guide Rev.C

09_APSPE.fm A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

❏Do not use this product after moving it from a cold to warm

environment, or vice-versa. Condensation may form on electronic

parts.

❏To prevent possible injury, do not take flash pictures in close

proximity to anyone’s eyes.

❏Do not insert your finger into the camera or EM mount.

❏If the liquid crystal solution contained in the LCD monitor leaks

out and gets on your hands, wash them thoroughly with soap and

water. If it gets into your eyes, flush them immediately with water.

❏When connecting this product to a computer or other device with

a cable, ensure the correct orientation of the connectors. Each

connector has only one correct orientation. Inserting a connector in

the wrong orientation may damage both devices connected by the

cable.

When using the strap

❏Do not swing the camera about. This can damage the camera or

other objects, or cause injury.

❏Do not pull or tighten the strap too much when wearing it; this can

cause serious injury.

❏Keep the strap away from children.

When using the battery

Follow the precautions below when using the battery as mishandling

it may cause injury.

❏If battery acid gets into your eyes or on your skin, immediately rinse

the affected area thoroughly with water and seek medical

treatment. If a battery is swallowed, seek medical treatment

immediately.

❏Use only an Epson Li-ion battery for this camera, as specified in

this manual.

❏Do not use the battery that comes with this product for other

devices.

❏To protect against short-circuiting, do not remove the outside

sleeves of the battery.

❏Do not handle the battery with wet hands or use it near water.

❏Do not expose the battery to water or high humidity.

❏Do not drop, puncture, disassemble, mutilate, or short-circuit the

battery.

❏Do not expose the battery to heat, fire, or water.

❏Do not use batteries that are leaking or damaged in any way.

❏Do not charge the battery on battery chargers other than the one

provided with this product.

❏Do not charge the battery near open flame or in very hot locations.

❏Keep the battery away from heat sources.

❏Prevent the battery from coming into contact with metal objects

that could short-circuit it, such as coins or keys.

❏Do not solder wires or terminals directly to the battery.

❏Do not touch battery terminals.

❏Keep the battery away from open flame.

❏If overheating, discoloration, distortion, a strange smell or any

other abnormal situations occur, remove the battery from this

product and do not use it.

❏Keep batteries out of the reach of children.

❏If charging has not finished after the regular charging time, stop

charging.

❏Do not place the battery into a high-pressured container or a

microwave oven.

❏Do not insert the battery into power outlets or other power sources,

such as cigarette lighters.

❏Charge the battery before using it. The battery is not fully charged

when you purchase it.

50 Appendix

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

09_APSPE.fm A5 size

12/11/06

When storing the battery

❏When not using this device for a long period, remove the battery

from this product and store it separately.

❏Do not store the battery where temperature or humidity is very

high.

❏Store the battery out of children’s reach.

❏Discharge the battery completely before storing it for a long time.

❏When not using the battery for a long time, charge the battery and

then discharge it completely about once a year during storage.

When disposing of the battery

Before disposing of the battery, make sure you discharge it completely.

wWarning:

❏Be sure to completely cover both ends of the battery with tape to

prevent combustion or explosion when disposing of it.

❏Do not dispose of the battery as ordinary refuse. Instead, dispose

of it in a collection or recycle box in accordance with local laws.

When using the battery charger

wWarning:

Read all relevant safety and operating instructions before using

this product, as misuse could result in personal injury from fire,

explosion, leakage, overheating, or electric shock.

These safety and operating instructions should be kept for future

reference.

❏Use only the Epson battery charger provided to charge the Epson

Li-ion battery Model EU-85. Never attempt to charge other types

of batteries in this charger as they may explode, leak, overheat, or

cause personal injury.

❏Do not charge primary (non-rechargeable) batteries.

❏Do not handle the battery charger with wet hands or use it near

water.

❏Do not expose the battery charger to water or high humidity.

❏Use only the type of power source indicated on the battery

charger’s label, and always supply power directly from a standard,

domestic power outlet with a power cord that meets the relevant

local safety standards.

❏Place the battery charger near an electrical outlet where the power

cord can be easily unplugged.

❏The battery charger is designed for use and provided with this

product. Do not attempt to use it with other electronic devices

unless specified.

❏The battery charger included is designed for use with this product.

Use of any other battery charger could result in fire, electric shock,

or injury.

❏Use only a power source that meets the power requirements

indicated on the label attached to the product. If you are not sure

of the power supply specifications in your area, contact your local

power company or contact our Customer Support.

❏Make sure the total amperage of all devices plugged into the power

outlet does not exceed the power outlet’s ampere rating.

❏If you plan to use this product in Germany, the building installation

must be protected by a 16 amp circuit breaker to provide adequate

short-circuit protection and over-current protection for this

product.

❏Do not use a damaged or frayed battery charger.

This mark indicates that the battery will be recycled by

RBRC. When you dispose of the battery, contact RBRC.

Appendix 51

R4CH410

User’s Guide Rev.C

09_APSPE.fm A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

❏If you use an extension cord with this product, make sure the total

amperage of all devices plugged into the extension cord does not

exceed the cord’s ampere rating.

❏Never disassemble, modify, or attempt to repair the battery charger

by yourself except as specifically explained in this guide.

❏Do not use power outlets controlled by wall switches or automatic

timers.

❏Do not use power outlets on the same circuit as large motors or

other appliances that may cause voltage fluctuations.

❏Avoid using outlets on the same circuit as photocopiers or air

conditioning systems that regularly switch on and off.

❏Position this product’s power cord so that it will not be stepped on

or run over.

❏Do not place any objects on the power cord or the battery charger.

❏Keep the power cord straight at the ends and at the points where

it enters the transformer.

❏Do not let the power cord become damaged or frayed. Place the

battery charger in a location where people are unlikely to walk on

the power code, and the cord is not pinched by items placed upon

or against it.

❏If you cannot insert the plug into the power outlet, contact an

electrician.

❏Use the power cord provided or a 6 to 10 foot UL-approved type

SPT-2 or heavier type, 2 X 18 AWG cord with a 125 V 10 A plug and

125 V 7 A connector.

When using a memory card

❏Only memory cards designed for the product’s specifications can

be used.

❏The methods for using memory cards vary according to card type.

Be sure to refer to the documentation included with your memory

card for details.

❏Do not remove the memory card while the power switch is on.

When using the LCD

❏The LCD monitor on this product may contain a few small bright

or dark spots. These are normal and do not mean that your LCD

monitor is damaged in any way.

❏If the LCD monitor on this product is damaged, consult your

dealer.

❏If the liquid crystal solution contained in the LCD monitor on this

product leaks out and gets onto your hands, wash them thoroughly

with soap and water. If it gets into your eyes, flush them

immediately with water. If discomfort or vision problems remain

after a thorough flushing, see a doctor immediately.

❏Only use a soft, dry cloth to clean the display. Do not use liquid or

chemical cleaners.

When storing, maintaining, or transporting the

camera

❏Do not store this product outdoors.

❏Do not store this product near water.

❏Do not store this product in a location subject to high temperature

or humidity.

❏Do not store this product in a location subject to rapid changes in

temperature or humidity.

❏Do not store this product in a location subject to direct sunlight or

strong light sources.

52 Appendix

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

09_APSPE.fm A5 size

12/11/06

FCC Compliance Statement for United

States Users

This equipment complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio or television reception. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause interference to radio and television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures.

❏Reorient or relocate the receiving antenna

❏Increase the separation between the equipment and receiver

❏Connect the equipment to an outlet on a circuit different from that

to which the receiver is connected

❏Consult your dealer or an experienced radio/TV technician for

help

WARNING

The connection of a non-shielded equipment interface cable to this

equipment will invalidate the FCC Certification of this device and may

cause interference levels which exceed the limits established by the FCC

for this equipment. It is the responsibility of the user to obtain and use

a shielded equipment interface cable with this device. If this equipment

has more than one interface connector, do not leave cables connected

to unused interfaces.

Changes or modifications not expressly approved by the manufacturer

could void the user’s authority to operate the equipment.

Appendix 53

R4CH410

User’s Guide Rev.C

09_APSPE.fm A5 size

12/11/06

R

Proof Sign-off:

tanto

category leader

editor

DECLARATION of CONFORMITY

According to 47CFR, Part 2 and 15 for Class B Personal Computers and

Peripherals; and/or CPU Boards and Power Supplies used with Class

B Personal Computers:

Declare under sole responsibility that the product identified herein,

complies with 47CFR Part 2 and 15 of the FCC rules as a Class B digital

device. Each product marketed, is identical to the representative unit

tested and found to be compliant with the standards. Records

maintained continue to reflect the equipment being produced can be

expected to be within the variation accepted, due to quantity

production and testing on a statistical basis as required by 47CFR §2.909

Operation is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired

operation.

We:

Located at:

EPSON AMERICA, INC.

MS 3-13

3840 Kilroy Airport Way

Long Beach, CA 90806

Telephone: (562) 290-5254

Trade Name:

Type of Product:

Model:

EPSON

Digital Still Camera

G911A

54 Index

LProof Sign-off:

tanto

category leader

editor

R4CH410

User’s Guide Rev.C

00_DSCUG.IX.fm A5 size

12/11/06

Index

A

accessory shoe, 8

adapter ring, 15

AE-lock, 24

AE-lock button, 9

aperture

setting, 23

B

battery

charging, 11

installing, 13

lithium-ion battery, 11

bright-line frame

illumination window, 7

selecting, 16

bulb setting, 23

button

CANCEL button, 10

ENTER button, 10

LCD button, 10

MENU button, 10

USER button, 10

C

Cable release, 23

calibrating status gauge, 42

cleaning

camera, 43

CCD sensor, 43

contacting Epson, 45

customer support, 45

D

dial-lock release button, 8

display icons, 27

E

EPSON PhotoRAW, 39

F

flash, 23

focal length conversion scale, 9

focusing, 25

format memory card, 42

frame selector lever, 8

I

icons, 27

image quality, 10

installing software, 39

ISO sensitivity dial, 8

J

Jog dial, 8

L

LCD monitor, 10, 26

lens

incompatible lens, 15

mounting L-mount lens, 16

mounting M-mount lens, 15

release button, 7

removing M-mount lens, 16

M

memory card

access light, 9

formatting, 42

inserting, 14

removing, 14

slot, 9

slot cover, 9

write protecting, 14, 42

O

option, flash, 23

optional accessory, 48

P

power on/off, 18

power switch, 8

PRINT image matching, 47

R

rangefinder eyepiece, 9

rangefinder window, 7

S

SD memory card, formatting, 42

setting

aperture, 23

white balance, 19

shutter charge lever, 8, 18

shutter release button, 8

shutter speed, 8, 23

software, installing, 39

status gauge, 8, 10

storing camera, 44

T

technical support, 45

V

viewfinder window, 7

W

white balance, 10

X

X-sync contact, 7
