EPSON Perfection 2450 PHOTO

9/01 EPSON Perfection 2450 PHOTO - 1

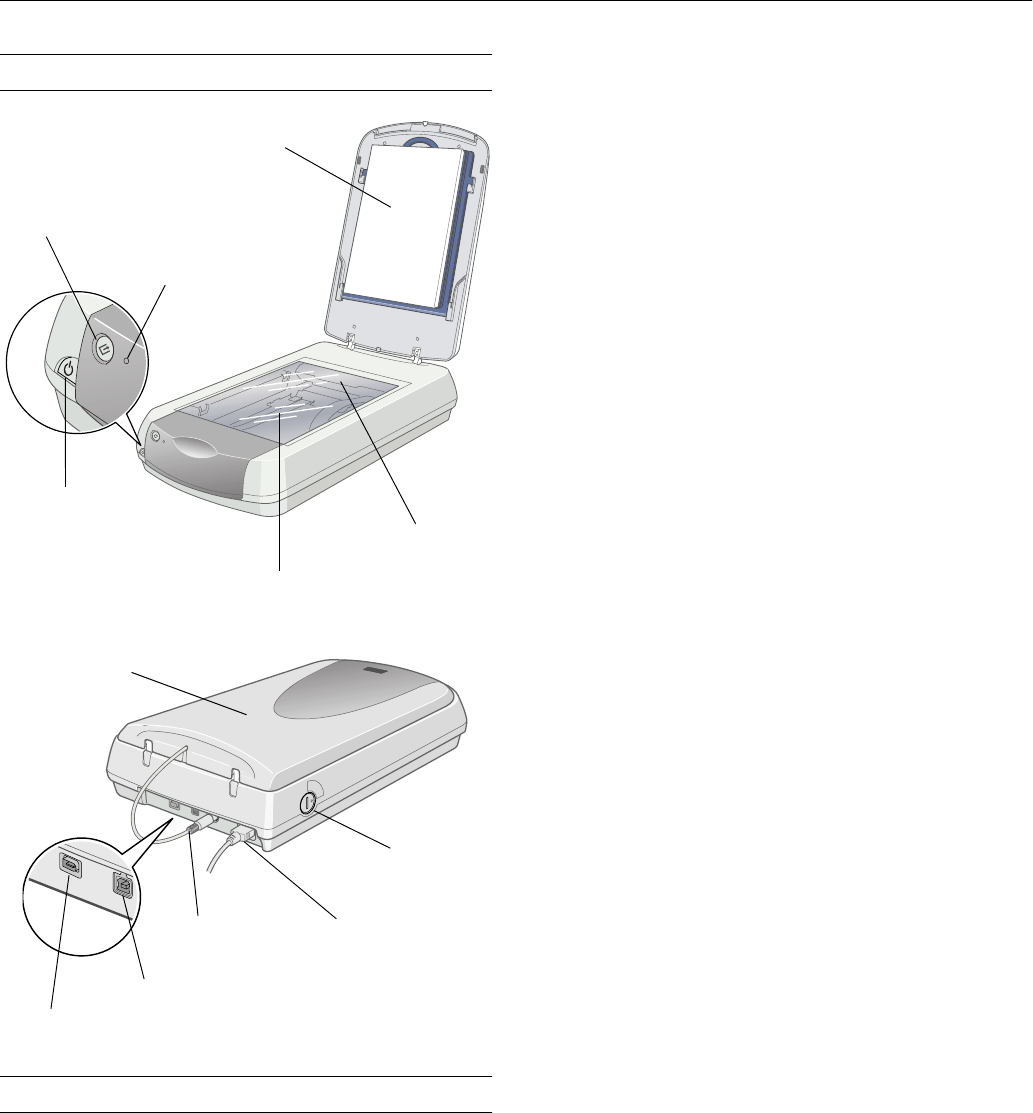

Scanner Parts

Scanner Specifications

Basic Specifications

Scanner type Flatbed, color

Photoelectric Color CCD line sensor

device

Effective pixels 20,400 × 28,080 pixels at 2400 dpi,

100% scaling

Maximum US letter or A4 size

document size (8.5 × 11.7 inches [216 × 297 mm])

Optical resolution 2400 dpi

Maximum 2400 dpi (main scan) × 4800 dpi hardware

(sub scan)

resolution*

* The maximum hardware resolution of 2400 × 4800 dpi is achieved

using EPSON’s Micro Step Drive™ technology.

Maximum 12,800 dpi

interpolated

resolution

Output resolution 50 to 12,800 dpi

(50 to 6400 dpi in 1 dpi increments,

12,800 dpi performed with zoom function)

Speed (2400 dpi, Color: 11.0 msec/line

draft mode) Grayscale: 3.8 msec/line

Command level ESC/I (B8), FS

Zoom 50 to 200% in 1% increments

Pixel depth 16 bits per pixel

Brightness 7 levels

Line art settings Fixed threshold

TET (Text Enhancement Technology),

enable/disable selectable

Digital halftoning AAS (Auto Area Segmentation), enable/

disable selectable

3 error diffusion modes (A, B, and C) and

4 dither patterns (A, B, C, and D) for

bi-level and quad-level data

(2 downloadable dither patterns)

Gamma correction 2 types for CRT display

3 types for printer output

1 type for user-defined

Color correction 1 type for CRT display

3 types for printer output

1 type for user-defined (only user-defined

color correction is available in EPSON

TWAIN)

Interface

USB (Type B receptacle connector)

IEEE 1394 (FireWire



)

Light source White cold cathode fluorescent lamp

Reliability 30,000 cycles of carriage movements

(MCBF)

Dimensions Width: 12.0 inches (30.4 cm)

Depth: 18.7 inches (47.6 cm)

Height: 4.8 inches (12.2 cm)

Weight Approx. 12.8 lb (5.8 kg)

document

cover

document

table

carriage and lamp

(in the home

position)

USB port

power cord

transparency unit

(TPU) connector

transportation lock

(in unlocked position)

Start button

indicator

light

power button

IEEE 1394 port

transparency unit

(TPU) under lid

EPSON Perfection 2450 PHOTO

2 - EPSON Perfection 2450 PHOTO 9/01

Electrical

Input voltage 100-120 VAC

range

Rated input 0.45 A

current

Power Approx. 23 W operating

consumption approx. 7 W in power saving mode

Note: Scanners sold outside the US market may operate at a different

voltage. Check the label on the back of the scanner for voltage

information.

Environmental

Temperature Operation: 41 to 95 °F (5 to 35 °C)

Storage: –13 to 140 °F (–25 to 60 °C)

Humidity Operation: 10% to 80%

(without Storage: 10% to 85%

condensation)

Operating Ordinary office or home conditions; avoid

conditions extreme dust, direct sunlight, and strong

light sources.

Safety Approvals

Safety UL 1950

CSA C22.2 No. 950

EMC FCC part 15 subpart B class B

CSA C108.8 class B

USB Interface

Interface type Universal Serial Bus Specification

Revision 2.0

Connector type One receptacle (Type B)

Configuration

Electrical Full Speed mode (12 Mbit/s) and High

standard Speed mode (480 Mbit/s), Universal

Serial Bus Specification Revision 2.0

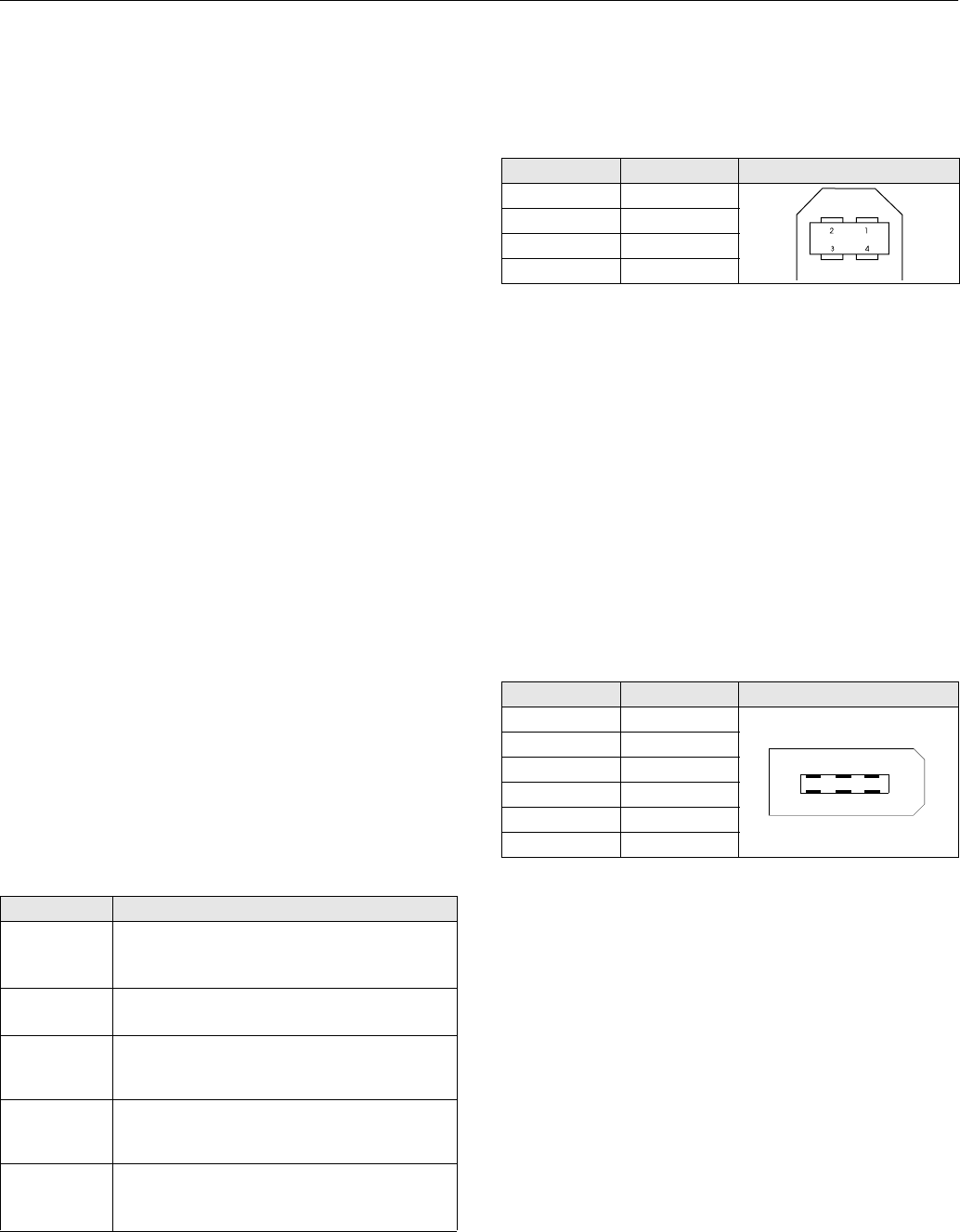

Connector pin arrangement

FireWire Interface

Interface type IEEE 1394a-2000 compatible

Data transfer Half-duplex data / strobe differential

serial

Synchronization Clock synchronization with DS-Link

Encoding/ DS-Link

Decoding

Logic level: 3.3. V

Power class Power class code 100

No power supply from external sources

Fitted with a repeat function with bus

power

Connector pin arrangement

Transparency Unit

The transparency unit is built into the scanner lid.

Electrical Supply voltage: DC 24 V ±10% V

Rated current: 0.5 A

Document Positive or negative film in the following

specifications sizes:

35 mm strips

35 mm slides

120/220 (6 × 9-cm) film

4 × 5-inch film

Readable area 4 × 9 inches (102 × 230 mm)

Element Description

Characteristics Self-powered

Remote wake up feature: Not supported

Maximum power consumption from VBUS: 2mA (5V)

Interface No alternate setting

Class: Vendor specific

Endpoint 1 Bulk IN transfer

Maximum data transfer size: 64 bytes (Full Speed)

512 bytes (High Speed)

Endpoint 2 Bulk OUT transfer

Maximum data transfer size: 64 bytes (Full Speed)

512 bytes (High Speed)

String

Descriptor

Language ID: US English

1: Manufacturer: “EPSON”

2: Product: “EPSON Scanner”

Pin number Signal Connector

1VCC

2–DATA

3+DATA

4GND

Pin number Signal Connector

1VCC

2GND

3TPB–

4 TPB+

5TPA–

6 TPA+

135

64

2

EPSON Perfection 2450 PHOTO

9/01 EPSON Perfection 2450 PHOTO - 3

Scanning Transparencies and Film

Before scanning transparent documents, you need to remove

the scanner’s reflective document mat; this exposes the scanner’s

transparency unit (light source), which is built into the lid.

If you’re scanning slides or film strips, you’ll also need to use

one of the film holders.

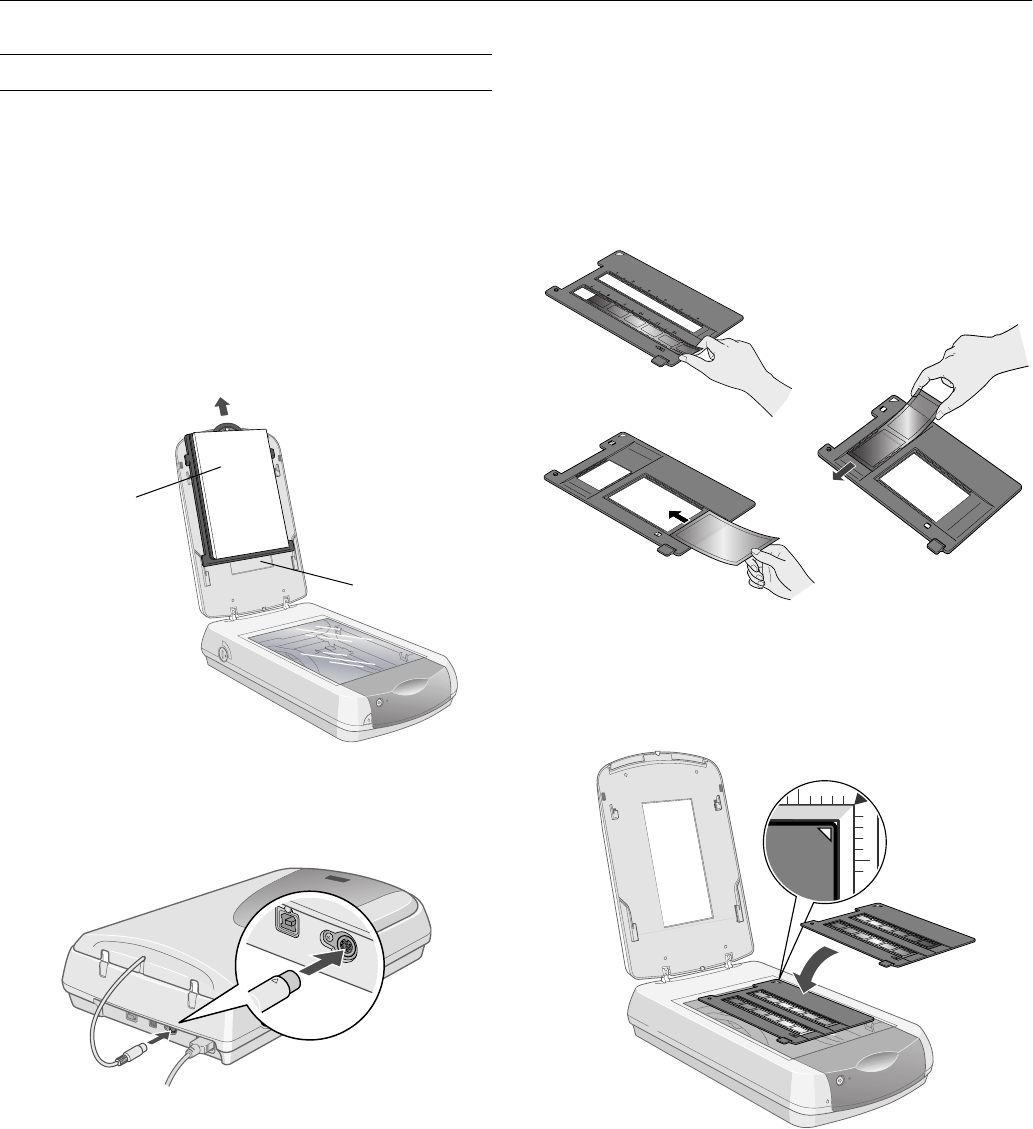

Using the Transparency Unit

To use the transparency unit, remove the reflective document

mat by grasping the top of the mat and sliding it up gently, as

shown.

Make sure the cable for the tranparency unit is plugged into the

round connector. If not, turn off the scanner, then connect the

cable as shown.

Using Film Holders

Film has two sides, a shiny base side and a dull emulsion side.

The base side of the film has the film maker’s name and film ID

numbers printed on it. Always place the shiny base side down.

To scan 35-mm film strips, 4 × 5-inch film, or 120/220 (6 × 9-

cm) film, place the film in the correct holder, as shown:

Place the holder with the film onto the scanner. Make sure the

white triangle on the holder points to the upper-right corner of

the scanner.

remove mat

by sliding it up

transparency unit

35-mm strips

4 × 5-inch film

120/220 (6 × 9-cm)

film

EPSON Perfection 2450 PHOTO

4 - EPSON Perfection 2450 PHOTO 9/01

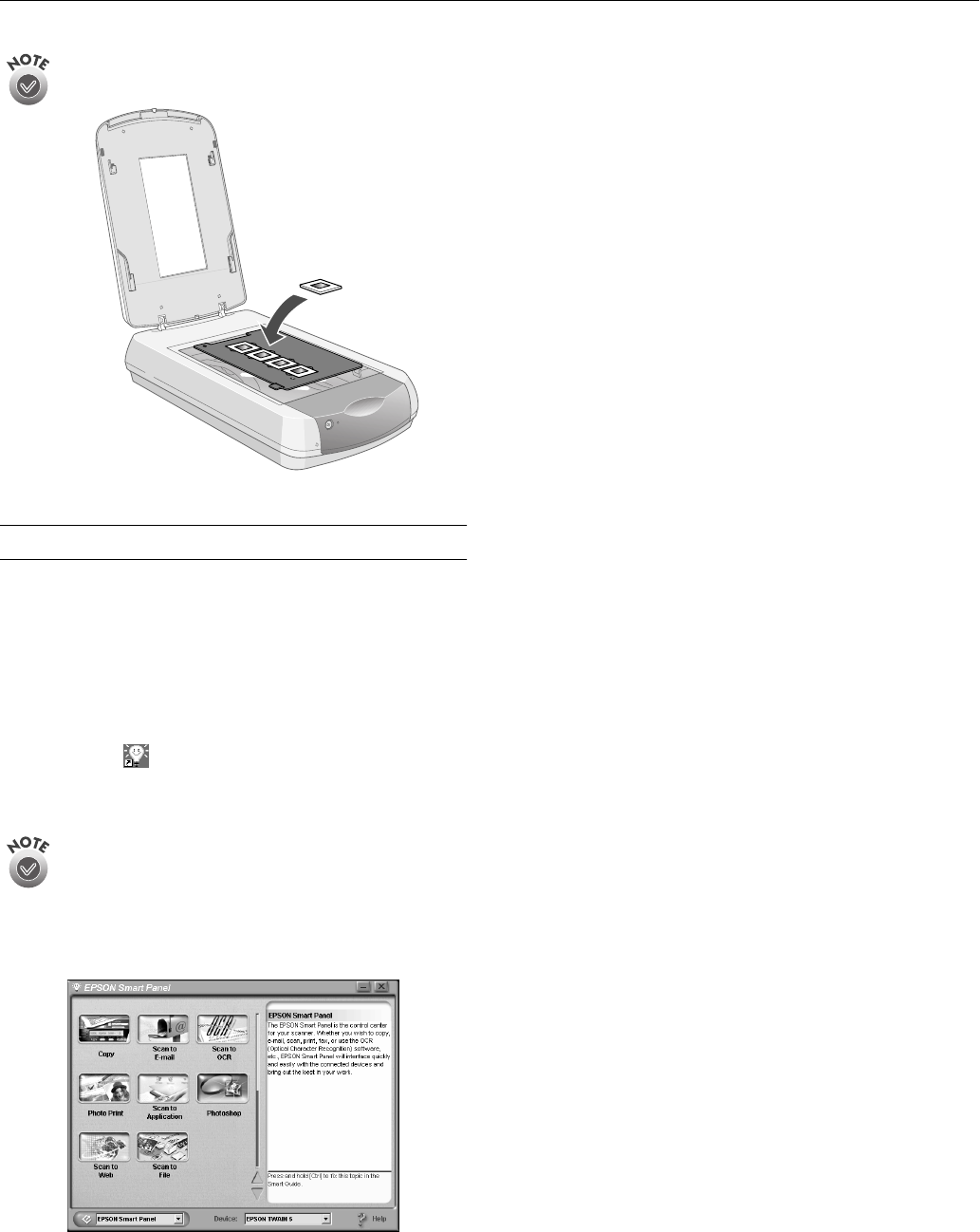

If you’re scanning 35-mm slides, set the holder on the

scanner first, then place the slides in the holder.

Using EPSON Smart Panel

Follow these steps to use EPSON Smart Panel to scan

documents or photos:

1. Place the original document(s) face down on the document

table.

2. Do one of the following to open the Smart Panel:

❏Press the

] Start button on your scanner.

❏Click the Smart Panel icon on the desktop.

❏On a Macintosh,

® you can also open the Apple® menu

and select EPSON SMART PANEL.

The

] Start button is set to open EPSON Smart Panel by

default. However, you can assign the

] Start button to

automatically open any of the Smart Panel applications.

3. Click the icon for your desired scanning application. The

window for that option appears and lets you adjust settings

for your scan. Follow the on-screen steps for each option.

Keep the following in mind when using Smart Panel:

❏If you select Copy or Photo Print, make sure your printer is

turned on and the correct paper type and size is loaded in

your printer.

❏Scan to E-mail requires a MAPI-compliant e-mail program.

(AOL is not MAPI compliant; however, you can select

Scan to File, then use your email software to attach the file

to your message.)

For instructions on using each of the Smart Panel applications,

see the online help for EPSON Smart Panel.

EPSON Perfection 2450 PHOTO

9/01 EPSON Perfection 2450 PHOTO - 5

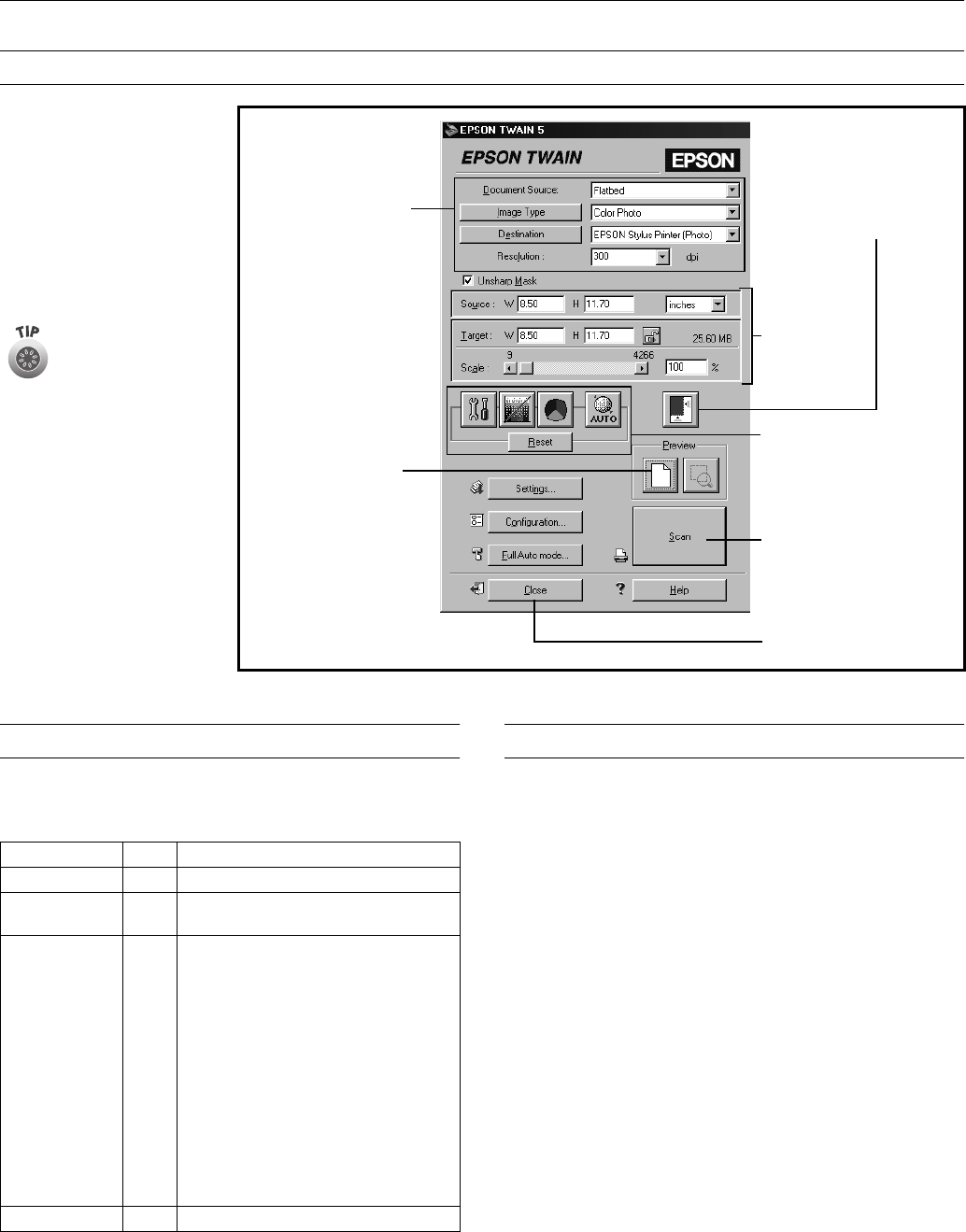

Selecting TWAIN Settings

If you need to manually adjust

the settings in EPSON

TWAIN, follow the guidelines

shown at right. The illustration

shows the preferred order in

which settings should be

adjusted. Detailed descriptions

are given in the electronic

Reference Guide.

Indicator Light

The indicator light (next to the

] Start button) indicates the

status of the scanner, as described below.

Related Documentation

CPD-12888 EPSON Perfection 2450 PHOTO Start

Here poster

CPD-12887 EPSON Perfection 2450 PHOTO Scanner

Basics

CPD-12889 EPSON Perfection 2450 PHOTO scanner

software CD-ROM

—Reference Guide (HTML)

—EPSON Smart Panel User’s Manual

(HTML)

TM-PERF2450 EPSON Perfection 2450 PHOTO Service

Manual

PL-PERF2450 EPSON Perfection 2450 PHOTO Parts

List

1Select basic settings:

Document Source

Image Type

Destination

Resolution

2Preview your image

3Automatically set the

scan area for your image

using Auto Locate

4Size or scale

the image

5Customize your

exposure and use

color management

6Scan the image into

your application

7Close EPSON TWAIN

The most important

thing to remember

when scanning is to

select the correct

image type and

resolution for your

scan.

Light Color Status

On Green The scanner is ready to scan images.

Flashing Green The scanner is initializing (warming up) or is

busy scanning.

Flashing Red Check the following, then turn your

scanner off and back on to reset it:

❏Make sure the transportation lock is

turned to the unlocked position. See

the Start Here sheet for details.

❏Make sure the scanner is properly

connected to your computer.

❏If you are scanning transparencies,

make sure you’ve removed the

reflective document mat.

If this does not eliminate the error, the

fluorescent lamp may need to be replaced

or the scanner may have another problem.

Consult your dealer or EPSON.

Off —The scanner is unplugged or turned off.
