Eratech Co EMP-Z MP3 Player User Manual

Eratech Co, Ltd MP3 Player

User Manual

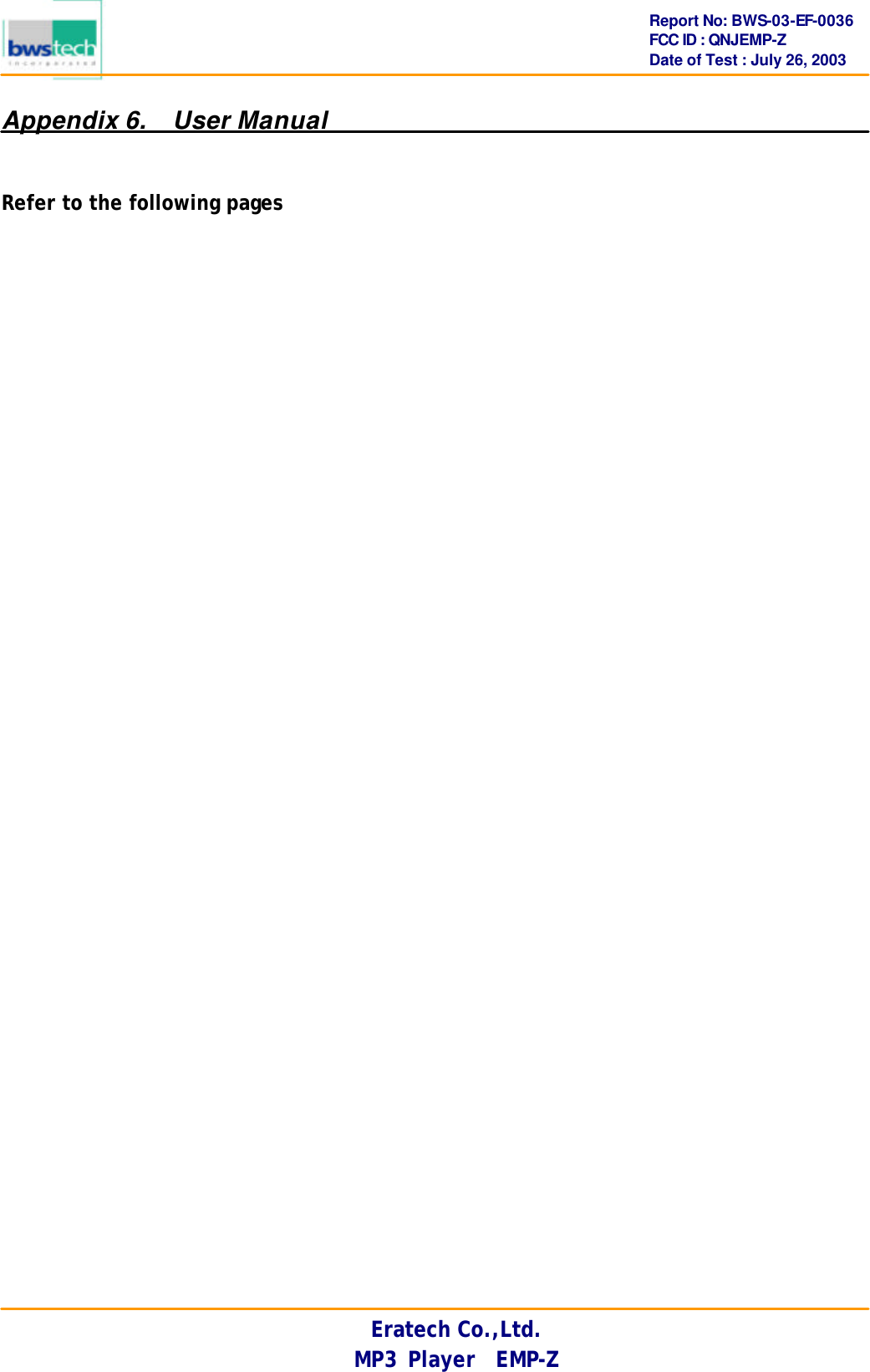

Report No: BWS-03-EF-0036 FCC ID : QNJEMP-Z Date of Test : July 26, 2003 Eratech Co.,Ltd. MP3 Player EMP-Z Appendix 6. User Manual Refer to the following pages

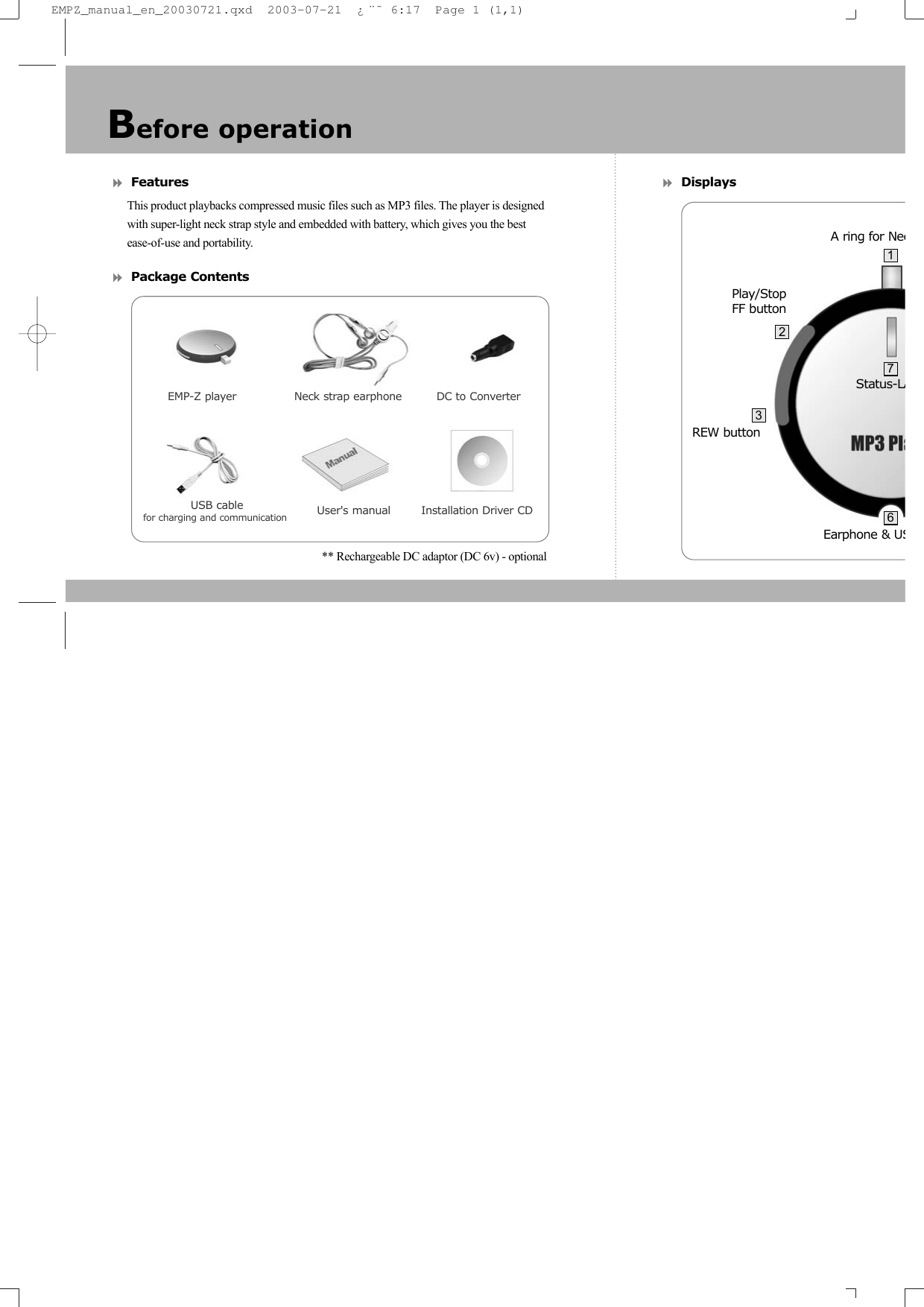

Features This product playbacks compressed music files such as MP3 files. The player is designed with super-light neck strap style and embedded with battery, which gives you the best ease-of-use and portability.Package Contents** Rechargeable DC adaptor (DC 6v) - optional DisplaysBefore operationEMP-Z player Neck strap earphone DC to ConverterUser's manual Installation Driver CDEarphone & USStatus-LAPlay/StopFF buttonA ring for NecREW button23716USB cable for charging and communication EMPZ_manual_en_20030721.qxd 2003-07-21 ¿¨˜ 6:17 Page 1 (1,1)

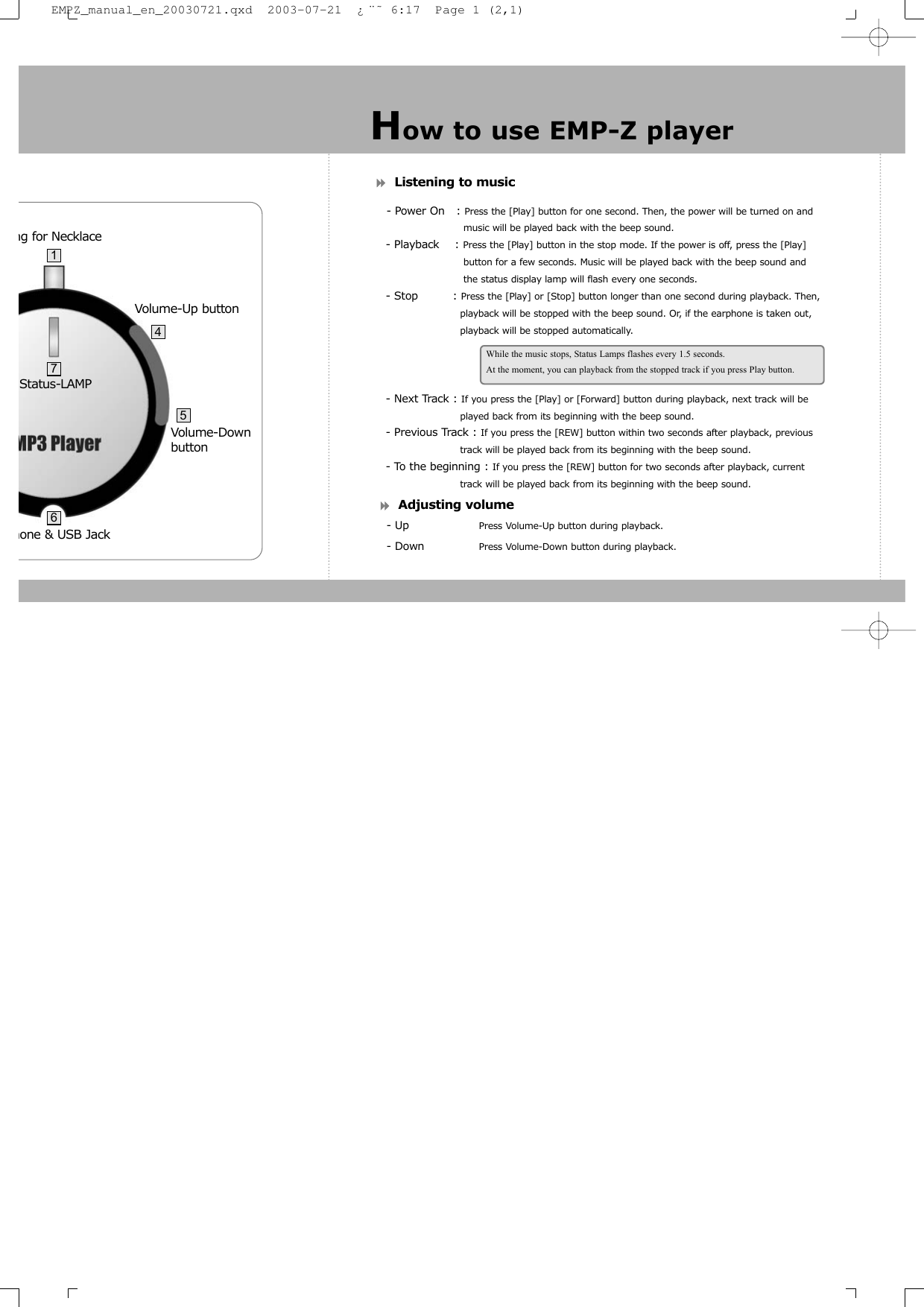

Listening to music- Power On : Press the [Play] button for one second. Then, the power will be turned on and music will be played back with the beep sound.- Playback : Press the [Play] button in the stop mode. If the power is off, press the [Play] button for a few seconds. Music will be played back with the beep sound and the status display lamp will flash every one seconds.- Stop : Press the [Play] or [Stop] button longer than one second during playback. Then, playback will be stopped with the beep sound. Or, if the earphone is taken out, playback will be stopped automatically.- Next Track : If you press the [Play] or [Forward] button during playback, next track will be played back from its beginning with the beep sound.- Previous Track : If you press the [REW] button within two seconds after playback, previous track will be played back from its beginning with the beep sound.- To the beginning : If you press the [REW] button for two seconds after playback, current track will be played back from its beginning with the beep sound.Adjusting volume- Up Press Volume-Up button during playback.- Down Press Volume-Down button during playback.How to use EMP-Z playerWhile the music stops, Status Lamps flashes every 1.5 seconds.At the moment, you can playback from the stopped track if you press Play button.hone & USB Jack Status-LAMPng for Necklace Volume-Down buttonVolume-Up button47165EMPZ_manual_en_20030721.qxd 2003-07-21 ¿¨˜ 6:17 Page 1 (2,1)

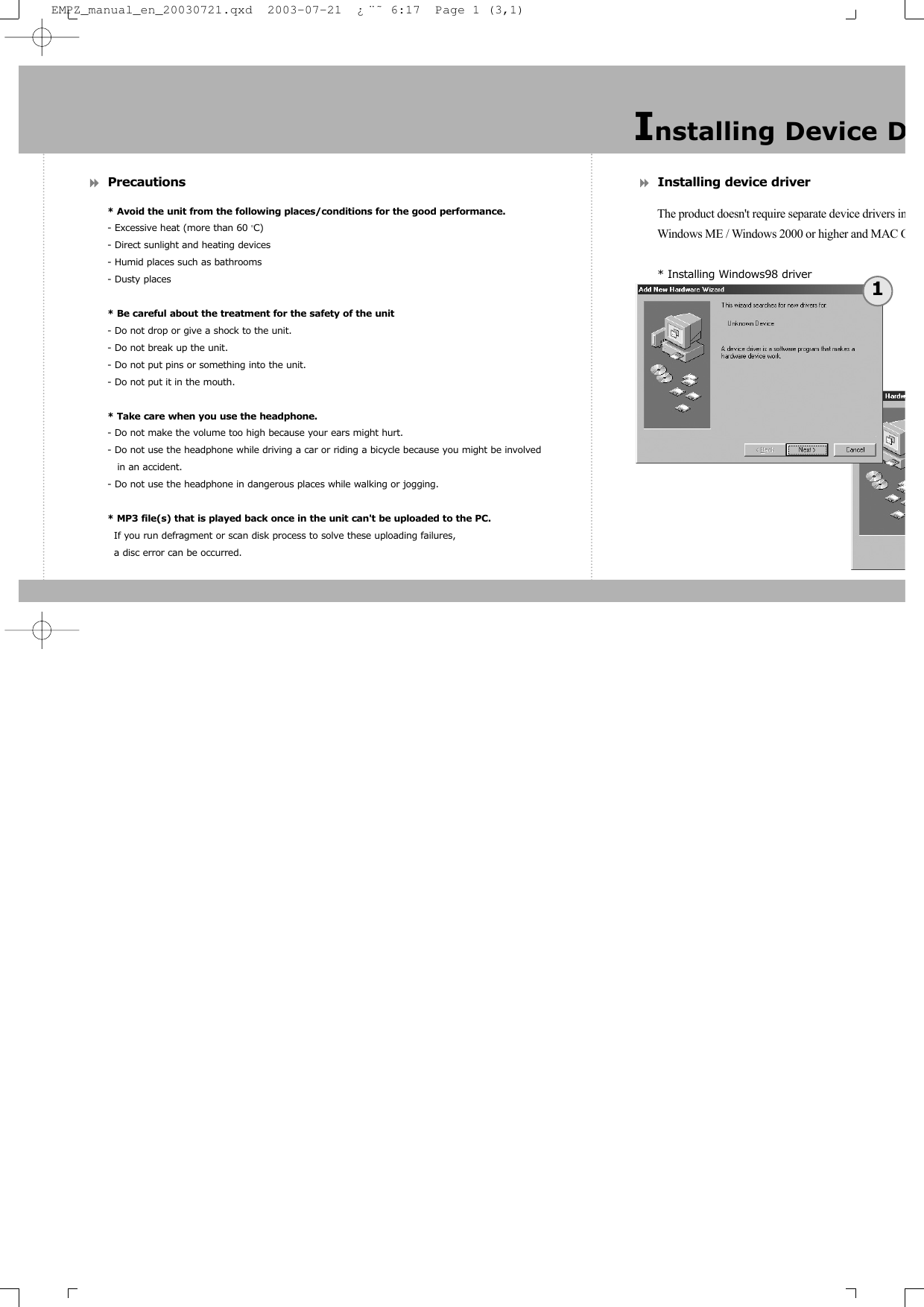

Precautions* Avoid the unit from the following places/conditions for the good performance.- Excessive heat (more than 60 OC)- Direct sunlight and heating devices- Humid places such as bathrooms- Dusty places* Be careful about the treatment for the safety of the unit- Do not drop or give a shock to the unit.- Do not break up the unit.- Do not put pins or something into the unit.- Do not put it in the mouth.* Take care when you use the headphone.- Do not make the volume too high because your ears might hurt.- Do not use the headphone while driving a car or riding a bicycle because you might be involved in an accident.- Do not use the headphone in dangerous places while walking or jogging.* MP3 file(s) that is played back once in the unit can't be uploaded to the PC.If you run defragment or scan disk process to solve these uploading failures, a disc error can be occurred.Installing device driverThe product doesn't require separate device drivers inWindows ME / Windows 2000 or higher and MAC O* Installing Windows98 driverInstalling Device D1EMPZ_manual_en_20030721.qxd 2003-07-21 ¿¨˜ 6:17 Page 1 (3,1)

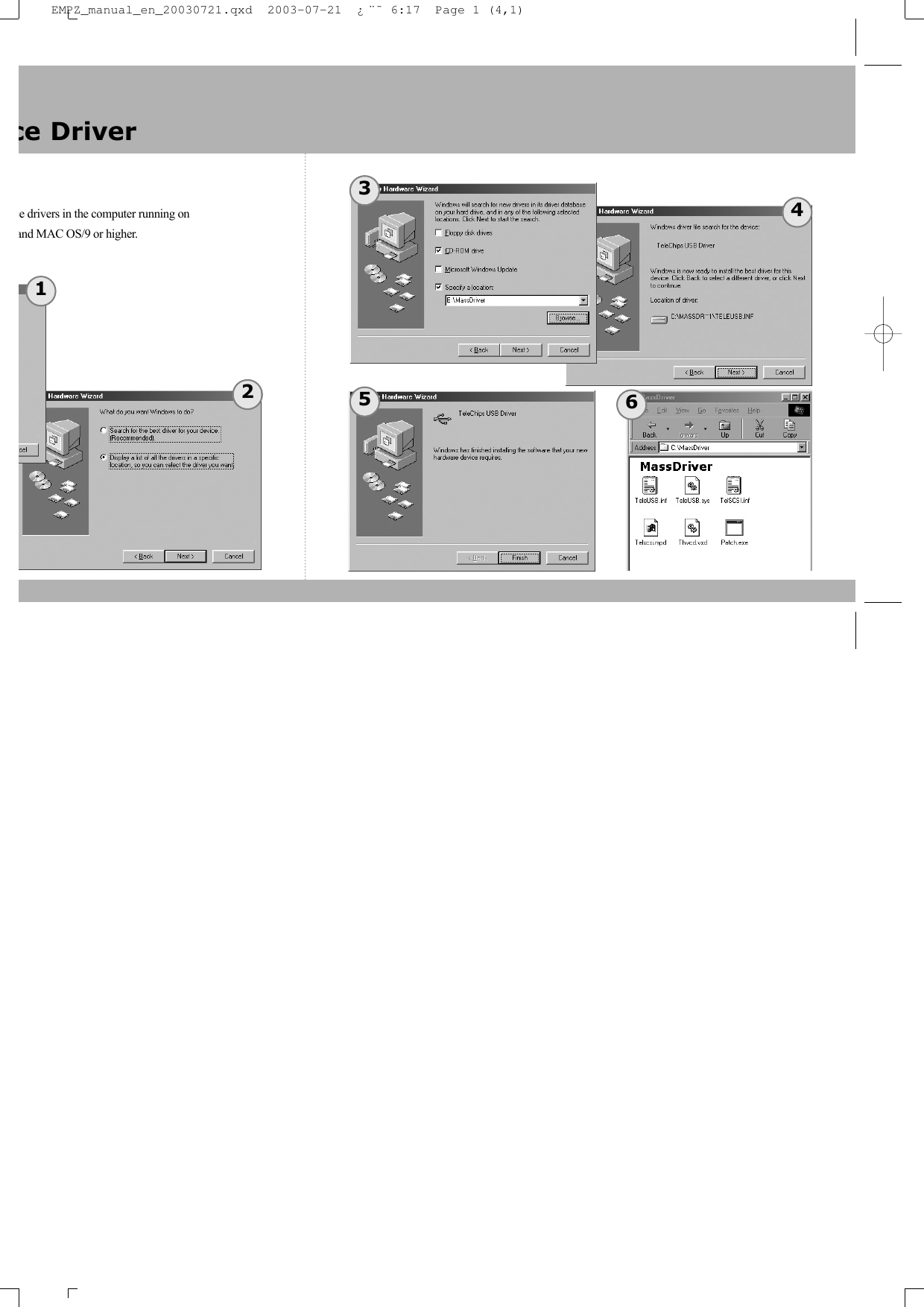

ce drivers in the computer running on and MAC OS/9 or higher.ce Driver123456EMPZ_manual_en_20030721.qxd 2003-07-21 ¿¨˜ 6:17 Page 1 (4,1)

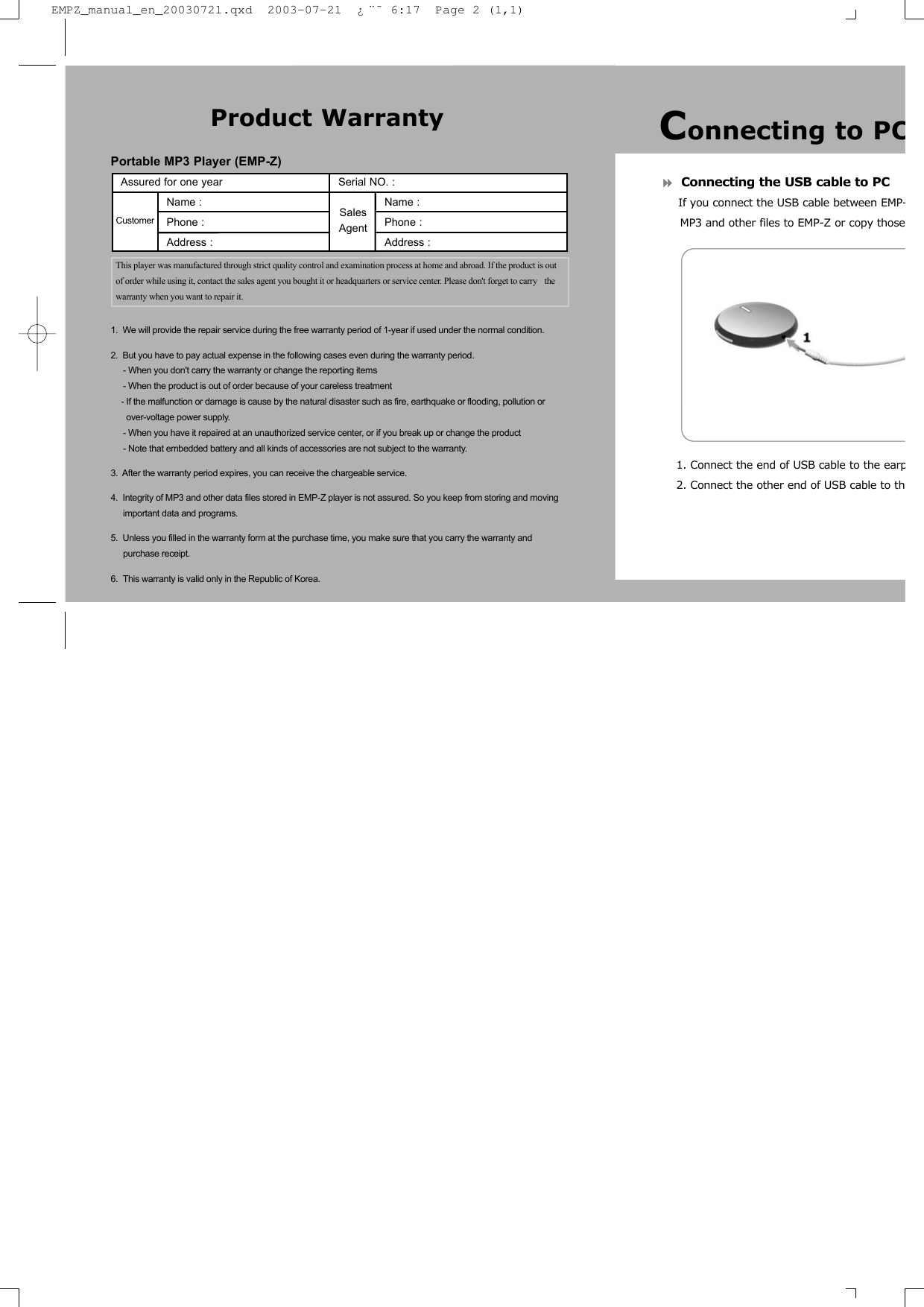

Connecting the USB cable to PCIf you connect the USB cable between EMP-MP3 and other files to EMP-Z or copy those1. Connect the end of USB cable to the earp2. Connect the other end of USB cable to thPortable MP3 Player (EMP-Z)1. We will provide the repair service during the free warranty period of 1-year if used under the normal condition.2. But you have to pay actual expense in the following cases even during the warranty period.- When you don't carry the warranty or change the reporting items- When the product is out of order because of your careless treatment- If the malfunction or damage is cause by the natural disaster such as fire, earthquake or flooding, pollution or over-voltage power supply.- When you have it repaired at an unauthorized service center, or if you break up or change the product- Note that embedded battery and all kinds of accessories are not subject to the warranty.3. After the warranty period expires, you can receive the chargeable service.4. Integrity of MP3 and other data files stored in EMP-Z player is not assured. So you keep from storing and moving important data and programs.5. Unless you filled in the warranty form at the purchase time, you make sure that you carry the warranty andpurchase receipt. 6. This warranty is valid only in the Republic of Korea.Product WarrantyAssured for one year Serial NO. : Name : Name :Phone : Phone : Address : Address : This player was manufactured through strict quality control and examination process at home and abroad. If the product is outof order while using it, contact the sales agent you bought it or headquarters or service center. Please don't forget to carry thewarranty when you want to repair it.Customer SalesAgentConnecting to PCEMPZ_manual_en_20030721.qxd 2003-07-21 ¿¨˜ 6:17 Page 2 (1,1)

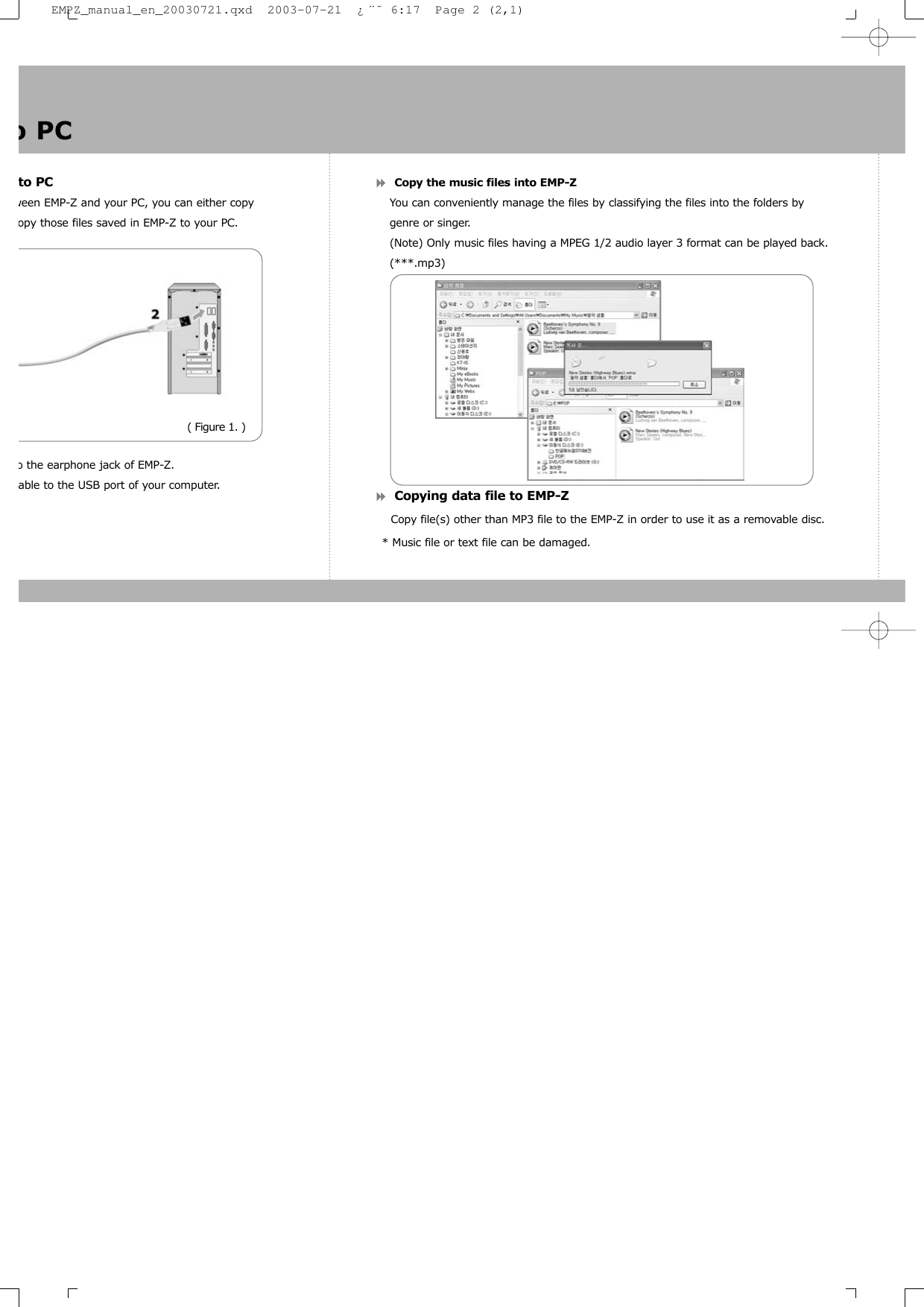

to PCween EMP-Z and your PC, you can either copy opy those files saved in EMP-Z to your PC.o the earphone jack of EMP-Z.able to the USB port of your computer. Copy the music files into EMP-ZYou can conveniently manage the files by classifying the files into the folders by genre or singer. (Note) Only music files having a MPEG 1/2 audio layer 3 format can be played back. (***.mp3) Copying data file to EMP-ZCopy file(s) other than MP3 file to the EMP-Z in order to use it as a removable disc.* Music file or text file can be damaged.o PC( Figure 1. )EMPZ_manual_en_20030721.qxd 2003-07-21 ¿¨˜ 6:17 Page 2 (2,1)

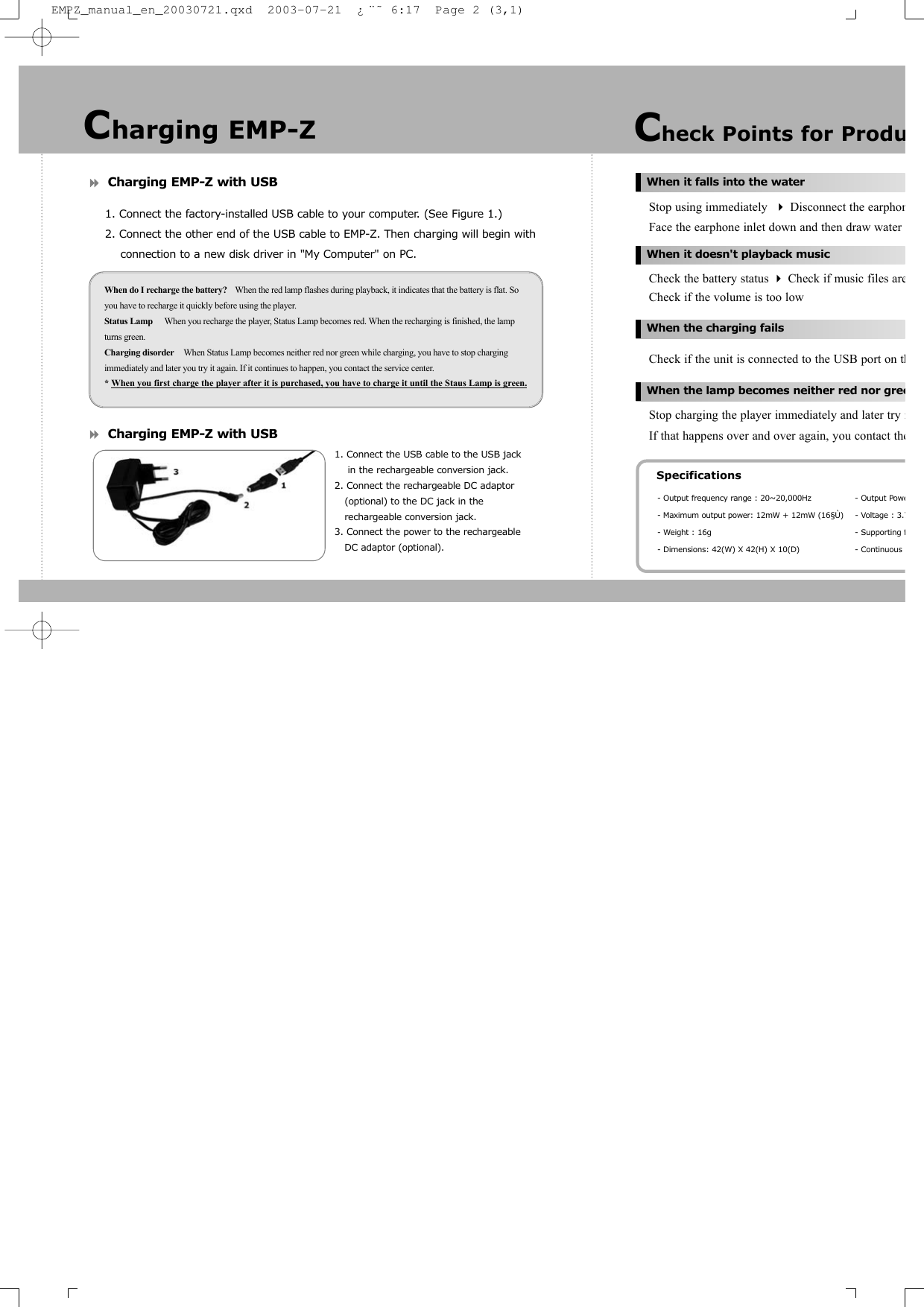

Charging EMP-Z with USB1. Connect the factory-installed USB cable to your computer. (See Figure 1.)2. Connect the other end of the USB cable to EMP-Z. Then charging will begin with connection to a new disk driver in "My Computer" on PC.Charging EMP-Z with USBStop using immediately Disconnect the earphonFace the earphone inlet down and then draw water Check the battery status Check if music files areCheck if the volume is too lowCheck if the unit is connected to the USB port on thStop charging the player immediately and later try iIf that happens over and over again, you contact theWhen do I recharge the battery? When the red lamp flashes during playback, it indicates that the battery is flat. Soyou have to recharge it quickly before using the player.Status Lamp When you recharge the player, Status Lamp becomes red. When the recharging is finished, the lampturns green.Charging disorder When Status Lamp becomes neither red nor green while charging, you have to stop chargingimmediately and later you try it again. If it continues to happen, you contact the service center.* When you first charge the player after it is purchased, you have to charge it until the Staus Lamp is green.Check Points for ProduWhen it falls into the waterWhen it doesn't playback musicWhen the charging failsWhen the lamp becomes neither red nor greeSpecifications- Output frequency range : 20~20,000Hz - Output Powe- Maximum output power: 12mW + 12mW (16§Ù) - Voltage : 3.7- Weight : 16g - Supporting f- Dimensions: 42(W) X 42(H) X 10(D) - Continuous Charging EMP-Z1. Connect the USB cable to the USB jack in the rechargeable conversion jack.2. Connect the rechargeable DC adaptor (optional) to the DC jack in the rechargeable conversion jack.3. Connect the power to the rechargeable DC adaptor (optional).EMPZ_manual_en_20030721.qxd 2003-07-21 ¿¨˜ 6:17 Page 2 (3,1)
he earphone from the player raw water Contact the service centeric files are in the "MUSIC" folder B port on the PC properly.d later try it again.contact the service center.roduct Malfunctiond nor green while charging- Output Power: Phone Jack (2.0¨ª stereo mini jack)- Voltage : 3.7V (battery embedded)- Supporting format : MPEG 1/2 Audio Layer 3- Continuous playback time: 6~8 hoursFor more inf ormation of pr oduct upgrade and otherenquiries, visit our web site (www.er atech.co.kr).Er atech Co., LTd. 2F Poongyang Bldg., 410-4, Dogok-dong, Kangnam-gu, Seoul, K oreaEMPZ_manual_en_20030721.qxd 2003-07-21 ¿¨˜ 6:17 Page 2 (4,1)
NOTICES TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer for technical assistance. FCC WARNING
