Maximize the effectiveness of Flat Panel Monitors

Flat Panel Monitor

Mounting Solutions

870-03-005, rev.05/30/03

Orderguide

Quartex Informatica

www.quartex.it

Quartex Informatica

Via Paolo Giovio n.5

20144 Milano

tel 02 4984998

fax 02 4985894

e-mail: ergotron@quartex.it

Show-Room

Via Paolo Giovio Angolo Via

Andrea Verga

20144 Milano

Orderguide

Flat Panel Monitor ARMS

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

How to Select ARMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Flat Panel ARMS Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . 5

ARMS Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

400 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

300 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

200 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

100 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

FX Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DS100 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

DS400 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

HD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

VL Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

MD Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Carts: Mobile WorkStand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Surface Attachment Options . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Direct Mounting, Wall Plates, Furniture Mounts . . . . . . . . . . . . . . . . . 38

Wall Tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Command Posts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Pole Mounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Slatwall Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Accessory Selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Keyboard/Mouse Trays, Laptop Trays & Accessories . . . . . . . . . . . . . 44

Monitor Interface Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

CPU Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Storage Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Peripheral Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Footrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Monitor Interface & VESA®Standard Guide . . . . . . . . . . . . . . 47

Ergonomics Data & Mounting Heights . . . . . . . . . . . . . . . . . . 48

Ergonomic Ground Rules – English Units . . . . . . . . . . . . . . . . . . . . . 48

Ergonomic Ground Rules – Metric Units . . . . . . . . . . . . . . . . . . . . . . 49

Mounting Height Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Weight Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Performance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Interface Dimensions for Direct Mounting . . . . . . . . . . . . . . . . . . . . . 54

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Sample Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

4 • ARMS Orderguide • rev. 05/30/03 870-03-005

Introduction

Flat panel monitors provide space-saving convenience. Ergotron’s

Adjustable Rotating Mounting Solutions (ARMS) deliver this

technology where you need it. Patented ARMS products instantly lift,

swing, tilt and rotate for optimum ergonomic positioning without the

need for knobs or adjustment levers. Our Paraview Technology

allows multiple monitors to be attached to a single arm or stand.

In short, ARMS increase work space while improving productivity.

How to Select ARMS for your Application

When deciding which ARMS to order, consider three topics:

1. Determine which method of Monitor Suspension you need…

•400 Series for long reach adjustability

•300 Series for full adjustability

•200 Series for monitor extension/retraction adjustability

•100 Series for short reach with partial adjustability

•FX Series: Fixed mounting

•DS100 Series: Desk stand that mounts multiple monitors

•DS400 Series: Desk stand for improved adjustment

•HD Series for multiple monitors, laptops & heavy flat panel systems

•VL Series: Vertical lift system

•MD Series installs flat panel and/or keyboard into 19" rack or enclosure

•Mobile WorkStand: Computer carts for any application

2. Choose a Surface Attachment Option…

• Attach to a wall

• Place on a desk

• Fasten to a post

• Clamp to a frame

• Hang under a shelf

• Suspend from a ceiling

3. Select Accessories for your system…

• Keyboard/Mouse Trays, Laptop Trays & Accessories

• Extenders

• Monitor Interface Accessories

• CPU Holders

• Storage Components

• Peripheral Table

• Footrest

870-03-005 rev. 05/30/03 • ARMS Orderguide • 5

Flat Panel ARMS Product Overview

Extenders

CPU Holders

& Storage

Components

Keyboard/Mouse

Trays, Laptop Trays

Wrist Rests &

Mouse Pads

400

Series

300

Series

200

Series

100

Series

Monitor Suspension Surface Attachments Accessory Options

Ergotron Carts

Wall

Plates

Wall

Tracks

Desk Mounts

Mobile

WorkStand

Mobile

WorkCenter

Monitor

Interface

Accessories

Furniture

Mounts

Pole Mounts

Direct

Mounting

Command

Posts

Slatwall

Components

Series

HD Series

Cart

Series

6 • ARMS Orderguide • rev. 05/30/03 870-03-005

ARMS Product Selection

400 Series The 400 Series provides up to 24 inches (610 mm) of vertical, sit-to-stand adjustability –

enough to accommodate sitting and standing users at the same workstation! Provides

smooth adjustment while maintaining touch-screen stability. Other features include: cable

management that conceals and routes cables; internal steel construction; easy-to-clean

plastic exterior.

Range of Motion

Vertical Mount Monitor Arms

Note: Height adjustment of Single Pivot Arms = 20"; Double Pivot Arms = 24"

Horizontal & Surface Mount Arms

Monitor Tilt/Pivot

• Single Pivot: 180˚ up/down tilt

• Single Pivot w/ P/L: 180˚ up/down tilt & 360˚ portrait/landscape (P/L)

• Double Pivot w/ P/L: 180˚ up/down tilt, 360˚ P/L, & 180˚ left/right tilt

Keyboard/Laptop Arms

Combo Arms

0˚

Fixed Arm

180˚

Rotate Arm

180˚20" to 24"

(508 to 610 mm)

Top View Side View

90˚

360˚

Top View Side View

180˚180˚360˚

180°

22"

(559 mm)

Side View

180˚180˚150˚

Keyboard Tray

Movement

Monitor

Movement

Arm Vertical Movement

Side View

Up/down tilt

Front View

Portrait/landscape

Top View

Left/right tilt

Top View

870-03-005 rev. 05/30/03 • ARMS Orderguide • 7

45-003-xxx

45-042-xxx

45-030-xxx

45-002-xxx

45-043-xxx

45-007-xxx

45-005-xxx

45-006-xxx

45-032-xxx

45-029-xxx

400 Series Vertical Mount Arms

Part Description Shipping

Number Weight

Monitor Mounts Weight Capacity

45-003-099, grey Fixed, Single Pivot 28 lbs 11 lbs

45-003-085, black (12.7 kg) (5 kg)

45-042-099, grey Fixed, Single Pivot w/ P/L 25 lbs 13 lbs

45-042-085, black (11.3 kg) (5.9 kg)

45-030-099, grey Fixed, Double Pivot w/ P/L 23 lbs 12 lbs

45-030-085, black (10.4 kg) (5.5 kg)

45-002-099, grey Rotate, Single Pivot 28 lbs 12 lbs

45-002-085, black (12.7 kg) (5.5 kg)

45-043-099, grey Rotate, Single Pivot w/ P/L 25 lbs 13 lbs

45-043-085, black (11.3 kg) (5.9 kg)

45-007-099, grey Rotate, Double Pivot w/ P/L 23 lbs 13 lbs

45-007-085, black (10.4 kg) (5.9 kg)

Keyboard/Laptop Mounts

45-005-099, grey* Fixed, Keyboard/Laptop Pivot 7.5 lbs 11 lbs

45-005-085, black* (3.4 kg) (5 kg)

45-006-099, grey* Rotate, Keyboard/Laptop Pivot 7.5 lbs 12 lbs

45-006-085, black* (3.4 kg) (5.5 kg)

Combo Mounts

45-032-099, grey*†Fixed, Combo Flat Panel/Keyboard Arm Mon: 20 lbs (9 kg) 14 lbs

45-032-085, black*†Kybd: 7.5 lbs (3.4 kg) (6.4 kg)

45-029-099, grey*†Rotate, Combo Flat Panel/Keyboard Arm Mon: 20 lbs (9 kg) 15 lbs

45-029-085, black*†Kybd: 7.5 lbs (3.4 kg) (6.8 kg)

Extenders Dimensions (L x W x D)

44-253-100, grey Extender, 12-inch 12" x 2" x 6-1/4" 7 lbs

44-253-101, black (305 x 51 x 159 mm) (3.2 kg)

44-254-100, grey Extender, 18-inch 18" x 2" x 6-1/4" 9 lbs

44-254-101, black (457 x 51 x 159 mm) (4.1 kg)

44-255-100, grey Extender, 24-inch 24" x 2" x 6-1/4" 12 lbs

44-255-101, black (610 x 51 x 159 mm) (5.5 kg)

44-256-100, grey Extender, 30-inch 30" x 2" x 6-1/4" 14 lbs

44-256-101, black (762 x 51 x 159 mm) (6.4 kg)

* Keyboard/Mouse Tray or Laptop Tray ordered separately. See page 44.

† Compatible with monitors that have a removable base and the measurement between the bottom of monitor and

its lower mounting holes is no more than 6" (152 mm).

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

44-253-xxx

44-254-xxx

44-255-xxx

44-256-xxx

Mounting Options & Accessories for 400 Series Vertical Mount Arms

Page #

Accessory Options

Extenders

Keyboard/Mouse Trays, Laptop Trays & Accessories

Monitor Interface Accessories

CPU Holders

Storage Components

Peripheral Table

Page #

above

Surface Attachment Options

Direct Mounting, Wall Plates, Furniture Mounts

Wall Tracks

Command Posts

Pole Mounts

Slatwall Components

Mobile WorkStands

Attention: For dimensional information,

see page 58.

8 • ARMS Orderguide • rev. 05/30/03 870-03-005

400 Series Horizontal Mount Arms

Attach above worksurface, countertop or other horizontal surface.

Part Description Shipping

Number Weight

Monitor Mounts Weight Capacity

45-012-099, grey Single Pivot 28 lbs 12 lbs

45-012-085, black (12.7 kg) (5.5 kg)

45-054-099, grey Single Pivot w/ P/L 25 lbs 14 lbs

45-054-085, black (11.3 kg) (6.4 kg)

45-016-099, grey Double Pivot w/ P/L 23 lbs 15 lbs

45-016-085, black (10.4 kg) (6.8 kg)

Keyboard/Laptop Mounts

45-036-099, grey* Keyboard/Laptop Pivot 7.5 lbs 13 lbs

45-036-085, black* (3.4 kg) (5.9 kg)

Desk Clamp Attach to …

60-060, black Surface Clamp Surface edge ≤1-3/4" (44 mm) thick 2 lbs

(.9 kg)

* Keyboard/Mouse Tray or Laptop Tray ordered separately. See page 44.

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

400 Series Suspend Mount Arms

Suspend from a ceiling, shelf or other horizontal surface.

Part Description Shipping

Number Weight

Monitor Mounts Weight Capacity

45-010-099, grey Single Pivot 28 lbs 12 lbs

45-010-085, black (12.7 kg) (5.5 kg)

45-044-099, grey Single Pivot w/ P/L 25 lbs 14 lbs

45-044-085, black (11.3 kg) (6.4 kg)

45-014-099, grey Double Pivot w/ P/L 23 lbs 15 lbs

45-014-085, black (10.4 kg) (6.8 kg)

Ceiling Clamp Attach to …

60-060, black Surface Clamp Surface edge ≤1-3/4" (44 mm) thick 2 lbs

(.9 kg)

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

45-012-xxx

45-054-xxx

45-016-xxx

45-036-xxx

45-010-xxx

45-044-xxx

45-014-xxx

60-060

Mounting Options & Accessories for 400 Horizontal/Suspend Mount Arms

Page #

above

Accessory Options

Keyboard/Mouse Trays, Laptop Trays & Accessories

Monitor Interface Accessories

CPU Holders

Storage Components

Peripheral Table

Page #

Surface Attachment Options

Surface Clamps

Direct Mounting

Furniture Mounts

Attention: For dimensional information,

see page 58.

870-03-005 rev.05/30/03 • ARMS Orderguide • 9

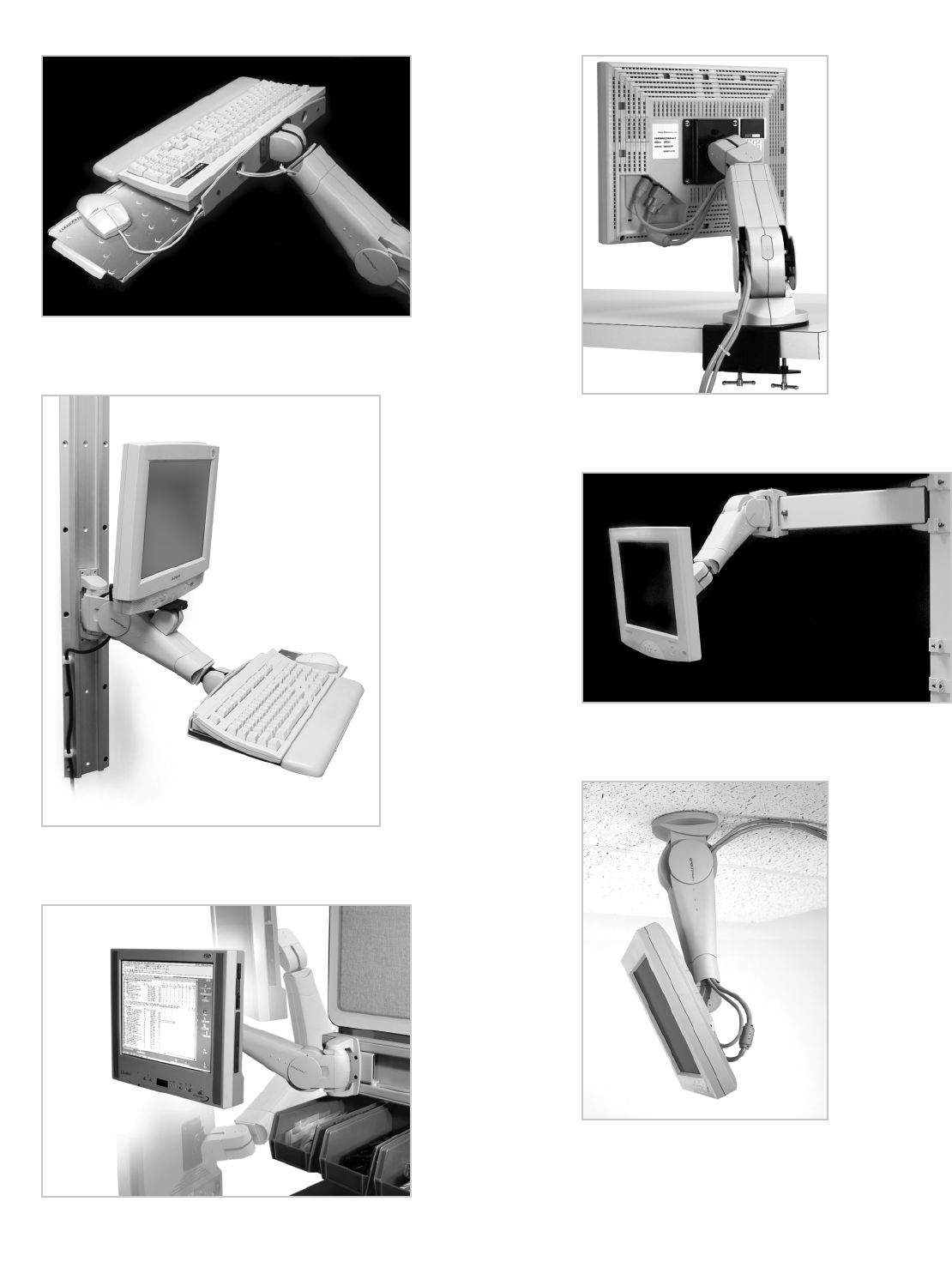

Photo Reference for 400 Series

The 400 Series Arm with Keyboard/Laptop Pivot features 22 inches

(559 mm) of vertical adjustability.

400 Series Arm suspended from a ceiling.

400 Combo Arm mounted on Wall Track.

A 400 Series Arm is teamed with an Extender to enhance

placement capability.

Note the VESA FDMI monitor interface where

the monitor attaches to the arm.Shown with

optional Surface Clamp.

Height Adjustment

Rotation

• Telescopic motion

Monitor Pivot

Keyboard/Laptop Adjustment

ARMS Product Selection

300 Series 300 Series Arms provide 16 to 20 inches (406 to 508 mm) of height adjustment.

Extensions add telescopic motion for extension and retraction. The 300 Series features

Pivot-ease®technology, which provides long-life monitor adjustment while maintaining

touch-screen stability.

Range of Motion

360˚

180˚

360˚

Arm folded back

9" Extension

23"

(584 mm)

180˚

180˚360˚

16"

(406 mm)

10 • ARMS Orderguide • rev. 05/30/03 870-03-005

Side View

Up/down tilt

Front View

Portrait/landscape

Top View

Left/right tilt

Top View

20"

(508 mm)

870-03-005 rev. 05/30/03 • ARMS Orderguide • 11

45-087-xxx

300 Series Pre-configurations – Vertical Mount

Mount to vertical surface: directly to surface, Wall Plate, Wall Track, Pole Clamps, etc. See chart below.

Part Description Weight Shipping

Number Capacity Weight

Monitor Mounts

45-087-180, grey Vertical Mount Arm 23 lbs 9 lbs

45-087-200, black (10.4 kg) (4.1 kg)

28-170-180, grey Vertical Mount Arm with 9" Extension 23 lbs 16 lbs

28-170-200, black (10.4 kg) (7.2 kg)

Keyboard/Laptop Mounts

45-099-180, grey* Vertical Mount Keyboard/Laptop Pivot Arm 7.5 lbs 8 lbs

45-099-200, black* (3.4 kg) (3.6 kg)

* Order Keyboard/Mouse Tray or Laptop Tray separately (p.44).

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

28-170-xxx

45-099-xxx

4.1.

Go to page listed to get more information about the different brackets and clamps.

Slatwall Bracket

See page 43

Command Post

See page 40

Wall Track

See page 39

Pole Clamps

See page 42

Wall Plates

See page 38

Directly to

vertical surfaces

Vertical Mount Attachment Options for the 300 Series

≤ 2-1/8"

(54 mm)

3/8" to 3"

(10 to 76 mm)

(102 mm)

Desk Clamp

Both the Desk Clamp and Grommet

Mount bases are included with the

Desk Mount option.

Grommet Mount

Desk Mount Attachment

300 Series Pre-configurations – Desk Mount

Desk Mounts attach to worksurfaces with either the Desk Clamp or the Grommet Mount. Desk Clamps

attach to the edge of worksurfaces ≤2-1/8" (54 mm) thick. Grommet Mounts attach through a hole in

the worksurface 3/8" to 3" (10 to 76 mm) wide, up to 4" (102 mm) thick.

Part Description Weight Shipping

Number Capacity Weight

Monitor Mounts

45-088-180, grey Desk Mount (Clamp/Grommet) Arm 23 lbs 13 lbs

45-088-200, black (10.4 kg) (6 kg)

28-171-180, grey Desk Mount (Clamp/Grommet) Arm 23 lbs 20 lbs

28-171-200, black with 9" Extension (10.4 kg) (9 kg)

Keyboard/Laptop Mounts

45-100-180, grey* Desk Mount (Clamp/Grommet) Keyboard/Laptop 7.5 lbs 12 lbs

45-100-200, black* Pivot Arm (3.4 kg) (5.5 kg)

* Order Keyboard/Mouse Tray or Laptop Tray separately (p.44).

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

45-088-xxx

28-171-xxx

45-100-xxx

12 • ARMS Orderguide • rev. 05/30/03 870-03-005

300 Series – Individual Components

Part Description Shipping

Number Weight

300 Arms Weight Capacity

45-067-180, grey 300 Arm 23 lbs 8 lbs

45-067-200, black (10.4 kg) (3.6 kg)

45-098-180, grey* 300 Arm, 7.5 lbs 7 lbs

45-098-200, black* Keyboard/Laptop Pivot (3.4 kg) (3.1 kg)

Extensions Notes

45-121-180, grey 5" Extension Combine with other arms for telescopic motion** 5 lbs

45-121-200, black (2.3 kg)

45-056-180, grey 9" Extension Combine with other arms for telescopic motion** 5 lbs

45-056-200, black (2.3 kg)

45-120-180, grey 7" Extension w/ Pole Combine with other arms for telescopic motion** 5 lbs

45-120-200, black Clamp (attach to 1-1/2" (2.3 kg)

Round Pole, p.42)

Bases Attach to…

60-249-180, grey Vertical Mount Slatwall Bracket, Wall Track, Wall Plate 2 lbs

60-249-200, black Pole Clamp, Command Post, or direct (.9 kg)

33-069-180, grey Desk Mount Clamp: Horizontal surface at edge ≤2-1/8" (54 mm) 5 lbs

33-069-200, black (Clamp/Grommet) Grommet: Horizontal surface through hole (2.3 kg)

3/8" to 3" (10 to 76 mm) wide, up to 4" (102 mm) thick

* Order Keyboard/Mouse Tray or Laptop Tray separately (p.44).

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

Vertical

Mount

7" Extension

w/ Pole Clamp

1-1/2"

Round Pole

Pole-Mount

Brackets

2" Round

Pole

1-1/2"

Round Pole

Vertical

Mount

60-420-200,

Large Clamp

**Attention:

System weight capacity may vary

depending on system configuration

(e.g., the number of Extensions used).

See page 52 to calculate capacity.

For dimensional information,

see page 59.

45-067-xxx

45-098-xxx

45-056-xxx

45-121-xxx

45-120-xxx

60-249-xxx

33-069-xxx

Mounting Options & Accessories for 300 Series

Page #

Accessory Options

Extensions

Keyboard/Mouse Trays, Laptop Trays & Accessories

Monitor Interface Accessories

CPU Holders

Storage Components

Peripheral Table

Page #

above

Surface Attachment Options

Direct Mounting, Wall Plates

Wall Tracks

Command Posts

Pole Mounts

Slatwall Components

Mobile WorkStands

Pole Mounts for the 300 Series

See page 42 for more Pole Mount product information.

≤ 2-1/8"

(54 mm)

3/8" to 3"

(10 to 76 mm)

(102 mm)

Desk Clamp

Both the Desk Clamp and Grommet

Mount bases are included with the

Desk Mount option.

Grommet Mount

Desk Mount Attachment

870-03-005 rev. 05/30/03 • ARMS Orderguide • 13

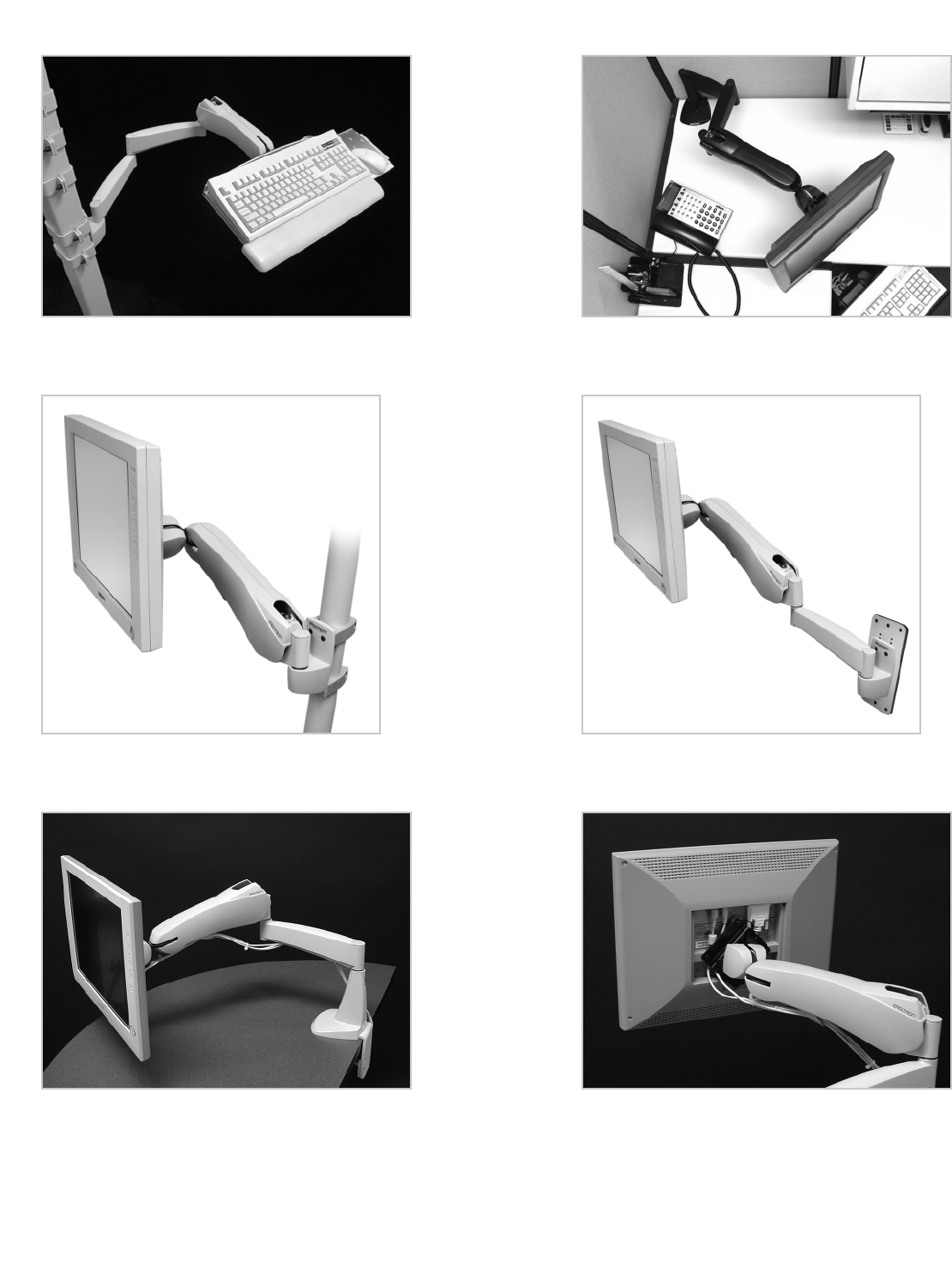

Photo Reference for 300 Series

A 300 Series Arm with two 9" Extensions is mounted to a Command

Post. This configuration can extend the keypad out over 30 inches.

A 300 Series Arm with one 9" Extension attached to Wall

Mount Plate.

A 300 Series Vertical Mount Arm clamped to a 2" round pole.

A 300 Series Arm with 9" Extension is clamped to a worksurface. Rear view of a 300 Series Arm. Note the cable routing.

The top view of a cubicle where a 300 Series Arm with two 9"

Extensions brings the monitor to point of use.

Rotation

• Telescopic motion

Height Adjustment

• Controlled by adjustment knob

Monitor Pivot

Bow Pivot

• Up/down tilt controlled by adjustment lever: +25°/-10°

• Portrait/landscape motion available with single-arm configurations only

Keyboard/Laptop and Combo Pivots

14 • ARMS Orderguide • rev. 05/30/03 870-03-005

360˚

180˚

360˚

20"

(508 mm)

6" Vertical

Slide Pivot

(152 mm)

180˚

360˚

180˚

35°

Attention: For dimensional information,

see page 60.

ARMS Product Selection

200 Series 200 Series products feature multiple points of rotation for extension and retraction motion.

This sturdy, fixed-height solution can mount multiple monitors on a single arm.

Interchangeable components allow you to customize a system to your exact needs.

Range of Motion

Side View

Up/down tilt

Front View

Portrait/landscape

Top View

Left/right tilt

Top View

Side View

Up/down tilt

Front View

Portrait/landscape

105˚

90˚

870-03-005 rev. 05/30/03 • ARMS Orderguide • 15

28-106-xxx

28-108-xxx

200 Series Pre-configurations – Vertical Mount

Mount to vertical surface: directly to surface, Wall Plate, Wall Track, Pole Clamps, etc. See chart below.

Part Description Weight Capacity Shipping

Number per Pivot Weight

Monitor Mounts

28-106-180, grey Single Pivot w/ P/L 25 lbs 4 lbs

28-106-200, black (11.3 kg) (1.8 kg)

28-185-180, grey 6" Vertical Slide Pivot w/ P/L 25 lbs 6 lbs

28-185-200, black (11.3 kg) (2.7 kg)

28-108-180, grey 9" Extension, 25 lbs 7 lbs

28-108-200, black Single Pivot w/ P/L (11.3 kg) (3.1 kg)

28-096-180, grey (2) 9" Extensions, 25 lbs 13.5 lbs

28-096-200, black Single Pivot w/ P/L (11.3 kg) (6 kg)

28-153-180, grey (2) 9" Extensions, 25 lbs 16 lbs

28-153-200, black 6" Vertical Slide Pivot w/ P/L (11.3 kg) (7.2 kg)

28-144-180, grey (2) 9" Extensions, Vertical Bar, 14 lbs 19 lbs

28-144-200, black (2) Single Pivots w/ P/L (6.3 kg) (8.6 kg)

28-147-180, grey* (2) 9" Extensions, Horizontal Dual-Monitor 13 lbs 21 lbs

28-147-200, black* 28" Crossbar, (2) Sliding Pivots (5.9 kg) (9.5 kg)

Keyboard/Laptop Mounts

28-177-180, grey** (2) 9" Extensions, 7.5 lbs 13.5 lbs

28-177-200, black** Keyboard/Laptop Pivot (3.4 kg) (6.1 kg)

Combo Mounts

28-188-180, grey (2) 9" Extensions, Combination Bracket, Single Mon: 25 lbs (11.3 kg) 28 lbs

28-188-200, black Pivot w/ P/L, Keyboard Pivot, Keyboard/Mouse Tray Kybd: 15 lbs (6.8 kg) (12.7 kg)

* For allowable monitor widths, see page 60.

** Order Keyboard/Mouse Tray or Laptop Tray separately (p.44).

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

28-185-xxx

28-096-xxx

28-153-xxx

28-144-xxx

28-147-xxx

28-177-xxx

28-188-xxx

Attention: For dimensional information,

see page 60.

Vertical Mount Attachment Options for the 200 Series

4.1.

Go to page listed to get more information about the different brackets and clamps.

Slatwall Bracket

See page 43

Command Post

See page 40

Wall Track

See page 39

Pole Clamps

See page 42

Wall Plates

See page 38

Directly to

vertical surfaces

16 • ARMS Orderguide • rev. 05/30/03 870-03-005

28-296-xxx

28-282-xxx

28-280-xxx

200 Series Pre-configurations – Pole Mount

Attach directly to 1-1/2" diameter poles.

Part Description Weight Capacity Shipping

Number per Pivot Weight

28-296-180, grey 7" Extension w/ Pole Clamp, 9" Extension, 25 lbs 14 lbs

28-296-200, black 6" Vertical Slide Pivot w/ P/L (11.3 kg) (6.3 kg)

28-282-180, grey 7" Extension w/ Pole Clamp, 5" Extension, 25 lbs 14 lbs

28-282-200, black 6" Vertical Slide Pivot w/ P/L (11.3 kg) (6.3 kg)

28-280-180, grey* 7" Extension w/ Pole Clamp, 5" Extension, See chart below 21 lbs

28-280-200, black* Dual-Monitor 28" Crossbar, (2) Sliding Pivots (9.5 kg)

28-370-200, black* 7" Extension w/ Pole Clamp, 5" Extension w/ See chart below 18 lbs

Bow Pivot, Dual-Monitor 28" Crossbar, (8.2 kg)

(2) Sliding Pivots (Upgradeable to Triple-Monitor

Config using 97-195-200, p.18)

28-281-200, black* 7" Extension w/ Pole Clamp, 5" Extension w/ See chart below 22 lbs

Bow Pivot, Triple-Monitor 46" Crossbar w/ (10 kg)

Center Pivot, (2) Sliding Pivots

28-347-200, black* (2) 7" Extensions w/ Pole Clamp, (2) 5" Extensions See chart below 31 lbs

w/ Bow Pivot, Triple-Monitor 55" Crossbar (14 kg)

w/ Center Pivot, (2) Sliding Pivots

28-371-200, black* (2) 7" Extensions w/ Pole Clamp, (2) 5" Extensions See chart below 32 lbs

w/ Bow Pivot,Quad-Monitor 55" Crossbar, (14.5 kg)

(4) Sliding Pivots

* For allowable monitor widths, see page 60.

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

28-370-200

28-281-200

28-347-200 28-371-200

Attention: For information regarding

installation products listed in this table,

see pages 42-43.

Part

Number

28-371-200

28-347-200

28-281-200

28-370-200

28-280-200

Slatwall Installation

Weight Capacity per Pivot

24 lbs (10.9 kg)

27 lbs (12.2 kg)

13 lbs (5.9 kg)

22 lbs (10 kg)

25 lbs (11.3 kg)

Grommet/Desk Clamp Installation

Weight Capacity per Pivot

17 lbs (7.7 kg)

19 lbs (8.6 kg)

9 lbs (4 kg)

16 lbs (7.2 kg)

18 lbs (8.1 kg)

Weight Capacities for 200 Series Pole Mount Pre-configurations

Pole Mounts for the 200 Series

Vertical

Mount

7" Extension

w/ Pole Clamp

1-1/2"

Round Pole

Pole-Mount

Brackets

2" Round

Pole

1-1/2"

Round Pole

Vertical

Mount

60-420-200,

Large Clamp

See page 42 for more Pole Mount product information.

870-03-005 rev. 05/30/03 • ARMS Orderguide • 17

28-113-xxx

200 Series Pre-configurations – Desk Mount

Desk Mounts attach to worksurfaces with either the Desk Clamp or the Grommet Mount. Desk Clamps

attach to the edge of worksurfaces ≤2-1/8" (54 mm) thick. Grommet Mounts attach through a hole in

the worksurface 3/8" to 3" (10 to 76 mm) wide, up to 4" (102 mm) thick.

Part Description Weight Capacity Shipping

Number per Pivot Weight

Monitor Mounts

28-113-180, grey 6" Vertical Slide Pivot w/ P/L 25 lbs 6 lbs

28-113-200, black (11.3 kg) (2.7 kg)

28-115-180, grey Single Pivot w/ P/L 25 lbs 7 lbs

28-115-200, black (11.3 kg) (3.1 kg)

28-097-180, grey (2) 9" Extensions, 25 lbs 16.5 lbs

28-097-200, black Single Pivot w/ P/L (11.3 kg) (7.5 kg)

28-154-180, grey (2) 9" Extensions, 25 lbs 20 lbs

28-154-200, black 6" Vertical Slide Pivot w/ P/L (11.3 kg) (9 kg)

Keyboard/Laptop Mounts

28-178-000, grey* (2) 9" Extensions, 7.5 lbs 16.5 lbs

28-178-200, black* Keyboard/Laptop Pivot (3.4 kg) (7.5 kg)

Combo Mounts

28-189-180, grey (2) 9" Extensions, Combination Bracket, Single Pivot Mon: 25 lbs (11.3 kg) 28 lbs

28-189-200, black w/ P/L, Keyboard Pivot, Keyboard/Mouse Tray Kybd: 15 lbs (6.8 kg) (12.7 kg)

* Order Keyboard/Mouse Tray or Laptop Tray separately (p.44).

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

28-115-xxx

28-097-xxx

28-154-xxx

28-178-xxx

28-189-xxx

200 Series – Individual Components (continued on next page)

Part Description Shipping

Number Weight

Bases Attach to…

60-249-180, grey Vertical Mount Slatwall Bracket, Wall Track, Wall Plate, 2 lbs

60-249-200, black Pole Clamp, directly to vertical surface (.9 kg)

33-069-180, grey Desk Mount Clamp: Horizontal surface at edge ≤2-1/8" (54 mm) 5 lbs

33-069-200, black (Clamp/Grommet) Grommet: Horizontal surface through hole (2.3 kg)

3/8" to 3" (10 to 76 mm) wide, up to 4" (102 mm) thick

Extensions (continued on next page) Notes

45-121-180, grey 5" Extension Combine w/ other Extension(s) 5 lbs

45-121-200, black (2.3 kg)

45-056-180, grey 9" Extension Combine w/ other Extension(s) 5 lbs

45-056-200, black (2.3 kg)

45-135-180, grey 5" Extension Use with Single Pivot (47-011-xxx), 6 lbs

45-135-200, black w/ Pivot Interface Keyboard/Laptop Pivot (47-009-xxx) or (2.7 kg)

6" Vertical Slide Pivot (60-321-009)

45-058-180, grey 9" Extension Use with Single Pivot (47-011-xxx), 5 lbs

45-058-200, black w/ Pivot Interface Keyboard/Laptop Pivot (47-009-xxx) or (2.3 kg)

6" Vertical Slide Pivot (60-321-009)

45-134-180, grey 5" Extension Use with Vertical Bar (60-324-xxx) 6 lbs

45-134-200, black w/ Combo Interface or Combo Bracket (60-374-xxx) (2.7 kg)

45-057-180, grey 9" Extension Use with Vertical Bar (60-324-xxx) 5 lbs

45-057-200, black w/ Combo Interface or Combo Bracket (60-374-xxx) (2.3 kg)

45-123-180, grey 5" Extension Use with Horizontal Crossbar 6 lbs

45-123-200, black w/ Crossbar Interface (60-409-xxx) (2.7 kg)

45-125-180, grey 9" Extension Use with Horizontal Crossbar 6 lbs

45-125-200, black w/ Crossbar Interface (60-409-xxx) (2.7 kg)

45-123-xxx 45-125-xxx

45-134-xxx 45-057-xxx

45-135-xxx 45-058-xxx

45-121-xxx 45-056-xxx

60-249-xxx 33-069-xxx

Attention:

System weight capacity may vary

depending on system configuration

(e.g., the number of Extensions used).

See page 52 to calculate capacity.

For dimensional information,

see page 60.

≤ 2-1/8"

(54 mm)

3/8" to 3"

(10 to 76 mm)

(102 mm)

Desk Clamp

Both the Desk Clamp and Grommet

Mount bases are included with the

Desk Mount option.

Grommet Mount

Desk Mount Attachment

(152 mm)

18 • ARMS Orderguide • rev. 05/30/03 870-03-005

47-011-xxx

The 200 Series can

be fitted with the 6"

Vertical Slide Pivot to

add height adjustment

capability. With a turn

of a knob, the monitor

can be repositioned at

the optimum height.

60-321-009

47-046-xxx 47-047-xxx

60-323-007 97-151-007

Page #

Accessory Options

Extensions

Keyboard/Mouse Trays, Laptop Trays & Accessories

Monitor Interface Accessories

CPU Holders

Storage Components

Peripheral Table

Page #

17 & 18

Surface Attachment Options

Direct Mounting, Wall Plates

Wall Tracks

Command Posts

Pole Mounts

Slatwall Components

Mobile WorkStands

60-409-xxx

97-195-xxx

60-324-xxx 60-374-xxx

28-320-xxx

Mounting Options & Accessories for 200 Series

Attention:

System weight capacity may vary

depending on system configuration

(e.g., the number of Extensions used).

See page 52 to calculate capacity.

For dimensional information,

see page 60.

Height Adjustment

200 Series – Individual Components (cont.)

Part Description Shipping

Number Weight

Extensions (continued from previous page) Attaches to…

45-120-180, grey 7" Extension w/ Pole 1-1/2" Round Pole (p.42) 6 lbs

45-120-200, black Clamp (2.7 kg)

45-137-180, grey 7" Extension w/ Pole 1-1/2" Round Pole (p.42); use with Single Pivot 7 lbs

45-137-200, black Clamp w/ Pivot Interface (47-011-xxx), Keyboard/Laptop Pivot (47-009-xxx) (3.2 kg)

or 6" Vertical Slide (60-321-009)

45-136-180, grey 7" Extension w/ Pole 1-1/2" Round Pole (p.42); use w/ Vertical Bar 7 lbs

45-136-200, black Clamp w/ Combo (60-324-xxx) or Combo Bracket (60-374-xxx) (3.2 kg)

Interface

45-124-180, grey 7" Extension w/ Pole 1-1/2" Round Pole (p.42); use with Horizontal 7 lbs

45-124-200, black Clamp w/ Crossbar Crossbar (60-409-xxx) (3.2 kg)

Interface

Multi Component Mounts Notes

60-409-099, grey* Horizontal Dual-Monitor Requires (2) separately-ordered Sliding Pivots (below); 6 lbs

60-409-085, black* 28" Crossbar attaches to Extension w/ Crossbar Interface (2.7 kg)

97-195-099, grey* Dual-to-Triple Horizontal Transforms Dual-Monitor System 28-370-200 (p.16) 6 lbs

97-195-085, black* Crossbar Upgrade Kit: into Triple-Monitor System. Note: The weight capacity (2.7 kg)

(2) Short Crossbar of the 28-370-200 when using the 97-195-xxx is the

Extensions, Center Pivot same as the 28-281-200 (p.16).

28-320-099, grey* Horizontal Dual-Monitor Requires (2) separately-ordered Sliding Pivots (below) 10 lbs

28-320-085, black* 28" Crossbar, Vertical Mount (4.5 kg)

60-324-099, grey Vertical Dual-Monitor Includes Pivots; attaches to Extension 8 lbs

60-324-085, black 21" Bar, Sliding w/ Combo Interface (3.6 kg)

Pivots w/ P/L

60-374-099, grey Combo Monitor/Keyboard Includes Pivots; attaches to Extension w/ Combo 8 lbs

60-374-085, black Bracket, Single Pivot w/ P/L Interface; order Keyboard & Keyboard Pivot Tray (3.6 kg)

separately (p.44)

Pivots Notes

47-011-099, grey Single Pivot w/ P/L Attaches to Extension w/ Pivot 2 lbs

47-011-085, black Interface (.9 kg)

60-321-009, black 6" Vertical Slide Attaches to Extension w/ Pivot Interface 3 lbs

Pivot w/ P/L (1.4 kg)

47-046-099, grey Sliding Pivot Attaches to Horizontal Crossbars 2 lbs

47-046-085, black (.9 kg)

47-047-099, grey Sliding Pivot w/ P/L Attaches to Horizontal Crossbars 2 lbs

47-047-085, black (.9 kg)

Other Notes

60-323-007, 400 Series Interface Plate Attaches to Extension w/ Combo Interface; 1 lbs

aluminum use with 400 Series Rotate Arm only; (.5 kg)

limit system to (1) Extension

97-151-007, Rotation Stop Bracket Controls rotation of Extension 1 lbs

aluminum (.5 kg)

* For allowable monitor widths, see page 60.

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

45-120-xxx 45-137-xxx

45-136-xxx 45-124-xxx

870-03-005 rev. 05/30/03 • ARMS Orderguide • 19

Photo Reference for 200 Series

The 200 Series features extension and retraction motion.

Vertical Mount 200 Series Single Pivot w/ P/L.

A triple-monitor configuration attached to slatwall using a

1-1/2" Round Pole and Slatwall Pole Clamp.

200 Series Desk Mount configuration.

200 Combo Arm and CPU Holder attached to Wall Track.

Vertical Mount 200 Series 6" Vertical Slide Pivot.

20 • ARMS Orderguide • rev. 05/30/03 870-03-005

ARMS Product Selection

up to 180˚up to 180˚360˚

180˚

100 Series

Pivots attach to walls, machines and other vertical surfaces.

Part Description Weight Shipping

Number Capacity Weight

Monitor Mounts

47-001-099, grey Single Pivot 28 lbs 1 lbs

47-001-085, black (12.7 kg) (.5 kg)

47-011-099, grey Single Pivot w/ P/L 25 lbs 2 lbs

47-011-085, black (11.3 kg) (.9 kg)

47-012-099, grey Double Pivot 25 lbs 3 lbs

47-012-085, black (11.3 kg) (1.4 kg)

47-007-099, grey Double Pivot w/ P/L 23 lbs 3 lbs

47-007-085, black (10.4 kg) (1.4 kg)

Keyboard/Laptop Mounts

47-009-099, grey* Keyboard/Laptop Pivot 7.5 lbs 2 lbs

47-009-085, black* (3.4 kg) (.9 kg)

Extenders Dimensions (L x W x D)

60-197-100, grey Extender, 5-inch 5" x 2" x 1-3/4" 2 lbs

60-197-101, black (127 x 51 x 44 mm) (.9 kg)

* Keyboard/Mouse Tray or Laptop Tray ordered separately. (See page 44.)

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

47-007-xxx

Page #

Accessory Options

Extenders

Keyboard/Mouse Trays, Laptop Trays & Accessories

Monitor Interface Accessories

CPU Holders

Storage Components

Peripheral Table

Page #

above

Surface Attachment Options

Direct Mounting, Wall Plates

Wall Tracks

Command Posts

Pole Mounts

Slatwall Components

Mobile WorkStands

Attention: For dimensional information,

see page 61.

47-001-xxx

47-011-xxx

47-012-xxx

47-009-xxx

60-197-xxx

Mounting Options & Accessories for 100 Series

Pivot/Tilt

•Single Pivot: 180°up/down tilt

•Single Pivot w/ P/L: 180°up/down tilt; 360°portrait/landscape

•Double Pivot: 180°up/down tilt; 180°left/right tilt

•Double Pivot w/ P/L: 180°up/down tilt; 360°portrait/landscape; 180°left/right tilt

•Keyboard/Laptop Pivot: 180°up/down tilt

100 Series 100 Pivots provide tilt and portrait/landscape adjustment. Mount them to most vertical

surfaces. Their low profile is perfect for space-constrained areas.

Range of Motion

Side View

Up/down tilt

Front View

Portrait/landscape

Top View

Left/right tilt

Side View

Up/down tilt

870-03-005 rev. 05/30/03 • ARMS Orderguide • 21

FX Series

A two-part bracket set: To release the monitor from the wall, the user simply moves the lever to the

side and lifts. The monitor reinstalls just as easily.

Part Description Weight Shipping

Number Capacity Weight

60-239-007, black* FX-30 Wall Mount 30 lbs 2 lbs

(13.6 kg) (.9 kg)

* Kit does not include screws or fasteners to mount bracket to vertical surface. Customer supplied.

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

Page #

Accessory Options

Wrist Rests & Mouse Accessories

CPU Holders

Storage Components

Page #

Surface Attachment Options

Direct Mounting

3/4"

(20 mm)

4-1/2"

(115 mm)

None: The FX Series is a fixed mount solution.

ARMS Product Selection

FX Series Fixed mounts (FX Series) allow flat panels to be hung like a picture. Once installed,

monitors are held in place with touch-screen stability. This is a very low-profile mounting

solution: monitors are held less than an inch from the wall. Attach the FX Series to most

any vertical surface.

Range of Motion

Mounting Options & Accessories for FX Series

Side View

Clamping Pivots

Motion range varies…

• Clamping Pivot:up/down tilt

•Clamping Pivot with P/L:up/down tilt;portrait/landscape

•Clamping Double Pivot:up/down tilt;left/right tilt

•Clamping Double Pivot with P/L:up/down tilt;left/right tilt;portrait/landscape

Sliding Pivots

(Can be installed for left/right or up/down tilt)

Motion range varies…

• Sliding Pivot:left/right or up/down tilt

•Sliding Pivot with P/L:left/right or up/down tilt;portrait/landscape

22 • ARMS Orderguide • rev.05/30/03 870-03-005

Adjustment lever

Rear View

Adjustment thumbscrew

ARMS Product Selection

DS100 Series DeskStand 100 (DS100 Series) positions up to five monitors on a worksurface.Choose

from three base options:Free Standing, Desk Clamp, or Grommet Mount.The DS100

Series utilizes Paraview Technology:view multiple monitors simultaneously,

adjusting their position to a comfortable, ergonomically appropriate location.

Range of Motion

Side View

Up/down tilt

Front View

Portrait/landscape

Top View

Left/right tilt

Side View

Up/down tilt

Front View

Portrait/landscape

Top View

Left/right tilt

870-03-005 rev.05/30/03 • ARMS Orderguide • 23

DS100 Series – Pre-configurations

Selections include Pivot(s), Free Standing Base, Pole and Crossbar(s) in one complete package.

Standard color is black.

Part Description Weight Capacity Shipping

Number per Pivot Weight

33-090-200, black Single Monitor Pre-configuration: 23 lbs 11 lbs

14" Pole, Clamping Double Pivot w/ P/L (10.4 kg) (5 kg)

33-091-200, black Dual Monitor Vertical Pre-configuration: 23 lbs 16 lbs

28" Pole, (2) Clamping Double Pivots w/ P/L (10.4 kg) (7.3 kg)

33-092-200, black* Dual Monitor Horizontal Pre-configuration: 28 lbs 16 lbs

14" Pole, 28" Crossbar, (2) Sliding Pivots (12.7 kg) (7.3 kg)

33-095-200, black* Triple Monitor Horizontal Pre-configuration: 28 lbs 20 lbs

14" Pole, 46" Crossbar w/ Center Pivot, (12.7 kg) (9 kg)

(2) Sliding Pivots

33-096-200, black* Quad Monitor Pre-configuration: 28 lbs 24 lbs

28" Pole, (2) 28" Crossbars, (4) Sliding Pivots (12.7 kg) (10.9 kg)

*For allowable monitor widths, see page 62.

Note:Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket.Contact

your Sales Representative for more information.(See page 47 for details.)

33-090-200

DS100 Series – Custom Configurations

Build your own DeskStand to your exact specifications with selection of interchangeable

parts.Below are examples of possible configurations composed with DS100 Series individual

components (see next section).

33-092-200

33-091-200 33-096-200

33-095-200

Custom Example 1:

Vertical (V) Dual Monitor

includes:

• 33-262-200, Free Standing Base

• 20-137-200, 28" Pole

• 47-057-200, (2), Clamping Pivots

Custom Example 2:

Single Monitor

includes:

• 60-349-200, Desk Clamp Base

• 20-136-200, 22" Pole

• 47-057-200, Clamping Pivot

Custom Example 3:

Quint Monitor

includes:

• 33-262-200, Free Standing Base

• 20-137-200, 28" Pole

• 60-409-200, 28" Crossbar

• 60-410-200, 46" Crossbar

• 47-046-085 (4), Sliding Pivots

Custom Example 4:

Pyramidal (P) Quad Monitor

includes:

• 60-349-200, Desk Clamp Base

• 20-161-200, 36" Pole

• 60-410-200, 46" Crossbar

• 47-046-085 (2), Sliding Pivots

• 47-051-200, Clamping Double Pivot w/ P/L

Attention:For dimensional information,

see page 62.

24 • ARMS Orderguide • rev. 05/30/03 870-03-005

DS100 Series – Individual Components

Part Description Shipping

Number Weight

Bases Attach to…

33-262-200, black Free Standing Base No attachment necessary 2 lbs

(.9 kg)

60-349-200, black Desk Clamp Base Worksurface edge ≤2-1/8" (54 mm) thick 5 lbs

(2.3 kg)

60-350-200, black Grommet Mount Base Worksurface through hole 3/8" to 3" (10 to 5 lbs

76 mm) wide, up to ≤4" (102 mm) thick (2.3 kg)

Poles Recommended Configurations

20-135-200, black 14" Pole Single, dual (H), triple (H), quad (H) 2 lbs

(.9 kg)

20-136-200, black 22" Pole Single, dual (H), triple (H), quad (H) 5 lbs

(2.3 kg)

20-137-200, black 28" Pole Dual (V), triple (P), quad (S), quint 5 lbs

(2.3 kg)

20-161-200, black 36" Pole Dual (V), triple (P), quad (P, S), quint 5 lbs

(2.3 kg)

Crossbars Recommended Configurations

60-409-200, black* 28" Crossbar Dual (H), triple (P), quad (S), quint 6 lbs

(mounts 2 Pivots) (2.7 kg)

60-410-200, black* 46" Crossbar Triple (H), quad (P), quint 10 lbs

w/ Center Pivot Pivot (mounts 3 Pivots) (4.5 kg)

60-432-200, black* 55" Crossbar Quad (H) – requires Outboard Pole 11 lbs

(mounts 4 Pivots) Clamps & 2 Bases/Poles (5 kg)

60-443-200, black Outboard Pole Clamps Quad (H) – attaches 55" Crossbar 3 lbs

(1 set of 2 clamps) to 2 Bases/Poles (1.4 kg)

Crossbar Extenders Application

60-411-200, black* Short Crossbar Converts 28" Crossbar to 46" Crossbar 4 lbs

Extenders (1.8 kg)

60-436-200, black* Long Crossbar Converts 28" Crossbar to 55" Crossbar 4 lbs

Extenders (1.8 kg)

97-195-200, black* Short Crossbar Converts 28" Crossbar to 46" Crossbar & 6 lbs

Extenders, Center Pivot adds Pivot to center (2.7 kg)

97-196-200, black* Long Crossbar Converts 28" Crossbar to 55" Crossbar & 6 lbs

Extenders, Center Pivot adds Pivot to center (2.7 kg)

Pivots Attach to…Weight Capacity

47-046-085, black Sliding Pivot Crossbar 28 lbs 2 lbs

(12.7 kg) (.9 kg)

47-047-085, black Sliding Pivot w/ P/L Crossbar 25 lbs 2 lbs

(11.3 kg) (.9 kg)

47-057-200, black Clamping Pivot Pole 28 lbs 3 lbs

(12.7 kg) (1.4 kg)

47-058-200, black Clamping Pivot w/ P/L Pole 25 lbs 4 lbs

(11.3 kg) (1.8 kg)

47-050-200, black Clamping Double Pivot Pole 25 lbs 5 lbs

(11.3 kg) (2.3 kg)

47-051-200, black Clamping Double Pivot Pole 23 lbs 5 lbs

w/ P/L (10.4 kg) (2.3 kg)

* For allowable monitor widths, see page 62.

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

Key for Recommended Configurations: (H) = horizontal; (V) = vertical; (P) = pyramidal; (S) = square.

33-262-200 60-349-200

20-135-200

60-409-200

Page #

above

Accessory Options

Wrist Rests & Mouse Accessories

CPU Holders

Storage Components

Page #

Surface Attachment Options

Freestanding, Desk Clamp, Grommet Mount

60-350-200

20-136-200

20-137-200

60-410-200

60-432-200

60-411-200

60-436-200

97-195-200

97-196-200

60-443-200

47-046-085

47-047-085

47-057-200

47-058-200

47-050-200

47-051-200

Mounting Options & Accessories for DS100 Series

20-161-200

870-03-005 rev. 05/30/03 • ARMS Orderguide • 25

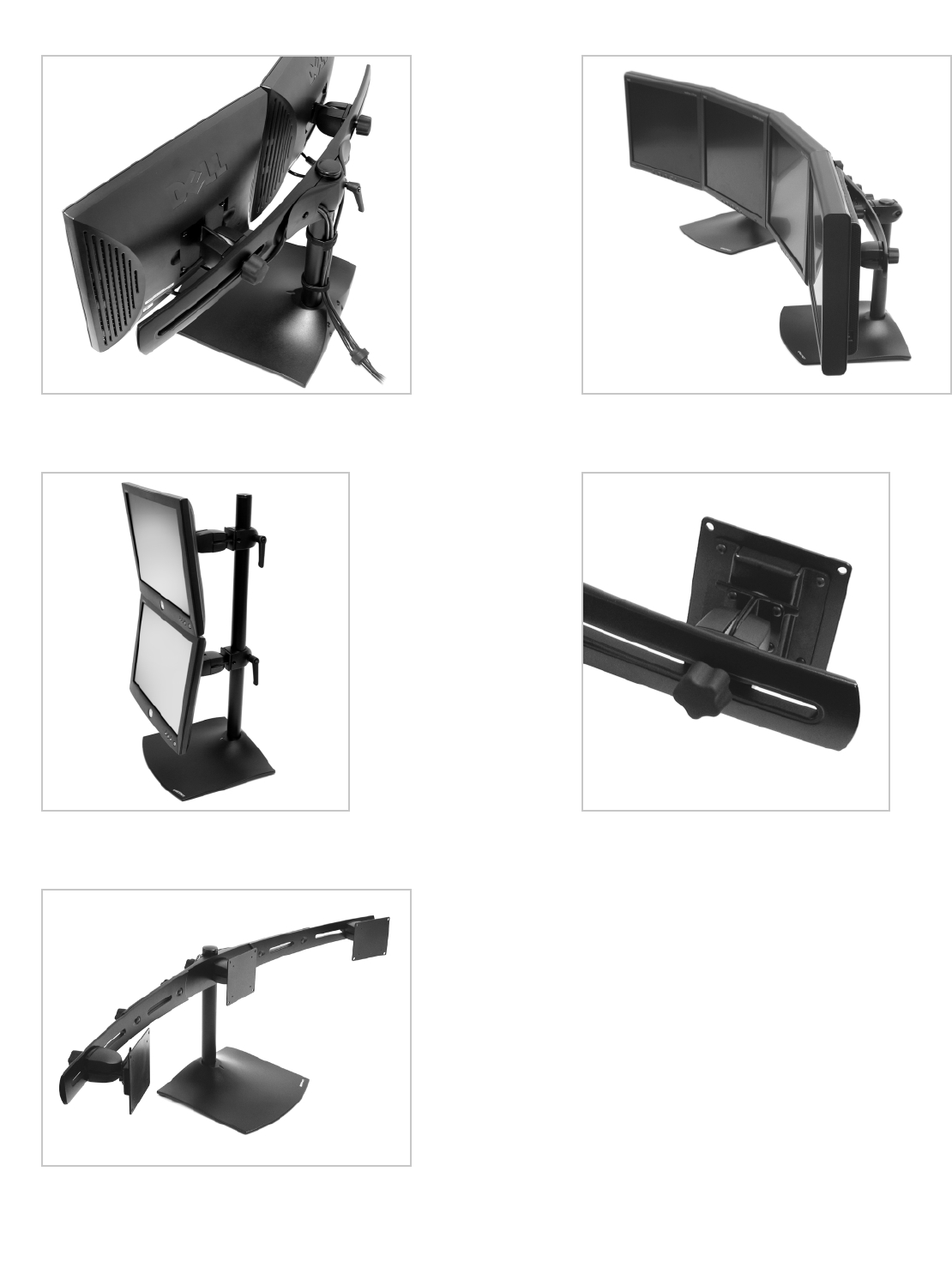

Photo Reference for DS100 Series

Rear view of a horizontal dual-monitor DS100 configuration. Cables

are routed through the crossbar.

A dual-monitor vertical configuration provides full tilt

adjustability.

A triple-monitor configuration demonstrates the curve of a “viewing

parabola,” which maintains a single focal length for viewing.

A horizontal quad-monitor configuration – two bases support four

monitors across a level plane while creating a viewing parabola with

Ergotron's Paraview Technology.

Close-up view of the Sliding Pivot on the Paraview bow.

With the turn of the knob, a monitor is easily moved to

accommodate multiple, different-sized screens on the

same stand.

Arm Adjustment

Pivot Adjustment

26 • ARMS Orderguide • rev. 05/30/03 870-03-005

180˚

90˚

360˚

DS400 Series

Includes mounting Arm, Pivot and Base in one complete package.

Part Description Weight Shipping

Number Capacity Weight

45-053-099, grey DS400 Series 20 lbs 32 lbs

45-053-085, black (9 kg) (14.5 kg)

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

3-3/8"

(86 mm)

1-1/2"

(38 mm)

15"

(381 mm)

10-1/4"

(260 mm)

2-1/8"

(54 mm)

2-1/2"

(64 mm)

15-3/4"

(400 mm)

16-1/8"

(410 mm)

11-3/8"

(289 mm)

15"

(381 mm)

10-1/4"

(260 mm)

Page #

n/a

Accessory Options

Wrist Rests & Mouse Accessories

CPU Holders

Storage Components

Page #

Surface Attachment Options

Freestanding

ARMS Product Selection

DS400 Series DeskStand 400 (DS400 Series) is a freestanding module that requires no bolting or

clamping to a surface. It allows the user to easily adjust a flat panel monitor for maximum

comfort and productivity. The sturdy construction is built to last, while its sleek design

complements any desktop arrangement.

Range of Motion

Mounting Options & Accessories for DS400 Series

Side View

Up/down tilt

Front View

Portrait/landscape

Top View

Side-to-side

Side View

Vertical

HD45 Arm

HD Pivot

HD Dual-Monitor Arm

HD Combo Arm

HD Laptop Arm

870-03-005 rev. 05/30/03 • ARMS Orderguide • 27

15"

(381 mm)

15"

(381 mm)

15"

(381 mm)

15"

(381 mm)

ARMS Product Selection

HD Series HD Series Arms feature full adjustment capability, moving monitors and laptops through a

15" vertical range. The heavy-duty HD45 and Pivots accommodate heavier monitors than

standard ARMS products. A laptop version provides a secure docking station. Attach the

HD Series to virtually any vertical or horizontal surface.

Range of Motion

Side View

Up/down tilt

Top View

Side-to-side

Side View

Height adjustment

Side View

Up/down tilt

Top View

Side-to-side rotation

with extension

Top View

Left/right tilt

Top View

Side-to-side

Side View

Height adjustment

Side View

Up/down tilt

Side View

Height adjustment

Top View

Side-to-side

Front View

Portrait/landscape

Top View

Side-to-side

Side View

Height adjustment/tilt

28 • ARMS Orderguide • rev. 05/30/03 870-03-005

HD Series – Arms

Select the HD45 Arm for heavy monitors. The HD Dual-Monitor Arm holds two monitors. The HD

Combo accommodates a flat panel and keyboard on the same arm. The HD Laptop Arm offers a

secure docking station. Order a Base separately.

Part Description Weight Capacity Shipping

Number per Pivot Weight

Monitor Mounts

44-371-180, grey* HD45 Arm 20–xx lbs (9.1–xx kg) 9 lbs

44-371-200, black* (order Base separately, page 29) for “xx”, see chart below (4.1 kg)

Multi Monitor Mounts

28-275-180, grey** HD Dual-Monitor Arm 20 lbs 19 lbs

28-275-200, black** (order Base separately, page 29) (9 kg) (8.6 kg)

Combo Mounts

44-373-180, grey HD Combo Arm, Keyboard Tray w/ Sliding Mouse Tray Mon: 25 lbs (11.3 kg) 19 lbs

44-373-200, black (order Base separately, page 29) Kybd: 15 lbs (6.8 kg) (8.6 kg)

Laptop Mounts

44-389-180, grey HD Laptop Arm, Security Shroud 20 lbs 42 lbs

44-389-200, black (order Base separately, page 29) (9 kg) (19.1 kg)

* VESA FDMI 100 x 100 mm monitor hole pattern only. Not compatible with 75 x 75 mm interface.

** For allowable monitor widths, see Page 62.

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

44-371-xxx

28-275-xxx

44-373-xxx

44-389-xxx

28-274-xxx

45-142-xxx

45-143-xxx

45-144-xxx

HD Series – Pivots

HD Pivots provide a fixed height solution for heavy monitors.

Part Description Weight Capacity Shipping

Number per Pivot Weight

28-274-180, grey* HD Pivot, Vertical Mount See chart below 3 lbs

28-274-200, black* (1.4 kg)

45-142-180, grey* HD Pivot, 9" Extension, Vertical Mount See chart below 9 lbs

45-142-200, black* (4.1 kg)

45-143-180, grey* HD Pivot, 5" Extension, Vertical Mount See chart below 6 lbs

45-143-200, black* (2.7 kg)

45-144-180, grey* HD Pivot, 7" Pole Mount Extension See chart below 6 lbs

45-144-200, black* (2.7 kg)

* VESA FDMI 100 x 100 mm monitor hole pattern only. Not compatible with 75 x 75 mm interface.

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

Weight Capacity

applies to HD45 Arm and HD Pivots

Monitor Weight

40 lbs (18 kg)

43 lbs (19.5 kg)

45 lbs (20.4 kg)

48 lbs (21.8 kg)

53 lbs (24 kg)

Monitor Thickness

4" (102 mm)

3-1/2" (89 mm)

3-1/4" (83 mm)

3" (76 mm)

2-1/2" (64 mm)

Attention:

For additional weight capacity information,

see page 53.

870-03-005 rev.05/30/03 • ARMS Orderguide • 29

HD Series – Other Components

Order a Base separately (except for HD Pivots, which include a Vertical Mount) to complement your HD

Arm.Optional Extenders increase the reach of your HD Series Arm solution.

Part Description Shipping

Number Weight

Bases Attaches to…

60-257-180, grey* Desk Clamp Horizontal surface at edge ≤3" (76 mm) thick 5 lbs

60-257-200, black* (2.3 kg)

33-269-180, grey* Grommet Mount Horizontal surface through hole 3/8" to 3" 5 lbs

33-269-200, black* (10 to 76 mm) wide, up to 4" (102 mm) thick (2.3 kg)

60-378-180, grey* Vertical Mount Vertical surface:wall, Command Post, 2 lbs

60-378-200, black* Wall Track, etc. (.9 kg)

Interface Plate Attaches to…

97-197-200, black 100 x 200 mm Monitors using the VESA MIS-E, C Interface 2 lbs

Adapter Plate Kit Standard (.9 kg)

Extenders Dimensions (L x W x D)

44-362-100, grey* Extender, 12-inch 12" x 2" x 6-1/4" 7 lbs

(305 x 51 x 159 mm) (3.2 kg)

44-314-100, grey* Extender, 18-inch 18" x 2" x 6-1/4" 9 lbs

(457 x 51 x 159 mm) (4.1 kg)

44-315-100, grey* Extender, 24-inch 24" x 2" x 6-1/4" 12 lbs

(610 x 51 x 159 mm) (5.5 kg)

44-316-100, grey* Extender, 30-inch 30" x 2" x 6-1/4" 14 lbs

(762 x 51 x 159 mm) (6.4 kg)

*Not compatible with HD Pivots.

Page #

above

Accessory Options

Extenders

Wrist Rests & Mouse Accessories

CPU Holders

Storage Components

Peripheral Table

Page #

above

Surface Attachment Options

Desk Clamp, Grommet Mount

Direct Mount (Vertical Mount, above), Wall Plates

Wall Tracks

Command Posts

60-257-xxx

33-269-xxx

60-378-xxx

97-197-200, converts 100 x 200 mm

monitors into 75 x 75 mm or 100 x 100 mm

hole pattern

44-362-100

44-314-100

44-315-100

44-316-100

Command Post

(page 40)

Wall Track

(page 39)

Wall Mount

Bracket

(page 38)

The HD Series is well-suited to industrial applications

using the Command Post.

Command Post Extender

HD45 Arm

Post ARMS

Bracket

Vertical

Mount

Mounting Options & Accessories for HD Series

HD Series Arms Vertical Mount Attachment

Use Vertical Mount (60-378-xxx) in tandem with mounting systems.

Vertical Lift Range

• 9" (229 mm) of height adjustment

–monitor and keyboard move in tandem

Monitor Tilt

• Monitor tilts up and down 10°

–monitor tilt varies between monitors

Keyboard Adjustment

• Keyboard tilts 90°

•Keyboard extends 6-1/2" (165 mm)

–optional

30 • ARMS Orderguide • rev. 05/30/03 870-03-005

(229 mm)

10˚

90˚

6-1/2"

(165 mm)

optional

ARMS Product Selection

VL Series Vertical Lift ARMS (VL Series) are wall-mounted modules that allow quick positioning of a

monitor and keyboard. When the keyboard is folded in the storage position and with the

appropriate monitor selection, the total system depth can be as little as 4 inches (102 mm),

making it the ideal solution for confined or high-traffic areas. When installed at the correct

height, the 9 inches (229 mm) of vertical adjustment accommodates the ergonomic height

needs of everyone from the average-height female to the average-height male, in both

sitting or standing applications.

Range of Motion

Side View

870-03-005 rev.05/30/03 • ARMS Orderguide • 31

VL Series

The monitor and keyboard move up and down in tandem for ease of use.An optional Slide-Out

Keyboard Tray allows the user to pull out the keyboard to a more comfortable position.The system’s

smooth steel construction is both durable and easy to clean.A quick-connect interface makes monitor

attachment/removal easy.

Part Description Weight Shipping

Number Capacity** Weight

25-022-100, grey* VL Series, VL-9 w/ Standard Keyboard Tray 9–34 lbs 34 lbs

25-022-101, black* (4.1–15.5 kg) (15.5 kg)

25-027-100, grey* VL Series, VL-9 w/ Slide-Out Keyboard Tray 5–30 lbs 40 lbs

(2.3–13.6 kg) (18.2 kg)

97-175-100, grey Retrofit Kit to add Slide-Out Keyboard Tray 5–30 lbs 10 lbs

(2.3–13.6 kg) (4.5 kg)

*Includes Keyboard Tray w/ Sliding Mouse Tray & Wrist Rest Holder (77-050-xxx) and Mouse Pad (85-025-079).

** Combined weight of monitor and keyboard.

Note:•Use of a VESA FDMI Standard compliant flat panel monitor is strongly recommended.We strongly urge you

to contact to verify monitor compatibility prior to ordering.(See page 47 for details.)

•Monitors with cables that exit straight out the back of the monitor, as well as monitors that have

non-removable bases/stands, may not be compatible with the VL Series.The VL Series works best with

cables that exit in a downward or sideward direction.

•Choose a monitor with four-hole mounting pattern at or near top-to-bottom center-line (C/L).

1-1/2" + monitor depth

1-1/2"

(38 mm)

(102 mm)

29-3/8"

(746 mm)

12-1/2"

(318 mm)

4-1/2"

(114 mm)

18-1/4"

(210 mm)

11-3/4"

(300 mm)

29-3/8"

(746 mm)

Page #

Accessory Options

Wrist Rests & Mouse Accessories

CPU Holders

Storage Components

Peripheral Table

Page #

Surface Attachment Options

Direct Mounting

Command Posts

Centerline of Four-Hole

VESA FDMI Pattern

A = 16-1/2 – (B + 3-1/2)

B = Keyboard depth

Fig. 2Fig. 1

Rear of Monitor

A ≤ 7"

(178 mm)

3-1/2"

(89 mm)

A ≤ 8-3/4"

(222 mm)

16-1/2"

(419 mm)

Exceptions:

If you want to install your keyboard in a forward

position while remaining ≤4" (102 mm) from the

wall, “A”≤7" (178 mm).See Figure 1.

If you want to use a keyboard wrist rest,

dimension “A”can be calculated by adding

3-1/2" (89 mm) to the keyboard depth “B”and

subtracting this sum from 16-1/2" (419 mm).

See Figure 2.

1.Monitor must not be more than 2-1/2" (63 mm) thick.

2.Keyboard should not be more than 7-1/4" (184 mm) deep.

3.Dimension “A”must be no greater than 8-3/4" (222 mm).

4.Slide-Out Keyboard option cannot be used as its depth = 4-1/2" (114 mm).

Mounting Options & Accessories for VL Series

VL Series Attachment

For VL Series to remain less than 4" (102 mm) from the wall when in storage position, follow these guidelines:

Side View

Slide-Out

Tray model

Front View

Side

View

MD101

• Pulls out from storage position when needed. Smooth gliding action.

•Monitor tilts up/down: 180°

•Screen adjustment portrait/landscape: 360°

MD102

• Pulls out from storage position when needed. Smooth gliding action.

32 • ARMS Orderguide • rev. 05/30/03 870-03-005

Page #

Accessory Options

Wrist Rests & Mouse Accessories

Page #

Surface Attachment Options

Enclosures (Orderguide 870-03-017)

19" Racks

MD Series

Features quick and easy installation to front rails of rack – no rear-rail attachment necessary! Monitor

and/or keyboard are not included so you get to choose the type you want. Drawers require only 3U of

rack space.

Part Description Max. Monitor Shipping

Number Weight Weight

57-014-200, black MD Series, MD101 25 lbs 14 lbs

Monitor-Only Drawer (11.3 kg) (6.4 kg)

57-013-200, black MD Series, MD102 25 lbs 25 lbs

Monitor/Keyboard Drawer (11.3 kg) (11.3 kg)

Note: Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact

your Sales Representative for more information. (See page 47 for details.)

Maximum Monitor Dimension: MD101 accepts monitor up to 17-1/4" x 16-1/2" x 3" (438 x 419 x 76 mm);

MD102 accepts monitor up to 17-1/4" x 14-1/2" x 3" (438 x 368 x 76 mm).

5-1/4" (3U)

(133 mm)

5-1/4" (3U)

(133 mm)

21"

(533 mm)

43-1/2"

(1105 mm)

19-1/2"

(495 mm)

25-1/2"

(648 mm)

24"

(610 mm)

29-3/4"

(757 mm)

28-1/4"

(719 mm)

40-3/4"

(1036 mm)

12-1/2"

(318 mm)

57-014-200

57-013-200

ARMS Product Selection

MD Series Monitor Drawers (MD Series) securely integrate a flat panel monitor and/or keyboard into a

19" rack-mount or enclosure. Store your flat panel folded down horizontally, ready to be

pulled out for viewing. Drawers require only 3U of rack space. The MD Series provides a

rock-solid platform, even for monitors with touch-screen capability. Cables are safely routed

through the integrated cable management system.

Range of Motion

Mounting Options & Accessories for MD Series

Height adjustment

• Up to 20" (508 mm)

Fully mobile – casters allow unlimited system relocation

870-03-005 rev.05/30/03 • ARMS Orderguide • 33

Mobile WorkStand

Standing or sitting use

20"

(508 mm)

ARMS Product Selection

Mobile WorkStand No matter how demanding the mobile computing application, or what type of computing

equipment you need to mobilize, has a computer cart to get the job done.

Mobile WorkStand integrates technology and convenience, allowing the user to move a

computer system from room to room.It quickly adjusts to a sitting or standing user height,

providing an ergonomically-correct work environment at all times.

Range of Motion

34 • ARMS Orderguide • rev. 05/30/03 870-03-005

Mobile WorkStand Base Units

Choose from these pre-configured Base Units, then add optional peripherals and components as

needed to complete your Mobile WorkStand.

Part Description Shipping

Number Weight

27-157-100, grey Mobile WorkStand Pre-configuration, Standard Base Unit Includes: 50 lbs

Base, Casters, Pole, Handle, 400 Series Fixed Single Pivot Arm, (22.7 kg)

400 Series Fixed Keyboard/Laptop Pivot Arm, Mounting Brackets,

Keyboard Tray with Sliding Mouse Tray & Wrist Rest Holder

27-158-100, grey Mobile WorkStand Pre-configuration, Laptop Base Unit Includes: 36 lbs

Base, Casters, Pole, Handle, 400 Series Fixed Keyboard/Laptop Pivot Arm, (16.4 kg)

Mounting Brackets, Laptop Tray

27-159-100, grey Mobile WorkStand Pre-configuration, Touch-Screen Base Unit Includes: 34 lbs

Base, Casters, Pole, Handle, 400 Series Fixed Single Pivot Arm, (15.5 kg)

Mounting Brackets

* Monitor interfaces that are not VESA FDMI compliant require a separately ordered, custom bracket. Contact your

Sales Representative for more information. (See page 47 for details.)

Note: All Mobile WorkStands have a total height of 55" (1397 mm) and a base diameter of 27" (686 mm). Mobile

WorkStands require assembly.

27-157-100,

Standard Base Unit

27-158-100,

Laptop Base Unit

27-159-100,

Touch-Screen Base Unit

Optional Peripherals & Components for Mobile WorkStand

Order these options to complete your cart to your exact specifications. A separately ordered Pole

Mount Bracket is required for CPU Holders and the Wire Storage Basket.

Part Description Dimensions Shipping

Number H x W x D Weight

99-062, black* Weighted Base 1" x 11-1/4" x 11-1/4" 26 lbs

25 lbs (11.4 kg) (25 x 286 x 286 mm) (11.8 kg)

85-022, chrome Footrest 2 lbs

(.9 kg)

50-180-180, grey Base Tray 1" x 14" x 12" 10 lbs

w/ Mounting Straps (25 x 356 x 305 mm) (4.5 kg)

80-053-100, grey** CPU Holder, 4" x 10" x 1-1/2–2-1/2" 3 lbs

Extra Small (102 x 254 x 38–64 mm) (1.4 kg)

80-063-100, grey** CPU Holder, 6" x 10" x 2-5/8–4-1/8" 6 lbs

Small (152 x 254 x 67–105 mm) (2.7 kg)

80-058-100, grey** CPU Holder, 6-1/2" x 10" x 4-1/2–8" 10 lbs

Medium (165 x 254 x 114–203 mm) (4.5 kg)

70-054-100, grey Cable Box 9-1/8" x 7-7/8" x 4-3/8" 3 lbs

(Pole Mount Brackets (231 x 201 x 112 mm) (1.4 kg)

included)

99-068-100, grey** Wire Storage Basket 6-1/8" x 13-1/8" x 4-1/8" 3 lbs

(156 x 333 x 105 mm) (1.4 kg)

60-144-003 Pole Mount Bracket 1 lbs

for CPU Holders & (.5 kg)

Wire Storage Basket

* Recommended for system stability.

** Requires separately ordered Pole Mount Bracket. May be mounted to Bracket shared by other peripheral or Arm.

99-062

85-022

80-063-100

70-054-100

99-068-100

50-180-180

870-03-005 rev.05/30/03 • ARMS Orderguide • 35

Configure Your Own Mobile WorkStand

Start with the basic components below.Then add peripherals and components listed on the previous

page.Next, choose arms/pivots to mount your monitor, keyboard and/or laptop:400, 300, 200 and 100

Series are compatible with Mobile WorkStand.

Note:When selecting arms/pivots, consult an Representative to ensure proper configuration.

Custom Pole lengths can also be ordered.

Part Description Dimensions Shipping

Number H x W x D Weight

20-080, chrome 2" Round Pole 50" x 2" x 2" 7 lbs

(1270 x 51 x 51 mm) (3.2 kg)

33-061, black Base & Casters 7" x 27" x 27" 13 lbs

(178 x 686 x 686 mm) (5.9 kg)

90-015-100, chrome Handle 1" x 9-1/4" x 11" 2 lbs

(25 x 235 x 279 mm) (.9 kg)

Brackets to Mount Arms & Peripherals to Mobile WorkStand

For both arms/pivots and peripherals**, select the appropriate bracket listed below.Attach anywhere

along the Pole.

Part Description Application Shipping

Number Weight

60-131-003, Pole Mount Brackets Mounts:400, 300, 200 Series, 400 Combo 2 lbs

aluminum* (2 Brackets) (.9 kg)

60-144-003, Pole Mount Bracket Mounts:CPU Holders, Wire Storage Basket 1 lbs

aluminum (1 Bracket) (.5 kg)

60-199-003, Split Pole Mount BracketMounts:400, 300 & 200 Series, 400 Combo, 2 lbs

aluminum* (1 Bracket) CPU Holders, Storage Basket (.9 kg)

For use with Pole having no open end –

facilitates mounting after ARMS are in place

97-094-099, grey Pole Mount Bracket Mounts:100 Series Pivots, Extender for 100 Series 2 lbs

97-094-085, black Kit for Pivot (1 Bracket (.9 kg)

& Pivot Mount Plate)

60-382-099, grey Pivot Mount Plate Mounts:100 Series Pivots to Bracket 1 lbs

60-382-085, black (.5 kg)

*400, 300, 200 Series, and 400 Combo require two Brackets for installation.

**Refer to the peripheral’s description to see whether Bracket is necessary.

Note:Brackets provide attachment holes on two sides.This allows an additional Arm or peripheral to be mounted on

the opposite side.However, a 100 Series Pivot may only be mounted to one side.

20-080

Page # Accessory Options

400 Vertical Mount Arms

300 Vertical Mount Arms

200 Vertical Mount Arms

100 Pivots

CPU Holders, Base Tray, Footrest, Storage Basket

Weighted Base, Cable Box

Keyboard/Mouse Trays, Laptop Trays & Accessories

Page #

Surface Attachment Options

n/a

90-015-100

33-061

60-131-003

60-144-003

60-199-003

97-094-xxx

60-382-xxx

Mounting Options & Accessories for Mobile WorkStand

36 • ARMS Orderguide • rev.05/30/03 870-03-005

Mobile WorkCenter

Standing use only

13"

(330 mm)

HD Series Cart:

The HD Series Cart provides easy single-motion adjustment to place your computer where you need it

with little effort.Consult the HD Series Cart Orderguide, 870-03-019, for ordering information.

HD Series Cart

Standing or sitting use

15"

(381 mm)

Other Carts Mobile WorkCenter:

The Mobile WorkCenter is a complete workstation on wheels, with extra storage space for equipment,

tools and supplies.Consult the Mobile WorkCenter Orderguide, 870-03-010, for ordering information.

870-03-005 rev.05/30/03 • ARMS Orderguide • 37

Photo Reference for Carts

HD Series Cart – Flat Panel Configuration

shown with Ergotron Power Supply

at bottom.

HD Series Cart – Laptop Configuration

shown with Document Holder/Writing

Surface accessory.

HD Series Cart – Laptop Configuration

shown in sitting use position.

HD Series

Carts

Mobile WorkStand shown in standing

use position.

Mobile WorkStand shown in sitting

use position.

Mobile WorkStand shown with Horizontal

Dual-Monitor Crossbar.

Mobile WorkCenter shown with 300 Series

Desk Mount.

Mobile WorkCenter shown with 6" adjustable

Suspension Arm for CRTs.

Mobile WorkCenter shown with Monitor

Platform for CRTs.

Mobile

WorkStands

Mobile

WorkCenter

38 • ARMS Orderguide • rev. 05/30/03 870-03-005

Surface Attachment Options

Direct Mounting 400, 300, 200, 100, VL, HD, and FX Series ARMS can mount directly to surfaces. Since

applications vary, fasteners that attach ARMS to any surface should be supplied by the

user. For direct-mount hole patterns, see pp. 54–57.

Always consult the appropriate construction, engineering, or architectural personnel to

ensure the product is mounted securely to handle applied loads. For most vertical-surface

applications, Ergotron recommends an additional mounting interface, such as a Wall Plate

or Wall Track, for added support.

Wall Plates provide better support by spreading weight over a larger area.

Part Description Dimensions Shipping

Number H x W Weight

97-101-003, aluminum* Wall Mount Plate for 8-3/8" x 3-1/2" 1 lbs

400, 300, 200, 100 (213 x 89 mm) (.5 kg)

Series & HD Pivots

60-152-100, grey* Wall Mount Bracket for 8" x 6-5/8" 1 lbs

HD Series Arms (203 x 169 mm) (.5 kg)

(excludes HD Pivots)

* Does not include fasteners for attaching to vertical surface. Customer supplied.

Note: Refer to page 56 for additional specifications.

Wall Plates

97-101-003,

Wall Mount Plate

w/ 400 Series Arm

Integrate Flat Panel ARMS within Ergotron technical furniture systems: LAN Organizer™3000 and

TechStation.

Part Description Application Shipping

Number Weight

42-021-100, grey Shelf Mount Truck Mounts 400 Series Suspend Mount Arm 3 lbs

below Suspension Shelf or Security Cabinet. (1.4 kg)

Features side-to-side sliding motion across rail

30-062-100, grey 30" Rail with Truck Mounts 100 Series Pivots and 200, 300 and 400 7 lbs

Series Vertical Mount Arms between frame uprights. (3.2 kg)

Features side-to-side sliding motion across rail

30-061-100, grey 42" Rail with Truck Mounts 100 Series Pivots and 200, 300 and 400 7 lbs

Series Vertical Mount Arms between frame uprights. (3.2 kg)

Features side-to-side sliding motion across rail

60-231-100, grey Arm Mount Kit Mounts 200, 300 or 400 Series Vertical Mount Arm 3 lbs

to front of frame (1.4 kg)

60-230-100, grey Arm Mount Kit Mounts 200, 300 or 400 Series Vertical Mount Arm 3 lbs

to inside of frame (1.4 kg)

60-233-100, grey Arm Mount Kit Mounts 200, 300 or 400 Series Vertical Mount Arm 3 lbs

to double frame (1.4 kg)

Furniture Mounts

42-021-100

30-061-100

60-233-100, 400 Series Vertical Mount Arm

clamped to double frame

42-021-100, 400 Series Suspend Mount Arm

attached to Shelf Mount Truck below shelf

30-061-100, 100 Series Pivot mounted

between frame uprights

870-03-005 rev. 05/30/03 • ARMS Orderguide • 39

Wall Track provides a common interface for mounting multiple Ergotron components. When mounting

components to Wall Track, you must order the appropriate Track Mount Bracket Kits. Peripherals for

Wall Track can be found on pages 45–46.

Part Description Dimensions Shipping

Number H x W Weight

31-016-182, silver 10" Wall Track 10" x 5" 2 lbs

(254 x 127 mm) (.9 kg)

31-017-182, silver 26" Wall Track 26" x 5" 4 lbs

(660 x 127 mm) (1.8 kg)

31-018-182, silver 34" Wall Track 34" x 5" 7 lbs

(864 x 127 mm) (3.2 kg)

31-019-182, silver 50" Wall Track 50" x 5" 9 lbs

(1270 x 127 mm) (4.1 kg)

Wall Track Mounting Kits Application

90-010 Wall Track Mounting Kit, Sheet metal or wood studs 1 lbs

(10) Phillips self-tapping (.5 kg)

14 x 1.5 LG screw

90-011 Wall Track Mounting Kit, Hollow walls 1 lbs

(10) Phillips 1/4"-20 x 1.5 (.5 kg)

LG screw/toggle anchor

Track Mount Bracket Kits Application

97-091, aluminum Track Mount Mounts 400, 300, 200, 100 Series and HD Pivot to 1 lbs

Bracket Kit vertically oriented Wall Track, OR 100 Series to (.5 kg)

horizontally oriented Wall Track

97-090, aluminum Horizontal Track Mounts 400, 300, 200 Series and HD Pivot to 1 lbs

Mount Bracket Kit horizontally oriented Wall Track (.5 kg)

60-151, aluminum Vertical Track Mounts HD Arms to vertically oriented Wall Track 1 lbs

Mount Bracket Kit (.5 kg)

97-083, aluminum Vertical Track Mounts Extenders for 400 Series to vertically 1 lbs

Mount Bracket Kit oriented Wall Track (.5 kg)

60-188, aluminum Vertical Track Mounts Extenders for HD Arms to vertically 1 lbs

Mount Bracket Kit oriented Wall Track (.5 kg)

60-156, zinc Peripheral Track Mounts CPU Holders to vertically oriented 2 lbs

Mount Bracket Kit Wall Track (.9 kg)

Note: Refer to page 56 for additional specifications.

Wall Tracks

31-016-182

31-017-182

31-018-182

31-019-182

97-083, Track

Mount Bracket Kit

60-156

97-090

97-091

400 Series

Extender

Track Mount

Bracket Kit,

97-091

40 • ARMS Orderguide • rev. 05/30/03 870-03-005

Command Post gives you the flexibility to mount one or more computer systems to a floor, bench,

machine or ceiling – using little or no floor space. It is constructed from heavy-duty 11-gauge steel for

long-lasting durability.

Brackets are required to mount ARMS and peripherals to the Command Post. A Bracket Interface,

which adapts the component to the standard bracket, is also required for the Vertical Lift and the Cable

Box. Peripherals for Command Post can be found on pages 45–46.

Part Description Shipping

Number Weight

Bases Dimensions (H x W x D)

20-075-100, grey 48" Post, 3" x 3" 48" x 3" x 3" 20 lbs

(1219 x 76 x 76 mm) (9.1 kg)

20-076-100, grey 80" Post, 3" x 3" 80" x 3" x 3" 32 lbs

(2032 x 76 x 76 mm) (14.5 kg)

20-077-100, grey 96" Post, 3" x 3" 96" x 3" x 3" 38 lbs

(2438 x 76 x 76 mm) (17.3 kg)

20-142-100, grey 48" Post, 2" x 2" 48" x 2" x 2" 10 lbs

(1219 x 51 x 51 mm) (4.5 kg)

20-143-100, grey 74" Post, 2" x 2" 74" x 2" x 2" 20 lbs

(1880 x 51 x 51 mm) (9.1 kg)

Bases – Horizontal Surface Dimensions (H x W x D)

60-359-100, grey Base for 2" x 2" Post 7" x 16" x 16" 22 lbs

(178 x 406 x 406 mm) (10 kg)

60-360-100, grey Base for 3" x 3" Post 7" x 17" x 17" 24 lbs

(178 x 432 x 432 mm) (10.9 kg)

90-018 Hardware Kit for concrete surface 1 lbs

attachment, (4) stud anchors (.5 kg)

Mounting Kit Brackets – Vertical Surface

97-012-100, grey Wall/Bench Mounting Kit for 2" x 2" Post 2 lbs

(.9 kg)

97-011-100, grey Wall/Bench Mounting Kit for 3" x 3" Post 3 lbs

(1.4 kg)

Brackets for ARMS Application

60-363-100, grey 2" x 2" Post ARMS Mounts 100 Series 2 lbs

Bracket (.9 kg)

60-364-100, grey 2" x 2" Post ARMS Mounts 200, 300, 400 Series, HD Pivot 4 lbs

Bracket (1.8 kg)

60-153-100, grey 2" x 2" Post ARMS Mounts HD Arms 4 lbs

Bracket (1.8 kg)

60-365-100, grey 3" x 3" Post ARMS Mounts 100 Series 2 lbs

Bracket (.9 kg)

60-366-100, grey 3" x 3" Post ARMS Mounts 200, 300, 400 Series, HD Pivot, 4 lbs

Bracket Extenders for 400 Series (1.8 kg)

60-154-100, grey 3" x 3" Post ARMS Mounts HD Arms, Extenders for HD Arms 4 lbs

Bracket (1.8 kg)

Brackets for Peripherals Application

60-157-100, grey 2" x 2" Post Peripheral Mounts CPU Holders and Cabinet, 3 lbs

Bracket Peripheral Table, Footrest (1.4 kg)

60-158-100, grey 3" x 3" Post Peripheral Mounts CPU Holders and Cabinet, 3 lbs

Bracket Peripheral Table, Footrest (1.4 kg)

Bracket Interfaces Application

60-369-100, grey Bracket Interface for Adapts VL Series to standard bracket 5 lbs

9" Vertical Lift (2.3 kg)

60-377-100, grey Bracket Interface for Adapts Cable Box to standard bracket 5 lbs

Cable Box (2.3 kg)

Note: See “Mounting Options and Uses Table”to determine which Post, Base/Bracket and Arm(s) to choose.

Command Posts

Base for

3" x 3" Post

Hardware Kit for concrete

surface attachment

Wall/Bench

Mounting Kit

Peripheral Bracket

mounting a CPU Holder

to Command Post

ARMS Bracket

mounting a 200 Series

to Command Post

870-03-005 rev. 05/30/03 • ARMS Orderguide • 41

Mounting Options and Uses Table

3" x 3" Post

floor mounted

HD45 Arm

ARMS

Brackets

400 Series Arm

Configuration Examples

Examples of allowable configurations according to the Mounting Options and Uses Table

Extender for

HD Series

Vertical Mount

400 Series Arm

ARMS

Brackets

2" x 2" Post

ceiling

mounted

Floor vs. Ceiling-Mount Applications

Base shown in

floor-mount

application

Base upside

down in ceiling

application

Customer-provided threaded

rod used to anchor Base above

or below a false ceiling

Post

Part Number

20-142-100

20-143-100

20-075-100

20-076-100

20-077-100

Base/Bracket

Part Number

60-359-100/97-012-100

60-360-100/97-011-100

Floor/Ceiling

allowable configuration

Arm, no Extender

Arm(s) w/ Extender

Wall/Bench/Machine

allowable configuration

Arm w/ Extender

Arm(s) w/ Extender

Dimensions

H x W x D

48" x 2" x 2"

72" x 2" x 2"

48" x 3" x 3"

80" x 3" x 3"

96" x 3" x 3"

42 • ARMS Orderguide • rev. 05/30/03 870-03-005

Attach equipment to 2", 1-3/4" or 1-1/2" Round Poles. Use your own pole or choose from the

selection below.

Part Description Shipping

Number Weight

2" Pole-Mount Brackets Application

60-131-003, aluminum Pole-Mount Brackets 200, 300, 400 Series, HD Pivot, Extenders on 2 lbs

(2 Brackets) vertical 2" Round Pole (.9 kg)

60-144-003, aluminum Pole-Mount Bracket CPU Holders, Wire Storage Basket on vertical 1 lbs

2" Round Pole (.5 kg)

60-199-003, aluminum* Split Pole-Mount Bracket 200, 300, 400 Series, HD Pivot, Extenders, CPU 2 lbs

(1 Bracket) Holders, Wire Storage Basket on vertical 2" Round (.9 kg)

Pole. For use with Pole having no open end

97-089, aluminum Horizontal Pole-Mount 200, 300, 400 Series, HD Pivot, on horizontal 1 lbs

Bracket Kit 2" Round Pole (.5 kg)

97-094, aluminum Pole-Mount Bracket Kit 100 Series Pivots on vertical or horizontal 2 lbs

for 100 Series 2" Round Pole (.9 kg)

1-3/4" Pole-Mount Brackets Application

60-347-003, aluminum* Split Pole-Mount Bracket 200, 300, 400 Series, HD Pivot, Extenders, CPU 2 lbs

(1 Bracket) Holders, Wire Storage Basket on vertical 1-3/4" (.9 kg)

Round Pole

1-1/2" Pole-Mount Brackets Application

60-420-200, black Large Clamp, Features 200, 300 Series & HD Pivot on 1-1/2" 3 lbs

adjustment lever for easy Round Pole (1.4 kg)

height repositioning

60-423-003, aluminum Split Pole-Mount Bracket 200, 300, 400 Series, HD Pivot, Extenders, CPU 2 lbs

(1 Bracket) Holders, Wire Storage Basket on vertical 1-1/2" (.9 kg)

Round Pole

Note: 7" Extensions w/ Pole Clamp attaches directly to 1-1/2" Round Poles. No bracket necessary. See 200 Series

section (pp.14–19) for product information.

Adapter Interface Plates Application

60-382-085, grey Pivot Mount Plate Allows mounting of 100 Series to Brackets 1 lbs

60-382-099, black on 1-1/2" or 2" Round Pole (.5 kg)

60-383-003, aluminum Arm Mount Plate Allows mounting of 200, 300, 400 Series to 1 lbs

Bracket on horizontal 1-1/2" or 2" Round Pole (.5 kg)

Poles

20-080, chrome 2" Round Pole, 50"L 7 lbs

(3.2 kg)

20-135-200, black 1-1/2" Round Pole, 14"L 2 lbs

(.9 kg)

20-136-200, black 1-1/2" Round Pole, 22"L 5 lbs

(2.3 kg)

20-137-200, black 1-1/2" Round Pole, 28"L 5 lbs

(2.3 kg)

20-161-200, black 1-1/2" Round Pole, 36"L 5 lbs

(2.3 kg)

Bases for 1-1/2" Round Poles Attach to…

60-349-200, black Desk Clamp Base Worksurface edge ≤2-1/8" (54 mm) thick 5 lbs

for 1-1/2" Round Pole (2.3 kg)

60-350-200, black Grommet Mount Base Worksurface through hole 3/8" to 3" (10 to 76 mm) 5 lbs

for 1-1/2" Round Pole wide, up to ≤4" (102 mm) thick (2.3 kg)

Note: Slatwall Pole Clamps also available. See Slatwall Components section (p.43) for product information.

* Order two Brackets for 200, 300 and 400 Series installation.

Pole Mounts

60-131-003

60-144-003

60-199-003

97-089

97-094

60-347-003

60-420-200

60-382-xxx

60-383-003

20-080

20-161-200

20-135-200

20-136-200

20-137-200

60-349-200 60-350-200

870-03-005 rev. 05/30/03 • ARMS Orderguide • 43

Slatwall Brackets attach 400, 300, 200 and 100 Series to slatwall. Slatwall Pole Clamps support a

1-1/2" Round Pole, to which arms may be mounted. Order according to slatwall manufacturers.

Standard color is black.

Part Description Shipping

Number Weight

Slatwall Brackets

60-271-009, black Woodtronics, Knoll, Infra-structure, Evans, Eurocraft, 2 lbs

Teknion, Steelcase, EDP, CBA (.9 kg)

60-272-009, black Novalink 2 lbs

(.9 kg)

60-274-009, black Wall Street Trading, LaCOUR 2 lbs

(.9 kg)

60-450-009, black SBFI 2 lbs

(.9 kg)

60-293-009, black Herman Miller 2 lbs

(.9 kg)

60-332-009, black ECB 2 lbs

(.9 kg)

Slatwall Pole Clamps Note: Use with 1-1/2" Round Poles (p.42).

60-413-200, black Woodtronics, Knoll, Infra-structure, Evans, Eurocraft, 4 lbs

Teknion, Steelcase, EDP, CBA (1.8 kg)

60-415-200, black LaCOUR 4 lbs

(1.8 kg)

60-416-200, black SBFI 4 lbs

(1.8 kg)

60-417-200, black Herman Miller 4 lbs

(1.8 kg)

Note: Minimum of 3 slats are required to attach slatwall components.

Slatwall Components

Slatwall Bracket

Slatwall Pole Clamps

Typical

slatwall Vertical Mount

7" Extension w/ Pole Clamp

Slatwall Bracket Slatwall Pole Clamp

1-1/2" Round Pole

Sample

Configurations

44 • ARMS Orderguide • rev. 05/30/03 870-03-005

Accessory Selections

Keyboard/Mouse

Trays, Laptop Trays

& Accessories

Use in conjunction with 400, 300, 200 and 100 Series Keyboard/Laptop Arms and Pivots.

Part Description Dimensions Shipping

Number W x D x H Weight

Keyboard/Mouse Trays

77-049-100, grey Keyboard Tray 16-1/2" x 7-1/4" x 2" 3 lbs

77-049-101, black (420 x 185 x 51 mm) (1.4 kg)

77-050-100, grey Keyboard Tray w/ 17-1/2" x 9 to 12" x 2-1/2" 7 lbs

77-050-101, black Sliding Mouse Tray (445 x 229 to 305 x 64 mm) (3.2 kg)

& Wrist Rest Holder

Upgrade Kits

85-014-100, grey Front Mouse Tray 7-1/8" x 7-1/8" x 1" 3 lbs

(181 x 181 x 25 mm) (1.4 kg)

85-024-100, grey* Sliding Mouse Tray 5 lbs

& Wrist Rest Holder (2.3 kg)

Laptop Trays

50-117-100, grey Laptop Tray 8" x 9" x 2-1/8" 2 lbs

50-117-101, black (includes Adhesive (203 x 229 x 53 mm) (.9 kg)

Mounting Kit)

* Add to Keyboard Tray 77-049-100 to create 77-050-100.

Laptop Tray Accessories Application

90-017 Tamper Resistant Attaches Adhesive Pad to Laptop 1 lbs

Screw Kit Tray utilizing special screws (.5 kg)

99-065 Replacement Adhesive Replacement Adhesive Mounting Kit 1 lbs

Mounting Kit if Tray’s original adhesive becomes worn (.5 kg)

Wrist Rests & Mouse Accessories Dimensions

85-033, black Wrist Rest 19" x 3" x 3/4" 1 lbs

(483 x 76 x 19 mm) (.5 kg)

85-010-087, grey Wrist Rest, premium, 19" x 3" x 3/4" 1 lbs

easy-clean (483 x 76 x 19 mm) (.5 kg)

85-025-079 Mouse Pad 7" x 7" x 1/4" 1 lbs

(178 x 178 x 6 mm) (.5 kg)

99-033-078, white Mouse Pouch 3" x 2" x 4-1/2" 1 lbs

(76 x 51 x 114 mm) (.5 kg)

50-117-xxx

(152 mm)

8-1/2"

(216 mm)

Adjustment Range

9" to 12"

(229 to 305 mm)

77-049-xxx

77-050-xxx

85-014-100

85-024-100

90-017 85-033 85-025-079

99-065 99-033-078

870-03-005 rev. 05/30/03 • ARMS Orderguide • 45

Attach your monitor to Ergotron ARMS with the Quick Mounting Kit – no tools necessary. The Quick

Release Kit makes removal and reattachment of your monitor fast and easy. The Tamper Resistant Kit

secures the lever of the Quick Release Kit.

Part Description Application Shipping

Number Weight

97-182-085, black Quick Mounting Kit, Connects ARMS to monitor’s VESA FDMI interface 1 lbs

(4) Screws w/ easy-turn (.5 kg)

knob head

60-244-007, black* Quick Release Kit Mounts between 75 mm monitor interface 1 lbs

75 mm & 75 mm ARMS product interface (.5 kg)

60-243-007, black* Quick Release Kit Mounts between 100 mm monitor interface 1 lbs

100 mm & 100 mm ARMS product interface (.5 kg)

90-022 Quick Release Tamper Prevents tampering of monitor mounted 1 lbs

Resistant Kit with Quick Release Kit (.5 kg)

(1 screw & hex wrench)

90-023 Quick Release Tamper Prevents tampering of monitors mounted 1 lbs

Resistant Kit with Quick Release Kits (.5 kg)

(10 screws)

60-254-007, black 75 x 75 mm to Mounts 100 x 100 mm monitor to 1 lbs

100 x 100 mm, Ergotron Arm w/ 75 x 75 mm interface (.5 kg)

Conversion Plate Kit

97-197-200, black 100 x 200 mm Attaches to monitors using the 2 lbs

Adapter Plate Kit VESA MIS-E, C Interface Standard (.9 kg)

* Fasteners to attach VESA FDMI compliant monitors and most Ergotron custom interfaces are provided.

However, user may need to supply own fasteners for some applications.

Monitor Interface

Accessories

60-244-007 60-243-007

97-197-200, converts 100 x 200 mm

monitors into 75 x 75 mm or 100 x 100 mm

hole pattern

CPU Holders

Mounts CPUs in a vertical, tower position. Each holder’s width is adjustable. Four sizes are available to

accommodate equipment of 1-1/2" to 11" wide.

Part Description Dimensions Weight Shipping

Number H x W x D Capacity Weight

80-053-100, grey CPU Holder, 4" x 10" x 1-1/2–2-1/2" 40 lbs 3 lbs

Extra Small (102 x 254 x 38–64 mm) (18.1 kg) (1.4 kg)

80-063-100, grey CPU Holder, 6" x 10" x 2-5/8–4-1/8" 50 lbs 6 lbs

80-063-101, black Small (152 x 254 x 67–105 mm) (22.7 kg) (2.7 kg)

80-058-100, grey CPU Holder, 6-1/2" x 10" x 4-1/2–8" 100 lbs 10 lbs

80-058-101, black Medium (165 x 254 x 114–203 mm) (45.4 kg) (4.5 kg)

80-059-100, grey* CPU Holder, 14-5/8" x 12" x 6-1/8–11" 150 lbs 14 lbs

80-059-101, black* Large (372 x 305 x 156–279 mm) (68.1 kg) (6.4 kg)

* The Large CPU Holder (80-059-xxx) is not compatible with the Mobile WorkStand.

Note: To attach to Wall Track, Bracket 60-156 is required. To attach to Command Post, order either Bracket

60-157-100 or 60-158-100. Also mounts directly to surface: fasteners supplied by user when direct mounting.

CPU Shelves

Mounts CPUs in horizontal, desktop position. Cable through-holes are located in the rear.

Part Description Dimensions Weight Shipping

Number W x D x H Capacity Weight

80-060-100, grey CPU Shelf, 17" x 17" x 5" 100 lbs 16 lbs

80-060-101, black Medium (432 x 432 x 127 mm) (45.4 kg) (7.3 kg)

80-061-100, grey* CPU Shelf, 22" x 20" x 7-1/2" 150 lbs 20 lbs

80-061-101, black* Large (559 x 508 x 191 mm) (68.1 kg) (9.1 kg)

* Do not use CPU Shelf, Large (80-061-xxx) with 2" x 2" Command Posts (20-142-100, 20-143-100).

Note: To attach to Wall Track, Bracket 60-156 is required. To attach to Command Post, order either Bracket

60-157-100 or 60-158-100. Also mounts directly to surface: fasteners supplied by user when direct mounting.

CPU Holders

80-058-xxx

80-059-xxx

80-061-xxx

80-063-xxx

80-053-100

46 • ARMS Orderguide • rev. 05/30/03 870-03-005

The CPU Cabinet is vented and lockable. The Wire Storage Basket and Cable Box add extra storage

options to a configuration.

Part Description Dimensions Shipping

Number H x W x D Weight

99-068-100, grey* Wire Storage Basket 6-1/8" x 13-1/8" x 4-1/8" 3 lbs

(156 x 333 x 105 mm) (1.4 kg)

70-083-100, grey** Cable Box for 9-1/8" x 7-7/8" x 4-3/8" 3 lbs

Command Post (231 x 201 x 112 mm) (1.4 kg)

80-062-100, grey*** CPU Cabinet 18-3/8" x 21" x 8" 34 lbs

(467 x 533 x 203 mm) (15.5 kg)

65-029-100, grey Fixed Underbracing for 11 lbs

3" x 3" Command Post (5 kg)

65-059-100, grey Fixed Underbracing for 11 lbs

Wall Track (5 kg)

* Compatible with Wall Track, Command Post and 2" Pole. To attach to Wall Track, Bracket 97-091 is required. To

attach to Command Post, order either Bracket 60-363-100 or Bracket 60-365-100.

** To attach to Command Post, order Bracket Interface 60-377-100 and either Bracket 60-157-100 or 60-158-100.

***Compatible with Wall Track and Command Post. To attach to Wall Track: for vertical orientation Bracket 60-156

required; for horizontal orientation order Fixed Underbracing 65-059-100. To attach to Command Post: for vertical

orientation order Bracket 60-157-100 or 60-158-100; for horizontal orientation order Fixed Underbracing

65-029-100. No bracket required when attaching Peripheral Table with Fixed Underbracing.

Storage

Components

99-068-100

70-083-100

80-062-100

Fixed Underbracing - Use with CPU

Cabinet (horizontal orientation) and

Peripheral Table. Wall Track version

available.

The Peripheral Table provides a solid, laminated surface for writing or holding equipment on the Wall

Track or Command Post. Configure it with either a Fixed or Fold-Away Underbracing.

Part Description Dimensions Shipping

Number L x W x H Weight

55-035-999, laminated Peripheral Table 20" x 18" x 3/4" 10 lbs

(508 x 457 x 19 mm) (4.5 kg)

65-048-100, grey* Fold-Away Underbracing 7 lbs

(3.2 kg)

65-059-100, grey** Fixed Underbracing 7 lbs

for Wall Track (3.2 kg)

65-029-100, grey** Fixed Underbracing 11 lbs

for 3" x 3" Command Post (5 kg)

* Compatible with Wall Track and Command Post. To attach to Wall Track, Bracket 60-156 is required. To attach to

Command Post, order either Bracket 60-157-100 or 60-158-100.

** No extra bracket is required when attaching Peripheral Table with Fixed Underbracing.

Peripheral Table

Peripheral Tables are compatible with

Wall Track and Command Post

Fold-Away Underbracing

Peripheral Bracket

Install a Footrest to provide more ergonomic comfort to the user.

Part Description Dimensions Weight Shipping

Number L x W x H Capacity Weight

85-023-100, grey* Footrest 14" x 2-1/8" x 2-1/8" 200 lbs 7 lbs

(356 x 54 x 54 mm) (90.9 kg) (3.2 kg)

* To attach to Command Post, order either Bracket 60-157-100 or 60-158-100.

Footrest

The Footrest is recommended for

Command Post

870-03-005 rev.05/30/03 • ARMS Orderguide • 47

Monitor Interface & VESA®Standard Guide

VESA®FDMI™

StandardThe VESA®FDMI™Standard* defines physical mounting interfaces, hole patterns, and associated cable and

power supply location guidelines for flat panel monitors. ARMS are designed to fit this standard to

make monitor attachment quick and easy.

However, if your monitor is not VESA FDMI Standard compliant, a custom bracket may be available for

your monitor.

Oftentimes a monitor’s hole pattern is revealed by removing its base (refer to your monitor’s manual for

details).Contact to verify that your monitor is VESA FDMI Standard

compliant.

Standard Interfaces:

VESA MIS-D,100/75,C(the most common monitor standard)

If your monitor is supplied with the VESA FDMI Standard 75 x 75 mm or 100 x 100 mm mounting hole

pattern, your monitor will attach to ARMS.

VESA MIS-E,C

If your monitor is supplied with the VESA FDMI Standard 100 x 200 mm mounting hole pattern, your

monitor will attach to ARMS using the 100 x 200 mm Adapter Plate Kit (97-197-200).

Monitors that conform to the VESA Standard bolt directly to ARMS. provides

(4) 4 mm x 10 mm screws for VESA MIS-D, 100/75 interface monitor attachment.For VESA MIS-E, C

interface attachment, supplies (4) 8-32 x 5/16" screws.Your monitor may require different screws,

which may be provided by the monitor manufacturer.

Custom Interface Bracket

If your monitor does not include a VESA FDMI Standard mounting hole pattern, a separately-ordered

custom mounting bracket may be available.Contact the monitor manufacturer to see if they have this option

available.If it is not available from the monitor manufacturer, Ergotron has developed a number of custom

brackets to interface with existing flat panel monitors.Contact Ergotron at 800-888-8458 (option 2) to see if

one is available for your monitor.

* VESA FDMI Standard stands for Video Electronics Standards Association Flat Display Mounting

Interface Standard.

Ergotron, Inc., is a full member of the Video Electronics Standards Association (VESA®), which is

comprised of over 300 high-tech member companies who work on standards for the video electronics

market that will shape the technology of tomorrow.

If you have a monitor with a 100 x 100 mm hole pattern that you would like attached to an ARMS product

with a 75 x 75 mm interface, a Conversion Plate Kit is available.Please note that all ARMS now ship with

both 75 mm and 100 mm interface plates.See Monitor Interface Accessories on page 45.

Rear view of a flat panel monitor that is

VESA MIS-D, 100/75, C compliant.It is

attached to a 100 Series Pivot.

Rear view of a flat panel monitor that is

VESA MIS-E, C compliant.It is attached

to a HD Pivot with 9" Extension using the

100 x 200 mm Adapter Plate Kit.

48 • ARMS Orderguide • rev. 05/30/03 870-03-005

Ergonomics Data & Mounting Heights

To obtain optimum performance from a workstation, consider the following topics during installation of

your Flat Panel ARMS:

•The adjustment range of the ARMS product.

•The use-mode of the ARMS product…

> Monitoring/viewing only?

> Data entry?

> User will be sitting?

> User will be standing?

> User will be sitting and standing at different times?

• Vertical mounting height of the ARMS product in respect to user(s)…

> Female or male only?

> Female and male both?

> Average height of users?

Using the Eye-Height / Elbow-Height Tables:

Use these tables to help determine mounting heights of ARMS products.

Follow these Ergonomic Ground Rules during installation of ARMS products:

• Screen Height: Top of screen should be level with, or slightly below, Eye Height of user.

• Keyboard Height: Center-line of keyboard should be level with Elbow Height of the operator with

forearms and wrists in a level position.

• Screen/Keyboard Height Variance: The distance from top of monitor screen to center-line of

keyboard reflects Eye-to-Elbow Measurement of the average female to male users.

Remember that the actual attachment-point height of ARMS products varies because:

• Dimensions of monitors vary.

• Configurations of ARMS products vary.

Eye-Height / Elbow-Height Tables

For average range of users – anthropometric†data expressed in inches

†Anthropometry: The study of human

body measurements. Data based on

studies of US population.

* Denotes the female who is at the 5%

mark of a scale ranging 0% to 100%.

** Denotes the male who is at the 95%

mark of a scale ranging 0% to 100%.

Look for numbers in tables that

correlate with numbers in illustrations

on the following pages.

50% of Population

Average

Person

Average

Female

Average

Male

95%

Male

95% of Population

Average

Person

Average

Female

Average

Male

95%

Male

Eye Height Elbow Height Eye-to-Elbow

Measurement

Stand Sit Var. Stand Sit Var. Stand Sit

Av. Female 59.4 44.0 15.4 38.8 23.0 15.8 20.6 21.0

Av. Person 61.7 46.1 15.6 40.4 24.9 15.5 21.3 21.2

Av. Male 64.4 48.5 15.9 42.5 27.0 15.5 21.9 21.5

Variance F/M 5.0 4.5 —3.7 4.0 ——

Stand Sit Var. Stand Sit Var. Stand Sit

5% Female* 55.7 40.8 14.9 36.5 20.8 15.7 19.2 20.0

95% Male** 68.6 52.1 16.5 45.4 29.5 15.9 23.2 22.6

Variance F/M 12.9 11.3 —8.9 8.7 ——

For 5% female to 95% male range of users

Fixed-height applications: Mount at height for average person.

Height-adjustable applications...

Sitting or standing for average range of users: ≥5" vertical adjustment range required.

Sitting or standing for 95% range of users: ≥12.9" vertical adjustment range required.

Sitting &standing for average range of users: ≥19.5" vertical adjustment range required.

Keyboard placement...

Keyboard to monitor relationship: The optimal distance is 21" in all applications.

Ergonomic Ground

Rules – English Units

870-03-005 rev. 05/30/03 • ARMS Orderguide • 49

50% of Population

Average

Person

Average

Female

Average

Male

95%

Male

95% of Population

Average

Person

Average

Female

Average

Male

95%

Male

To obtain optimum performance from a workstation, consider the following topics during installation of

your Flat Panel ARMS:

•The adjustment range of the ARMS product.

•The use-mode of the ARMS product…

> Monitoring/viewing only?

> Data entry?

> User will be sitting?

> User will be standing?

> User will be sitting and standing at different times?

• Vertical mounting height of the ARMS product in respect to user(s)…

> Female or male only?

> Female and male both?

> Average height of users?

Using the Eye-Height / Elbow-Height Tables:

Use these tables to help determine mounting heights of ARMS products.

Follow these Ergonomic Ground Rules during installation of ARMS products:

• Screen Height: Top of screen should be level with, or slightly below, Eye Height of user.

• Keyboard Height: Center-line of keyboard should be level with Elbow Height of the operator with

forearms and wrists in a level position.

• Screen/Keyboard Height Variance: The distance from top of monitor screen to center-line of

keyboard reflects Eye-to-Elbow Measurement of the average female to male users.

Remember that the actual attachment-point height of ARMS products varies because:

• Dimensions of monitors vary.

• Configurations of ARMS products vary.

Eye-Height / Elbow-Height Tables

For average range of users – anthropometric†data expressed in millimeters

Ergonomics Data & Mounting Heights

Eye Height Elbow Height Eye-to-Elbow

Measurement

Stand Sit Var. Stand Sit Var. Stand Sit

Av. Female 1509 1118 391 986 584 401 523 533

Av. Person 1567 1171 396 1026 632 394 541 538

Av. Male 1636 1232 404 1080 686 394 556 546

Variance F/M 127 114 —64 102 ——

Stand Sit Var. Stand Sit Var. Stand Sit

5% Female* 1415 1036 378 927 528 399 488 508

95% Male** 1742 1323 419 1153 749 404 589 574

Variance F/M 328 287 —226 221 ——

For 5% female to 95% male range of users

Fixed-height applications: Mount at height for average person.

Height-adjustable applications...

Sitting or standing for average range of users: ≥127 mm vertical adjustment range.

Sitting or standing for 95% range of users: ≥328 mm vertical adjustment range.

Sitting &standing for average range of users: ≥495 mm vertical adjustment range.

Keyboard placement...

Keyboard to monitor relationship: The optimal distance is 533 mm in all applications.

Ergonomic Ground

Rules – Metric Units

†Anthropometry: The study of human

body measurements. Data based on

studies of US population.

* Denotes the female who is at the 5%

mark of a scale ranging 0% to 100%.

** Denotes the male who is at the 95%

mark of a scale ranging 0% to 100%.

Look for numbers in tables that

correlate with numbers in illustrations

on the following pages.

Mounting Height

Illustrations

50 • ARMS Orderguide • rev. 05/30/03 870-03-005

400 Combo Flat Panel

Monitor/Keyboard Arm

400 Series Arm

w/ Double Pivot & P/L

Sit-to-Stand Configuration

Arm “full up”

position

400 Series Arm

w/ Single Pivot

Sit-to-Stand Configuration

400 Series

Keyboard/Laptop Arm

Sit-to-Stand Configuration

35"

(889 mm)

Up to 14"

(356 mm)

vertical

adjustment

range

22"

(559 mm)

vertical

adjustment

range

22"

(559 mm)

vertical

adjustment

range

22"

(559 mm)

vertical

adjustment

range

20"

(508 mm)

vertical

adjustment

range

Arm “full up”

position

24"

(610 mm)

vertical

adjustment

range

46"

(1168 mm)

Standing Use

30"

(762 mm)

Sitting Use

64"

(1626 mm)

66"

(1676 mm)

32-3/4"

(832 mm)

32-3/4"

(832 mm)

40"

(1016 mm)

Standing Use

25"

(635 mm)

Sitting Use

62"

(1575 mm)

Standing Use

46"

(1168 mm)

Sitting Use

Arm in “level”

position

62"

(1575 mm)

Standing Use

62"

(1575 mm)

Standing Use

62"

(1575 mm)

Standing Use

46"

(1168 mm)

Sitting Use

52"

(1320 mm)

41"

(1041 mm)

6" Vertical

Adjustment

Extension

49"

(1244 mm)

43"

(1092 mm)

No vertical

adjustment

200 Series Dual-Monitor

(Fixed Height)

40"

(1016 mm)

Standing Use

40"

(1016 mm)

Standing Use

25"

(635 mm)

Sitting Use

No vertical

adjustment

100 Series or FX Series

(Fixed Height)

(25 mm)

1/2"–1"

(12–25 mm)

Dual-stacked flat panel

monitors may not strictly

conform to standard

Ergonomic Height Rules. In

general, the monitors should

be set as close to the table

top as possible.

46"

(1168 mm)

Sitting Use

46"

(1168 mm)

Sitting Use

62"

(1575 mm)

Standing Use

62"

(1575 mm)

Standing Use

46"

(1168 mm)

Sitting Use

46"

(1168 mm)

Sitting Use

25"

(635 mm)

Sitting Use

200 Series Combination Arm

Sit or Stand Configurations

Dual-Stacked (DS100 & 200 Series)

Flat Panels—Sit Configurations

300 Series Arm

Sit or Stand Configurations

300 Series

Sit or Stand Configurations

200 Series

Sit or Stand Configurations

200 Series w/ 6" Vertical

Adjustment

53 3

Numbers in the diagrams below can be cross-referenced with numbers in the Eye-Height / Elbow-Height

Tables on the preceding pages. For more detailed information, consult our Ergonomic Mounting

Heights Guide, literature # 888-99-014, which is included with each ARMS purchase.

Mounting Height

Illustrations

870-03-005 rev. 05/30/03 • ARMS Orderguide • 51

HD Combo

Screen

“full up”

position

VL Series

9" Vertical Lift

GENERAL GUIDE:

Set the monitor and keyboard at the ergonomic heights shown.

(229 mm)

height

range

HD Dual-Monitor HD45 Monitor Arm HD Laptop

Arm in “full up”

position

Arm in “full up”

position

Arm in “full up”

position

Arm in “full up”

position

Standing Use 47"

(1194 mm)

Sit to Stand Use 40"

(1016 mm)

Sitting Use 32"

(813 mm)

68"

(1575 mm)

Standing Use

52"

(1321 mm)

Sitting Use

61"

(1549 mm)

Sit to Stand Use

68"

(1575 mm)

Standing Use

52"

(1321 mm)

Sitting Use

61"

(1549 mm)

Sit to Stand Use

66"

(1676 mm)

Standing Use

50"

(1270 mm)

Sitting Use

Male or Female

20" to 22"

(508 to 559 mm)

Sitting Use

Standing Use 47"

(1194 mm)

Sit to Stand Use 42"

(1067 mm)

Sitting Use 37"

(940 mm)

40"

(1015 mm)

Standing Use

25"

(635 mm)

Sitting Use

20" to 22"

(508 to 559 mm)

Standing Use

3 3

Numbers in the diagrams below can be cross-referenced with numbers in the Eye-Height / Elbow-Height

Tables on the preceding pages. For more detailed information, consult our Ergonomic Mounting

Heights Guide, literature # 888-99-014, which is included with each ARMS purchase.

52 • ARMS Orderguide • rev. 05/30/03 870-03-005

Technical Specifications

Weight Capacity

Weight capacities for ARMS

products should be regarded as

general guidelines only. Several

variables can effect weight capacity,

so capacity may vary between

applications.

Where weight range is shown

(e.g. 5–30 lbs), the lower end of the

range represents minimum weight

required for proper function.

400 Series*

•Single Pivot: 28 lbs (12.7 kg)

•Single Pivot w/ P/L: 25 lbs (11.3 kg)

•Double Pivot w/ P/L: 23 lbs (10.4 kg)

•Keyboard/Laptop Pivot: 7.5 lbs (3.4 kg)**

•Combo Arm: monitor = 20 lbs (9.1 kg)

keyboard = 7.5 lbs (3.4 kg)

300 Series*

•Double Pivot with P/L: 23 lbs (10.4 kg)

•Keyboard/Laptop Pivot: 7.5 lbs (3.4 kg)**

If a 300 Series system is customized using

two or more 9" Extensions, special load

limitations may apply. See TABLE A to

determine weight capacity.

200 Series*

•Single Pivot with P/L: 25 lbs (11.3 kg)

•6" Vertical Slide Pivot: 25 lbs (11.3 kg)

•Dual-Monitor Arm: 22 lbs (10 kg) or 28 lbs

(12.7 kg) per pivot… Varies according to

configuration and length of Extensions.

•Keyboard/Laptop Pivot: 7.5 lbs (3.4 kg)**

•Combo Arm: monitor = 25 lbs (11.3 kg)

keyboard = 15 lbs (6.8 kg)

If a 200 Series system is customized using

three or more 9" Extensions, special load

limitations may apply. See TABLE A to

determine weight capacity.

100 Series*

•Single Pivot: 28 lbs (12.7 kg)

• Single Pivot with P/L: 25 lbs (11.3 kg)

• Double Pivot: 25 lbs (11.3 kg)

•Double Pivot with P/L: 23 lbs (10.4 kg)

•Keyboard/Laptop Pivot: 7.5 lbs (3.4 kg)**

DS400 Series*

•20 lbs (9.1 kg)

DS100 Series*

Up to five monitors may be placed on a

single base. Each pivot can hold the

following:

•Sliding Pivot: 28 lbs (12.7 kg)

•Sliding Pivot w/ P/L: 25 lbs (11.3 kg)

•Clamping Pivot: 28 lbs (12.7 kg)

•Clamping Pivot w/ P/L: 25 lbs (11.3 kg)

•Clamping Double Pivot: 25 lbs (11.3 kg)

•Clamping Double Pivot w/ P/L: 23 lbs (10.4 kg)

* Monitor depth affects weight capacity.

See TABLE B.

** Weight capacity is in addition to weight

of Keyboard/Laptop Tray.

32" (D)

27"

9" 9" 9" 5"

C/G

TABLE A: Weight Capacity When Adding Extensions

When adding Extensions to a 300 or 200 Series system, use the formula below to calculate the

maximum allowable load:

D x L = maximum inch-lbs (not to exceed 900)

Distance (D) = The measurement in inches on a horizontal

plane from the center-line of the mounting bracket to the

center-of-gravity (C/G) of the monitor.

Load (L) = The weight in pounds of the monitor.

Example:

Monitor weighing 25 lbs using three 9" Extensions

and a Single Pivot with P/L.

Therefore:

D= (3 x 9") + 5" = 32"

L= 25 lbs

32" x 25 lbs = 800 inch-lbs

As 800 is less than 900, your component can be used in this configuration.

C/G

Typical

monitor

C/G

2" 4"

Weight capacity is 23 lbs Weight capacity is 6 lbs less (17 lbs)

Deep

monitor

TABLE B: Monitor Depth Affects Weight Capacity

Weight capacity may be diminished if monitor depth is greater than 2 inches:

The listed capacities are based on a monitor's center-of-gravity (C/G) not exceeding 1" (25 mm)

from the end of a Pivot. For every 1" (25 mm) of additional distance between a monitor's C/G and

the end of the Pivot, reduce the weight capacity by 6 lbs (2.7 kg).

870-03-005 rev. 05/30/03 • ARMS Orderguide • 53

FX Series

•FX-30: 30 lbs (13.6 kg)

VL Series

•VL-9: 9–34 lbs (4.1–15.4 kg)

•VL-9 w/ Pull-out Keyboard Tray: 5–30 lbs

(2.3–13.6 kg)

Weight capacity for the Vertical Lift is the

sum weight of the monitor and keyboard.

MD Series

•25 lbs (11.4 kg)

HD Series

•HD45 Arm: 20–xx lbs (9.1–xx kg) For “xx”,

see TABLE C

•HD Pivots: see TABLE C

•HD Dual-Monitor Arm: 20 lbs (9.1 kg) per

pivot*

•HD Combo: monitor = 25 lbs (11.3 kg)*

keyboard = 15 lbs (6.8 kg)*

•HD Laptop: 20 lbs (9.1 kg)

* Monitor depth affects weight capacity.

See TABLE B on previous page.

Weight Capacity

applies to HD45 Arm and HD Pivots

Monitor Weight

40 lbs (18 kg)

43 lbs (19.5 kg)

45 lbs (20.4 kg)

48 lbs (21.8 kg)

53 lbs (24 kg)

Monitor Thickness

4" (102 mm)

3-1/2" (89 mm)

3-1/4" (83 mm)

3" (76 mm)

2-1/2" (64 mm)

TABLE C: Center-of-Gravity Affects Weight Capacity

When using HD45 Arms or HD Pivots use the following table to determine weight capacity.

If using a monitor that falls outside of the range of the table, consult with an Ergotron

representative.

The Table assumes that the Center of Gravity (CG) of the monitor is slightly off center (60%)

towards the front.

Performance

Information Temperature Range

The optimal temperature range for Ergotron ARMS is 40˚ to 110˚F (4˚ to 43˚C). Operating outside this range

may affect performance of product.

Warranty Information

We are so confident that Ergotron products will outlast your computer hardware that we back our structural

components with a lifetime warranty and a five (5)-year warranty on Arms and Pivots. OEM products are

warranted by their respective manufacturer.

Weight Capacity

Weight capacities for ARMS

products should be regarded as

general guidelines only. Several

variables can effect weight capacity,

so capacity may vary between

applications.

Where weight range is shown

(e.g. 5–30 lbs), the lower end of the

range represents minimum weight

required for proper function.

Technical Specifications

54 • ARMS Orderguide • rev. 05/30/03 870-03-005

Interface Dimensions

for Direct Mounting Note: Surface construction varies. It is recommended that you consult the appropriate architectural,

engineering or construction personnel to ensure ARMS are properly mounted to handle the applied loads.

4.04"

(102.6 mm)

2.02"

(51.3 mm)

1.38"

(35.1 mm)

2.75"

(69.9 mm)

(127.0mm)

2.75"

(69.9 mm)

Ø .19"

(4.8mm)

.282" x .282"

(7.2 x 7.2 mm)

400 SERIES

400 Series Horizontal Mount

Surface/Suspend Arm

Interface

5.074"

(128.9 mm)

1.375"

(34.9 mm)

(152.4 mm)

(76.2 mm)

1.81"

(46.0 mm)

(50.8 mm)

1.125"

(28.6 mm)

Ø .203"

(5.2 mm)

Slotted

400 Series Vertical Mount

Rotate Arm Interface (includes

Combination Rotate Arm)

400 Series Vertical Mount

Fixed Arm Interface (includes

Combination Fixed Arm)

Ø .203"

(5.2 mm)

Slotted

2.375"

(60.3 mm)

(127.0 mm)

2.05"

(52.1 mm)

1.125"

(28.6 mm)

4.1"

(104.1 mm)

.662"

(16.8 mm)

1.787"

(45.4 mm)

2.102"

(53.4 mm)

4.881"

(124.0 mm)

1.787"

(45.4 mm)

Ø.348"

(8.8 mm)

Ø.340"

(8.6 mm)

Ø.188"

(4.8 mm)

1.944"

(49.3 mm)

3.889"

(98.8 mm)

4.8"

(121.9 mm)

A: #10-24 UNC Tap .35 Deep,

Break Through Allowed

B #3/8-16 UNC Tap 1.0 Deep,

No Break Through Allowed

300/200 SERIES

300/200 Series Desk Clamp

and Grommet Mount

300/200 Series Vertical Mount

4.1"

(104 mm)

5-1/2"

(140 mm)

1.25"

(31.8 mm)

Ø.2"

(.5 mm)

2.7"

(69 mm)

1.13"

(28.6 mm)

1.87"

(47.6 mm)

Ø.758"

(19.3 mm)

2.38"

.42" Ø

(11 mm)

(60 mm)

.67"

(17 mm)

2.5"

(64 mm)

1.38"

(35 mm)

.5"

(13 mm)

HD SERIES

HD Series Vertical Mount

Hole Pattern

870-03-005 rev. 05/30/03 • ARMS Orderguide • 55

Interface Dimensions

for Direct Mounting Note: Surface construction varies. It is recommended that you consult the appropriate architectural,

engineering or construction personnel to ensure ARMS are properly mounted to handle the applied loads.

ø .188"

(4.8 mm)

1.75"

(44.5 mm)

1.735"

(44.1 mm)

1.063"

(26.9 mm)

1.063"

(26.9 mm)

1.728"

(43.9 mm)

ø .188"

(4.8 mm)

Slotted

1.063"

(26.9 mm)

1.063"

(26.9 mm)

1.75" ±.05"

(44.5 mm)

100 SERIES

100 Series Single Pivot &

Single Pivot w/ P/L Interface

100 Series Double Pivot &

Double Pivot w/ P/L Interface

7.825"

(198.8 mm)

27.75"

(704.9mm)

30.125"

(765.2 mm)

.888"

(22.6 mm)

12"

(304.8 mm)

2.088"

(53.0 mm)

Ø .5"

(12.7 mm)

VL SERIES

Vertical Lift Hole Pattern

(102 mm)

4.53"

(115 mm)

4.53"

(115 mm)

.105"

(2.67 mm)

Side View

Ø .221"

(5.6 mm)

FX SERIES

FX Series Hole Pattern

1.75"

(44.5 mm)

ø .188"

(4.8 mm)

.344"

(8.5 mm)

1.063"

(26.9 mm)

1.063"

(26.9 mm)

2.75"

(69.9 mm)

.84"

(21.3 mm)

MULTIPLE SERIES

Keyboard/Laptop Tray Interface

56 • ARMS Orderguide • rev. 05/30/03 870-03-005

Interface Dimensions

for Direct Mounting Note: Surface construction varies. It is recommended that you consult the appropriate architectural,

engineering or construction personnel to ensure ARMS are properly mounted to handle the applied loads.

1-1/8"

(29 mm)

1/2"

(12.7 mm)

1-1/4"

(31.8 mm)

2-1/2"

(63.5 mm)

3-1/2"

(89 mm)

1/2"

(12.7 mm)

8-3/8"

(213 mm)

ø.281"

(7.1 mm)

(6 through holes)

#10-24

(10 tap holes)

#8-32

(4 tap holes)

3-3/4"

(95 mm)

Holes used

to attach

Vertical Mount

Outline of

an attached

Vertical Mount

WALL MOUNT PLATE

Wall Mount Plate Hole Pattern

.87" (22 mm)

5" (127 mm)

(203 mm)

(102 mm)

(51 mm)

.5"

(13 mm)

(203 mm)

(25 mm)

WALL TRACK

Wall Track Hole Pattern

2.5"

(64 mm)

.406"

(10.3 mm)

(25 mm)

(178 mm)

.5"

(13 mm)

(203 mm)

(127 mm)

Center-line

TOP

WALL MOUNT BRACKET

Wall Mount Bracket Hole Pattern

Ø .55"

(14 mm)

12.36"

(314 mm)

6.18"

(157 mm)

13.38"

(340 mm)

6.65"

(169 mm)

.87"

(22 mm)

1.38"

(35 mm)

12.36"

(314 mm)

10"

(254 mm)

7.52"

(191 mm)

Center lines

Ø .55"

(14 mm)

Center lines

6.18"

(157 mm)

13.38"

(340 mm)

6.65"

(169 mm)

11.38"

(289 mm) 7.52"

(191 mm)

COMMAND POST BASE

Command Post Base,

2" x 2" Hole Pattern

Command Post Base,

3" x 3" Hole Pattern

870-03-005 rev. 05/30/03 • ARMS Orderguide • 57

Interface Dimensions

for Direct Mounting Note: Surface construction varies. It is recommended that you consult the appropriate architectural,

engineering or construction personnel to ensure ARMS are properly mounted to handle the applied loads.

5.035"

(127.9 mm)

1.125"

(28.6 mm)

Ø .203"

(5.2 mm)

Slotted

EXTENDER – 400 SERIES

Extender for 400 Series

Hole Pattern

3.27"

.42" Ø

(11 mm)

(83 mm)

(25 mm)

4.5"

(114 mm)

1.38"

(35 mm)

.94"

(24 mm)

EXTENDER – HD SERIES

Extender for HD Series

Hole Pattern

Ø .19"

(4.8 mm)

1.063"

(26.9 mm)

1.063"

(26.9 mm)

EXTENDER – 100 SERIES

Extender for 100 Series

Hole Pattern

58 • ARMS Orderguide • rev. 05/30/03 870-03-005

Product Dimensions

400 SERIES

14-1/4"

(362 mm)

15"

(382 mm)

17"

(433 mm)

16"

(408 mm)

16-7/8"

(428 mm)

18-7/8"

(479 mm)

14-5/8"

(371 mm)

14-3/8"

(365 mm)

16-3/8"

(416 mm)

14-5/8"

(385 mm)

6-5/8"

(168 mm)

14-7/8"

(378 mm)

16-3/8"

(416 mm)

8-3/8"

(212 mm)

15-3/8"

(391 mm)

6-5/8"

(169 mm)

4-3/4"

(121 mm)

14-1/8"

(358 mm)

14-7/8"

(379 mm)

16-7/8"

(429 mm)

14-7/8"

(379 mm)

14-1/8"

(358 mm)

16-7/8"

(429 mm)

3.88"

(98.5 mm)

.31"

(7.87 mm)

.5"

(12.7 mm)

3.75"

(95.2 mm)

3.75"

(95.2 mm)

2.0"

(50.8 mm)

1.0"

(25.4 mm)

2.95"

(75 mm)

.461"

(11.7 mm)

.203"

(5.15 mm)

Side View

Maximum

Extension

Side View

Maximum

Extension

Front View

Combo Monitor

Bracket

870-03-005 rev. 05/30/03 • ARMS Orderguide • 59

Product Dimensions

300 SERIES

4-1/2"

(114 mm)

25-1/4"

(641 mm)

(229 mm)

43"

(1092 mm)

1-7/8"

(48 mm)

1-7/8"

(48 mm)

(229 mm)

11-1/2"

(292 mm)

11-1/2"

(292 mm)

11-1/2"

(292 mm)

(203 mm)

34"

(834 mm)

5-3/4"

(146 mm)

16-1/4"

(413 mm)

4-1/4"

(108 mm)

10-3/8"

(263 mm)

4-1/2"

(114 mm)

25-1/2"

(648 mm)

10-3/8"

(264 mm)

4-1/4"

(108 mm)

(229 mm)

203 mm

34-1/2"

(876 mm)

(229 mm)

1-7/8"

(48 mm)

1-7/8"

(48 mm)

1-7/8"

(48 mm)

1-7/8"

(48 mm)

1-7/8"

(48 mm)

4-1/4"

(108 mm)

10-3/8"

(263 mm)

11-1/2"

(292 mm)

3-3/4"

(96 mm)

(152 mm)

8-1/8"

(205 mm)

(152 mm)

9-5/8"

(244 mm)

11-5/8"

(295 mm)

13-1/8"

(333 mm)

15-1/8"

(384 mm)

15-3/4"

(400 mm)

14-5/8"

(371 mm)

(229 mm)

14-5/8"

(371 mm)

(229 mm)

(127 mm)

7-1/4"

(183 mm)

3-3/8"

(86 mm)

3-3/8"

(86 mm)

3-3/8"

(86 mm)

24-3/4"

(328 mm)

33-3/4"

(857 mm)

60 • ARMS Orderguide • rev. 05/30/03 870-03-005

Product Dimensions

200 SERIES

(229 mm)

(127 mm)

7-1/4"

(183 mm)

6-1/8"

(156 mm)

3-1/2"

(89 mm)

21-3/4"

(552 mm)

23-1/2"

(597 mm)

(229 mm)

3-1/4"

(83 mm)

3-1/4"

(83 mm)

2-3/4"

(70 mm)

(127 mm)

1-7/8"

(48 mm)

6-3/4"

(171 mm)

(153 mm)

(25 mm)

3-3/8"

(86 mm)

3-3/8"

(86 mm)

3-3/8"

(86 mm)

(152 mm)

5-1/2"

(140 mm)

11-1/2"

(292 mm)

25"

(635 mm)

14-1/2"

(368 mm)

3-1/4"

(83 mm)

17" (max.)

(431 mm)

21"

(533 mm)

(229 mm)

1-7/8"

(48 mm)

(229 mm)

16-7/8"

to 15"

(427 to 381 mm)

19-7/8"

(505 mm)

19-1/4"

(489 mm)

46"

(1168 mm)

29-1/8"

(741 mm)

43-1/2"

(1104 mm)

55"

(1397 mm)

29-1/8"

(741 mm)

52"

(1321 mm)

28"

(711 mm)

12-1/4"

(310 mm)

26"

(660 mm)

(229 mm)

21"

(533 mm)

(127 mm)

7-1/4"

(184 mm)

6-7/8"

(175 mm)

Attention:

Listed allowable widths assume monitor

thickness is 4" (102 mm). If monitor

thickness is less, allowable width may

be more. Contact Ergotron for details.

200 Series Pre-configurations that use

Crossbars come standard with Sliding

Pivots (i.e., without P/L).

23-1/4" (590 mm)

20" (508 mm)

24-1/2" (622 mm)

16" (406 mm)

Sliding Pivots

Allowable Monitor Width*

23" (584 mm)

19-1/2" (495 mm)

24" (609 mm)

15-1/2" (393 mm)

Single Pivots w/ P/L

Allowable Monitor Width*

Dual-Monitor (28" Crossbar)

Triple-Monitor (46" Crossbar)

Triple-Monitor (55" Crossbar)

Quad-Monitor (55" Crossbar)

Number of Monitors

(Horizontal Crossbar)

Available Monitor Widths Using Crossbars

* Width refers to monitor’s physical outside dimension – not screen size.

870-03-005 rev. 05/30/03 • ARMS Orderguide • 61

Product Dimensions

100 SERIES

2-3/8"

(60 mm)

(51 mm)

3-3/8"

(85 mm)

(51 mm)

4-5/8"

(117 mm)

(51 mm)

5-3/8"

(137 mm)

(51 mm)

2-3/4"

(70 mm)

(51 mm)

(76 mm)

FX SERIES

Wall Bracket

(Attaches to a 75 mm

VESA® FDMI™ Monitor)

Monitor Bracket

(Attaches to the Monitor

Bracket and a 100 mm

VESA® FDMI™ Monitor)

Adapter Plate

75 mm to 100 mm

3.94"

(100 mm)

3.94"

(100 mm)

3.94"

(100 mm)

(102 mm)

Front View

(Flat Panel Monitor Wall

Mounting Kit with Adapter Plate)

4.5"

(114 mm)

4.5"

(114 mm)

(178 mm)

2.95"

(75 mm)

2.95"

(75 mm)

.221"

(6 mm)

Dia. x4

.203"

(5 mm)

Dia. x4

.203"

(5 mm)

Dia. x4

Front View

(Flat Panel Monitor

Wall Mounting Kit)

4.5"

(114 mm)

4.5"

(114 mm)

(178 mm)

62 • ARMS Orderguide • rev. 05/30/03 870-03-005

Product Dimensions

DS100 SERIES

12-3/8"

(314 mm)

Single Pivot; X = 2-3/4"

(70 mm)

Single Pivot with P/L; X = 3-5/8"

(92 mm)

Double Pivot; X = 5-1/8"

(130 mm)

Double Pivot with P/L; X = 6"

(152 mm)

1-1/2"

(38 mm)

14-1/4" to

36-1/4"

(362 to 921 mm)

12-3/8"

(314 mm)

12"

(305 mm)

29-1/8"

(741 mm)

29-1/8"

(741 mm)

52"

(1321 mm)

28"

(711 mm)

12-1/4"

(310 mm)

26"

(660 mm)

55"

(1397 mm)

46"

(1168 mm)

43-1/2"

(1104 mm)

Attention:

Listed allowable widths assume monitor

thickness is 4" (102 mm). If monitor

thickness is less, allowable width may

be more. Contact Ergotron for details.

DS100 Series Pre-configurations that

use Crossbars come standard with

Sliding Pivots (i.e., without P/L).

23-1/4" (590 mm)

20" (508 mm)

24-1/2" (622 mm)

16" (406 mm)

Sliding Pivots

Allowable Monitor Width*

23" (584 mm)

19-1/2" (495 mm)

24" (609 mm)

15-1/2" (393 mm)

Single Pivots w/ P/L

Allowable Monitor Width*

Dual-Monitor (28" Crossbar)

Triple-Monitor (46" Crossbar)

Triple-Monitor (55" Crossbar)

Quad-Monitor (55" Crossbar)

Number of Monitors

(Horizontal Crossbar)

Available Monitor Widths Using Crossbars

* Width refers to monitor’s physical outside dimension – not screen size.

870-03-005 rev. 05/30/03 • ARMS Orderguide • 63

Product Dimensions

HD SERIES

1-7/8"

(22 mm)

17-1/2"

(445 mm)

19-1/4"

(490 mm)

16-7/8"

(427 mm)

13-1/2"

(343 mm)

15"

(381 mm)

(229 mm)

21"

(533 mm)

11-1/2"

(292 mm)

20-1/4"

(514 mm)

23-1/2"

(597 mm)

27"

(686 mm)

14"

(356 mm)

23"

(584 mm)

37"

(940 mm)

22"

(559 mm)

23"

(584 mm)

12-1/2"

(318 mm)

13-1/2"

(343 mm)

(25 mm)

28-1/2"

(724 mm)

28"

(711 mm)

15"

(381 mm)

21"

(533 mm)

HD Pivots

HD45 Arm

HD Combo

HD Dual

HD Laptop

17"

(432 mm)

13-1/8"

(333 mm)

18-1/2"

(470 mm)

8-1/8"

(208 mm)

Maximum

Monitor

Height

Maximum

Monitor

Thickness

Maximum

Monitor

Width

(102 mm)

5-1/4"

(133 mm)

28-274-000

45-142-000

14-3/8"

(366 mm)

11-7/8"

(301 mm)

4-1/8"

(105 mm)

4-1/8"

(105 mm)

45-144-000

5-1/2"

(139 mm)

4-5/8"

(118 mm)

45-143-000

7-1/4"

(183 mm)

7-1/4"

(183 mm)

10-3/8"

(265 mm)

45-007-099, 400 Series Arm, Vertical

Mount, Rotate, Double Pivot with P/L

45-006-099, 400 Series Arm, Vertical

Mount, Rotate, Keyboard/Laptop Pivot

97-091, Track Mount Bracket Kit (2)

31-019-182, 50" Wall Track

77-050-100, Keyboard Tray w/ Sliding

Mouse Tray & Wrist Rest Holder

85-025-079, Mouse Pad

80-058-100, CPU Holder – Medium

60-156, Peripheral Track Mount

Bracket Kit

85-010-087, Wrist Rest

64 • ARMS Orderguide • rev. 05/30/03 870-03-005

Sample Configurations

Configure your own system with

Ergotron’s modular components.

Examples listed here are some

configuration ideas.

A. 400 Series ARMS on Wall

Track configuration:

28-170-180, 300 Series Vertical Mount

Arm with 9" Extension

60-366-100, 3" x 3" Post ARMS Bracket

20-077-100, 96" Post, 3" x 3"

60-360-100, Base for 3" x 3" Post

80-059-100, CPU Holder – Large

60-158-100, 3" x 3" Post Peripheral

Bracket

55-035-999, Peripheral Table

65-048-100, Fold-Away Underbracing

B. 300 Series ARMS on

Command Post configuration:

870-03-005 rev. 05/30/03 • ARMS Orderguide • 65

27-157-100, Mobile WorkStand, Standard

Configuration*

70-054-100, Cable Box

99-068-100, Wire Storage Basket

80-063-100, CPU Holder – Small

85-022, Footrest

99-062, Weighted Base Kit (25 lbs)

85-010-087, Wrist Rest

99-033-078, Mouse Pouch

* Standard Mobile WorkStand

Configuration 27-157-100 consists of

Base, Casters, Pole, Handle, 400 Series

Fixed Single Pivot Arm, 400 Series Fixed

Keyboard/Laptop Pivot Arm, Mounting

Brackets and Keyboard Tray w/ Sliding

Mouse Tray & Wrist Rest Holder.

C. Mobile WorkStand

configuration:

45-032-099, 400 Series Arm,

Combination Flat Panel/Keyboard, Fixed

77-050-100, Keyboard Tray w/ Sliding

Mouse Tray & Wrist Rest Holder

85-010-087, Wrist Rest

31-018-182, 34" Wall Track

97-090, Horizontal Track Mount

Bracket Kit

D. Combination Arm on

horizontally positioned Wall

Track configuration:

47-012-099, 100 Series, Double Pivot

47-009-099, 100 Series,

Keyboard/Laptop Pivot

97-091, Track Mount Bracket Kit (2)

31-017-182, 26" Wall Track

77-049-100, Keyboard Tray

85-014-100, Front Mouse Tray

60-197-100, 100 Series 5" Extender

E. 100 Series ARMS on Wall

Track configuration:

66 • ARMS Orderguide • rev. 05/30/03 870-03-005

Notes

870-03-005 rev. 05/30/03 • ARMS Orderguide • 67

Notes

Maximize the effectiveness

of your computer systems

with Products.

Since 1982, Ergotron has designed and engineered products specifically for improving the human

interface with computers.Innovative engineering concepts incorporate the human factor into each

and every product.With our patented Monitor Suspension technology as the core, Ergotron designs

Computer Mounting Solutions that consistently meet the ever changing needs of our customers.

Our experienced Sales Representatives will work with you to define your requirements and custom

configure standard components to cost-effectively meet those requirements.If you do not see a

product that meets your requirements, call us and we will tailor a solution to your needs.

Distribuito da : Quartex Informatica

Via Paolo Giovio n.5 20144 Milano tel 02 4984998

;

Ergotron 870 03 005 Users Manual

870-03-005 to the manual 9604c11e-2ff8-4d30-8c4b-26ff25f0cb03

Navigation menu

Versions of this User Manual:

Views

Navigation
