Users Manual
Type No. 86010153
Protocols compliant to AISG 1.1 and 3GPP/AISG 2.0
Logical interface ex factory 1) 3GPP/AISG 2.0
Operates as Single RETs or Multi RET
Ex factory Single RETs
Input voltage range 10 ... 30 V (pin 1, pin 6)
Power consumption < 0.5 W (stand by); < 10 W (motor activated)
Connectors 2) 2 x 8 pin connector according to IEC 60130-9; according to AISG
Daisy chain in: male; Daisy chain out: female
Hardware interfaces RS 485A/B (pin 5, pin 3);
power supply (pin 1, pin 6); DC return (pin 7);
according to AISG / 3GPP
Adjustment time (full range) 40 sec (typically, depending on antenna type)
Adjustment cycles > 50,000
Temperature range –40 °C … +60 °C
Protection class IP 24 (installed)
Lightning protection AISG interface (each pin)
2.5 kA (10/350 µs)
8 kA (8/20 µs)
Housing material Profi le: Aluminum anodized; cover: Aluminum die cast coated
Weight 350 g (0.77 lbs)
Packing size 245 x 93 x 102 mm, (9.6 x 3.6 x 4 inches)
Dimensions (H x W x D) 142 x 71 x 50.4 mm, (5.6 x 2.8 x 2 inches)
1) The protocol of the logical interface can be switched from 3GPP/AISG 2.0 to AISG 1.1 with a vendor
specifi c command. Start-up operation of the FlexRET is only possible in a RET system supporting 3GPP/
AISG 2.0!
1) Please note:
If the Primary which controls the FlexRET system does not support the default ex-factory interface
setting, then the RCU must be switched to the appropriate standard of the Primary before installation.
Please contact Kathrein for further information.
2) If the FlexRET of an antenna has to be replaced, the FlexRET gets the information stored in the antenna
after power on automatically. It is not necessary to confi gurate the FlexRET manually.
Standards: EN 60950-1 (Safety)
EN 60950-22 (Safety – Equipment installed outdoor)
EN 55022 (Emission)
EN 55024 (Immunity)
ETS 300019-1-4 (Environmental)
UL 60950-1; 1st edition
Certifi cation: CE, FCC
Scope of supply: FlexRET
Optional: Site-Sharring-Adapter (86010154) to create independent_logial interfaces
at one antenna or site. Makes it possible to operate with more than one
independent Node B.
KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820
www.kathrein.de 86010153 Page 1 of 4
936.4643 Subject to alteration.

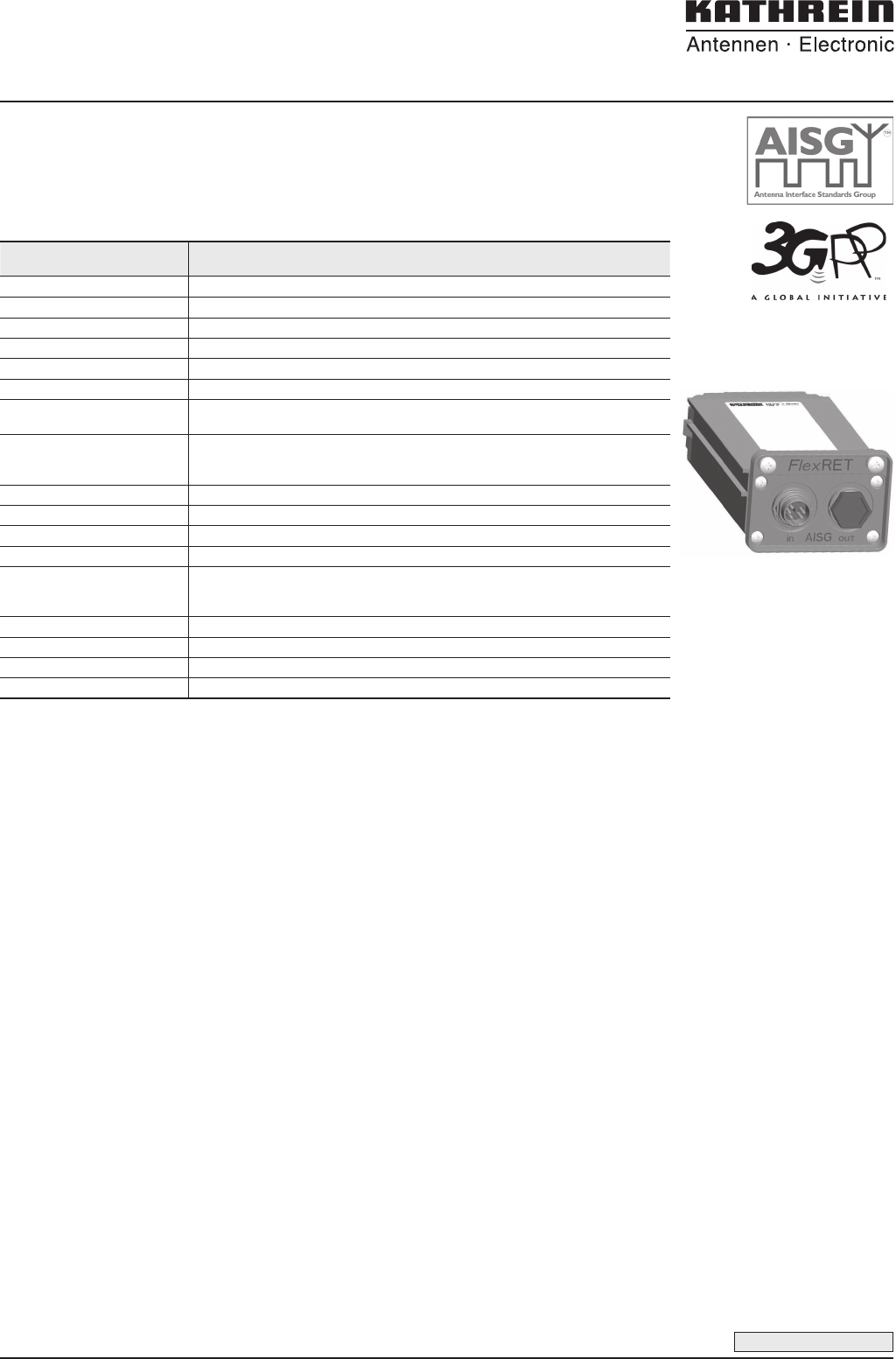

FlexRET
A fl exible, integrated solution for adjusting the electrical downtilt of Kathrein FlexRET antennas.
● Compliant to AISG 1.1 and 3GPP/AISG 2.0 ● Daisy Chain feasibility
● Single RETs or Multi RET displayed ● Pre-confi gurated
KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820
www.kathrein.de
Page 2 of 4 86010153
936.4643 Subject to alteration.
FlexRET
Startup of FlexRET
The FlexRET module included in the antenna is preconfi gured with the following information:
Antenna model no., Antenna Serial no., Antenna confi guration data. After connecting a control
cable and scanning the antenna line devices (ALD) the used primary (e.g. NodeB, ALC, etc.) will
fi nd the FlexRET. You only need to insert your additional data.

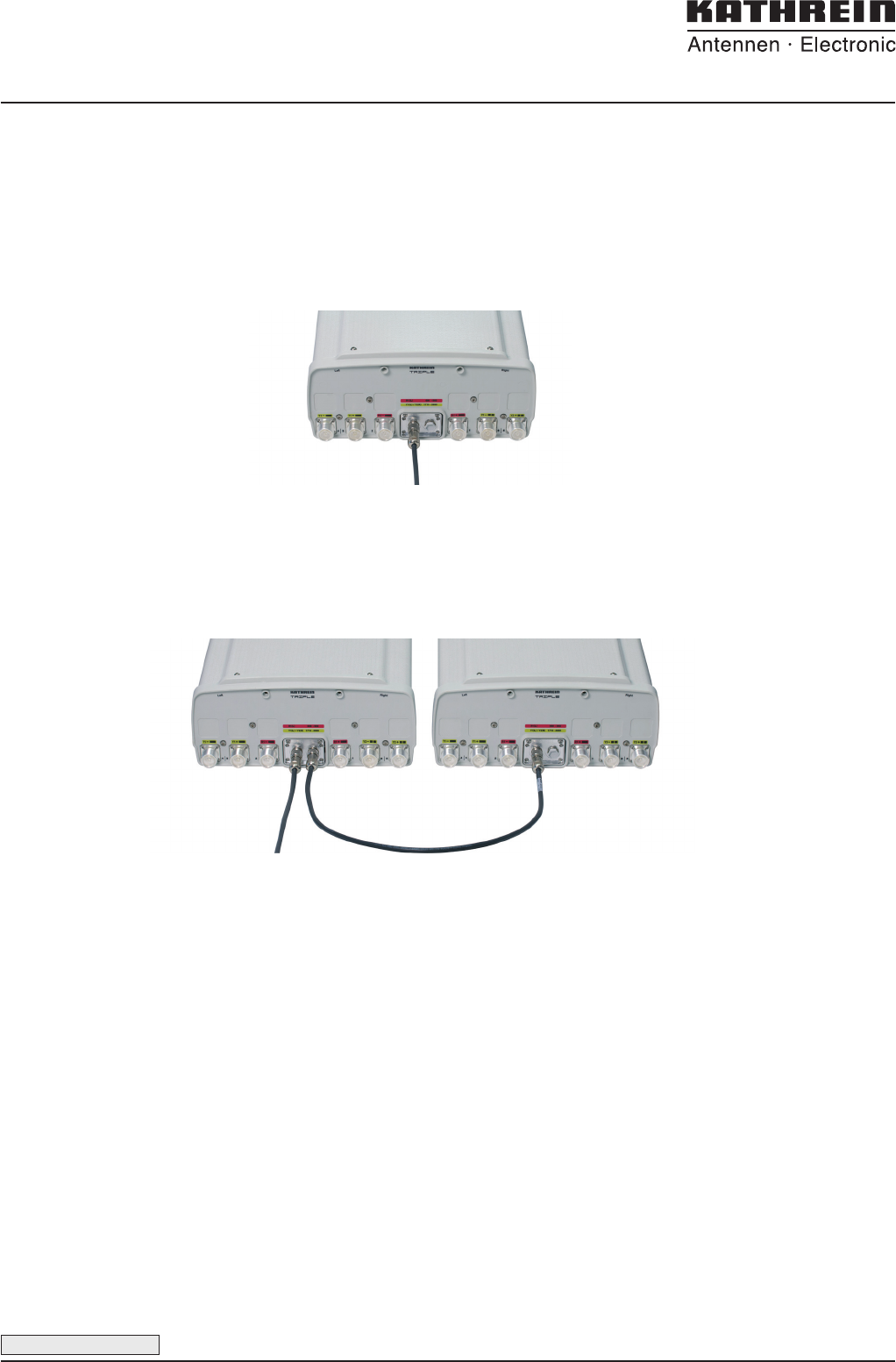

Connecting the control cables:
Connect a control cable to the daisy chain input of the FlexRET. The tightening torque for fi xing the
connector must be 0.5 – 1.0 Nm (‘hand-tightened’).
The connector should be tightened by hand or by a special torque screw driver (order no. 85010080).
See also data sheet for Kathrein AISG-cable (86010007, ...).
Please note: To ensure the tightness of the RET System, Kathrein recommend the use of
Kathrein components only.
Please note: If the daisy chain output is not used, do not remove the protection cap.
For daisy chain operation, remove the protection cap and attach a control cable to interconnect with
the daisy chain input of the subsequent FlexRET or external RCU.
Please note: Do not remove the protection cap on the daisy chain output of the last FlexRET
or RCU device.
KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820
www.kathrein.de 86010153 Page 3 of 4
936.4643 Subject to alteration.
FCC – Statements
'!!!
*,/%,1
(+$"%!(,)')AE$)'*!(4%')$#((* ))$)$!!$,#),$
$#)$#(39A:(+".#$)*('"*!#)''#2#9B:)(+"*()%)#.
#)''#'+2#!*##)''#))".*(*#('$%')$#4
*,/%,+/
$)3(&*%"#)(#)()#$*#)$$"%!.,))!")($'!(()!+2
%*'(*#))$%')AE$)*!(4(!")('(#)$%'$+'($#!%'$))$#
#()'"*!#)''##'(#)!#()!!)$#4(&*%"#)#')(2*((##
')'$'&*#.#'.#2#$)#()!!#*(#$'#,))#()'*)$#(2".
*('"*!#)''#)$'$$""*#)$#(4$,+'2)'(#$*'#)))
#)''#,!!#$)$*'#%')*!'#()!!)$#4)(&*%"#)$(*('"*!
#)''#)$'$$')!+($#'%)$#2,#)'"#.)*'##)&*%"#)$
#$#2)*('(#$*')$)'.)$$''))#)''#.$#$'"$'$)$!!$,#
"(*'(3
8$'#)$''!$))'+##)##4
8#'()(%')$#),#)&*%"#)#'+'4
8$##))&*%"#)#)$#$*)!)$#'*)'#)'$")))$,)'+'(
$##)4
8$#(*!))!'$'#-%'#'$6)##$'!%4
&!0%,%.
(+$"%!(,)#*()'.#!#7-"%)()#'9(:4%')$#((* ))$
)$!!$,#),$$#)$#(39A:)(+".#$)*(#)''#2#9B:)(+"*()
%)#.#)''#2#!*##)''#))".*(*#('$%')$#$)+4
%'(#)%%'!()$#$'"*-=#*()'#%%!!(*-%%'!('$
-"%)(!#4=-%!$))$#()*)$'(*-*-$#)$#((*+#)(39A:!=%%'!#
$)%(%'$*''$*!!2)9B:!=*)!()*'!=%%'!$)%)')$*)'$*!!
'$!)'&*(*2""(!'$*!!()(*(%)!=#$"%'$"))'!$#)$##"#)4
&++.
(!(()!%%')*($"%!(,)##7@@C4
)%%'!#*"'&*!!((()$#$'"!#$'"7@@C*#4
*,/%-,(!!!)
;#.<#($'"$)$#(#$)-%'((!.%%'$+.)%').'(%$#(!$'$"%!#$*!
+$)*('5(*)$').)$$%'))&*%"#)4
KATHREIN-Werke KG · Anton-Kathrein-Straße 1-3 · P.O. Box 10 04 44 · 83004 ROSENHEIM · GERMANY · Phone +49 8031 184-0 · Fax +49 8031 184-820
www.kathrein.de
Page 4 of 4 86010153
936.4643 Subject to alteration.
FCC – Statements
Compliance Information Statement
(Declaration of Conformity Procedure)
Responsible Party: Kathrein Inc., Scala Division
Address: PO Box 4580, Medford Oregon . 97501
Telephone: (+01)541 779 6500
Type of Equipment:
Model Name: FlexRET
FCC ID SP3-86010153
