Ericsson LG EBTMU OPTIONAL BLUETOOTH MODULE FOR IP PHONE User Manual E BTMU Quick User Guide
Ericsson-LG Co., Ltd. OPTIONAL BLUETOOTH MODULE FOR IP PHONE E BTMU Quick User Guide
User Manual
E-BTMU
Quick User Guide
E-BTMU
Quick User Guide
E-BTMU
Quick User Guide
1
1. Introduction
E-BTMU is the External Bluetooth module that can offer greater wireless mobility to LIP-
8000E/IP8800E.
LIP-8012E/LIP-8024E/LIP-8040E and IP8820E/IP8830E/IP8840E support Handset or
Speakerphone capability for Mobile Calls or WiFi(VoIP) Calls on smart phone as well as
Bluetooth headset. They will support these features with an E-BTMU.
• Support Bluetooth Headset
• Linked with Smartphone via Bluetooth
• Select contact information on IP Phone via Phonebook profile

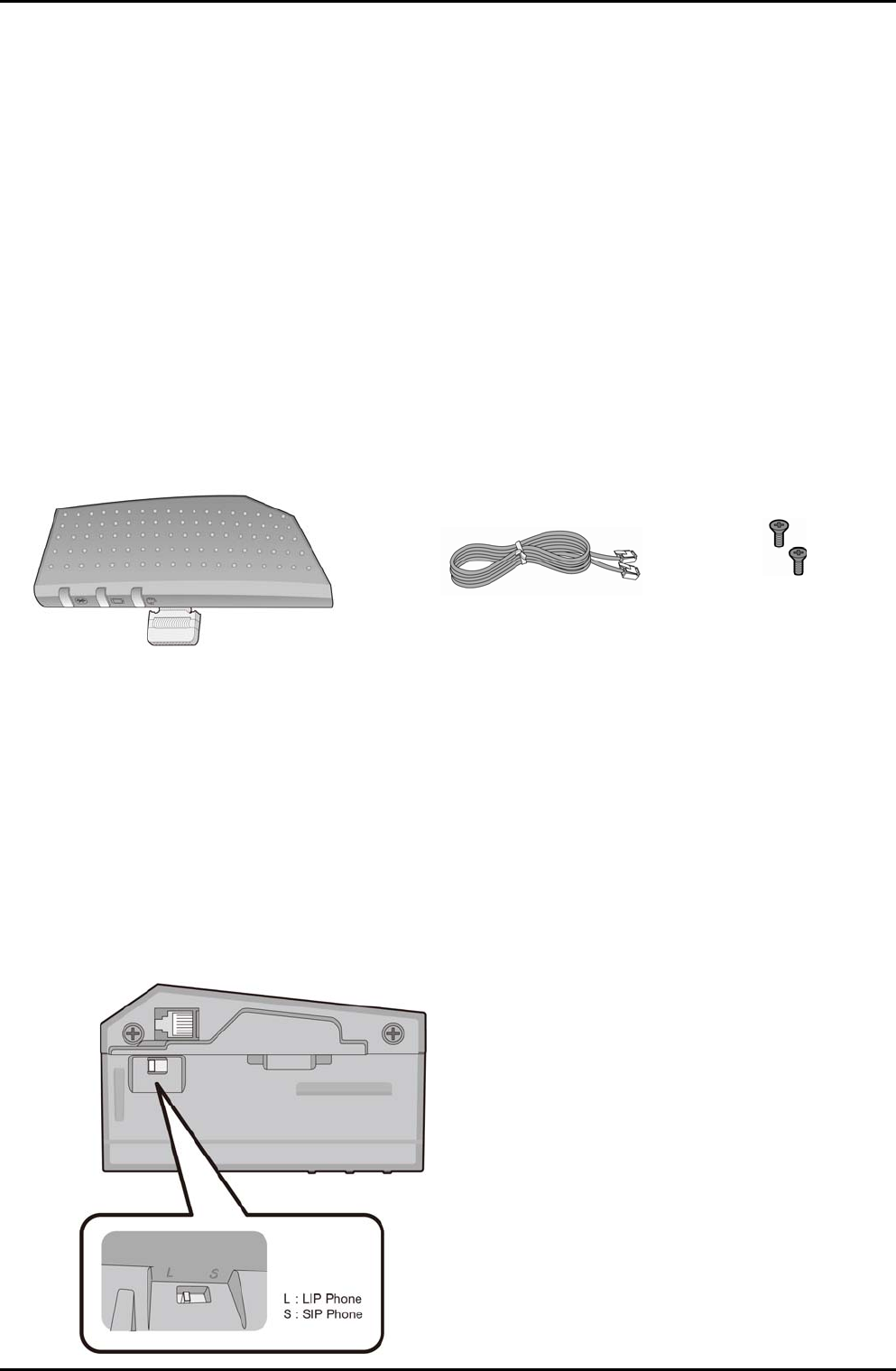

2. Checking the Items
Check if the following items are in the package.
E-BTMU RJ9 cable Screw
3. Installing E-BTMU
Before you install E-BTMU, it is important that you read the following note.
Note:
1. You can’t install E-BTMU if DSS is using. You can install only E-BTMU or DSS; don’t
using both E-BTMU and DSS.
2. You select L or S before E-BTMU installs. You select L if you connect to LIP phone
(LIP-8000E series), select S if you connect to SIP phone (IP8800E series).
E-BTMU
Quick User Guide
2

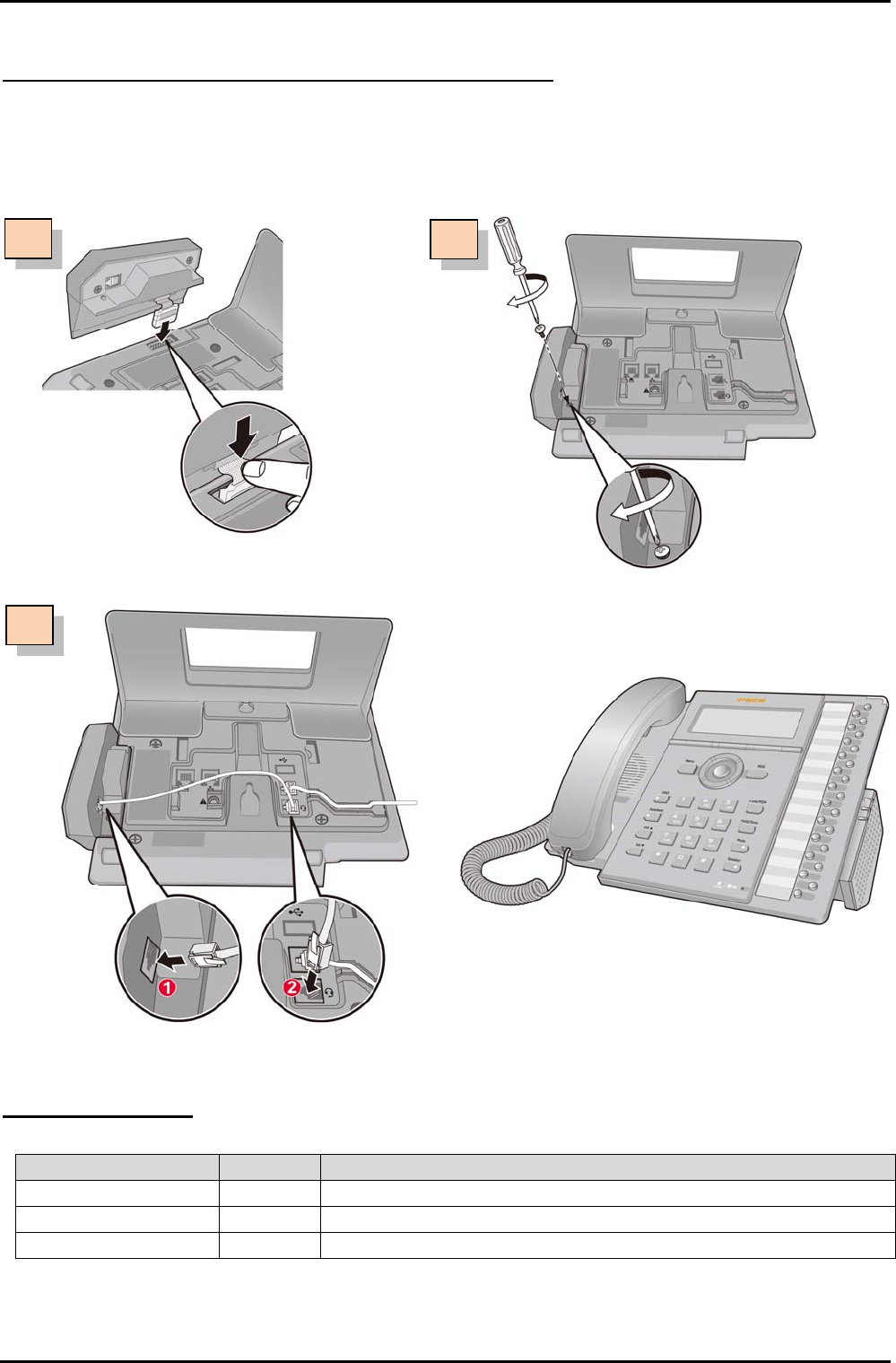

The following steps are how to install E-BTMU
1) First, connect the cable to Phone with pushing Connector by finger securely.
2) Screw up E-BTMU to Phone.
3) Connect the RJ9 cable between E-BTMU and a Headset port at the rear of Phone.
LED Indications
Indication Color Description
Bluetooth RED Bluetooth dongle is connected to IP phone
Smart phone BLUE Smart phone is connected to BT dongle
Headset BLUE Headset is connected to BT dongle
1 2
3
E-BTMU
Quick User Guide
3
1. Headset
2. Smart Phone
3. Settings
4. E-BTMU Upgrade
5. E-BTMU Initialization
NEXT OK
BACK
4. Installing E-BTMU (for LIP-8000E Series)
After installing E-BTMU and Phone has power, the following appears on the LCD.
4.1 Using Headset
4.1.1 Paring and connecting the device
In case of there is no paired device:
1) The message ‘No paired Headset’ is displayed.
2) Set a Bluetooth headset to be discoverable.
3) Press Soft button ‘Search’.
4) The available devices list is displayed.
5) Press Soft button ‘CONN’ to select the device among the list.
6) The message ‘Connecting Success and Connected’ is displayed if the
connection is successful.
In case of the device is paired and disconnected:
1) Press Soft button ‘CONN’ to connect the device.
4.1.2 Deleting the device
1) Disconnect the connected Bluetooth headset first.
2) Select the device and press Soft button ‘DELETE’.
4.1.3 Disconnecting the device
1) Select the device and press Soft button ‘DISC’.
4.2 Using Smart Phone
4.2.1 Paring and connecting the device
In case of there is no paired device:
1) The message ‘No paired Smart phone’ is displayed.
2) Set a smart phone to be discoverable.
3) Press Soft button ‘Search’.
4) The available devices list is displayed.
E-BTMU
Quick User Guide
4
1. Smart Phone Bell Type
2. Set BTMU Detectable
3. Smart Phone Reconnection
4. E-BTMU Information
5. Connected Device Info
NEXT OK
BACK
6. Set E-BTMU Name
7. CO Access Code
NEXT OK
BACK
5) Press Soft button ‘CONN’ to select the device among the list.
6) The message ‘Connecting Success and Connected’ is displayed if the
connection is successful.
In case of the device is paired and disconnected:
1) Press Soft button ‘CONN’ to connect the device.
4.2.2 Deleting the device
1) Disconnect the connected smart phone first.
2) Select the device and press Soft button ‘DELETE’.
4.2.3 Disconnecting the device
1) Select the device and press Soft button ‘DISC’.
4.3 Setting up the following menu
4.3.1 Setting up Smart phone Bell type
There are 8 bell types from 1 to 8. Select the bell type and press Soft button ‘OK’.
4.3.2 Setting up E-BTMU Detectable
If you select Set E-BTMU Detectable, Your phone is visible on other Smart phone and
can be paired with Smart phone as long as this menu is displayed. If your phone is
connected with any Bluetooth device, you need to disconnect it first before set to be
discoverable.
E-BTMU
Quick User Guide
5
4.3.3 Setting up Smart Phone Reconnection
If Reconnection mode is enabled, E-BTMU can be connected to Headset or Smart
phone automatically after disconnection.
4.3.4 Showing E-BTMU Information
You can see the version & the MAC address of E-BTMU.
4.3.5 Showing Connected Device Info
You can check the information of which device is connected to.
4.3.6 Setting up E-BTMU Name
You can change the E-BTMU name.
4.3.7 CO Access Code
You can set the CO access code for making a call using the phonebook of the smart
phone.
4.4 Upgrading E-BTMU
You upgrade E-BTMU via FTP Server as the following steps:
1) Select E-BTMU Upgrade and then search for Device.
2) After searching the device, press Soft button ‘UPGRADE’.
3) Download start if the device needs to be upgrade.
4) Phone and E-BTMU will reboot automatically after upgrade successfully.
4.5 Initializing E-BTMU
The following requirements need to be set before initializing E-BTMU.
1) All paired and connected devices are deleted.
2) Smart phone reconnection is set as Disabled.
3) The bell type is 1.
4) The ring volume is set as 5. The ring volume is from 1 to 11.
5) The hands-free Rx volume of Smart phone is set as 5.
6) The volume of Smart phone is set as 5.
E-BTMU
Quick User Guide
6
1. Headset
2. Smart Phone
3. Settings
4. E-BTMU Upgrade
5. E-BTMU Initialization
Next OK
Previous
5. Installing E-BTMU (for IP8800E Series)
After installing E-BTMU, Phone has power, and selects the menu, “3. Phone Settings”
“13.Bluetooth”, the following appears on the LCD.
(The menu number can be changed.)
5.1 Using Headset
5.1.1 Paring and connecting the device
In case of there is no paired device:
1) The message ‘No Paired Headset’ is displayed.
2) Set a Bluetooth headset to be discoverable.
3) Press Soft button ‘Search’.
4) The available devices list is displayed.
5) Press Soft button ‘Connect’ to select the device among the list.
6) The message ‘Headset is connected’ is displayed if the connection is
successful.
In case of the device is paired and disconnected:
1) Press Soft button ‘Connect’ to connect the device.
5.1.2 Deleting the device
1) Disconnect the connected Bluetooth headset first.
2) Select the device and press Soft button ‘Delete’.
5.1.3 Disconnecting the device
1) Select the device, press Soft button ‘Disconn’.
5.2 Using Smart Phone
5.2.1 Paring and connecting the device
In case of there is no paired device:
E-BTMU
Quick User Guide
7
1. Smart Phone Ring Type
2. Smart Phone Reconnection
3. CO Access Code
4. Discoverable
5. Device Name
Next OK
Previous
6. Local Device Info.
7. Connected Device Info.
Next OK
Previous
1) The message ‘No Paired Smart Phone’ is displayed.
2) Set a smart phone to be discoverable.
3) Press Soft button ‘Search’.
4) The available devices list is displayed.
5) Press Soft button ‘Connect’ to select the device among the list.
6) The message ‘Smart Phone is connected’ is displayed if the connection is
successful.
In case of the device is paired and disconnected:
1) Press Soft button ‘Connect’ to connect the device.
5.2.2 Deleting the device
1) Disconnect the connected smart phone first.
2) Select the device and press Soft button ‘Delete’.
5.2.3 Disconnecting the device
1) Select the device and press Soft button ‘Disconn’.
5.3 Setting up the following menu
5.3.1 Setting up Smart Phone Ring Type
There are 8 ring types and it also supports the ringer off and the default ring. Select
the ring type and press Soft button ‘OK’.
E-BTMU
Quick User Guide
8
5.3.2 Setting up Smart Phone Reconnection
If Reconnection mode is enabled, E-BTMU can be connected to Headset or Smart
phone automatically after disconnection.
5.3.3 CO Access Code
You can set the CO access code for making a call using the phonebook of the smart
phone.
5.3.4 Setting up E-BTMU Discoverable
If you select E-BTMU Discoverable, your phone is visible on other Smart phone and
can be paired with Smart phone as long as this menu is displayed. If your phone is
connected with any Bluetooth device, you need to disconnect it first before set to be
discoverable.
5.3.5 Setting up E-BTMU Name
You can change the E-BTMU name.
5.3.6 Showing E-BTMU Information
You can see the version & the MAC address of E-BTMU.
5.3.7 Showing Connected Device Info
You can check the information of which device is connected to the phone.
5.4 Upgrading E-BTMU
You upgrade E-BTMU via FTP Server as the following steps:
1) Select E-BTMU Upgrade and then search for Device.
2) After searching the device, press Soft button ‘Upgrade’.
3) Download start if the device needs to be upgraded.
4) Phone and E-BTMU will reboot automatically after upgrade successfully.
5.5 Initializing E-BTMU
The following requirements need to be set before initializing E-BTMU.
1) All paired and connected devices are deleted.
2) Smart phone reconnection is set as Disabled.
3) The ring type is set to the “Default Ring”.
4) The hands-free Rx volume of Smart phone is set as 5.
E-BTMU
Quick User Guide
9
5) The volume of Smart phone is set as 5.
6. Using Bluetooth Headset
If the speaker mode is set as BT and the Bluetooth headset is connected to the phone,
you can make or receive a call via Bluetooth headset.
7. FCC Notice
Class B
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the
FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.This
transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
