GSM Fixed Wireless Phone
Please read this manual carefully before operating your set.
Retain it for future reference.
P/NO : MMBBxxxxx
APR/2010/ISSUE xx
L G P - 4 5 0 A U s e r G u i d e
1
Installing the SIM Card and Charging the Battery
Installing the SIM Card
When you subscribe to a cellular network,
you are provided with a plug-in SIM card
loaded with your subscription details, such as
your PIN, any optional services available and
many others.
Important!
▶
The plug-in SIM card and its contacts
can be easily damaged by scratches or
bending, so be careful when handling,
inserting or removing the card. Keep
all SIM cards out of the reach of small
children.
▶
To remove, push the back cover down.
Push the tab with one hand and lift the top
of the battery to separate.
Fully charge
the battery
before using
it for the first
time.

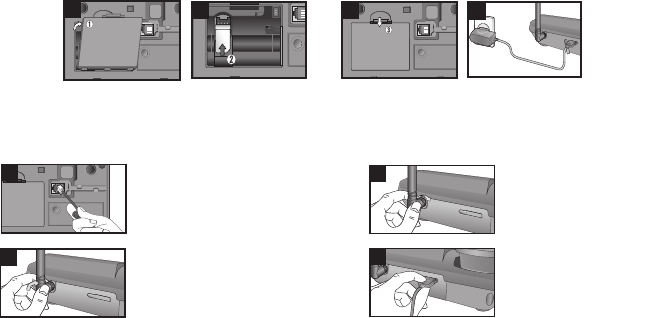

Installing Main Phone
Please follow the procedure below to install the phone properly.
12
34
Connect basehandset to the
handset connector.
Connect the antenna to the
TNC connector (Turn right).
Turn the antenna upright. Connect the AC power
supply.
1234
2
Basic Operation
Turning Your Phone On and Off
1. Hold down the
END/PWR
Dial/Flash
[END/PWR] key until the phone switches on.
2. To switch the phone off, hold down the [END/PWR] key until the power-off image displays.
Making a Call
1. Pick up the handset or press
END/PWR
Dial/Flash
[Speaker Phone] key.
2. Listen for dial tone and enter the phone number.
3. Wait for the Auto Time-out or press [Dial/Flash] key.
4. The call is connected and you may start conversation.
5. To disconnect the call, replace the handset or press
END/PWR
Dial/Flash
[Speaker Phone] key.
Answering a Call
When the bell rings in idle state, you can receive a call as follows:
1. Pick up the handset or press the
END/PWR
Dial/Flash
[Speaker Phone] key.
2. Start a conversation. To disconnect the call, replace the handset or press the [Speaker
Phone] key.
Note After the call ends, the phone will go back to standby mode.
Making an International Call
1. Pick up the handset or press
END/PWR
Dial/Flash
[Speaker Phone] key.
2. Listen for dial tone.
3. Press and hold the
END/PWR
Dial/Flash
key for the international prefix. The '+' character automatically selects
the international access code.
4. Enter the country code, area code, and the phone number.
5. The call is connected and you may start conversation.
6. To disconnect the call, replace the handset or press [Speaker Phone] key.
Redialing Last Number
1. Pick up the handset or press [Speaker Phone] key.
2. Listen for dial tone.
3. Press [Dial/Flash] key.
4. The call is connected and you may start conversation.
5. To disconnect the call, replace the handset or press [Speaker Phone] key.
3-way Call Conferencing
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
3
3-way Call Conferencing
Method 1
1. Enter the phone number of the 2nd party phone while you are in telephonic conversation with
1st party.
2. Press [Dial/Flash] key. And press [Dial/Flash] key again.
Method 2
1. Press [Dial/Flash] key while you are in telephonic conversation with 1st party.
2. If you listen to the dialing tone, Press the phone number of the 2nd party phone.
3. Press [Dial/Flash] key.
4. And press [Dial/Flash] key again.
This service should be provided by your service provider.
Call Wait
1. Press [Dial/Flash] key, you may start conversation with called number.
2. Re-press [Dial/Flash] key, you may start conversation with previous number.
Volume Control
1. Press [Left]/ [Right] key of navigation while in a call, to adjust speaker volume.
2. Press Option + Left Soft Key to prevent sound from your end during the call. To cancel Mute,
Press again + Left Soft Key.
Memo
Allow you to store number during the call.
To store number :
1. Press Option + 4(New Memo).
2. Enter up to 32 numbers using the keypad.
3. Press OK key to save.
Lock Mode
1. You can use a security code to avoid unauthorized use of the phone.
Press soft Left(Menu) + 4(Setting) + 6(Security) + 2(Phone Lock).
2. The phone is now locked. To unlock, press and enter lock code(Default 0000 ).
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
END/PWR
Dial/Flash
4
Entering Text
You can enter alphanumeric characters by using the phone's keypad. To change modes, press the
END/PWR
Dial/Flash
key.
T9 Mode
This mode allows you to enter words with only one keystroke per letter. Each key on the keypad
has more than one letter. The T9 mode automatically compares your keystrokes with an internal
linguistic dictionary to determine the correct word, thus requiring far fewer keystrokes than the
traditional ABC mode.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with the required letter once,
twice, three or four times until the letter is displayed.
123 Mode (Numbers Mode)
Type numbers using one keystroke per number.
Symbol Mode
This mode allows you to enter special characters by pressing
END/PWR
Dial/Flash
key.
Quick feature reference
This section provides brief explanations of features on your phone.
Messaging Menu 1
This menu includes functions related to SMS (Short Message Services).
New message You can create functions related to SMS (Short Message Services).
Press soft Left( Menu ) + 1( Messaging ) + 1( New message ) or Message button.
Inbox You will be alerted when you have received a message.
Press soft Left( Menu ) + 1( Messaging ) + 2( Inbox ).
5
Drafts This menu shows the preset message list.
Press soft Left( Menu ) + 1( Messaging ) + 3( Drafts ).
Outbox This menu allows to view the message which is about to be sent or has failed to be
sent.
Press soft Left( Menu ) + 1( Messaging ) + 4( Outbox ).
Sent This menu allows you to view the messages which have already been sent,
including time and content.
Press soft Left( Menu ) + 1( Messaging ) + 5( Sent ).
Listen voice mail This menu provides you with a quick way of accessing your voice mailbox
(if provided by your network).
Press soft Left( Menu ) + 1( Messaging ) + 6( Listen voice mail ).
Info messages Info service messages are text messages delivered by the network to your
handset.
Press soft Left( Menu ) + 1( Messaging ) + 7( Info messages ).
Templates There are pre-defined messages in the list. You can view and edit the template
messages or create new messages.
Press soft Left( Menu ) + 1( Messaging ) + 8( Templates ).
Settings This menu allows you to set features of your network service provider.
Press soft Left( Menu ) + 1( Messaging ) + 9( Settings ).
Contacts Menu 2
Search You can Search for contacts in Phonebook.
6
Note: Instant searching is available by inputting the initial letter of the name you
want to search.
Press soft Left( Menu ) + 2( Contacts ) + 1( Search ) or Contacts button.
New contact You can add phonebook entries by using this menu.
Press soft Left( Menu ) + 2( Contacts ) + 2( New contact ).
Speed dials Assign contacts to any of keys from 2 to 9.
Press soft Left( Menu ) + 2( Contacts ) + 3( Speed dials ).
Copy all You can copy all entries from SIM card memory to Phone memory or from Phone
memory to SIM card memory.
Press soft Left( Menu ) + 2( Contacts ) + 4( Copy all ).
Delete all You can delete all entries from SIM card memory or Phone memory.
Press soft Left( Menu ) + 2( Contacts ) + 5( Delete all ).
Memory status You can check free space and memory usage.
Press soft Left( Menu ) + 2( Contacts ) + 6( Memory status ).
Information ▶Service dial number
Access the list of service numbers assigned by service provider safely.
Press soft Left( Menu ) + 2( Contacts ) + 7( Information ) + 1( Service dial number ).
▶Own numbers
You can save and check your own numbers in SIM card.
7
Press soft Left( Menu ) + 2( Contacts ) + 7( Information ) + 2( Own number ).
▶Business card
This option allows you to create your own business card featuring your name,
mobile phone number and so on.
Press soft Left( Menu ) + 2( Contacts ) + 7( Information ) + 3( Business card ).
Call history Menu 3
You can check the record of missed, received, and dialled calls only if the network supports the
Calling Line Identification (CLI) within the service area. The number and name (if available) are
displayed together with the date and time at which the call was made. You can also view call
durations.
All calls Displays all the lists of three types (Received/Dialled/Missed calls) by time.
Press soft Left( Menu ) + 3( Call history ) + 1( All calls ) or Dial/Flash button.
Missed calls This option lets you view the last 20 unanswered calls.
Press soft Left( Menu ) + 3( Call history ) + 2( Missed calls ).
Dialled calls This option lets you view the last 20 outgoing calls (called or attempted).
Press soft Left( Menu ) + 3( Call history ) + 3( Dialled calls ).
Received calls This option lets you view the last 20 incoming calls.
Press soft Left( Menu ) + 3( Call history ) + 4( Received calls ).
Call duration Allows you to view the duration of your incoming and outgoing calls.
Press soft Left( Menu ) + 3( Call history ) + 5( Call duration ).
Settings Menu 4
8
You can set the following menus for your convenience and preferences.
Sound This menu allows you to set sound such as Ring Type, Ring Tones, Ring Volume,
Message Alert Type, Message Tones, Keypad Tones, Key Volume, Effect Sound
Volume, Power On/Off Volume and Speaker Volume.
Press soft Left( Menu ) + 4( Settings ) + 1( Sound ) or Sound button.
Date & Time This menu allows you to set date and time.
Press soft Left( Menu ) + 4( Settings ) + 2( Date & Time ).
Language This menu allows you to select language between English and Spanish.
Press soft Left( Menu ) + 4( Settings ) + 3( Language ).
Display This menu allows you to set the display such as Backlight Time and Contrast
Network Name On/Off.
Press soft Left( Menu ) + 4( Settings ) + 4( Display ).
Call This menu allows you to set the call such as Call Divert, Send My Number, Call
Waiting, Minute Minder, Send DTMF and Autodial Time out.
Press soft Left( Menu ) + 4( Settings ) + 5( Call ).
Security This menu allows you to set the phone safely.
▶
PIN code request
You can set the phone to ask for the PIN code of your SIM card when the phone is
switched on.
Press soft Left( Menu ) + 4( Setting ) + 6( Security ) + 1( Pin code request ).
▶
Phone lock
You can use a security code to avoid unauthorized use of the phone.
9
Press soft Left( Menu ) + 4( Settings ) + 6( Security ) + 2( Phone lock ).
▶
Call barring
The Call barring service prevents your phone from making or receiving a certain
category of calls. This function requires the call barring password.
Press soft Left( Menu ) + 4( Settings ) + 6( Security ) + 3( Call barring ).
▶
Fixed dial number(SIM dependent)
You can restrict your outgoing calls to selected phone numbers. The numbers
are protected by your PIN2 code. The numbers you wish to allow access
to once this service has been enabled, must be added to the contacts after
enabling Fixed dial number.
Press soft Left( Menu ) + 4( Settings ) + 6( Security ) + 4( Fixed dial number ).
▶
Change codes
PIN is an abbreviation of Personal Identification Number to prevent use by
unauthorized persons. You can change the access codes: Security code, PIN
code, PIN2 code.
Press soft Left( Menu ) + 4( Settings ) + 6( Security ) + 5( Change codes ).
Network selection
You can select a network that will be registered either automatically or manually.
Usually, the network selection is set to Automatic.
Press soft Left( Menu ) + 4( Settings ) + 7( Network selection ).
Reset settings You can initialize all setting values as defaults. You need a Security code to
activate this function.
Press soft Left( Menu ) + 4( Settings ) + 8( Reset settings ).
Memory status You can check free space and memory usage of each repository.
Press soft Left( Menu ) + 4( Settings ) + 9( Memory status ).
Alarm Menu 5
Allows you to set one of three alarms. The current time is displayed at the top of the screen when
10
you select an alarm to set. At the alarm time, the Alarm icon will be displayed on the LCD screen and
the alarm will sound.
Press soft Left( Menu ) + 5( Alarm ) or Alarm button.
Organizer Menu 6
Calendar
When you enter this menu a calendar will pop up. On top of the screen there are sections for dates.
Whenever you change the date, the calendar will be updated accordingly. If you see a marked
date in the calendar, it means that there is a schedule that day. This function helps to remind you of
your schedule. The phone will sound an alarm tone if you set this for the note. See the upper left for
further details.
Press soft Left( Menu ) + 6( Organizer ) + 1( Calender ) or Calender button.
Memo You can create a list of tasks.
Press soft Left( Menu ) + 6( Organizer ) + 2( Memo ).
Tools Menu 8
Calculator This contains the standard functions such as +, -, x, ÷ : Addition, Subtraction,
Multiplication and Division.
Press soft Left( Menu ) + 7( Tools ) + 1( Calculator ).
Stopwatch Stopwatch is available just as common stopwatches we see and use in daily life.
Press soft Left( Menu ) + 7( Tools ) + 2( Stopwatch ).
Unit Converter This converts any measurement into a unit you want.
Press soft Left( Menu ) + 7( Tools ) + 3( Unit Converter ).
World clock Allows you to determine the current time in another time zone or country.
Press soft Left( Menu ) + 7( Tools ) + 4( World clock ).
11
Troubleshooting
Please check the following items before contacting service center.
Item Remedy
Phone doesn't operate at all.
• Check that the phone is installed correctly.
• Check that the battery is fully charged.
• Check that the power is on.
Because of noise and cross talking, call
status is bad.
Keep away from electrical application such as TV,
computer, radio and so on.
When I press button to call, can't hear the
dial tone.
Check that phone cord or power is connected
correctly.
Phone does not switch on. Check that the battery is fully charged and
correctly connected to the phone.
Emergency calls cannot be made.
Check that the antenna symbol is displayed.-Move
to the coverage area and operate your phone
when the antenna symbol is displayed.
Battery fails to charge. Ensure that adapter is approved LGP-450A
adapter.
Bell sound isn't heard. If bell sound is low, please adjust the volume level.
12
Guidelines for safe and efficient use
Product care and maintenance
WARNING!
Only use batteries, chargers and accessories approved for use with this particular phone model.
The use of any other types may invalidate any approval or warranty applying to the phone, and
may be dangerous.
▶
Do not disassemble this unit. Take it to a qualified service technician when repair work is
required.
▶The unit should be kept away from heat sources such as radiators or cookers.
▶
Use a dry cloth to clean the exterior of the unit. (Do not use any solvents.)
▶
Do not keep the phone next to credit cards or transport tickets; it can affect the information on
the magnetic strips.
Efficient phone operation
To enjoy optimum performance with minimum power consumption please:
▶
Hold the phone as you would any other telephone.
Electronic devices
Fixed wireless phone may get interference, which could affect performance.
▶
Do not use your mobile phone near medical equipment without requesting permission. Avoid
placing the phone over a pacemaker.
Blasting area
Do not use the phone where blasting is in progress. Observe restrictions, and follow any
regulations or rules.
Potentially explosive atmospheres
▶
Do not use the phone at a refueling point. Do not use near fuel or chemicals.
Children
Keep the phone in a safe place out of children's reach. It includes small parts which if detached
may cause a choking hazard.
13
Battery information and care
You do not need to completely discharge the battery before recharging. Unlike other battery
systems, there is no memory effect that could compromise the battery's performance.
▶
Use only LG-Nortel batteries and chargers. LG-Nortel chargers are designed to maximize the
battery life.
▶
Do not disassemble or short-circuit the battery pack.
▶
Replace the battery when it no longer provides acceptable performance. The battery pack may
be recharged hundreds of times before it needs to be replaced.
▶
Do not expose the battery charger to direct sunlight or use it in high humidity, such as the
bathroom.
Caution
▶
Risk of explosion if battery is replaced by an incorrect type.
▶
Dispose of used batteries according to the instructions.
AC/DC Adapter
Use only with adaptor provided by LG-Nortel Co.Ltd.
14
Regulatory Statements to be included in the Users Guide for Sputnik
USA-Federal Communications Commission (FCC)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy. If not installed and used in accordance with the instructions,
it may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by tuning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the distance between the equipment and the receiver.
-Connect the equipment to outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Caution: Exposure to Radio Frequency Radiation.
To comply with FCC RF exposure compliance requirements, for mobile configurations, a separation
distance of at least 20 cm must be maintained between the antenna of this device and all persons.
This device must not be co-located or operating in conjunction with any other antenna or transmitter.
15
General Information
Main Unit
AC/DC Adapter
Battery
Item LGP-450A
Frequency Band GSM850/GSM1900
Tx Power 33/30dBm
Rx Sensitivity -104dBm
Size(mm) 220(W) x 120(D) x 81(H) (with handset)
Weight (gms) 480 gram (without battery)
Operating Temperature -10℃ ~ 45℃
Item Type Description
Input Voltage 100~240Vac(Normal)
Input Frequency 50/60Hz
Output Voltage, Current 5.0 Vdc/700mA
Item Type Description
Capacity Li-ion 3.7V / 1200mAh
Talk time / Standby time Over 4 Hours / Over 200 Hours
Charging time duration 4 Hours
