User manual
Page 1 of 21
WCS band Radio Module
WRM Product Manual
2.6 GHz WCS band Backhaul Radio Module
FCC ID RAR20007001
Document Date: March 2007
Document Number: PM-B2XH068AA-A
Document Version Number: 3
Document Status: Release
© Copyright 2007 by BelAir Networks.
All rights reserved..
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 2 of 21
Contents
About this Document.................................................................................................. 3
Introduction................................................................................................................. 3
Picture of the B2XH068AA-A 2.6 GHz WCS band Backhaul Radio....................4
General Conditions of Use......................................................................................... 5
Overview of B2XH068AA-A module installation into BelAir Networks products
...................................................................................................................................... 6
B2XH068AA-A module installation into BA100 product....................................... 7
BA100 Unit FCC Labeling......................................................................................... 9
B2XH068AA-A module installation into BA200 product..................................... 11
BA200 Unit FCC Labeling.......................................................................................14
Antenna Usage and Module Transmit Power........................................................15
Regulatory Statements ............................................................................................. 17
Appendix A – Information on approved module antennas..................................19
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 3 of 21
About this Document
This document is a product manual for the B2XH068AA-A 2.6 GHz WCS band Backhaul Radio
Module 1, FCC ID RAR 20007001. The manual outlines the radio modules limitations on use in
BelAir Networks products marketed or offered for sale. An overview of BelAir Networks products
is included with information on the module installation in these products. Specifications on
approved antennas to be used with the module are provided This manual provides an outline on
the module installation , limitations of use, location of FCC label information , regulatory
statements and RF exposure minimum safety requirements.
Introduction
The B2XH068AA-A (hereafter referred to as “the module”) is a 2.6 GHz WCS band radio module
compatible with the IEEE 802.16-2004 standard for WIMAX operation. The module contains a
complete 802.16 radio and Medium Access Control protocol engine.
The module is not intended for stand-alone operation. It will only be marketed as a complete
product, in conjunction with a package, DC power supply and antenna (hereafter referred to as “the
product” or the “final product”).
Since the module has a BelAir networks proprietary digital interface, it cannot be directly connected
to any standard telecommunications or computer devices. It can only be used with final products
designed and authorized specifically for that purpose.
The WiMAX Radio Module (WRM, RAR20007001) is a BelAir Networks radio module designed to
operate in the 2.6 GHz frequency bands (BRS / EBS bands) using the IEEE 802.16-2004 (Wireless
MAN-OFDM physical layer) (WiMAX) industry standard.
The module will operate under FCC part 27 covering a portion of the frequencies in the UBS band
segment under part 27.5, specifically BRS channels E1 to G3 post transition frequency
assignments.
The WRM provides WiMAX backhaul support for the BelAir200 and BelAir100 wireless mesh
nodes with the capacity to deliver up to 40 Mbps of dedicated data throughput. The WRM supports
point-to-point topologies (fixed applications) and is ideal for creating dedicated connections to other
BelAir wireless mesh nodes in a network .
An ideal deployment for the WRM is to configure it with BelAir200 nodes and/or BelAir100 nodes
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 4 of 21
to provide last mile access for cellular backhaul applications. The WRM operates in the licensed 2.6
GHz frequency bands, and the added capacity that WiMAX (IEEE 802.16d) delivers to the network
is ideal for critical applications such as voice traffic.

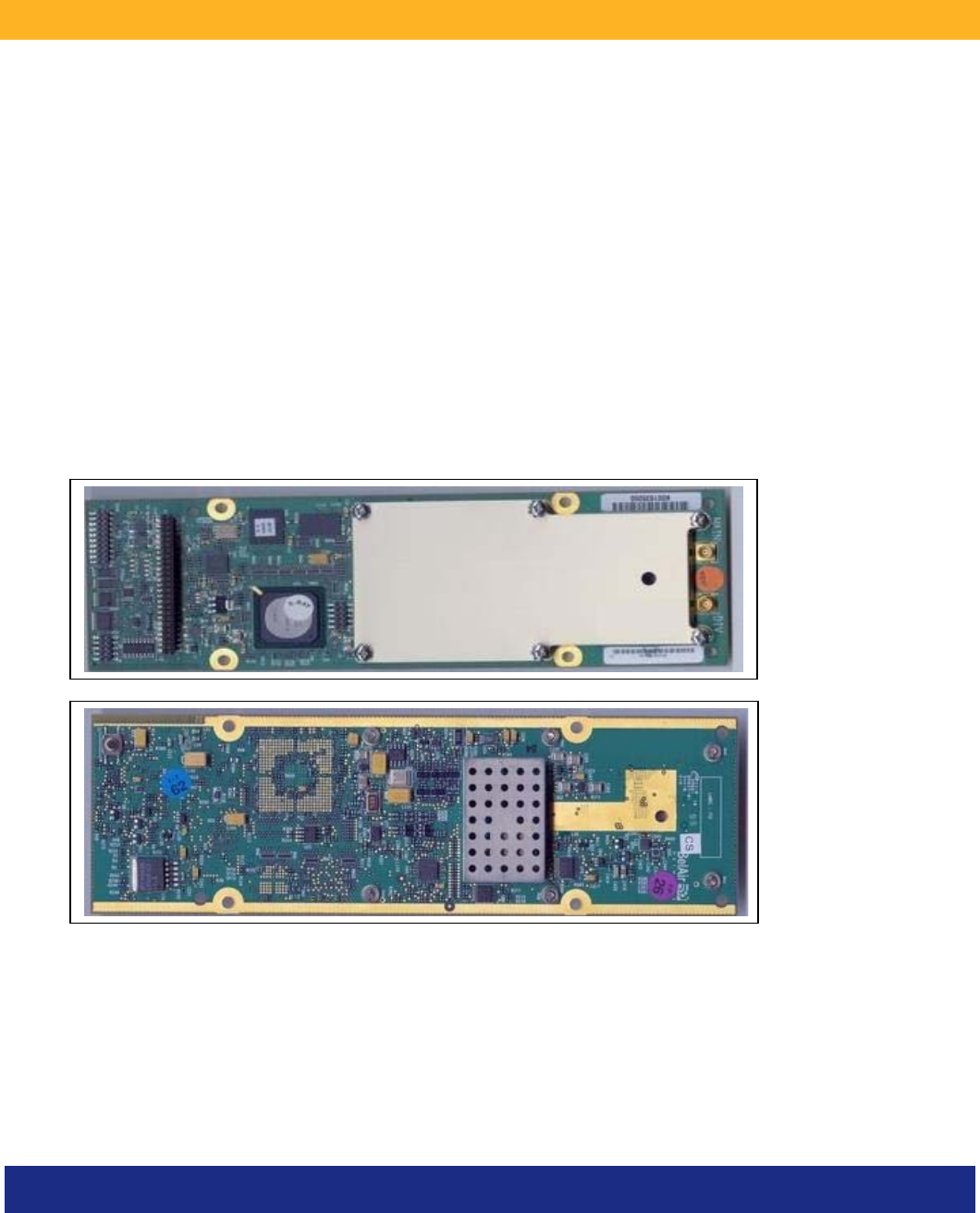

Picture of the B2XH068AA-A 2.6 GHz WCS band
Backhaul Radio
Module is shown below for reference, notice that the connector interfaces only allow integration of
the module into BelAir Networks products .
Top and bottom views;
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 5 of 21
General Conditions of Use
This manual is intended to supplement training provided by BelAir Networks or authorized parties.
The module B2XH068AA-A is only intended for use in BelAir Networks products and is not for
sale to the general public as a stand-alone module. Please read this entire document, including the
Regulatory Statements section before attempting to install or operate the module.
Warning: Any use of B2XH068AA-A in any manner which is not expressly specified within
this manual or specifically approved by BelAir Networks or its authorized agents will void the user’s
right to operate this module, and is expressly forbidden by BelAir Networks. This includes any
modification of the module, installation of the module in a configuration or used with an antenna
which is not expressly listed in this document or approved by BelAir Networks.
Installation into a Product
The module shall only be installed by a technician trained by BelAir Networks or its authorized
agents. It should only be installed into an approved product following all manufacturing and service
procedures for that product. Refer to the following sections outlining specific installation in BelAir
Networks products.
Module Service
The module is not intended as a field-serviceable unit. It contains no field-replaceable or field-
serviceable parts, or any external adjustable mechanisms. The module should only be serviced in a
manufacturing or service depot site approved by BelAir Networks or its authorized agents.
Country of Use
B2XH068AA-A is certified for use as an Intentional Radiator in the United States as device: FCC
ID: RAR20007001. Please read all regulatory statements at the end of this document before any
attempt to install or operate this module.
The module is only certified for operation in the United States. Before attempting to install and
operate this module in any other country, contact BelAir Networks for approval.
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 6 of 21
Overview of B2XH068AA-A module installation into
BelAir Networks products
List of Approved Final Products
The B2XH068AA-A module is only approved for
use in the following BelAir Networks products:
• BelAir200. See BelAir200 documentation
for complete manufacturing instructions.
• BelAir100. See BelAir documentation for
complete manufacturing instructions.
Operation of the module within the products
expressly listed above is required to ensure
compliance to all FCC regulations. Any
modification of the module, or its use in any
configuration not expressly listed above may
void the user’s right to operate this module.

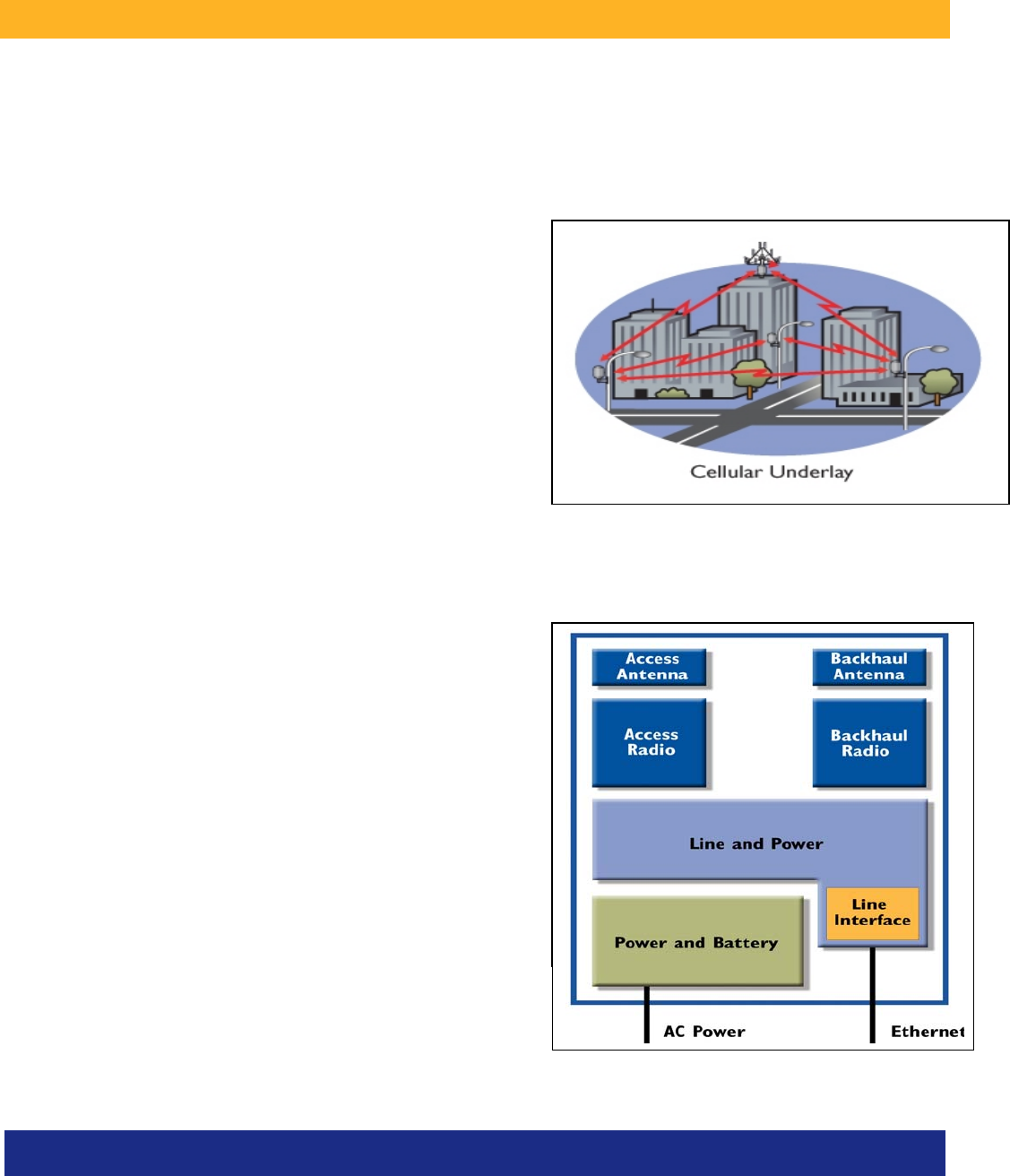

The radio module is part of a multi radio system
in which the B2XH068AA-A is used for
Backhaul applications, for example backhauling
cellular signals. The concept is as shown in
figure 1.
A typical block diagram of a two radio
configuration using one module
( B2XH068AA-A) incorporated into a BelAir
Networks product is shown in figure 2. BelAir
Networks products incorporate other functional
blocks as shown, such as Line and Power
interface, battery back up and power
conditioning as well as an Access Radio.
Fig. 1
Cellular backhaul using the B2XH068AA-A
(RAR20007001 ) radio module in BelAir Networks
products.
Fig. 2
Block diagram of a two radio configuration with the
backhaul module ( B2XH068AA-A) incorporated into a
BelAir Networks product is shown.
Fig.2
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 7 of 21
B2XH068AA-A module installation into BA100 product
The module can be installed into three variants of the BA100 product, namely the BA100,
BA100C and BA100S. The BA100 product is capable of incorporating two radio modules, options
include two B2XH068AA-A ( FCC ID :RAR20007001) modules or one B2CH043AA-C ( FCC ID
:RAR20000003) module as well one B2XH068AA-A module.
BA100 and BA100C incorporating variants in available antennas and the BA100S is a strand
mount variant.

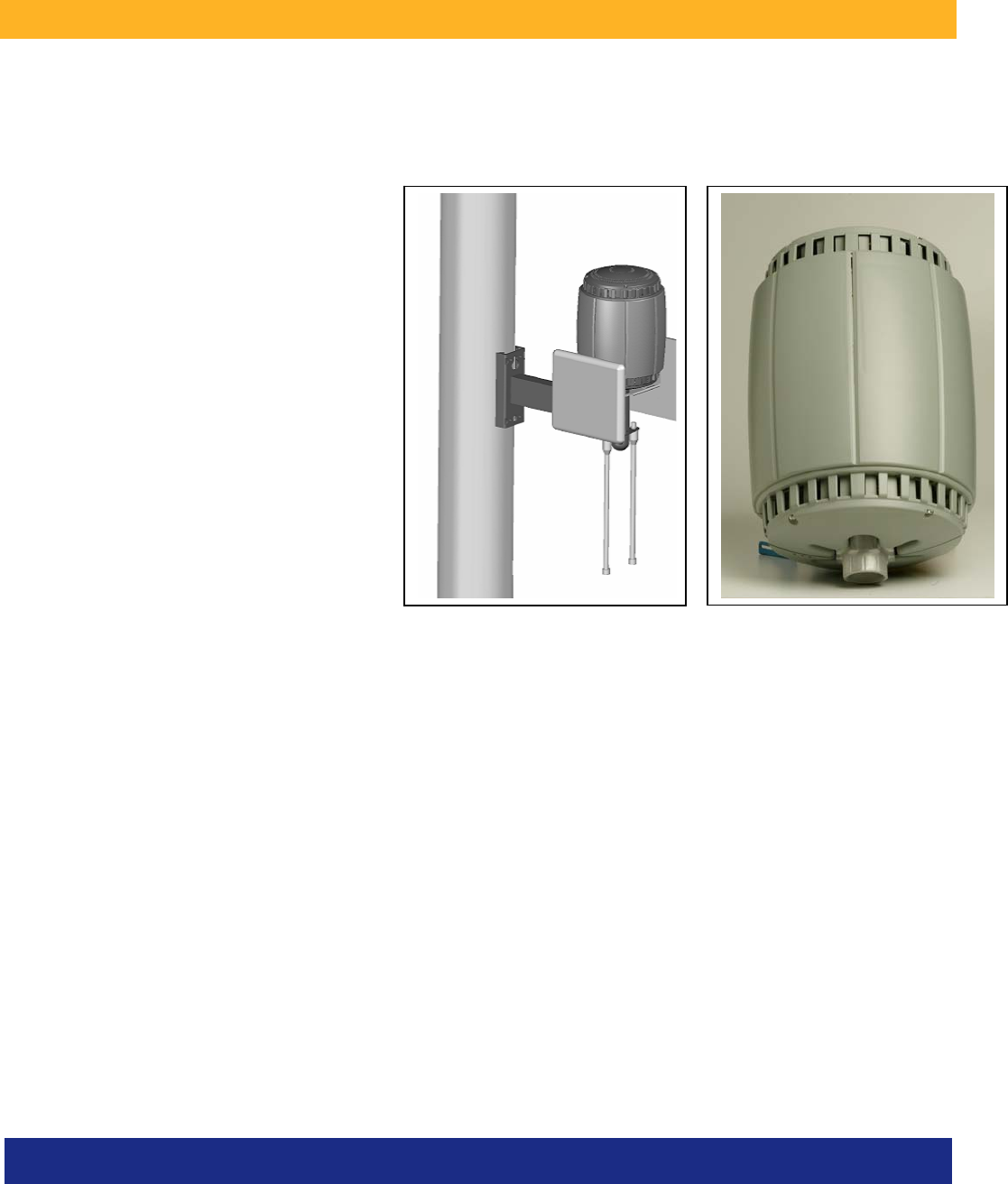

BA100 and BA100S variants pictures are shown in figure3 and figure 4, both are typically mounted
outside on hydro and light poles or hanging on a support wire in a strand mount application.
Fig 3.
Typical mount of BA100 with B2XH068AA-A
module and MTI panel antenna
Fig 4.
BA100S, strand mount version with
B2XH068AA-A module and MTI patch
antennas
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 8 of 21

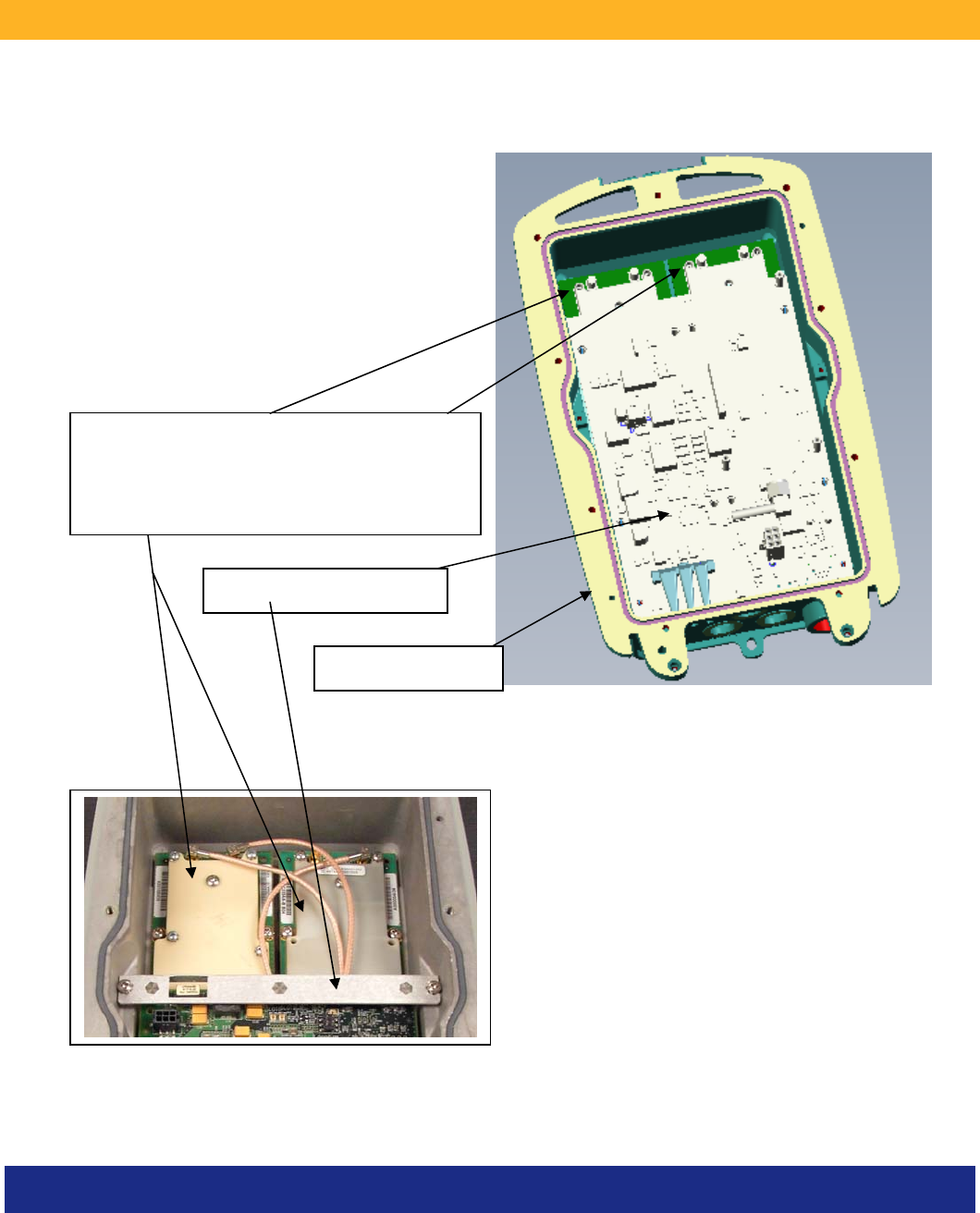

Module installation in a BA100 clam shell
The assembly is made up of two bolted
clamshells. The modules are installed in the
bottom clamshell. Figure 5 outlines how
boards are installed. Refer to document
RAR20007001_BelAir WRM Label Information.pdf for
FCC label location details for the module.
Two B2XH068AA-A ( FCC ID
:RAR20007001) modules or one
B2CH043AA-C ( FCC ID :
RAR20000003) module
LPM digital board
Fig. 5 BA100 “X” board installation
into bottom clamshell
Bottom clamshell
Fig. 6 BA100 picture of board
installed into bottom clamshell
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 9 of 21
BA100 Unit FCC Labeling
One or more labels are applied to the product during manufacture, including a label which identifies
the FCC identification numbers. Refer to figures 7 through 10 for label location on BA100 product.
Do not attempt to remove any labels from the module.
The following permanent label, or one containing equivalent information, must be affixed in a
conspicuous location on the exterior of every product containing this module:
FCC ID: RAR20007001

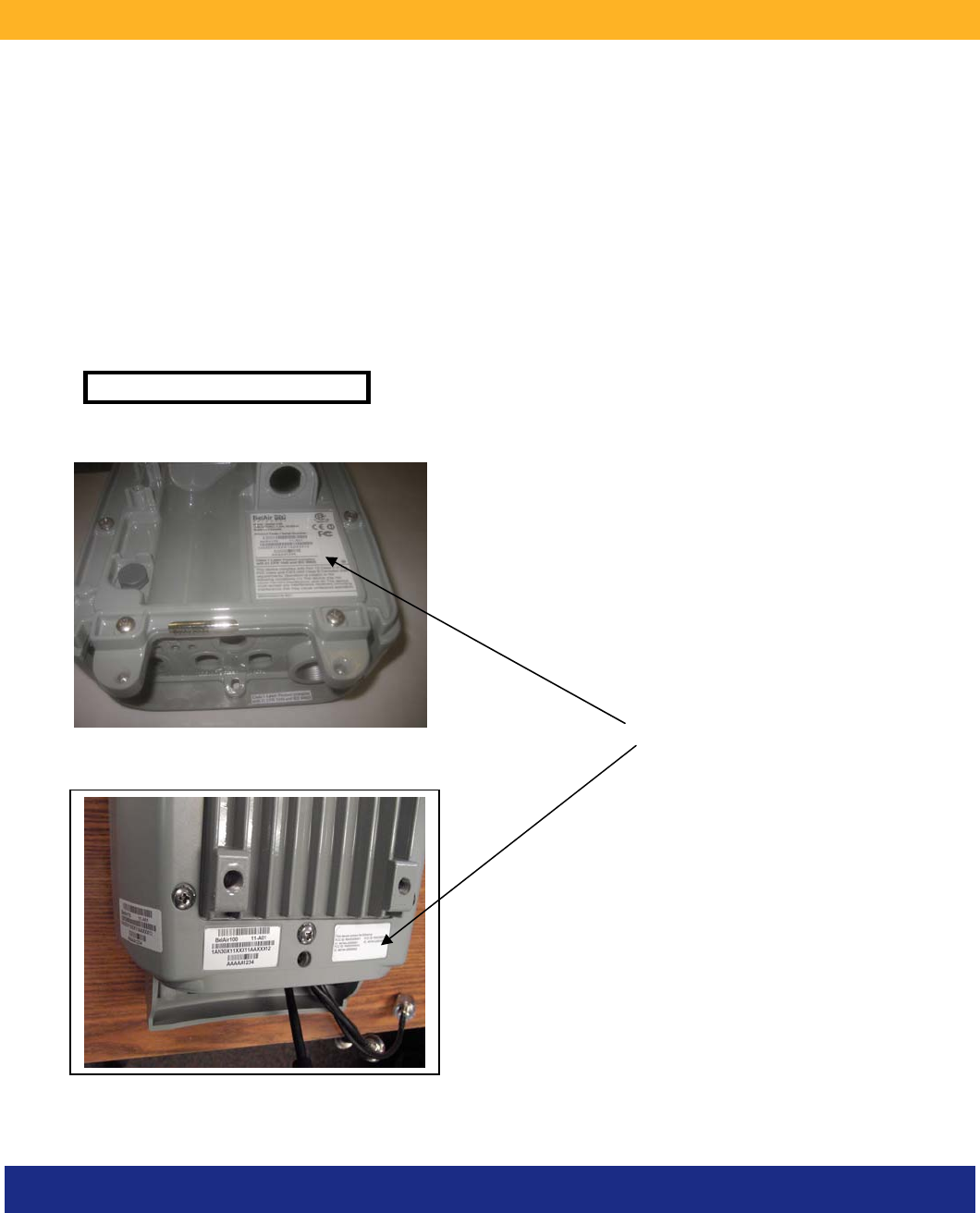

BA100 location of unit FCC labels;
Location of FCC labels for
BA100 located on top and
bottom clamshells. The
labels outline the modules
contained in the unit.
Fig. 7
Fig. 8
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 10 of 21

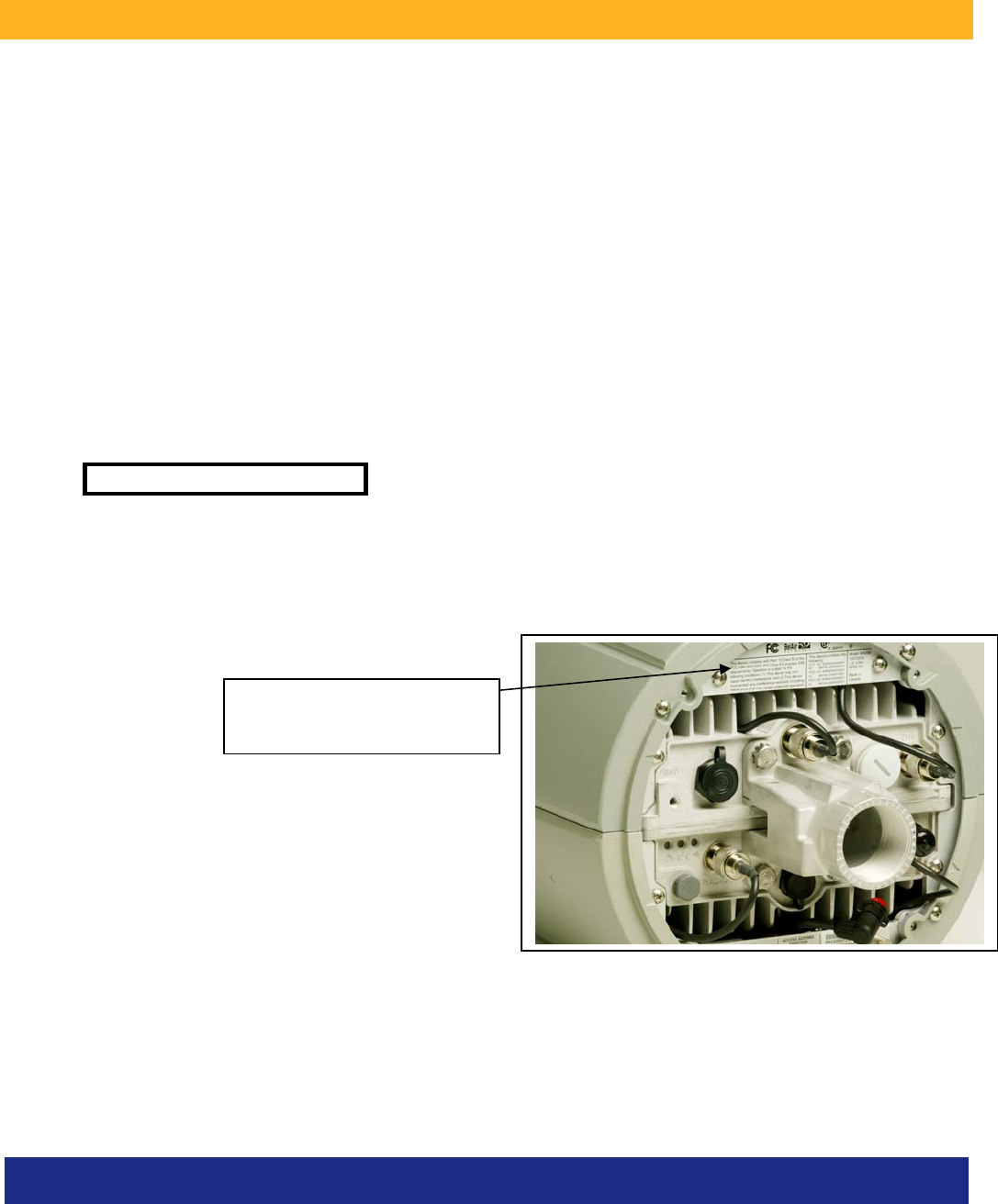

BA 100S Unit FCC Labeling
Location of FCC labels for BA100S located on top
and bottom clamshells outlining the radio modules
contained in the unit.
Fig. 9 Fig. 10
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 11 of 21
B2XH068AA-A module installation into BA200 product
The module can be installed in a
BA200 product. The BA200 can
accommodate up two four
radios. Four B2XH068AA-A (
FCC ID :RAR20007001)
modules or one B2CH043AA-C
( FCC ID :RAR20000003)
module as well
three B2XH068AA-A modules
are the possible variants.

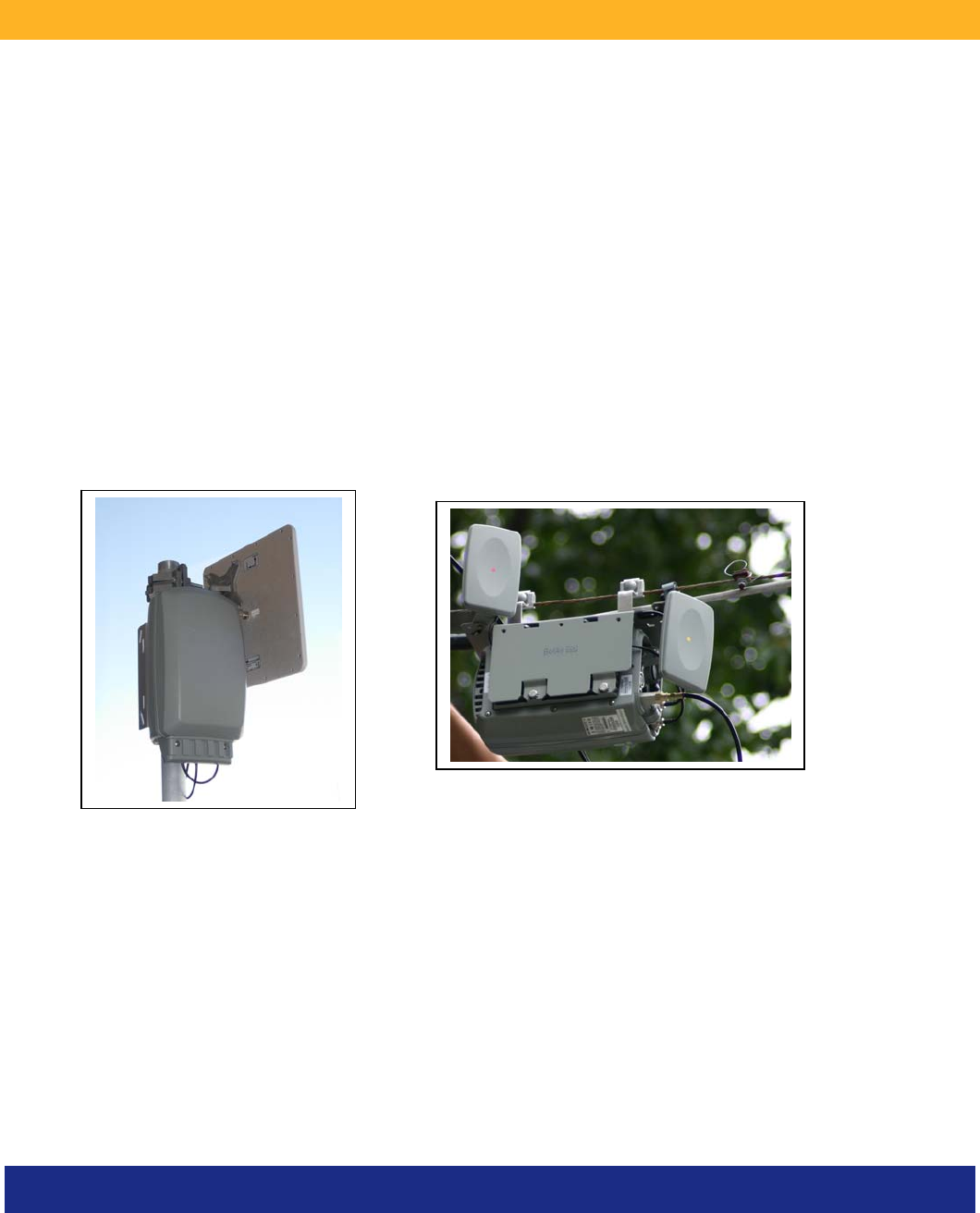

Figures 11 and 12 outline the
BA200 unit, as well as a view of
a version with two MTI 16 dBi
patch antennas connected to two
B2XH068AA-A modules as
well omni antennas connected to
one B2CH043AA-C Access
Fig. 11 and 12
BA200 unit pictorial of typical mounting on a
pole and close up view.
Fig. 11 Fig. 12
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 12 of 21

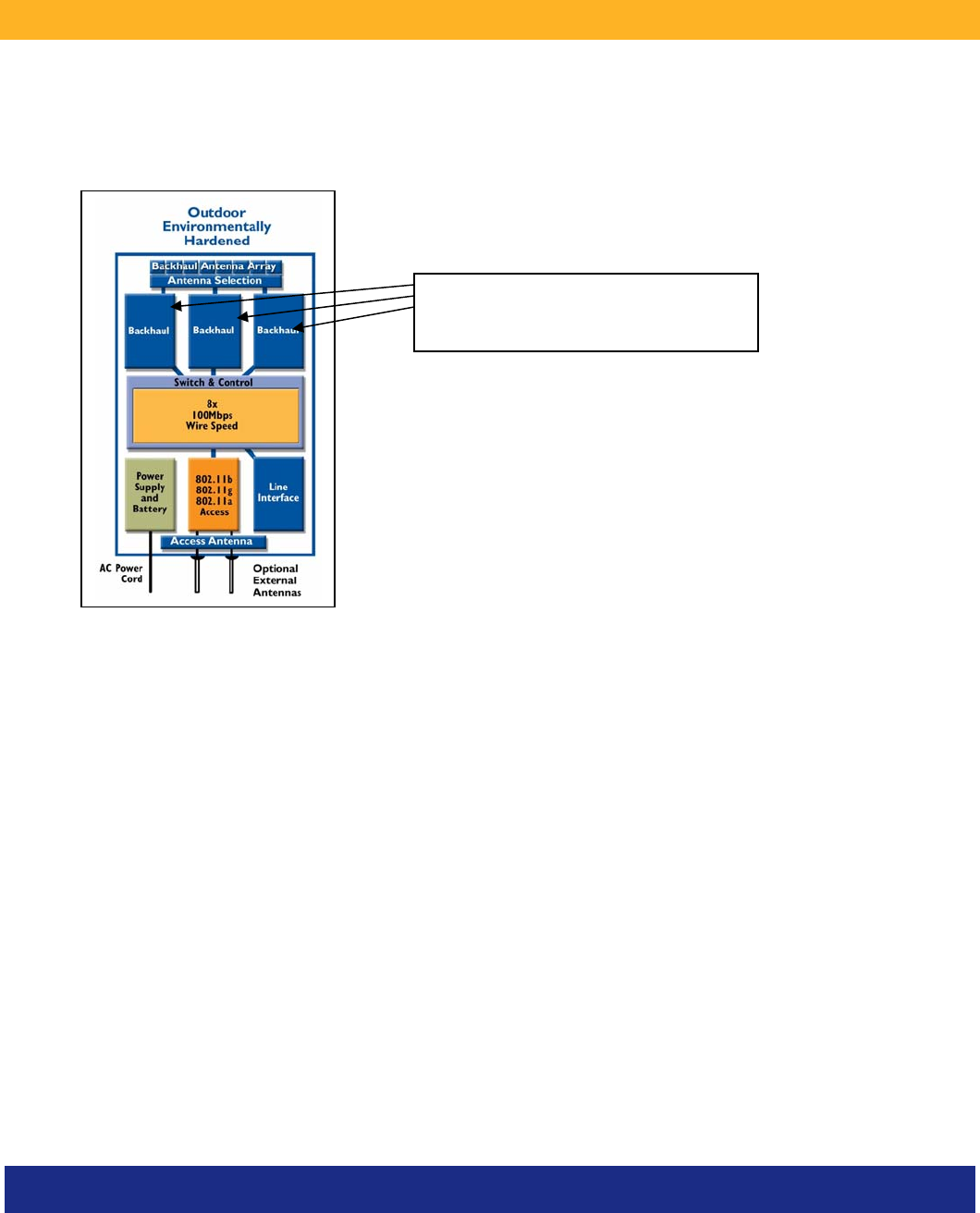

A typical block diagram of the BA200 is shown in figure 13. The BA 200 is a multiple radio product
incorporates up to four B2XH068AA-A modules. The unit incorporates power line conditioning,
battery back up and charging, Ethernet interfaces, and switch and control circuitry.
Fig. 13
Typical configuration for a
BA200
B2XH068AA-A Backhaul radio
cards (RAR20007001 )
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 13 of 21

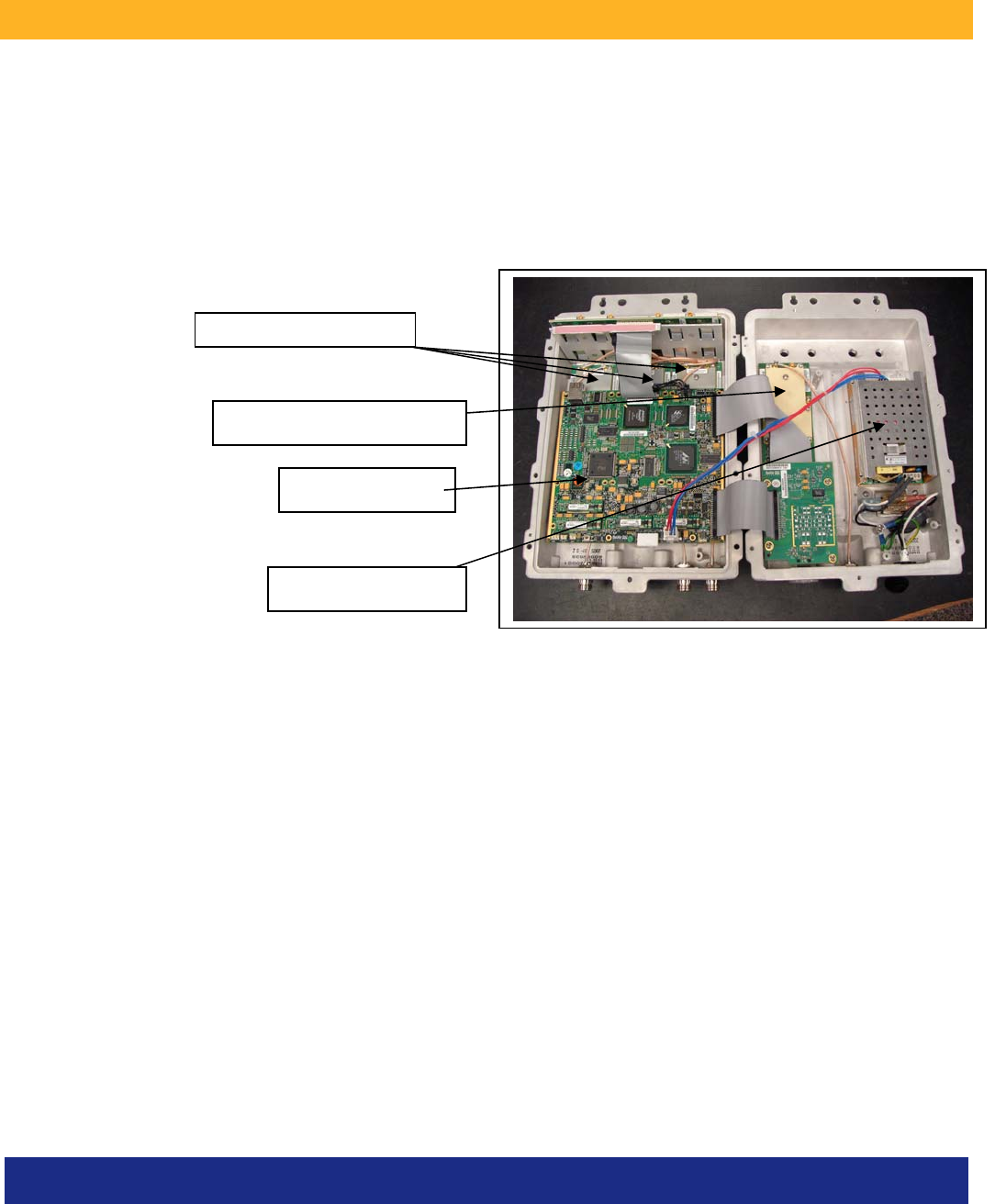

Module Installation into a BA200 unit
B2XH068
AA
-
A
B2CH043AA-C module
Digital Board
Power Supply
The core of the BA200 unit is made up of two clam shells as shown in figure 14. The three
B2XH068AA-A modules are installed below the SCM digital board.
Fig. 14
BA200 internal boards locations
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 14 of 21
BA200 Unit FCC Labeling
One or more labels are applied to the during manufacture, including a label which identifies the FCC
identification numbers. Refer to figure 15 for label location on BA200 product. Do not attempt to
remove any labels from the module.
The following permanent label, or one containing equivalent information, must be affixed in a
conspicuous location on the exterior of every product containing this module:
FCC ID: RAR20007001

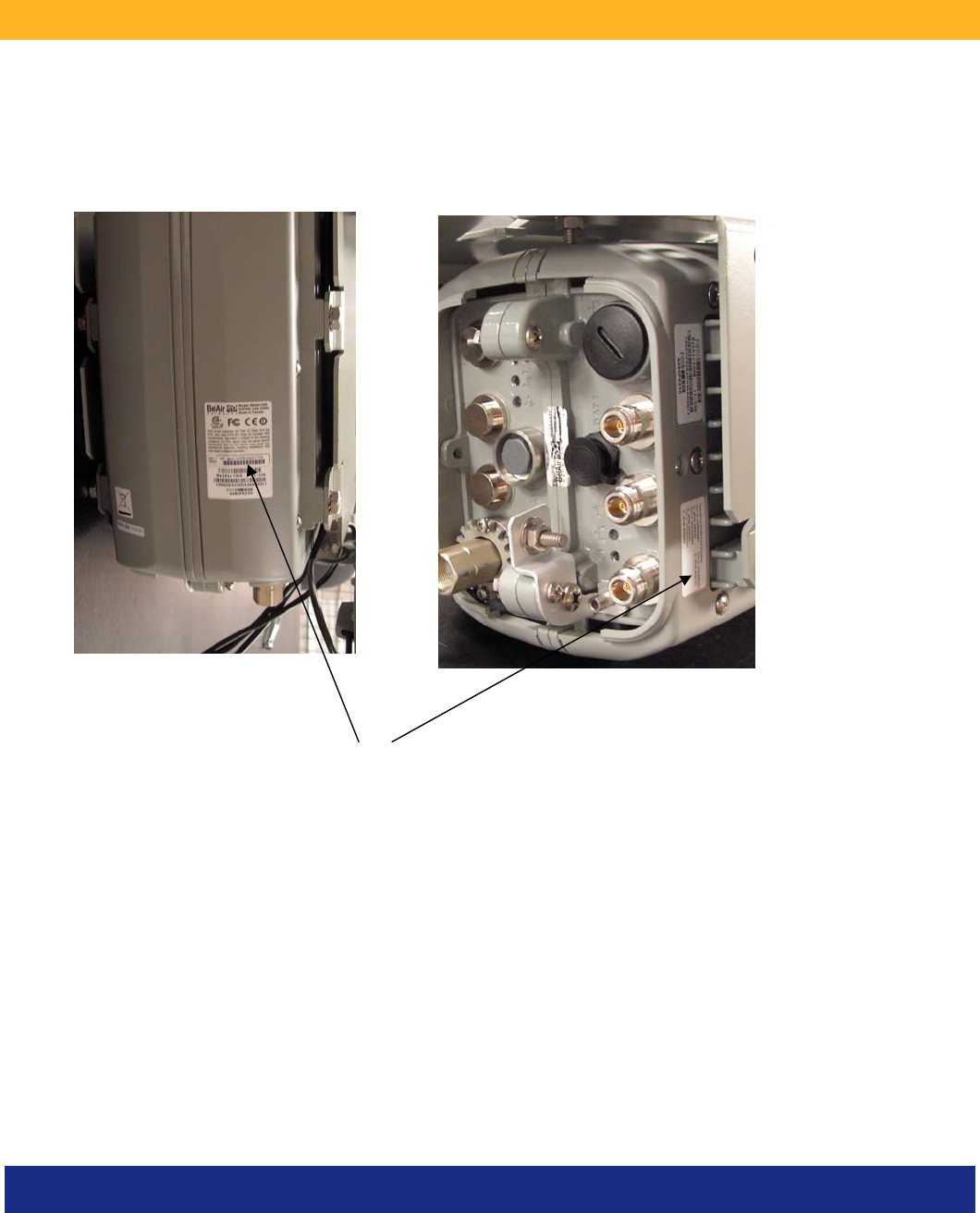

BA200 FCC label
Located on bottom of unit
Fig. 15
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 15 of 21

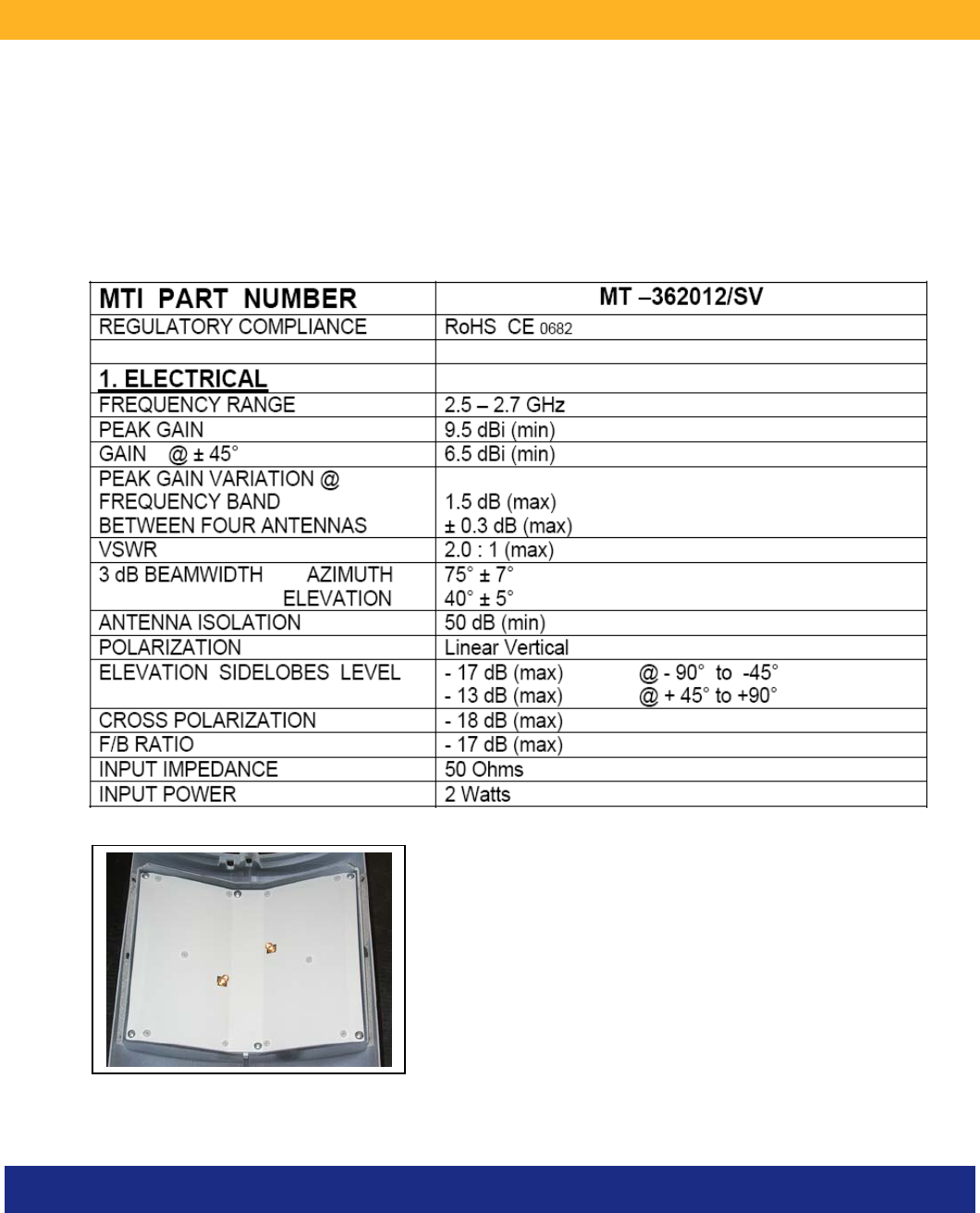

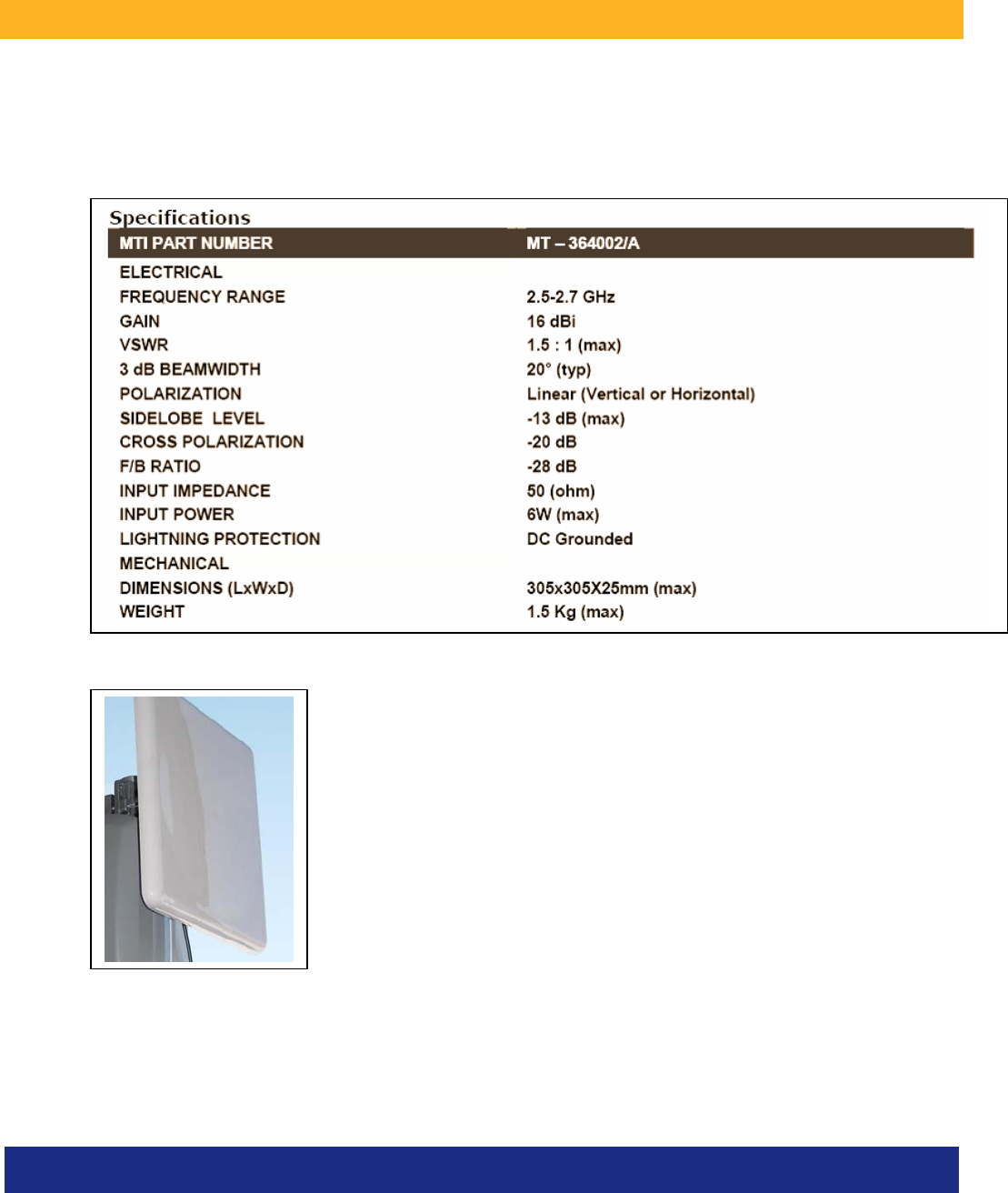

Antenna Usage and Module Transmit Power
B2XH068AA-A module shall only be used in conjunction with the following antenna types:
• MTI Wireless Edge MT-36012/SV 10 dBi patch antenna

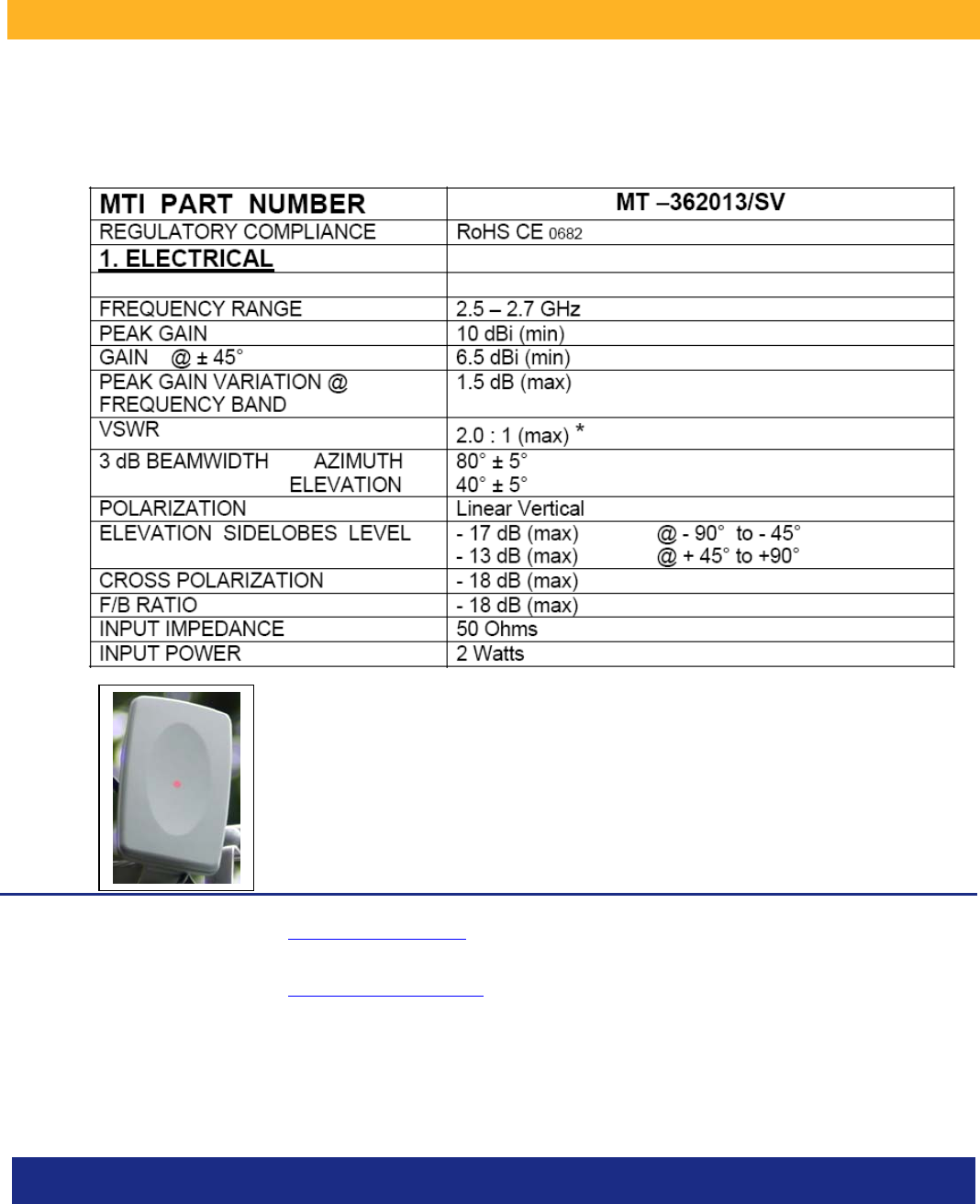

• MTI Wireless Edge MT-36013/SV 10 dBi patch antenna
• MTI Wireless Edge MT-364002/A 16 dBi panel antenna
In order to comply with the FCC rules in the USA, the module is limited to the maximum transmit
power limits as follows for each of the antenna types.
Antenna Models and Maximum Allowable Power Setting
Table 1
Antenna
Model Manufacturer Antenna
Type Maximum
Transmit Power
Setting
MT-
36012/SV
MTI Wireless
Edge 10 dBi patch
antenna +20 dBm
(module
maximum
power)
MT-
36013/SV
MTI Wireless
Edge 10 dBi patch
antenna +20 dBm
(module
maximum
power)
MT-
364002/A
MTI Wireless
Edge 16 dBi panel +20 dBm
(module
maximum
power)
Warning: Use of this module in conjunction with any antenna not expressly listed above will
void authority to install or operate this equipment.
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 16 of 21
Installation
Products which contain B2XH068AA-A shall only be installed by professional installers trained by
BelAir Networks or its authorized agents. In addition to normal installation procedures and good
installation practice, professional installers are responsible to ensure that:
1. Only an approved antenna (see above) is connected to the module, and,
2. The antenna is mounted in such a manner and in such a location that access to the antenna by
the general population is minimized. Access during normal operation to the antenna by the
general population should be limited to distances as outlined in the Table 2 in the section on
RF Exposure Statement.
Adherence to these rules by the professional installer is mandatory. See full installation procedures
for the particular product for details.
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 17 of 21
Regulatory Statements
The following regulatory notes apply to the product which contains module B2XH068AA-A (FCC
ID: RAR20007001).
The following sections or equivalent information shall appear in the user-manual of the final
product.
Regulatory Information and Disclaimers
Installation and use of this device must be in strict accordance with the instructions included in the
user documentation provided with the product. Any changes or modifications to this product not
expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.
The manufacturer is not responsible for any interference to radio or television equipment caused by
unauthorized modification of this device, or attachment of any antennas or equipment other than
those specified by the manufacturer. The manufacturer or its authorized resellers or distributors
will assume no liability for any damage or violation of government regulations arising from failing
to comply with these guidelines.
Manufacturer’s FCC Conformity Statement
This device complies with Part 27 of the FCC Rules. This equipment has been tested and found to
comply with the limits for a Class B digital device.
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 18 of 21
RF Exposure Statement
This Wireless radio device has been evaluated under FCC Bulletin OET 65C and found to be
compliant to the requirements set forth in CFR 47 Sections 2.1091, 2.1093, and part 27.52
addressing RF exposure from radio frequency devices.
This device complies with FCC RF radiation exposure limits for an uncontrolled environment. The
radiated output power of this Wireless device is below the FCC radio frequency exposure limits.
However, this device should still be installed and used in such a manner that the potential for human
contact during normal operation is minimized. In order to comply with RF exposure limits, this
equipment should be installed and operated at a minimum distance as per the following table
between the radiator and a human body. Refer to Appendix A for detail information on approved
antennas for the B2XH068AA-A (RAR20007001) module.
Table 2
Minimum Safety Distance cm (inches)
Node 16 dBi antenna
or 10 dBi
antenna
Radios
BelAir100
BelAir100S
BelAir100C
26 (10.5 inches)
2 x RAR20007001 or 1
RAR20000003 and 1
RAR20007001
BelAir200 36 (14.5 inches)
4 x RAR20007001 or 1
RAR20000003 and 3x
RAR20007001
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 19 of 21
Appendix A – Information on approved module
antennas
Specification for antenna MT-362012/SV for mounting in a BA200 unit:
Photo of MTI patch antenna
type MT-362012/SV mounted
in one plastic external sector of
the BA200 unit.
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 20 of 21
Specification for antenna MT-364002/A for mounting on a BA200/ BA100 unit:
Photo of MTI panel antenna
type MT-364002/A
WRM Product Manual – 2.6 GHz WCS Band Radio Module
Page 21 of 21
Specification for antenna MT-362013/SV for mounting outside a BA100 unit:
BelAir Networks
Inc.
603 March Road
Kanata, Ontario
Canada
K2K 2M5
613-254-7070
Sales
sales@belairnetworks.com
Support
support@belairnetworks.com
General Information
Info@belairnetworks.com
Photo of MTI patch antenna
type MT-362013/SV
