Ericsson Wi-Fi 802.11n dual-band WIFI router BelAir20e User Guide
User Manual
BelAir20E
Page 1 of 267
Release: 12.0
Document Date: October 11, 2011
Document Number: BDTM02201-A01
Document Status: Standard
Security Status: Confidential
Customer Support: 613-254-7070
1-877-BelAir1 (235-2471)
techsupport@belairnetworks.com
© Copyright 2011 by BelAir Networks.
The information contained in this document is confidential and proprietary to BelAir Networks. Errors and Omissions Excepted.
Specification may be subject to change. All trademarks are the property of their respective owners.
Protected by U.S. Patents: 7,171,223, 7,164,667, 7,154,356, 7,030,712 and D501,195. Patents pending in the U.S. and other countries.
BelAir Networks, the BelAir Logo, BelAir200, BelAir200D, BelAir100, BelAir100S, BelAir100C, BelAir100T, BelAir20, BelAir20M, BelAir20E, BelAir20EO, BelAir100M,
BelAir100i, BelAir100SN, BelAir100SNE, BelAir100N, BelAir100P, BelView and BelView NMS are trademarks of BelAir Networks Inc.
BelAir20E
User Guide
October 11, 2011 Confidential Page 2 of 267
Document Number BDTM02201-A01 Standard
BelAir20E User Guide Contents
Contents
About This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
BelAir20E Configuration Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . 6
Command Line Interface Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
BelAir20E Access Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
User and Session Administration . . . . . . . . . . . . . . . . . . . . . . . . . . 35
IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
BelAir20E Auto-configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Ethernet or LAN Interface Settings . . . . . . . . . . . . . . . . . . . . . . . . 64
Card Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Wi-Fi Radio Configuration Overview . . . . . . . . . . . . . . . . . . . . . . 71
Configuring Wi-Fi Radio Parameters . . . . . . . . . . . . . . . . . . . . . . . 72
Configuring Wi-Fi Access Point Parameters . . . . . . . . . . . . . . . . . 80
Wi-Fi AP Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Wi-Fi Backhaul Link Configuration . . . . . . . . . . . . . . . . . . . . . . . 115
Mobile Backhaul Mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Mobile Backhaul Point-to-point Links . . . . . . . . . . . . . . . . . . . . . 127
Operating in High Capacity and Interference Environments. . . . 138
DHCP Relay Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Network Address Translation . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Universal Access Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Using Layer 2 Tunnels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Quality of Service Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Layer 2 Network Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . 183
Performing a Software Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . 197
For More Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Definitions and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Conformity and Regulatory Statements. . . . . . . . . . . . . . . . . . . . 210
Appendix A: Node Configuration Sheets . . . . . . . . . . . . . . . . . . 221
Appendix B: Mesh Auto-connection Example . . . . . . . . . . . . . . 224
Appendix C: Scripting Guidelines . . . . . . . . . . . . . . . . . . . . . . . . 234
Appendix D: BelAir20E Factory Defaults . . . . . . . . . . . . . . . . . . 251
Detailed Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
BelAir20E User Guide About This Document
October 11, 2011 Confidential Page 3 of 267
Document Number BDTM02201-A01 Standard
About This Document
This document provides the information you need to install and configure the
BelAir20E™, and the procedures for using the BelAir20E Command Line
Interface (CLI).
This document may contain alternate references to the product. Table 1 shows
possible synonyms to the product name.
Typographical
Conventions
This document uses the following typographical conventions:
• Text in < > indicates a parameter required as input for a CLI command;
for example, < IP address >
• Text in [ ] indicates optional parameters for a CLI command.
• Text in { } refers to a list of possible entries with | as the separator.
• Parameters in ( ) indicate that at least one of the parameters must entered.
Related
Documentation
The following titles are BelAir reference documents:
•
BelAir20E Quick Install Guide
•
BelAir20E Troubleshooting Guide
Table 1: Product Name Synonyms
Product Name Synonym
BelAir20™, BelAir20E™, BelAir20EO™ BA20
BelAir20E User Guide System Overview
October 11, 2011 Confidential Page 4 of 267
Document Number BDTM02201-A01 Standard
System Overview
The BelAir20E Access Point (AP) is an evolution of BelAir Networks indoor
solution and part of BelAir Networks industry leading product portfolio. The
BelAir20E adds standards-based beamforming, five Gigabit Ethernet ports
(one WAN port with PoE and four LAN ports), integrated antennas, and full
802.11n compliance (802.11n-2009) to BelAir Networks leading low cost, high
capacity indoor access.
The next generation BelAir20E continues to lead with the industry’s highest
performance and most flexible indoor access node. Offering all the same
features and management as the other BelAir products, the BelAir20E has been
optimized for managed hot spot applications, with Edge Policy Enforcement
using centralized control and a true Plug-and-Play architecture. And, with the
latest fully compliant 802.11n, it is ideal for even the most demanding
applications, including voice and video. The BelAir20E also provides
connectivity between indoor and outdoor networks, enabling true
standards-based seamless mobility as users move from outside to inside.
The operating temperature of the BelAir20E is -20 ºC to +50 ºC.
The BelAir20E is available in following variants:
• The BelAir20E-11 is available for the USA only. Operators of the
BelAir20E-11 can set the country of operation only to
US
. Similarly, the
operating channels, antenna gain, and the transmit power levels can be set
only to values that are valid for the USA.
• The BelAir20E-11R is available for countries other than the USA. Operators
of the BelAir20E-11R can set the country of operation to any BelAir
approved country. Similarly, the operating channels, antenna gain, and the
transmit power levels can be set to values that are valid for the specified
country of operation.
Hardware
Description
Figure 1 on page 5 shows the relationship between the main BelAir20E
hardware modules.
BelAir20E User Guide System Overview
October 11, 2011 Confidential Page 5 of 267
Document Number BDTM02201-A01 Standard
Figure 1: BelAir20E Hardware Module Block Diagram
The BelAir20E consists of the following modules:
• one High Throughput Module Evolved (HTME) providing:
—a wireline 10/100/1000 Base-TX WAN Ethernet interface to the Internet
—four wireline 10/100/1000 Base-TX LAN Ethernet interfaces
—a 2.4 GHz Wi-Fi radio and a 5.8 GHz Wi-Fi radio using fully compliant
802.11n links. E Each radio can act as an Access Point (AP) or provide
backhaul links. An AP provides user traffic wireless access to the
BelAir20E. Backhaul links connect to other BelAir radios to create a
radio mesh.
• four integrated dual-band antennas
• an external connector field
HTME
5.8 GHz
Radio
AC Power
Adapter
Antenna 0
LAN 48 V DC
Antenna 1 Antenna 2
2.4 GHz
Radio
100-240 V AC
Reset
Antenna 3
WAN
PoE
LAN LAN LAN
BelAir20E User Guide BelAir20E Configuration Interfaces
October 11, 2011 Confidential Page 6 of 267
Document Number BDTM02201-A01 Standard
BelAir20E Configuration Interfaces
The BelAir20E can be accessed and configured using the following configuration
interfaces:
• the command line interface (CLI)
• the SNMP interface
• the Web interface (using either HTTPS or HTTP)
All three interfaces (CLI, SNMP and Web) have the same public IP address. All
three also access the same BelAir20E node database. That means that changes
made with one interface are seen immediately through the other interfaces.
Command Line
Interface
The CLI allows you to configure and display all the parameters of a BelAir20E
unit, including:
• system parameters
• system configuration and status
• radio module configuration and status
• user accounts
• BelAir20E traffic statistics
• layer 2 functionality, such as those related to bridging and VLANs
• Quality of Service parameters
• alarm system configuration and alarms history
Each unit can have up to nine simultaneous CLI sessions (Telnet or SSH). For a
description of basic CLI commands and tasks see “Command Line Interface
Basics” on page 12.
SNMP Interface The Simple Network Management Protocol (SNMP) provides a means of
communication between SNMP managers and SNMP agents. The SNMP
manager is typically a part of a network management system (NMS) such as HP
OpenView, while the BelAir20E provides the services of an SNMP agent.
Configuring the BelAir20E SNMP agent means configuring the SNMP
parameters to establish a relationship between the manager and the agent.
BelAir20E User Guide BelAir20E Configuration Interfaces
October 11, 2011 Confidential Page 7 of 267
Document Number BDTM02201-A01 Standard
The BelAir20E SNMP agent contains Management Information Base (MIB)
variables. A manager can query an agent for the value of MIB variables, or
request the agent to change the value of a MIB variable.
Refer to the following sections:
•“SNMP Configuration Guidelines” on page 27
•“SNMP Command Reference” on page 28
Integrating the
BelAir20E with a
Pre-deployed NMS
In addition to providing support for the SNMP MIBs described in Table 2, BelAir
Networks provides a number of enterprise MIB definitions that you can
integrate with your Network Management System (NMS). Table 3 on page 8
describes the BelAir20E SNMP MIBs. A copy of the BelAir20E SNMP MIBs is
available from the BelAir Networks online support center at:
www.belairnetworks.com/support/index.cfm.
Table 2: Standard SNMP MIBs
File Name Description
BRIDGE-MIB.mib implements RFC1493
IANAifType-MIB.mib defines standard interface types assigned by the Internet
Assigned Numbers Authority (IANA)
IEEE802dot11-MIB.mib IEEE MIB to manage 802.11 devices
IF-MIB.mib implements RFC2863
IP-MIB.mib defines IP and ICMO data types
PerfHist-TC-MIB.mib defines data types to support 15-minute performance history
counts
RADIUS-ACC-CLIENT-MIB.mib implements RFC2620
RADIUS-AUTH-CLIENT-MIB.mib implements RFC2618
RSTP-MIB.mib implements 802.1w RSTP
SNMP-COMMUNITY-MIB.mib defines data types to support co-existence between SNMP
versions
SNMP-FRAMEWORK-MIB.mib implements RFC3411
SNMP-MPD-MIB.mib implements RFC3412
BelAir20E User Guide BelAir20E Configuration Interfaces
October 11, 2011 Confidential Page 8 of 267
Document Number BDTM02201-A01 Standard
SNMP-NOTIFICATION-MIB.mib implements RFC3413
SNMP-TARGET-MIB.mib implements RFC3413
SNMP-USER-BASED-SM-MIB.mib implements RFC3414
SNMPv2-CONF.mib implements RFC1450
SNMPv2-MIB.mib implements RFC1907
SNMPv2-SMI.mib implements RFC1450
SNMPv2-TC.mib implements RFC1450
SNMP-VIEW-BASED-ACM-MIB.mib implements RFC3415
Table 3: BelAir Enterprise MIBs
File Name Description
BELAIR-IEEE802DOT11-CLIENT.mib
BELAIR-IEEE802DOT11.mib
defines features that are not supported by the standard
IEEE802.11 MIB
BELAIR-IP.mib defines BelAir IP data types
BELAIR-MESH.mib defines BelAir multipoint-to-multipoint data types
BELAIR-MOBILITY.mib defines data types to support mobile backhaul mesh and
point-to-point links
BELAIR-PHYIF-MAPPING.mib defines data types to support universal slots
BELAIR-PRODUCTS.mib defines product object IDs
BELAIR-RSTP.mib defines RSTP data types
BELAIR-SMI.mib defines BelAir top level OID tree
BELAIR-SYSTEM.mib defines basic OAM features such as software download,
temperature and BelAir alarms
BELAIR-TC.mib defines BelAir data types
BELAIR-TUNNEL.mib defines L2TP data types
Table 2: Standard SNMP MIBs (Continued)
File Name Description
BelAir20E User Guide BelAir20E Configuration Interfaces
October 11, 2011 Confidential Page 9 of 267
Document Number BDTM02201-A01 Standard
The procedure for importing the SNMP MIB definition files depends on the
deployed NMS platform. Refer to your NMS platform documentation for
details.
Web Interface BelAir Networks has verified that the BelAir20E Web interface operates
correctly with the following web browsers:
• Microsoft Internet Explorer version 6.0, service pack 2
• Mozilla Firefox version 1.5, or later
Accessing the Web
Interface You can access the Web interface using either secure HTTP (HTTPS) or HTTP.
Both HTTP and HTTPS are enabled when each BelAir20E node is shipped. Each
unit can have up to five simultaneous CLI sessions (HTTP or HTTPS).
By default, the BelAir20E Web interface has an associated time-out value. If the
interface is inactive for 9 minutes, then you are disconnected from the
interface. To reconnect to the interface, you need to log in again.
Accessing the System
Page with Secure HTTP
or with HTTP
To log in to the BelAir20E Web interface and access the main page using HTTPS
or HTTP, do the following steps:
1 Open your Web browser and specify the IP address of the BelAir20E node
you want to access.
The default IP address of each BelAir20E node is: 10.1.1.10.
Figure 2 shows the resulting Login page.
BELAIR-WRM.mib defines BelAir WiMAX data types
Table 3: BelAir Enterprise MIBs (Continued)
File Name Description
BelAir20E User Guide BelAir20E Configuration Interfaces
October 11, 2011 Confidential Page 10 of 267
Document Number BDTM02201-A01 Standard
Figure 2: Typical Login Page
2 Enter a valid user name, such as root, and a valid password.
Note:The specified password is case sensitive.
Figure 3 on page 10 shows a typical resulting main page for the Web
interface.
Figure 3: Typical Web Interface Main Page
BelAir20E User Guide BelAir20E Configuration Interfaces
October 11, 2011 Confidential Page 11 of 267
Document Number BDTM02201-A01 Standard
Stopping a Session To stop a Web interface session, click on the Logout button located in the top
right corner each page. See Figure 3.
Additional
Troubleshooting Tools The Web interface provides the following tools to display radio performance
metrics:
• a throughput meter
• histogram display of various performance metrics
These tools are only available with the Web interface. For full details, see the
BelAir20E Troubleshooting Guide
.
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 12 of 267
Document Number BDTM02201-A01 Standard
Command Line Interface Basics
Use this chapter to familiarize yourself with basic CLI tasks, including:
•“Connecting to the BelAir20E” on page 12
•“Starting a CLI Session” on page 12
•“Command Modes” on page 14
•“Abbreviating Commands ” on page 18
•“Command History” on page 18
•“Special CLI Keys ” on page 19
•“Help Command” on page 19
•“Common CLI Commands” on page 23
Connecting to the
BelAir20E
You can connect to the BelAir20E default address using one of the following
methods:
• through the BelAir20E radio interface
• by connecting directly to the Ethernet port on the BelAir20E
CAUTION! Do not connect the BelAir20E to an operational data network before you
configure its desired IP network parameters. This may cause traffic disruptions
due to potentially duplicated IP addresses.
The BelAir20E unit must connect to an isolated LAN, or to a desktop or laptop
PC configured to communicate on the same IP sub-network as the BelAir20E.
Using the Radio Interface
Use a desktop or laptop PC equipped with a wireless 802.11a, 802.11b, 802.11g
or 802.11n compliant interface as required, configured with a static IP address
on the same subnet as the default OAM IP address (for example, 10.1.1.1/24).
For the required configuration procedure, refer to your PC and wireless
interface configuration manuals or contact your network administrator. The PC
will connect to the BelAir20E through the radio interface.
Connecting to the Ethernet Port
Use a cross-connect RJ45 cable to connect the Ethernet port of the unit.
For a detailed procedure, refer to the
BelAir20E Installation Guide
.
Starting a CLI
Session
Start a Telnet or secure shell (SSH) client and connect to the BelAir20E IP
address. If you are configuring the BelAir20E for the first time, you must use the
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 13 of 267
Document Number BDTM02201-A01 Standard
BelAir20E default IP address (10.1.1.10). The BelAir20E prompts you for your
user name and password.
The default super-user account is “root”. The default password is “admin123”.
If the login is successful, the BelAir20E prompt is displayed. The default prompt
is “#”, if you login as root. Otherwise, the default prompt string is “>”.
Note 1: The terminal session locks after four unsuccessful login attempts. To
unlock the terminal session, you must enter the super-user password.
Note 2: BelAir20E CLI commands are not case sensitive (uppercase and
lowercase characters are equivalent). However, some command
parameters are case sensitive. For example, passwords and any Service
Set Identifier (SSID) supplied with the
radio
commands are case
sensitive. Also, all parameters of the
syscmd
commands are case
sensitive.
Note 3: Later, you will see that you can configure the BelAir20E to have more
than one interface with an IP address. For example, you can configure
Virtual LANs and management interfaces each with their own IP
address. If you do this, make sure your Telnet or secure shell (SSH)
connections are to a management interface. This ensures maximum
responsiveness for your session by keeping higher priority management
IP traffic separate from other IP traffic.
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 14 of 267
Document Number BDTM02201-A01 Standard
SSH Session Example of Initial Login
With secure shell, the system prompts you twice for your password.
ssh -l root 10.1.1.10
root@10.1.1.10's password:
BelAir Backhaul and Access Wireless Router
BelAir User: root
Password:
/#
Telnet Session Example of Initial Login
With Telnet, the system prompts you only once for your password.
telnet 10.1.1.10
BelAir Backhaul and Access Wireless Router
BelAir User: root
Password:
/#
Command Modes The BelAir20E CLI has different configuration “modes”. Different commands
are available to you, depending on the selected mode.
Each card in the BelAir20E has at least one associated physical interface. Some
examples of physical interfaces are a Wi-Fi radio or an Ethernet interface.
Use the
mode
command to display the modes that are available. Because each
physical interface and each card in the BelAir20E has its own mode, displaying
the modes also displays a profile summary of the BelAir20E. See Figure 4.
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 15 of 267
Document Number BDTM02201-A01 Standard
Figure 4: Sample Output of mode Command
/# mode
/card
/htme-1
/interface
/wifi-1-1 (HTMEv1 5GHz 802.11n)
/wifi-1-2 (HTMEv1 2.4GHz 802.11n)
/eth-1-1 (1000BASE-T)
/lan-1 (1000BASE-T)
/lan-2 (1000BASE-T)
/lan-3 (1000BASE-T)
/lan-4 (1000BASE-T)
/mgmt
/protocol
/ip
/nat
/radius
/rstp
/snmp
/sntp
/te-syst (tunnel)
/qos
/services
/auto-conn
/mobility
/ssh
/ssl
/syslog
/system
/diagnostics
• The node has one card. The HTME
card is in slot 1.
• The node has the following physical
interfaces:
—Interface
wifi-1-1
is associated
with the HTME 5.8 GHz radio.
—Interface
wifi-1-2
is associated
with the HTME 2.4 GHz radio.
—Interface
eth-1-1
is associated with
the HTME card’s Ethernet
interface.
—Interfaces
lan-1
to
lan-4
are
associated with the HTME card’s
LAN interfaces.
• The
mgmt
mode allows you to
control user accounts, which
authentication to use, and whether
you can access the node with Telnet.
• You can control the IP, RADIUS,
RSTP, SNMP, SNTP, L2TP and NAT
protocols through the
protocol
mode and its submodes.
• You can control auto-connect and
backhaul mobility through the
services
mode and its submodes.
• These modes allow you to control
SSH, SSL, Syslog and system settings.
You can also run diagnostics.
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 16 of 267
Document Number BDTM02201-A01 Standard
Table 4 describes the modes that are supported.
Table 4: Command Line Interface Modes
Mode Description
“root” mode (/) The top or root level of the CLI commands.
Card Management: /card/<card_type>-<n>
one of:
•htme-<n>
Configure hardware:
•
htme
is High Throughput Module, evolved
•<n> is slot number
Physical Interfaces: /interface/<iface>-<n>-<m>
one of:
• wifi-<n>-<m>
• eth-<n>-<m>
•lan-<n>
Configure the BelAir20E physical interfaces:
• <iface> is the type of physical interface. One of:
—
wifi
: 802.11a/b/g/n, HTME radios
—
eth
: 1000Base-TX, HTME Ethernet
—
lan
: 1000Base-TX, HTME LAN
•<n> is the slot number where the interface is located
in the BelAir platform
• <m> is port number. <m> is 1 for most interfaces.
The HTME card can have multiple ports representing
multiple Wi-Fi radios operating different frequencies.
Some configurations may have multiple Ethernet or
LAN ports.
Node Management
mgmt • Configure user accounts, user authentication and
Te l n e t a c c e s s
Protocol Management: /protocol/<protocol>
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 17 of 267
Document Number BDTM02201-A01 Standard
You can move between modes with the
cd
command. For instance, you can
move from
root
mode to
system
mode using the command:
/# cd /system
/system#
one of:
•ip
•nat
•radius
•rstp
• snmp
• sntp
• te-<eng>
Configure the following protocols:
• IP parameters for node and VLANs
•NAT
• RADIUS for user sessions
•RSTP
• SNMP
•SNTP
• L2TP tunnel engine (te). BelAir platforms can have one
tunnel engine per system (syst).
Services: /services/<service>
one of:
• auto-conn
• mobility
Configure the following services:
• Auto-configuration
•Backhaul mobility
Administration
qos Configure Quality of Service (QoS) parameters
ssh Configure Secure Shell (SSH) parameters
ssl Configure Secure Socket Layer (SSL) parameters
syslog Configure the destination of SYSLOG messages
See the
BelAir20E Troubleshooting Guide
for details.
system System and node configuration and administration
diagnostics Run link diagnostics.
Table 4: Command Line Interface Modes (Continued)
Mode Description
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 18 of 267
Document Number BDTM02201-A01 Standard
Note 1: The prompt changes to match the current mode. You can further
customize the prompt to show the switch name or a 20-character
string that you define.
Note 2: Access to a mode is only allowed if the user has sufficient privileges to
execute commands in that mode.
When you access a given mode, only the commands pertaining to that mode
are available. For example, accessing
snmp
mode provides access to SNMP
commands. For a physical interface, this means that only the commands that
apply to that specific type and version of interface are available when you access
a particular physical interface. For example, if you access an HTMEv1 interface,
only the commands that apply to an HTMEv1 Wi-Fi radio are available.
Entering
?
displays the commands that apply to the currently accessed mode.
Entering
??
or
help
displays the commands that apply to the currently accessed
mode plus common commands that are available in all modes.
Users may execute commands from other modes than the current one, by
prefixing the desired command with the slash character ‘/’ followed by the
mode’s name. For instance, entering:
/system# /protocol/snmp/show community
executes a command from
snmp
mode while in
system
mode.
Abbreviating
Commands
You must enter only enough characters for the CLI to recognize the command
as unique.
The following example shows how to enter the
mgmt
mode command
show
telnet status
:
/mgmt# sh t s
Command
History
You can use the
history
command to display a list of the last commands that
you have typed.
Example
/# history
8 h
9 hi
10 ?
11 show user
12 cd /system
13 show loads
14 show sessions
15 cd /
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 19 of 267
Document Number BDTM02201-A01 Standard
16 cd interface/wifi-1-1/
17 ?
18 show
19 show ssid table
20 show statistics
21 history
Special CLI Keys Command Completion
You can ask the CLI to complete a partially typed command or mode name by
pressing the
tab
key. If the command or mode name cannot be completed
unambiguously, the CLI presents you with a list of possible completions. For
instance, entering:
/system# show co{tab}
produces the following output:
Available commands :
show communications
show config-download status
show coordinates
show country [detail]
Execution of the Last Typed Command
You may repeat the last command, by entering the
!
key twice, followed by
carriage return.
Executing the Previous Commands
You may browse through the command history by using the up and down arrow
keys of a VT100 or compatible terminal. You can also execute a certain
command from the command history by entering the
!
key, followed by the
command number (as displayed in the
history
command output) and carriage
return.
Help Command ?
?? [<command>]
help [<command>]
These commands display:
• a list of commands available in the current mode
• help on a particular command available in the current mode
• help on commands starting with the given keyword in the current mode
Entering "??" is equivalent to entering "help".
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 20 of 267
Document Number BDTM02201-A01 Standard
Available Commands
Entering
?
displays the commands that apply to the currently accessed mode.
For example:
/mgmt# ?
Available commands :
adduser <user-name> -p <passwd> [ -d <default-mode>] [-g <grp-name>]
deluser <user-name>
moduser <user-name> [ -p <passwd>] [ -d <default-mode>] [-g <grp-name>]
set authentication-login {local | radius <list>}
set telnet {enabled|disabled}
show authentication-login
show telnet status
show user
Entering
??
or
help
displays the commands that apply to the currently accessed
mode plus common commands that are available in all modes. For example:
/mgmt# ??
Available commands :
adduser <user-name> -p <passwd> [ -d <default-mode>] [-g <grp-name>]
deluser <user-name>
moduser <user-name> [ -p <passwd>] [ -d <default-mode>] [-g <grp-name>]
set authentication-login {local | radius <list>}
set telnet {enabled|disabled}
show authentication-login
show telnet status
show user
alias [<replacement string> <token to be replaced>]
cd <path>
clear-screen
console lock
exit
help [ command ]
history
mode [<mode_name>]
passwd
ping <ip addr> [-l <size>]
run script <script file> [<output file>]
version
whoami
config-save [{active|backup} remoteip <server> remotefile <filename>
[{tftp | ftp [user <username> password <password>]}]]
config-restore remoteip <ipaddress> remotefile <filename> [{tftp | ftp
[user <username> password <password>]}] [force]
show date
su <username>
Keyword Help
Entering
??
or
help
followed by a keyword displays all possible commands
starting with that keyword. For example:
/mgmt# ?? show
Available commands :
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 21 of 267
Document Number BDTM02201-A01 Standard
show authentication-login
Description : show authentication login status and RADIUS servers
configuration
show telnet status
Description : shows the status of the telnet.
show user
Description : List all valid users, along with their permissible mode.
show date
Description : show current system date and time
Help for a Specific Command
When help is needed for a specific command, enter
??
or
help
followed by the
command within quotes. For example:
/mgmt# help "adduser"
Available commands :
adduser <user-name> -p <passwd> [ -d <default-mode>] [-g <grp-name>]
Description : Create a user.
Help with Abbreviations
When an abbreviation is used in the help string, all matching commands are
listed with the description. For example:
/mgmt# ?? s
Available commands :
set authentication-login {local | radius <list>}
Description : defines how login session will be authenticated.
set telnet {enabled|disabled}
Description : enable or disable CLI access via the telnet protocol.
show authentication-login
Description : show authentication login status and RADIUS servers
configuration
show telnet status
Description : shows the status of the telnet.
show user
Description : List all valid users, along with their permissible mode.
show date
Description : show current system date and time
su <username>
Description : Substitute present user with the given user.
Saving your
Changes
If you change any settings from the system defaults, you must save those
changes to the configuration database to make sure they are applied the next
time the BelAir20E reboots. Similarly, you can restore the entire configuration
database from a previously saved backup copy.
Saving the Configuration
Database
config-save [{active|backup} remoteip <ipaddress>
remotefile <filename>
[{tftp|ftp [user <usrname> password <pword>]}]]
This command allows you to save the current configuration of the entire
BelAir20E node. This includes all system, layer 2 and radio settings.
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 22 of 267
Document Number BDTM02201-A01 Standard
When used without its optional parameters, the
config-save
command saves
the configuration database for the active software load to persistent storage.
The stored configuration is automatically applied at the next reboot.
When used with its optional parameters, the
config-save
command also
transfers the configuration database to a remote server.
If
active
is specified, the
config-save
command saves the configuration database
for the active software load to persistent storage and then transfers it to a
remote server. If
backup
is specified, the configuration database for the active
software load is not saved. Instead, the configuration database for the active
software load that was saved previously to persistent storage, is transferred to
a remote server.
You can use either TFTP or FTP to communicate with the remote server. By
default, the
config-save
command uses TFTP. If you specify FTP, you can also
specify the username and password. The default FTP username is
anonymous
and the default FTP password is
root@<nodeip>
, where <nodeip> is the IP
address of node making the request. If you do not use the default FTP
username, the FTP server must be configured to accept your username and
password.
Restoring the
Configuration Database
config-restore remoteip <ipaddress> remotefile <filename>
[{tftp|ftp [user <usrname> password <pword>]}]]
[force]
This command transfers the configuration database from a remote server to
the active software load in persistent storage. This allows you to restore the
entire configuration database from a previously saved backup copy.
Use the
reboot
command for the new configuration to take effect.
You can use either TFTP or FTP to communicate with the remote server. By
default, the
config-restore
command uses TFTP. If you specify FTP, you can also
specify the user name and password. The default FTP user name is
anonymous
and the default FTP password is
root@<nodeip>
, where <nodeip> is the IP
address of node making the request. If you do not use the default FTP
username, the FTP server must be configured to accept your username and
password.
The optional
force
parameter suppresses version checking on the configuration
file that is being downloaded. You can use a backup copy that was created with
a different version of software than the current software installed on the unit. If
you do, BelAir Networks strongly recommends that you fully and thoroughly
verify the configuration and operation of the unit after you reboot the system
and before you save the restored configuration.
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 23 of 267
Document Number BDTM02201-A01 Standard
Example
/# cd system
/system# config-restore remoteip 122.45.6.123 remotefile unitA.conf
Common CLI
Commands
In addition to any previously described commands, the following commands are
always available, regardless of your current mode.
Terminating your CLI
Session exit
Use this command to terminate your own CLI session at any time.
Changing Your
Password
passwd
This command lets you change your current password. First, you are asked to
enter your old password. Then you must enter your new password twice, to
verify that you have typed it correctly.
Note: The specified password is case sensitive, must consist of alphanumeric
characters, must be at least six characters long, and cannot exceed 20
characters.
CAUTION! If you forget the super-user account password, you may be unable to use all the
unit’s management functions and you may need to reset the unit’s configuration
to factory defaults.
Example
passwd
Old Password:
Enter New Password:
Reenter the Password:
Password updated Successfully
Clearing the Console
Display
clear-screen
This command clears your console display window.
Locking the Console
Display
console lock
This command lock your console display window. You must enter your
password to unlock it.
Displaying the Current
Software Version
version
This command displays the version of the currently running BelAir software
load.
Example
/# version
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 24 of 267
Document Number BDTM02201-A01 Standard
Version is BA20E 12.0.0.D.2011.01.19.14.32 (r36096)
Displaying the Current
Date and Time
show date
This command displays the current date and time.
Example 1
The following example displays the current date and time when it is set
manually.
/# show date
Current date: 2007-05-10 06:52:20
Example 2
The following example displays the current date and time when using a Simple
Network Time Protocol (SNTP) server and a time offset of -4 hours and 30
minutes. See “Configuring the System Date and Time” on page 51 for details.
/# show date
Current date: 2006-07-21 13:15:16 (UTC)
Current date: 2006-07-21 08:45:16
Displaying Current User whoami
This command displays current user.
Example
/# whoami
/# Current User is root
Switching User
Accounts
su <username>
This command changes the user account you are currently using. To return to
the original user account, use the
exit
command.
Example
/# whoami
Current User is root
/# su guest
/> whoami
Current User is guest
/> exit
/# whoami
Current User is root
Replacing a Token by a
String
alias [<replacement string> <token to be replaced>]
This command replaces the specified token by the given string. It is provided for
customers writing scripts. See “Scripting Guidelines” on page 234.
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 25 of 267
Document Number BDTM02201-A01 Standard
Example
/# alias gu guest
Pinging a Host or Switch ping <host> [-1 <size>]
This command pings a host machine or switch using the host name or IP
address.
The following options are supported:
-l size
specifies the size of the ping request packets to be sent.
Examples
The following example shows typical ping output:
/# ping 10.1.1.100 -l 128
PING 10.1.1.100 (10.1.1.100): 128 data bytes
136 bytes from 10.1.1.100: icmp_seq=0 ttl=128 time=2.0 ms
136 bytes from 10.1.1.100: icmp_seq=1 ttl=128 time=1.2 ms
136 bytes from 10.1.1.100: icmp_seq=2 ttl=128 time=1.0 ms
--- 10.1.1.100 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 1.0/1.4/2.0 ms
Starting a Telnet Session telnet <ip address> [<port_number>]
This command lets you start a Telnet session to another machine, such as
another BelAir node, by specifying the IP address. By default t, Telnet uses
port 23. You can also specify an alternate port number.
Radio Configuration
Summary
show interface summary
This command displays a summary of the configuration of all radio interfaces.
Example
The following example shows a typical output for a BelAir20.
/# show interface summary
wifi-1-1
Radio description:............ HTMv1 5GHz 802.11n
Admin state: ................. Enabled
Channel: ..................... 149
Access:
AP admin state: ............ Enabled
Backhaul:
link admin state: .......... Enabled
link id: ................... BelAirNetworks
topology: .................. mesh
wifi-1-2
Radio description:............ HTMv1 2.4GHz 802.11n
Admin state: ................. Enabled
Channel: ..................... 6
BelAir20E User Guide Command Line Interface Basics
October 11, 2011 Confidential Page 26 of 267
Document Number BDTM02201-A01 Standard
Access:
AP admin state: ............ Enabled
Backhaul:
link admin state: .......... Disabled
link id: ................... BelAirNetworks
topology: .................. mesh
BelAir20E User Guide BelAir20E Access Methods
October 11, 2011 Confidential Page 27 of 267
Document Number BDTM02201-A01 Standard
BelAir20E Access Methods
When a BelAir20E is shipped from the factory, all access methods (CLI, SNMP,
Telnet, HTTP, HTTPS, SSH) are enabled. You can use these interfaces to
configure the system’s IP networking parameters.
This chapter describes the CLI commands you can use to configure these
access methods.
Note: Some access methods, such as HTTP and HTTPS, are configured while
in SSL mode.
SNMP
Configuration
Guidelines
This section describes how to configure the BelAir20E to communicate to
either an SNMPv1/v2 server or an SNMPv3 server.
SNMPv1/v2 Servers To configure an SNMP community, use the
set community
command described
in “Communities” on page 29.
For sending traps, use the
set trap
command described in “Traps” on page 29
to configure the node with the parameters of the destination SNMP manager.
Refer to “SNMP Command Reference” on page 28 for detailed descriptions of
all SNMP commands.
SNMPv3 Servers To configure an SNMP user, use the
set user
command described in “Users” on
page 30.
For sending notifications, use the
set notify
command described in
“Notifications” on page 30 to configure the node with the parameters of the
destination SNMP manager.
Refer to “SNMP Command Reference” on page 28 for detailed descriptions of
all SNMP commands, including entities that need to be predefined.
SNMP Naming
Restrictions SNMP community names, user names, and notification names must not contain
the following characters:
—bar (|)
—semicolon (;)
—percent (%)
—double quotation mark (“)
BelAir20E User Guide BelAir20E Access Methods
October 11, 2011 Confidential Page 28 of 267
Document Number BDTM02201-A01 Standard
SNMP Command
Reference
The following sections show you how to configure SNMP functions.
SNMP Agent /protocol/snmp/set snmp-agent {enabled | disabled}
/protocol/snmp/show snmp-agent
The
set snmp-agent
command enables or disables SNMP access.
SNMP Configuration /protocol/snmp/show config [{v2 | v3 | all}]
Use the
show config
command to display the current SNMP configuration.
Passwords are only displayed to users with
root
privileges. See “User Privilege
Levels” on page 35 for details.
Example 1
/protocol/snmp# show config v2
EngineId: 80003d9805000d67091448
Community configuration:
------------------------
Index Name IP Address Privilege
----- ------------------ --------------- -----------
1 public 0.0.0.0 ReadOnly
2 private 10.1.1.70 ReadWrite
Trap configuration:
-------------------
Index IP address Community Version
----- --------------- --------------- -------
1 10.1.1.70 public v1v2
Example 2
/protocol/snmp# show config v3
EngineId: 80003d9805000d67006902
User configuration:
-------------------
User Name IP address Auth Password Privacy Password Privilege
------------------------- --------------- ---- --------------- -------- --------------- ---------
Test 0.0.0.0 MD5 md5md5md5 DES_CBC TEST ReadWrite
Notification configuration:
-------------------
Name Type IP address Timeout Retry Auth Password Privacy Password
--------------- ------ --------------- ------- ----- ---- --------------- ------- ---------
TRAP trap 10.1.1.70 1250 2 MD5 md5md5md5 DES_CBC TRAP
BelAir20E User Guide BelAir20E Access Methods
October 11, 2011 Confidential Page 29 of 267
Document Number BDTM02201-A01 Standard
Communities /protocol/snmp/set community <CommunityIndex>
community-name <name> ipaddr <ip_addr>
privilege {readonly|readwrite}
/protocol/snmp/delete community <CommunityIndex>
/protocol/snmp/show community
The
set community
command configures the SNMP community security. You
can configure up to 10 communities. The community is assigned with privileges.
The
delete community
command deletes the specific community information.
The
show
command displays the SNMP community configuration.
Assigning an IP address of 0.0.0.0 to an SNMP community of a node allows node
access by all managers configured for that community. See “Example 1” on
page 29. To limit access to a single manager, enter the manager’s IP address. See
“Example 2” on page 29.
Example 1
/protocol/snmp# set community 1 community-name belair ipaddr 0.0.0.0 privilege readonly
In this example, all managers configured with the SNMP community of
belair
can access the node for read only functions.
Example 2
/protocol/snmp# set community 1 community-name belair200 ipaddr 10.10.10.11 privilege readonly
/protocol/snmp# set community 2 community-name belair100 ipaddr 20.20.20.20 privilege readwrite
/protocol/snmp# set community 3 community-name belcom ipaddr 30.30.30.30 privilege readonly
In the previous example, the manager at IP address 20.20.20.20 configured with
the SNMP community of
belair100
has read-write access to the node.
Example 3
/protocol/snmp# show community
Index Name IP Address Privilege
----- ------------------ --------------- -----------
1 public 0.0.0.0 ReadOnly
2 private 10.1.1.70 ReadWrite
Trap s /protocol/snmp/set trap <index> mgr-addr <ip_addr>
community <name> version {v1|v2|both}
/protocol/snmp/delete trap <index>
/protocol/snmp/show trap
The
set trap
command configures the parameters of the SNMPv2 trap manager.
You can configure up to 10 traps.
The
delete trap
command deletes the specified trap manager information.
BelAir20E User Guide BelAir20E Access Methods
October 11, 2011 Confidential Page 30 of 267
Document Number BDTM02201-A01 Standard
The
show trap
command displays the SNMPv2 trap manager configuration
information.
Example 1
/protocol/snmp# set trap 1 mgr-addr 40.40.40.40 community bel1 version v1
/protocol/snmp# set trap 2 mgr-addr 41.41.41.41 community bel2 version v2
Example 2
/protocol/snmp# show trap
Index IP address Community Version
----- --------------- --------------- -------
1 10.1.1.70 public v1v2
Users /protocol/snmp/set user <UserName> ipaddr <IP_addr>
access {readonly | readwrite}
[auth {md5 | sha} <password> [priv-DES <passwd>]]
/protocol/snmp/delete user <UserName>
/protocol/snmp/show user
The
set user
command defines an SNMPv3 user. You can define up to 10 users,
each with different authentication and privacy settings.
The
ipaddr
parameter specifies the IP address associated with this user. The
access
parameter specifies the level of access granted to this user.
The
<password>
parameter is the password required by the user to access
SNMP data. A user must supply this password if using a MIB browser.
The BelAir20E uses DES encryption to encrypt SNMP packets. The
priv-DES
parameter specifies the encryption key required to encrypt or decrypt the
packet.
The
delete user
command deletes the definition of the specified SNMP user.
The
show
command displays the configured users. Passwords are only displayed
to users with
root
privileges. See “User Privilege Levels” on page 35 for details.
Example 1
/protocol/snmp# set user v3md5 ipaddr 0.0.0.0 access readwrite auth md5 md5md5md5
Example 2
/protocol/snmp# show user
User Name IP address Auth Password Privacy Password Privilege
-------------- --------------- ---- --------------- -------- ---------
v3md5 0.0.0.0 MD5 md5md5md5 None none ReadWrite
Notifications /protocol/snmp/set notify <NotifyName> type {Trap | Inform}
ipaddr <IP_addr> [timeout <1-1500>]
BelAir20E User Guide BelAir20E Access Methods
October 11, 2011 Confidential Page 31 of 267
Document Number BDTM02201-A01 Standard
[retries <1-3>] [auth {md5 | sha}
<password> [priv-DES <passwd>]]
/protocol/snmp/delete notify <NotifyName>
/protocol/snmp/show notify
The
set notify
command enables notifications to be sent to an SNMPv3
manager for the specified notification name. You can configure up to
10 notification names.
The
ipaddr
parameter specifies the IP address associated with this notification.
The
timeout
parameter specifies how many seconds to wait for an
acknowledgement before resending the SNMP packet. The
retries
parameter
specifies the number of times to resend the SNMP before declaring a failure.
The
<password>
parameter is the password associated with this notification.
The BelAir20E uses DES encryption to encrypt SNMP packets. The
priv-DES
parameter specifies the encryption key required to encrypt or decrypt the
packet.
The
delete notify
command disables notifications from being sent for the
specified notification name.
The
show notify
command displays the current SNMP notify configuration.
Passwords are only displayed to users with
root
privileges. See “User Privilege
Levels” on page 35 for details.
Example 1
/protocol/snmp# set notify trap1 type trap ipaddr 10.1.1.70
Example 2
/protocol/snmp# show notify
Name Type IP address Timeout Retry Auth Password Privacy Password
--------------- ------ -------------- ------- ----- ---- --------------- ------- -------------
trap1 trap 10.1.1.70 1500 3 None none None none
trap2 trap 10.1.1.70 1250 3 None none None none
trap3 trap 10.1.1.70 1250 2 None none None none
trap4 trap 10.1.1.69 1500 3 SHA shasha None none
trap5 trap 10.1.1.69 1500 3 MD5 md5md5 None none
trap6 trap 10.1.1.11 1500 3 None none None none
trap7 trap 10.1.1.12 1250 3 None none None none
trap8 trap 10.1.1.12 1250 3 MD5 md5md5 DES_CBC JEKTEST
trap9 trap 10.1.1.9 1250 3 MD5 md5md5 DES_CBC bob
trap10 trap 10.1.1.8 50 1 MD5 md5md5 DES_CBC bob
Authentication Traps /protocol/snmp/set authentication-trap {enable|disable}
/protocol/snmp/show authentication-trap status
These commands enable or disable the ability to send authentication traps.
BelAir20E User Guide BelAir20E Access Methods
October 11, 2011 Confidential Page 32 of 267
Document Number BDTM02201-A01 Standard
Engine Identifier /protocol/snmp/show engineid
This command displays the current engine identifier.
Te l n e t /mgmt/telnet {enable|disable}
/mgmt/show telnet status
The
telnet
command enables or disables Telnet access to the unit.
The
show
command displays the status of the Telnet interface.
Example 1
/#cd /mgmt/
/mgmt# telnet enable
Example 2
cd /mgmt/
/mgmt# show telnet status
Telnet: Enabled
HTTP /ssl/set http {enable|disable}
/ssl/show http status
These commands enable or display the HTTP interface. The
show
command
displays the current status.
Secure HTTP /ssl/set secure-http {enable|disable}
/ssl/show secure-http status
These commands enable or display the secure HTTP interface. The
show
command displays the current status.
SSH The following sections show you how to configure the Secure Shell (SSH)
functions.
SSH Access /ssh/show ssh status
This command displays the status of the SSH interface.
SSL The following sections show you how to configure the Secure Socket Layer
(SSL) functions.
Displaying Server
Certificate
/show ssl server-cert
This command displays the server-certificate for SSL.
BelAir20E User Guide BelAir20E Access Methods
October 11, 2011 Confidential Page 33 of 267
Document Number BDTM02201-A01 Standard
Configuring the Server
Certificate To configure the server certificate:
1 Create the RSA key pair. See “Creating RSA Key Pair” on page 33.
2 Create a certificate request. See “Creating Certificate Request” on page 33.
The certificate request is displayed on the screen.
3 Copy the certificate request to a file and send it to the Certificate Authority
(CA) that will generate the certificate.
4 When the CA responds with the certificate, configure the BelAir20E SSL
configuration to use it. See “Configuring the Server Certificate” on page 33.
5 Save the SSL configuration. See “Saving an SSL Configuration” on page 33.
Creating RSA Key Pair /ssl/ssl gen key {rsa} <no. of bits>
This command creates a new RSA key pair. The input value of
no of bits
can be
512 or 1024.
Example
/#cd ssl
/ssl# ssl gen key rsa 1024
Creating Certificate
Request
/ssl/ssl gen cert-req algo rsa sn <SubjectName>
This command creates a certificate request using the RSA key pair and
SubjectName
. The subject name is the identification of the switch or the
switch’s IP address.
Example
/#cd ssl
/ssl# ssl gen cert-req algo rsa sn 10.1.1.10
Configuring the Server
Certificate
/ssl/ssl server-cert
This command imports a server certificate provided by a CA.
When you use this command, you are prompted to enter the certificate. To do
so, open the certificate and copy its contents to the CLI.
Note: The application that you use to open the certificate may insert
additional line breaks and spaces at the end of each line of the
certificate. Make sure to remove these extra line breaks and spaces
when you copy the certificate to the CLI.
Saving an SSL
Configuration
/ssl/ssl save
This command saves the SSL configuration.
BelAir20E User Guide User and Session Administration
October 11, 2011 Confidential Page 35 of 267
Document Number BDTM02201-A01 Standard
User and Session Administration
This chapter describes user administration functions with the following topics:
•“User Privilege Levels” on page 35
•“User Accounts” on page 38
•“Configuring Authentication for User Accounts” on page 39
•“CLI and Web Sessions” on page 41
User Privilege
Levels
User accounts on the BelAir20E can be assigned the following three privilege
levels:
•An
observer
user can execute only the following commands:
—most
show
commands
—the
help
and
?
commands
—the
passwd
command
—the
clear-screen
and
exit
commands
—the
cd
and
mode
commands
—the
history
command
—the
whoami
command
—the
ping
command
•A
normal
user can execute any CLI command, except those reserved for
the super-user.
• The
super-user
can execute any CLI command. Table 5 on page 35 lists the
CLI commands that are reserved for the super-user.
Each unit can have any number of observer users and normal users, but only
one super-user account, called
root
.
Table 5: Super-user commands
Common Commands
config-restore remoteip <ipaddress> remotefile <filename>
[{tftp|ftp [user <usrname> password <pword>]}]]
[force]
BelAir20E User Guide User and Session Administration
October 11, 2011 Confidential Page 36 of 267
Document Number BDTM02201-A01 Standard
Mgmt Commands
adduser <user-name> -p <passwd> [-d <mode>] [-g <group>]
deluser <user-name>
moduser <user-name> [ -p <passwd>] [ -d <mode>] [-g <group>]
show user
set telnet {enabled|disabled}
set authentication-login {local | radius <list>}
show authentication-login
System Commands
set country <country_name>
set global-session-timeout <period>
terminate session <session_index>
upgrade load remoteip <serverIPaddress>
remotepath <serverSubDir>
[{tftp|ftp [user <usrname> password <pword>]}]]
cancel upgrade
reboot [{force}]
commit load
set next-load {A|B|current|inactive}
syscmd restoreDefaultConfig
/Card/<card_type>-n Commands
reboot [{force}]
/Protocol/IP Commands
set interface {system | vlan <1-2814>}
static <ip addr> <mask>
[delay-activation]
set interface {system | vlan <1-2814>} dynamic
fallback-ip <address> <mask>
accept-dhcp-params {enabled|disabled}
[delay-activation]
Table 5: Super-user commands (Continued)
BelAir20E User Guide User and Session Administration
October 11, 2011 Confidential Page 37 of 267
Document Number BDTM02201-A01 Standard
renew ip {system | vlan <1-2814>}
SSL Mode Commands
set http {enable|disable}
set secure-http {enable|disable}
show http status
show secure-http status
show server-cert
ssl gen cert-req algo rsa sn <SubjectName>
ssl gen key {rsa} <no. of bits>
ssl save
ssl server-cert
Syslog Mode Commands
logserver {enable [<ip address>] | disable}
monitor logging {enable | disable}
loglevel {debug|info|notice|warn|error|critical|alert|emerg}
/Protocol/SNMP Mode Commands
set snmp-agent {enabled | disabled}
set community <CommunityIndex>
community-name <name> ipaddr <ip_addr>
privilege {readonly|readwrite}
delete community <CommunityIndex>
set trap <index> mgr-addr <ip_addr>
community <name> version {v1|v2|both}
delete trap <index>
set user <UserName> ipaddr <IP_addr>
access {readonly | readwrite}
[auth {md5 | sha} <password> [priv-DES <passwd>]]
delete user <UserName>
Table 5: Super-user commands (Continued)
BelAir20E User Guide User and Session Administration
October 11, 2011 Confidential Page 38 of 267
Document Number BDTM02201-A01 Standard
User Accounts /mgmt/adduser <user-name> -p <passwd> [-d <mode>] [-g <group>]
/mgmt/deluser <user-name>
/mgmt/moduser <user-name> [-p <passwd>] [-d <mode>] [-g <group>]
/mgmt/show user
The
adduser
command creates a new user account.
The
deluser
command deletes a user account. The default login, “root”, cannot
be deleted.
The
moduser
command modifies the parameters of a user account. For this
command, the
group
parameter does not apply to changes to the
root
account.
The
show user
command lists all valid user accounts, the mode in which they
start their session and their maximum privilege level. For example, under
Groups,
normal users display
NORMAL OBSERVER
while the
root
account
displays
root NORMAL OBSERVER
.
The
mode
parameter sets the command mode that a user accesses when they
log in. If unspecified, it defaults to a slash (/) so the user begins their session in
root mode. Users with observer privileges must start their sessions in root
mode.
The
group
parameter specifies the user account’s privilege level. It can be
OBSERVER
or
NORMAL
. If unspecified, the user account has observer
privileges.
To use this command, you must be in
mgmt
mode.
Note 1: The specified password is case sensitive, must consist of alphanumeric
characters, must be at least six characters long, and cannot exceed 20
characters. Changes the super-user account require that you provide
the super-user password.
Note 2: The specified group is case sensitive.
If you use a RADIUS server to authenticate users as they login, you must
specify the user’s privilege level in the RADIUS
Reply-Message
field. Specifically,
set notify <NotifyName> type {Trap | Inform}
ipaddr <IP_addr> [timeout <1-1500>]
[retries <1-3>] [auth {md5 | sha}
<password> [priv-DES <passwd>]]
delete notify <NotifyName>
set authentication-trap {enable | disable}
Table 5: Super-user commands (Continued)
BelAir20E User Guide User and Session Administration
October 11, 2011 Confidential Page 39 of 267
Document Number BDTM02201-A01 Standard
the
Reply-Message
field must contain in plain text one of the following:
root
,
NORMAL
or
OBSERVER
. These entries in RADIUS are case sensitive, so make
sure the user privilege levels are entered exactly as specified. If the privilege
levels are unspecified in RADIUS, then the BelAir20E provides the user with
observer
privileges.
Example 1
/mgmt# adduser testuser -p userpwd - d system
Example 2
/mgmt# deluser xyz
Example 3
In the following example, the user
guest
begins their session in
interface
mode
and their password is changed to “guest123”.
/mgmt# moduser guest –p guest123 –d interface
Example 4
/mgmt# show user
USER MODE GROUPS
root / root NORMAL OBSERVER
user1 / OBSERVER
user2 / OBSERVER
user3 interface NORMAL OBSERVER
Configuring
Authentication
for User
Accounts
You can use a RADIUS server to authenticate users as they login to their
accounts. This applies to all user accounts including
root
.
Authentication Mode /mgmt/set authentication-login {local|radius <list>}
/mgmt/show authentication-login
These commands determine how the BelAir20E authenticates users.
The
local
setting means that the BelAir20E uses the locally stored password and
user account information to authenticate the user. This is the default setting.
The
radius
setting means that the BelAir20E uses a RADIUS server to
authenticate the user. The
list
parameter specifies the index used in the
RADIUS server list. Refer to “RADIUS Servers” on page 40.
BelAir20E User Guide User and Session Administration
October 11, 2011 Confidential Page 40 of 267
Document Number BDTM02201-A01 Standard
Example 1
/mgmt# set authentication-login radius 1,2
Example 2
mgmt# show authentication-login
Authentication Login is radius
Radius Authentication server table
-------------------------------------
Index : 1
Radius Server Address : 10.1.3.254
UDP port number : 1812
Radius Client Address : 10.1.3.48
Timeout : 3
--------------------------------------------
Index : 2
Radius Server Address : 10.1.3.253
UDP port number : 1812
Radius Client Address : 10.1.3.48
Timeout : 3
--------------------------------------------
RADIUS Servers /protocol/radius/set server <server-idx> <IP_addr>
<shared-secret>
[authport <server-port>]
[acctport <acct-port>]
[interface {system | vlan <1-2814>}]
[timeout <seconds>]
[reauthtime <seconds>]
/protocol/radius/set server-state <server-idx> {enabled|disabled}
/protocol/radius/del server <server-idx>
/protocol/radius/show servers
These commands allow you to specify a list of RADIUS servers that you can use
to authenticate users. The list can contain up to 10 servers.
The
IP_addr
parameter specifies the IP address of the RADIUS server.
The
shared-secret
parameter specifies the password for access to the RADIUS
server.
The
authport
parameter ranges from 0 to 65535. It specifies the UDP port
number of the RADIUS server (typically 1812).
The
acctport
parameter ranges from 0 to 65535. It specifies the UDP port
number for RADIUS accounting data (typically 1813).
The
interface
parameter specifies the interface to associate the BelAir20E
RADIUS client to. This can be the unit’s system interface or any VLAN
interface. The default value is
system
.
BelAir20E User Guide User and Session Administration
October 11, 2011 Confidential Page 41 of 267
Document Number BDTM02201-A01 Standard
The
timeout
parameter ranges from 2 to 300. It specifies the interval (in
seconds) after which the RADIUS client considers that the remote server has
timed out if a reply is not received. The default value is 10 seconds.
The
reauthtime
parameter ranges from 0 to 50000000. It specifies the RADIUS
re-authentication time (in seconds). This forces the BelAir20E to check all
connected clients with the RADIUS server (that is, make sure they are still
allowed to access the network) at the specified interval. You only need to
configure this parameter if it is not specified on the RADIUS server. Setting the
interval to zero disables this feature. The maximum interval time is
2147483647. If you enter a higher number, the value is set to its maximum.
Note: Make sure the user’s privilege level are correctly specified in the
RADIUS
Reply-Message
field. Refer to “User Accounts” on page 38.
Example 1
/protocol/radius# set server 3 172.16.1.20 my-secret12345 authport 1812 acctport 1813 interface
system timeout 15 reauthtime 1
Example 2
/protocol/radius# set server-state 3 enabled
CLI and Web
Sessions
The BelAir20E allows you to manage CLI and Web session, such as listing and
terminating sessions as well as configuring the idle timeout period.
Session Management /system/show sessions
/system/terminate session <session_index>
The
show sessions
command lists all active CLI and Web interface sessions.
The current session is flagged with an asterisk besides its session index number.
The
terminate session
command allows you to terminate any CLI or Web
session.
Example
/system# show sessions
index user type IP address since last-cmd timeout tssh logging
----- -------- ------- --------------- --------- --------- --------- --------- ---------
1 root telnet 10.9.9.14 0:27:57 0:01:43 0:30:00 inactive active
9 root telnet 10.9.9.14 0:22:09 0:00:00 0:30:00 inactive active
11[*] root web 10.9.9.14 0:13:51 0:13:51 1:00:00
In this example, the current session is session 11 with an idle period set at
1hour.
BelAir20E User Guide User and Session Administration
October 11, 2011 Confidential Page 42 of 267
Document Number BDTM02201-A01 Standard
Configuring the Session
Timeout Interval
/system/set global-session-timeout <period>
/system/set session-timeout <period>
/system/show global-session-timeout
By default, a CLI session is automatically disconnected if it is idle for longer than
30 minutes. These commands allows you to change the idle period, preventing
unwanted disconnections. The idle period is specified in minutes. Setting a
period of 0 prevents any automatic disconnection.
The
set global-session-timeout
command changes the idle period of all CLI
sessions. Its <period> parameter ranges from 1 to 1440; that is up to 24 hours.
You cannot specify 0 as the global session idle period. You must be logged in as
root
to use this command.
The
set session-timeout
command changes the idle period of only the current
CLI sessions. Its <period> parameter ranges from 0 to 1440; that is up to
24 hours. The session timeout period overrides the global timeout period.
The new idle period takes effect immediately and to all current and future
sessions; until changed with these commands again.
The
show
command displays the settings for the global timeout period. To see
the setting for the session, use the
/system/show sessions
command.
Example
/system# set idle-timeout 60
CLI Prompt
Customization
/system/set prompt selection [default|string|switch-name}
/system/set prompt string <20-char_string>
/system/show prompt
The
set prompt selection
command customizes the prompt for CLI sessions.
The choices are as follows:
•
default
, where the CLI prompt includes the current command mode only
•
switch-name
, where the CLI prompt includes the current command mode
and the first eight characters of the switch name described in “System
Identification Parameters” on page 50
•
string
, where the CLI prompt includes the current command mode and the
20-character string as defined by the
set prompt string
command. The string
can consist of any 20 ASCII characters, except for the semicolon (;).
The
show prompt
command displays the current prompt settings.
BelAir20E User Guide User and Session Administration
October 11, 2011 Confidential Page 43 of 267
Document Number BDTM02201-A01 Standard
Examples
/system#set prompt string BelAir-128-50-46-189
/system#set prompt selection string
[BelAir-128-50-46-189]/system#system switch BA20E-A
[BelAir-128-50-46-189]/system#set prompt selection switch-name
[BA20E-A]/system#set prompt selection switch-name
[BA20E-A]/system#set prompt selection default
/system# show prompt
User-defined string: BelAir-128-50-46-189
prompt selection: default
BelAir20E User Guide IP Settings
October 11, 2011 Confidential Page 44 of 267
Document Number BDTM02201-A01 Standard
IP Settings
This chapter contains procedures for managing BelAir20E IP parameters as
follows:
•“Displaying IP Parameters” on page 44
•“Configuring IP Parameters” on page 45
—“Configuring Dynamic IP Addressing” on page 45
—“Renewing the IP Address” on page 46
—“Auto-IP” on page 46
—“Setting a Static IP Address and Subnet Mask” on page 47
—“Static IP Routes” on page 47
•“Configuring the Domain Name System Lookup Service” on page 48
•“Configuring IP Address Notification” on page 48
CAUTION! The BelAir20E uses internal IP addresses in the range of 192.168.1.x,
192.168.2.x and 192.168.3.x. As a result, do not configure the BelAir20E to use
any IP addresses within these ranges.
Displaying IP
Parameters
/protocol/ip/show config
The
/protocol/ip/show config
command displays a detailed view of the system’s
IP configuration.
Example
/protocol/ip# show config
Interfaces:
Address Configured/ Configured/ Accept
Current Current Alloc Fallback Fallback DHCP
Interface Address Netmask Type D Address Netmask Parameters
------------------------------------------------------------------------------------------------
System 10.9.9.20 255.255.255.0 Static 10.9.9.20 255.255.255.0 Disabled
AutoIP: Enabled
Routes:
Destination Netmask Gateway Interface Active
--------------- --------------- --------------- ------------------ ------
No static routes currently configured
DNS:
BelAir20E User Guide IP Settings
October 11, 2011 Confidential Page 45 of 267
Document Number BDTM02201-A01 Standard
Domain name lookup: disabled
Configured domain name:
Configured primary DNS server: 0.0.0.0
Configured secondary DNS server: 0.0.0.0
Configuring IP
Parameters
You can configure:
• dynamic IP addressing
• a static IP address and subnet mask, as well as static IP routes.
Configuring Dynamic IP
Addressing
/protocol/ip/set interface {system | vlan <1-2814>} dynamic
fallback-ip <address> <mask>
accept-dhcp-params {enabled|disabled}
[delay-activation]
/protocol/ip/del ip vlan <1-2814>
The
set interface
command specifies that a Dynamic Host Configuration
Protocol (DHCP) server provides IP addresses for the node. This includes IP
addresses for the node’s management interface as well as any VLANs it may
have. If you specify a new VLAN, then that VLAN is created. The
del ip vlan
command deletes VLAN IP parameters previously created with the
set
interface
command.
If the IP address is dynamically set, BelAir Networks recommends that you also
configure the
switch name
,
location
and
contact
parameters. These parameters
then allow you to identify the node if you later need to do a remote CLI
session. Refer to “System Identification Parameters” on page 50.
In addition to providing the IP address, the DHCP server can be used to supply
additional parameters including:
• a TFTP server and a script file name
• DNS server IP address and a domain name
• a SNTP server list and time offset
The
accept-dhcp-params
parameter controls whether the node accepts
additional parameters from the DHCP server or not. Refer to “DHCP
Options” on page 58 for details.
The
delay-activation
parameter specifies that the new IP parameters do not
take effect until after you execute a
config-save
command. BelAir Networks
recommends that you always specify
delay-activation
if you change the system
IP parameters. Otherwise you will need to start a new CLI session using the
new IP address to execute the
config-save
command to save your changes.
BelAir20E User Guide IP Settings
October 11, 2011 Confidential Page 46 of 267
Document Number BDTM02201-A01 Standard
Note 1: DHCP servers usually have the ability to assign a default route to
DHCP clients. Make sure that the DHCP server assigns only one
default route, even you are using many different IP interfaces on the
same BelAir platform (for example, a management IP interface and a
VLAN IP interface).
Note 2: You must configure the DHCP server lease time to be one minute or
longer.
Note 3: If the network contains nodes with static IP addressing and nodes with
dynamic IP addressing, make sure the DHCP server does not issue
addresses that been previously issued statically.
Example
/protocol/ip# set interface system dynamic fallback-ip 92.121.68.34
255.255.255.255 accept-dhcp-params disabled delay-activation
The previous command changes the system interface to:
• accept a dynamic IP address, and no other parameters, from a DHCP server
• if the DHCP server cannot be reached, use an IP address of 92.121.68.34
and an IP mask of 255.255.255.255
The changes do not take effect until you use the
config-save
command to save
your changes.
Renewing the IP
Address
/protocol/ip/renew ip {system | vlan <1-2814>}
This command is used when the node is configured to dynamically receive IP
addresses. See “Configuring Dynamic IP Addressing” on page 45.
Issuing this command causes the DHCP server to renew the IP address of the
node’s management interface or of the VLAN.
CAUTION! Using this command may cause the DHCP server to change the IP address of
the node’s management interface. If this happens you may need to reconnect to
the node using the new IP address.
Auto-IP /protocol/ip/set auto-IP {enabled | disabled}
This command lets you configure the auto-IP feature which complements the
fallback IP when you configure dynamic IP addressing. Auto-IP is useful when
multiple nodes have been configured with the same fallback IP.
BelAir20E User Guide IP Settings
October 11, 2011 Confidential Page 47 of 267
Document Number BDTM02201-A01 Standard
The auto-IP feature automatically configures the node to have a specific default
IP address based on the node’s MAC address if it cannot get an IP address from
the DHCP server or when it is in factory default mode.
When auto-IP is enabled, the default IP address is
169.254.1.x
with a mask of
255.255.0.0
; where
x
is the last byte of the node’s MAC address. When you can
connect a laptop directly to the unit, the laptop also auto-configures itself with
an IP address 169.254.x.x and a mask of 255.255.0.0 if it is in DHCP mode. You
can then use the laptop to start a CLI session into the unit with its 169.254.1.x
address.
The default setting is
enabled
.
Setting a Static IP
Address and Subnet
Mask
/protocol/ip/set interface {system | vlan <1-2814>}
static <ip addr> <mask>
[delay-activation]
/protocol/ip/del ip vlan <1-2814>
The
set interface
command specifies that the node uses static IP addressing for
the node’s management interface as well as any VLANs it may have. If you
specify a new VLAN, then that VLAN is created. The
del ip vlan
command
deletes VLAN IP parameters previously created with the
set interface
command.
The
delay-activation
parameter specifies that the new IP parameters do not
take effect until after you execute do a
config-save
command. BelAir Networks
recommends that you always specify
delay-activation
if you change the system
IP parameters. Otherwise you will need to start a new CLI session using the
new IP address to execute the
config-save
command to save your changes.
Example
/protocol/ip# set interface system static 92.121.68.34 255.255.255.255
delay-activation
The previous command changes the system interface to have a static IP address
of 92.121.68.34 and an IP mask of 255.255.255.255. The changes do not take
effect until you use the
config-save
command to save your changes.
Static IP Routes /protocol/ip/add route <dest ip addr> <dest mask> gw <gateway>
/protocol/ip/del route <dest ip addr> <dest mask> gw <gateway>
The
ip route add
command adds extra static IP routes. If your units needs to
communicate with an IP interface from another sub-network, you must add the
appropriate routes to the remote IP interface. Contact your administrator to
obtain the IP address and mask of the remote IP interface.
BelAir20E User Guide IP Settings
October 11, 2011 Confidential Page 48 of 267
Document Number BDTM02201-A01 Standard
The
ip route del
command deletes a static route.
Use the
gateway
parameter to specify the IP address of the network gateway.
Configuring the
Domain Name
System Lookup
Service
/protocol/ip/set dns server {primary | secondary} <ip_address>
/protocol/ip/del dns server {primary | secondary}
/protocol/ip/set dns domain name <customer.com>
/protocol/ip/del dns domain name
The BelAir20E provides a Domain Name System (DNS) lookup service by
providing a DNS client that resolves computer names to IP addresses. If the
local DNS server fails, a query to the public network is made.
The
set dns server
command specifies the IP address of a primary and
secondary DNS server. The
del dns server
command erases the current IP
address.
The
set dns domain name
command specifies the default domain name required
to perform Fully Qualified Domain Name requests. The
del dns domain name
command erases the current domain name.
The IP addresses of the DNS servers and the default domain name can also be
specified automatically through DHCP. See “DHCP Options” on page 58.
Configuring IP
Address
Notification
/protocol/ip/set ip-addr-notification {enabled | disabled}
When this setting is
enabled
, the node sends out its IP addresses as traps to the
configured trap destinations every 60 minutes. The notification interval is not
currently configurable. By default, this setting is
disabled
.
BelAir20E User Guide System Settings
October 11, 2011 Confidential Page 49 of 267
Document Number BDTM02201-A01 Standard
System Settings
This chapter contains procedures for managing BelAir20E parameters as
follows:
•“Country of Operation” on page 49
•“System Identification Parameters” on page 50
•“Custom Fields” on page 50
•“Configuring the System Date and Time” on page 51
•“GPS Coordinates” on page 53
•“LED Control” on page 53
•“Setting the Network Egress Point” on page 54
•“Limiting Broadcast Packets” on page 54
•“Displaying Unit Inventory Information” on page 55
•“Defining a Maintenance Window” on page 55
•“Displaying System Up Time” on page 55
•“Displaying the Running Configuration” on page 56
•“Restarting the Node” on page 56
•“Creating and Using Script Files” on page 56
•“Enabling or Disabling Session Logging” on page 56
Country of
Operation
/system/show country [detail]
/system/set country <country_code>
Note: These commands apply only to BelAir units purchased outside of the
United States of America and its territories. For units purchased in the
United States of America and its territories, the unit’s country code is
US
and cannot be changed.
These commands allow you to adjust the radios in your unit to conform to the
regulatory requirements for your country. This includes valid radio channel
ranges as well as transmit power levels and the use of Dynamic Frequency
Selection (DFS), a regulatory requirement in some jurisdictions.
BelAir20E User Guide System Settings
October 11, 2011 Confidential Page 50 of 267
Document Number BDTM02201-A01 Standard
The
show country
command displays the current country of operation.
Specifying the
detail
parameter also displays both the name and the ISO 3066
identity code for all supported countries.
The
set country
sets the country of operation for your unit. The
<country_code> parameter is the ISO 3066 identifier for the country as listed
by the
show country detail
. The default value is
US
.
CAUTION! Improper setting of a unit’s country setting may exceed regulatory
requirements and void the operator’s right to operate the radio equipment.
Contact BelAir Networks for details regarding country specific approvals.
Additional country settings are also available by contacting BelAir Networks.
System
Identification
Parameters
/system/set system-id ([switch <name>] [contact <firm>]
[location <place>])
/system/show system-id
These commands let you manage system identification parameters such as
switch name, switch contact information and physical switch location. The
<name> parameter is limited to 32 characters.
Example
The following example sets the switch name to
BA20E-A
, the contact
information to
BelAirNetworks
and its location to
PoleNumber1
.
/system# system-id switch BA20E-A contact BelAirNetworks
location PoleNumber1
Custom Fields /system/set custom ([field1 <random_str>][field2 <random_str>]
[field3 <random_str>][field4 <random_str>]
[field5 <random_str>])
/system/show custom fields
These commands let you manage the contents of up to five data fields that you
can use to store any information of your choosing. Each field can store up to
50 characters except for custom field 1 which is limited to 32 characters.
Custom field data is saved with the node’s configuration data.
Example
/system# show custom fields
Custom Field 1: Mesh main node
Custom Field 2: Used for experiments
Custom Field 3: Zone 3 master
Custom Field 4: Services customer xyz
Custom Field 5: First in service
BelAir20E User Guide System Settings
October 11, 2011 Confidential Page 51 of 267
Document Number BDTM02201-A01 Standard
Configuring the
System Date and
Time
The system date and time can be configured:
• manually
•using a Simple Network Time Protocol (SNTP) server
In both cases, you can use an offset to convert the displayed Coordinated
Universal Time (UTC) to local time.
The IP addresses of the SNTP servers and the time offset can also be specified
automatically through DHCP. See “DHCP Options” on page 58.
Manual Date and Time
Configuration
/system/set date <YYYY-MM-DD> [time <hh:mm:ss>]
/system/set time <hh:mm:ss>
/system/set time offset <hour_offset:minute_offset>
/system/show date
/system/show timeoffset
The
set date
and
set time
commands set the current date and time. The value
must be formatted as follows:
• YYYY is the year
• MM is the month
• DD is the date
• hh specifies the hour
• mm specifies the minutes
• ss specifies the seconds
You must enter the exact date and time format as specified; that is, four digits
for the year and two digits for the month, day, hour, minutes and seconds.
The
set time offset
command configures an offset that is used to convert the
displayed UTC time to local time. The
hour_offset
portion of the parameter
ranges from -12 to +13. The
minute_offset
portion of the parameter ranges
from 0 to 59.
Example 1
/system# set date 2004-02-10 time 06:50:00
Example 2
/system# set time 08:45:00
Example 3
/system# set time offset -4 30
BelAir20E User Guide System Settings
October 11, 2011 Confidential Page 52 of 267
Document Number BDTM02201-A01 Standard
Example 4
/system# show date
Current date: 2011-08-11 23:04:46 (UTC)
Current date: 2011-08-11 17:04:46
Managing an SNTP
Server
/protocol/sntp/set ip-address {primary|secondary}
{<host> | disabled}
/protocol/sntp/set timeoffset <hour_offset:minute_offset>
/protocol/sntp/set status {enabled | disabled}
/protocol/sntp/show {config | status}
The BelAir20E supports the Simple Network Time Protocol (SNTP) by
providing an SNTP client that can synchronize the unit date and time with any
SNTP compatible external time server.
The
set ip-address
command lets you identify a primary and secondary SNTP
server by specifying its host name or IP address, or disable this functionality. If
the SNTP client cannot synchronize the unit date and time with the primary
SNTP server, it attempts to synchronize with the secondary unit.
The
set timeoffset
command configures an offset that is used to convert the
displayed UTC time to local time. The
hour_offset
portion of the parameter
ranges from -12 to +13. The
minute_offset
portion of the parameter ranges
from 0 to 59.
The
set status {enable|disable}
command enables or disables the SNTP client.
To use this service, you must configure the IP address of at least one SNTP
server either manually or through DHCP. When the SNTP client is enabled, the
BelAir20E’s clock is reset to use UTC.
The
show status
and the
show config
commands display whether the SNTP
process is running or not and the effective (actual) information used by the
SNTP client as well as the information stored by the BelAir20E. Differences
may be caused by the setting of the
accept-dhcp-params
parameter. See “DHCP
Options” on page 58.
Example 1
/protocol/sntp# set ip-address primary 10.1.1.2
Example 2
/protocol/sntp# set timeoffset -4 30
Example 3
/protocol/sntp# show status
SNTP process is running
BelAir20E User Guide System Settings
October 11, 2011 Confidential Page 53 of 267
Document Number BDTM02201-A01 Standard
Effective SNTP Timeoffset:
===========================
SNTP Timeoffset origin: SNTP schema
SNTP Time Offset: 6:00
Effective SNTP server:
======================
SNTP Servers origin: SNTP schema
Active Server: Primary - 0.pool.ntp.org
SNTP server Primary : 0.pool.ntp.org
SNTP server Secondary : 1.pool.ntp.org
DHCP timeserver Primary : 0.0.0.0
DHCP timeserver Secondary: 0.0.0.0
GPS Coordinates /system/set coordinates [latitude <-90,+90> ] [longitude <-180,+180>]
/system/show coordinates
These commands allow you to specify the exact geographic location of a BelAir
unit. You can then use the Global Positioning System (GPS) coordinates to
locate a unit in the field.
The
show coordinates
command displays the unit’s coordinates.
Example
/system# set coordinates latitude 76 longitude -120
/system# show coordinates
latitude: ............... 76.000000
longitude: .............. -120.000000
LED Control You can use the following commands to control the LED behavior of the
BelAir20E:
•“Find Me Function” on page 53
•“LED Enable or Disable” on page 53
Find Me Function /system/find-me {start|stop}
This command helps you determine the physical location of a unit.
When you start the
find me
function, the unit’s power LED starts a green and
red flashing cycle.
LED Enable or Disable /system/show visual-indicators-status
/system/set visual-indicators {off | enable}
This command lets you turn enable or disable the LEDs of a unit.
BelAir20E User Guide System Settings
October 11, 2011 Confidential Page 54 of 267
Document Number BDTM02201-A01 Standard
Setting the
Network Egress
Point
/system/show system-egress-point
/system/set system-egress-point {yes {direct|indirect gateway-ip <ip_addr>}|no}
In a BelAir network, a node can act as an egress point to an outside network,
usually the Internet, for the backhaul traffic of many other nodes. The other
nodes may be connected to the egress node through point-to-point,
point-to-multipoint or multipoint-to-multipoint links.
This command lets you specify whether or not the current unit has such an
egress point, and the type of connection.
•Use
direct
when the node is connected directly to the outside network
through its Ethernet port or a DSL modem.
•Use
indirect
when the node is connected to the outside network through a
Wi-Fi link, WiMAX link, or third-party device. In such cases, you must
supply the IP address of the device that is connected to the outside
network.
The default setting is
yes direct
.
Limiting
Broadcast Packets
/system/show broadcast-filter config
/system/set broadcast-filter rate <filter_rate>
/system/set broadcast-filter status {enable|disable}
In a BelAir network, each node limits the rate at which broadcast packets are
sent. The
show broadcast-filter
command displays the current broadcast rate.
The
set broadcast-filter rate
command lets you set the maximum rate at which
broadcast packets are sent in packets/second. The <filter_rate> parameter
ranges from 100 to 1000. The default setting is 200.
Use the
set broadcast-filter status
command to disable broadcast packet
filtering.
See also:
•“Filtering Broadcast and Multicast Packets” on page 96
•“Broadcast to Unicast Packet Conversion” on page 96
Example
/system# show broadcast-filter config
Broadcast Filter Configuration
---------------------------------------------
Broadcast Filter Rate :200
BelAir20E User Guide System Settings
October 11, 2011 Confidential Page 55 of 267
Document Number BDTM02201-A01 Standard
Displaying Unit
Inventory
Information
/system/show phyinv
This command displays the manufacturing parameters (name, serial number and
part version numbers) of the equipment parts contained in a unit.
Example - BelAir20E
/system# show phyinv
System Name: BA20E-11
Type Class Serial number Assembly code BA order code
BelAir20 indoor K000000001 BA20E
Physical Inventory Table
Slot Card type Version Serial number Assembly code
1 HTME 1.1.1 K000000001 B2XH131AA-A A01
Physical Interface Table
Name Type Slot Card type Description
wifi-1-1 Wifi 802.11 1 HTME HTMEv1 5GHz 802.11n
wifi-1-2 Wifi 802.11 1 HTME HTMEv1 2.4GHz 802.11n
eth-1-1 Ethernet 1 HTME 1000BASE-T
lan-1 Ethernet 1 HTME 1000BASE-T
lan-2 Ethernet 1 HTME 1000BASE-T
lan-3 Ethernet 1 HTME 1000BASE-T
lan-4 Ethernet 1 HTME 1000BASE-T
Defining a
Maintenance
Window
/system/set maintenance-window {{enabled {hh:mm hh:mm} | disabled }}
/system/show maintenance-window
Use these commands to define and enable a maintenance window where
generated alarms do not count against the alarm threshold. For details, see
“Setting the Tunnel Down Alarm Threshold” on page 175.
By default, the maintenance window is enabled and runs from midnight (00:00)
to 7 am (07:00).
Specified window start and end times are rounded down to the nearest
15-minute increment.
Example
/system# set maintenance-window enabled 00:14 03:20
The previous command sets the maintenance window to run from midnight
(00:00) to 3:15 am.
Displaying System
Up Time
/system/show sysuptime
This command displays the time the system has been operating.
BelAir20E User Guide System Settings
October 11, 2011 Confidential Page 56 of 267
Document Number BDTM02201-A01 Standard
Example
/system# show sysuptime
System Up Time: 234 days, 16:45:32.34
Displaying the
Running
Configuration
/system/show running-configuration
This command displays the configuration that the node is currently operating
with. It executes a series of
show
commands with results displayed on the CLI
screen. Use the scroll bar of the Telnet or SSH window to see any particular
section of the output.
Restarting the
Node
/system/reboot [{force}]
/system/show restart-reason
The
reboot
command restarts the entire node. You must confirm your intent
before the node is rebooted.
Under some circumstances, a reboot may be prevented because of processing
from other user sessions. Use the
force
parameter to override these
restrictions and restart the node regardless.
The
show restart-reason
command displays the reason for the last restart.
See also “Restarting a Card” on page 70.
Example
/system# show restart-reason
Previous reboot was a cold restart initiated by user.
Creating and
Using Script Files
You can use script files to:
• make repetitive tasks quicker and easier to do
• automate the configuration of a node when it starts up. See “BelAir20E
Auto-configuration” on page 58.
To help create your scripts, follow the guidelines in “Scripting Guidelines” on
page 234.
Enabling or
Disabling Session
Logging
/system/set session-logging {enable | disable}
When session logging is enabled, all commands entered during a CLI session
are recorded in a command log file. However, if you run repetitive scripts, you
may want to disable logging to avoid filling the file with the same sets of
commands.
BelAir20E User Guide System Settings
October 11, 2011 Confidential Page 57 of 267
Document Number BDTM02201-A01 Standard
This command allow you to enable or disable session logging. The default
setting is
enable
. Use the
/system/show sessions
command to see the current
setting.
Use the
/syslog/export logs
command to access the command log file. Refer to
the BelAir20E Troubleshooting Guide for a detailed description.
BelAir20E User Guide BelAir20E Auto-configuration
October 11, 2011 Confidential Page 58 of 267
Document Number BDTM02201-A01 Standard
BelAir20E Auto-configuration
With auto-configuration, the BelAir20E can automatically obtain a script file
after it powers up. The unit then configures itself based on the content of the
file. Auto-configuration minimizes the amount of manual intervention required
to pre-configure the unit before you install it. To create a valid script file, refer
to the guidelines listed in “Creating and Using Script Files” on page 56.
The following sections describe the different ways you can automatically supply
a script file to the BelAir20E:
•“DHCP Options” on page 58
•“DNS” on page 61
•“Configuration Download Profile” on page 62
All methods are independent, but can be used in conjunction with each other.
For example, you can use DHCP options to download a script file that
configures the configuration download profile. You then use the configuration
download profile to download a second script file for the rest of the BelAir20E.
DHCP Options With this method, the BelAir20E uses the exchange of DHCP packets with a
DHCP server as a means of exchanging information during startup. The
BelAir20E uses DHCP Options 12, 60, 55 and 43 to retrieve extra information
during startup and to supply the DHCP server with information about itself.
The BelAir20E provides the system identifier host name through DHCP
Option 12 and the vendor class identifier
BelAir Networks
through DHCP
Option 60.
Through DHCP Option 55, the DHCP server provides the BelAir20E with the
following parameters in addition to basic IP parameters (address, subnet mask
and default route) described in “Configuring Dynamic IP Addressing” on
page 45:
• TFTP server IP address and script file name. These parameters cause a TFTP
session to be created and the script file to be downloaded and executed
during startup.
• DNS domain name. Only one domain name is valid at any one time per
BelAir20E and not per interface. See “Configuring the Domain Name
System Lookup Service” on page 48.
BelAir20E User Guide BelAir20E Auto-configuration
October 11, 2011 Confidential Page 59 of 267
Document Number BDTM02201-A01 Standard
• DNS server IP addresses. Up to two DNS servers are supported. See
“Configuring the Domain Name System Lookup Service” on page 48.
• IP address for a time server. Two time servers are supported for use by the
SNTP service. See “Managing an SNTP Server” on page 52.
• time offset value used by the SNTP service. See “Managing an SNTP Server”
on page 52.
Through DHCP Option 43, the BelAir20E provides the DHCP server with the
following parameters about the itself:
• assembly code, as shown with the
/system/show phyinv
command
• serial number, as shown with the
/system/show phyinv
command
•MAC address
• version of the active software load, as shown with the
/system/show loads
command
• GPS coordinates, as shown with the
/system/show coordinates
command
• switch name, as shown with the
/system/show system-id
command
• custom field 1, as shown with the
/system/show custom fields
command
You can use the information from DHCP Option 55 to configure the BelAir20E
management interface or one of its VLAN interfaces.
After the BelAir20E receives these parameters, it configures the interface in
question. At startup, it downloads the script file from the TFTP server and
executes it.
DHCP options can only be enabled for one interface. For example, if you
enable DHCP options for the management interface, you are prevented from
enabling them for a VLAN interface until you first disable them for the
management interface.
By default, the BelAir20E accepts all parameters provided by the DHCP server.
However, you can configure the BelAir20E to accept or reject any individual
parameter. By accepting only specific parameters, you can control how much of
the BelAir20E is auto-configured. For example, if you do not want to use a
script file from the TFTP server, you can set the
accept-tftp-download
parameter to
disabled
. See “Accepting Specific DHCP Parameters” on page 60.
BelAir20E User Guide BelAir20E Auto-configuration
October 11, 2011 Confidential Page 60 of 267
Document Number BDTM02201-A01 Standard
Data provided by the DHCP server overrides any data configured locally.
During operation, if the DHCP server provides updated data, the BelAir20E
continues operation with the updated data.
Pre-requisites To use DHCP options, your DCHP server must be configured to supply the
information requested by the BelAir platform. In particular, make sure of the
following:
• Your DHCP server supplies a list of SNTP servers instead of NTP servers
and that they are listed in order of preference.
• Your DHCP server assigns only one default route, even you are using many
different IP interfaces on the same BelAir platform (for example, a
management IP interface and a VLAN IP interface).
Configuring and Using
DHCP Options To use DHCP options, you must:
1 Set the default IP address assignment of an interface to
dynamic
and set the
accept-dhcp-params
parameter to
enabled
. See “Configuring Dynamic IP
Addressing” on page 45.
2 Specify which specific parameters to accept from DHCP server. See
“Accepting Specific DHCP Parameters” on page 60.
The BelAir20E then contacts the DHCP server to request the parameters.
Accepting Specific
DHCP Parameters
/protocol/ip/set dhcp-accept ([dns-domain {enabled|disabled}]
[dns-server {enabled|disabled}]
[tftp-download {enabled|disabled}]
[time-server {enabled|disabled}]
[time-offset {enabled|disabled}])
These commands control whether the individual parameters supplied by the
DHCP server are accepted or not by the BelAir20E. To use this command you
must first set the default IP address assignment for the interface to
dynamic
and
set the
accept-dhcp-params
parameter to
enabled
. See “Configuring Dynamic
IP Addressing” on page 45.
By default, the node accepts all parameters from the DHCP server; that is, each
of these parameters is set to
enabled
.
The
dns-domain
parameter controls the domain name option used to perform
DNS requests. Only one domain name is valid at any one time per BelAir20E.
See “Configuring the Domain Name System Lookup Service” on page 48.
BelAir20E User Guide BelAir20E Auto-configuration
October 11, 2011 Confidential Page 61 of 267
Document Number BDTM02201-A01 Standard
The
dns-server
parameter controls DNS server IP addresses. Up to two DNS
servers are supported. See “Configuring the Domain Name System Lookup
Service” on page 48.
The
tftp-download
parameter controls two DHCP options: TFTP server IP
address and script file. Enabling this option causes a TFTP session to be created
and the script file to be downloaded and executed during startup.
The
time-server
parameter controls the IP address for a time server. Two time
servers are supported. This information is used by the SNTP service. See
“Managing an SNTP Server” on page 52.
The
time-offset
parameter controls the time offset value that is used by the
SNTP service. See “Managing an SNTP Server” on page 52.
The TFTP server IP address and the script file are downloaded and executed
only during a startup. If the script on the server changes, it is not sent to the
node until the next time the node reboots or starts up.
If DNS and SNTP data on the DHCP server changes, then it is sent to the node
whenever the node renews DHCP information. The new DNS and SNTP data
then takes effect immediately.
In all cases, DNS and SNTP data provided by the DHCP server overrides any
data configured locally.
DNS With this method, the BelAir20E uses DNS to connect to an FTP server
containing a script file to be executed during startup.
When the BelAir20E starts up with factory default settings, it looks for a DHCP
server to assign its IP address.
If the DHCP server provides a TFTP server IP address and script file name,
then the BelAir20E performs auto-configuration based on these values. See
“DHCP Options” on page 58.
If DHCP server does not provide a TFTP server IP address and script file name,
then the BelAir20E obtains the script file based on DNS information from the
DHCP server as follows:
1 The BelAir20E uses DHCP to obtain the DNS server IP address and domain
name from the DHCP server.
2 The BelAir20E attempts to open a session to an FTP host called
bnconfigserv
using local DNS settings. The host name
bnconfigserv
is
hard-coded in the BelAir20E and cannot be changed. If unsuccessful, it opens
BelAir20E User Guide BelAir20E Auto-configuration
October 11, 2011 Confidential Page 62 of 267
Document Number BDTM02201-A01 Standard
an FTP session to
bnconfigserv.<domain_name>
(for example,
bnconfigserv.belairnetworks.com
). In either case:
—The FTP username used by the BelAir20E is
bn_%02x_%02x_%02x_%02x_%02x_%02x
. For example, if the MAC
address of the BelAir20E is
00:0d:67:0c:21:76
, then the username on the
FTP server is
bn_00_0d_67_0c_21_76
. The username must be in lower
case and must exist in the FTP server.
—The FTP password used is the md5sum of the username. To obtain this,
do
echo <username> | md5sum
. Omit the spaces and dash at the end of
the md5sum output.
3 In the FTP home directory for the user, the BelAir20E looks for a script file
named
bn_config.cfg
.
Configuration
Download Profile
With the configuration download profile you specify:
• the filename of the script file
• the server from which to get the script file
• a user-name and password
You can specify the server by either its IP address or its name. If both are
specified, the IP address has precedence. The default name is
belairconfig.com
.
The script file is downloaded and executed only during a startup. If the script on
the server changes, it is not sent to the node until the next time the node
reboots or starts up.
Pre-requisites To use a configuration download profile, your server must be configured with
the appropriate user accounts and passwords. The account must contain a valid
script file.
Also, if you identify the server with a name, you need a DNS server to resolve
names to IP addresses.
Using a Configuration
Download Profile
/system/set config-download [server <name_or_ip_addr>]
[auto-conf-protocol {ftps|ftp|tftp]
[filename <filename>]
[user <user_name>]
[password <pword>]
{enabled|disabled}
/system/show config-download status
These commands provision the configuration download profile.
BelAir20E User Guide BelAir20E Auto-configuration
October 11, 2011 Confidential Page 63 of 267
Document Number BDTM02201-A01 Standard
The server may be identified by supplying either its IP address or providing its
name. The default server name is
belairconfig.com
. The default protocol is
FTPS. The default user name and password is
anonymous
. The default filename
is
auto-config.txt
. By default, the configuration download file is disabled.
Example
/system#show config-download status
config-download adminStatus: enabled
config-download server: 0.0.0.0
config-download servername: belairconfig.com
config-download user-name: auto-config.txt
config-download password: anonymous
config-download filename: auto-config.txt
config-download protocol: ftp
BelAir20E User Guide Ethernet or LAN Interface Settings
October 11, 2011 Confidential Page 64 of 267
Document Number BDTM02201-A01 Standard
Ethernet or LAN Interface Settings
This chapter describes how to configure the Ethernet or LAN interfaces
provided by your unit’s HTME card. The following topics are covered:
•“Managing the Ethernet or LAN Interface Settings” on page 64
•“Managing Egress Node Traffic” on page 64
To display statistics, see the
BelAir20E Troubleshooting Guide
.
Managing the
Ethernet or LAN
Interface Settings
/interface/eth-<n>-<m>/set ethernet {auto|{speed {10|100}
{mode {full-duplex|half-duplex}}}}
/interface/eth-<n>-<m>/show status
/interface/lan-<n>/set ethernet {auto|{speed {10|100}
{mode {full-duplex|half-duplex}}}}
/interface/lan-<n>/show status
The
set ethernet
command controls the operational settings of the Ethernet
interface. The
auto
setting causes the interface to automatically discover the
correct settings to communicate with the other Ethernet device. If you do not
use the
auto
setting, you can manually set the interface speed to either 10 or
100 Mbps and the mode to either full or half-duplex.
The
show status
command displays the current operational Ethernet interface
settings. The current operational settings are a result of the negotiation that
occurs with another Ethernet device and may be different than that configured
locally.
Example
/interface/eth-1-1# show status
Type : 1x1000baseTx [Electrical: Single]
Admin Status : Enabled
Link State : Up
Speed : 100 Mbps
Mode : Full Duplex
Auto-Negotiation : Enabled
Mac Address : 00:0D:67:0C:23:38
Managing Egress
Node Traffic
In a BelAir network, the Ethernet or LAN port of a node can act as an egress
point for the backhaul traffic of many other nodes. The other nodes may be
connected to the egress node through point-to-point, point-to-multipoint or
multipoint-to-multipoint links.
BelAir20E User Guide Ethernet or LAN Interface Settings
October 11, 2011 Confidential Page 65 of 267
Document Number BDTM02201-A01 Standard
VLAN Conversion /interface/eth-<n>-<m>/show pvid
/interface/eth-<n>-<m>/set pvid {<vlan_id>|untagged}
/interface/eth-<n>-<m>/set reverse-pvid {<vlan_id>|untagged}
/interface/lan-<n>/show pvid
/interface/lan-<n>/set pvid {<vlan_id>|untagged}
/interface/lan-<n>/set reverse-pvid {<vlan_id>|untagged}
These commands let you convert the VLAN tagging of traffic entering or leaving
the Ethernet or LAN port of an egress node:
• The
set pvid
command applies when traffic between BelAir nodes uses
VLAN IDs and these VLAN IDs must be removed before the traffic leaves
the node through the Ethernet or LAN port to the external network. If you
use the
set pvid
command and specify a VLAN ID, untagged VLAN packets
coming from external network through the Ethernet or LAN port are
converted to tagged packets with the specified VLAN ID before they are
sent to the BelAir nodes. Similarly, packets that are tagged with the specified
VLAN ID are sent to the external network through Ethernet or LAN port
as untagged VLAN packets.
• The
set reverse-pvid
command applies when traffic between BelAir nodes is
untagged and must be tagged with a VLAN ID before it leaves the node
through the Ethernet or LAN port to the external network. If you use the
set reverse-pvid
command and specify a VLAN ID, untagged VLAN packets
coming from BelAir Nodes are converted to tagged packets with the
specified VLAN ID before they are sent through the Ethernet or LAN port
to the external network. Similarly, packets that are tagged with the specified
VLAN ID arriving from the external network through the Ethernet or LAN
port are converted to untagged packets before being sent to the BelAir
nodes.
If you specify the keyword
untagged
instead of VLAN ID, then packets are not
converted as they enter or leave the Ethernet or LAN port of the egress node.
The default setting is
untagged
.
VLAN Filtering /interface/eth-<n>-<m>/show vlans
/interface/eth-<n>-<m>/add vlan {<vlan_id>|untagged}
/interface/eth-<n>-<m>/delete vlan {<vlan_id>|untagged}
/interface/lan-<n>/show vlans
/interface/lan-<n>/add vlan {<vlan_id>|untagged}
/interface/lan-<n>/delete vlan {<vlan_id>|untagged}
You can create a list containing up to four VLAN IDs to control which traffic
enters or leaves the Ethernet or LAN port of an egress node. Only packets that
are tagged with a VLAN ID in the list are allowed to enter or leave the Ethernet
or LAN port of the egress node.
BelAir20E User Guide Ethernet or LAN Interface Settings
October 11, 2011 Confidential Page 66 of 267
Document Number BDTM02201-A01 Standard
These commands let you manage list of VLAN IDs. By default, the list is empty
meaning that all traffic is allowed to enter or leave the Ethernet or LAN port of
the egress node. If you add a VLAN ID to the list, then only traffic belonging to
that VLAN can enter or leave the Ethernet or LAN port of the egress node. If
you add the keyword
untagged
to the list, then only untagged traffic can enter
or leave the Ethernet or LAN port of the egress node.
BelAir20E User Guide Card Settings
October 11, 2011 Confidential Page 67 of 267
Document Number BDTM02201-A01 Standard
Card Settings
This chapter contains the following topics that describe card operations:
•“Determining which Cards are in a Node” on page 67
•“Displaying Card Information” on page 68
•“Card Administrative State” on page 70
•“Restarting a Card” on page 70
Table 6 lists the location of documentation for physical interface parameters.
Determining
which Cards are
in a Node
/mode
/card/mode
Use the
mode
command to determine <card_type> and <n>.
Table 6: Physical Interface Parameter Settings
Physical Interface
Type Refer to...
Wi-Fi • “Wi-Fi Radio Configuration Overview” on page 71
•“Configuring Wi-Fi Radio Parameters” on page 72
•“Configuring Wi-Fi Access Point Parameters” on
page 80
•“Wi-Fi AP Security” on page 100
•“Wi-Fi Backhaul Link Configuration” on page 115
•“Mobile Backhaul Mesh” on page 123
•“Mobile Backhaul Point-to-point Links” on
page 127
Ethernet
(1000Base-TX)
•“Ethernet or LAN Interface Settings” on page 64
BelAir20E User Guide Card Settings
October 11, 2011 Confidential Page 68 of 267
Document Number BDTM02201-A01 Standard
Example 1
/# mode
/card
/htme-1
/interface
/wifi-1-1 (HTMEv1 5GHz 802.11n)
/wifi-1-2 (HTMEv1 2.4GHz 802.11n)
/eth-1-1 (1000BASE-T)
/lan-1 (1000BASE-T)
/lan-2 (1000BASE-T)
/lan-3 (1000BASE-T)
/lan-4 (1000BASE-T)
/mgmt
/protocol
/ip
/radius
/rstp
/snmp
/sntp
/te-syst (tunnel)
/qos
/services
/auto-conn
/mobility
/ssh
/ssl
/syslog
/system
/diagnostics
Example 2
/card# mode
/htme-1
Displaying Card
Information
The following sections describe commands that display card parameters.
Displaying the Card
Physical Data
/card/<card_type>-<n>/show info
This command displays various physical aspects of the card.
Example
/card/htme-1# show info
Slot Type Version Serial Number Assembly Code
==== ==== ======= =============== ===============
1 htme 1 844000010 B2CH103AA-A A01
Displaying the Card
Physical Interfaces
/card/<card_type>-<n>/show interfaces
This command displays the physical interfaces that the card provides.
BelAir20E User Guide Card Settings
October 11, 2011 Confidential Page 69 of 267
Document Number BDTM02201-A01 Standard
Example
/card/htme-1# show interfaces
htme: has the following interfaces:
wifi-1-1
wifi-1-2
eth-1-1
lan-1
lan-2
lan-3
lan-4
Displaying the Card
CPU and Memory
Usage
/card/<card_type>-<n>/show cpuocc
/card/<card_type>-<n>/show meminfo
The
show cpuocc
command displays the card’s CPU idle rate. The sh
ow
meminfo
displays card memory usage data.
Examples
/card/htme-1# show cpuocc
CPU-idle: 97.0
In the previous example, the card CPU is 97% idle and 3% occupied
/card/htme-1# show meminfo
MemTotal: 125068 kB
MemFree: 54996 kB
Buffers: 0 kB
Cached: 31424 kB
SwapCached: 0 kB
Active: 19808 kB
Inactive: 20784 kB
Active(anon): 11856 kB
Inactive(anon): 0 kB
Active(file): 7952 kB
Inactive(file): 20784 kB
Unevictable: 0 kB
Mlocked: 0 kB
HighTotal: 0 kB
HighFree: 0 kB
LowTotal: 125068 kB
LowFree: 54996 kB
SwapTotal: 0 kB
SwapFree: 0 kB
Dirty: 0 kB
Writeback: 0 kB
AnonPages: 9196 kB
Mapped: 9876 kB
Shmem: 2688 kB
Note: The type and amount of card memory usage data may vary depending
on the card‘s software version.
BelAir20E User Guide Card Settings
October 11, 2011 Confidential Page 70 of 267
Document Number BDTM02201-A01 Standard
Card
Administrative
State
/card/<card_type>-<n>/show state
/card/<card_type>-<n>/set state {enabled | disabled}
These commands manage the card’s administrative state.
Example
/card/htme-1# show state
Admin:Up Status:running
Restarting a Card /card/<card_type>-<n>/reboot [{force}]
This command restarts a specific card. You must confirm your intent before the
card is rebooted.
Under some circumstances, a reboot may be prevented because of processing
from other user sessions. Use the
force
parameter to override these
restrictions and restart the card regardless.
BelAir20E User Guide Wi-Fi Radio Configuration Overview
October 11, 2011 Confidential Page 71 of 267
Document Number BDTM02201-A01 Standard
Wi-Fi Radio Configuration Overview
Available Wi-Fi
Radios
Table 7 on page 71 lists the available BelAir Wi-Fi radios.
Configuration
Process
Use the following process to configure a Wi-Fi radio:
1 Configure basic radio parameters. See “Configuring Wi-Fi Radio
Parameters” on page 72.
2 Configure AP parameters, if required. See “Configuring Wi-Fi Access Point
Parameters” on page 80 and “Wi-Fi AP Security” on page 100.
3 Configure backhaul parameters. See “Wi-Fi Backhaul Link Configuration” on
page 115.
4 Configure mobile backhaul mesh parameters. See “Mobile Backhaul Mesh”
on page 123
Table 7: BelAir Wi-Fi Radio Summary
Radio
Module
Operating
Frequency Platform
Can
Operate
as Access
Point?
Supported
Backhaul
To p o l o g i e s
HTMEv1 2.4/5.8 GHz BelAir20E Yes mp-to-mp
p-to-mp
p-to-p
BelAir20E User Guide Configuring Wi-Fi Radio Parameters
October 11, 2011 Confidential Page 72 of 267
Document Number BDTM02201-A01 Standard
Configuring Wi-Fi Radio Parameters
This chapter describes how to display and configure Wi-Fi radio parameters,
including:
•“Displaying Wi-Fi Radio Configuration” on page 73
•“Displaying Configuration Options” on page 74
•“Operating Channel” on page 74
•“Antenna Gain” on page 76
•“Trans m i t Powe r Level” on page 76
•“Link Distance” on page 77
•“Dynamic Frequency Selection” on page 77
•“Collision Aware Rate Adaptation” on page 78
•“Rate Aware Fairness” on page 78
•“802.11n Aggregation” on page 78
•“Minimum Receive Threshold” on page 78
•“Changing Wi-Fi Interface Admin State” on page 79
To configure parameters that are specific to Wi-Fi Access Points (APs), see
“Configuring Wi-Fi Access Point Parameters” on page 80.
To configure parameters that are specific to backhaul radios, including the
different types of backhaul links, see “Wi-Fi Backhaul Link Configuration” on
page 115.
See also:
•“Configuring Wi-Fi Access Point Parameters” on page 80
•“Wi-Fi AP Security” on page 100
•“Wi-Fi Backhaul Link Configuration” on page 115
•“Mobile Backhaul Mesh” on page 123
BelAir20E User Guide Configuring Wi-Fi Radio Parameters
October 11, 2011 Confidential Page 73 of 267
Document Number BDTM02201-A01 Standard
Displaying Wi-Fi
Radio
Configuration
/interface/wifi-<n>-<m>/show config
[{all|access|backhaul|qos|mobile}]
This command displays various aspects of the radio’s configuration.
Example - Typical BelAir20E
/interface/wifi-1-1# show config all
Slot: 1, Card Type: htme, revision: 1, Port: 1, Radio: HTMEv1 5GHz
802.11n
admin state: ................. Enabled
channel: ..................... 149
mode: ...................... ht40plus
mimo: ...................... 3x3
tx power: .................. 18.0 (dBm per-chain), 23.0 (dBm total)
antenna location: ............ External Port
antenna index: ............... 1
antenna gain: ................ 5.0 (dBi)
link distance: ............... 1 (km)
base radio MAC : ............. 00:0d:67:0c:21:90
Access:
AP admin state: ............ Enabled
secure addresses (vlan): ... none
client blacklist: .......... none
dhcp unicast: .............. Disabled
deauth dos defense: ........ Disabled
client auth trap: .......... Disabled
Misc:
rts-cts threshold: ......... 100
broadcast filter status: ... Disabled
broadcast filter rate: ..... 200
QOS:
wmm: ....................... Enabled
uapsd: ..................... Enabled
mapping: ................... UP/DSCP
voice acm: ................. Disabled
video acm: ................. Disabled
Common Backhaul:
privacy: ................... AES
key: .......................
mesh-min-rssi............... -100 (dbm)
Stationary Backhaul:
link admin state: .......... Disabled
link id: ................... BelAirNetworks
topology: .................. mesh
Mobile Backhaul:
mobile admin state: ........ Disabled
mobile link id: ............
mobile link role: .......... ss
Blacklist:
No blacklist entries
Link Failure Detection: ...... Disabled
Backhaul T1 Bandwidth limit:.. Disabled
BelAir20E User Guide Configuring Wi-Fi Radio Parameters
October 11, 2011 Confidential Page 74 of 267
Document Number BDTM02201-A01 Standard
Displaying
Configuration
Options
/interface/wifi-<n>-<m>/show available-config-options
This command displays valid channel, antenna gains and transmit power values
for your unit. The displayed values vary depending on the country of operation.
Example - Typical BelAir20E
/interface/wifi-1-1# show available-config-options
Channels:
--------------------------------------------------------------------
[Mode=ht20]
36 37 38 39 40 41 42 43 44 45
46 47 48
[Mode=ht40+]
36 37 38 39 40 41 42 43 44
[Mode=ht40-]
40 41 42 43 44 45 46 47 48
[Mode=ht20]
149 150 151 152 153 154 155 156 157 158
159 160 161 162 163 164 165
[Mode=ht40+]
149 150 151 152 153 154 155 156 157
[Mode=ht40-]
153 154 155 156 157 158 159 160 161
External antenna gain list:
--------------------------------------------------------------------
0.00 5.00 9.00
Tx power values for channel [149] and antenna gain [5]:
--------------------------------------------------------------------
18 17 16 15 14 13 12 11 10 9
Operating
Channel
/interface/wifi-<n>-<m>/set channel {<channel-number>
[secondary <channel-number>]
[channel-bandwidth {5000|2500]
[channel-mode ht20|ht40plus|ht40minus|20] |
auto [background-scan {enabled | disabled}]}
/interface/wifi-<n>-<m>/re-scan-channel
Note: The specific syntax and options for the
set channel
command varies
depending on the type of radio being configured. Use the
/interface/
wifi-<n>-<m>/?
command to display the options and syntax that apply
to you.
The
set channel
command lets you specify the channel settings for a Wi-Fi
radio. Use the
show available-config-options
command to display valid channel
numbers. The displayed values vary depending on the country of operation.
Refer to your RF plan and site survey to determine which value you should use.
CAUTION! Improper setting of channel, antenna gain and transmit power may exceed
regulatory requirements and void the operator’s right to operate the radio
equipment. Refer to the
BelAir Radio Transmit Power Tables
to determine valid
combinations of channel, antenna gain and transmit power for your country.
BelAir20E User Guide Configuring Wi-Fi Radio Parameters
October 11, 2011 Confidential Page 75 of 267
Document Number BDTM02201-A01 Standard
If the unit is a member of a multipoint-to-multipoint mesh cluster, the channel
must be set to match the one used by the multipoint-to-multipoint mesh
cluster.
If a unit is equipped with many radios for backhaul, their channels must be
separated by at least 35 MHz (that is, seven channel numbers) to avoid radio
interference resulting in poor data communication quality. For example, channel
numbers 53 and 61 can be used together, but not 53 and 59.
The
secondary
parameter applies to any radio supplying Dynamic Frequency
Selection (DFS), a regulatory requirement in some jurisdictions. The
secondary
parameter sets an optional secondary channel for use with DFS. The default
value is 0, instructing DFS to operate as if the secondary channel is the same as
the primary channel. If you change the channel number from the default value
and if you do not specify a secondary channel, then your secondary channel is
set to be the same as your primary channel. DFS behaves the same way
regardless of whether your secondary channel is the same as the primary
channel or whether your secondary channel is 0. Refer to your RF plan and site
survey to determine if you need to set a secondary channel other than 0 or
your primary channel.
The
channel-bandwidth
parameter applies to the WCSv1 only. It sets the
bandwidth of the channel you want to use. The specified bandwidth is in kHz.
The
channel-mode
parameter applies to all 2.4 and 5.8 GHz radios. It sets the
802.11n channel mode.
The
auto
and
background-scan
parameters apply to 2.4 GHz radios only.The
auto
parameter causes the radio to search for surrounding APs. At startup, the
system scans all channels in a given channel mode to collect several parameters.
The channel providing the best quality is selected.
The
background-scan
parameter assists the auto feature in determining the
channel settings to use. By default background scan is disabled.
If background scan is enabled, the system periodically does an off-channel scan
of a foreign channel where it collects more channel quality data.
After a sufficient number of background scans have occurred, the system
re-calculates the best channel to use based on:
• the most recent data for the home channel and all foreign channels
• the historic data of all foreign channels
BelAir20E User Guide Configuring Wi-Fi Radio Parameters
October 11, 2011 Confidential Page 76 of 267
Document Number BDTM02201-A01 Standard
If a foreign channel is at least 20% better the home channel, then the system
switches to the new channel.
The
re-scan-channel
command causes the radio to perform another search.
See also:
•“Country of Operation” on page 49
• the
BelAir Radio Transmit Power Tables
Antenna Gain /interface/wifi-<n>-<m>/set antenna-gain <gain>
This command lets you specify the gain of the antenna installed with your unit.
Use the
show available-config-options
command to display valid gain values (in
dBi). The displayed values vary depending on the country of operation and the
channel in use.
You must set the
<gain>
parameter to match the gain of the antenna installed
in your unit. For all countries except Korea, the default access antenna gain is
8 dBi. For Korea, the default access antenna gain is 6 dBi.
CAUTION! Improper setting of channel, antenna gain and transmit power may exceed
regulatory requirements and void the operator’s right to operate the radio
equipment. Refer to the
BelAir Radio Transmit Power Tables
to determine valid
combinations of channel, antenna gain and transmit power for your country.
See also:
•“Country of Operation” on page 49
•“Operating Channel” on page 74
• the
BelAir Radio Transmit Power Tables
Transmit Power
Level
/interface/wifi-<n>-<m>/set tx-power <tx-power-value>
[secondary <tx-power-value>]
This command sets the transmit power for a Wi-FI radio. The range of
<tx-power-value> is limited to be valid for your country of operation, physical
channel in use, and type of antenna that is installed. Use the
show
available-config-options
command to display valid transmit power values
(in dBm). The displayed values vary depending on the country of operation and
channel in use.
The default setting is to have the radio transmit at maximum power.
BelAir20E User Guide Configuring Wi-Fi Radio Parameters
October 11, 2011 Confidential Page 77 of 267
Document Number BDTM02201-A01 Standard
The
secondary
parameter applies only to 5.8 GHz radios. It sets the transmit
power for an optional secondary channel for use with Dynamic Frequency
Selection (DFS), a regulatory requirement in some jurisdictions. The default is
to have the same transmit power level for both the primary and secondary
channel. Refer to your RF plan and site survey to determine if you need to set a
different power level for the DFS secondary channel.
CAUTION! Improper setting of the transmit power may exceed regulatory requirements
and void the operator’s right to operate the radio equipment.
See also:
•“Country of Operation” on page 49
•“Operating Channel” on page 74
•“Antenna Gain” on page 76
Link Distance /interface/wifi-<n>-<m>/set link-distance <distance>
This command adjusts the unit’s MAC timers to compensate for the additional
time to receive acknowledgements because the other unit is farther. The
distance
parameter has a range of 0 to 40 and is specified in kilometers. The
default value is 1 km.
Dynamic
Frequency
Selection
/interface/wifi-<n>-<m>/show dfs
This command displays current Dynamic Frequency Selection (DFS) settings, a
regulatory requirement in some jurisdictions. DFS is automatically implemented
depending on the country of operation.
See also:
•“Country of Operation” on page 49
•“Operating Channel” on page 74
•“Trans m i t Powe r Level” on page 76
Example
/interface/wifi-1-1# show dfs
DFS admin state : enabled
current channel : 53
channel DFS radar holdoff-time
# required detected remaining
------------------ --------- ---------- ------------
primary: 53 no no 0 (sec)
secondary: 53 no no 0 (sec)
BelAir20E User Guide Configuring Wi-Fi Radio Parameters
October 11, 2011 Confidential Page 78 of 267
Document Number BDTM02201-A01 Standard
Collision Aware
Rate Adaptation
/interface/wifi-<n>-<m>/set advanced-collision-ctrl
{enable|disable}
Collision Aware Rate Adaptation (CARA) is an advanced algorithm that turns
RTS on and off when it detects a collision. This allows frames that failed due to
the collision to get through without compromising the transmission rate (that
is, the RTS is sent at 1mpbs and clears the channel of collisions for the high rate
data packet).
By default, CARA is enabled.
Rate Aware
Fairness
/interface/wifi-<n>-<m>/set rate-aware-fairness {enable|disable}
Rate aware fairness is a transmission algorithm that chooses dynamic retreat
and progress thresholds based on the transmission rate of the station being
transmitted to, and the size of the packet.
Normally, when the AP has a client with a slower connection, all other clients
are throttled down to that same rate. Rate Aware Fairness overcomes this
issue by trying to give clients equal amounts of air-time instead of equal
numbers of packets.
By default, rate aware fairness is disabled.
802.11n
Aggregation
/interface/wifi-<n>-<m>/set tx-aggr {enable|disable}
This command applies to the HTM and DRU only.
This command enables or disables transmit aggregation for the radio. Transmit
aggregation is an 802.11n feature where multiple MSDUs or MPDUs are packed
together to reduce the overhead and average them over multiple frames, thus
increasing the user level data rate.
The default setting is
enable
.
Minimum Receive
Threshold
/interface/wifi-<n>-<m>/set rcv-rssi-threshold <dBM_threshold>
{disabled | enabled}
This command sets a minimum signal strength threshold to prevent associations
with weak radio signals. Associations are only created between radios with a
signal strength greater than the specified threshold.
The default setting is
disabled
.
BelAir20E User Guide Configuring Wi-Fi Radio Parameters
October 11, 2011 Confidential Page 79 of 267
Document Number BDTM02201-A01 Standard
Changing Wi-Fi
Interface Admin
State
/interface/wifi-<n>-<m>/set admin-state {enable|disable}
This command controls the state of the Wi-Fi interface including all links.
When set to
enable
, the Wi-Fi interface is in the operational state. When set to
disable
, the Wi-Fi interface and all associated functions are disabled. The default
is
disabled
.
Use the
/interface/wifi-<n>-<m>/show config
command to view the current
admin state of the Wi-Fi interface.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 80 of 267
Document Number BDTM02201-A01 Standard
Configuring Wi-Fi Access Point Parameters
This chapter describes how to display and configure Wi-Fi Access Point (AP)
parameters, including:
•“Displaying AP Configuration” on page 81
•“AP Custom Rates” on page 81
•“Displaying Associated Wireless Clients” on page 83
•“Displaying Wireless Client Details” on page 85
•“Disconnecting a Wireless Client” on page 85
•“Wireless Client Load Balancing” on page 85
•“Configuring RTS-CTS Handshaking” on page 86
•“Specifying the Beacon Period” on page 86
•“Displaying Client Association Records” on page 87
•“Changing AP Admin State” on page 88
•“AP Service Set Identifiers” on page 88
—“Displaying the SSID Table” on page 89
—“Displaying SSID Details” on page 90
—“Default Management SSID” on page 90
—“Configuring SSIDs” on page 91
—“Upstream User Priority Marking” on page 92
—“Setting Traffic Limits” on page 93
—“Providing Vendor Specific Information” on page 93
—“Changing SSID Admin State” on page 94
•“Out-of-service Advertising” on page 95
•“Filtering Broadcast and Multicast Packets” on page 96
•“Broadcast to Unicast Packet Conversion” on page 96
•“Limiting Upload and Download Rates” on page 97
•“ARP Filtering” on page 97
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 81 of 267
Document Number BDTM02201-A01 Standard
•“ARP to Unicast Conversion” on page 98
•“802.11b Protection” on page 98
See also:
•“Configuring Wi-Fi Radio Parameters” on page 72
•“Wi-Fi AP Security” on page 100
•“Wi-Fi Backhaul Link Configuration” on page 115
•“Mobile Backhaul Mesh” on page 123
Displaying AP
Configuration
Use the
show config access
command to display the current AP configuration.
See “Displaying Wi-Fi Radio Configuration” on page 73 for details.
Example - Typical BelAir20E
/interface/wifi-1-1# show config access
Slot: 1, Card Type: htme, revision: 1, Port: 1, Radio: HTMv1 5GHz
802.11n
admin state: ................. Enabled
channel: ..................... 149
mode: ...................... ht40plus
mimo: ...................... 3x3
tx power: .................. 18.0 (dBm per-chain), 23.0 (dBm total)
antenna location: ............ External Port
antenna index: ............... 1
antenna gain: ................ 5.0 (dBi)
link distance: ............... 1 (km)
base radio MAC : ............. 00:0d:67:0c:21:90
Access:
AP admin state: ............ Enabled
secure addresses (vlan): ... none
client blacklist: .......... none
dhcp unicast: .............. Disabled
deauth dos defense: ........ Disabled
client auth trap: .......... Disabled
Misc:
rts-cts threshold: ......... 100
broadcast filter status: ... Disabled
broadcast filter rate: ..... 200
AP Custom Rates /interface/wifi-<n>-<m>/show custom-rates
/interface/wifi-<n>-<m>/set custom-rates {disabled |
enabled [{add|del} [b <rate_string>]
[g <rate_string>]
[ht <rate_string>]}
These commands let you customize the modulation rates used by your 802.11n
radio by building a list of rates to include. Putting a rate on the list allows the
radio to use that rate.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 82 of 267
Document Number BDTM02201-A01 Standard
The
show
command displays modulation rates that are currently on the list;
that is, the rates that the radio uses. Rates that have short preamble are
indicated with
sp
.
Use the
set
command to enable or disable the custom rates feature. By default,
the custom rates feature is disabled.
Once you enabled custom rates, use the
add
and
del
parameters to create the
specific list of rates that you need. The
<rate_string>
parameter is one of rates
output by the
show custom-rates
command.
If you use the
set
command without specifying a custom rate, a list of valid
custom rates is displayed.
Note: Adding a rate does not mean that the radio automatically begins to use
that rate. The modulation rate selected by a radio depends on several
factors. The custom rates list is just one of those factors.
Example 1 - Using Custom Rates
/interface/wifi-1-2# set custom-rates enabled
Valid custom b rates are:
11,5.5,2,1,11(sp),5.5(sp),2(sp)
Valid custom g rates are:
48,24,12,6,54,36,18,9
Valid custom n rates are:
mcs0,mcs1,mcs2,mcs3,mcs4,mcs5,mcs6,mcs7
/interface/wifi-1-2# show custom-rates
Custom-rate is enabled and the list includes:
A/G : 48 24 12 6 54 36 18 9
B : 11 5.5 2 1 11(sp) 5.5(sp) 2(sp)
HTSS : mcs0 mcs1 mcs2 mcs3 mcs4 mcs5 mcs6 mcs7
HTDS : mcs8 mcs9 mcs10 mcs11 mcs12 mcs13 mcs14 mcs15
Example 2 - Using Custom Rates
/interface/wifi-1-2# show custom-rates
Custom-rate is enabled and the list includes:
A/G : 48 24 12 6 54 36 18 9
/interface/wifi-1-2# set custom-rates enabled del g 18
/interface/wifi-1-2# show custom-rates
Custom-rate is enabled and the list includes:
A/G : 48 24 12 6 54 36 9
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 83 of 267
Document Number BDTM02201-A01 Standard
Displaying
Associated
Wireless Clients
/interface/wifi-<n>-<m>/show clients [ssid <ssid_index>]
This command displays the list of associated wireless clients for a given SSID. If
no SSID is specified, the displayed list shows all associated clients and their
SSID.
The
ssid_index
parameter must be a valid SSID index.
In the resulting output:
• The
time
field displays how long the client has been associated to the BelAir
radio.
• The
IP
field lists the client's IP address. (s) indicates static IP addressing.
• The
identity
field lists the 802.1X client identity. It is present for dot1x or
WPA SSIDs.
• The
auth
field lists the authentication state of the client. See Tabl e 8 .
• The
dhcp
field lists the client DHCP state (applicable only if client uses
dynamic IP addressing). See Table 9 on page 83.
Table 8: Auth Field Value Descriptions
Value Description
unauth default or initial state
auth client is authorized for Open or WEP privacy
eapAuth client is authorized for dot1x, WPA1 or WPA2 privacy
pskErr Possible wrong WPAPSK key configured on client
radto For dot1x, WPA1 or WPA2. Problems connecting to radius
server, possibly because of a network problem.
cltto For dot1x, WPA1 or WPA2. Problems sending EAP packets to
client.
Table 9: DHCP Field Value Descriptions
Value Description
init Client has just connected and has not yet started a DHCP
sequence
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 84 of 267
Document Number BDTM02201-A01 Standard
Depending on the server configuration, if a client moves to a different subnet, it
may need to timeout the current IP address (approx. 30 seconds) and then
restart the DHCP sequence. During this process the client may use the
standard default IP address for Microsoft Windows (169.254.X.X).
Example
/interface/wifi-2-1# show clients
disc Client has sent a DHCP Discover message and is waiting for a
DHCP Offer message to get its IP address.
(Applicable only if client does not already have a valid IP address.
Otherwise client sends DHCP Request message.)
offer Server has responded to the DHCP Discover message with a
DHCP Offer message. This packet tells the client its IP address.
The client should then send a DHCP Request message to verify the
IP address.
req Client has sent the DHCP Request message to the server and is
waiting for a DHCP Ack message to confirm the assigned IP
address.
decl Server has declined the client’s DHCP request. Verify the server
settings.
ack Client has sent a DHCP Request message and the server has
confirmed the assigned IP address.
(a * appended to the value indicates a completed DHCP process.)
nack Server has responded to the client’s DHCP request with a DHCP
Nack message. Verify the server settings.
relse Client has sent a DHCP Release message.
inform Client has sent a DHCP Inform message. Depending on the server,
the server may respond with a DHCP Ack message.
(a * appended to the value indicates a completed DHCP process.)
arpRes Client has gone through one of the DHCP state transitions and
replied to an ARP request for its IP address.
(a * appended to the value indicates a completed DHCP process.)
Table 9: DHCP Field Value Descriptions (Continued)
Value Description
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 85 of 267
Document Number BDTM02201-A01 Standard
SS-ID vlan mac addr time IP identity rssi auth dhcp
----- ---- ----------------- ---- ------------------ ---------- ---- ------- ------
2-4 0 00:11:24:26:24:AA 4m 10.9.9.20(s) -82 eapAuth static
Displaying
Wireless Client
Details
/interface/wifi-<n>-<m>/show client <1|2|...|2007>
[throughput] [stats]
This command displays the details of a wireless client that is associated or was
recently associated with the AP. You determine the client number
<1|2|...|2007>
with the
show clients
command. See “Displaying Associated
Wireless Clients” on page 83.
The
throughput
parameter displays additional information on traffic throughput.
The
stats
parameter allows displays additional information on packet statistics.
In the resulting output, the
age
parameter shows the time since the radio last
received a data frame from the client and the
state
parameter shows
authenticated (2)
if the client is no longer associated.
Example
/interface/wifi-1-1# show client 35
Ssid: ........... 1
Vlan: ........... 0
Mac Address: .... 00:18:DE:98:28:E8
Connected Time: . 0 yrs 0 days 00:00:42
Aging Time: ..... 0 seconds
Ip Address: ..... 10.1.1.60
Identity: .......
Rssi: ........... -48 (dBm)
Auth State: ..... Authenticated(open/wep)
Dhcp State: ..... Client sent ARP response (complete)
Disconnecting a
Wireless Client
/interface/wifi-<n>-<m>/disconnect client <mac_address>
This command lets you disconnect the specified client from the AP.
You determine the client MAC address with the
show clients
command. See
“Displaying Associated Wireless Clients” on page 83.
Wireless Client
Load Balancing
/interface/wifi-<n>-<m>/set max-num-clients <max_num> [strict]
This command lets you set the maximum number of clients that can associate
with the AP. Once the maximum is reached, new client associations are not
immediately accepted.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 86 of 267
Document Number BDTM02201-A01 Standard
While using this command, keep in mind the following:
• If you do not use the
strict
parameter, and a new client continues to try to
associate after the client maximum is reached, the AP does accept it after
three retries. (All association retries in a one minute interval is considered a
single retry.)
• If you use the
strict
parameter, the AP does not accept a new client when
the client maximum is reached, even if the new client to tries to associate
repeatedly.
• Changing the client maximum does not take effect until two minutes later.
• Changing the client maximum does not disconnect any existing client.
The <max_num> parameter ranges from 0 to 256. The default is 256.
Configuring
RTS-CTS
Handshaking
/interface/wifi-<n>-<m>/set rts-cts {disabled|enabled <threshold>}
This command lets you enable or disable Request-to-Send (RTS) and
Clear-to-Send (CTS) handshaking.
When enabled, handshaking occurs for packets larger than the threshold. The
<threshold> parameter can range from 1 to 65536. The default value is 100.
By default, dynamic rate handshaking is
disabled
.
Specifying the
Beacon Period
/interface/wifi-<n>-<m>/set beacon-period
{auto | <bp_value> [dtim <dt_value>]}
This command lets you specify the behavior of your beacon period for
broadcast Service Set Identifiers (SSIDs). See also “AP Service Set Identifiers”
on page 88.
If specified, the
<bp_value>
parameter specifies a fixed beacon period in
milliseconds. It ranges from 100 to 400.
The optional
<dt_value>
parameter specifies the DTIM value. It ranges from 1
to 3.
If you select
auto
, the BelAir unit automatically adjusts the beacon period and
DTIM value dynamically according to the number of MBSSIDs.
The default setting is to have a fixed beacon period of 100 ms with a DTIM
value of 3.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 87 of 267
Document Number BDTM02201-A01 Standard
Displaying Client
Association
Records
/interface/show client-record <num_entries> [radio <radioIf_name>]
[vlan {<vlan_id>| none}] [mac-addr <mac_address>]
[aggregation | start <start_idx>]
/interface/show client-record detail <num_entries>
Every 15 minutes, the BelAir node generates wireless client association
records. A client record includes the following information:
• The IP address, MAC address, VLAN, RSSI, DHCP state, and authentication
state of the client.
• The radio interface and SSID index for the radio the Wi-Fi client is
associated to.
• The start and end connection time, as well as the times a client has a
throughput greater than 2 kBps or transmits more than 2 kB of traffic.
If a client connection crosses more than one 15-minute interval, another client
record is generated for that client. A
continue
flag indicates that the client has
another record in the next 15-minute interval.
The
num_entries
parameter specifies the number of entries to display.
You can filter the output based on the following optional parameters:
•Use
radio <radioIf_name>
to filter for records of clients connected to a
particular Wi-FI interface, such as
wifi-2-1
.
•Use
vlan <vlan_id>
to filter for records of clients using a particular VLAN,
or no VLAN.
•Use
mac-addr <mac_address>
to filter for records with a client’s MAC
address.
•Use
aggregation
to show combined client records when a client connection
crosses multiple 15-min boundary. Use
start <start_idx>
to show client
records starting from a particular record index number. The starting index
number is always unique.
Use the
show client-record detail
command to display details of a particular
client record.
Example - Non Aggregated Records
/interface# show client-record 4
SSID Start Time Connect IP MAC RSSI Vlan RX TX Continue
ID Radio INX dd hh:mm:ss mm:ss address address max avg min Id KB KB flag
11 wifi-2-1 1 11 06:42:57 15:02 10:1:1:7 00:18:de:c2:30:46 -25 -44 -64 0 90 109 Yes
10 wifi-2-1 1 11 06:27:55 15:02 10:1:1:7 00:18:de:c2:30:46 -25 -44 -64 0 60 72 Yes
9 wifi-2-1 1 11 06:12:53 15:02 10:1:1:7 00:18:de:c2:30:46 -25 -44 -64 0 268 323 Yes
8 wifi-2-1 1 11 05:57:51 15:02 10:1:1:7 00:18:de:c2:30:46 -25 -44 -64 0 219 250 Yes
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 88 of 267
Document Number BDTM02201-A01 Standard
Example - Aggregated Records
/interface# show client-record 20 aggregation
SSID Start Time End Time IP MAC RSSI Vlan RX TX Cross Byte Cross Rate
ID Radio INX dd hh:mm:ss dd hh:mm:ss address address avg Id KB KB dd hh:mm:ss dd hh:mm:ss
1 wifi-2-1 1 11 04:57:41 11 04:59:40 10:1:1:7 00:18:de:c2:30:46 -42 0 5 4 11 04:58:42 not exceed
3 wifi-2-1 1 11 05:00:11 11 05:01:25 10:1:1:7 00:18:de:c2:30:46 -45 0 11 8 11 05:00:52 not exceed
4 wifi-2-1 1 11 05:08:02 11 06:57:59 10:1:1:7 00:18:de:c2:30:46 -44 0 1074 1255 11 05:08:21 not exceed
Example - Client Record Detail
Figure 5: Client Record Detail Example
Changing AP
Admin State
/interface/wifi-<n>-<m>/set ap admin-state {enable|disable}
This command controls the state of the AP. When set to
enable
, the AP is in
the operational state. When set to
disable
, the AP and all associated functions
are disabled. The default is
enabled
.
AP Service Set
Identifiers
Use the commands in this section to:
• configure AP Service Set Identifiers (SSIDs)
• map an SSID to a VLAN
• provide vendor specific information
Each AP supports up to 8 SSIDs. If associated clients use different SSIDs, then
the BelAir20E can use the SSID to direct traffic to different VLANs.
/interface# show client-record detail 4
Client Record INX[4]:
Radio Interface: wifi-2-1
SSID Idx: 1
Start Time (mon-dd hh:mm:ss): 07-11 05:08:02
End Time (mon-dd hh:mm:ss): 07-11 05:12:45
Vlan ID: 0
IP Address: 10:1:1:7
MAC Address: 00:18:de:c2:30:46
RSSI(dbm): max -25, min -64, avg -43
Exceed Throughput(2KB) Time: 07-11 05:08:21
Throughput: Rx 35KB, Tx 33KB
Authenticate State: Authenticated(open/wep)
DHCP State: Client sent ARP response
Is Continued: Yes
When the client logged in
When the record ends
Client RSSI information
Time when client crossed the 2 kbyte
threshold.
Same as
show client detail
command.
If
Yes
, record continues into next
15-minute window.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 89 of 267
Document Number BDTM02201-A01 Standard
Displaying the SSID
Table
/interface/wifi-<n>-<m>/show ssid table
This command summarizes in table format the parameters of all configured
SSIDs. In the resulting output:
• The
broadcast
setting is the default for SSID 1. A
broadcast
setting means
that the access radio responds to a broadcast probe request and that SSID
information element is present in the beacon dataframe. A
broadcast
SSID
has a Basic Service Set (BSS), a unique identifier having the same format as a
MAC address.
•A
suppressed
setting means that the access radio responds only to a unicast
probe request and that SSID information element is present in the beacon
dataframe, but has a length of 0 and a null value. A
suppressed
SSID has a
Basic Service Set (BSS), a unique identifier having the same format as a MAC
address.
Example - Typical Output
/interface/wifi-1-1# show ssid table
SSID Information
-------------------------------------------------------------------------------------
id enabled vlan type privacy wb sp acl bss ssid
-------------------------------------------------------------------------------------
1 yes -- Broadcast none -- -- -- 00:0D:67:0C:21:98 RickBA20E-15-2
2 no -- Suppressed none -- -- -- 00:0D:67:0C:21:99 DefaultSsid2-2
3 no -- Suppressed none -- -- -- 00:0D:67:0C:21:9A DefaultSsid2-3
4 no -- Suppressed none -- -- -- 00:0D:67:0C:21:9B DefaultSsid2-4
5 no -- Suppressed none -- -- -- 00:0D:67:0C:21:9C DefaultSsid2-5
6 no -- Suppressed none -- -- -- 00:0D:67:0C:21:9D DefaultSsid2-6
7 no -- Suppressed none -- -- -- 00:0D:67:0C:21:9E DefaultSsid2-7
8 no -- Suppressed none -- -- -- 00:0D:67:0C:21:9F DefaultSsid2-8
==================================================
In the previous example:
•
wb
is for wireless bridge; see “Disabling or Enabling AP Wireless Bridging”
on page 111
•
sp
is for secure port; see “AP Secure Port Mode” on page 112
•
acl
is for access control list; see “Wireless Client Access Control List” on
page 109
•
bss
is for basic service set; see “Configuring SSIDs” on page 91
• a star ( * ) means that the feature is enabled for that particular SSID
• a double dash ( -- ) means that the feature is not enabled for that particular
SSID
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 90 of 267
Document Number BDTM02201-A01 Standard
Displaying SSID Details /interface/wifi-<n>-<m>/show ssid <ssid_index> config
This command displays details of a particular SSID. Use the
show ssid table
command to determine
<ssid_index>
.
Example
/interface/wifi-1-1# show ssid 3 config
Configuration for ssid 3
admin state: ..................... Enabled
SSID: ............................ DefaultSsid2-1
AP oos identifier: ............... outOfService..
mbssid state: .................... Enabled
type: ............................ Broadcast
privacy mode: .................... none
rekey: ........................... Disabled
key strict: ...................... no
traffic mapped to vlan: .......... none
passthrough vlan(s): ............. disabled
wireless bridge state: ........... Disabled
group address filter: ............ none
upstream UP marking: ............. Disabled (0)
acl state: ....................... Disabled
secure port state: ............... Disabled
arp unicast conversion state: .... Disabled
radius NAS identifier: ........... belair
radius accounting: ............... Disabled
radius station id unformatting: .. Disabled
radius account session id: ....... Disabled
secure addresses (vlan):
No secure addresses configured
client blacklist:
No blacklist entries
auto secure gateway: ............. enabled
Address Vlan
00:0a:5e:49:1c:33 (500)
00:0a:5e:49:1c:8b (600)
radius servers:
No radius servers configured for this ssid
DHCP relay servers:
Server[1] Addr: 10.1.100.88
sub-option: 150/151 inserted
sub-option151: vpn-selector
Option82 Insert Enabled.
Default Management
SSID By default, SSID 8 of each radio is a suppressed SSID preconfigured for a
management session.
The default management SSID is
BelAir-<MAC_info>
, where <MAC_info> is
the last six digits of the node’s MAC address.
For example, if a node has a MAC address of
00:0D:67:08:48:98
, the default
management SSID is
BelAir-084896
.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 91 of 267
Document Number BDTM02201-A01 Standard
By default, SSID 8:
• uses WPA encryption with the following pre-shared key:
DefaultKey123
.
Users may wish to change the security settings to suit their needs.
• is not mapped to a VLAN. Users may wish to map SSID 8 to a separate
VLAN reserved for management sessions.
Refer to the following topics for details on changing the default settings for
SSID 8:
• To change the SSID and map it to a VLAN, see “Configuring SSIDs” on
page 91.
• To change the security settings, see “Wi-Fi AP Security” on page 100.
Configuring SSIDs /interface/wifi-<n>-<m>/set ssid <ssid_index>
service-set-identifier <ssid_string>
{broadcast | suppressed}
vlan {<vlanID-list>|none}
[passthrough-vlan {<passvlanID-list>|none}]
This command allows you to configure AP SSIDs.
The
ssid_string
parameter is the SSID setting. SSIDs are case sensitive and can
contain up to 32 alphanumeric characters. To specify a blank string, input two
double quotes (““).
The
ssid_index
parameter is an integer from 1 to 8. Use the
show ssid table
command to determine
<ssid_index>
.
For a description of the
broadcast
and
suppressed
parameters, see “Displaying
the SSID Table” on page 89.
The
vlanID-list
parameter, if present, specifies a comma separated list of VLAN
IDs. Each VLAN ID must be an integer from 1 to 2814. The list can contain up
to eight VLAN IDs.
The
vlanID-list
parameter activates functionality to balance traffic among up to
eight VLANs, based on the last three bits of the MAC address of the wireless
client generating the traffic. The last three bits of the MAC address can range in
value from 0 to 7. For example:
• Traffic from clients where the last three bits have a value of 0 is directed to
the first VLAN on the list.
• Traffic from clients where the last three bits have a value of 1 is directed to
the second VLAN on the list.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 92 of 267
Document Number BDTM02201-A01 Standard
• Traffic from clients where the last three bits have a value of 6 is directed to
the seventh VLAN on the list.
If the last three bits of the MAC address does not reference a VLAN on the list,
then the client's traffic is directed to the first VLAN on the list.
If the
vlan
parameter is
none
and the wireless client is sending untagged traffic,
then the traffic corresponding to the specified SSID is passed through the
access radio without change. If the wireless client is sending tagged traffic, then
you can use the
passvlanID-list
parameter.
The
passvlanID-list
parameter, if present, also specifies a comma separated list
of VLAN IDs. As with the
vlanID-list
parameter, each VLAN ID must be an
integer from 1 to 2814, and the list can contain up to eight VLAN IDs.
The
passvlanID-list
parameter applies to pre-tagged traffic; for example,
generated from Linux wireless clients. If the traffic’s VLAN tag matches a VLAN
on the list, then that traffic is allowed to go through unchanged. Otherwise, the
tagged traffic from the client is dropped.
If
passvlanID-list
is populated, then
vlanID-list
can specify only one VLAN ID. In
such cases, untagged traffic from the client is tagged with the VLAN from
vlanID-list
. If the VLAN ID list is set to
none
, then untagged traffic from the
client remains untagged.
If the passthrough VLAN list is
none
, tagged packets from a wireless client are
dropped. Untagged packets from the client are tagged with the VLAN ID from
vlanID-list
according to the last three bits of the client’s MAC address.
Upstream User Priority
Marking
/interface/wifi-<n>-<m>/set ssid <ssid_index>
upstream-up-marking {enabled|disabled}
[ up-value <val> ]
This command enables or disables the ability to set the User Priority (UP) value
of any packet received by the AP for a particular SSID. The UP values are then
used throughout the network to separate and prioritize traffic through Quality
of Service (QoS) settings. See “Quality of Service Settings” on page 177 for
details.
By default, upstream UP marking is
disabled
.
The
ssid_index
parameter must be a valid SSID index. See “AP Service Set
Identifiers” on page 88
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 93 of 267
Document Number BDTM02201-A01 Standard
Setting Traffic Limits /interface/wifi-<n>-<m>/set ssid <ssid_index> traffic-limit
([upstream <bits-per-second>]
[downstream <bits-per-second>])
This command allows you to control the amount of traffic the AP sends for a
particular SSID:
•Use the
upstream
parameter to specify the amount sent to the network.
•Use the
downstream
parameter to specify the amount sent to wireless
clients.
• Specify 0 to remove previously set limits.
Use the
show ssid table
command to determine
<ssid_index>
. Use the
show
ssid <ssid_index> config
command to see the currently configured values.
Providing Vendor
Specific Information
/interface/wifi-<n>-<m>/set ssid <ssid-number>
option82 insertion {enabled|disabled}
/interface/wifi-<n>-<m>/set ssid <ssid-number>
option82 use {subopt9 | subopt150-151}
/interface/wifi-<n>-<m>/set ssid <ssid-number>
option82-suboption151 <random_str>
You can enable DHCP relay functionality for the SSID with the
set ssid
<ssid_index> dhcp-relay
command. For details see “Assigning SSID Traffic to
Use DHCP Relay” on page 147.
Once DHCP relay functionality is enabled for the SSID, your BelAir20E
automatically adds DHCP Option 82 information (that is, relay agent
information) to the DHCP packets for that SSID sent to the wireless client and
DHCP server.
By default, if Option 82 insertion is enabled, the relay agent information is
packaged as part of Suboption 9. However, you can choose to instead use
Suboption 150 (VLAN info) and 151 (VPN selection ID).
If you choose Suboption 9, the relay agent information is packaged as follows:
• agent circuit ID
• Subsuboption 1, the MAC address of your BelAir20E
• Subsuboption 2, VLAN identifier
• Subsuboption 3, Radio MAC address
• Subsuboption 4, SSID: the SSID that is using the DHCP relay functionality
• Subsuboption 5, GPS coordinates
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 94 of 267
Document Number BDTM02201-A01 Standard
If you choose Suboption 150 and 151, the relay agent information is packaged as
follows:
• Suboption 150. The VLAN info is packaged as follows:
0x96, 0x04,0xn, 0xn, 0xn, 0xn
Where:
—The first field is always 0x96, identifying Suboption 150.
—The second field is always, 0x04, specifying the length of the VLAN info.
—The last four fields are 0xn, where each value of n is a digit specifying the
VLAN number.
For example, 0x96, 0x04, 0x1, 0x2, 0x0, 0x0 specifies VLAN 1200. VLAN
100 would be specified as 0x96, 0x04, 0x0, 0x1, 0x0, 0x0.
• Suboption 151. The VPN selection ID is packaged as follows:
0x97, 0x0a, 0x00, 0xnn, 0xnn, 0xnn, 0xnn, 0xnn, 0xnn, 0xnn, 0xnn, 0xnn
Where:
—The first field is always 0x97, identifying Suboption 151.
—The second field specifies the length of the VPN selection ID.
—The remaining fields specify an ASCII string of the VPN selection ID.
Use the
set ssid option82 insertion
command to control whether DHCP
Option 82 (DHCP relay agent information) is inserted into packets or not.
If Option 82 insertion is enabled, use the
set ssid option82 use
command to
control whether Suboption 9 or Suboptions 150 and 151 are used.
If Suboption 150 and 151 are selected, use the
set ssid option82-subopton151
command to specify the VPN selection ID. You can specify an ASCII string of up
to 32 alphanumeric characters. To specify a blank string, input two double
quotes (““).
If Suboption 150 and 151 are selected and a Suboption 151 string is undefined,
the SSID string is used instead.
Changing SSID Admin
State
/interface/wifi-<n>-<m>/set ssid <ssid_index> admin-state
{enable|disable}
This command enables or disables a particular SSID. Use the
show ssid table
command to determine
<ssid_index>
.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 95 of 267
Document Number BDTM02201-A01 Standard
The default is
enabled
for SSID 1 and
disabled
for all others.
Out-of-service
Advertising
/interface/wifi-<n>-<m>/set ssid <ssid-number> ap-oos-identifier
<oos_string>
/system/set ap-oos-broadcast-delay <oos_delay>
/interface/wifi-<n>-<m>/set ap-oos-broadcast {enabled|disabled}
[option {replace|prepend}]
/system/show ap-oos-broadcast-delay
These commands let you modify the SSIDs of a radio with an out-of-service
string when a node loses its egress connection for longer than the period
specified by
<oos_delay>
. The out-of-service string can be prepended to the
existing SSID or it can replace the existing SSID. The out-of-service string can
contain up to 14 characters. The default string is
outOfService..
and by default
it replaces the SSID.
The out-of-service delay (<oos_delay>) ranges from 30 to 300 seconds. The
default is 300 seconds. The out-of-service delay is set for the entire BelAir20E.
Use the
/system/show ap-oos-broadcast-delay
command to display the current
delay.
When a node’s egress connection is declared out-of-service, the node also
applies WPA AES encryption with a 16-character pre-shared key to all SSIDs
except for the default management SSID. This is to to prevent a user from
accidently connecting to an open SSID which is in out-of-service. The
16-character pre-shared key consists of the first 10 characters of the
out-of-service identifier followed by the last six digits of the node’s MAC
address. If the out-of-service identifier is less than 10 characters, then period
characters (.) are used to complete the first 10 characters of the pre-shared
key.
The status of a node's egress connection is determined as follows:
1 If a tunnel is enabled, the egress status is the tunnel's status.
2 If a tunnel is not enabled and there is a cable modem in the system, the
egress status is the modem's status.
3 If a tunnel is not enabled and there is no cable modem in the system, the
egress status is the Ethernet link's status.
See also:
•“Default Management SSID” on page 90
•“Security Options for Wireless Clients” on page 100
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 96 of 267
Document Number BDTM02201-A01 Standard
Filtering
Broadcast and
Multicast Packets
/interface/wifi-<n>-<m>/set ssid <ssid_index>
group-address-filter {none | ipv4}
This command filters all broadcast and multicast packets to and from a wireless
client except for ARP and DHCP packets, allowing you to reduce the amount of
broadcast and multicast traffic in the network.
The
ssid_index
parameter must be a valid SSID index. See “AP Service Set
Identifiers” on page 88
Use the
none
setting to disable this function. Use
ipv4
to enable this function.
If wireless bridging is enabled, the default is
none
. If wireless bridging is disabled,
the default is
ipv4
.
See also:
•“Limiting Broadcast Packets” on page 54
•“Broadcast to Unicast Packet Conversion” on page 96
Broadcast to
Unicast Packet
Conversion
/interface/wifi-<n>-<m>/set ssid <ssid_index>
dhcp-advanced {upstream-unicast | none}
This command lets you convert broadcast packets to unicast packets. Reducing
the number of broadcast packets sent over wireless connections provides the
following benefits:
• Broadcast packet are not retried in wireless transmissions, so in high
interference environments wireless clients can miss their DHCP exchange.
• It reduces the bandwidth required for exchanges of DHCP messages.
The
ssid_index
parameter be a valid SSID index. See “AP Service Set
Identifiers” on page 88.
The
set ssid <ssid_index> dhcp-advanced
command is set to
none
by default,
meaning that it is disabled. In this case:
• All BOOTP packets, including DHCP packets, coming from the client are
examined to determine if they are broadcast or unicast. This information is
stored for use when the response arrives.
• All BOOTP packets, including DHCP packets, arriving from the network are
examined. If needed, they are converted to match the format (broadcast or
unicast) sent by the wireless client.
When the
set ssid <ssid_index> dhcp-advanced
command is set to
upstream-unicast
, it unsets the Request Broadcast bit for BOOTP packets,
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 97 of 267
Document Number BDTM02201-A01 Standard
including DHCP packets, originating from clients before sending those packets
to the network. This means that the network should respond with unicast
packets instead of broadcast packets.
The
set ssid <ssid_index> dhcp-advanced
command does not affect BOOTP
packets arriving from the network. All BOOTP packets, including DHCP
packets, arriving from the network are examined. If needed, they are converted
to match the format (broadcast or unicast) sent by the wireless client.
See also:
•“Limiting Broadcast Packets” on page 54
•“Filtering Broadcast and Multicast Packets” on page 96
Limiting Upload
and Download
Rates
/interface/wifi-<n>-<m>/set ssid <ssid_index>
max-download-rate {<bps_rate>|unlimited}
/interface/wifi-<n>-<m>/set ssid <ssid_index>
max-upload-rate {<bps_rate>|unlimited}
These commands let you specify the maximum rate (in bits per second) at
which a client can upload or download data from the AP for a particular SSID.
The
ssid_index
parameter must be a valid SSID index. See “AP Service Set
Identifiers” on page 88
Use the
unlimited
setting to disable this function.
If wireless bridging is enabled, the default is
none
. If wireless bridging is disabled,
the default is
ipv4
.
See also:
•“Limiting Broadcast Packets” on page 54
•“Broadcast to Unicast Packet Conversion” on page 96
ARP Filtering /interface/wifi-<n>-<m>/set arp-filtering {disabled|enabled}
This command enables or disables ARP filtering on radio traffic from the AP to
the wireless client. When enabled, the radio only forwards ARP request
packets to a currently connected client. Otherwise, the downstream ARP
requests are dropped.
The default setting is
disabled
.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 98 of 267
Document Number BDTM02201-A01 Standard
ARP to Unicast
Conversion
/interface/wifi-<n>-<m>/show arp-unicast-table [vlan <vlan_id> ]
/interface/wifi-<n>-<m>/set ssid <ssid_index>
arp-unicast-conversion {enabled|disabled}
These commands control the conversion of upstream ARP packets to unicast
packets.
When enabled, this feature intercepts ARP requests from wireless clients and
sends them only to known gateway MAC addresses. ARP responses from the
gateway are sent to the wireless client without interception and manipulation.
When the AP starts, the ARP unicast conversion table is empty. So the first
ARP packet from the client is sent out as is; no conversion happens. When the
ARP response arrives, the AP records its information, including the unicast
MAC address, in the conversion table. For the following ARP packets, the AP
replaces the broadcast MAC address in the ARP packet with the unicast MAC
address from the conversion table.
When a conversion table entry is used, a 4-second response timer is started. If
the ARP response arrives within 4 seconds, then the entry remains valid.
Otherwise the entry is deemed invalid and removed from the table. Each entry
is removed after 4 hours of inactivity.
The table holds up to 128 entries.
The default setting is
disabled
.
Example
/interface/wifi-1-2# show arp-unicast-table
vlaid ip mac expire
----------------------------------------------------------------
5 10.1.5.53 00:10:18:27:bc:07 03:57:18
0 10.1.1.53 00:10:18:27:bc:07 03:59:32
90 10.1.90.53 00:10:18:27:bc:07 03:59:55
802.11b
Protection
/interface/wifi-<n>-<m>/set b-protection {disabled|enabled}
This command enables or disables 802.11b protection for the radio. Normally,
an 802.11g AP uses CTS-to-self to interact with 802.11b APs. The transmitted
packet is small, but in High Capacity and Interference environments the
accumulated effect is a substantial performance penalty. This feature disables
802.11b protection for the radio, meaning that CTS-to-self are not sent and
maximizing the throughput for wireless clients that operate in the 2.4 GHz
range.
BelAir20E User Guide Configuring Wi-Fi Access Point Parameters
October 11, 2011 Confidential Page 99 of 267
Document Number BDTM02201-A01 Standard
This feature improves performance if there are only a few 802.11b clients
present and they are not generating large amounts of traffic. If not, the 802.11b
clients may generate substantial numbers of collisions and actually impair traffic.
The default setting is
enabled
.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 100 of 267
Document Number BDTM02201-A01 Standard
Wi-Fi AP Security
This chapter describes how you can set up security to encrypt your Wi-Fi
transmissions so that your data cannot be deciphered if it is intercepted, and to
prevent access to the network by unauthorized clients. The following topics are
covered:
•“Security Options for Wireless Clients” on page 100
•“RADIUS Servers for Wireless Clients” on page 101
—“Managing RADIUS Servers” on page 104
—“Changing RADIUS Server Admin State” on page 105
—“Assigning SSIDs to RADIUS Servers” on page 105
—“RADIUS Pre-authentication” on page 105
—“RADIUS Assigned VLAN” on page 106
—“RADIUS Accounting” on page 106
•“Client Authentication and De-authentication Trap” on page 107
•“AP Privacy” on page 107
•“Wireless Client Blacklist” on page 109
•“Wireless Client Access Control List” on page 109
•“Controlling Inter-client Communication” on page 110
•“Protecting against Denial of Service Attacks” on page 113
See also:
•“Configuring Wi-Fi Radio Parameters” on page 72
•“Configuring Wi-Fi Access Point Parameters” on page 80
•“Wi-Fi Backhaul Link Configuration” on page 115
•“Mobile Backhaul Mesh” on page 123
Security Options
for Wireless
Clients
The BelAir20E has several options for wireless authentication and data
encryption. The method that you use depends on your security needs and your
network configuration.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 101 of 267
Document Number BDTM02201-A01 Standard
If multiple SSIDs are configured, each SSID can be configured with its own
security options.
The authentication options are:
• instruct the AP to connect to a Remote Authentication Dial In User Service
(RADIUS) server in your network that keeps a list of accepted clients.
RADIUS is a standard for user authentication. For this option, you need a
RADIUS server. Multiple BelAir20E units can share the information from the
same RADIUS server.
• use a pre-shared key. This is a simpler authentication option, but more
difficult to maintain because pre-shared keys must be distributed to all users.
You can also create a list of accepted clients; that is, an Access Control List
(ACL). This option is best suited for small networks.
The encryption options are:
• Wired Equivalent Privacy (WEP). This is a basic encryption scheme.
• Temporal Key Integrity Protocol (TKIP). This is an more advanced
encryption scheme.
• Advance Encryption Standard (AES). This is the strongest encryption
scheme.
BelAir Wi-Fi radios offer WEP, WPA, WPA2 and WPA2mixed privacy settings.
With WPA2mixed, the wireless client can use WPA or WPA2, and the AP
accepts them both. WPA, WPA2 and WPA2mixed privacy uses TKIP or AES
encryption. Because of this, WPA, WPA2 and WPA2mixed provide much
stronger security than WEP. For small networks, you can use WEP or WPA
with pre-shared keys. For large networks, you can use WPA, WPA2 or
WPA2mixed in combination with dot1x (a RADIUS server) authentication.
CAUTION! RADIUS authentication, WPA or WPA2 can only be used with wireless clients
that support these standards (both the operating system and the network card).
For clients that only support WEP, select a combination with WEP.
Note: A network is as secure as its weakest link. If WEP is enabled, the overall
level of network security will be that of WEP.
RADIUS Servers
for Wireless
Clients
To use RADIUS authentication, you need to configure at least one RADIUS
server.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 102 of 267
Document Number BDTM02201-A01 Standard
Table 10 shows the attributes that are included in the
access-request
messages
sent to the RADIUS server when using RADIUS (EAP) authentication.
Table 10: RADIUS Attributes
Name ID Description
RA_USERNAME 1 Client identity
RA_NAS_IP_ADDRESS 4 Node IP address configured with the
/protocol/radius/set
server
command. See “Managing RADIUS Servers” on
page 104.
RA_NAS_PORT 5 For accounting packets, contains the client association ID
that ranges from 1 to 256.
For RADIUS packets, contains the SSID index values (from
0 to 15) + 100
RA_SERVICE_TYPE 6 Always
2
RA_FRAMED_MTU 12 Always
1400
RA_STATE 24 Client state from the RADIUS server
RA_CLASS 25 Always
0
RA_VENDOR_SPECIFIC 26 Not used
RA_SESSION_TIMEOUT 27 RADIUS reauth time configured with the
/protocol/radius/
set server
command. See “Managing RADIUS Servers” on
page 104.
RA_IDLE_TIMEOUT 28 Client timeout value, always 5 minutes
RA_TERMINATION_ACTION 29 Incoming only (
0
for terminate or
1
for reauth)
RA_CALLED_STATION_ID 30 AP MAC address
If station-id-unformatting is set to enable, colons are
removed.
RA_CALLING_STATION_ID 31 Client MAC address
If station-id-unformatting is set to enable, colons are
removed.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 103 of 267
Document Number BDTM02201-A01 Standard
RA_NAS_IDENTIFIER 32 Name configured with the
/interface/wifi-<n>-<m>/set
ssid <ssid_index> radius
command. See “RADIUS
Accounting” on page 106.
RA_ACCT_STATUS_TYPE 40 Always
1
,
2
or
3
RA_ACCT_INPUT_OCTET 42 Integer counter
RA_ACCT_OUTPUT_OCTET 43 Integer counter
RA_ACCT_SESSION_ID 44 Unique number generated by system.
RA_ACCT_AUTH 45
1
for RADIUS or
2
for local
RA_ACCT_SESSION_TIME 46 RADIUS reauth time configured with the
/protocol/radius/
set server
command. See “Managing RADIUS Servers” on
page 104.
RA_ACCT_INPUT_PACKET 47 Integer counter
RA_ACCT_OUTPUT_PACKET 48 Integer counter
RA_TERMINATE_CAUSE 49 One of:
•
1
for session terminated by user request
•
2
for session terminated due to lost carrier
•
4
for session terminated due to idle timeout
•
5
for session timeout
•
9
for session terminated due to NAS error
•
20
for session terminated due to reauth failure
RA_ACCT_INPUT_GIGAWORDS 52 Not used
RA_ACCT_OUTPUT_GIGAWORDS 53 Not used
RA_EVENT_TIMESTAMP 55 System time when the RADIUS packet is sent
RA_NAS_PORT_TYPE 61 Always
9
for port type of wireless
RA_TUNNEL_TYPE 64 Refer to “RADIUS Assigned VLAN” on page 106.
RA_TUNNEL_MEDIUM_TYPE 65 Refer to “RADIUS Assigned VLAN” on page 106.
RA_TUNNEL_PRIVATE_GROUP_ID 81 Refer to “RADIUS Assigned VLAN” on page 106.
Table 10: RADIUS Attributes (Continued)
Name ID Description
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 104 of 267
Document Number BDTM02201-A01 Standard
Managing RADIUS
Servers
/protocol/radius/show servers
/protocol/radius/set server <server_idx> <server_ip_address>
<shared secret> [authport <server_port>]
[acctport <radius_acc_port>]
[interface <NAS IP address>] [timeout <seconds>]
[reauthtime <seconds>]
/protocol/radius/del server <server_idx>
These commands let you manage the RADIUS server list used for
authenticating wireless clients. The list can contain up to 16 RADIUS servers.
After the list is configured, you can then assign which AP SSID uses which
server on the list. See “Assigning SSIDs to RADIUS Servers” on page 105. By
default, if a RADIUS server is unavailable, then the SSID uses the next RADIUS
server in the list. You cannot delete a server if it is being used by an SSID.
The
server_ip address
parameter specifies the IP address of the RADIUS
server.
The
shared secret
parameter specifies the password for access to the RADIUS
server.
The
server_port
parameter ranges from 0 to 65535. It specifies the UDP port
number of the RADIUS server. The default is 1812.
The
radius_acc_port
parameter ranges from 0 to 65535. It specifies the UDP
port number for RADIUS accounting data. The default value is 1813.
The
NAS IP address
parameter specifies the Network Access Server (NAS) IP
address for the BelAir20E RADIUS client. It is used when the unit is configured
with multiple IP interfaces and matches the interface used to communicate with
the given RADIUS server. The default value is the IP address of the unit’s
management interface, which is usually the system’s default IP address.
Note: The
NAS IP address
parameter is entered statically with this command.
If the VLAN IP addresses are determined dynamically with a DHCP
RA_CONNECT_INFO 77 Always
CONNECT 11Mbps 802.11b
RA_EAP_MESSAGE 79 EAP packet
RA_MESSAGE_AUTHENTICATOR 80 Authentication string from RADIUS server
RA_INTERIM_INTERVAL 85 Not used
Table 10: RADIUS Attributes (Continued)
Name ID Description
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 105 of 267
Document Number BDTM02201-A01 Standard
server, then an updated VLAN IP address is not automatically reflected
into the
NAS IP address
parameter.
The
timeout
parameter ranges from 2 to 300. It specifies the interval (in
seconds) after which the RADIUS client considers that the remote server has
timed out if a reply is not received. The default value is 10 seconds.
The
reauthtime
parameter ranges from 0 to 50000000. It specifies the RADIUS
re-authentication time (in seconds). This forces the BelAir20E to check all
connected clients with the RADIUS server (that is, make sure they are still
allowed to access the network) at the specified interval. You only need to
configure this parameter if it is not specified on the RADIUS server. Setting the
interval to zero disables this feature. The maximum interval time is
2147483647. If you enter a higher number, the value is set to its maximum.
Example
/protocol/radius# set server 3 172.16.1.20 my-secret12345 authport 1812 acctport 1813
interface 172.16.1.254 timeout 15 reauthtime 1
Changing RADIUS
Server Admin State
/protocol/radius/set server-state <server_idx> {enable|disable}
This command enables or disables a particular RADIUS server on the server
list. Use the
show servers
command to determine
<server_idx>
.
Assigning SSIDs to
RADIUS Servers
/interface/wifi-<n>-<m>/add ssid <ssid_index>
radius-server <server_idx>
/interface/wifi-<n>-<m>/del ssid <ssid_index>
radius-server <server_idx>
The
add
command specifies which RADIUS server to use to authenticate the
specified SSID. The
del
command means that the specified RADIUS server
stops authenticating the specified SSID. Use the
/wifi-<n>-<m>/show ssid table
command to determine
<ssid_index>
. Use the
/radius/show servers
command
to determine
<server_idx>
.
RADIUS
Pre-authentication
/interface/wifi-<n>-<m>/set ssid <ssid_index>
radius-pre-auth {enabled|disabled}
[delimiter {none|colon|dash}]
This feature allows you to set up a centralized access control list at the
RADIUS server instead of each AP. With this feature enabled, when an AP
receives a client’s association request, it composes an
access-request
message
and sends it to a RADIUS server. If an
access-accept
message is received from
the RADIUS server, the AP continues with the client’s association procedure
and grants access based on other criteria such as encryption type and key
matching.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 106 of 267
Document Number BDTM02201-A01 Standard
To use this feature, you must configure your RADIUS server to have a list of all
allowed clients. Each entry in this list includes a user name and a password. The
user name and the password must be set to the client’s MAC address. The
delimiter
parameter specifies whether the RADIUS packets use a colon (:), a
dash (-) or nothing as a delimiter when specifying a MAC address.
To reduce the message exchanges between the AP and RADIUS server, an AP
maintains two cache tables: one for all allowed clients and another for all
disallowed clients. When the AP receives a client’s association request, it first
searches both tables. If the client’s information is in the allowed table, the AP
bypasses RADIUS pre- authentication. If the client is in the disallowed table, it is
rejected immediately. Cache entries in either table expire in two minutes.
The feature can be enabled or disabled on each SSID. Use the
/wifi-<n>-<m>/
show ssid table
command to determine
<ssid_index>
.
The default setting is
disabled
.
RADIUS Assigned
VLAN The BelAir20E can create VLANs as instructed by the RADIUS server. When
this feature is activated, the RADIUS server instructs the BelAir20E to tag the
authenticated packets to use the specified VLAN.
This feature has no BelAir CLI commands. To activate this feature, you must
provision the following attributes on your RADIUS server:
• RA_TUNNEL_TYPE, set to
13
• RA_TUNNEL_MEDIUM_TYPE, set to
6
• RA_TUNNEL_PRIVATE_GROUP_ID, configure to contain the VLAN to be
created.
Refer to Table 10 on page 102.
RADIUS Accounting /interface/wifi-<n>-<m>/set ssid <ssid_index> radius
([accounting {enable|disable}]
[nas-id <name>]
[delimiter {none|colon|dash}]
[append {none|ssid}]
These commands let you manage RADIUS accounting for wireless clients.
By default RADIUS accounting is disabled.
The
nas-id <name>
parameters specify the RADIUS Network Access Server
(NAS) identifier. The default value for
<name>
is
belair
.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 107 of 267
Document Number BDTM02201-A01 Standard
The
delimiter
parameter specifies whether the RADIUS packets use a colon (:),
a dash (-) or nothing as a delimiter when specifying a MAC address.
The
append
parameter specifies RADIUS station ID formatting. The default
setting is
ssid
, meaning that the
called-station-ID
and the
calling-station-ID
fields
are formatted to include SSID information to the provided MAC address.
Client
Authentication
and
De-authentication
Trap
/interface/wifi-<n>-<m>/set client-trap {enabled|disabled}
[trap-delay {enabled|disabled}]
This command controls whether a trap is sent for this particular radio
whenever a wireless client authenticates or de-authenticates; that is,
disconnects from the radio. The trap can be used by any Network Management
System to monitor client activities.
When the client trap is enabled and the trap delay is enabled, the trap is not
sent out until 10 seconds after either of the following events:
• the client connects and stays connected
• the client is disconnected and stays disconnected
If the trap delay is disabled, then the trap is sent out immediately after either of
the previous events.
When the client trap is disabled, the trap is not sent out.
The default is to have both the client trap and trap delay enabled.
AP Privacy /interface/wifi-<n>-<m>/set ssid <ssid_index> privacy
{none|dot1x-open|wep40|wep104|
{wpa {tkip|aes}}|wpa2 {tkip|aes}|wpa2mixed}
[{psk <key-str>}|dot1x]
[rekey {no|kpackets <count>|seconds <seconds>}]
[strict {yes|no}]
This command configures wireless privacy for a particular SSID. Use the
show
ssid table
command to determine
<ssid_index>
. Use the
show ssid
<ssid_index> config
command to show the current privacy settings.
The
dot1x-open
parameter specifies an open privacy setting, but uses a
RADIUS server for SSID authentication. The RADIUS server authenticates a
wireless client by its username and password. After accepting the client, the
RADIUS server does not provide encryption keys. The data transmission is
open
.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 108 of 267
Document Number BDTM02201-A01 Standard
WPA, WPA2 and WPA2mixed privacy uses TKIP or AES encryption. With
WPA2mixed, the wireless client can use WPA or WPA2, and the AP accepts
them both.
The
psk
parameter specifies using a pre-shared key for authentication. When
specifying the pre-shared key, note the following:
•For
wep40
, the pre-shared key must be exactly 5 bytes.
•For
wep104
with
psk
, the pre-shared key must be exactly 13 bytes.
•For
wpa
,
wpa2
and
wpa2mixed
, the pre-shared key must be between 8 and
63 bytes long. The longer the key, the more secure the connection.
• The pre-shared key can be specified as a hexadecimal number or ASCII
string. Hexadecimal numbers must be preceded by
0X
or
0x
. ASCII strings
must not contain the following characters:
—bar (|)
—semicolon (;)
—question mark (?)
—double quotation mark (“)
The
dot1x
parameter specifies using RADIUS (EAP) authentication. You must
pre-configure a list of RADIUS servers. See “RADIUS Servers for Wireless
Clients” on page 101.
The
rekey
parameter allows you to specify Group Key Rekey options to
improve security. These options allow you to specify that a new group key (the
key that is used for communication between the access radio and a group of
clients) must be generated at regular intervals.
The default
rekey
setting is
no
meaning that the group key is not changed. If
rekey
is set to
n
seconds, the group key is changed after that time period. If
rekey
is set to
n
kpackets, the group key is changed after that many thousand
packets.
If
strict
is set to
yes
, the group key changes immediately when one client leaves
the network. The default is
no
. The
strict
setting applies to wpa and wpa2
encryption only.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 109 of 267
Document Number BDTM02201-A01 Standard
Additional Considerations
Make sure to set the AP SSID to something other than the default before
enabling
wpa
,
wpa2
or
wpa2mixed
. The BelAir20E unit combines the password
phrase with your SSID to create the key.
Note: Some configuration commands take longer than others to be applied to
a radio module. For example, it can take up to 40 seconds per SSID for
a WPA PSK configuration to be applied to radio. The delay varies
depending on the amount of computing resources required to
implement the configuration.
Wireless Client
Blacklist
/interface/wifi-<n>-<m>/add client blacklist <mac-addr>
/interface/wifi-<n>-<m>/del client blacklist <mac-addr>
These commands let you add and remove a MAC address from a client blacklist.
If a wireless client’s MAC address matches an entry on the blacklist, the client
cannot associate with the AP. The client blacklist can contain up to 16 entries.
Each physical interface can have its own client blacklist.
Use the
show config access
command to display the current client blacklist
entries.
Wireless Client
Access Control
List
/interface/wifi-<n>-<m>/show ssid <ssid_index> acl
[page <page-number> <page-size>]
/interface/wifi-<n>-<m>/add ssid <ssid_index> acl-mac-address
<mac-address>
/interface/wifi-<n>-<m>/del ssid <ssid_index> acl-mac-address
<mac-address>
/interface/wifi-<n>-<m>/set ssid <ssid_index> acl
{enabled|disabled}
You can create a local list of clients (an ACL) that controls access to the
network. The list can contain up to 16 clients per SSID. Clients are identified by
the MAC address of their network card. If you have multiple BelAir20E units in
your network, you need to create this list for every AP.
You should only use an ACL as an extra security measure if:
• you cannot or prefer not to set up a RADIUS server
• your network provides access to network clients which do not support
RADIUS authentication
In both cases, it is recommended that you enable pre-shared key encryption
(WEP, WPA, WPA2 or WPA2mixed).
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 110 of 267
Document Number BDTM02201-A01 Standard
The
enabled
setting for the
set acl
command means that only the wireless
clients on the ACL can access the network. All other clients are denied access.
The
disabled
setting means that all wireless clients can access the network. See
also “AP Secure Port Mode” on page 112.
Typically, you enable ACL mode only after you have added all the desired MAC
addresses to the control list.
CAUTION! When used with multiple SSIDs, this method affects wireless clients attempting
to associate with any of the SSIDs.
Use the
show ssid table
command to determine
<ssid_index>
.
Controlling
Inter-client
Communication
If wireless bridging is enabled for an SSID, then by default wireless clients
associated to an AP and using that SSID can communicate to one another
(assuming they are able to determine the IP addresses of their peer wireless
clients).
For security reasons in a public network environment, it may be desirable to
block inter-client communications.
CAUTION! Provisioning inter-client communication can affect the wireless clients
associated with all the SSIDs of that BelAir20E unit.
The goal is to prevent communications between associated wireless clients and
still allow them to connect to the Internet. To do this, use one of the following
methods.
Manual Provisioning of Gateway MAC Addresses
The following method offers the precise control of SSID communications:
1 Determine the MAC address of the Internet gateway(s) or router(s) in your
network.
2 Disable wireless bridging for each AP in your network.
3 Disable inter-AP wireless client communications:
a Add the previously determined gateway MAC address or addresses to the
secure MAC white list. This allows wireless clients to communicate with
the Internet. The secure MAC white list typically contains the MAC
address of the gateway interfaces.
b If the DHCP server for your network is on a different machine than the
gateway, add the MAC address of the DHCP server machine to the
secure MAC white list.
c Enable
secure port
mode for each of the APs in your network.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 111 of 267
Document Number BDTM02201-A01 Standard
Automatic Discovery of Gateway MAC Addresses
The following method automates MAC address provisioning:
1 Disable wireless bridging for each AP in your network.
2 Disable inter-AP wireless client communications:
a Enable the
auto-secure gateway
feature for each of the APs in your
network.
b Enable
secure port
mode for each of the APs in your network.
Determining the MAC
Address of the Internet
gateway
This step is only required if you want to manually provision the MAC addresses
of the Internet gateway(s) or router(s) in your network.
Determining the MAC address of your Internet gateway(s) depends on the type
of equipment you are using. Refer to your equipment’s User Manual for the
specific details.
You will need the MAC address of your gateways later to provision the secure
MAC white list of the APs configured in
secure port
mode.
Disabling or Enabling AP
Wireless Bridging
/interface/wifi-<n>-<m>/set ssid <ssid_index> wireless-bridge
{enabled|disabled}
Use the
show ssid table
command to determine
<ssid_index>
.
Disabling wireless bridging for an AP prevents wireless clients associated to that
particular AP from communicating with one another.
It does not prevent a wireless client associated with one AP (AP “A”) from
communicating with a wireless client associated with another AP (AP “B”). The
secure port
mode prevents this. See “AP Secure Port Mode” on page 112.
By default, wireless bridging is
enabled
.
Disabling Inter-AP
Wireless Client
Communication
Disabling inter-AP wireless client communications involves setting up a secure
MAC white list and enabling secure port mode for each AP.
Secure MAC White List /interface/wifi-<n>-<m>/add secure-mac-address <mac-address-string>
[secure-mac-mask <mac-mask-string>]
[all | untagged | <vlan-id>]
/interface/wifi-<n>-<m>/del secure-mac-address <mac-address-string>
[all | untagged | <vlan-id>]
Use these commands only if you want to manually provision the MAC
addresses of the Internet gateway(s) or router(s) in your network.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 112 of 267
Document Number BDTM02201-A01 Standard
These commands add and remove a MAC address from the secure MAC white
list. The MAC address can optionally be qualified with a mask and a traffic
descriptor as follows:
• The mask is specified with the
secure-mac-mask
option. Use
ff
to indicate
bits to accept. Use
00
to indicate bits to ignore. For example, a MAC
address of 00:0d:67:0c:21:90 with a mask of ff:ff:ff:00:00:00 specifies all MAC
addresses beginning with 00:0d:67. You can also customize the mask to
exactly suit your needs by using values other than
ff
or
00
.
• The traffic descriptor can be one of
all
,
untagged
or a VLAN ID. Use a
VLAN ID to specify the traffic of a particular VLAN. Use
untagged
to specify
only untagged traffic. Use
all
to specify all traffic.
When configured in secure port mode, the AP forwards to the associated
wireless clients only those Layer 2 (Ethernet) frames for which the source MAC
address and VLAN matches an entry its white list. The white list can contain up
to 32 entries. If a VLAN is not specified, it is assumed to have a value of zero.
In effect, while in this mode the AP acts as a firewall for all Layer 2 frames
arriving from inside the network for the wireless clients. The secure MAC
white list should only contain the MAC addresses of the gateway interfaces.
Thus, wireless clients associated to other APs in the network are prevented
from communicating with locally associated clients.
Note 1: The secure MAC white list is different from the list described in
“Wireless Client Access Control List” on page 109. In a client ACL,
only the listed MAC addresses are allowed to associate with an AP. The
secure MAC white list controls data forwarding to the wireless clients
from remote entities in the network.
Note 2: If the gateway and DHCP servers on your networks are on different
machines, you must put the MAC addresses of both machines on the
secure MAC white list.
The content of the secure MAC white list takes effect only when the AP secure
port mode is enabled.
AP Secure Port Mode /interface/wifi-<n>-<m>/set ssid <ssid_index> secure-port
{enabled|disabled}
Use the
show ssid table
command to determine
<ssid_index>
.
To prevent wireless clients associated with different APs from communicating
with each other, you must enable the secure port mode on each of the APs in
your network.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 113 of 267
Document Number BDTM02201-A01 Standard
By default, the secure port mode is
disabled
.
Note: Typically, you provision the secure MAC white list before enabling the
secure port mode. This ensures that wireless clients that are already
associated do not lose their connection to the Internet.
Auto-secure Gateway /interface/wifi-<n>-<m>/set ssid <ssid_index>
auto-secure-gateway {enabled|disabled}
Use this command only if you want to automatically discover the MAC
addresses of the Internet gateway(s) or router(s) in your network. To use this
command, you must set the ROUTER_IP option (DHCP option 3) on the
DHCP server in your network.
Use the
show ssid table
command to determine
<ssid_index>
.
This command starts the process of detecting the MAC addresses of the
gateway for each VLAN in the system. Once it determines the MAC address, it
adds it to the secure MAC white list. This feature also continuously monitors
for changes in the gateway's MAC address updates the secure MAC white list
accordingly.
By default, the auto-secure gateway functionality mode is
disabled
.
Note: If you are automatically discovering the MAC addresses of your
network gateways, then you typically enable auto-secure gateway before
enabling the secure port mode. This ensures that wireless clients that
are already associated do not lose their connection to the Internet.
Protecting against
Denial of Service
Attacks
The BelAir20E provides protection against the following types of Denial of
Service (DoS) attacks:
• deauthentication DoS, where deauthentication packets are maliciously sent
to the BelAir platform causing it to terminate wireless sessions
The BelAir20E also automatically generates alarms when it detects the
following conditions:
• If the BelAir20E detects more than 600 DHCP requests within 30 seconds,
it raises a
DHCP_STARVATION
alarm.
• If the BelAir20E detects a client with a MAC address that matches any of the
addresses in the secure MAC white list, it raises a
SECURE_MAC_SPOOF
alarm.
BelAir20E User Guide Wi-Fi AP Security
October 11, 2011 Confidential Page 114 of 267
Document Number BDTM02201-A01 Standard
You can clear these alarms with the following command:
/interface/wifi-<n>-<m>/clear alarm {secure-mac-spoof |
dhcp-starvation |
deauth-dos}
Deauthentication DoS /interface/wifi-<n>-<m>/set deauth dos defense {enabled|disabled}
When a deauthentication packet arrives and this feature is enabled, the BelAir
platform waits 5 to 10 seconds before it terminates the wireless session. If the
wireless client sends another data packet during that interval, then the previous
deauthentication packet is deemed false and ignored. If the BelAir platform
does not receive any data packets during the interval, then the session is
terminated.
Use the
/interface/wifi-<n>-<m>/show statistics
command to display the
number of potential attacks it has detected since you enabled the feature.
BelAir20E User Guide Wi-Fi Backhaul Link Configuration
October 11, 2011 Confidential Page 115 of 267
Document Number BDTM02201-A01 Standard
Wi-Fi Backhaul Link Configuration
This chapter describes how to display and configure Wi-Fi backhaul parameters,
including:
•“Displaying Backhaul Link Configuration” on page 115
•“Configuring Backhaul Link Identifier, Topology and Privacy” on page 116
•“Managing MP-to-MP Meshes” on page 118
—“Displaying the Mesh Topology” on page 118
—“Setting a Link RSSI Threshold” on page 119
—“Managing the Mesh Blacklist” on page 120
—“Mesh Auto-connections” on page 120
—“Managing Mesh Auto-connections” on page 121
•“Egress Protection” on page 122
•“Changing Backhaul Link Admin State” on page 122
See also:
•“Configuring Wi-Fi Radio Parameters” on page 72
•“Configuring Wi-Fi Access Point Parameters” on page 80
•“Wi-Fi AP Security” on page 100
•“Mobile Backhaul Mesh” on page 123
Displaying
Backhaul Link
Configuration
Use the
show config backhaul
command to display the current backhaul
configuration. See “Displaying Wi-Fi Radio Configuration” on page 73 for
details.
Example - Typical BelAir20E
/interface/wifi-1-1# show config backhaul
Slot: 1, Card Type: htme, revision: 1, Port: 1, Radio: HTMv1 5GHz
802.11n
admin state: ................. Enabled
channel: ..................... 149
mode: ...................... ht40plus
mimo: ...................... 3x3
tx power: .................. 18.0 (dBm per-chain), 23.0 (dBm total)
antenna location: ............ External Port
antenna index: ............... 1
antenna gain: ................ 5.0 (dBi)
link distance: ............... 1 (km)
base radio MAC : ............. 00:0d:67:0c:21:90
BelAir20E User Guide Wi-Fi Backhaul Link Configuration
October 11, 2011 Confidential Page 116 of 267
Document Number BDTM02201-A01 Standard
Common Backhaul:
privacy: ................... AES
key: .......................
mesh-min-rssi............... -100 (dbm)
Stationary Backhaul:
link admin state: .......... Disabled
link id: ................... BelAirNetworks
topology: .................. mesh
Mobile Backhaul:
mobile admin state: ........ Disabled
mobile link id: ............
mobile link role: .......... ss
Blacklist:
No blacklist entries
Link Failure Detection: ...... Disabled
Backhaul T1 Bandwidth limit:.. Disabled
Configuring
Backhaul Link
Identifier,
To p o l og y a n d
Privacy
/interface/wifi-<n>-<m>/set backhaul link ([identifier <link-id>]
[topology {p2p|mesh|{star role {bs|ss} index <lnk_idx>}}]
[privacy {{enabled key <pre_shared_key>}|disabled}])
This command configures the backhaul link identifier, the backhaul topology and
backhaul privacy.
The backhaul link identifier identifies all members of a particular topology. The
<link_id>
parameter is case sensitive and can be up to 32 alphanumeric
characters:
• For Point-to-Point (P-to-P) links, BelAir Networks recommends that the
link identifier describes the link; that is, the nodes it connects.
• For Point-to-Multipoint (P-to-MP) or Multipoint-to-Multipoint (MP-to-MP)
links, the link identifier is also known as a mesh identifier. It is the same for
all members of a particular mesh. A suitable link identifier is short phrase
unique to the MP-to-MP mesh, for instance Company x Mesh A or Mesh
Number 23.
When configuring a particular topology, you must configure all members to
have:
• the same channel. Refer to “Operating Channel” on page 74 for the
appropriate command
• the same link identifier
• the same privacy settings
BelAir20E User Guide Wi-Fi Backhaul Link Configuration
October 11, 2011 Confidential Page 117 of 267
Document Number BDTM02201-A01 Standard
As well, you must meet the requirements listed in Table 11 on page 117.
The
privacy
setting determines whether AES privacy is used or not.
The pre-shared key must be exactly 32 bytes long (16 characters). The
pre-shared key can be specified as a hexadecimal or ASCII string and must not
contain the following characters:
•bar (|)
•semicolon (;)
• question mark (?)
• double quotation mark (“)
Table 11: Wi-Fi Backhaul Configuration Requirements
Topology Requirements
P-to-P 1 Set the
topology
parameter to
p2p
.
P-to-MP
(Star topology with one
base station in the
middle connecting up to
eight subscriber
stations)
1 Set the
topology
parameter to
star
.
2 Set the node’s role. The node can be a base
station (
bs
) or a subscriber station (
ss
). A base
station is located at the center of the star and
can support up to eight subscriber stations.
3 Set the
<lnk_idx>
parameter. The link index
identifies individual links in the star topology. It
ranges from 1 to 8. For a subscriber station,
you specify a single link index. For a base
station, you specify all the link indexes that are
used to connect to subscriber stations. Use a
comma to separate multiple link indexes.
To configure P-to-MP links configure the
subscriber stations first followed by the base
station.
MP-to-MP
(Full mesh topology
with each BelAir radio
having up to eight links)
1 Set the
topology
parameter to
mesh
.
BelAir20E User Guide Wi-Fi Backhaul Link Configuration
October 11, 2011 Confidential Page 118 of 267
Document Number BDTM02201-A01 Standard
Managing
MP-to-MP Meshes
This section describe additional commands to help you configure and manage
an MP-to-MP mesh clusters, including:
•“Displaying the Mesh Topology” on page 118
•“Setting a Link RSSI Threshold” on page 119
•“Managing the Mesh Blacklist” on page 120
•“Mesh Auto-connections” on page 120
•“Managing Mesh Auto-connections” on page 121
Displaying the Mesh
To p o l o g y
/interface/wifi-<n>-<m>/show backhaul status
This command displays the operating parameters of the MP-to-MP links you are
connected to.
Example 1 and Example 2 that follow illustrate the output describing a mesh
between three radios: RadioA, RadioB and RadioC.
Example 1: RadioA
/interface/wifi-4-1# show backhaul status
Backhaul Links:
Link Radio MAC State(L,R) RSSI Radio Node IP Node Name
---- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:0b:55:17 fwd fwd -49 wifi-3-1 180.1.5.120
[S] 2 00:0d:67:0b:51:ed fwd fwd -54 wifi-3-1 180.1.4.150
In the previous output, link 1 goes to RadioC and link 2 goes to RadioB.
RadioA is measuring a signal strength of -49 dBm from RadioC. RadioC has a
MAC address of 00:0d:67:0b:55:17 and is physical interface wifi-3-1 on a node
with IP address 180.1.5.120.
RadioA is measuring a signal strength of -54 dBm from RadioB. RadioB has a
MAC address of 00:0d:67:0b:51:ed and is physical interface wifi-3-1 on a node
with IP address 180.1.5.150.
Example 2: RadioB
/interface/wifi-3-1# show backhaul status
Backhaul Links:
Link Radio MAC State(L,R) RSSI Radio Node IP Node Name
---- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:0b:55:17 fwd fwd -68 wifi-3-1 180.1.5.120
[S] 2 00:0d:67:08:63:31 fwd fwd -54 wifi-4-1 180.1.5.180
BelAir20E User Guide Wi-Fi Backhaul Link Configuration
October 11, 2011 Confidential Page 119 of 267
Document Number BDTM02201-A01 Standard
In the previous output, link 1 goes to RadioC and link 2 goes to RadioA.
RadioB is measuring a signal strength of -68 dBm from RadioC. As in example 1,
RadioC has a MAC address of 00:0d:67:0b:55:17 and is physical interface
wifi-3-1 on a node with IP address 180.1.5.120.
As in example 1, RadioB is measuring a signal strength of -54 dBm from RadioA.
RadioA has a MAC address of 00:0d:67:08:63:31 and is physical interface
wifi-4-1 on a node with IP address 180.1.5.180.
Example 3: Mobile Backhaul Mesh
/interface/wifi-1-1# show backhaul status
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[M] 1 00:0d:67:09:23:6a fwd fwd -68 wifi-3-1 10.1.1.123 NYC_WALLST
[M] 1 00:0d:67:00:08:06 fwd UP -71 wifi-3-1 10.1.1.122 NYC_BROADWAY
In the previous output, there are two mobile backhaul mesh links. One is
forwarding while the other is listening.
Setting a Link RSSI
Threshold
/interface/wifi-<n>-<m>/set backhaul mesh-min-rssi <rssi_value>
This command lets you set a signal strength threshold for creating mesh links. If
a radio signal from another node is weaker than the specified threshold, then
no link is created to that other node, except if there is no other link to either
node at each end of the link. In that case, the link is still created even if the
radio signal is weaker than the specified threshold.
This command applies only when a node is forming MP-to-MP links with other
nodes. Existing links are not affected by this command.
The
rssi_value
parameter is specified in as a negative number in dBm. The
default value is -100 dBm. Use the
show config backhaul
command to display
the current value.
Example
/interface/wifi-1-1# set backhaul mesh-min-rssi -70
The previous command sets the link RSSI threshold to -70 dBm. If the signal
from another radio is stronger than -70 dBm, then a backhaul link to that radio
is created. If it is weaker than -70 dBm, then a link is not created.
BelAir20E User Guide Wi-Fi Backhaul Link Configuration
October 11, 2011 Confidential Page 120 of 267
Document Number BDTM02201-A01 Standard
Managing the Mesh
Blacklist
/interface/wifi-<n>-<m>/add backhaul blacklist <mesh_pt_MAC_addr>
/interface/wifi-<n>-<m>/del backhaul blacklist <mesh_pt_MAC_addr>
These commands allow you to control whether or not a link is used between
two mesh points in an MP-to-MP mesh. To blacklist a link, you need to log in to
both ends of the link and put the radio of other node on the local blacklist. For
example, to prevent the use of a link between node A and B, you need to:
1 Log in to node A and add to its blacklist the MAC address of node B radio.
2 Log in to node B and add to its blacklist the MAC address of node A radio.
The MAC addresses of the node radios can be determined with the
show
backhaul status
command.
Typically, these commands are used to disable an unstable link. This behavior
may occur when either radio at each end of the link is operating at the limit of
its sensitivity.
As well, these commands can be used to disable a particular link if the RF plan
predicts low RSSI values for it.
Mesh Auto-connections BelAir MP-to-MP meshes have the ability to detect when their egress node
loses the ability to route traffic out of the mesh. When such a situation exists,
each radio that is part of the affected mesh begins trying to find an alternate
way of routing its traffic out of the mesh.
If the affected radio is part of a multi-radio platform, such as the BelAir100N,
and the other radios are also part of a mesh, then it attempts to route its traffic
through the other radios of its own platform.
If it cannot do so, then it begins scanning other channels to see if it can establish
a link to another radio that is part of a neighboring mesh with an active egress
node.
The affected radios stagger their attempts to “hunt” for a neighboring mesh to
avoid overloading the neighboring radios and to allow time for their own egress
node to re-establishing itself.
A link to a neighboring mesh only occurs when:
• The neighboring mesh has an active egress node.
• The first six bytes of the neighboring mesh identifier matches the local mesh
identifier.
If there are several candidate meshes to connect to, then the link is made to the
mesh that:
BelAir20E User Guide Wi-Fi Backhaul Link Configuration
October 11, 2011 Confidential Page 121 of 267
Document Number BDTM02201-A01 Standard
• matches the longest possible mesh identifier string
• has the better signal level
• has the minimum hop count to the egress node
Once a new link is established, the radio does not automatically revert back to
the old mesh, even if the old mesh’s egress node regains its ability to route
traffic outside of the mesh. To do so, you must manually use one of the
provided CLI commands.
Mesh auto-connect uses RSTP to establish the new mesh topology. Disabling
RSTP disables this functionality.
See also:
•“Managing Mesh Auto-connections” on page 121
•“Setting the Network Egress Point” on page 54
•“Mesh Auto-connection Example” on page 224
Managing Mesh
Auto-connections
/services/auto-conn/set admin-state {enabled|disabled}
/services/auto-conn/revert alternate-mesh
/services/auto-conn/show alternate-mesh
/services/auto-conn/show egress-node-list
/services/auto-conn/show config
/services/auto-conn/show status
These commands allow you to control mesh auto-connection capabilities.
Use the
set admin-state
command to enable or disable this capability. By default
mesh auto-connections are enabled.
Use the
revert alternate-mesh
command to manually force a link to a
neighboring mesh back to the original mesh.
Use the
show alternate-mesh
command to display the node's links to a
neighboring mesh when the node's egress is lost.
Use the
show egress-node-list
command to display the list of egress nodes for
the current mesh.
Use the
show config
command to display the current auto-connection
configuration.
Use the
show status
command to display whether the auto-connection
capability is enabled or disabled.
Refer to “Mesh Auto-connection Example” on page 224.
BelAir20E User Guide Wi-Fi Backhaul Link Configuration
October 11, 2011 Confidential Page 122 of 267
Document Number BDTM02201-A01 Standard
Egress Protection /interface/wifi-<n>-<m>/set backhaul protection-admin-state {enable|disable}
This command controls egress protection. The default setting is
disable
.
Egress protection provides extra redundancy for the BelAir20E’s egress point.
The egress point is the point where the BelAir20E’s access traffic leaves the
BelAir wireless network. This may be through an Ethernet connection, L2TP
tunnel end-point, or a cable modem.
If the egress point fails and egress protection is enabled, the BelAir20E uses a
Wi-Fi backhaul link to connect to another BelAir node so that traffic can leave
the BelAir wireless network through that node’s egress point. The BelAir20E
selects the best node to use based on several factors including signal strength
and the number of hops to the egress point.
Egress protection is revertive. If the original egress point becomes operational
again, the access data is redirected back to original egress point.
To use egress protection, make sure of the following:
• The BelAir20E and it surrounding nodes are equipped with appropriate
hardware to provide the Wi-Fi backhaul link.
• The channel number, privacy settings and link identifier are the same for all
surrounding nodes.
• The
backhaul protection-admin-state
option for the radios has been
enabled.
• The tunnel engine for the BelAir20E is enabled, if the egress point is an L2TP
tunnel end point. See “Setting Tunnel Engine Parameters” on page 167.
Changing
Backhaul Link
Admin State
/interface/wifi-<n>-<m>/set backhaul admin-state {enable|disable}
This command lets you enable or disable backhaul functionality regardless of
the topology (MP-to-MP, P-to-MP or P-to-P). The default setting is
disable
.
BelAir20E User Guide Mobile Backhaul Mesh
October 11, 2011 Confidential Page 123 of 267
Document Number BDTM02201-A01 Standard
Mobile Backhaul Mesh
This feature extends the BelAir Networks fixed wireless infrastructure onto
high-speed vehicles such as trains, buses, police and fire vehicles, and
ambulances. Refer to Figure 6.

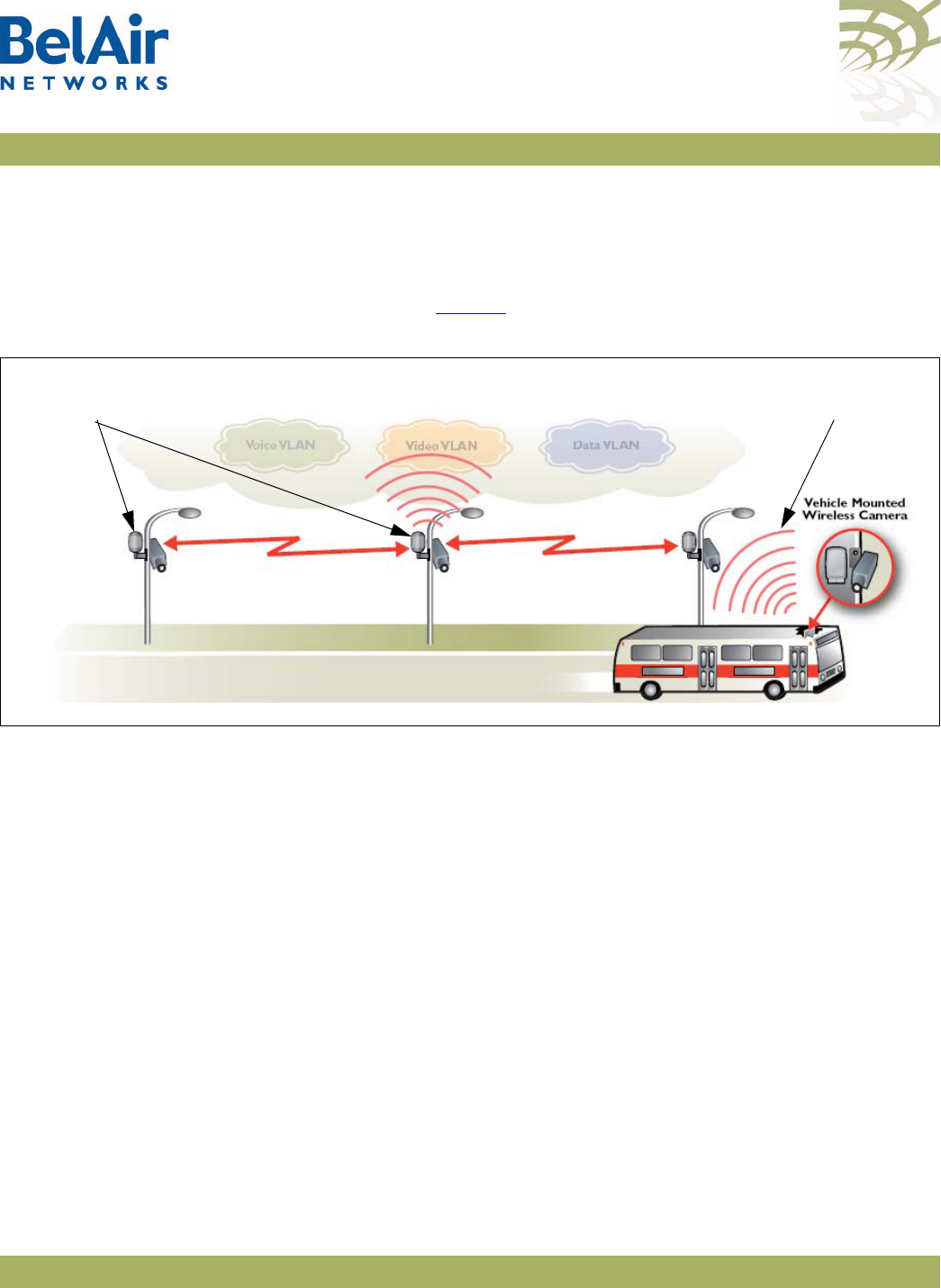

Figure 6: Mobile Backhaul Links Connecting Vehicle Cameras to Roadside Network
A BelAir20E with mobile backhaul mesh links can support uninterrupted
high-performance broadband connectivity for critical applications, including
voice and video, as the vehicle moves throughout the wireless mesh at speeds
up to 150 mph (240 kph).
In such a deployment, the mobile node, mounted on a vehicle, acts as a
subscriber station to a stationary base station node. All mobile subscriber
stations and their stationary base stations use the same wireless channel,
mobile link identifier and privacy settings.
Each mobile subscriber station can have up to three mobile links with three
different stationary base station nodes. Mobile links can be either listening or
forwarding. Only one of the three mobile links from the subscriber station can
be forwarding at a particular moment to a particular stationary base station
node. Traffic from the forwarding link is propagated to the rest of the network.
The mobile subscriber station constantly determines the relative link quality of
all its links based on several factors, including signal strength, aging and failure
rates.
Roadside
Network
Mobile Backhaul
Mesh Link
BelAir20E User Guide Mobile Backhaul Mesh
October 11, 2011 Confidential Page 124 of 267
Document Number BDTM02201-A01 Standard
When the mobile subscriber station determines that a listening link has a better
link quality than the current forwarding link, it changes the link state so that the
listening link with the higher quality becomes forwarding.
These
look ahead
and
make before break
handover schemes allow the
BelAir20E with mobile backhaul mesh links to provide uninterrupted support
for a wide variety of applications, including voice and video.
Each base station node can support up to eight links. These can be mobile links
or links to other stationary base stations. Mobile links can be either forwarding
or listening. If a mobile subscriber station arrives within range of the base
station, its forwarding link has precedence over the listening links of the other
mobile subscriber stations.
Configuring
Mobile Backhaul
Mesh Links
The following tasks can be done:
•“Displaying Mobility Configuration and Status” on page 124
•“Configuring MIMO Operation for Mobile Applications” on page 125
•“Configuring and Enabling Mobile Backhaul Mesh Links” on page 125
Displaying Mobility
Configuration and
Status
/interface/wifi-<n>-<m>/show backhaul mobility-path-select-history
This command displays the history of a radio’s mobile path switches for
debugging purposes. The displayed information includes an event ID, local RSSI,
peer RSSI, failure rate, age time, mobile credit score, peer MAC, peer IP
address, and the peer system name. Each radio stores up to 500 entries. The
data is not persistent.
Example
/# interface/wifi-1-1/show backhaul mobility-path-select-history
1 1970-01-01 10:46:30 new [-64 -58 0 0 -64 00:0d:67:09:7d:fa 10.1.1.110 BA100T_110]
2 1970-01-01 11:54:44 chg [-57 -63 0 0 -63 00:0d:67:0c:6e:f4 10.1.1.120 BA100tt_120]
3 1970-01-01 12:01:14 chg [-54 -57 0 0 -57 00:0d:67:09:7d:fa 10.1.1.110 BA100T_110]
4 1970-01-01 12:22:30 chg [-55 -63 0 0 -63 00:0d:67:0c:6e:f4 10.1.1.120 BA100tt_120]
5 1970-01-01 12:33:13 chg [-53 -53 0 0 -53 00:0d:67:09:7d:fa 10.1.1.110 BA100T_110]
Additional Configuration Display Commands
Refer to the following sections and command descriptions:
•“Displaying Backhaul Link Configuration” on page 115
•“Displaying the Mesh Topology” on page 118
•show rf-survey backhaul, described in the
BelAir20E Troubleshooting
Guide
BelAir20E User Guide Mobile Backhaul Mesh
October 11, 2011 Confidential Page 125 of 267
Document Number BDTM02201-A01 Standard
Configuring MIMO
Operation for Mobile
Applications
/interface/wifi-<n>-<m>/set mimo-mode {1x1|1x2|2x2|2x3|3x3}
This command configures the Multiple-Input and Multiple-Output (MIMO)
antenna settings for mobility applications using 802.11n radios, such as those
for the BelAir20M. In such applications. the 5.8 GHz radio must operate with a
MIMO setting of 1x1 while the 2.4 GHz access radio must operate with a
MIMO setting of 2x2.
Use this command to adjust the MIMO setting of each radio interface as
required. The supported modes vary depending on the type of radios in your
unit, as follows:
• HTM and DRUE radios support only 1x1, 2x2 and 3x3 modes
• HTME radios support only 1x1 and 2x2 modes
• DRU radios support only 1x1, 1x2, 2x2 and 2x3 modes
Example
/interface/wifi-1-1# set mimo-mode 1x1
/interface/wifi-1-2# set mimo-mode 2x2
The previous commands apply to a BelAir20M where interface wifi-1-1 is for a
5.8 GHz radio while interface wifi-1-2 is for a 2.4 GHz access radio.
Configuring and
Enabling Mobile
Backhaul Mesh Links
/interface/wifi-<n>-<m>/set backhaul mobile
([identifier <link-id>] [role {bs|ss}]
[privacy {{enabled key <pre_shared_key>}|disabled}]
[admin-state {enable|disable}])
This command configures the mobile backhaul link identifier, the role of the
node and backhaul privacy. It also lets you enable or disable mobile backhaul
mesh functionality. The default setting is
disable
.
The mobile backhaul link identifier identifies all members of a particular mobile
backhaul mesh. The
<link_id>
parameter is case sensitive and can be up to
32 alphanumeric characters. A suitable link identifier is short phrase unique to
the mobile backhaul mesh.
When configuring a particular mobile backhaul mesh, you must configure all
members to have:
• the same channel. Refer to “Operating Channel” on page 74 for the
appropriate command
• the same mobile link identifier
• the same privacy settings
BelAir20E User Guide Mobile Backhaul Mesh
October 11, 2011 Confidential Page 126 of 267
Document Number BDTM02201-A01 Standard
As well, you must meet the requirements for the P-to-MP topology listed in
Table 11 on page 117.
The
privacy
setting determines whether AES privacy is used or not.
The pre-shared key must be exactly 32 bytes long (16 characters). The
pre-shared key can be specified as a hexadecimal or ASCII string and must not
contain the following characters:
•bar (|)
•semicolon (;)
• question mark (?)
• double quotation mark (“)
Example 1 - Mobile Node
/interface/wifi-1-1# set backhaul mobile identifier test100m role ss
/interface/wifi-1-1# set backhaul mobile admin-state enable
Example 2 - Stationary Node
/interface/wifi-1-1# set backhaul mobile identifier test100m role bs
/interface/wifi-1-1# set backhaul mobile admin-state enable
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 127 of 267
Document Number BDTM02201-A01 Standard
Mobile Backhaul Point-to-point Links
This feature extends the BelAir Networks fixed wireless infrastructure onto
low-speed vehicles such as ships travelling near a sea port. A BelAir node with
mobile backhaul point-to-point links provides redundant high-performance
broadband connectivity.
In such a deployment, the mobile node mounted on a ship acts as a subscriber
station to a stationary base station node mounted on shore.
A subscriber station searches for base station links on a pre-defined set of
channels. It creates up to two links, a primary link and a secondary link, when it
finds a base station advertising available links with an appropriate mobile link
identifier and privacy settings. Once a primary link and a secondary link are
created, one is used for active communications while the other acts as a
standby.
If the signal strength of the active link falls below a threshold, then the standby
becomes the primary link and the subscriber station searches for a new
secondary link.
If performance degrades on the active and standby links, the subscriber station
searches for new base station links with better signal strength.
In addition to providing mobile links, a base station node can also provide links
to other stationary base stations. Mobile link pairs can only be used by one
subscriber station. The links of a base station are configured to operate on one
channel only.
The user defines a channel list that determines the channels that the subscriber
station uses to scan for base station nodes.
Subscriber stations support partial matches to the mobile link identifier. For
example, a subscriber station scanning for a mobile identifier of
mobilityTest
accepts a base station link advertising a mobile link identifier of
mobilityTestBsLink28
.
The
set home-check
CLI command forces a subscriber station to connect to
specific base station links. When home check is enabled, the subscriber station
accepts only base station links that advertise a mobile link identifier that is
exactly the same as the subscriber station’s home-check identifier.
If the mobile backhaul units (subscriber stations and their stationary base
stations) are part of a larger network of BelAir equipment, make sure the
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 128 of 267
Document Number BDTM02201-A01 Standard
mobile link identifiers and mobile channels are not used elsewhere in the
network. If a neighboring stationary subscriber station uses a link identifier and
channel similar to a mobile subscriber station, then it can interfere with the
creation of links between the mobile backhaul units.
With mobile backhaul point-to-point links, the base station is passive. The
subscriber station determines whether or not to connect or disconnect from a
base station. If a connection is lost, then the subscriber station starts its
scanning process.
Scanning Process If a subscriber station scans for available links when either member of its mobile
link pair is disconnected from a base station. It scans all configured channels
looking for available base station links. The subscriber station selects the link
with a matching mobile link identifier and the best signal strength.
If another link in the subscriber station is using a channel in the configured
channel list, then this channel is skipped by the scanning process. Once
connected, the subscriber station does not scan again until the connection is
lost.
Sample Subscriber
Station
Configuration
1 Configure the topology and privacy settings, and enable each Wi-Fi
interface.
/interface/wifi-2-1# set backhaul link topology p2p privacy
disabled
/interface/wifi-2-1# set backhaul admin-state enabled
2 Disable RSTP dynamic cost for each backhaul link. The mobility service
manages link cost.
/protocol/rstp# set interface wifi-2-1 dynamic-cost disable
3 Configure the mobile backhaul point-to-point links.
a Specify the mobile link identifier with the
set network-identifier
command.
/services/mobility# set network-identifier mobilityTest
b Specify the topology and role.
/services/mobility# set topology p2p-mobile role SS
c Define the channels expected from the shore links. Up to eight lists can
be defined.
/services/mobility# add scan-list 2 148,61,151
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 129 of 267
Document Number BDTM02201-A01 Standard
d Set release 7 compatibility to
yes
if this node is connecting to a shore unit
running Release 7.1.0 software.
/services/mobility# set release-7-compatibility no
e Optionally set the RSSI threshold.
The
minimum
parameter specifies the minimum signal strength required
to connect.
The
switch
parameter defines the signal strength level at which a link
switch occurs, provided the secondary link is better by at least the
specified
margin
set and has an signal strength better than
secondary
.
If the secondary link falls below the secondary threshold, the subscriber
station begins scanning with its third or fourth radio if they exist.
/services/mobility# set RSSI minimum -85 margin 5 switch -70
secondary -75
f Enable scanning by connecting the Wi-Fi interfaces to the appropriate
scan-list.
/services/mobility# connect scan-list 1 wifi-2-1
4 Display the configuration and correct any settings as required. Use following
commands as required.
a Display the mobility configuration.
/services/mobility# show config
Topology : point-to-point
Role : SS
Rel 7 : False
Network Id : mobilityTest
Home Check : Disable Link Id: AutoconfSSID
RSSI : minimum margin switch secondary
---------- : ------- ------ ------ ---------
(dbm) : -85 5 -70 -75
b Display the scan lists.
/services/mobility# show scan-list 2
Scan list [2] channels:
61 148 151
Scan list [2] used by:
wifi-2-1 (5GHz 802.11a)
wifi-3-1 (5GHz 802.11a)
c Display the links detected by scanning.
/services/mobility# show available-infra
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 130 of 267
Document Number BDTM02201-A01 Standard
wifi-2-1 (MRMv1 4.4GHz 802.11n) scan list
Mac Address CH ANT RSSI(dBm) AVL-BS ENBL-BS NET-ID-MATCH Age MESH ID
--------------- -- --- --------- ------ ------- ------------ --- -------
00:0d:67:09:c4:79 91 1 -58 Yes Yes Yes 0 mobilityTest
current time: 01:06:30 last scan time: 21:01:38
wifi-3-1 (MRMv1 4.4GHz 802.11n) scan list
Mac Address CH ANT RSSI(dBm) AVL-BS ENBL-BS NET-ID-MATCH Age MESH ID
--------------- -- --- --------- ------ ------- ------------ --- -------
00:0d:67:09:c6:b9 107 1 -67 Yes Yes Yes 0 mobilityTest
current time: 01:06:30 last scan time: 20:59:03
The
show available-infra
command displays detected channel links and
base station MAC addresses. Use
AVL-BS
(link not in use by another
node),
ENBL-BS
(base station mode enabled) and
NET-ID-MATCH
(match with shore unit) to determine why some links may not connect.
d Perform a backhaul survey.
/interface/wifi-2-1# show rf-survey backhaul
mac addr ch RSSI age priv topo role linkIdx identifier
(dbm) (s) 12345678
----------------- --- ---- --- ---- ------ ---- -------- ----------
00:0D:67:00:B2:47 151 -42 0 none P-to-P -- -------- mobilityTest
noise floor: ................. -91 (dbm)
e Display the status of the primary and secondary links.
/services/mobility# show link-state
LINK ROLE INTERFACE CH RSSI MESH ID NODE IP NODE NAME
--------- --------- -- ---- ------------------------------- --------------- -------------------
Primary wifi-3-1 148 -44 mobilityTest 10.1.1.13 ba100tBSmode
Secondary wifi-2-1 151 -40 mobilityTest 10.1.1.209 BA200CEM209
Sample Base
Station
Configuration
1 Configure the topology and privacy settings, and enable each Wi-Fi
interface. Make sure to specify the mobile link identifier, specified with the
set network-identifier
command on the subscriber station.
/interface/wifi-3-1# set backhaul link identifier mobilityTest
topology p2p privacy disabled
/interface/wifi-3-1# set backhaul admin-state enabled
2 Disable RSTP dynamic cost for each backhaul link. The mobility service
manages link cost.
/protocol/rstp# set interface wifi-3-1 dynamic-cost disable
3 Configure the mobile backhaul point-to-point links.
a Specify the topology and role.
/services/mobility# set topology p2p-mobile role bs
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 131 of 267
Document Number BDTM02201-A01 Standard
b Add links needed to support service
/services/mobility# add interface wifi-3-1
Note: The
scan-list
,
release-7-compatibility
and
RSSI thresholds
parameters
and apply only to subscriber stations. The
show available-infra
command applies only to subscriber stations.
4 Display the configuration and correct any settings as required. Use following
commands as required.
a Display the mobility configuration.
/services/mobility# show config
Topology : point-to-point
Role : BS
Rel 7 : False
Network Id : .....
BS OOS broadcast : Enabled
BS OOS timeout : 180 (s)
Home Check : Disable Link Id: AutoconfSSID
RSSI : minimum margin switch secondary
---------- : ------- ------ ------ ---------
(dbm) : -85 5 -70 -75
b Display the interface list.
/services/mobility# show interface-list
Mobility BS Interfaces:
wifi-2-1
wifi-3-1
c Display the backhaul status.
/interface/wifi-2-1# show backhaul status
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:09:c4:79 up fwd -59 wifi-2-1 10.1.1.208 ba200-ShoreA
d Perform a backhaul survey.
/interface/wifi-2-1# show rf-survey backhaul
mac addr ch RSSI age priv topo role linkIdx identifier
(dbm) (s) 12345678
----------------- --- ---- --- ---- ------ ---- -------- ----------
00:0D:67:00:44:49 151 -27 0 none P-to-P -- -------- mobilityTest
noise floor: ................. -96 (dbm)
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 132 of 267
Document Number BDTM02201-A01 Standard
Mobile Backhaul
Point-to-point
Commands
Commands are available to do the following tasks:
•“Displaying Mobile Backhaul Point-to-point Configuration” on page 132
•“Displaying Link Status” on page 132
•“Displaying Scan Results” on page 133
•“Managing Interfaces” on page 133
•“Managing the Scan List” on page 134
•“Associating a Scan List to an Interface” on page 134
•“Configuring RSSI Threshold” on page 134
•“Primary Link Drop” on page 135
•“Mobile Link Identifier” on page 135
•“Home Check” on page 135
•“Base Station Out-of-service Check” on page 135
•“Release 7 Compatibility” on page 136
•“Single Channel Mesh” on page 136
Displaying Mobile
Backhaul Point-to-point
Configuration
/services/mobility/show config
This command displays the current mobile backhaul point-to-point
configuration.
Example
/services/mobility# show config
Topology : point-to-point
Role : SS
Rel 7 : False
Network Id : mobilityTest
BS OOS broadcast : Enabled
BS OOS timeout : 180 (s)
Home Check : Disable Link Id: AutoconfSSID
RSSI : minimum margin switch secondary
---------- : ------- ------ ------ ---------
(dbm) : -85 5 -70 -75
Displaying Link Status /services/mobility/show link-state
This command displays the status of the primary and secondary links.
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 133 of 267
Document Number BDTM02201-A01 Standard
Example
/services/mobility# show link-state
LINK ROLE INTERFACE CH RSSI MESH ID NODE IP NODE NAME
--------- --------- -- ---- ------------------------------- --------------- -------------------
Primary wifi-3-1 148 -44 mobilityTest 10.1.1.13 ba100tBSmode
Secondary wifi-2-1 151 -40 mobilityTest 10.1.1.209 BA200CEM209
Displaying Scan Results /services/mobility/show available-infra
This command displays detected channel links and base station MAC addresses.
Use
AVL-BS
(link not in use by another node),
ENBL-BS
(base station mode
enabled) and
NET-ID-MATCH
(match with shore unit) to determine why some
links may not connect.
Example
/services/mobility# show available-infra
wifi-2-1 (MRMv1 4.4GHz 802.11n) scan list
Mac Address CH ANT RSSI(dBm) AVL-BS ENBL-BS NET-ID-MATCH Age MESH ID
--------------- -- --- --------- ------ ------- ------------ --- -------
00:0d:67:09:c4:79 91 1 -58 Yes Yes Yes 0 mobilityTest
current time: 01:06:30 last scan time: 21:01:38
wifi-3-1 (MRMv1 4.4GHz 802.11n) scan list
Mac Address CH ANT RSSI(dBm) AVL-BS ENBL-BS NET-ID-MATCH Age MESH ID
--------------- -- --- --------- ------ ------- ------------ --- -------
00:0d:67:09:c6:b9 107 1 -67 Yes Yes Yes 0 mobilityTest
current time: 01:06:30 last scan time: 20:59:03
Managing Interfaces /services/mobility/add interface <interface-name>
/services/mobility/del interface <interface-name>
/services/mobility/show interface-list
These commands let you manage which interfaces are in the mobile backhaul
point-to-point configuration.
The
<interface-name>
parameter specifies a particular interface, such as
wifi-2-1
.
Example
/services/mobility# show interface-list
Mobility BS Interfaces:
wifi-2-1
wifi-3-1
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 134 of 267
Document Number BDTM02201-A01 Standard
Managing the Scan List /services/mobility/add scan-list <1-8> <chan_nums>
/services/mobility/add scan-list <1-8> <chan_nums>
/services/mobility/show scan-list {<1-8>|all}
These commands let you manage the contents of up to eight scan lists.
Example
/services/mobility# show scan-list 2
Scan list [2] channels:
61 148 151
Scan list [2] used by:
wifi-2-1 (5GHz 802.11a)
wifi-3-1 (5GHz 802.11a)
Associating a Scan List
to an Interface
/services/mobility/connect scan-list <1-8> <interface-name>
/services/mobility/disconnect scan-list <1-8> <interface-name>
These commands let you manage which interface uses which scan list.
The
<interface-name>
parameter specifies a particular interface, such as
wifi-2-1
.
Configuring RSSI
Threshold
/services/mobility/set rssi [minimum <-100 - 0>]
[margin <5 - 20>]
[switch <-100 - 0>]
[secondary <-100 - 0>]
This command lets you configure the RSSI parameters that the BelAir20E use
to determine the viability of creating primary and secondary links.
The
minimum
parameter specifies the minimum signal strength required to
connect.
The
switch
parameter defines the signal strength level at which a link switch
occurs, provided the secondary link is better by at least the specified
margin
set
and has an signal strength better than
secondary
.
If the secondary link falls below the secondary threshold, the subscriber station
begins scanning with its third or fourth radio if they exist.
Example
/services/mobility# set RSSI minimum -85 margin 5 switch -70
secondary -75
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 135 of 267
Document Number BDTM02201-A01 Standard
Primary Link Drop /services/mobility/set p2p-mobile drop-primary-at-min-rssi
{true|false}
Once a link has been established based on the RSSI threshold parameters, the
BelAir20E can maintain the link, even if the signal strength drops below the
minimum threshold setting.
This commands let you configure this feature. If set to
false
, the BelAir20E
maintain the link even when the signal strength drops below the minimum
threshold setting. If set to
true
, the BelAir20E drops the link.
Mobile Link Identifier /services/mobility/set network-identifier <net_id>
This command lets you configure a mobile link identifier, consisting of up to 20
characters.
Example
/services/mobility# set network-identifier mobilityTest
Home Check /services/mobility/set home-check {enabled|disabled} <home_id>
This command lets you configure and activate the home check feature which
forces a subscriber station to connect to specific base station links. When
home check is enabled, the subscriber station accepts only base station links
that advertise a mobile link identifier that is exactly the same as the subscriber
station’s home-check identifier.
The specified home-check identifier can of up to 20 characters.
Base Station
Out-of-service Check
/services/mobility/set bs-oos-timeout <time-out>
/services/mobility/set bs-oos-broadcast {enabled | disabled}
These commands apply to base stations only. They let you configure and
activate the behavior when the base station can no longer egress traffic to an
outside network. The <time-out> parameter is a timer in seconds. Values
range from 60 to 86400. The default value is 300 seconds.
These commands work in conjunction with the
set system-egress-point
command described in “Setting the Network Egress Point” on page 54:
• If the system egress point is set to
direct
, then the base station
out-of-service timer starts when the Ethernet link becomes unavailable. If
the timer expires and the Ethernet link is still unavailable, then the base
station is taken out of service by prepending
bsOutOfService
to the mobile
link identifier.
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 136 of 267
Document Number BDTM02201-A01 Standard
• If the system egress point is set to
indirect
with a gateway IP address, then
the base station pings the gateway IP address and starts the out-of-service
timer if it does not receive a reply. If the timer expires and the gateway still
does not reply, then the base station is taken out of service by prepending
bsOutOfService
to the mobile link identifier.
Release 7 Compatibility /services/mobility/set release-7-compatibility {true|false}
This command lets you connect a subscriber station to a base station running
Release 7.1.0 software.
Single Channel Mesh /services/mobility/set single-channel-mesh ([channel <chan_no>]
[link-id <link_id>]
[privacy {{enabled key <random_str>}|disabled}]
[allow-multi-links {yes|no}])
Normally, BelAir units create a wireless mesh between themselves using
multiple radio channels to avoid radio interference. However, in some mobile
applications, in may be desirable to have all radios use a single channel. Such an
application requires that all radios use directional antennas and are correctly
positioned to avoid radio interference.
This command allows you to configure such an application, where all radios use
a single channel. This command must be invoked on each node in the mesh.
The
<chan_no>
parameter allows you to specify which channel to use.
The
<link_id>
parameter is case sensitive and can be up to 32 alphanumeric
characters. BelAir Networks recommends that the link identifier describes the
link; that is, the nodes it connects.
The
privacy
setting determines whether AES privacy is used or not.
The pre-shared key must be exactly 32 bytes long (16 characters). The
pre-shared key can be specified as a hexadecimal or ASCII string and must not
contain the following characters:
•bar (|)
•semicolon (;)
• question mark (?)
• double quotation mark (“)
The
allow-multi-link
setting determines whether both a primary and secondary
links are created between each node in the mesh or just a primary. Multiple
links increase redundancy, but in a single channel mesh application may limit the
number of inter-connected nodes. The default is
no
.
BelAir20E User Guide Mobile Backhaul Point-to-point Links
October 11, 2011 Confidential Page 137 of 267
Document Number BDTM02201-A01 Standard
When a single channel mesh is created, the resulting links are simple
point-to-point backhaul links, as described in “Wi-Fi Backhaul Link
Configuration” on page 115. Typical mobile backhaul point-to-point notions,
such as scan-lists, RSSI thresholds, and primary and secondary links, do not
apply to them.
BelAir20E User Guide Operating in High Capacity and Interference Environments
October 11, 2011 Confidential Page 138 of 267
Document Number BDTM02201-A01 Standard
Operating in High Capacity and Interference Environments
High Capacity and Interference (HCI) environments usually have the following
characteristics:
• high number of wireless clients in a relatively small geographic area
• wireless traffic is restricted to relatively few wireless APs
• sudden surges of demand for connectivity
• building structure or geometry may restrict connectivity
Stadiums and other sports venues are typical examples. In such locations when
a sports event occurs, several thousand wireless clients can suddenly request
connectivity to a network of Wi-Fi Access Points.
The BelAir20E provides several features that you can adjust to optimize
performance in such an environment. These include:
•Modulation Rate Control, described on page 139
•VLAN based QOS, described on page 139
•Traffic Priority Based on Modulation Rate, described on page 140
•No SSID on Egress Down, described on page 140
•Ethernet Port Statistics, described on page 140
•Access Receive and Transmit Error Statistics with SNMP Support, described
on page 141
•Noise Floor Support, described on page 141
•Access Packet RSSI Filter, described on page 141
•Effective Mesh Path Selection, described on page 141
•Blacklist SNMP Support, described on page 141
•Client Association Records, described on page 142
•CTS-to-Self Control, described on page 142
•DHCP to Attached Clients Only, described on page 142
•ARP to Attached Clients Only, described on page 142
•Upstream Broadcast Filter, described on page 142
BelAir20E User Guide Operating in High Capacity and Interference Environments
October 11, 2011 Confidential Page 139 of 267
Document Number BDTM02201-A01 Standard
•Secure Port Mode, described on page 143
•Wireless Bridging, described on page 143
•Client Load Balancing, described on page 143
•Client Authentication History, described on page 144
•Automatic Mesh Connect, described on page 144
•Traffic Test Tool, described on page 144
Modulation Rate
Control
This feature allows the operator to directly control the allowed modulation
rates (and select the basic rates). This increases network efficiency in HCI
environments through the following effects:
• Collisions cause retransmissions that usually occur at a reduced modulation
rate. Ongoing collisions reduce the starting modulation rate for packets.
Use this feature to eliminate lower modulation rates and put a lower bound
on this effect.
• Eliminating lower modulation rates also eliminates distant clients (low RSSI)
and clients in high noise areas (low SNR).
For details, see “AP Custom Rates” on page 81.
VLAN based
QOS
This feature allows the operator to control the relative priority of traffic on a
per-VLAN basis.
By mapping certain VLANs onto higher priorities in HCI environments, the
traffic on those VLANs can obtain preferential access to the airwaves at the
expense of other traffic which is forced to wait.
The usefulness of this feature is limited if the overlap of the BelAir APs is
significant. It is most effective when overlap is small and the interference comes
from third-party APs.
The relevant commands are:
•/interface/wifi-<n>-<m>/set ssid <ssid>
service-set-identifier <ssid-name> broadcast vlan <vlan-id>,
described in detail in “Configuring SSIDs” on page 91.
•/qos/set vlan-to-queue-mapping <vlan-id> <queue-id>, described in
detail in “Prioritizing Traffic using VLAN IDs” on page 178.
BelAir20E User Guide Operating in High Capacity and Interference Environments
October 11, 2011 Confidential Page 140 of 267
Document Number BDTM02201-A01 Standard
Traffic P r io r ity
Based on
Modulation Rate
A Wi-Fi AP sorts traffic according to priority and transmits it by priority in
order of arrival. Different QOS schedulers (EDCA, LSPQ, SPQ) result in
different performance for the various priorities.
This feature applies a priority based on modulation rate on top of the QOS
priority. It tries to give clients equal amounts of air-time instead of equal
numbers of packets. The result in HCI environments is that more packets are
sent to clients who are using higher modulation rates, increasing the effective
bandwidth.
For details, see “Rate Aware Fairness” on page 78.
No SSID on
Egress Down
When this feature is enabled, all SSIDs on a radio can be modified with a text
string, such as
outOfService
, when a node loses its egress connection. In HCI
environments, this feature prevents traffic from being uselessly directed to a
node which can not successfully forward it.
This feature can be enabled or disabled on per radio basis. The text string can
be configured on a per-SSID basis.
The relevant commands are:
•/interface/wifi-<n>-<m>/set ap-oos-broadcast
{enabled|disabled} [option {replace|prepend}] and /interface/
wifi-<n>-<m>/set ssid <ssid-number> ap-oos-identifier
<oos_string> described in detail in “Out-of-service Advertising” on
page 95.
•/system/set system-egress-point {yes {direct|indirect
gateway-ip <ip_addr>}|no} described in detail in “Setting the Network
Egress Point” on page 54.
Ethernet Port
Statistics
Ethernet port statistics are available for the BelAir200, BelAir100, BelAir100C
and BelAir100T. In HCI environments, these statistics measure the traffic
passing through the node if its Ethernet port is connected to an external
network.
The relevant command is /interface/eth-1-1/show statistics, described
in detail in the
Troubleshooting Guide
.
The output includes:
• received octets, unicast packets, multicast packets, broadcast packets and
discarded packets
• transmitted octets, unicast packets, multicast packets and broadcast packets
BelAir20E User Guide Operating in High Capacity and Interference Environments
October 11, 2011 Confidential Page 141 of 267
Document Number BDTM02201-A01 Standard
Access Receive
and Transmit
Error Statistics
with SNMP
Support
BelAir radios provide extensive statistics for insight into network behavior and
to guide network optimization.
The relevant commands are:
• /interface/wifi-<n>-<m>/show statistics
• /interface/wifi-<n>-<m>/show pm
• /interface/wifi-<n>-<m>/show client
These commands are described in detail in the
Troubleshooting Guide
.
Noise Floor
Support
In HCI environments, accurate noise floor data is critical for channel planning
and to interpret performance statistics. Noise floor reporting is available
through SNMP for all radios:
• For newer radios, such as the ERMv5, instantaneous and average noise
floors are reported.
• For older radios, such as the ARMv3, instantaneous and average noise floors
are reported but the value is the same for both.
• SNMP reports the average noise floor value.
You can also use the command /interface/wifi-<n>-<m>/show rf-survey,
described in detail in the
Troubleshooting Guide
, to show the instantaneous
noise floor.
Access Packet
RSSI Filter
This feature blocks clients from associating if their RSSI is below a threshold
value. This prevents clients that would be forced to use a low modulation rate
from associating. In an HCI environment, contention is already high so it is
preferable to exclude clients that make inefficient use of air-time.
Effective Mesh
Path Selection
Higher modulation rates are strongly preferred in HCI environments. BelAir
Networks’ mesh path selection software favors paths with good RSSI, and
therefore higher modulation rates, even at the cost of a few more hops. Field
testing has shown increasing the number of hops may increase airtime slightly,
but using a path with poor RSSI can increase the airtime significantly as the
modulation rate decreases with poor RSSI.
Blacklist SNMP
Support
BelAir nodes support adding and deleting backhaul blacklist members through
SNMP. This allows operators using BelView Network Management System
BelAir20E User Guide Operating in High Capacity and Interference Environments
October 11, 2011 Confidential Page 142 of 267
Document Number BDTM02201-A01 Standard
(NMS) Release 6 or later to override the mesh paths selected by particular
BelAir nodes to optimize performance.
Client Association
Records
In HCI environments, client associations are often of short duration and the
connection data is discarded rapidly to support newer clients. This causes some
associations to be missed by the polling cycle of the NMS.
To increase the measurability of the network, BelAir nodes maintain a circular
buffer containing information, such as client MAC and IP address, RSSI, and
connection duration, about current and recently associated clients. These client
records can be used to assist the NMS.
CTS-to-Self
Control
Normally, an 802.11g AP uses CTS-to-self to interact with 802.11b APs. The
transmitted packet is small, but in HCI environments the accumulated effect is a
substantial performance penalty. This feature disables 802.11b protection for
the radio, maximizing the throughput for wireless clients that operate in the
2.4 GHz range.
This feature improves performance if there are only a few 802.11b clients
present and they are not generating large amounts of traffic. If not, the 802.11b
clients may generate substantial numbers of collisions and actually impair traffic.
For details, see “802.11b Protection” on page 98.
DHCP to
Attached Clients
Only
This feature prevents the radio from forwarding DHCP responses for MAC
addresses that are not used by an associated client, thus reducing the number
of transmitted packets and improving bandwidth use. This feature is always
enabled.
ARP to Attached
Clients Only
This feature prevents the radio from forwarding ARP requests for IP addresses
that are not used by an associated client, thus reducing the number of
transmitted packets and improving bandwidth use.
For details, see “ARP Filtering” on page 97.
Upstream
Broadcast Filter
When enabled, this feature limits the types of multicast and broadcast packets
passed through the AP:
• In the upstream direction (from the client), only ARP requests, DHCP
requests and DHCP discover messages are allowed.
BelAir20E User Guide Operating in High Capacity and Interference Environments
October 11, 2011 Confidential Page 143 of 267
Document Number BDTM02201-A01 Standard
• In the downstream direction (to the client), only ARP response, DHCP
offer, DHCP ACK, and DHCP NAK are allowed.
In HCI environments, this feature reduces the overall traffic load by reducing
broadcast flooding throughout the network.
For details, see “Filtering Broadcast and Multicast Packets” on page 96.
Secure Port Mode Secure port mode forces all client communications to be directed toward a
specified MAC address or group of MAC addresses. It also prevents a client
claiming to be one of these MAC addresses from associating.
In HCI environments, this feature forces all traffic to flow to or from the
network gateway. This can be used to allow traffic policy enforcement. It
prevents direct inter-client communication that could load down the network.
For details, see “Controlling Inter-client Communication” on page 110,
Wireless Bridging The wireless bridging feature allows traffic to be forwarded directly from one
client to another within the AP. In HCI environments, it should be disabled.
As with secure port mode, this feature controls whether all traffic flows to the
network gateway and can be used to allow traffic policy enforcement. It
prevents client-to-client direct communication that could load down the
network.
For details, see “Controlling Inter-client Communication” on page 110,
Client Load
Balancing
BelAir nodes allow you to configure the maximum number of associated clients
per radio. If the number of associated clients exceeds the configured value, new
clients are not allowed to connect.
In HCI environments, limiting the number of associated clients:
• reduces the number of collisions. (Each client attempts to transmit after a
random back-off. With many clients the probability of collision is greatly
increased.)
• limits the total traffic offered
• forces traffic to be distributed over different APs operating on different
channels
For details, see “Wireless Client Load Balancing” on page 85.
BelAir20E User Guide Operating in High Capacity and Interference Environments
October 11, 2011 Confidential Page 144 of 267
Document Number BDTM02201-A01 Standard
Client
Authentication
History
This feature lets the operator display the details of the association and
authentication process of the clients connected to the AP. In HCI
environments, it can be used to troubleshoot client issues and determine how
much success clients are having when attempting to access and use the
network.
The relevant command is /interface/wifi-<m>-<n>/show authentication
history [mac <mac-address>], described in detail in the
Troubleshooting
Guide
.
Automatic Mesh
Connect
This feature allows BelAir APs to automatically reconnect to a network if they
lose their egress connection. A cluster of meshed nodes may lose their egress
connection if the ethernet connection to the exterior network fails or if a node
fails. In this case, a member of the cluster looks for an alternate mesh to join
and reconnect the isolated cluster.
In HCI environments, this feature can be used for rapid deployment of a
network. The APs in a network can be grouped by shared backhaul link
identifier into a cluster. Multiple clusters can be deployed to control traffic
flows and optimize backhaul performance.
As soon as one AP in each cluster has an egress path, the whole cluster has
egress. In the event that an egress fails, a cluster can self-repair by reconnecting
to one of the other mesh clusters.
Tr a f f i c Te s t To o l This tool provides an internal mechanism to measure the available traffic
capacity of the network. The tool reports the throughput on a hop-by-hop
basis from the node under test to the destination IP address (another node in
the network).
In HCI environments, this tool can be used to test the network deployment
during the commissioning phase. It can be used to determine the theoretical
capacity of the network and identify poorly performing links.
The relevant command is:
/diagnostics/test link IP <end point IP address>
rate <traffic rate>
[update_interval <report interval>]
[duration <test duration>]
[dir {tx|rx|both}]
The command is described in detail in the
Troubleshooting Guide
.
BelAir20E User Guide DHCP Relay Settings
October 11, 2011 Confidential Page 145 of 267
Document Number BDTM02201-A01 Standard
DHCP Relay Settings
This chapter describes how to configure your unit’s DHCP Relay agent settings.
You can configure up to five profiles for the DHCP Relay agent on your
BelAir20E. Each profile specifies a subnet interface, which can be either the
node’s system interface or a VLAN. The DHCP server assigns an IP address to
the client according to the subnet of this interface.
Each profile also contains the IP addresses for up to three DHCP servers.
When a profile is activated, the DHCP agent forwards a DHCP request to all
the listed servers. The DHCP client receives packets from the first server to
respond to the request.
Profiles offer an easy way of configuring different DHCP servers for each subnet
interface.
Your BelAir20E can also add BelAir Networks specific information to the
DHCP packets sent to the wireless client.
Finally, you can create a list of valid IP address subnets to filter out unwanted
directed and broadcast DHCP packets from your wireless network.
The following topics are covered in this chapter:
•“Displaying the DHCP Relay Configuration” on page 145
•“Modifying DHCP Relay Parameters” on page 146
•“Interface Administrative State” on page 147
•“Assigning SSID Traffic to Use DHCP Relay” on page 147
•“DHCP Address Filtering” on page 147
See also “Providing Vendor Specific Information” on page 93.
Displaying the
DHCP Relay
Configuration
/protocol/dhcp/show config [{relay {all|<relay-idx>}} |
{dhcp-allowed-subnet {all|<index 1-32>}}]
The
show config
command displays DHCP Relay configuration:
•Use
show config
to display information for all DHCP Relay profiles and all
configured DHCP allowed subnet entries.
BelAir20E User Guide DHCP Relay Settings
October 11, 2011 Confidential Page 146 of 267
Document Number BDTM02201-A01 Standard
•Use
show config relay all
to display information for all DHCP Relay profiles
only.
•Use
show config relay <relay-idx>
to display information on the specified
DHCP Relay profile.
•Use
show config dhcp-allowed-subnet all
to display all configured DHCP
allowed subnet entries.
•Use
show config dhcp-allowed-subnet <index 1-32>
to display information
on the specified DHCP allowed subnet entry.
Example
/protocol/dhcp# show config
Idx En DHCP Relay Info
-----------------------------------------------------
1 * Server[1] IP: 10.1.1.88
Interface: System
2 * Server[1] IP: 10.1.100.88
Interface: Vlan-100
3 * Server[1] IP: 10.1.200.88
Interface: Vlan-200
4 No server configured
5 No server configured
Modifying DHCP
Relay Parameters
/protocol/dhcp/set relay <relay-idx> server-addr-1 <ip-addr>
[server-addr-2 <ip-addr>]
[server-addr-3 <ip-addr>]
interface {system | vlan <vlan-id>}
/protocol/dhcp/del relay <relay-idx> server <server-idx>
The
set relay
command creates a DHCP Relay profile or modifies an existing
one. It configures the IP addresses of the DHCP servers to which the Relay
Agent needs to forward the packets from the client. You must specify at least
one DHCP server IP address and the type of interface; either system or a
VLAN. The VLAN must be a valid VLAN management interface.
The
vlan_id
parameter specifies that traffic be directed to the specified Virtual
LAN (VLAN). The VLAN ID is an integer from 1 to 2814.
The
del relay
command removes only one IP address from each profile. To
completely clear a profile, you must use the
del relay
command up to three
times.
Before clearing the profile, you must first make sure that no SSID is using that
profile.
BelAir20E User Guide DHCP Relay Settings
October 11, 2011 Confidential Page 147 of 267
Document Number BDTM02201-A01 Standard
Interface
Administrative
State
/protocol/dhcp/set relay <relay-idx> admin-state {enabled|disabled}
This command allows you to activate individual DHCP relay profiles. When
enabled, the Relay Agent forwards the packets from the client to the DHCP
servers specified in the profile.
Assigning SSID
Traffic t o Use
DHCP Relay
/interface/wifi-<n>-<m>/set ssid <ssid_index> dhcp-relay
{disabled | enable <relay-idx>}
This command assigns which SSID traffic uses the node’s DHCP relay
functionality. Perform this step after the DHCP Relay profile is added and
enabled.
Once DHCP relay functionality is enabled for the SSID, your BelAir20E
automatically adds DHCP Option 82 information (that is, relay agent
information) to the DHCP packets for that SSID sent to the wireless client and
DHCP server. For details, see “Providing Vendor Specific Information” on
page 93.
The
ssid_index
parameter is an integer from 1 to 8. Use the
show ssid table
command to determine
<ssid_index>
.
DHCP Address
Filtering
/protocol/dhcp/set dhcp-allowed-subnet <index 1-32)>
ip_addr <ip_addr> netmask <random_str>
/interface/wifi-<n>-<m>/add ssid <ssid_index>
dhcp-allowed-subnet <index 1-32>
/interface/wifi-<n>-<m>/del ssid <ssid_index>
dhcp-allowed-subnet {<index 1-32> | all}
/interface/wifi-<n>-<m>/set ssid <ssid_index>
dhcp-addr-filter {enabled | disabled}
/interface/wifi-<n>-<m>/show dhcp-allowed-subnet {all | <index 1-32>}
This feature reduces unnecessary or unwanted directed and broadcast DHCP
packets from your wireless network.
First, use the
/protocol/dhcp/set
command to generate a list of valid IP subnets
and masks for this node. Your list can contain up to 32 members. To remove an
entry from the list, set the IP address and the mask to 0.0.0.0.
Then, use the
/interface/wifi-<n>-<m>/add
command to assign a member of
that list to an SSID. The
ssid_index
parameter must be a valid SSID index. Use
the
/interface/wifi-<n>-<m>/add
command repeatedly to add more than one
entry to an SSID. Each SSID can have up to 32 entries. Entries for different
SSIDs can overlap.
BelAir20E User Guide DHCP Relay Settings
October 11, 2011 Confidential Page 148 of 267
Document Number BDTM02201-A01 Standard
When a Wi-Fi client sends DHCP Request packets and the requested IP
addresses are not within the allowed subnet entries for the SSID, the BelAir AP
intercepts the Request and sends a DHCP NAK response.
Use the equivalent
/interface/wifi-<n>-<m>/del
command to remove a subnet
entry from an SSID. The
/interface/wifi-<n>-<m>/set
command allows you to
enable or disable DHCP address filtering on individual SSIDs.
Use the
/interface/wifi-<n>-<m>/show ssid (ssid_index> config
command to
display whether DHCP address filtering is enabled for the SSID and the allowed
subnets for the SSID.
BelAir20E User Guide Network Address Translation
October 11, 2011 Confidential Page 149 of 267
Document Number BDTM02201-A01 Standard
Network Address Translation
Network Address Translation (NAT) allows the BelAir20E to modify network
address information in packet headers to remap a given address space into
another. This technique can hide several private network IP addresses behind a
single IP address in another public address space.
The BelAir20E implements NAT IP masquerading, where the BelAir20E acts as
a DHCP server to assign IP addresses in the private network starting from a
specified base IP address. NAT applies only to traffic entering and leaving the
BelAir20E through its Ethernet interface.
The BelAir20E lets you configure up to eight NAT address scopes. For each
scope, you can associate different VLAN traffic, a different base IP address and
different DHCP lease settings.
You can use NAT with or without Universal Access Method (UAM) to provide
user authentication, client authentication and accounting information. For
details on configuring and enabling UAM, see “Universal Access Method” on
page 154. If you use NAT with UAM, ensure that the same VLANs are
configured in both NAT scopes and UAM scopes.
The BelAir20E can provide both NAT and Layer 2 tunnels. User traffic
separation is based on VLANs. If you use both NAT and Layer 2 tunnels, make
sure that your VLANs are mapped to either an NAT scope or a Layer 2 tunnel,
but not both. Refer to “Using Layer 2 Tunnels” on page 163 for a description of
Layer 2 tunnels.
The following tasks can be done:
•“Displaying the Operational Status” on page 150
•“Displaying the Current DHCP Lease Status” on page 150
•“Displaying the DHCP Lease History” on page 150
•“Configuring Network Address Translation” on page 151
•“Preventing Node Management from within the Scope” on page 151
•“Enabling or Disabling Individual Scopes” on page 152
•“Changing NAT Admin State” on page 152
•“Managing Nodes in a NAT Cluster” on page 152
BelAir20E User Guide Network Address Translation
October 11, 2011 Confidential Page 150 of 267
Document Number BDTM02201-A01 Standard
Displaying the
Operational
Status
/protocol/nat/show status
This command displays NAT operational status and settings.
Example
/protocol/nat# show status
NAT admin state is DISABLED, oper state is NOT RUNNING
Egress interface - eth-1-1
Dns1: undefined
Dns2: undefined
DHCP scopes:
Num Status VLAN IP subnet Lease(min) Mgmt
===== ======== ==== ============= ============ ====
1 enabled untg 192.168.5.0 60 no
2 disabled 0 0.0.0.0 0 no
3 disabled 0 0.0.0.0 0 no
4 disabled 0 0.0.0.0 0 no
5 disabled 0 0.0.0.0 0 no
6 disabled 0 0.0.0.0 0 no
7 disabled 0 0.0.0.0 0 no
8 disabled 0 0.0.0.0 0 no
Displaying the
Current DHCP
Lease Status
/protocol/nat/show dhcp-leases
This command displays DHCP lease status and settings.
Example
/protocol/nat# show dhcp-leases
IP address MAC address State
=============== ================= ===============
Scope 1
192.168.5.254 00:0d:67:10:e8:1a
Scope 2
--- no entries ---
Displaying the
DHCP Lease
History
/protocol/nat/show leases history
This command displays DHCP lease history.
BelAir20E User Guide Network Address Translation
October 11, 2011 Confidential Page 151 of 267
Document Number BDTM02201-A01 Standard
Example
/protocol/nat# show leases history
IP address MAC address Lease & State
=============== ================= ==================================
192.168.5.254 00:0d:67:10:e8:1a starts 2 2009/08/04 12:04:24 - State active
192.168.5.254 00:0d:67:10:e8:1a starts 2 2009/08/04 12:34:24 - State active
Configuring
Network Address
Translation
/protocol/nat/set scope <index (1-8)>
dhcp-server {untagged | vlan <vlan_id>}
based-ip <IP_addr>
lease-time <minutes>
[num-entries <number>]
This command lets you configure the NAT settings for each address scope.
The
dhcp-server
setting lets you specify which VLAN traffic to associate to the
scope. The
untagged
setting specifies that the scope applies only to untagged
traffic. The
vlan <VLAN ID>
settings specifies that the scope applies only to
traffic with that VLAN ID. VLAN IDs cannot be shared across different scopes.
The default setting is
untagged
. Refer to “Layer 2 Network Configuration” on
page 183 for more information on VLAN configuration.
The
based-ip
setting lets you specify the base IP address for the scope. Use
xx.xx.xx.0 as the format. Once specified, the BelAir20E IP address becomes
xx.xx.xx.1 and it begins to allocate addressed from xx.xx.xx.2 to xx.xx.xx.254.
The
lease-time
setting lets you specify the maximum DHCP lease time in
minutes for IP addresses supplied by NAT. The default is 60 minutes. Other
DHCP server settings are based on those specified in “Configuring Dynamic IP
Addressing” on page 45.
The optional
num-entries
setting lets you specify the maximum number of IP
addresses that can be allocated to clients in this scope. Values range from 1
to 253. The default value is 253.
By default, scope 1 is preconfigured for untagged VLAN traffic with a base IP
address of 192.168.5.0.
Preventing Node
Management from
within the Scope
/protocol/nat/set scope <index (1-8)>
management {enabled | disabled}
This command lets you control whether clients within a particular scope can
access the BelAir20E’s management interface. The default setting is
disabled
,
meaning that the nodes within that scope cannot access the management
interface of the BelAir20E providing NAT.
BelAir20E User Guide Network Address Translation
October 11, 2011 Confidential Page 152 of 267
Document Number BDTM02201-A01 Standard
Enabling or
Disabling
Individual Scopes
/protocol/nat/set scope <index (1-8)>
status {enabled | disabled}
This command lets you enable or disable individual NAT scopes. The default
setting is
disabled
.
Changing NAT
Admin State
/protocol/nat/set admin-state {enabled | disabled}
This command lets you enable or disable NAT functionality. The default setting
is
disabled
.
When you enable or disable NAT functionality, you must:
1 Issue the
config-save
command. See “Saving your Changes” on page 21 for
details.
2 Reboot the node. See “Activating a Software Load” on page 201 for details.
Managing Nodes
in a NAT Cluster
This section describes functions that you can use to manage nodes that are part
of a NAT cluster.
In a NAT cluster, one BelAir20E serves as an egress point to several other
BelAir nodes. The egress BelAir20E uses NAT to provide IP addresses to the
BelAir nodes that are cluster members.
In such a configuration, the cluster members are normally hidden from network
management behind the egress BelAir20E. To help manage the cluster
members, you can use the egress BelAir20E functions described in the following
sections:
•“Mac Address to IP Address Mapping” on page 152
•“Port Forwarding” on page 152
Mac Address to IP
Address Mapping
/protocol/nat/add scope <index (1-8)>
mac-static <MAC_addr> ip <IP_addr)
/protocol/nat/del scope <index (1-8)>
mac-static <MAC_addr> ip <IP_addr)
These commands let you specify which IP address to provide to specific cluster
members based on their MAC address.
Port Forwarding /protocol/nat/add port-fwd protocol {tcp | udp} port <number>
dest-ip <IP_addr> dest-port <number>
/protocol/nat/del port-fwd protocol {tcp | udp} port <number>
dest-ip <IP_addr> dest-port <number>
These commands let you create a port forwarding table for TCP or UDP traffic.
If a station managing nodes in a NAT cluster needs to send TCP or UDP traffic
BelAir20E User Guide Network Address Translation
October 11, 2011 Confidential Page 153 of 267
Document Number BDTM02201-A01 Standard
addressed to a particular application (for example, Telnet, web, or SNMP) on
particular node within the cluster, it can specify:
• the IP address of the egress node as the destination address
• the port as defined for the application in question for the egress node as the
destination port
The egress node can then use the port forwarding table to translate the
destination port to the correct port and IP address for the intended target
node in the cluster.
For example, if Node 2 in a cluster has an IP address 182.168.5.2, then to send
Telnet (TCP port 23) traffic to Node 2, you must:
1 Define the following port forwarding entry on the egress node:
add port-fwd protocol tcp port XXXX dest-ip 192.168.5.2
dest-port 23
2 Execute the following command on your management station:
telnet Y.Y.Y.Y XXXX
where
Y.Y.Y. Y
is the public IP address of egress node.
The port forwarding table can contain up to 32 entries.
BelAir20E User Guide Universal Access Method
October 11, 2011 Confidential Page 154 of 267
Document Number BDTM02201-A01 Standard
Universal Access Method
The Universal Access Method (UAM) is key element of BelAir’s Policy
Enforcement Point (PEP) module. UAM is a simple authentication method
where a user needs only a Web browser. When a user requests a URL, the
request is checked against a series of white lists containing hosts, MAC
addresses and protocols.
The user’s request is granted if any of the following conditions are met:
• The requested URL or its equivalent IP address is on the host white list.
• The MAC address of the user’s client is on the MAC white list.
• The user’s request uses DHCP, DNS, ARP or any protocol you put on the
protocol white list with the
add scope <n> protocol-white-list
command.
Otherwise, the user is redirected to a Web server that displays a page
requesting credentials. The supplied credentials are then sent to a RADIUS
authentication server. Once authenticated, the user is redirected to the URL
they originally requested. The user can terminate their authenticated session by
using functions provided by the Web server (such as a logout button) or by
entering the
http://1.1.1.1
URL.
Note: UAM requires the use of a DNS server to resolve supplied URLs to IP
addresses.
Finally, through correct provisioning of the RADIUS server, the BelAir20E’s
implementation of UAM also allows you to enforce client access policies:
• It can perform client MAC address authentication when a client associates
to the AP, even before the user supplies a URL.
• It can enforce policies based on the attributes listed in Table 12.
Table 12: Attributes for UAM Client Access Policy Enforcement
RADIUS Attribute Value used if unspecified by RADIUS
Session idle timeout 5 minutes
Client session timeout Unlimited
Total client traffic Unlimited
Maximum downstream client traffic Unlimited
BelAir20E User Guide Universal Access Method
October 11, 2011 Confidential Page 155 of 267
Document Number BDTM02201-A01 Standard
As well, UAM can also provide accounting information, again depending on
correct provisioning of the RADIUS server.
The BelAir20E lets you configure up to eight UAM scopes. For each scope, you
can:
• create different UAM white lists
• associate different VLAN traffic
• gather different session accounting records
• enforce different client access policies
The following tasks can be done:
•“Displaying the Current Configuration” on page 156
•“Displaying the Operational Status” on page 156
•“Displaying the Client Session Information” on page 157
•“Specifying the Web Server” on page 158
•“Specifying Redirection Variable Pairs” on page 159
•“Specifying the RADIUS Server” on page 159
•“Managing White List Entries” on page 159
•“Associating VLAN Traffic to a Scope” on page 160
•“Performing MAC Address Authentication” on page 160
•“Collecting Accounting Information” on page 161
•“Operating in WAN Mode” on page 162
•“Changing UAM Admin State” on page 162
Maximum upstream client traffic Unlimited
Termination time Unlimited
Table 12: Attributes for UAM Client Access Policy Enforcement (Continued)
RADIUS Attribute Value used if unspecified by RADIUS
BelAir20E User Guide Universal Access Method
October 11, 2011 Confidential Page 156 of 267
Document Number BDTM02201-A01 Standard
Displaying the
Current
Configuration
/services/uam/show config [scope <index (1-8)>]
This command displays the current UAM configuration. Specifying a scope
displays just that scope.
Note: This command displays only the host, mac and protocol white list
entries that you control through the
add
and
del
commands. (See
“Managing White List Entries” on page 159.) This commands does not
display the white list entries that the BelAir20E automatically tracks
internally.
Example
/services/uam# show config scope 2
Scope 2 Configuration:
----------------------
admin state: .................... Enabled
mac authentication state:........ Enabled
mac authentication password:.....
mac authentication success redirect:Enabled
mac authentication reject suspend: Enabled
accounting state:................ Enabled
authentication web server url:... http://
secure2.worldspot.net/wk/Uam
authentication shared secret:.... Mm94XVjzug
splash web server url:...........
uam local interface:............. System
wan-mode admin state: ........... Disabled
wan-mode web server key:.........
radius servers:.................. 2
radius nasid:.................... BelAirHotspot
host-white-list:
www.paypal.com
www.paypalobjects.com
paypal.112.2o7.net
www.belairnetworks.com
mac-white-list:
protocol-white-list:
vlan-list:
10
added redirect variable pairs:
ssid mySsid
locationId myLocation
Displaying the
Operational
Status
/services/uam/show status [scope <index (1-8)>]
This command displays UAM operational status and settings.
Example
/services/uam# show status scope 2
BelAir20E User Guide Universal Access Method
October 11, 2011 Confidential Page 157 of 267
Document Number BDTM02201-A01 Standard
Scope 2 Status:
----------------------
admin state: .................... Enabled
mac authentication state:........ Enabled
accounting state:................ Enabled
authentication web server ip:.... secure2.worldspot.net
resolved IP addresses:
69.64.50.37
authentication shared secret:.... Mm94XVjzug
splash web server ip:............
resolved IP addresses:
radius servers:.................. 2
radius nasid:.................... BelAirHotspot
host-white-list:
www.paypal.com:
resolved IP addresses:
66.211.169.2
66.211.169.65
64.4.241.33
64.4.241.49
www.paypalobjects.com:
resolved IP addresses:
184.29.112.146
paypal.112.2o7.net:
resolved IP addresses:
66.235.139.118
66.235.138.18
66.235.139.121
66.235.138.19
www.belairnetworks.com:
resolved IP addresses:
206.191.51.223
optimumwifi.optimum.net:
resolved IP addresses:
167.206.247.50
mac-white-list:
protocol-white-list:
vlan-list:
10 800
local info:
uamPort:..................... 3991
radius-server-index:......... 2
radius-local-ip:............. 10.100.1.9
uam-local-ip:................ 10.100.1.9
uam-logout-ip:............... 1.1.1.1
Displaying the
Client Session
Information
/services/uam/show client-session
[{ip <ip_str>|mac <mac_str>|scope <num_str>}]
This command displays UAM client session information.
Example
/services/uam# show client-session
BelAir20E User Guide Universal Access Method
October 11, 2011 Confidential Page 158 of 267
Document Number BDTM02201-A01 Standard
Client-Session:
----------------------
ip address: .................... 10.100.1.210
Mac address: ................... 00:1E:E5:DE:DD:C5
Scope: ......................... 1
Vlan: .......................... untag
Authenticated: ................. yes
User Name: ..................... BAunlim
Redirect url: ..................
User url: ...................... http://fxfeeds.mozilla.com/
en-US/firefox/headlines.xml
Bandwidth MaxUp: ............... 0
Bandwidth MaxDown: ............. 0
Max Input Octets: .............. 0
Max Output Octets: ............. 0
Max Total Octets: .............. 0
Timeout: ....................... 14526
Idle Timeout: .................. 300
Accounting interim Interval: ... 600
Terminate Time: ................ 0
Start Time: .................... 1280150841
Last Active Time: .............. 1280150841
Last Accounting Update Time: ... 1280150841
Last Radius Request Time: ...... 1280150841
Input Packets: ................. 0
Output Packets: ................ 0
Input Octets: .................. 0
Output Octets: ................. 0
Input Gigawords: ............... 0
Output Gigawords: .............. 0
Internal Usage Info:
Radius Session Id: ............. 547999736
Radius Uam Port: ............... 41
Radius Act State: .............. 4
Uam Challenge Start Time: ...... 1280150841
Suspend Time: .................. 60
Suspend Start Time: ............ 0
Current Time: .................. 1280150905
Specifying the
Web Server
/services/uam/set scope <index (1-8)> auth-url <url-string>
shared-secret <string>
[splash-url <url-string>]
[uam-interface {system | {vlan <vlan-str>}}]
This command lets you specify the URL of the Web server for individual UAM
scopes.
The splash URL specifies a special usage web page (for example,
advertisement). If it is configured, the AP redirects the user to the splash page
instead of authentication page. The splash page then redirects the user to
authentication server. The AP does not control the behavior of the splash page.
If the
splash-url
parameter is not specified, then the user is sent directly to the
authentication server.
BelAir20E User Guide Universal Access Method
October 11, 2011 Confidential Page 159 of 267
Document Number BDTM02201-A01 Standard
Both the
splash-url
and the
auth-url
(if specified) are automatically tracked
internally as UAM host white list entries.
The
uam-interface
parameter is used for communications between the wireless
client and BelAir20E. You can set the uam-interface to be the BelAir20E’s
system IP address, or a particular VLAN interface. The default is the system
interface.
Specifying
Redirection
Variable Pairs
/services/uam/add scope <index (1-8)> redir-var
name <variable-name> value <variable-value>
/services/uam/del scope <index (1-8)> redir-var
name <variable-name>
This command lets you specify up to five pairs of redirection variables for
individual UAM scopes. Each pair consists of a variable name and value.
Variable names and values can contain up to 49 characters.
Refer to “Specifying the Web Server” on page 158. The AP appends all of the
redirection variable pairs to the
splash-url
string before sending it to the
wireless client. The redirection variable pairs are appended in the order they
appear in the
show config
command.
Specifying the
RADIUS Server
/services/uam/add scope <index (1-8)> radius-server <server_idx>
/services/uam/del scope <index (1-8)> radius-server <server_idx>
/services/uam/set scope <index (1-8)> uam-nasid <name>
The
add
and
del
commands let you associate different RADIUS servers with
different UAM scopes. See “Managing RADIUS Servers” on page 104 for a
description on how to set up RADIUS servers. Each UAM scope can have up to
four RADIUS servers.
The
set
command lets you specify the RADIUS Network Access Server (NAS)
identifier. The default value for
<name>
is
BelAirNetworks
.
Managing White
List Entries
/services/uam/add scope <index (1-8)> host-white-list <host name>
/services/uam/del scope <index (1-8)> host-white-list <host name>
/services/uam/add scope <index (1-8)> mac-white-list <mac addr>
/services/uam/del scope <index (1-8)> mac-white-list <mac addr>
/services/uam/add scope <index (1-8)> protocol-white-list {icmp}
/services/uam/del scope <index (1-8)> protocol-white-list {icmp}
These commands let you add or remove entries from the host, MAC address
and protocol white lists.
BelAir20E User Guide Universal Access Method
October 11, 2011 Confidential Page 160 of 267
Document Number BDTM02201-A01 Standard
Host entries can contain URLs or IP addresses. The host white list and the
MAC address white list can have up to 10 entries. The protocol white list can
be empty or contain
ICMP
only.
In addition to the entries you control with these
add
and
del
commands, the AP
has an internal white list that contains the DHCP, DNS and ARP protocols, and
the URLs for the authentication server and the splash page (if specified).
Example
/services/uam# add scope 1 host-white-list www.mysite.com
Associating VLAN
Traffic to a Scope
/services/uam/add scope <index (1-8)> vlan {<vlan-list>|untag}
/services/uam/del scope <index (1-8)> vlan {<vlan-list>|untag}
These commands let you associate different VLAN traffic with different UAM
scopes. If you specify
untag
, then untagged traffic is associated with the specified
UAM scope.
See “Configuring IP Parameters” on page 45 for a description on how to set up
VLANs for dynamic and static IP addressing.
Performing MAC
Address
Authentication
/services/uam/set scope <index (1-8)>
mac-auth-state {enabled|disabled}
[passwd <string>]
[success-redir {enabled|disabled}]
[reject-suspend {enabled|disabled}]
This command lets you control whether or not client MAC address
authentication is performed when a client attempts to associate to the AP.
When this feature is enabled, the AP determines the client’s MAC address
when the client attempts to associate with AP. The AP then sends the MAC
address to the RADIUS server for authentication. If the server authenticates
the MAC address, then the user has full access to the Internet when the
association completes. If the RADIUS server does not authenticate the MAC
address, then the user must provide credentials through the typical UAM
mechanism (Web server, RADIUS server, white lists) before they can access the
Internet. The default setting is
enabled
.
The
passwd
parameter provides an alternate password to log into the RADIUS
server.
BelAir20E User Guide Universal Access Method
October 11, 2011 Confidential Page 161 of 267
Document Number BDTM02201-A01 Standard
The
success-redir
parameter allows you to control the behavior of the AP if the
RADIUS server authenticates the user and responds with a Redirection-URL as
part of the WISPr Vendor Specific Attribute:
• If
success-redir
is enabled and the RADIUS server provides a
Redirection-URL, the client is redirected to the URL the first time it
associates to the AP. Afterwards, the user has full access to the Internet.
• If
success-redir
is disabled and the RADIUS server provides a
Redirection-URL, then the AP ignores the provided URL.
By default, the
success-redir
parameter is disabled.
The
reject-suspend
parameter allows you to control the behavior of the AP if
the RADIUS server does not authenticate the user. The RADIUS server
response message can include a Redirect-Suspend-Time parameter as part of
the WISPr Vendor Specific Attribute:
• If
reject-suspend
is enabled and the RADIUS server does not authenticate
the user, then the user’s session is suspended for the time period specified
by the Redirect-Suspend-Time parameter from the RADIUS server.
• If
reject-suspend
is disabled and the RADIUS server provides a
Redirect-Suspend-Time parameter, then the AP ignores the provided
RADIUS parameter.
By default, the
reject-suspend
parameter is enabled with a default suspend time
of 1 minute.
Collecting
Accounting
Information
/services/uam/set scope <index (1-8)>
accounting-state {enabled|disabled}
This command lets you enable or disable the collection of accounting
information for individual UAM scopes. The default setting is
enabled
.
The accounting request packet is sent to the RADIUS server using the
Acct-Interim-Interval
attribute obtained from the client authentication
response. If the RADIUS server does not provide an accounting interval, the
default value of 10 minutes is used.
BelAir20E User Guide Universal Access Method
October 11, 2011 Confidential Page 162 of 267
Document Number BDTM02201-A01 Standard
Operating in
WAN Mode
/services/uam/set scope <index (1-8)> wan-mode
admin-state {enabled|disabled}
[web-server-key <key-str>]
UAM WAN mode is for special applications that use alternate communications
between the BelAir20E, the Web server and the RADIUS authentication server.
For additional details, contact your BelAir representative.
Changing UAM
Admin State
/services/uam/set scope <index (1-8)>
admin-state {enabled|disabled}
This command lets you enable or disable UAM functionality for individual UAM
scopes. The default setting is
disabled
.
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 163 of 267
Document Number BDTM02201-A01 Standard
Using Layer 2 Tunnels
Layer 2 tunnels use the Layer 2 Tunneling Protocol (L2TP), version 2, to provide
the following benefits:
• provide a bi-directional communication path between the BelAir20E and a
central router. The path is unaffected by the size, topology and complexity
of the Layer 2 and Layer 3 access network between them.
• ensure efficient handling of mobile client MAC addresses, especially for
customers using DOCSIS technology in their access network

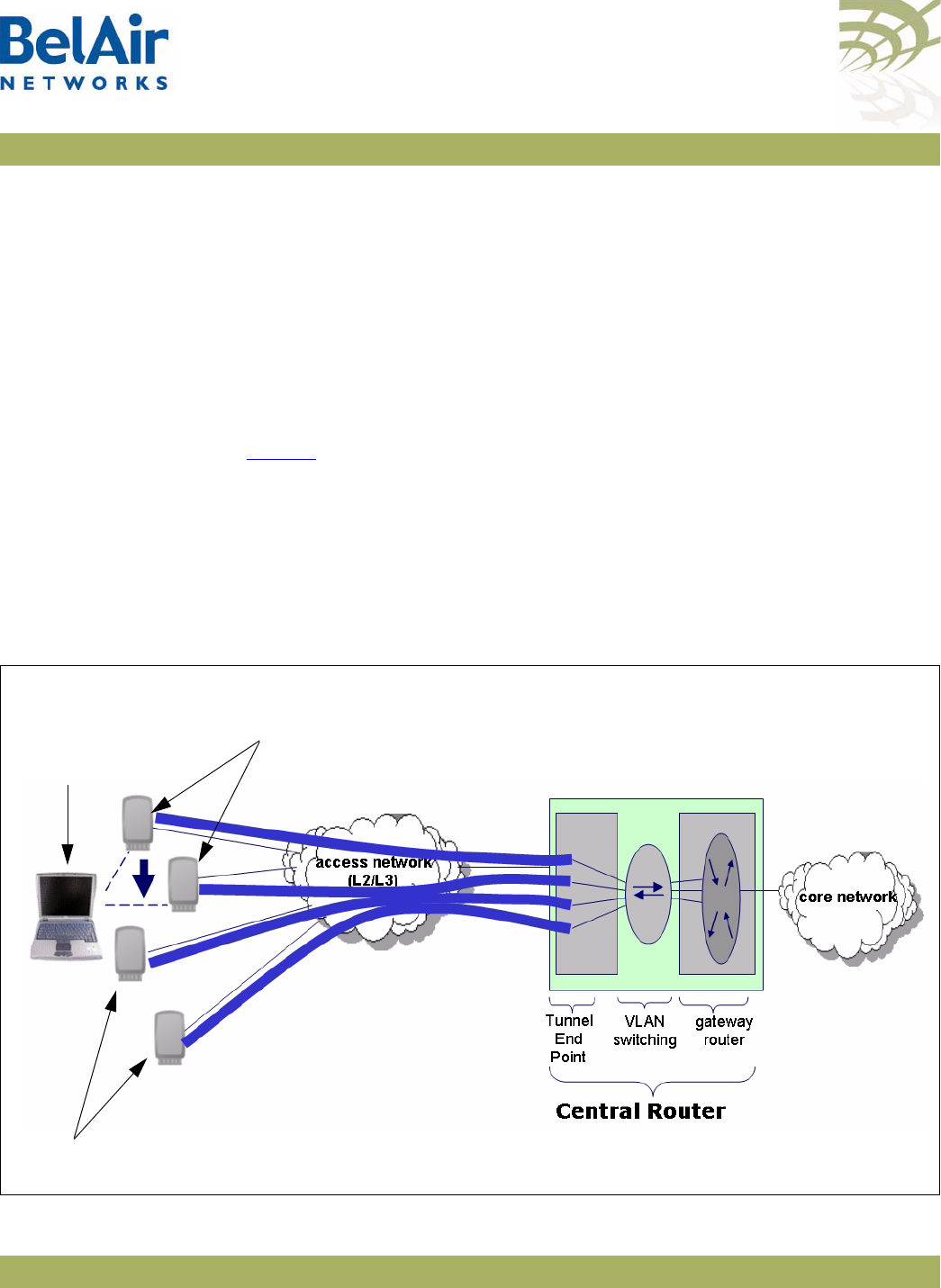

Figure 7 shows how wireless mobility is implemented with L2TP. When a
wireless client transmits an 802.11 frame, the BelAir AP converts it to an
Ethernet frame with VLAN information, encapsulates it within an IP packet and
then sends the packet to a Tunnel End Point (TEP). The TEP is usually part of a
network central router. The BelAir implementation of Layer 2 tunnels currently
operates with a Cisco 7200 router or equivalent, with a RedBack SmartEdge
router or equivalent., with other routers that use Generic Router
Encapsulation (GRE), or with Proxy Mobile IPv4 (PMIP) implementations.
Figure 7: Wireless Mobility using L2TP
BelAir Access Points (APs)
Mobile wireless client
device going from
one AP to another BelAir Access Points (APs)
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 164 of 267
Document Number BDTM02201-A01 Standard
The TEP strips off the encapsulation data to reveal the original Ethernet frame
exactly as sent by the AP. The TEP delivers the Ethernet frame to a
VLAN-aware Ethernet switch. The switch applies normal Ethernet forwarding
rules to send it to a gateway router with one router port per subnet. The
gateway router switches the Ethernet frame to the appropriate outgoing router
port.
For packets moving in the other direction to the wireless client, the gateway
router applies to IP traffic an Ethernet header with the client’s MAC address as
the destination. The VLAN switch forwards this packet to the interface on
which it last saw the client’s MAC address, which is the interface connected to
the tunnel. The TEP receives the frame and encapsulates it in an IP packet.
When the AP receives the packet, it strips off the encapsulation data, converts
the resulting Ethernet frame to an 802.11frame, and then transmits it to the
wireless client.
When a mobile wireless client moves to a new AP, its traffic travels through a
different Layer 2 tunnel. The traffic is encapsulated and sent to TEP as before.
The VLAN-aware Ethernet switch then updates its MAC address table as
required with the information for the wireless client’s new AP. Any subsequent
frames sent to the wireless client are then forwarded to the new AP.
Tunneling is performed by a software module called a
tunnel engine
. BelAir
platforms can have only one tunnel engine. Each tunnel engine can create up to
five tunnels to one or more TEPs. The end points of a Layer 2 tunnel are
identified by their IP addresses. The IP address of the BelAir tunnel end point
can be the IP address of the unit’s management interface, or any IP address
associated with a VLAN. The BelAir IP addresses can be set manually or
through the Dynamic Host Configuration Protocol (DHCP).
Each tunnel can carry traffic belonging to any group of configured VLANs.
By assigning a group name to tunnels, you can also use BelView NMS to do
dynamic load balancing of APs between different LNSs.
Configuring the
BelAir Node for
Layer 2 Tunneling
The following tasks can be done:
•“Displaying Tunnel Configuration and Status” on page 165
•“Starting and Stopping Layer 2 Tunneling” on page 166
•“Configuring Layer 2 Tunnels” on page 166
•“Setting Tunnel Engine Parameters” on page 167
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 165 of 267
Document Number BDTM02201-A01 Standard
•“Configuring Tunnel Advanced Parameters” on page 168
•“Enabling Backhaul Protection for Tunnels” on page 169
•“Bandwidth Limits” on page 169
•“Configuring Tunnels for the RedBack SmartEdge Router” on page 170
•“Configuring Tunnels for a Router using GRE” on page 172
•“Configuring Tunnels for PMIP Implementations” on page 173
•“Mapping User Traffic” on page 174
•“Configuring Authentication” on page 174
•“Configuring a Tunnel Group Name” on page 175
•“Relaying Traffic QOS Settings” on page 175
•“Setting the Tunnel Down Alarm Threshold” on page 175
Layer 2 tunnel CLI commands are available in
/protocol/te-syst
mode.
Displaying Tunnel
Configuration and
Status
/protocol/te-<eng>/show config
/protocol/te-<eng>/show status
These commands display the current tunnel configuration and status.
Example 1
/protocol/te-syst# show config
Tunnel server is running, mode egress, IP address 192.168.219.25 (system), Protection-backhaul:
Disabled
N Type Remote IP Name/Label QoS map State
== ============== =============== ================== ======= =====
1 L2TP 167.206.58.160 tsacm0c none UP
Authentication disabled: Secret N/C, PPP name N/C, PPP pass N/C
L2TP hello: interval 60 sec, retrans count 5, retrans interval 8 sec
PPP echo: interval 10 sec, retrans count 10; DSCP value 0x0
VLAN map: 800
2 N/C
3 N/C
4 N/C
5 N/C
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 166 of 267
Document Number BDTM02201-A01 Standard
Example 2
/protocol/te-syst# show status
Upstream Downstream Upstream Downstream
N Active Uptime Packets Packets Bytes Bytes Fragmented Reassembled
== ======= ============= ========== ========== ========== ========== ========== ===========
1 Primary 0d 01:02:24 0 1023 0 229497 0 0
Brdcst 0 388
Mltcst 0 12
Up_Exc/Dn_Inv 0 10980
2
3
4
5
The output of the
show status
command shows:
• which LNS is active at the moment – primary or backup
• tunnel uptime
• number of transmitted and received packets and bytes:
—first line shows total number of packets,
—second line shows the number of MAC broadcasts
—third line shows number of MAC multicasts
• number of packets fragmented/reassembled (due to MTU size)
Starting and Stopping
Layer 2 Tunneling
/protocol/te-<eng>/set engine admin-state {enabled|disabled}
This command starts and stops tunneling operation. Use
enabled
to begin
tunneling operation. Use
disabled
to stop all tunnel forwarding.
Configuring Layer 2
Tunnels
/protocol/te-<eng>/set tunnel <index> ip <peer_IP_addr>
name <stn_name>
[backup-ip <backup_IP_addr> [backup-name <backup_name>]]
[switch {non-revertive | revertive}]
/protocol/te-<eng>/delete tunnel {all|<index>}
The
set tunnel
command creates a new tunnel to be terminated at the specified
peer IP address, which is usually the network central router. You can create up
to five tunnels to the same peer or to different peers. Each tunnel carries just
one L2TP session.
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 167 of 267
Document Number BDTM02201-A01 Standard
The <index> parameter is used for easy reference when using other
commands. It can be displayed with the
/protocol/te-<eng>/show config
command.
The <stn_name> parameter can be any series of 18 alphanumeric ASCII
characters. L2TP protocol provides the <stn_name> parameter to the other
end point so it can identify different tunnels coming from the same IP address
or create logical group of nodes with the same name and different IP addresses.
You can optionally specify the IP address and name of a backup server. If a
tunnel cannot be created to the main router or if a tunnel fails, the backup
parameters become active.
The
switch
parameter controls whether the use of a backup router is revertive
or not. Once the BelAir unit starts to use a tunnel to a backup router:
• If
switch
is set to
non-revertive
, then the BelAir unit uses the tunnel to the
backup router until it fails. Only then does the BelAir unit switches back to
the tunnel using the main router. This is the default setting.
• If
switch
is set to
revertive
, then the BelAir unit uses the tunnel to the
backup router only while the main tunnel is unavailable. The BelAir unit
switches back to the tunnel using the main router as soon as it becomes
available again.
The
delete tunnel
command removes all tunnels or the specified tunnel. After
using this command, user data mapped to this tunnel is dropped instead of
forwarded.
Setting Tunnel Engine
Parameters
/protocol/te-<eng>/set mode {local|egress}
[interface-vlan <VLAN_ID>]
The
set mode
command is used when the unit is connected to other units
through backhaul links. In this case, you may want the unit to act as an egress
point and put access traffic from itself and the other nodes into the tunnel. Use
local
mode when the BelAir unit puts only its own access traffic into the tunnel.
Use
egress
mode when the BelAir unit puts its own access traffic and that of
many other units into the tunnel.
If the VLAN interface is not specified, the unit’s management IP address is used
to identify the local tunnel end point. IP addresses may be manually configured
or obtained by DHCP.
If a VLAN interface is specified, it must be previously configured. Refer to
“Layer 2 Network Configuration” on page 183.
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 168 of 267
Document Number BDTM02201-A01 Standard
Configuring Tunnel
Advanced Parameters
/protocol/te-<eng>/set tunnel <index> advanced
[l2tp-hello-interval <seconds>]
[l2tp-hello-retrans <number>]
[l2tp-hello-timeout <seconds>]
[ppp-echo-interval <seconds>]
[ppp-echo-retrans <number>]
[dscp-control <hex value>]
The
set tunnel advanced
command lets you specify for particular tunnel timers
and other parameters associated with the L2TP protocol.
The <index> parameter is used for easy reference when using other
commands. It can be displayed with the
/protocol/te-<eng>/show config
command.
The following parameters can be set with this command:
• L2TP Hello transmission interval. Values range from 10 to 300 seconds. The
default setting is 60 seconds.
• L2TP Hello retransmission count. Values range from 1 to 10. The default
setting is 5.
• L2TP Hello retransmission maximum interval. Values range from 1 second
to 32 seconds. The default setting is 8 seconds.
• PPP echo transmission interval. Values range from 0 seconds to
300 seconds. 0 seconds means PPP echo is disabled. The default setting is 10
seconds.
• PPP echo retransmission count. Values range from 1 to 50. The default
setting is 10.
• DSCP value for control (L2TP/PPP) packets. The default setting is 0.
The AP uses the L2TP Hello parameters to determine if the tunnel is available.
If the AP does not receive a Hello packet during the
L2TP Hello transmission
interval
, it begins to send its own Hello packets at exponential intervals starting
at 1 second (that is, at 1, 2, 4, 8, ... seconds) until the
L2TP Hello retransmission
count
and
L2TP Hello retransmission maximum interval
are reached. If not of
the retransmitted Hello packets are answered, then the tunnel is considered
unavailable. For additional details, refer to the L2TP specification.
The PPP echo parameters are also used to determine tunnel availability. PPP
echo packets are sent periodically with the interval specified by the
PPP echo
transmission interval
. The tunnel is considered unavailable if the AP does not
receive consecutive responses for the number of packets specified by the
PPP
echo retransmission count
.
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 169 of 267
Document Number BDTM02201-A01 Standard
If you specify a DSCP value, then it appears in the DSCP/TOS bits of any L2TP
or PPP control packets.
Enabling Backhaul
Protection for Tunnels
/protocol/te-<eng>/set protection-backhaul {enabled|disabled}
[egress <interface>]
Use this command to inform the tunnel engine that the node uses egress
protection as described in “Egress Protection” on page 122.
The
egress
parameter applies to BelAir100SN only. It species whether egress is
through the cable modem (cm-9-1) or the Ethernet interface (eth-1-1).
The default setting is
disabled
. Before using this command, make sure all
requirements described in “Egress Protection” on page 122 are met.
When you enable or disable backhaul protection for tunnels, you must:
1 Issue the
config-save
command. See “Saving your Changes” on page 21 for
details.
2 Reboot the node. See “Activating a Software Load” on page 201 for details.
Bandwidth Limits /protocol/te-<eng>/show limits
/protocol/te-<eng>/set tunnel <index> bandwidth-limit
upstream <bits-per-second>
downstream <bits-per-second>
The
set tunnel bandwidth-limit
command lets you specify for a particular tunnel
the maximum upstream and downstream transmission rates.
The <index> parameter is used for easy reference when using other
commands. It can be displayed with the
/protocol/te-<eng>/show config
command.
The
show limit
command displays the upstream and downstream settings for
the current tunnel.
Example
/protocol/te-syst# show limits
N Us limit Ds limit
== ========== ==========
1 0 0
2
3
4
5
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 170 of 267
Document Number BDTM02201-A01 Standard
Configuring Tunnels for
the RedBack SmartEdge
Router
/protocol/te-<eng>/set tunnel-l2vpn <index (1-5)>
oam {enabled | disabled}
{auto | ip <ip_addr> label <number>
[backup-ip <ip_addr>] [backup-label <number>]}
[switch {non-revertive | revertive}]
/protocol/te-<eng>/set l2vpn autoconfig
{ip <ip_addr> | hostname <host_name>}
username <string> password <string>
[retry-min <sec>] [retry-max <sec>]
[wait-time <min>]
/protocol/te-<eng>/l2vpn autoconfig renew
/protocol/te-<eng>/set tunnel-l2vpn <index (1-5)>
advanced inactivity-timer <seconds>
These commands are used to create a tunnel to the central router using
Ethernet-over-MPLS-over-GRE encapsulation instead of L2TP.
Use the
set tunnel-l2vpn
command to create L2VPN tunnels to the specific
destination. L2VPN tunnels may co-exist with regular L2TP tunnels and GRE
tunnels on the same BelAir unit.
The
oam
parameter defines if the tunnel uses a failure detection mechanism
based on 802.1ag CCM packets. If
oam
is disabled, the BelAir unit considers the
tunnel to always be up. If
oam
is enabled, the BelAir unit relies on receiving
802.1ag CCM packets to detect tunnel state. These packets should be
generated by outside equipment in the head end and should be forwarded to all
BelAir units. Set
oam
to
enabled
if you are using backup.
The
auto
parameter tells the BelAir unit that it should obtain L2VPN
parameters (IP address and label) from the NetOp NSM server. This is a
preferred setting for large deployments.
The
ip
and
backup-ip
parameters specify IP addresses of the head end tunnel
endpoint. It is usually the IP address of a SmartEdge device terminating L2VPN
tunnels. Use these parameters to manually configure a test environment or
small deployments.
The
label
and
backup-label
parameters specify the MPLS labels of the head end
tunnel endpoint virtual circuit. Use these parameters to manually configure a
test environment or small deployments.
The
switch
parameter controls whether the use of a backup router is revertive
or not. Once the BelAir unit starts to use a tunnel to a backup router:
• If
switch
is set to
non-revertive
, then the BelAir unit uses the tunnel to the
backup router until it fails. Only then does the BelAir unit switches back to
the tunnel using the main router. This is the default setting.
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 171 of 267
Document Number BDTM02201-A01 Standard
• If
switch
is set to
revertive
, then the BelAir unit uses the tunnel to the
backup router only while the main tunnel is unavailable. The BelAir unit
switches back to the tunnel using the main router as soon as it becomes
available again.
Use the
set l2vpn autoconfig
command to define parameters to communicate
to the NetOp NSM configuration server:
• To specify the NetOp NSM server, supply either the
ip
parameter with an IP
address or the
hostname
parameter with a valid DNS host name.
• The
username
parameter and the
password
parameter are used together to
authenticate the BelAir node with NetOp NSM server.
• The optional
wait-time
parameter lets you specify in minutes how long to
wait for a response from NetOp NSM configuration server before declaring
a failure condition. The default setting is 15 minutes, with a valid range of 1
to 60 minutes.
• The optional
retry-min
and
retry-max
parameters let you specify in seconds
a minimum and maximum value for the retry timer. The value of the retry
timer is chosen randomly within the boundaries defined by the
retry-min
and
retry-max
parameters. The timer is triggered by any failure while trying
to communicate with the NetOp NSM configuration server (for example,
the server not responding in time or the server not recognizing the
username
parameter and the
password
parameters). When timer expires,
the BelAir unit attempts to establish communications with the NetOp NSM
configuration server again. The default settings are 60 seconds for
retry-min
and 180 seconds for
retry-max
, with a valid range of 10 to 1800 seconds.
To d i sa b l e
l2vpn autoconfig
, enter an IP address of 0.0.0.0.
Use the
l2vpn autoconfig renew
command to trigger getting a new set of
configuration parameters from the NetOp NSM configuration server.
Use the
set l2vpn advanced inactivity-timer
command to specify how long to
wait until declaring the L2VPN tunnel down. The
<seconds>
parameter ranges
from 10 to 1000 seconds. The default value is 60 seconds.
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 172 of 267
Document Number BDTM02201-A01 Standard
Configuring Tunnels for
a Router using GRE
/protocol/te-<eng>/set tunnel-gre <index (1-5)>
ip <ip_addr> [proxy-arp {all | list | dhcp}]
/protocol/te-<eng>/set tunnel-gre <index (1-5)>
arp-list <IP_addr> [<IP_addr>]
[<IP_addr>] [<IP_addr>]
[<IP_addr>]
/protocol/te-<eng>/set gre autoconfig ip <IP_addr>
interval <seconds> [port <TCP_port>]
These commands are used to create tunnel to the central router using
IP-over-GRE encapsulation instead of L2TP.
Use the
set tunnel-gre ip
command to create GRE tunnels to the specific
destination. GRE tunnels may co-exist with regular L2TP tunnels and L2VPN
tunnels on the same BelAir unit. The
ip
parameter specifies the IP address of
the head end tunnel endpoint. It is usually the IP address of the router
terminating GRE tunnels.
This type of configuration uses proxy ARP because it cannot act as a router to
terminate IP traffic. The
proxy-arp
parameter defines the scope of the proxy
ARP functionality:
•Use
all
if you want to answer ARP requests for any destination IP address.
•Use
dhcp
if you want to answer ARP requests for the default gateway IP
address only. In this case, the gateway IP address is learned from the DHCP
relay communication to the client.
•Use
list
to apply proxy ARP only to traffic destined to a particular set of IP
address. Use the
set tunnel-gre arp-list
command to specify the set of IP
addresses.
The default value of the
proxy-arp
parameter is
all
.
Use the
set gre autoconfig
command to define parameters to communicate to
the third-party heartbeat server using a proprietary protocol. The
ip
parameter
defines the IP address of heartbeat server.
In this configuration, the BelAir20E sends a pseudo heartbeat packet at the
interval specified by the
interval
parameter. The
<seconds>
parameter should
be at least 60 seconds. The default value is 60 seconds. The heartbeat server
uses the pseudo heartbeat packet to determine whether the tunnel’s
operational state is up or down. The heartbeat server also uses the pseudo
heartbeat packet to determine the BelAir20E’s tunnel configuration and correct
it if required.
The optional
port
parameter specifies the TCP port to communicate with the
heartbeat server. The default value is 4040.
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 173 of 267
Document Number BDTM02201-A01 Standard
Configuring Tunnels for
PMIP Implementations
/protocol/te-<eng>/set tunnel-pmip <index (1-5)> ha-ip <ip_addr>
secret <string>
spi <number>
[lease-time <seconds> ]
/protocol/te-<eng>/set tunnel-pmip <index (1-5)>
advanced dns1 <ip_addr> [dns2 <ip_addr>]
These commands are used to create a Proxy Mobile IPv4 (PMIP) tunnel. A PMIP
tunnel allows a mobile client to change its point-of-attachment to the Internet
without changing its IP address. In this implementation, the network tracks the
movements of the mobile client and initiates the required mobility signalling on
its behalf. In PMIP mode, the BelAir AP acts as MIP Foreign Agent.
Use the
set tunnel-pmip ha-ip
command to create a tunnel to a PMIP home
agent. PMIP tunnels may co-exist with regular L2TP tunnels and L2VPN tunnels
on the same BelAir unit.
The
ha-ip
parameter specifies the IP address of PMIP Home Agent (HA).
The
secret
parameter specifies the authentication password for access to the
PMIP HA.
The
spi
parameter specifies the index identifying a security context between
the AP and home agent. It is an integer value that should be greater than 255.
The
spi
parameter and the
secret
parameter are used together to authenticate
the AP with the HA.
The optional
lease-time
parameter specifies the maximum lease-time in
seconds for the client session. If the client does not send packets for more than
the specified lease-time, its session is dropped. The default value is
300 seconds.
When client traffic is forwarded through the PMIP tunnel, the AP acts as a
DHCP server and provides all corresponding parameters (such as client's IP
address, subnet mask, gateway, and DNS addresses). The AP proxies all these
parameters from the HA. If the HA is unable to provide some of these
parameters (it must provide at least the client's IP address), the following logic
is used by the AP:
• The subnet mask is determined as corresponding to the IP class by IP
address. For example, for IP address 67.100.125.10 subnet mask is 255.0.0.0.
• The gateway is taken as first address within a specified subnet. For the
previous example, the gateway address is 67.0.0.1. This gateway address is
provided by the AP itself and may not correspond to any real IP address in
the network.
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 174 of 267
Document Number BDTM02201-A01 Standard
• The DNS IP address(es) are determined by the
set tunnel-pmip advanced
dns
command.
Use the
set tunnel-pmip advanced dns1
command to define the DNS server IP
addresses to be provided to the client by the AP through DHCP in case the AP
can not obtain corresponding settings from the HA. The optional
dns2
parameter specifies the backup DNS server in case the primary one is
unreachable.
Mapping User Traffic /protocol/te-<eng>/map vlan {untagged|<VLAN ID>} to <index>
[domain <string>]
/protocol/te-<eng>/unmap vlan {all|untagged|<VLAN ID>}
The
map vlan
command instructs the tunnel engine to forward traffic to the
specified tunnel. You can specify either traffic associated with a specific VLAN
or traffic that is not tagged for any VLAN. All packets that meet this criteria
received by any of the node’s radios are forwarded through the tunnel. If the
tunnel is not configured or not active, all corresponding packets are dropped.
If you specify untagged traffic, then the tunnel interface itself must be associated
with a VLAN. Refer to “Setting Tunnel Engine Parameters” on page 167.
The optional
domain
parameter is for PMIP tunnels. Some PMIP
implementations require an additional identification string to communicate with
the PMIP Home Agent (HA). The
domain
parameter allows you to specify the
required string.
The
unmap vlan
command removes all tunnel mapping entries or a specified
tunnel mapping entry. After this command, the specified packets are then
forwarded as if the tunnel does not exist.
Configuring
Authentication
/protocol/te-<eng>/set tunnel <index (1-5)>
[secret <shared_secret>]
[ppp-name <id>] [ppp-password <pw>]
[backup-secret <backup_shared_secret>]
[backup-ppp-name <backup_id>] [backup-ppp-password <backup_pw>]
/protocol/te-<eng>/set tunnel <index (1-5)>
authentication {enabled|disabled}
The
set secret
command configures the parameters for L2TP authentication for
a specified tunnel. The
secret
parameter sets the shared secret for tunnel
authentication. The
ppp-name
and
ppp-password
parameters set the data for
session authentication. The settings for each of these three parameters must
match the equivalent settings on the main router.
The
backup-secret
,
backup-ppp-name
and
backup-ppp-password
parameters
are equivalent settings for a backup router.
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 175 of 267
Document Number BDTM02201-A01 Standard
Once the authentication parameters are configured, you use the
set
authentication
command to enable authentication for a specified tunnel.
Configuring a Tunnel
Group Name
/protocol/te-<eng>/set tunnel <index (1-5)>
group-name <group_name>
The <group_name> parameter indicates that an LNS belongs to a particular
group.
The BelView NMS tunnel manager looks at the tunnel usage of all LNSs within
the same group and spread the tunnel traffic among the LNSs within the same
group. BelView also configures tunnels for newly introduced nodes to the least
used LNS within the same group.
For details, refer to the
BelView NMS User Guide
.
Relaying Traffic QOS
Settings
/protocol/te-<eng>/set tunnel <index (1-5)>
qos-map {none|up-bits|dscp)
Because the BelAir AP converts the client data packet into an Ethernet frame
and then encapsulates it within an IP packet, any QOS information that was part
of the original client data packet is not visible to upstream equipment.
This command allows you to put the QOS information into the encapsulating IP
packet header so that it becomes visible to the upstream equipment:
• The
dscp
setting means that Differentiated Services Code Point (DSCP)
information from the client data packet is included in the IP packet header.
• The
up-bits
settings means that the IP packet header contains QOS settings
based on User Priority bits (0 to 7) from the client data packet.
• The
none
setting means that QOS information from the client data packet is
not sent to upstream equipment.
The default setting is
none
.
Setting the Tunnel
Down Alarm Threshold
/protocol/te-<eng>/set alarm-threshold
{disabled | enabled <num_of_alarms>}
Typica l ly, a
Tunnel Down
alarm is generated when a tunnel fails to respond.
However, if there are intermittent issues with the tunnel, it may take time to
identify and correct the root cause. During this period, multiple
Tunnel Down
alarms would be generated.
Enabling the alarm threshold reduces the number of
Tunnel Down
alarms
generated per calendar day. If the threshold is reached, the system generates
BelAir20E User Guide Using Layer 2 Tunnels
October 11, 2011 Confidential Page 176 of 267
Document Number BDTM02201-A01 Standard
instead a single
Excess Tunnel Down Events
alarm and stops generating
additional
Tunnel Down
alarms. The
Tunnel Down
events are still tracked
through the tunnel’s performance monitoring statistics, allowing you to analyze
the behavior.
The
<num_of_alarms>
parameter ranges from 2 to 50. By default, the alarm
threshold is enabled with a setting of
5
, meaning that the
Excess Tunnel Down
Events
alarm is generated once 5
Tunnel Down
events occur in a day.
Alarms generated during a maintenance window do not count against the alarm
threshold. For details see, “Defining a Maintenance Window” on page 55.
Configuring the
Network Central
Router for
Layer 2 Tunneling
The specific configuration tasks and commands for the network central router
vary, depending on the type of router that is installed.
Refer to the
Tunnel Mobility Technical Bulletin
, available at
www.support.belairnetworks.com for guidance on configuring the router
portion of the tunnels.
BelAir20E User Guide Quality of Service Settings
October 11, 2011 Confidential Page 177 of 267
Document Number BDTM02201-A01 Standard
Quality of Service Settings
The BelAir20E includes Quality of Service (QoS) settings for the following
functional areas:
• traffic switching. See “System QoS” on page 177.
• client to access point radio communications. See “Radio QoS” on page 180.
System QoS BelAir nodes work in conjunction with one another to allow you to separate
and prioritize traffic. Each BelAir20E node can inspect incoming traffic and
prioritize traffic into four priority queues.
Prioritization Each BelAir node supports four traffic priority queues, numbered 0 to 3.
Queue 3 has the highest priority while queue 0 has the lowest priority. Table 13
describes each queue.
All traffic that is not associated to a VLAN has priority 1. This means that until
you create VLANs, all traffic has priority 1.
Once VLANs have been created, you configure the node traffic to have different
priorities based on User Priority bits (0 to 7) or VLAN IDs.
Table 13: Traffic Priority Queues
Queue
Number Description
0 Background traffic
1 Best effort traffic
Use this queue for traffic that does not require QoS features,
such as most data traffic
2 Video traffic, T1 circuit emulation
Use this queue for high priority traffic such as T1 circuit
emulation, video or “gold service” customer traffic
3 Voice over IP (VoIP) traffic
Use this queue for SVP or other VoIP applications
BelAir20E User Guide Quality of Service Settings
October 11, 2011 Confidential Page 178 of 267
Document Number BDTM02201-A01 Standard
The prioritization commands (
map
and
no map)
described in this chapter apply
strictly to the BelAir node that you are currently logged on to. You must repeat
them on each related BelAir node. For example, when specifying that particular
VLAN traffic has a particular priority, you must execute the associated
commands on each possible BelAir node in the path of that VLAN.
Prioritizing Traffic Based
on User Priority Bits
/qos/set up-to-queue-mapping <priority> <queue_id>
This command instructs the BelAir20E to process packets with the specified
User Priority value to the specified priority queue. The
priority
parameter
ranges from 0 to 7. The
queue_id
parameter ranges from 0 to 3, as described in
Table 13 on page 177.
Note: Settings made with the
set vlan-to-queue-mapping
command have
precedence over settings made with this command.
Table 14 shows how User Priority values are processed to priority queues by
default.
To unmap a previously set priority, use the
set up-to-queue-mapping
command
to map that priority back to the default priority queue as shown in Table 14.
Prioritizing Traffic using
VLAN IDs
/qos/set vlan-to-queue-mapping <vlan_id> {none|<queue_id>}
/qos/show vlan {all|id <2-2814>}
The
set
command instructs the BelAir20E to process packets from the specified
VLAN to the specified priority queue. The
vlan_id
parameter ranges from 1 to
Table 14: User Priority Value to Priority Queue Processing
User Priority Value Priority Queue to which it is processed
01
10
20
3 1
42
52
63
73
BelAir20E User Guide Quality of Service Settings
October 11, 2011 Confidential Page 179 of 267
Document Number BDTM02201-A01 Standard
2814. The
queue_id
parameter ranges from 0 to 3, as described in Table 13 on
page 177. The
none
parameter removes the mapping of a VLAN ID to priority
queue.
Note: Settings made with this command have precedence over settings made
with the
set up-to-queue-mapping
command.
The
show
command displays a summary of the QoS settings that are based on
VLAN IDs.
Example
/qos# show vlan id 100
Qos Vlan Id Configuration
------------------------
Vlan Id : 100
------------------------
Vlan Qos Status : Enabled
Queue Map : 3
Resetting the QoS
Configuration
/qos/set defaults
This command returns the system QoS configuration to factory default
settings.
Note: This command does not affect radio QoS configuration.
Displaying a Summary of
System QoS Settings
/qos/show config
This command displays a summary of all current QOS settings, including how
User Priority bits are currently mapped to the priority queues.
Example
/qos# show config
Qos Global Configuration
------------------------
Qos Status : Enabled
Qos Global UP to Queue Mapping
---------------------------------
UP Value : 0 -- Queue : 1
UP Value : 1 -- Queue : 0
UP Value : 2 -- Queue : 0
UP Value : 3 -- Queue : 1
UP Value : 4 -- Queue : 2
UP Value : 5 -- Queue : 2
UP Value : 6 -- Queue : 3
UP Value : 7 -- Queue : 3
BelAir20E User Guide Quality of Service Settings
October 11, 2011 Confidential Page 180 of 267
Document Number BDTM02201-A01 Standard
No Vlan based Qos Configured!
-----------------------------
Displaying the
Prioritization Settings
/qos/show user-priority-map
The
show user-priority-map
command displays how User Priority bits are
currently mapped to the priority queues.
Example
/qos# show user-priority-map
Qos Global UP to Queue Mapping
---------------------------------
UP Value : 0 -- Queue : 1
UP Value : 1 -- Queue : 0
UP Value : 2 -- Queue : 0
UP Value : 3 -- Queue : 1
UP Value : 4 -- Queue : 2
UP Value : 5 -- Queue : 2
UP Value : 6 -- Queue : 3
UP Value : 7 -- Queue : 3
Radio QoS BelAir radios offer Wireless Multi-Media (WMM) support for multiple priority
packets and transmit opportunities. This allows over-the-air QoS for WMM
client devices with faster burst transfer. (Use the
/mode
command to see the
version number of your radio modules.)
Some WMM features, such as selecting the priority scheme and the mapping
scheme, are also available for BelAir backhaul radios to provide end-to-end
QoS functionality.
Displaying a Summary of
Radio QoS Settings Use the
/interface/wifi-<n>-<m>/show config qos
command to display the
current radio QoS settings. See “Displaying Wi-Fi Radio Configuration” on
page 73 for details.
Example - Typical BelAir20E
/interface/wifi-1-1# show config qos
Slot: 1, Card Type: htme, revision: 1, Port: 1, Radio: HTMv1 5GHz
802.11n
admin state: ................. Enabled
channel: ..................... 149
mode: ...................... ht40plus
mimo: ...................... 3x3
tx power: .................. 18.0 (dBm per-chain), 23.0 (dBm total)
antenna location: ............ External Port
antenna index: ............... 1
antenna gain: ................ 5.0 (dBi)
link distance: ............... 1 (km)
base radio MAC : ............. 00:0d:67:0c:21:90
BelAir20E User Guide Quality of Service Settings
October 11, 2011 Confidential Page 181 of 267
Document Number BDTM02201-A01 Standard
QOS:
wmm: ....................... Enabled
uapsd: ..................... Enabled
mapping: ................... UP/DSCP
voice acm: ................. Disabled
video acm: ................. Disabled
Enabling or Disabling
Wireless Multi-media
/interface/wifi-<n>-<m>/set qos wmm {enable|disable}
Wireless Multi-media is normally enabled. It allows the access point to
communicate with a WMM enabled wireless client using WMM features.
When disabled, the access point ignores requests for WMM communications
from wireless clients and instead uses traditional non-WMM features to
communicate with them. To disable WMM, you must first disable Unscheduled
Automatic Power-save Delivery (UAPSD). See “Unscheduled Automatic
Power-save Delivery” on page 182.
QoS Mapping Scheme /interface/wifi-<n>-<m>/set qos mapping {up|dscp|both}
The
set
command lets you decide how traffic is processed to the four BelAir
priority queues depending on the values of the User Priority (UP) field or the
Differentiated Services Code Point (DSCP) subfield in the client traffic fields.
Selecting
up
means that traffic is sent to the four BelAir priority queues based
on the UP field value. Selecting
dscp
means that traffic is sent to the four BelAir
priority queues based on the DSCP subfield value. Selecting
both
means that
traffic is sent to the four BelAir priority queues based on the highest priority
value of either the UP field or the DSCP subfield. By default, QoS mapping is set
to
both
. Table 15 shows the mapping of the UP value and the DSCP value to
the priority queue.
Table 15: UP and DSCP Value to Priority Queue Processing
UP Value DSCP Value Target Priority Queue
0 0 (0x0) 1
1 32 (0x20) 0
2 64 (0x40) 0
3 96 (0x60) 1
4 128 (0x80) 2
5 160 (0xA0) 2
BelAir20E User Guide Quality of Service Settings
October 11, 2011 Confidential Page 182 of 267
Document Number BDTM02201-A01 Standard
Unscheduled Automatic
Power-save Delivery
/interface/wifi-<n>-<m>/set qos uapsd {enable|disable}
Unscheduled Automatic Power-save Delivery (UAPSD) extends the battery life
of wireless clients and reduces radio transmission traffic. To enable UAPSD, you
must first enable Wireless Multi-media (WMM) for the radio. Refer to
“Enabling or Disabling Wireless Multi-media” on page 181.
This command lets you enable or disable UAPSD. By default, UAPSD is enabled.
6 192 (0xC0) 3
7 224 (0xE0) 3
Table 15: UP and DSCP Value to Priority Queue Processing
UP Value DSCP Value Target Priority Queue
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 183 of 267
Document Number BDTM02201-A01 Standard
Layer 2 Network Configuration
The BelAir20E acts as a transparent bridge and layer 2 switch without the need
to configure any software features. However, to control and manage the traffic
inherent in a bridge (for example, broadcast and flooding) and to handle loop
situations where multiple paths exist between nodes, you can invoke layer 2
features such as:
• Virtual LANs (VLANs), that divide traffic among several sets of users and
restrict broadcast to the respective VLANs. See “Configuring IP
Parameters” on page 45.
• Spanning Tree Protocol (STP), where the optimum path is selected and
ports of alternate paths are shutdown
If there are no loops in the network, the BelAir20E can operate in bridge mode
or with VLANs. If a loop exists, STP must be invoked to manage the different
paths.
This chapter contains the following sections:
•“Spanning Tree Protocol Overview” on page 183
—“Configuring Spanning Tree Priority” on page 184
—“Configuring Other Spanning Tree Parameters” on page 185
—“RSTP Commands” on page 186
See also “Managing Egress Node Traffic” on page 64.
Spanning Tree
Protocol
Overview
It is important to configure the Spanning Tree Protocol (STP) when multiple
paths between nodes are created. As networks become more complex,
multiple paths between nodes, either intentional or unintentional, become
more likely.
Although loops benefit the network by providing path redundancy, loops must
be dynamically eliminated to prevent proliferation of broadcast traffic and
confusion in the MAC learning tables of the bridge. This is accomplished by a
spanning tree protocol, which generates a loop-free subset of the network's
topology by placing those bridge or switch ports that, if active, would create
loops into a standby (blocking) condition. Blocked bridge or switch ports can
be activated in the event of primary link failure, providing a new path through
the network.
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 184 of 267
Document Number BDTM02201-A01 Standard
Loops can also occur accidentally or maliciously. For example, a technician may
connect their laptop to the Ethernet port of a BelAir20E and also have a
wireless link to a BelAir20E in the same network. If the laptop is configured to
act as a bridge then it creates a loop in the network, and broadcast traffic
quickly proliferates until the slowest link in the loop is saturated. This broadcast
storm renders part—or all—of the network unusable.
Note: To prevent issues as described previously, clients that associate with the
BelAir20E are not allowed to operate as a bridge. The BelAir20E will
automatically disassociate without warning from any client that is
detected as behaving as a bridge; that is, sending spanning-tree BPDUs.
However, clients are allowed to operate as router to allow features
such as sharing a wireless Internet connection. For this type of
operation, BelAir Networks recommends that the computer with the
wireless connection to the BelAir20E have its operating system
configured to act as a router. For example, Microsoft Windows XP
offers the
Internet Sharing
function.
The original spanning tree protocol is STP. When STP detects a topology
change in the network, STP blocks all user traffic, creates a new loop-free
configuration, and then re-enables user traffic. STP reconfigurations create
outages that are typically 30 to 60 seconds in length.
A newer protocol, Rapid STP (RSTP), greatly reduces the length of outages
caused by topology reconfigurations. RSTP is backwards compatible with STP
so it can be used in networks where some equipment only supports STP.
BelAir20E units are shipped from the factory with RSTP enabled and default
settings that are a suitable starting point for most deployments. The default
node priority is 36864 (or 0x9000). The default port settings vary depending on
the hardware in use, the topology and whether dynamic path cost is used or
not.
You should adjust the STP node priority and path cost settings for each node to
match the topology of your network. Refer to your network plan
for details.
Configuring Spanning
Tree Priority If all BelAir20E units are enabled with default settings, the switch with the
lowest MAC address in the network becomes the root switch. However, due to
traffic patterns, number of forwarding ports, or line types, the BelAir20E with
the lowest MAC address might not be the ideal root switch. By increasing the
priority (lowering the numerical priority number) of the ideal switch so that it
becomes the root switch, an STP recalculation will be done to form a new
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 185 of 267
Document Number BDTM02201-A01 Standard
topology. BelAir recommends that the root node is the Ethernet switch that is
used to connect to the LIM(s).
Refer to your network plan for details.
Use the command described in “RSTP Priority” on page 192 and “RSTP
Version” on page 192 to specify the STP priority and the version of STP used by
the BelAir20E unit.
Configuring Other
Spanning Tree
Parameters
Table 16 describes spanning tree parameters that you can configure in addition
to the STP node priority and path cost.
Table 16: Configurable Spanning Tree Timers and Associated Parameters
Parameter Default
Value Description Possible Range
Hello Timer 2 s Determines how often
the bridge broadcasts
hello messages to other
bridges
1 s to 10 s
Must be less than
or equal to:
(1/2Max_Age - 1)
Forward
Delay Timer 15 s Determines how long
each of the listening and
learning states last before
the interface begins
forwarding
4 s to 30 s
Must not be less
than:
(1/2Max_Age + 1)
Maximum
Age Timer 20 s Determines the amount
of time the bridge stores
protocol information
received on an interface
6 s to 40 s
Must not be less
than:
2(Hello_timer + 1)
Must not exceed:
2(Forward_Delay - 1)
Transm it
Hold Count 6 Transmit hold count
(packet queue length) 1 to 10
Path Cost
Type 32 bit Represents the media
speed (or bit rate) 16 bit or 32 bit
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 186 of 267
Document Number BDTM02201-A01 Standard
Note: BelAir Networks recommends that you do not change the RSTP
parameter values in Table 16 from their default values. Experience has
shown that these default values work well in a variety of networks.
To change the spanning tree transmit hold count and the path cost, refer to
“Transmit Hold Count” on page 192.
To change the values of the spanning-tree timers, refer to “Max Age, Hello
Time and Forward Delay” on page 193.
Note: The STP or RSTP parameter values that are actually used are inherited
from the root bridge. When you configure STP or RSTP parameters on
a BelAir20E, you are setting the values that are used if that BelAir20E is
the root bridge.
RSTP Commands This section describes commands that you can execute while in
rstp
mode.
Some RSTP commands apply to specific physical interfaces or to specific radio
links. The
Name
column of the
/protocol/rstp/show config port all
command
displays available interfaces and radio links. For example, if the
Name
column
displays
wifi-3-1-1
, then
wifi-3-1
identifies the interface and the
-1
suffix
identifies radio link 1 of that interface.
The BelAir20E layer 2 switch forwards layer 2 frames to the output of one or
more physical interfaces or radio links based on the information contained in
the frame header (tags).
Displaying the RSTP
Configuration Settings
/protocol/rstp/show config [port {all|active|<interface-name>}]
This command displays the currently configured RSTP settings. To see the
currently active RSTP parameters, as inherited from the root bridge, use the
/protocol/rstp/show config port active
command.
Link
Detection
Count
3 Represents the number
Hello timer periods to
wait before declaring the
link is down
3 to the ratio of the
Maximum Age
timer to the Hello
timer
Table 16: Configurable Spanning Tree Timers and Associated Parameters
Parameter Default
Value Description Possible Range
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 187 of 267
Document Number BDTM02201-A01 Standard
Specifying the
port
keyword displays RSTP configuration settings for each
physical interface and radio link. Use the
<interface-name>
parameter to
specify a particular interface and radio link, as shown under the
Name
column of
the
/protocol/rstp/show config port all
command.
Example 1
/protocol/rstp# show config
RSTP Configurations
--------------------
Rstp Status : Enabled
Stp priority : 36864
Stp Version : Rstp Mode
Bridge Max Age : 20 seconds
Bridge Hello Time : 2 seconds
Bridge Forward Delay Time : 15 seconds
Tx Hold Count : 3
Link Detection Count : 3
Bridge Address : 00:0d:67:00:69:d4
Bridge Aging Time : 300
---------------------------------------
Example 2
/protocol/rstp# show config port all
RSTP Port Configurations
--------------------
Port Name Prio Pathcost Migration Edge P2P Protocol Dynamic-Cost
Interface-link Conf/Oper Conf/Oper Version Status Default
---- -------------- ---- ---------- --------- ------------ ------------- -------- -----------------
1 wifi-1-1-1 128 830768 False False/False True/True RSTP Enabled 830769
2 wifi-1-1-2 128 2000000 False False/False True/False RSTP Enabled 830769
3 wifi-1-1-3 128 2000000 False False/False True/False RSTP Enabled 830769
4 wifi-1-1-4 128 2000000 False False/False True/False RSTP Enabled 830769
5 wifi-1-1-5 128 2000000 False False/False True/False RSTP Enabled 830769
6 wifi-1-1-6 128 2000000 False False/False True/False RSTP Enabled 830769
7 wifi-1-1-7 128 2000000 False False/False True/False RSTP Enabled 830769
8 wifi-1-1-8 128 2000000 False False/False True/False RSTP Enabled 830769
9 wifi-2-1-1 128 2000000 False False/False True/False RSTP Enabled 3000000
10 wifi-2-1-2 128 2000000 False False/False True/False RSTP Enabled 3000000
11 wifi-2-1-3 128 2000000 False False/False True/False RSTP Enabled 3000000
12 wifi-2-1-4 128 2000000 False False/False True/False RSTP Enabled 3000000
13 wifi-2-1-5 128 2000000 False False/False True/False RSTP Enabled 3000000
14 wifi-2-1-6 128 2000000 False False/False True/False RSTP Enabled 3000000
15 wifi-2-1-7 128 2000000 False False/False True/False RSTP Enabled 3000000
16 wifi-2-1-8 128 2000000 False False/False True/False RSTP Enabled 3000000
17 wifi-3-1-1 128 3187500 False False/False True/True RSTP Enabled 3000000
18 wifi-3-1-2 128 2000000 False False/False True/False RSTP Enabled 3000000
19 wifi-3-1-3 128 2000000 False False/False True/False RSTP Enabled 3000000
20 wifi-3-1-4 128 2000000 False False/False True/False RSTP Enabled 3000000
21 wifi-3-1-5 128 2000000 False False/False True/False RSTP Enabled 3000000
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 188 of 267
Document Number BDTM02201-A01 Standard
22 wifi-3-1-6 128 2000000 False False/False True/False RSTP Enabled 3000000
23 wifi-3-1-7 128 2000000 False False/False True/False RSTP Enabled 3000000
24 wifi-3-1-8 128 2000000 False False/False True/False RSTP Enabled 3000000
25 wifi-4-1-1 128 2000000 False False/False True/True RSTP Enabled 2000000
26 wifi-4-1-2 128 2000000 False False/False True/False RSTP Enabled 2000000
27 wifi-4-1-3 128 2000000 False False/False True/False RSTP Enabled 2000000
28 wifi-4-1-4 128 2000000 False False/False True/False RSTP Enabled 2000000
29 wifi-4-1-5 128 2000000 False False/False True/False RSTP Enabled 2000000
30 wifi-4-1-6 128 2000000 False False/False True/False RSTP Enabled 2000000
31 wifi-4-1-7 128 2000000 False False/False True/False RSTP Enabled 2000000
32 wifi-4-1-8 128 2000000 False False/False True/False RSTP Enabled 2000000
33 eth-5-1 128 200000 False False/False True/True RSTP Disabled 200000
Example 3
/protocol/rstp# show config port wifi-2-1-1
RSTP Port Configurations
--------------------
Port Name Prio Pathcost Migration Edge P2P Protocol Dynamic-Cost
Interface-link Conf/Oper Conf/Oper Version Status Default
---- -------------- ---- ---------- --------- ------------ ------------- -------- -----------------
9 wifi-2-1-1 128 2000000 False False/False True/False RSTP Enabled 3000000
Example 4
/protocol/rstp# show config port active
RSTP Port Configurations
--------------------
Port Name Prio Pathcost Migration Edge P2P Protocol Dynamic-Cost
Interface-link Conf/Oper Conf/Oper Version Status Default
---- -------------- ---- ---------- --------- ------------ ------------- -------- -----------------
1 wifi-1-1-1 128 830768 False False/False True/True RSTP Enabled 830769
17 wifi-3-1-1 128 3187500 False False/False True/True RSTP Enabled 3000000
25 wifi-4-1-1 128 2000000 False False/False True/True RSTP Enabled 2000000
33 eth-5-1 128 200000 False False/False True/True RSTP Disabled 200000
Displaying the RSTP
Topology Information
/protocol/rstp/show topology [port {all|active|<interface-name>}]
This command displays the currently active RSTP parameters as inherited from
the root bridge, including the MAC address of the designated root bridge in a
network, the cost of the path to the root, the port used to message to the root
bridge, as well as the current values of the spanning tree timers.
To see the currently configured RSTP parameters, use the
/protocol/rstp/show
config
command.
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 189 of 267
Document Number BDTM02201-A01 Standard
In the resulting output when the
port
keyword is omitted,
Root Cost
reflects
the node's cost to root that it would advertise in its BPDUs sent out to
designated or alternate ports.
Specifying the
port
keyword displays per port RSTP topology information for
each physical interface and radio link. Use the
<interface-name>
parameter to
specify a particular interface and radio link, as shown under the
Name
column of
the
/protocol/rstp/show config port all
command.
In the resulting output when the
port
keyword is used,
Designated Cost
is the
minimum port cost seen in BPDUs on that link (either from the node itself or
from another node on that same link).
Example 1
/protocol/rstp# show topology
RSTP Topology Information
--------------------
Designated Root : 00:00:00:12:00:32:9d:80
Stp Root Cost : 4000000
Stp Root Port : 33
Stp Max Age : 31 seconds
Stp Hello Time : 1 seconds
Stp Forward Delay Time : 21 seconds
---------------------------------------
Example 2
/protocol/rstp# show topology port all
RSTP Port Topology Information
-------------------------------
Port Name Designated-root Designated Designated-bridge Designated
Interface-link Cost Port
---- -------------- ----------------------- ---------- ----------------------- ----------
1 wifi-1-1-1 60:00:00:23:34:b0:3e:80 200000 90:00:00:0d:67:00:69:5e 80:01
2 wifi-1-1-2 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
3 wifi-1-1-3 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
4 wifi-1-1-4 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
5 wifi-1-1-5 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
6 wifi-1-1-6 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
7 wifi-1-1-7 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
8 wifi-1-1-8 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
9 wifi-2-1-1 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
10 wifi-2-1-2 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
11 wifi-2-1-3 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
12 wifi-2-1-4 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 190 of 267
Document Number BDTM02201-A01 Standard
13 wifi-2-1-5 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
14 wifi-2-1-6 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
15 wifi-2-1-7 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
16 wifi-2-1-8 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
17 wifi-3-1-1 60:00:00:23:34:b0:3e:80 200000 90:00:00:0d:67:00:69:5e 80:11
18 wifi-3-1-2 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
19 wifi-3-1-3 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
20 wifi-3-1-4 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
21 wifi-3-1-5 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
22 wifi-3-1-6 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
23 wifi-3-1-7 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
24 wifi-3-1-8 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
25 wifi-4-1-1 60:00:00:23:34:b0:3e:80 200000 90:00:00:0d:67:00:69:5e 80:19
26 wifi-4-1-2 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
27 wifi-4-1-3 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
28 wifi-4-1-4 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
29 wifi-4-1-5 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
30 wifi-4-1-6 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
31 wifi-4-1-7 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
32 wifi-4-1-8 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
33 eth-5-1 60:00:00:23:34:b0:3e:80 0 60:00:00:23:34:b0:3e:80 80:0f
Example 3
/protocol/rstp# show topology port wifi-2-1-1
RSTP Port Topology Information
-------------------------------
Port Name Designated-root Designated Designated-bridge Designated
Interface-link Cost Port
---- -------------- ----------------------- ---------- ----------------------- ----------
9 wifi-2-1-1 00:00:00:00:00:00:00:00 0 00:00:00:00:00:00:00:00 00:00
Example 4
/protocol/rstp# show topology port active
RSTP Port Topology Information
-------------------------------
Port Name Designated-root Designated Designated-bridge Designated
Interface-link Cost Port
---- -------------- ----------------------- ---------- ----------------------- ----------
1 wifi-1-1-1 60:00:00:23:34:b0:3e:80 200000 90:00:00:0d:67:00:69:5e 80:01
17 wifi-3-1-1 60:00:00:23:34:b0:3e:80 200000 90:00:00:0d:67:00:69:5e 80:11
25 wifi-4-1-1 60:00:00:23:34:b0:3e:80 200000 90:00:00:0d:67:00:69:5e 80:19
33 eth-5-1 60:00:00:23:34:b0:3e:80 0 60:00:00:23:34:b0:3e:80 80:0f
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 191 of 267
Document Number BDTM02201-A01 Standard
Displaying RSTP Port
Roles and States
/protocol/rstp/show port roles [all]
This command displays the roles and states of the RSTP ports.
Specifying the
all
option displays all possible links for a specific interface. If the
all
option is omitted, then the command outputs data only for links with a
status of
UP
.
Example 1
/protocol/rstp# show port roles
RSTP Port Roles and States
---------------------------
Port# Name Remote-id Port-Role Port-State Port-Status
----- ----------- --------------- ---------- ---------- ---------
9 wifi-2-1-1 10.5.1.22 Designated Forwarding Enabled
11 wifi-2-1-3 10.5.1.10 Designated Forwarding Enabled
17 wifi-3-1-1 10.5.1.13 Designated Forwarding Enabled
18 wifi-3-1-2 10.5.1.14 Designated Forwarding Enabled
25 wifi-4-1-1 10.5.1.25 Designated Forwarding Enabled
33 eth-1-1 Root Forwarding Enabled
34 eth-1-2 Designated Forwarding Enabled
Example 2
/protocol/rstp# show port roles all
RSTP Port Roles and States
---------------------------
Port# Name Remote-id Port-Role Port-State Port-Status Link-status
----- ----------- --------------- ---------- ---------- --------- ------------
1 wifi-1-1-1 Disabled Discarding Enabled Down
2 wifi-1-1-2 Disabled Discarding Enabled Down
3 wifi-1-1-3 Disabled Discarding Enabled Down
4 wifi-1-1-4 Disabled Discarding Enabled Down
5 wifi-1-1-5 Disabled Discarding Enabled Down
6 wifi-1-1-6 Disabled Discarding Enabled Down
7 wifi-1-1-7 Disabled Discarding Disabled Down
8 wifi-1-1-8 Disabled Discarding Disabled Down
9 wifi-2-1-1 10.5.1.22 Designated Forwarding Enabled UP
10 wifi-2-1-2 Disabled Discarding Enabled Down
11 wifi-2-1-3 10.5.1.10 Designated Forwarding Enabled UP
12 wifi-2-1-4 Disabled Discarding Enabled Down
13 wifi-2-1-5 Disabled Discarding Enabled Down
14 wifi-2-1-6 Disabled Discarding Enabled Down
15 wifi-2-1-7 Disabled Discarding Enabled Down
16 wifi-2-1-8 Disabled Discarding Enabled Down
17 wifi-3-1-1 10.5.1.13 Designated Forwarding Enabled UP
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 192 of 267
Document Number BDTM02201-A01 Standard
18 wifi-3-1-2 10.5.1.14 Designated Forwarding Enabled UP
19 wifi-3-1-3 Disabled Discarding Enabled Down
20 wifi-3-1-4 Disabled Discarding Enabled Down
21 wifi-3-1-5 Disabled Discarding Enabled Down
22 wifi-3-1-6 Disabled Discarding Enabled Down
23 wifi-3-1-7 Disabled Discarding Enabled Down
24 wifi-3-1-8 Disabled Discarding Enabled Down
25 wifi-4-1-1 10.5.1.25 Designated Forwarding Enabled UP
26 wifi-4-1-2 Disabled Discarding Enabled Down
27 wifi-4-1-3 Disabled Discarding Enabled Down
28 wifi-4-1-4 Disabled Discarding Enabled Down
29 wifi-4-1-5 Disabled Discarding Enabled Down
30 wifi-4-1-6 Disabled Discarding Enabled Down
31 wifi-4-1-7 Disabled Discarding Enabled Down
32 wifi-4-1-8 Disabled Discarding Enabled Down
33 eth-1-1 Root Forwarding Enabled UP
34 eth-1-2 Designated Forwarding Enabled UP
Configuring the Bridge
Aging Time
/protocol/rstp/set bridge aging-time <10 - 630>
This command specifies the aging time, in seconds, for the dynamically learned
forwarding information.
RSTP Priority /protocol/rstp/set priority <Decimal (0 - 61440) or
Hexadecimal (0x0000 -0xf000)>
This command specifies the STP priority.
The default node priority is 36864 (or 0x9000). The priority values must be set
in steps of 4096 (or 0x1000).
RSTP Version /protocol/rstp/set version {stpCompatible|rstp}
This command specifies the type of STP used by the BelAir20E.
Setting the value to
rstp
mode forces it to transmit RST BPDUs while setting it
to
stpCompatible
mode forces it to transmit configuration and TCN BPDUs.
The default setting is
rstp
.
Transmit Hold Count /protocol/rstp/set [tx-holdcount (1 - 10)]
This command configures the values of
transmit hold count
. The
transmit hold
count
value indicates the number of BPDUs that need to be transmitted in
any Hello Time interval. The default value is 6.
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 193 of 267
Document Number BDTM02201-A01 Standard
Note: BelAir Networks recommends that you do not change the RSTP
parameter values from their default values. Experience has shown that
the default values work well in a variety of networks.
Example
/protocol/rstp# set tx-holdcount 5
Max Age, Hello Time
and Forward Delay
/protocol/rstp/set ([max-age <6 - 40>] [hello-time <1 - 10>]
[forward-delay <4 - 30>])
The
max-age
field represents the time in seconds that all bridges use for
MaxAge when this bridge is acting as the root. The default value is 20. The
value must not exceed: 2(ForwardDelay -1).
The
hello-time
field represents the time in seconds that all bridges use for
HelloTime when this bridge is acting as the root. The default value is 2.
The
forward-delay
field represents the time in seconds that all bridges use for
ForwardDelay when this bridge is acting as the root. The default value is 15.
The value must not be less than: 1 + 1/2 MaxAge.
Note: BelAir Networks recommends that you do not change the RSTP
parameter values from their default values. Experience has shown that
the default values work well in a variety of networks.
Example
/protocol/rstp# set max-age 20 hello-time 2 forward-delay 15
RSTP Link Priority /protocol/rstp/set interface <interface-name>
priority <Decimal (0-240)
or Hexadecimal (0x00 -0xF0)>
This command configures the link priority. This command is available only if
dynamic path costs are disabled. Refer to “Dynamic Path Cost” on page 194.
The
<interface-name>
parameter specifies a particular interface, such as
wifi-2-1
.
The link priority value forms the first component or the portion of the Port ID
that can be written. The values for the link priority must only be in steps of 16
(only the first 4 bits can be set for the link priority).
Example
/protocol/rstp# set interface wifi-2-1 priority 64
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 194 of 267
Document Number BDTM02201-A01 Standard
RSTP Static Path Cost /protocol/rstp/set interface <interface-name>
defaultcost <1 - 200000000>
This command sets the static path cost in the
pathcost
field. This command is
available only if dynamic path costs are disabled. Refer to “Dynamic Path Cost”
on page 194.
The
<interface-name>
parameter specifies a particular interface, such as
wifi-2-1
.
The static path cost determines the preferred data paths between bridges
throughout the network and the root bridge. The default path cost settings
vary, depending on the hardware in use, the topology and whether dynamic
path cost is used or not.
Example
/protocol/rstp# set interface wifi-2-1 pathcost 65535
Dynamic Path Cost /protocol/rstp/set interface <interface-name>
[dynamic-cost {enabled|disabled}]
This command lets you manage how path costs are determined for each radio
link on your BelAir20E.
The
<interface-name>
parameter specifies a particular interface, such as
wifi-2-1
.
Dynamic path costs are a useful way to adjust the topology of a network to
isolate a link as a result of unplanned or seasonal effects. For example, there
may be an unplanned source of radio interference with a particular link. Or,
vegetation may affect a link during summer.
When dynamic cost is disabled, each link is assigned a fixed cost. The default
value depends on the hardware and topology in use.
When dynamic cost is enabled, the BelAir20E adjusts the link’s cost based on
several link quality factors. For example, a link with a low RSSI, such as -80,
implies poor link quality causing it to have an increased cost. Similarly, a link
with a high RSSI, such as -40, implies good link quality causing it’s cost to be
reduced.
Enabling dynamic path costs disables the command to configure a static path
cost. Refer to “RSTP Static Path Cost” on page 194.
To prevent unnecessary topology changes based on transient behaviour, a new
link cost may not automatically cause a topology change. If the new link cost is
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 195 of 267
Document Number BDTM02201-A01 Standard
very different from the current link cost, then the topology is changed.
However, if the new link cost is only slightly different from the current link cost,
then the current topology is maintained. As further protection against transient
behaviour, the RSTP verifies that the new link cost is maintained for 30 minutes
before it implements any potential topology changes.
In all cases when a link is enabled or disabled, RSTP takes into account the new
link costs as it creates a new topology.
By default, dynamic cost is enabled for most combinations of platforms and
topologies. Use the
/protocol/rstp/show config port
command to determine if
it is enabled or disabled in your case.
Note: Dynamic path cost should be disabled for mobile backhaul mesh
applications because in such application path costs are determined by
the mobility application.
RSTP Protocol
Migration on an
Interface
/protocol/rstp/set interface <interface-name>
protocol-migration {true|false}
While operating in RSTP mode, setting of this value to
true
forces the interface
to transmit RSTP BPDUs.
The
<interface-name>
parameter specifies a particular interface, such as
wifi-2-1
.
RSTP Edge Port Status /protocol/rstp/set interface <interface-name>
edge-port {true|false}
This command indicates whether the interface is an edge port or not. An edge
port cannot communicate to another RSTP enabled device. This setting is
typically
false
, but can be
true
for situations such as being connected to a
laptop, or to a simple switch. RSTP uses edge port status to optimize
performance during topology changes. If the edge port status is true, RSTP
does not block it during a topology change.
This command sets the administrative value of the edge port status. The
operational value of the edge port status is initially its administrative value;
however, it can be updated later by the BelAir20E bridge software.
The
<interface-name>
parameter specifies a particular interface, such as
wifi-2-1
.
The default settings vary, depending on the hardware in use, the topology and
whether dynamic path cost is used or not.
BelAir20E User Guide Layer 2 Network Configuration
October 11, 2011 Confidential Page 196 of 267
Document Number BDTM02201-A01 Standard
RSTP Point-To-Point
Status of an Interface
/protocol/rstp/set interface <interface-name>
p2p {forcetrue|forcefalse}
This command indicates whether the interface can do RSTP point-to-point
communications or not. RSTP point-to-point communications is special case
where the interface can communicate with only one other RSTP enabled
device, such as when only two BelAir nodes are connected through a simple
switch. RSTP uses RSTP point-to-point status to optimize performance during
topology changes.
This command sets the administrative value of the RSTP point-to-point status.
The operational value of the RSTP point-to-point status is initially its
administrative value; however, it can be updated later by the BelAir20E bridge
software.
The
<interface-name>
parameter specifies a particular interface, such as
wifi-2-1
.
Setting a value of
forcetrue
forces it to function as a point-to-point link. Setting
a value of
forcefalse
forces it not to function as a point-to-point link.
The default settings vary, depending on the hardware in use, the topology and
whether dynamic path cost is used or not.
Interface RSTP
Configuration
/protocol/rstp/set interface <interface-name>
admin-state {enable|disable}
This command allows or prevents RSTP from affecting the specified interface.
The
<interface-name>
parameter specifies a particular interface, such as
wifi-2-1
.
By default, RSTP affects all enabled interfaces. Setting admin-state to
disable
prevents RSTP from affecting this interface. Setting admin-state to
enable
allows
RSTP to affect this interface.
Changing RSTP Admin
State
/protocol/rstp/set admin-state {enabled|disabled}
This command lets you enable or disable RSTP functionality. The default setting
is
enabled
.
BelAir20E User Guide Performing a Software Upgrade
October 11, 2011 Confidential Page 197 of 267
Document Number BDTM02201-A01 Standard
Performing a Software Upgrade
This section instructs you how to upgrade a BelAir20E unit by downloading a
new software load from a remote server. The procedures in this section
assume the following:
• You have connected to the BelAir20E.
• You have started a Command Line Interface (CLI) session and you have
logged in as
root
. When you need to login again, such as after a reboot, use
the
root
user account so you have access to all the required commands.
• You are familiar with the operation of the CLI.
• You are familiar with the operation of the
config-save
command. Refer to
“Saving your Changes” on page 21 for details.
CAUTION! Make sure to read and understand the entire upgrade procedure described in
this section before attempting to upgrade a unit. An improper upgrade could
result in a unit becoming inoperable and isolated from the network.
CAUTION! A unit’s configuration database in one release can be structurally different than
in other releases. For example, the configuration database in Release 12.0 is
structurally different than in previous releases. Because of this, downgrading a
software load from Release 12.0 to the previous release requires much effort.
BelAir Networks strongly recommends that you fully verify the configuration
and operation of an upgraded unit before you commit the new load to replace
the old load and configuration. The upgrade process in this document contains
guidelines to help you verify a unit.
For instructions on how to downgrade a unit, contact BelAir Networks.
Upgrade Process
Overview
An operator logged in as
root
can upgrade a BelAir20E unit by downloading a
new software load from a remote server. You can use either TFTP or FTP to
communicate with the remote server. You must ensure that the server is
running at an accessible IP address. For redundancy purposes, BelAir20E units
store two copies of the software load in two application banks: banks A and B.
The active software load is the software load that is currently running. The
standby software load is the software load in the alternate application bank.
Either bank A or bank B may be active at a given time. See Figure 8 on
page 198.
BelAir20E User Guide Performing a Software Upgrade
October 11, 2011 Confidential Page 198 of 267
Document Number BDTM02201-A01 Standard
Figure 8: Active and Standby Software Loads
Under normal operating conditions, the contents of the two software load
banks are identical. During a software upgrade, the new software load is copied
into the standby bank at the time of the upgrade.
A software upgrade consists of the following steps:
1 Ensure the current configuration is saved. Refer to “Saving your Changes”
on page 21.
2 Determine what software load is active (A or B). The new software load will
overwrite the standby bank.
3 Download the new software load. The new software load is downloaded to
the standby software load bank. If A is active, then the new software load is
downloaded to bank B. If B is active, then the new software load is
downloaded to bank A.
4 Verify the new software downloaded successfully.
5 Activate the new software load from the standby software load bank
(containing the new load) by rebooting the node. The new load is promoted
to active and the formerly active software load bank becomes standby.
6 Verify the configuration and operation of the unit operating with the new
software load
7 Commit the load (copy the newly activated load to the standby software
load bank).
BelAir Unit
AB
Active
Software Load
Standby
Software Load
Active
Software Load
Pointer to software
load for next restart
BelAir20E User Guide Performing a Software Upgrade
October 11, 2011 Confidential Page 199 of 267
Document Number BDTM02201-A01 Standard
Note: Any configuration changes that you make before you commit the new
software load are lost if you back out of the upgrade.
You can also use BelView NMS to manage how nodes are upgraded. For details,
refer to the
BelView NMS User Guide
and “Auto-upgrade” on page 204.
CAUTION! Do not change or save the node configuration while upgrading the system.
CAUTION! It is always possible to downgrade a committed software load to an older
release. However, while the existing configuration data is saved (upgraded)
during a software upgrade, the existing configuration data could be lost (erased)
during a software downgrade. BelAir Networks recommends that you save and
remotely store the current existing configuration database in case you choose
to downgrade a software load. For instructions on how to downgrade a unit,
contact BelAir Networks.
Displaying the
Active and Next
Software Loads
Display the active software load and the load that is activated at the next
reboot with the following command:
/system/show loads
Downloading a
New Software
Load
/system/upgrade load remoteip <serverIPaddress>
remotepath <serverSubDir>
[{tftp|ftp [user <usrname> password <pword>]}]]
This command downloads a new software image from a remote server. It
copies the new software load into the standby software load bank and sets the
new load as the next active load. See Figure 9 on page 200.
You can use either TFTP or FTP to communicate with the remote server. By
default, the
upgrade load
command uses TFTP. If you specify FTP, you can also
specify the user name and password. The default FTP user name is
anonymous
and the default FTP password is
root@<nodeip>
, where <nodeip> is the IP
address of node making the request. If you do not use the default FTP
username, the FTP server must be configured to accept your username and
password.
CAUTION! Once it begins, the upgrade process cannot be interrupted or terminated by the
user with the current CLI session. See “Canceling a Software Upgrade” on
page 200.
BelAir20E User Guide Performing a Software Upgrade
October 11, 2011 Confidential Page 200 of 267
Document Number BDTM02201-A01 Standard
Canceling a
Software Upgrade
/system/cancel upgrade
This command stops the transfer of the new software load into the standby
software load bank. If you reboot the node, the software in the active software
load bank is used. See Figure 9.
To cancel the upgrade process:
1 Start another CLI session to the BelAir20E being upgraded and log in as in
as
root
.
2 Issue the following command:
/system/cancel upgrade
3 When requested, confirm your intent.
If you confirm that you want to cancel the software upgrade, a message
appears in the other CLI session informing it’s user that the upgrade has
been cancelled.
CAUTION! Because the software upgrade process was interrupted, the software in the
standby software load bank may no longer be suitable to reboot the system. Do
not set it to be the next active load unless you first commit the current active
software load, or complete a new software upgrade.
Figure 9: Software Upgrade Step 3 - Downloading the New Software Load
External
TFTP
Server
Software
Download
BelAir Unit
AB
Active
Software Load
Standby
Software Load
Active
Software Load
Pointer to software
load for next restart
BelAir20E User Guide Performing a Software Upgrade
October 11, 2011 Confidential Page 201 of 267
Document Number BDTM02201-A01 Standard
Verifying a
Successful
Download
Verify that the new software downloaded successfully with the following
command:
/system/show loads verify
The
verify
option calculates and verifies the checksum. A bad checksum
indicates an issue with the load. If there are any issues, perform the download
again.
Example
/system# show loads verify
Application BankA
-----------------
Sw Version: BA100 9.0.0.S.2009.01.05.16.35 (r20884)
State: Running (next reboot)
CommitState: committed
Md5Sum: OK
Application BankB
-----------------
Sw Version: BA100 8.0.8.D.2008.09.18.18.18 (r19148)
State: Shadow
CommitState: committed
Md5Sum: OK
Bootloader Info
---------------
PPC405EP Common Bootloader Version 4.06 11/06/2008
Activating a
Software Load
To activate a software load, enter the following:
/system/reboot
The
reboot
command is only available if you are logged in as
root
.
This command forces the unit to execute with the new load and completes the
activation process.
When upgrading several nodes in a network, BelAir recommends that you
reboot the most remote node first and progress towards the near-end,
node-by-node. For star topologies, reboot the subscriber station nodes before
rebooting the associated base station node.
Note: Rebooting a unit as part of a software upgrade can take significantly
longer, up to 20 minutes, depending on the unit’s configuration.
BelAir20E User Guide Performing a Software Upgrade
October 11, 2011 Confidential Page 202 of 267
Document Number BDTM02201-A01 Standard
Verifying the New
Software Load
BelAir Networks recommends that you fully verify the configuration and
operation of an upgraded unit before you commit the new load. Use the
following steps as guidelines.
1 Fully verify the unit’s configuration and operation.
2 If required, adjust any settings and save the new configuration.
3 Reboot the unit and verify that all changes take effect.
If you observe any issues, follow the steps in “Backing Out from a Software
Upgrade” on page 203.
Committing a
New Software
Load
/system/commit load
Once you have activated the unit with new software load, you can commit it
with this command. See Figure 10.
CAUTION! This command copies the contents of the active software bank to the standby
bank. For example, if the active software bank is A, its contents overwrite those
of bank B. Backing out is no longer possible after the new software load has
been committed. After the new software load has been committed, you can no
longer back out of the upgrade; but you can downgrade the unit. For
instructions on how to downgrade a unit, contact BelAir Networks.
Figure 10: Software Upgrade Step 7 - Commit the Software Load
BelAir Unit
AB
Standby
Software Load
Active
Software Load
Active
Software Load
Pointer to software
load for next restart
Commit: Overwrite old software
load in the standby bank
BelAir20E User Guide Performing a Software Upgrade
October 11, 2011 Confidential Page 203 of 267
Document Number BDTM02201-A01 Standard
The
commit
command copies the system software and the configuration
database to the adjacent bank at the time of execution. However, changes to
the active load’s configuration after the
commit
command is executed are not
automatically stored in the standby bank. To keep both banks synchronized, you
must use the
commit
command after every configuration change of the active
load.
Backing Out from
a Software
Upgrade
It is possible to back out from a software upgrade in case its effects are
undesired, but only if the new software load has not been committed. See
Figure 11 on page 203.
Figure 11: Backing Out from an Uncommitted Software Upgrade
When you back out of a software upgrade, the old load overwrites the new
software load.
To back out from an upgrade, do the following steps:
1 Determine which bank has the old software load with the following
command:
/system/show loads
2 Set the old software load to be the next active load with the following
command:
/system/set next-load {A|B}
BelAir Unit
AB
Old
Software Load
New
Software Load
Active
Software Load
Pointer to software
load for next restart
Activate old
software load
Backout: Overwrite new software
load with old software load
BelAir20E User Guide Performing a Software Upgrade
October 11, 2011 Confidential Page 204 of 267
Document Number BDTM02201-A01 Standard
If you have just upgraded the software, you must set the unit to reboot with
the currently standby load. For example, if the old software load is in
bank A, as shown in Figure 11, and the new software load is in bank B, then
you must activate bank A with the following command:
/system/set next-load A
Alternatively, steps 1 and 2 can be combined with the following command:
/system/set next-load {current|inactive}
If you specify
inactive
, at the next reboot the system uses the bank
containing a load other than the one that is running. Specify
current
to
switch back to the bank containing the active load.
3 Reboot the system, with the
reboot
command.
Note: Rebooting a unit as part of a software upgrade can take significantly
longer, up to 20 minutes, depending on the unit’s configuration.
4 Run the
commit
command.
Running the
commit
command is not necessary if the system is already
executing the old software load (because you have decided, for example, to
back-out of the upgrade before activating the new load). In this case, the
content of the old software load (which is active) overwrites the contents of
the new undesired software load.
Displaying the
Status of the
Software Upgrade
/system/show upgrade status
This command displays the status of the software upgrade process.
Clearing the
Upgrade Failure
Alarm
/system/clear alarm upgrade-failure
This command allows you to clear the alarm generated when a software
upgrade fails.
Auto-upgrade /system/show auto-upgrade
/system/set auto-upgrade {enabled|disabled}
This command allows you to control whether a node can be upgraded
automatically through BelView NMS. The default setting is
enabled
, meaning
that BelView NMS can automatically upgrade the node,
For details, refer to the
BelView NMS User Guide.
BelAir20E User Guide For More Information
October 11, 2011 Confidential Page 205 of 267
Document Number BDTM02201-A01 Standard
For More Information
BelAir Networks documentation is modular and organized to be of best use to
you during the logical process of setting up a network of BelAir devices.
Use the documents as outlined in the following sections.
Installation Guide Use this document when you are:
• determining infrastructure requirements
• pre-configuring the BelAir units
• installing BelAir units
• problem-solving on the site
• mounting BelAir units
• commissioning the BelAir units
User Guide Use this document when you are:
• becoming accustomed to the CLI interface
• becoming accustomed to the SNMP interface
• accessing the Web interface
• configuring the unit:
—IP parameters
—data and time
—Ethernet interfaces
• configuring the radios:
—antenna and link features
—access channel numbers
—transmission power levels
—radio transmission rates
—wireless security
• configuring Quality of Service (QoS)
BelAir20E User Guide For More Information
October 11, 2011 Confidential Page 206 of 267
Document Number BDTM02201-A01 Standard
• upgrading the unit
• saving and restoring the configuration
Troubleshooting
Guide
Use this document when you are:
• troubleshooting and in need of technical support
• looking up system configuration details:
—Alarms and events
—System logs
—Statistics
BelAir20E User Guide Technical Support
October 11, 2011 Confidential Page 207 of 267
Document Number BDTM02201-A01 Standard
Technical Support
This section provides direction should you have questions about your
BelAir20E unit.
Support
Resources
In general, BelAir Networks recommends that you do the following steps to
seek the information you want:
1 Refer to the
Troubleshooting Guide
of the BelAir unit to see if it describes
your situation. If it does, do the provided corrective actions.
2 If the troubleshooting guide does not cover your situation, contact your
BelAir Networks product representative
3 If you still need assistance, use the BelAir Networks online support center
at http://support.belairnetworks.com
4 Finally, if your issue is not resolved, contact BelAir Networks:
—613-254-7070, option 2
—1-877-BelAir1 (235-2471), option 2
—techsupport@belairnetworks.com
Warranty and
Limitations
To review BelAir’s product warranty, refer to the document called
BelAir
Products Warranty and Limitations
available on the BelAir Networks Website,
or contact your BelAir Representative.
BelAir20E User Guide Definitions and Acronyms
October 11, 2011 Confidential Page 208 of 267
Document Number BDTM02201-A01 Standard
Definitions and Acronyms
ACL Access Control List
AES Advanced Encryption System
AP Access Point. A wireless LAN data transceiver that uses radio waves to provide
connectivity services to a network
Beacon A protocol packet that signals the availability and presence of a wireless device
BID Bridge identifier used in spanning-tree calculations
BPDU Bridge protocol data unit. When the spanning tree protocol is enabled, bridges
send and receive spanning-tree frames, called BPDUs, at regular intervals and
use the frames to maintain a loop-free network.
BSS Basic Service Set: A set of 802.11-compliant stations that operate as a fully
connected wireless network
Client A device that uses the services of a wireless access point to connect to a
network
CLI Command Line Interface
DHCP Dynamic Host Configuration Protocol
IP Internet Protocol
IP address The Internet Protocol (IP) address of a station. Expressed in dotted notation,
for instance, 10.21.1.14
IP subnet mask The number used to identify the IP sub-network.
LAN Local Area Network
LPM Line and Power Module
MAC Media Access Control
MAC Address Media Access Control address. A unique 48-bit number used in Ethernet data
packets to identify an Ethernet device.
MAU Medium Attachment Unit
MIB SNMP Management Information Base
MPDU MAC Protocol Data Unit
NAS Network Access Server
OAM Operations, Administration and Maintenance
BelAir20E User Guide Definitions and Acronyms
October 11, 2011 Confidential Page 209 of 267
Document Number BDTM02201-A01 Standard
OUI Organizationally Unique Identifier (first 3 bytes of a MAC address)
PVID Port VLAN identifier
PDU Protocol Data Unit
QoS Quality of Service
RADIUS Remote Authentication Dial-In User Service. An Internet protocol (RFC 2138)
for carrying dial-in users' authentication information and configuration
information between a shared, centralized authentication server (the RADIUS
server) and a network access server (the RADIUS client) that needs to
authenticate the users of its network access ports
RTS Request to Send
SNMP Simple Network Management Protocol
SNTP Simple Network Time Protocol
SSH Secure Shell
SSID Service Set Identifier (also referred to as Network Name or Id). A unique
identifier used to identify a radio network and which stations must use to be
able to communicate with each other or to an access point
SSL Secure Socket Layer
TCP Transmission Control Protocol
TKIP Temporal Key Integrity Protocol, an optional IEEE 802.11 function that offers
frame transmission privacy. Like WEP, it is based on RC4 encryption. It
generates new encryption keys for every 10 kilobytes of data transmitted.
TU Wireless Time Unit, as defined in IEEE 802.11, a measure of time equal to
1024 microseconds
UDP User Datagram Protocol
VLAN Virtual Local Area Network
WEP Wired Equivalent Privacy, an optional IEEE 802.11 function that offers frame
transmission privacy. The Wired Equivalent Privacy generates secret shared
encryption keys that both source and destination stations can use to alter frame
bits to avoid disclosure to eavesdroppers.
WPA Wi-Fi Protected Access
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 210 of 47
Document Number BDTM02201-A01 Standard
Conformity and Regulatory Statements
This section provides declarations of conformity and regulatory information for
the BelAir20E.
This section contains the following sections:
•“Regulatory Information and Disclaimers” on page 210
•“Manufacturer’s US Federal Communication Commission Conformity
Statement” on page 211
•“Manufacturer’s Industry Canada Conformity Statement” on page 212
•“Manufacturer’s European Community Conformity Statement” on page 213
•“Declaration of Conformity for RF Exposure” on page 216
•“Product Disposal” on page 216
Regulatory
Information and
Disclaimers
Installation and use of this device must be in strict accordance with the
instructions included in the user documentation provided with the product.
Any changes or modifications to this product not expressly approved by the
party responsible for compliance could void the user’s authority to operate this
equipment.
The manufacturer is not responsible for any interference to radio or television
equipment caused by unauthorized modification of this device, or attachment of
any antennas or equipment other than those specified by the manufacturer. The
manufacturer or its authorized resellers or distributors will assume no liability
for any damage arising from failure to comply with these guidelines, or failure to
comply with local, regional or national safety, electrical or building codes, or
government regulations.
This product is manufactured in Canada with originating and non-originating
product.
Ce produit est fabriqué au Canada avec des matières originaires et non
originaires du produit.
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 211 of 47
Document Number BDTM02201-A01 Standard
Manufacturer’s US
Federal
Communication
Commission
Conformity
Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Interference
Statement This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 212 of 47
Document Number BDTM02201-A01 Standard
Manufacturer’s
Industry Canada
Conformity
Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 25 cm between the radiator and a human body.
Caution:
The device for the band 5150-5250 MHz is only for indoor usage to reduce
potential for harmful interference to co-channel mobile satellite systems.
High power radars are allocated as primary users (meaning they have priority)
of 5250-5350 MHz and 5650-5850 MHz and these radars could cause
interference and/or damage to LE-LAN devices.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable
aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris
un brouillage susceptible de provoquer un fonctionnement indésirable.
NOTE IMPORTANTE:
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 25 cm de distance entre la source de
rayonnement et d’un corps humain.
Avertissement:
Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé
uniquement pour une utilisation à l'intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes
canaux.
Les utilisateurs de radars de haute puissance sont désignés utilisateurs
principaux (c.-à-d., qu'ils ont la priorité) pour les bandes 5250-5350 MHz et
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 213 of 47
Document Number BDTM02201-A01 Standard
5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
Manufacturer’s
European
Community
Conformity
Statement
Table 17: European Community Conformity Statement
Language Statement
English This equipment is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
Deutsch Dieses Gerät entspricht den grundlegenden Anforderungen
und den weiteren entsprecheneden Vorgaben der Richtlinie
1999/5/EU.
Dansk Dette udstyr er i overensstemmelse med de væsentlige krav
og andre relevante bestemmelser i Directiv 1999/5/EF.
Español Este equipo cumple con los requisitos esenciales asi como
con otras disposiciones de la Directiva 1999/5/EC.
Français Cet appareil est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la Directive 1999/5/EC.
Íslenska Þessi búnaður samrýmist lögboðnum kröfum og öðrum
ákvæðum tilskipunar 1999/5/ESB.
Italiano Questo apparato conforme ai requisiti essenziali ed agli altri
principi sanciti dalla Direttiva 1999/5/EC.
Nederlands Deze apparatuur voldoet aan de belangrijkste eisen en andere
voorzieningen van richtlijn 1999/5/EC.
Norsk Dette utstyret er i samsvar med de grunnleggende krav og
andre relevante bestemmelser i EU-directiv 1999/5/EC.
Português Este equipamento satisfaz os requisitos essenciais e outras
provisões da Directiva 1999/5/EC.
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 214 of 47
Document Number BDTM02201-A01 Standard
The Declaration of Conformity related to this product can be found at the
following URL: www.belairnetworks.com/support/index.cfm.
The BelAir20E complies with the following EU Radio standards:
• EN 300 328 V1.4.1 (2003-04) and EN300 328-2 V1.2.1 (2001-12)
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Wideband Transmission systems; Data transmission equipment operating in
the 2,4 GHz ISM band and using spread spectrum modulation techniques;
Harmonized EN covering essential requirements under article 3.2 of the
R&TTE Directive.
• EN 300 440-2 V1.1.1 (2001-09) Electromagnetic compatibility and Radio
spectrum Matters (ERM); Short range devices; Radio equipment to be used
in the 1 GHz to 40 GHz frequency range; Part 2: Harmonized EN under
article 3.2 of the R&TTE Directive.
• EN 300 440-2 V1.1.2 (2004-07) Electromagnetic Compatibility and Radio
spectrum Matters (ERM); Short range devices; Radio equipment to be used
in the 1GHz to 40 GHz frequency range; Part 2: Harmonized EN under
article 3.2 of the R&TTE Directive.
• EN 301 893 V1.4.1 (2007-07) Broadband Radio Access Networks (BRAN);
5 GHz high performance RLAN; Harmonized EN covering essential
requirements of article 3.2 of the R&TTE Directive
•
EN 300 328 V1.6.1 (2004-11) Electromagnetic compatibility and Radio
spectrum Matters (ERM); Wideband Transmission systems; Data
transmission equipment operating in the 2,4 GHz ISM band and using spread
spectrum modulation techniques; Harmonized EN covering essential
requirements under article 3.2 of the R&TTE Directive
.
Suomalainen Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset
ja on siinä asetettujen muidenkin ehtojen mukainen.
Svenska Denna utrustning är i överensstämmelse med de väsentliga
kraven och andra relevanta bestämmelser i Direktiv 1999/5/
EC.
Table 17: European Community Conformity Statement (Continued)
Language Statement
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 215 of 47
Document Number BDTM02201-A01 Standard
•
UK Interface Requirement 2005 UK Radio Interface Requirement for
Wideband Transmission Systems operating in the 2.4 GHz ISM Band and
Using Wide Band Modulation Techniques
(November 2006).
•
UK Interface Requirement 2006 Wireless Access Systems (WAS) including
RLANs operating in the 5150-5725 MHz band (Version 3.0)
98/34/EC Notification number: 2006/421/UK
Published 14 November 2006
•
UK Interface Requirement 2007 Fixed Broadband Services operating in the
5725 -5850 MHz band (Version 3.0)
98/34/EC Notification Number: 2006/422/UK
Published 30 May 2007
The BelAir20E complies with the following EU EMC standards:
• EN 301 489-17 V1.2.1 (2002-08) ElectroMagnetic Compatibility and Radio
Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) Standard
for Radio Equipment and Services; Part 17: Specific Conditions for 2.4 GHz
Wideband Transmission Systems and 5 GHz High Performance RLAN
Equipment
The BelAir20E complies with the following EU Safety standards:
•
EN 60825-2:2000
– Safety of Optical Fibre Communication Systems
•
EN 60950:2000
– Safety of Information Technology Equipment
•
IEC 60950:2005 Second Edition
and/or
EN 60950-1:2006
The following CE mark is affixed to the BelAir20E:
Note: This equipment is intended to be used in all EU and EFTA countries.
Outdoor use may be restricted to certain frequencies and/or may
require a license for operation – for example in France the frequencies
2454-2483.5 MHz are restricted to 10 mW effective isotropic radiated
power (EIRP) in outdoor environments, so channels 8-13 require
reduced power. For more details, contact BelAir Networks.
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 216 of 47
Document Number BDTM02201-A01 Standard
Declaration of
Conformity for
RF Exposure
This Wireless LAN radio device has been evaluated under FCC Bulletin OET
65C, Health Canada Safety Code 6 and EN 62311:2008, and found to be
compliant to the requirements set forth in CFR 47 Sections 2.1091, 2.1093, and
15.247 (b) (4) addressing RF exposure from radio frequency devices. This
Wireless LAN radio device also conforms to EU Health and Safety Directive
2004/40/EC as per EN 50385.
This device complies with FCC RF radiation exposure limits for an uncontrolled
environment. The radiated output power of this Wireless LAN device is below
the FCC radio frequency exposure limits. However, this device should still be
installed and used in such a manner that the potential for human contact during
normal operation is minimized.
Warning: In order to comply with RF exposure limits established in the ANSI
C95.1 standard, this equipment should be installed and operated at a minimum
distance of 9.8 inches (25 cm) between the radiator and a human body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands
are country dependent and are firmware programmed at the factory to match
the intended destination. The firmware setting is not accessible by the end user.
Product Disposal BelAir Networks adheres to directive 2002/96/EC of the European Parliament
and the council of 27 January 2003 on Waste Electrical and Electronic
Equipment (WEEE).
To dispose of equipment, including batteries, contact BelAir Networks
customer service to get a Return Material Authorization (RMA) number and
shipping instructions. BelAir Networks customer service can be reached at:
• 613-254-7070, menu item 3
• 1-877-BelAir1 (235-2471), menu item 3
• customerservice@belairnetworks.com
Mise au rebut du
produit BelAir Networks se conforme à la directive 2002/96/EC du Parlement
européen et du Conseil de l’Europe du 27 janvier 2003 relative à la destruction
des déchets d’équipements électriques et électroniques (DEEE).
Si vous souhaitez vous débarrasser de l’équipement, y compris des piles,
veuillez communiquer avec le service à la clientèle de BelAir Networks, afin
d’obtenir un numéro d’autorisation de retour du matériel et des instructions
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 217 of 47
Document Number BDTM02201-A01 Standard
sur les modalités d’expédition. Veuillez trouver ci-dessous les coordonnées du
service à la clientèle de BelAir Networks :
• 613-254-7070, option 3
• 1 877 BelAir1 (235-2471), option 3
• customerservice@belairnetworks.com
Produktentsorgung BelAir Networks erfüllt die Anforderungen der Richtlinie 2002/96/EG des
Europäischen Parlaments und des Rates vom 27. Januar über Elektro- und
Elektronik-Altgeräte (Waste Electrical and Electronic Equipment = WEEE).
Für die Entsorgung von Geräten, einschließlich Batterien, wenden Sie sich bitte
an den Kundendienst von BelAir Networks, um eine RMA-Nummer
(Rücksendenummer) und die Versandanweisungen zu erhalten. Den
Kundendienst von BelAir Networks erreichen Sie unter:
• +001 613 254 7070, Menüpunkt 3
• +001 877 235 2471, Menüpunkt 3
• customerservice@belairnetworks.com
Verwijdering van het
product BelAir Networks volgt Richtlijn 2002/96/EG van het Europese Parlement en de
Raad van 27 januari 2003 betreffende afgedankte elektrische en elektronische
apparatuur (AEEA).
Voor het verwijderen van apparatuur, met inbegrip van batterijen, neemt u
contact op met BelAir Networks klantenservice voor een retournummer
(RMA) en verzendinstructies. BelAir Networks klantenservice kunt u bereiken
via:
• +1 613-254-7070, menupunt 3
• +1-877-BelAir1 (235-2471), menupunt 3
• customerservice@belairnetworks.com
Tuotteen hävittäminen BelAir Networks noudattaa sähkö- ja elektroniikkalaiteromusta 27 päivänä
tammikuuta 2003 annettua Euroopan parlamentin ja neuvoston direktiiviä 2002/
96/EY.
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 218 of 47
Document Number BDTM02201-A01 Standard
Palauttaaksesi välineet, mukaan luettuina akut, ota yhteys BelAir Networks –
asiakaspalveluun, niin saat RMA (Return Material Authorization) –numeron ja
lähetysohjeet. BelAir Networks –asiakaspalveluun saa yhteyden seuraavasti:
• 613-254-7070, valikon vaihtoehto 3
• 1-877-BelAir1 (235-2471), valikon vaihtoehto 3
• customerservice@belairnetworks.com
Smaltimento del
prodotto BelAir Networks aderisce alla direttiva 2002/96/CE del parlamento Europeo e
del Consiglio d’Europa del 27 gennaio 2003, sullo smaltimento degli apparecchi
elettrici ed elettronici (WEEE).
Per lo smaltimento di tali apparecchi, comprese le batterie, contattare
l’assistenza clienti di BelAir Networks per ottenere un numero di
autorizzazione alla restituzione del materiale da smaltire (Return Material
Authorization - RMA) e le istruzioni per la spedizione. Il supporto clienti di
BelAir Networks può essere contattato ai numeri/all’indirizzo e-mail:
• 613-254-7070, selezione menu 3
• 1-877-BelAir1 (235-2471), selezione menu 3
• customerservice@belairnetworks.com
Produktbortskaffelse BelAir Networks overholder direktivet 2002/96/EC fra Europa-Parlamentet og
-Rådet dateret den 27. januar 2003 om Waste Electrical and Electronic
Equipment (WEEE) (Affald af elektrisk og elektronisk udstyr).
For at bortskaffe udstyr, samt batterier, kontakt kundeservicen hos BelAir
Networks for at få et Return Material Authorization (RMA)-nummer
(returneringstilladelsesnummer) og forsendelsesinstruktioner. BelAir Networks
kundeservice kan kontaktes på:
• 613-254-7070, menunummer 3
• 1-877-BelAir1 (235-2471), menunummer 3
• customerservice@belairnetworks.com
Eliminação do produto A BelAir Networks cumpre a Directiva 2002/96/CE do Parlamento Europeu e
do Conselho, de 27 de Janeiro de 2003, relativa aos Resíduos de Equipamentos
Eléctricos e Electrónicos (REEE).
Para proceder à eliminação do equipamento, incluindo as baterias, é favor
contactar a assistência ao cliente da BelAir Networks para obter um número
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 219 of 47
Document Number BDTM02201-A01 Standard
de Autorização de Devolução do Material (RMA – Return Material
Authorization) e as instruções relativas ao envio. A assistência ao cliente da
BelAir Networks pode ser contactada através de:
• 613-254-7070, item de menu 3
• 1-877-BelAir1 (235-2471), item de menu 3
• customerservice@belairnetworks.com
Eliminación del
producto BelAir Networks cumple con la directiva 2002/96/EC del Parlamento Europeo y
del Consejo de 27 de enero de 2003 sobre los residuos de aparatos eléctricos
y electrónicos (RAEE).
Para la eliminación de equipo, incluyendo las pilas, contacte con el servicio de
atención al cliente de BelAir Networks y obtenga el número de una
Autorización de Devolución de Material (RMA) y las instrucciones para la
expedición. Utilice la siguiente información para comunicarse con el servicio de
atención al cliente de BelAir Networks:
• 613-254-7070, número 3 del menú
• 1-877-BelAir1 (235-2471), número 3 del menú
• customerservice@belairnetworks.com
BelAir20E User Guide Conformity and Regulatory Statements
October 11, 2011 Confidential Page 220 of 47
Document Number BDTM02201-A01 Standard
BelAir20E User Guide Node Configuration Sheets
October 11, 2011 Confidential Page 221 of 267
Document Number BDTM02201-A01 Standard
Appendix A: Node Configuration Sheets
You can use this sample worksheet to document the basic configuration of a
BelAir20E unit. Store your worksheets in a secure location because they
contain sensitive information (super-user password and privacy keys).
Unit part number (located on the sticker on to the unit):__________________________
Unit serial number (located on the sticker on to the unit):__________________________
Super-user password: ____________________________
System Name: ______________ Location: ____________ Contact: _______________
Base MAC Address: ______________
IP Address: _____________Subnet:______________ Gateway: ______________
Cable Modem MAC Address (BA00SN and BA100SNE only): ________________________________
Layer 2 Configuration: STP Priority: _______
Client to VLAN mapping: Y or N
BelAir20E User Guide Node Configuration Sheets
October 11, 2011 Confidential Page 222 of 267
Document Number BDTM02201-A01 Standard
Wi-FI Access Point (AP) Settings (if configured)
Interface: wifi-___-___
Channel: ________
Table 18: AP Privacy Setting Table (Optional)
SSID (1 to 8) ACL Encryption and Authentication
__________________ Y or N wep40
RADIUS or 5-byte pre-shared key: _______________________________________________
wep104
RADIUS or 13-byte pre-shared key: ______________________________________________
wpa
encryption (TKIP or AES):____________________
RADIUS or 8 to 63-byte pre-shared key: ___________________________________________
wpa2
encryption (PSMv2 only: TKIP or AES. Others: AES only):____________________
RADIUS or 8 to 63-byte pre-shared key: ___________________________________________
dot1x (RADIUS (EAP) authentication)
1. ________________
2. ________________
3. ________________
4. ________________
__________________ Y or N wep40
RADIUS or 5-byte pre-shared key: _______________________________________________
wep104
RADIUS or 13-byte pre-shared key: ______________________________________________
wpa
encryption (TKIP or AES):____________________
RADIUS or 8 to 63-byte pre-shared key: ___________________________________________
wpa2
encryption (PSMv2 only: TKIP or AES. Others: AES only):____________________
RADIUS or 8 to 63-byte pre-shared key: ___________________________________________
dot1x (RADIUS (EAP) authentication)
1. ________________
2. ________________
3. ________________
4. ________________
BelAir20E User Guide Node Configuration Sheets
October 11, 2011 Confidential Page 223 of 267
Document Number BDTM02201-A01 Standard
Wi-Fi Backhaul Setting (if configured)
Interface: wifi-___-___
Channel: ________
Link ID: _____________________
AES Privacy (Y or N):__________ Key (16 characters):_____________________________________
Topology (P-to-P, MP-to-MP mesh, P-to-MP star): ________________________________
P-to-MP star role (base-station or subscriber-station): ____________________________
P-to-MP star link index: ____________________________
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 224 of 267
Document Number BDTM02201-A01 Standard
Appendix B: Mesh Auto-connection Example
This example uses two meshes of BelAir20 nodes to show how mesh
auto-connection operates.
Setup and Initial
Conditions
See Figure 12.
Figure 12: Auto-connection Initial Conditions
To setup auto-connection:
• The first six bytes of the respective link IDs must match. This is true in our
example (
B20MeshA
and
B20MeshB
).
• The auto-connection admin state in the child nodes must be enabled.
Node123
BelAir20
Child
Node121
BelAir20
Egress
BA20MeshB
Link ID
Ethernet
Egress
Connection
Node122
BelAir20
Child
Node120
BelAir20
Egress
BA20MeshA
Link ID
Ethernet
Egress
Connection
Mesh A Mesh B
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 225 of 267
Document Number BDTM02201-A01 Standard
• The egress node of each mesh must have its system egress point set to
either
yes direct
or
yes indirect
. See “Setting the Network Egress Point” on
page 54 for details.
The following series of CLI commands show this for both meshes.
Node122 (Child Node of Mesh A)
Display the backhaul configuration.
/interface/wifi-1-1# show config backhaul
Slot: 1, Card Type: htm, revision: 1, Port: 1, Radio: HTMv1 5GHz 802.11n
admin state: ................. Enabled
channel: ..................... 161
mode: ...................... ht20
mimo: ...................... 3x3
tx power: .................. 18.0 (dBm per-chain), 23.0 (dBm total)
antenna gain: ................ 5.0 (dBi)
link distance: ............... 1 (km)
tx aggregation:............... Enabled
base radio MAC : ............. 00:0d:67:10:e8:92
Backhaul:
Common:
privacy: ................. Disabled
mesh-min-rssi............. -100 (dbm)
Stationary Backhaul:
link admin state: ........ Enabled
link id: ................. B20MeshA
topology: ................ mesh
Mobile Backhaul:
mobile admin state: ...... Disabled
mobile link id: ..........
mobile link role: ........ ss
Protection Backhaul:
protection admin state: .. Disabled
Blacklist:
No blacklist entries
Link Failure Detection: ...... Disabled
Backhaul T1 Bandwidth limit:.. Disabled
Display the mesh topology.
/interface/wifi-1-1# show backhaul status
WiFi backhaul states:: stationary=[Enabled] mobile=[Disabled] protection=[Disabled]
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:0c:22:4b fwd fwd -46 wifi-1-1 180.7.4.120
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 226 of 267
Document Number BDTM02201-A01 Standard
Enable auto-connection and verify it.
/services/auto-conn# set admin enabled
/services/auto-conn# show config
admin state: ................. Enabled
/services/auto-conn# show status
Oper State Ether Link State Egress Reachable Use Alternate Mesh
----------- ---------- ---------------- ----------------
up down no no
Node120 (Egress Node of Mesh A)
Display the mesh topology.
/interface/wifi-1-1# show backhaul status
WiFi backhaul states:: stationary=[Enabled] mobile=[Disabled] protection=[Disabled]
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:10:e8:92 fwd fwd -44 wifi-1-1 180.7.4.122
Identify Node120 as an egress node.
/system# set system-egress-point yes direct
/system# show system-egress-point
egress point:................. direct
Enable auto-connection and verify it.
/services/auto-conn# set admin enable
/services/auto-conn# show config
admin state: ................. Enabled
/services/auto-conn# show status
Oper State Ether Link State Egress Reachable Use Alternate Mesh
----------- ---------- ---------------- ----------------
up up yes no
Node123 (Child Node of Mesh B)
Display the backhaul configuration.
/interface/wifi-1-1# show config backhaul
Slot: 1, Card Type: htm, revision: 1, Port: 1, Radio: HTMv1 5GHz 802.11n
admin state: ................. Enabled
channel: ..................... 153
mimo: ...................... 1x1
tx power: .................. 18.0 (dBm per-chain), 18.0 (dBm total)
antenna gain: ................ 5.0 (dBi)
link distance: ............... 1 (km)
tx aggregation:............... Enabled
base radio MAC : ............. 00:0d:67:10:f8:d7
Backhaul:
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 227 of 267
Document Number BDTM02201-A01 Standard
Common:
privacy: ................. Disabled
mesh-min-rssi............. -100 (dbm)
Stationary Backhaul:
link admin state: ........ Enabled
link id: ................. B20MeshB
topology: ................ mesh
Mobile Backhaul:
mobile admin state: ...... Disabled
mobile link id: ..........
mobile link role: ........ ss
Protection Backhaul:
protection admin state: .. Disabled
Blacklist:
No blacklist entries
Link Failure Detection: ...... Disabled
Backhaul T1 Bandwidth limit:.. Disabled
Display the mesh topology.
/interface/wifi-1-1# show backhaul status
WiFi backhaul states:: stationary=[Enabled] mobile=[Disabled] protection=[Disabled]
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:0c:22:29 fwd fwd -49 wifi-1-1 180.7.4.121
Enable auto-connection and verify it.
/services/auto-conn# set admin enabled
/services/auto-conn# show config
admin state: ................. Enabled
/services/auto-conn# show status
Oper State Ether Link State Egress Reachable Use Alternate Mesh
----------- ---------- ---------------- ----------------
up down no no
Node121 (Egress Node of Mesh B)
Display the mesh topology.
/interface/wifi-1-1# show backhaul status
WiFi backhaul states:: stationary=[Enabled] mobile=[Disabled] protection=[Disabled]
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:10:f8:d7 fwd fwd -41 wifi-1-1 180.7.4.123
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 228 of 267
Document Number BDTM02201-A01 Standard
Identify Node121 as an egress node.
/system# set system-egress-point yes direct
/system# show system-egress-point
egress point:................. direct
Enable auto-connection and verify it.
/services/auto-conn# set admin enable
/services/auto-conn# show config
admin state: ................. Enabled
/services/auto-conn# sh status
Oper State Ether Link State Egress Reachable Use Alternate Mesh
----------- ---------- ---------------- ----------------
up up yes no
Fault Conditions At this point, the Ethernet connection used by the Mesh B egress node
(Node121) becomes unavailable. The “Mesh B” nodes (Node121 and
Node123) connect to the Mesh A nodes and all traffic flows through the
Mesh A egress node (Node 120). Node121 and Node123 become members of
Mesh A. See Figure 13 on page 229.
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 229 of 267
Document Number BDTM02201-A01 Standard
Figure 13: Auto-connection and Fault Conditions
Node120 (Egress Node of Mesh A)
Display the mesh topology.
/interface/wifi-1-1# show backhaul status
WiFi backhaul states:: stationary=[Enabled] mobile=[Disabled] protection=[Disabled]
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:10:e8:92 fwd up -46 wifi-1-1 180.7.4.122
[S] 2 00:0d:67:0c:22:29 fwd fwd -36 wifi-1-1 180.7.4.121
[S] 3 00:0d:67:10:f8:d7 fwd up -64 wifi-1-1 180.7.4.123
Node123
BelAir20
Child
Node121
BelAir20
Egress
BA20MeshB
Link ID
Ethernet
Egress
Connection
Node122
BelAir20
Child
Node120
BelAir20
Egress
BA20MeshA
Link ID
Ethernet
Egress
Connection
Mesh A Mesh B
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 230 of 267
Document Number BDTM02201-A01 Standard
Display the auto-connect topology. It shows that the Mesh A egress node still
operates normally.
/services/auto-conn# show status
Oper State Ether Link State Egress Reachable Use Alternate Mesh
----------- ---------- ---------------- ----------------
up up yes no
Node122 (Child Node of Mesh A)
Display the mesh topology.
/interface/wifi-1-1# show backhaul status
WiFi backhaul states:: stationary=[Enabled] mobile=[Disabled] protection=[Disabled]
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:0c:22:4b up fwd -51 wifi-1-1 180.7.4.120
[S] 2 00:0d:67:0c:22:29 fwd fwd -41 wifi-1-1 180.7.4.121
[S] 3 00:0d:67:10:f8:d7 fwd up -58 wifi-1-1 180.7.4.123
Display the auto-connect topology.
/services/auto-conn# show status
Oper State Ether Link State Egress Reachable Use Alternate Mesh
----------- ---------- ---------------- ----------------
up down yes no
Node123 (Child Node of Mesh B)
Display the backhaul configuration.
/interface/wifi-1-1# show config backhaul
Slot: 1, Card Type: htm, revision: 1, Port: 1, Radio: HTMv1 5GHz 802.11n
admin state: ................. Enabled
channel: ..................... 153
mimo: ...................... 1x1
tx power: .................. 18.0 (dBm per-chain), 18.0 (dBm total)
antenna gain: ................ 5.0 (dBi)
link distance: ............... 1 (km)
tx aggregation:............... Enabled
base radio MAC : ............. 00:0d:67:10:f8:d7
Backhaul:
Common:
privacy: ................. Disabled
mesh-min-rssi............. -100 (dbm)
Stationary Backhaul:
link admin state: ........ Enabled
link id: ................. B20MeshB
topology: ................ mesh
Mobile Backhaul:
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 231 of 267
Document Number BDTM02201-A01 Standard
mobile admin state: ...... Disabled
mobile link id: ..........
mobile link role: ........ ss
Protection Backhaul:
protection admin state: .. Disabled
Blacklist:
No blacklist entries
Link Failure Detection: ...... Disabled
Backhaul T1 Bandwidth limit:.. Disabled
Display the mesh topology.
/interface/wifi-1-1# show backhaul status
WiFi backhaul states:: stationary=[Enabled] mobile=[Disabled] protection=[Disabled]
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:10:e8:92 up fwd -58 wifi-1-1 180.7.4.122
[S] 2 00:0d:67:0c:22:29 fwd fwd -47 wifi-1-1 180.7.4.121
[S] 3 00:0d:67:0c:22:4b up fwd -67 wifi-1-1 180.7.4.120
Display the auto-connect topology.
/services/auto-conn# show status
Oper State Ether Link State Egress Reachable Use Alternate Mesh
----------- ---------- ---------------- ----------------
up down yes yes
Node121 (Egress Node of Mesh B)
Display the auto-connect topology. It shows that it is using the alternate mesh
as an egress point.
/services/auto-conn# show status
Oper State Ether Link State Egress Reachable Use Alternate Mesh
----------- ---------- ---------------- ----------------
up down yes yes
Recovery
Conditions
At this point, the Ethernet connection used by the Mesh B egress node
(Node121) is re-established. Because it is an egress node, Node121
automatically reverts back to its own mesh and begins to use the Ethernet
connection to egress its traffic. However, its child nodes (for example,
Node123) continue to use the Mesh A egress node until an explicit revert
command is issued on each child you want to return to using Node121 as an
egress.
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 232 of 267
Document Number BDTM02201-A01 Standard
Node121 (Egress Node of Mesh B)
Display the auto-connect topology after the Ethernet connection is
re-established.
/services/auto-conn# show status
Oper State Ether Link State Egress Reachable Use Alternate Mesh
----------- ---------- ---------------- ----------------
up up yes no
Display the node’s links to neighboring mesh, even after the Ethernet
connection is re-established.
/services/auto-conn# show alternate-mesh
Alternate Mesh:
Radio Interface --- wifi-1-1
Mesh ID --- B20MeshA
Channel --- 161
Status --- Up
Node122 (Child Node of Mesh A)
Display the mesh topology after the Ethernet connection is re-established on
Node121 but before the auto-connection revert command is given.
/interface/wifi-1-1# show backhaul status
WiFi backhaul states:: stationary=[Enabled] mobile=[Disabled] protection=[Disabled]
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:0c:22:4b fwd fwd -49 wifi-1-1 180.7.4.120
[S] 3 00:0d:67:10:f8:d7 fwd fwd -58 wifi-1-1 180.7.4.123
See Figure 14 on page 233.
BelAir20E User Guide Mesh Auto-connection Example
October 11, 2011 Confidential Page 233 of 267
Document Number BDTM02201-A01 Standard
Figure 14: Auto-connection after Recovery before Revert
Display the mesh topology after the Ethernet connection is re-established on
Node121 and after the auto-connection revert command is given.
/interface/wifi-1-1# show backhaul status
WiFi backhaul states:: stationary=[Enabled] mobile=[Disabled] protection=[Disabled]
Backhaul Links:
Link Radio Mac State(L,R) RSSI Radio Node IP Node Name
----- ----------------- ---------- ---- ----- -------- ----------
[S] 1 00:0d:67:0c:22:4b fwd fwd -49 wifi-1-1 180.7.4.120
After the revert command is given, the mesh topology returns to that shown in
Figure 12 on page 224.
Node123
BelAir20
Child
Node121
BelAir20
Egress
BA20MeshB
Link ID
Ethernet
Egress
Connection
Node122
BelAir20
Child
Node120
BelAir20
Egress
BA20MeshA
Link ID
Ethernet
Egress
Connection
Mesh A Mesh B
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 234 of 267
Document Number BDTM02201-A01 Standard
Appendix C: Scripting Guidelines
This appendix provides guidance so you can create, manage and run scripts for
BelAirOS™ platforms.
General Scripting
Guidelines
This chapter introduces you to the concepts of creating and managing scripts
for platforms that use the BelAirOS. The following sections are provided:
•“Overview” on page 234
•“Creating a BelAirOS Script” on page 234
•“Manually Transferring Files to and from a BelAir Node” on page 235
•“Managing and Manually Running Script Files” on page 236
Overview In general, a script is a series of programming language statements to allow
control of one or more software applications or devices. Scripts are distinct
from the core code of an application, as they are created by the end-user.
Scripts are often interpreted, whereas the applications they control are
traditionally compiled to native machine code.
For BelAirOS platforms you can create scripts consisting of valid and supported
BelAir CLI commands to:
• make repetitive tasks quicker and easier to do
• automate the configuration of a node when it starts up
Your script file must contain special declarations for the following cases:
• If you want to specify and control physical interfaces, such as
wifi-1-1
, use
the declarations described in “Specifying Physical Interfaces” on page 237.
• Depending on the CLI commands in your script, you may need to reboot
the BelAirOS platform. If this case, use the declarations described in
“Including a Reboot Command in a Script” on page 242.
Creating a BelAirOS
Script Use the following general guidelines to create a script file:
• Make sure the script contains only valid and supported BelAir CLI
commands. If you are using an older script, make sure the CLI commands
that it contains are still valid and supported.
• Some BelAir functions, such as Network Address Translation (NAT), require
that you reboot the node after you configure them. If your script is for
BelAirOS auto-configuration at startup and if it must include the
reboot
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 235 of 267
Document Number BDTM02201-A01 Standard
command, then your script must include special declarations. For details, see
“Including a Reboot Command in a Script” on page 242.
Caution! Using the
reboot
command in an auto-configuration script without the correct
declarations may cause the node to enter a continuous
reboot
loop.
• Test the final script to ensure all commands are valid, syntactically correct
and appropriate for the installed hardware. To help debugging, redirect the
output of the script to a file. Use the optional
<output_file>
parameter of
the
run script
command.
When you are satisfied with your script:
1 Put the final version of it on a TFTP, FTP or FTPS server to transfer the
script file to the BelAir unit.
2 Use the commands described in “Manually Transferring Files to and from a
BelAir Node” on page 235 to transfer the script to the BelAir platforms you
want to control.
3 Use the commands described in “Managing and Manually Running Script
Files” on page 236 as required.
The process of downloading and running a script file on startup can be
automated. For details, see the “Auto-configuration” chapter of the BelAir
platform User Guide.
Manually Transferring
Files to and from a
BelAir Node
Use the following CLI commands to manually transfer files, such as script files,
to and from a BelAir node:
/system/tftpget remoteip <ip_addr> remotefile <filename>
[localfile <filename>]
/system/tftpput remoteip <ip_addr> localfile <filename>
[remotefile <name>]
/system/getfile remoteip <ip_addr> remotefile <filename>
[localfile <filename>]
[{tftp|
ftp [user <username> password <password>]|
ftps [user <username> password <password>]}]
For the
tftpget
and
getfile
commands, if you do not specify a local file name,
then the transferred file maintains the same name as on the remote file system.
For the
tftpput
command, if you do not specify a remote file name, then the
transferred file maintains the same name as on the local file system.
For the
getfile
command:
• The default protocol is TFTP.
• For FTP, the default user name is
anonymous
and the default password is
root@
followed by the node IP address. For example, if the node has
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 236 of 267
Document Number BDTM02201-A01 Standard
148.16.4.123 as an IP address, then the default password is
root@148.16.4.123.
• For FTPS, the default user name is the unit’s MAC address stripped of
colons. The default password is unit’s MAC address stripped of colons,
followed by @, followed by the node IP address. For example, if the node
has 11:22:33:44:55:66 as a MAC address and 148.16.4.123 as an IP address,
then the default user name is 112233445566 and the default password is
112233445566@148.16.4.123.
CAUTION! Do not use these commands to perform a software upgrade on a BelAir node.
Use the upgrade load command instead. Refer to “Performing a Software
Upgrade” on page 197 for full details on performing software upgrades.
Managing and Manually
Running Script Files Use the following commands as required:
/system/copy script <script file> <copied file name>
/system/delete script <script file>
/system/rename script <script file> <new name>
/system/show script <script file>
list scripts
run script <scriptname> [<output_file>]
The
copy
,
delete
,
rename
and
show script
commands are available in
system
mode and allow you to manage and customize script files as you require.
The
list
and
run script
commands are available from any mode. The
list scripts
command displays the scripts that are available to you. The
run script
command
allows you to execute a previously created script file.
Tip
If you have a simple script that does not specify physical interfaces and does not
contain a
reboot
command, you can also run it by copying it and pasting it into
a CLI session window. If you use this method:
1 Paste only 20 to 25 commands at a time. Otherwise, you may overfill the
command buffer used for the CLI session. If you overfill the command buffer,
you need to determine exactly which commands were executed and which
were not before proceeding.
2 After pasting a block of commands, verify that your script behaved as
expected; that is, that the pasted commands produced the expected
configuration.
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 237 of 267
Document Number BDTM02201-A01 Standard
3 After verifying the script behavior, manually enter the
config-save
and
reboot
commands as required.
Specifying Physical
Interfaces
If you want your script file to specify and control physical interfaces, such as
wifi-1-1
, then your script must contain the declarations described in the
following sections:
•“Physical Interface Declaration Summary” on page 237
•“Physical Interface Declaration Specifications” on page 238
As well, this chapter contains examples of the setup, contents and results of a
typical script.
Physical Interface
Declaration Summary Table 19 summarizes the declarations required in your script file to specify a
physical interface.
Table 19: BelAir Script Declaration Summary
Script Declaration Description
int[-<asbly>]-<iftype>[-<desc>]-<instance> Used to define a physical interface to which the
following CLI commands apply to.
For a definition of
<asbly>
,
<iftype>
,
<desc>
,
and
<instance>
, see “Physical Interface
Declaration Specifications” on page 238.
/Precedes a CLI command that is not directed to
the specified physical interface. The CLI command
must start with a slash (/) followed by the mode(s)
containing that command.
For details, see “Physical Interface Declaration
Specifications” on page 238.
int-stop Terminates a command sequence associated with
a previous declaration
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 238 of 267
Document Number BDTM02201-A01 Standard
Physical Interface
Declaration
Specifications
Script files can use the following method to ensure commands are applied to
the correct physical interface:
1 Begin the command sequence by specifying the physical interface with the
following declaration:
int[-<asbly>]-<iftype>[-<desc>]-<instance>
<asbly> specifies the platform’s assembly code. This part of the declaration
is optional. If provided, it must match at least part of the text in the
Assembly code
field output by the
/system/show phyinv
command. <asbly>
must start with
BelAir
or
BA
. See also “Common BelAirOS Platform
Assembly Codes” on page 244.
<iftype> specifies the type of physical interface. This part of the declaration
is mandatory. It must be one of
wifi
,
wimax
,
pwe
,
eth
or
opt.
<desc> specifies a description of the interface to uniquely identify it. This
part of the declaration is optional. If provided, it must be at least three
characters long and match at least part of the text in the
Description
field in
the Physical Interface Table output by the
/system/show phyinv
command.
See also “Common Radio Card Descriptions” on page 246.
<instance> specifies which instance of the interface to apply the commands
to. It must be a digit between 1 and 127.
Use a dash ( - ) to separate each part in the declaration.
The system uses the information in your declaration to determine which
physical interface the following commands apply to.
2 List the CLI commands. These may be commands directed to the physical
interface specified by step 1 or they may be other commands. Any
commands not directed to the specified physical interface must start with a
slash ( / ) followed by the mode(s) containing that command. In all cases,
make sure you follow the guidelines in “Creating a BelAirOS Script” on
page 234.
3 Terminate the command sequence with the following declaration:
int-stop
If the BelAirOS cannot identify a physical interface based on the information in
the
int
declaration, then it skips the list of commands and continues executing
the script after the
int-stop
declaration.
The following example shows the setup, script and output of a typical
application of this functionality for a BelAir100T.
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 239 of 267
Document Number BDTM02201-A01 Standard
Physical Interface Script
Example - Setup The following output of the
show phyinv
command shows the configuration of
the BelAir100T where the script will run:
/system# show phyinv
System Name: BelAir100T
Type Class Serial number Assembly code BA order code
BelAir100 triRadios BELAB0407 BELAIR100T_20-BC08 1TNYYXJ0KXX31-H
Physical Inventory Table
Slot Card type Version Serial number Assembly code
1 LPM 2.2.8 K002092633 B2CH082AA-B B08
2 BRM 3.2.1 K001362023 B2CC033AA-B B01
3 BRM 3.2.1 A000003408 B2CC033AA-B B01
Physical Interface Table
Name Type Slot Card type Description
wifi-1-1 Wifi 802.11 1 LPM LPMv2 4.9GHz 802.11a
eth-1-1 Ethernet 1 LPM 1x100baseTx [Electrical: Single]
wifi-2-1 Wifi 802.11 2 BRM BRMv3 5GHz 802.11a
wifi-3-1 Wifi 802.11 3 BRM BRMv3 5GHz 802.11a
Physical Interface Script
Example - Script The following is a listing of the script contents:
int-wifi-2.4GHz-1
set channel 11
set admin-state enabled
show config
int-stop
int-wifi-4.9GHz-1
set channel 10
set admin-state disabled
show config
int-stop
int-wifi-5GHz-1
set channel 155
set backhaul admin-state disabled
show config
int-stop
int-wifi-5GHz-2
set channel 148
set backhaul admin-state disabled
show config
int-stop
int-BELAIR100T_20-wifi-5GHz-1
show config
int-stop
int-BELAIR20-11-wifi-5GHz-1
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 240 of 267
Document Number BDTM02201-A01 Standard
show config
int-stop
int-BELAIR100-wifi-1
show config
int-stop
Physical Interface Script
Example - Output The following shows the output generated by the script:
Unknown interface ---> int-wifi-2.4GHz-1, skipping
Interface stop
/#
Interface int-wifi-4.9GHz-1 ---> /interface/wifi-1-1/ start
/# /interface/wifi-1-1/set channel 10
/# /interface/wifi-1-1/set admin-state disabled
/# /interface/wifi-1-1/show config
Slot: 1, Card Type: lpm, revision: 2, Port: 1, Radio: LPMv2 4.9GHz 802.11a
admin state: ................. Disabled
frequency band: .............. 4900MHz SchemeA
channel: ..................... 10
tx power: .................. 20.0 (dBm)
bandwidth: ................. 10.0 (MHz)
antenna gain: ................ 9.5 (dBi)
link distance: ............... 1 (km)
base radio MAC : ............. 00:0d:67:00:48:52
Interface stop
/#
Interface int-wifi-5GHz-1 ---> /interface/wifi-2-1/ start
/# /interface/wifi-2-1/set channel 155
/# /interface/wifi-2-1/set backhaul admin-state disabled
/# /interface/wifi-2-1/show config
Slot: 2, Card Type: brm, revision: 3, Port: 1, Radio: BRMv3 5GHz 802.11a
admin state: ................. Enabled
channel: ..................... 155
tx power: .................. 20.0 (dBm)
tx-power-optimize: ......... Disabled
antenna gain: ................ 10.5 (dBi)
link distance: ............... 1 (km)
base radio MAC : ............. 00:0d:67:00:44:49
Interface stop
/#
Interface int-wifi-5GHz-2 ---> /interface/wifi-3-1/ start
/# /interface/wifi-3-1/set channel 148
/# /interface/wifi-3-1/set backhaul admin-state disabled
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 241 of 267
Document Number BDTM02201-A01 Standard
/# /interface/wifi-3-1/show config
Slot: 3, Card Type: brm, revision: 3, Port: 1, Radio: BRMv3 5GHz 802.11a
admin state: ................. Enabled
channel: ..................... 148
tx power: .................. 20.0 (dBm)
tx-power-optimize: ......... Disabled
antenna gain: ................ 10.5 (dBi)
link distance: ............... 1 (km)
base radio MAC : ............. 00:0d:67:00:c4:6b
Interface stop
/#
Interface int-BELAIR100T_20-wifi-5GHz-1 ---> /interface/wifi-2-1/ start
/# /interface/wifi-2-1/show config
Slot: 2, Card Type: brm, revision: 3, Port: 1, Radio: BRMv3 5GHz 802.11a
admin state: ................. Enabled
channel: ..................... 155
tx power: .................. 20.0 (dBm)
tx-power-optimize: ......... Disabled
antenna gain: ................ 10.5 (dBi)
link distance: ............... 1 (km)
base radio MAC : ............. 00:0d:67:00:44:49
Interface stop
/#
assembly code tag does not match
Unknown interface ---> int-BELAIR20-11-wifi-5GHz-1, skipping
Interface stop
/#
Interface int-BELAIR100-wifi-1 ---> /interface/wifi-1-1/ start
/# /interface/wifi-1-1/show config
Slot: 1, Card Type: lpm, revision: 2, Port: 1, Radio: LPMv2 4.9GHz 802.11a
admin state: ................. Disabled
frequency band: .............. 4900MHz SchemeA
channel: ..................... 10
tx power: .................. 20.0 (dBm)
bandwidth: ................. 10.0 (MHz)
antenna gain: ................ 9.5 (dBi)
link distance: ............... 1 (km)
base radio MAC : ............. 00:0d:5e:36:88:ff
Interface stop
/#
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 242 of 267
Document Number BDTM02201-A01 Standard
Including a
Reboot
Command in a
Script
Some BelAir node functions, such as Network Address Translation (NAT),
require that you reboot the node after you configure them. If your script must
include a
reboot
command, then your script must contain the declarations
described in the following sections:
•“Reboot Declaration Summary” on page 242
•“Reboot Declaration Specification” on page 242
As well, this chapter contains a typical script as an example.
Reboot Declaration
Summary Table 19 summarizes the declarations required in your script if it needs to
include a
reboot
command.
Reboot Declaration
Specification If your script must include the
reboot
command, then your script must include
the declarations described in this section.
Caution! Using the
reboot
command in an auto-configuration script without the correct
declarations may cause the node to enter a continuous
reboot
loop.
The declarations for using the
reboot
command in a script are an extension of
those for specifying a physical interface in a script. See “Specifying Physical
Interfaces” on page 237.
Table 20: Script Declaration Summary for Reboot Command
Script Declaration Description
check-db-change-start Verifies and records whether the following commands change the node’s
settings.
For details, see “Reboot Declaration Specification” on page 242
check-db-change-stop Stops verifying whether commands change the node’s settings.
For details, see “Reboot Declaration Specification” on page 242
int-db-change-start Used in conjunction with the previous
check-db-change
declarations.
The
int-db-change-start
declaration instructs the node to execute the
commands that follow if the node’s settings have changed.
For details, see “Reboot Declaration Specification” on page 242
int-stop Terminates a command sequence associated with a previous declaration
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 243 of 267
Document Number BDTM02201-A01 Standard
The declarations are:
•
check-db-change-start
. This declaration verifies and records whether the
following commands change the node’s settings. It ignores commands that
change a setting to be the current setting. For example, if a physical
interface’s administrative state is enabled, the s
et admin-state enabled
command for that physical interface is ignored.
•
check-db-change-stop
. This declaration stops verifying whether commands
change the node’s setting.
•
int-db-change-start
. This declaration is used with the previous
check-db-change
declarations. The
int-db-change-start
declaration instructs
the node to execute the commands that follow if the node’s settings have
changed.
Typically, your script uses the declarations in the following sequence:
1 Use valid CLI commands and physical interface declarations as required.
2Use the
config-save
command to save the changes to this point to the node’s
database.
3 Include the
check-db-change-start
declaration. (Begin recording whether the
following commands change the nodes settings.)
4 Use the CLI commands for the functionality that requires a reboot, for
example
/protocol/nat/set
commands.
5 Include the
check-db-change-stop
declaration. (Stop recording whether the
following commands change the node’s settings.)
6 Use more valid CLI commands and physical interface declarations as
required.
7 At the end of the script, include the
int-db-change-start
declaration.
8Use the
config-save
command to save any remaining changes to the node’s
database.
9 Include the
/system/reboot
CLI command.
10 Include
y
. (Confirm the reboot.)
11 Include the
int-stop
declaration, as a terminator for the
int-db-change-start
declaration.
The first time the auto-configuration script is run (during initial startup), the
check-db-change-start
and
check-db-change-stop
declarations record the fact
that the NAT commands have changed NAT settings. The condition for the
int-db-change-start
declaration is therefore true. The
config-save
and
reboot
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 244 of 267
Document Number BDTM02201-A01 Standard
commands at the end of the script are executed. The second time the
auto-configuration script is run (during the second startup), the NAT
commands do not change the NAT settings. Hence the condition for the
int-db-change-start
declaration is false, and the
config-save
and
reboot
commands at the end of the script are not executed.
Reboot Script Example The following is a listing of a typical script:
int-wifi-2.4GHz-1
set channel 11
set admin-state enabled
show config
int-stop
int-wifi-5GHz-1
set channel 155
set backhaul admin-state disabled
show config
config-save
int-BELAIR-20
check-db-change-start
/protocol/nat/set scope 1 dhcp-server vlan 401 based-ip 45.89.233.0 lease-time 30
/protocol/nat/set scope 1 status enabled
/protocol/nat/set admin-state enabled
check-db-change-stop
int-stop
int-db-change-start
config-save
/system/reboot
y
int-stop
Common
BelAirOS
Platform
Assembly Codes
This section lists the most common BelAirOS platform assembly codes that can
be used when specifying a physical interface in a script. Additional assembly
codes are possible. For details, contact your BelAir Networks representative.
Table 21: Common BelAirOS Platform Assembly Codes
Platform Assembly Code
BelAir200-12 BELAIR200_12
BelAir200-13 BELAIR200_13
BelAir200-04 BELAIR200_04
BelAir200-13R BELAIR200_13R
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 245 of 267
Document Number BDTM02201-A01 Standard
BelAir100-10 BELAIR100_10
BelAir100-11 BELAIR100_11
BelAir100M-10 BELAIR100M_10
BelAir100M-11 BELAIR100M_11
BelAir100T-12 BELAIR100T_12
BelAir100T-21 BELAIR100T_21
BelAir100T-12R BELAIR100T_12R
BelAir100T-21R BELAIR100T_21R
BelAir100S-10 BELAIR100S_10
BelAir100S-11 BELAIR100S_11
BelAir100N-10 BA100N-10
BelAir100N-11 BA100N-11
BelAir100N-10R BA100N-10R
BelAir100N-11R BA100N-11R
BelAir100SN-10 BA100SN-10
BelAir100SN-11 BA100SN-11
BelAir100SN-10R BA100SN-10R
BelAir100SN-11R BA100SN-11R
Table 21: Common BelAirOS Platform Assembly Codes (Continued)
Platform Assembly Code
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 246 of 267
Document Number BDTM02201-A01 Standard
Common Radio
Card
Descriptions
This section lists the most common card descriptions for radios so you can
specify a physical interface in a script. Additional card descriptions are possible.
For details contact your BelAir Networks representative.
BelAir20-11 BELAIR20-11
Table 21: Common BelAirOS Platform Assembly Codes (Continued)
Platform Assembly Code
Table 22: Common BelAirOS Radio Card Descriptions
Card Description Notes
ARMv3 ARMv3 2.4GHz 802.11b/g
BRMv3 BRMv3 5GHz 802.11a
BRMv4 BRMv4 5GHz 802.11a
ERMv1 ERMv1 5GHz Multiband 802.11a
ERMv2 ERMv2 5GHz 802.11a
ERMv5 ERMv5 5GHz 802.11n
PSMv1 PSMv1 4.9GHz 802.11a
PSMv2 LPMv2 4.9GHz 802.11a
WRMv1 WRMv1 2.3GHz 5MHz 802.16d
WRMv2 WRMv2 2.5GHz 5MHz 802.16d
WRMv3 WRMv3 2.5GHz 10MHz 802.16d
MRMv1 MRMv1 4.4GHz 802.11n
HTMv1 HTMv1 5GHz 802.11n 5-GHz radio
HTMv1 2.4GHz 802.11n 2.4-GHz radio
HTMEv1 HTMEv1 5GHz 802.11n 5-GHz radio
HTMEv1 2.4GHz 802.11n 2.4-GHz radio
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 247 of 267
Document Number BDTM02201-A01 Standard
Sample Universal
Auto-configuratio
n Script
The following script can be used to auto-configure at startup multiple types of
BelAir platforms, such as the BelAir20, where each type of platform can have
different types of radios such as 5-GHz 802.11a radios, 2.4-GHz 802.11g radios
and 2.4-GHz 802.11n radios.
/protocol/ip/set dhcp-accept dns-domain enable
/protocol/ip/set dhcp-accept dns-server enable
/protocol/ip/set dhcp-accept tftp-download enable
/protocol/ip/set dhcp-accept time-server dis
/protocol/ip/set dhcp-accept time-offset dis
/protocol/ip/set ip-addr-notification enabled
/protocol/te-syst/add tunnel 1 ip xxx.xxx.xxx.xxx name name1
/protocol/te-syst/set engine admin-state enabled
/protocol/snmp/set community 1 community-name commu1 ipaddr xxx.xxx.xxx.xxx privilege
readonly
/protocol/snmp/set community 2 community-name commu2 ipaddr 0.0.0.0 privilege readwrite
/protocol/snmp/set community 3 community-name commu3 ipaddr xxx.xxx.xxx.xxx privilege
readwrite
/protocol/snmp/set trap 1 mgr-addr xxx.xxx.xxx.xxx community commu1 version v2
/protocol/snmp/set trap 2 mgr-addr xxx.xxx.xxx.xxx community commu2 version v2
/protocol/snmp/set trap 3 mgr-addr xxx.xxx.xxx.xxx community commu2 version v2
/protocol/snmp/set trap 4 mgr-addr xxx.xxx.xxx.xxx community commu3 version v2
/protocol/sntp/set ip-address primary xxx.xxx.xxx.xxx
/protocol/sntp/set ip-address secondary xxx.xxx.xxx.xxx
DRUv1 DRUv1 5GHz 802.11n 5-GHz radio
DRUv1 2.4GHz 802.11n 2.4-GHz radio
DRUv2 DRUv2 5GHz 802.11n 5-GHz radio
DRUv2 2.4GHz 802.11n 2.4-GHz radio
DRUv3 DRUv3 2.4GHz 802.11n 2.4-GHz radio
DRUv4 DRUv4 5GHz 802.11n 5-GHz radio
DRUv4 2.4GHz 802.11n 2.4-GHz radio
DRUv5 DRUv5 5GHz 802.11n 5-GHz radio
DRUv5 2.4GHz 802.11n 2.4-GHz radio
DRUEv1 DRUEv1 5GHz 802.11n 5-GHz radio
DRUEv1 2.4GHz 802.11n 2.4-GHz radio
Table 22: Common BelAirOS Radio Card Descriptions (Continued)
Card Description Notes
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 248 of 267
Document Number BDTM02201-A01 Standard
/protocol/sntp/set timeoffset -5
/protocol/sntp/set status enabled
#int-cm-1
#/card/cm-9/set attenuation downstream mode auto
#/card/cm-9/set attenuation upstream mode auto
#int-stop
int-wifi-5Ghz-1
set qos wmm enabled
set qos mapping both
set rts-cts 2347
set backhaul admin-state disabled
set admin-state enabled
int-stop
int-wifi-5Ghz 802.11n-1
set tx-power 17
set antenna-gain 8
set mimo-mode 2x2
set channel 149
set arp-filter enable
set max-num-clients 50
set dhcp unicast enable
set ap-oos enable
set deauth dos defense disabled
set ssid 2 service-set-identifier dummy broadcast vlan none
set ssid 1 service-set-identifier superwifi broadcast vlan 801
set ssid 1 wireless-bridge disabled
set ssid 1 privacy none
set ssid 1 group-address-filter ipv4
set ssid 1 secure-port disabled
set ssid 1 admin-state enabled
set ssid 2 service-set-identifier optimumwifi broadcast vlan 800
set ssid 2 wireless-bridge disabled
set ssid 2 privacy none
set ssid 2 group-address-filter ipv4
set ssid 2 secure-port disabled
set ssid 2 admin-state enabled
set ssid 3 service-set-identifier maxwifi broadcast vlan 832
set ssid 3 wireless-bridge disabled
set ssid 3 privacy none
set ssid 3 group-address-filter ipv4
set ssid 3 secure-port disabled
set ssid 3 admin-state enabled
int-stop
int-BELAIR20-11-wifi-5Ghz-1
set tx-power 18
set antenna gain 5
set mimo-mode 3x3
set channel 149
int-stop
int-wifi-5Ghz 802.11a-1
set ap admin-state disabled
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 249 of 267
Document Number BDTM02201-A01 Standard
set admin-state enabled
int-stop
int-wifi-2.4Ghz-1
set qos wmm enabled
set qos mapping both
set rts-cts 2347
set ssid 2 service-set-identifier dummy broadcast vlan none
set ssid 1 service-set-identifier superwifi broadcast vlan 201
set ssid 1 wireless-bridge disabled
set ssid 1 privacy none
set ssid 1 group-address-filter ipv4
set ssid 1 secure-port disabled
set ssid 1 admin-state enabled
set ssid 2 service-set-identifier ultrawifi broadcast vlan 200
set ssid 2 wireless-bridge disabled
set ssid 2 privacy none
set ssid 2 group-address-filter ipv4
set ssid 2 secure-port disabled
set ssid 2 admin-state enabled
set ssid 3 service-set-identifier maxwifi broadcast vlan 245
set ssid 3 wireless-bridge disabled
set ssid 3 privacy none
set ssid 3 group-address-filter ipv4
set ssid 3 secure-port disabled
set ssid 3 admin-state enabled
set backhaul admin-state disabled
set admin-state enabled
int-stop
int-wifi-2.4Ghz 802.11n-1
set channel auto
set tx-power 23
set antenna-gain 8
set mimo-mode 2x2
set arp-filter enable
set max-num-clients 50
set dhcp unicast enable
set ap-oos enable
set deauth dos defense disabled
int-stop
int-BELAIR20-11-wifi-2.4Ghz-1
set tx-power 20
set antenna gain 5
set mimo-mode 3x3
int-stop
int-wifi-2.4Ghz 802.11b/g-1
set qos schedule edca
set tx-power 27
set antenna-gain 8
set profile mixed_b_g
int-stop
/system/add egress vlan untagged
BelAir20E User Guide Scripting Guidelines
October 11, 2011 Confidential Page 250 of 267
Document Number BDTM02201-A01 Standard
/interface/eth-1-1/add vlan untagged
/protocol/te-syst/map vlan 200 to 1
/protocol/te-syst/map vlan 201 to 1
/protocol/te-syst/map vlan 245 to 1
/protocol/te-syst/limit tunnel 1 bandwidth transmit 1500000 receive 1500000
/protocol/te-syst/set tunnel 1 bandwidth-limit upstream 1500000 downstream 1500000
config-save
BelAir20E User Guide BelAir20E Factory Defaults
October 11, 2011 Confidential Page 251 of 267
Document Number BDTM02201-A01 Standard
Appendix D: BelAir20E Factory Defaults
You can reset the configuration of a BelAir20E to the factory default settings by
using a CLI command or by pressing the unit’s reset button.
Typically, you would reset to factory defaults only when all other methods of
changing the unit’s configuration have failed. The reset button is used when
there is no way of communicating to the unit.
Resetting to
Factory Defaults
with a CLI
Command
If you are logged in as
root
and have access to
system
commands, you can reset
the unit to the factory defaults.
CAUTION! By performing the following procedure, all local configuration data will be
replaced by default factory settings. You will not be able to recover any local
configuration data.
CAUTION! You may not able to reestablish connectivity to a remotely located unit after you
execute this procedure.
Use the following command sequence:
cd /system
syscmd restoreDefaultConfig
reboot
Note: The parameters of the
syscmd
command are case sensitive.
Resetting to
Factory Defaults
with the Reset
Button
To perform this procedure, you need physical access to the unit.
CAUTION! By performing the following procedure, all local configuration data will be
replaced by default factory settings. You will not be able to recover any local
configuration data.
BelAir20E User Guide BelAir20E Factory Defaults
October 11, 2011 Confidential Page 252 of 267
Document Number BDTM02201-A01 Standard
To reset the BelAir20E configuration to factory defaults, do the following steps:
1 Access the BelAir20E rear panel. You may need to detach it from its
mounting bracket.
2 With a pen tip or paperclip, gently press the unit’s reset button for more
than 5 seconds. Refer to Figure 15.

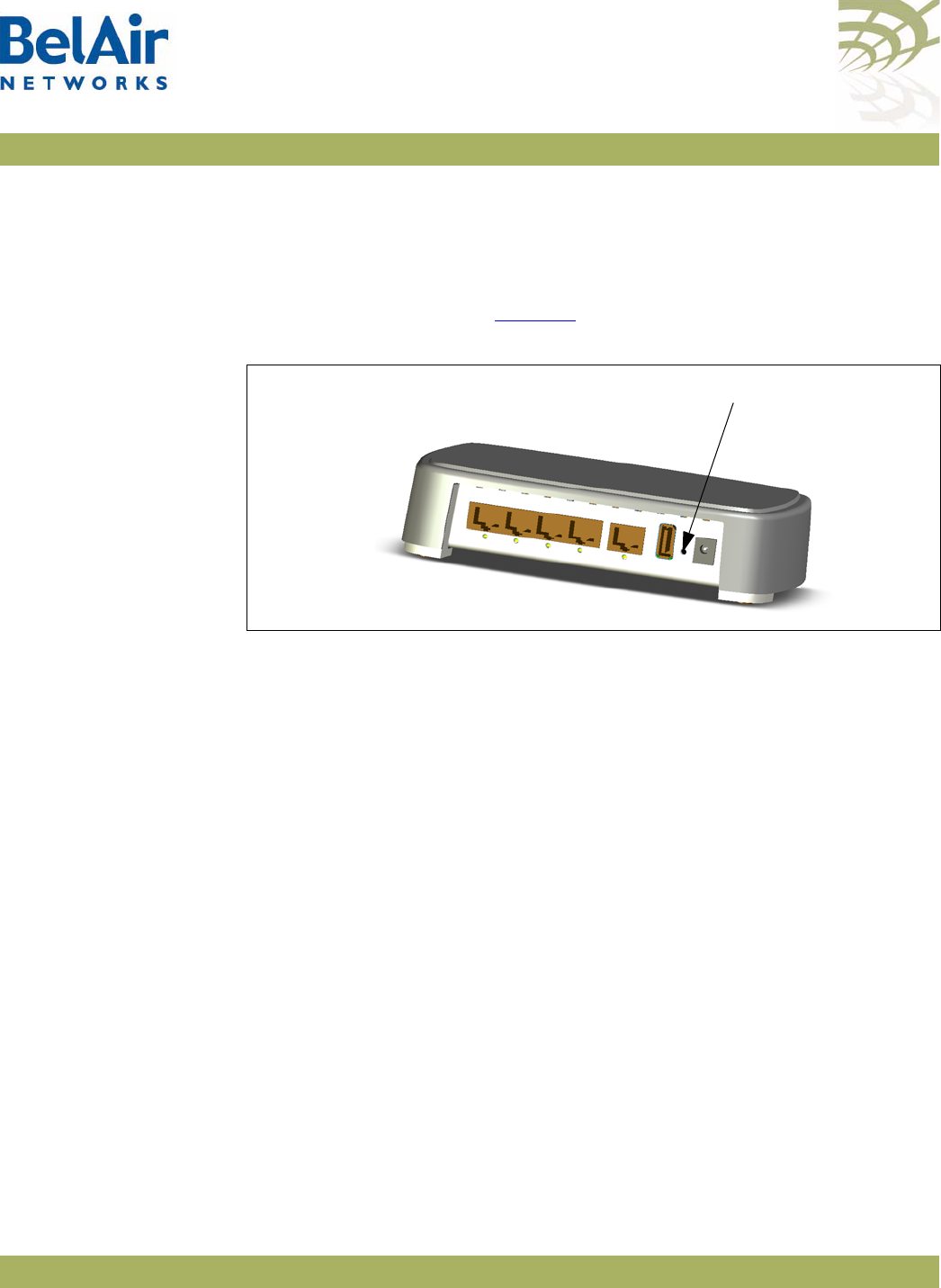

Figure 15: BelAir20E Rear Panel with Reset Button
3 If necessary, re-attach the BelAir20E to its mounting bracket.
Reset (Hole)
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 253 of 267
Document Number BDTM02201-A01 Standard
Detailed Table of Contents
About This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
BelAir20E Configuration Interfaces . . . . . . . . . . . . . . . . . . . . . . . . 6
Command Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
SNMP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Integrating the BelAir20E with a Pre-deployed NMS . . . . . . . .7
Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Accessing the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Accessing the System Page with Secure HTTP or with HTTP .9
Stopping a Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Additional Troubleshooting Tools . . . . . . . . . . . . . . . . . . . . . .11
Command Line Interface Basics . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting to the BelAir20E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Starting a CLI Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Command Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Abbreviating Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Command History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Special CLI Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Help Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Saving your Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Saving the Configuration Database . . . . . . . . . . . . . . . . . . . . .21
Restoring the Configuration Database . . . . . . . . . . . . . . . . . .22
Common CLI Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Terminating your CLI Session . . . . . . . . . . . . . . . . . . . . . . . . .23
Changing Your Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Clearing the Console Display . . . . . . . . . . . . . . . . . . . . . . . . . .23
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 254 of 267
Document Number BDTM02201-A01 Standard
Locking the Console Display . . . . . . . . . . . . . . . . . . . . . . . . . .23
Displaying the Current Software Version . . . . . . . . . . . . . . . .23
Displaying the Current Date and Time . . . . . . . . . . . . . . . . . .24
Displaying Current User . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Switching User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Replacing a Token by a String . . . . . . . . . . . . . . . . . . . . . . . . .24
Pinging a Host or Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Radio Configuration Summary . . . . . . . . . . . . . . . . . . . . . . . . .25
BelAir20E Access Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
SNMP Configuration Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
SNMPv1/v2 Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
SNMPv3 Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
SNMP Naming Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . .27
SNMP Command Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
SNMP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
SNMP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Communities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Authentication Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Engine Identifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
HTTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Secure HTTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
SSH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
SSH Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
SSL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Displaying Server Certificate . . . . . . . . . . . . . . . . . . . . . . . . . .32
Configuring the Server Certificate . . . . . . . . . . . . . . . . . . . . . .33
Creating RSA Key Pair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Creating Certificate Request . . . . . . . . . . . . . . . . . . . . . . . . . .33
Configuring the Server Certificate . . . . . . . . . . . . . . . . . . . . . .33
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 255 of 267
Document Number BDTM02201-A01 Standard
Saving an SSL Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . .33
User and Session Administration . . . . . . . . . . . . . . . . . . . . . . . . . 35
User Privilege Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Configuring Authentication for User Accounts . . . . . . . . . . . . . . . . . .39
Authentication Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
RADIUS Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
CLI and Web Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Session Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Configuring the Session Timeout Interval . . . . . . . . . . . . . . . .42
CLI Prompt Customization . . . . . . . . . . . . . . . . . . . . . . . . . . .42
IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Displaying IP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Configuring IP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Configuring Dynamic IP Addressing . . . . . . . . . . . . . . . . . . . . .45
Renewing the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Auto-IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Setting a Static IP Address and Subnet Mask . . . . . . . . . . . . . .47
Static IP Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Configuring the Domain Name System Lookup Service . . . . . . . . . . .48
Configuring IP Address Notification . . . . . . . . . . . . . . . . . . . . . . . . . .48
System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Country of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
System Identification Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Custom Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Configuring the System Date and Time . . . . . . . . . . . . . . . . . . . . . . . .51
Manual Date and Time Configuration . . . . . . . . . . . . . . . . . . .51
Managing an SNTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
GPS Coordinates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
LED Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Find Me Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
LED Enable or Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 256 of 267
Document Number BDTM02201-A01 Standard
Setting the Network Egress Point . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Limiting Broadcast Packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Displaying Unit Inventory Information . . . . . . . . . . . . . . . . . . . . . . . . .55
Defining a Maintenance Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Displaying System Up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Displaying the Running Configuration . . . . . . . . . . . . . . . . . . . . . . . . .56
Restarting the Node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Creating and Using Script Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Enabling or Disabling Session Logging . . . . . . . . . . . . . . . . . . . . . . . . .56
BelAir20E Auto-configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
DHCP Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Pre-requisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Configuring and Using DHCP Options . . . . . . . . . . . . . . . . . .60
Accepting Specific DHCP Parameters . . . . . . . . . . . . . . . . . . .60
DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Configuration Download Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Pre-requisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Using a Configuration Download Profile . . . . . . . . . . . . . . . . .62
Ethernet or LAN Interface Settings . . . . . . . . . . . . . . . . . . . . . . . 64
Managing the Ethernet or LAN Interface Settings . . . . . . . . . . . . . . . .64
Managing Egress Node Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
VLAN Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
VLAN Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Card Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Determining which Cards are in a Node . . . . . . . . . . . . . . . . . . . . . . .67
Displaying Card Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Displaying the Card Physical Data . . . . . . . . . . . . . . . . . . . . . .68
Displaying the Card Physical Interfaces . . . . . . . . . . . . . . . . . .68
Displaying the Card CPU and Memory Usage . . . . . . . . . . . . .69
Card Administrative State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Restarting a Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 257 of 267
Document Number BDTM02201-A01 Standard
Wi-Fi Radio Configuration Overview . . . . . . . . . . . . . . . . . . . . . 71
Available Wi-Fi Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Configuration Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Configuring Wi-Fi Radio Parameters . . . . . . . . . . . . . . . . . . . . . . 72
Displaying Wi-Fi Radio Configuration . . . . . . . . . . . . . . . . . . . . . . . . .73
Displaying Configuration Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Operating Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Antenna Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Transmit Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Link Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Dynamic Frequency Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Collision Aware Rate Adaptation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Rate Aware Fairness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
802.11n Aggregation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Minimum Receive Threshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Changing Wi-Fi Interface Admin State . . . . . . . . . . . . . . . . . . . . . . . . .79
Configuring Wi-Fi Access Point Parameters . . . . . . . . . . . . . . . . 80
Displaying AP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
AP Custom Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Displaying Associated Wireless Clients . . . . . . . . . . . . . . . . . . . . . . . .83
Displaying Wireless Client Details . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Disconnecting a Wireless Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Wireless Client Load Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Configuring RTS-CTS Handshaking . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Specifying the Beacon Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Displaying Client Association Records . . . . . . . . . . . . . . . . . . . . . . . .87
Changing AP Admin State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
AP Service Set Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Displaying the SSID Table . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Displaying SSID Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Default Management SSID . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Configuring SSIDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 258 of 267
Document Number BDTM02201-A01 Standard
Upstream User Priority Marking . . . . . . . . . . . . . . . . . . . . . . .92
Setting Traffic Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Providing Vendor Specific Information . . . . . . . . . . . . . . . . . .93
Changing SSID Admin State . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Out-of-service Advertising . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Filtering Broadcast and Multicast Packets . . . . . . . . . . . . . . . . . . . . . .96
Broadcast to Unicast Packet Conversion . . . . . . . . . . . . . . . . . . . . . . .96
Limiting Upload and Download Rates . . . . . . . . . . . . . . . . . . . . . . . . .97
ARP Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
ARP to Unicast Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
802.11b Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
Wi-Fi AP Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Security Options for Wireless Clients . . . . . . . . . . . . . . . . . . . . . . . .100
RADIUS Servers for Wireless Clients . . . . . . . . . . . . . . . . . . . . . . . .101
Managing RADIUS Servers . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Changing RADIUS Server Admin State . . . . . . . . . . . . . . . . .105
Assigning SSIDs to RADIUS Servers . . . . . . . . . . . . . . . . . . .105
RADIUS Pre-authentication . . . . . . . . . . . . . . . . . . . . . . . . . .105
RADIUS Assigned VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
RADIUS Accounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Client Authentication and De-authentication Trap . . . . . . . . . . . . . .107
AP Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Wireless Client Blacklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Wireless Client Access Control List . . . . . . . . . . . . . . . . . . . . . . . . .109
Controlling Inter-client Communication . . . . . . . . . . . . . . . . . . . . . .110
Determining the MAC Address of the Internet gateway . . .111
Disabling or Enabling AP Wireless Bridging . . . . . . . . . . . . . .111
Disabling Inter-AP Wireless Client Communication . . . . . . .111
Secure MAC White List . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
AP Secure Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Auto-secure Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Protecting against Denial of Service Attacks . . . . . . . . . . . . . . . . . . .113
Deauthentication DoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 259 of 267
Document Number BDTM02201-A01 Standard
Wi-Fi Backhaul Link Configuration . . . . . . . . . . . . . . . . . . . . . . 115
Displaying Backhaul Link Configuration . . . . . . . . . . . . . . . . . . . . . . .115
Configuring Backhaul Link Identifier, Topology and Privacy . . . . . . .116
Managing MP-to-MP Meshes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Displaying the Mesh Topology . . . . . . . . . . . . . . . . . . . . . . . .118
Setting a Link RSSI Threshold . . . . . . . . . . . . . . . . . . . . . . . .119
Managing the Mesh Blacklist . . . . . . . . . . . . . . . . . . . . . . . . . .120
Mesh Auto-connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Managing Mesh Auto-connections . . . . . . . . . . . . . . . . . . . . .121
Egress Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122
Changing Backhaul Link Admin State . . . . . . . . . . . . . . . . . . . . . . . . .122
Mobile Backhaul Mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Configuring Mobile Backhaul Mesh Links . . . . . . . . . . . . . . . . . . . . . .124
Displaying Mobility Configuration and Status . . . . . . . . . . . .124
Configuring MIMO Operation for Mobile Applications . . . .125
Configuring and Enabling Mobile Backhaul Mesh Links . . . . .125
Mobile Backhaul Point-to-point Links . . . . . . . . . . . . . . . . . . . . 127
Scanning Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Sample Subscriber Station Configuration . . . . . . . . . . . . . . . . . . . . .128
Sample Base Station Configuration . . . . . . . . . . . . . . . . . . . . . . . . . .130
Mobile Backhaul Point-to-point Commands . . . . . . . . . . . . . . . . . . .132
Displaying Mobile Backhaul Point-to-point Configuration . .132
Displaying Link Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132
Displaying Scan Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
Managing Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
Managing the Scan List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134
Associating a Scan List to an Interface . . . . . . . . . . . . . . . . . .134
Configuring RSSI Threshold . . . . . . . . . . . . . . . . . . . . . . . . . .134
Primary Link Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Mobile Link Identifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Home Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Base Station Out-of-service Check . . . . . . . . . . . . . . . . . . . .135
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 260 of 267
Document Number BDTM02201-A01 Standard
Release 7 Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136
Single Channel Mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136
Operating in High Capacity and Interference Environments. . . 138
Modulation Rate Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
VLAN based QOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
Traffic Priority Based on Modulation Rate . . . . . . . . . . . . . . . . . . . . .140
No SSID on Egress Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Ethernet Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Access Receive and Transmit Error Statistics with SNMP Support .141
Noise Floor Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Access Packet RSSI Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Effective Mesh Path Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Blacklist SNMP Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Client Association Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
CTS-to-Self Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
DHCP to Attached Clients Only . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
ARP to Attached Clients Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Upstream Broadcast Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Secure Port Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
Wireless Bridging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
Client Load Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
Client Authentication History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144
Automatic Mesh Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144
Traffic Test Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144
DHCP Relay Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Displaying the DHCP Relay Configuration . . . . . . . . . . . . . . . . . . . .145
Modifying DHCP Relay Parameters . . . . . . . . . . . . . . . . . . . . . . . . . .146
Interface Administrative State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
Assigning SSID Traffic to Use DHCP Relay . . . . . . . . . . . . . . . . . . . .147
DHCP Address Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
Network Address Translation . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Displaying the Operational Status . . . . . . . . . . . . . . . . . . . . . . . . . . .150
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 261 of 267
Document Number BDTM02201-A01 Standard
Displaying the Current DHCP Lease Status . . . . . . . . . . . . . . . . . . .150
Displaying the DHCP Lease History . . . . . . . . . . . . . . . . . . . . . . . . .150
Configuring Network Address Translation . . . . . . . . . . . . . . . . . . . .151
Preventing Node Management from within the Scope . . . . . . . . . . .151
Enabling or Disabling Individual Scopes . . . . . . . . . . . . . . . . . . . . . . .152
Changing NAT Admin State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152
Managing Nodes in a NAT Cluster . . . . . . . . . . . . . . . . . . . . . . . . . .152
Mac Address to IP Address Mapping . . . . . . . . . . . . . . . . . . .152
Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152
Universal Access Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Displaying the Current Configuration . . . . . . . . . . . . . . . . . . . . . . . .156
Displaying the Operational Status . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Displaying the Client Session Information . . . . . . . . . . . . . . . . . . . . .157
Specifying the Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
Specifying Redirection Variable Pairs . . . . . . . . . . . . . . . . . . . . . . . . .159
Specifying the RADIUS Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Managing White List Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Associating VLAN Traffic to a Scope . . . . . . . . . . . . . . . . . . . . . . . . .160
Performing MAC Address Authentication . . . . . . . . . . . . . . . . . . . . .160
Collecting Accounting Information . . . . . . . . . . . . . . . . . . . . . . . . . .161
Operating in WAN Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162
Changing UAM Admin State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162
Using Layer 2 Tunnels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Configuring the BelAir Node for Layer 2 Tunneling . . . . . . . . . . . . .164
Displaying Tunnel Configuration and Status . . . . . . . . . . . . .165
Starting and Stopping Layer 2 Tunneling . . . . . . . . . . . . . . . .166
Configuring Layer 2 Tunnels . . . . . . . . . . . . . . . . . . . . . . . . .166
Setting Tunnel Engine Parameters . . . . . . . . . . . . . . . . . . . . .167
Configuring Tunnel Advanced Parameters . . . . . . . . . . . . . .168
Enabling Backhaul Protection for Tunnels . . . . . . . . . . . . . . .169
Bandwidth Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169
Configuring Tunnels for the RedBack SmartEdge Router . . .170
Configuring Tunnels for a Router using GRE . . . . . . . . . . . .172
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 262 of 267
Document Number BDTM02201-A01 Standard
Configuring Tunnels for PMIP Implementations . . . . . . . . . .173
Mapping User Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174
Configuring Authentication . . . . . . . . . . . . . . . . . . . . . . . . . .174
Configuring a Tunnel Group Name . . . . . . . . . . . . . . . . . . . .175
Relaying Traffic QOS Settings . . . . . . . . . . . . . . . . . . . . . . . .175
Setting the Tunnel Down Alarm Threshold . . . . . . . . . . . . .175
Configuring the Network Central Router for Layer 2 Tunneling . . .176
Quality of Service Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
System QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177
Prioritization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177
Prioritizing Traffic Based on User Priority Bits . . . . . . . . . . .178
Prioritizing Traffic using VLAN IDs . . . . . . . . . . . . . . . . . . . .178
Resetting the QoS Configuration . . . . . . . . . . . . . . . . . . . . . .179
Displaying a Summary of System QoS Settings . . . . . . . . . . .179
Displaying the Prioritization Settings . . . . . . . . . . . . . . . . . . .180
Radio QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180
Displaying a Summary of Radio QoS Settings . . . . . . . . . . . .180
Enabling or Disabling Wireless Multi-media . . . . . . . . . . . . .181
QoS Mapping Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181
Unscheduled Automatic Power-save Delivery . . . . . . . . . . .182
Layer 2 Network Configuration. . . . . . . . . . . . . . . . . . . . . . . . . 183
Spanning Tree Protocol Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .183
Configuring Spanning Tree Priority . . . . . . . . . . . . . . . . . . . .184
Configuring Other Spanning Tree Parameters . . . . . . . . . . .185
RSTP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186
Displaying the RSTP Configuration Settings . . . . . . . . . . . . .186
Displaying the RSTP Topology Information . . . . . . . . . . . . . .188
Displaying RSTP Port Roles and States . . . . . . . . . . . . . . . . .191
Configuring the Bridge Aging Time . . . . . . . . . . . . . . . . . . . .192
RSTP Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192
RSTP Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192
Transmit Hold Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192
Max Age, Hello Time and Forward Delay . . . . . . . . . . . . . . .193
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 263 of 267
Document Number BDTM02201-A01 Standard
RSTP Link Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .193
RSTP Static Path Cost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194
Dynamic Path Cost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .194
RSTP Protocol Migration on an Interface . . . . . . . . . . . . . . .195
RSTP Edge Port Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195
RSTP Point-To-Point Status of an Interface . . . . . . . . . . . . . .196
Interface RSTP Configuration . . . . . . . . . . . . . . . . . . . . . . . .196
Changing RSTP Admin State . . . . . . . . . . . . . . . . . . . . . . . . .196
Performing a Software Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . 197
Upgrade Process Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197
Downloading a New Software Load . . . . . . . . . . . . . . . . . . . . . . . . .199
Canceling a Software Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200
Verifying a Successful Download . . . . . . . . . . . . . . . . . . . . . . . . . . . .201
Activating a Software Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .201
Committing a New Software Load . . . . . . . . . . . . . . . . . . . . . . . . . .202
Backing Out from a Software Upgrade . . . . . . . . . . . . . . . . . . . . . . .203
Displaying the Status of the Software Upgrade . . . . . . . . . . . . . . . . .204
Clearing the Upgrade Failure Alarm . . . . . . . . . . . . . . . . . . . . . . . . .204
Auto-upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .204
For More Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .205
User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .205
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .206
Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Support Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .207
Warranty and Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .207
Definitions and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Conformity and Regulatory Statements. . . . . . . . . . . . . . . . . . . 210
Regulatory Information and Disclaimers . . . . . . . . . . . . . . . . . . . . . .210
Manufacturer’s US Federal Communication Commission Conformity
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 264 of 267
Document Number BDTM02201-A01 Standard
Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .211
FCC Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . .211
Manufacturer’s Industry Canada Conformity Statement . . . . . . . . . .212
Manufacturer’s European Community Conformity Statement . . . . .213
Declaration of Conformity for RF Exposure . . . . . . . . . . . . . . . . . . .216
Product Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .216
Appendix A: Node Configuration Sheets . . . . . . . . . . . . . . . . . .221
Appendix B: Mesh Auto-connection Example . . . . . . . . . . . . . .224
Setup and Initial Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .224
Fault Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .228
Recovery Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .231
Appendix C: Scripting Guidelines . . . . . . . . . . . . . . . . . . . . . . . .234
General Scripting Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .234
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .234
Creating a BelAirOS Script . . . . . . . . . . . . . . . . . . . . . . . . . .234
Manually Transferring Files to and from a BelAir Node . . . .235
Managing and Manually Running Script Files . . . . . . . . . . . . .236
Specifying Physical Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .237
Physical Interface Declaration Summary . . . . . . . . . . . . . . . .237
Physical Interface Declaration Specifications . . . . . . . . . . . . .238
Physical Interface Script Example - Setup . . . . . . . . . . . . . . .239
Physical Interface Script Example - Script . . . . . . . . . . . . . . .239
Physical Interface Script Example - Output . . . . . . . . . . . . . .240
Including a Reboot Command in a Script . . . . . . . . . . . . . . . . . . . . .242
Reboot Declaration Summary . . . . . . . . . . . . . . . . . . . . . . . .242
Reboot Declaration Specification . . . . . . . . . . . . . . . . . . . . . .242
Reboot Script Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244
Common BelAirOS Platform Assembly Codes . . . . . . . . . . . . . . . . .244
Common Radio Card Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . .246
Sample Universal Auto-configuration Script . . . . . . . . . . . . . . . . . . .247
Appendix D: BelAir20E Factory Defaults . . . . . . . . . . . . . . . . . .251
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 265 of 267
Document Number BDTM02201-A01 Standard
Resetting to Factory Defaults with a CLI Command . . . . . . . . . . . .251
Resetting to Factory Defaults with the Reset Button . . . . . . . . . . . .251
Detailed Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
List of Figures
Figure 1: BelAir20E Hardware Module Block Diagram . . . . . . . . . . . . . . . . . . .5
Figure 2: Typical Login Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Figure 3: Typical Web Interface Main Page . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Figure 4: Sample Output of mode Command . . . . . . . . . . . . . . . . . . . . . . . . .15
Figure 5: Client Record Detail Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Figure 6: Mobile Backhaul Links Connecting Vehicle Cameras to Roadside Net-
work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
Figure 7: Wireless Mobility using L2TP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Figure 8: Active and Standby Software Loads . . . . . . . . . . . . . . . . . . . . . . . .198
Figure 9: Software Upgrade Step 3 - Downloading the New Software Load200
Figure 10: Software Upgrade Step 7 - Commit the Software Load . . . . . . .202
Figure 11: Backing Out from an Uncommitted Software Upgrade . . . . . . . .203
Figure 12: Auto-connection Initial Conditions . . . . . . . . . . . . . . . . . . . . . . . .224
Figure 13: Auto-connection and Fault Conditions . . . . . . . . . . . . . . . . . . . . .229
Figure 14: Auto-connection after Recovery before Revert . . . . . . . . . . . . . .233
Figure 15: BelAir20E Rear Panel with Reset Button . . . . . . . . . . . . . . . . . . .252
List of Tables
Table 1: Product Name Synonyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Table 2: Standard SNMP MIBs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Table 3: BelAir Enterprise MIBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Table 4: Command Line Interface Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Table 5: Super-user commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Table 6: Physical Interface Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . .67
Table 7: BelAir Wi-Fi Radio Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Table 8: Auth Field Value Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Table 9: DHCP Field Value Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Table 10: RADIUS Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Table 11: Wi-Fi Backhaul Configuration Requirements . . . . . . . . . . . . . . . . .117
Table 12: Attributes for UAM Client Access Policy Enforcement. . . . . . . . .154
Table 13: Traffic Priority Queues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177
BelAir20E User Guide Detailed Table of Contents
October 11, 2011 Confidential Page 266 of 267
Document Number BDTM02201-A01 Standard
Table 14: User Priority Value to Priority Queue Processing . . . . . . . . . . . . .178
Table 15: UP and DSCP Value to Priority Queue Processing . . . . . . . . . . . .181
Table 16: Configurable Spanning Tree Timers and Associated Parameters .185
Table 17: European Community Conformity Statement . . . . . . . . . . . . . . . .213
Table 18: AP Privacy Setting Table (Optional) . . . . . . . . . . . . . . . . . . . . . . . .222
Table 19: BelAir Script Declaration Summary . . . . . . . . . . . . . . . . . . . . . . . .237
Table 20: Script Declaration Summary for Reboot Command . . . . . . . . . . .242
Table 21: Common BelAirOS Platform Assembly Codes . . . . . . . . . . . . . . .244
Table 22: Common BelAirOS Radio Card Descriptions . . . . . . . . . . . . . . . .246
