ES700PIR Motion Detector
DESCRIPTION
•The ES700PIR is a bi-directional wireless digital PIR detector.
•Utilizing proprietary 4th-generation DragonflyEye™
technology, the ES700PIR provides exceptional detection
coverage, range and angle.
•Additionally, the ES700PIR has sealed optics and is immune to
light and insects, further reducing false alarms.
•Advanced detection algorithms for false alarm suppression
WIRELESS
•Bi-directional: End-to-End Bi-Directional ESI protocol
•Advanced radio supervision algorithm
•Up to 700 meters RF range (open air)
•Modulation and Frequency: BFSK , 868.3 MHz (Europe) or
916.5 MHz (US)
•Encoding: 32-bit ID, over 4 billion combinations
SECURITY
•Tamper Mechanism
•Unique electronic serial number
POWER CONSUMPTION
•Long operational period (over three years) without external
power source
•Uses a single CR123A Lithium battery
SIZE & WEIGHT
•106 mm (l) x 60 mm (w) x 51 mm (h)
•67 grams + 19 grams wall-bracket + 17 grams battery
(CR123A)
ENVIRONMENTAL
•Operating Ambient Temperature range: -5° - 55° Celsius
•Humidity: Up to 95% non condensing
CERTIFICATIONS AND APPROVALS
•CE: CE mark, EMC/EMI according to
ETSI EN 301 489-4, ETSI EN 301 489-1, EN 50130-4:1996,
EU Directive 1999/5/EC for R&TTE
•Radio: ETSI EN 300 220-3, ETSI EN 300 220-1, CEPT/ERC
Recommendation 70-03, EN 50131-5-3:2005 + A1:2008
•Safety: EN/IEC60950-1, TUV: UL60950-1, NOM
•Security & Alarm systems: EN 50131-1:2006 + A1:2009 Class-II
Grade-2, EN 50131-2-2:2008 Class-II Grade-2,
EN 50131-6:2008 Type-C
•Environmental Regulation: RoHS 2002/95/EC
•Reliability (Mechanical & Environmental conditions):
EN 50130-5:1999 and IEC 60068
•Manufacturing and Materials Standards: ISO 9001:2008,
ISO 14000
ADDITIONAL INFORMATION
•Detection Type: Passive Infrared
•Insect Immunity: Sealed Optics
•Pet Immune (option)
•Installation:
Standard PIR wall mount using double-sided tape

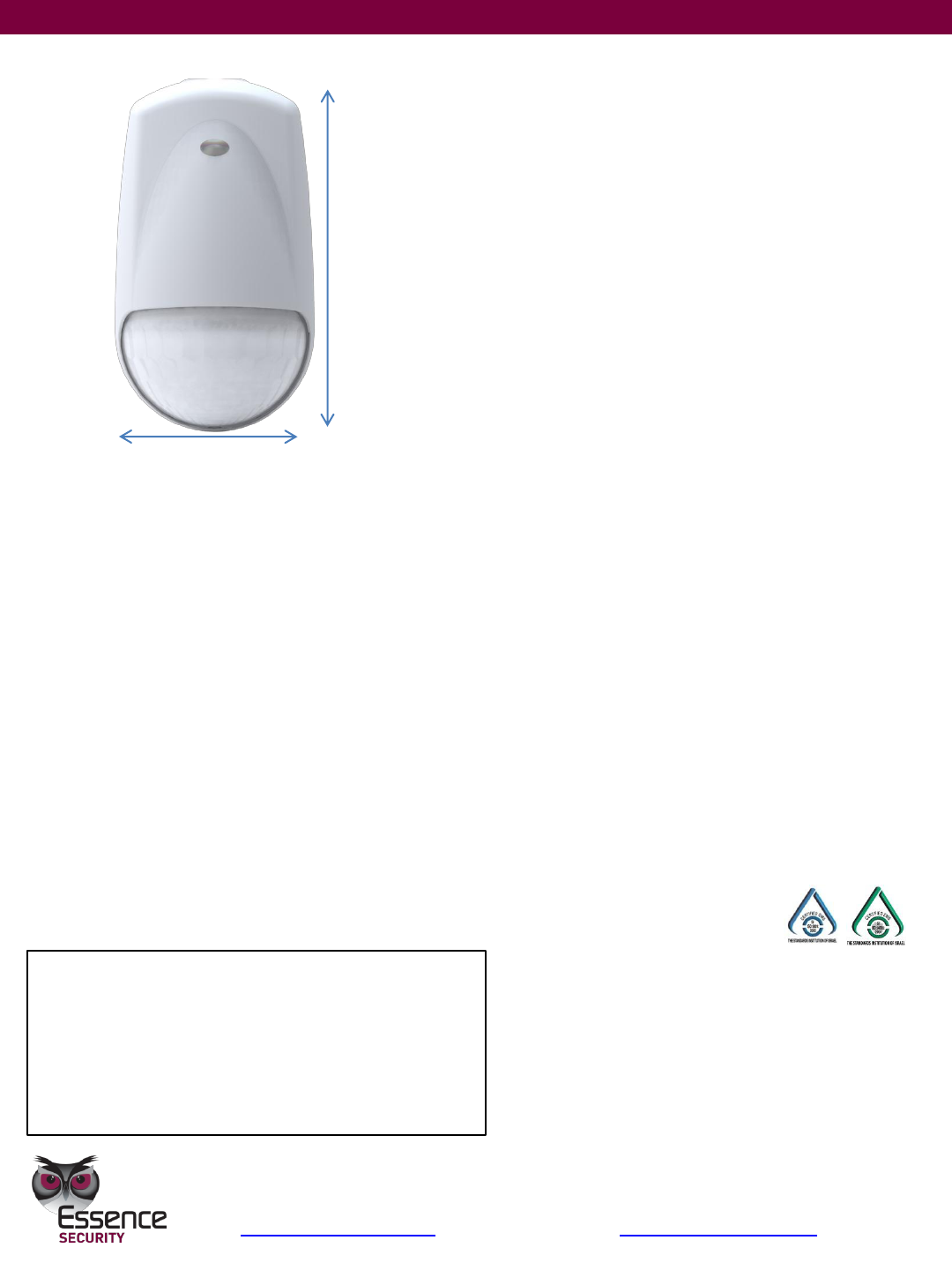

106mm
60mm
