PHOTOGRAPHS OF INSTALLATION
This document contains 5 photographs
Essence Security International (E.S.I) Ltd. FCC ID:YXG-ES800SK2
IC:11061A-ES800SK2
Page 2 of 6
The user receives the Smoke Detector without the batteries and a Wall Mount separated. The
Wall Mount shall be installed on the wall ((photograph No. 1).
For installation, the user must hold the device and insert the 2 batteries at the rear side of the
detector (photograph No. 2), where the label is located.
The sample of the detector installation on the wall is shown in the following photographs No 3
to No.5.

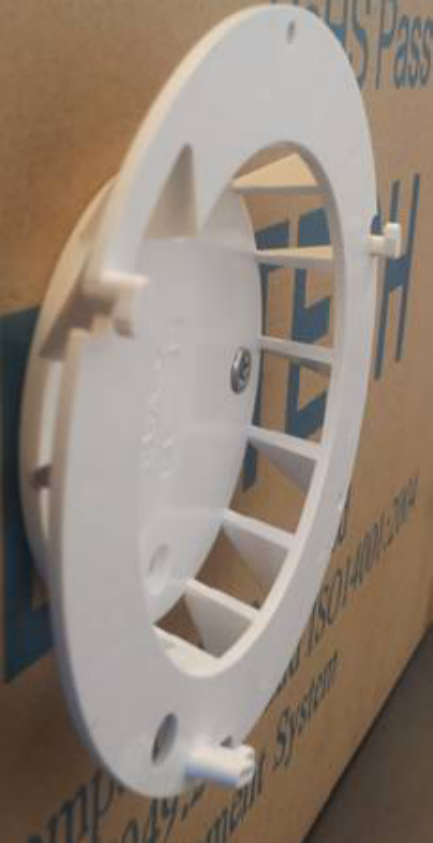

Photograph No.1
ES800SK2 smoke detector wall mount
Essence Security International (E.S.I) Ltd. FCC ID:YXG-ES800SK2
IC:11061A-ES800SK2
Page 3 of 6

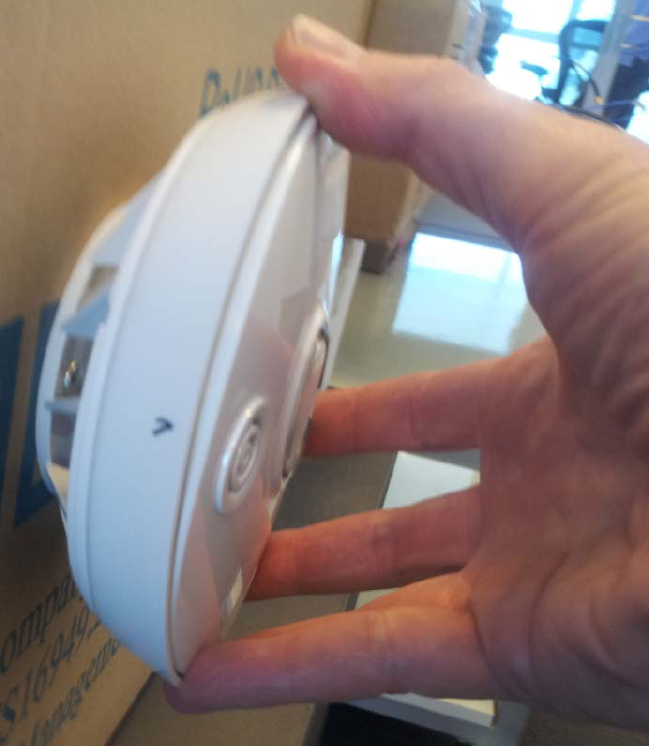

Photograph No.2
ES800SK2 smoke detector with a label view
Essence Security International (E.S.I) Ltd. FCC ID:YXG-ES800SK2
IC:11061A-ES800SK2
Page 4 of 6

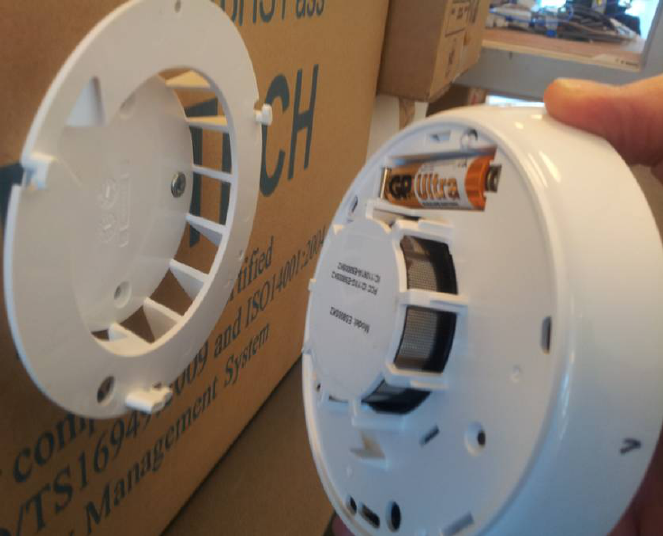

Photograph No.3
ES800SK2 smoke detector installation
Essence Security International (E.S.I) Ltd. FCC ID:YXG-ES800SK2
IC:11061A-ES800SK2
Page 5 of 6

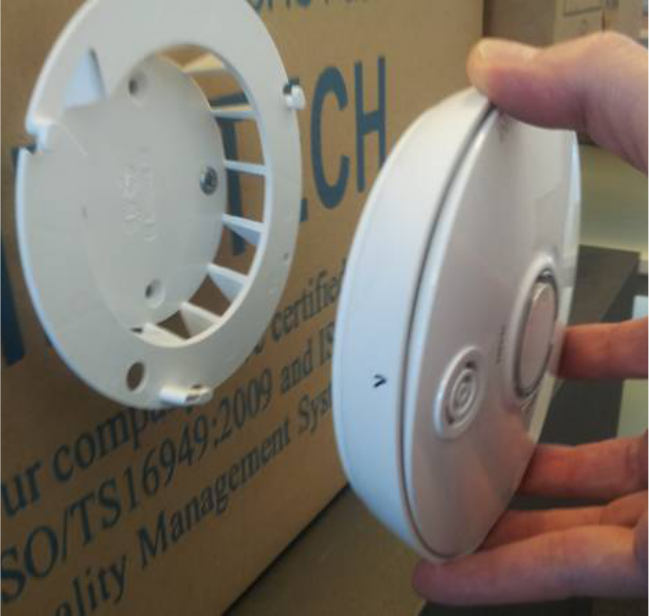

Photograph No.4
ES800SK2 smoke detector installation
Essence Security International (E.S.I) Ltd. FCC ID:YXG-ES800SK2
IC:11061A-ES800SK2
Page 6 of 6
Photograph No.5
ES800SK2 smoke detector installed
