Essity Hygiene and Health 682860 The Tork EasyCube Data Colletion Unit (DCU) communicates via 2.4 GHz radio with the sensor units in the Tork EasyCube system and collects and filter data to be sent to a server via GSM network. User Manual Tork EasyCube
SCA Hygiene Products AB The Tork EasyCube Data Colletion Unit (DCU) communicates via 2.4 GHz radio with the sensor units in the Tork EasyCube system and collects and filter data to be sent to a server via GSM network. Tork EasyCube
Users manual
SCA
Tork EasyCube™
User Manual
Computer, server device or smartphone not included.
The Tork EasyCube application can be accessed from any available connected device.
Devices shown are not the actual size.
SCA
1
1 Introduction- Tork EasyCube™
Tork EasyCube™ delivers actionable washroom insights through a web user interface.
The service consists of Tork dispensers equipped with sensors that communicate the
dispenser status and refill needs to a cloud based system, made available for different roles
such as a facility manager or the cleaning staff.
The system as well includes visitor registration units that can count people passing into a
washroom area.

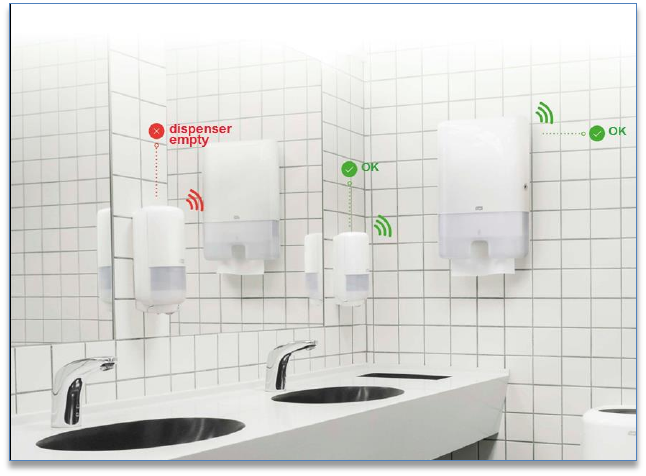

Figure 1. Each dispenser is wirelessly connected to an information system that can be utilized by both a Facility
Manager as well as cleaning staff, in order to facilitate more efficient work planning.
SCA
2
2 Get an instant overview
At any point in time the system will provide a quick overview of the status of the installed
dispensers through a web based dashboard. Instantly the user of the web application, for
example a facility manager, will be able to spot if dispensers are about to become empty.

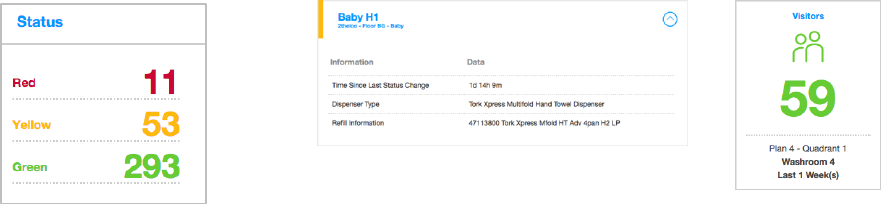

Figure 2. Status red indicates very soon out-of-paper and Yellow indicates a half-full dispenser. Status green needs no
attention. Add a dashboard measurement of a critical location to track its usage.
2.1 Before you get started
To be able to get started with the Tork EasyCube System there are some activities that need
to be performed.
Initially the customer together with SCA will determine which washrooms will be included
and the required number of Data Collection Units (DCUs) to support these locations. The
number of DCUs required for a location depends upon the distribution of washrooms within
the building and also the construction material of the building walls.
Installation of the system is done by an external professional installation company.
SCA
3
3 Technical components used in Tork EasyCube

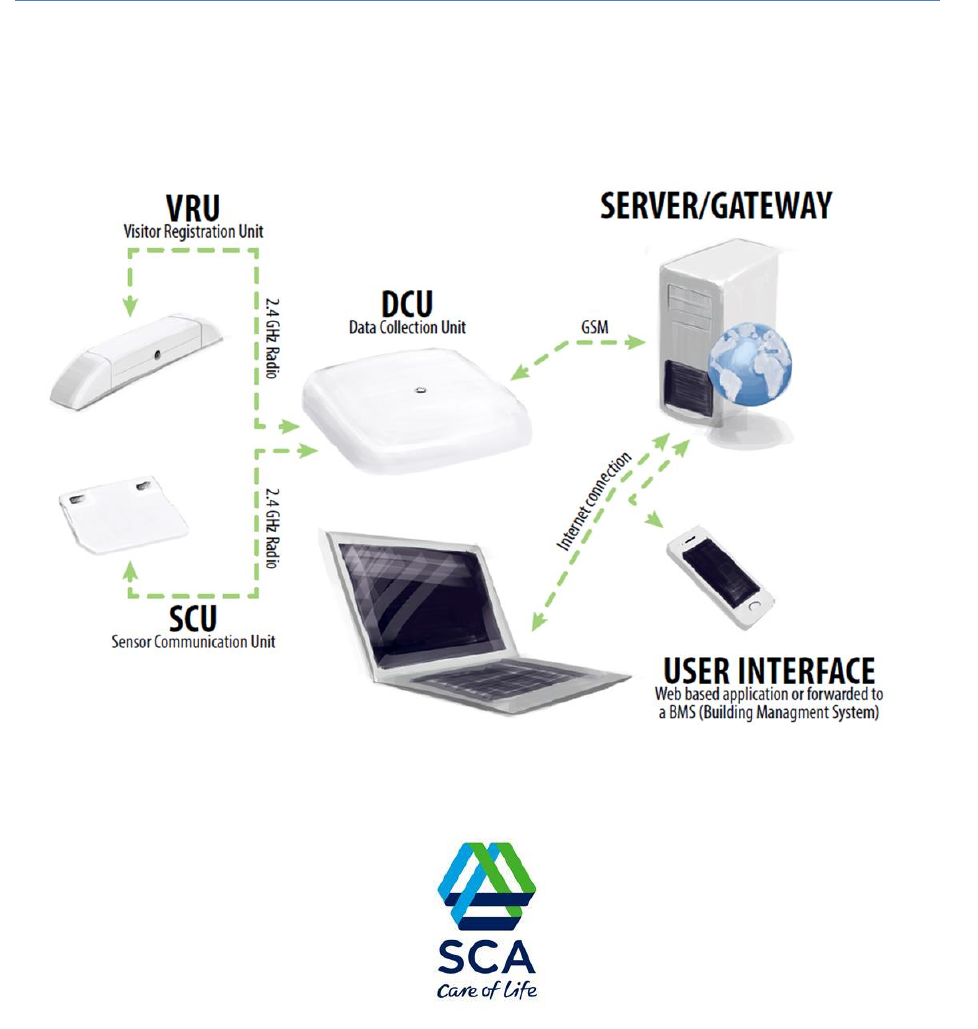

Figure 3 - The different components used for the Tork EasyCube solution
3.1 Sensors
A selected range of Tork dispensers is prepared to be equipped with sensor technologies to
optimize the function, depending on the field of use. There are three different sensor
technologies used within Tork EasyCube:
SCU (Sensor Communication Unit) which is used to measure refill levels in Tork
dispensers
Dispensers with embedded sensors. The dispenser contains a sensor from
factory.
All sensors communicate to the Data Collection Unit via the radio frequency 2.4GHz.
3.2 SCU (Sensor Communication Unit)
The SCU unit is added to a special slot within the dispensers. The
refill levels reported by the SCU are visualized in the Tork
EasyCube system by using colors.
Green: indicates that the dispenser still have enough paper or
soap remaining.
Orange: indicates that it is possible to refill the dispenser.
Red: indicates that the dispenser is almost empty.
1
Each sensor is operated by an embedded battery.
Figure 4 - Sensor card found
inside a dispenser
SCA
4
.
3.3 Dispensers with embedded sensors
Tork dispensers such as Tork Foam Soap Dispenser with Intuition
sensor™ do not need an additional Tork EasyCube sensor. Instead,
they have an additional radio component within the cassette which
forwards information to the DCU via 2.4 GHz radio.
The system runs on the same battery as the dispenser, no additional battery is needed.
3.4 Visitor Registration Unit (VRU)
The VRU counts the number of people going in and out of a room. The
number of visitors can be used as a guideline for when washrooms need to be
cleaned.
The sensor has a flexible measurement direction, just open the two end pieces
and rotate the center unit 90° to change direction. Place one sender and one
receiver at the door frame to the entry of the room. The sensor has a range of
up to 1.7 meters / 5.5 feet. A configurable response time makes the sensor
useful in many different environments and applications.
Each sensor is operated by an embedded battery that will last for 5 years.
3.5 Data Collection Unit (DCU)
The Data Collection Unit, DCU, collects the data from the sensors
(SCUs and VRUs) and sends information to the Tork EasyCube
system. The DCU acts as a communication gateway for all the
sensors that have been paired with it. The unit collects and
processes incoming sensor data.
The DCU has a DC adapter and it has battery backup to ensure
performance during power failure.
The DCU has a built-in GSM/GPRS modem used to connect to Internet. No access to local
physical networks is needed.
Communication between sensors and the DCU is based on SCA proprietary protocol.
3.6 Several DCUs
In order to cover larger areas, several DCUs may be needed. As each DCU has
communication capabilities with the back end server, they can be installed over a large area
with no requirements of in-between communication.
Figure 5 - The battery
operated, touch free Tork
Foam Soap Dispenser
Figure 6 - Visitor
registration unit
Figure 7 - DCU gateway
SCA
5
4 Wireless Communication
There are different sensors in the Tork EasyCube system, but they all communicate in the
same manner.
Figure 8 - Communication overivew
The sensors send data to the DCU with a default defined time interval. The DCU is
configured for Tork dispensers with defined status levels, e.g. Almost Empty, Time for Refill
and Full . If a change in status occurs, the DCU forwards the information to the back-end
server. It is in the back-end where all data is processed and aggregated to useful
information. The customer is provided access to the Tork EasyCube web application for
management and analysis of collected information.
All configurations and settings to the system are done during installation.
SCA
6
5 Technical Specifications
5.1 Radio
Frequency
2.405 GHz
Radio standard
IEEE 802.15.4
5.2 DCU
Power adapter
Input: 90-264V AC, Output: 5V DC, 1.2A
Battery
3.6V, 4.4Ah
Battery backup
Up to 10 hours
Internet connection
GPRS
Dimensions
188 x 188 x 33mm / 7.4 x 7.4 x 1.3 inches
5.3 VRU
Sensors
Infrared (IR)
Battery
3.6V, 2.1Ah
Dimensions
158 x 23 x 23mm / 6.2 x 0.9 x 0.9 inches
5.4 SCU
Sensors
Light
Battery
3V, 500mAh
Dimensions
62 x 50 x 6mm / 2.4 x 2.0 x 0.2 inches
SCA
7
Cautions:
Warning! Only use the power supply provided with the Tork EasyCubeTM.
Warning! If any of the contents of the Tork EasyCubeTM appear to be damaged or broken,
contact SCA Customer Service at 1 866 722 8675.
Important:
Save this instruction manual for future reference.
If any changes to the installation are necessary, please contact SCA for support.
No modification of this equipment is allowed.
Tork EasyCubeTM must be returned to SCA after the end of its service life.
FCC:
Changes or modifications to the equipment not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, the user is
encouraged to contact SCA for support.
