Estone Technology MRD85I Marine Audio Player User Manual SPECIFICATIONS
Estone Technology Inc. Marine Audio Player SPECIFICATIONS
User Manual

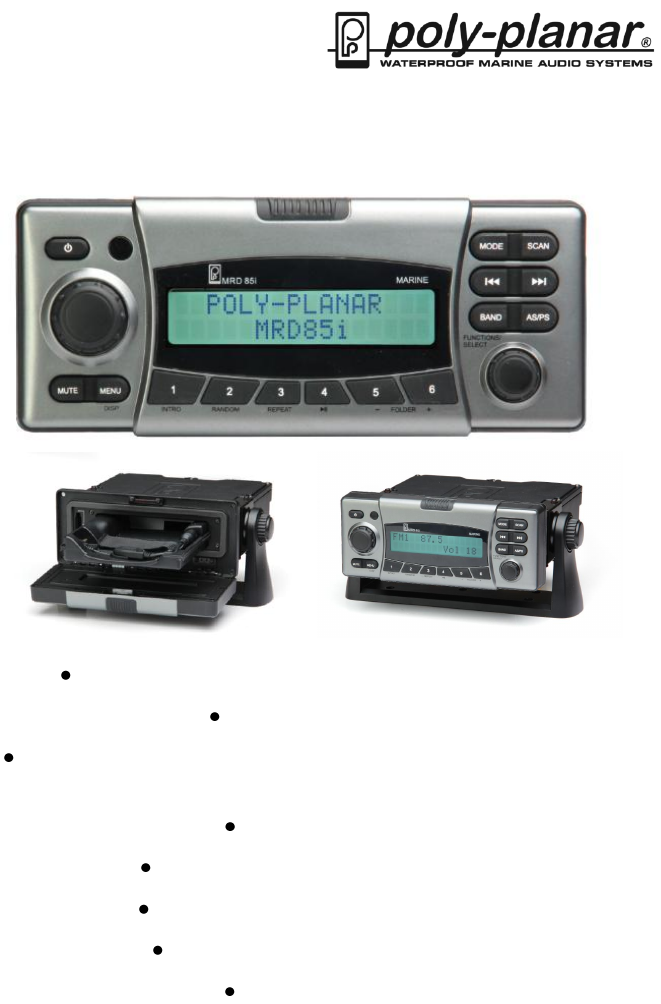

MRD85i OWNER’S MANUAL
BUILT-IN BLUETOOTH WIRELESS AUDIO
SIRIUS READY
DMD READY (Digital Music Device like iPod®, MP3,
Smartphone devices)
USB READY
FLIP DOWN FRONT PANEL
SD MEMORY CARD READY
AM/FM MARINE STEREO
RDS READY
rev 12192012
2
TA B L E O F C O N T E N T S
Installation…...…………………………………………..……………………….3
Wiring Diagram…………………………………………………………………..5
Button Description………………………………………………………………7
Basic Operation………………………………………………………………….8
Radio Operation………………………………………………………………..10
Sirius Operation………………………………………………………………..12
iPod® Operation………………………………………………………………..15
Bluetooth Operation………………………………………………………..…16
Auxiliary Operation……………………………………………………………16
USB Operation………………………………………………………………….17
SD Card Operation…………………………………………………………….18
Compatible Accessories……………………………………………………...20
Troubleshooting………………………………………………………………..21
Technical Specifications……………………………………………………...22
Warranty Information………………………………………………………….23

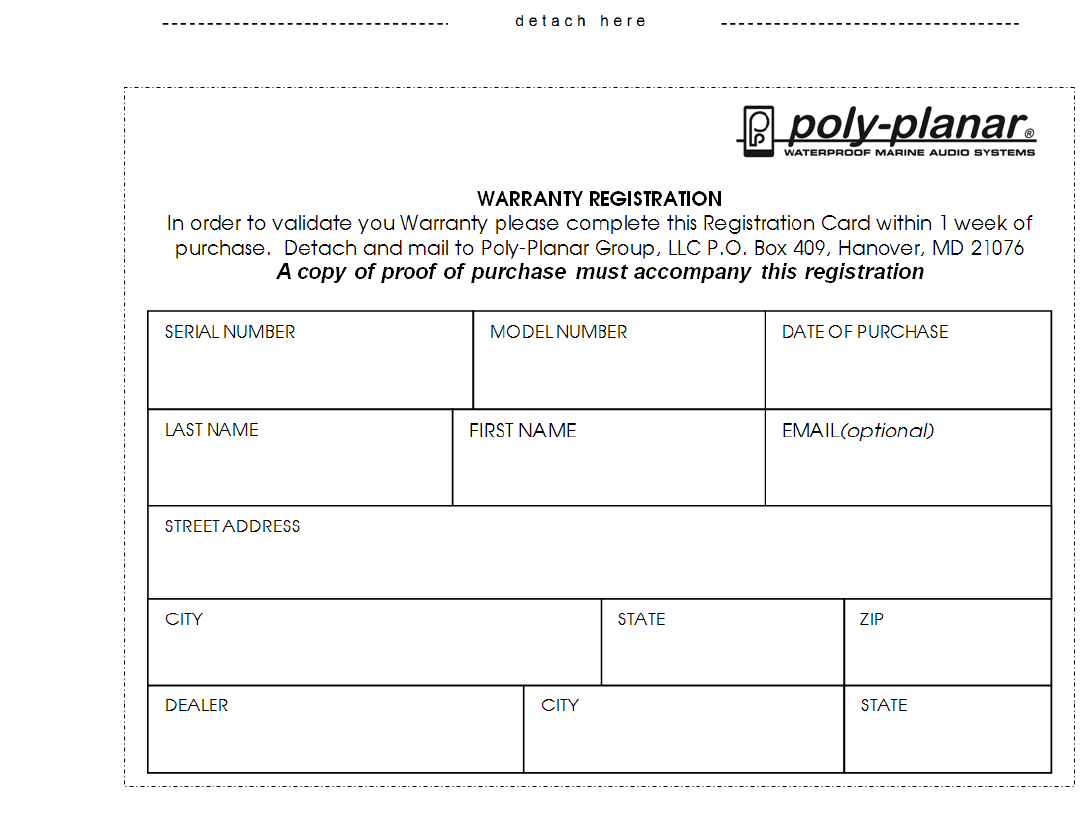

Warranty Registration…………………………………………………………25
3
I N S T A L L AT I O N
IMPORTANT! Before mounting be sure there is sufficient room to
accommodate the unit and that there is sufficient ventilation.
Before installing the unit, connect the wiring temporarily making sure
the system works properly.
Only use the parts included with the unit to ensure proper installation.

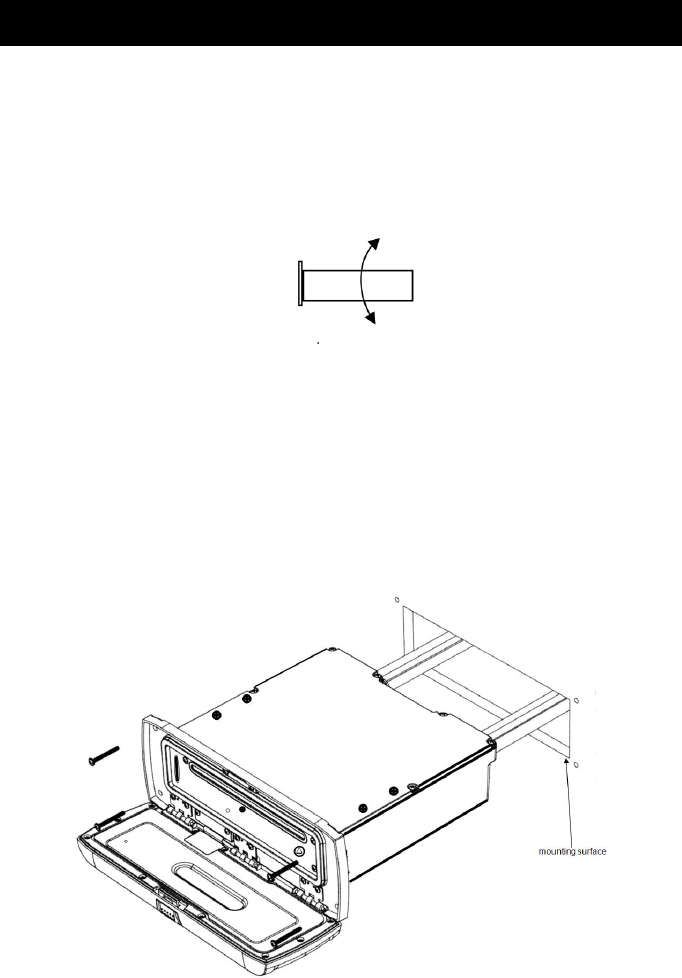

Receiver should be mounted within 30º (+ or— 15º) from Horizontal.
If installation angle exceeds 30° from horizontal, the unit might not give
its optimum performance.
Avoid installing the unit where it would be subject to high temperatures
such as direct sunlight or hot air from heaters or the engine or where it
would be subject to dust, dirt or excessive vibration.
Use the template provided to make the cutout.
With the front panel down insert the 4 provided screws. Use the 5mm
nut and bracket provided to stabilize the rear of the radio.
Be sure to mount the unit to a strong, solid surface which will not give
way under the stress of waves pounding the hull.
4

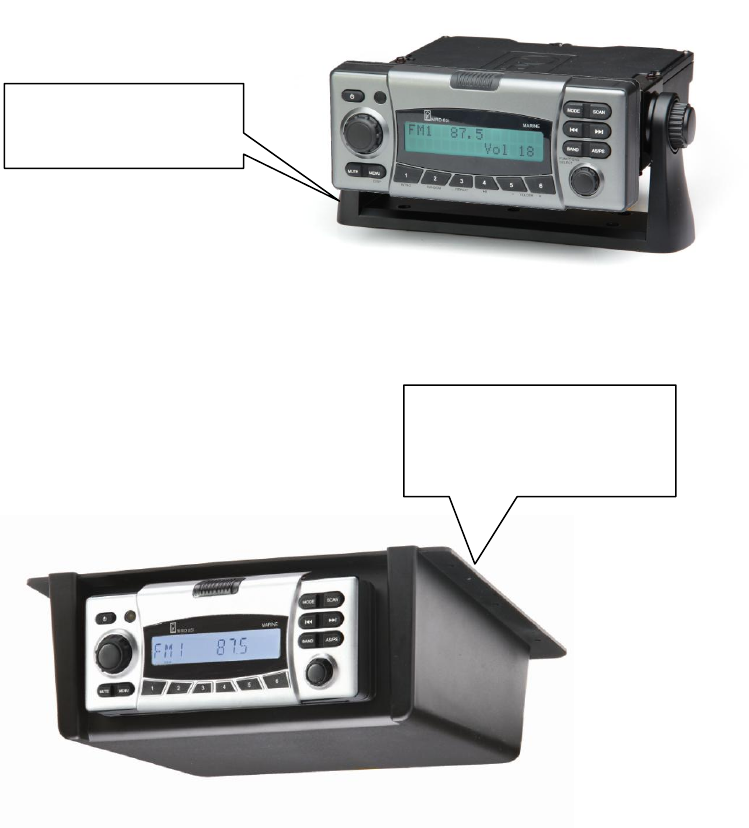

Optional Mounting Techniques
Optional gimbal mount
bracket installation
Model # GM-MRD80
Optional Overhead / Under
Dash mount installation
Model # RM-10
5

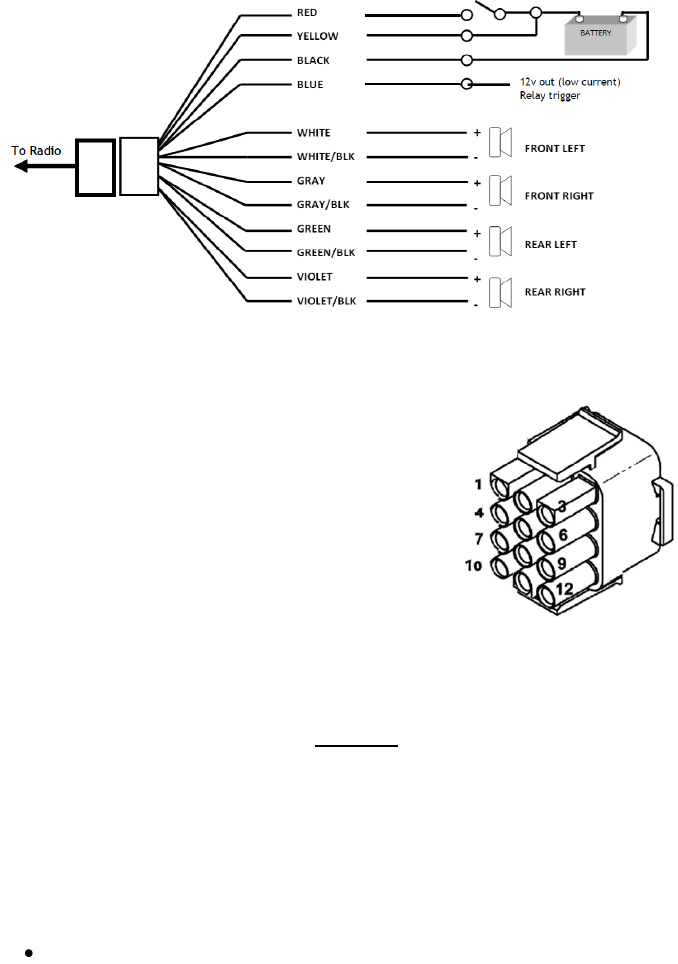

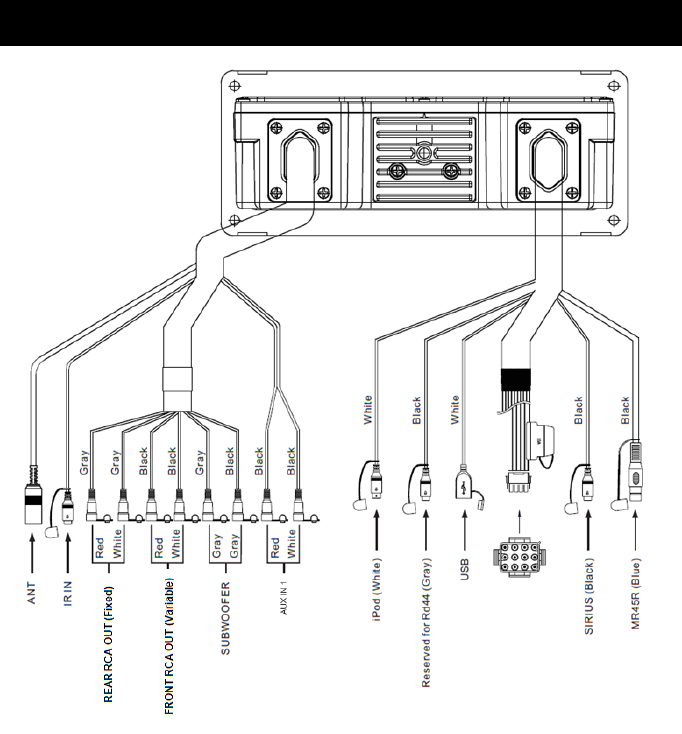

W I R I N G D I A G R AM
Wiring Details:
Use the wired plug end (Pigtail) provided to make power and speaker
connections according to the diagram below. Using this connector will
make it easy to disconnect the radio for adding additional features or
service. Removing the factory plug end will void warranty.
6
Wire Color Function
Yellow 1 B+ (+12VDC)
Green w/stripe 2 Rear Left Speaker-
Green 3 Rear Left Speaker+
Red 4 ACC (+12VDC)
White w/stripe 5 Front Left Speaker-
White 6 Front Left Speaker+
Blue 7 Relay Trigger
Gray w/stripe 8 Front Right Speaker-
Gray 9 Front Right Speaker+
Black 10 Ground (Neg)
Violet w/stripe 11 Rear Right Speaker-
Violet 12 Rear Right Speaker+
Power Wire Specifications:
Yellow Wire - Connect this wire to a constant +12V source.
Red Wire - Connect this wire to a switched +12V source such as an ignition
or accessory switch.
Black Wire - Connect this wire to the negative battery terminal or other
good power ground.
Blue Wire - This wire outputs a 12V signal when the MRD80 turns on. It is
used to remotely turn on external amplifiers.
Notes:
Use the included plug/wire bundle to connect to the power source
and speakers.
7
B U T T O N D E S C R I P T I O N
The Yellow, Red and Black power wires should be 14AWG or larger
depending on the length to the battery. NEVER operate the unit
without the proper power and ground wire.
NEVER ground the speaker leads and NEVER allow the speaker
leads to come in contact with each other. The speaker wire should
be at least 16 gauge or larger. Be sure to observe the correct
polarity on the speaker connections
Use quality crimp connectors to connect wires together. Seal the
connection well with electrical tape.
NEVER operate the unit without proper fusing. Fuse holder must be
located within 2 feet from the battery. This fuse is to protect the
vessel, not the electronics. In case of a short, the fuse will blow
instead of the wire burning up. Using other than the recommended
fuse ratings at the battery and at the unit may cause damage to the
unit and will void your warranty.
Whenever possible, use cable ties, mounting clamps and similar
wiring aids. Adding stress relief loop to wiring is also advisable to
prevent straining or breakage.
If after reading the directions you feel uncomfortable about installing
the unit, or not equipped or competent to do so, you should have
this installed by a professional installer

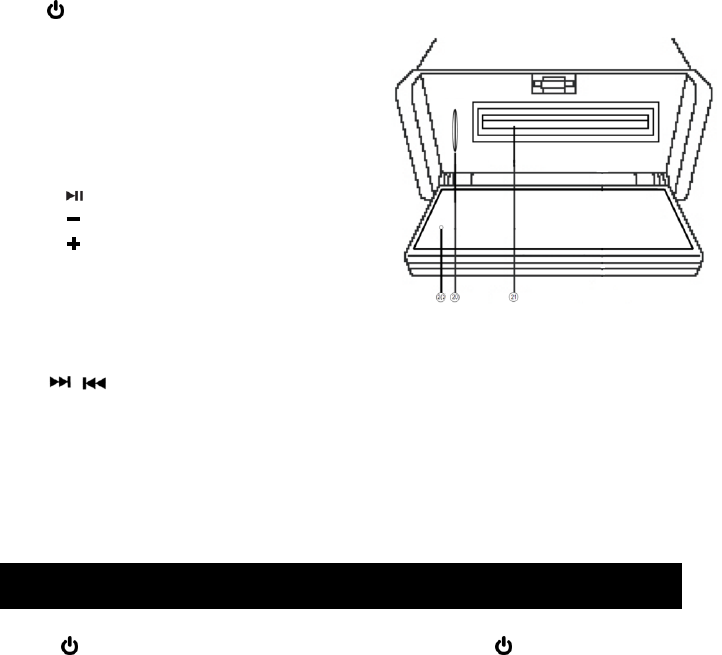

22. RESET
8

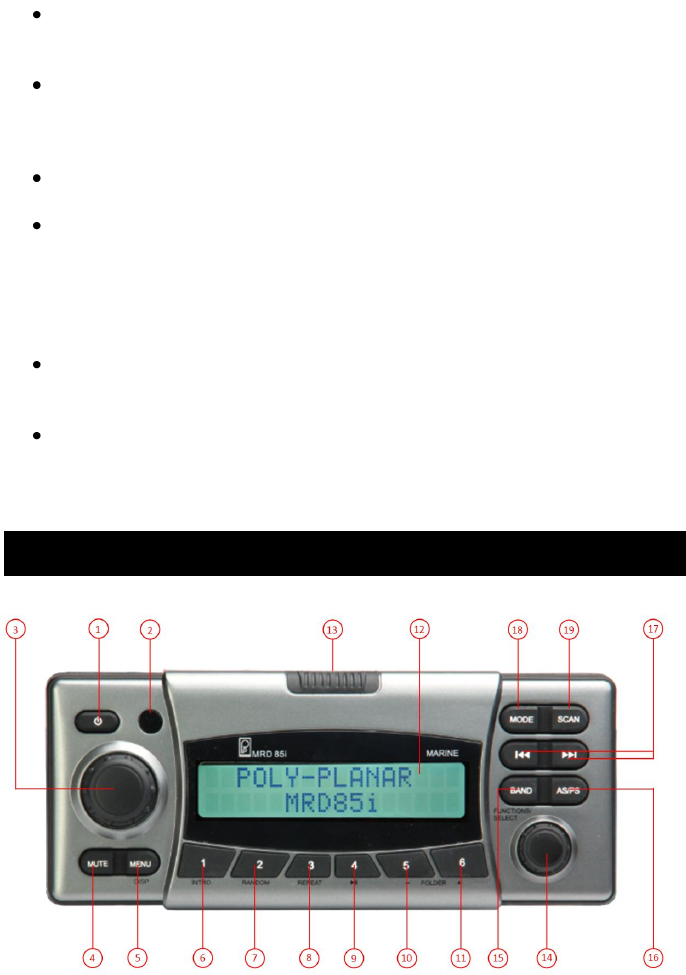

B A S I C O P E R AT I O N
1. - Power Button
2. IR Receiver
3. Volume UP/DOWN Knob
4. MUTE – Mute Button
5. MENU/DISP – Menu/Display Button
6. 1/INTRO - Preset 1/Scan Button
7. 2/RANDOM - Preset 2/Random Button
8. 3/REPEAT - Preset 3/Repeat Button
9. 4/ - Preset 4/(Play/Pause) Button
10. 5/ - Preset 5/Folder down (optional)
11. 6/ - Preset 6/Directory up (optional)
12. LCD Display
13. Front Panel Latch Button
14. Function/Select Knob
15. BAND - Band Button
16. AS/PS - Auto Store and Preset Scan Button
17. – Control Button
18. MODE - Mode Button
19. SCAN – Scan Button

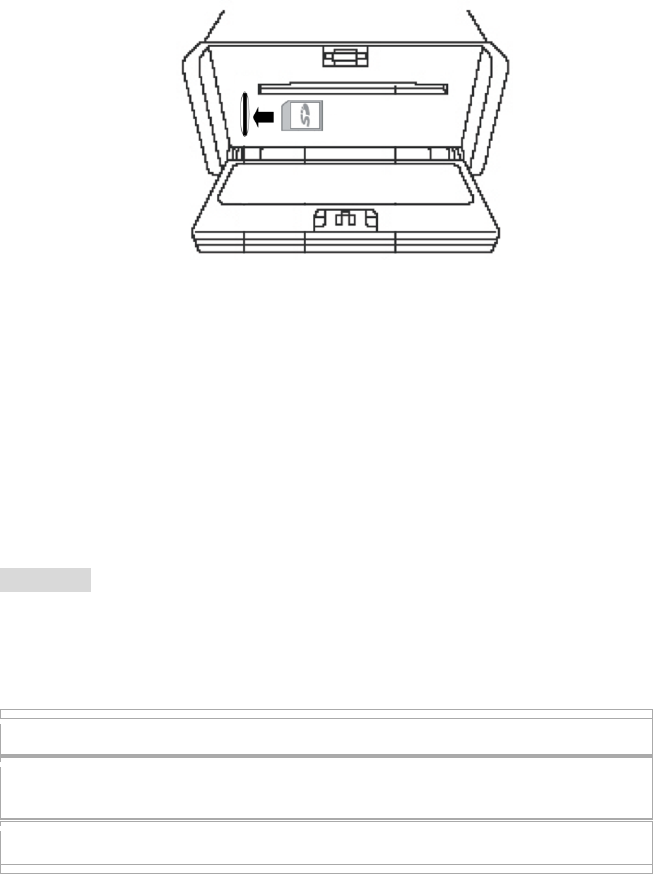

20. SD Card Slot
21. DMD Drawer
SWITCHING ON/OFF THE UNIT
Press button to turn on the unit. Press and hold button for 4 sec
to turn off the unit
OPENING THE FRONT PANEL
Place thumb on the front panel latch button. Firmly depress the button
while pulling the front panel open. Keep door firmly closed except when
changing discs.
ADJUSTING THE AUDIO LEVELS
Press Volume knob to enter audio level menu
(Bass/Treble/Balance/Fader/Sub/EQ/ID3(for MP3 music file only)) then use the
Volume Knob to adjust to your desired setting. Press Volume knob again
to select different functions. Unit will return to normal previous display if
left untouched for 5 seconds.
/
9
Bass Treble Balance Fader Subwoofer EQ Volume ID3
EQ AND SUBWOOFER SETTING
Press Volume knob repeatedly until EQ menu appears then rotate the
volume knob to change EQ setting selection.
EQ: 1 – Optimized for Poly-Planar SP200R or SFS101 spa
speakers or small diameter (3‖) flush mount speakers. MS55
subwoofer is recommended (back channels). Adjust subwoofer
setting by pressing Volume Knob repeatedly until Subwoofer
menu appears on the display then use Volume Knob to adjust to
your desired setting.
EQ: 2 - Optimized for Poly-Planar MA7020 spa speaker. MS55
subwoofer is recommended (back channels). Adjust subwoofer
setting by pressing Volume Knob repeatedly until Subwoofer
menu appears on the display then use Volume Knob to adjust to
your desired setting.
EQ: 3 - Optimized for Poly-Planar MA7500 box speaker. MS55
subwoofer is recommended (back channels). Adjust subwoofer
setting by pressing Volume Knob repeatedly until Subwoofer
menu appears on the display then use Volume Knob to adjust to
your desired setting.
EQ: 4 – Optimized for Poly-Planar MA7500 and/or MA9020 box
speaker or any medium sized box style speakers. Using a
subwoofer is optional.
EQ: 5 - Optimized for Poly-Planar Platinum Series MA6500,
MA6600 MA6800, MA6900 or other similar speakers. Using a
subwoofer is optional.
EQ: 6 - Optimized for Poly-Planar MA3013 and/or MA3030 small
box speaker or any small sized flush mount or box style speakers.
Using a subwoofer is optional.
EQ: OFF – Full range output (front and back channels) –
Optimized for any type of speakers on both front and back
channels
Please Note:
Make sure the EQ setting are set for the speakers you are using.
When using other brands, use the settings based on similar sized
applications.
TUNER FREQUENCY
Press and hold Volume knob for 5 seconds to enter current zone. Then
10
R A D I O O P E R AT I O N
use the Volume Knob to adjust to different setting. Press Function/Select
knob to confirm.
America Australia Japan Europe2 China Europe
MODE SELECTION
Press MODE button to choose desired listening mode. (e.g. Radio mode to
USB mode to AUX IN mode… etc.)
MUTE
Press MUTE button to mute the sound. Press again to return to previous
volume level.
DIMMER CONTROL
Press and hold MENU button for 3 seconds to display current setting.
Then use the Volume Knob to adjust to different setting.
RESET FUNCTION
Open front panel to display reset button. Use a ballpoint pen to press the
reset button. The reset function is used in the following situations:
- All the function buttons do not operate.
- Error sign on the display.
SWITCHING TO RADIO MODE
Press MODE button to select radio mode.
SELECTING THE FREQUENCY BAND
In radio mode, press BAND button to locate the desired band. The
reception band will change in the following order:
FM1 FM2 FM3 AM1 AM2
SELECTING STATION
Press / button to select a station. To use manual tuning, press and
hold / button or use Function/Select knob.
11
AUTOMATIC MEMORY STORING & PRESET SCAN (AS/PS)
The PRESET buttons can be used to store 6 stations in each band (FM 1,
FM 2, FM 3 and AM1, AM2) for convenient access to your favorite stations.
Automatic Storing
Press AS/PS button, the radio searches and checks the signal strength
until one cycle search is finished then the strongest stations are stored into
the corresponding preset number button automatically.
Manual Storing
1. Select the desired band.
2. Select the station you want to store in memory, then press and hold one
of the preset buttons for 3 seconds until the corresponding preset button
number appears.
3. Repeat steps 1 and 2 to program additional stations.
SCAN FUNCTION
Press SCAN button to scan a station. The unit will keep on scanning
every 7 seconds until you press the SCAN button again to stop scan
function.
RDS FUNCTION (if available in your area)
RDS (Radio Data System) - automatically switches to the strongest signal
for the station you are listening so you don't have to retune your radio
manually as you drive around.
If one of the three setting (AF、TA、PTY) is turned on you can check RDS
station information by pressing MENU button then rotate Function/Select
knob to view channel name, frequency or PTY information. If AF/TA/PTY
settings are not turned on, you cannot see this information.
Below are some of the acronyms you will see on the display and what they
stand for:
AF (Alternative Frequency) - shows that RDS is tuning to the strongest
signal for the station you have selected. It retunes to a different frequency
when you move into another area.
AF operations: press MENU button until the AF settings is on display.
Rotate Function/Select knob to turn on/off AF function. The ―AF‖
characters will be displayed on LCD if AF is on. When there is RDS signal
currently playing and the signal is below a certain level, the radio will switch
to the alternative stations which can receive good signal.
12
S I R I U S O P E R AT I O N
TA or TP (Traffic Announcement or Traffic Program) - automatically detects
travel announcements on the nearest local radio station. This facility will
raise the volume of the radio or interrupt a CD or cassette to alert you to a
travel announcement. You can turn the facility on or off, as required.
TA operations: press MENU button until the TA settings is on display.
Rotate Function/Select knob to turn on/off TA function. The ―TA‖
characters will be displayed on LCD if TA is on. Pressing / button
will search stations with TP information. When the station with TP info is
found, the TP will be displayed on LCD and the radio will switch to Radio
mode when there is traffic alarm and will display ―TRAFFIC‖ on LCD.
PTY (Program Type) - shows the type of program, e.g. sport, news,
classical music.
PTY operations: press MENU button until the PTY settings is on display.
Rotate Function/Select knob to turn On(Group 1/Group 2) or Off PTY
function. If PTY and TA is on, PTY information will be displayed on LCD
and the radio will also search all the stations with the same PTY. Use
Preset buttons (1~6) for switching between different PTY’s then press
/ button to search the stations with the same PTY info.
Group 1 Group 1
Preset 1 - "NEWS" Preset 1 - "LIGHT M"
Preset 2 - "INFO" Preset 2 - "WEATHER"
Preset 3 - "EDUCATE" Preset 3 - "SOCIAL"
Preset 4 - "CULTURE" Preset 4 - "TRAVEL"
Preset 5 - "VARIES" Preset 5 - "COUNTRY"
Preset 6 - "ROCK M" Preset 6 - "FOLK M"
If there is no corresponding PTY, it will display ―PTY none‖ and exit PTY
mode.
Please Note: You need SIRIUS TUNER (not included) and you must
activate your SIRIUS TUNER before you can begin to receive the
SIRIUS satellite radio service. Until you subscribe and activate the
SIRIUS service, you can only access channel 000 (the SIRIUS ID
channel) and 184 (Preview Channel). Tune to Channel 000 to display
13
your radio's unique 12-digit SIRIUS ID number (SID). This number is
also available on the back of SIRIUS Tuner SCC1. Write down this
number and call 1-888-539-SIRIUS (1-888-539-7474) with your credit
card handy to activate SIRIUS service. Or, you may go to website
https://activate.siriusradio.com// to activate the service. If you do not
subscribe the full service, the unsubscribed channel will display
"CALL 888-539-SIRIUS to subscribe.
If a SIRIUS TUNER is already connected:
Press MODE button to change to SIRIUS mode.
If there is no SIRIUS TUNER connected this mode will be skipped.
Please connect your SIRIUS Tuner to the SIRIUS port located at the back
of the unit. Then press MODE button to change to SIRIUS mode.
SELECTING A CHANNEL
Press / button to select a channel. Press and Hold or
button to go faster.
SEARCHING CHANNEL NUMBER MANNUALLY
Press AS/PS button ―Select: - - - ‖ will show on the display. Use the
PRESET 1, 2 and 3 buttons to select the desired channel number. When
finished, press Function/Select knob to confirm and play.
Explain as follows:
- If you want to search channel number 151, you have to press 1 button
one time to get 1, then press 2 button five times to get 5, then press 3
button one time to get 1.
- Press Function/Select knob to confirm and play.
SELECT A CHANNEL BY CATEGORY
Press MENU button twice to enter category setting then rotate
FUNCTION/SELECT knob to turn on the category. Use the
FUNCTION/SELECT knob again to navigate to all the categories available
then when done selecting a category press FUNCTION/SELECT knob
once or twice to confirm. The unit will only play the selected category.
SELECTING THE FREQUENCY BAND
In SIRIUS mode, press BAND button to locate the desired band. The
reception band will change in the following order:
S1 S2 S3
14
AUTOMATIC MEMORY STORING
The PRESET buttons can be used to store 6 channels in each band (S1,
S2 and S3) for convenient access to your favorite channels.
1. Select the desired band.
2. Select the channel you want to store in memory, then press and hold one
of the preset buttons for 3 seconds until the corresponding preset button
number appears.
3. Repeat steps 1 and 2 to program additional channels.
PARENTAL CONTROL
You can lock any Sirius channels you do not want others to have access
without your permission. The default code is "5220". In case you forget
your code please disconnect the unit completely from the power.
- GUIDE ON HOW TO ENTER THE CODE USING THE PRESET
BUTTONS
Press preset 1 button five times to enter 5, press preset 2 button two
times to enter 2 and press preset 3 button twice to enter 2. Since the last
number is zero you do not need to press preset 4 button. When done,
press FUNCTION/SELECT knob to confirm.
- TO LOCK A CHANNEL
Select a channel that you wish to lock then press SCAN button ―Lock
Channel‖ will show on the display. Enter the code then press
FUNCTION/SELECT knob to confirm ―Channel Locked‖ will show on the
display
- TO UNLOCK A CHANNEL
Press AS/PS button to manually enter the channel you wish to unlock then
press FUNCTION/SELECT knob then press SCAN button ―Unlock
Channel‖ will show on the display. Enter the code then press
FUNCTION/SELECT knob to confirm ―Channel Unlocked‖ will show on the
display
- TO CHANGE THE CODE
Press and hold SCAN Button ―Old Code‖ will show on the display. Enter
the old code then press FUNCTION/SELECT knob to confirm ―New Code‖
will show on the display. Enter your new code then press
FUNCTION/SELECT knob again to confirm ―SetCode ok‖ will show on the
display.
15
i P o d ® O P E R AT I O N
DISPLAY INFORMATION
Press MENU button to access current display setting. If you want to
change the display setting use the FUNCTION/SELECT knob to change
the display setting to Artist, Song, Composer, Number, Name or Category
information.
SWITCHING TO iPod® MODE
If a device is already connected:
Press MODE button to change to iPod® mode.
If there is no device connected the display will show ―NO iPod®‖ please
follow instructions below on how to connect your devices
Turn on your DMD device then open the front panel to connect the
accessory cable to the connector on the right side of the device drawer then
insert your music device in the drawer. Use one of the 2 adapters
available to connect your device then push the drawer back in place. If
operating an iPod® device please choose the flat 30 pin connector then
press MODE button to change to iPod® mode. If you chose the 3.5mm
plug adapter press MODE button to change to AUX Input 2 mode then refer
AUX Operation on page 16 for further instructions. For iPod® mode, refer
operation instructions below:
SELECTING SONGS
Press or button or rotate Function/Select knob to select a song.
Press and Hold or button to fast forward or rewind a song.
SELECT A SONG BY CATEGORY
Press MENU button to enter current category then rotate
FUNCTION/SELECT knob to select a new category:
PLAYLIST/ARTIST/ALBUM/GENRE/SONG. Press FUNCTION/SELECT
knob to enter the selected category. Press FUNCTION/SELECT knob
again to navigate to all the songs or album then when done selecting a
song or album press FUNCTION/SELECT knob once or twice to confirm
and play. Press MENU button to return to the previous menu screen
PAUSING/PLAYING
Press 4 button to pause the playing. Press 4 button again to resume
playing.
16
A U X O P E R AT I O N
B L U E T O O T H O P E R AT I O N
REPEAT PLAYING
Press 3 button and select ―Repeat: ONE‖ to repeat same song or press 3
button again to select ―Repeat: All‖ to repeat same album. Press 3
button again and select ―Repeat: OFF‖ to stop repeat function.
PLAYING ALL SONGS/ALBUM IN RANDOM ORDER
Press 2 button to play all songs/album in random order.
―Random: Track‖ – to play all tracks in random
―Random: Album‖ – to play all album in random
―Random: OFF – to cancel the random function.
SWITCHING TO BLUETOOTH MODE
If a device is already paired:
Press MODE button to change to Bluetooth (BT) mode.
If there is no device paired the display will show ―No BT Connect‖ please
follow instructions below on how to pair your device
1) Make sure you are close enough to MRD85i
2) Open Bluetooth setting on your device
3) Choose ―Poly-Planar‖ from the list of available Bluetooth link
4) Enter ―0000‖ as the Bluetooth password (if required)
5) Once connected, you can now start playing your favorite music from your
music device.
6) Operating Range is up to 30’ (will vary, dependent on installation)
SELECTING SONGS
Press or button or rotate Function/Select knob to select a song.
This unit can be connected to any portable music devices such as MP3
Player, TV and DVD through the AUX IN located at the back of the unit.
Press MODE button to change the mode to ―AUX Input 1‖ (back) or ―AUX
Input 2‖ (DMD drawer) mode.
Please note: In this mode, all controls and functions must be controlled
from your music device.
17
U S B O P E R AT I O N
SWITCHING TO USB MODE
If there is no USB inserted in the driver:
Insert a USB through the USB port located at the back of the unit then
press MODE button to change to USB mode.
If a USB is already inserted in the driver:
Press MODE button to change to USB mode.
SELECTING SONGS
Press or button or rotate Function/Select knob to select a song.
Press and Hold or button to fast forward or rewind a song.
SELECTING SONGS BY FOLDER
Note: Make sure RPT MODE is off before using this function
Press 5 button or 6 button to select folder downward or upward. If a folder
does not exist or does not have music files, it will be skipped.
SEARCHING TRACK NUMBER DIRECTLY
Press the AS/PS button ―Select:000‖ will show on the display. The 0’s
indicates the track numbers. Use the PRESET buttons to select the
desired track number. When finished, press Function/Select knob to
confirm and play.
Explain as follows:
- If you have 600 tracks saved in the CD, the display will show ―SCH000‖
- If you want to search track number 176, you have to press 1 button
one time to get 1, then press 2 button seven times to get 7, then press 3
button six times to get 6.
- Press Function/Select knob to confirm and play.
DISPLAY INFORMATION (music files only)
Press MENU button to display information (i.e. folder name, song title,
album name, artist, etc.) of the song that is currently playing (if available).
PREVIEWING ALL TRACKS
Press 1 button to play all songs in intro mode. The unit will play the first
10 seconds of each song continuously until you press 1 button again to
stop intro function.
PLAYING ALL TRACKS IN RANDOM ORDER
18
SD C A R D O P E R AT I O N
Press 2 button and select ―Random: Track‖ to play all tracks in random.
Press 2 button and select ―Random: Off‖ to cancel random function.
REPEAT FUNCTION
Press 3 button and select ―Repeat: ONE‖ to repeat same song. Press 3
button and select ―Repeat: ALL‖ to repeat all tracks or to stop repeat
function.
PAUSE FUNCTION
Press 4 button to pause player. Press 4 button again to resume play.
IMPORTANT NOTE:
Some USB devices may not be compatible with the unit.
Some USB devices may take more than 45 seconds to initiate after
plugging in. If this happen, try to remove the USB memory stick and insert
it again.
CAUTION
If there are important files in the USB device, do not connect it to the main
unit to play. Any wrong operation may cause file loss. Our company
assumes no responsibility for lost files or directories.
Media type USB (can support USB2.0 but the speed is USB1.1.)
Capacity up to 999 songs
SWITCHING TO SD MODE
If SD card is already inserted in the driver:
Press MODE button to change to SD Card mode.
If there is no SD card inserted in the driver:
Insert SD card through the SD card port located in front of the unit. Press
MODE button to change to SD Card mode.
Warning!: Do not over-insert the card as this can damage the contact pins.
19
Refer USB operation on pages 17 for further instructions.
REMOVING THE SD CARD
Firmly press the card into the slot and release it. The card should pop
partially out of the slot.
IMPORTANT NOTE:
Some Memory Card devices may not be compatible with the unit.
Some Memory Card devices may take more than 45 seconds to initiate
after plugging in. If this happen, try to remove the memory card and insert
it again.
CAUTION
Be sure to use only recommended SD cards (<32GB). Using non-
recommended SD cards could cause data loss and damage your device.
If there are important files in the memory card, do not connect it to the main
unit to play. Any wrong operation may cause file loss. Our company
assumes no responsibility for lost files or directories.
Media type Memory Card
Capacity Standard SD: up to 999 songs
SDHC: up to 999 songs
Dimensions 32 × 24 × 2.1 mm
20
C O M PAT I B L E AC C E S S O R I E S ( s o l d s e p a r a t e l y )
MR45R Wired Remote Control – connect to the back of the unit labeled
―TO MR45R‖. You can add up to 2 MR45R in conjunction with CMR-Y7.
MRR21 IR Wireless Remote Control - the IR eye is located next to the
volume button and must be in line of site for the remote to operate.
MRRF18 RF Wireless Remote Control with Receiver – simply connect
the receiver to the IR port located at the back of the unit. This will give you
the ability to control your stereo through walls and doors.
ACX-10 USB/AUX accessory extension cable - provides easy access to
your USB input and Aux input
IC-3.5PM MP3 /iPod/ Satellite Radio Panel Mount Adapter - allows you
to connect your MP3 player, iPod® or satellite radio to any audio device
with RCA inputs
IR-4050 IR Sensor with 9'cable - connect this IR sensor to the IR port
located at the back of the unit. This is an IR sensor, another way to point
your MRR21 without going to the front of the stereo.
SCC1B1 - Sirius Tuner-without antenna
SRA-40 - Sirius Satellite Antenna with pedestal mount
21
T R O U B L E S H O O T I N G
PROBLEM CAUSE CORRECTIVE
ACTION
No power Blown fuse, power
wires disconnected Check the fuse and
power wire or ground
wire connection
No sound Mute is on, Volume set
at minimum, wiring is
not properly connected
Turn Mute to off, adjust
volume to a desired
level, check the
speaker wire
Cannot read some
USB devices This unit is not 100%
compatible with all
USB devices or the
USB devices has
special format.
Try to format the USB
device in FAT 16/32
standard
Unit powers off by
itself The battery may be too
low (the unit operating
voltage is 10.8v to
15.6v).
Unit takes about 45
seconds to
recognize some
USB device or SD
card
This is normal. The
unit sometimes takes
longer time to read all
the files inside the USB
device or SD Card.
Try to remove the USB
device or memory card
and insert it again.
Operations keys do
not work Press the RESET
button
The unit picks up
engine noise. Check the ground wire.
The radio does not
work. The radio
station automatic
selection does not
work
The antenna cable is
not connected or the
signals are too weak
Insert the antenna
cable firmly or select a
station manually
22
T E C H N I C A L S P E C I F I C AT I O N S
TUNER(AM)
Frequency Range 530-1710 KHz
Usable Sensitivity 32 dBuV
TUNER(FM)
Frequency Range 87.5-107.9 MHz
Channel Step 200KHz
Sensitivity 2.8 uV
Stereo Separation 30dB
Signal to Noise Ratio 50dB
LINE-OUT
Output 5 Volt ( max )
Impedance 33 Ohm
GENERAL
Power Supply 12V DC (10.8-15.6V
allowable)
Speaker Impedance 4 or 8 ohm
Output Power 45W x 4CH
Fuse 15A
NOTE: Specification & design subject to change without notice for
improvements.
Note: This device is designed for DC power supplied only,
and this produced is usually installed in the car or boat.
23
W A R R A N T Y I N F O R M AT I O N
This unit is warranted to be free of defects in material and workmanship for
a period of two years. Warranty is subject to proper installation and
operation within the published specifications. Except as provided below,
Poly-Planar will repair or replace, at its discretion, any unit returned prepaid
to our facility with proper documentation and determined to be defective in
normal use. Poly-Planar is not liable for any consequential damages.
LIMITS OF LIABILITY
Proof of date of purchase is required for warranty service of this unit.
Poly-Planar will consider this warranty void if unit has been tampered with
or has had serial number altered, defaced or removed. Poly-Planar
warranty does not cover damage incurred in transit, accident, abuse,
misuse, negligence, fire, flood, lightning, or unauthorized service. This
warranty assumes no responsibility for damages incurred during installation
of this equipment. This warranty does not cover labor costs for removal of
defective unit or reinstallation of replacement unit. This warranty covers
normal consumer use only. In no event shall Poly-Planar be liable for
special, incidental, or consequential damages.
To obtain service under this warranty, please call Poly-Planar for a
RETURN AUTHORIZATION NUMBER. After a return authorization
number is issued, return unit with proof of purchase and a letter stating your
return address, daytime phone number and detail description of the
problem or malfunction
poly-planar
Maryland, USA
(410) 761-4200
www.polyplanar.com
FCC Warning:
z This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
z (1) this device may not cause harmful interference, and
z (2) this device must accept any interference received, including interference that
may cause undesired operation.
z Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
z NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
z -- Reorient or relocate the receiving antenna.
z -- Increase the separation between the equipment and receiver.
z -- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
z -- Consult the dealer or an experienced radio/TV technician for help.
FCC RF warning statement: The device has been evaluated to meet general RF
exposure requirement.The device can be used in portable exposure condition
without restriction.
24
NOTES:
25
