Etymotic Research ER89 Bluetooth Headset User Manual

Etymotic Research, Inc. Bluetooth Headset

user manual

User Manual Bluetooth HeadsetetyBLUDetachable Boom Mic

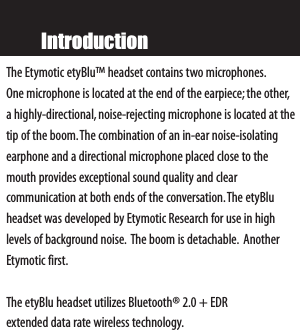

IntroductionThe Etymotic etyBlu™ headset contains two microphones.One microphone is located at the end of the earpiece;the other,ahighly-directional, noise-rejecting microphone is located at thetip of the boom.The combination of an in-ear noise-isolatingearphone and a directional microphone placed close to themouth provides exceptional sound quality and clear communication at both ends of the conversation.The etyBluheadset was developed by Etymotic Research for use in high levels of background noise. The boom is detachable. AnotherEtymotic first.The etyBlu headset utilizes Bluetooth® 2.0 + EDR extended data rate wireless technology.

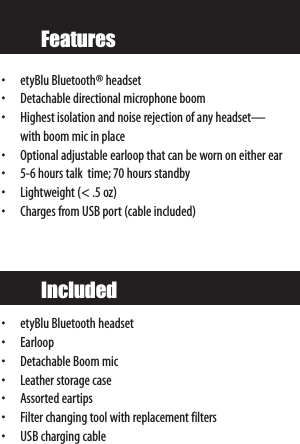

Features• etyBlu Bluetooth® headset• Detachable directional microphone boom• Highest isolation and noise rejection of any headset—with boom mic in place• Optional adjustable earloop that can be worn on either ear• 5-6 hours talk time; 70 hours standby• Lightweight (< .5 oz)• Charges from USB port (cable included)•etyBlu Bluetooth headset•Earloop• Detachable Boom mic• Leather storage case• Assorted eartips • Filter changing tool with replacement filters•USB charging cableIncluded

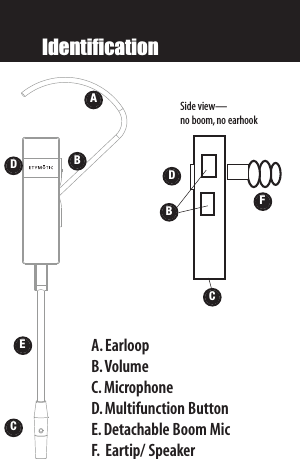

IdentificationDCAEBA. EarloopB.Volume C. MicrophoneD.Multifunction Button E.Detachable Boom MicF. Eartip/ SpeakerFCSide view—no boom,no earhookBD

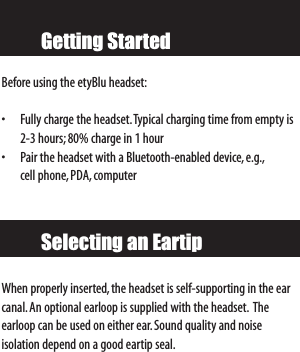

Getting StartedBefore using the etyBlu headset:• Fully charge the headset.Typical charging time from empty is2-3 hours; 80% charge in 1 hour• Pair the headset with a Bluetooth-enabled device,e.g.,cell phone,PDA, computerWhen properly inserted,the headset is self-supporting in the earcanal.An optional earloop is supplied with the headset. The earloop can be used on either ear.Sound quality and noise isolation depend on a good eartip seal.Selecting an Eartip

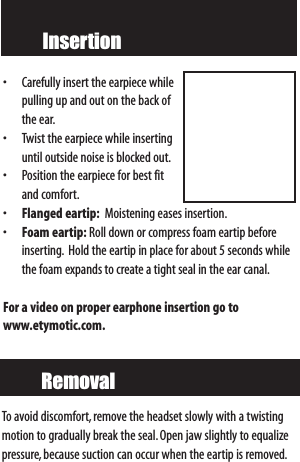

Insertion• Carefully insert the earpiece whilepulling up and out on the back ofthe ear.• Twist the earpiece while insertinguntil outside noise is blocked out.• Position the earpiece for best fitand comfort.•Flanged eartip: Moistening eases insertion.•Foam eartip: Roll down or compress foam eartip beforeinserting. Hold the eartip in place for about 5 seconds whilethe foam expands to create a tight seal in the ear canal.For a video on proper earphone insertion go to www.etymotic.com.RemovalTo avoid discomfort, remove the headset slowly with a twistingmotion to gradually break the seal.Open jaw slightly to equalizepressure,because suction can occur when the eartip is removed.

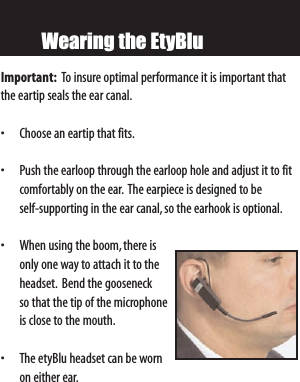

Wearing the EtyBluImportant: To insure optimal performance it is important thatthe eartip seals the ear canal.• Choose an eartip that fits.• Push the earloop through the earloop hole and adjust it to fitcomfortably on the ear. The earpiece is designed to be self-supporting in the ear canal, so the earhook is optional.• When using the boom,there isonly one way to attach it to theheadset. Bend the gooseneck so that the tip of the microphoneis close to the mouth.• The etyBlu headset can be wornon either ear.

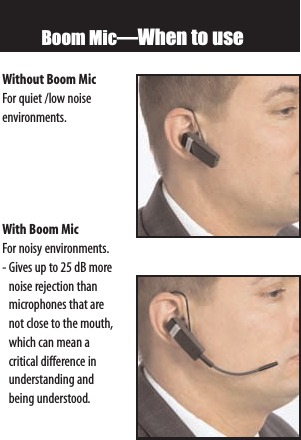

Boom Mic—When to useWithout Boom MicFor quiet /low noiseenvironments.With Boom Mic For noisy environments.-Gives up to 25 dB morenoise rejection thanmicrophones that are not close to the mouth,which can mean a critical difference in understanding and being understood.

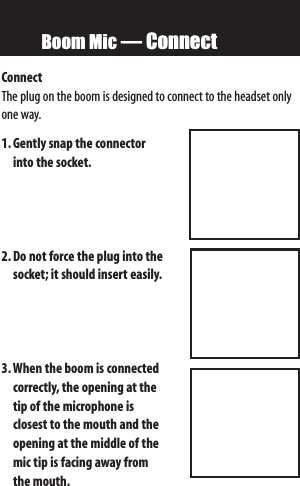

Boom Mic — ConnectConnect The plug on the boom is designed to connect to the headset onlyone way.1. Gently snap the connector into the socket.2. Do not force the plug into thesocket; it should insert easily.3.When the boom is connectedcorrectly, the opening atthetip of the microphone is closest tothe mouth and theopening atthe middle of themic tip is facing awayfromthe mouth.

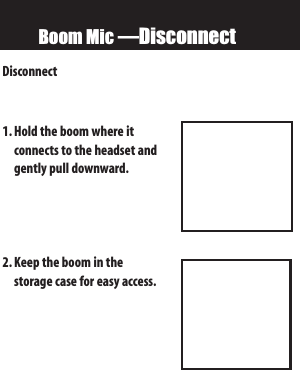

Boom Mic —DisconnectDisconnect1. Hold the boom where it connects to the headset andgently pull downward.2. Keep the boom in the storage case for easy access.

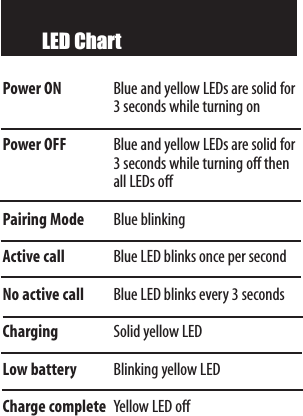

LED ChartPower ON Blue and yellow LEDs are solid for 3seconds while turning onPower OFF Blue and yellow LEDs are solid for 3seconds while turning off thenall LEDs off Pairing Mode Blue blinkingActive call Blue LED blinks once per secondNo active call Blue LED blinks every 3 secondsCharging Solid yellow LEDLow battery Blinking yellow LEDCharge complete YellowLED off

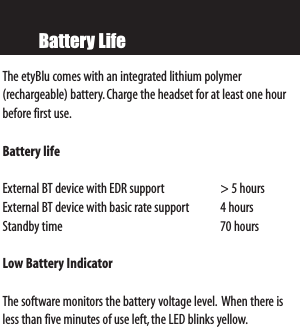

Battery LifeThe etyBlu comes with an integrated lithium polymer (rechargeable) battery.Charge the headset for at least one hourbefore first use.Battery life External BT device with EDR support > 5 hoursExternal BT device with basic rate support 4 hoursStandby time 70 hoursLow Battery Indicator The software monitors the battery voltage level. When there isless than five minutes of use left,the LED blinks yellow.

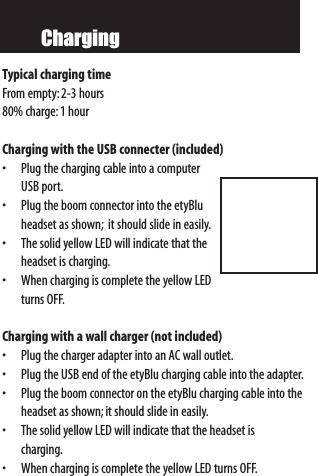

ChargingTypical charging timeFrom empty:2-3 hours80% charge:1 hourCharging with the USB connecter (included) • Plug the charging cable into a computerUSB port.• Plug the boom connector into the etyBluheadset as shown; it should slide in easily.• The solid yellow LED will indicate that theheadset is charging.• When charging is complete the yellow LEDturns OFF.Charging with a wall charger (not included)• Plug the charger adapter into an AC wall outlet.• Plug the USB end of the etyBlu charging cable into the adapter.• Plug the boom connector on the etyBlu charging cable into theheadset as shown;it should slide in easily.• The solid yellow LED will indicate that the headset is charging.• When charging is complete the yellow LED turns OFF.

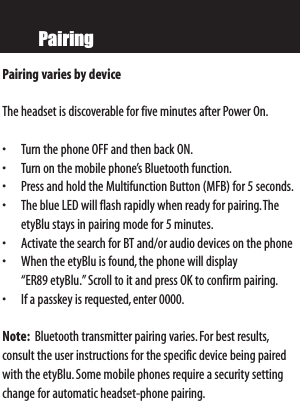

PairingPairing varies by device The headset is discoverable for five minutes after Power On.• Turn the phone OFF and then back ON.• Turn on the mobile phone’s Bluetooth function.• Press and hold the Multifunction Button (MFB) for 5 seconds.• The blue LED will flash rapidly when ready for pairing.TheetyBlu stays in pairing mode for 5 minutes.• Activate the search for BT and/or audio devices on the phone• When the etyBlu is found,the phone will display “ER89 etyBlu.”Scroll to it and press OK to confirm pairing.• If a passkey is requested,enter 0000.Note: Bluetooth transmitter pairing varies.For best results,consult the user instructions for the specific device being pairedwith the etyBlu.Some mobile phones require a security settingchange for automatic headset-phone pairing.

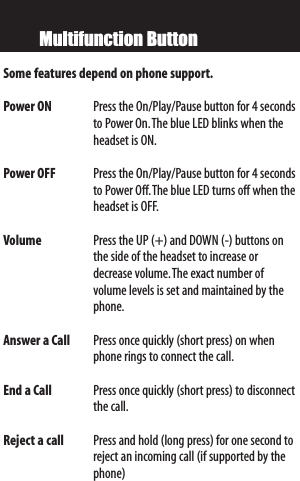

Multifunction ButtonSome features depend on phone support.Power ON Press the On/Play/Pause button for 4 secondsto Power On.The blue LED blinks when theheadset is ON.Power OFF Press the On/Play/Pause button for 4 secondstoPower Off.The blue LED turns off when theheadset is OFF.Volume Press the UP (+) and DOWN (-) buttons onthe side of the headset toincrease ordecrease volume.The exact number of volume levels is set and maintained by thephone.Answer a Call Press once quickly (short press) on whenphone rings to connect the call.End a Call Press once quickly (short press) to disconnectthe call.Reject a call Press and hold (long press) for one second toreject an incoming call (if supported by thephone)

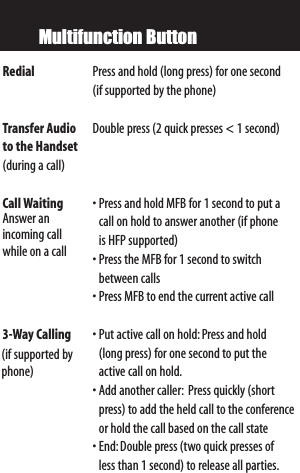

Multifunction Button Redial Press and hold (long press) for one second (if supported by the phone)Transfer Audio Double press (2 quick presses < 1 second)to the Handset(during a call)Call Waiting •Press and hold MFB for 1 second to put a call on hold to answer another (if phone is HFP supported)•Press the MFB for 1 second to switchbetween calls•Press MFB to end the current active call3-Way Calling •Put active call on hold:Press and hold (long press) for one second to put the active call on hold.•Add another caller: Press quickly (shortpress) to add the held call to the conferenceor hold the call based on the call state•End:Double press (two quick presses of less than 1 second) to release all parties.Answer anincoming callwhile on a call(if supported byphone)

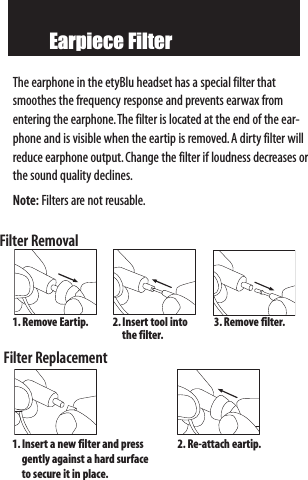

Earpiece FilterThe earphone in the etyBlu headset has a special filter thatsmoothes the frequency response and prevents earwax fromentering the earphone.The filter is located at the end of the ear-phone and is visible when the eartip is removed.A dirty filter willreduce earphone output.Change the filter if loudness decreases orthe sound quality declines.Note: Filters are not reusable.Filter RemovalFilter Replacement1. RemoveEartip. 2.Insert tool intothe filter.3. Removefilter.1.Insertanewfilter and press gently against a hard surface to secure it in place.2. Re-attach eartip.

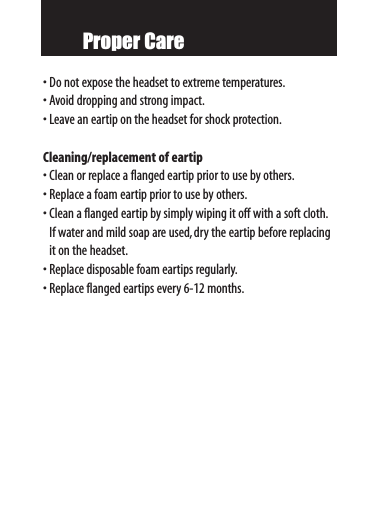

Proper Care•Do not expose the headset to extreme temperatures.•Avoid dropping and strong impact.•Leave an eartip on the headset for shock protection.Cleaning/replacement of eartip•Clean or replace a flanged eartip prior to use by others.•Replace a foam eartip prior to use by others.•Clean a flanged eartip by simply wiping it off with a soft cloth.If water and mild soap are used,dry the eartip before replacingit on the headset.•Replace disposable foam eartips regularly.•Replace flanged eartips every 6-12 months.

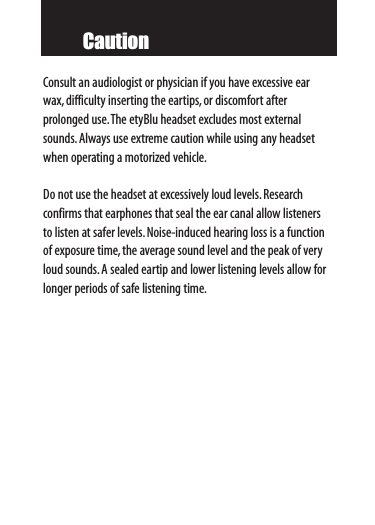

CautionConsult an audiologist or physician if you have excessive earwax,difficulty inserting the eartips,or discomfort after prolonged use.The etyBlu headset excludes most externalsounds.Always use extreme caution while using any headsetwhen operating a motorized vehicle.Do not use the headset at excessively loud levels.Research confirms that earphones that seal the ear canal allow listenersto listen at safer levels.Noise-induced hearing loss is a functionof exposure time,the average sound level and the peak of veryloud sounds.A sealed eartip and lower listening levels allow forlonger periods of safe listening time.

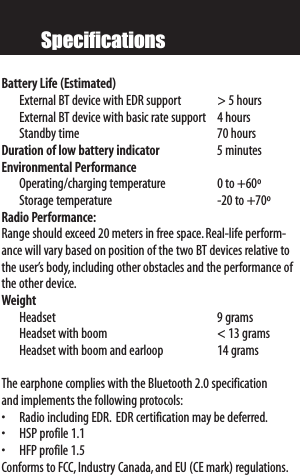

SpecificationsBattery Life (Estimated)External BT device with EDR support > 5 hoursExternal BT device with basic rate support 4 hoursStandby time 70 hoursDuration of low battery indicator 5minutesEnvironmental PerformanceOperating/charging temperature 0 to +60ºStorage temperature -20 to +70ºRadio Performance:Range should exceed 20 meters in free space.Real-life perform-ance will vary based on position of the two BT devices relative tothe user’s body, including other obstacles and the performance ofthe other device.WeightHeadset 9gramsHeadset with boom < 13 gramsHeadset with boom and earloop 14 gramsThe earphone complies with the Bluetooth 2.0 specification and implements the following protocols:• Radio including EDR. EDR certification may be deferred.• HSP profile 1.1• HFP profile 1.5Conforms to FCC,Industry Canada,and EU (CE mark) regulations.

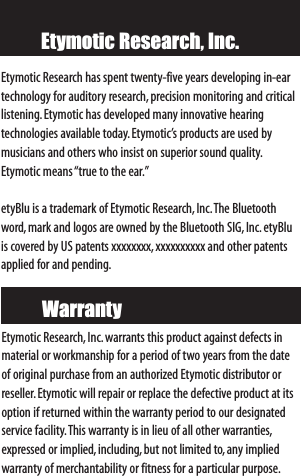

Etymotic Research, Inc.Etymotic Research,Inc. warrants this product against defects inmaterial or workmanship for a period of two years from the dateof original purchase from an authorized Etymotic distributor orreseller.Etymotic will repair or replace the defective product at itsoption if returned within the warranty period to our designatedservicefacility.This warranty is in lieu of all other warranties,expressed or implied,including, but not limited to,any impliedwarranty of merchantability or fitness for a particular purpose.WarrantyEtymotic Research has spent twenty-five years developing in-eartechnology for auditory research,precision monitoring and criticallistening.Etymotic has developed many innovative hearing technologies available today.Etymotic’s products are used bymusicians and others who insist on superior sound quality.Etymotic means “true to the ear.”etyBlu is a trademark of Etymotic Research,Inc.The Bluetoothword,mark and logos are owned by the Bluetooth SIG,Inc.etyBluis covered by US patents xxxxxxxx,xxxxxxxxxx and other patentsapplied for and pending.

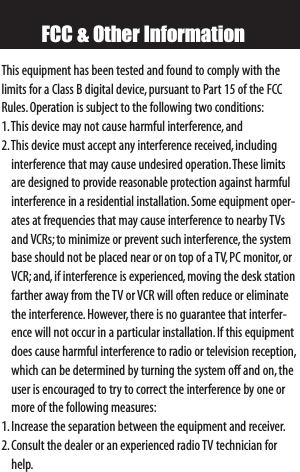

FCC & Other InformationThis equipment has been tested and found to comply with thelimits for a Class B digital device,pursuant to Part 15 of the FCCRules.Operation is subject to the following two conditions:1.This device may not cause harmful interference,and2.This device must accept any interference received,includinginterference that may cause undesired operation.These limitsare designed to provide reasonable protection against harmfulinterference in a residential installation.Some equipment oper-ates at frequencies that may cause interference to nearby TVsand VCRs;to minimize or prevent such interference,the systembase should not be placed near or on top of a TV, PC monitor,orVCR;and,if interference is experienced,moving the desk stationfarther away from the TV or VCR will often reduce or eliminatethe interference.However, there is no guarantee that interfer-ence will not occur in a particular installation.If this equipmentdoes cause harmful interference to radio or television reception,which can be determined by turning the system off and on,theuser is encouraged to try to correct the interference by one ormore of the following measures:1.Increase the separation between the equipment and receiver.2.Consult the dealer or an experienced radio TV technician forhelp.

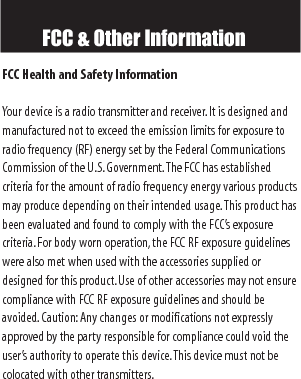

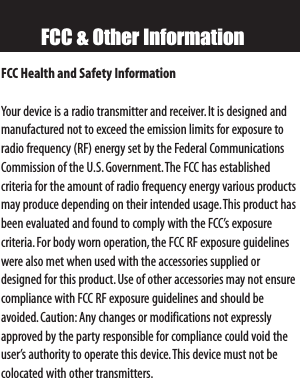

FCC & Other InformationFCC Health and Safety InformationYour device is a radio transmitter and receiver. It is designed andmanufactured not to exceed the emission limits for exposure toradio frequency (RF) energy set by the Federal CommunicationsCommission of the U.S.Government.The FCC has established criteria for the amount of radio frequency energy various productsmay produce depending on their intended usage.This product hasbeen evaluated and found to comply with the FCC’s exposure criteria.For body worn operation,the FCC RF exposure guidelineswere also met when used with the accessories supplied ordesigned for this product.Use of other accessories may not ensurecompliance with FCC RF exposure guidelines and should be avoided.Caution: Any changes or modifications not expresslyapproved by the party responsible for compliance could void theuser’s authority to operate this device.This device must not becolocated with other transmitters.
ETYMOTIC RESEARCH INC.61 Martin Lane • Elk Grove Village, IL 60007www.etymotic.com • 1-888-ETYMOTIC©2008. etyBlu is a trademark of Etymotic Research,Inc..
