Euro Communication EquipementS BTD4 BTD4 User Manual ST Sound Blaster
Euro Communication Equipement SAS BTD4 ST Sound Blaster
User manual
SuperTooth
BTD4
SuperTooth BTD4
SuperTooth BTD4 is a portable, powerful wireless speaker featuring NFC
technology. Users can stream music wirelessly from any cell phone, tablet,
computer, laptop or Mp3 player supporting Bluetooth A2DP*. The SuperTooth
BTD4 comes with 3.5 mm stereo jack cable for devices that do not support
Bluetooth A2DP.

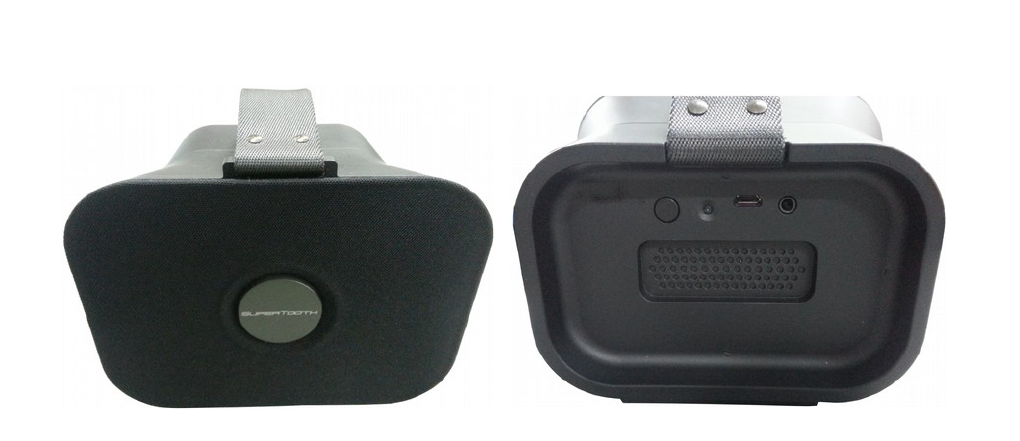

Product Overview
Charging the SUPERTOOTH BTD4
1. Connect the charger’s plug into the Charger Port of the SuperTooth BTD4.
Connect the charger to an external power source or to your computer USB.
2. The Charge Indicator will light red while charging.
Turning the SUPERTOOTH BTD4 On and Off
Power On: Press and hold the MFB button for 3 seconds. A power on beep will
be heard on the speaker.
Note: At first time use, turning on the SuperTooth BTD4 will
automatically go to pairing mode (ready to be pair).
Power Off: Press and hold the MFB button for 3 seconds. A power off beep will
be heard on the speaker.
*A2DP (Advanced Audio Distribution Profile) is a technology enabling to stream stereo sound from an audio source
(phone, computer or laptop) to a stereo speaker or headset via Bluetooth. To do so both devices must support this profile.
2
MFB
Button
LED
Indicator
Charger
Port
tPlug
Line-in
Port
Back View
Front View
Speaker
Pairing the SuperTooth BTD4 with your Bluetooth A2DP phone
Pair the SuperTooth BTD4 to your phone to create the link or audio connection
between the two. Pairing should be done at first connection to a phone.
NFC Pairing:
1. Turn “ON” the SuperTooth BTD4.
2. Place your NFC supported phone on top of the speaker (see image above).
3. The speaker will go to pairing mode (a pairing beep will be heard on the
speaker and the LED indicator will turn red/blue alternately) and your phone
will prompt for pairing connection.
4. Follow the pairing prompts on your phone until pairing is finished.
5. Pairing is successful if the LED indicator blinks blue every 3 seconds.
6. The SuperTooth BTD4 is now ready to use with your phone.
Pairing from Off:
1. From Off, Press and hold the MFB button for 8 seconds until the LED
indicator flashes red/blue alternately. This indicates that the SuperTooth
BTD4 is ready to be paired.
2. While the SuperTooth BTD4 is in pairing mode, access the Bluetooth menu of
your phone. Turn on its Bluetooth function then execute a Bluetooth search to
find the SuperTooth BTD4. (See your phone’s manual).
3. When the phone displays the list of Bluetooth devices, select ST DISCO4.
4. If the phone asks for the password/pin code, enter 0000 and press OK.
5. Pairing is successful if the LED indicator blinks blue every 3 seconds.
6. The SuperTooth BTD4 is now ready to use with your phone/device.
Pairing from On:
1. From On, Press and hold the MFB button for 5 seconds until the LED
indicator flashes red/blue alternately. This indicates that the SuperTooth
BTD4 is ready to be paired.
Note: if the button is released at 3 seconds, it will just turn off the speaker.
2. Follow the step no. 2 up to 5 of “Pairing from Off”.
3. The SuperTooth BTD4 is now ready to use with your phone/device.
3
Using the SUPERTOOTH BTD4 with your Bluetooth A2DP phone
IMPORTANT: The SuperTooth BTD4 needs to be “paired” with your phone first.
Please refer to Pairing the SuperTooth BTD4 with your Phone.
Streaming Music from an A2DP Phone
1. Go to your phone’s music player and play a track by pressing “Play” on your
player or short press the MFB button on the speaker. If the SuperTooth BTD4
is connected, the music will be heard directly in the speaker. See your
phone’s manual if needed.
2. Audio is now on the SuperTooth BTD4. At this point, the LED indicator blink
blue slowly every 3 seconds indicating that phone is streaming with the
SuperTooth BTD4.
SUPERTOOTH BTD4 Button Functions (for Bluetooth connections only)
The SuperTooth BTD4 can play and pause through MFB Button.
To play a track, short press the MFB Button on the speaker.
To pause a track, short press the MFB Button on the speaker.
Other control functions can be done through your phone (like: volume
adjustment, go to next or previous song, rewind or fast forward of music). See
your phone’s manual if needed.
Reconnecting the SUPERTOOTH BTD4 with a Bluetooth A2DP phone
1. Turning ON the SuperTooth BTD4 will automatically reconnect to the last use
device.
2. When you leave the Bluetooth operating range while the SuperTooth BTD4 is
ON, it will disconnect from your phone (the speaker LED indicator will be
blinking green). To reconnect, you have 2 options:
a. short press the MFB Button of the speaker to reconnect on your phone or
b. simply place your NFC featured phone on top of the speaker. A
connected beep will be heard and the speaker LED indicator will turn to
blinking blue.
4
Using the SUPERTOOTH BTD4 with a Non-Bluetooth Mp3 Player
You can connect directly a MP3 player via Stereo Line Input at the back of the
SuperTooth BTD4.
1. Plug the audio cable into the Stereo Line Input found at the back of the
SuperTooth BTD4 and the other end to the output of your music player.
2. Press play on your music player to stream music directly to the SuperTooth
BTD4.
3. Please use the buttons of your music player directly to control your music.
Clear pairing list
To clear the pairing list of the speaker
Turn the speaker to pairing mode (LED indicator flashes red/blue alternately)
then double press the MFB button. A beep will be heard and the LED indicator
will blink violet shortly then will flash red/blue alternately again. The pairing List is
now erased.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems).
This marking shown on the product or its literature, indicates that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their
local government office, for details of where and how they can take this item for environmentally
safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
This product has an embedded, non-replaceable battery, do not attempt to open the product or remove the
battery as this may cause injury and damage the product. Please contact the local recycling facility for
removal of the battery. The embedded, non-replaceable battery is designed to last the life time of the
product.
+
5
FCC/IC statements :
Federal Communications Commission (FCC) Statement
Industry Canada (IC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for
compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC/IC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures :
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada licence-exempt RSS standard(s)
Operation is subject to the following two conditions :
1)This device may not cause interference and
2)This device must accept any interference, including interference that may cause undesired operation of
the device.
FCC/IC RF Radiation Exposure Statement :
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure compliance. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Euro-CB is under license. Other trademarks and trade names are those of their respective
owners.
English
English
Hereby
Hereby,
, Euro CB Phils inc
Euro CB Phils inc,
, represented
represented
by
by
MARCHANT
MARCHANT,
, CEO
CEO,
, declares
declares
that
that
the
the
MODEL
MODEL
BTD4
BTD4,
, is
is
in
in
compliance
compliance
with
with
the
the
essential
essential
requirements
requirements
and
and
other
other
relevant
relevant
provisions
provisions
of
of
Directive
Directive 1999/5/
1999/5/EC
EC
of
of
the
the
European
European
Parliament
Parliament
and
and
of
of
the
the
Council
Council
of
of 9
9 March
March 1999
1999 on
on
radio
radio
equipment
equipment
and
and
telecommunications
telecommunications
terminal
terminal
equipment
equipment
and
and
the
the
mutual
mutual
recognition
recognition
of
of
their
their
conformity
conformity.
.
For
For
the
the
whole
whole
declaration
declaration
please
please
visit
visit
:
:
http
http
://
://
www
www
.
.
SuperTooth
SuperTooth
.net/
.net/
download
download
Euro CB Phils inc
Euro CB Phils inc
SFB2, MEPZ1
SFB2, MEPZ1
6015 Lapu-lapu city
6015 Lapu-lapu city
Cebu Philippines
Cebu Philippines
NCC Statement:
根據低功率電波幅射性電機管理辦法規定:
第十二條: 經型式認證合格之低功率射頻電機，非經許可，公司、行號或使用者均不得擅自變更頻率，加大功率或變更原設計之特性及功能。
第十四條: 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波幅射性電機設備之干擾。
6
