Euro Communication Equipement SAS SUPERTOOTH LIGHT OPERATING MANUAL
Users manual
Bluetooth Handsfree Kit
For Bluetooth Mobile Phones
Product Description
SUPERTOOTH LIGHT is a Bluetooth handsfree kit that supports headset or
handsfree profile phones. Its special features include Full DSP Noise
Cancellation/Echo Cancellation, thus, it provides an advanced audio quality. It is
designed for easy handsfree operation and superior performance.
Don't forget: Drive safely and within the law.
Check if the national or local legislation into force in your country does limit the
use of mobile phones while driving. It is up to the user of this product to respect
the said legislation in the area where he lives.

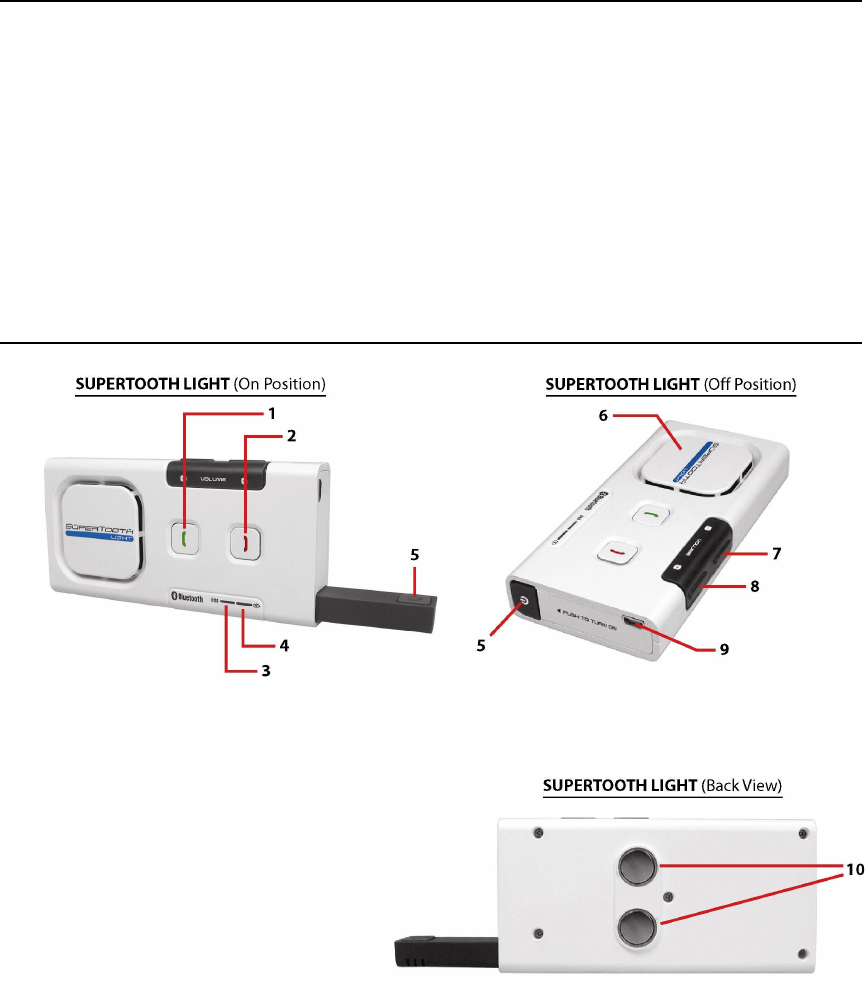

Product Overview
1 Accept Button
2 End/Reject Button
3 Bluetooth Indicator
4 Charge Indicator
5Microphone Shaft
*Press-and-release to Switch On
*Push-in to Switch Off
6 Speaker
7 Volume Down
8 Volume Up
9 Charger Port
10 Magnets
2
Charging
When the Bluetooth Indicator (3) turns red, the battery of the kit is low. Charge
the unit.
1. Connect the charger’s plug into the Charger Port (9)
of the SUPERTOOTH LIGHT. Connect the charger to
an external power source.
Charge Indicator (4) Status:
Steady red: Charging
Steady green: Full Charge
2. When fully charged, disconnect the charger.
Power On/Off
Power On: Press-and-release the Microphone Shaft (5).
Power Off: Push the Microphone Shaft (5) in.
Pairing to your Bluetooth Mobile Phone
Pair the SUPERTOOTH LIGHT to your Bluetooth mobile phone to create the link
or audio connection between the two. This has to be done only at the first
connection to a new phone.
1. From OFF, press and hold the Accept Button (1).
2. While holding the Accept Button (1), switch the kit on (Press-and-release
the Microphone Shaft (5)).
3. When the Bluetooth Indicator (3) turns blinking red/blue, release the
Accept Button (1). The kit is now in pairing mode.
3
4. While the kit is in pairing mode, access the Bluetooth menu of your phone.
Turn on the Bluetooth function then execute a Bluetooth search, or
discover. (See your phone’s manual.)
5. When the phone displays the list of Bluetooth devices, select ST LIGHT.
6. When the phone asks for the password, enter 0000 and press Ok.
Important Note: The kit is paired now. Most phones automatically connect
to the kit after pairing. With some phones you need to connect manually
after pairing.
Go back to Bluetooth > Paired devices > highlight ST LIGHT > press
Options > then press Connect.
The kit is now ready to use.
Installation
Fix the metal clip of SUPERTOOTH LIGHT on the sun visor.
Attach the magnetic back of SUPERTOOTH LIGHT to the fixed metal clip. The
SUPERTOOTH LIGHT must be placed in such way that its microphone is
directed to the mouth of the user.
Basic Operations
IMPORTANT:
The kit needs to be ‘paired’ to your Bluetooth mobile phone first, before you can
use the following functions. See Pairing to your Bluetooth Mobile Phone on
page 3.
Make a Call (Normal Dial):
Dial the number on your phone. Audio will automatically be on the kit.
4
Answer a Call:
During the ring tone, press Accept Button (1) for 1 second to answer the call.
End a Call:
Press End/Reject Button (2) for 1 second to end the call.
Voice Dial:
Important: Be sure the voice dialing function of your phone is activated. Record
at least one voice tag. (Kindly refer to the procedure in your phone’s manual.)
Important: Voice dialing entries must be stored in the phone’s memory, not on
the SIM card!
1. Press the Accept Button (1) for 1 second.
2. A voice dial beep will be heard on the kit to prompt the user to say the
voice tag of the contact to call.
3. Say the voice tag exactly as how you recorded it.
4. The voice will be played back to you, and then the phone will dial the
number automatically.
Note: Voice dial deactivation: Pressing Accept Button (1) for 1 second
activates voice dial but if you want to deactivate it, just press the same button
again for 1 second. The voice dial will be deactivated immediately.
Redial (For Handsfree Profile Phones only) :
Press Accept Button (1) for 3 seconds. The last dialed number will be redialed.
Reject a Call (For Handsfree Profile Phones only) :
During the ring tone, press End/Reject Button (2). The incoming call will be
rejected.
Volume Setting:
Increase or decrease the volume by pressing the Volume Up (8) or Volume
Down (7) button. Press repeatedly until desired level is reached.
Audio Transfer (For Handsfree Profile Phones only) :
During an ongoing call, you can transfer the audio.
Kit to Phone: Press the Accept Button (1) for 3 seconds. The audio will be
transferred to the phone.
Phone to Kit: Press the Accept Button (1) for 1 second. The audio will be
transferred to kit.
5
Buttons Mapping
Buttons
Kit Status
Accept
Button /
(Short press/
1 second)
Accept
Button /
(Long press /
2 seconds)
End / Reject
Button
(Short press)
Volume Up /
Volume Down
(Short Press)
Volume Up /
Volume Down
(Long Press)
Connected /
On and
Standby
Initiates
Voice dial
Redials last
dialed number
Increases/
Decreases
volume by 1
level
Volume fast
increment/
decrement
On and
Standby but
Disconnected
Creates
reconnection/
initiates voice
dial
Incoming call
(ring being
generated)
Answers the
call Rejects the call
Active call on
ST LIGHT
Transfers audio
to phone Ends the call
Active call on
Phone
Transfers
audio to kit
Outgoing call
being set-up Ends the call
6
SUPERTOOTH LIGHT Specifications
Bluetooth Compliance: Bluetooth version 1.2 specifications
Supported Bluetooth Profiles: Supports headset and handsfree profiles with
automatic detection
Operating Range: Up to 10 meters
Frequency: 2.4 GHz
Talk Time: Up to 15 hours
Stand-by time: Up to 800 hours
Charging Time: 3 hours
Battery Type: Rechargeable Lithium Ion
Special Features:
Full Duplex
Full DSP Noise Cancellation / Echo
Cancellation
Digital Volume Control
Voice Recognition Dialing (If phone
supports)
Last Call Redial
Reject Incoming Call
Can also be charged directly from a PC via
USB Cable (not included)
Compact Size
Installation: Quick fixation on sun visor via magnetic clip
Dimensions (mm): 18.2 x 60.2 x 122
Weight: 115 g
7
FCC Notices
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could
void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must
follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter.
English
English
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
English
This equipment is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
CE info:
http://www.supertooth.fr/download
Euro Communication Equipements sas
D117 Route de Foix
F 11500 NEBIAS
8
(Applicable in the European Union and other European countries with separate collection
systems)
This marking shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial wastes for disposal.
