Another quality product from

EURO-PRO_,_

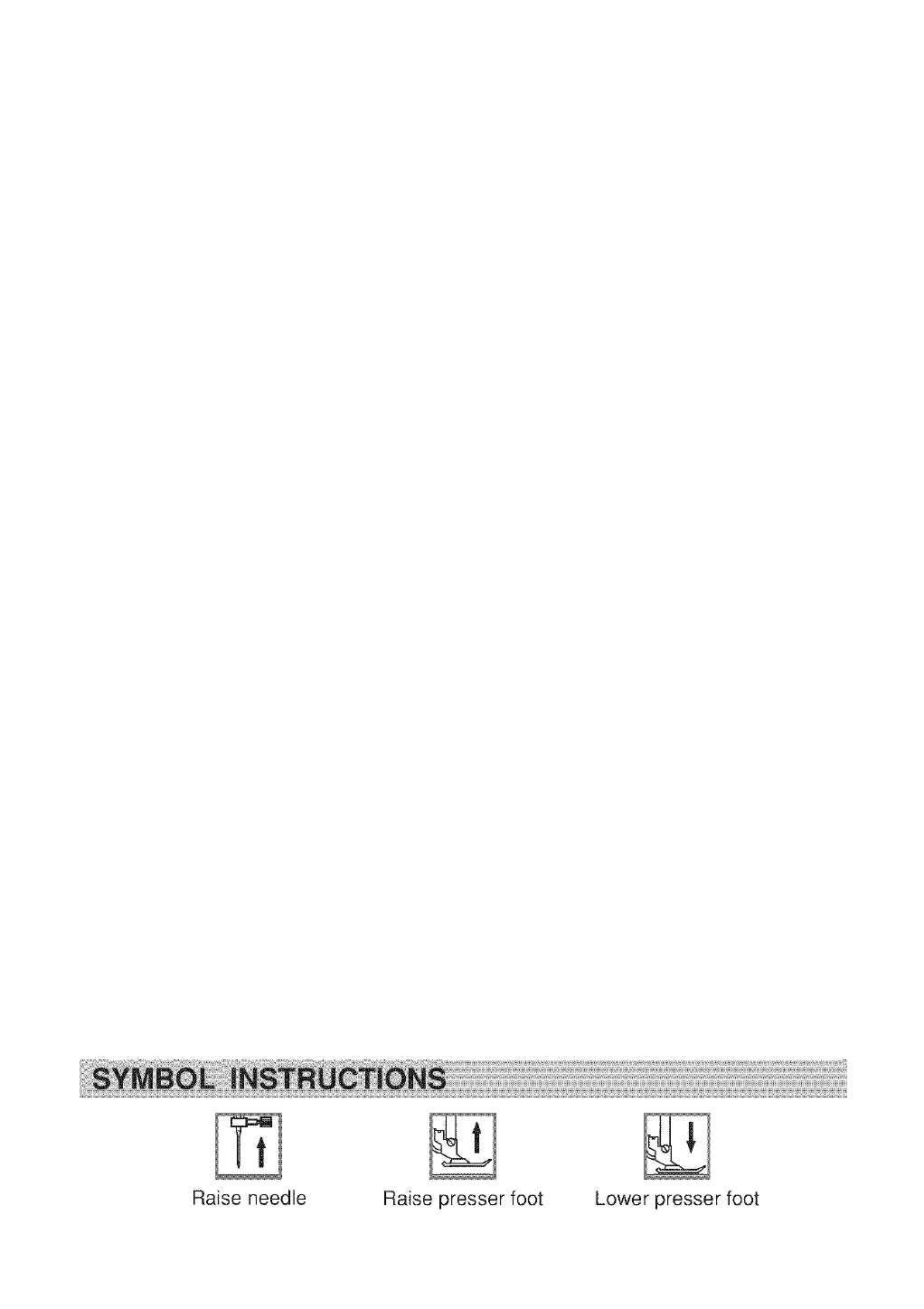

Raise needle Raise presser foot Lower presser foot

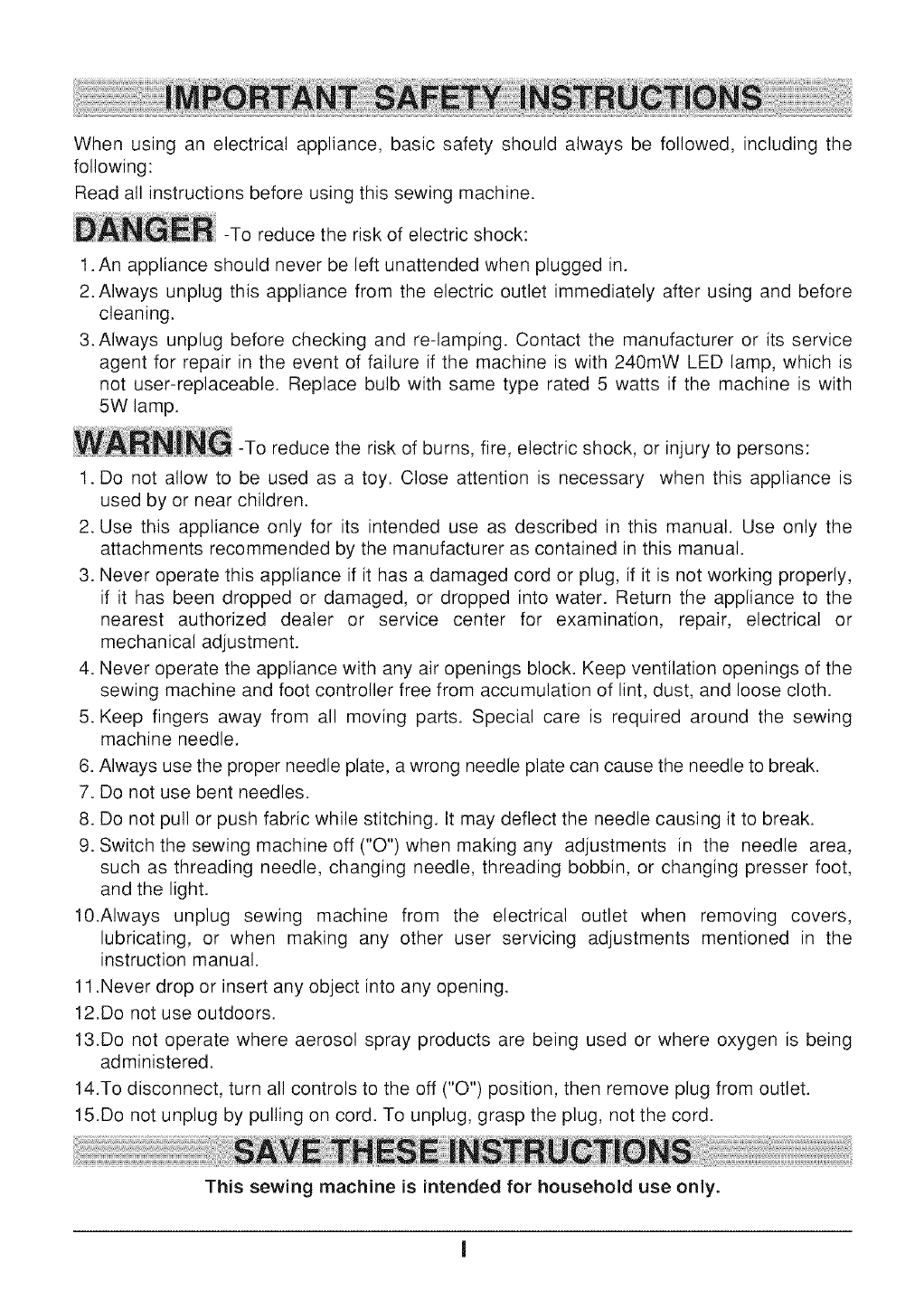

When using an electrical appliance, basic safety should always be followed, including the

following:

Read all instructions before using this sewing machine.

D_ER -To reduce the risk of electric shock:

1. An appliance should never be left unattended when plugged in.

2. Always unplug this appliance from the electric outlet immediately after using and before

cleaning.

3. Always unplug before checking and re-lamping. Contact the manufacturer or its service

agent for repair in the event of failure if the machine is with 240mW LED lamp, which is

not user-replaceable. Replace bulb with same type rated 5 watts if the machine is with

5W lamp.

_ARNIN_ -To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Do not allow to be used as a toy. Close attention is necessary when this appliance is

used by or near children.

2. Use this appliance only for its intended use as described in this manual. Use only the

attachments recommended by the manufacturer as contained in this manual.

3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly,

if it has been dropped or damaged, or dropped into water. Return the appliance to the

nearest authorized dealer or service center for examination, repair, electrical or

mechanical adjustment.

4. Never operate the appliance with any air openings block. Keep ventilation openings of the

sewing machine and foot controller free from accumulation of lint, dust, and loose cloth.

5. Keep fingers away from all moving parts. Special care is required around the sewing

machine needle.

6. Always use the proper needle plate, a wrong needle plate can cause the needle to break.

7. Do not use bent needles.

8. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.

9. Switch the sewing machine off ("O") when making any adjustments in the needle area,

such as threading needle, changing needle, threading bobbin, or changing presser foot,

and the light.

10.Always unplug sewing machine from the electrical outlet when removing covers,

lubricating, or when making any other user servicing adjustments mentioned in the

instruction manual.

11 .Never drop or insert any object into any opening.

12.Do not use outdoors.

13.Do not operate where aerosol spray products are being used or where oxygen is being

ad ministered.

14.To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.

15.Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

This sewing machine is intended for household use only.

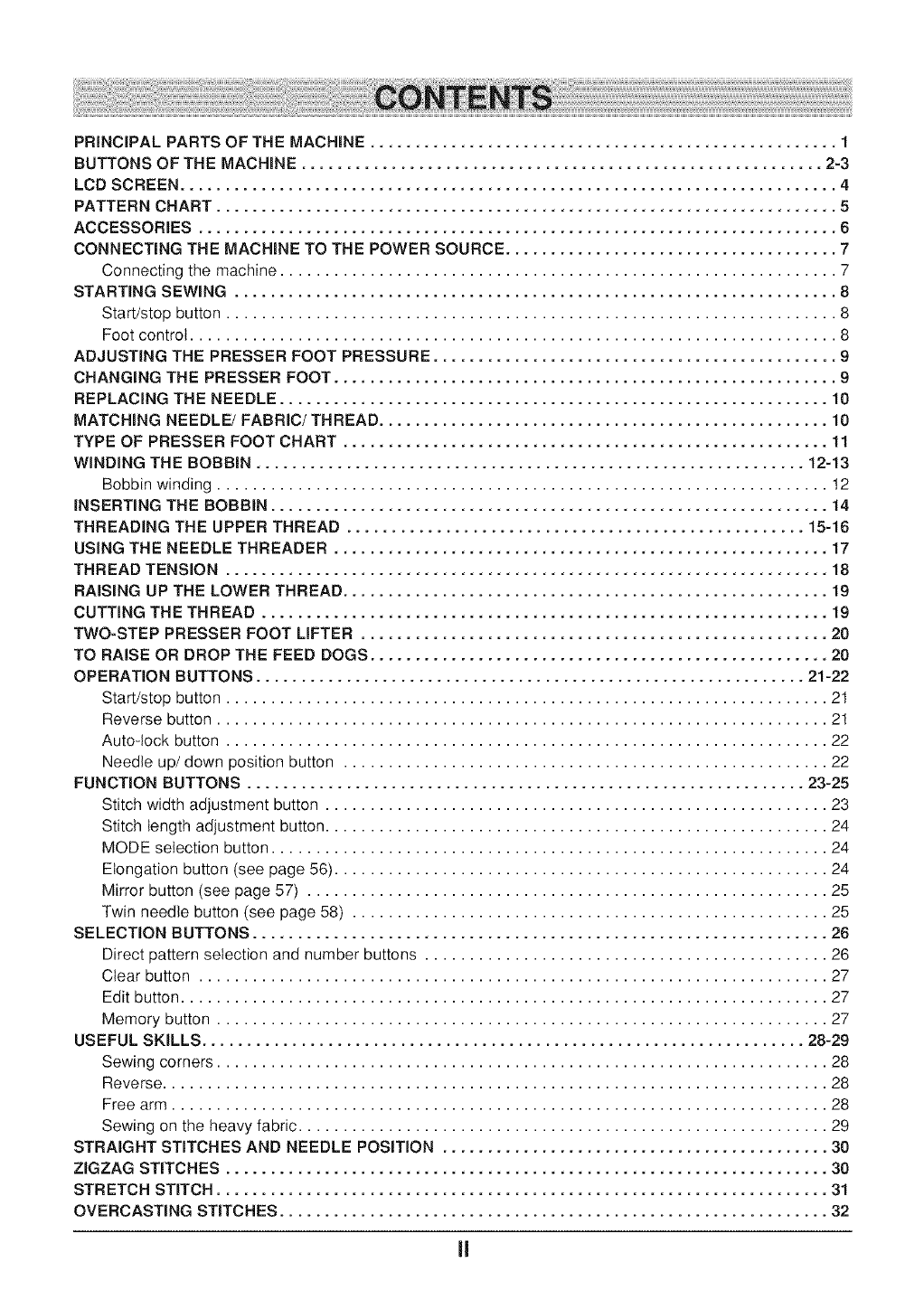

PRiNCiPAL PARTS OF THE MACHINE .................................................... 1

BUTTONS OF THE MACHINE .......................................................... 2-3

LCD SCREEN ......................................................................... 4

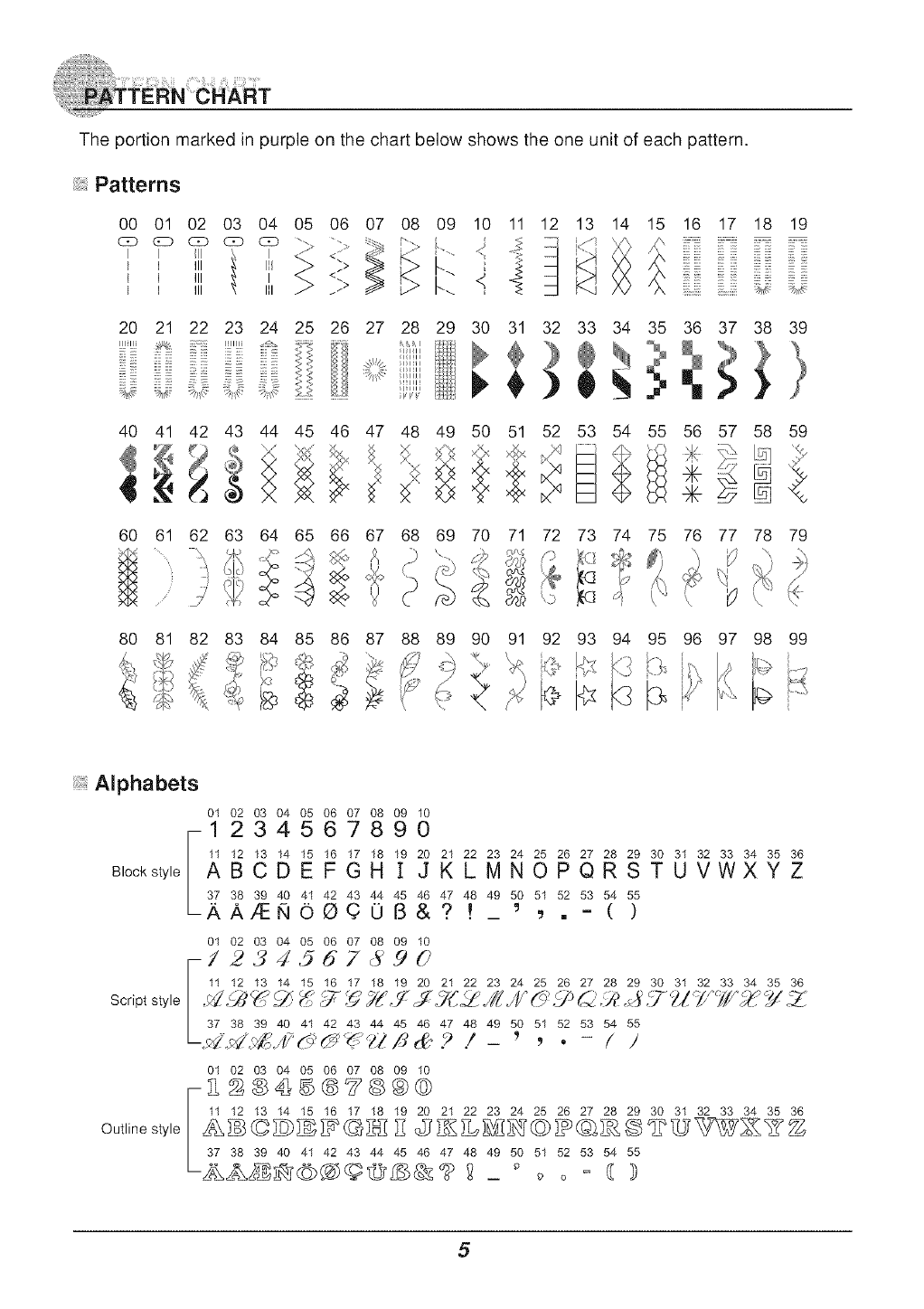

PATTERN CHART ..................................................................... 5

ACCESSORIES ....................................................................... 6

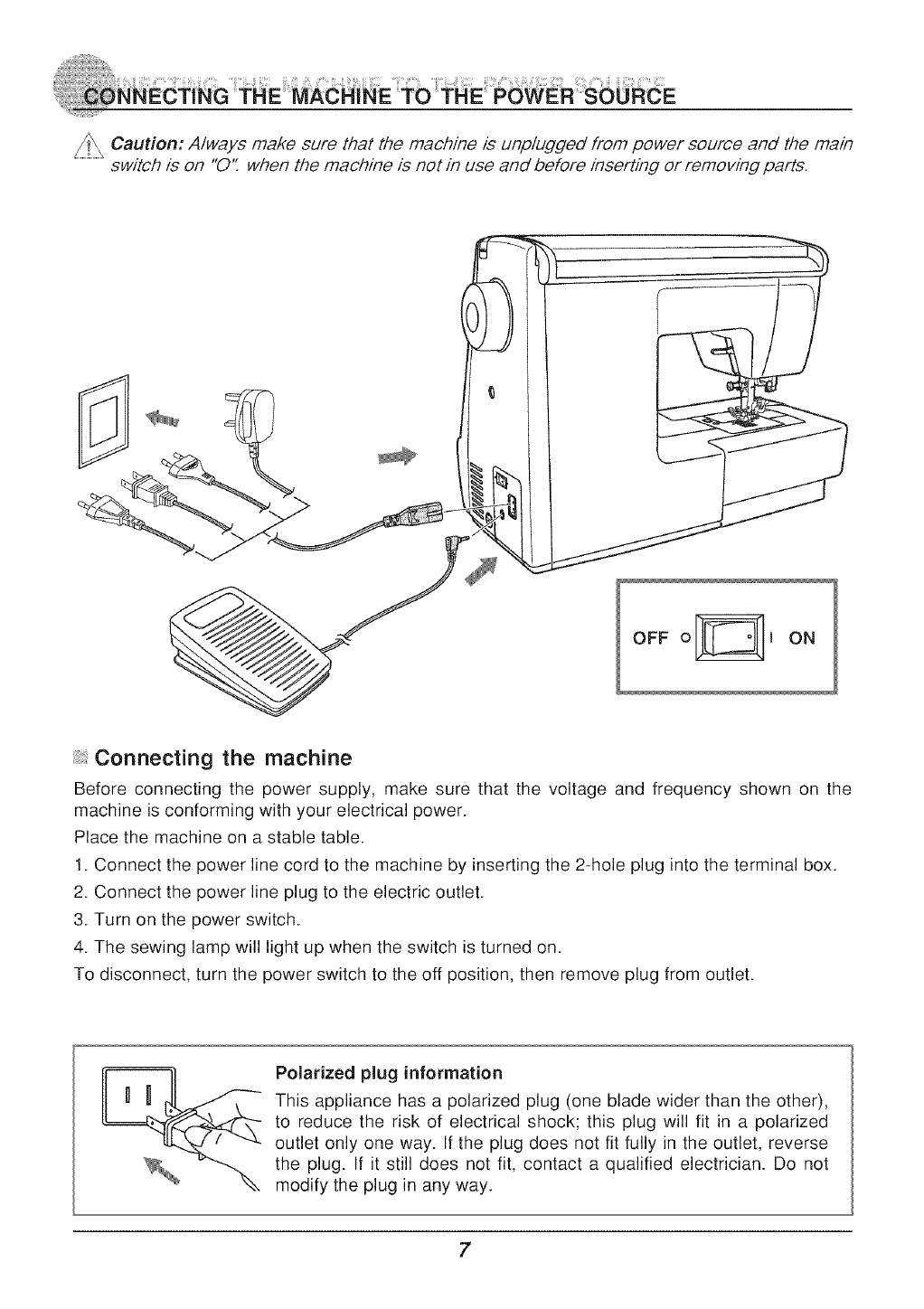

CONNECTING THE MACHINE TO THE POWER SOURCE ..................................... 7

Connecting the machine .............................................................. 7

STARTING SEWING ................................................................... 8

Start/stop button .................................................................... 8

Foot control ........................................................................ 8

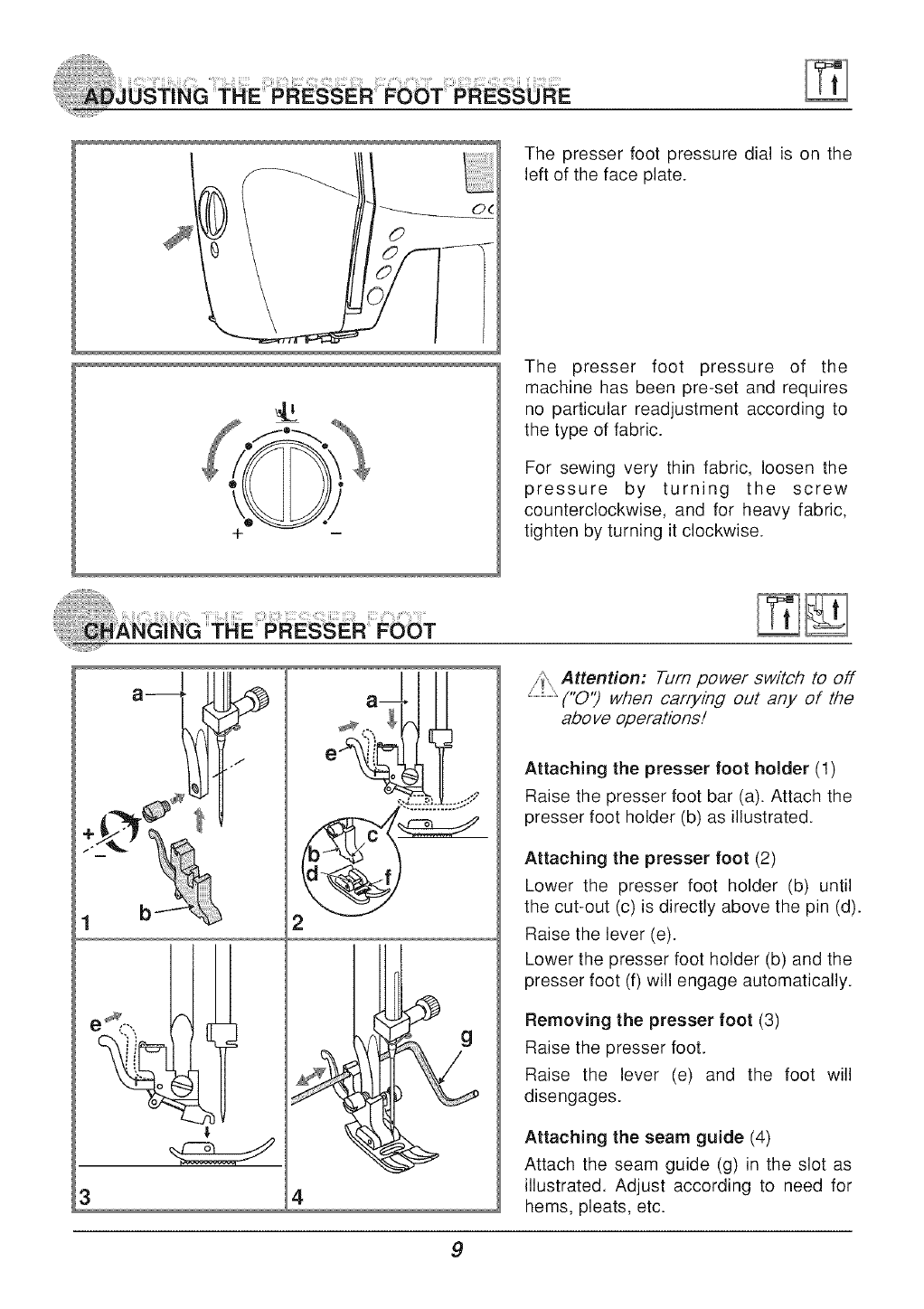

ADJUSTING THE PRESSER FOOT PRESSURE ............................................. 9

CHANGtNG THE PRESSER FOOT ........................................................ 9

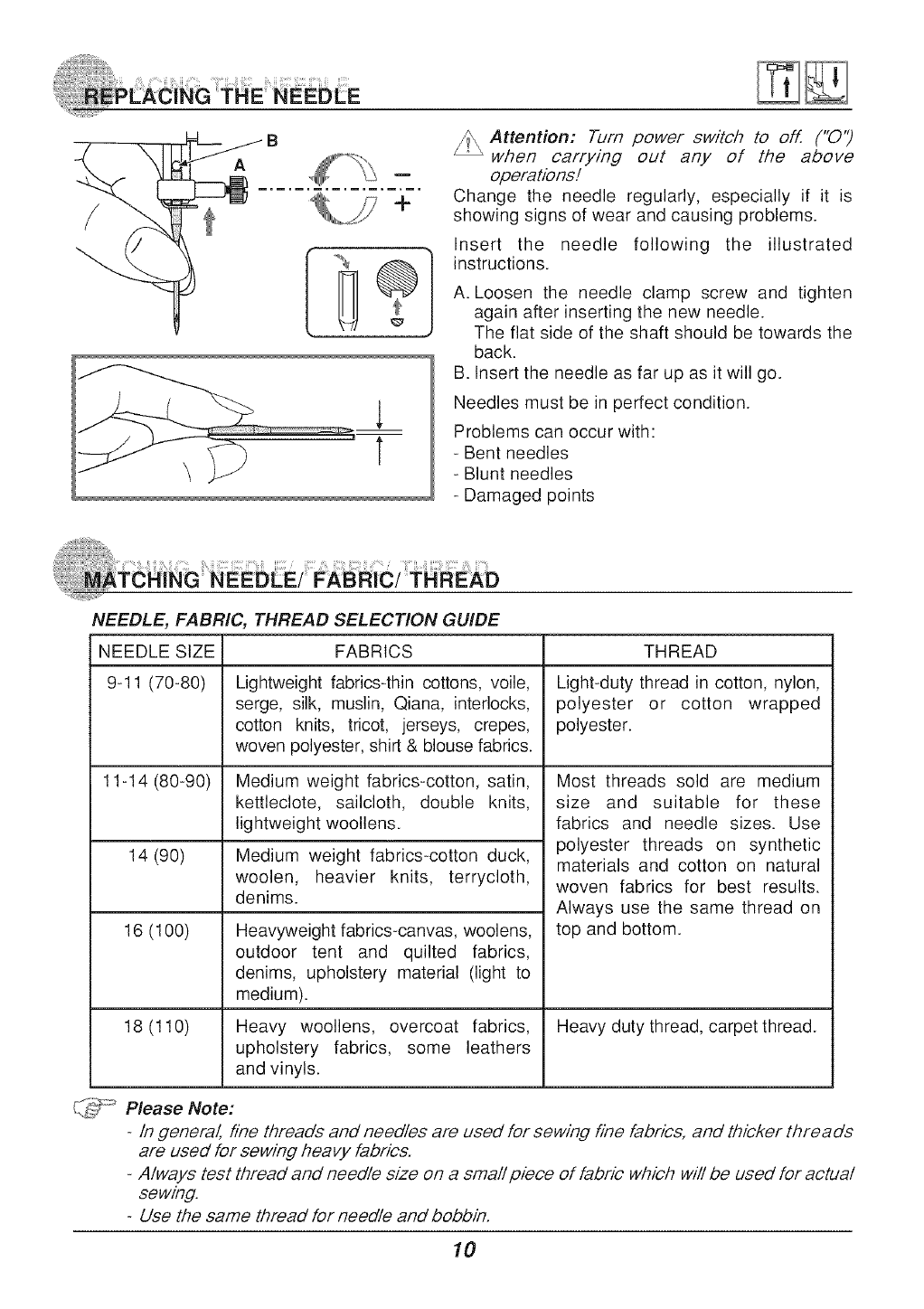

REPLACING THE NEEDLE ............................................................. 10

MATCHING NEEDLE/FABRIC/THREAD .................................................. 10

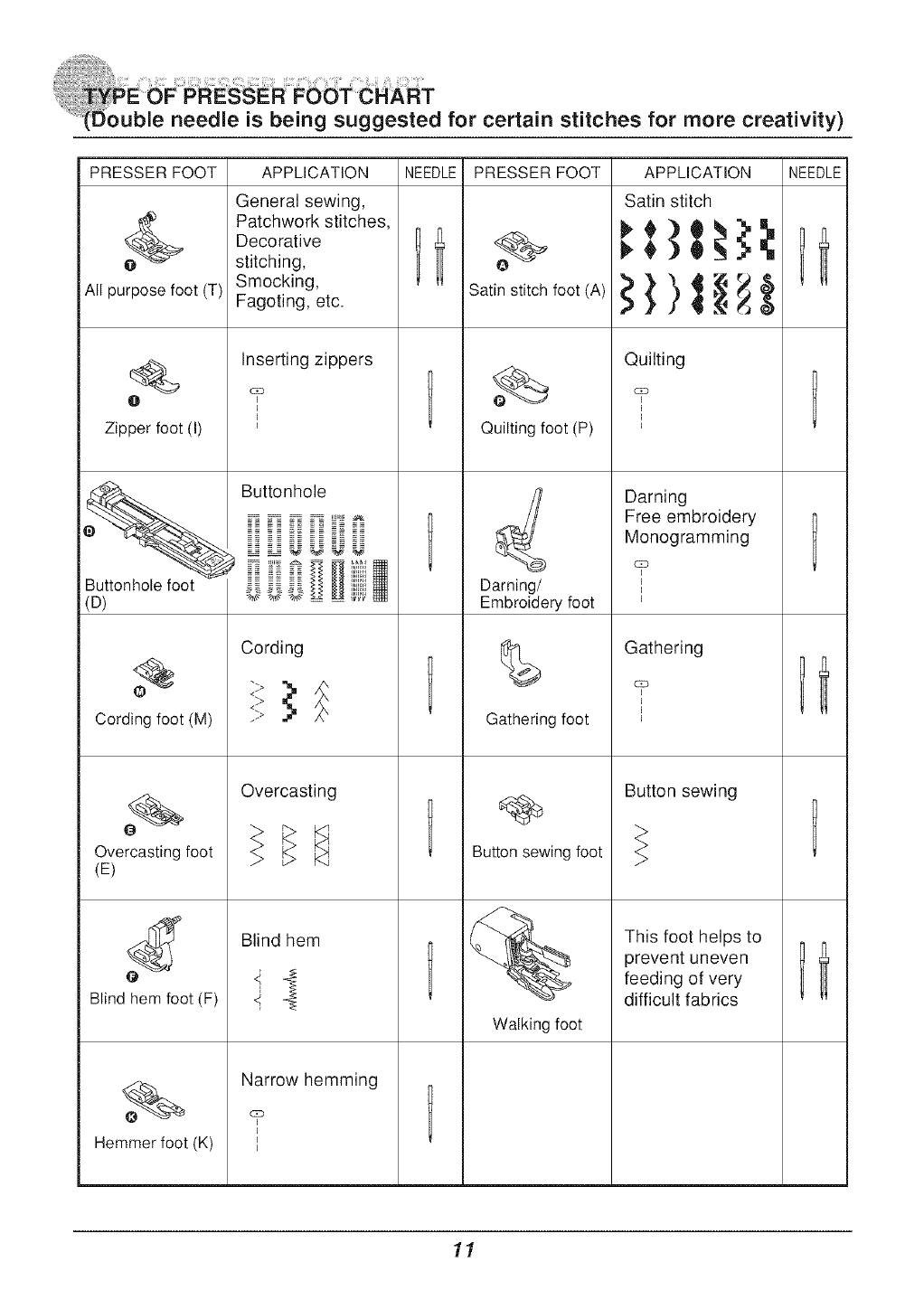

TYPE OF PRESSER FOOT CHART ...................................................... 11

WINDING THE BOBBtN ............................................................. 12-13

Bobbin winding .................................................................... 12

INSERTING THE BOBBIN .............................................................. 14

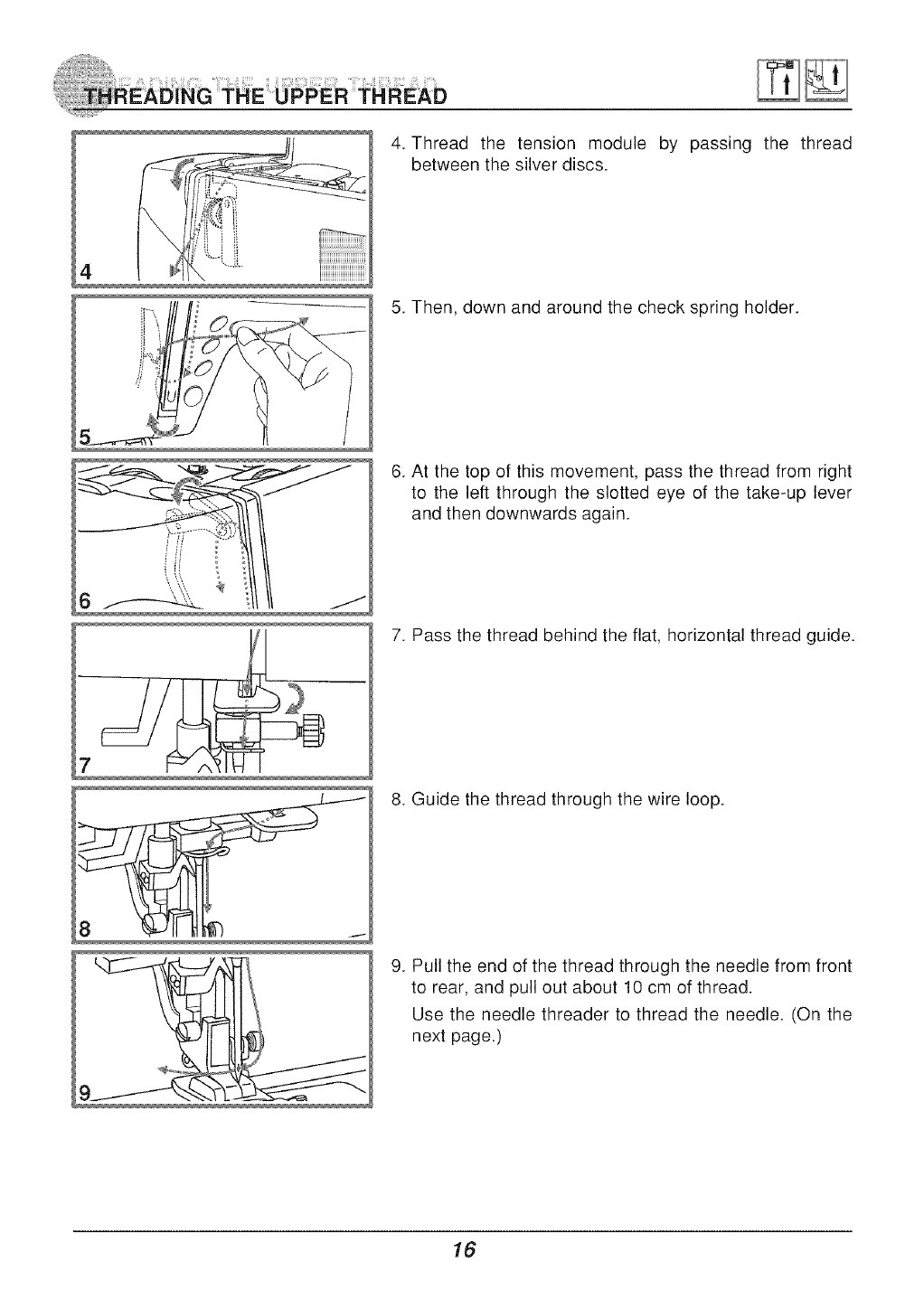

THREADING THE UPPER THREAD ................................................... 15-18

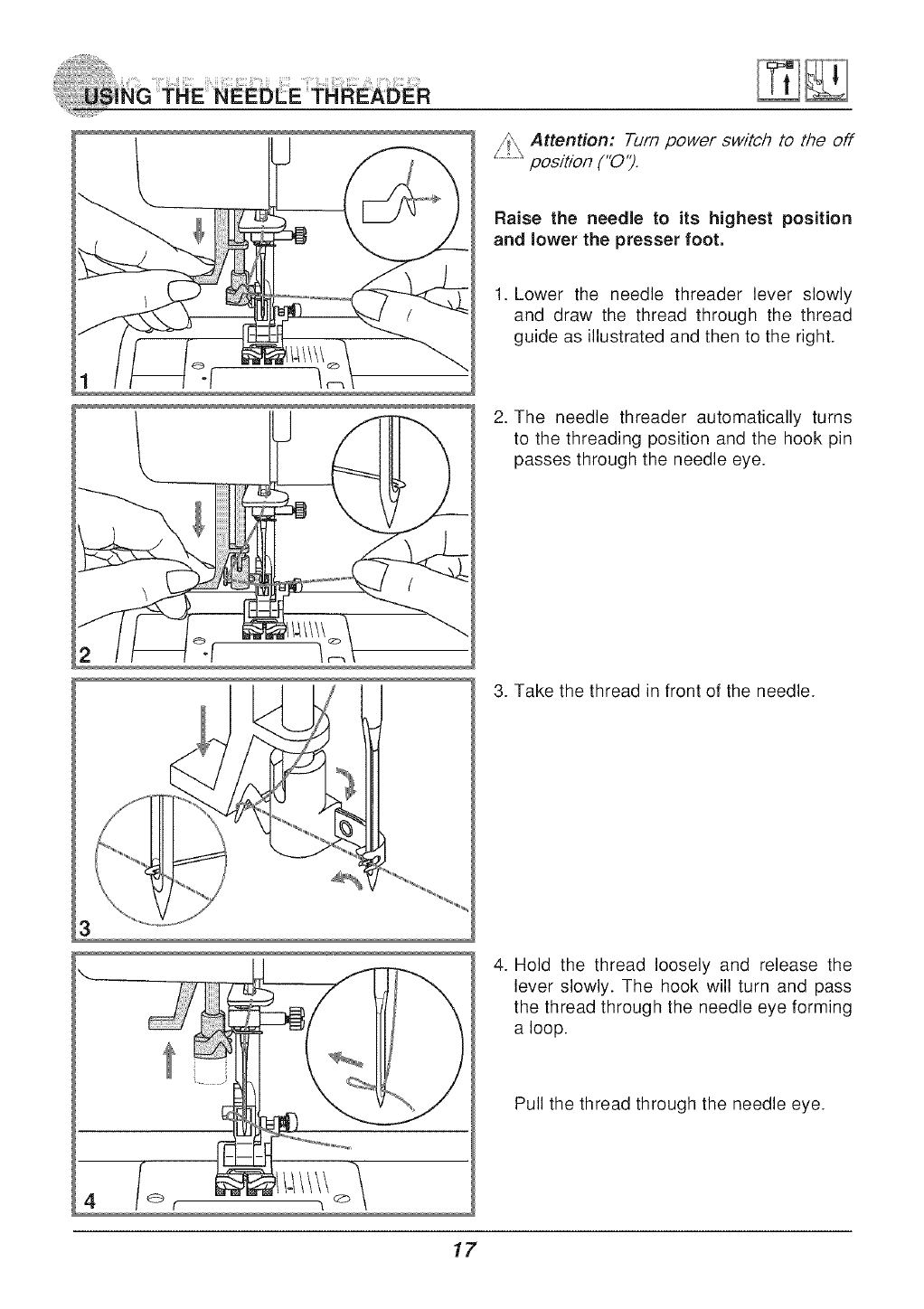

USING THE NEEDLE THREADER ....................................................... 17

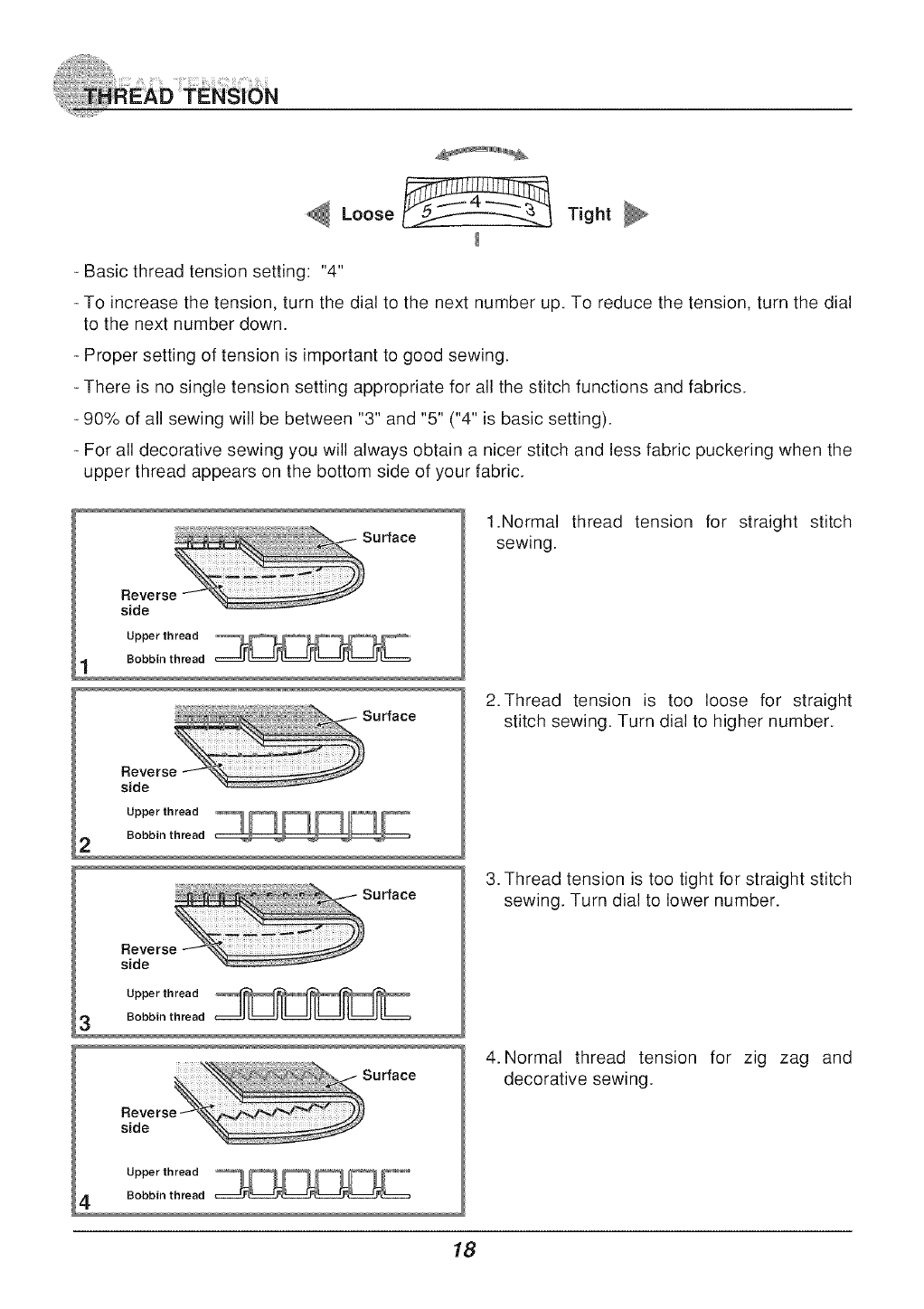

THREAD TENSION ................................................................... 18

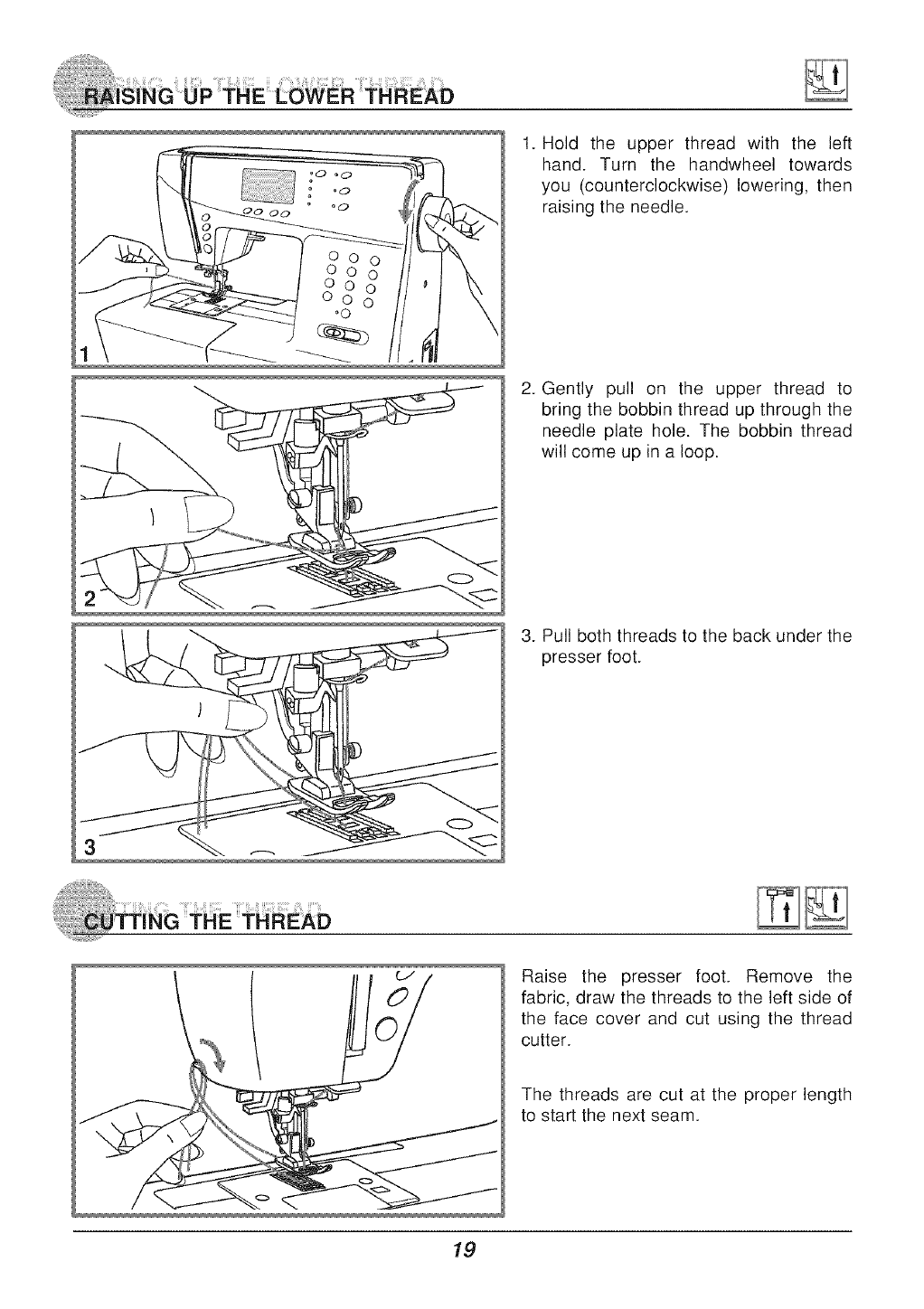

RAISING UP THE LOWER THREAD ...................................................... 19

CUTTING THE THREAD ............................................................... 19

TWO-STEP PRESSER FOOT LIFTER .................................................... 20

TO RAISE OR DROP THE FEED DOGS ................................................... 20

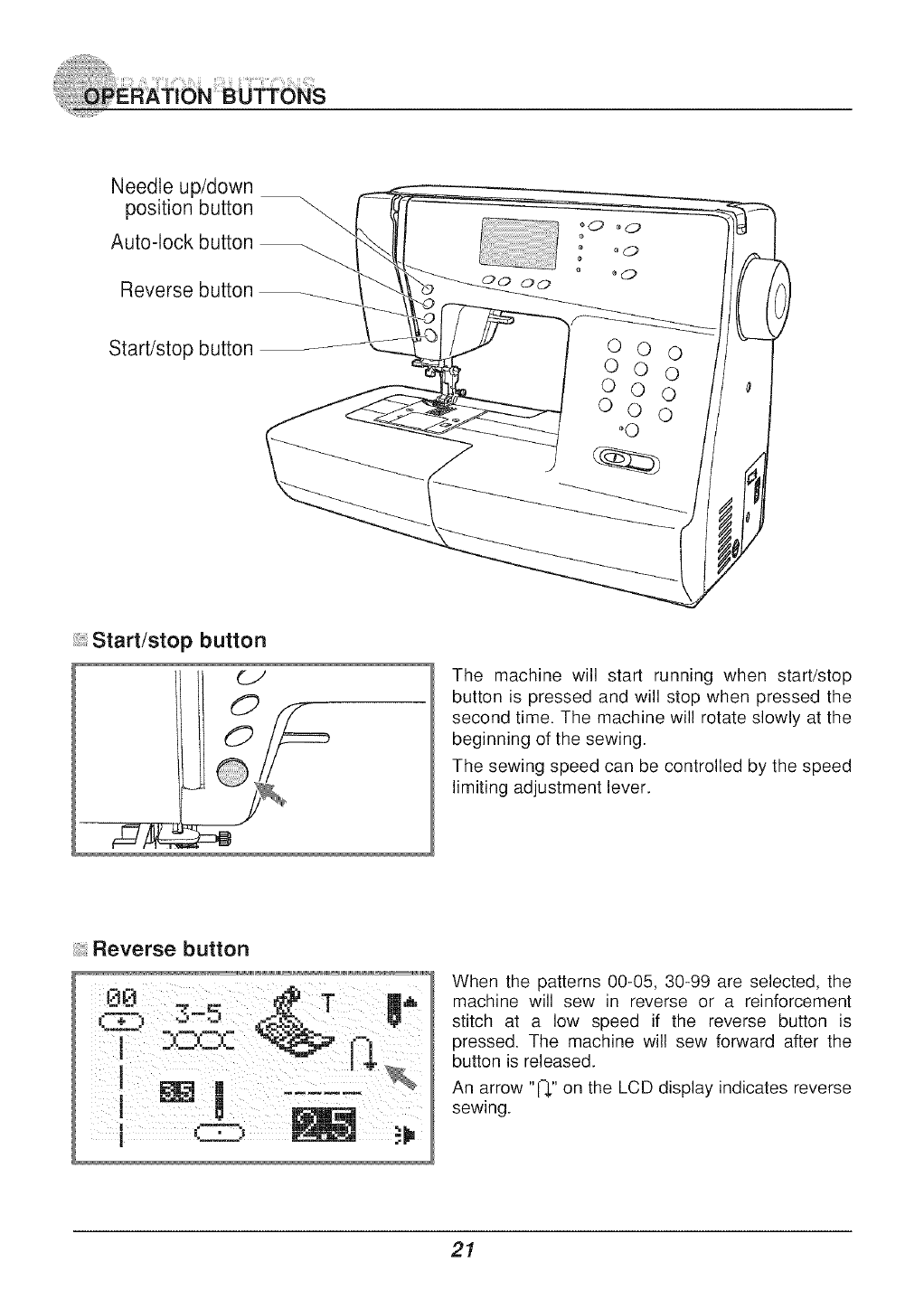

OPERATION BUTTONS ............................................................. 21-22

Start/stop button ................................................................... 21

Reverse button .................................................................... 21

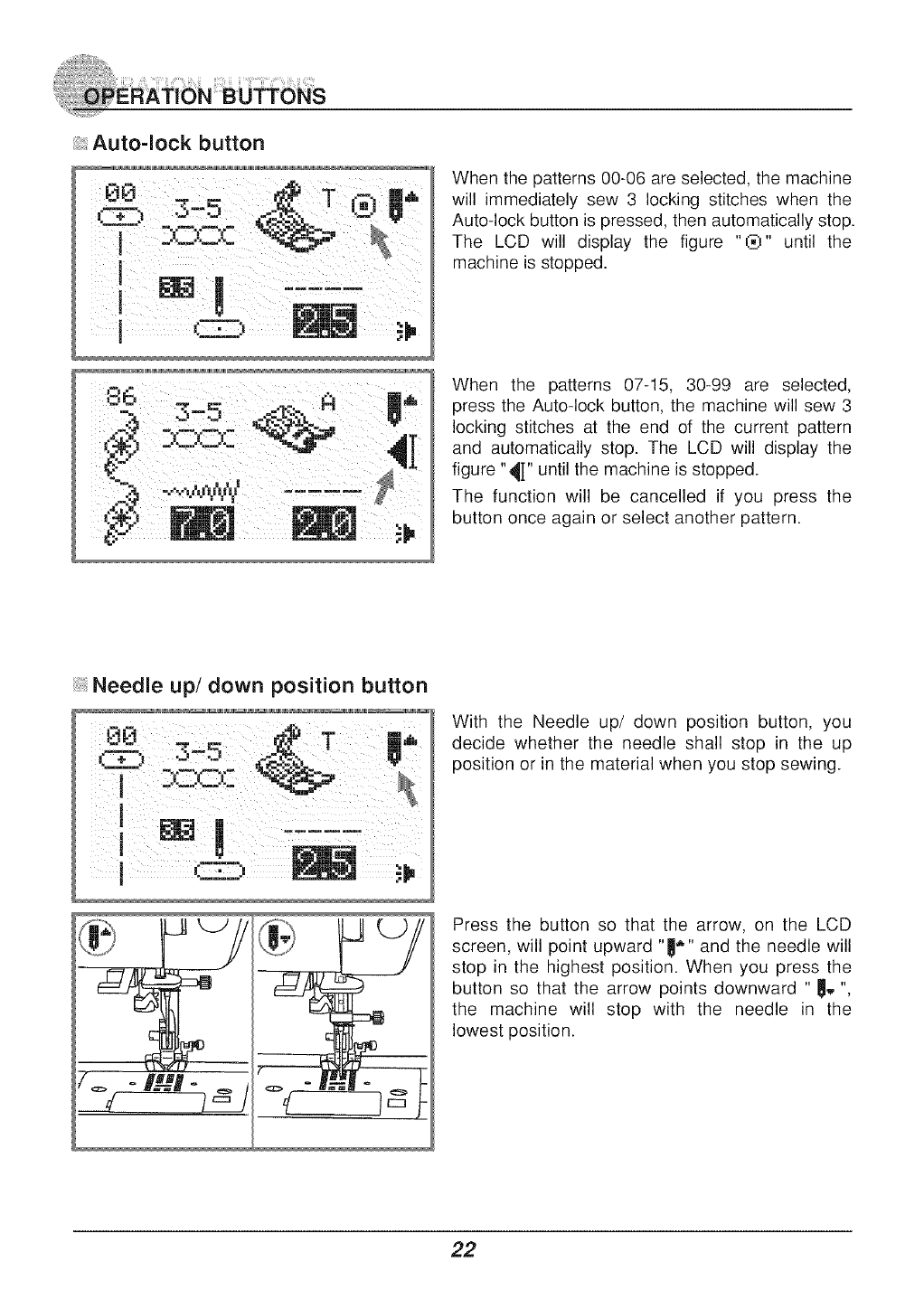

Auto-lock button ................................................................... 22

Needle up/down position button ...................................................... 22

FUNCTION BUTTONS .............................................................. 23-25

Stitch width adjustment button ........................................................ 23

Stitch length adjustment button ........................................................ 24

MODE selection button .............................................................. 24

Elongation button (see page 56) ....................................................... 24

Mirror button (see page 57) .......................................................... 25

Twin needle button (see page 58) ..................................................... 25

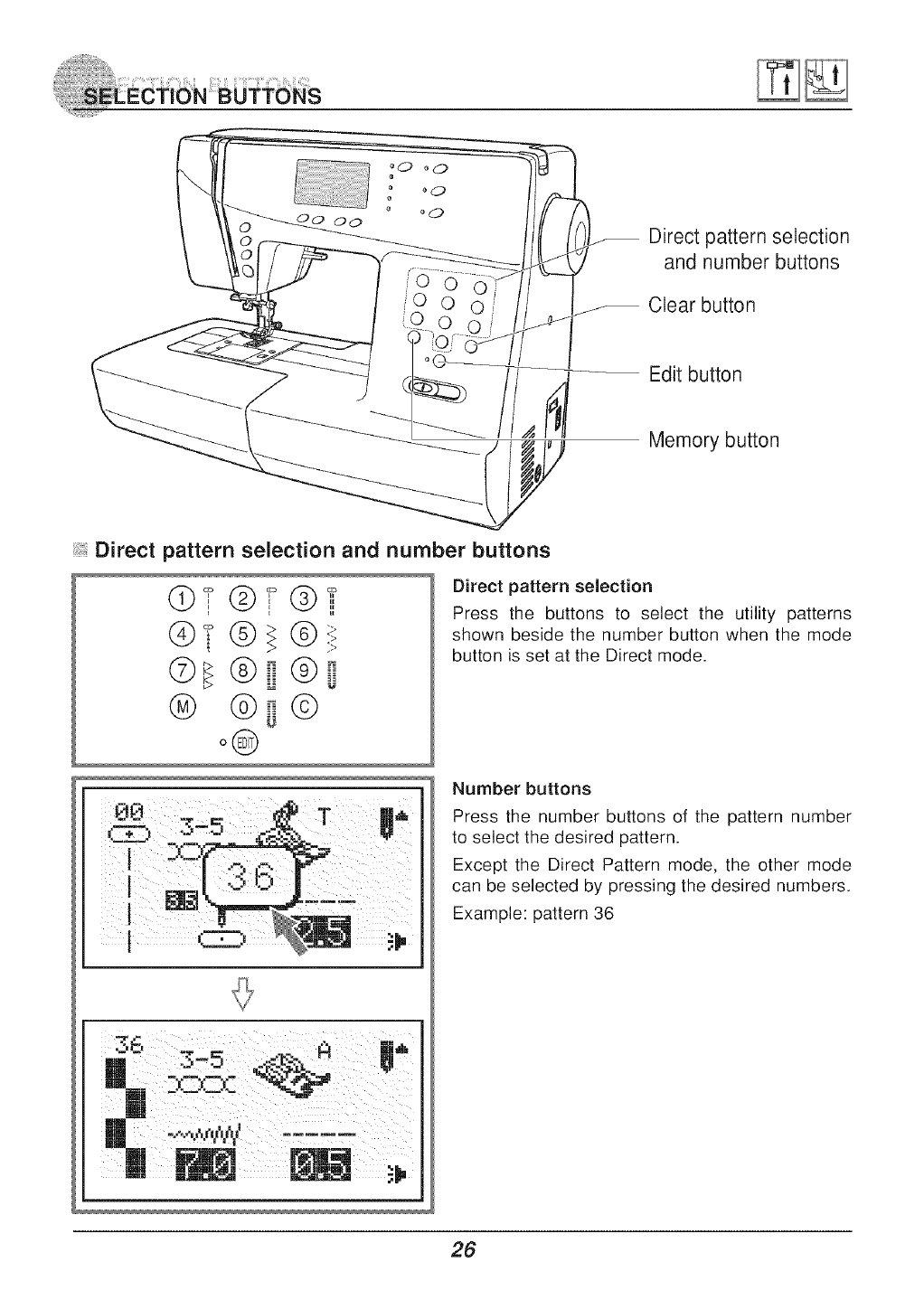

SELECTION BUTTONS ................................................................ 26

Direct pattern selection and number buttons ............................................. 26

Clear button ...................................................................... 27

Edit button ........................................................................ 27

Memory button .................................................................... 27

USEFUL SKILLS ................................................................... 28-29

Sewing corners .................................................................... 28

Reverse .......................................................................... 28

Free arm ......................................................................... 28

Sewing on the heavy fabric ........................................................... 29

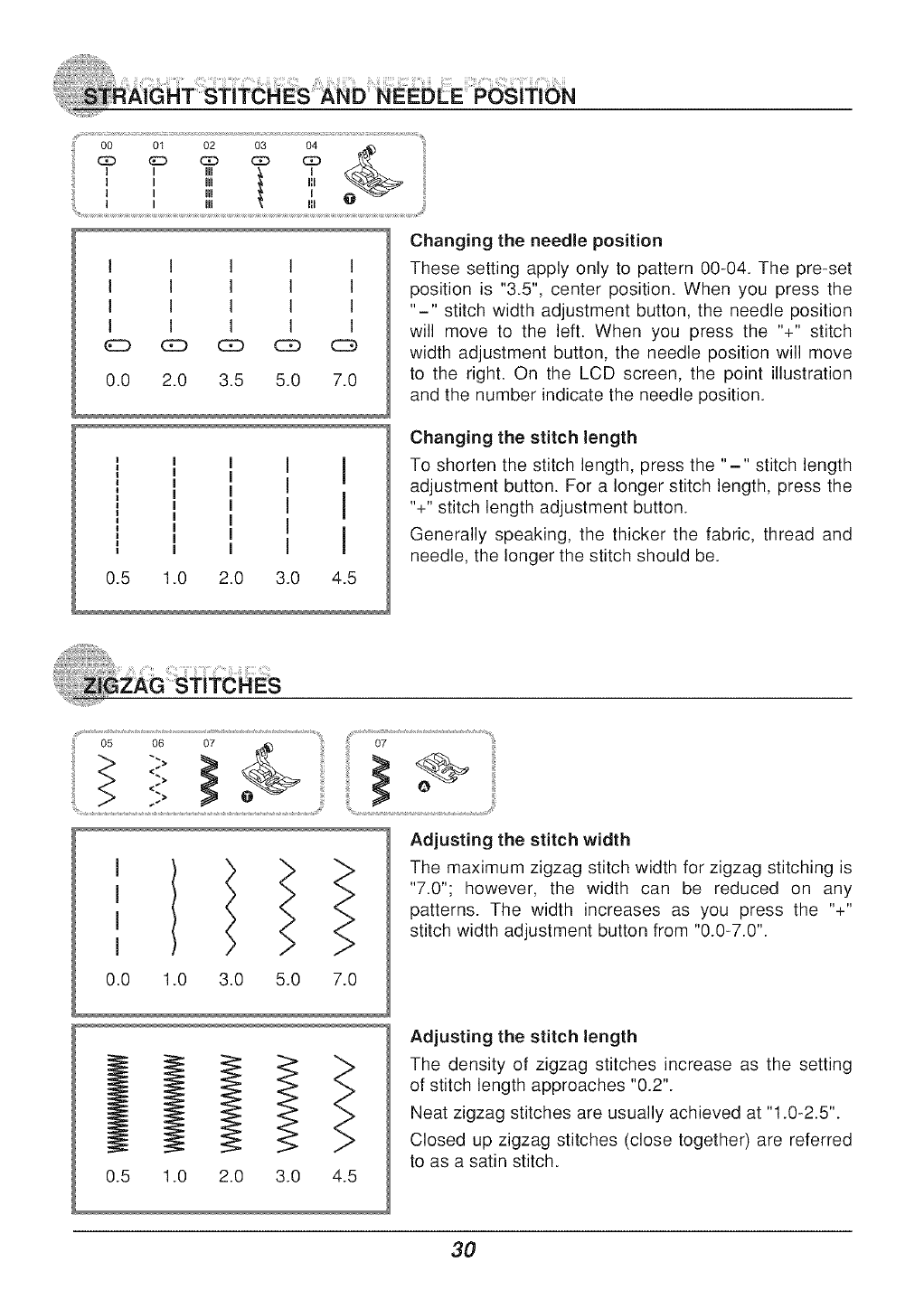

STRAIGHT STITCHES AND NEEDLE POSITION ........................................... 30

ZIGZAG STITCHES ................................................................... 30

STRETCH STITCH .................................................................... 31

OVERCASTING STITCHES ............................................................. 32

Usingtheovercastingfoot........................................................... 32

Usingtheattpurposefoot............................................................ 32

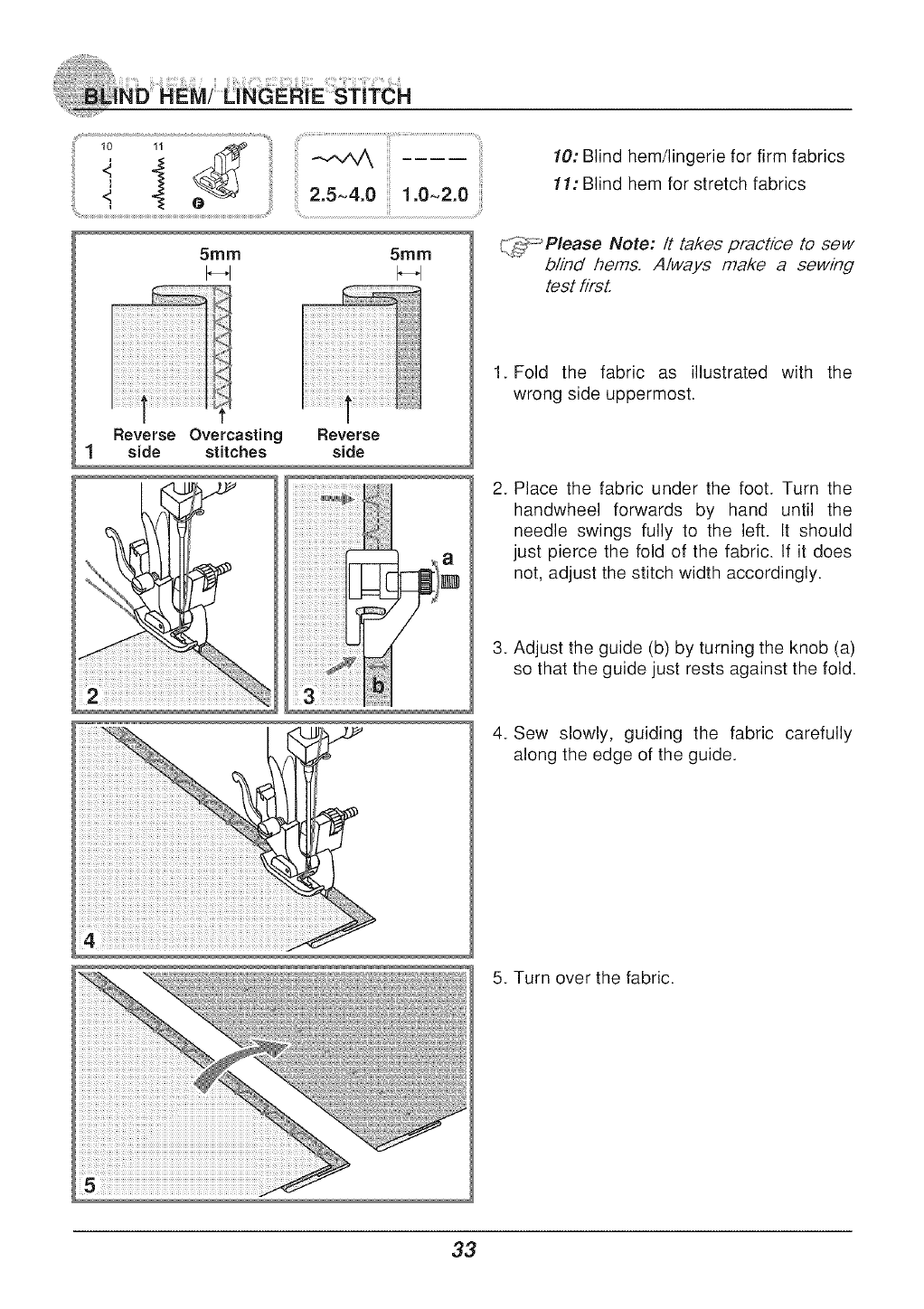

BLIND HEM/LiNGERiE STITCH ......................................................... 33

BUTTON SEWING .................................................................... 34

BUTTONHOLE STiTCHiNG .......................................................... 35-38

Making a buttonhole on stretch fabrics .................................................. 38

ADJUSTING PATTERN BALANCE ....................................................... 39

EYELET STITCH ..................................................................... 40

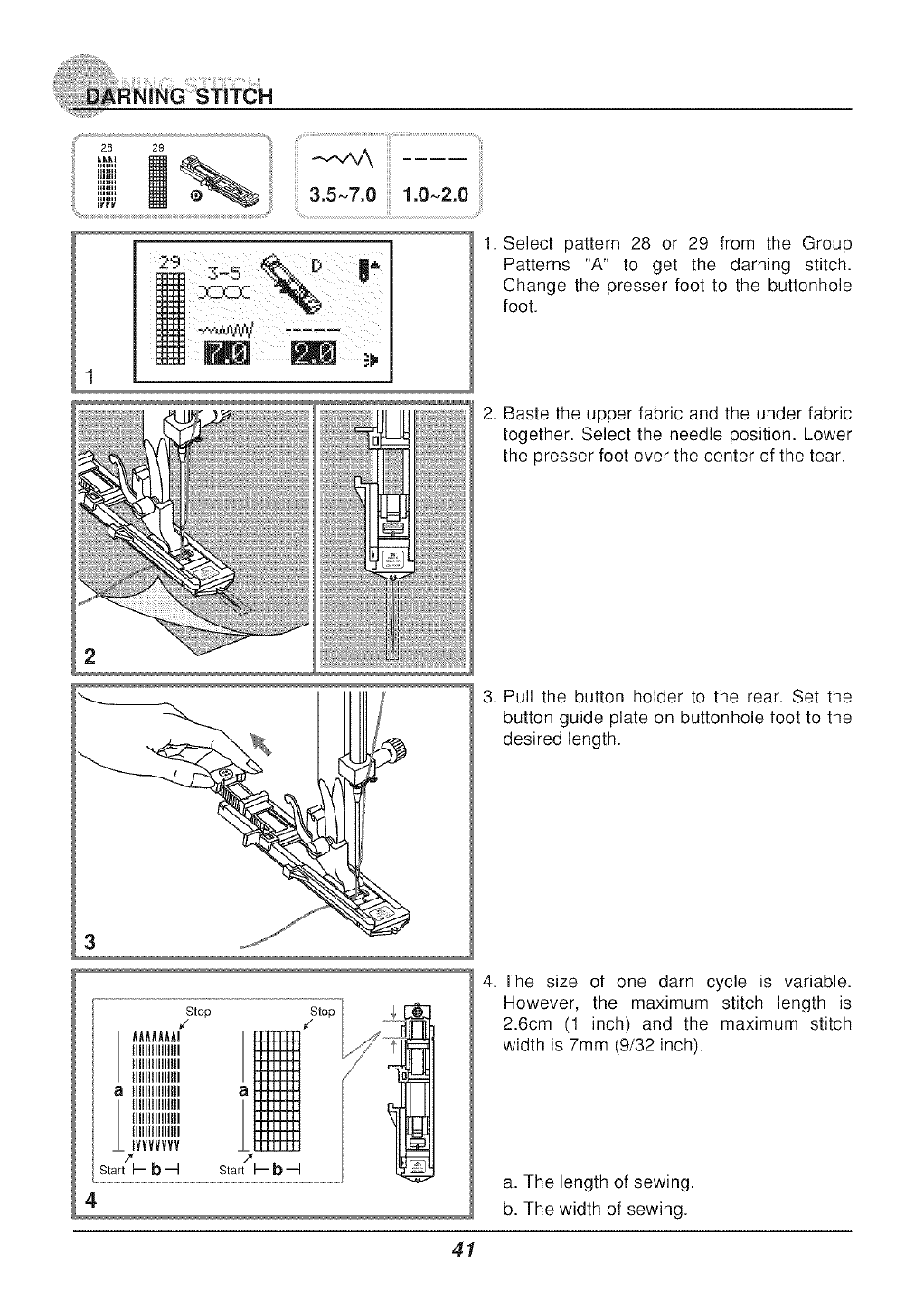

DARNING STITCH ................................................................. 41-42

ZIPPER iNSERTiON ................................................................ 43-44

inserting a centered zipper ........................................................... 43

inserting a side zipper ............................................................... 44

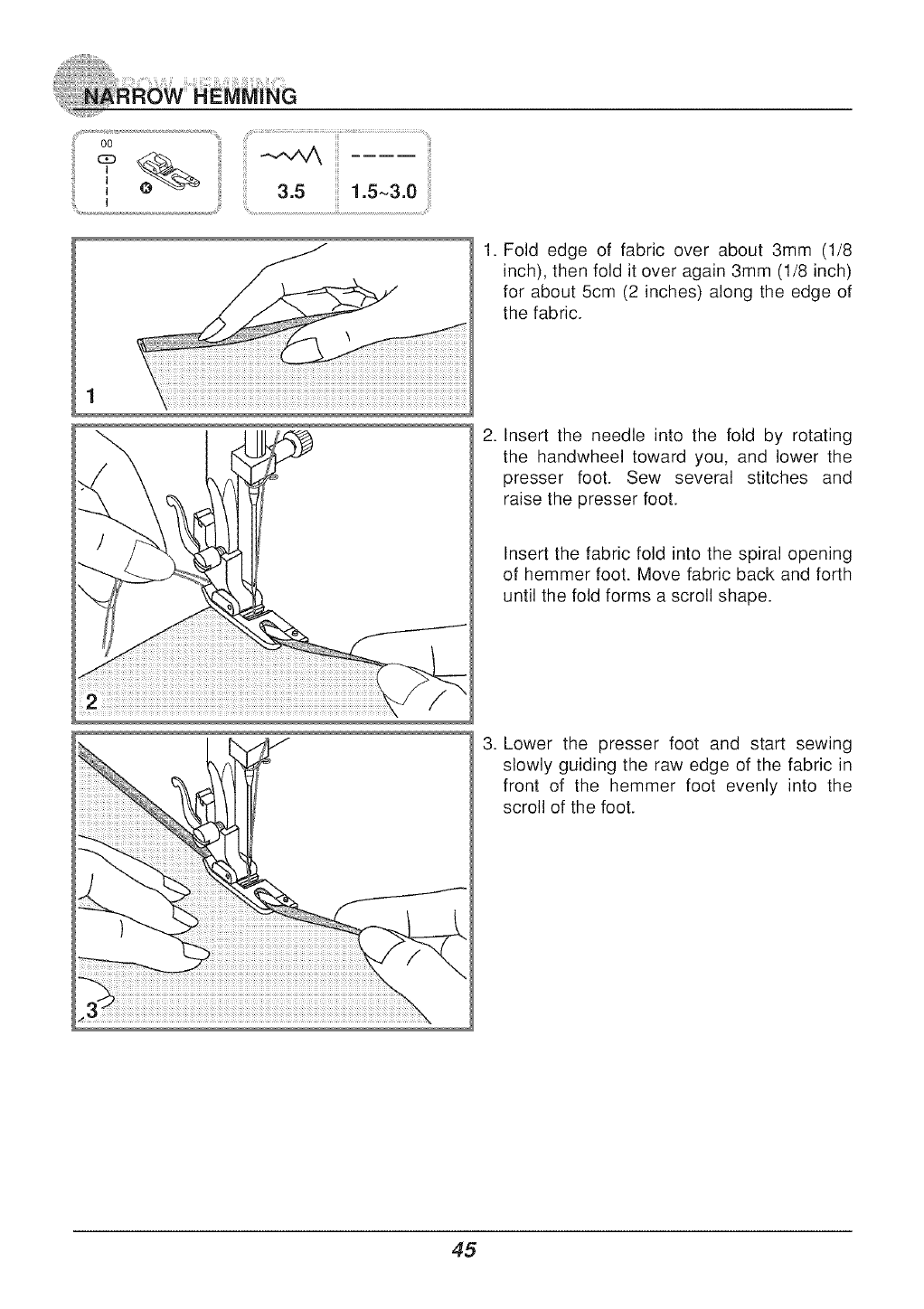

NARROW HEMMING .................................................................. 45

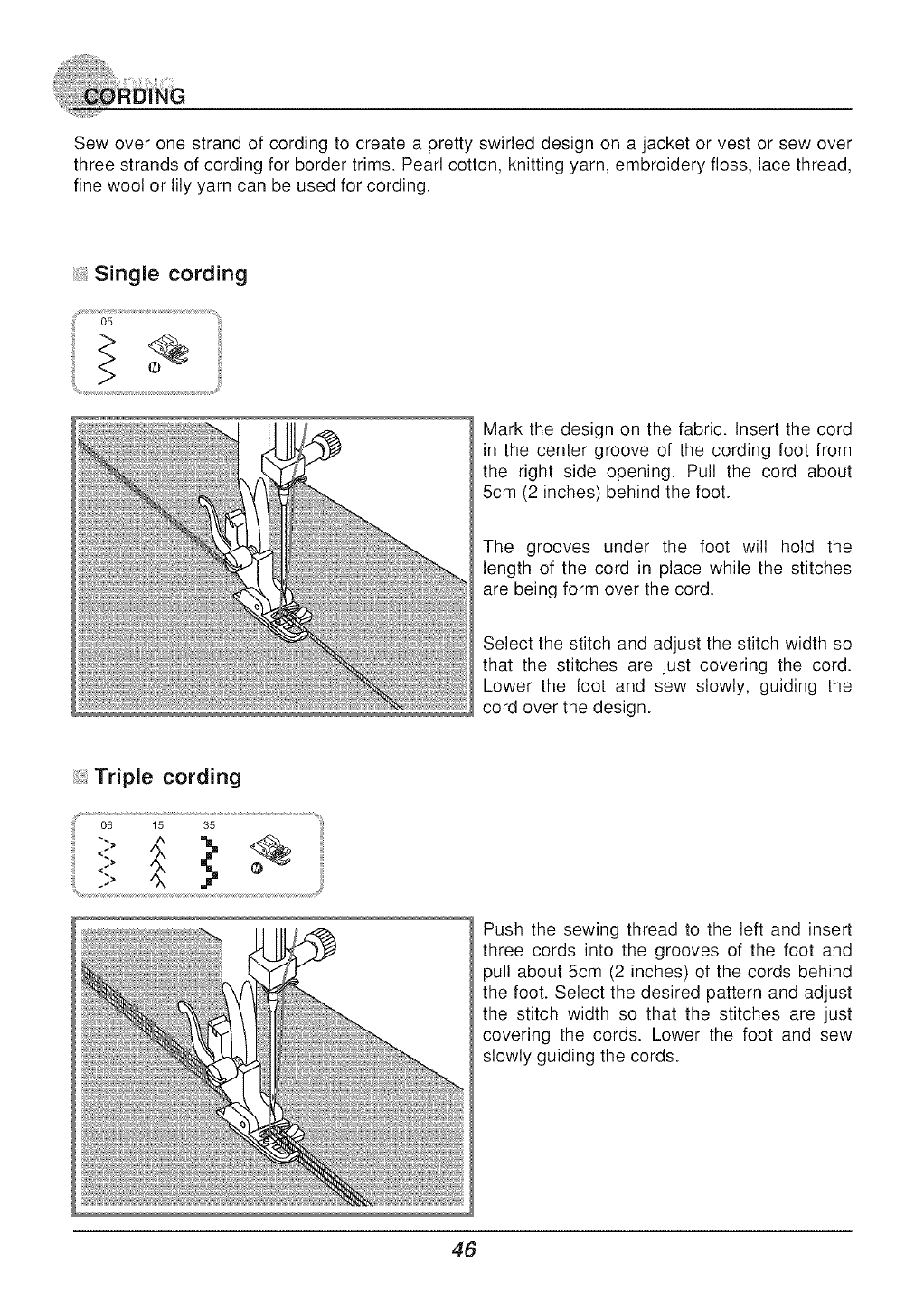

CORDING ........................................................................... 46

Singte cording ..................................................................... 46

Tripte cording ..................................................................... 46

SATIN STITCH SEWING ............................................................... 47

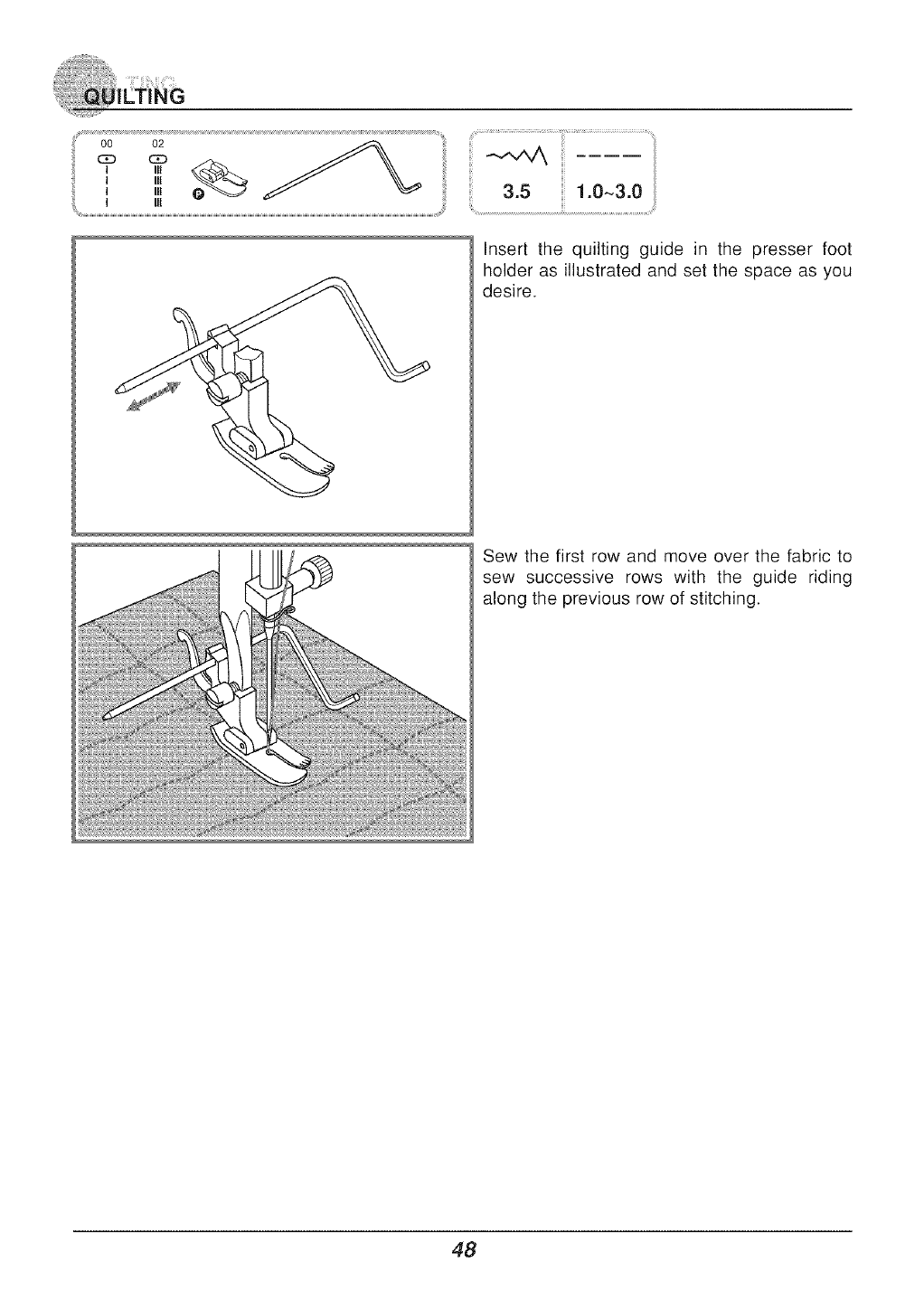

QUiLTiNG ........................................................................... 48

GATHERING ......................................................................... 49

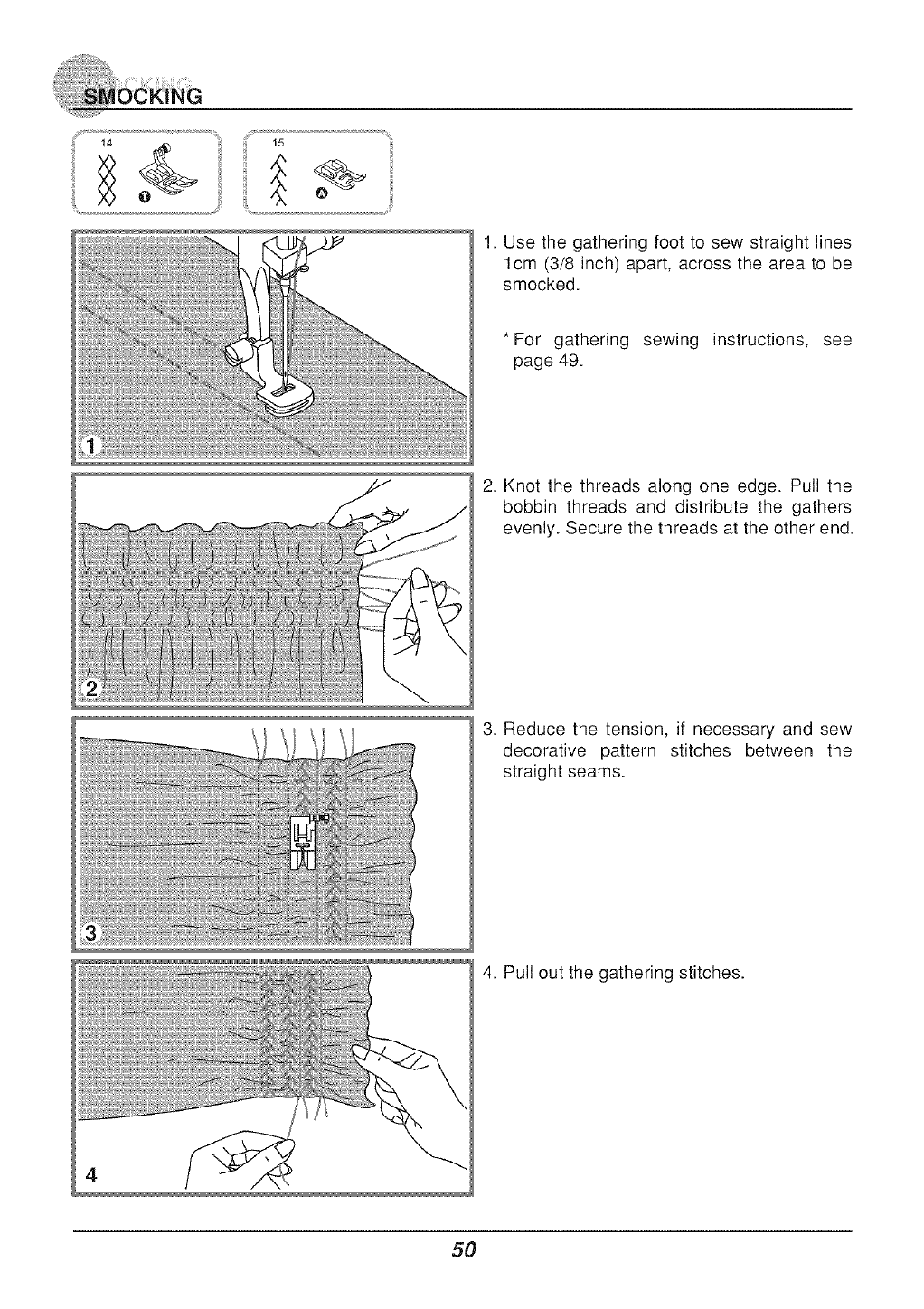

SMOCKING ......................................................................... 50

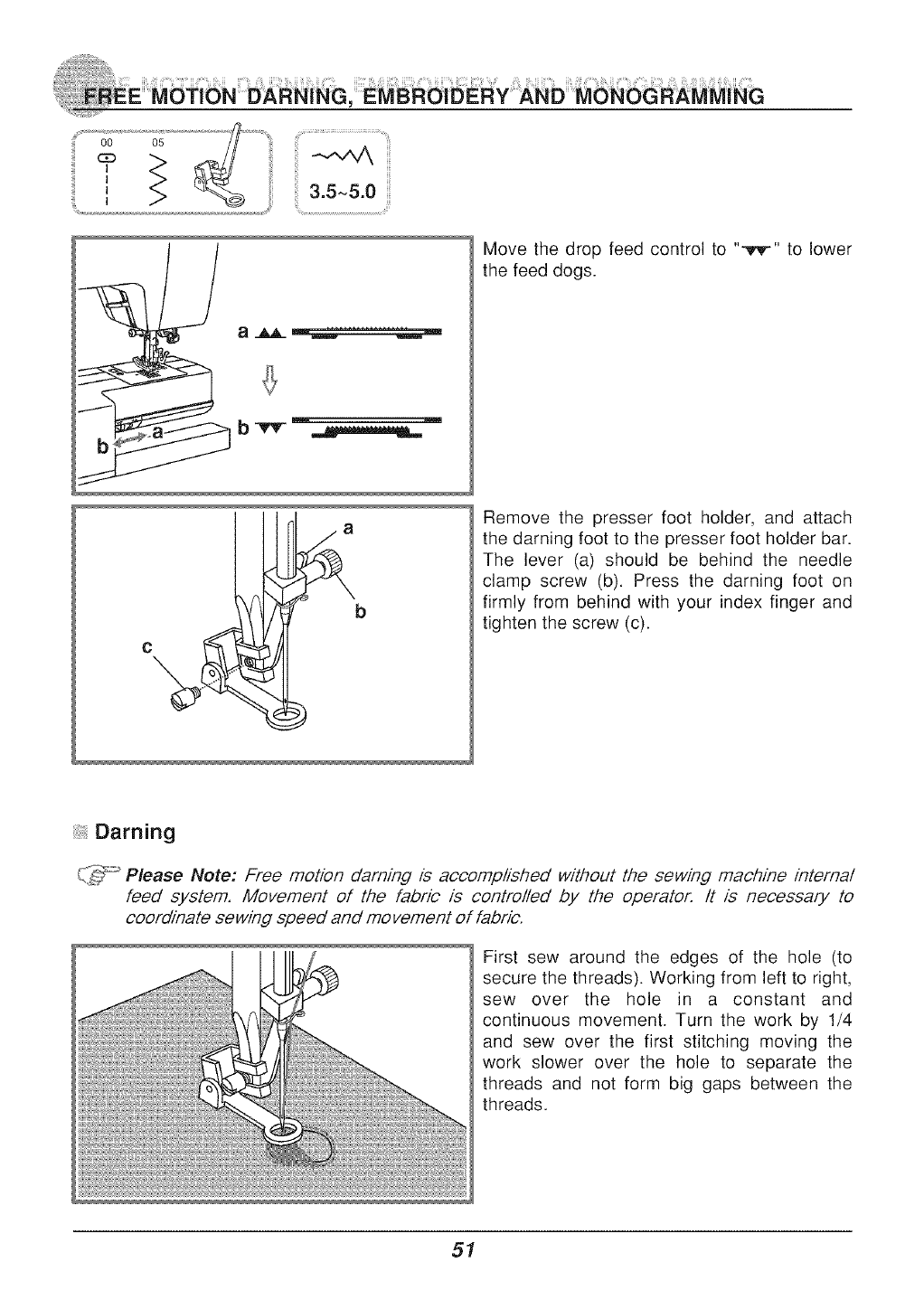

FREE MOTION DARNING_ EMBROIDERY AND MONOGRAMMING ......................... 51-52

Darning .......................................................................... 51

Embroidery ....................................................................... 52

Monogramming .................................................................... 52

WALKING FOOT ..................................................................... 53

FAGOTING .......................................................................... 54

PATCHWORK STiTCHiNG ............................................................. 54

SCALLOP STITCH .................................................................... 55

Scattop hem ...................................................................... 55

Scattop edging .................................................................... 55

ELONGATION ....................................................................... 56

MIRROR ............................................................................ 57

USING THE TWiN NEEDLE ............................................................. 58

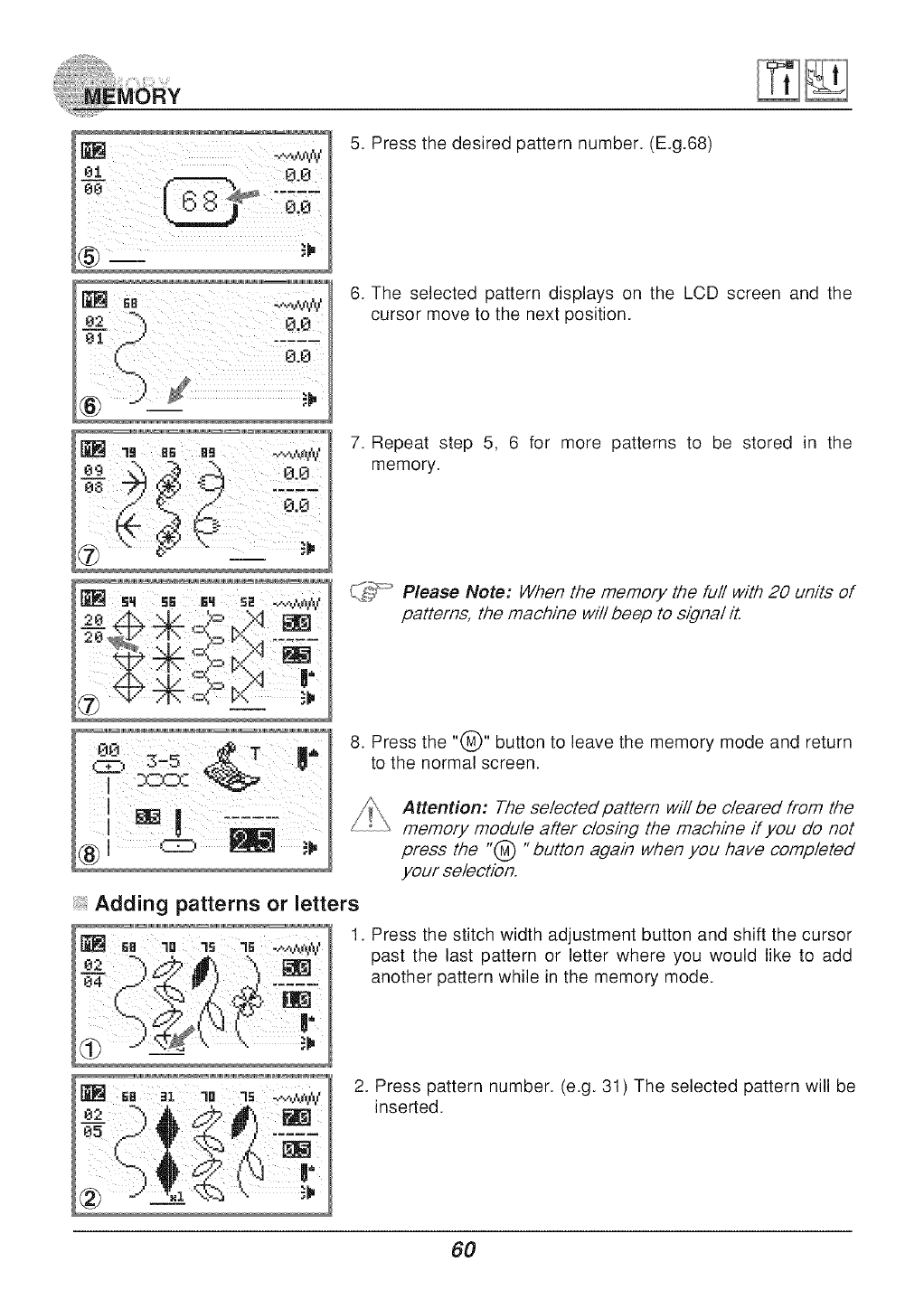

MEMORY ......................................................................... 59-62

Combining patterns or tetters ......................................................... 59

Adding patterns or tetters ............................................................ 60

Editing patterns .................................................................... 61

Ctearing patterns or tetters ........................................................... 61

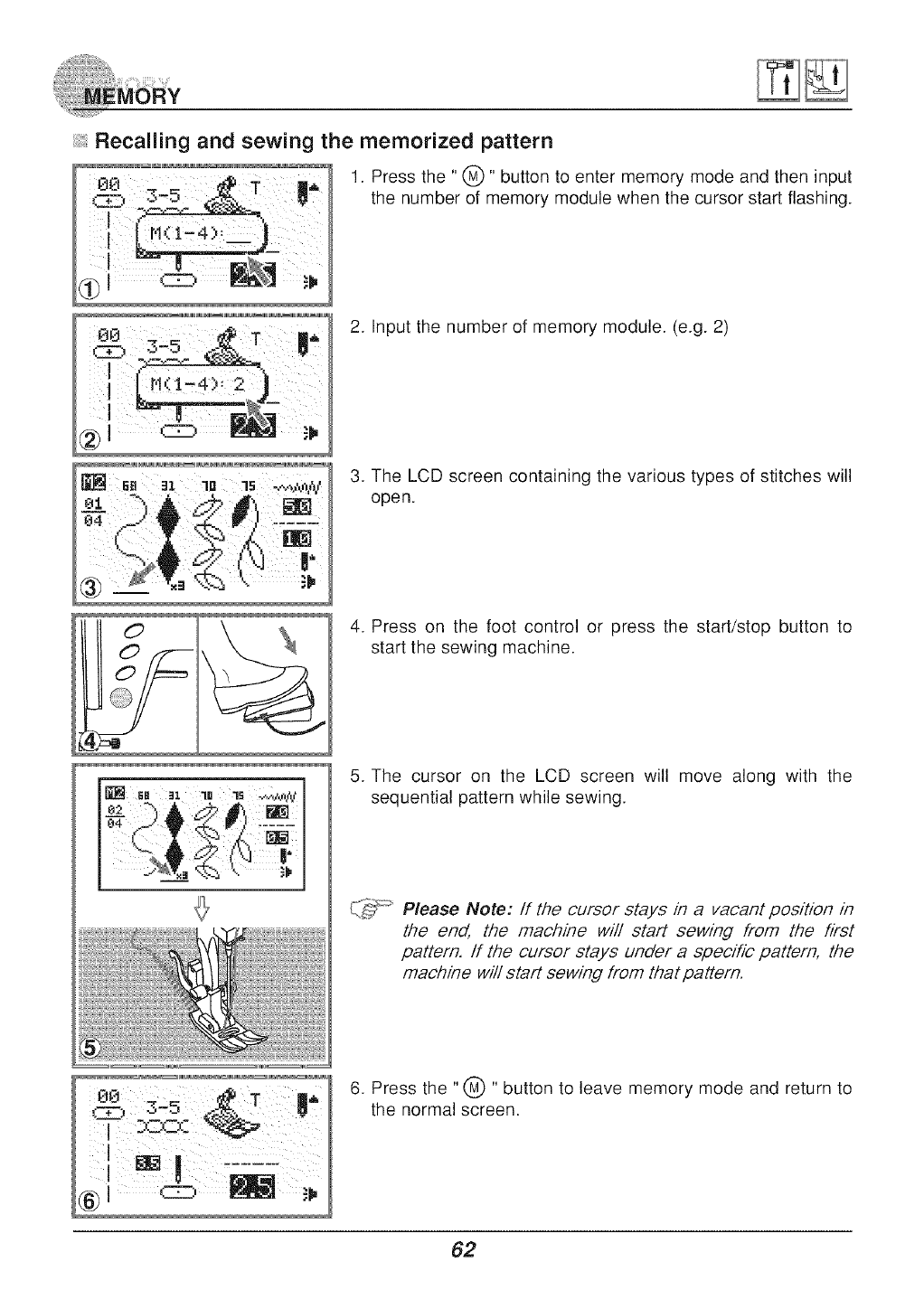

Recalling and sewing the memorized pattern ............................................. 62

WARNING FUNCTIONS ............................................................. 63-64

Warning animation message disptay ................................................... 63

instruction animation message display .................................................. 64

Warning beeping sound ............................................................. 64

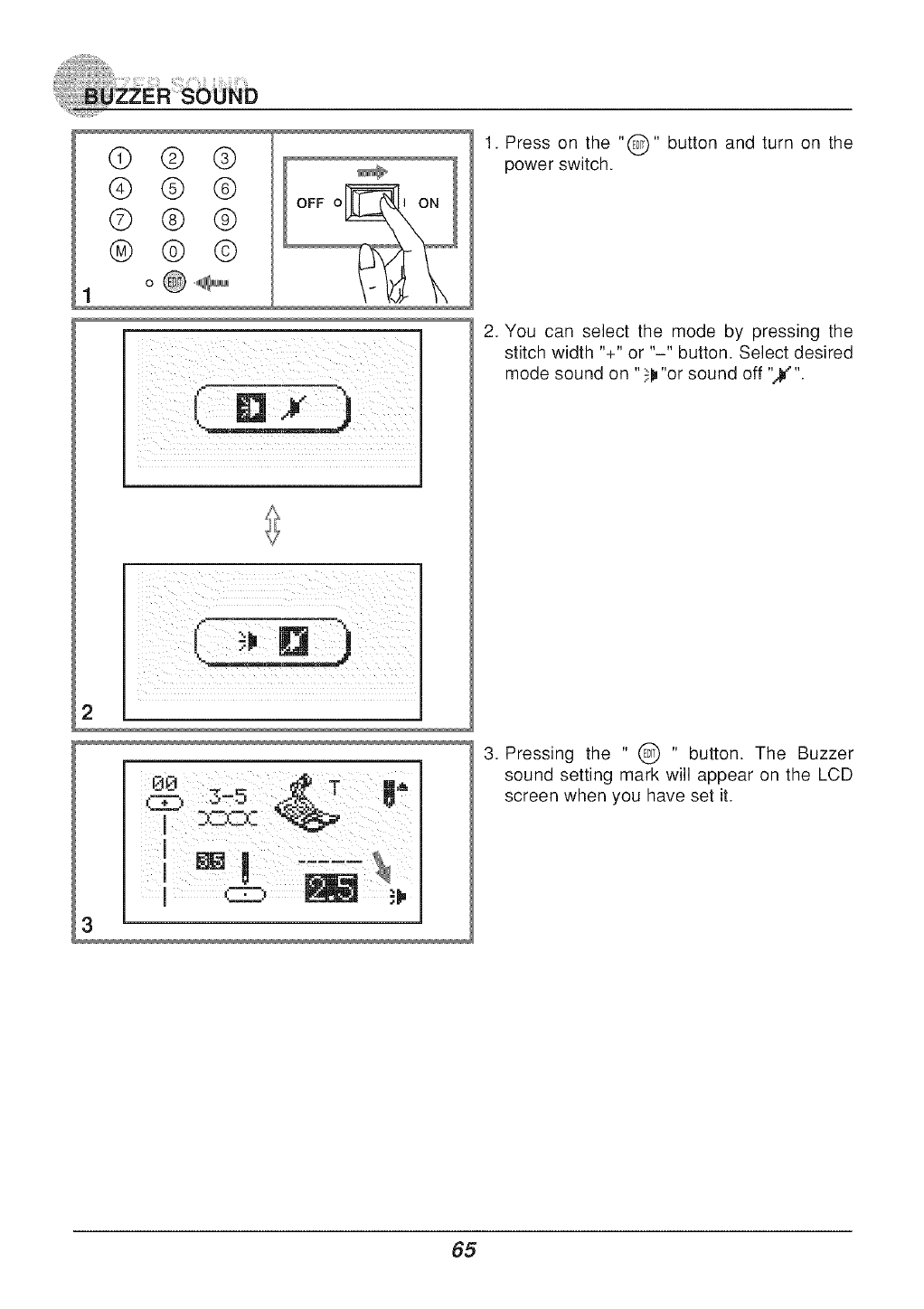

BUZZER SOUND ..................................................................... 65

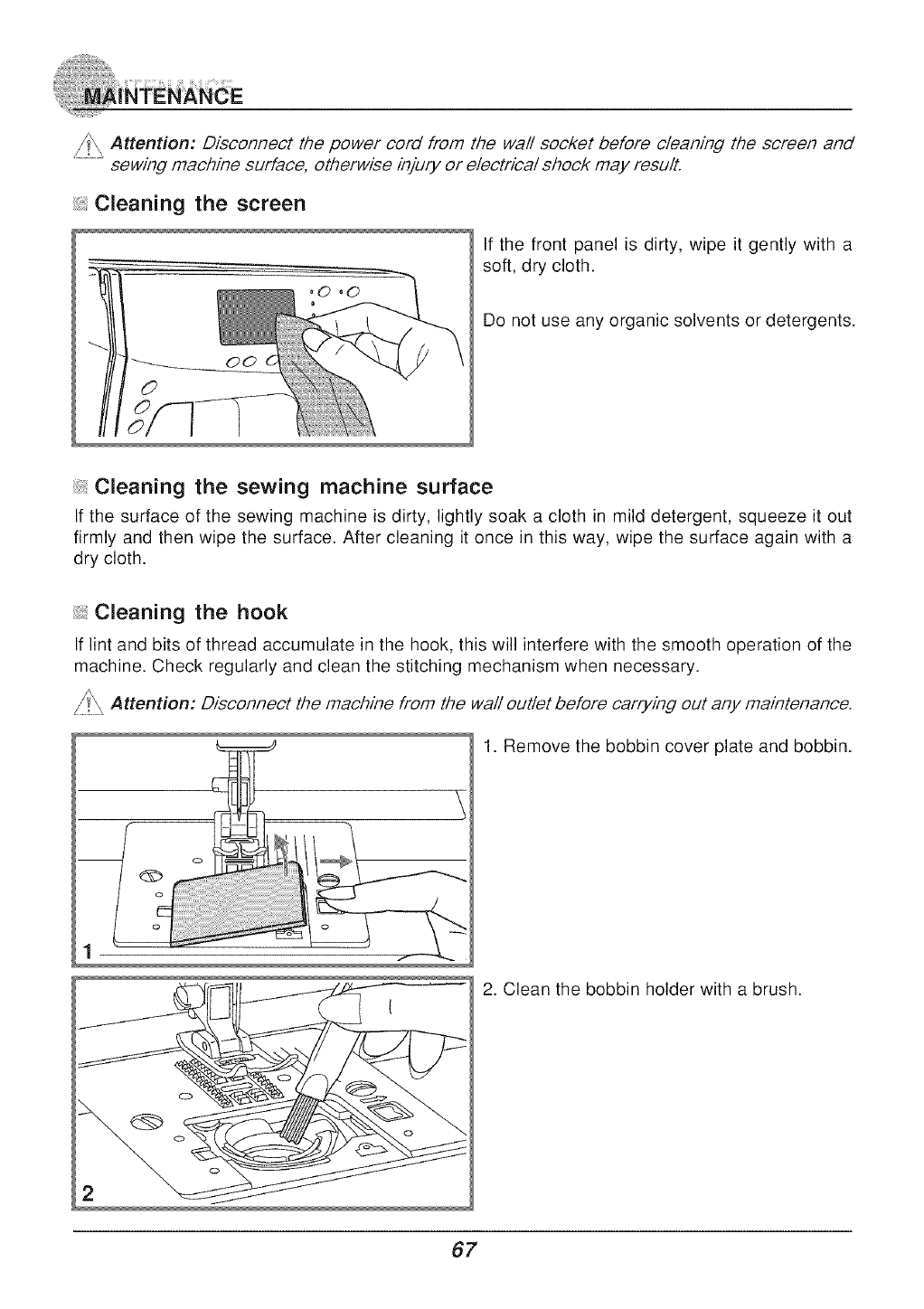

REPLACING THE LIGHT BULB ......................................................... 66

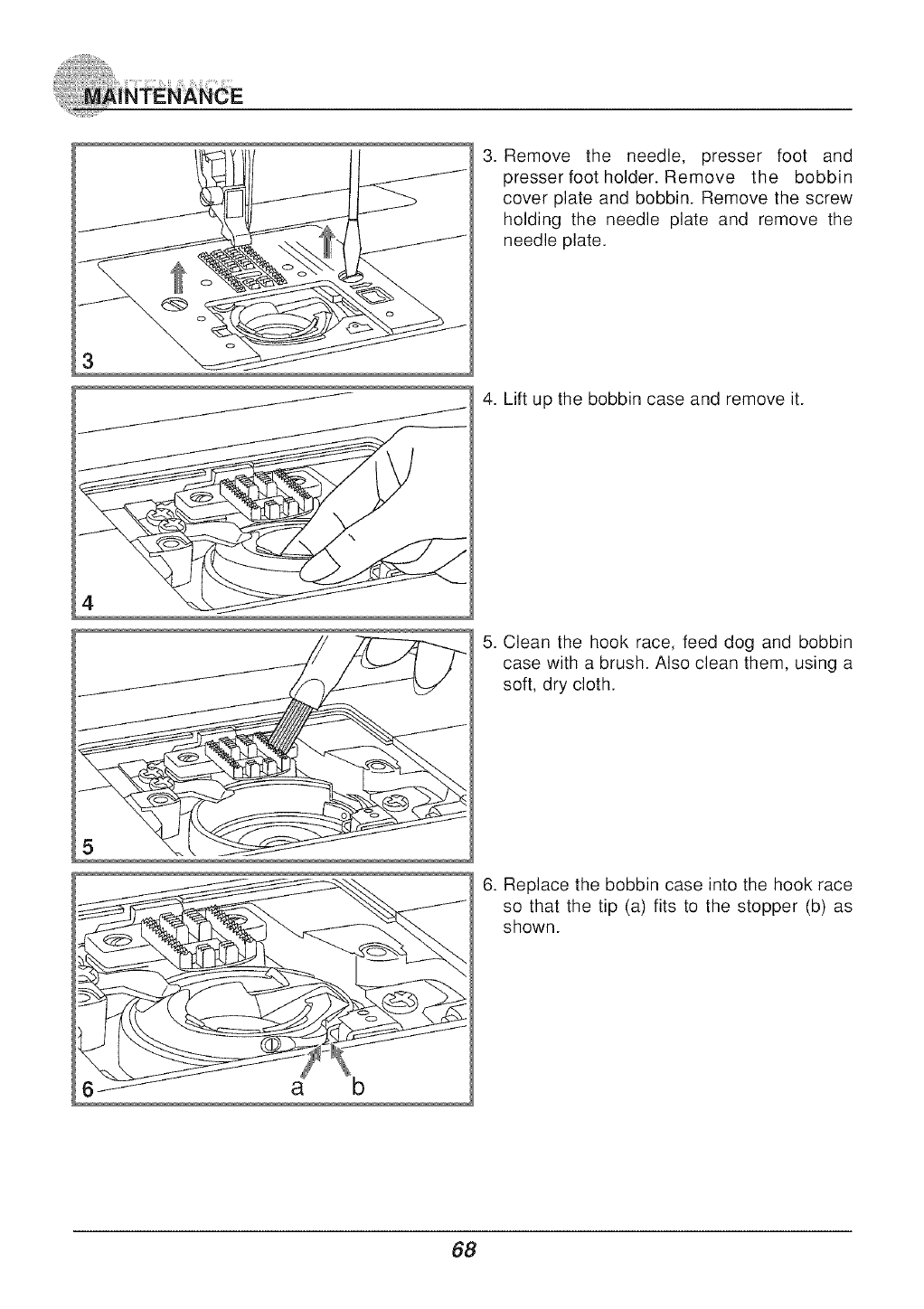

MAINTENANCE ................................................................... 67-68

Cteaning the screen ................................................................ 67

Cteaning the sewing machine surface .................................................. 67

Cteaning the hook ............................................................... 67-68

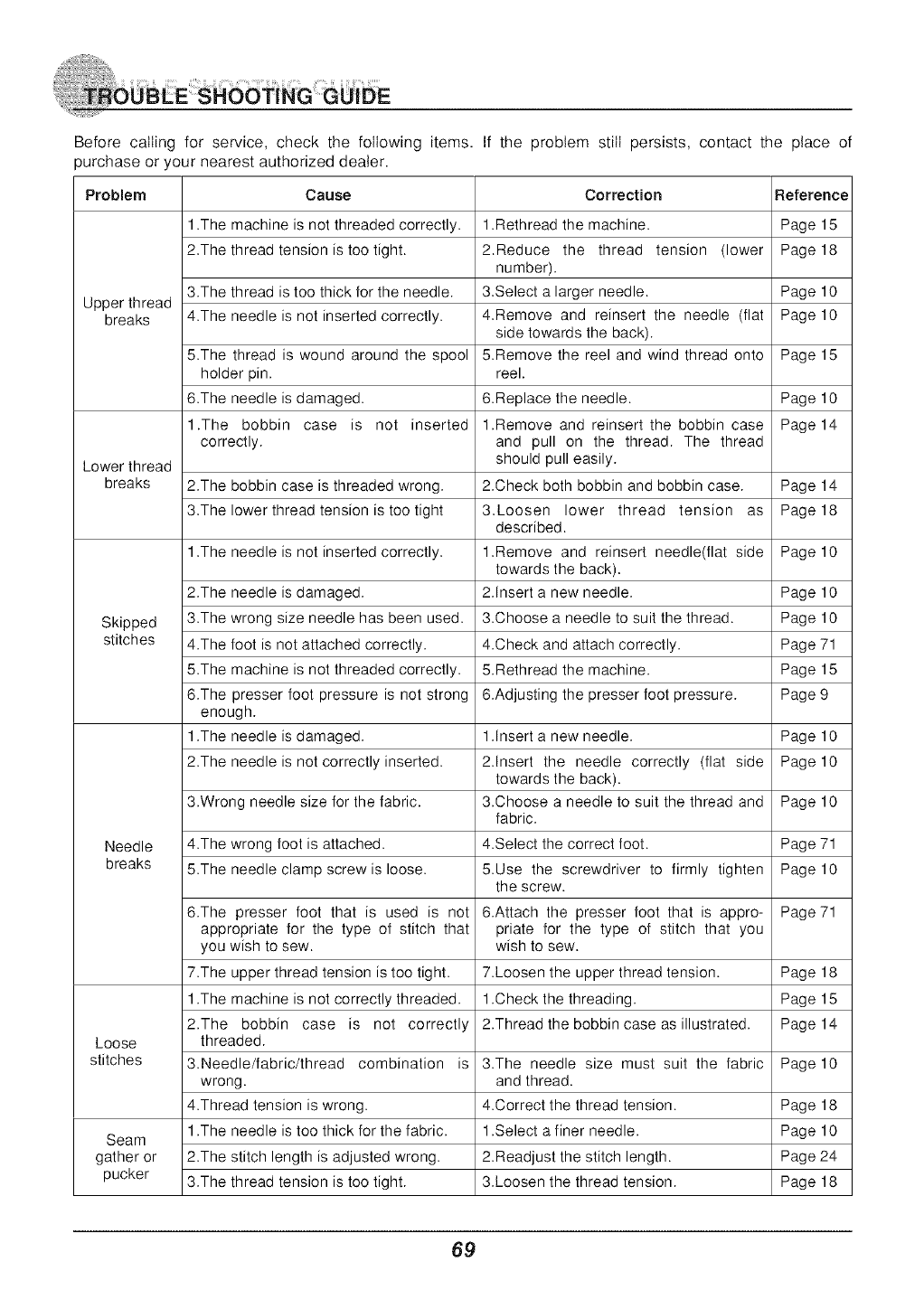

TROUBLE SHOOTING GUIDE ........................................................ 69-70

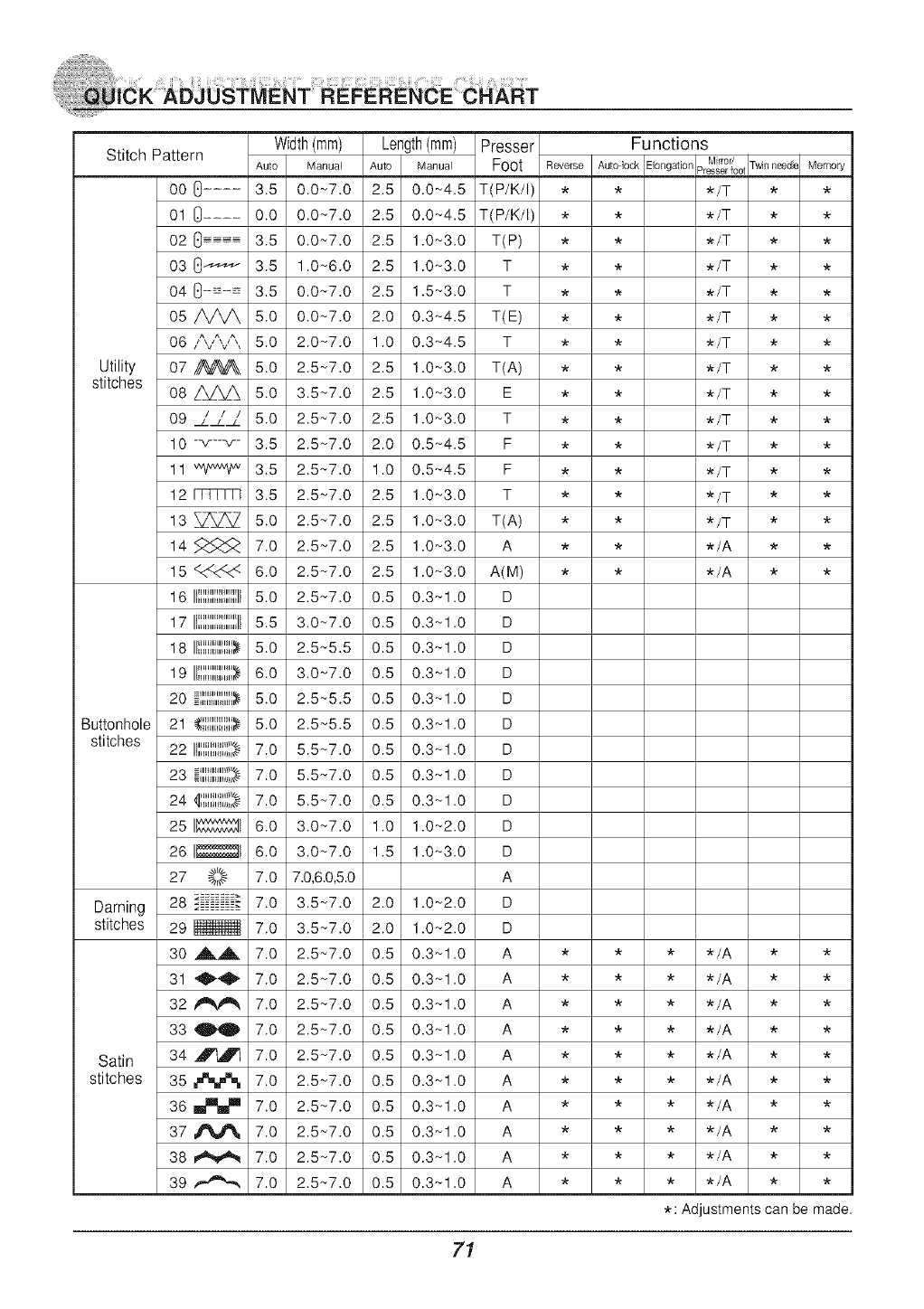

QUICK ADJUSTMENT REFERENCE CHART ............................................ 71-73

III

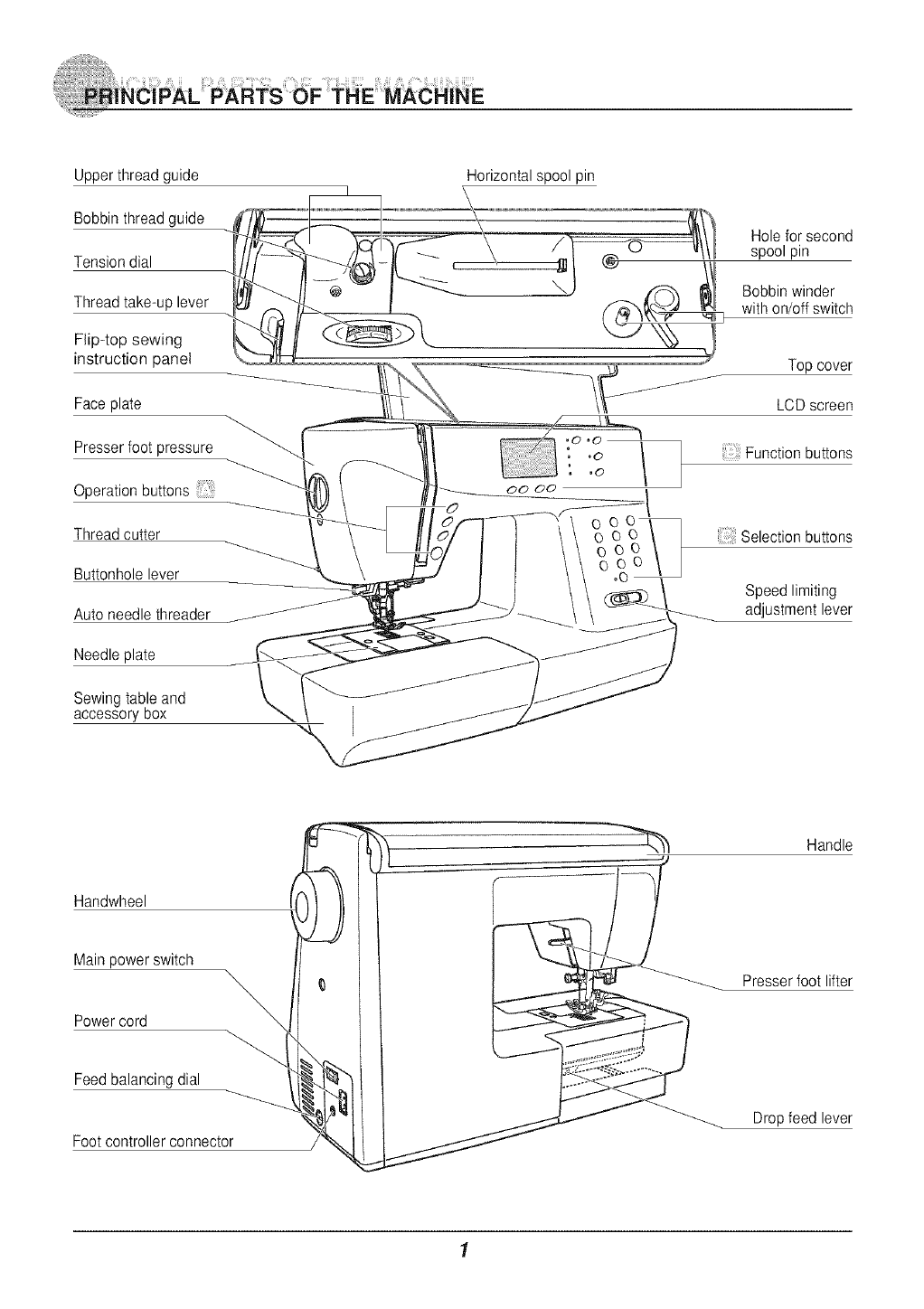

Upper thread guide

Bobbin thread guide

Tension dial

Thread take-up lever

Flip-top sewing

instruction panel

Face plate

Presser foot pressure

Operation buttons

Thread cutter

Buttonhole lever

Auto needle threader

Needle plate

Sewing table and

accessory box

Handwheel

Main power switch

Power cord

Feed balancing dial

Foot controller connector

Horizontal spool pin

Hole for second

spool pin

Bobbin winder

with on/off switch

Top cover

LCD screen

Function buttons

Selection buttons

Speed limiting

ustment lever

Handle

Presser foot lifter

Drop feed lever

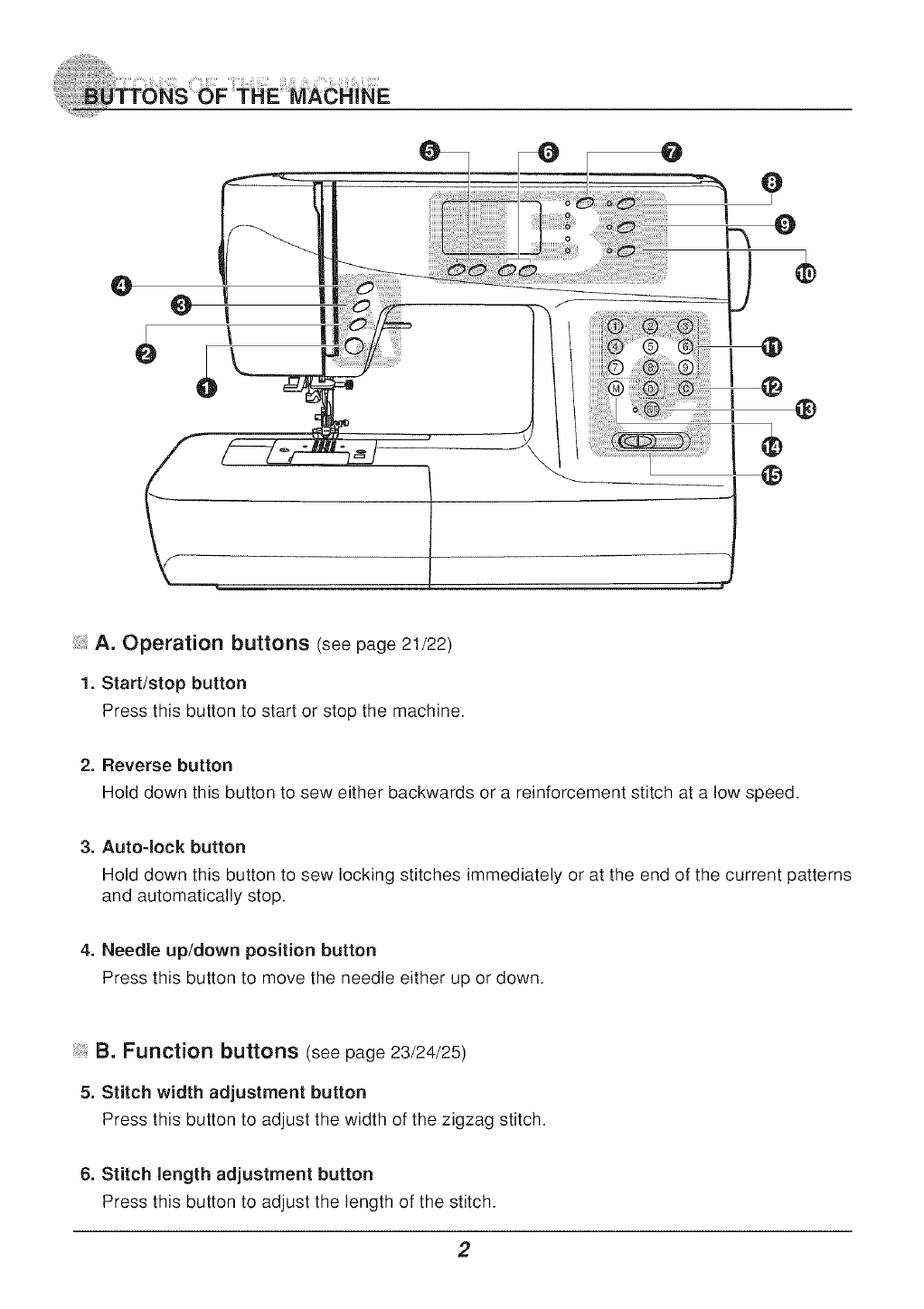

:, A. Operation buttons (see page 21/22)

1. Start/stop button

Press this button to start or stop the machine.

2. Reverse button

Hold down this button to sew either backwards or a reinforcement stitch at a low speed.

3. Auto-lock button

Hold down this button to sew locking stitches immediately or at the end of the current patterns

and automatically stop.

4. Needle up/down position button

Press this button to move the needle either up or down.

:, B. Function buttons (see page 23/24/25)

5. Stitch width adjustment button

Press this button to adjust the width of the zigzag stitch.

6. Stitch length adjustment button

Press this button to adjust the length of the stitch.

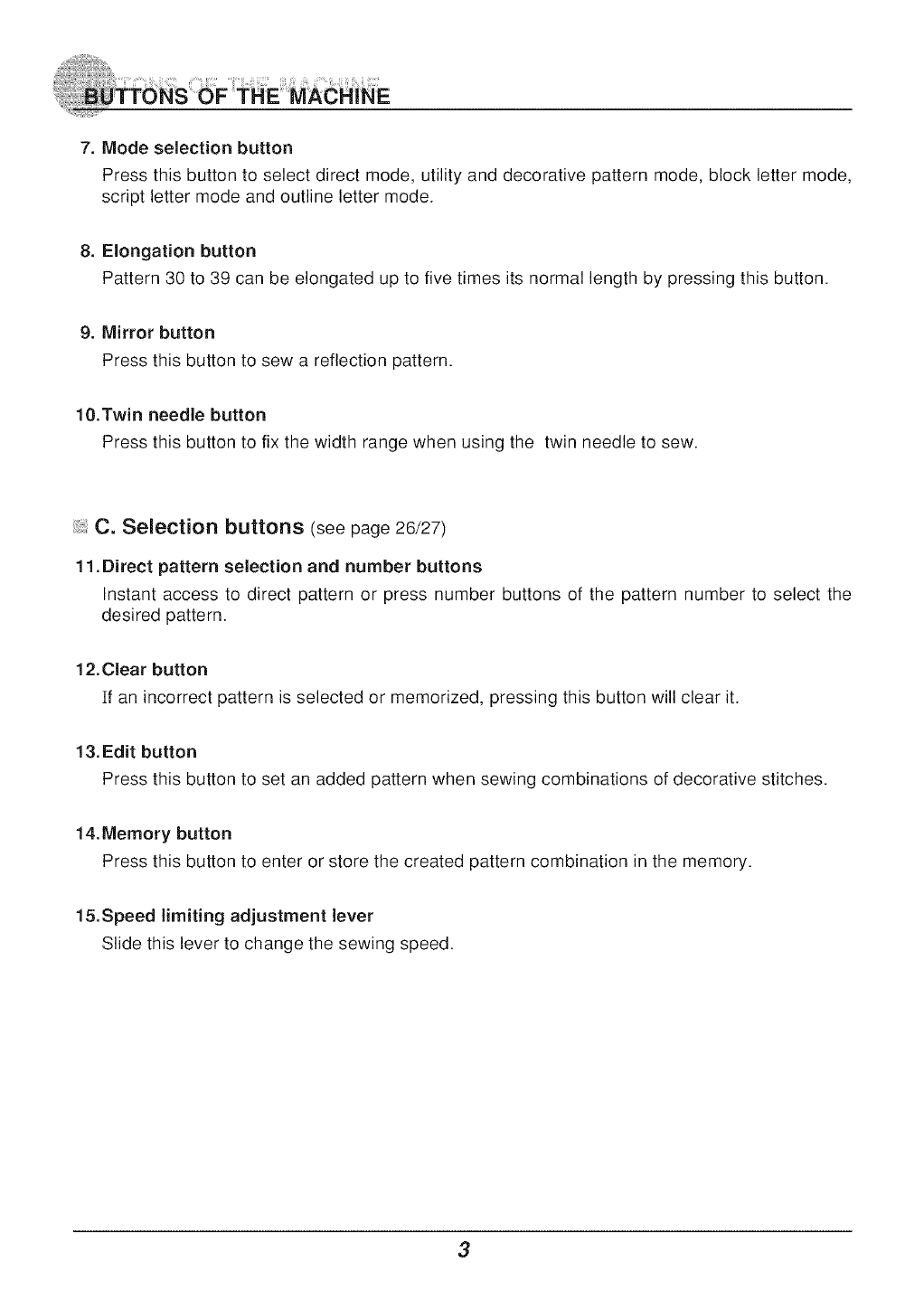

7. Mode selection button

Press this button to select direct mode, utility and decorative pattern mode, block letter mode,

script letter mode and outline letter mode.

8. Elongation button

Pattern 30 to 39 can be elongated up to five times its normal length by pressing this button.

9. Mirror button

Press this button to sew a reflection pattern.

10.Twin needle button

Press this button to fix the width range when using the twin needle to sew.

C. Selection buttons (see page 26/27)

11. Direct pattern selection and number buttons

Instant access to direct pattern or press number buttons of the pattern number to select the

desired pattern.

12. Clear button

if an incorrect pattern is selected or memorized, pressing this button will clear it.

13. Edit button

Press this button to set an added pattern when sewing combinations of decorative stitches.

14. Memory button

Press this button to enter or store the created pattern combination in the memory.

15.Speed limiting adjustment lever

Slide this lever to change the sewing speed.

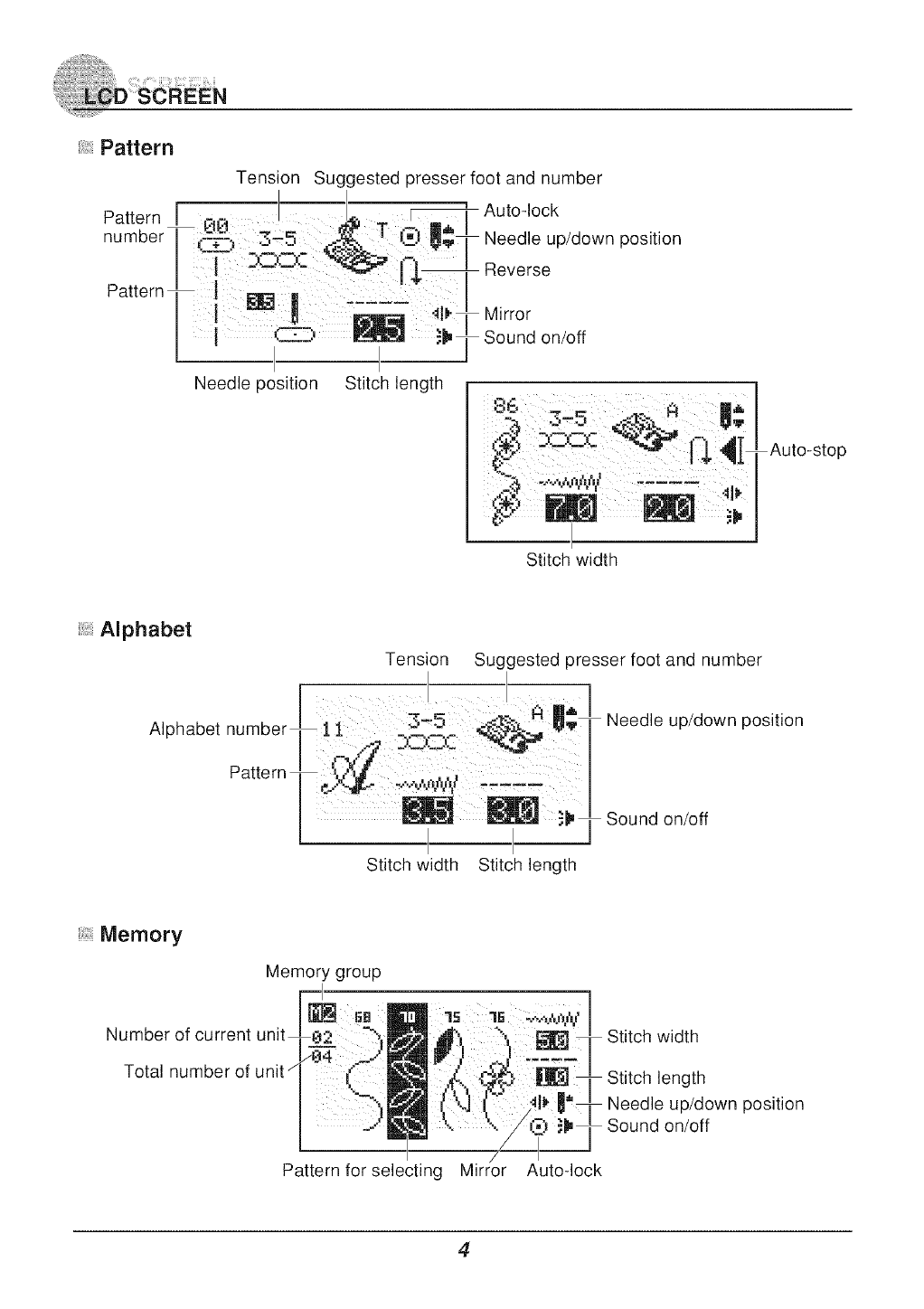

Pattern

number

Pattern

Tension Suggested presser foot and number

r _T Auto-lock

i Needle up/down position

-'7._£ P !"1' Reverse

I' [ M,rror

_' _ _@ Sound on/off

. 1

Needle position Stitch length A1

Stitch width

Alphabet

I I I .

Alphabet Pattern _ _" ;

Stitch width Stitch length

Tension Suggested presser foot and number

Needle up/down position

Sound on/off

Memory

Number

Total number of

Memory group

Pattern for selecting Mirror Auto-lock

Stitch width

Stitch length

Needle up/down position

Sound on/off

Theportionmarkedinpurpleonthechartbelowshowstheoneunitofeachpattern.

Patterns

O6 O7 08 09 10 11 12 13 14 15 16 17 18 19

:: :x : : , •

20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

,.......................

........._.................. _;i I1 ......

::-*q b-fi :::;i ¢ :_ '>,; _f¢

40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59

60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79

......

80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

ii1,iliiAlphabets

01 02 03 04 05 06 07 08 09 10

-1234567890

I 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

alockstyle ABCDEFGHIJKLMNOPQRSTUVWXYZ

37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55

-_A_O_O B&? ! _ _ _ . - ( )

01 02 03 04 05 06 07 08 09 10

I 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

Script style _h//<_]_ _ _ _ ,j _/_ f _ J_'_ ,_j_' (_ +_3 _,_/,_ ,_,_/ _'_. _ /_ <_u

37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55

_', ° _f,_ :) ..... *

01 02 03 04 05 06 07 08 09 10

-__8_®©

I 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

Outlinestyle ___ __0____

37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55

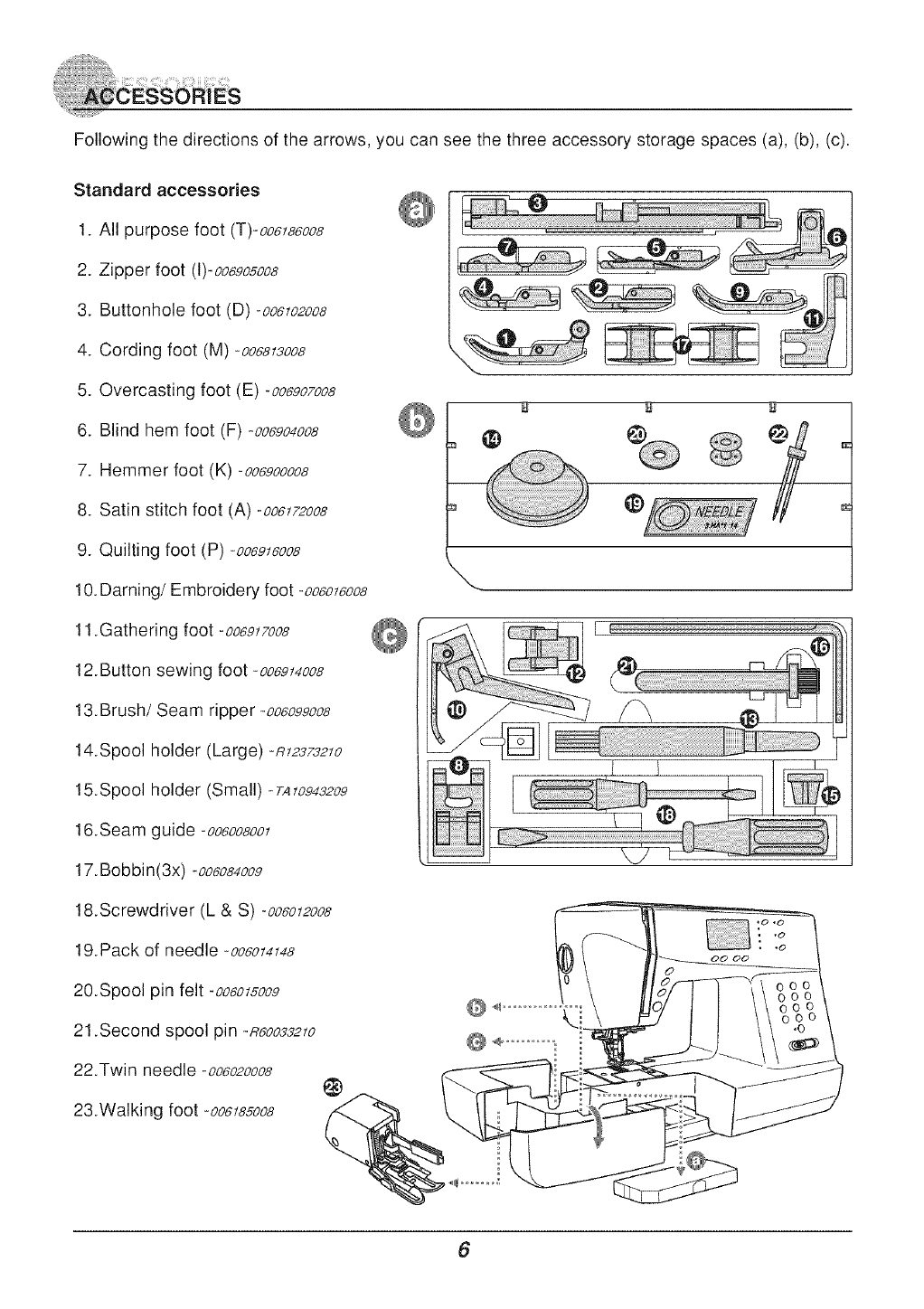

Following the directions of the arrows, you can see the three accessory storage spaces (a), (b), (c).

Standard accessories

1. All purpose foot (T)-ooG186oos

2. Zipper foot (I)-oo69o5oo8

3. Buttonhole foot (D) -oo61o2oo8

4. Cording foot (M) -ooG813oo8

5. Overcasting foot (E) -ooG9o7oo8

6. Blind hem foot (F) -oo69o4oo8

7. Hemmer foot (K) -oo69oooo8

8. Satin stitch foot (A) -ooGlz2oo8

g. Quilting foot (P) -oo6916oo8

10. Darning/Embroidery foot -OOGOIGO08

11.Gathering foot -oo6917oo8

12. Button sewing foot -ooG9_4oo8

13. Brush/Seam ripper -oo6o99oo8

14.Sp001 holder (Large) -R123Z3210

1&Spool holder (Small) -T,4109,_3209

16.Seam guide -oo6oo8oo_

17. Bobbin(3x) -6oGo84oo9

18.Screwdriver (L & S) -6oGo12oo8

19. Pack of needle -6oGo14148

20.Spool pin felt -oo6o15oo9

21 .Second spool pin -R6OO3321O

22.Twin needle -oo6o2ooo8

23.Walking foot -oo6_856o8

Caution: A/ways make sure that the machine is unp/ugged from power source and the main

switch is on "0". when the machine is not in use and before inserting or removing parts.

OFF o[_1 ON

Connecting the machine

Before connecting the power supply, make sure that the voltage and frequency shown on the

machine is conforming with your electrical power.

Place the machine on a stable table.

1. Connect the power line cord to the machine by inserting the 2-hole plug into the terminal box.

2. Connect the power line plug to the electric outlet.

3. Turn on the power switch.

4. The sewing lamp will light up when the switch is turned on.

To disconnect, turn the power switch to the off position, then remove plug from outlet.

Polarized plug information

This appliance has a polarized plug (one blade wider than the other),

to reduce the risk of electrical shock; this plug will fit in a polarized

outlet only one way. If the plug does not fit fully in the outlet, reverse

the plug. If it still does not fit, contact a qualified electrician. Do not

modify the plug in any way.

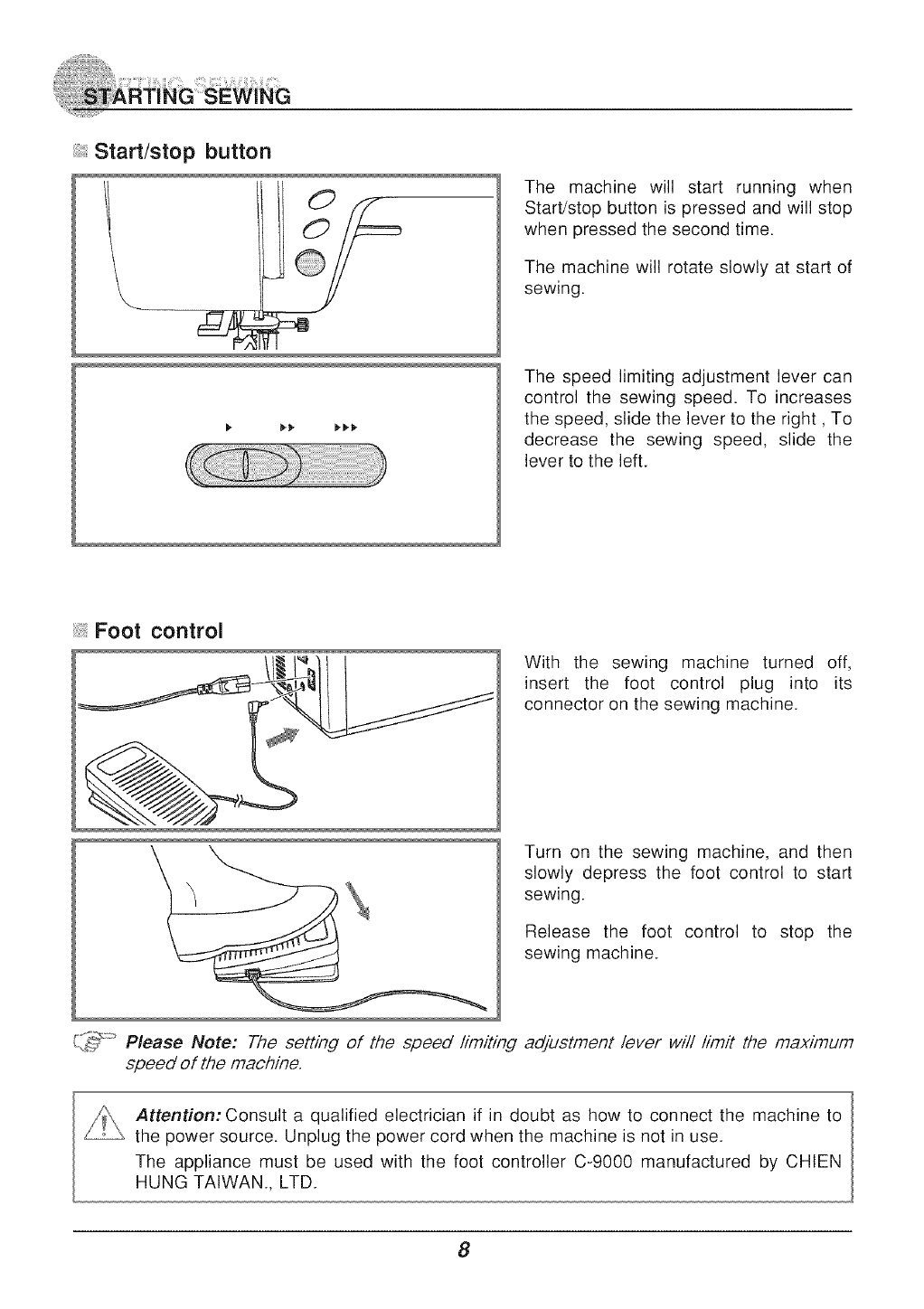

Start/stop button

The machine will start running when

Start/stop button is pressed and will stop

when pressed the second time.

The machine will rotate slowly at start of

sewing.

The speed limiting adjustment lever can

control the sewing speed. To increases

the speed, slide the lever to the right, To

decrease the sewing speed, slide the

lever to the left.

:, Foot control

With the sewing machine turned off,

insert the foot control plug into its

connector on the sewing machine.

Turn on the sewing machine, and then

slowly depress the foot control to start

sewing.

Release the foot control to stop the

sewing machine.

,_ Please Note: The setting of the speed limiting adjustment lever will limit the maximum

speed of the machine.

Attention: Consult a qualified electrician if in doubt as how to connect the machine to

the power source. Unplug the power cord when the machine is not in use.

The appliance must be used with the foot controller C-9000 manufactured by CHIEN

HUNG TAIWAN., LTD.

The presser foot pressure dial is on the

left of the face plate.

Ji- m

The presser foot pressure of the

machine has been pre-set and requires

no particular readjustment according to

the type of fabric.

For sewing very thin fabric, loosen the

pressure by turning the screw

counterclockwise, and for heavy fabric,

tighten by turning it clockwise.

÷,;

/_ Attention: Turn power switch to off

("0") when carrying out any of the

above operations!

Attaching the presser foot holder (1)

Raise the presser foot bar (a). Attach the

presser foot holder (b) as illustrated.

Attaching the presser foot (2)

Lower the presser foot holder (b) until

the cut-out (c) is directly above the pin (d).

Raise the lever (e).

Lower the presser foot holder (b) and the

presser foot (f) will engage automatically.

Removing the presser toot (3)

Raise the presser foot.

Raise the lever (e) and the foot will

disengages.

Attaching the seam guide (4)

Attach the seam guide (g) in the slot as

illustrated. Adjust according to need for

hems, pleats, etc.

B _',,, Attention: Turn power switch to off. ("0")

/_'_ when carrying out any of the above

operations!

Change the needle regularly, especially if it is

showing signs of wear and causing problems.

Insert the needle following the illustrated

instructions.

A. Loosen the needle clamp screw and tighten

again after inserting the new needle.

The flat side of the shaft should be towards the

back.

B. Insert the needle as far up as it will go.

Needles must be in perfect condition.

Problems can occur with:

* Bent needles

- Blunt needles

- Damaged points

NEEDLE, FABRIC, THREAD SELECTION GUIDE

NEEDLE SIZE FABRICS THREAD

9-11 (70-80) Lightweight fabrics-thin cottons, voile, Light-duty thread in cotton, nylon,

serge, silk, muslin, Qiana, interlocks, polyester or cotton wrapped

cotton knits, tricot, jerseys, crepes, polyester.

woven polyester, shirt & blouse fabrics.

11-14 (80-90)

14 (90)

16 (100)

18 (110)

Medium weight fabrics-cotton, satin,

kettleclote, sailcloth, double knits,

lightweight woollens.

Medium weight fabrics-cotton duck,

woolen, heavier knits, terrycloth,

denims.

Heavyweight fabrics-canvas, woolens,

outdoor tent and quilted fabrics,

denims, upholstery material (light to

medium).

Heavy woollens, overcoat fabrics,

upholstery fabrics, some leathers

and vinyls.

Most threads sold are medium

size and suitable for these

fabrics and needle sizes. Use

polyester threads on synthetic

materials and cotton on natural

woven fabrics for best results.

Always use the same thread on

top and bottom.

Heavy duty thread, carpet thread.

_::_ Please Note:

-In genera/, fine threads and need/es are used for sewing fine fabrics, and thickerthreads

are used for sewing heavy fabrics.

-A/ways test thread and need/e size on a sma//piece of fabric which wi//be used for actua/

sewing.

-Use the same thread for need/e and bobbin.

"i:Double needle is being suggested for certain stitches for more creativity)

PRESSER FOOT

All purpose foot (T)

Zipper foot (I)

(D)

Cording foot (M)

Overcasting foot

(E)

Blind hem foot (F)

Hemmer foot (K)

APPLICATION

Generalsewing,

Patchworkstitches,

Decorative

stitching,

Smocking,

Fagoting,etc.

Inserting zippers

CZD

Buttonhole

Cording

Overcasting

Blind hem

Narrow hemming

NEEDLE PRESSER FOOT

Satin stitch foot (A)

Quilting foot (P)

Darning/

Embroidery foot

Gathering foot

Button sewing foot

Walking foot

APPLICATION NEEDLE

Satin stitch

Quilting

CZ)

Darning

Free embroidery

Monogramming

Gathering II

Button sewing

This foot helps to

prevent uneven ! f

feeding of very

difficult fabrics

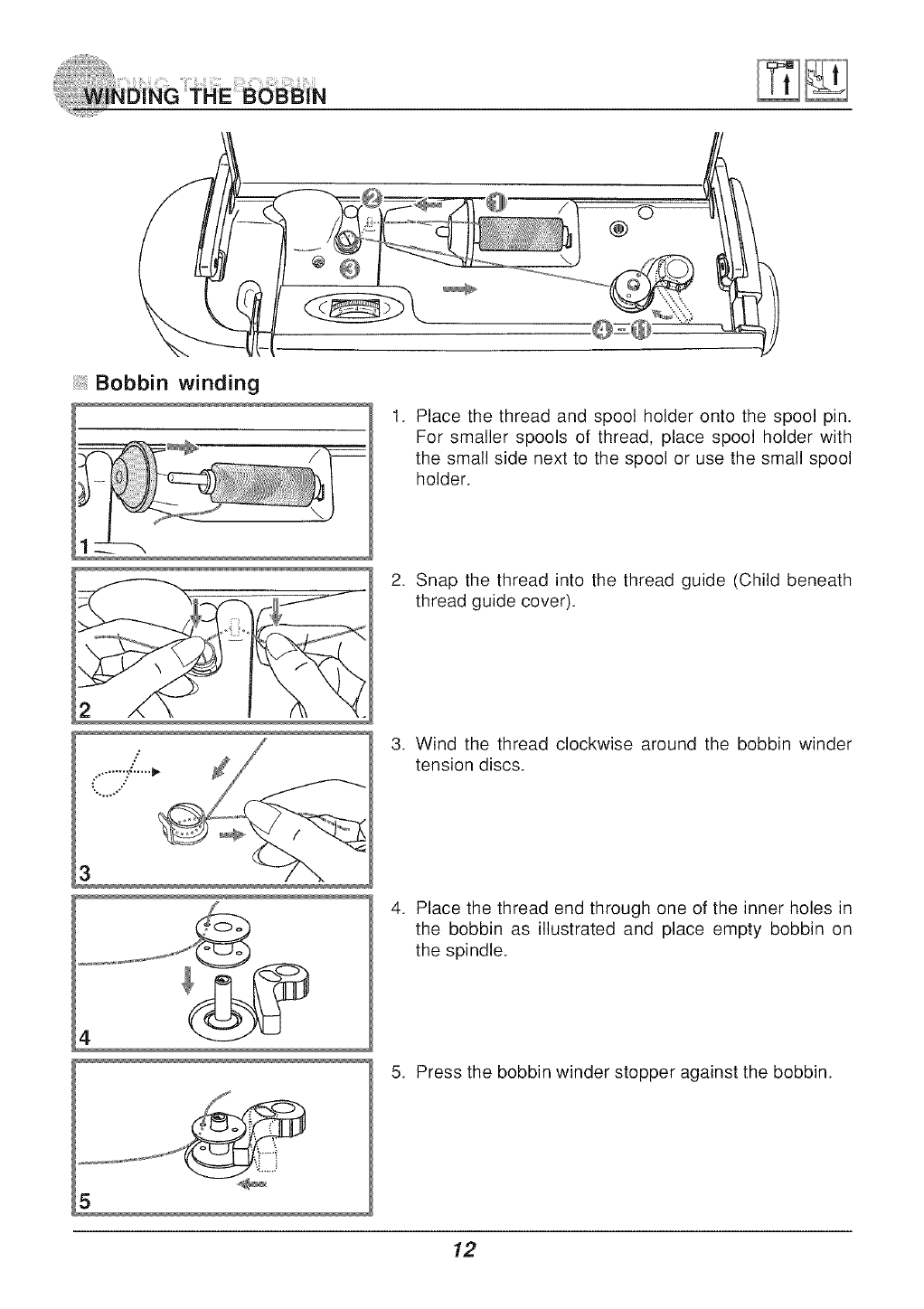

Bobbin winding

1. Place the thread and spool holder onto the spool pin.

For smaller spools of thread, place spool holder with

the small side next to the spool or use the small spool

holder.

2. Snap the thread into the thread guide (Child beneath

thread guide cover).

3. Wind the thread clockwise around the bobbin winder

tension discs.

4. Place the thread end through one of the inner holes in

the bobbin as illustrated and place empty bobbin on

the spindle.

5. Press the bobbin winder stopper against the bobbin.

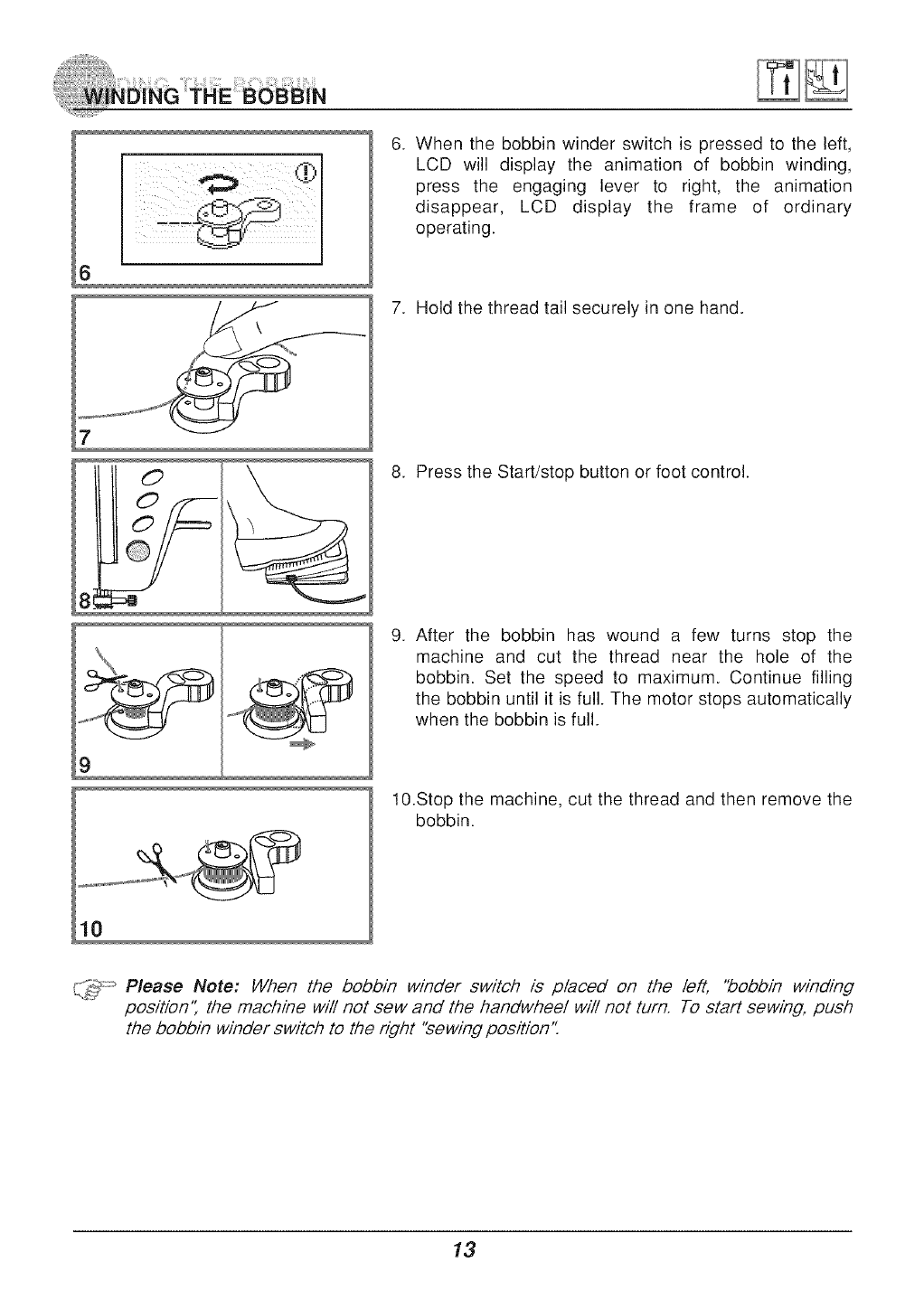

6. When the bobbin winder switch is pressed to the left,

LCD will display the animation of bobbin winding,

press the engaging lever to right, the animation

disappear, LCD display the frame of ordinary

operating.

7. Hold the thread tail securely in one hand.

8. Press the Start/stop button or foot control.

9. After the bobbin has wound a few turns stop the

machine and cut the thread near the hole of the

bobbin. Set the speed to maximum. Continue filling

the bobbin until it is full. The motor stops automatically

when the bobbin is full.

10.Stop the machine, cut the thread and then remove the

bobbin.

.,,_ Please Note: When the bobbin winder switch is p/aced on the /eft, "bobbin winding

position", the rnach/ne w/// not sew and the handwhee/ w/// not turn. To start sewing, push

the bobbin winder switch to the right "sewing pos/t/on't

_"), Attention: Turn power switch to off ("0")

before inserting or removing the bobbin.

When inserting or removing the bobbin,

the needle must be fully raised.

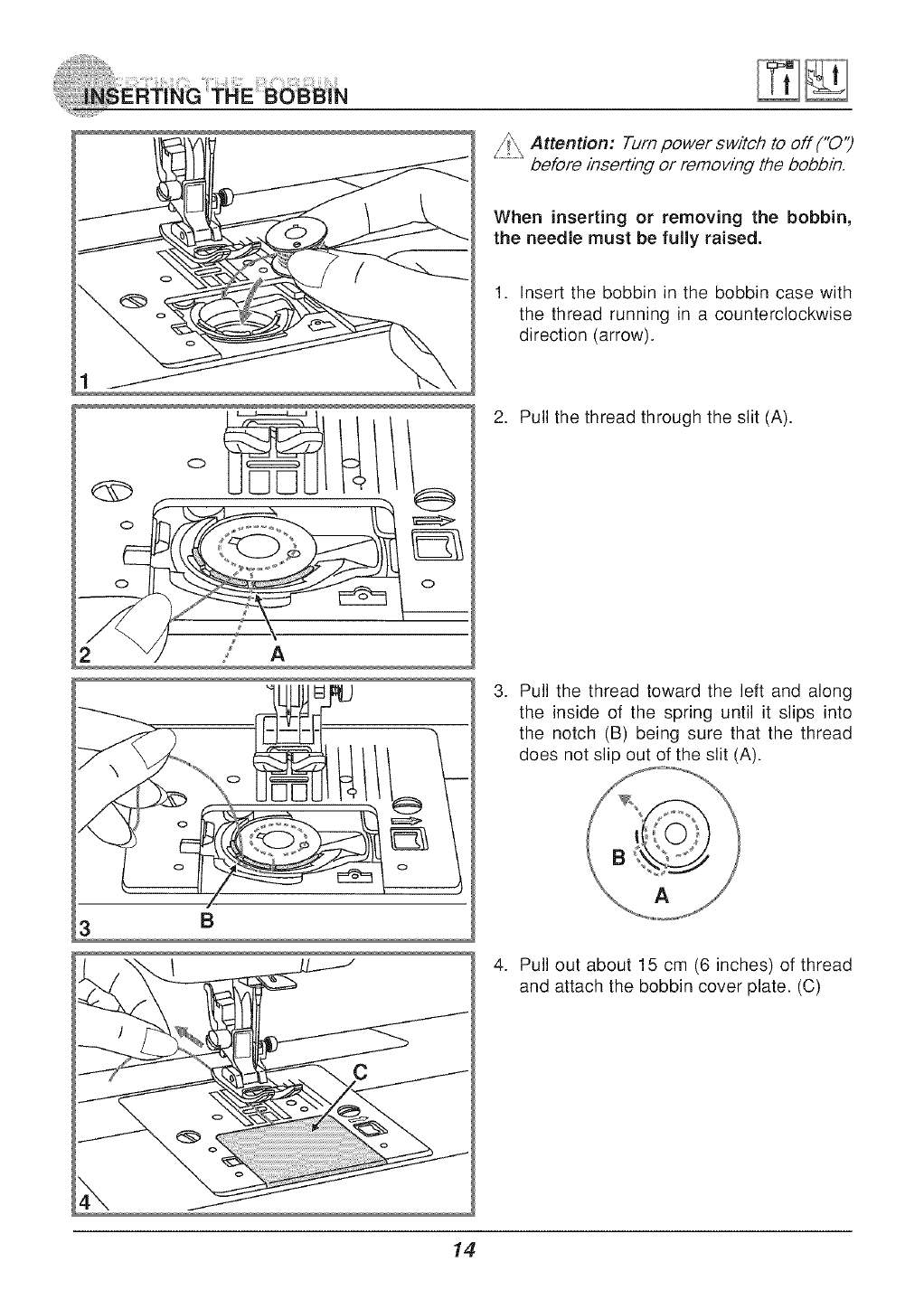

1. Insert the bobbin in the bobbin case with

the thread running in a counterclockwise

direction (arrow).

2. Pull the thread through the slit (A).

.Pull the thread toward the left and along

the inside of the spring until it slips into

the notch (B) being sure that the thread

does not slip out of the slit (A).

4. Pull out about 15 cm (6 inches) of thread

and attach the bobbin cover plate. (C)

o0 o0

oo 0

II 0 0 0

0 0 0

0o0 0

-_2 Please Note:/t is important to carry out the threading correct/y as by not doing so severa/

sewing prob/ems could result.

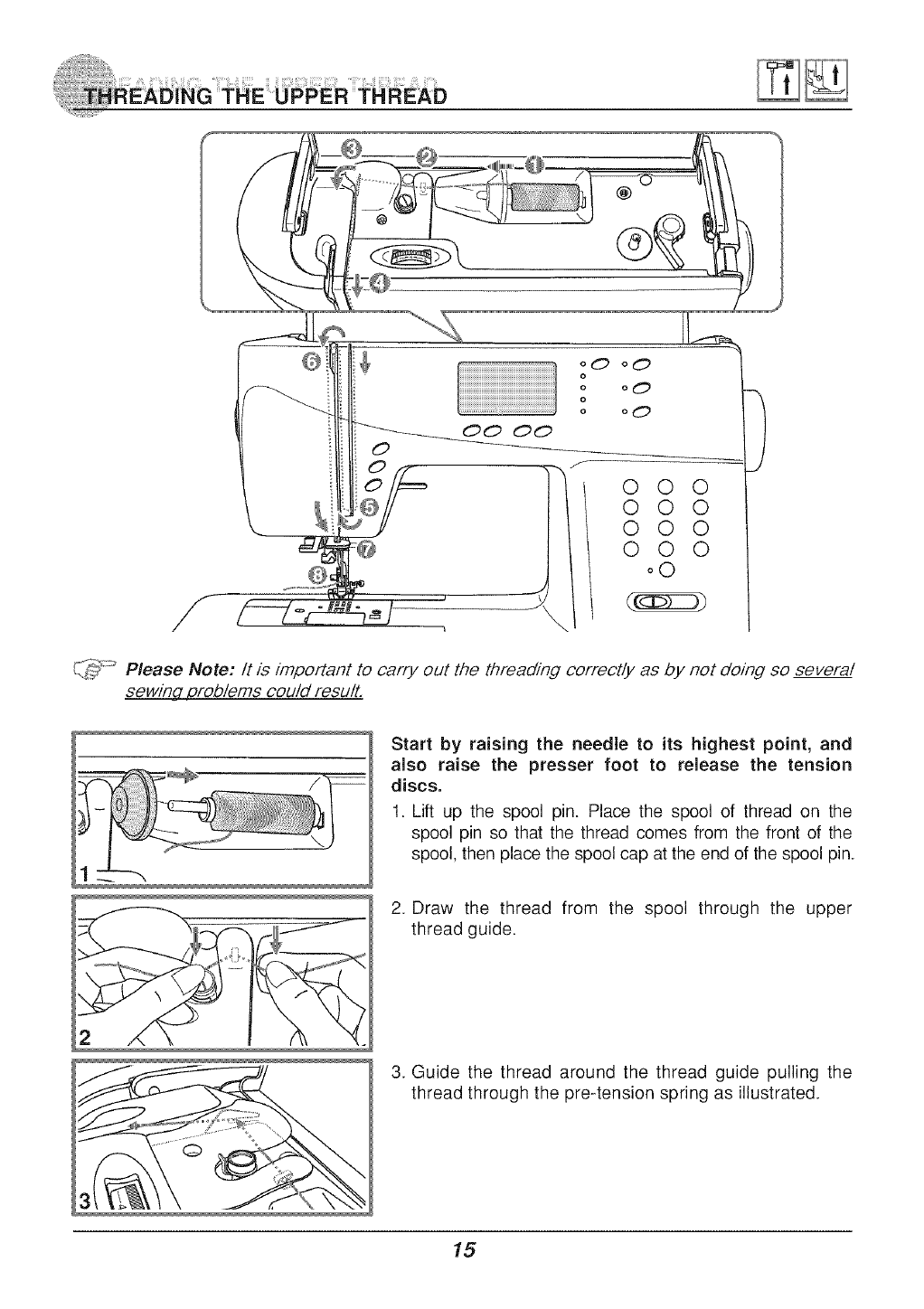

Start by raising the needle to its highest point, and

also raise the presser foot to release the tension

discs.

1. Lift up the spool pin. Place the spool of thread on the

spool pin so that the thread comes from the front of the

spool, then place the spool cap at the end of the spool pin.

2. Draw the thread from the spool through the upper

thread guide.

3. Guide the thread around the thread guide pulling the

thread through the pre-tension spring as illustrated.

4. Thread the tension module by passing the thread

between the silver discs.

6 ",', /

5. Then, down and around the check spring holder.

6. At the top of this movement, pass the thread from right

to the left through the slotted eye of the take-up lever

and then downwards again.

7. Pass the thread behind the flat, horizontal thread guide.

8. Guide the thread through the wire loop.

9. Pull the end of the thread through the needle from front

to rear, and pull out about 10 cm of thread.

Use the needle threader to thread the needle. (On the

next page.)

_,, Attention: Turn power switch to the off

podtion ("0').

Raise the needle to its highest position

and lower the presser foot.

1. Lower the needle threader lever slowly

and draw the thread through the thread

guide as illustrated and then to the right.

L2. The needle threader automatically turns

to the threading position and the hook pin

passes through the needle eye.

3. Take the thread in front of the needle.

4. Hold the thread loosely and release the

lever slowly. The hook will turn and pass

the thread through the needle eye forming

a loop.

Pull the thread through the needle eye.

,< Loose _ Tight

- Basic thread tension setting: "4"

- To increase the tension, turn the dial to the next number up. To reduce the tension, turn the dial

to the next number down.

- Proper setting of tension is important to good sewing.

- There is no single tension setting appropriate for all the stitch functions and fabrics.

- 90% of all sewing will be between "3" and "5" ("4" is basic setting).

- For all decorative sewing you will always obtain a nicer stitch and less fabric puckering when the

upper thread appears on the bottom side of your fabric.

Surface

Rev(

side

Upper thread _

Bobbin thread

Surface

Rev(

side

Upper thread

Bobbin thread

Surface

Rev(

side

Upper thread

Bobbin thread

Surface

Reverse _

side

Upper thread

Bobbin thread

1.Normal thread tension for straight stitch

sewing.

2.Thread tension is too loose for straight

stitch sewing. Turn dial to higher number.

3. Thread tension is too tight for straight stitch

sewing. Turn dial to lower number.

4. Normal thread tension for zig zag and

decorative sewing.

1. Hold the upper thread with the left

hand. Turn the handwheel towards

you (counterclockwise) lowering, then

raising the needle.

2. Gently pull on the upper thread to

bring the bobbin thread up through the

needle plate hole. The bobbin thread

will come up in a loop.

3. Pull both threads to the back under the

presser foot.

Raise the presser foot. Remove the

fabric, draw the threads to the left side of

the face cover and cut using the thread

cutter.

The threads are cut at the proper length

to start the next seam.

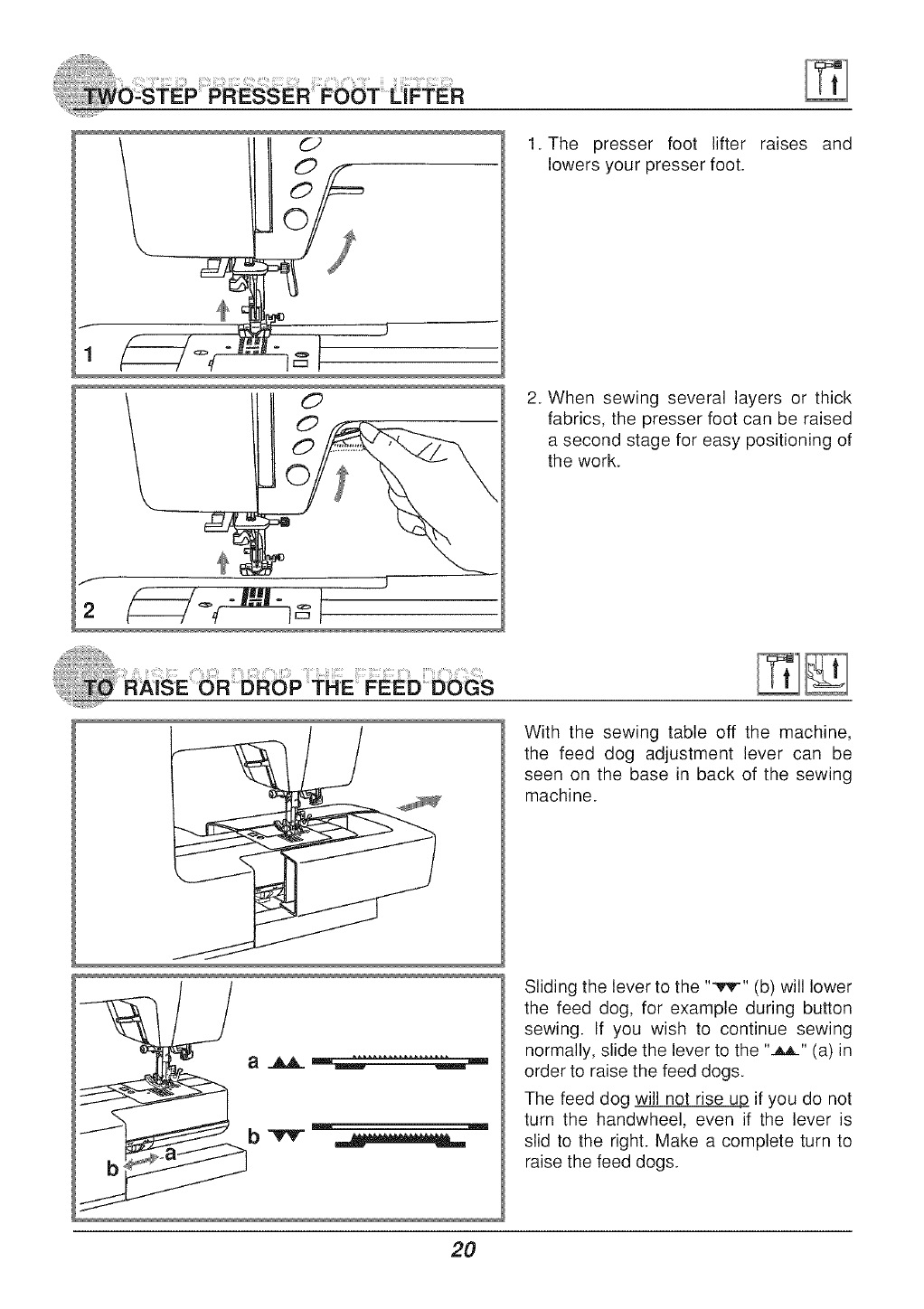

1. The presser foot lifter raises and

lowers your presser foot.

2. When sewing several layers or thick

fabrics, the presser foot can be raised

a second stage for easy positioning of

the work.

With the sewing table off the machine,

the feed dog adjustment lever can be

seen on the base in back of the sewing

machine.

Sliding the lever to the "'_r" (b) will lower

the feed dog, for example during button

sewing. If you wish to continue sewing

normally, slide the lever to the "._A_"(a) in

order to raise the feed dogs.

The feed dog will not rise up if you do not

turn the handwheel, even if the lever is

slid to the right. Make a complete turn to

raise the feed dogs.

Needleup/down

positionbutton

Auto-lockbutton

Reversebutton

Start/stopbutton

Start/stop button

The machine will start running when start/stop

button is pressed and will stop when pressed the

second time. The machine will rotate slowly at the

beginning of the sewing.

The sewing speed can be controlled by the speed

limiting adjustment lever.

: Reverse button

When the patterns 00-05, 30-99 are selected, the

machine will sew in reverse or a reinforcement

stitch at a low speed if the reverse button is

pressed. The machine will sew forward after the

button is released.

An arrow "1_$'' on the LCD display indicates reverse

sewing.

Auto-lock button

When the patterns 00-06 are selected, the machine

will immediately sew 3 locking stitches when the

Auto-lock button is pressed, then automatically stop.

The LCD will display the figure "(_" until the

machine is stopped.

When the patterns 07-15, 30-99 are selected,

press the Auto-lock button, the machine will sew 3

locking stitches at the end of the current pattern

and automatically stop. The LCD will display the

figure "_I" until the machine is stopped.

The function will be cancelled if you press the

button once again or select another pattern.

:, Needle up/down position button

With the Needle up/ down position button, you

decide whether the needle shall stop in the up

position or in the material when you stop sewing.

Press the button so that the arrow, on the LCD

screen, will point upward "J"" and the needle will

stop in the highest position. When you press the

button so that the arrow points downward " _, ",

the machine will stop with the needle in the

lowest position.

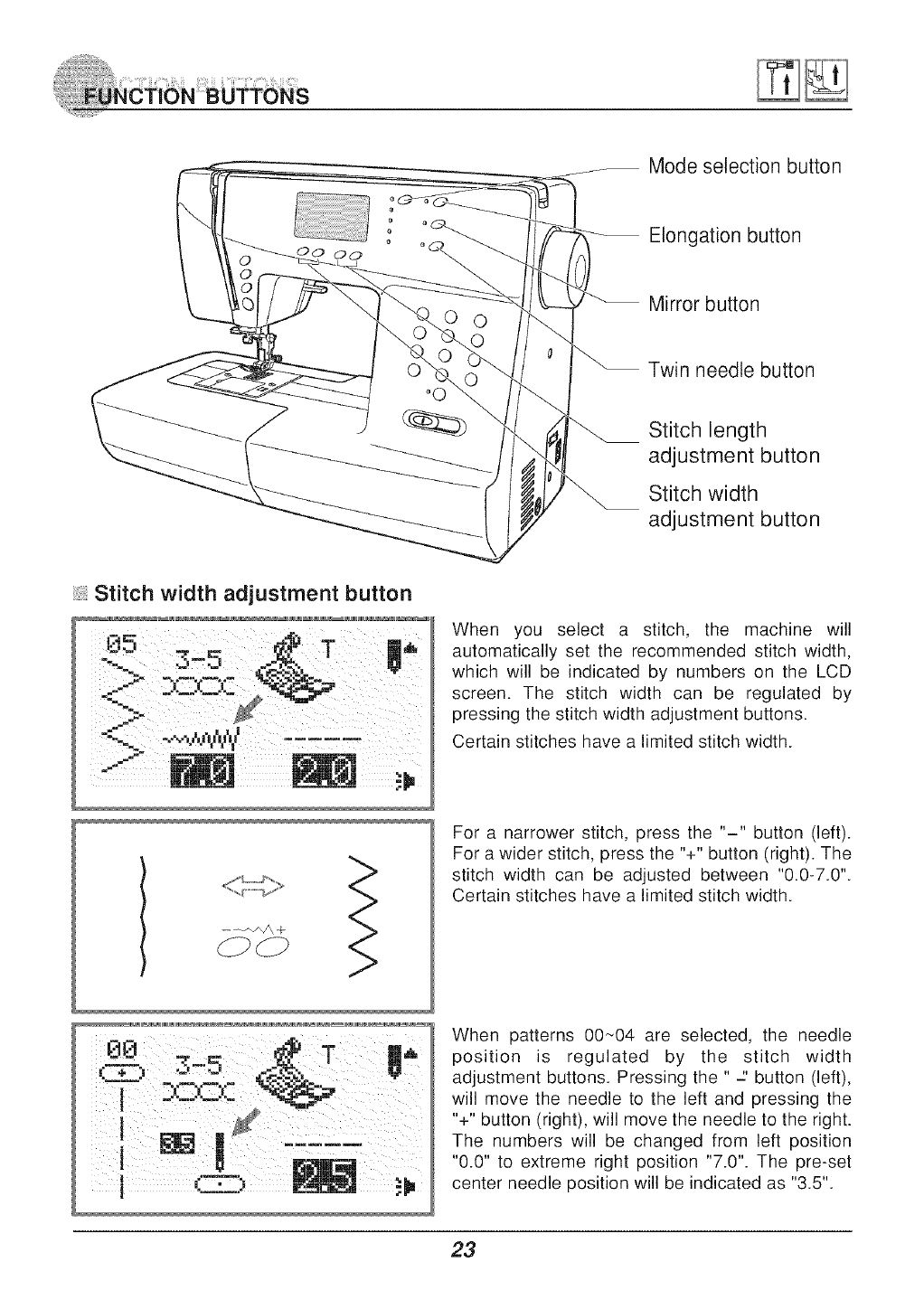

Mode selection button

Elongation button

Mirror button

Twin needle button

Stitch length

adjustment button

Stitch width

adjustment button

Stitch width adjustment button

_ -_/_ + ?

30:CC

When you select a stitch, the machine will

automatically set the recommended stitch width,

which will be indicated by numbers on the LCD

screen. The stitch width can be regulated by

pressing the stitch width adjustment buttons.

Certain stitches have a limited stitch width.

For a narrower stitch, press the "-" button (left).

For a wider stitch, press the "+" button (right). The

stitch width can be adjusted between "0.0-7.0".

Certain stitches have a limited stitch width.

When patterns 00~04 are selected, the needle

position is regulated by the stitch width

adjustment buttons. Pressing the " - button (left),

will move the needle to the left and pressing the

"+" button (right), will move the needle to the right.

The numbers will be changed from left position

"0.0" to extreme right position "7.0". The pre-set

center needle position will be indicated as "3.5".

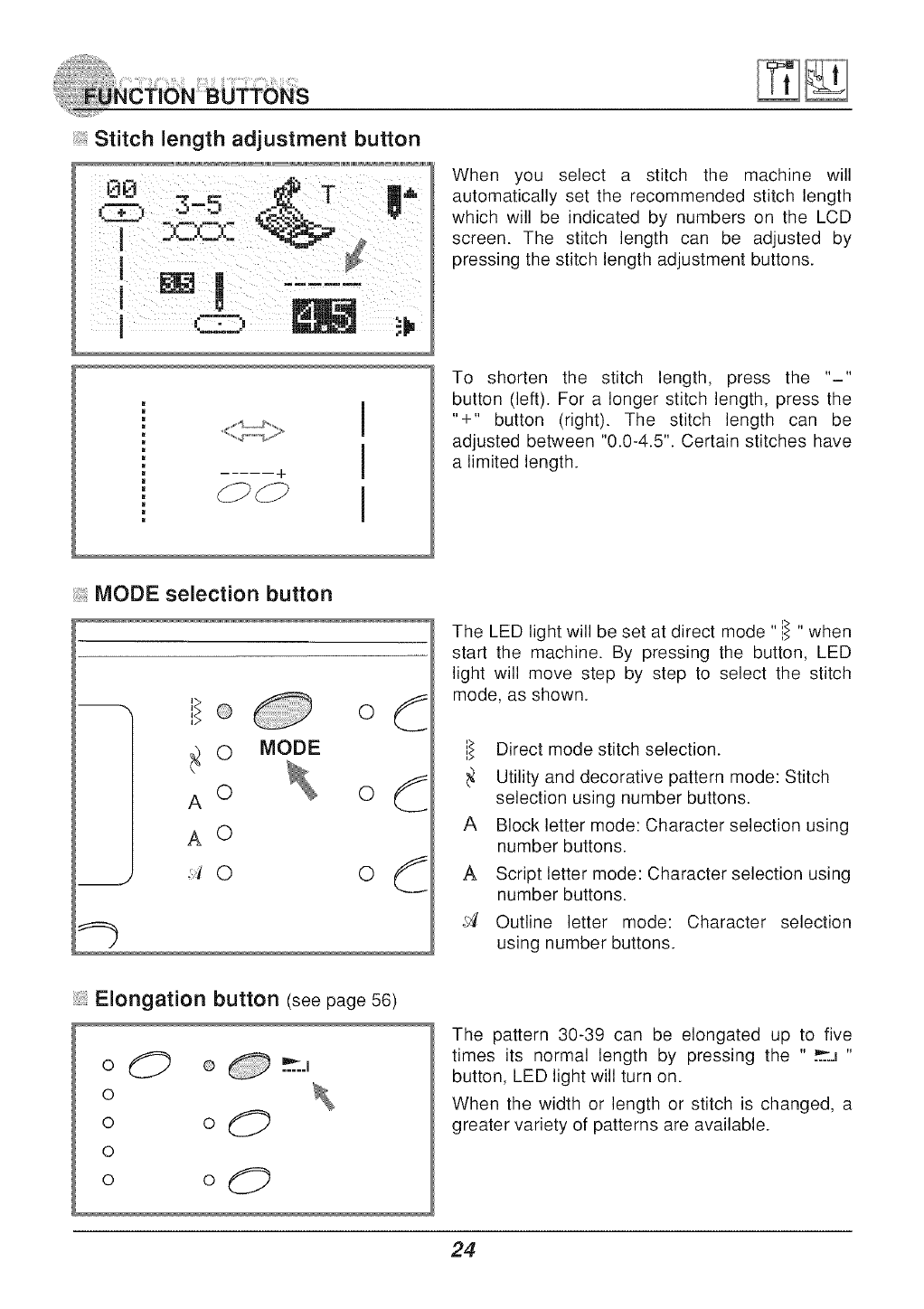

Stitch length adjustment button

- + I

MODE selection button

i} ® o

[_ 0 MODE

A 0 0

A o

:_ 0 0

When you select a stitch the machine will

automatically set the recommended stitch length

which will be indicated by numbers on the LCD

screen. The stitch length can be adjusted by

pressing the stitch length adjustment buttons.

To shorten the stitch length, press the "-"

button (left). For a longer stitch length, press the

"+" button (right). The stitch length can be

adjusted between "0.0-4.5". Certain stitches have

a limited length.

The LED light will be set at direct mode "!} " when

start the machine. By pressing the button, LED

light will move step by step to select the stitch

mode, as shown.

!} Direct mode stitch selection.

Utility and decorative pattern mode: Stitch

selection using number buttons.

A Block letter mode: Character selection using

number buttons.

A Script letter mode: Character selection using

number buttons.

J Outline letter mode: Character selection

using number buttons.

:, Elongation button (see page 56)

o _ ® .._:..j

o o O

The pattern 30-39 can be elongated up to five

times its normal length by pressing the " _._ "

button, LED light will turn on.

When the width or length or stitch is changed, a

greater variety of patterns are available.

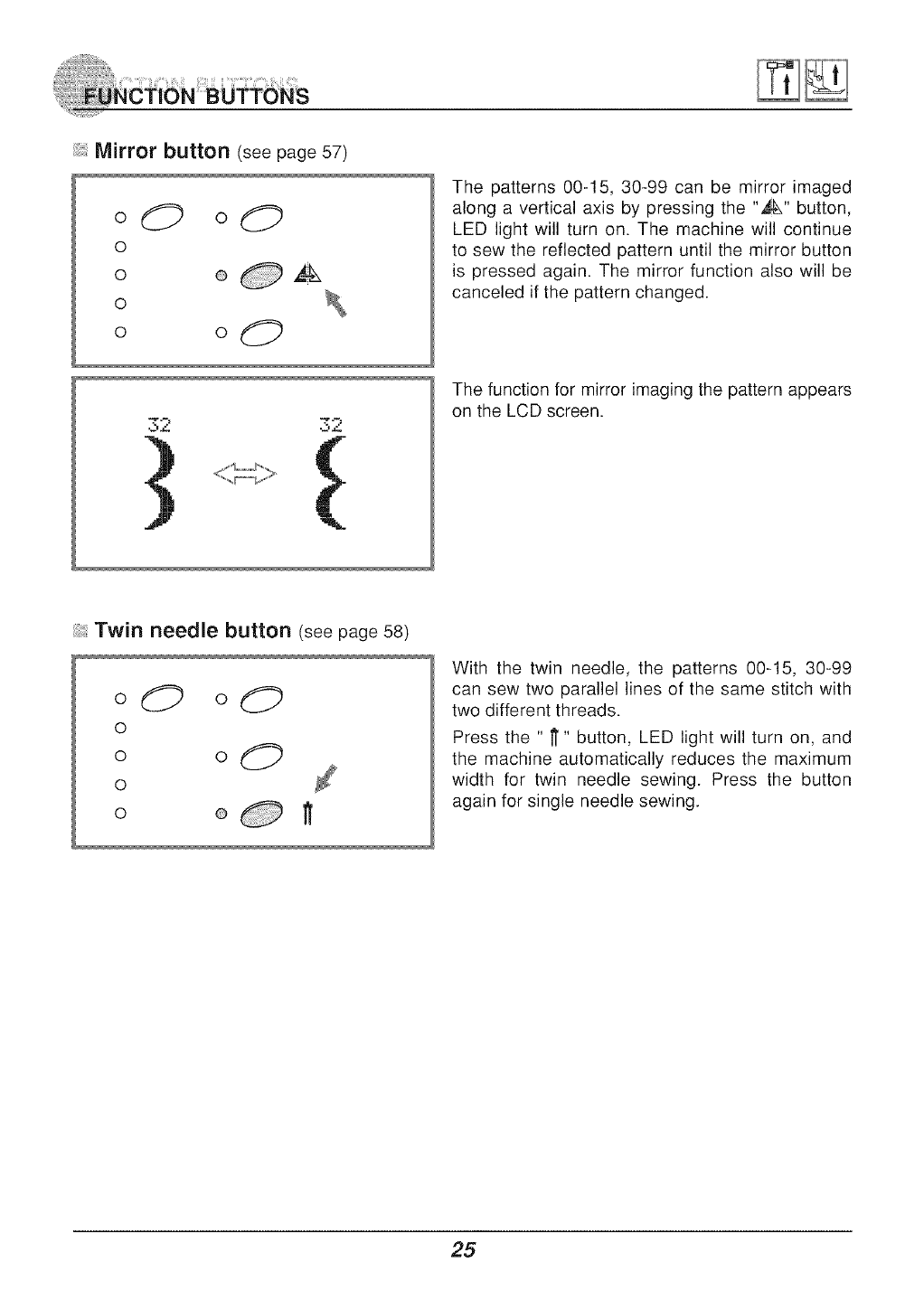

Mirror button (see page 57)

oO oO

o ® 2-_

o o _)

_2 _'_

The patterns 00-15, 30-99 can be mirror imaged

along a vertical axis by pressing the "_" button,

LED light will turn on. The machine will continue

to sew the reflected pattern until the mirror button

is pressed again. The mirror function also will be

canceled if the pattern changed.

The function for mirror imaging the pattern appears

on the LCD screen.

Twin needle button (see page 58)

oO od3>

o o O

o o }_

With the twin needle, the patterns 00-15, 30-99

can sew two parallel lines of the same stitch with

two different threads.

Press the " _" button, LED light will turn on, and

the machine automatically reduces the maximum

width for twin needle sewing. Press the button

again for single needle sewing.

Direct pattern selection

and number buttons

Clear button

Edit button

Memory button

Direct pattern selection and number buttons

©T @: @_

rJE

E E uE

@ @_©

Direct pattern selection

Press the buttons to select the utility patterns

shown beside the number button when the mode

button is set at the Direct mode.

Number buttons

Press the number buttons of the pattern number

to select the desired pattern.

Except the Direct Pattern mode, the other mode

can be selected by pressing the desired numbers.

Example: pattern 36

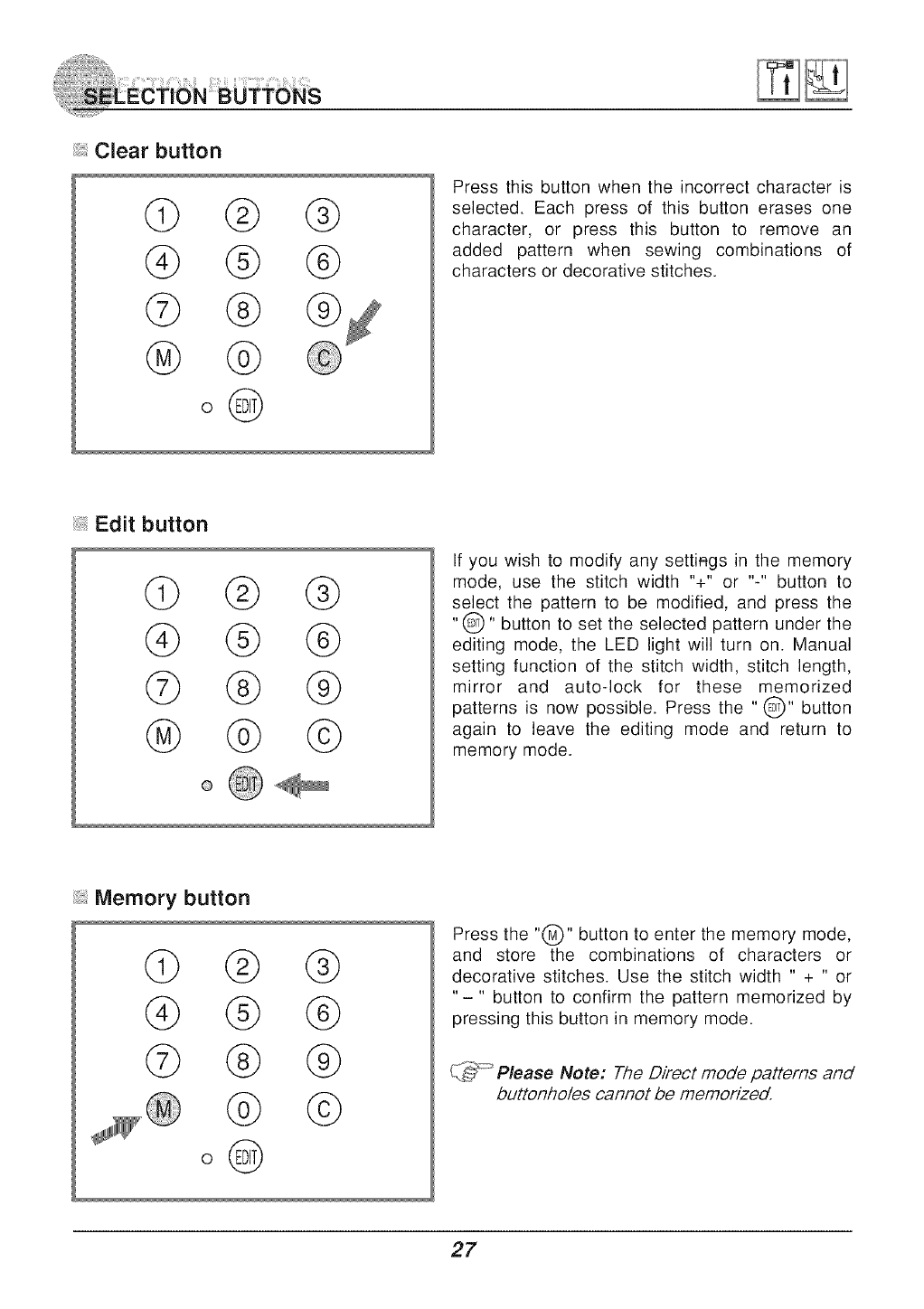

Clear button

® ®

Press this button when the incorrect character is

selected. Each press of this button erases one

character, or press this button to remove an

added pattern when sewing combinations of

characters or decorative stitches.

Edit button

G ® ®

® ® ©

o@@

If you wish to modify any settiags in the memory

mode, use the stitch width "+" or "-" button to

select the pattern to be modified, and press the

"0" button to set the selected pattern under the

editing mode, the LED light will turn on. Manual

setting function of the stitch width, stitch length,

mirror and auto-lock for these memorized

patterns is now possible. Press the " 0" button

again to leave the editing mode and return to

memory mode.

:, Memory button

G @ @

_® ® ©

Press the "(_)" button to enter the memory mode,

and store the combinations of characters or

decorative stitches. Use the stitch width " + " or

"-" button to confirm the pattern memorized by

pressing this button in memory mode.

Please Note: The Direct mode patterns and

buttonho/es cannot be memorized.

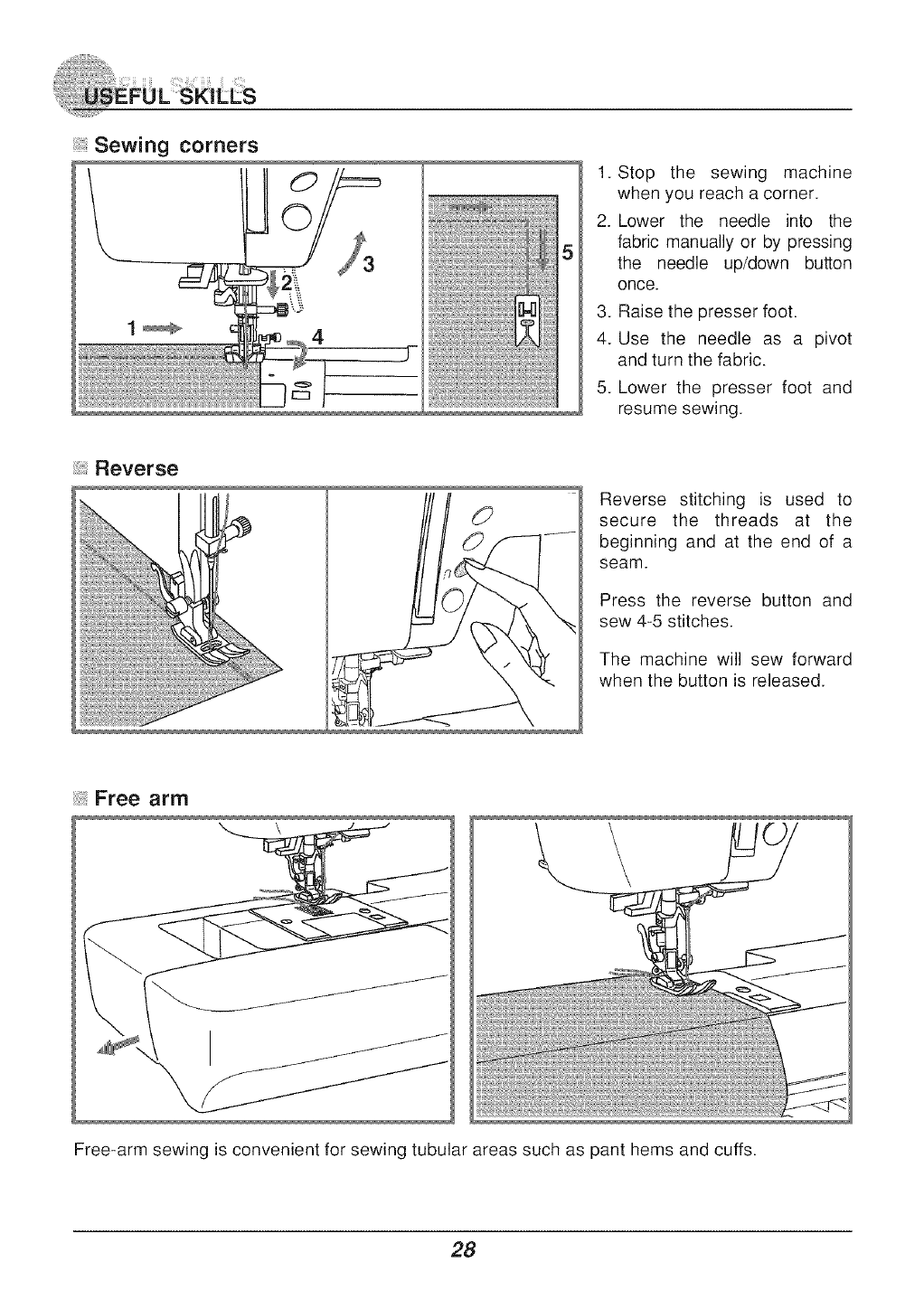

Sewing corners

1. Stop the sewing machine

when you reach a corner.

2. Lower the needle into the

fabric manually or by pressing

the needle up/down button

once.

3. Raise the presser foot.

4. Use the needle as a pivot

and turn the fabric.

5. Lower the presser foot and

resume sewing.

Reverse

Reverse stitching is used to

secure the threads at the

beginning and at the end of a

seam.

Press the reverse button and

sew 4-5 stitches.

The machine will sew forward

when the button is released.

Free arm

Free-arm sewing is convenient for sewing tubular areas such as pant hems and cuffs.

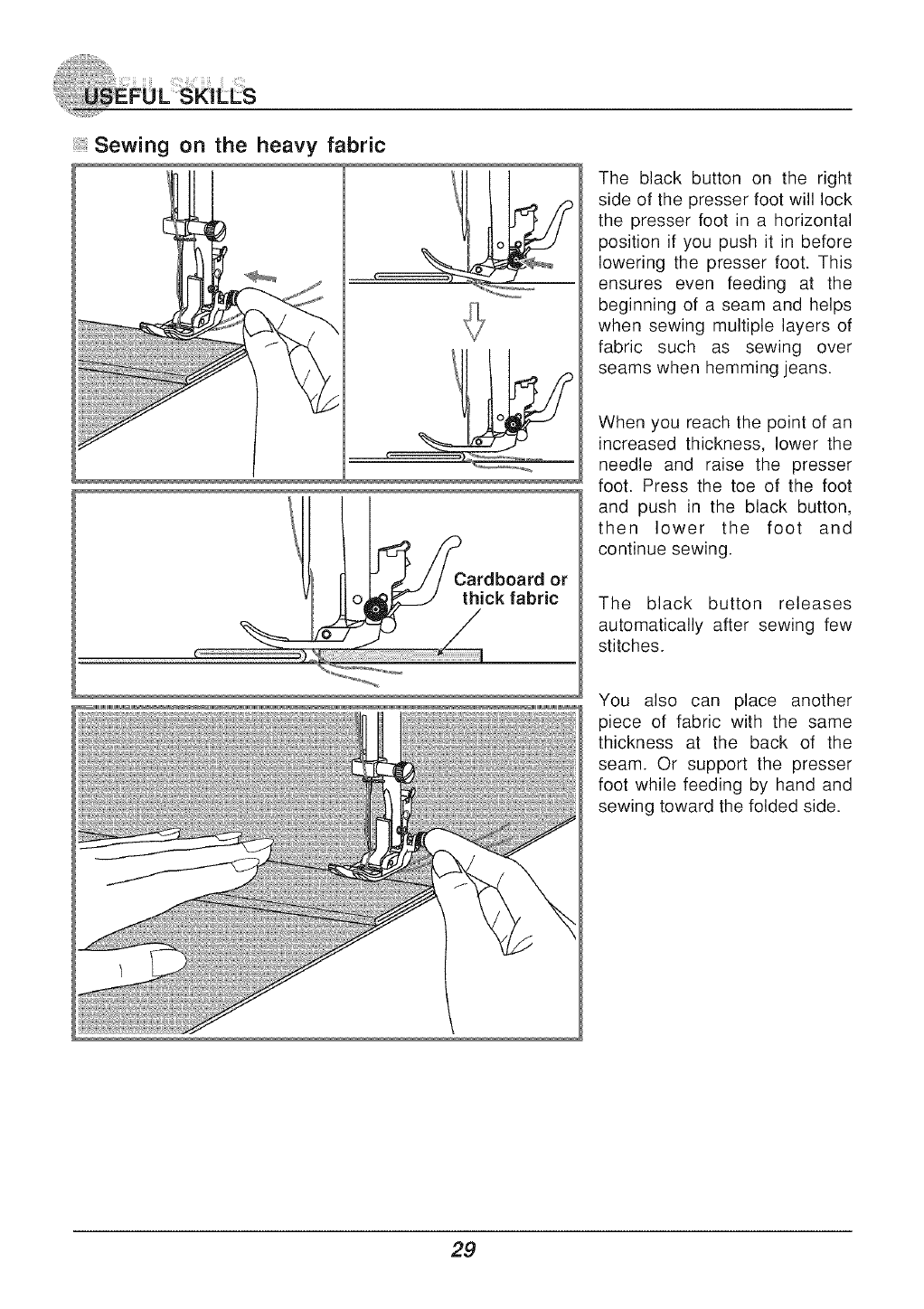

Sewing on the heavy fabric

The black button on the right

side of the presser foot will lock

the presser foot in a horizontal

position if you push it in before

lowering the presser foot. This

ensures even feeding at the

beginning of a seam and helps

when sewing multiple layers of

fabric such as sewing over

seams when hemming jeans.

_Cardboard or

o, _F___J thick fabric

When you reach the point of an

increased thickness, lower the

needle and raise the presser

foot. Press the toe of the foot

and push in the black button,

then lower the foot and

continue sewing.

The black button releases

automatically after sewing few

stitches.

You also can place another

piece of fabric with the same

thickness at the back of the

seam. Or support the presser

foot while feeding by hand and

sewing toward the folded side.

O0 01 02 03 04

!IIII

IIIII

0.0 2.0 3.5 5.0 7.0

i I

0.5 1.0 2.0 3.0 4.5

Changing the needle position

These setting apply only to pattern 00-04. The pre-set

position is "3.5", center position. When you press the

"-" stitch width adjustment button, the needle position

will move to the left. When you press the "+" stitch

width adjustment button, the needle position will move

to the right. On the LCD screen, the point illustration

and the number indicate the needle position.

Changing the stitch length

To shorten the stitch length, press the "-" stitch length

adjustment button. For a longer stitch length, press the

"+" stitch length adjustment button.

Generally speaking, the thicker the fabric, thread and

needle, the longer the stitch should be.

0.0 1.0 3.0 5.0 7.0

0.5 1.0 2.0 3.0 4.5

Adjusting the stitch width

The maximum zigzag stitch width for zigzag stitching is

"7.0"; however, the width can be reduced on any

patterns. The width increases as you press the "+"

stitch width adjustment button from "0.0-7.0".

Adjusting the stitch length

The density of zigzag stitches increase as the setting

of stitch length approaches "0.2".

Neat zigzag stitches are usually achieved at "1.0-2.5".

Closed up zigzag stitches (close together) are referred

to as a satin stitch.

02 03 07

fll t

Ill

I11

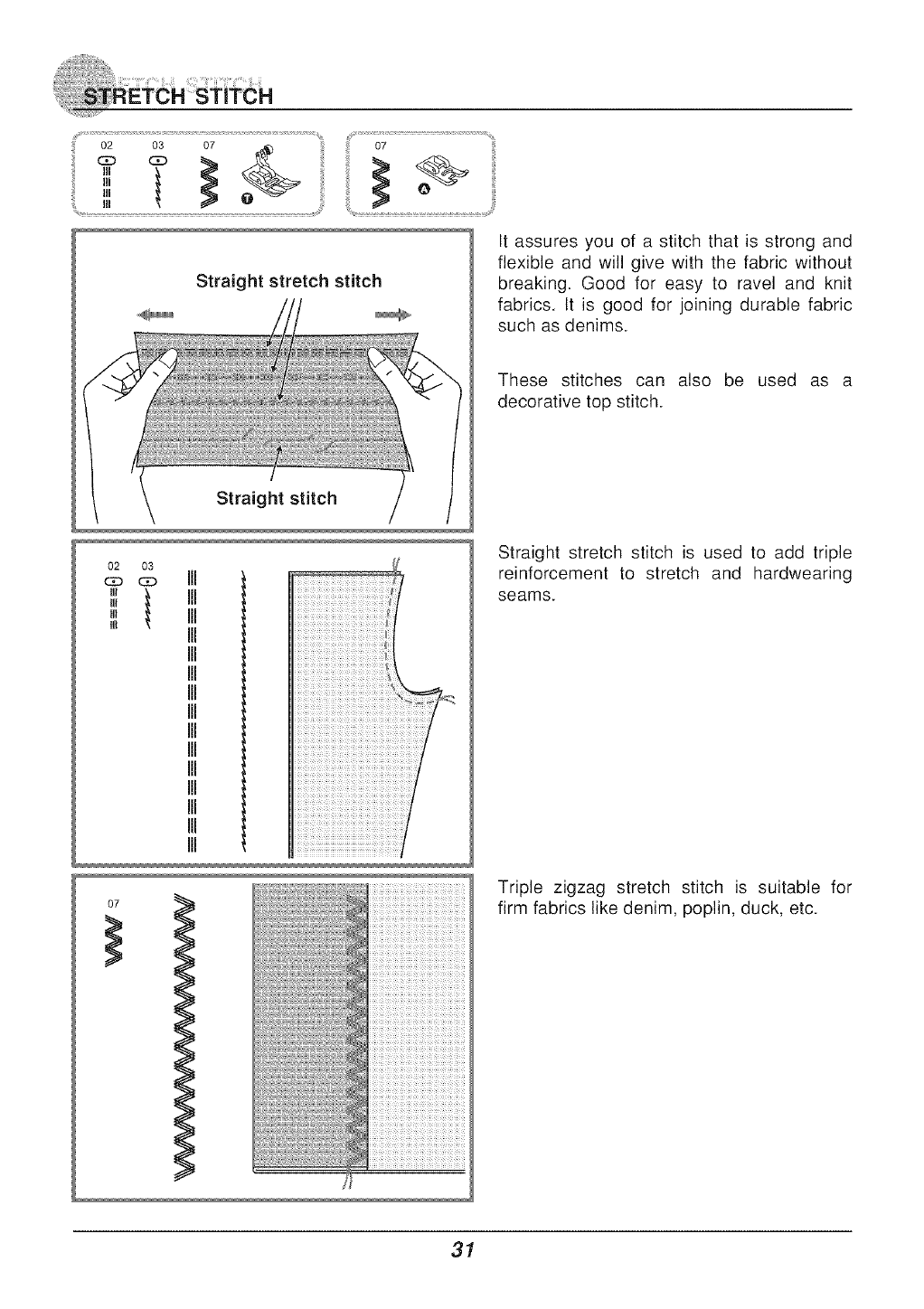

It assures you of a stitch that is strong and

flexible and will give with the fabric without

breaking. Good for easy to ravel and knit

fabrics. It is good for joining durable fabric

such as denims.

These stitches can also be used as a

decorative top stitch.

02 O3

Ill t III

III

l, Ill

I{ Ill

III

Ill

III

Ill

III

Ill

III

Straight stretch stitch is used to add triple

reinforcement to stretch and hardwearing

seams.

Triple zigzag stretch stitch is suitable for

firm fabrics like denim, poplin, duck, etc.

Using the overcasting foot

05 08

1 5.0~7.0 2.0~3.0

1. Change the presser foot to the overcasting foot.

2. Sew the fabric with the fabric edge against the guide of the overcasting foot.

!i\,,, Attention: The overcasting foot shou/d be used to sew with patterns 05 and 08 on/?" and do

not set the stitch width narrower than "5.0'I /t is possib/e that need/e cou/d hit the presser

foot and break when sewing other patterns and width.

i iiii ..................................

2.5_4.o1.o_2.o

5mm 5mm

_-_1 _-d

Reverse Overcasting Reverse

1 side stitches side

10: Blind hem/lingerie for firm fabrics

11: Blind hem for stretch fabrics

Please Note: /t takes practice to sew

b/ind hems. A!ways make a sewing

test f_rsL

1. Fold the fabric as illustrated with the

wrong side uppermost.

2. Place the fabric under the foot. Turn the

handwheel forwards by hand until the

needle swings fully to the left. It should

just pierce the fold of the fabric. If it does

not, adjust the stitch width accordingly.

3. Adjust the guide (b) by turning the knob (a)

so that the guide just rests against the fold.

4. Sew slowly, guiding the fabric carefully

along the edge of the guide.

5. Turn over the fabric.

2.0~7.0

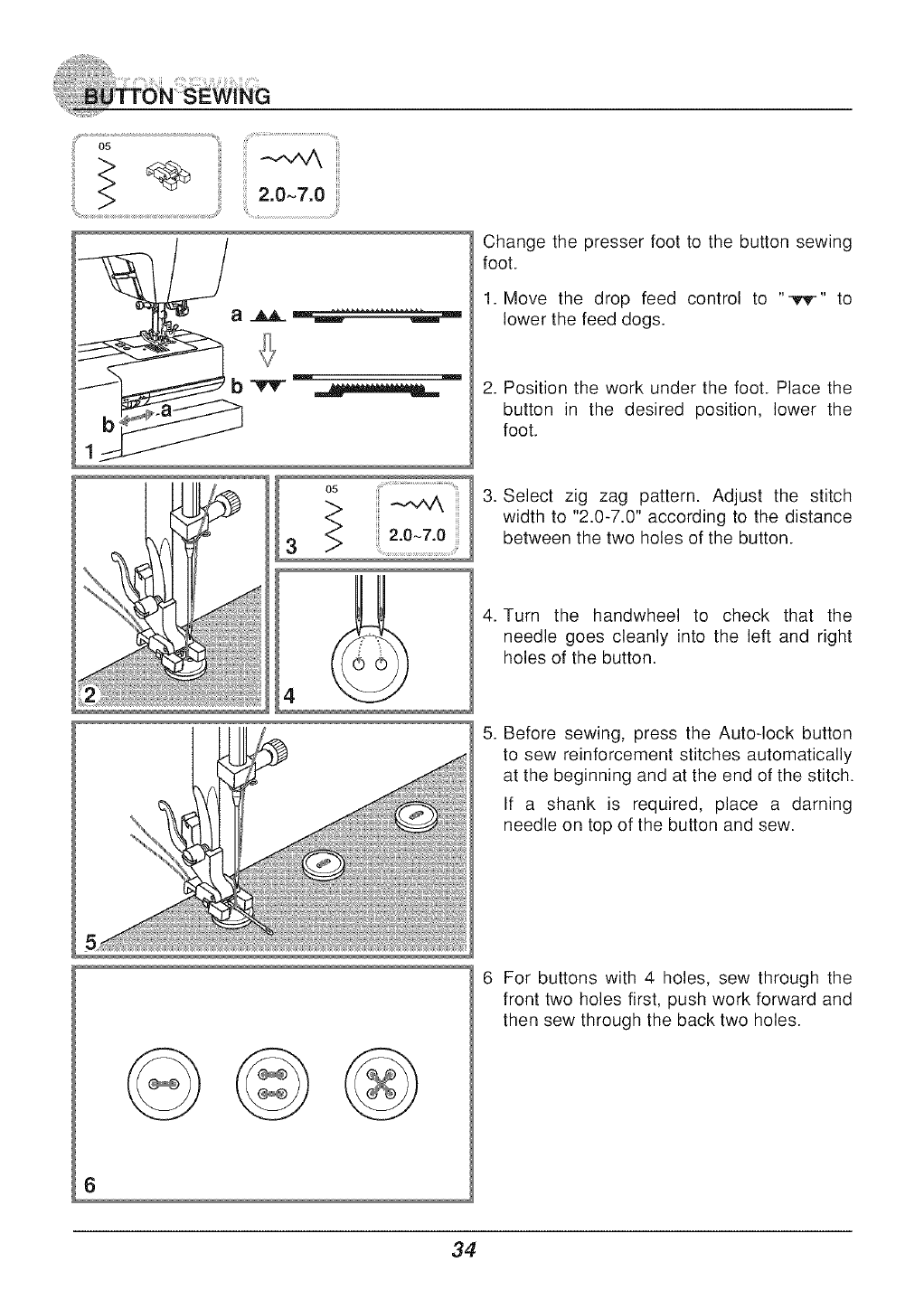

Change the presser foot to the button sewing

foot.

1. Move the drop feed control to "_r" to

lower the feed dogs.

2. Position the work under the foot. Place the

button in the desired position, lower the

foot.

32.0~7.0

3. Select zig zag pattern. Adjust the stitch

width to "2.0-7.0" according to the distance

between the two holes of the button.

4. Turn the handwheel to check that the

needle goes cleanly into the left and right

holes of the button.

5. Before sewing, press the Auto-lock button

to sew reinforcement stitches automatically

at the beginning and at the end of the stitch.

If a shank is required, place a darning

needle on top of the button and sew.

6 For buttons with 4 holes, sew through the

front two holes first, push work forward and

then sew through the back two holes.

===.=_

17 19

18 20 21

== == !i

22 23 24

,_ it111tl

.... _____--_____--

;_,,, ,,,,,,,,,, ,i_!,, , ,, ,, ,, ,, ,, ,,/¸

3.0~7.0 0.3~1.0

5.5~7.0 0.3~1.0

3.0~7.0 1.0~2.0

16: For thin or medium fabric

17: For horizontal holes on blouses

or shirts made from thin or

medium fabric

18: For thin or medium fabric

19: For horizontal holes on blouses

or shirts made from thin or

medium fabric

20: For horizontal buttonholes on

thick fabrics

21: For thin or medium fabric

22: For suits or overcoats

23: For thick coats

24: For jeans or trousers

25: For jeans or stretch fabric with

a coarse weave

26: For stretch fabric

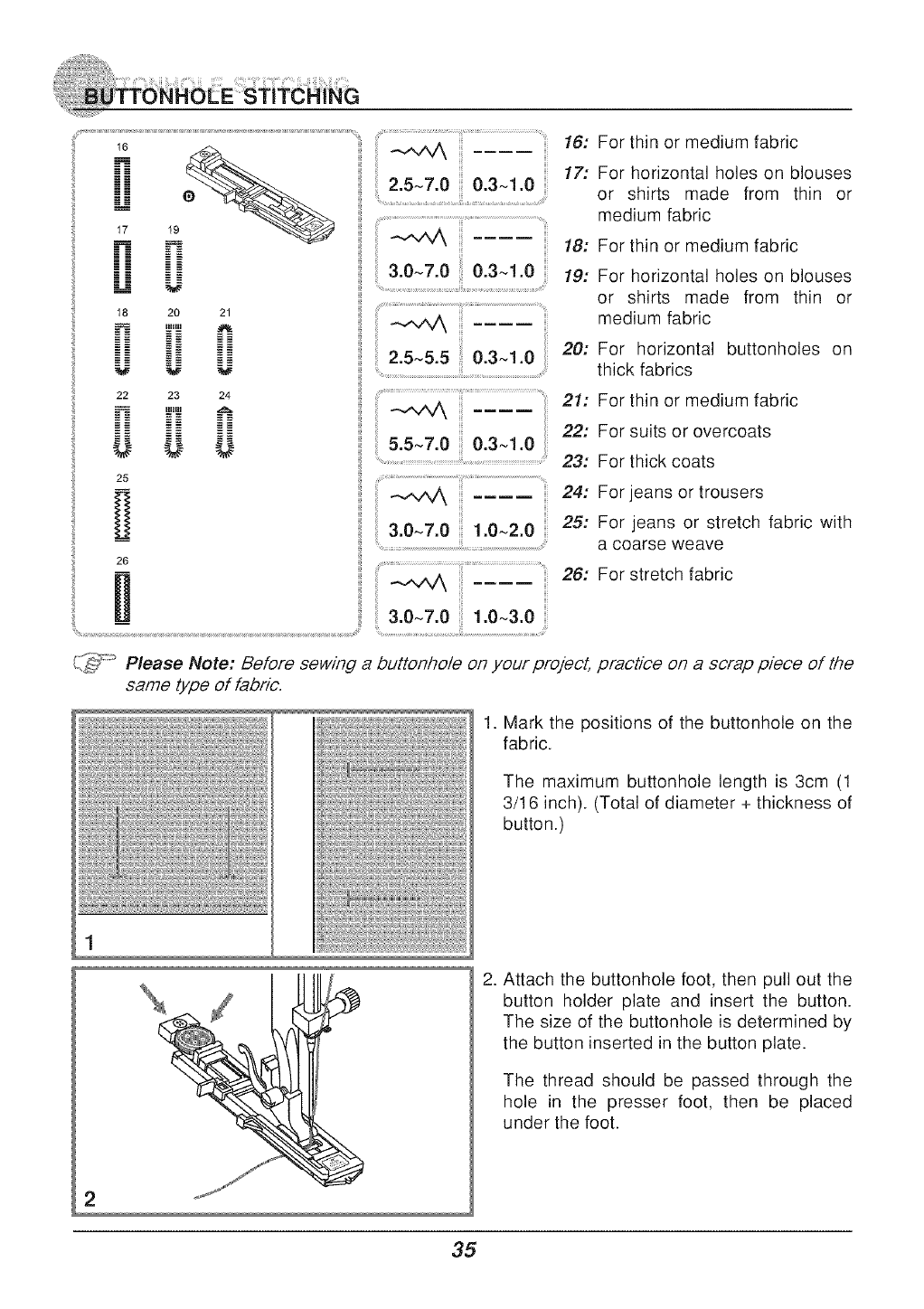

1. Mark the 3ositions of the buttonhole on the

fabric.

The maximum buttonhole length is 3cm (1

3/16 inch). (Total of diameter + thickness of

button.)

2. Attach the buttonhole foot, then pull out the

button holder plate and insert the button.

The size of the buttonhole is determined by

the button inserted in the button plate.

The thread should be passed through the

hole in the presser foot, then be placed

under the foot.

3. Select the buttonhole stitch. Adjust the

stitch width and the stitch length to the

desired width and density.

4. Position the fabric under the presser foot

so that the centerline's mark is aligning with

the center of the buttonhole foot.

Lower the buttonhole lever, then push it to

the back.

(i_ '_ Please Note: When you select any

buttonhole pattern, LCD screen will be

demonstrated the warning animation

message display, it is to remind you to

lower the buttonhole lever.

5. While lightly holding the end of upper

thread and start sewing.

Please Note: Gently feed the fabric by

hand. Before stopping, the machine will

automatically sew a reinforcement

stitch after the buttonhole is sewn.

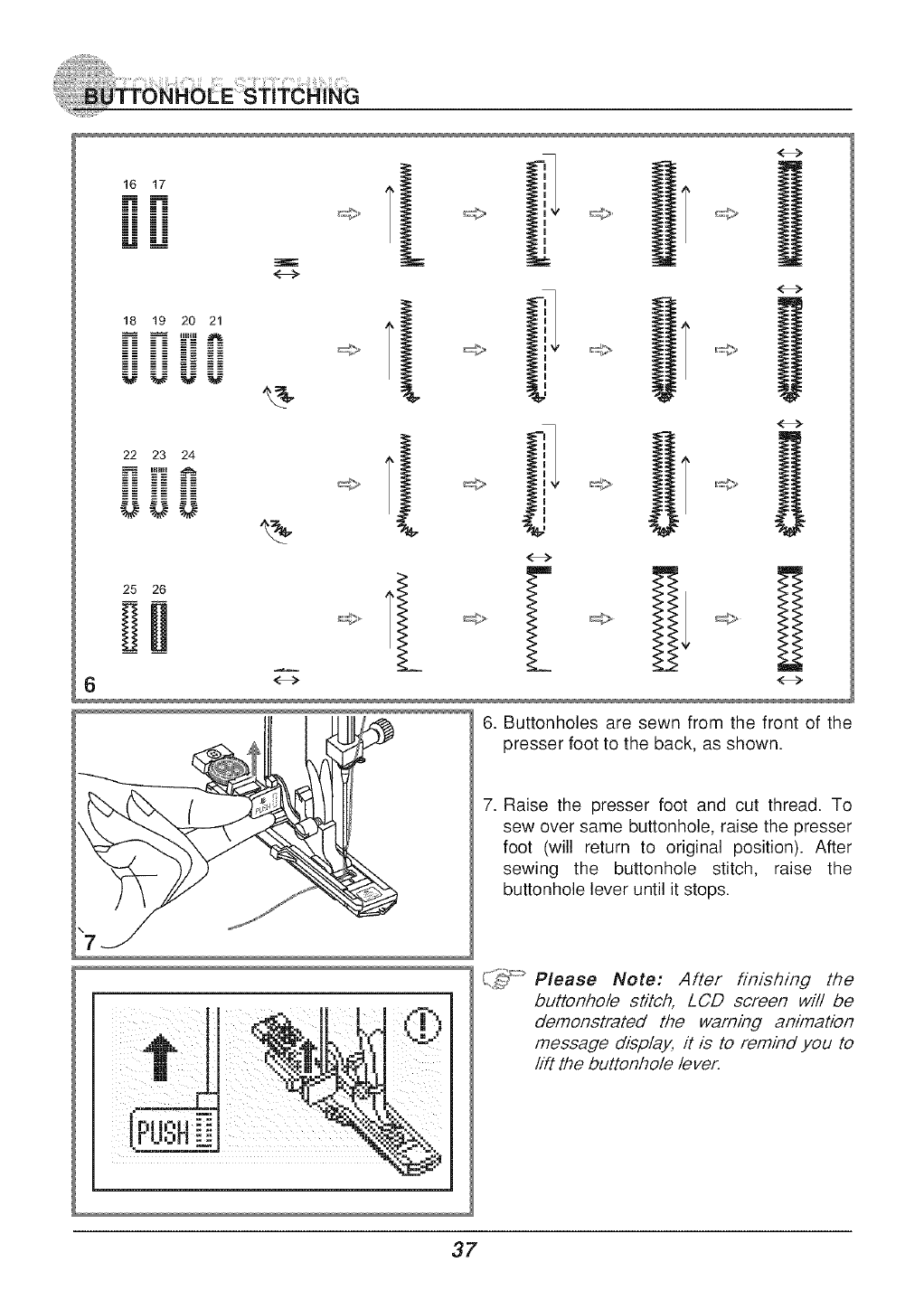

6. Buttonholes are sewn from the front of the

presser foot to the back, as shown.

7. Raise the presser foot and cut thread. To

sew over same buttonhole, raise the presser

foot (will return to original position). After

sewing the buttonhole stitch, raise the

buttonhole lever until it stops.

(,i_ _:' Please Note: After finishing the

buttonhole stitch, LOD screen will be

demonstrated the warning animation

message display, it is to remind you to

/fit the buttonhole lever.

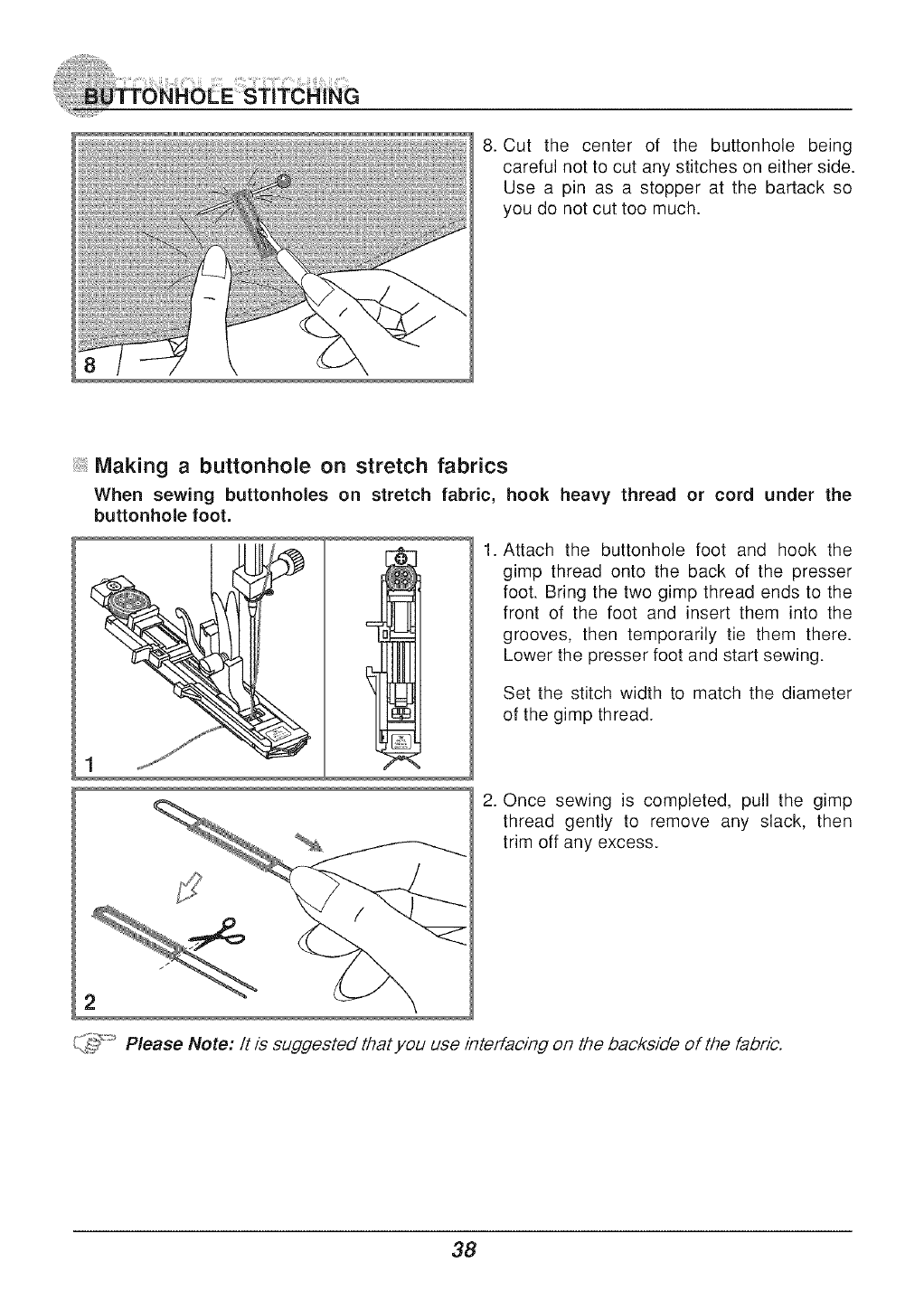

8. Cut the center of the buttonhole being

careful not to cut any stitches on either side.

Use a pin as a stopper at the bartack so

you do not cut too much.

:, Making a buttonhole on stretch fabrics

When sewing buttonholes on stretch fabric, hook heavy thread or cord under the

buttonhole foot.

1. Attach the buttonhole foot and hook the

gimp thread onto the back of the presser

foot. Bring the two gimp thread ends to the

front of the foot and insert them into the

grooves, then temporarily tie them there.

Lower the presser foot and start sewing.

Set the stitch width to match the diameter

of the gimp thread.

2. Once sewing is completed, pull the gimp

thread gently to remove any slack, then

trim off any excess.

_(;i__',__ Please Note: it is suggested that you use interfacing on the backside of the fabric.

if the decorative stitch patterns, numbers or manual buttonhole stitch are uneven when

you sew on a particular fabric, adjust them with the feed balancing dial.

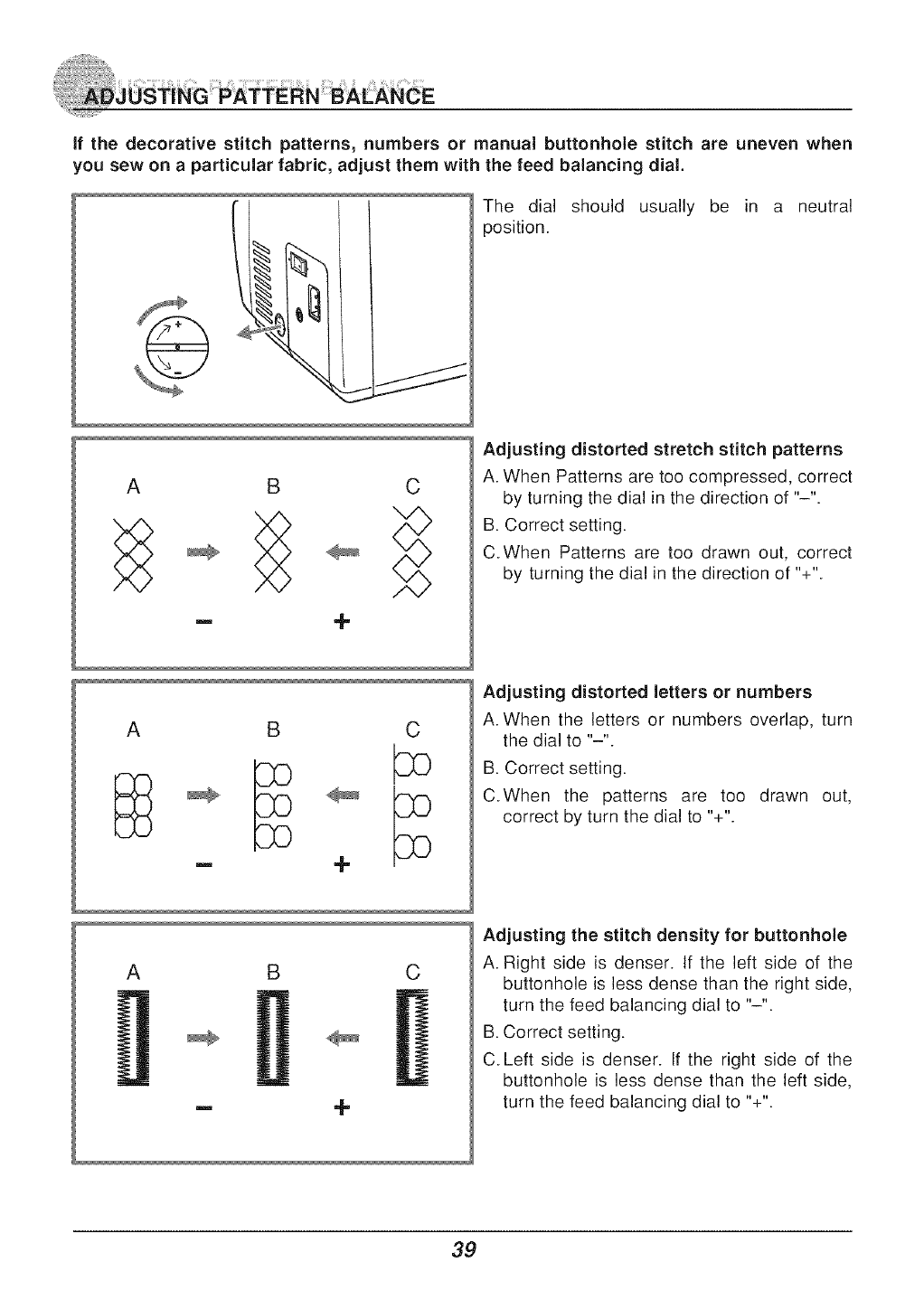

KThe dial should usually be in a neutral

position.

A B C

-- +

A B C

m +

Adjusting distorted stretch stitch patterns

A. When Patterns are too compressed, correct

by turning the dial in the direction of "-".

B. Correct setting.

C.When Patterns are too drawn out, correct

by turning the dial in the direction of %".

Adjusting distorted letters or numbers

A. When the letters or numbers overlap, turn

the dial to "-"

B. Correct setting.

C.When the patterns are too drawn out,

correct by turn the dial to %".

Adjusting the stitch density for buttonhole

A. Right side is denser. If the left side of the

buttonhole is less dense than the right side,

turn the feed balancing dial to "-"

B. Correct setting.

C. Left side is denser. If the right side of the

buttonhole is less dense than the left side,

turn the feed balancing dial to "+".

@ &o 6.0 7.o

...._.,v',,V_/

AB C

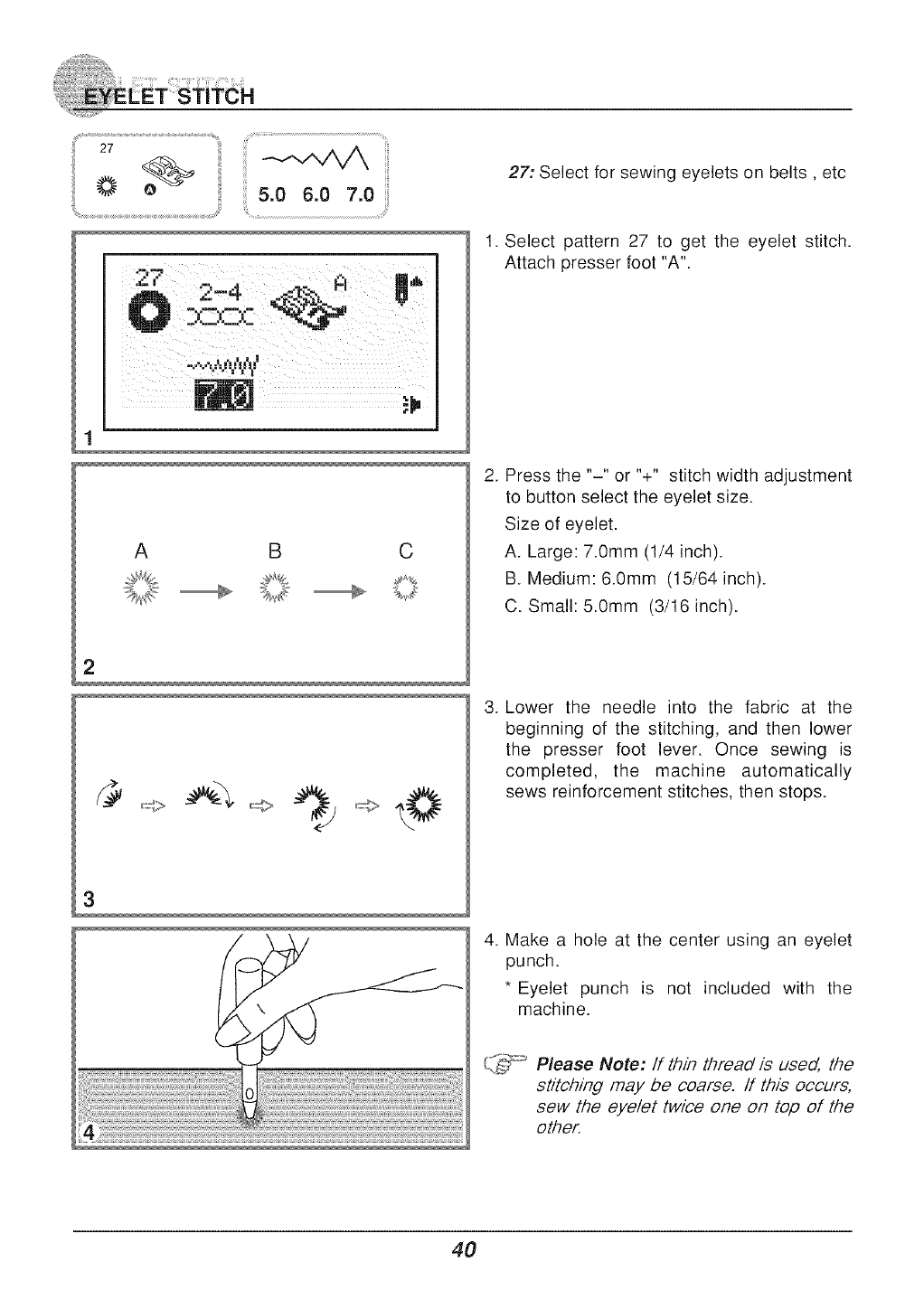

27: Select for sewing eyelets on belts, etc

1. Select pattern 27 to get the eyelet stitch.

Attach presser foot "A".

2. Press the "-" or "+" stitch width adjustment

to button select the eyelet size.

Size of eyelet.

A. Large: 7.0mm (1/4 inch).

B. Medium: 6.0mm (15/64 inch).

C. Small: 5.0mm (3/16 inch).

3. Lower the needle into the fabric at the

beginning of the stitching, and then lower

the presser foot lever. Once sewing is

completed, the machine automatically

sews reinforcement stitches, then stops.

4. Make a hole at the center using an eyelet

punch.

* Eyelet punch is not included with the

machine.

Please Note: ff thin thread is used, the

stitching may be coarse, ff this occurs,

sew the eye/et twice one on top of the

other.

1. Select pattern 28 or 29 from the Group

Patterns "A" to get the darning stitch.

Change the presser foot to the buttonhole

foot.

2. Baste the upper fabric and the under fabric

together. Select the needle position. Lower

the presser foot over the center of the tear.

3. Pull the button holder to the rear. Set the

button guide plate on buttonhole foot to the

desired length.

Stop

AAAAAA,AI

lllllillllilll

llllllillllilll

HillIH11Ml

a llllllillIHll

llllIHlllilll

11111111111111

IllllHIIIIIl[I

IVVVVVVV

Star€l-- b_

stop

start _-- b---I

4. The size of one darn cycle is variable.

However, the maximum stitch length is

2.6cm (1 inch) and the maximum stitch

width is 7mm (9/32 inch).

a. The length of sewing.

b. The width of sewing.

5. Position the fabric so that the needle is

2mm (1/16 inch) in front of the area to be

darned, and then lower the presser foot

lever.

i_i__:_Please Note: When lowering the

presser foot, do not push //7the front of

the presser foot, otherwise the darning

will not be sewn with the correct size.

6. Pass the upper thread down through the

hole in the presser foot. Pull down the

buttonhole lever then push it back. The

buttonhole lever is positioned behind the

bracket on the buttonhole foot. Gently hold

the end of the upper thread in your left

hand, and then start sewing.

n_mn_

liml_

HmH

IVY_

Please Note: When you select any

buttonhole pattern or darning pattern,

LCO screen will be demonstrated the

warning animation message display, it

is to remind you to lower the buttonhole

lever.

7. Darning stitches are sewn from the front of

the presser foot to the back, as shown.

8. If the sewing range is too big to sew, then

we suggest you can sew several times (or

cross sew) to get better sewing result.

O0 .....'_ .......................................................................................................

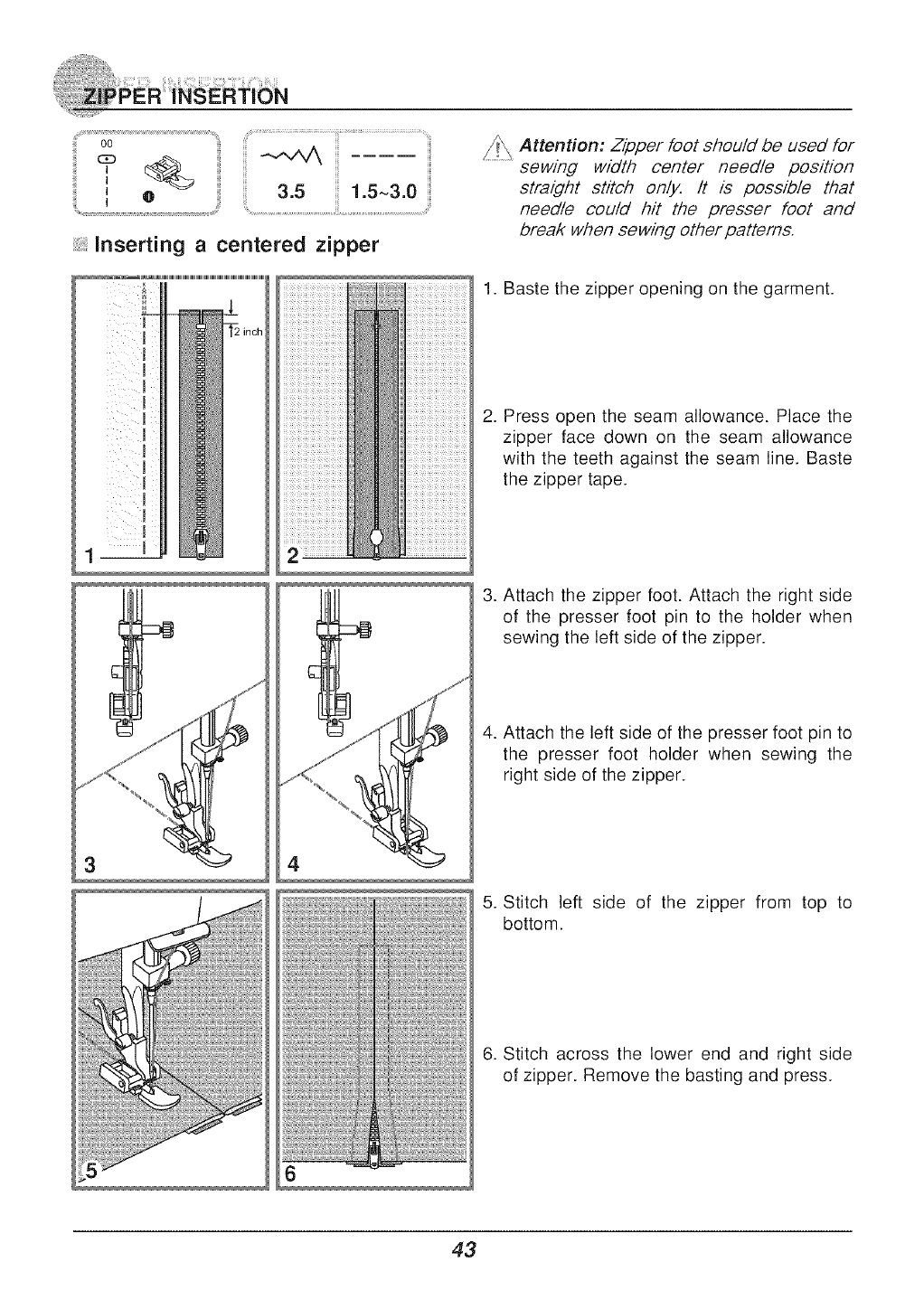

Inserting a centered zipper

/_\, Attention: Zipper foot should be used for

sewing width center needle position

straight stitch on/y. it is poss/b/e that

needle cou/d hit the presser foot and

break when sewing other patterns.

1. Baste the zipper opening on the garment.

2. Press open the seam allowance. Place the

zipper face down on the seam allowance

with the teeth against the seam line. Baste

the zipper tape.

3. Attach the zipper foot. Attach the right side

of the presser foot pin to the holder when

sewing the left side of the zipper.

4. Attach the left side of the presser foot pin to

the presser foot holder when sewing the

right side of the zipper.

5. Stitch left side of the zipper from top to

bottom.

6. Stitch across the lower end and right side

of zipper. Remove the basting and press.

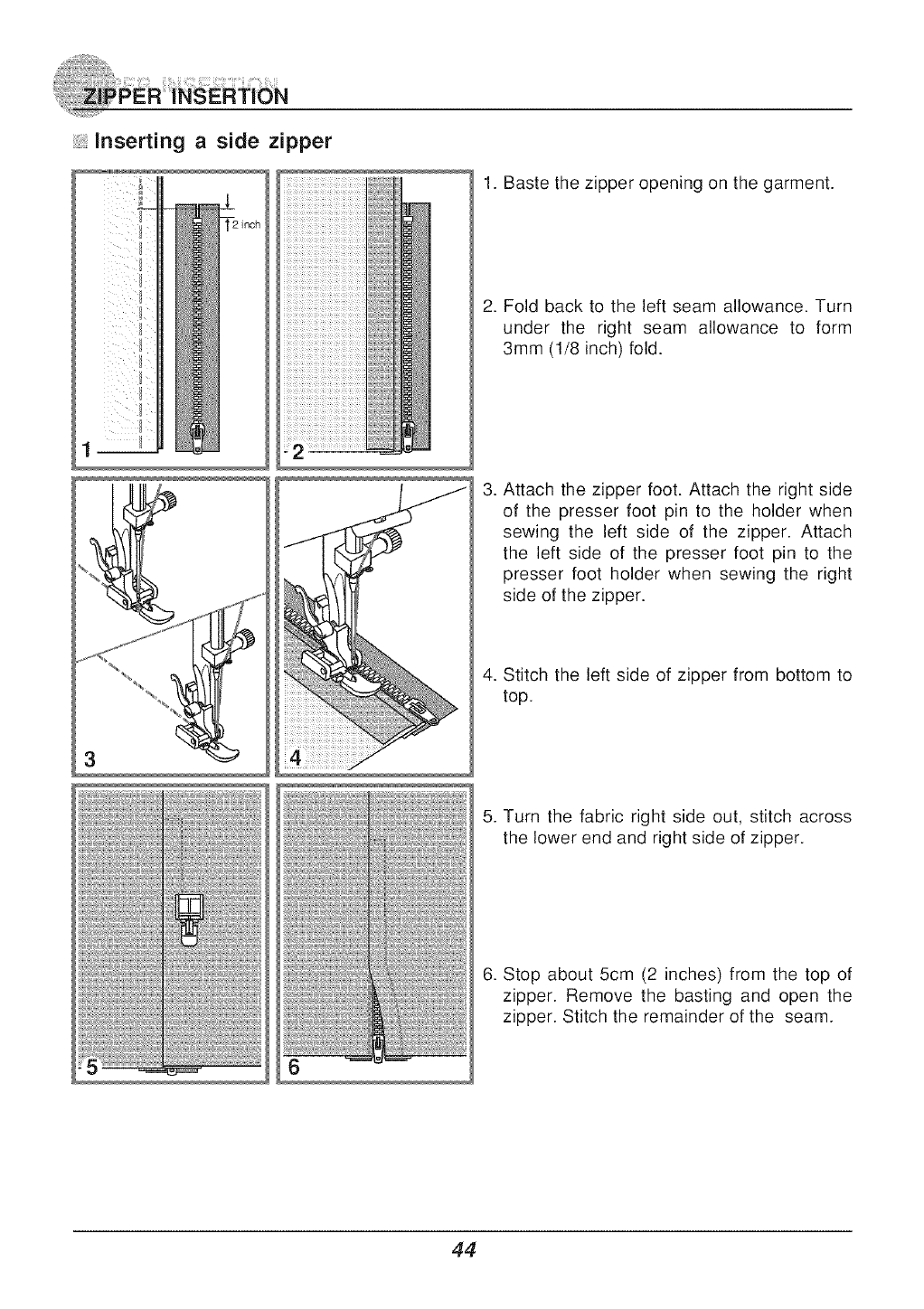

inserting a side zipper

1. Baste the zipper opening on the garment.

2. Fold back to the left seam allowance. Turn

under the right seam allowance to form

3mm (1/8 inch) fold.

3. Attach the zipper foot. Attach the right side

of the presser foot pin to the holder when

sewing the left side of the zipper. Attach

the left side of the presser foot pin to the

presser foot holder when sewing the right

side of the zipper.

4. Stitch the left side of zipper from bottom to

top.

5. Turn the fabric right side out, stitch across

the lower end and right side of zipper.

6. Stop about 5cm (2 inches) from the top of

zipper. Remove the basting and open the

zipper. Stitch the remainder of the seam.

JJ 3.5 1.5~3.0

1. Fold edge of fabric over about 3mm (1/8

inch), then fold it over again 3mm (1/8 inch)

for about 5cm (2 inches) along the edge of

the fabric.

2. Insert the needle into the fold by rotating

the handwheel toward you, and lower the

presser foot. Sew several stitches and

raise the presser foot.

Insert the fabric fold into the spiral opening

of hemmer foot. Move fabric back and forth

until the fold forms a scroll shape.

3. Lower the presser foot and start sewing

slowly guiding the raw edge of the fabric in

front of the hemmer foot evenly into the

scroll of the foot.

Sew over one strand of cording to create a pretty swirled design on a jacket or vest or sew over

three strands of cording for border trims. Pearl cotton, knitting yarn, embroidery floss, lace thread,

fine wool or lily yarn can be used for cording.

ii_01;!;i_i_i!i,liSingle cording

Mark the design on the fabric. Insert the cord

in the center groove of the cording foot from

the right side opening. Pull the cord about

5cm (2 inches) behind the foot.

The grooves under the foot will hold the

length of the cord in place while the stitches

are being form over the cord.

Select the stitch and adjust the stitch width so

that the stitches are just covering the cord.

Lower the foot and sew slowly, guiding the

cord over the design.

T r ipIe c o rd in g

15 35

Push the sewing thread to the left and insert

three cords into the grooves of the foot and

pull about 5cm (2 inches) of the cords behind

the foot. Select the desired pattern and adjust

the stitch width so that the stitches are just

covering the cords. Lower the foot and sew

slowly guiding the cords.

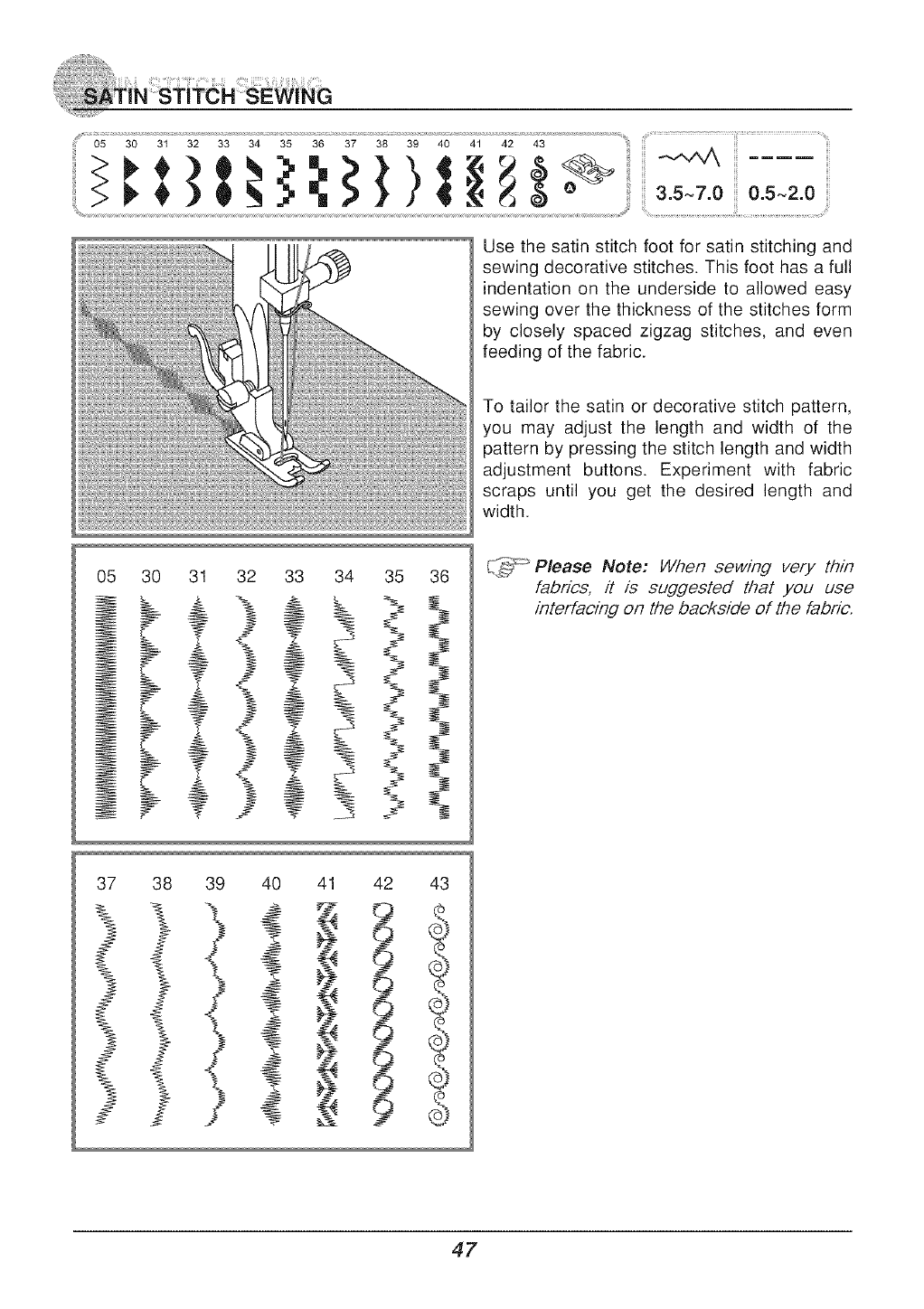

05 30 31 32 33 34 35 36 37 38 39 40 41 42 43

Use the satin stitch foot for satin stitching and

sewing decorative stitches. This foot has a full

indentation on the underside to allowed easy

sewing over the thickness of the stitches form

by closely spaced zigzag stitches, and even

feeding of the fabric.

05 30 31 32 33 34 35 36

37 38 39 40 41 42 43

To tailor the satin or decorative stitch pattern,

you may adjust the length and width of the

pattern by pressing the stitch length and width

adjustment buttons. Experiment with fabric

scraps until you get the desired length and

width.

C_ _'Please Note: When sewing very thin

fabrics, it is suggested that you use

interfacing on the backside of the fabric.

O0 02 ii!ii_...............................................................

I II1

J Ill :_ ii: 3.5 1.0~3.0

I II1 i

Insert the quilting guide in the presser foot

holder as illustrated and set the space as you

desire.

Sew the first row and move over the fabric to

sew successive rows with the guide riding

along the previous row of stitching.

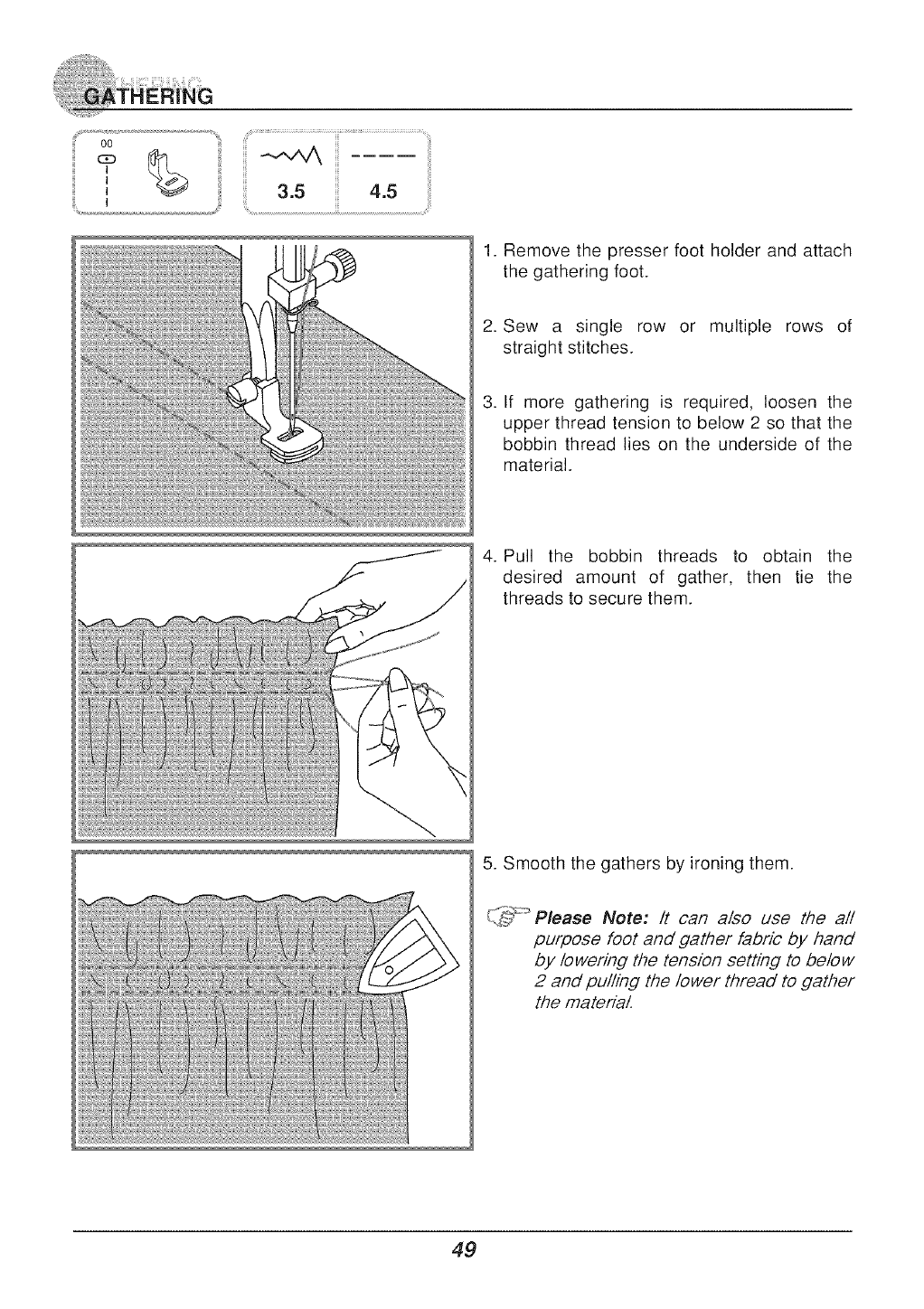

1. Remove the presser foot holder and attach

the gathering foot.

2. Sew a single row or multiple rows of

straight stitches.

3. If more gathering is required, loosen the

upper thread tension to below 2 so that the

bobbin thread lies on the underside of the

material.

4. Pull the bobbin threads to obtain the

desired amount of gather, then tie the

threads to secure them.

5. Smooth the gathers by ironing them.

Please Note: /t can also use the all

purpose foot and gather fabric by hand

by lowering the tension setting to below

2 and pulling the lower thread to gather

the material.

1. Use the gathering foot to sew straight lines

lcm (3/8 inch) apart, across the area to be

smocked.

*For gathering sewing instructions, see

page 49.

2. Knot the threads along one edge. Pull the

bobbin threads and distribute the gathers

evenly. Secure the threads at the other end.

3. Reduce the tension, if necessary and sew

decorative pattern stitches between the

straight seams.

4. Pull out the gathering stitches.

3.5~5.0

Move the drop feed control to "-_r" to lower

the feed dogs.

BRemove the presser foot holder, and attach

the darning foot to the presser foot holder bar.

The lever (a) should be behind the needle

clamp screw (b). Press the darning foot on

firmly from behind with your index finger and

tighten the screw (c).

Darning

Please Note: Free motion darning is accomplished without the sewing machine internal

feed system. Movement of the fabric is controlled by the operator. /t is necessary to

coordinate sewing speed and movement of fabric.

First sew around the edges of the hole (to

secure the threads). Working from left to right,

sew over the hole in a constant and

continuous movement. Turn the work by 1/4

and sew over the first stitching moving the

work slower over the hole to separate the

threads and not form big gaps between the

threads.

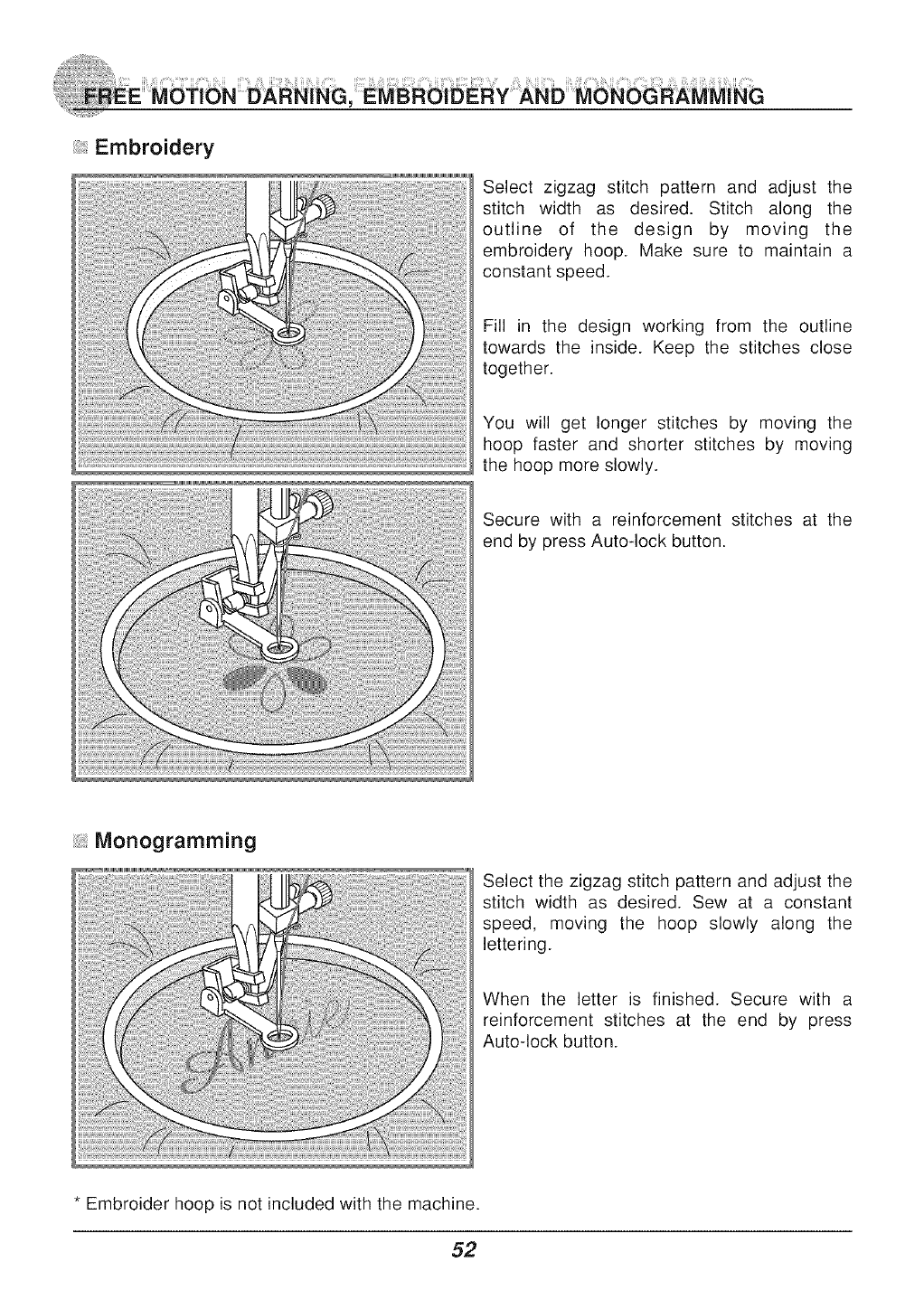

Embroidery

Select zigzag stitch pattern and adjust the

stitch width as desired. Stitch along the

outline of the design by moving the

embroidery hoop. Make sure to maintain a

constant speed.

Fill in the design working from the outline

towards the inside. Keep the stitches close

together.

You will get longer stitches by moving the

hoop faster and shorter stitches by moving

the hoop more slowly.

Secure with a reinforcement stitches at the

end by press Auto-lock button.

Monogramming

Select the zigzag stitch pattern and adjust the

stitch width as desired. Sew at a constant

speed, moving the hoop slowly along the

lettering.

When the letter is finished. Secure with a

reinforcement stitches at the end by press

Autoqock button.

* Embroider hoop is not included with the machine.

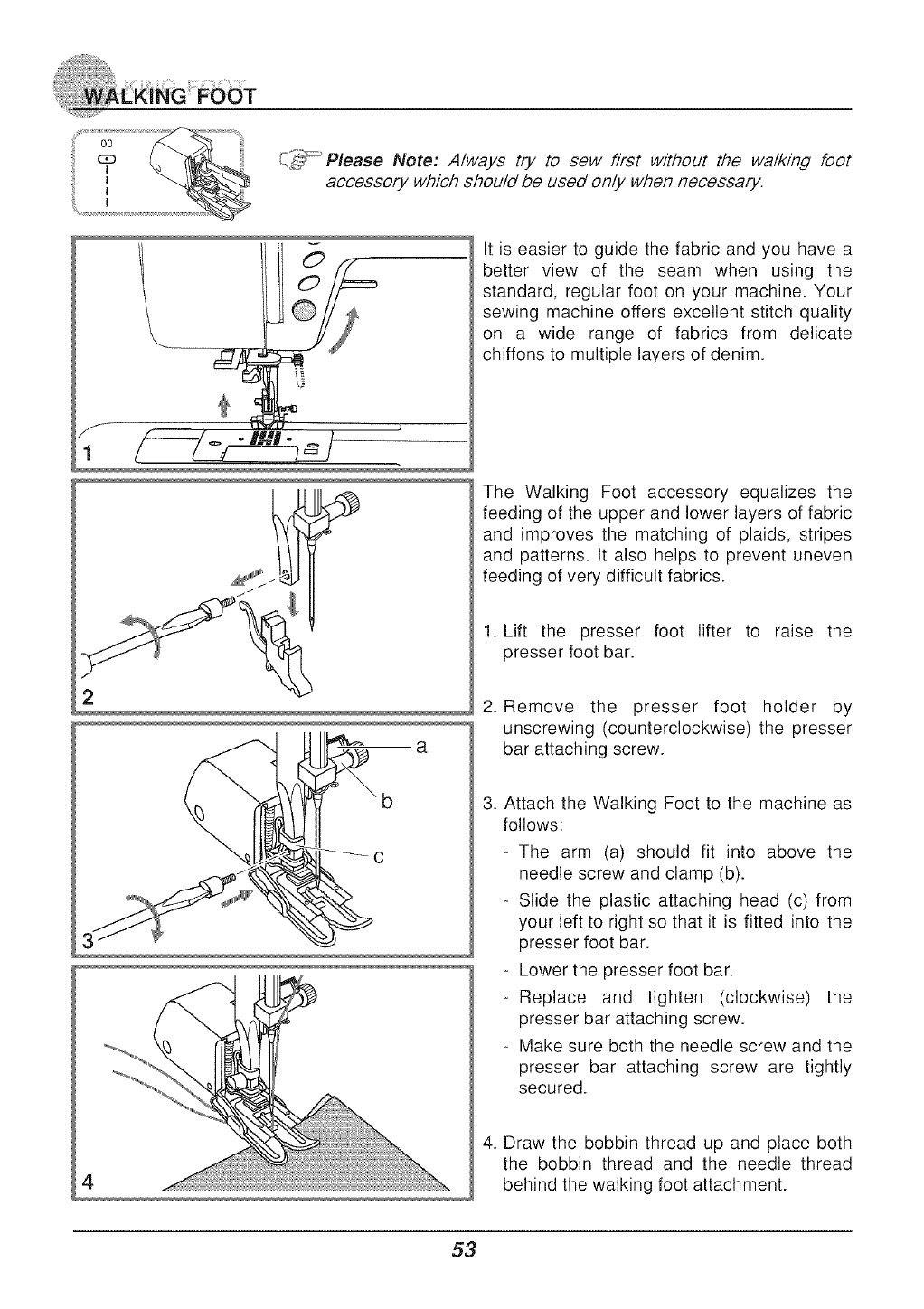

_,_':_"Please Note: A/ways try to sew first without the walking foot

accessory which shou/d be used on/?"when necessary.

f _ IN o

It is easier to guide the fabric and you have a

better view of the seam when using the

standard, regular foot on your machine. Your

sewing machine offers excellent stitch quality

on a wide range of fabrics from delicate

chiffons to multiple layers of denim.

The Walking Foot accessory equalizes the

feeding of the upper and lower layers of fabric

and improves the matching of plaids, stripes

and patterns. It also helps to prevent uneven

feeding of very difficult fabrics.

1. Lift the presser foot lifter to raise the

presser foot bar.

2. Remove the presser foot holder by

unscrewing (counterclockwise) the presser

bar attaching screw.

3. Attach the Walking Foot to the machine as

follows:

- The arm (a) should fit into above the

needle screw and clamp (b).

- Slide the plastic attaching head (c) from

your left to right so that it is fitted into the

presser foot bar.

- Lower the presser foot bar.

-Replace and tighten (clockwise) the

presser bar attaching screw.

- Make sure both the needle screw and the

presser bar attaching screw are tightly

secured.

4. Draw the bobbin thread up and place both

the bobbin thread and the needle thread

behind the walking foot attachment.

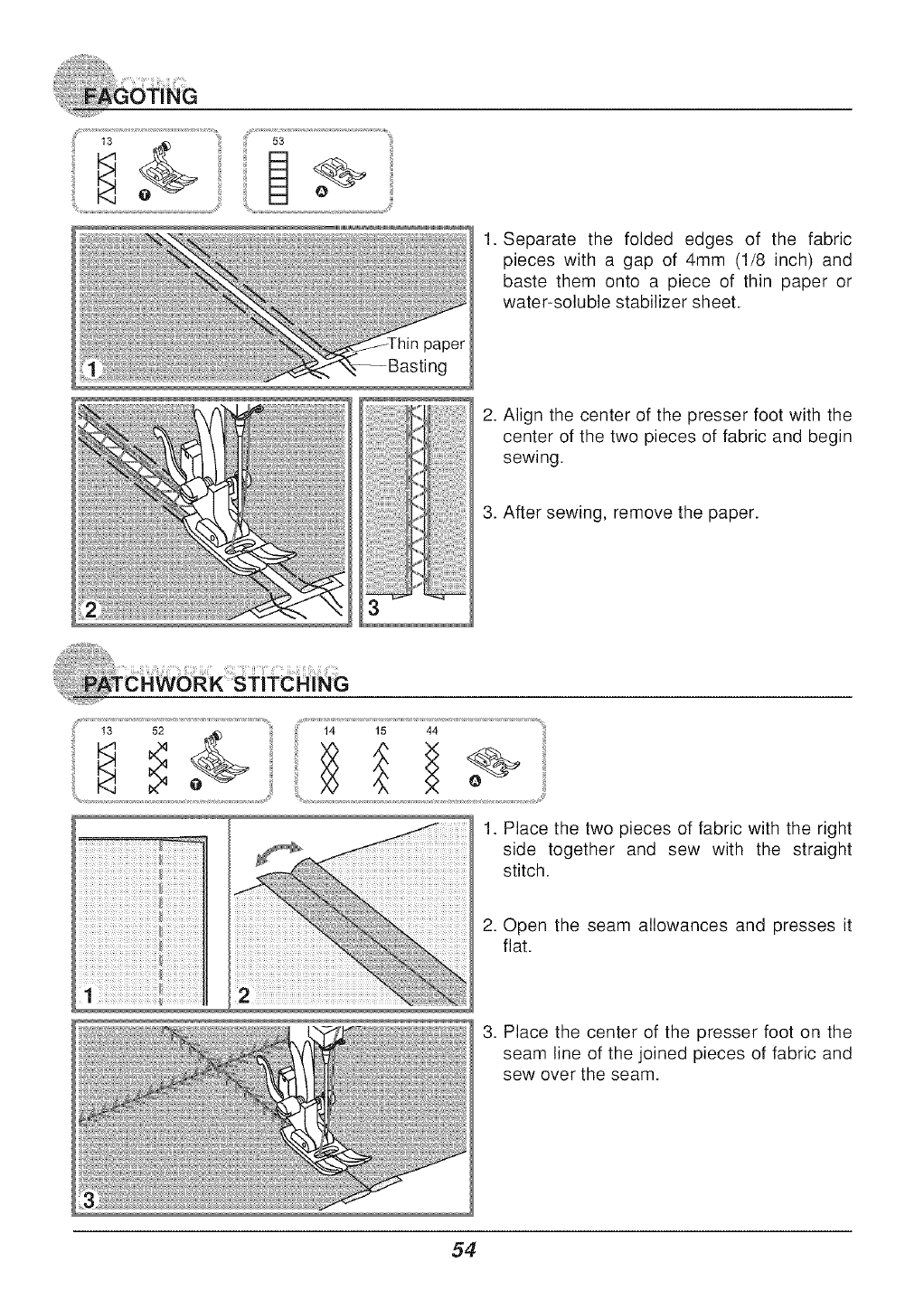

1. Separate the folded edges of the fabric

pieces with a gap of 4mm (1/8 inch) and

baste them onto a piece of thin paper or

water*soluble stabilizer sheet.

2. Align the center of the presser foot with the

center of the two pieces of fabric and begin

sewing.

3. After sewing, remove the paper.

1. Place the two pieces of fabric with the right

side together and sew with the straight

stitch.

2. Open the seam allowances and presses it

fiat.

3. Place the center of the presser foot on the

seam line of the joined pieces of fabric and

sew over the seam.

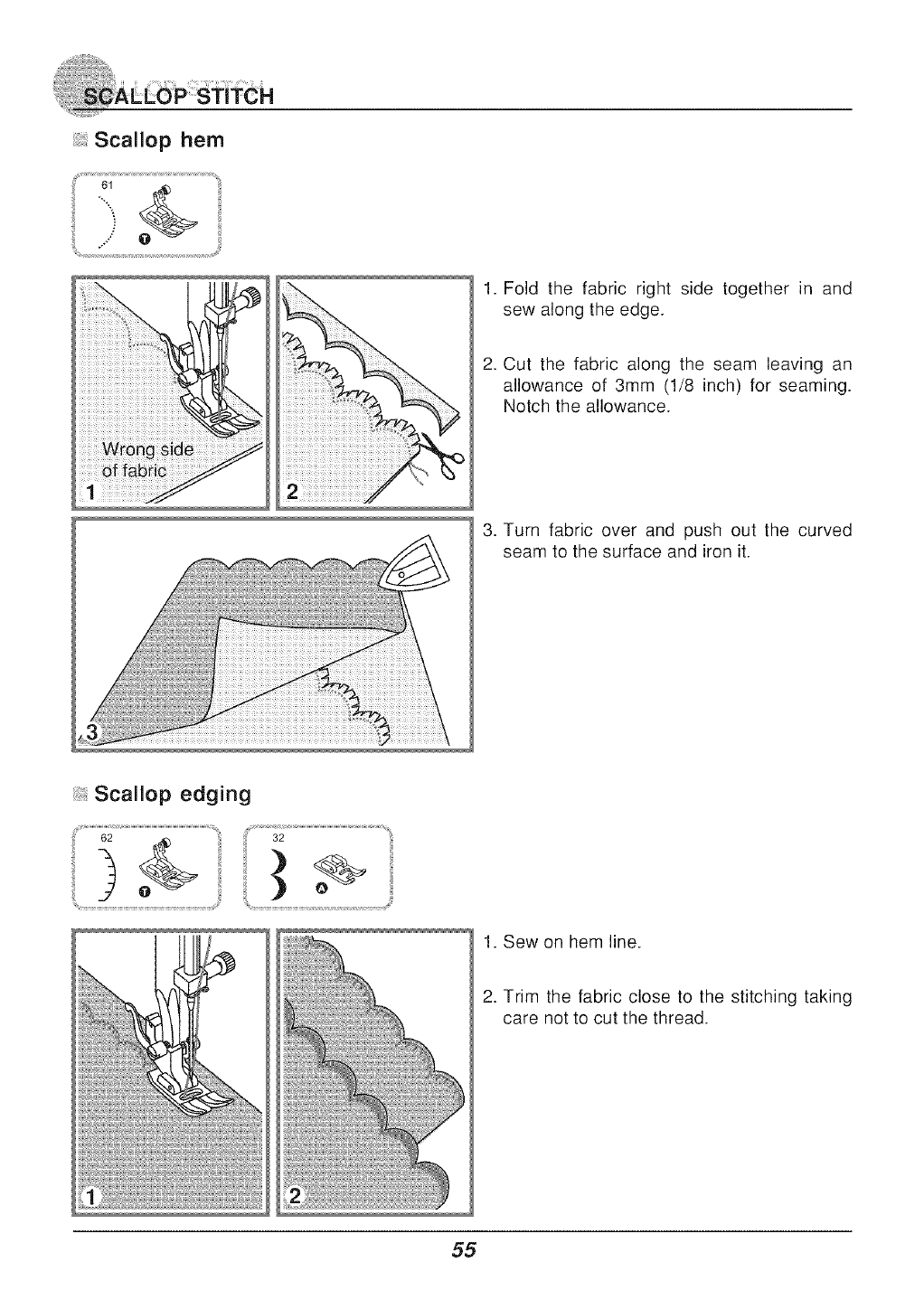

Scallop hem

1. Fold the fabric right side together in and

sew along the edge.

2. Cut the fabric along the seam leaving an

allowance of 3mm (1/8 inch) for seaming.

Notch the allowance.

3. Turn fabric over and push out the curved

seam to the surface and iron it.

Scallop edging

1. Sew on hem line.

2. Trim the fabric close to the stitching taking

care not to cut the thread.

0.3~1.0

1. The stitch can be elongated up to five times

its normal length by pressing the elongation

button.

I--xl_

F--x2_

x3 I

F x4 t

x5 t

2. The LCD screen icon for elongation imaging

of the pattern appears.

3. When the width or length or stitch is

changed, a greater variety of patterns are

available.

.,,_: Please Note: The patterns 30-39 can

be e/ongation and mirror simu/taneous/y.

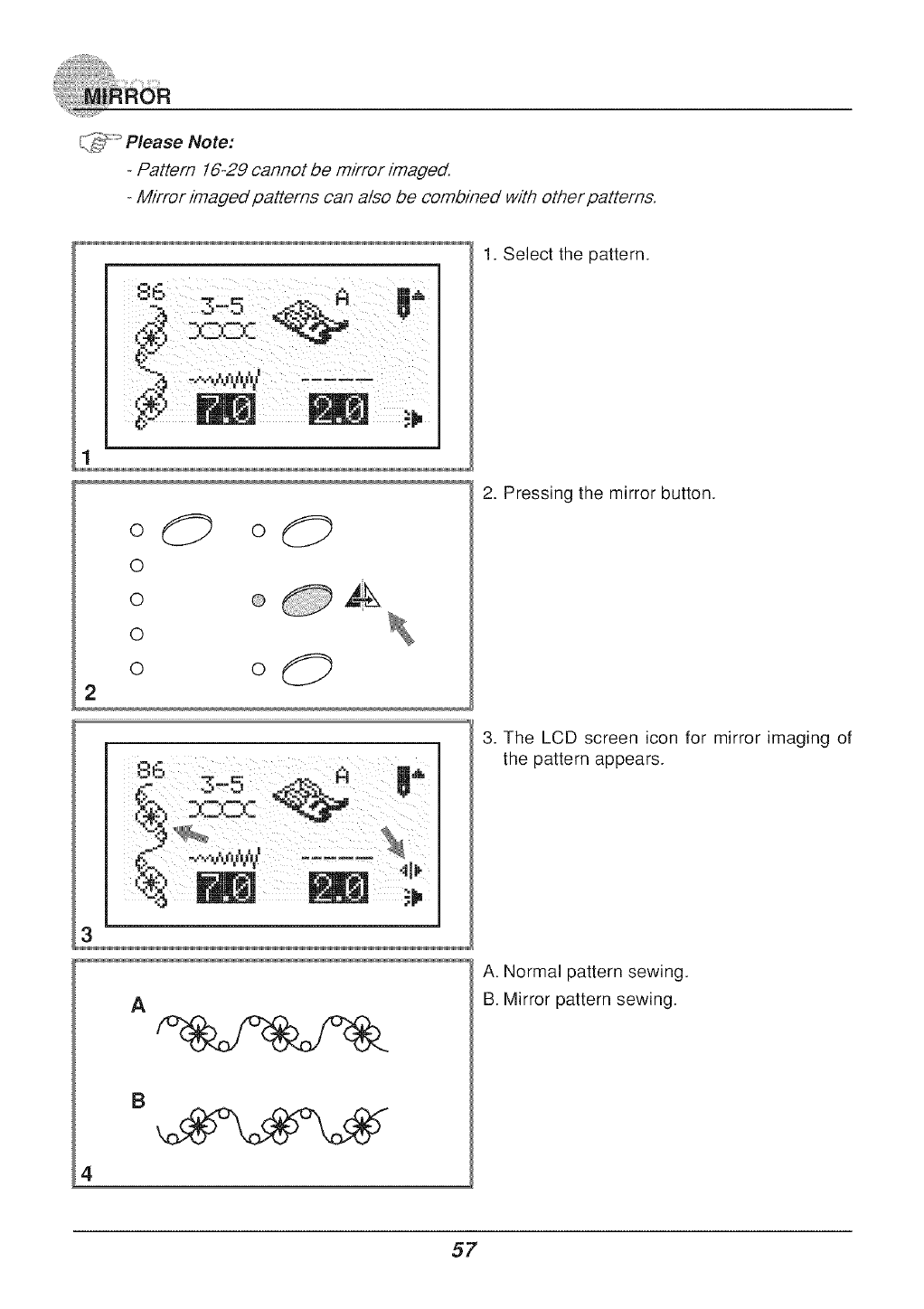

Please Note:

-Pattern 16-29 cannot be mirror imaged.

-Mirror imagedpatterns can a/so be combined with other patterns.

86 A

1. Select the pattern.

2. Pressing the mirror button.

3. The LCD screen icon for mirror imaging of

the pattern appears.

A. Normal pattern sewing.

B. Mirror pattern sewing.

1.0~3.0

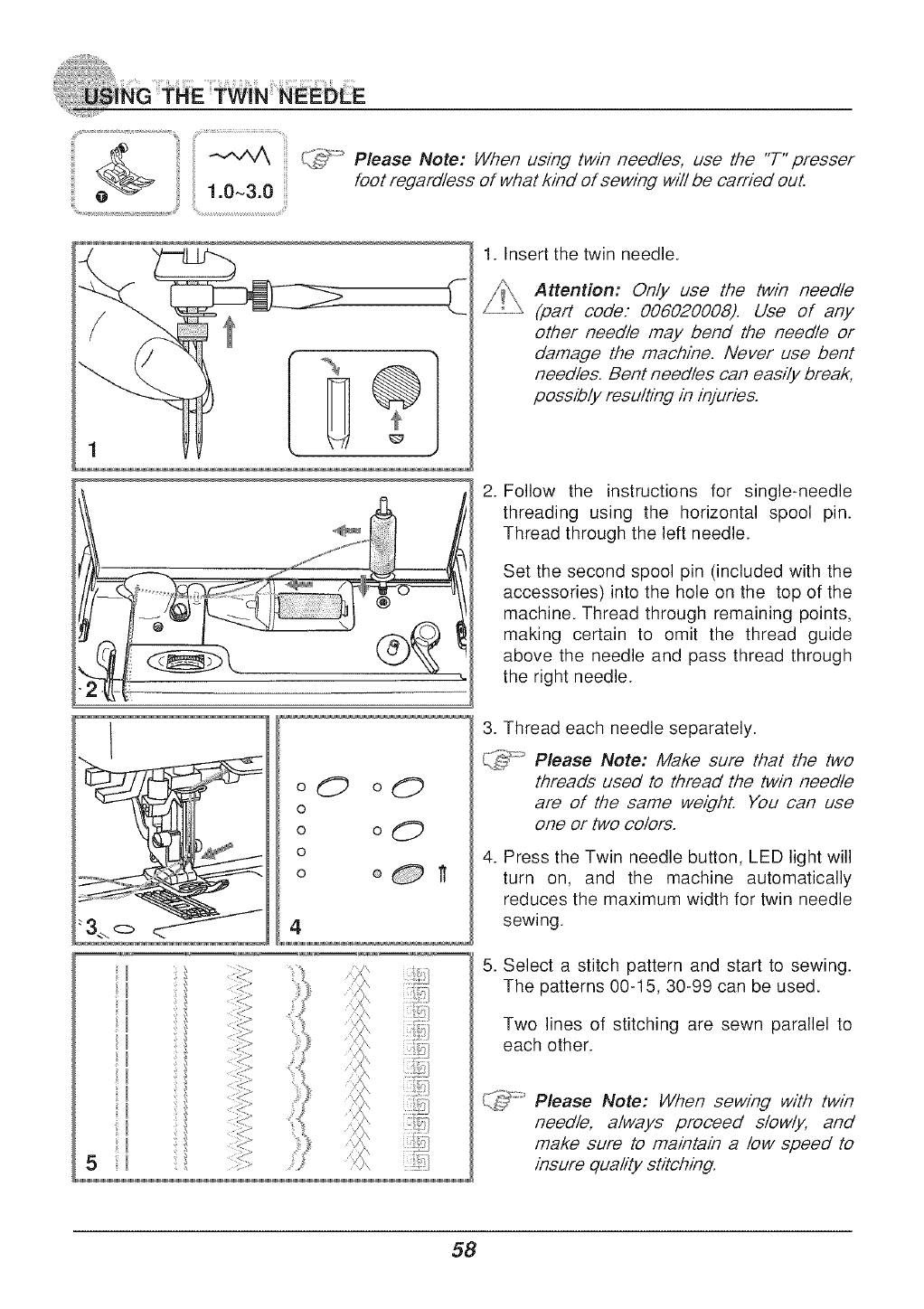

l_:' Please Note: When using twin needles, use the "T" presser

foot regardless of what kind of sewing wi// be carried out.

1. Insert the twin needle.

Attention: Only use the twin needle

(part code." 006020008). Use of any

other needle may bend the needle or

damage the machine. Never use bent

needles. Bent needles can easily break,

possibly resulting in injuries.

od::>

o o 0

o o

,,_,w,0,0,,w,,w,,_

2. Follow the instructions for single-needle

threading using the horizontal spool pin.

Thread through the left needle.

Set the second spool pin (included with the

accessories) into the hole on the top of the

machine. Thread through remaining points,

making certain to omit the thread guide

above the needle and pass thread through

the right needle.

3. Thread each needle separately.

Please Note: /Wake sure that the two

threads used to thread the twin needle

are of the same weight. You can use

one or two colors.

4. Press the Twin needle button, LED light will

turn on, and the machine automatically

reduces the maximum width for twin needle

sewing.

5. Select a stitch pattern and start to sewing.

The patterns 00-15, 30-99 can be used.

Two lines of stitching are sewn parallel to

each other.

'Please Note: When sewing with twin

need/e, always proceed slow/y, and

make sure to maintain a low speed to

insure quality stitching.

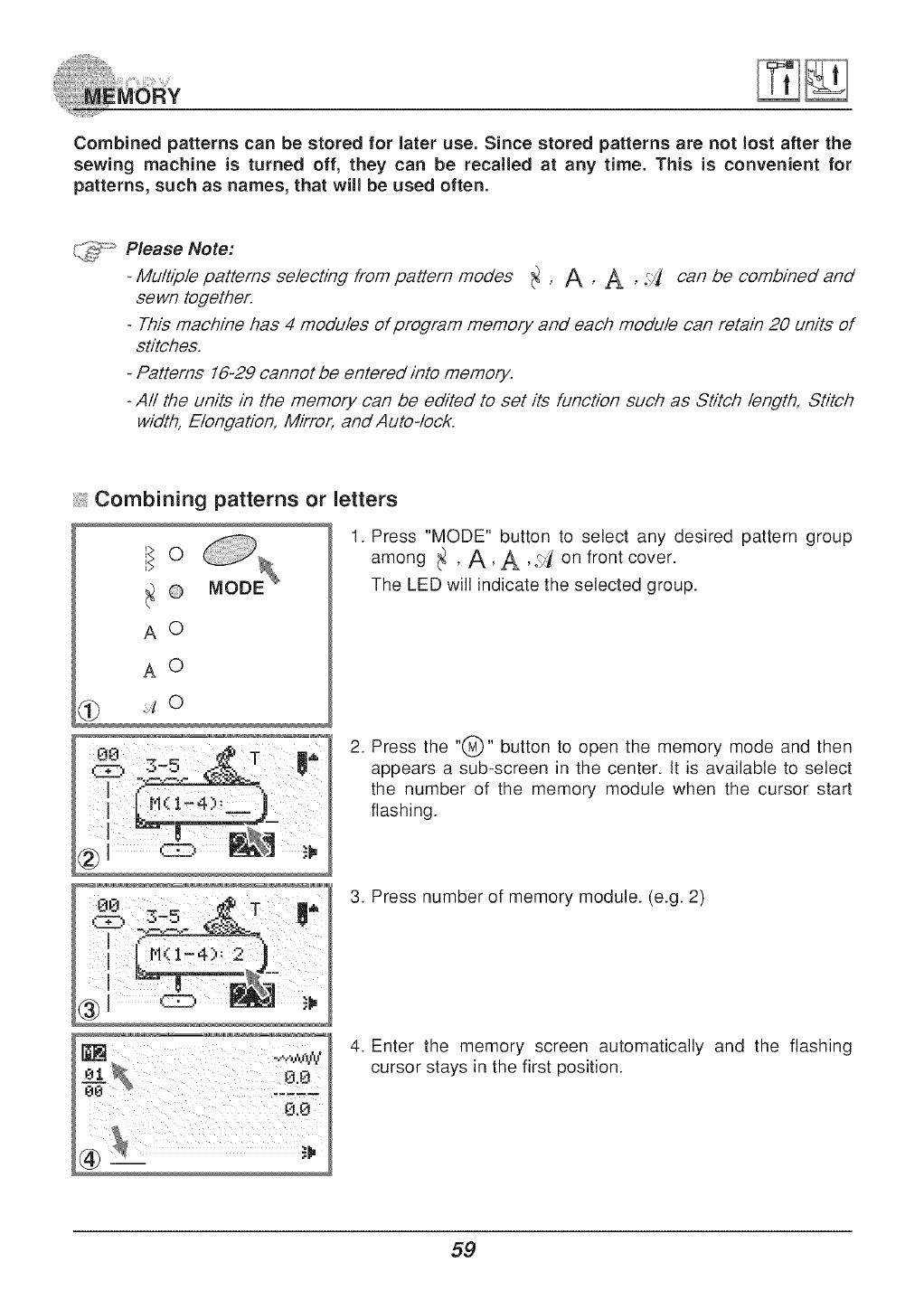

Combined patterns can be stored for later use. Since stored patterns are not lost after the

sewing machine is turned off, they can be recalled at any time. This is convenient for

patterns, such as names, that will be used often.

Please Note:

-Mu/tip/e patterns se/ecting from pattern modes _ , A, A, can be combined and

sewn together.

-This machine has 4 modu/es of program memory and each modu/e can retain 20 units of

stitches.

-Patterns 16-29 cannotbe entered/nto memory.

-A//the units//7 the memory can be edited to set its function such as Stitch/ength, Stitch

width, E/ongat/on, A/l/rror, and Auto-/ock.

Combining patterns or letters

1. Press "MODE" button to select any desired pattern group

among _ ,A, A ,;/:_ on front cover.

The LED will indicate the selected group.

2. Press the "C)" button to open the memory mode and then

appears a sub-screen in the center. It is available to select

the number of the memory module when the cursor start

flashing.

3. Press number of memory module. (e.g. 2)

4. Enter the memory screen automatically and the flashing

cursor stays in the first position.

5. Press the desired pattern number. (E.g.68)

6. The selected pattern displays on the LCD screen and the

cursor move to the next position.

i[_ ¸ lg _ B_ _._

__ ",.'_ .4 ._--__ 0.0

2e_ _ ;:jo: >4 faro

2e_4/ /r,.-_,D P% : ----

/k,,_ .......,_.>1 !

Adding patterns or letters

g2 _ %

7. Repeat step 5, 6 for more patterns to be stored in the

memory.

_" Please Note: When the memory the fu// with 20 units of

patterns, the machine wi!/ beep to signa/ iL

8. Press the "(_)" button to leave the memory mode and return

to the normal screen.

Attention: The se/ected pattern wi// be c/eared from the

memory modu/e after c/osing the machine ff you do not

press the "(_ "button again when you have comp/eted

your se/ection.

1. Press the stitch width adjustment button and shift the cursor

past the last pattern or letter where you would like to add

another pattern while in the memory mode.

2. Press pattern number. (e.g. 31) The selected pattern will be

inserted.

Editing patterns

_ _ Wf _.. v, .----

1. Use the stitch width adjustment button to select the pattern

that you wish to edit while in the memory mode.

2. Press the "@" button to edit the pattern. The stitch length,

stitch width, Elongation, Mirror, and Auto-lock of the

patterns can be adjusted manually.

(Please Note: The stitch/ength, stitch width, E/ongation,

Mirror, and Auto-lock of the patterns can be adjusted

manually.

4. Press the "_" button when complete and return to browse

status.

Clearing patterns or letters

1. Use the stitch width adjustment button to select the pattern

that you want to clear while in the memory mode.

2. Press the " C) " button to delete the selected pattern and

the next pattern in the back will move forward.

Recalling and sewing the memorized pattern

00 _. = _ T I_ 1. Press the "(_" button to enter memory mode and then input

,"-;-_ --_-.J <..-_.,. _ the number of memory module when the cursor start flashing.

2. Input the number of memory module. (e.g. 2)

3. The LCD screen containing the various types of stitches will

open.

4. Press on the foot control or press the start/stop button to

start the sewing machine.

5. The cursor on the LCD screen will move along with the

sequential pattern while sewing.

I[ Please Note: ff the cursor stays in a vacant position//7

the end, the machine wi// start sewing from the first

pattern, ff the cursor stays under a specific pattern, the

machine w///start sewing from that pattern.

ea 6. Press the "(_ " button to leave memory mode and return to

the normal screen.

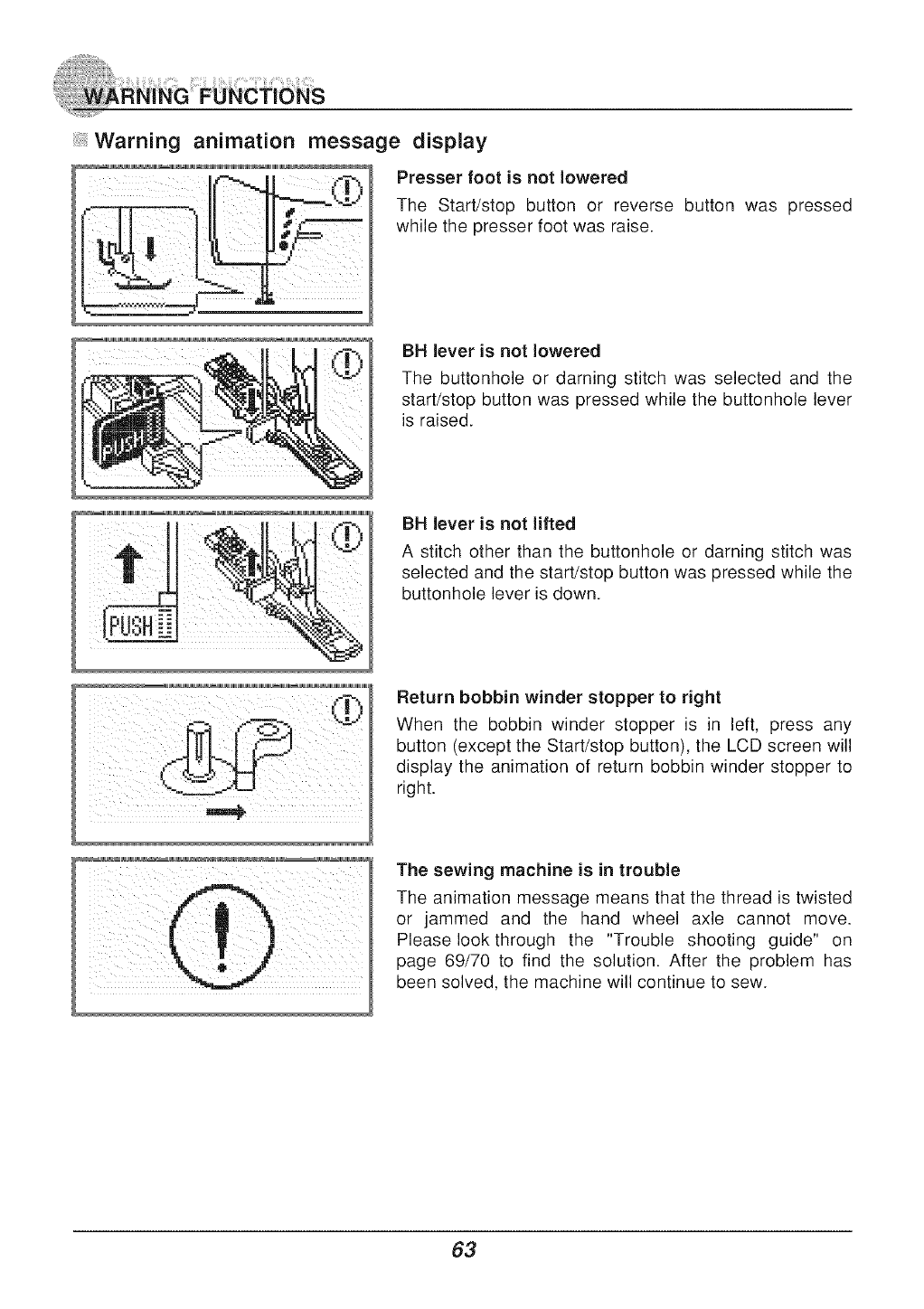

Warning animation message

_ _ _J _ _ g_g_ _ BIIIIIIIIIIB _

display

Presser foot is not lowered

The Start/stop button or reverse button was pressed

while the presser foot was raise.

BH lever is not lowered

The buttonhole or darning stitch was selected and the

start/stop button was pressed while the buttonhole lever

is raised.

u_wm_m_m_m_m_m_mmm_mm_

BH lever is not lifted

A stitch other than the buttonhole or darning stitch was

selected and the start/stop button was pressed while the

buttonhole lever is down.

Return bobbin winder stopper to right

When the bobbin winder stopper is in left, press any

button (except the Start/stop button), the LCD screen will

display the animation of return bobbin winder stopper to

right.

The sewing machine is in trouble

The animation message means that the thread is twisted

or jammed and the hand wheel axle cannot move.

Please Iook through the "Trouble shooting guide" on

page 69/70 to find the solution. After the problem has

been solved, the machine will continue to sew.

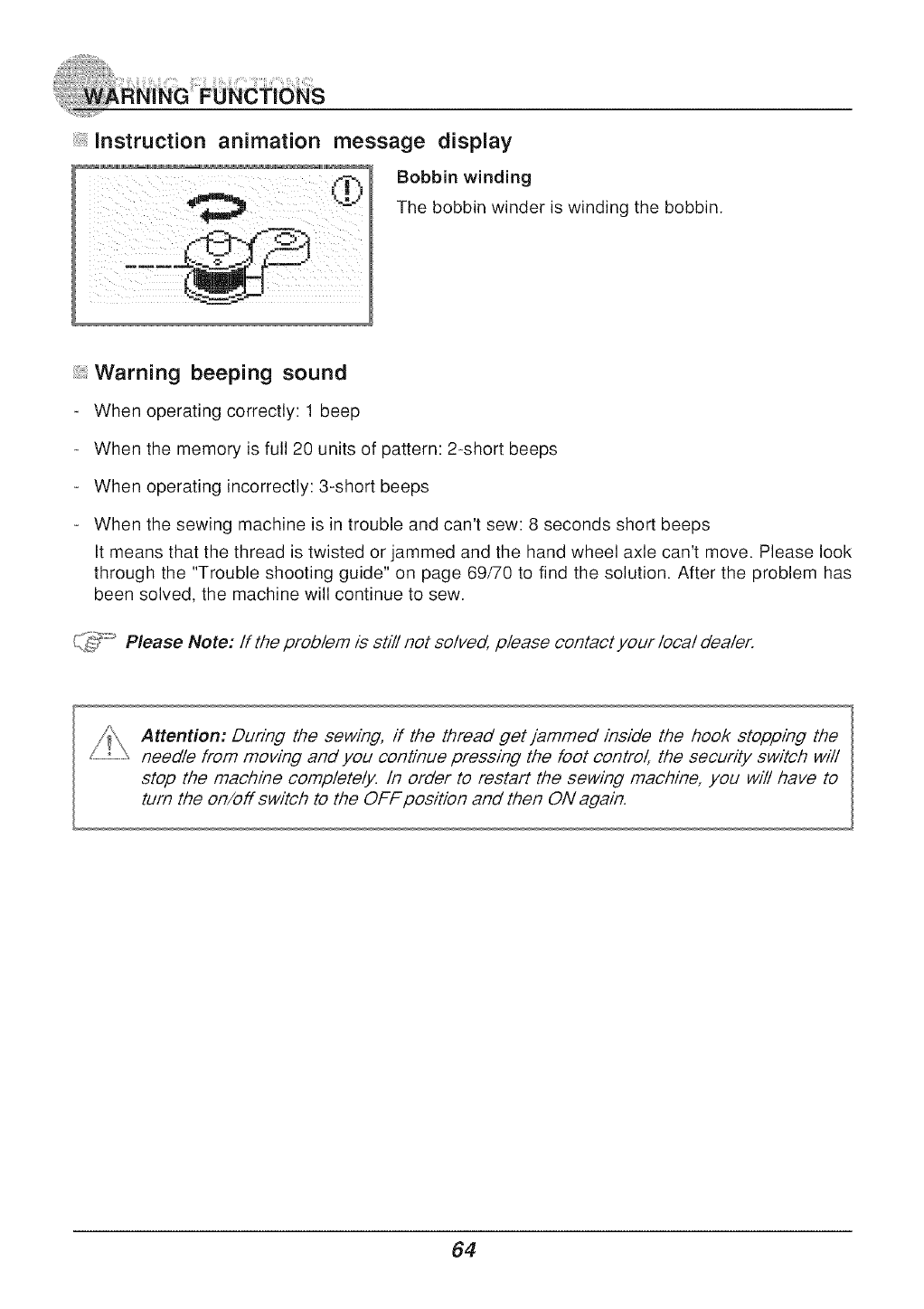

instruction animation message display

Bobbin winding

The bobbin winder is winding the bobbin.

Warning beeping sound

When operating correctly: 1 beep

When the memory is full 20 units of pattern: 2-short beeps

When operating incorrectly: 3-short beeps

When the sewing machine is in trouble and can't sew: 8 seconds short beeps

It means that the thread is twisted or jammed and the hand wheel axle can't move. Please look

through the "Trouble shooting guide" on page 69/70 to find the solution. After the problem has

been solved, the machine will continue to sew.

I*_ _:_ Please Note: ff the prob/em is st///not so/ved, p/ease contact your /oca/ dea/er.

Attention: During the sewing, ff the thread get jammed inside the hook stopping the

need/e from moving and you continue pressing the foot contro/, the security switch w///

stop the machine comp/ete/y. //7 order to restart the sewing machine, you wi// have to

turn the on/off switch to the OFFposition and then ON again.

(9@@

@@@

1 ° @ _@

1. Press on the "(_)" button and turn on the

power switch.

2. You can select the mode by pressing the

stitch width "+" or "-" button. Select desired

mode sound on "_ "or sound off "_ ".

3. Pressing the " (_) " button. The Buzzer

sound setting mark will appear on the LCD

screen when you have set it.

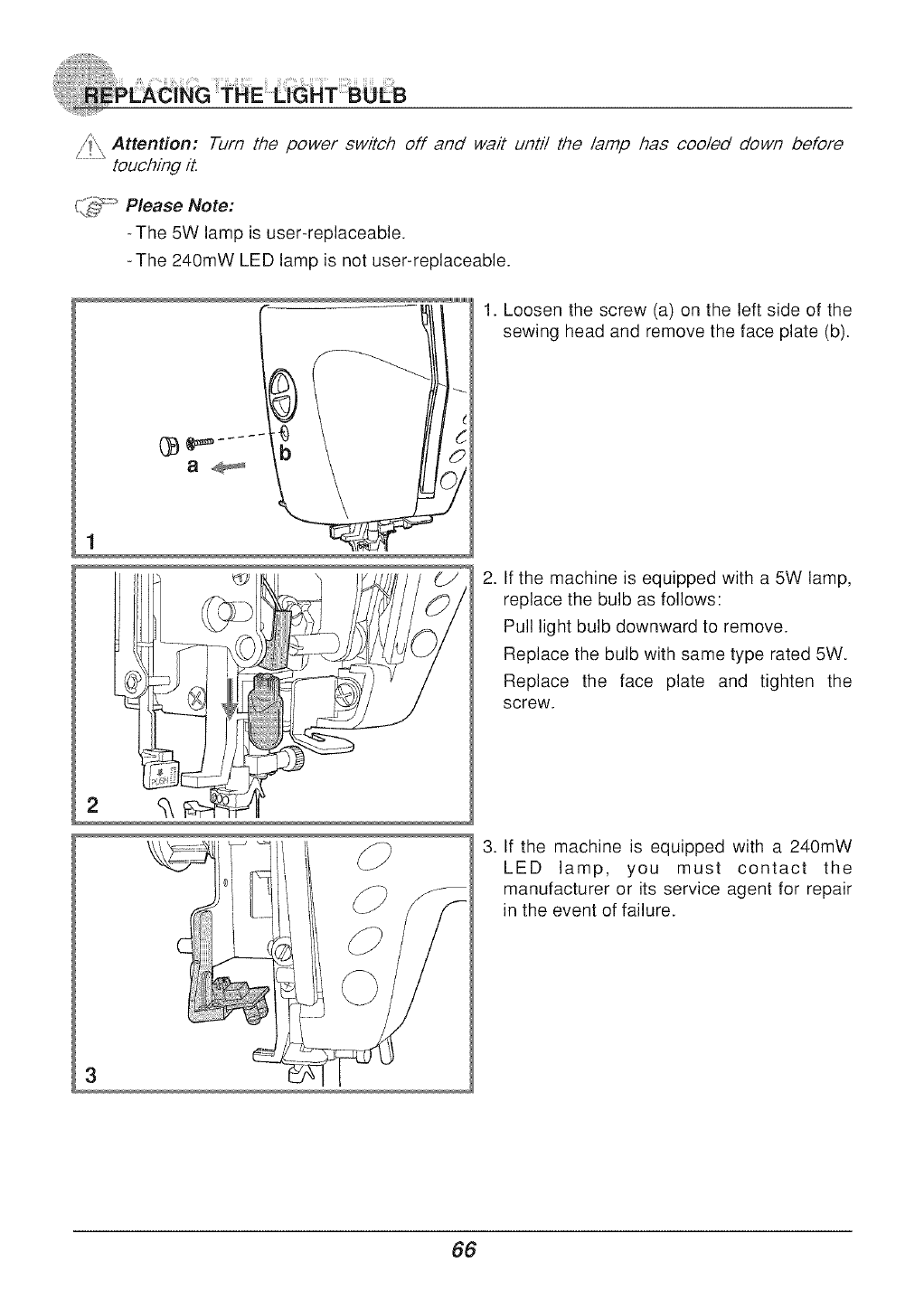

_'_, Attention: Turn the power switch off and wait unti/ the /amp has coded down before

touching it.

:_?_ Please Note:

- The 5W lamp is user-replaceable.

-The 240mW LED lamp is not user-replaceable.

1. Loosen the screw (a) on the left side of the

sewing head and remove the face plate (b).

2. If the machine is equipped with a 5W lamp,

replace the bulb as follows:

Pull light bulb downward to remove.

Replace the bulb with same type rated 5W.

Replace the face plate and tighten the

screw.

3. If the machine is equipped with a 240mW

LED lamp, you must contact the

manufacturer or its service agent for repair

in the event of failure.

_\,, Attention: Disconnect the power cord from the wall socket before cleaning the screen and

sewing machine surface, otherwise injury or e/ectrica/ shock may resu/t.

Cleaning the screen

If the front panel is dirty, wipe it gently with a

soft, dry cloth.

Do not use any organic solvents or detergents.

Cleaning the sewing machine surface

If the surface of the sewing machine is dirty, lightly soak a cloth in mild detergent, squeeze it out

firmly and then wipe the surface. After cleaning it once in this way, wipe the surface again with a

dry cloth.

Cleaning the hook

If lint and bits of thread accumulate in the hook, this will interfere with the smooth operation of the

machine. Check regularly and clean the stitching mechanism when necessary.

_"_, Attention: Disconnect the machine from the waft out!et before carrying out any maintenance.

1. Remove the bobbin cover plate and bobbin.

2. Clean the bobbin holder with a brush.

3. Remove the needle, presser foot and

presser foot holder. Remove the bobbin

cover plate and bobbin. Remove the screw

holding the needle plate and remove the

needle plate.

4. Lift up the bobbin case and remove it.

5. Clean the hook race, feed dog and bobbin

case with a brush. Also clean them, using a

soft, dry cloth.

6. Replace the bobbin case into the hook race

so that the tip (a) fits to the stopper (b) as

shown.

Before calling for service, check the following items. If the problem still persists, contact the place of

)urchase or your nearest authorized dealer.

Problem Cause Correction Reference

t .The machine is not threaded correctly, t .Rethread the machine. Page t 5

2.The thread tension is too tight. 2.Reduce the thread tension (lower Page t8

number).

3.The thread is too thick for the needle. 3.Select a larger needle. Page t 0

Upper thread

breaks 4.The needle is not inserted correctly. 4.Remove and reinsert the needle (flat Page t0

side towards the back).

5.The thread is wound around the spool 5.Remove the reel and wind thread onto Page 15

holder pin. reel.

6.The needle is damaged. 6.Replace the needle. Page 10

1.The bobbin case is not inserted 1.Remove and reinsert the bobbin case Page 14

correctly, and pull on the thread. The thread

Lower thread should pull easily.

breaks 2.The bobbin case is threaded wrong. 2.Check both bobbin and bobbin case. Page 14

3.The lower thread tension is too tight 3.Loosen lower thread tension as Page 18

described.

1.The needle is not inserted correctly. 1.Remove and reinsert needle(flat side Page 10

towards the back).

2.The needle is damaged. 2.Insert a new needle. Page 10

Skipped 3.The wrong size needle has been used. 3.Choose a needle to suit the thread. Page 10

stitches 4.The foot is not attached correctly. 4.Check and attach correctly. Page 71

5.The machine is not threaded correctly. 5.Rethread the machine. Page 15

6.The presser foot pressure is not strong 6.Adjusting the presser foot pressure. Page 9

enough.

1.The needle is damaged. 1 .Insert a new needle. Page 10

2.The needle is not correctly inserted. 2.Insert the needle correctly (flat side Page 10

towards the back).

3.Wrong needle size for the fabric. 3.Choose a needle to suit the thread and Page 10

fabric.

Needle 4.The wrong foot is attached. 4.Select the correct foot. Page 71

breaks 5.The needle clamp screw is loose. 5.Use the screwdriver to firmly tighten Page 10

the screw.

6.The presser foot that is used is not 6.Attach the presser foot that is appro- Page 71

appropriate for the type of stitch that priate for the type of stitch that you

you wish to sew. wish to sew.

7.The upper thread tension is too tight. 7.Loosen the upper thread tension. Page 18

1.The machine is not correctly threaded. 1 .Check the threading. Page 15

2.The bobbin case is not correctly 2.Thread the bobbin case as illustrated. Page14

Loose threaded.

stitches 3.Needle/fabric/thread combination is 3.The needle size must suit the fabric Page 10

wrong, and thread.

4.Thread tension is wrong. 4.Correct the thread tension. Page 18

1.The needle is too thick for the fabric. 1 .Select a finer needle. Page 10

Seam

gather or 2.The stitch length is adjusted wrong. 2.Readjust the stitch length. Page 24

pucker 3.The thread tension is too tight. 3.Loosen the thread tension. Page 18

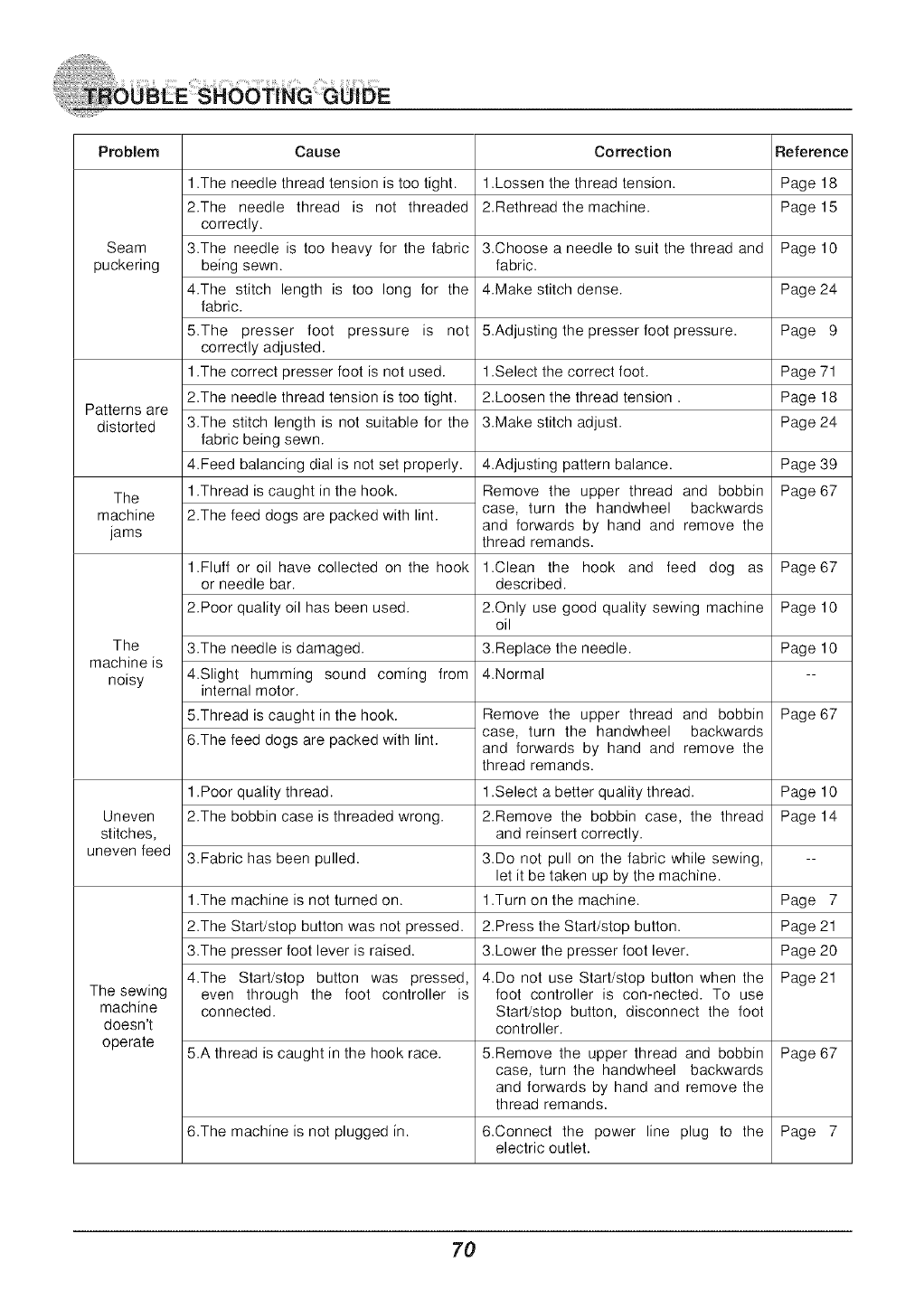

Probmem Correction Reference

1.Lossen the thread tension. Page 18

2.Rethread the machine. Page t 5

Seam 3.Choose a needle to suit the thread and Page t 0

puckering fabric.

4Make stitch dense. Page 24

5.Adjusting the presser foot pressure. Page 9

t.Select the correct foot. Page 71

2.Loosen the thread tension. Page t 8

Patterns are

distorted 3Make stitch adjust. Page 24

4.Adjusting pattern balance. Page 39

Page 67

The

machine

jams

Cause

1.The needle thread tension is too tight.

2.The needle thread is not threaded

correctly.

3.The needle is too heavy for the fabric

being sewn.

4.The stitch length is too long for the

fabric.

5.The presser foot pressure is not

correctly adjusted.

1.The correct presser foot is not used.

2.The needle thread tension is too tight.

3.The stitch length is not suitable for the

fabric being sewn.

4.Feed balancing dial is not set properly.

1.Thread is caught in the hook.

2.The feed dogs are packed with lint.

Remove the upper thread and bobbin

case, turn the handwheel backwards

and forwards by hand and remove the

thread remands.

3.The needle is damaged.

4.Slight humming sound coming from

internal motor.

5.Thread is caught in the hook.

6.The feed dogs are packed with lint.

1.Fluff or oil have collected on the hook 1.Clean the hook and feed dog as Page 67

or needle bar. described.

2.Poor quality oil has been used. 2.Only use good quality sewing machine Page 10

oil

The 3.Replace the needle. Page 10

machine is

noisy 4.Normal --

Page 67

Remove the upper thread and bobbin

case, turn the handwheel backwards

and forwards by hand and remove the

thread remands.

1.Poor quality thread. 1 .Select a better quality thread. Page 10

Uneven 2.The bobbin case is threaded wrong. 2.Remove the bobbin case, the thread Page 14

stitches, and reinsert correctly.

uneven feed 3.Fabric has been pulled. 3.Do not pull on the fabric while sewing, --

let it be taken up by the machine.

1 .The machine is not turned on. 1 .Turn on the machine. Page 7

2.The Start/stop button was not pressed. 2.Press the Start/stop button. Page 21

3.The presser foot lever is raised. 3.Lower the presser foot lever. Page 20

4.The Start/stop button was pressed, 4.Do not use Start/stop button when the Page 21

The sewing even through the foot controller is foot controller is con-nected. To use

machine connected. Start/stop button, disconnect the foot

doesn't controller.

operate 5.A thread is caught in the hook race. 5.Remove the upper thread and bobbin Page 67

case, turn the handwheel backwards

and forwards by hand and remove the

thread remands.

6.The machine is not plugged in. 6.Connect the power line plug to the Page 7

electric outlet.

Width(ram) Length(ram) Presser Functions

Auto Manual Foot Reverse Auto lock Elongation Mirror/ Twin needJe Memory

_resserfoot

Stitch Pattern

2.5 0.0_4.5 * * */T * *

2.5 0.0~4.5 * * */T * *

2.5 1.0_3.0 * * */T * *

2.5 1.0~3.0 * * */T * *

2.5 1.5~3.0 * * */T * *

2.0 0.3_4.5 * * */T * *

1.0 0.3~4.5 * * */T * *

Utility 2.5 1.0_3.0 * * */T * *

stitches 2.5 1.0~3.0 * * */T * *

2.5 1.0_3.0 * * */T * *

2.0 0.5~4.5 * * */T * *

1.0 0.5_4.5 * * */T * *

2.5 1.0~3.0 * * */T * *

2.5 1.0_3.0 * * */T * *

2.5 1.0~3.0 * * */A * *

2.5 1.0_3.0 * * */A * *

0.5 0.3~1.0

0.5 0.3_1.0

0.5 0.3~1.0

0.5 0.3_1.0

Buttonhole 0.5 0.3~1.0

stitches 0.5 0.3_1.0

0.5 0.3~1.0

0.5 0.3_1.0

1.0 1.0~2.0

1.5 1.0_3.0

Darning 2.0 1.0_2.0

stitches 2.0 1.0~2.0

0.5 0.3~1.0 * * * */A * *

0.5 0.3~I.0 * * * */A * *

Satin 0.5 0.3~I .0 * * * */A * *

stitches 0.5 0.3_1.0 * * * */A * *

0.5 0.3~I.0 * * * */A * *

• : Adjustments can be made.

oo 0....

Ol 0....

02 0----------=

03 I_

04 _ ....

05/_/_

06 ?v^v ^,,

09 III

10 -_---_--

11 wV_WVw

12 ITF[qqq

13 _?-_'-'-'-'_

14_

15<<<<<<<

16 117,7,7,17,7,1',17,',11

17 I1',',',',',',',',',',',',',',',',',11

18 II',',',',',',',',',',I',',',I_

19 III',',',',',',',i',:',I',',_

IH HlflHIIIIE_

22 II............,,_

23 -,,,,,,,,,,,,,,_

25 IP:_I

26 II_1

27 _,¢

28 ___-----__

30 ,AA

31 ',_1_

Auto Manual

3.5 0.0_7.0

0.0 0.0~7.0

3.5 0.0_7.0

3.5 1.0~6.0

3.5 0.0_7.0

5.0 0.0_7.0

5.0 2.0~7.0

5.0 2.5_7.0

5.0 3.5~7.0

5.0 2.5_7.0

3.5 2.5~7.0

3.5 2.5_7.0

3.5 2.5~7.0

5.0 2.5_7.0

7.0 2.5~7.0

6.0 2.5_7.0

5.0 2.5~7.0

5.5 3.0_7.0

5.0 2.5~5.5

6.0 3.0~7.0

5.0 2.5~5.5

7.0 5.5_7.0

7.0 5.5~7.0

7.0 5.5_7.0

6.0 3.0~7.0

6.0 3.0_7.0

7.0 7.0,6.0,5.0

7.0 3.5_7.0

7.0 3.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

T(P/K/I)

T(P)

T(E)

T(A)

A(M)

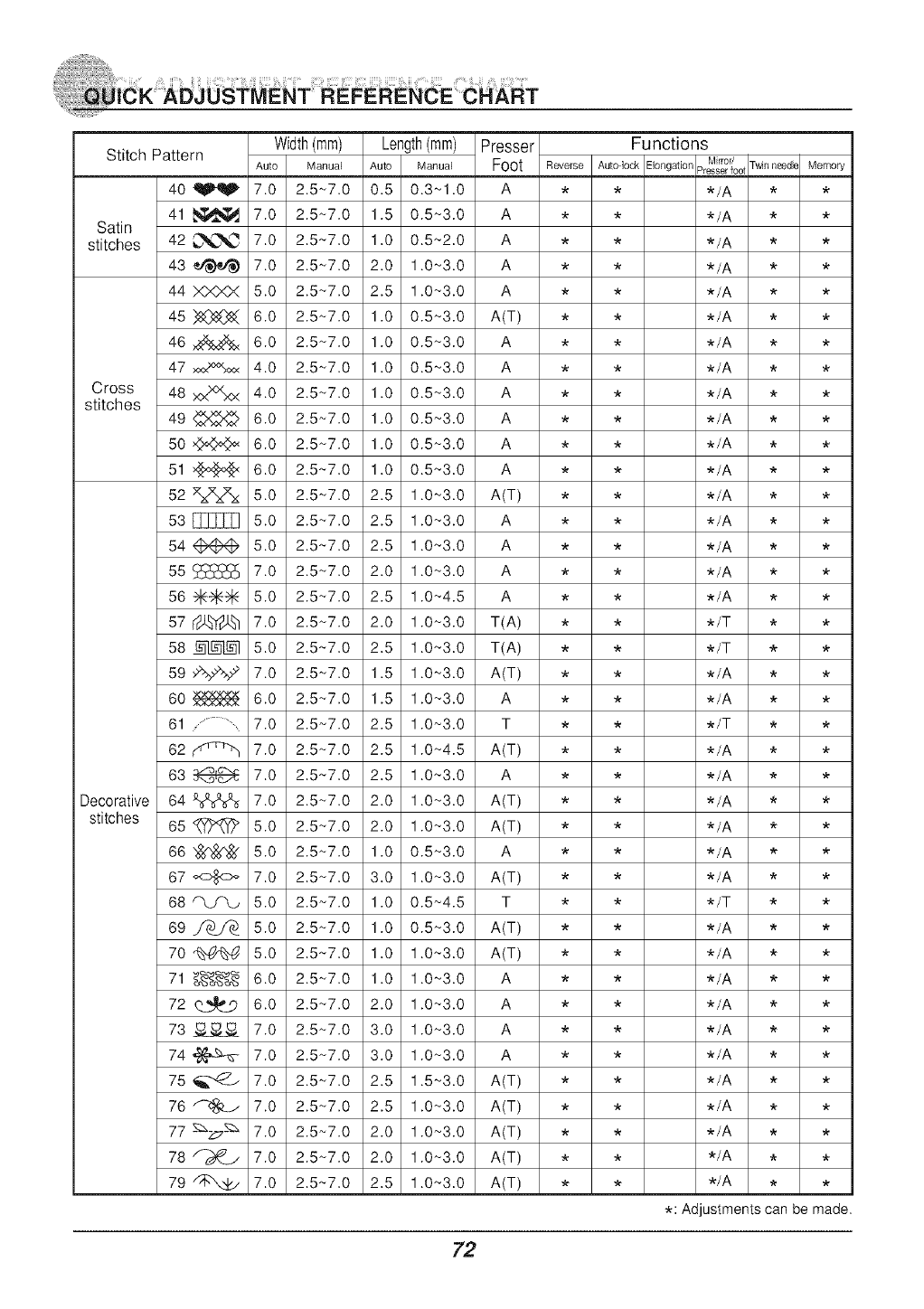

Length(mm)

Auto Manual

Width(mm)

Auto Manual

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

5.0 2.5~7.0

6.0 2.5_7.0

6.0 2.5~7.0

4.0 2.5_7.0

4.0 2.5~7.0

6.0 2.5_7.0

6.0 2.5~7.0

6.0 2.5_7.0

5.0 2.5~7.0

5.0 2.5_7.0

7.0 2.5~7.0

5.0 2.5_7.0

7.0 2.5~7.0

5.0 2.5_7.0

7.0 2.5~7.0

6.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

5.0 2.5~7.0

5.0 2.5_7.0

7.0 2.5~7.0

5.0 2.5~7.0

5.0 2.5_7.0

5.0 2.5~7.0

6.0 2.5_7.0

6.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

Functions

Reverse Auto lock Elongation Mirror/ Twirl needle Memory

_resserfoot

_r tk

:k :k

W tk

"k "k

Stitch Pattern Presser

Foot

40 _ 0.5 o.3~1.o A */A *

41 _ 1.5 0.5~3.0 A */A *

Sati n

stitches 42 _'_ 1.0 0.5_2.0 A */A *

43 _ 2.0 1.0~3.0 A */A *

44 >OOO< 2.5 1.0_3.0 A */A *

45 _ 1.0 0.5~3.0 A(T) */A *

46 _ 1.0 0.5_3.0 A */A *

47 _ 1.0 0.5~3.0 A */A *

Cross 48 >o<"0%< 1.0 0.5_3.0 A */A *

stitches

49 _ 1.0 0.5~3.0 A */A *

50 _ 1.0 0.5_3.0 A */A ,

51 _ 1.0 0.5~3.0 A */A *

52 _ 2.5 1.0_3.0 A(T) */A *

53 _ 2.5 1.0~3.0 A */A *

54 _ 2.5 1.0~3.0 A */A *

55 _ 2.0 1.0_3.0 A */A *

56 -_->_-->_ 2.5 1.0~4.5 A */A *

57 r__ 2.0 1.0_3.0 T(A) */T *

58 _ 2.5 1.0~3.0 T(A) */T *

59 _ 1.5 1.0_3.0 A(T) */A *

60 _ 1.5 1.0~3.0 A */A *

61 ...................... 2.5 1.0~3.0 T */T ,

62 _ 2.5 1.0~4.5 A(T) */A *

63 @ 2.5 1.0_3.0 A */A *

Decorative 64 _ 2.0 1.0~3.0 A(T) */A *

stitches 65 _ 2.0 1.0_3.0 A(T) */A *

66 _ 1.0 0.5~3.0 A */A *

67 _ 3.0 1.0_3.0 A(T) */A *

68 _ 1.0 0.5_4.5 T */T *

69 _ 1.0 0.5~3.0 A(T) */A *

70 _ 1.0 1.0_3.0 A(T) */A *

71 _ 1.0 1.0~3.0 A */A *

72 _ 2.0 1.0_3.0 A */A *

73 _ 3.0 1.0~3.0 A */A *

74 _ 3.0 1.0_3.0 A */A *

75 _ 2.5 1.5~3.0 A(T) */A *

76 _ 2.5 1.0_3.0 A(T) ,/A ,

77 -'S_zT-q:_ 2.0 1.0~3.0 A(T) */A ,

78 _ 2.0 1.0_3.0 A(T) */A ,

79 _ 2.5 1.0~3.0 A(T) */A ,

_: Adjustments can be made.

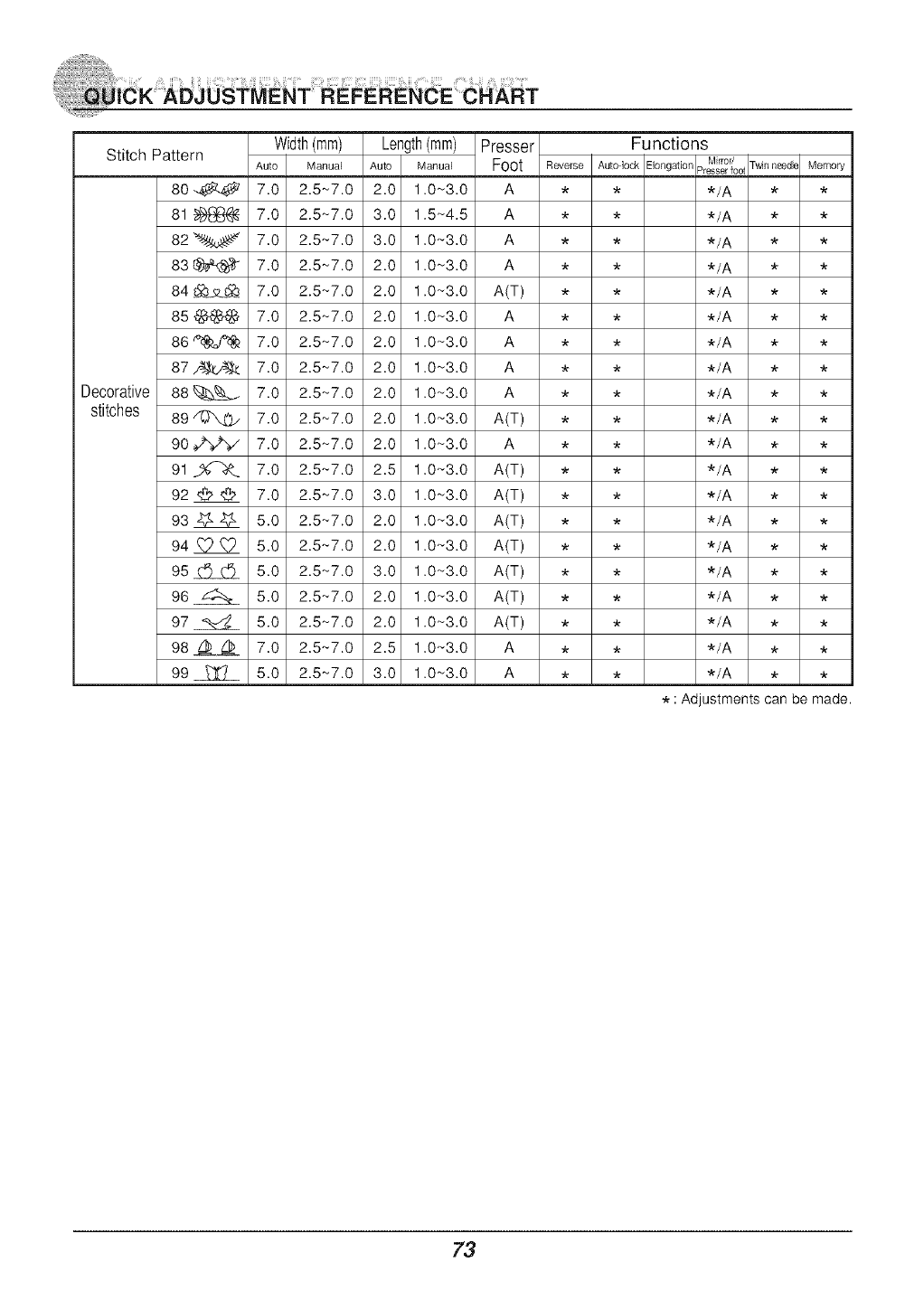

Stitch Pattern

Decorative

stitches

8o.-4_q_

81 _1_

83_

87,4,2.4..2

88_

89%Fx,.0_

90¢W

91 9d-_._

Width(mm)

Auto Manual

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

7.0 2.5_7.0

7.0 2.5~7.0

5.0 2.5_7.0

5.0 2.5~7.0

5.0 2.5_7.0

5.0 2.5~7.0

7.0 2.5_7.0

5.0 2.5~7.0

Length(ram)

Auto Manual

2.0 1.0~3.0

3.0 1.5~4.5

3.0 1.0_3.0

2.0 1.0~3.0

2.0 1.0_3.0

2.0 1.0~3.0

2.0 1.0_3.0

2.0 1.0~3.0

2.0 1.0_3.0

2.0 1.0~3.0

2.0 1.0_3.0

2.5 1.0~3.0

3.0 1.0_3.0

2.0 1.0~3.0

3.0 1.0_3.0

2.0 1.0~3.0

2.0 1.0_3.0

2.5 1.0~3.0

3.0 1.0_3.0

Presser

Foot

A(T)

Functions

Reverse Auto lock Elongation Mirror/ Twin needle Memory

_resserfoot

*/A * *

*/A *

*/A * *

*/A *

*/A * ",',"

*/A * *

* : Adjustments can be made.

-it

-/t

021D3B0101(C)(_) Aug/05

EURQ-PRO 9110(9000B)

Euro Pro 9110 User Manual SEWING MACHINE Manuals And Guides L0610910

EURO-PRO Mechanical Sewing Manual L0610910 EURO-PRO Mechanical Sewing Owner's Manual, EURO-PRO Mechanical Sewing installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
