PRESSURE WASHER

OWNER'S MANUAL

Model VPW41H

120V., 60 Hz., 12.5 Amps.

EURO-PRO Operating LLC

94 Main Mill Street, Door 16

Plattsburgh, NY 12901

Tel.: 1 (800) 798-7398

Model

VPW41H

ONE (1) YEAR LIMITED WARRANTY

EURO-PRO Operating LLC warrants this product to be free from defects in material and

workmanship for a period of one (1) year from the date of the original purchase, when utilized for

normal household use, subject to the following conditions, exclusions and exceptions.

If your appliance fails to operate properly while in use under normal household conditions within the

warranty period, return the complete appliance and accessories, freight prepaid to:

EURO-PRO Operating LLC, 94 Main Mill Street, Door 16, Plattsburgh, NY 12901

If the appliance is found by EURO-PRO Operating LLC to be defective in material or workmanship,

EURO-PRO Operating LLC will repair or replace it free of charge. Proof of purchase date and

$ 16.95 to cover the cost of return shipping and handling must be included. *

Non-durable parts including, without limitation, hoses, lances, brushes and electrical parts which

normally require replacement are specifically excluded from warranty.

The liability of EURO-PRO Operating LLC is limited solely to the cost of the repair or replacement

of the unit at our option. This warranty does not cover normal wear of parts and does not apply to

any unit that has been tampered with or used for commercial purposes. This limited warranty does

not cover damage caused by misuse, abuse, negligent handling or damage due to faulty packaging

or mishandling in transit. This warranty does not cover damage or defects caused by or resulting

from damages from shipping or repairs, service or alterations to the product or any of its parts,

which have been performed by a repair person not authorized by EURO-PRO Operating LLC.

This warranty is extended to the original purchaser of the unit and excludes all other legal and/or

conventional warranties. The responsibility of EURO-PRO Operating LLC if any, is limited to the

specific obligations expressly assumed by it under the terms of the limited warranty. In no event is

EURO-PRO Operating LLC liable for incidental or consequential damages of any nature

whatsoever. Some states do not permit the exclusion or limitation of incidental or consequential

damages, so the above may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

*Important: Carefully pack item to avoid damage in shipping. Be sure to include proof of

purchase date and to attach tag to item before packing with your name, complete address

and phone number with a note giving purchase information, model number and what you

believe is the problem with item. We recommend you insure the package (as damage in

shipping is not covered by your warranty). Mark the outside of your package “ATTENTION

CUSTOMER SERVICE”. We are constantly striving to improve our products, therefore the

specifications contained herein are subject to change without notice.

------------------------------------------------------------------------------------------------------

OWNERSHIP REGISTRATION CARD

Please fill out and mail the product registration card within ten (10) days of purchase. The

registration will enable us to contact you in the unlikely event of a product safety notification. By

returning this card you acknowledge to have read and understood the instructions for use, and

warnings set forth in the accompanying instructions.

RETURN TO: EURO-PRO Operating LLC, 94 Main Mill Street, Door 16, Plattsburgh, NY 12901

_______________________________________________________________________

Appliance model

______________________________________________________________________________

Date purchased Name of store

______________________________________________________________________________

Owner’s name

______________________________________________________________________________

Address City State Zip Code

Model VPW41H

Printed in Italy

9

SAFETY & WARNING INSTRUCTIONS

For safety reasons, it is recommended that you read this manual before

attempting to operate this appliance. Failure to follow these instructions can

result in personal injury or equipment problems. To help recognize note the

following symbols:

Danger indicates an imminently hazardous

situation, which, if not avoided, WILL result in

death or serious injury.

1. Read all instructions before using the

product.

2. To reduce the risk of injury, close

supervision is necessary when this

product is used near children.

3. Always disconnect power (electric units)

before disassembling, repairing or

changing attachments on the unit.

4. Follow all safety codes as well as the

Occupational Safety and Health Act

(OSHA).

5. Ensure safety devices are operating

properly before each use. DO NOT

remove or modify any part of the gun or

unit.

6. Know how to stop this unit and relieve

pressure quickly. Be thoroughly familiar

with the controls.

7. Stay alert - Watch what you are doing.

8. Do not operate this unit when fatigued or

under the influence of alcohol or drugs.

DANGER

WARNING

Warning indicates a potentially hazardous

situation, which, if not avoided, COULD result in

death or serious injury.

CAUTION

Caution indicates a potentially hazardous

situation, which, if not avoided, MAY result in

death or serious injury.

NOTE: Information that requires special

attention.

Important Safety Instructions SAVE THESE

INSTRUCITONS

When using this product, basic precautions

should always be followed, including the

following:

DANGER

9. Keep operation area clear of all persons.

10. Do not overreach or stand on unstable

support. Keep good footing and balance

at all times.

11. Follow maintenance instructions

specified in this manual.

12. This product shall be connected to a

power supply receptacle protected by a

ground fault circuit interrupter (GFCI)

(electric power washers only).

13. If product is provided with a GFCI, be

sure to inspect the cord and GFCI prior

to use. Any repair or replacement of the

power cord must be performed by a

qualified (licensed or certified) electrical

technician.

WARNING

Risk of injection or severe injury. Keep clear

of nozzle. Do not discharge streams at

persons. This product is to be used only by

trained operators. Always remove lance

from gun before cleaning debris from tip.

• Keep clear of nozzle. NEVER direct high

pressure spray at any person, animal or

self.

• Always wear safety goggles or glasses

and protective clothing when operating,

performing maintenance or changing

accessories.

•Never put hands or fingers over the spray

tip while operating the unit.

•Never try to stop or deflect leaks with any

body part.

• Always engage the trigger safety latch in

the safe position when spraying is

stopped even if only for a few minutes.

• Always follow detergent manufacturer's

label recommendations for proper use of

detergents. Always protect eyes, skin and

respiratory system from detergent use.

WARNING

SERVICING OF A DOUBLE-INSULATED

APPLIANCE.

In a double-insulated product, two systems of

insulation are provided instead of grounding.

No grounding means are provided for a

double-insulated product, nor should

grounding means be added to the product.

Servicing a double-insulated product requires

extreme care and knowledge of the system

and should be done only by qualified service

personnel. Replacement parts for a double-

insulated product must be identical to the

original parts. A double-insulated

product is marked with the words

" double Insulation" or "Double

Insulated". Product may also be

marked with symbol shown.

Rev. 01/05

TROUBLE SHOOTING

PROBLEM POSSIBLE REASON POSSIBLE SOLUTION

PRESSURE WASHER

WILL NOT START WHEN

THE ON/OFF SWITCH IS

IN THE "ON" POSITION

1. Electrical socket is

faulty or breaker has

tripped.

2. Voltage is inadequate.

3. GFCI has tripped.

4. Power cord is not

plugged in.

1. Check plug, socket, fuses,

breaker.

2. Check that the voltage is

adequate.

3. Reset/Try another electrical

outlet.

4. Plug in power cord.

PUMP DOESN'T REACH

ADEQUATE PRESSURE

OR CAVITATES

1. Water intake filter is

clogged.

2. Pump is drawing air.

3. Diameter of garden

hose is too small.

4. Water supply is

restricted.

1. Remove and clean water

intake filter.

2. Tighten connections/bleed

system.

3. Replace with 3/4 inch

garden hose.

4. Check hose for kinks or

leaks, open tap fully.

PRESSURE WASHER

HAS OR WILL NOT

MAINTAIN PRESSURE

1. Excessive air in

waterline and pump.

2. Water supply is

restricted.

1. Turn unit and water supply

off/Bleed system/Hold

trigger down. Allow water to

flow through the pump for

30 seconds.

2. Check hose for kinks or

leaks, open tap fully.

PRESSURE WASHER

MAKES EXCESSIVE

NOISE

1. Air intake is blocked.

2. Water intake filter is

dirty.

1. Clean the air intake vents.

2. Check & clean filter.

MOTOR DOES NOT RUN

CONTINUOUSLY WHEN

TRIGGER IS SQUEEZED/

MOTOR BUZZES WHEN

TURNED ON BUT DOES

NOT START/MOTOR

STOPS RUNNING WHILE

UNIT IS IN USE

1. Net voltage is lower

than suggested.

1. Check that the voltage is

adequate.

81

SAFETY & WARNING INSTRUCTIONS

continued

OPERATING INSTRUCTIONS

Storing Your Pressure Washer Ground Fault Circuit

Interrupter (GFCI)

WARNING

Do not use pressure that exceeds the

operating pressure of any of the parts

(hoses, fittings, etc.) in the pressurized

system. Ensure that all equipment and

accessories are rated to withstand the

maximum working pressure of the unit.

WARNING

• Always hold gun and lance firmly when

starting and operating the machine.

•NEVER allow the unit to run with the

trigger released (OFF) for more than one

minute. Resulting heat buildup will

damage pump.

•NEVER store the pressure washer outdoors

or where it could freeze. The pump will be

seriously damaged.

• This unit must always be used in the

horizontal position.

CAUTION

When you have finished using your

pressure washer, follow these steps for

safe storage:

1. Turn the pressure washer to the

"Off" position.

2. Turn off the water supply.

3. Before disconnecting the high

pressure hose connection, point the

trigger gun in a safe direction away

from you and discharge the high

pressure water. Disconnect the high

pressure hose from the pressure

washer.

4. Disconnect garden hose from

pressure washer.

5. Remove excess water from the

pump by tipping the unit on both

sides to drain any remaining water

from the water intake and outlet

fittings.

6. Drain detergent applicator bottle and

flush with clean water.

7. Wipe away any remaining water on

all parts and fittings.

8. Engage the trigger gun safety lock.

9. Store the unit and accessories in a

room above 32°F.

This unit is equipped with a Ground

Fault Circuit Interrupter (GFCI) built into

the plug. This device provides additional

protection from the risk of electrical

shock. When connecting the GFCI to the

electrical outlet, the indicator should

appear red. If the indicator is not red,

depress the RESET button on the GFCI

until the indicator appears red.

Cleaning Tips

Explosion hazard.

•NEVER spray flammable liquids of use

pressure washer in areas containing

combustible dust, liquids or vapors.

•NEVER operate this machine in a closed

building or in or near an explosive

environment.

Keep hose away from sharp objects. Bursting

hose may cause injury. Examine hoses

regularly and replace if damaged. Do not

attempt to mend a damaged hose.

Wood Decks: Rinse deck and

surrounding area with fresh water. If

using detergent, fill the detergent

applicator bottle and apply to the area

being cleaned. For optimal results,

reduce your work area to small sections

and clean each section one at a time.

Allow the detergent to rest on the surface

for a few minutes and then rinse at high

pressure. Do not let the detergent dry on

the deck. Always clean from left to right

and top to bottom for best results. Rinse

at high pressure using the lance keeping

the tip of the spray nozzle 8-12 inches

from the surface. Caution: For soft

woods, increase the distance from the

cleaning surface.

Cars, Boats, & Motorcycles: Wet down

area to be cleaned before applying

detergent with clean water. Fill the

detergent applicator bottle and apply to

the area being cleaned. To achieve best

results, clean one side at a time. Allow

the detergent to rest on the surface for a

few minutes but do not let it dry. Rinse at

high pressure using the high pressure

lance in a sweeping motion keeping the

tip of the spray nozzle at least 8-10

inches away from the surface. Maintain a

further distance when using a direct

spray. Wipe surface for a polished finish.

DANGER

EXTENSION CORDS

WARNING

Do not spray electrical apparatus or wiring.

•NEVER disconnect the high pressure

discharge hose from the machine while

the system is pressurized. To

depressurize the machine, turn the power

and water supply off, then press the gun

trigger 2-3 times.

•NEVER permanently engage the trigger

mechanism on the gun.

•NEVER operate the machine without all

the components properly connected to

the unit (handle, gun/lance assembly,

nozzle, etc.).

If using an extension cord, use only grounded,

three wire extension cords that are in good

condition. Use only extension cords that are

intended for outdoor use. These extension

cords are identified by a marking "Acceptable

for use with outdoor appliances; store indoors

while not in use." use only extension cords

having an electrical rating not less than the

product. Do not use damages extension

cords. Examine extension cord before using

and replace if damaged. Do not abuse

extension cord and do not pull on the cord to

disconnect. Keep cord away from heat and

sharp edges. Always disconnect from the

receptacle before disconnecting the product

from the extension cord.

Note: Do not use 16 or 18 AWG extension

cords on this product.

Winterizing & Long Term Storage

1. Disconnect all water connections.

2. Turn the pressure washer on for a

few seconds, until any remaining

water in the pump exits.

3. Turn the unit off immediately.

4. Store the pressure washer, parts

and accessories in an area with a

temperature above 32°F.

WARNING

Equipment damage.

•ALWAYS turn water supply "ON" before

turning the pressure washer "ON".

Running pump dry causes serious

damage.

• Do not operate the pressure washer with

the inlet water screen removed. Keep

screen clear of debris and sediment.

•NEVER operate pressure washer with

broken or missing parts. Check

equipment regularly and repair or replace

worn or damaged parts immediately.

• Use only the nozzle supplied with this

machine.

• Never leave the lance unattended while

the machine is running.

• Never attempt to alter factory settings.

Altering factory settings could damage the

unit and will void the warranty.

DANGER Motor Thermostat

Important: This pressure washer is

equipped with a motor thermostat. The

motor will stop if it is overheating. Wait

10-20 minutes before starting the unit

again. If it stops again, please call

customer service at 1 (800) 798-7398.

Failure to follow these instructions can result

in serious injury, including death.

WARNING

To reduce the risk of electrocution, keep all

connections dry and off the ground. Do not

touch the plug with wet hands.

Allowable Length

Extension Cord 25' 50’

14 AWG YES NO

12 AWG YES YES

7

2

Using the High Pressure lance

The high pressure lance may be used

alone or with the detergent applicator

bottle.

Add detergent to the bottle and then

attach the detergent applicator bottle to

the high pressure lance, just push it on

the end of the high pressure lance.

(Fig. 6 & 7) To remove the detergent

applicator bottle, lift the tab on the top

of the connector and pull off.

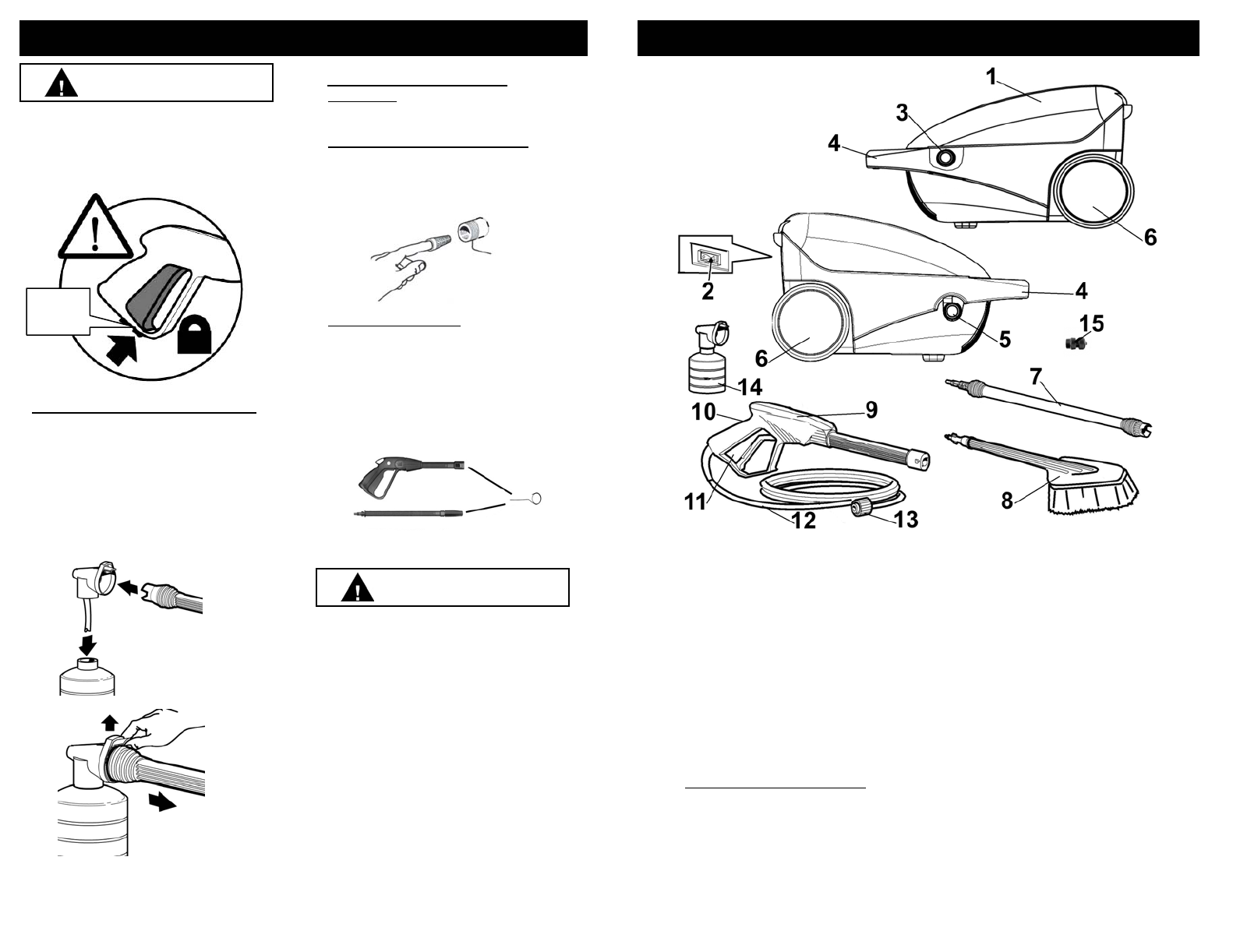

Fig. 5

Safety

Lock

Fig. 6

OPERATING INSTRUCTIONSOPERATING INSTRUCTIONS GETTING TO KNOW YOUR PRESSURE WASHER

CAUTION Lubrication: The pressure washer is

supplied with a closed lubrication

system, so no addition of oil is needed.

Checking the Water Intake Filter: The

water intake filter is located inside the

water intake connector. (Fig. 8)

Remove periodically and inspect for

any deposits that might accumulate

there.

Fig. 8

Hose Connector

Water Intake

Maintenance & Cleaning

When you wish to stop using the

pressure washer temporarily, make

sure that the safety lock has been

engaged to avoid any accidental

operation. (Fig. 5)

Cleaning the Nozzles: If you notice that

the output pressure fluctuates, you may

have to clean the nozzles. Turn the unit

"Off". Unplug from electric outlet and

disconnect the water supply. Remove

the lance and hose with the trigger gun

from unit. Take the small metal pin

provided and insert into the nozzle end

to remove any obstructions. (Fig. 9)

Fig. 9

This will occur more frequently if your

water supply is very hard.

CAUTION 1. Pressure Washer

2. On/Off Switch

3. High Pressure Water Output

4. Handle

5. Water Intake With Filter

6. Wheels (x2)

7. High Pressure Lance

8. Brush

9. Trigger Gun

10. Safety Lock

11. Trigger

12. High Pressure Hose

13. High Pressure Hose Connector

14. Detergent Applicator Bottle

15. Garden Hose Coupling

When using your pressure washer,

always have it in the horizontal

position as shown below. NEVER

have it in the upright position.

Fig. 7

Illustrations may differ from actual product.

Technical Specifications

Voltage: 120V., 60Hz.

Power: 12.5 Amps.

Pressure: 1450 psi. (max)

Flow Rate: 1.45 gpm

63

This high pressure washer is suitable for

non-professional use. The working

temperature must range between 40°F

and 120 °F. The machine is supplied with

a trigger gun, equipped with a trigger

handle to offer a comfortable working

position.

The high pressure washer is suitable for

washing with cold water only. The water

that you use for the pressure washer

must not be dirty, sandy or contain any

corrosive chemical products.

The pressure washer may be used to

wash shutters, doors, tiles, cars, decks,

campers, etc., where high water pressure

is necessary to remove dirt.

With the detergent applicator bottle, the

pressure washer can be used to apply a

thick coating of aerated detergent to the

areas being cleaned .

When using the pressure washer we

recommend the use of personal safety

items to reduce the risk of accidental

injury.

Suitable Use of Your Pressure

Washer

• Place the pressure washer in a safe

area and on a horizontal surface.

• When using the pressure washer,

hold the trigger gun firmly with one

hand on the handle and the other on

the lance. (Fig. 1)

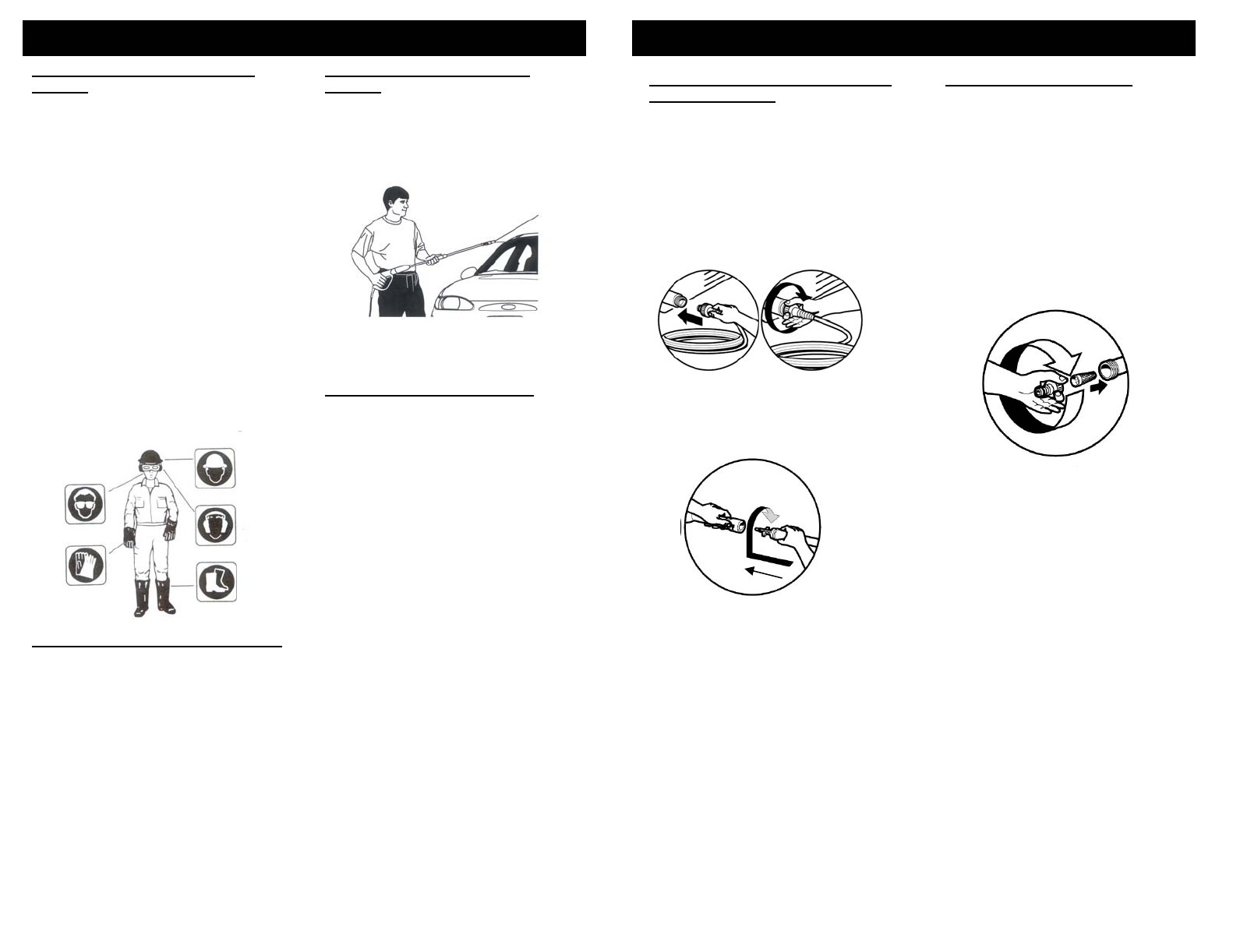

Correct Use of the Pressure

Washer

Fig. 1

•NEVER point the water jet at electric

wiring, at the pump unit, or at any

person or animal.

AUTOMATIC STOP SYSTEM

PLEASE NOTE: This pressure

washer is equipped with the

Automatic Stop System, which stops

the unit during the bypass stage. To

start the pressure washer, it is

therefore necessary to set the On/Off

switch to the “On” position; after that

press the trigger: the Automatic Stop

System will start the machine and will

stop it automatically when the trigger

is released. It is advisable to put on

the safety lock of the trigger

whenever the machine is stopped in

order to avoid unintentional starting.

Any automatic start of the machine

without pressing the trigger is

attributable to air bubbles in the

water or other similar phenomena

which do not imply the existence of

any defects in the machine. Do NOT

leave the appliance unattended

during the standby for more than 5

minutes. Contrarily, for the safety of

the appliance it is necessary to re-

turn the On/Off switch to the “Off”

position. Please check that the

coupling of the high pressure hose

with the appliance and the trigger

gun supplied as standard equipment

is made correctly, that is to say

without any water leak.

OPERATING INSTRUCTIONSOPERATING INSTRUCTIONS OPERATING INSTRUCTIONSOPERATING INSTRUCTIONS

Attaching High Pressure Hose to

Pressure Washer Once the high pressure hose is

attached to the pressure washer, you

can connect the garden hose to the

unit. Before attaching the garden hose

coupling to the unit, make sure that the

water intake filter is inside the water

intake connector on the unit.

1. Attach the male adapter (supplied) to

the water intake connector on the left

hand side of the unit. (Fig. 4)

2. Attach the female hose coupling to

the garden hose. (Fig. 4)

3. Connect the female hose coupling to

the male adapter making sure that it

is tightly secured in place. (Fig. 4)

Fig. 4

Garden Hose Connection

1. While facing the front side of the unit

attach the high pressure hose to the

high pressure output connector on

the right side of the unit. Twist on

tight to avoid leakage. (Fig. 2)

Note: Before attaching the high

pressure hose and the garden hose

coupling to the unit, remove the

plastic caps from the water output

and water input connections.

Fig. 2

3. Once the high pressure hose is

connected to the unit, you can

attach the lance to the end of the

trigger gun. (Fig. 3)

Fig. 3

4. After all the connections have been

made and BEFORE you plug the

pressure washer into an electrical

outlet, open the water supply and

press on the trigger switch in order to

remove any air which may be in the

hose or pump. Continue to press on

the trigger switch until you get a

constant flow of water coming out of

the trigger gun. Allow water to flow

for 30 seconds.

5. Once this is accomplished, stop

pressing the trigger switch. Engage

the safety lock on the trigger

6. Ensure that the "On/Off" switch, at

the rear of the unit, is on the "Off"

position, then plug the unit into an

electrical outlet and turn the unit to

the "On" position.

7. Now you are ready to use the

pressure washer. Disengage the

safety lock and depress the trigger on

the trigger gun.

To attach the lance to the trigger gun,

hold the trigger gun in your left hand

insert the lance and push it in all the

way into the connector on the trigger

gun and turn it clockwise 60° until it

locks in place. To remove the lance,

push down on the attachment and

turn counter-clockwise 60° and then

pull out. Make sure that the lance is

securely locked in place before use.

Unpacking Your Pressure Washer

After you open the package, check to

make sure that all the parts are in the box

as per parts that illustrated on page 3 of

this guide. Due to transport and packing

restraints, some accessories may be

supplied unassembled; in this case follow

the assembly instructions in this manual.

If you have any questions, call Customer

Service at 1-800-798-7398. Keep all

small and potentially harmful parts of the

package (plastic bags, foamed

polystyrene, nails, etc.) out of the reach

of children.

4 5
