EuroCB BCHAT BCHAT User Manual

EuroCB (Phils.), Inc. BCHAT Users Manual

Users Manual

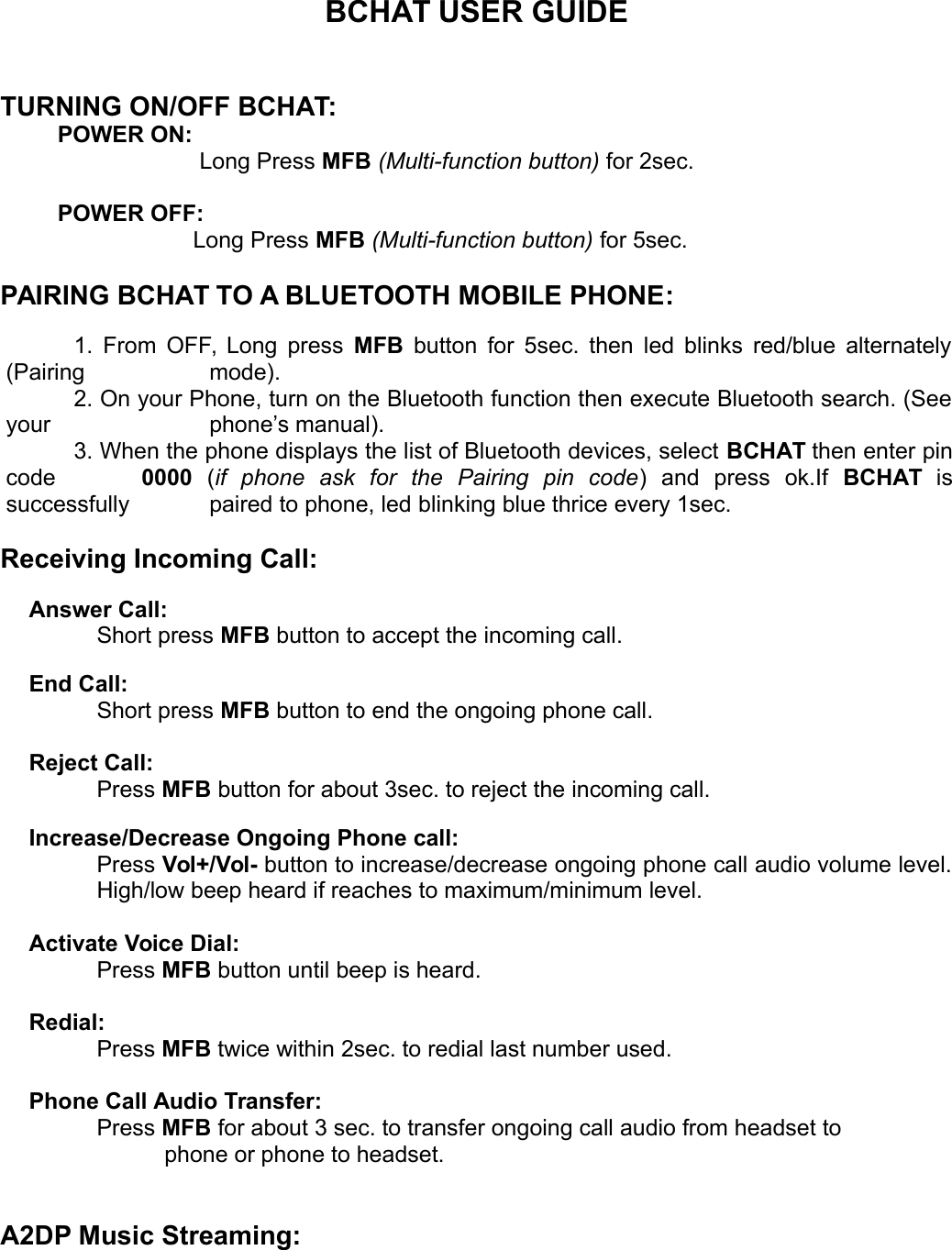

BCHAT USER GUIDETURNING ON/OFF BCHAT:POWER ON:    Long Press MFB (Multi-function button) for 2sec.POWER OFF: Long Press MFB (Multi-function button) for 5sec.PAIRING BCHAT TO A BLUETOOTH MOBILE PHONE:1. From OFF, Long press  MFB  button for 5sec. then led blinks red/blue alternately(Pairing  mode). 2. On your Phone, turn on the Bluetooth function then execute Bluetooth search. (Seeyour  phone’s manual). 3. When the phone displays the list of Bluetooth devices, select BCHAT then enter pincode  0000  (if   phone   ask   for   the   Pairing   pin   code)   and   press   ok.If  BCHAT  issuccessfully  paired to phone, led blinking blue thrice every 1sec.Receiving Incoming Call:Answer Call: Short press MFB button to accept the incoming call.End Call: Short press MFB button to end the ongoing phone call.Reject Call: Press MFB button for about 3sec. to reject the incoming call.Increase/Decrease Ongoing Phone call: Press Vol+/Vol- button to increase/decrease ongoing phone call audio volume level.High/low beep heard if reaches to maximum/minimum level.Activate Voice Dial:Press MFB button until beep is heard.Redial:Press MFB twice within 2sec. to redial last number used.Phone Call Audio Transfer: Press MFB for about 3 sec. to transfer ongoing call audio from headset to phone or phone to headset.A2DP Music Streaming:

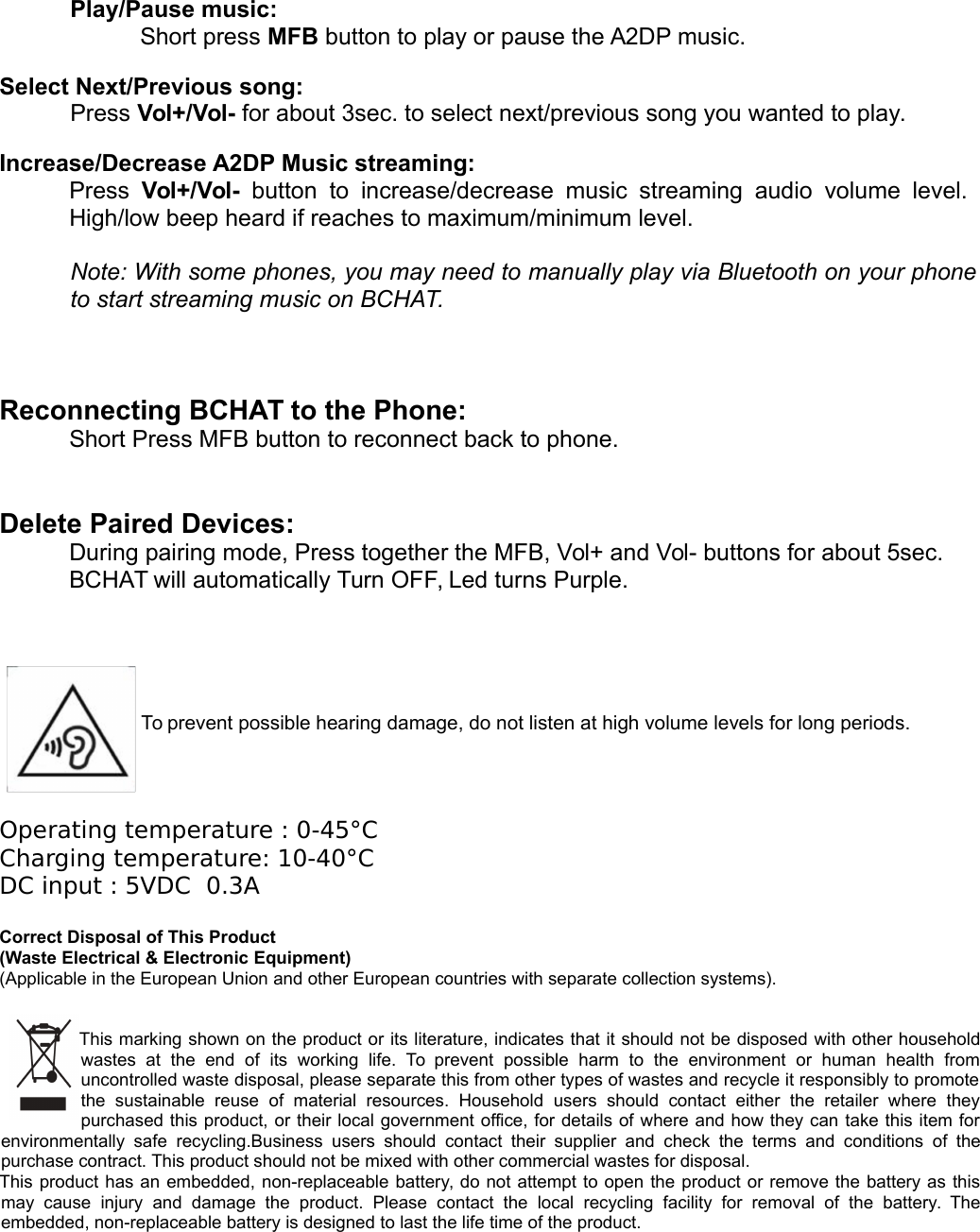

Play/Pause music: Short press MFB button to play or pause the A2DP music. Select Next/Previous song: Press Vol+/Vol- for about 3sec. to select next/previous song you wanted to play. Increase/Decrease A2DP Music streaming: Press  Vol+/Vol-  button  to  increase/decrease   music  streaming  audio  volume level.  High/low beep heard if reaches to maximum/minimum level.Note: With some phones, you may need to manually play via Bluetooth on your phoneto start streaming music on BCHAT. Reconnecting BCHAT to the Phone:Short Press MFB button to reconnect back to phone.Delete Paired Devices:During pairing mode, Press together the MFB, Vol+ and Vol- buttons for about 5sec. BCHAT will automatically Turn OFF, Led turns Purple.To prevent possible hearing damage, do not listen at high volume levels for long periods.Operating temperature : 0-45°CCharging temperature: 10-40°CDC input : 5VDC  0.3ACorrect Disposal of This Product(Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems). This marking shown on the product or its literature, indicates that it should not be disposed with other householdwastes   at   the   end   of   its   working   life.   To  prevent   possible   harm   to   the   environment   or   human   health   fromuncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promotethe   sustainable   reuse   of   material   resources.   Household   users   should   contact   either   the   retailer   where   theypurchased this product, or their local government office, for details of where and how they can take this item forenvironmentally  safe   recycling.Business  users  should  contact  their   supplier  and  check   the  terms  and   conditions  of thepurchase contract. This product should not be mixed with other commercial wastes for disposal.This product has an embedded, non-replaceable battery, do not attempt to open the product or remove the battery as thismay   cause   injury   and   damage   the   product.   Please   contact  the   local   recycling   facility   for   removal   of   the   battery.  Theembedded, non-replaceable battery is designed to last the life time of the product.

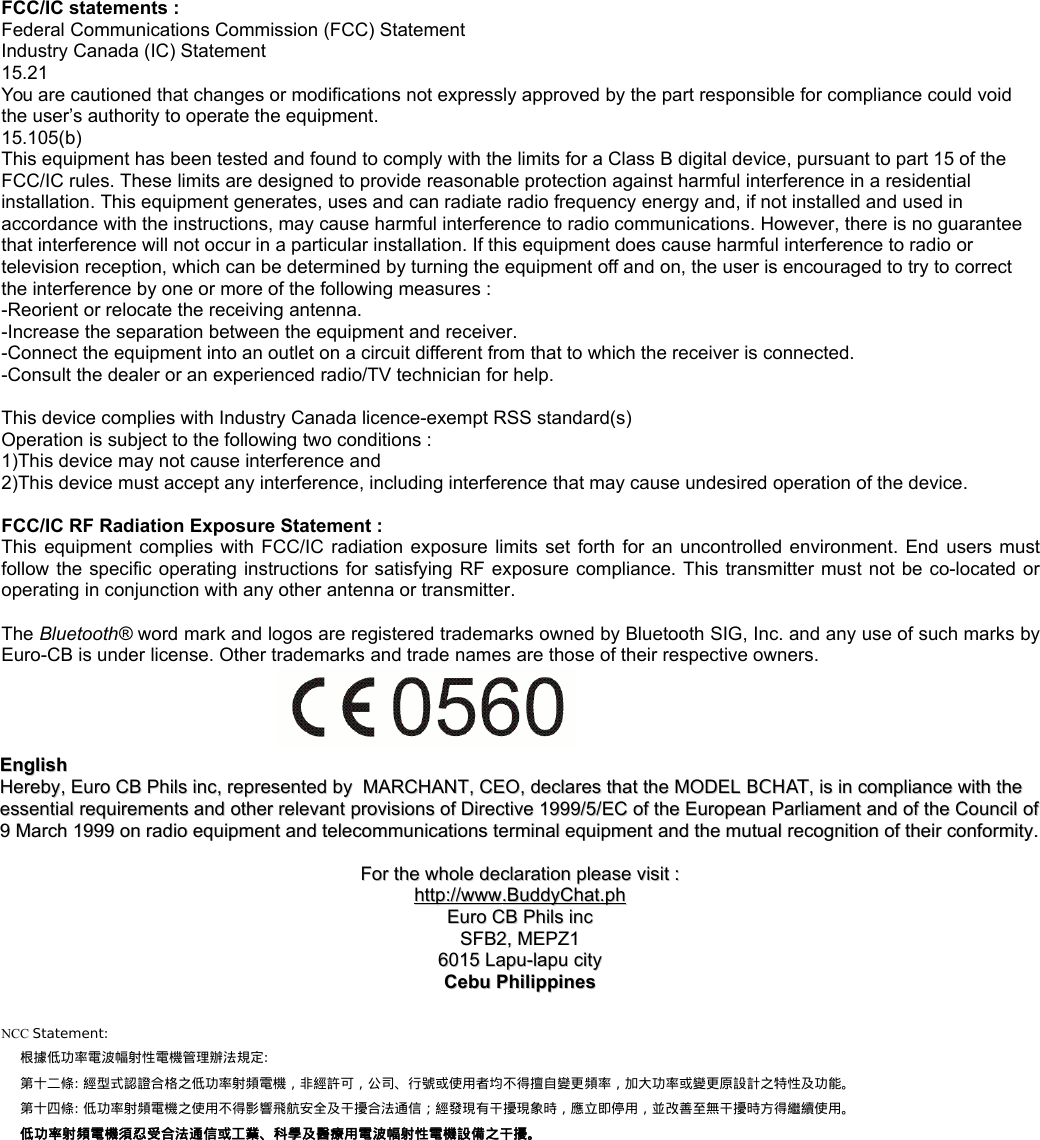

FCC/IC statements :Federal Communications Commission (FCC) StatementIndustry Canada (IC) Statement15.21You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC/IC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with Industry Canada licence-exempt RSS standard(s)Operation is subject to the following two conditions :1)This device may not cause interference and2)This device must accept any interference, including interference that may cause undesired operation of the device.FCC/IC RF Radiation Exposure Statement :This  equipment  complies  with FCC/IC  radiation exposure  limits set  forth for  an uncontrolled  environment. End  users mustfollow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located oroperating in conjunction with any other antenna or transmitter.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks byEuro-CB is under license. Other trademarks and trade names are those of their respective owners.EnglishEnglishHerebyHereby, , Euro CB Phils incEuro CB Phils inc, , representedrepresented  byby    MARCHANTMARCHANT, , CEOCEO, , declaresdeclares  thatthat  thethe  MODELMODEL  BCHATBCHAT, , isis  inin  compliancecompliance  withwith  thethe  essentialessential  requirementsrequirements  andand  otherother  relevantrelevant  provisionsprovisions  ofof  DirectiveDirective 1999/5/ 1999/5/ECEC  ofof  thethe  EuropeanEuropean  ParliamentParliament  andand  ofof  thethe  CouncilCouncil  ofof9 9 MarchMarch 1999  1999 onon  radioradio  equipmentequipment  andand  telecommunicationstelecommunications  terminalterminal  equipmentequipment  andand  thethe  mutualmutual  recognitionrecognition  ofof  theirtheir  conformityconformity..ForFor  thethe  wholewhole  declarationdeclaration  pleaseplease  visitvisit  ::httphttp      ://://      wwwwww      .BuddyChat.ph.BuddyChat.phEuro CB Phils incEuro CB Phils incSFB2, MEPZ1SFB2, MEPZ16015 Lapu-lapu city6015 Lapu-lapu cityCebu PhilippinesCebu PhilippinesNCC Statement:根據低功率電波幅射性電機管理辦法規定:第十二條: 經型式認證合格之低功率射頻電機,非經許可,公司、行號或使用者均不得擅自變更頻率,加大功率或變更原設計之特性及功能。第十四條: 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波幅射性電機設備之干擾。
