Eurosun 8B100BT Bluetooth Headphone User Manual KTP 38 1
Eurosun International Limited Bluetooth Headphone KTP 38 1
Eurosun >
Users Manual
Bluetooth headphone
Model No. : 8B 100B T
Item:
Specification:
1 Battery capacity：3.7 V, 120mAh 2. Charge port: Micro-USB
3 Speaker: 0.5W *2 4. Aux in jack：3.5MM
5. Charge input：DC 5V 6.Bluetooth distance：10m
7. Support format：MP3 8. FM Frequency range：87.5-108.0MHz
9. Bluetooth version: 2.1+EDR 10.Working time: 2 hours
11. Micro SD card support up to 32GB
Operation guide
A:
Long press:
Change the mode. Micro SD/Fm radio/Bluetooth
Short press
Ⅰ、Bluetooth mode： Play/Pause /answer the phone
Ⅱ、TF Mode：Play/Pause
Ⅲ、Aux in Mode：Mute
Ⅳ、Radio Mode：Search FM channels automatic.
B: switch to /V-
Short Press：
Ⅰ、Bluetooth mode： Previous track
Ⅱ、TF Mode：Previous track
Ⅲ、Aux in Mode：No function
Ⅳ、Radio Mode：Previous channel
Press and hold：
Ⅰ、Bluetooth mode： Decrease the volume
Ⅱ、TF Mode：Decrease the volume
Ⅲ、Aux in Mode：Decrease the volume
Ⅳ、Radio Mode：Decrease the volume
C. switch to /V+
Short press：
Ⅰ、Bluetooth mode： Next track
Ⅱ、TF Mode：Next track
Ⅲ、Aux in Mode：No function
Ⅳ、Radio Mode：Next channel
Press and hold：
Ⅰ、Bluetooth mode：Increase the volume
Ⅱ、TF Mode：Increase the volume
Ⅲ、Aux in Mode：Increase the volume
Ⅳ、Radio Mode：Increase the volume
D.
Model No. : 8B 100B T
connected the 8B100BT successful through the Bluetooth. Press th
search the Bluetooth pairing name”8B100BT”in your phone, and the
Turn it on, 8B100BT will into the Bluetooth mode. the Bluetooth
Press and hold to turn on the bluetooth headphone
Function:
Bluetooth mode
device is ready to pair. You can
n pair it. It have the indicate
tone when the Bluetooth device is connected succeed, , that means your phone have been
e" V-/ " and the" /V+
"to Prev. and Next track, Long press the"-/ "and " /+"button to decrease and increase
the Volume. Short press the” ”,you can pause or play the music.When the call in ,you
can answer the phone. Press and hold it can change the mode
TF mode
Turn it on. And hold the “ ”to change mode . Insert TF card, so the unit will play the mp3
format files automatics. Press the" V-/ " and the" /V+ "to Prev. and Next, press and hold
the"V/ "and " /V+"button to decrease and increase the Volume.
Radio mode
Press and Hold the “ ”to change mode . Press “ ”to search the fm channel
automatic. Press the"V-/ " and the" /V+"to Prev. and Next channels, press and hold
the"V-/ "and " /V+"button to decrease and increase the Volume.
AUX-IN
Insert the audio cable into the 3.5mm jack. And Hold the “ ”to change to Aux-in
mode . Press and hold the"V/- " and " /V+" button to decrease and increase the
Volume.
Charging
Plug the USB cable into speaker MINI USB port and connect to power source.
Model No. : 8B 100B T
Model No. :8B 100B T

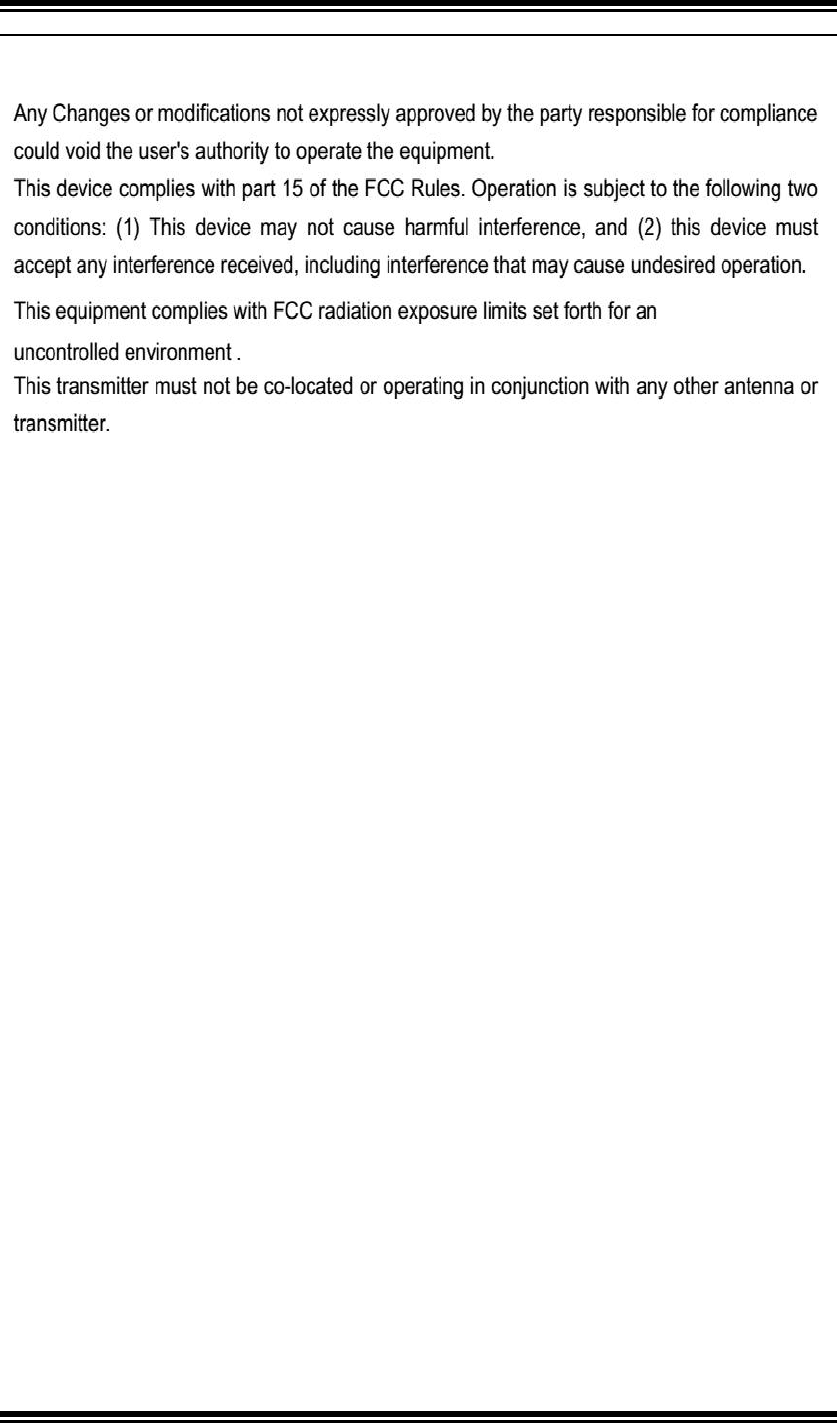

Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
WARNING
