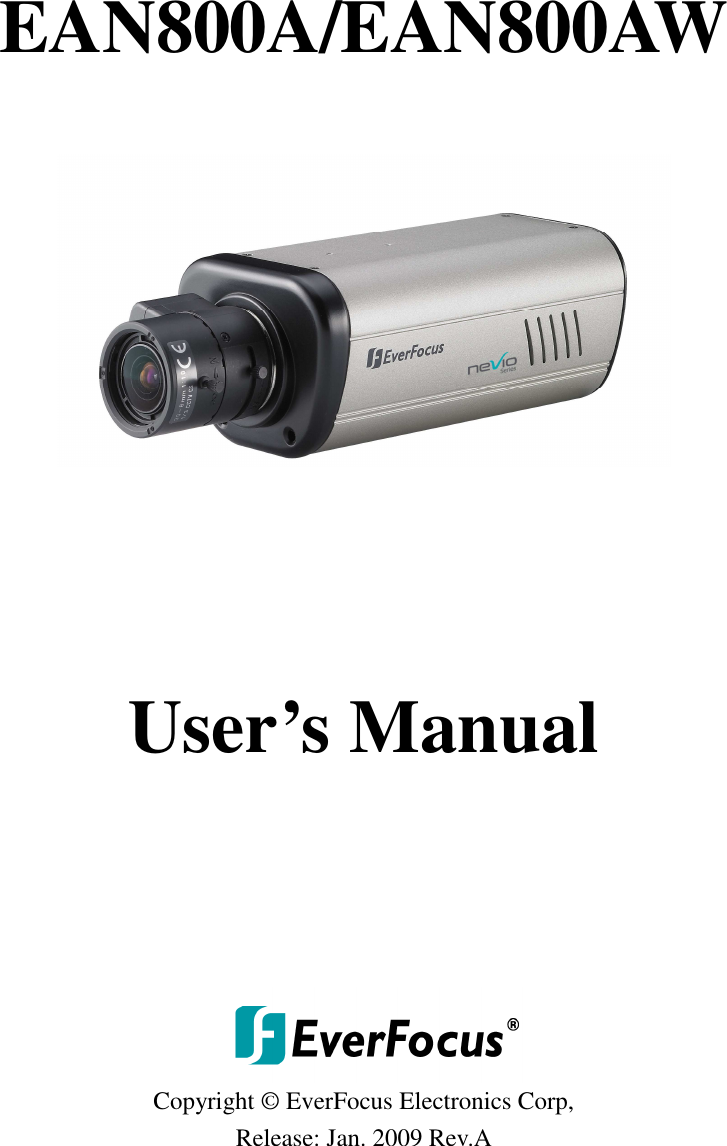

EAN800A/EAN800AW User’s Manual Copyright © EverFocus Electronics Corp, Release: Jan. 2009 Rev.A
EAN800A/EAN800AW 2 Product Name: EAN 800A EverFocus IP Network Cameras Model Number(s): EAN800A/EAN800AW FCC Notice "Declaration of Conformity Information" RF Declaration should be added. Please check Safety team. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential Installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. EverFocus Electronics Corp. 12F, No. 79, Sec. 1, Shin-Tai Wu Rd., His-Chi, Taipei Hsien, Taiwan, R.O.C. NOTE: This equipment has been tested and found to comply with the limitsfor a Class A digital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmfulinterference when the equipment is operated in a commercial environment.This equipment generates, uses, and can radiate radio frequency energyand, if not installed and used in accordance with the instruction manual, maycause harmful interference to radio communications. Operation of thisequipment in a residential area is likely to cause harmful interference in whichcase the user will be required to correct the interference at his own expense.

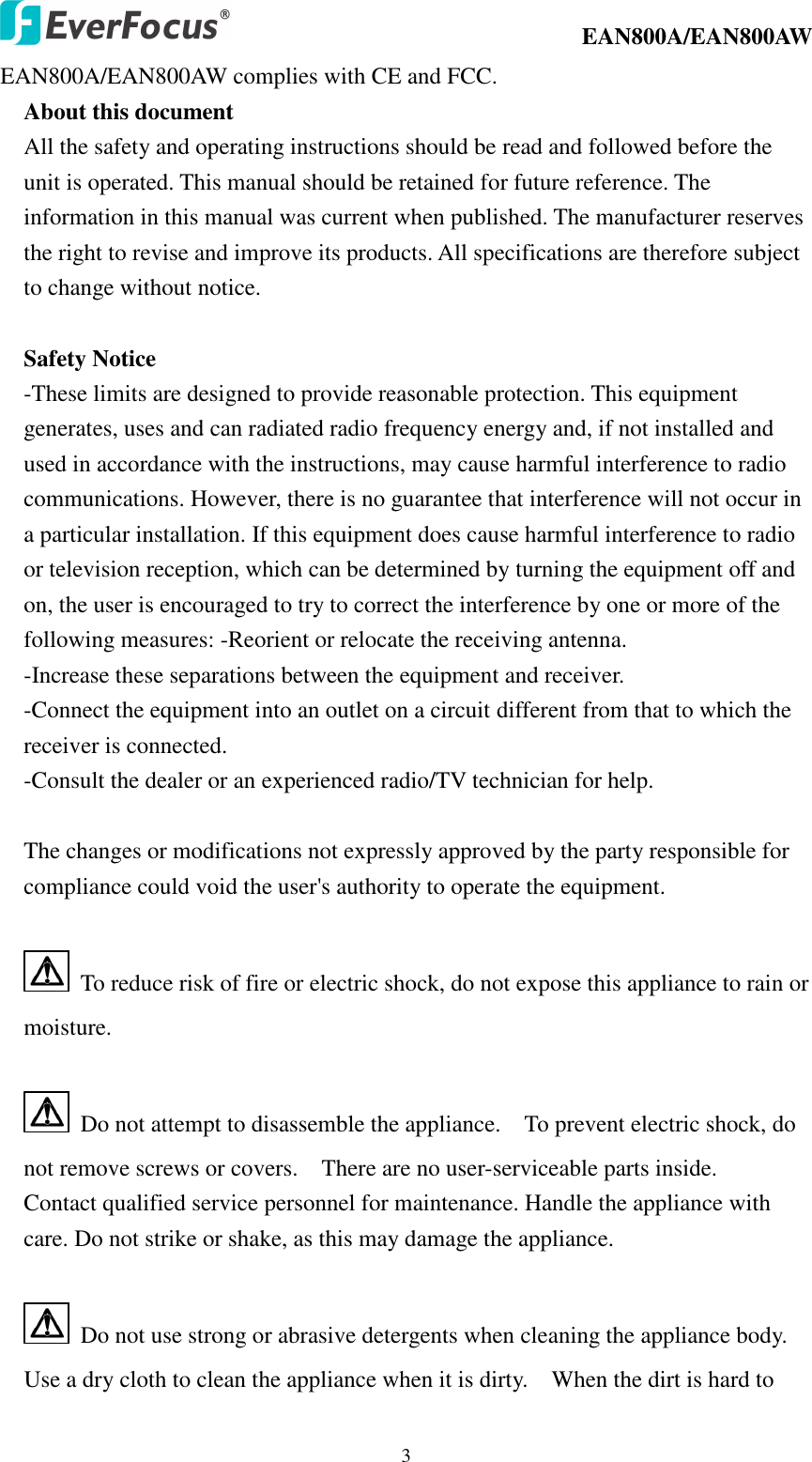

EAN800A/EAN800AW 3 EAN800A/EAN800AW complies with CE and FCC. About this document All the safety and operating instructions should be read and followed before the unit is operated. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice. Safety Notice -These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase these separations between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. To reduce risk of fire or electric shock, do not expose this appliance to rain or moisture. Do not attempt to disassemble the appliance. To prevent electric shock, do not remove screws or covers. There are no user-serviceable parts inside. Contact qualified service personnel for maintenance. Handle the appliance with care. Do not strike or shake, as this may damage the appliance. Do not use strong or abrasive detergents when cleaning the appliance body. Use a dry cloth to clean the appliance when it is dirty. When the dirt is hard to

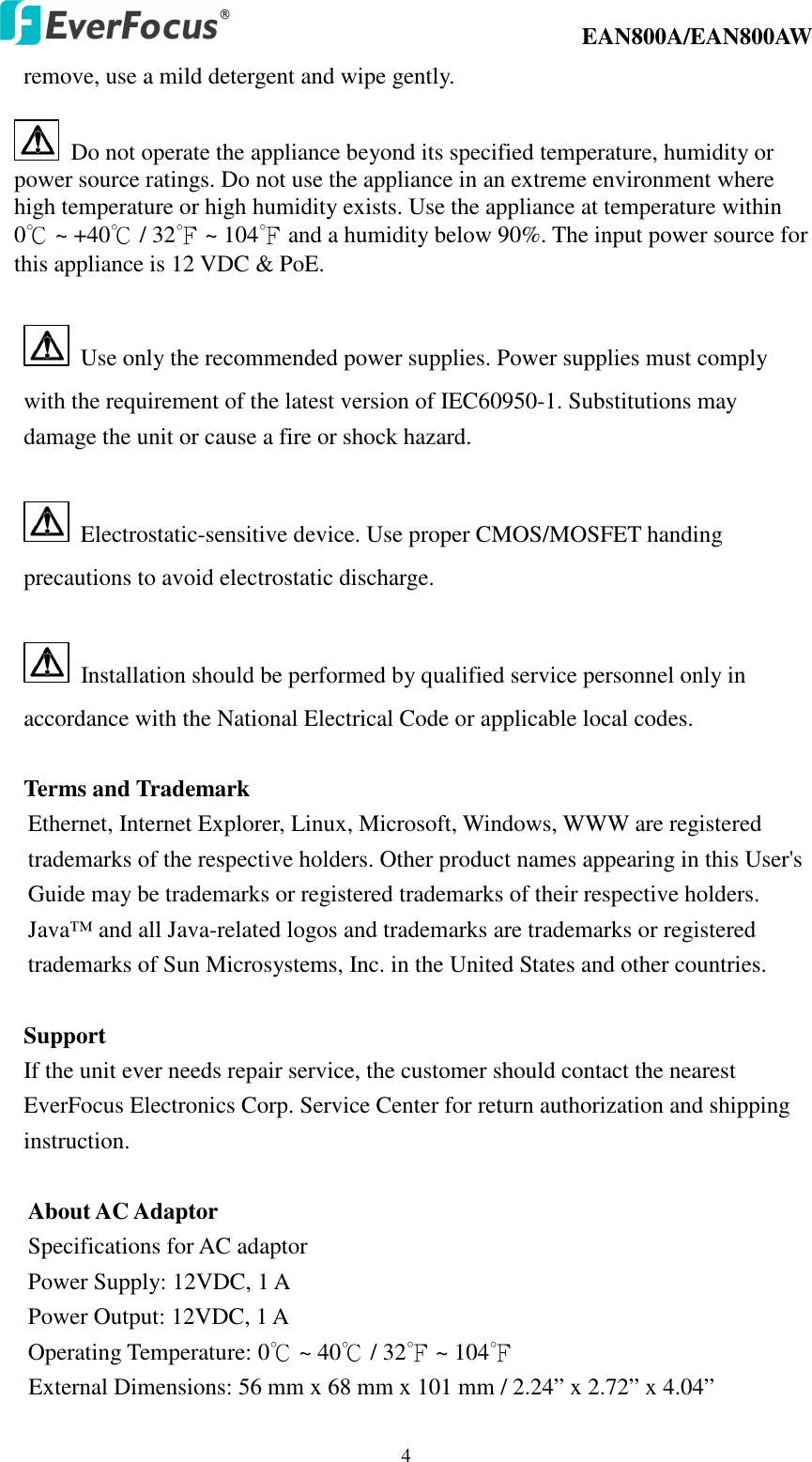

EAN800A/EAN800AW 4 remove, use a mild detergent and wipe gently. Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Do not use the appliance in an extreme environment where high temperature or high humidity exists. Use the appliance at temperature within 0℃ ~ +40℃ / 32 ~ 104 and a humidity below 90%. The input power source for ℉ ℉this appliance is 12 VDC & PoE. Use only the recommended power supplies. Power supplies must comply with the requirement of the latest version of IEC60950-1. Substitutions may damage the unit or cause a fire or shock hazard. Electrostatic-sensitive device. Use proper CMOS/MOSFET handing precautions to avoid electrostatic discharge. Installation should be performed by qualified service personnel only in accordance with the National Electrical Code or applicable local codes. Terms and Trademark Ethernet, Internet Explorer, Linux, Microsoft, Windows, WWW are registered trademarks of the respective holders. Other product names appearing in this User's Guide may be trademarks or registered trademarks of their respective holders. Java™ and all Java-related logos and trademarks are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. Support If the unit ever needs repair service, the customer should contact the nearest EverFocus Electronics Corp. Service Center for return authorization and shipping instruction. About AC Adaptor Specifications for AC adaptor Power Supply: 12VDC, 1 A Power Output: 12VDC, 1 A Operating Temperature: 0 ℃~ 40℃ / 32 ~ 104℉ ℉ External Dimensions: 56 mm x 68 mm x 101 mm / 2.24” x 2.72” x 4.04”

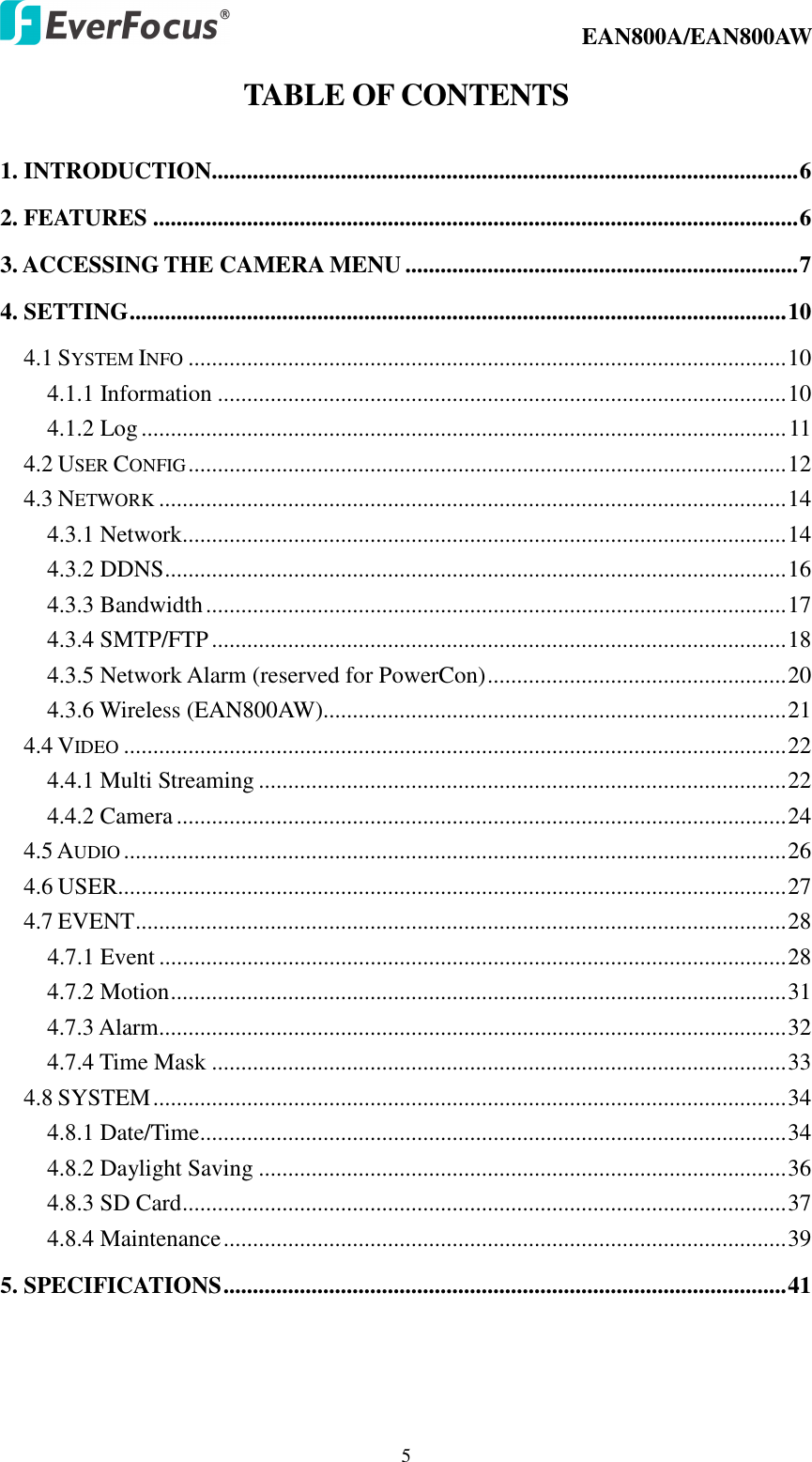

EAN800A/EAN800AW 5 TABLE OF CONTENTS1. INTRODUCTION....................................................................................................6 2. FEATURES ..............................................................................................................6 3. ACCESSING THE CAMERA MENU ...................................................................7 4. SETTING................................................................................................................10 4.1 SYSTEM INFO......................................................................................................10 4.1.1 Information .................................................................................................10 4.1.2 Log..............................................................................................................11 4.2 USER CONFIG......................................................................................................12 4.3 NETWORK...........................................................................................................14 4.3.1 Network.......................................................................................................14 4.3.2 DDNS..........................................................................................................16 4.3.3 Bandwidth...................................................................................................17 4.3.4 SMTP/FTP..................................................................................................18 4.3.5 Network Alarm (reserved for PowerCon)...................................................20 4.3.6 Wireless (EAN800AW)...............................................................................21 4.4 VIDEO.................................................................................................................22 4.4.1 Multi Streaming ..........................................................................................22 4.4.2 Camera........................................................................................................24 4.5 AUDIO.................................................................................................................26 4.6 USER..................................................................................................................27 4.7 EVENT...............................................................................................................28 4.7.1 Event ...........................................................................................................28 4.7.2 Motion.........................................................................................................31 4.7.3 Alarm...........................................................................................................32 4.7.4 Time Mask ..................................................................................................33 4.8 SYSTEM............................................................................................................34 4.8.1 Date/Time....................................................................................................34 4.8.2 Daylight Saving ..........................................................................................36 4.8.3 SD Card.......................................................................................................37 4.8.4 Maintenance................................................................................................39 5. SPECIFICATIONS................................................................................................41

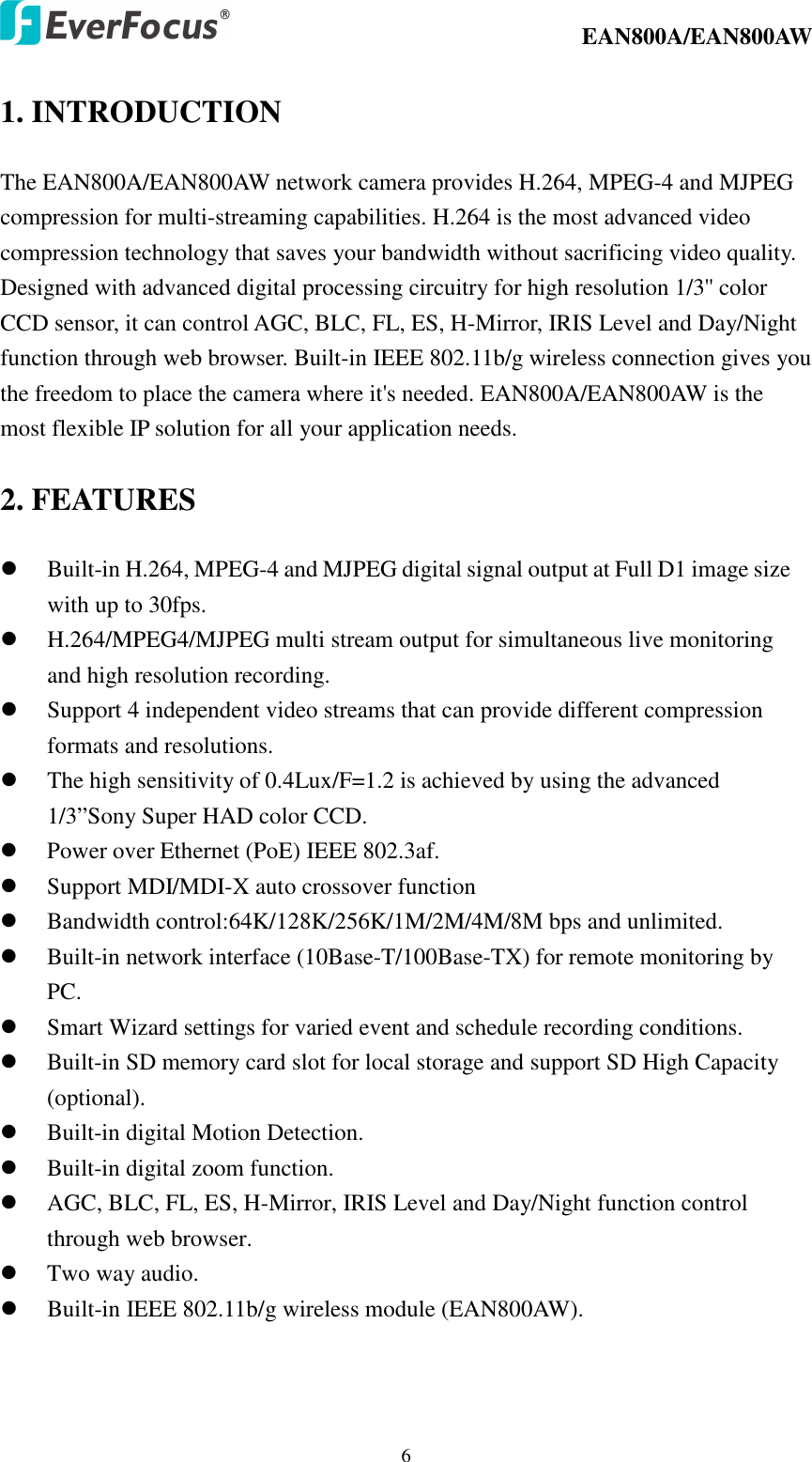

EAN800A/EAN800AW 6 1. INTRODUCTION The EAN800A/EAN800AW network camera provides H.264, MPEG-4 and MJPEG compression for multi-streaming capabilities. H.264 is the most advanced video compression technology that saves your bandwidth without sacrificing video quality. Designed with advanced digital processing circuitry for high resolution 1/3'' color CCD sensor, it can control AGC, BLC, FL, ES, H-Mirror, IRIS Level and Day/Night function through web browser. Built-in IEEE 802.11b/g wireless connection gives you the freedom to place the camera where it's needed. EAN800A/EAN800AW is the most flexible IP solution for all your application needs. 2. FEATURES  Built-in H.264, MPEG-4 and MJPEG digital signal output at Full D1 image size with up to 30fps.  H.264/MPEG4/MJPEG multi stream output for simultaneous live monitoring and high resolution recording.  Support 4 independent video streams that can provide different compression formats and resolutions.  The high sensitivity of 0.4Lux/F=1.2 is achieved by using the advanced 1/3”Sony Super HAD color CCD.  Power over Ethernet (PoE) IEEE 802.3af.  Support MDI/MDI-X auto crossover function  Bandwidth control:64K/128K/256K/1M/2M/4M/8M bps and unlimited.  Built-in network interface (10Base-T/100Base-TX) for remote monitoring by PC.  Smart Wizard settings for varied event and schedule recording conditions.  Built-in SD memory card slot for local storage and support SD High Capacity (optional).  Built-in digital Motion Detection.  Built-in digital zoom function.  AGC, BLC, FL, ES, H-Mirror, IRIS Level and Day/Night function control through web browser.  Two way audio.  Built-in IEEE 802.11b/g wireless module (EAN800AW).

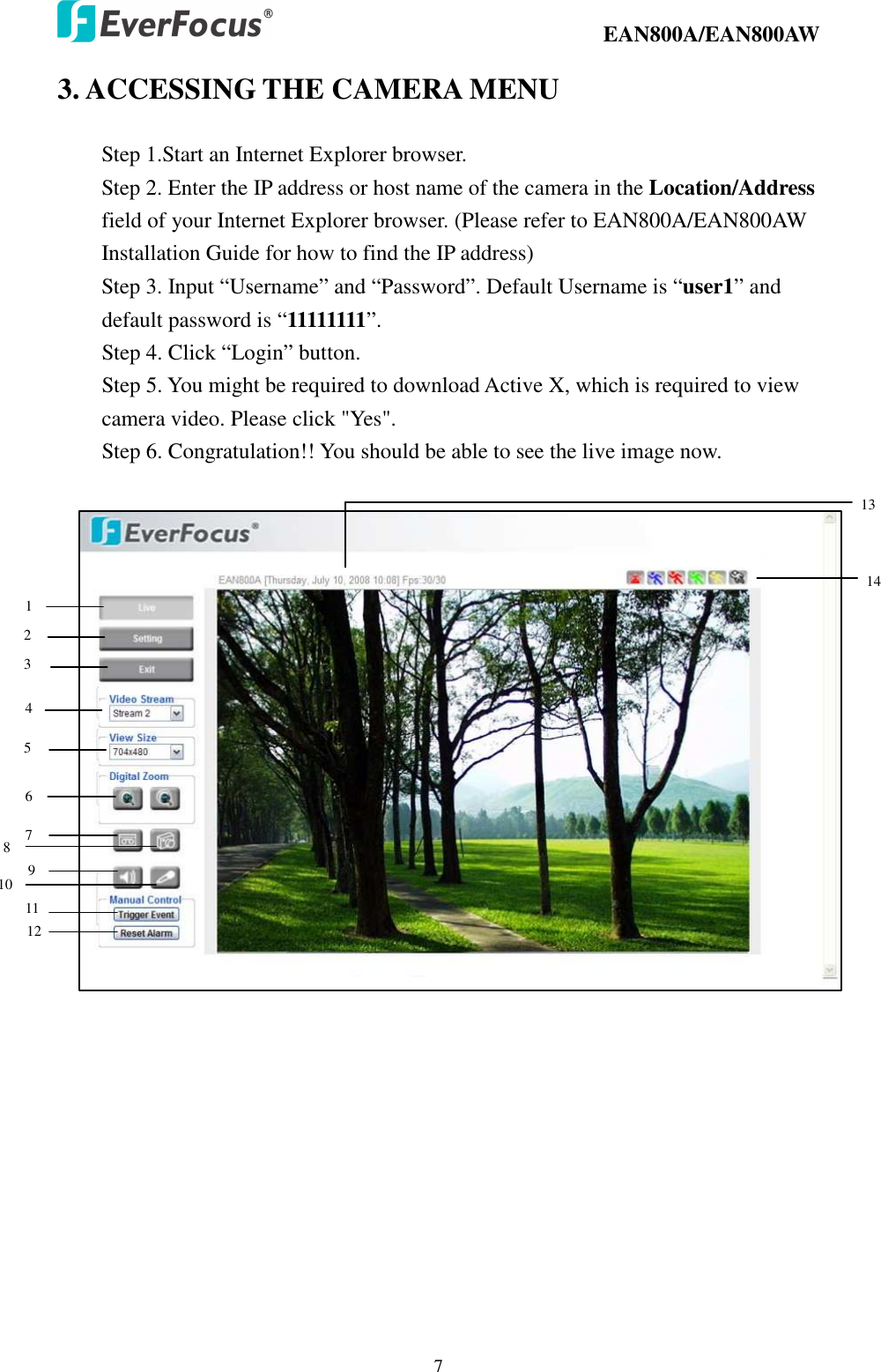

EAN800A/EAN800AW 7 3. ACCESSING THE CAMERA MENU Step 1.Start an Internet Explorer browser. Step 2. Enter the IP address or host name of the camera in the Location/Address field of your Internet Explorer browser. (Please refer to EAN800A/EAN800AW Installation Guide for how to find the IP address) Step 3. Input “Username” and “Password”. Default Username is “user1” and default password is “11111111”. Step 4. Click “Login” button. Step 5. You might be required to download Active X, which is required to view camera video. Please click "Yes". Step 6. Congratulation!! You should be able to see the live image now. 1 2 3 4 5 6 7 8 9 11 12 13 14 10

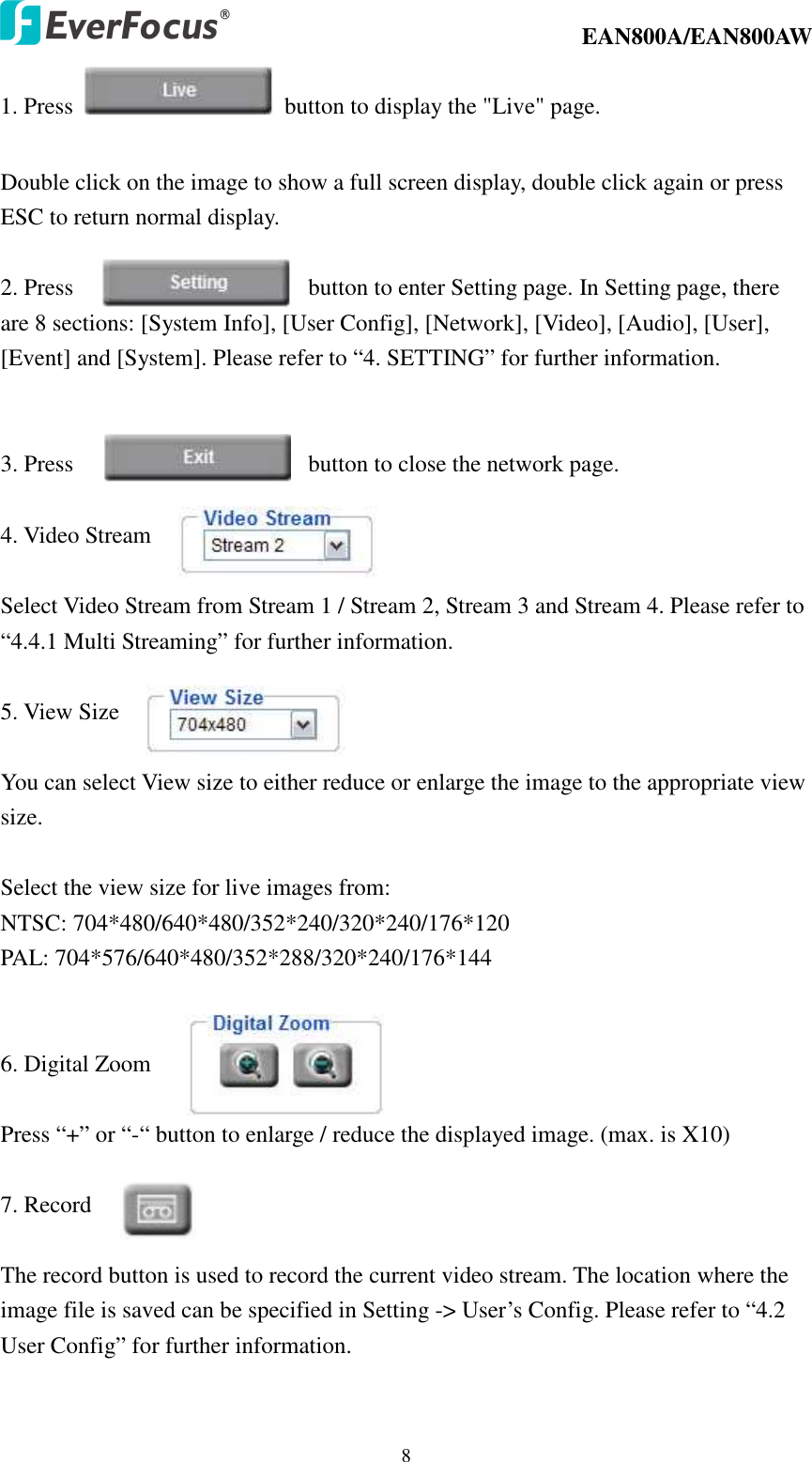

EAN800A/EAN800AW 8 1. Press button to display the "Live" page. Double click on the image to show a full screen display, double click again or press ESC to return normal display. 2. Press button to enter Setting page. In Setting page, there are 8 sections: [System Info], [User Config], [Network], [Video], [Audio], [User], [Event] and [System]. Please refer to “4. SETTING” for further information. 3. Press button to close the network page. 4. Video Stream Select Video Stream from Stream 1 / Stream 2, Stream 3 and Stream 4. Please refer to “4.4.1 Multi Streaming” for further information. 5. View Size You can select View size to either reduce or enlarge the image to the appropriate view size. Select the view size for live images from: NTSC: 704*480/640*480/352*240/320*240/176*120 PAL: 704*576/640*480/352*288/320*240/176*144 6. Digital Zoom Press “+” or “-“ button to enlarge / reduce the displayed image. (max. is X10) 7. Record The record button is used to record the current video stream. The location where the image file is saved can be specified in Setting -> User’s Config. Please refer to “4.2 User Config” for further information.

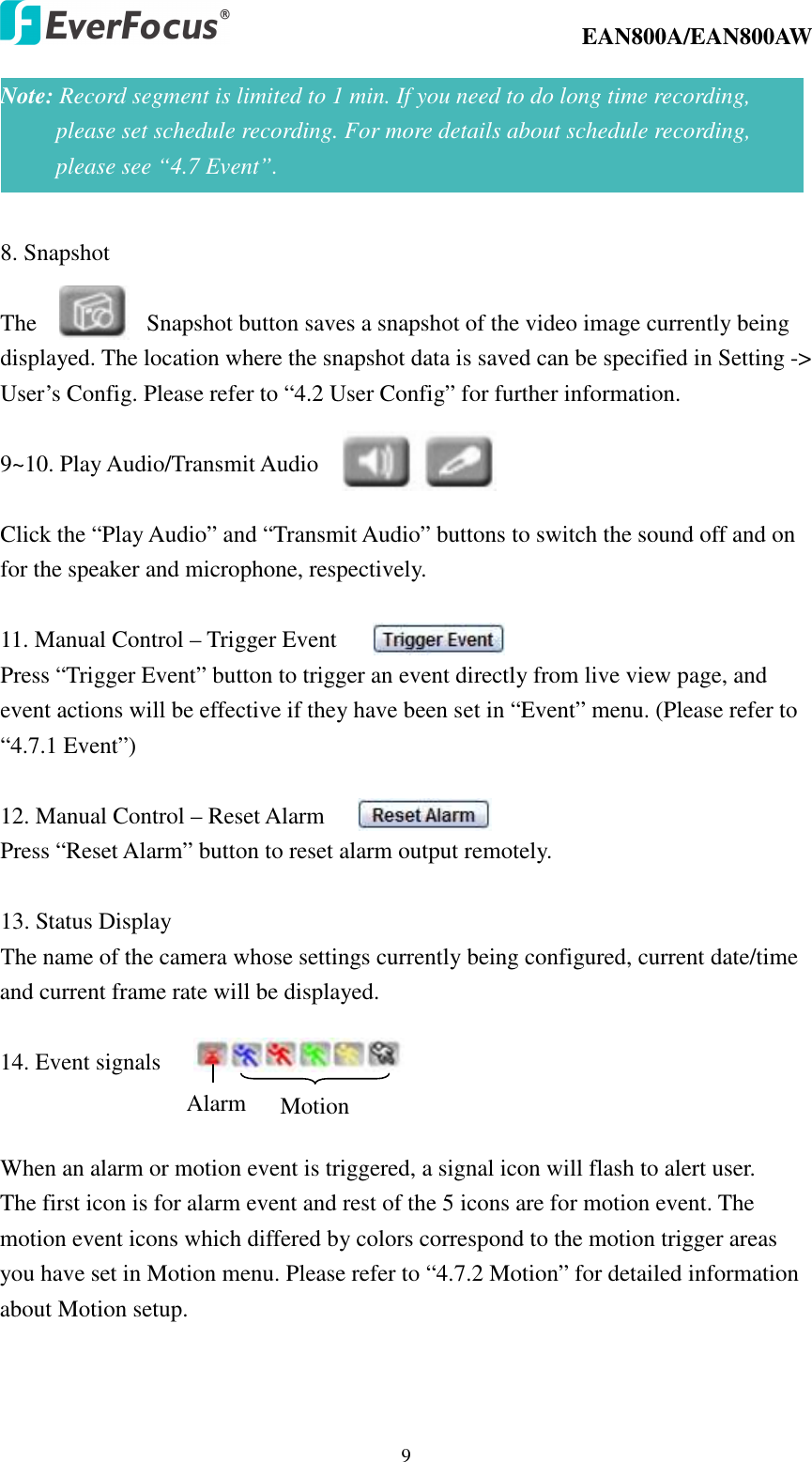

EAN800A/EAN800AW 9 8. Snapshot The Snapshot button saves a snapshot of the video image currently being displayed. The location where the snapshot data is saved can be specified in Setting -> User’s Config. Please refer to “4.2 User Config” for further information. 9~10. Play Audio/Transmit Audio Click the “Play Audio” and “Transmit Audio” buttons to switch the sound off and on for the speaker and microphone, respectively. 11. Manual Control – Trigger Event Press “Trigger Event” button to trigger an event directly from live view page, and event actions will be effective if they have been set in “Event” menu. (Please refer to “4.7.1 Event”) 12. Manual Control – Reset Alarm Press “Reset Alarm” button to reset alarm output remotely. 13. Status Display The name of the camera whose settings currently being configured, current date/time and current frame rate will be displayed. 14. Event signals When an alarm or motion event is triggered, a signal icon will flash to alert user. The first icon is for alarm event and rest of the 5 icons are for motion event. The motion event icons which differed by colors correspond to the motion trigger areas you have set in Motion menu. Please refer to “4.7.2 Motion” for detailed information about Motion setup. Note: Record segment is limited to 1 min. If you need to do long time recording, please set schedule recording. For more details about schedule recording, please see “4.7 Event”. Motion Alarm

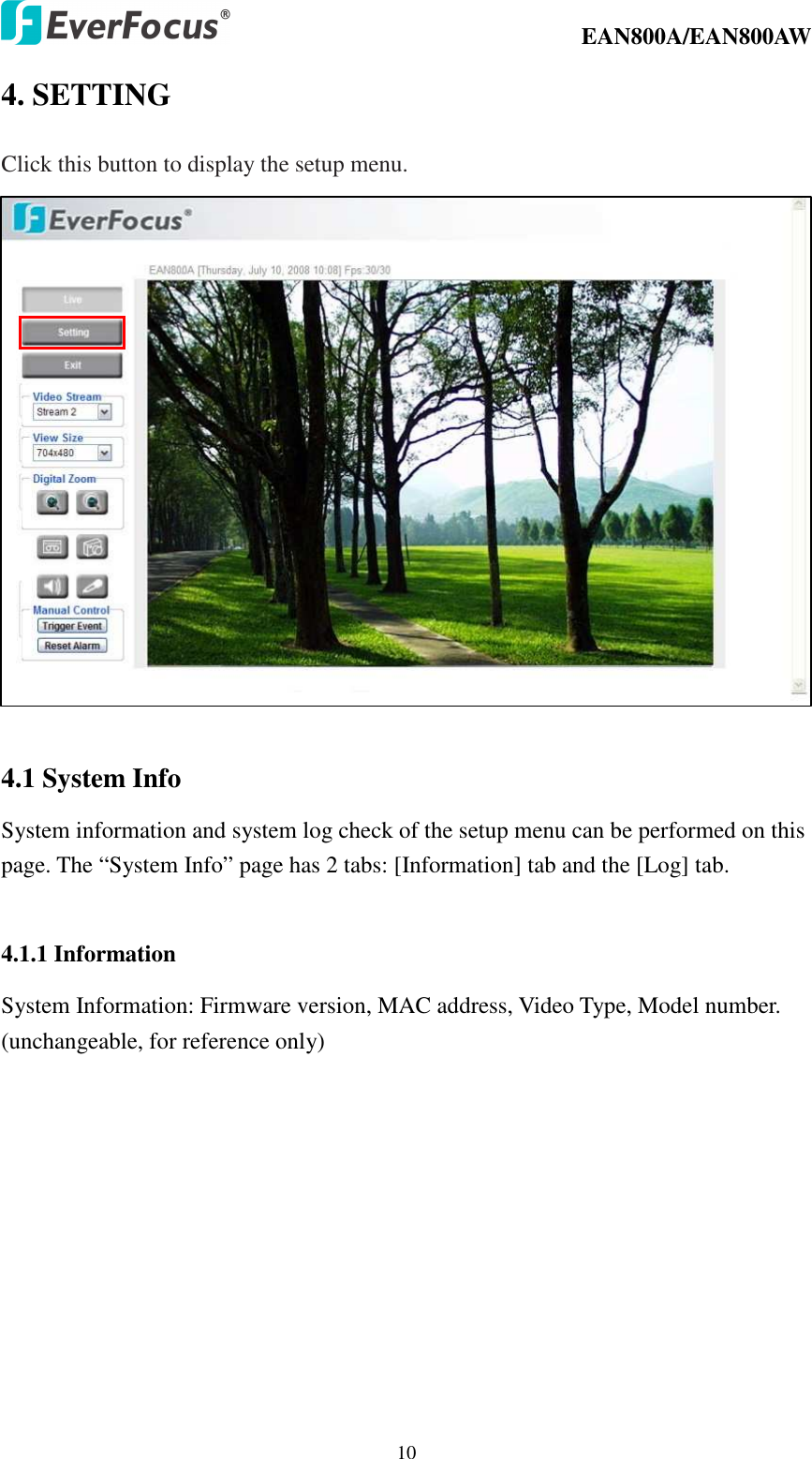

EAN800A/EAN800AW 10 4. SETTING Click this button to display the setup menu. 4.1 System Info System information and system log check of the setup menu can be performed on this page. The “System Info” page has 2 tabs: [Information] tab and the [Log] tab. 4.1.1 Information System Information: Firmware version, MAC address, Video Type, Model number. (unchangeable, for reference only)

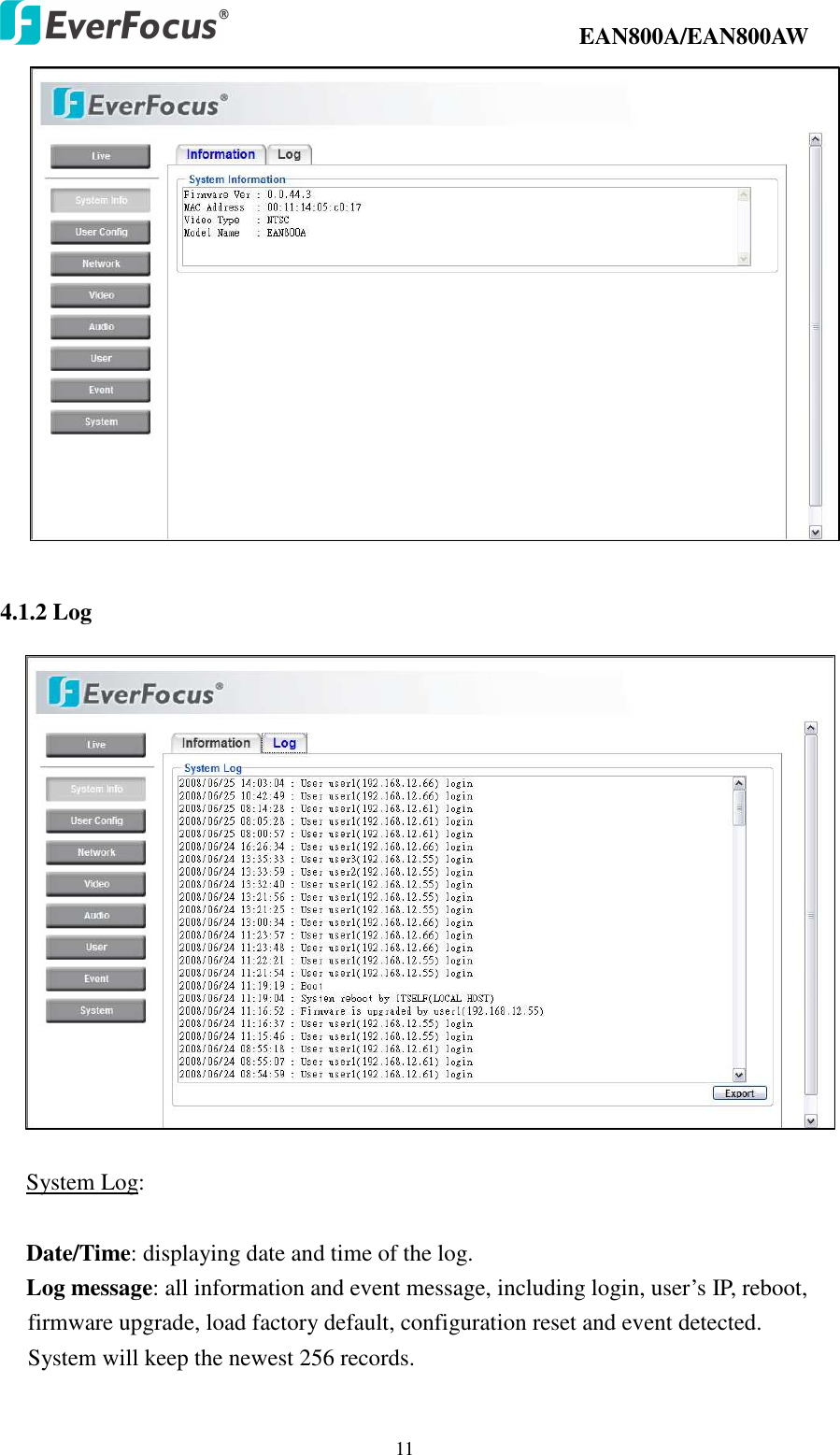

EAN800A/EAN800AW 11 4.1.2 Log System Log: Date/Time: displaying date and time of the log. Log message: all information and event message, including login, user’s IP, reboot, firmware upgrade, load factory default, configuration reset and event detected. System will keep the newest 256 records.

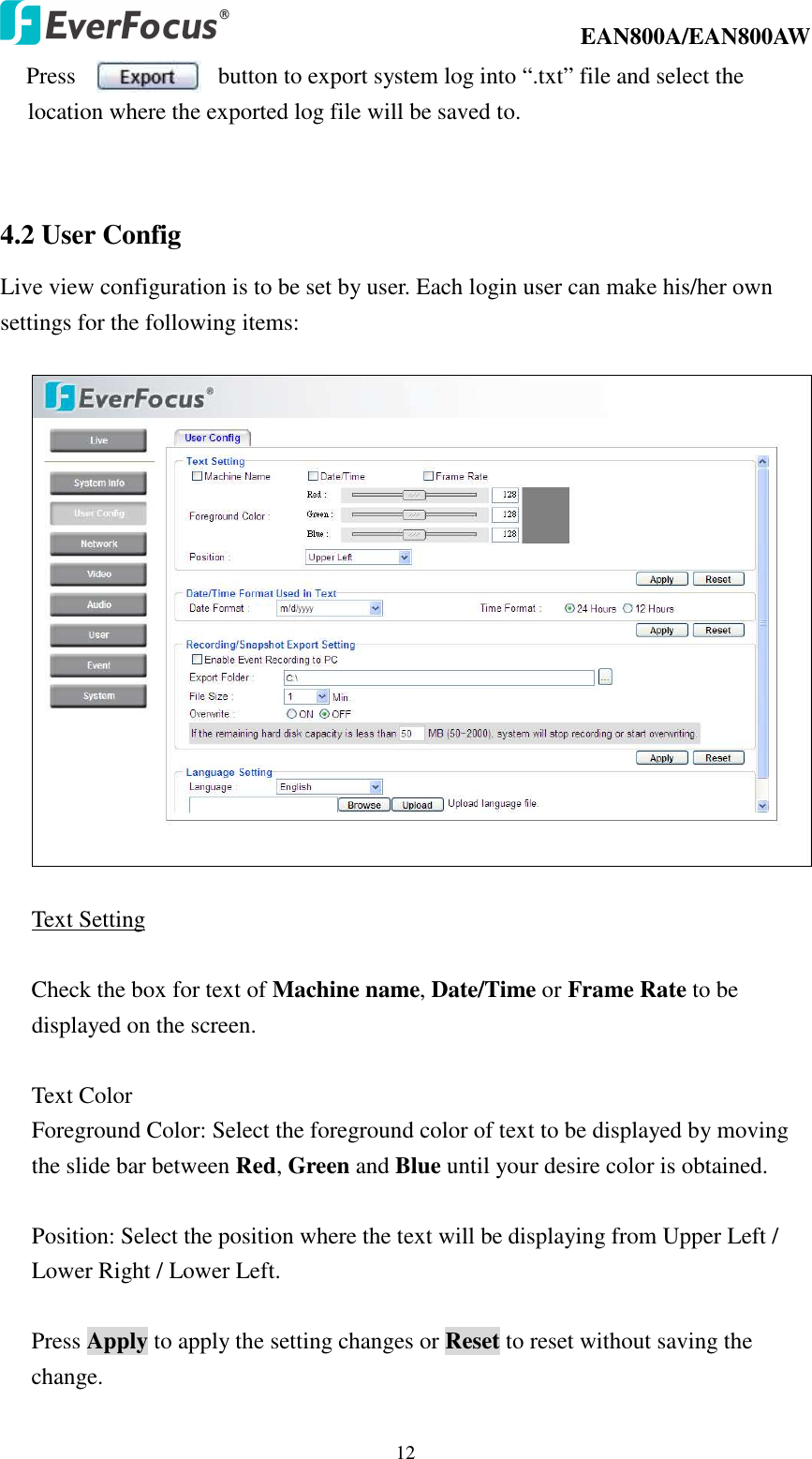

EAN800A/EAN800AW 12 Press button to export system log into “.txt” file and select the location where the exported log file will be saved to. 4.2 User Config Live view configuration is to be set by user. Each login user can make his/her own settings for the following items: Text Setting Check the box for text of Machine name, Date/Time or Frame Rate to be displayed on the screen. Text Color Foreground Color: Select the foreground color of text to be displayed by moving the slide bar between Red, Green and Blue until your desire color is obtained. Position: Select the position where the text will be displaying from Upper Left / Lower Right / Lower Left. Press Apply to apply the setting changes or Reset to reset without saving the change.

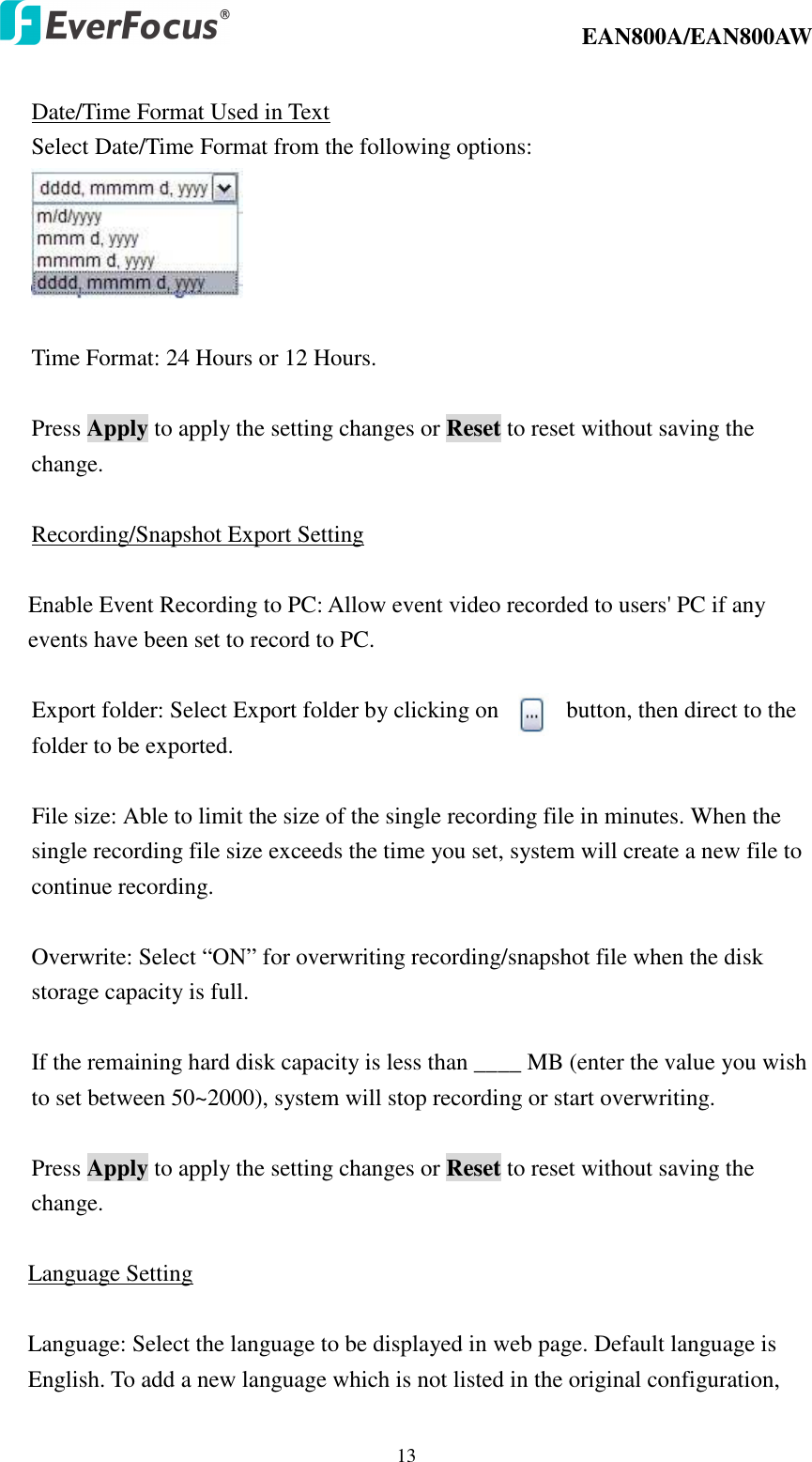

EAN800A/EAN800AW 13 Date/Time Format Used in Text Select Date/Time Format from the following options: Time Format: 24 Hours or 12 Hours. Press Apply to apply the setting changes or Reset to reset without saving the change. Recording/Snapshot Export Setting Enable Event Recording to PC: Allow event video recorded to users' PC if any events have been set to record to PC. Export folder: Select Export folder by clicking on button, then direct to the folder to be exported. File size: Able to limit the size of the single recording file in minutes. When the single recording file size exceeds the time you set, system will create a new file to continue recording. Overwrite: Select “ON” for overwriting recording/snapshot file when the disk storage capacity is full. If the remaining hard disk capacity is less than ____ MB (enter the value you wish to set between 50~2000), system will stop recording or start overwriting. Press Apply to apply the setting changes or Reset to reset without saving the change. Language Setting Language: Select the language to be displayed in web page. Default language is English. To add a new language which is not listed in the original configuration,

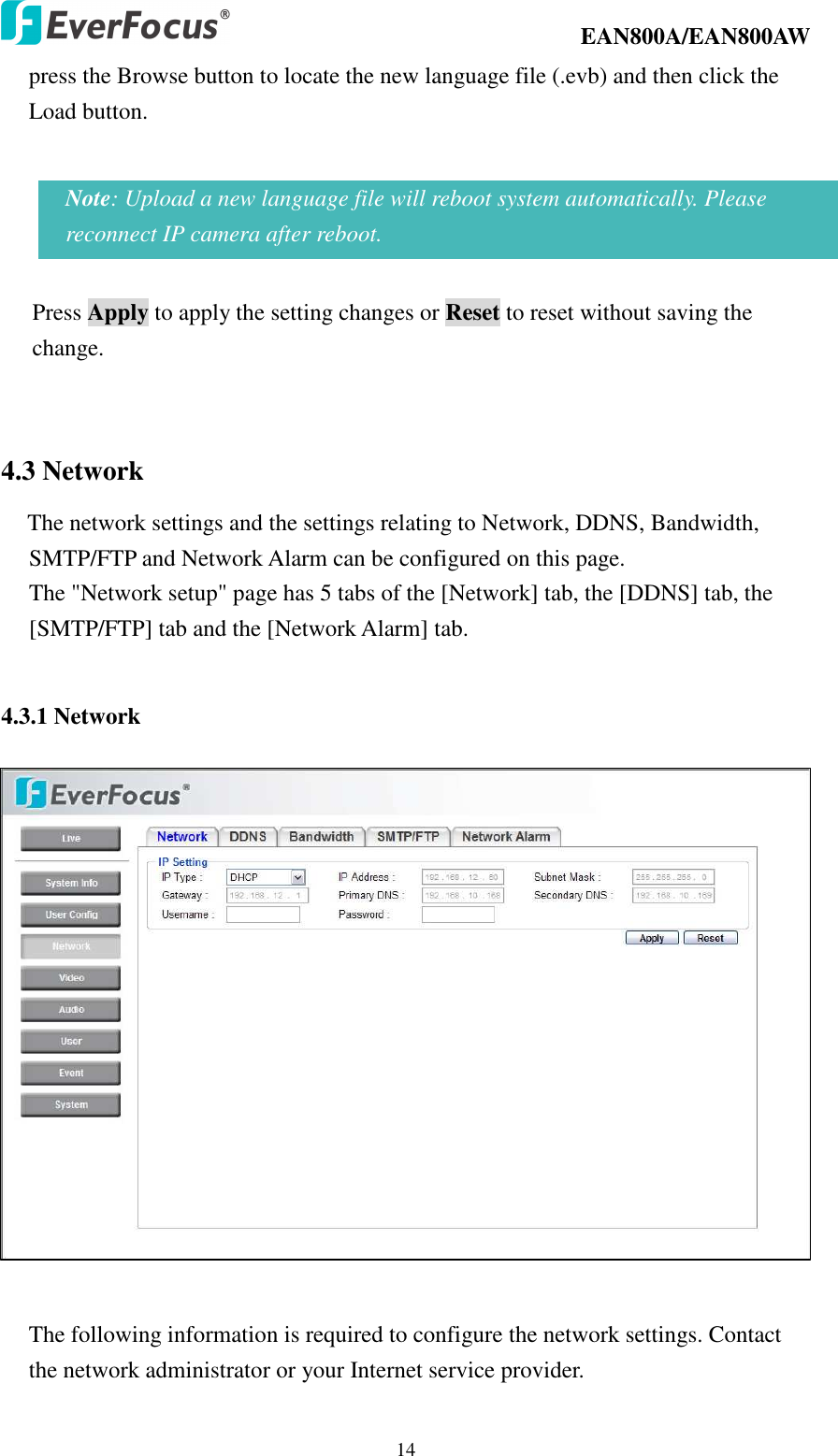

EAN800A/EAN800AW 14 press the Browse button to locate the new language file (.evb) and then click the Load button. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.3 Network The network settings and the settings relating to Network, DDNS, Bandwidth, SMTP/FTP and Network Alarm can be configured on this page. The "Network setup" page has 5 tabs of the [Network] tab, the [DDNS] tab, the [SMTP/FTP] tab and the [Network Alarm] tab. 4.3.1 Network The following information is required to configure the network settings. Contact the network administrator or your Internet service provider. Note: Upload a new language file will reboot system automatically. Please reconnect IP camera after reboot.

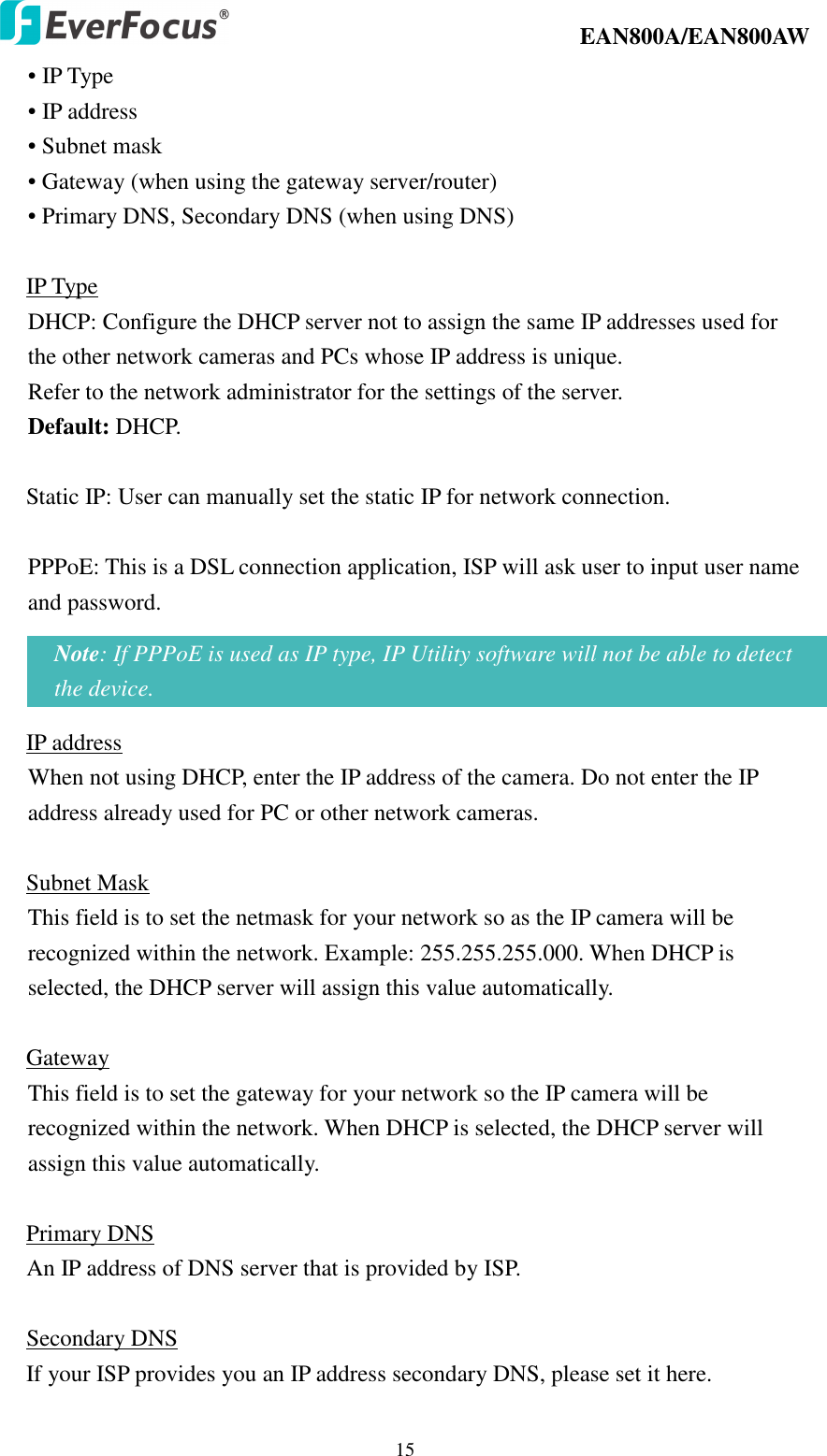

EAN800A/EAN800AW 15 • IP Type • IP address • Subnet mask • Gateway (when using the gateway server/router) • Primary DNS, Secondary DNS (when using DNS) IP Type DHCP: Configure the DHCP server not to assign the same IP addresses used for the other network cameras and PCs whose IP address is unique. Refer to the network administrator for the settings of the server. Default: DHCP. Static IP: User can manually set the static IP for network connection. PPPoE: This is a DSL connection application, ISP will ask user to input user name and password. IP address When not using DHCP, enter the IP address of the camera. Do not enter the IP address already used for PC or other network cameras. Subnet Mask This field is to set the netmask for your network so as the IP camera will be recognized within the network. Example: 255.255.255.000. When DHCP is selected, the DHCP server will assign this value automatically. Gateway This field is to set the gateway for your network so the IP camera will be recognized within the network. When DHCP is selected, the DHCP server will assign this value automatically. Primary DNS An IP address of DNS server that is provided by ISP. Secondary DNS If your ISP provides you an IP address secondary DNS, please set it here. Note: If PPPoE is used as IP type, IP Utility software will not be able to detect the device.

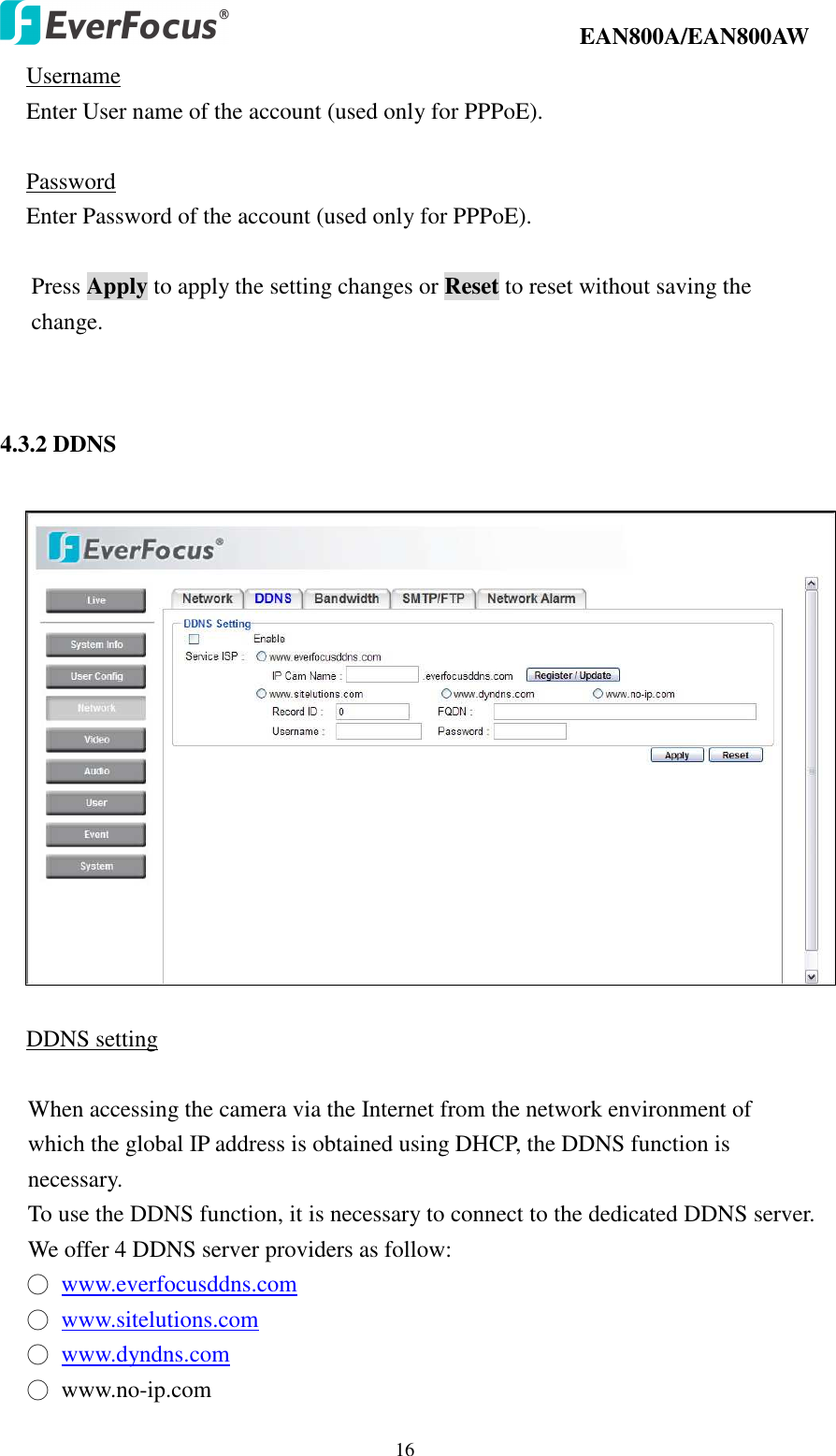

EAN800A/EAN800AW 16 Username Enter User name of the account (used only for PPPoE). Password Enter Password of the account (used only for PPPoE). Press Apply to apply the setting changes or Reset to reset without saving the change. 4.3.2 DDNS DDNS setting When accessing the camera via the Internet from the network environment of which the global IP address is obtained using DHCP, the DDNS function is necessary. To use the DDNS function, it is necessary to connect to the dedicated DDNS server. We offer 4 DDNS server providers as follow: ○ www.everfocusddns.com ○ www.sitelutions.com ○ www.dyndns.com ○ www.no-ip.com

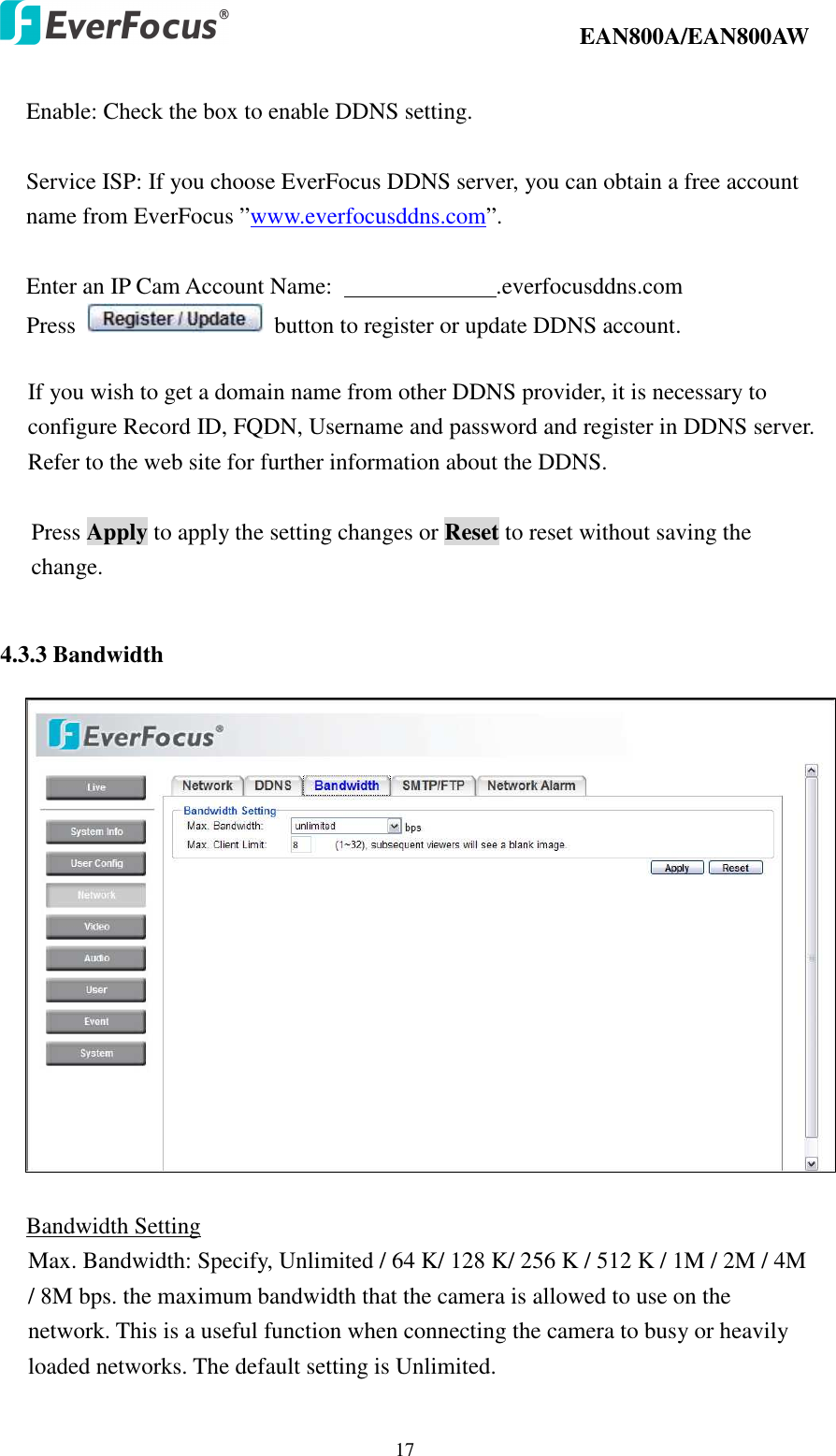

EAN800A/EAN800AW 17 Enable: Check the box to enable DDNS setting. Service ISP: If you choose EverFocus DDNS server, you can obtain a free account name from EverFocus ”www.everfocusddns.com”. Enter an IP Cam Account Name: .everfocusddns.com Press button to register or update DDNS account. If you wish to get a domain name from other DDNS provider, it is necessary to configure Record ID, FQDN, Username and password and register in DDNS server. Refer to the web site for further information about the DDNS. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.3.3 Bandwidth Bandwidth Setting Max. Bandwidth: Specify, Unlimited / 64 K/ 128 K/ 256 K / 512 K / 1M / 2M / 4M / 8M bps. the maximum bandwidth that the camera is allowed to use on the network. This is a useful function when connecting the camera to busy or heavily loaded networks. The default setting is Unlimited.

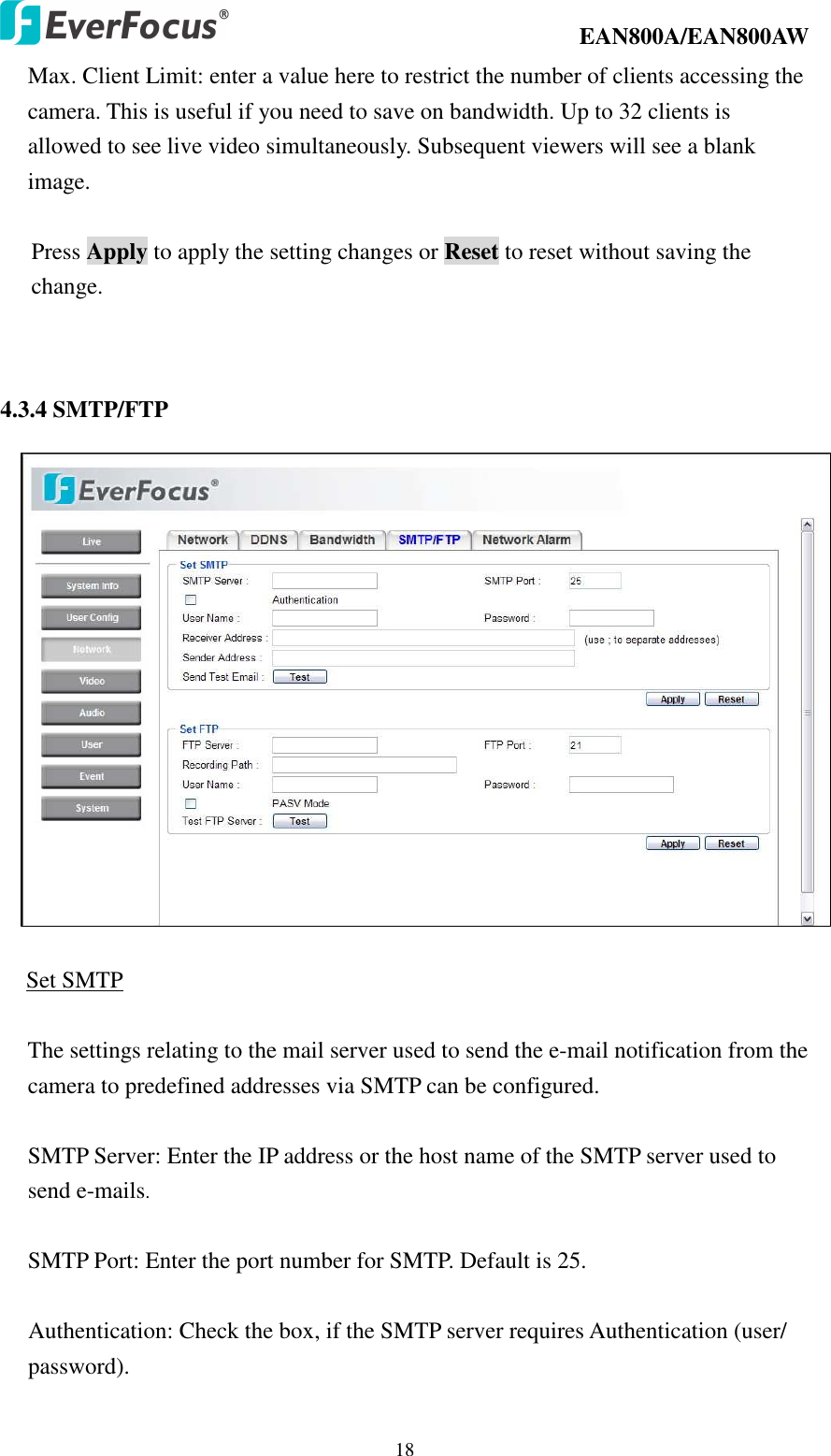

EAN800A/EAN800AW 18 Max. Client Limit: enter a value here to restrict the number of clients accessing the camera. This is useful if you need to save on bandwidth. Up to 32 clients is allowed to see live video simultaneously. Subsequent viewers will see a blank image. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.3.4 SMTP/FTP Set SMTP The settings relating to the mail server used to send the e-mail notification from the camera to predefined addresses via SMTP can be configured. SMTP Server: Enter the IP address or the host name of the SMTP server used to send e-mails. SMTP Port: Enter the port number for SMTP. Default is 25. Authentication: Check the box, if the SMTP server requires Authentication (user/ password).

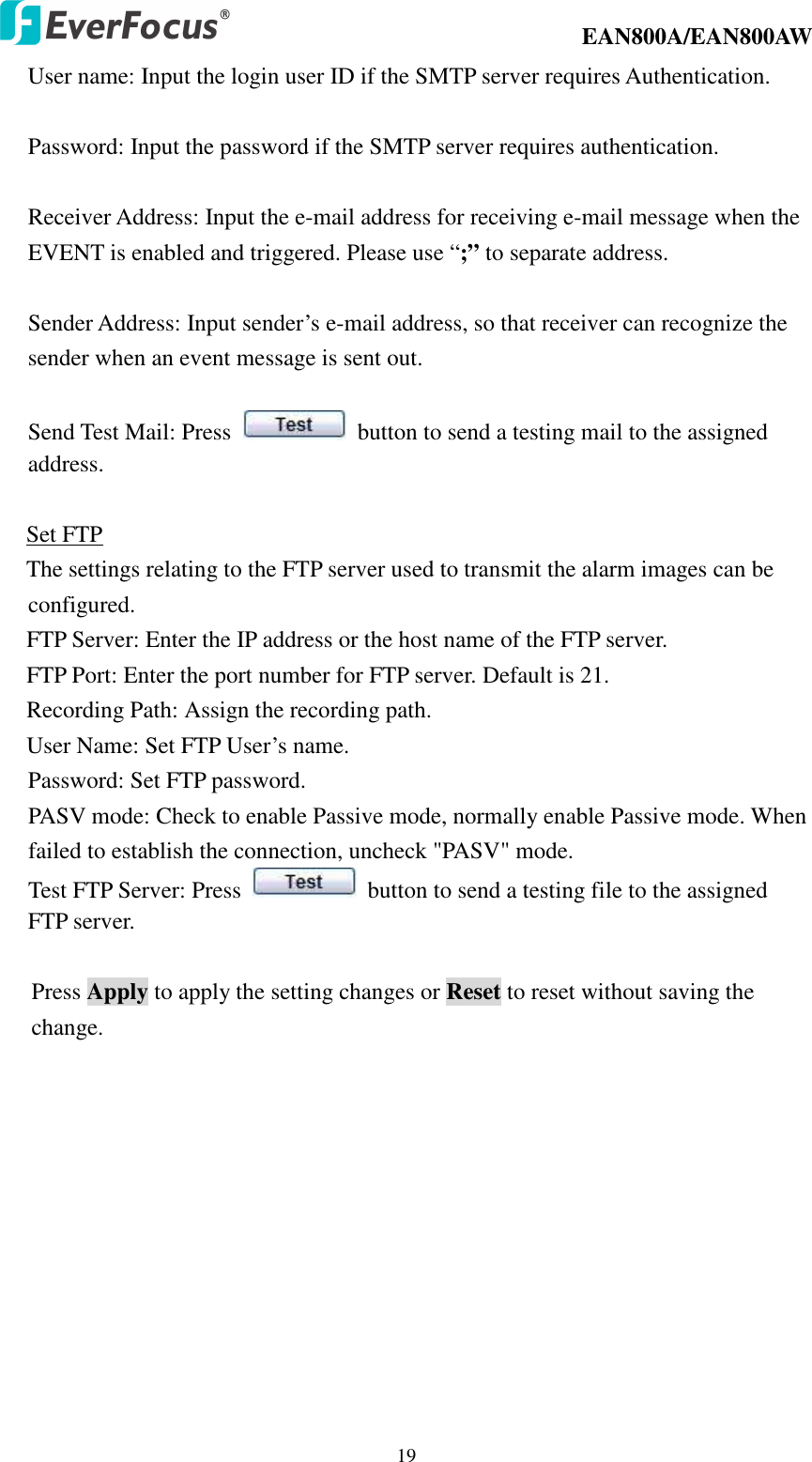

EAN800A/EAN800AW 19 User name: Input the login user ID if the SMTP server requires Authentication. Password: Input the password if the SMTP server requires authentication. Receiver Address: Input the e-mail address for receiving e-mail message when the EVENT is enabled and triggered. Please use “;” to separate address. Sender Address: Input sender’s e-mail address, so that receiver can recognize the sender when an event message is sent out. Send Test Mail: Press button to send a testing mail to the assigned address. Set FTP The settings relating to the FTP server used to transmit the alarm images can be configured. FTP Server: Enter the IP address or the host name of the FTP server. FTP Port: Enter the port number for FTP server. Default is 21. Recording Path: Assign the recording path. User Name: Set FTP User’s name. Password: Set FTP password. PASV mode: Check to enable Passive mode, normally enable Passive mode. When failed to establish the connection, uncheck "PASV" mode. Test FTP Server: Press button to send a testing file to the assigned FTP server. Press Apply to apply the setting changes or Reset to reset without saving the change.

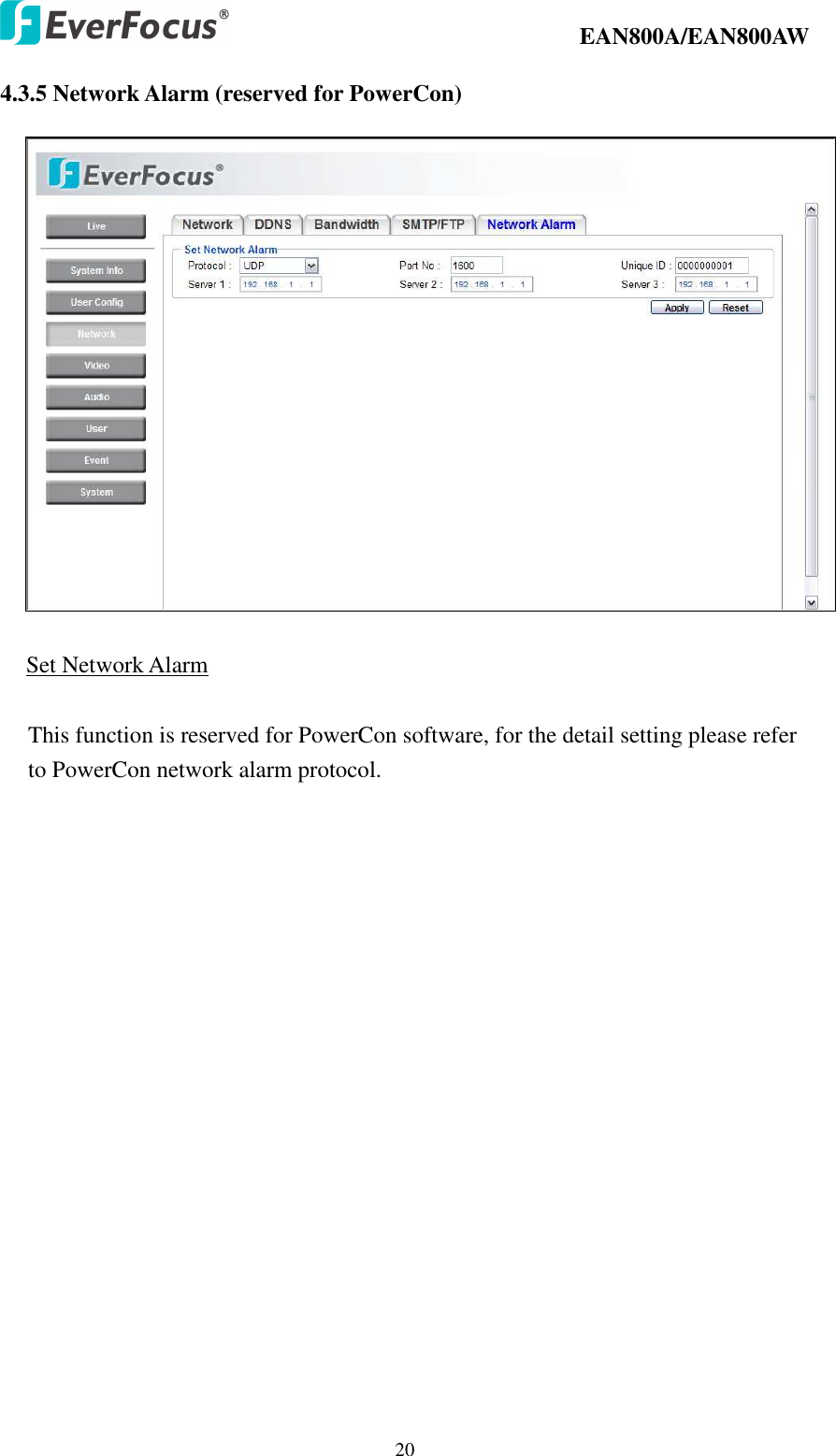

EAN800A/EAN800AW 20 4.3.5 Network Alarm (reserved for PowerCon) Set Network Alarm This function is reserved for PowerCon software, for the detail setting please refer to PowerCon network alarm protocol.

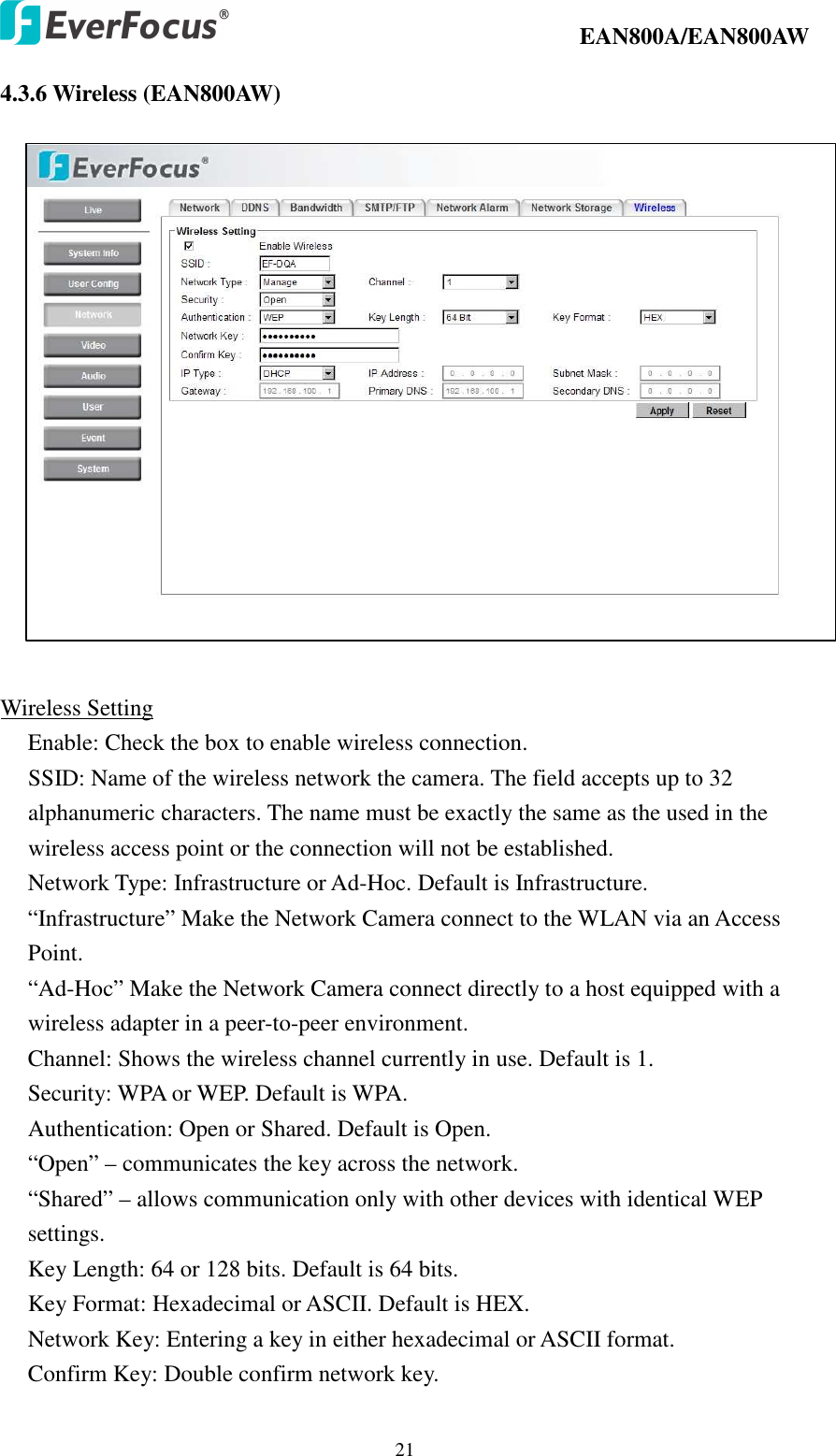

EAN800A/EAN800AW 21 4.3.6 Wireless (EAN800AW) Wireless Setting Enable: Check the box to enable wireless connection. SSID: Name of the wireless network the camera. The field accepts up to 32 alphanumeric characters. The name must be exactly the same as the used in the wireless access point or the connection will not be established. Network Type: Infrastructure or Ad-Hoc. Default is Infrastructure. “Infrastructure” Make the Network Camera connect to the WLAN via an Access Point. “Ad-Hoc” Make the Network Camera connect directly to a host equipped with a wireless adapter in a peer-to-peer environment. Channel: Shows the wireless channel currently in use. Default is 1. Security: WPA or WEP. Default is WPA. Authentication: Open or Shared. Default is Open. “Open” – communicates the key across the network. “Shared” – allows communication only with other devices with identical WEP settings. Key Length: 64 or 128 bits. Default is 64 bits. Key Format: Hexadecimal or ASCII. Default is HEX. Network Key: Entering a key in either hexadecimal or ASCII format. Confirm Key: Double confirm network key.

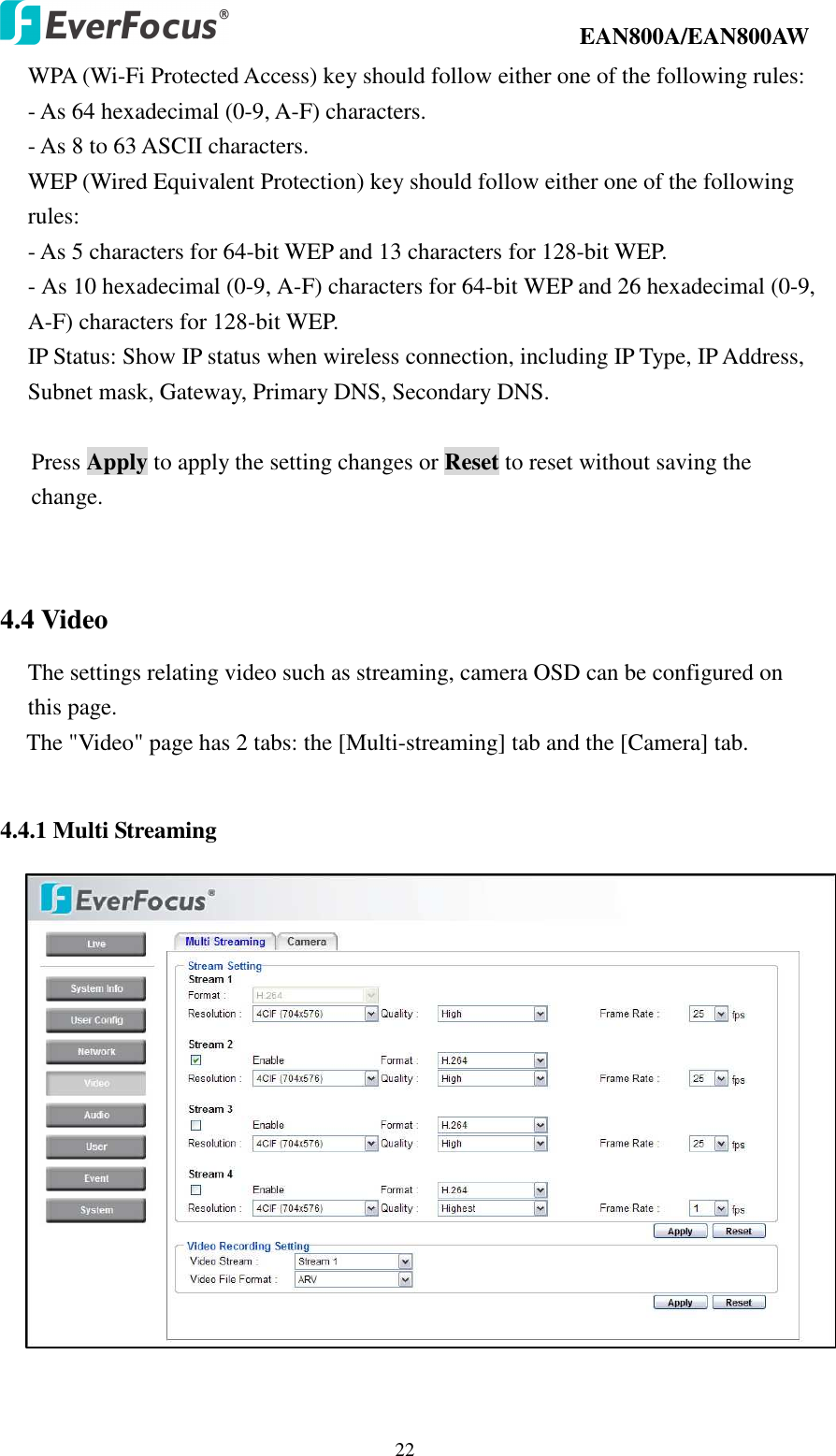

EAN800A/EAN800AW 22 WPA (Wi-Fi Protected Access) key should follow either one of the following rules: - As 64 hexadecimal (0-9, A-F) characters. - As 8 to 63 ASCII characters. WEP (Wired Equivalent Protection) key should follow either one of the following rules: - As 5 characters for 64-bit WEP and 13 characters for 128-bit WEP. - As 10 hexadecimal (0-9, A-F) characters for 64-bit WEP and 26 hexadecimal (0-9, A-F) characters for 128-bit WEP. IP Status: Show IP status when wireless connection, including IP Type, IP Address, Subnet mask, Gateway, Primary DNS, Secondary DNS. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.4 Video The settings relating video such as streaming, camera OSD can be configured on this page. The "Video" page has 2 tabs: the [Multi-streaming] tab and the [Camera] tab. 4.4.1 Multi Streaming

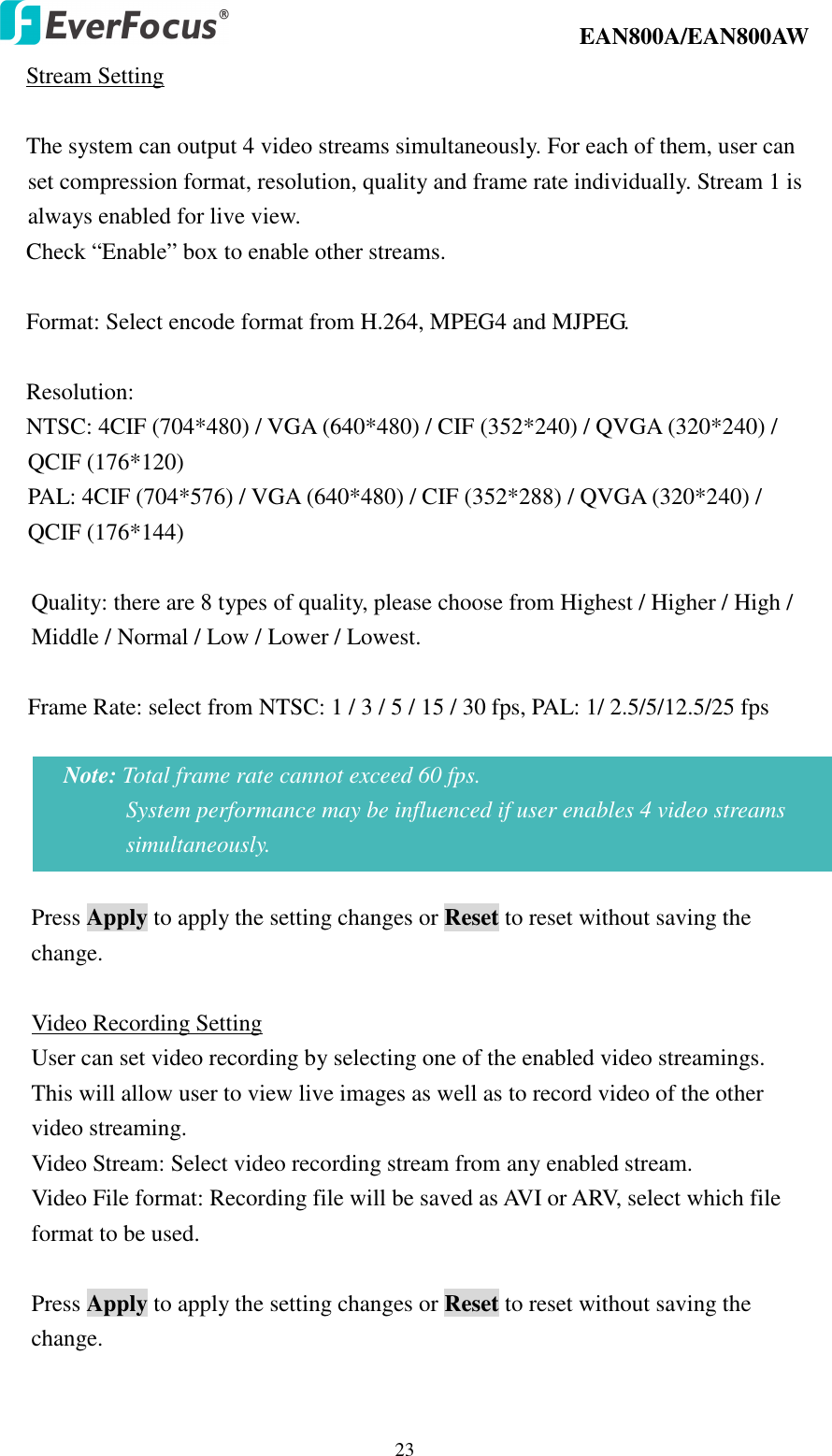

EAN800A/EAN800AW 23 Stream Setting The system can output 4 video streams simultaneously. For each of them, user can set compression format, resolution, quality and frame rate individually. Stream 1 is always enabled for live view. Check “Enable” box to enable other streams. Format: Select encode format from H.264, MPEG4 and MJPEG. Resolution: NTSC: 4CIF (704*480) / VGA (640*480) / CIF (352*240) / QVGA (320*240) / QCIF (176*120) PAL: 4CIF (704*576) / VGA (640*480) / CIF (352*288) / QVGA (320*240) / QCIF (176*144) Quality: there are 8 types of quality, please choose from Highest / Higher / High / Middle / Normal / Low / Lower / Lowest. Frame Rate: select from NTSC: 1 / 3 / 5 / 15 / 30 fps, PAL: 1/ 2.5/5/12.5/25 fps Press Apply to apply the setting changes or Reset to reset without saving the change. Video Recording Setting User can set video recording by selecting one of the enabled video streamings. This will allow user to view live images as well as to record video of the other video streaming. Video Stream: Select video recording stream from any enabled stream. Video File format: Recording file will be saved as AVI or ARV, select which file format to be used. Press Apply to apply the setting changes or Reset to reset without saving the change. Note: Total frame rate cannot exceed 60 fps. System performance may be influenced if user enables 4 video streams simultaneously.

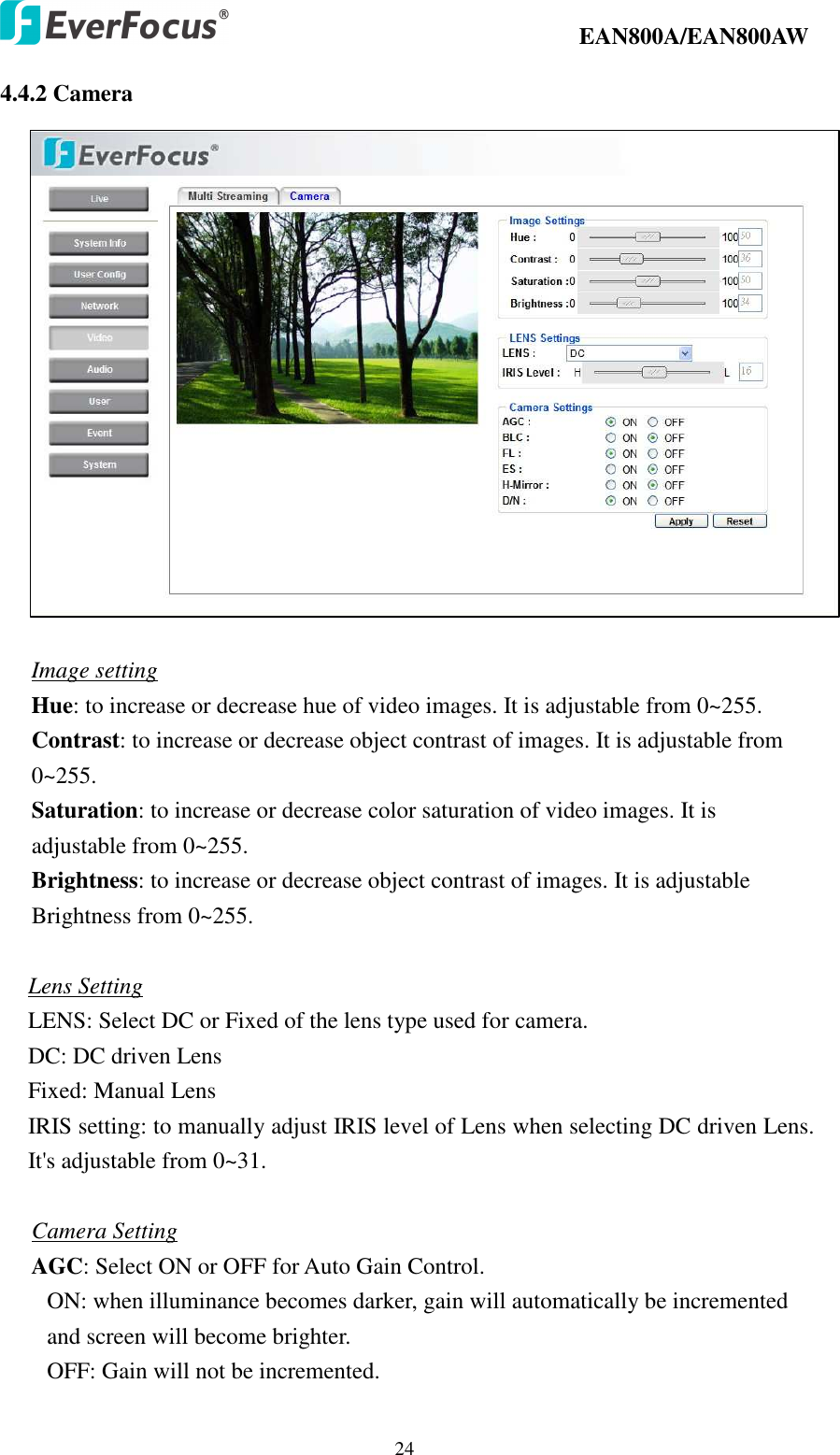

EAN800A/EAN800AW 24 4.4.2 Camera Image setting Hue: to increase or decrease hue of video images. It is adjustable from 0~255. Contrast: to increase or decrease object contrast of images. It is adjustable from 0~255. Saturation: to increase or decrease color saturation of video images. It is adjustable from 0~255. Brightness: to increase or decrease object contrast of images. It is adjustable Brightness from 0~255. Lens Setting LENS: Select DC or Fixed of the lens type used for camera. DC: DC driven Lens Fixed: Manual Lens IRIS setting: to manually adjust IRIS level of Lens when selecting DC driven Lens. It's adjustable from 0~31. Camera Setting AGC: Select ON or OFF for Auto Gain Control. ON: when illuminance becomes darker, gain will automatically be incremented and screen will become brighter. OFF: Gain will not be incremented.

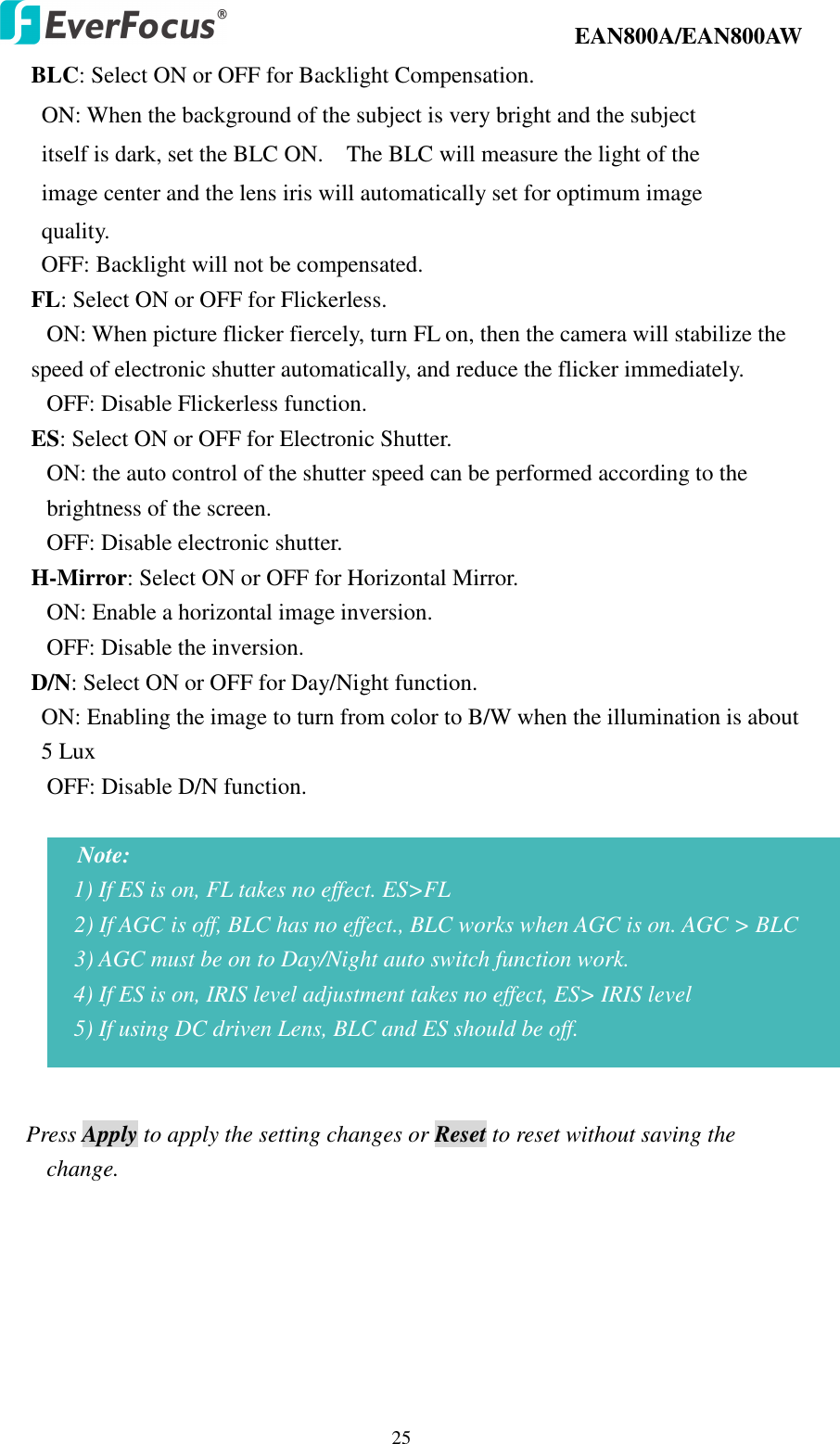

EAN800A/EAN800AW 25 BLC: Select ON or OFF for Backlight Compensation. ON: When the background of the subject is very bright and the subject itself is dark, set the BLC ON. The BLC will measure the light of the image center and the lens iris will automatically set for optimum image quality. OFF: Backlight will not be compensated. FL: Select ON or OFF for Flickerless. ON: When picture flicker fiercely, turn FL on, then the camera will stabilize the speed of electronic shutter automatically, and reduce the flicker immediately. OFF: Disable Flickerless function. ES: Select ON or OFF for Electronic Shutter. ON: the auto control of the shutter speed can be performed according to the brightness of the screen. OFF: Disable electronic shutter. H-Mirror: Select ON or OFF for Horizontal Mirror. ON: Enable a horizontal image inversion. OFF: Disable the inversion. D/N: Select ON or OFF for Day/Night function. ON: Enabling the image to turn from color to B/W when the illumination is about 5 Lux OFF: Disable D/N function. Press Apply to apply the setting changes or Reset to reset without saving the change. Note: 1) If ES is on, FL takes no effect. ES>FL 2) If AGC is off, BLC has no effect., BLC works when AGC is on. AGC > BLC 3) AGC must be on to Day/Night auto switch function work. 4) If ES is on, IRIS level adjustment takes no effect, ES> IRIS level 5) If using DC driven Lens, BLC and ES should be off.

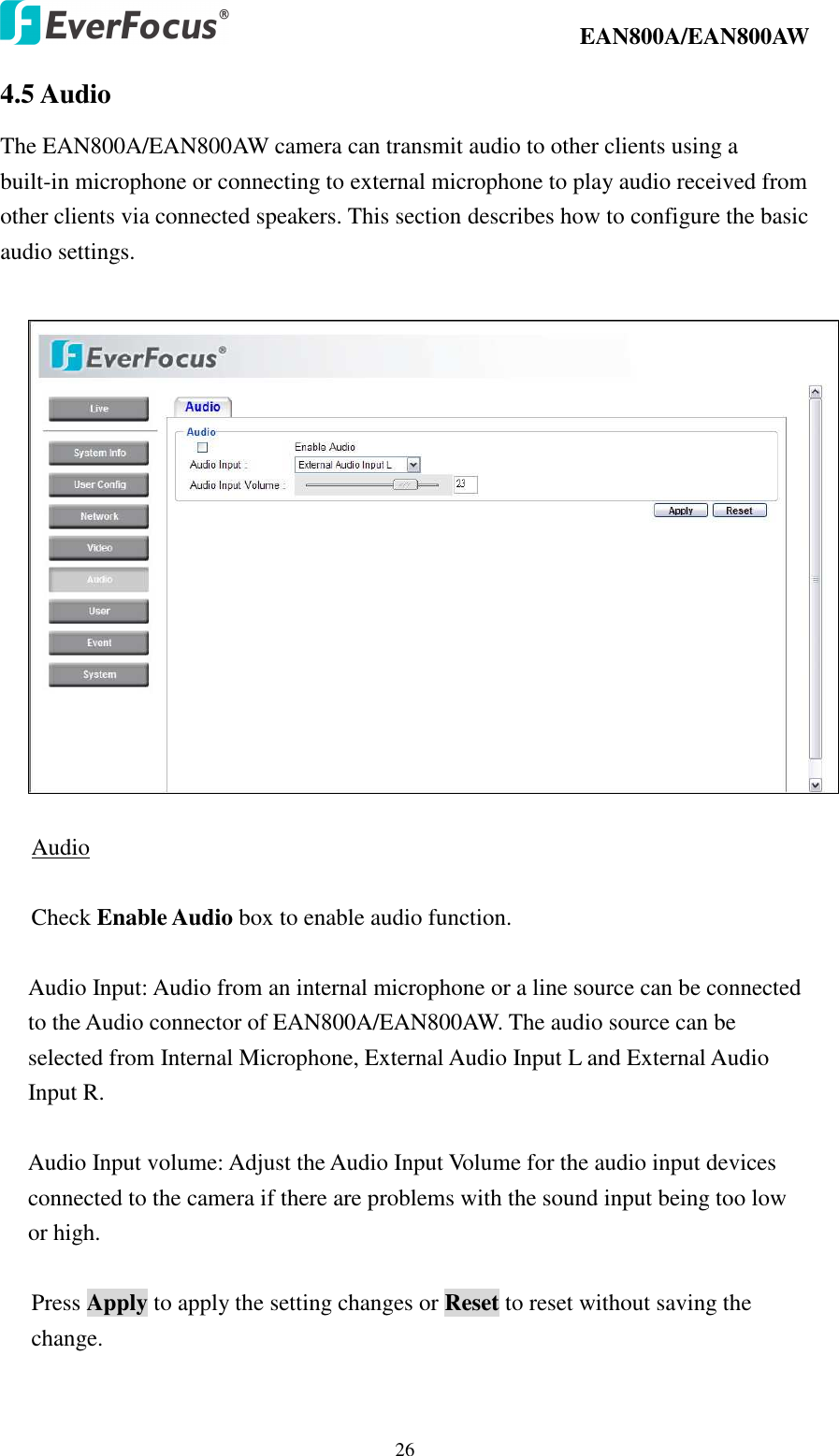

EAN800A/EAN800AW 26 4.5 Audio The EAN800A/EAN800AW camera can transmit audio to other clients using a built-in microphone or connecting to external microphone to play audio received from other clients via connected speakers. This section describes how to configure the basic audio settings. Audio Check Enable Audio box to enable audio function. Audio Input: Audio from an internal microphone or a line source can be connected to the Audio connector of EAN800A/EAN800AW. The audio source can be selected from Internal Microphone, External Audio Input L and External Audio Input R. Audio Input volume: Adjust the Audio Input Volume for the audio input devices connected to the camera if there are problems with the sound input being too low or high. Press Apply to apply the setting changes or Reset to reset without saving the change.

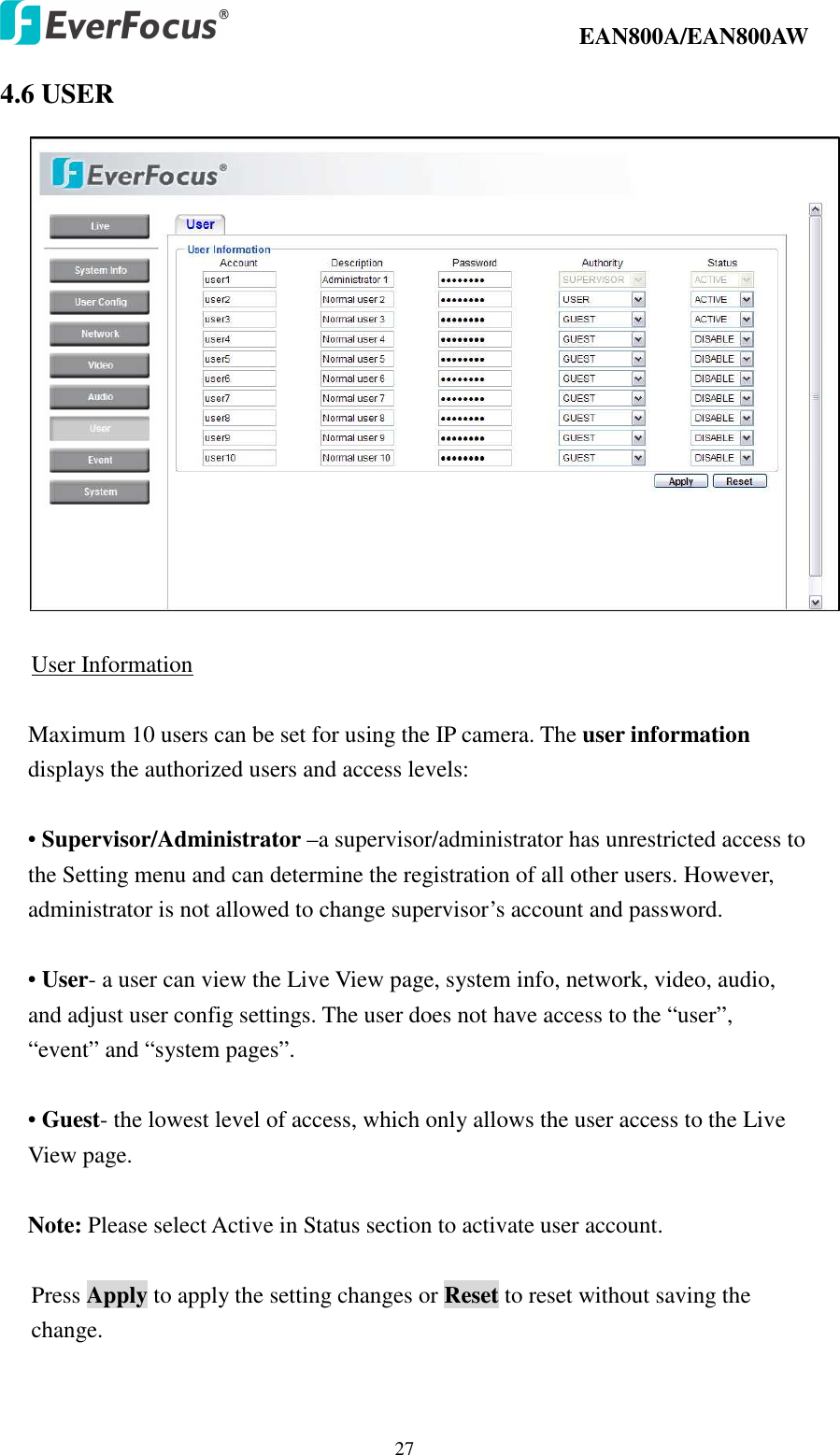

EAN800A/EAN800AW 27 4.6 USER User Information Maximum 10 users can be set for using the IP camera. The user information displays the authorized users and access levels: • Supervisor/Administrator –a supervisor/administrator has unrestricted access to the Setting menu and can determine the registration of all other users. However, administrator is not allowed to change supervisor’s account and password. • User- a user can view the Live View page, system info, network, video, audio, and adjust user config settings. The user does not have access to the “user”, “event” and “system pages”. • Guest- the lowest level of access, which only allows the user access to the Live View page. Note: Please select Active in Status section to activate user account. Press Apply to apply the setting changes or Reset to reset without saving the change.

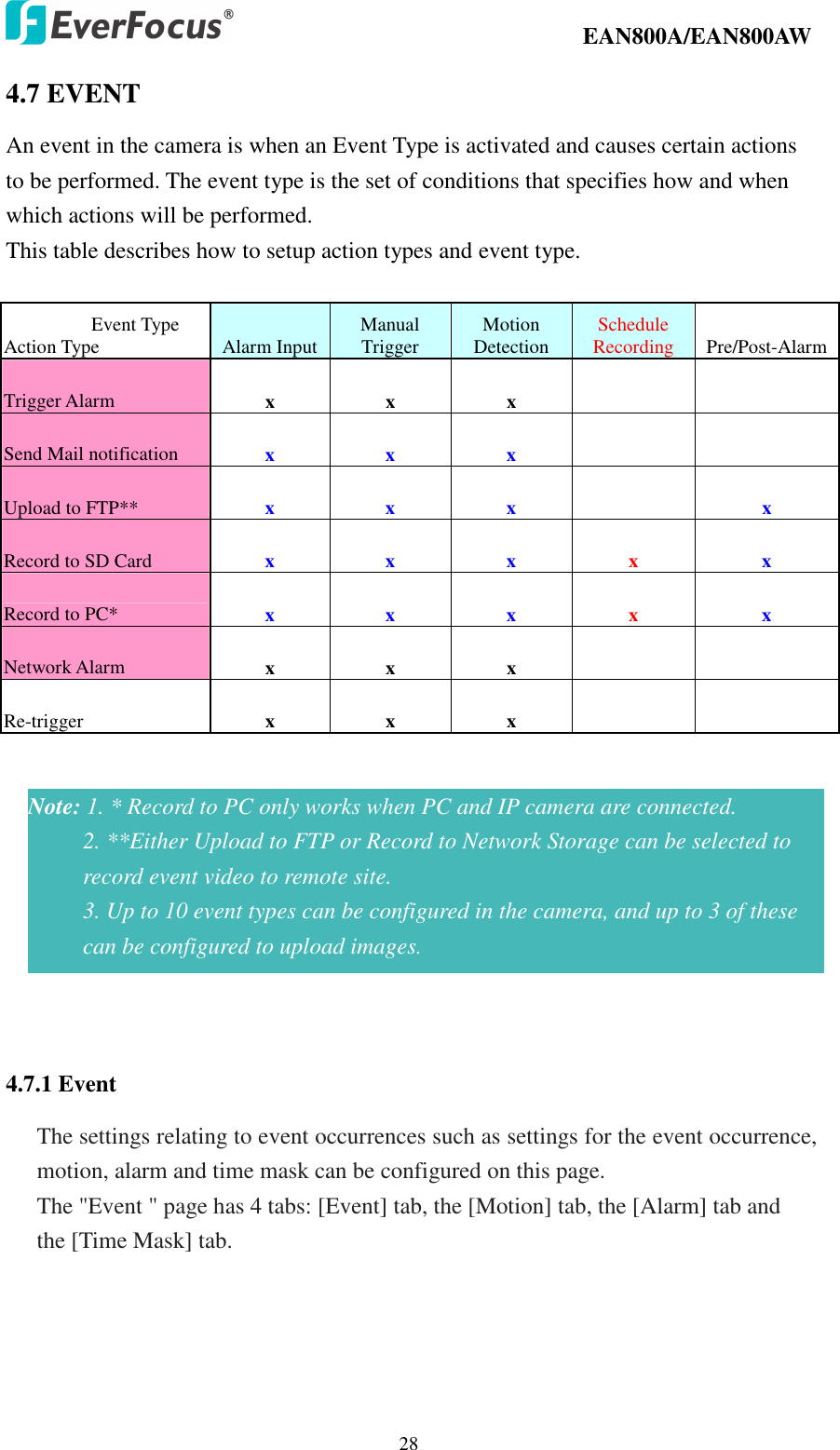

EAN800A/EAN800AW 28 4.7 EVENT An event in the camera is when an Event Type is activated and causes certain actions to be performed. The event type is the set of conditions that specifies how and when which actions will be performed. This table describes how to setup action types and event type. Event Type Action Type Alarm Input Manual Trigger Motion Detection Schedule Recording Pre/Post-Alarm Trigger Alarm x x x Send Mail notification x x x Upload to FTP** x x x x Record to SD Card x x x x x Record to PC* x x x x x Network Alarm x x x Re-trigger x x x 4.7.1 Event The settings relating to event occurrences such as settings for the event occurrence, motion, alarm and time mask can be configured on this page. The "Event " page has 4 tabs: [Event] tab, the [Motion] tab, the [Alarm] tab and the [Time Mask] tab. Note: 1. * Record to PC only works when PC and IP camera are connected. 2. **Either Upload to FTP or Record to Network Storage can be selected to record event video to remote site. 3. Up to 10 event types can be configured in the camera, and up to 3 of these can be configured to upload images.

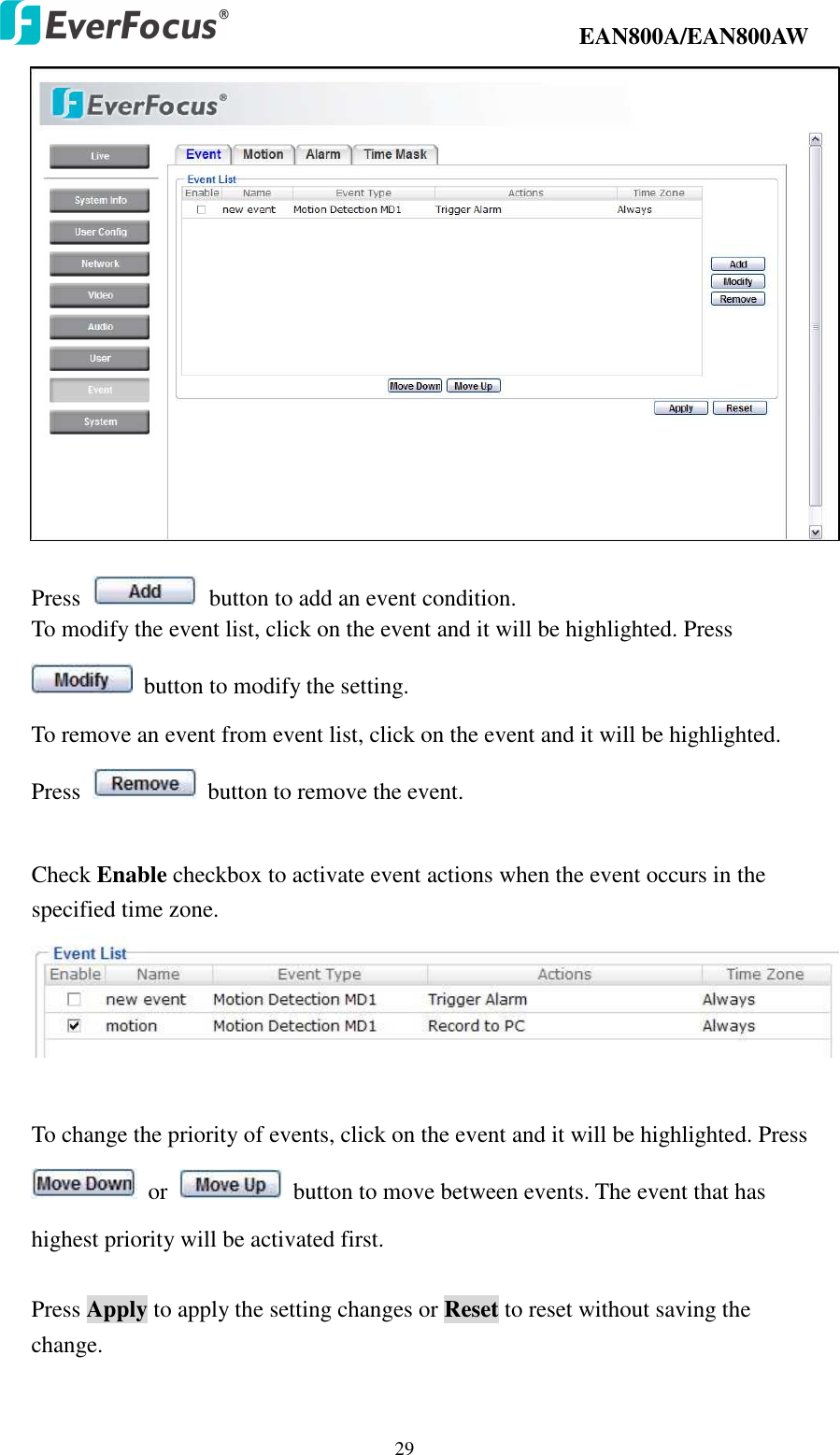

EAN800A/EAN800AW 29 Press button to add an event condition. To modify the event list, click on the event and it will be highlighted. Press button to modify the setting. To remove an event from event list, click on the event and it will be highlighted. Press button to remove the event. Check Enable checkbox to activate event actions when the event occurs in the specified time zone. To change the priority of events, click on the event and it will be highlighted. Press or button to move between events. The event that has highest priority will be activated first. Press Apply to apply the setting changes or Reset to reset without saving the change.

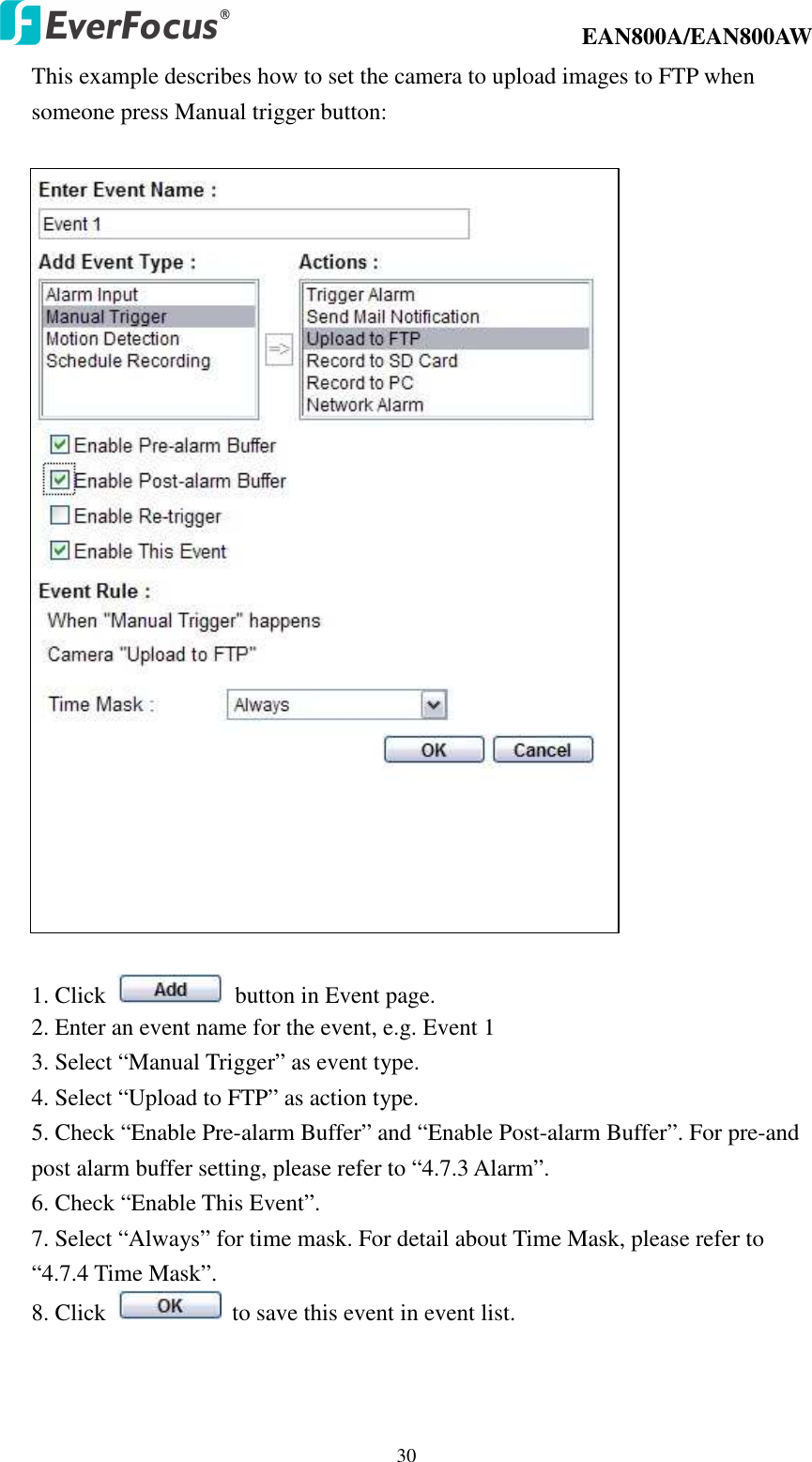

EAN800A/EAN800AW 30 This example describes how to set the camera to upload images to FTP when someone press Manual trigger button: 1. Click button in Event page. 2. Enter an event name for the event, e.g. Event 1 3. Select “Manual Trigger” as event type. 4. Select “Upload to FTP” as action type. 5. Check “Enable Pre-alarm Buffer” and “Enable Post-alarm Buffer”. For pre-and post alarm buffer setting, please refer to “4.7.3 Alarm”. 6. Check “Enable This Event”. 7. Select “Always” for time mask. For detail about Time Mask, please refer to “4.7.4 Time Mask”. 8. Click to save this event in event list.

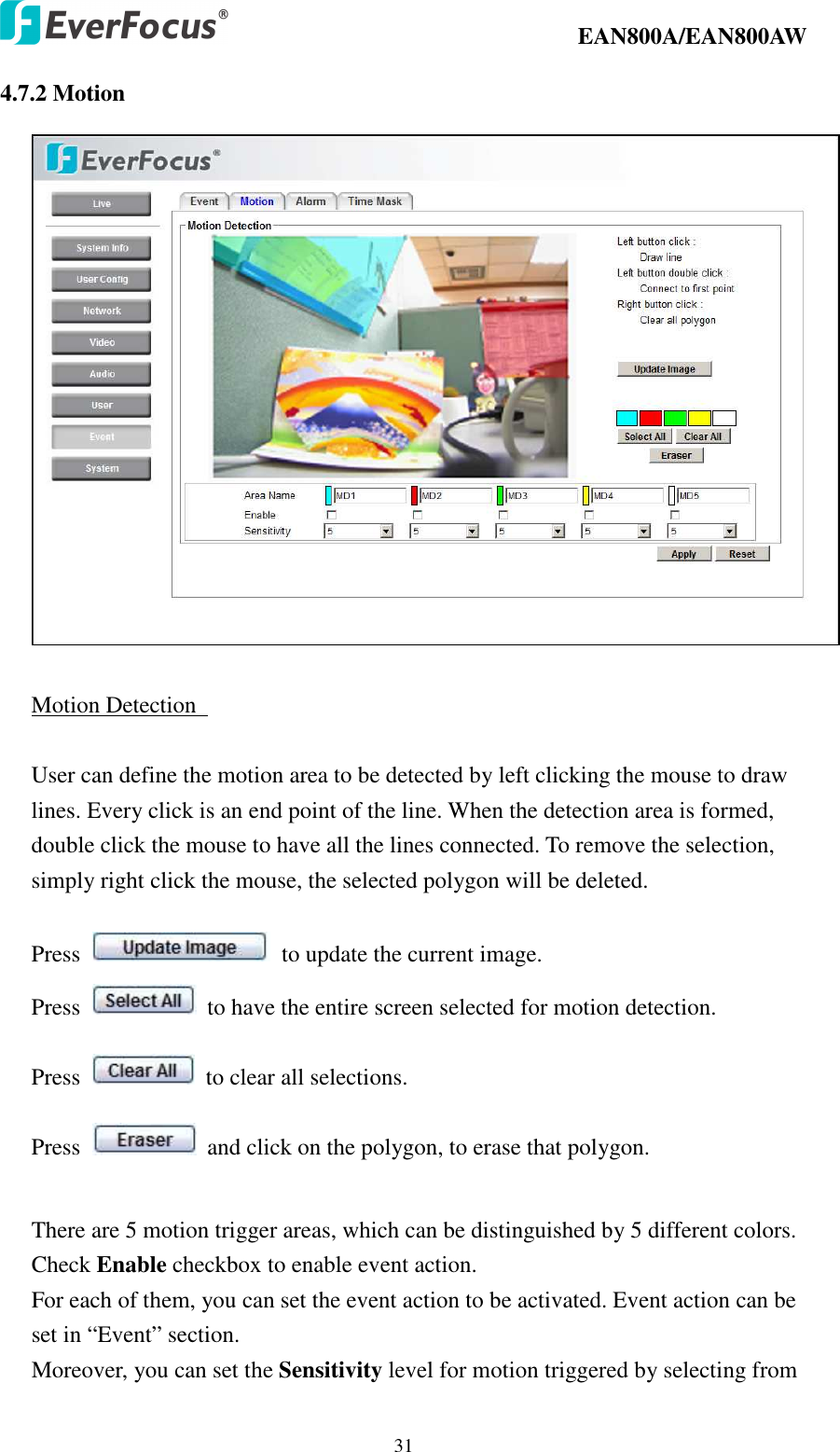

EAN800A/EAN800AW 31 4.7.2 Motion Motion Detection User can define the motion area to be detected by left clicking the mouse to draw lines. Every click is an end point of the line. When the detection area is formed, double click the mouse to have all the lines connected. To remove the selection, simply right click the mouse, the selected polygon will be deleted. Press to update the current image. Press to have the entire screen selected for motion detection. Press to clear all selections. Press and click on the polygon, to erase that polygon. There are 5 motion trigger areas, which can be distinguished by 5 different colors. Check Enable checkbox to enable event action. For each of them, you can set the event action to be activated. Event action can be set in “Event” section. Moreover, you can set the Sensitivity level for motion triggered by selecting from

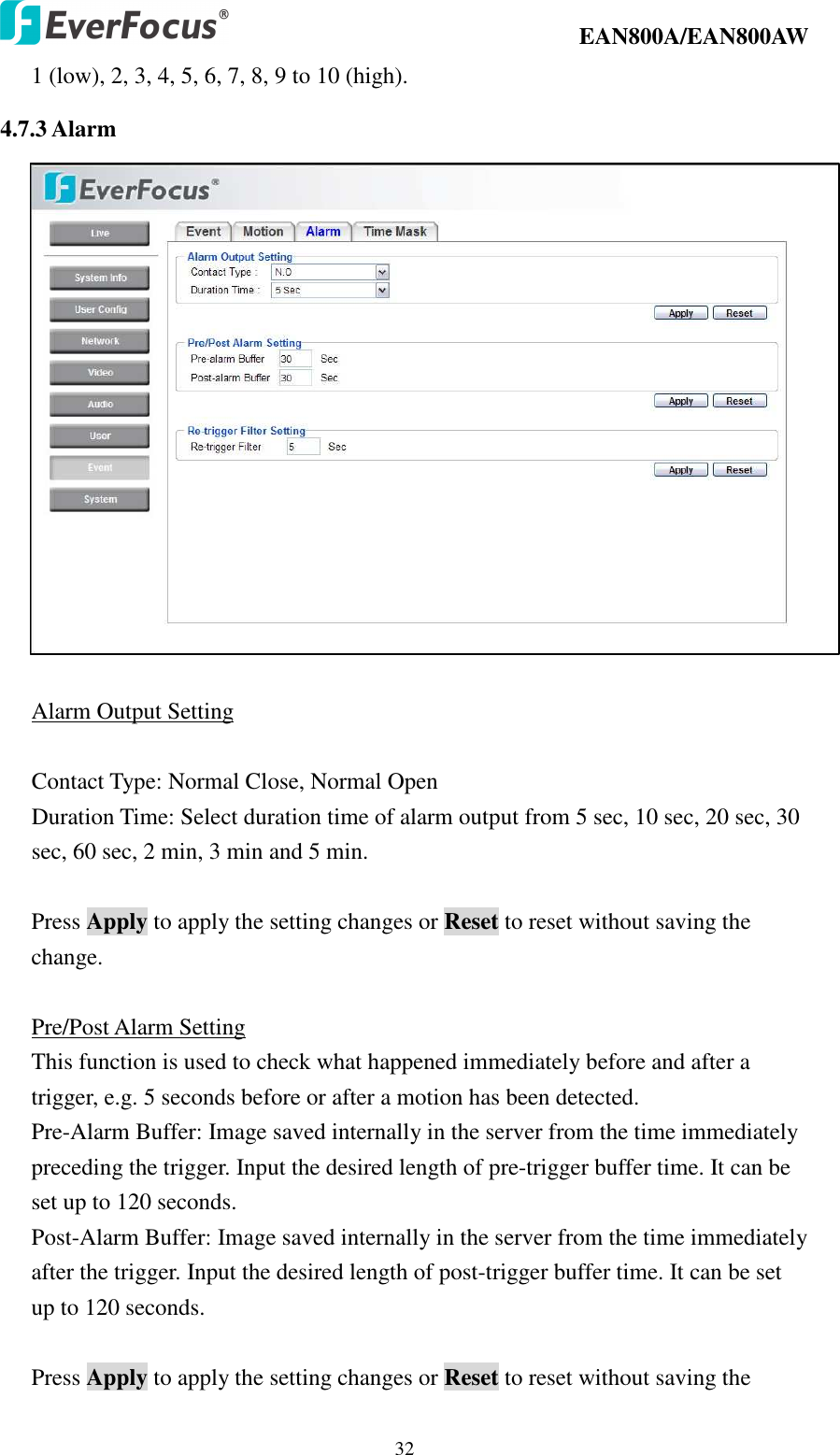

EAN800A/EAN800AW 32 1 (low), 2, 3, 4, 5, 6, 7, 8, 9 to 10 (high). 4.7.3 Alarm Alarm Output Setting Contact Type: Normal Close, Normal Open Duration Time: Select duration time of alarm output from 5 sec, 10 sec, 20 sec, 30 sec, 60 sec, 2 min, 3 min and 5 min. Press Apply to apply the setting changes or Reset to reset without saving the change. Pre/Post Alarm Setting This function is used to check what happened immediately before and after a trigger, e.g. 5 seconds before or after a motion has been detected. Pre-Alarm Buffer: Image saved internally in the server from the time immediately preceding the trigger. Input the desired length of pre-trigger buffer time. It can be set up to 120 seconds. Post-Alarm Buffer: Image saved internally in the server from the time immediately after the trigger. Input the desired length of post-trigger buffer time. It can be set up to 120 seconds. Press Apply to apply the setting changes or Reset to reset without saving the

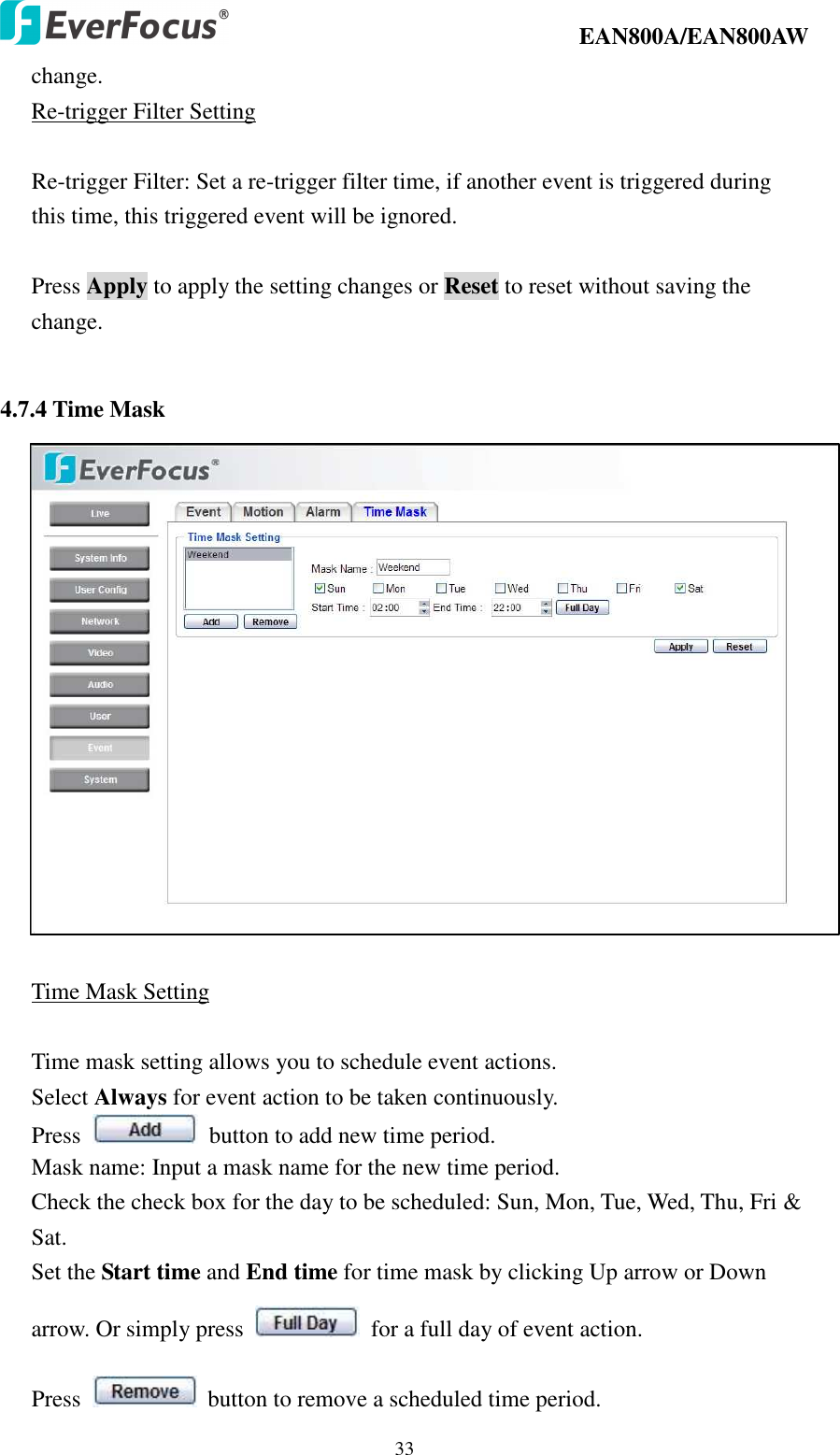

EAN800A/EAN800AW 33 change. Re-trigger Filter Setting Re-trigger Filter: Set a re-trigger filter time, if another event is triggered during this time, this triggered event will be ignored. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.7.4 Time Mask Time Mask Setting Time mask setting allows you to schedule event actions. Select Always for event action to be taken continuously. Press button to add new time period. Mask name: Input a mask name for the new time period. Check the check box for the day to be scheduled: Sun, Mon, Tue, Wed, Thu, Fri & Sat. Set the Start time and End time for time mask by clicking Up arrow or Down arrow. Or simply press for a full day of event action. Press button to remove a scheduled time period.

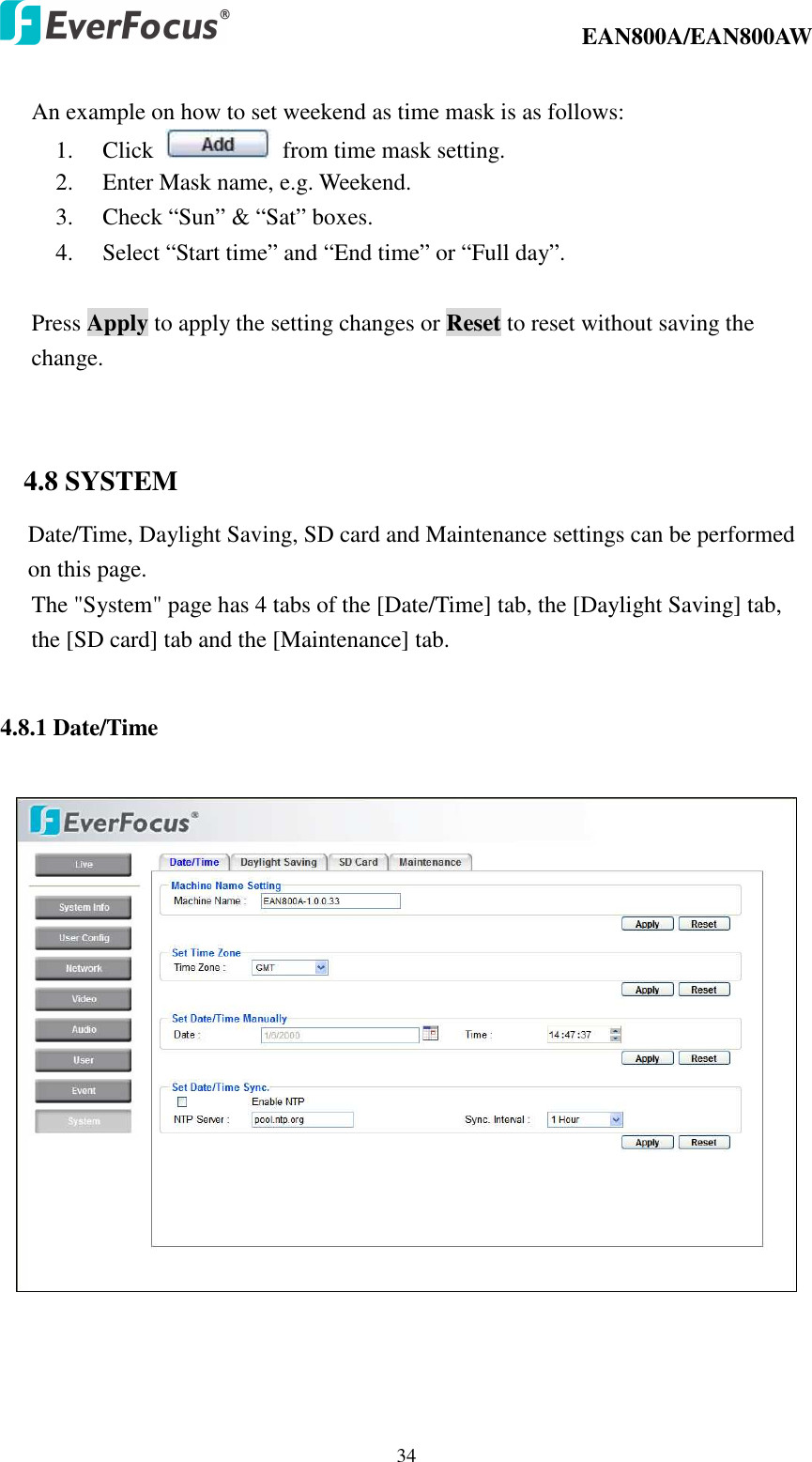

EAN800A/EAN800AW 34 An example on how to set weekend as time mask is as follows: 1. Click from time mask setting. 2. Enter Mask name, e.g. Weekend. 3. Check “Sun” & “Sat” boxes. 4. Select “Start time” and “End time” or “Full day”. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.8 SYSTEM Date/Time, Daylight Saving, SD card and Maintenance settings can be performed on this page. The "System" page has 4 tabs of the [Date/Time] tab, the [Daylight Saving] tab, the [SD card] tab and the [Maintenance] tab. 4.8.1 Date/Time

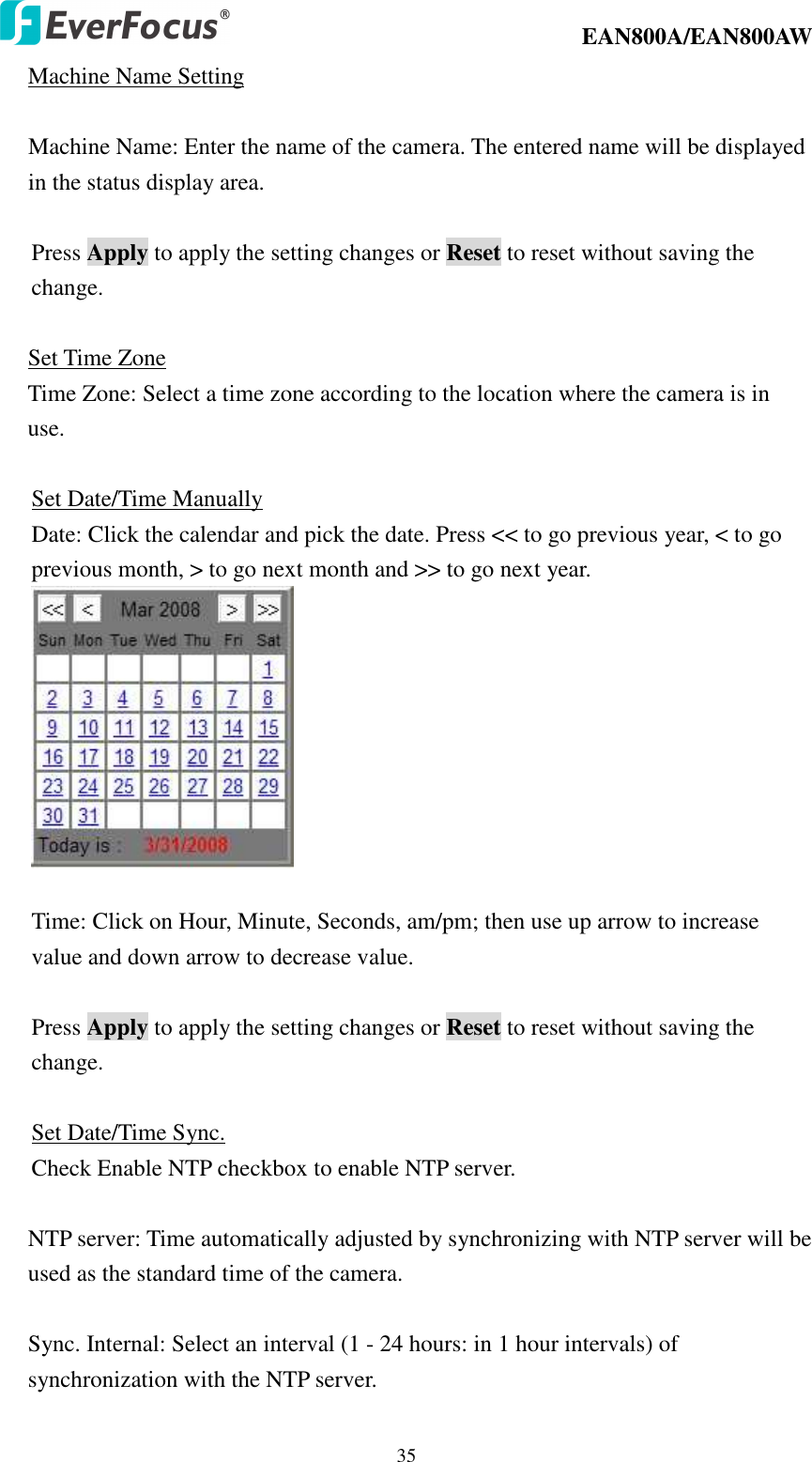

EAN800A/EAN800AW 35 Machine Name Setting Machine Name: Enter the name of the camera. The entered name will be displayed in the status display area. Press Apply to apply the setting changes or Reset to reset without saving the change. Set Time Zone Time Zone: Select a time zone according to the location where the camera is in use. Set Date/Time Manually Date: Click the calendar and pick the date. Press << to go previous year, < to go previous month, > to go next month and >> to go next year. Time: Click on Hour, Minute, Seconds, am/pm; then use up arrow to increase value and down arrow to decrease value. Press Apply to apply the setting changes or Reset to reset without saving the change. Set Date/Time Sync. Check Enable NTP checkbox to enable NTP server. NTP server: Time automatically adjusted by synchronizing with NTP server will be used as the standard time of the camera. Sync. Internal: Select an interval (1 - 24 hours: in 1 hour intervals) of synchronization with the NTP server.

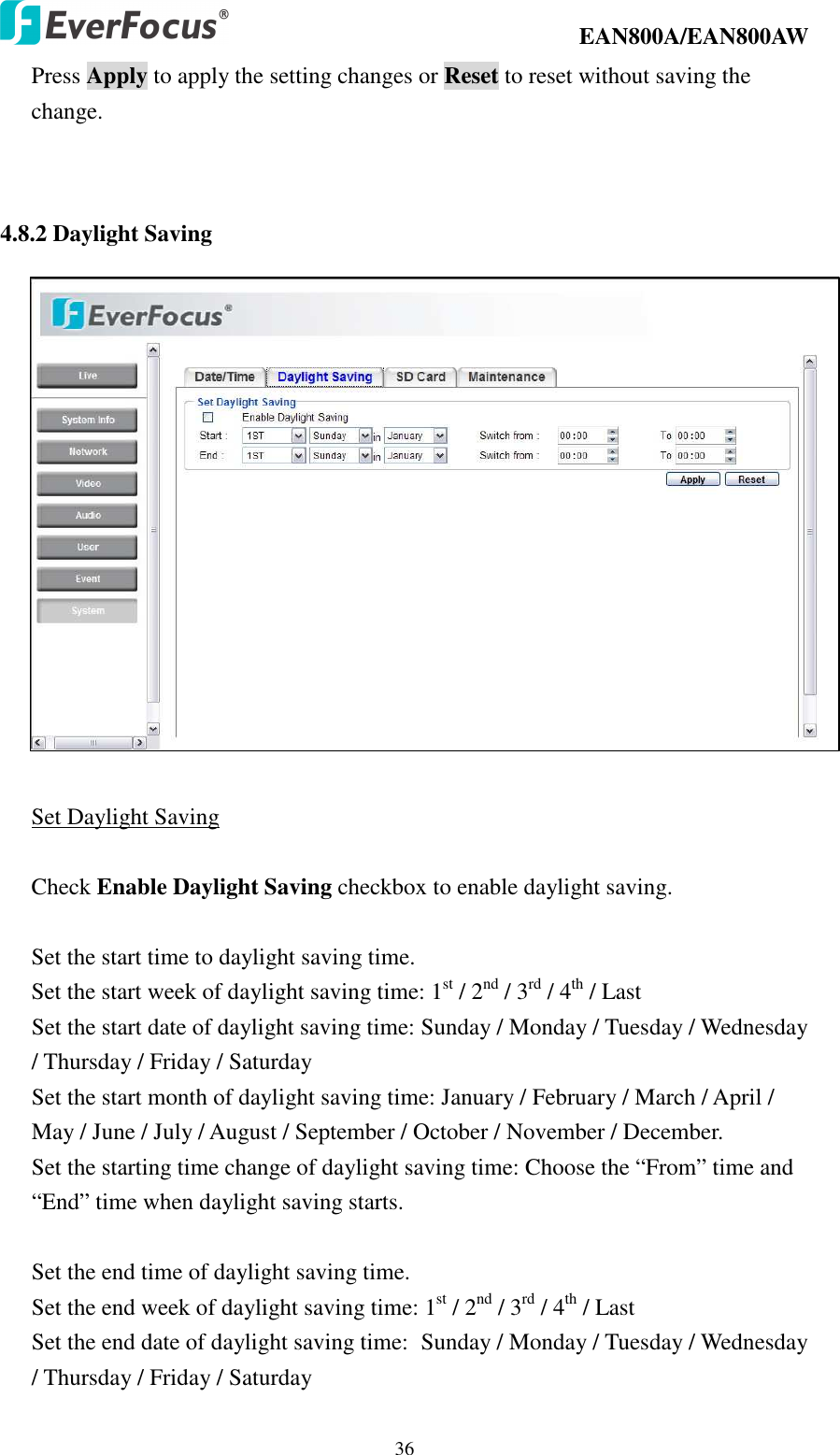

EAN800A/EAN800AW 36 Press Apply to apply the setting changes or Reset to reset without saving the change. 4.8.2 Daylight Saving Set Daylight Saving Check Enable Daylight Saving checkbox to enable daylight saving. Set the start time to daylight saving time. Set the start week of daylight saving time: 1st / 2nd / 3rd / 4th / Last Set the start date of daylight saving time: Sunday / Monday / Tuesday / Wednesday / Thursday / Friday / Saturday Set the start month of daylight saving time: January / February / March / April / May / June / July / August / September / October / November / December. Set the starting time change of daylight saving time: Choose the “From” time and “End” time when daylight saving starts. Set the end time of daylight saving time. Set the end week of daylight saving time: 1st / 2nd / 3rd / 4th / Last Set the end date of daylight saving time: Sunday / Monday / Tuesday / Wednesday / Thursday / Friday / Saturday

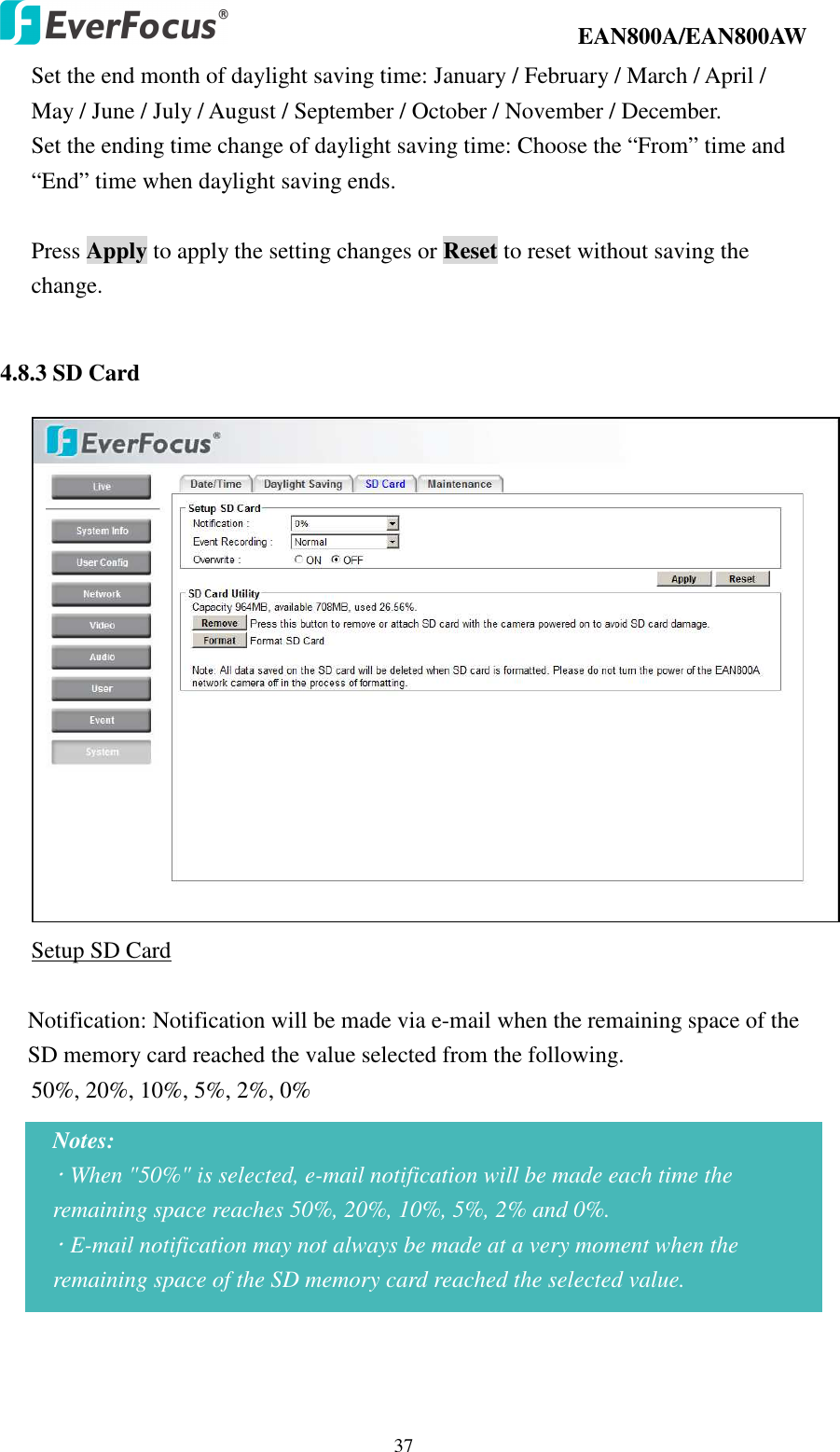

EAN800A/EAN800AW 37 Set the end month of daylight saving time: January / February / March / April / May / June / July / August / September / October / November / December. Set the ending time change of daylight saving time: Choose the “From” time and “End” time when daylight saving ends. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.8.3 SD Card Setup SD Card Notification: Notification will be made via e-mail when the remaining space of the SD memory card reached the value selected from the following. 50%, 20%, 10%, 5%, 2%, 0% Notes: ‧ When "50%" is selected, e-mail notification will be made each time the remaining space reaches 50%, 20%, 10%, 5%, 2% and 0%. ‧ E-mail notification may not always be made at a very moment when the remaining space of the SD memory card reached the selected value.

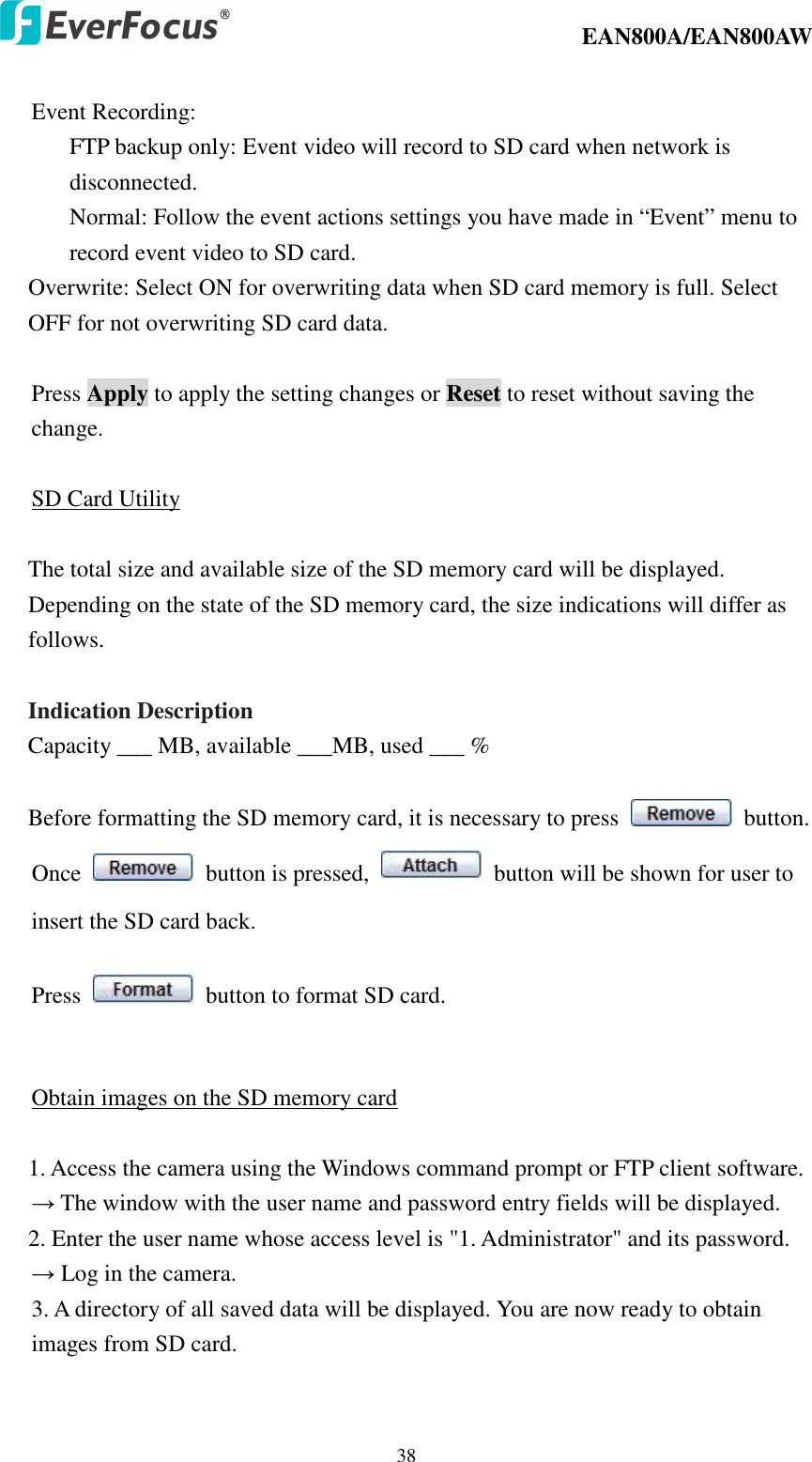

EAN800A/EAN800AW 38 Event Recording: FTP backup only: Event video will record to SD card when network is disconnected. Normal: Follow the event actions settings you have made in “Event” menu to record event video to SD card. Overwrite: Select ON for overwriting data when SD card memory is full. Select OFF for not overwriting SD card data. Press Apply to apply the setting changes or Reset to reset without saving the change. SD Card Utility The total size and available size of the SD memory card will be displayed. Depending on the state of the SD memory card, the size indications will differ as follows. Indication Description Capacity ___ MB, available ___MB, used ___ % Before formatting the SD memory card, it is necessary to press button. Once button is pressed, button will be shown for user to insert the SD card back. Press button to format SD card. Obtain images on the SD memory card 1. Access the camera using the Windows command prompt or FTP client software. → The window with the user name and password entry fields will be displayed. 2. Enter the user name whose access level is "1. Administrator" and its password. → Log in the camera. 3. A directory of all saved data will be displayed. You are now ready to obtain images from SD card.

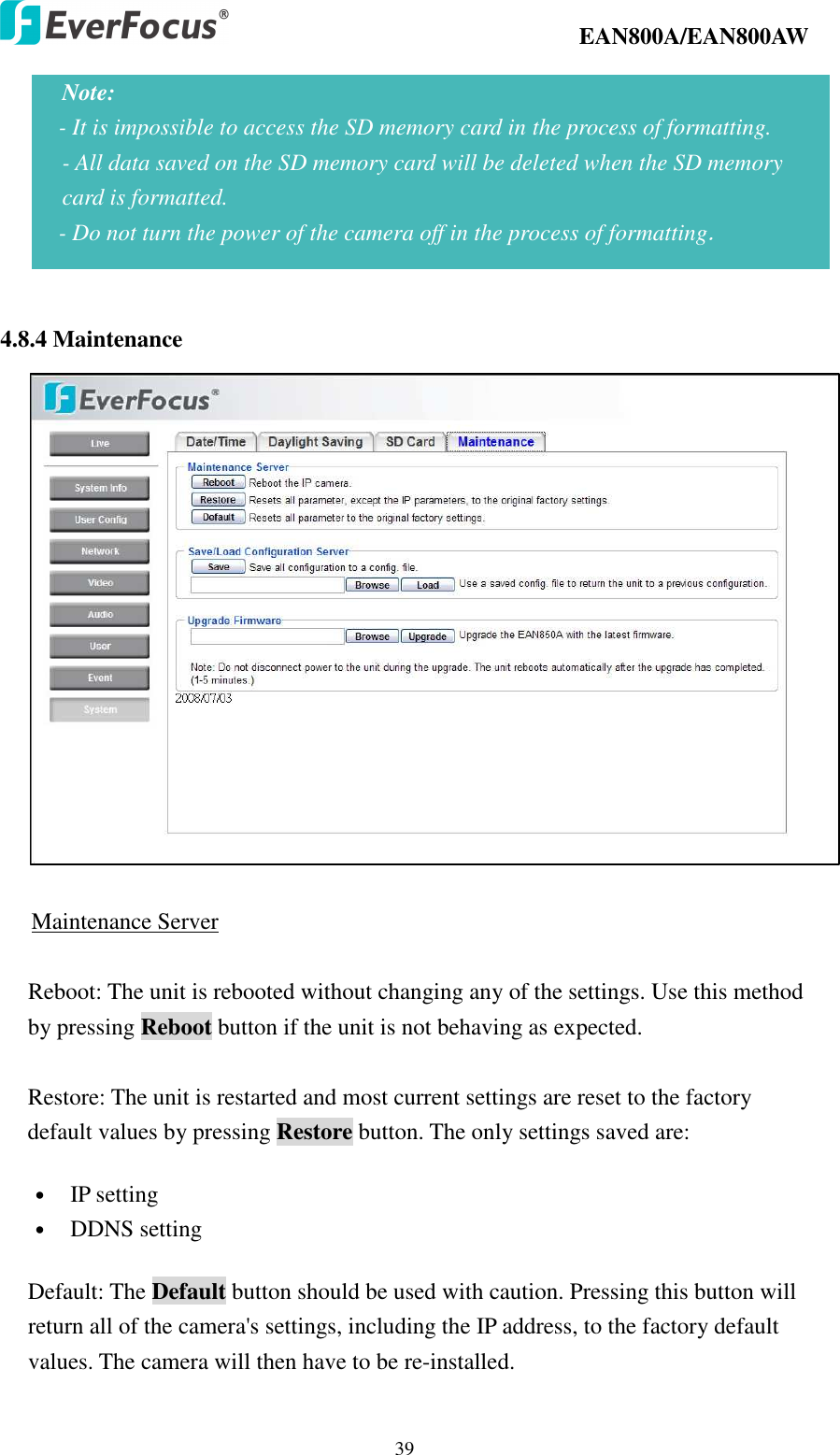

EAN800A/EAN800AW 39 4.8.4 Maintenance Maintenance Server Reboot: The unit is rebooted without changing any of the settings. Use this method by pressing Reboot button if the unit is not behaving as expected. Restore: The unit is restarted and most current settings are reset to the factory default values by pressing Restore button. The only settings saved are: • IP setting • DDNS setting Default: The Default button should be used with caution. Pressing this button will return all of the camera's settings, including the IP address, to the factory default values. The camera will then have to be re-installed. Note: - It is impossible to access the SD memory card in the process of formatting. - All data saved on the SD memory card will be deleted when the SD memory card is formatted. - Do not turn the power of the camera off in the process of formatting.

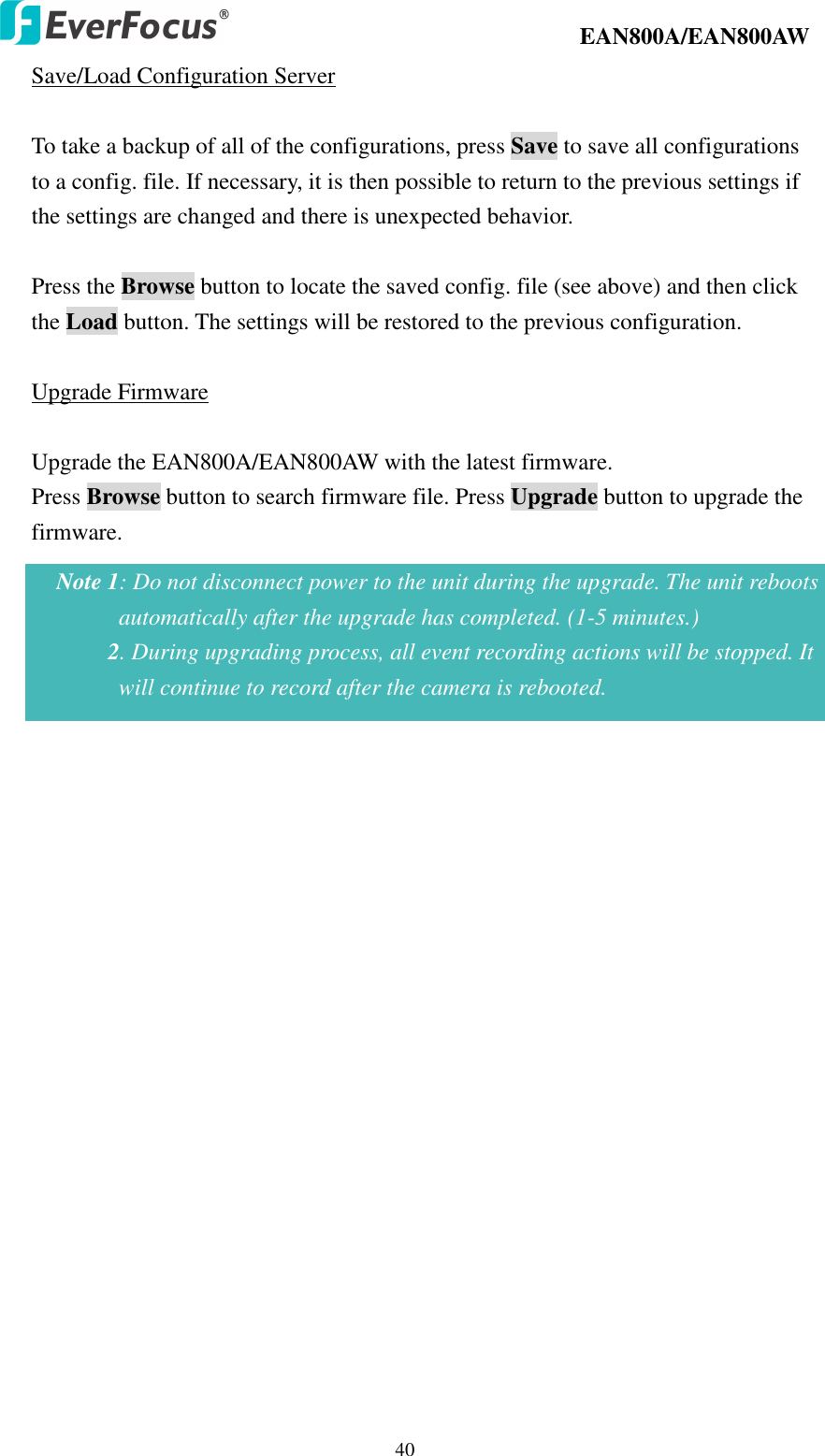

EAN800A/EAN800AW 40 Save/Load Configuration Server To take a backup of all of the configurations, press Save to save all configurations to a config. file. If necessary, it is then possible to return to the previous settings if the settings are changed and there is unexpected behavior. Press the Browse button to locate the saved config. file (see above) and then click the Load button. The settings will be restored to the previous configuration. Upgrade Firmware Upgrade the EAN800A/EAN800AW with the latest firmware. Press Browse button to search firmware file. Press Upgrade button to upgrade the firmware. Note 1: Do not disconnect power to the unit during the upgrade. The unit reboots automatically after the upgrade has completed. (1-5 minutes.) 2. During upgrading process, all event recording actions will be stopped. It will continue to record after the camera is rebooted.

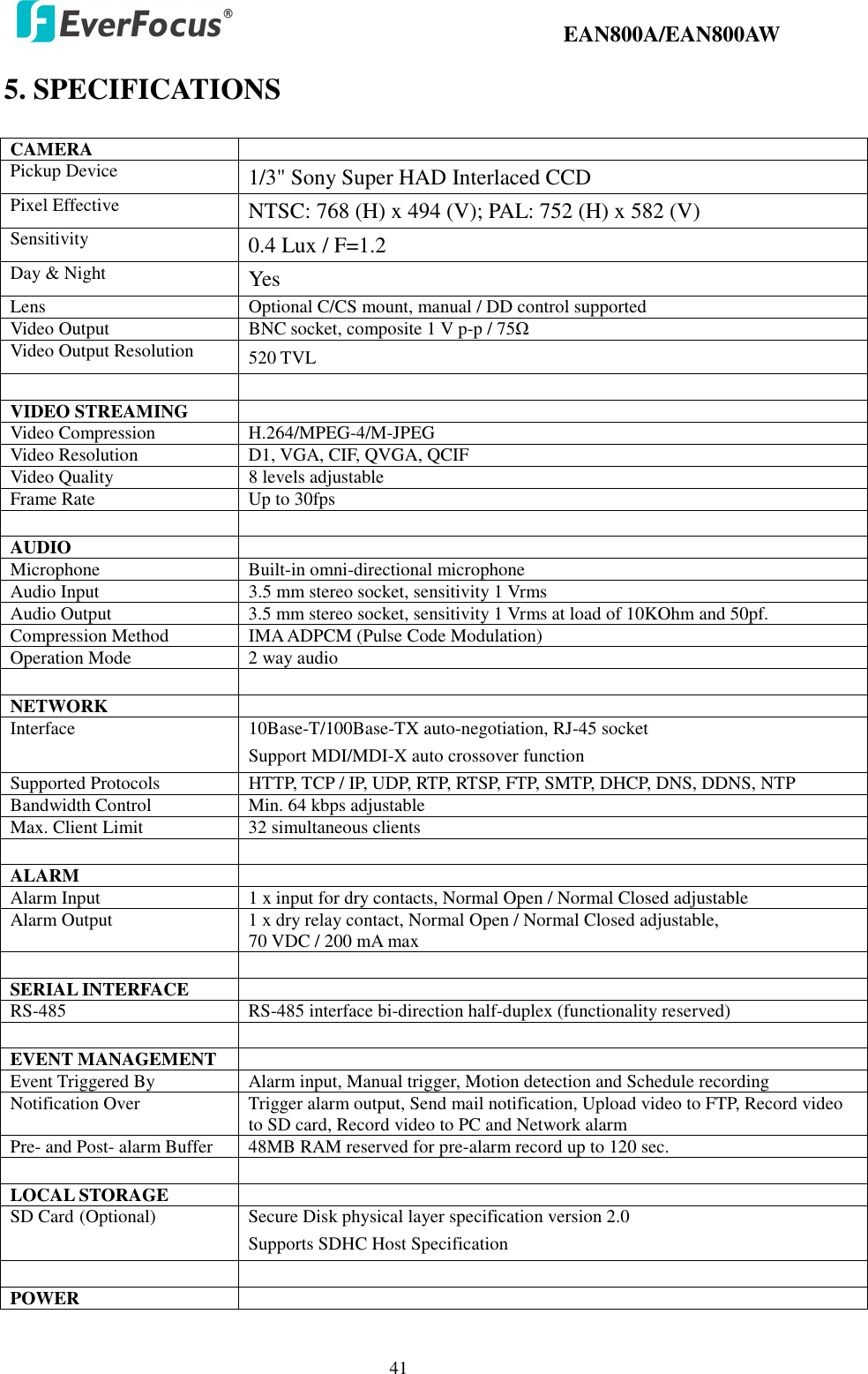

EAN800A/EAN800AW 41 5. SPECIFICATIONS CAMERA Pickup Device 1/3" Sony Super HAD Interlaced CCD Pixel Effective NTSC: 768 (H) x 494 (V); PAL: 752 (H) x 582 (V) Sensitivity 0.4 Lux / F=1.2 Day & Night Yes Lens Optional C/CS mount, manual / DD control supported Video Output BNC socket, composite 1 V p-p / 75Ω Video Output Resolution 520 TVL VIDEO STREAMING Video Compression H.264/MPEG-4/M-JPEG Video Resolution D1, VGA, CIF, QVGA, QCIF Video Quality 8 levels adjustable Frame Rate Up to 30fps AUDIO Microphone Built-in omni-directional microphone Audio Input 3.5 mm stereo socket, sensitivity 1 Vrms Audio Output 3.5 mm stereo socket, sensitivity 1 Vrms at load of 10KOhm and 50pf. Compression Method IMA ADPCM (Pulse Code Modulation) Operation Mode 2 way audio NETWORK Interface 10Base-T/100Base-TX auto-negotiation, RJ-45 socket Support MDI/MDI-X auto crossover function Supported Protocols HTTP, TCP / IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS, NTP Bandwidth Control Min. 64 kbps adjustable Max. Client Limit 32 simultaneous clients ALARM Alarm Input 1 x input for dry contacts, Normal Open / Normal Closed adjustable Alarm Output 1 x dry relay contact, Normal Open / Normal Closed adjustable, 70 VDC / 200 mA max SERIAL INTERFACE RS-485 RS-485 interface bi-direction half-duplex (functionality reserved) EVENT MANAGEMENT Event Triggered By Alarm input, Manual trigger, Motion detection and Schedule recording Notification Over Trigger alarm output, Send mail notification, Upload video to FTP, Record video to SD card, Record video to PC and Network alarm Pre- and Post- alarm Buffer 48MB RAM reserved for pre-alarm record up to 120 sec. LOCAL STORAGE SD Card (Optional) Secure Disk physical layer specification version 2.0 Supports SDHC Host Specification POWER

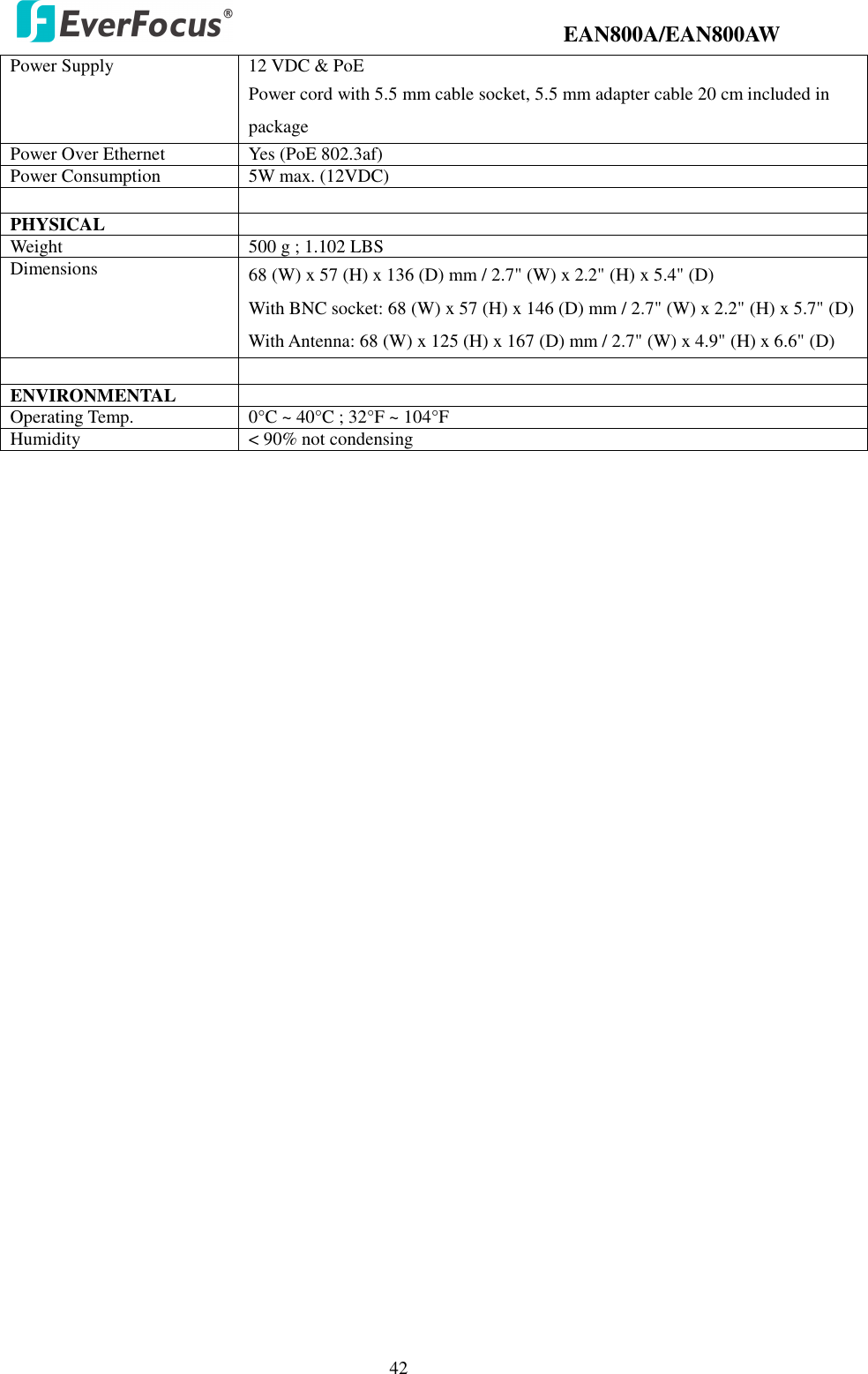

EAN800A/EAN800AW 42 Power Supply 12 VDC & PoE Power cord with 5.5 mm cable socket, 5.5 mm adapter cable 20 cm included in package Power Over Ethernet Yes (PoE 802.3af) Power Consumption 5W max. (12VDC) PHYSICAL Weight 500 g ; 1.102 LBS Dimensions 68 (W) x 57 (H) x 136 (D) mm / 2.7" (W) x 2.2" (H) x 5.4" (D) With BNC socket: 68 (W) x 57 (H) x 146 (D) mm / 2.7" (W) x 2.2" (H) x 5.7" (D) With Antenna: 68 (W) x 125 (H) x 167 (D) mm / 2.7" (W) x 4.9" (H) x 6.6" (D) ENVIRONMENTAL Operating Temp. 0°C ~ 40°C ; 32°F ~ 104°F Humidity < 90% not condensing
EAN800A/EAN800AW 43 China Office: Room B-05D-1, KESHI PLAZA, Shangdi Information Industry Base,Haidian District, Beijing China 100085 TEL: +86-10-62973336/37/38/39 FAX: +86-10-62971423 www.everfocus.com.cn Europe Office: Albert-Einstein-Strasse 1 D-46446 Emmerich, Germany TEL: 49-2822-9394-0 FAX: 49-2822-939495 www.everfocus.de Japan Office: 1809 WBG Maribu East 18F, 2-6 Nakase.Mihama-ku. Chiba city 261-7118, Japan TEL: 81-43-212-8188 FAX: 81-43-297-0081 www.everfocus.co.jp EverFocus ® Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in! Ihr EverFocus Produkt wurde entwickelt und hergestellt mit qualitativ hochwertigen Materialien und Komponenten, die recycelt und wieder verwendet werden können. Dieses Symbol bedeutet, dass elektrische und elektronische Geräte am Ende ihrer Nutzungsdauer vom Hausmüll getrennt entsorgt werden sollen. Bitte entsorgen Sie dieses Gerät bei Ihrer örtlichen kommunalen Sammelstelle oder im Recycling Centre. Helfen Sie uns bitte, die Umwelt zu erhalten, in der wir leben! EverFocus Electronics Corp. Head Office: 12F, No.79 Sec. 1 Shin-Tai Wu Road, Hsi-Chi, Taipei, Taiwan TEL: 886-2-26982334 FAX: 886-2-26982380 www.everfocus.com.tw USA Office: 1801 Highland Ave. Unit A Duarte, CA 91010, U.S.A. TEL: +1-626-844-8888 FAX: +1-626-844-8838 www.everfocus.com USA N.Y. Office: 415 Oser Avenue Unit S Hauppauge, NY 11788 Tel: 631-436-5070 FAX: 631-436-5027 www.everfocus.com
