www.everfocus.com
Solutions
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
103

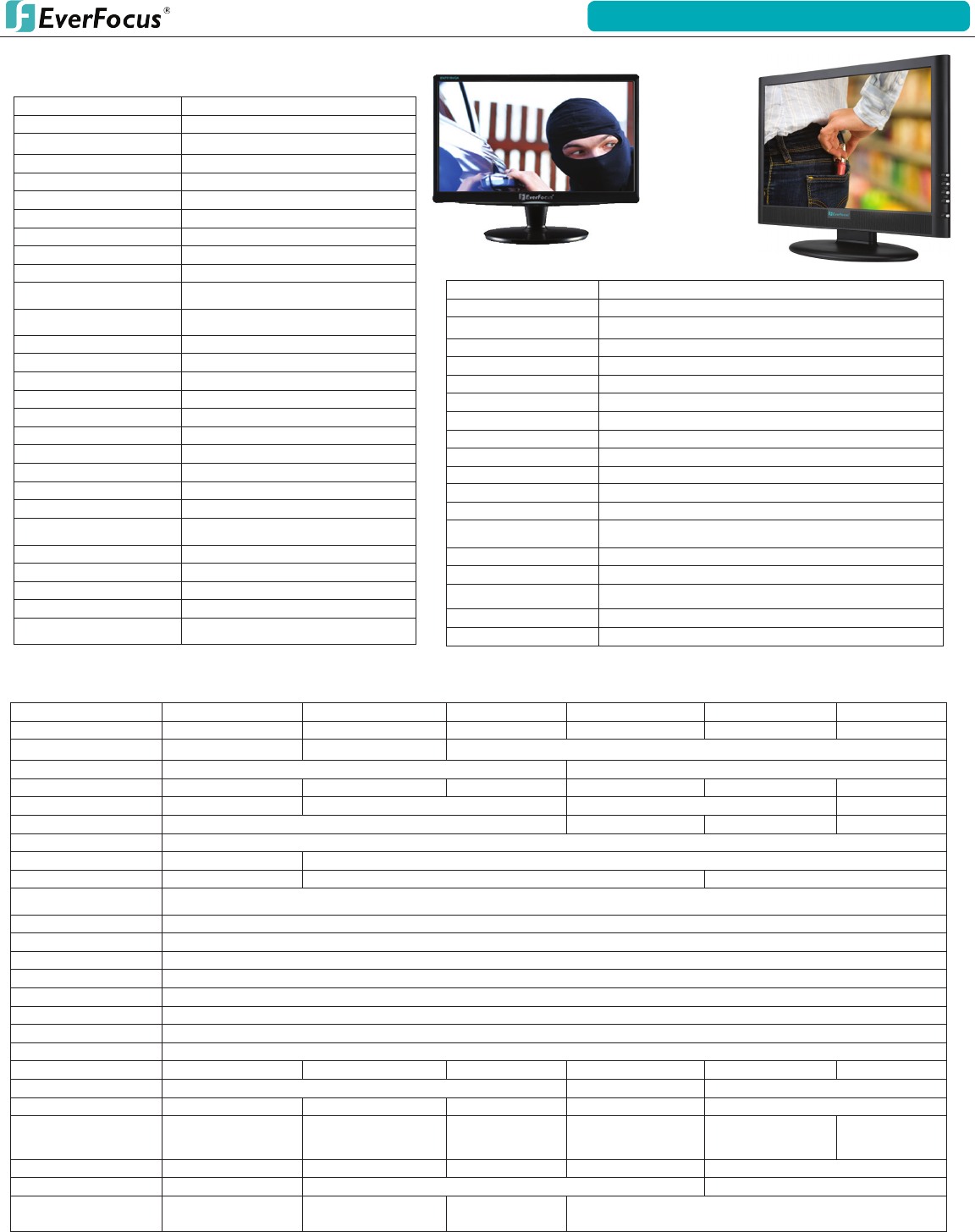

EN1080P Specications
Part Number EN1080P26A EN1080P32A EN1080P42A EN1080P55A EN1080P65A EN1080P70A
Monitor Size 26” 32” 42” 55” 65” 70”
Resolution 1366x768 1366 x 768 1920x1080
Viewing Line 600 lines (TVL) 800 lines (TVL)
Pixel Pitch 0.4215mm 0.51075mm 0.4845mm 0.6mm .66mm .73mm
Brightness ≥400 cd/m_ 400 cd/m_ 450 cd/m_ 700 cd/m_
Contrast Ratio 1000 : 1 1400: 1 1400 : 1 1450 : 1
Response Time 5ms
Viewing Angle H: 160°, V: 150° H: 178°, V: 178°
3D Comb Filter 3D digital comb lter Yes 3D digital comb lter
De-interlace &
Noise Reduction Yes
OSD Portuguese, English, Spanish, French, German, Italian, and Russian
Display Colors 16.7 million
Speakers 2 each (10 watts)
Video Inputs BNC (2), VGA (1), S-Video (1), HDMI (1)
Video Outputs 2 BNC
Audio Inputs 2 Inputs
Audio Outputs 2 outputs
Mount Capability VESA Standard
Power Consumption ≤140W <170 W <260 W <400 W ≤500W ≤800W
Power Source AC100-240V AC110-240V AC100-240V
Dimensions (L x W x H) 440 x 370 x 75mm 38.2” x 11.8” x 26” 44.1” x 11.8” x 30.7” 58.7” x 11.8” x 37.8” n/a
Dimensions (L x W x H)
Without Stand 659 x 408 x 102mm 782 x 479 x 112mm 1017 x 608 x 115mm 1323 x 794 x 129mm 1540 x 915.92 x
133.3mm
1633.4 x 967.4 x
187.5mm
Weight 10kg 55.1 lbs. 77.2 lbs. 121.3 lbs.
Operating Temp 0°C~40° 0°C - 40°C/ 41°F - 104° F 0°C~40°
Certications FCC, CB, CE, ROHS Energy Star, FCC-DOC,
CE, RoHS
FCC, CB, CE,
ROHS ROHS

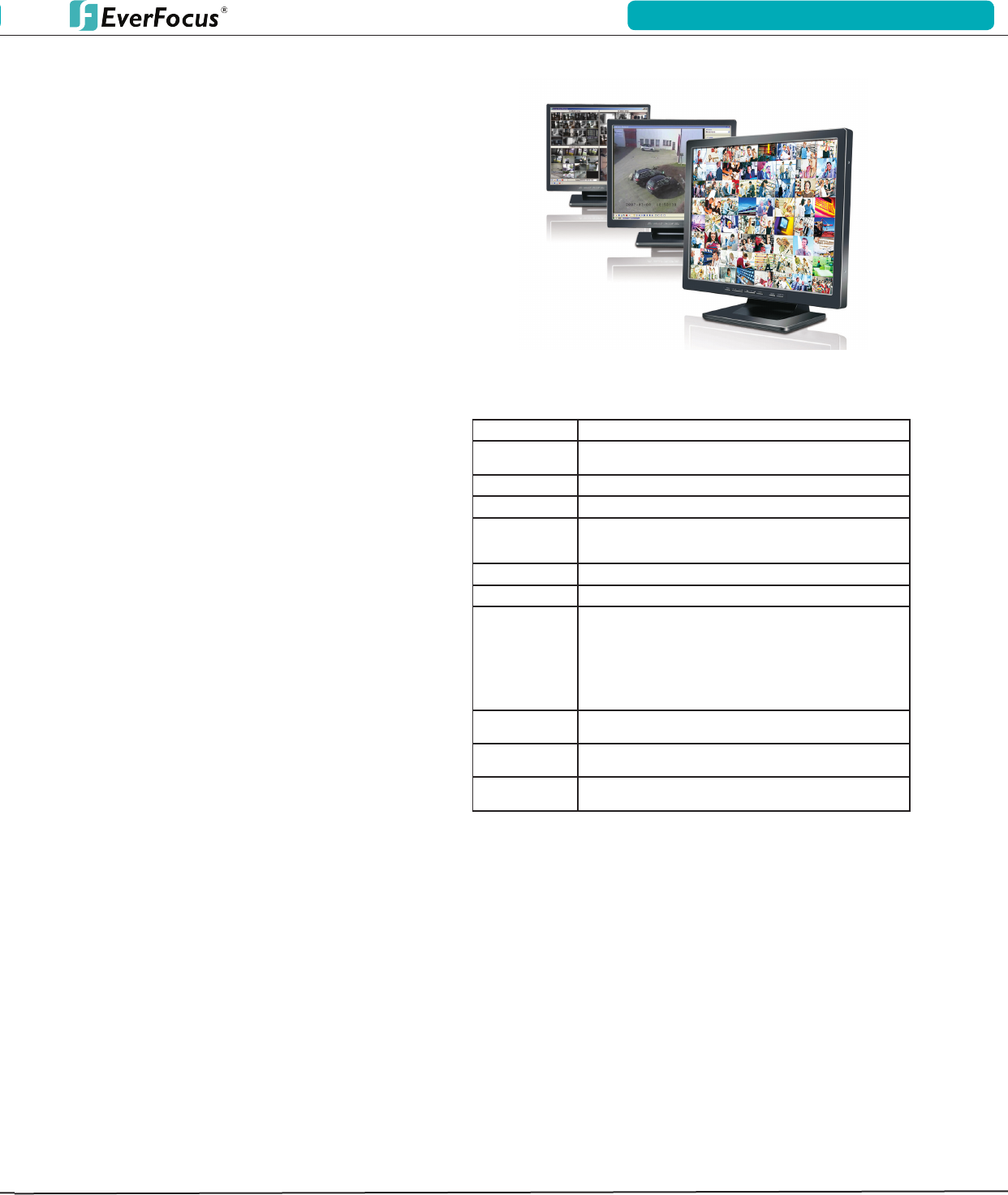

Specications
Part Number EN7519VGA
Monitor Size 19”
Resolution WXGA+ 1366x768
Pixel Pitch 0.3 (H) x 0.3 (V) mm
Brightness 250 cd/m_
Contrast Ratio 1000 : 1
Response Time 5ms
Viewing Angle H: 160°, V: 160°
Display Colors 16.7 million
Speakers Built-in, 1.5W x 2
Mount Capability VESA Standard, 100mm
Power Consumption 28W (On), 1W (standby), 0.5W (Off)
Power Source AC 100-240V, 50-60Hz
Dimensions (L x W
x H) 17.3” x 7.5” x 13.9”
Weight 7.94 lbs.
Operating Temp 5°C - 35°C/ 41°F - 95° F
Certications FCC, UL/CUL, CCC, VCCI, CE, CB, Gost-R, China Energy Label
Level 1, Energy Star, 5.0, KC, PSB, MPRII, E-Standby, BSMI
Desk Stand Yes, removable
Accessories Included VGA Cable, Power Cable, Audio Cable, User Manual
23” LED Monitor Specications
Part Number EN1080P23LED
Monitor Size 23”
Resolution 1920x1080
Viewing Line 650 lines (TVL)
Pixel Pitch 0.2655mm
Brightness 300 cd/m_
Contrast Ratio 1000 : 1
Response Time 5ms
Viewing Angle H: 176°, V: 176°
3D Comb Filter 3D digital comb lter
De-interlace &
Noise Reduction Yes
OSD Portuguese, English, Spanish, French,
German, Italian, and Russian
Display Colors 16.7 million
Speakers 2 each (3 watts)
Video Inputs HDMI, VGA, BNC, C VBS
Video Outputs BNC (1)
Audio Inputs 1 input
Audio Outputs 1 output
Mount Capability VESA Standard
Power Consumption ≤40W
Power Source AC100-240V
Dimensions (L x W x H) 225 x 215 x 70mm
Dimensions (L x W x H)
Without Stand 565 x 340 x 46mm
Weight 6.5kg
Operating Temp 0°C~40°
Certications FCC, CB, CE, ROHS
Desk Stand Stand and wall-mount bracket for option
Accessories Included Remote control and user guide, power
cord, HDMI cable
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
www.everfocus.com
Solutions
104

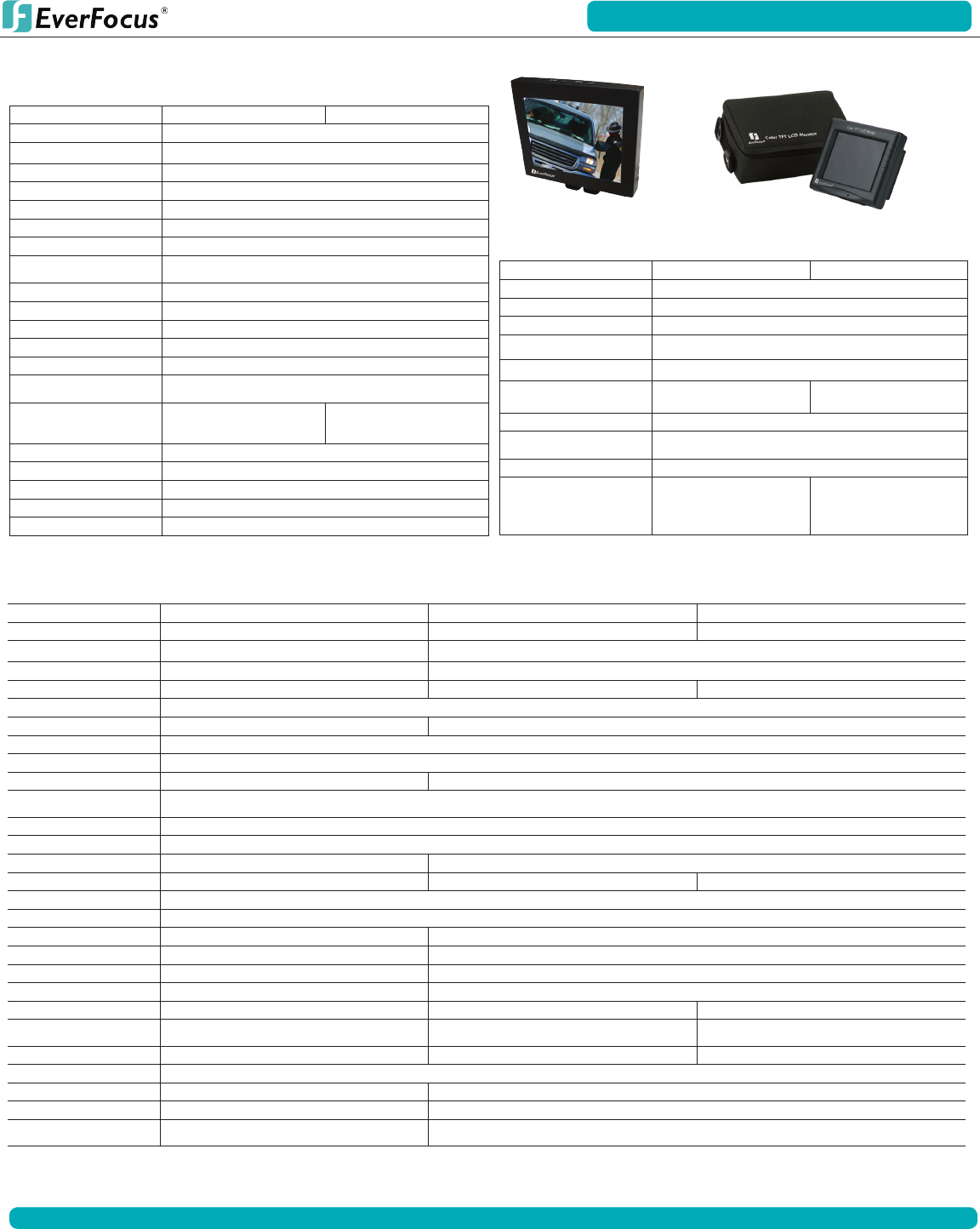

8” Monitor Specications
Part Number EN7508 EN7508M
Monitor Size 8”
Resolution 800x600
Viewing Line 500 lines (TVL)
Brightness 250 cd/m_
Contrast Ratio 500: 1
Response Time 25ms
Viewing Angle H: 130°, V: 120°
OSD English, Spanish, French,
German and Simplied Chinese
Display Colors 16.7 million
Video Inputs BNC (2), VGA (1)
Mount Capability VESA Standard 75 x 75mm
Power Consumption <18 W
Power Source 12VDC, 2A
Dimensions (L x W
x H) 10.6” x 3.9” x 12.6”
Dimensions (L x W
x H)
Without Stand
10.6” x 3.9” x 10.6” 10.6” x 3.9” 10.6”
Weight 3.7 lbs
Operating Temp -10°C - 50°C/ 14°F - 122° F
Certications Energy Star, FCC-DOC, CE, CCC, and RoHS
Desk Stand Yes
Accessories Included Power supply, remote control, user guide & stand
5.6” Test Monitor Specications
Part Number EN200 EN220
Monitor Size 5.6”
Contrast Ratio 85: 1
Display Colors Full Color
Video Inputs 0.75 VP-p ~ 1 VP-p, 3.5 pin
Audio Inputs 50mV min., stereo In, 3.5 pin
Power Consumption 12VDC
nominal +/- 10%
12VDC,
600mA (8W max.)
Power Source 12VDC nominal +/- 10%
Dimensions
(L x W x H) 6.4” x 5.2” x 2.1”
Operating Temp 0°C - 60°C/ 32°F - 140° F
Accessories
Included N/A
Service Kit
(includes pouch, battery
pack & clip, cable 1, cable
2, AD-3, and AD-4)
1080p 22 & HDMIA Specications
Part Number EN1080P22 EN7517HDMIA EN7519HDMIA
Monitor Size 22” 17” 19”
Resolution 1920x1080 1280 x 1024 (SXGA)
Viewing Line 650 lines (TVL) 570 TV Lines
Pixel Pitch 0.24825mm 0.264mm 0.294mm
Brightness 300 cd/m_
Contrast Ratio 1000 : 1 800:1
Response Time 5ms
Viewing Angle H: 170°, V: 170°
3D Comb Filter 3D digital comb lter Yes
De-interlace &
Noise Reduction Yes
OSD English, Spanish, French, German, Italian and Russian
Display Colors 16.7 million
Speakers 3W 2 each (3 watts)
Video Inputs HDMI, VGA, BNC, C VBS HDMI (1), VGA (1), BNC (1), RCA (1) HDMI (1), VGA (1), BNC (1)
Video Outputs BNC (1)
Audio Inputs Stereo PC
Audio Outputs 1 output
Mount Capability VESA Standard VESA Size
Power Consumption ≤ 35W <45 W, <2W (standby)
Power Source AC100-240V AC100-240V 60/50Hz
Dimensions (L x W x H) 23.5” x 5.75” x 14.25” 20.39” x 18.31” 6.5” 22.83” x 6.5” x 20.28”
Dimensions (L x W x H)
Without Stand 20.5” x 2.5” x 12.25” 20.39” x 2.75” x 13.25”
Weight 12.1 lbs 13.22 lbs 15.43 lbs
Operating Temp 5°C - 40°C/ 41°F - 104° F
Certications FCC, CB, and CE UL, CE, FCC, CB
Desk Stand Yes Removable Stand
Accessories Included Remote control and user guide, VGA cable,
Audio cable, and HDMI cable VGA Cord, PC Audio Cord
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.

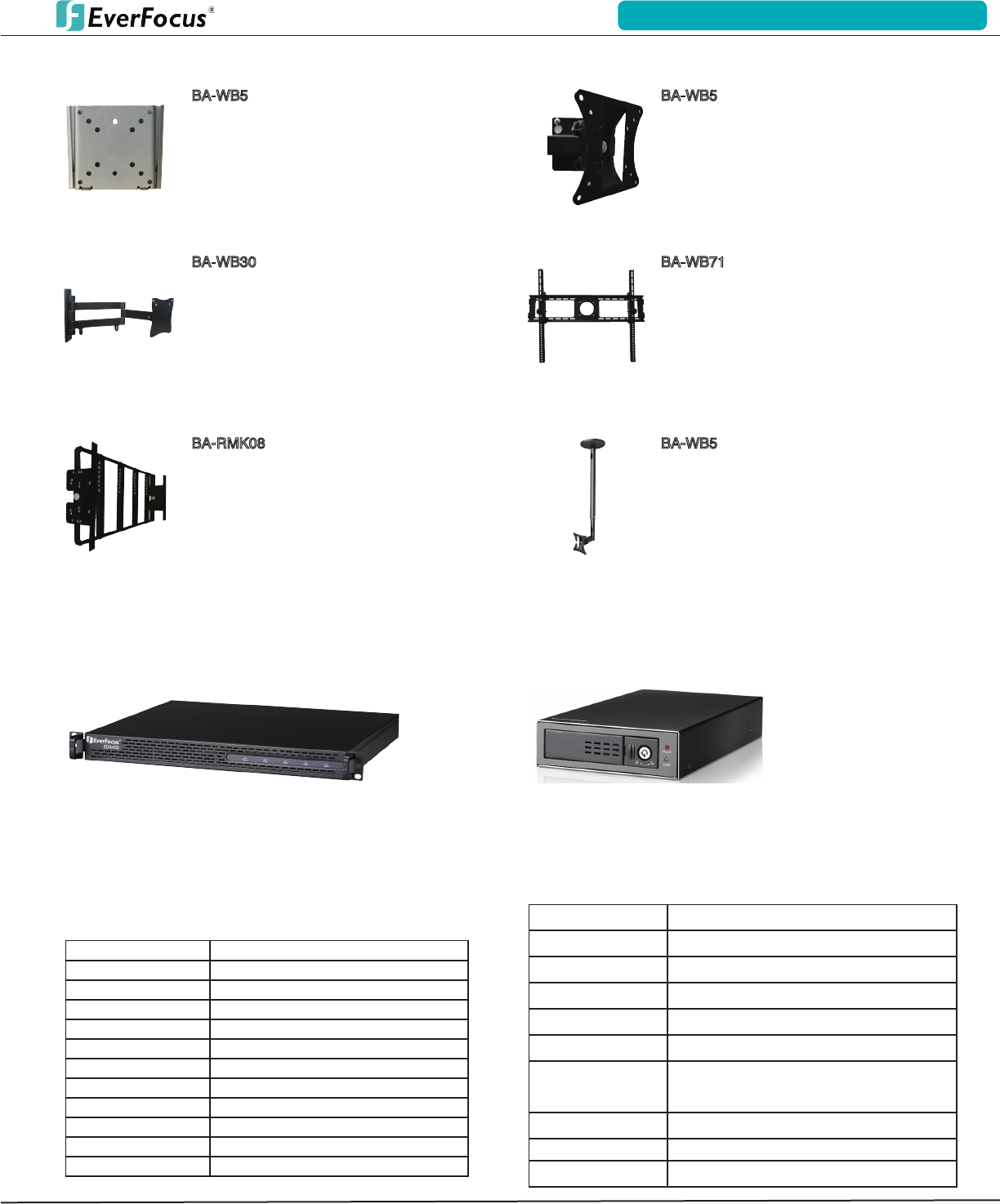

Accessories
BA-WB5
• Flush Wall Mount Bracket
• Ideal for LCD Displays up to 32”
• 75-100mm VESA compatible
• Supports up to 60 lbs of weight
BA-WB5
• Wall Mount with Tilt/Rotate Capability
• Ideal for monitor displays up to 24”
• 75-100mm VESA compatible
• Supports up to 40 lbs of weight
• 180° of left/right rotation
• 20° of up/down tilt
BA-WB30
• Swing-arm monitor mount
• Tilt/Swivel head for optimum viewing angle
• Ideal for monitor displays up to 24”
• 75-100mm VESA compatible
• Supports up to 30 lbs of weight
• 180° of left/right rotation
• 20° of up/down tilt
BA-WB71
• Wide screen wall mount bracket
• Ideal for monitor displays 32” - 42”
• Universal design (compatible with non-VESA)
• Lateral adjustment
• Supports up to 165 lbs of weight
BA-RMK08
• Universal Monitor Rack Mount
• Up to 35 tilt for adjustable viewing
• Adjustable depth from 1.45” - 3.14”
• Saves Rack Space
• Dual mount on any 8” - 9” LCD
• CTN dimension 20.3” x 8.7” x 3.6”
• Supports up to 20.4 lbs of weight
• Saves Rack Space
BA-WB5
• Ceiling Mount Bracket
• Ideal for monitor displays up to 10”-30”
• 75/100/200mm VESA compatible
• Supports up to 66 lbs of weight
• 180° of left/right rotation
• 20° of up/down tilt
• 24” - 35” pole adjustment length
• Solid Steal Construction
EDA450
EverFocus SATA Bay Storage Expansion
EPR110
EverFocus Hard Drive Reader
• 1U 19" form factor
• Supports SATA I and SATA II hard drive, with up to 2TB per hard drive
• Congure as individual SATA drive
• Four 3.5" drive bays
• SATA II compliant, 1.5 Gb/s and 3 Gb/s
• Platform independent—works with Windows or Linux computers with
compatible SATA controller
Features
Specications
Specications
• 1/4/9/16 multi-channel playback
• Playback forward/backward at 0.1~16x speed
• Save still image to BMP or JPEG File
• Print Still Image
Monitor Mounts
Form Factor 1U 19’’
HDD Bays 4 x 3.5"
Max Capacity 8TB
Host Interface eSATA
Transfer Rate 3Gb/s
Drive Interface SATA I & SATA II
Cooling Fan 2 Fans
Power Supply 150W x 1 (AC100~240V)
Status Indicators 4 LEDs for HDD, Power LED
Dimensions (W x D x H) 482.6 x 381 x 43.1 mm / 19" x 15" x 1.7"
Weight 12 Lbs / 5.4 kg
Certications CE, FC
Supported Protocols Paragon and Paragon264 Series DVRs
Light Indication 2 LEDs for power and disk activity
Lock HDD tray lock
Power Switch Power On/Off
Interface Connector USB type B connector
Power Connector 6 pin 5V/12VDC
Archive
Save still image to BMP or JPEG le, save video
to AVI le, save disk raw data into proprietary le,
save meta-data to text or binary le
Power Consumption 1.5 amp
Dimensions (LxWxH) 276.9 x 154.9 x 45.7 mm/10.9” x 6.1” x 1.8”
Weight 2.3kg/5lbs
105
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.

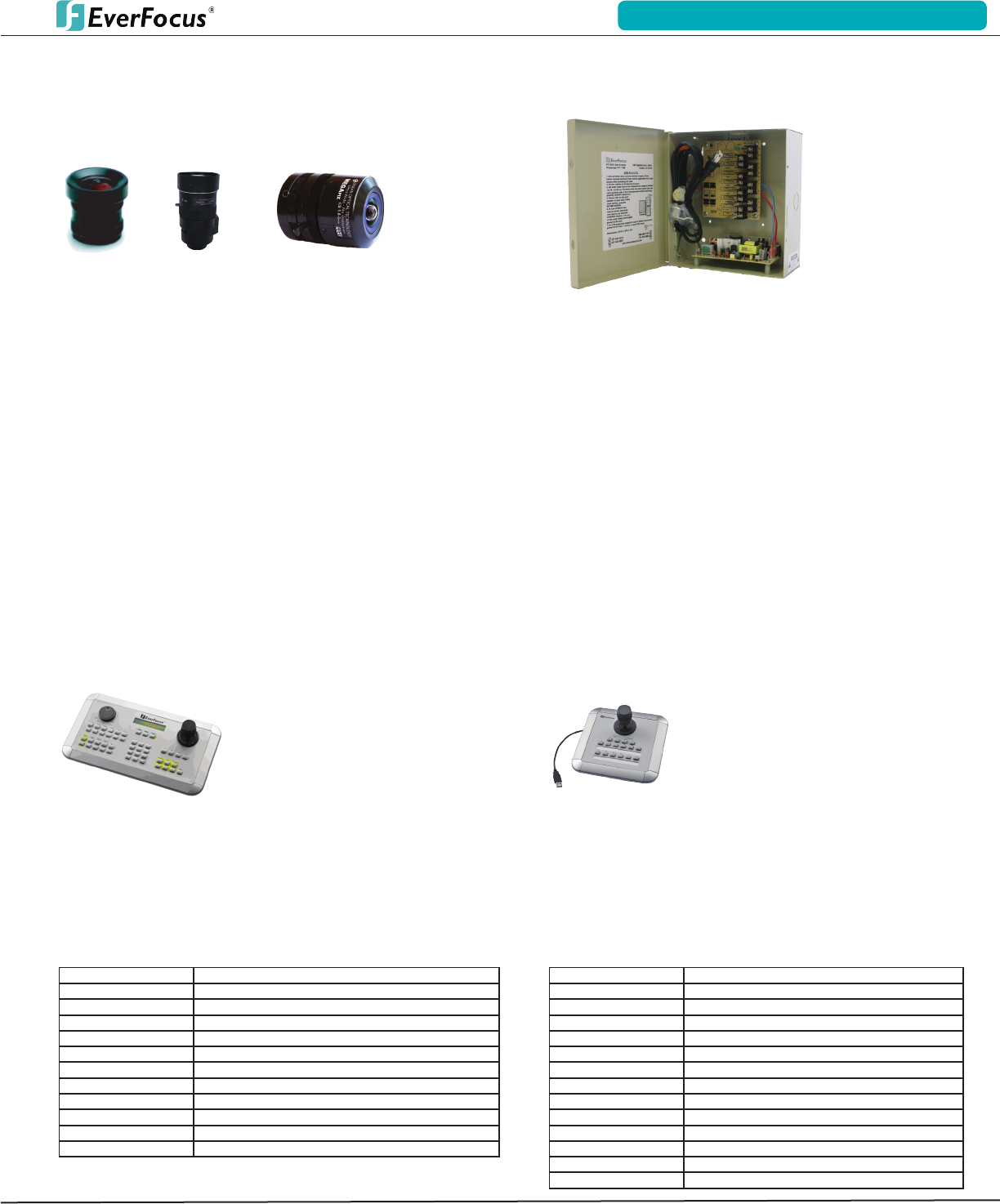

Accessories
Standard &
Megapixel Lens
FL Series
AC Master Power Supplies
AC4-1-2UL 24v, 4 Ch., 4.2 AMPs
AC8-1-2UL 24v, 8 Ch., 4.2 AMPs
AC8-2-2UL 24v, 8 Ch., 8.4 AMPs
AC16-2-2UL 24v, 16 Ch., 8.4 AMPs
AC16-4-2UL 24v, 16 Ch., 16.8 AMPs
DC Master Power Supplies
DCR4-3.5-2UL 12v, Master, 4 Ch., 4 AMPs
DCR8-3.5-2UL 12v, Master, 8 Ch., 4 AMPs
DCR8-8-2UL 12v, Master, 8 Ch., 8 AMPs
DCR16-8-2UL 12v, Master, 16 Ch., 8 AMPs
DCR16-12-2UL 12v, Master, 16 Ch, 16 AMPs
DCR18-18-1UL 12v, Master, 18 Ch., 18 AMPs
EFV Series Megapixel Series
Board Lenses
FL-2520
FL-3620
FL-4320
FL-6020
FL-8020
FL-1220
FL-1620
2.5mm Board Lens
3.6mm Board Lens
4.3mm Board Lens
6mm Board Lens
8mm Board Lens
12mm Board Lens
16mm Board Lens
VariFocal Lenses
EFV-2812DC 2.8-12mm, Auto-Iris Lens
EFV-358 3.5-8mm Lens
EFV-358DC 3.5-8mm, Auto-Iris Lens
EFV-550 5-50mm Lens
EFV-550DC 5-50mm, Auto-Iris Lens
Megapixel Lenses
EFV-410DCMP 4.5-10mm 1/2” Megapixel Auto-Iris Lens
EFV-880DCMP 8-80mm 1/2” Megapixel Auto-Iris Lens
EFV-M0940DCIR 9-40mm 1/2” Megapixel Auto-Iris Lens
EFV-M1803DCIR 1.8-3mm 1/2” Megapixel Auto-Iris Lens,
WITHOUT FISH EYE Distortion!!!
Power Supplies
Plug-in Power Supplies
AD-1S 12v, Plugin, 500 Mili-Amps, Slim
AD-1AS 12v, Plugin, 1 AMP, Slim
AD-2F 24v, Plugin, 500 Mili-Amps,
AD-4F 24v, Plugin, 1.5 AMPs
• Capable of controlling speed dome cameras, DVRs, and monitors
• Centralized control of up to 999 cameras from a single controller
• Password protected to prevent unauthorized users
• 3-D Joystick for PTZ control functions and Jog Shuttle for DVR control
• Two independent communication prots with selectable band rate and protocol
• Customized, upgradeable rmware for specic applications
• Auto tracking by external signal processor unit
• Preset position and pattern control; full programmable preset tour
• Matrix control (EverFocus DVR series products)
Power Source
Power Consumption
Device Control
Protocols
Remote Control
Baud Rate
LCD Display
Integration
Auto Surveillance
Wiring Box
Dimensions (L x W x H)
Weight
12VDC
10W
PTZ Speed Domes, DVRs and Monitors
Pelco-D, Pelco-P, EverFocus Enhanced Protocols
RS-232/RS-485
1200-38400 dps
20 x 2 Characters
Up to 8 keyboard cascading connection
Position, Tour, Auto Pan
Yes
356 x 203 x 108mm/14" x 8" x 4.25"
1.5kg/3.3lbs
EKB500
Multi-Function Control Keyboard
• “Plug and play” USB interface
• Industrial grade 3-Axis joystick for PTZ control function
• Support standard HID class device with high compatibility
• 4 pre-dened PTZ function keys: Iris+/-, Focus+/-, 12 Assignable keys
• Panel mount kit available
• No external power supply required
• Dedicated EverFocus JoyMap keymapper software for
standard Windows operation
• Support standard HID class device, easy for 3rd party integration
Interface
PTZ Function Key
Assignable key
Default Protocol
Keymapper Support
USB Cable (Length)
USB Cable (Color)
Operating Temperature
Mounting Method
Power Source
Power Consumption
Dimension (W × D × H)
Weight
Certicates
USB 1.1
4 keys, Iris+, Iris-, Focus+, Focus-
12 keys
USB HID class
EverFocus JoyMap
1.8m/6ft.
Black
0˚C~50˚C / 32˚F~122˚F
Desktop, Panel
USB Bus Power
80mA max.
200.5 × 200.5 × 111.3mm/7.9” ×7.9” x 4.4” (with Joystick)
800g/1.94lbs
CE, FCC
EKB200
USB Control Keyboard with 3-Axis
106
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
Accessories
• “Plug and play” USB interface
• Industrial grade 3-Axis joystick for PTZ control function
• Support standard HID class device with high compatibility
• 4 pre-dened PTZ function keys: Iris+/-, Focus+/-, 12 Assignable keys
• Panel mount kit available
• No external power supply required
• Dedicated EverFocus JoyMap keymapper software for
standard Windows operation
• Support standard HID class device, easy for 3rd party integration
96
PTZ w/EPTZ-PBOX EPTZ -PBM EPTZ-PLM
w/PTZ Pole Mount
= + +
= + +
PTZ w/EPTZ-PBOX EPTZ -PBM EPTZ-CNM
w/PTZ Corner mount
w/PTZ Wall Mount PTZ Speed Dome EPTZ -PBOX
= +
= +
2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.
Accessories - PTZ Accessories
Accessories
95 2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.
Accessories - PTZ Accessories
Accessories
• Capable of controlling analog PTZ cameras, DVRs & monitors
• Centralized control of up to 999 cameras from a single controller
• Password protected to prevent unauthorized users
• 3-D Joystick for PTZ control functions & Jog Shuttle for DVR
control
• Two independent communication ports with selectable BUAD
rate and protocol
• Customized, upgradeable firmware for specific applications
• Auto tracking by external signal processor unit
• Preset position and pattern control; full programmable preset tour
• Matrix control (with EverFocus DVRs)
Features
Specifications
* Models vary in different countries. Visit www.everfocus.com and select your
country for accurate ordering information
Ordering Information
• EKB500: Multi-Function Keyboard Controller, 12VDC
Device Control
Protocols
Remote Control
Baud Rate
LCD Display
Integration
Auto Surveillance
Wiring Box
Input Voltage
Power Consumption
Dimensions (L x W x H)
Weight
PTZ Speed Domes, DVRs and Monitors
Pelco-D, Pelco-P, EverFocus Enhanced
Protocols
RS-232/RS-485
1200~38400 dps
20x2 Characters
Up to 8 keyboard cascading connection
Position, Tour, Auto Pan
Yes
12VDC
10 W max.
356 x 203 x 108 mm / 14” x 8” x 4.25”
Approx. 1.5 kg / 3.3 lbs.
EKB200
USB Keyboard Controller with 3-Axis
EKB500
Multi-Function Keyboard Controller
* Models vary in different countries. Visit www.everfocus.com and select your
country for accurate ordering information
• "Plug and play" USB interface
• 3-axis joystick for PTZ control function
• Supports standard HID class device
• Industrial ID design
• Long working life of industrial grade 3-axis joystick
• 4 pre-defined PTZ function keys: Iris+/-, Focus+/-
• 12 free assignable function keys
• Panel mount kit available
• No external power supply required
• Suitable for right or left-handed users
• Dedicated EverFocus JoyMap keymapper software for standard
Windows operation
• Supports standard HID class device, easy for 3rd party integration
• Supported by EverFocus PowerCon central management
software for easy PTZ operation
Features
Specifications
Interface
PTZ Function Key
Assignable Key
Default Protocol
Operating Temp.
Mounting Method
Power Source
Power Consumption
Certification
Keymapper Support
USB Cable (Length)
USB Cable (Color)
Dimensions (L x W x H)
Weight
USB 1.1
4 keys, Iris+, Iris-, Focus+, Focus-
12 keys
USB HID class
0°C ~ 50°C / 32°F ~ 122°F
Desktop, Panel
USB Bus Power
80 mA max.
CE/FCC class A
EverFocus JoyMap
1.8 meters / 6 feet
Black
200.5 x 200.5 x 111.3 mm /
7.9" x 7.9" x 4.4" (with Joystick)
880 g / 1.94 lbs
• EKB200: Multi-Function USB Keyboard Controller, 3 Axis
Ordering Information

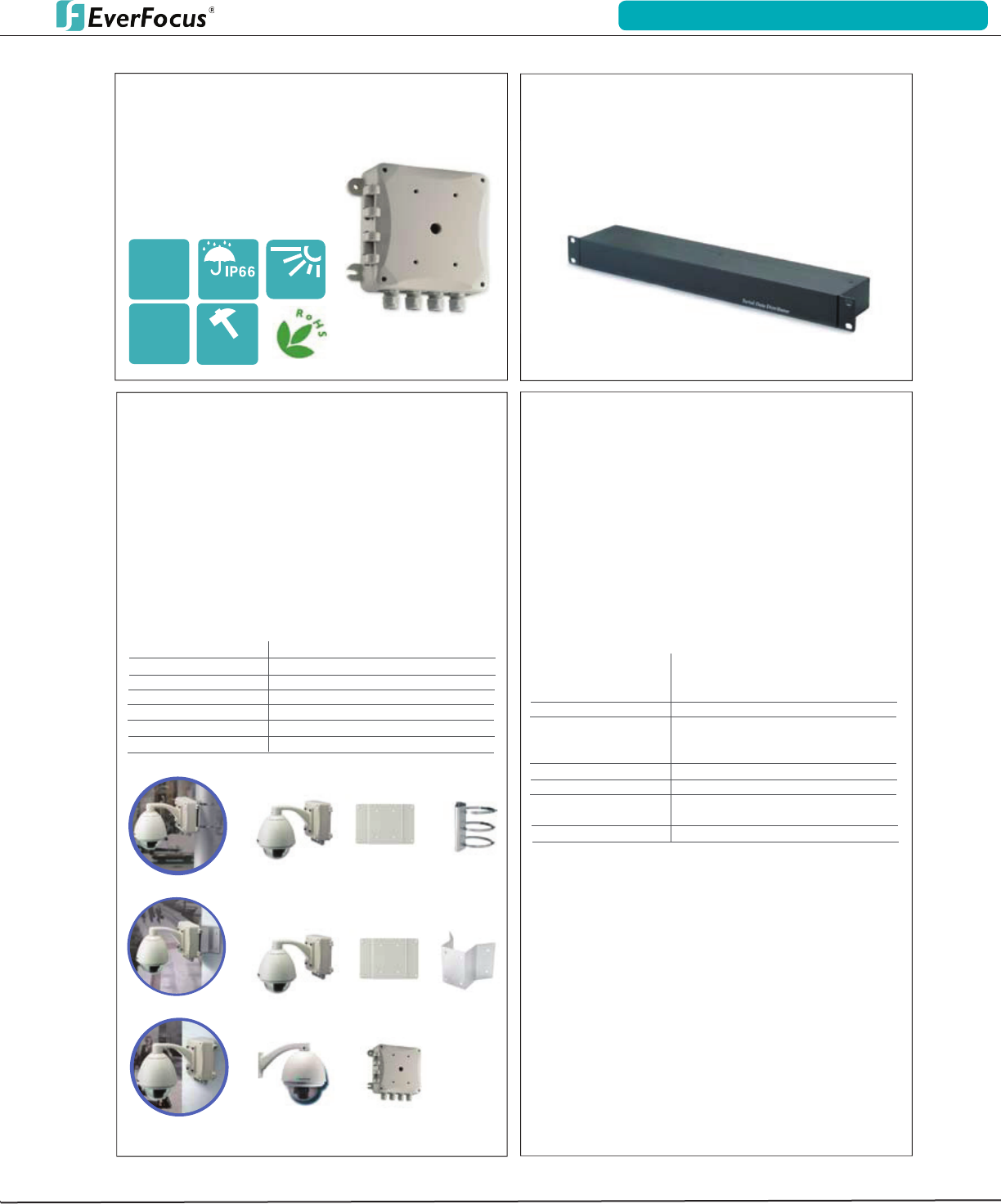

EDA997A
RS-485 Uni-directional Data
Distributor/Converter
EPTZ-PBOX
External Power Connection Box
Multi-Function Keyboard Controller
USB Keyboard Controller with 3-Axis
• External power connection box for PTZ cameras
• Supports a wide variety of indoor/outdoor PTZ mounting accessories
• Provides enhanced durability and eliminates complicated cabling in any
installation
• Vandal and weather resistant IP66 rated
• Optional built-in video encoder for analog to IP network conversion and
network capabilities with web browser, EverFocus NVR software and
PowerCon Express
• Compatible with PTZ wall mount (optional EPTZ-WMB), corner mount
(optional EPTZ-CNM) and pole mount (optional EPTZ- PLM) adaptor
Features
Specifications
Waterproof Conduit
Power Output
Power Source
Power Consumption
Dimensions (L x W x H)
Weight
Safety Certification
10mm x 1 pcs, 7mm x 3 pcs
2 Types: 100V~120VAC, 200V~240VAC
24VAC
3.5 amps
250 x 260 x 85 mm / 9.8” x 10.2” x 3.3”
4.08 kg / 9 lbs
CE/FCC/LVD
Outdoor
Steel,
Powder
Coated
Power
24VAC Weather
Resistant
Vandal
Resistant
• 8 output serial data distributor
• Simultaneous RS-485 transmission on all 8 outputs
• Optional RS-485 (1x) or RS-232 (2x) input receiving mode (3
inputs can be at "stand-by" status at the same time, but only one
controller will be activated at once)
• 8x RS-485 output
• Up to 1,200 meters / 3,937 feet maximum connection range with
Twisted Pair cable
• Cascading ability
Features
Specifications
Signal Input
Signal Output
Application
Power Source
Power Consumption
Dimensions (W x H x D)
Weight
Manually Switchable:
1x RS-485 simplex, screw terminal or
1x RS-232, 9-pin Sub-D
8x RS-485 simplex, screw terminal
RS-485 star wiring for telemetry or DVR
control, conversion of RS-232 input to
RS-485 output
12VDC
4W max., (power supply 230VAC included)
19", 1U
482 x 44 x 99 mm / 18.98" x 1.73" x 3.9"
1.1 kg / 2.4 lbs
* Models vary in different countries. Visit www.everfocus.com and select your
country for accurate ordering information
• EDA997A: RS-485 Uni-directional Data
Ordering Information
107
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
Accessories
98
2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.
Accessories
97 2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.

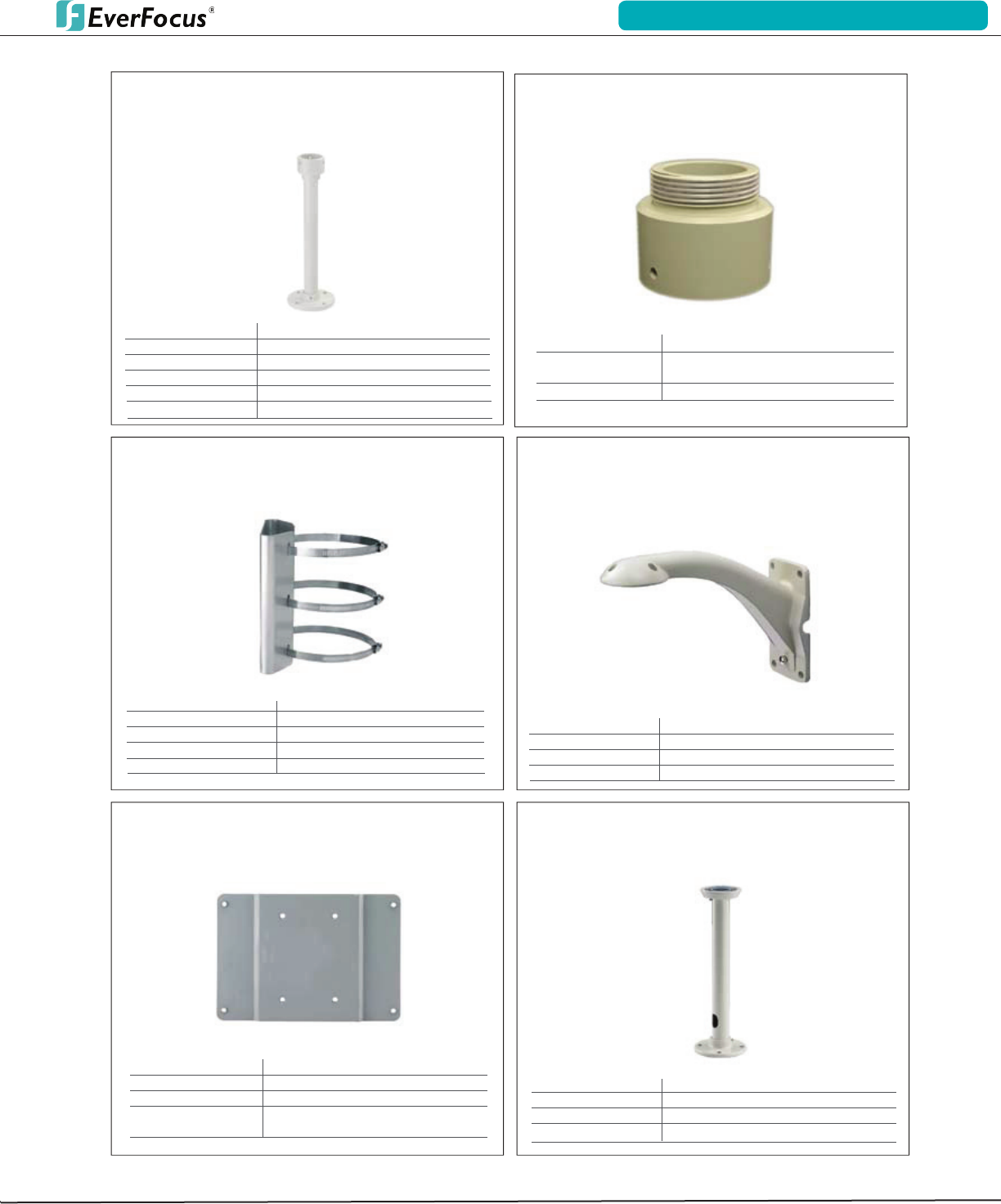

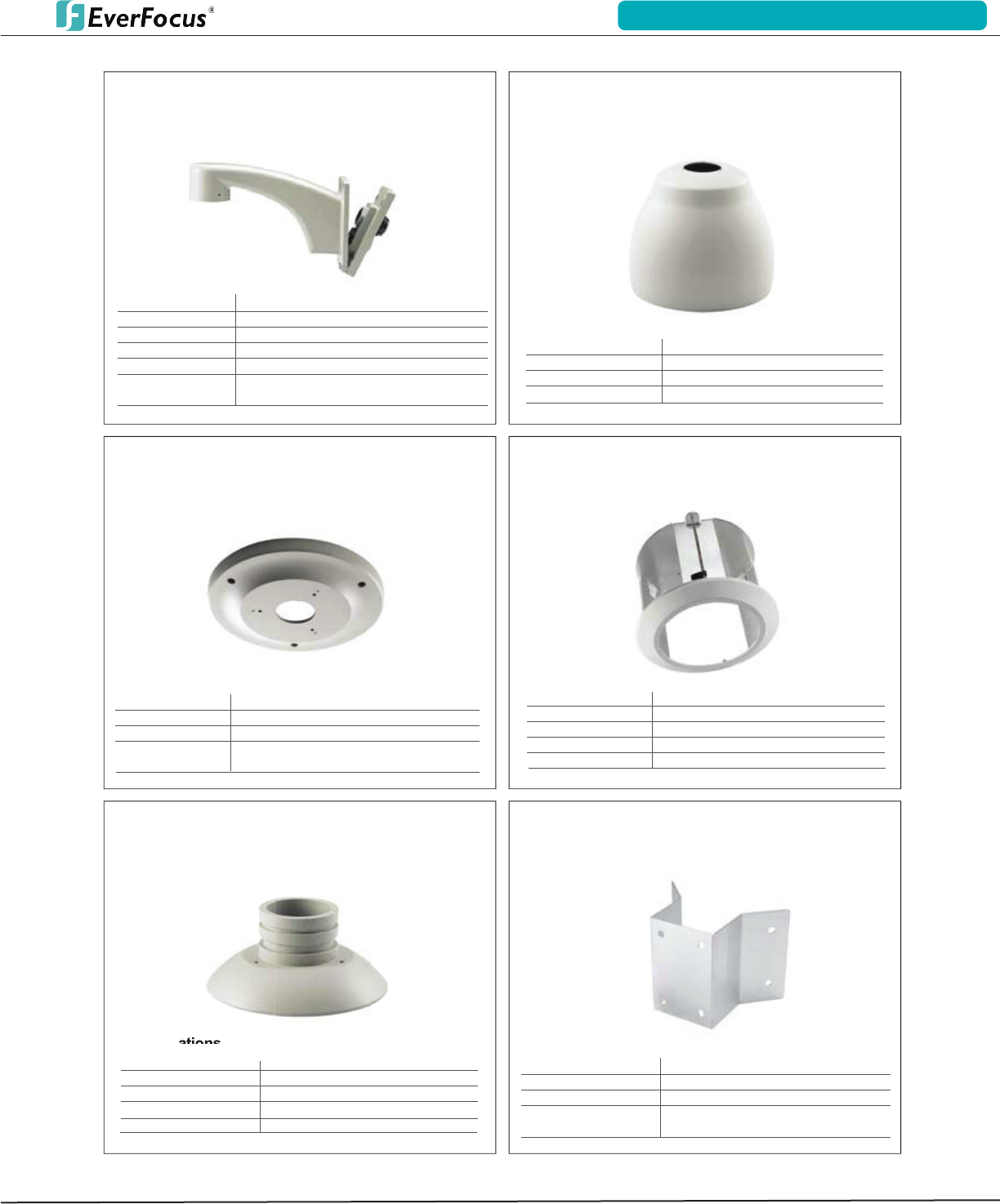

Accessories - PTZ Mounting Brackets & Adaptors
Accessories
EPTZ-CMB
Concrete Ceiling Mount Adaptor
EPTZ-BKA
Wall/Pendent Mount Adaptor
EPTZ-WMB
Wall Mount Bracket
Material
Dimensions (W x H)
Weight
PTZ Support
Die-cast Aluminum
180 x 25 mm / 7.1” x 1”
0.27 kg / 0.6 lbs
Optional accessory w/EPTZ3650/3150/2700
Included with EPTZ3100i
EPTZ-ICM
Flush Ceiling Mount
Specifications
Specifications Material
Cutout Diameter
Dimensions (H x D)
Weight
PTZ Support
Die-cast Aluminum
200mm / 7.8”
247 x 220 mm / 9.7” x 8.7”
680 g / 1.5 lbs
Optional w/EPTZ3650/3150/3150i/2700
Specifications
EPTZ-SSM
Outdoor Sunshield
Material
Dimensions (W x H)
Weight
PTZ Support
Die-cast Aluminum
203.2 x 117.8 mm / 8” x 7”
0.45 kg / 1 lbs
Optional w/EPTZ3650/3150/2700
Specifications
Specifications
Material
Adaptor Insert Dia.
Dimensions (W x H)
Weight
PTZ Support
Die-cast Aluminum
44.45 mm / 1.75”
107.95 x 54.1 mm / 4.25” x 2.13”
0.18 kg / 0.4 lbs
Included w/EPTZ3650/3150/2700
EPTZ-CLM
Ceiling Pendent Mount
EPTZ-PLM
Pole Mount Adaptor
EPTZ-CNM
Corner Mount Adaptor
Material
Tube Length
Ceiling Adaptor (dia)
Tube Diamenter
Weight
PTZ Support
Steel, Power-coated
340 mm / 13.4”
108 mm / 4.25”
32 mm / 1.3”
0.54 kg / 1.2 lbs
Optional w/EPTZ3650/3150/3150i/2700
Material
Dimensions (L x W x H)
Weight
PTZ Support
Steel
228.6 x 171.5 x 146.1 mm/9” x 6.8” x 5.8”
1.2 kg / 2.6 lbs
Optional w/EPTZ3650/3150/3150i/2700
and EPTZ-PBOX
ESDA-1000
Step Down Adaptor
Specifications
Specifications
Specifications
Material
Diameter
Weight
Aluminum, Powder-coated
Threaded Side: 1.5 NPT
Opening: 50.8 mm / 2”
91 g / 0.2 lbs
Specifications
EPTZ-PBM
EPTZ-PBOX Adaptor
Material
Dimensions (W x H)
Weight
Application
Steel
260.4 x 181 mm / 10.3” x 7.1”
0.73 kg / 1.6 lbs
For use with wall, pole & corner mount
in conjunction with EPTZ-PBOX
Specifications
Material
Pole Diameter (expandable)
Dimensions (W x H x D)
Weight
PTZ Support
Steel
90 mm / 3.54”, 155 mm / 6.1” max.
166 x 205 x 47 mm / 6.5” x 8.1” x 1.9”
1 kg / 2.2 lbs
Optional w/EPTZ3650/3150/2700
Material
Length
Weight
Load (max.)
Weather Resistant
PTZ Support
Die-cast Aluminum, Powder-coated
254mm / 10” (minus back plate)
1.74 kg / 3.8 lbs
15 kg / 33 lbs
Yes, IP66 rated
Optional w/EPTZ3650/3150/3150i/2700 &
EPTZ-PBOX
Specifications
Accessories - PTZ Mounting Brackets & Adaptors
EPTZ100-WLM
Indoor Wall Mount for EPTZ100
Material
Dimension (L x W x H)
Weight
PTZ Support
Steel, Power-coated
247.7 x 82.6 x 143.5 / 9.6” x 3.3” x 143.5”
0.64 kg / 1.4 lbs
Optional w/EPTZ100 only
Specifications
EPTZ100-CPM
Indoor Pendant Mount for EPTZ100
Material
Height
Weight
PTZ Support
Steel, Power-coated
313.69 mm / 12.35”
0.82 kg / 1.8 lbs
Optional w/EPTZ100 only
Specifications
108
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
Accessories
98
2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.
Accessories
97 2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.
Accessories - PTZ Mounting Brackets & Adaptors
Accessories
EPTZ-CMB
Concrete Ceiling Mount Adaptor
EPTZ-BKA
Wall/Pendent Mount Adaptor
EPTZ-WMB
Wall Mount Bracket
Material
Dimensions (W x H)
Weight
PTZ Support
Die-cast Aluminum
180 x 25 mm / 7.1” x 1”
0.27 kg / 0.6 lbs
Optional accessory w/EPTZ3650/3150/2700
Included with EPTZ3100i
EPTZ-ICM
Flush Ceiling Mount
Specifications
Specifications Material
Cutout Diameter
Dimensions (H x D)
Weight
PTZ Support
Die-cast Aluminum
200mm / 7.8”
247 x 220 mm / 9.7” x 8.7”
680 g / 1.5 lbs
Optional w/EPTZ3650/3150/3150i/2700
Specifications
EPTZ-SSM
Outdoor Sunshield
Material
Dimensions (W x H)
Weight
PTZ Support
Die-cast Aluminum
203.2 x 117.8 mm / 8” x 7”
0.45 kg / 1 lbs
Optional w/EPTZ3650/3150/2700
Specifications
Specifications
Material
Adaptor Insert Dia.
Dimensions (W x H)
Weight
PTZ Support
Die-cast Aluminum
44.45 mm / 1.75”
107.95 x 54.1 mm / 4.25” x 2.13”
0.18 kg / 0.4 lbs
Included w/EPTZ3650/3150/2700
EPTZ-CLM
Ceiling Pendent Mount
EPTZ-PLM
Pole Mount Adaptor
EPTZ-CNM
Corner Mount Adaptor
Material
Tube Length
Ceiling Adaptor (dia)
Tube Diamenter
Weight
PTZ Support
Steel, Power-coated
340 mm / 13.4”
108 mm / 4.25”
32 mm / 1.3”
0.54 kg / 1.2 lbs
Optional w/EPTZ3650/3150/3150i/2700
Material
Dimensions (L x W x H)
Weight
PTZ Support
Steel
228.6 x 171.5 x 146.1 mm/9” x 6.8” x 5.8”
1.2 kg / 2.6 lbs
Optional w/EPTZ3650/3150/3150i/2700
and EPTZ-PBOX
ESDA-1000
Step Down Adaptor
Specifications
Specifications
Specifications
Material
Diameter
Weight
Aluminum, Powder-coated
Threaded Side: 1.5 NPT
Opening: 50.8 mm / 2”
91 g / 0.2 lbs
Specifications
EPTZ-PBM
EPTZ-PBOX Adaptor
Material
Dimensions (W x H)
Weight
Application
Steel
260.4 x 181 mm / 10.3” x 7.1”
0.73 kg / 1.6 lbs
For use with wall, pole & corner mount
in conjunction with EPTZ-PBOX
Specifications
Material
Pole Diameter (expandable)
Dimensions (W x H x D)
Weight
PTZ Support
Steel
90 mm / 3.54”, 155 mm / 6.1” max.
166 x 205 x 47 mm / 6.5” x 8.1” x 1.9”
1 kg / 2.2 lbs
Optional w/EPTZ3650/3150/2700
Material
Length
Weight
Load (max.)
Weather Resistant
PTZ Support
Die-cast Aluminum, Powder-coated
254mm / 10” (minus back plate)
1.74 kg / 3.8 lbs
15 kg / 33 lbs
Yes, IP66 rated
Optional w/EPTZ3650/3150/3150i/2700 &
EPTZ-PBOX
Specifications
Accessories - PTZ Mounting Brackets & Adaptors
EPTZ100-WLM
Indoor Wall Mount for EPTZ100
Material
Dimension (L x W x H)
Weight
PTZ Support
Steel, Power-coated
247.7 x 82.6 x 143.5 / 9.6” x 3.3” x 143.5”
0.64 kg / 1.4 lbs
Optional w/EPTZ100 only
Specifications
EPTZ100-CPM
Indoor Pendant Mount for EPTZ100
Material
Height
Weight
PTZ Support
Steel, Power-coated
313.69 mm / 12.35”
0.82 kg / 1.8 lbs
Optional w/EPTZ100 only
Specifications
109
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.

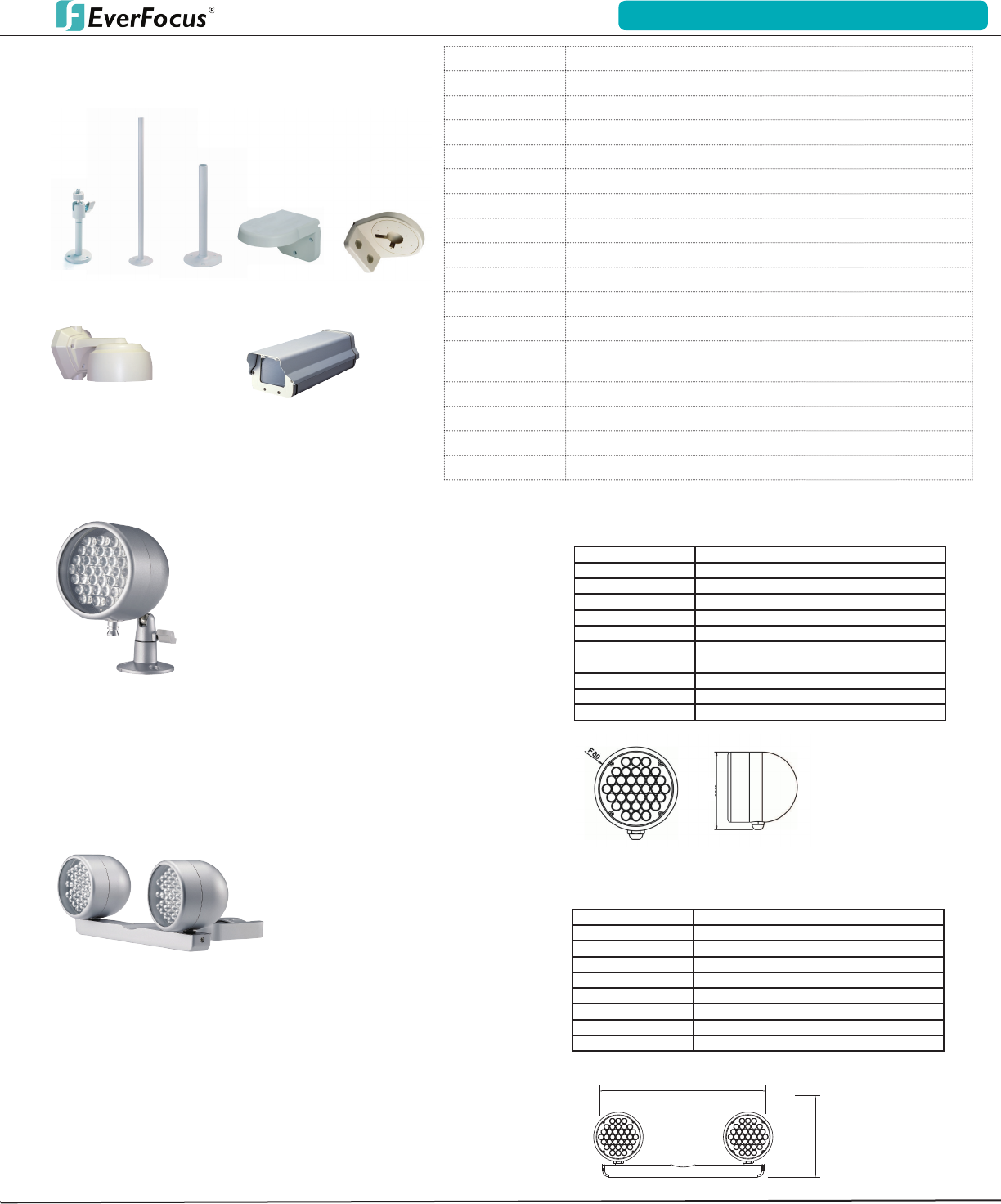

Accessories
Mounting Brackets
BA01 BA10 BA11 BA-EHD BA-ED
BA-EHD2
BA-EHD3
BA-01 Box Cameras: Aluminum Bracket, 6.1” x 1.77” for box cameras
BA-03 Box Cameras: Plastic Bracket 4.72” x 6.1” x 3.5” for box cameras
BA-05 Aluminum Mounting Arm for use with the FH-7153 Series Housing
FH-7153 Box Cam Housing, 5.23” x 4.17” x 12.79”
FH-7153HB Box Cam Housing with Heater and Blower, 5.23” x 4.17” x 12.79”
FHB-300 Box Cam Housing & Mount Combo (FH-7153 & BA-05)
FHB-300HB Box Cam Housing w/ Htr & Blower & Mount Arm (FH-7153HB & BA05)
BA-ED01 L-Bracket, Beige, for ED335/EDH5240
BA-EDB L-Bracket, Black, for ED300/350 Domes
BA-EDMS L-Bracket, Silver, for ED550/560/610/EHH5200 Domes
BA-EDW L-Bracket, White, for ED300/350 Domes
BA-EHD L-Bracket, Beige, for EHD Series (does NOT work with EHD500IR)
BA-EHD2 Wall Mount for EHD500IR/EHD700/EHD730
(Part Number Formally BA-EHD500IR)
BA-EHD3 Wall Mount for EHH5040/EHH5241
EZ-CMB J-Bracket Ceiling Mount, Silver, for EZ650/850
BA10 Ceiling Mount Bracket, White, for EPD200, 24.56 inches
BA11 Ceiling Mount Bracket, White, for EPD200, 11.81 inches
FH-7153HB
FHB-300
Series
EIR50
50m IR Illuminator
EIR100
70m IR Illuminator
• Up to 50m/164ft. of IR range (EIR50)
• Compact size for discreet surveillance
• Compact Standalone design for exible application
• Up to 20,000 hours of LED lifespan
• Improve image quality in complete darkness and/or in low-
light conditions
• Built-in sensor will automatically turn on illuminator at night
and off during the daytime
• Weatherproof design and IP66 rated
Features
Features
• Up to 70m/230ft. of IR range
• Up to 20,000 hours of LED lifespan
• Improve image quality in complete darkness and/or in low-light conditions
• Built-in with EZ550, will automatically turn on illuminator at night and off
during the daytime
• Weatherproof design and IP66 rated
• Designed to enhance low light performance for EZ550 only
Specications
Model Name
IR Distance
IR Wavelength
IR LED Lifespan
Power Source
Power Consumption
Dimensions (D × H)
Weight
Operating Temperature
Weatherproof Ratings
850nm
Up to 20,000 hours
12VDC
6W max.
80 × 88.5mm/3.15" × 3.48" (w/out backet)
80 × 148mm/3.6" × 5.83" (with bracket)
0.33kg/0.73lbs (with bracket)
-10˚C~50˚C / 140˚F~122˚F (20%~80% humidity)
IP66
EIR50
50m/164ft.
Specications
IR Distance
IR Wavelength
IR LED Lifespan
Power Source
Power Consumption
Dimensions (L×W×H)
Weight
Operating Temperature
Weatherproof Ratings
70m/230ft.
850nm
Up to 20,000 hours
12VDC
12W max.
200 × 290 × 100mm/7.87" × 11.41" × 3.93"
0.76kg/1.67lbs
-10˚C~50˚C / 140˚F~122˚F (20%~80% humidity)
IP66
80mm/3.15”
290mm/11.41”
100mm/3.93”
110
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
Accessories
PowerCon 4.x
Network Management Software
*Performance varies depending on equipments used and subject to actual test result
• Unlimited number of managed systems (DVRS,
megapixel/network cameras, video servers, 3rd
party applications)
• Live and playback view of DVR
• Live view and recording of EverFocus NEVIO
network cameras
• Local storage and printout of video data or single
pictures on client PC
• Multi-window design with scalable video windows
• Freely definable multiviews with up to 16 DVR
systems or network cameras, also mixed display of
different DVRs (max. 256 cameras in 1 multiview
with 16 × 16 channel DVR)
• Mapview: visualization of CCTV system in areas or
buildings with freely scalable maps, graphics (BMP
or JPG format) or active symbols
• Remote DVR conguaration
• Remote configuration of EverFocus network
cameras and video servers
• EKB200 joystick control supported
• Network alarm reception and management
• Multi-monitor support (depending on PC
conguration)
• Advanced access rights management with individual
user rights for functions and system access
• Network monitor for visualization of network trafc
• System checker: integrated background port
checker with alarm function for availability of DVRs,
cameras and video servers in network
• Support of external program starts
• Basic feature support for browser-based 3rd party
application
Processor PC Pentium IV (1.6 or higher) / AMD Athlon (1.8 or higher)
Operating System Windows XP, service pack 2, .NET Framework 2.0,
service pack 1, Windows Vista
VGA Card 32 MB min., 16,7 million colours, with DirectX 9.0C support
USB 2.0 interface
Memory
512 MB RAM
30 MB free HD space for installation
min. 10 GB free HD space for storage
Mediaplayer Microsoft mediaplayer version 8.x or higher
Further DirectX 9.0C
Supported DVRs
EDR 400 / 1600*
EDSR 400 H / M / EDSR 100 / 600 / 900 / 1600*
EDR 410/810 H/M / EDR 410 D / 910 A/D / 1610 A/D / 920/1640,
EDVR series**
ECOR4 / ECOR 8 (FW1.0.10b2 or higher)
EDR-16 Paragon series (FW 1.0.13 or higher)
* latest DVR rmware version
** rmware 1.7 or higher!
Supported Network
Cameras EAN 600 / 800 / 850 A / EZN 850 / EDN 800 T / EDN850H
Supported Megapixel
Cameras EAN 1350 / EAN 900
Further Supported
Devices
Video servers EVS 400 / EVS 100
Network multi I/O controller EPS 100
111
2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.
EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
Accessories
106
105 2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.
Accessories - Video Processor
Accessories
2011 Product Index

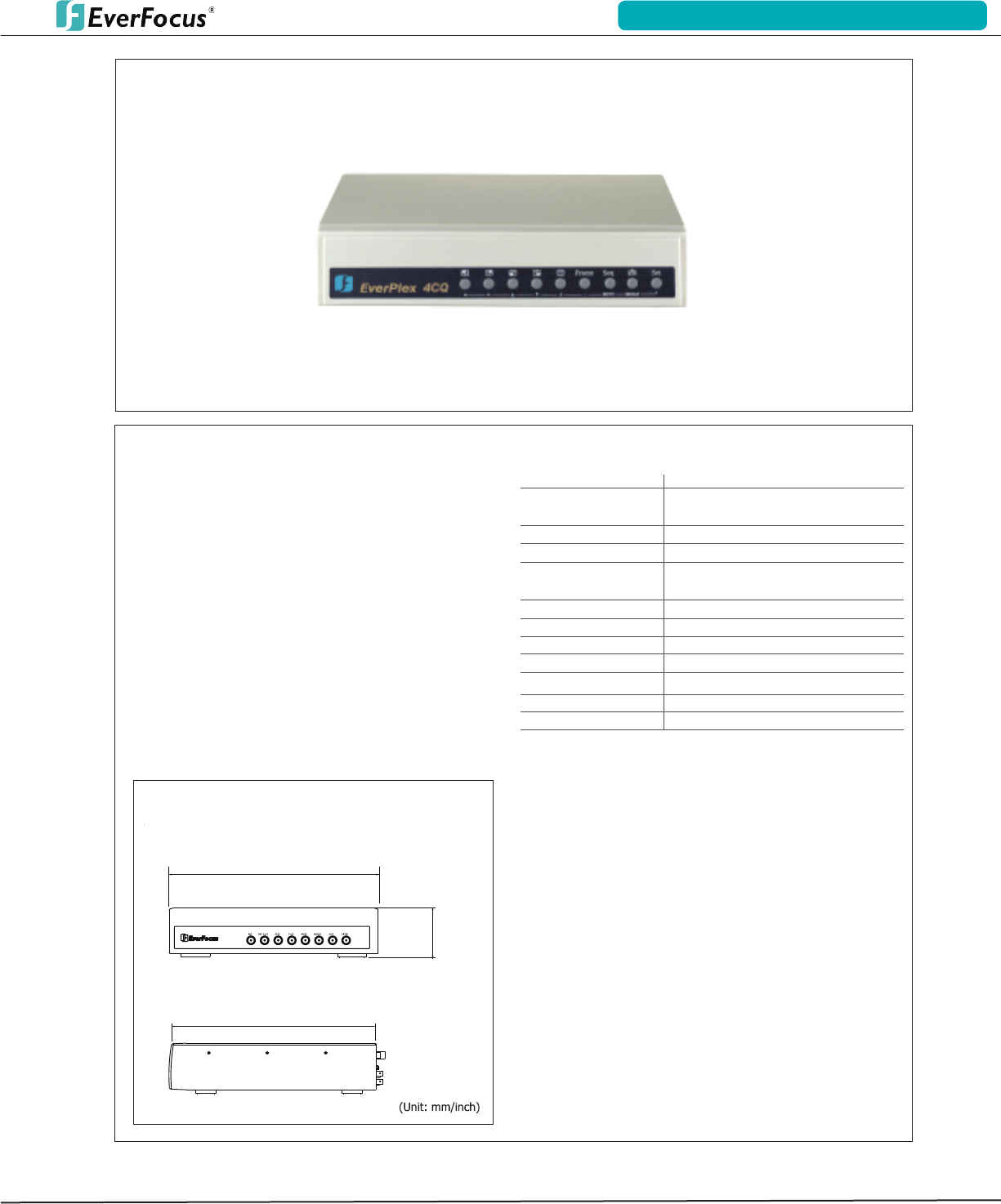

EverPlex 4CQ / EverPlex8CQ
* Models vary in different countries. Visit www.everfocus.com and select your
country for accurate ordering information
4 or 8 Channel Color Quad Processor
Features
• Monitor up to 4 and/or 8 cameras simultaneously
• Real time quad display
• Full image or single page quad display
• Independent brightness adjustment for each channel
• Alarm time setting (1~20 seconds)
• 4 or 8 alarm inputs with built-in buzzer
• Compact, desktop size for space saving purpose
• Auto sequential switching for each channel
(dwelling time: 1~4 seconds)
• Low power consumption
•
EP4CQ: 4 Channel, Color Quad Processor
• EP8CQ: 8 Channel, Color Quad Processor
Specifications
Video Format
Video Input
Video Output
Alarm Input
Alarm Output
Timer
Power Source
Power Consumption
Dimensions (L x W x H)
Weight
Operating Temp.
Humidity
NTSC or PAL
4 or 8 camera inputs (1 Vp-p/75 ohm),
1 VCR composite (1 Vp-p/75 ohm)
2 video outputs (1 Vp-p/75 ohm)
4 or 8 alarm inputs
1 alarm reset input (1 normally closed,
1 normally open)
Built-in real time clock
12VDC/24VAC +/- 10%, 200mA
17 W max.
239 x 166 x 55 mm / 9.4” x 6.5” x 2.2”
1.9 kg / 4.2 lbs
0°C ~ 45°C / 32°F ~ 113°F
20% ~ 80% humidity
Ordering Information
Dimensions
Alarm
Input
Alarm
Output
239 mm / 9.4”
166 mm / 6.5”
55 mm / 2.2”
2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.
ANALOG SOLUTION
EB200 ................................................ p 37
EBD430 ............................................. p 27
ECD230 ............................................. p 16
ECOR264-16X1 ............................ p 49-50
ECOR264-16X1R .......................... p 49-50
ECOR264-4D1 .............................. p 53-54
ECOR264-4F1................................. p 53-54
ECOR264-4X1 .............................. p 49-50
ECOR264-4X1R ........................... p 49-50
ECOR264-8D2 .............................. p 51-52
ECOR264-9X1 .............................. p 49-50
ECOR264-9X1R ........................... p 49-50
ECZ230 .............................................. p 31
ECZ330 .............................................. p 31
ED200 ................................................ p 15
ED230 ................................................ p 33
ED300 ................................................ p 14
ED330 ................................................ p 33
ED335 ................................................ p 28
ED350 ................................................ p 13
ED610 .................................................. p 8
EH00 .................................................. p 20
EHD350 ............................................. p 19
EHD500IR .......................................... p 30
EHD525EX .......................................... p18
EI350 .................................................. p 22
EM200 ................................................ p 38
EM-500NHP1 ..................................... p 35
EM-500NHP3 ..................................... p 35
EM-500NHP4 ..................................... p 35
EM-C500NHWX ................................. p 36
Endeavor264X4 ............................ p 47-48
EPARA16D3 (Paragon) ................. p 55-56
EPARA264-16X4 (Paragon264) ..... p 45-46
EPD200A ............................................ p 17
EPTZ100 ............................................ p 44
EPTZ2700 .......................................... p 43
EPTZ3100i ......................................... p 42
EPTZ3150 .......................................... p 41
EPTZ3650 .......................................... p 40
EQ200E .............................................. p 23
EQ250 ................................................ p 24
EQ300E .............................................. p 23
EQ350 ................................................ p 21
EQ610 .................................................. p 6
EQ650 .................................................. p 9
ESD200 .............................................. p 39
EZ230E .............................................. p 34
EZ235E .............................................. p 34
EZ330E .............................................. p 32
EZ335E .............................................. p 32
EZ350 ................................................. p 25
EZ430 ................................................ p 26
EZ550 ................................................ p 29
EZ600 ................................................ p 10
EZ610 .................................................. p 5
EZ630 .................................................. p 7
EZ-PlateCam ..................................... p 12
EZ-PlateCam2 .................................... p 11
HD CCTV
EHA-SRX ........................................... p 62
EHH5040 ........................................... p 60
EPHD08 (Paragon HD) ................. p 63-64
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4 alarm inputs with built-in buzzer
Monitor up to 4 cameras simultaneously
4 camera inputs
EP4CQ
4 Channel 1 Page Color
Quad Processor
112
