USB3.0 AOC Cable
www.everprotech.com
User Manual
USB3.0 Active Optical Cable
EPU3C-A0A0B100M
2014-02-10
Revision 1.0
EverPro Technologies Company Ltd.
www.everprotech.com
EverPro (Beijing) R&D Center
VIA Building, Tsinghua Science Park Building 7
Haidian District Beijing, China 100084
Email：LewisZhang@yofc.com
-2-
USB3.0 AOC Cable
www.everprotech.com
Introduction
The EverPro Technologies EPU3C-A0A0B100M USB3.0 Cable is a kind of Active
Optical Cable (AOC) used to extend the transmission distance of USB3.0
transmission up to 100m+.

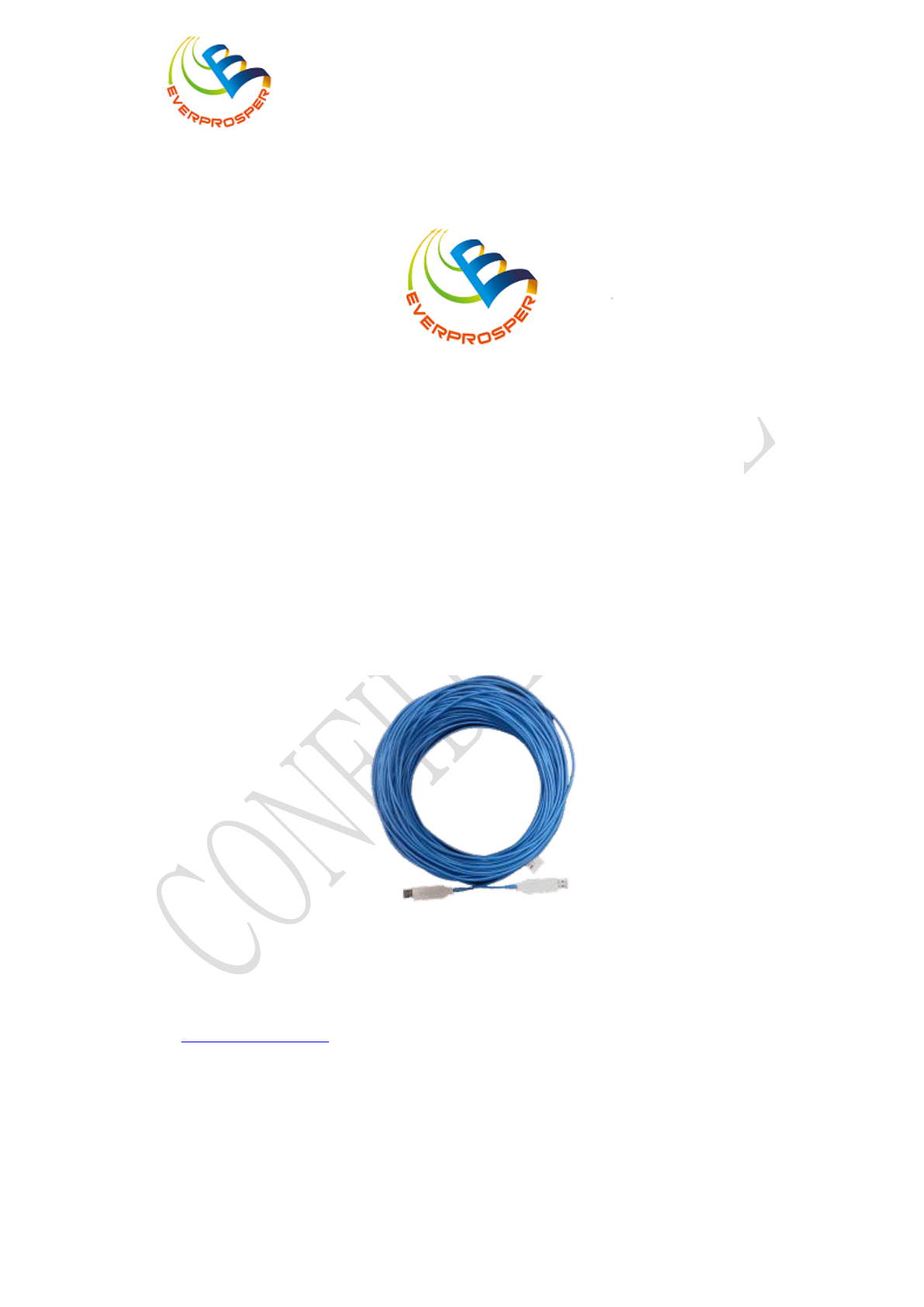

Figure 1. EPU3C-A0A0B100M Overview
EPU3C-A0A0B100M has two USB3.0 Standard-A connectors, and each end of this
connector has one chip (V0510) to complete the conversion of photoelectric and
electro-optical, and the middle connecting line is high-speed multimode optical
fiber transmission signal. Without any other connector or power adapter,
EPU3C-A0A0B100M is powered by vBus of two USB3.0 Standard-A connectors.
CAUTION: EPU3C-A0A0B100M supports only USB3.0 compatible devices, but with the Optional Accessories,
U3D02AR or U3H02AR, USB 2.0 and 1.1 compatible devices can also be supported.
Features
Convert USB3.0 electrical data signal to optical signal
Extend USB3.0 cable to 100m+
Resistant to EMI/RFI
USB3.0 Standard-A Compatible
Supports USB3.0 @ 5Gbps
Single USB bus 5V power supply
True plug and play (no software drivers)
-3-
USB3.0 AOC Cable
www.everprotech.com
Low power consumption
Requirements
To complete installation of the EPU3C-A0A0B100M, you will also require the
following items that are not included with the product:
USB 3.0 compatible computer (host computer) with a USB 3.0 compliant
operating system
USB 3.0 compatible device
Note: with the Optional Accessories, U3D02AR or U3H02AR , USB 2.0 and 1.1 devices can also be
supported.
Optional Accessories
EPU3D02AR (EverPro Technologies SuperTT dongle with A receptacle. AOC
supported)
EPU3H02AR (EverPro Technologies USB Expressway hub with A plug,
including USB 3.0 Hub and SuperTT, AOC supported)
The Supported Devices and Port Number of the Optional Accessories is as follows:
USB3.0
Device
USB2.0
Device
USB1.1
Device
USB1.0
Device
Downstream
Port Number
EPU3D02AR
√
√
√
√
1
EPU3H02AR
√
√
√
√
4
Note:
Development Kit of USB3.0 AOC includes USB3.0 AOC, U3D02AR and U3H02AR.
If you want, you can view the development kit user guide document of USB3.0 AOC.
-4-
USB3.0 AOC Cable
www.everprotech.com
EverPro Technologies Company Ltd.
Copyright © 2014 EverPro Technologies Company Ltd. All Rights Reserved.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise without the prior written permission of EverPro
Technologies Company Ltd. The material in this document is for information only and is subject
to change without notice. EverPro Technologies Company Ltd. reserves the right to make changes
in the product design without reservation and without notice to its users.
All trademarks are the properties of their respective owners.
No license is granted, implied or otherwise, under any patent or patent rights of EverPro
Technologies Company Ltd. EverPro Technologies Company Ltd. makes no warranties, implied or
otherwise, in regard to this document and to the products described in this document. The
information provided by this document is believed to be accurate and reliable as of the
publication date of this document. However, EverPro Technologies Company Ltd. assumes no
responsibility for any errors in this document. Furthermore, EverPro Technologies Company Ltd.
assumes no responsibility for the use or misuse of the information in this document and for any
patent infringements that may arise from the use of this document. The information and product
specifications within this document are subject to change at any time, without notice and without
obligation to notify any person of such change.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-5-
USB3.0 AOC Cable
www.everprotech.com
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
