USB3.0 Hybrid Active Optical Cable
Important Safety Information
Please read the important safety information.
The information can help you safely use this product. Please read and understand
all of the information for this product firstly.
The end user’s security is very important. Our products are safe and effective.
However, the product is an electronic device with power cord and other parts that may
cause danger if not follow the user manual to use it, and lead to personal injury and
property loss. In order to reduce the risk, please follow the user manual to use the
product.
Please follow the information as below and it can help to reduce the risk of
personal injury and property loss.
Avoid wetting the product. Please keep the product away from liquid
to avoid wetting the product and the danger of electric shock.
Avoid damaging the cable. Excessive force on the cable may
damage or break it. Connect all cables appropriate to avoid being damaged
and hampering operation of the product.
Avoid external damage to the product. Do not drop, bump, scratch,
hit, strong vibration the product, and do not put heavy loads on the product.
Chapter 1 Hardware Description
1. Product Profile

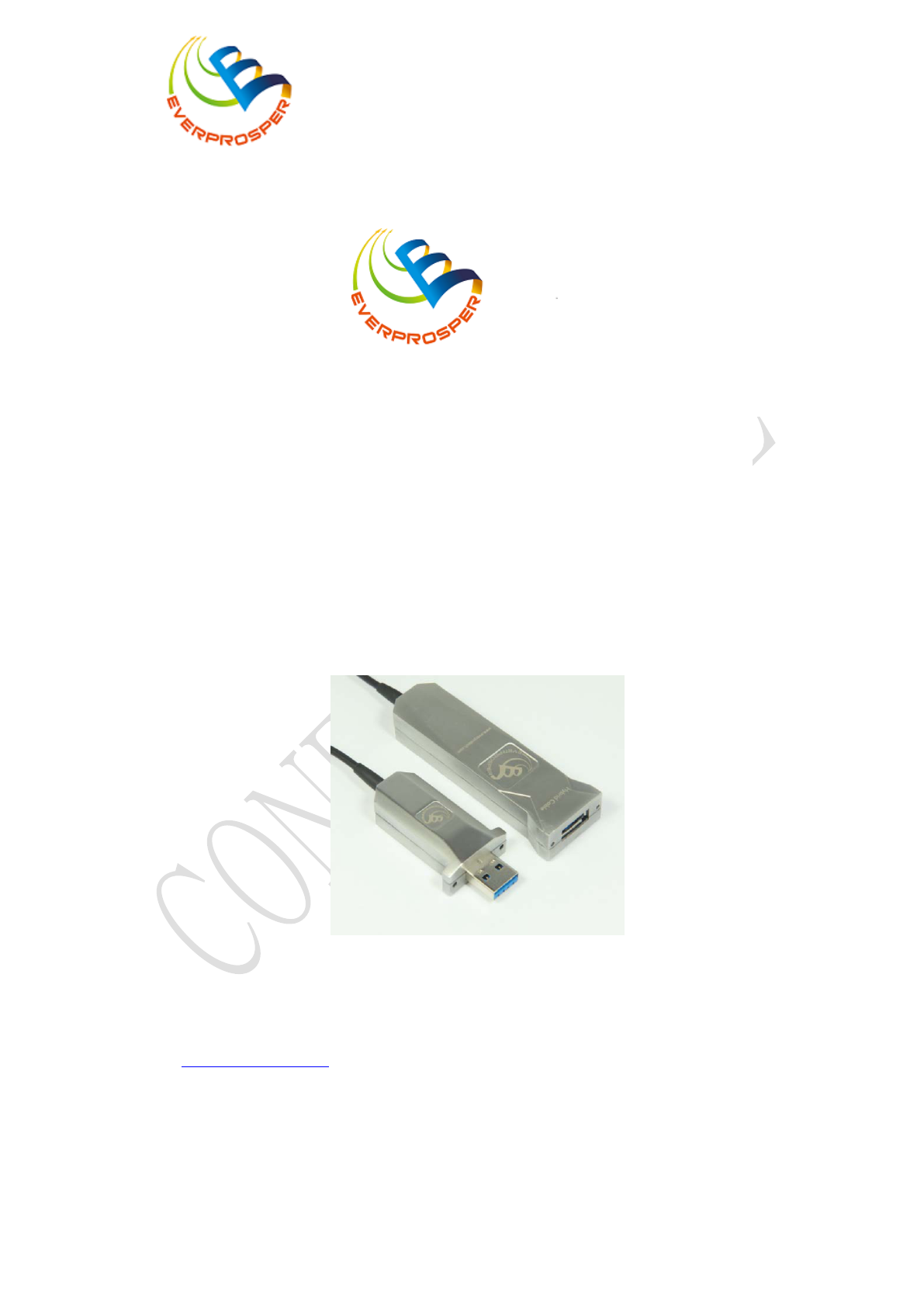

U3HC is new generation of USB3.0 hybrid cable. Its build-in unique SuperTT technology is
capable of realizing mutual conversion between USB3.0 and USB2.0 protocols, so as to enable
USB2.0 equipment to share the super speed bandwidth (5Gbps) of USB3.0.
Features:
Support USB3.0/2.0/1.1 devices
The maximum cable length can be up to 100m
The maximum transition speed can be up to 5Gbps
A substantial increase in USB2.0 device bandwidth with Build-in
SuperTT technology
Without power
Providing maximum 900mA/5V (50m+ cable is only support 600mA/5V)
![](/img.php?id=2506692&img=bg3.png)
-3-
USB3.0 Hybrid Active Optical Cable
for the device.
With locking screw holes
Hot plugging
No driver
Anti-jamming
2. Hardware Install

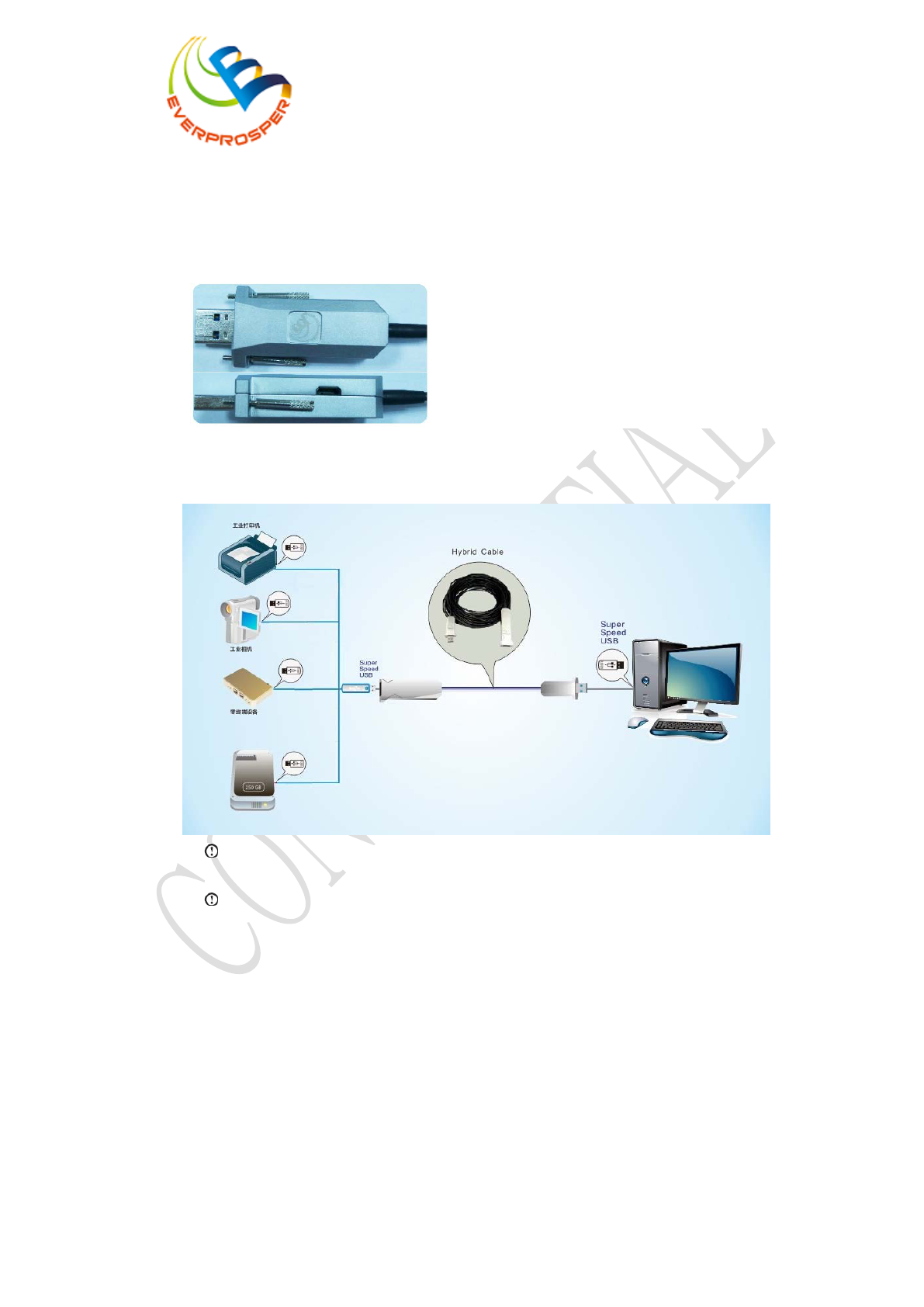

Connect U3HC A type plug to the host USB3.0 A type receptacle, and connect U3HC A
type receptacle to devices by one USB cable. Connection diagram as follows,
Requires a separate power supply for the HUB if the U3HC’s downstream port
connect to HUB.
Attention, don’t be scalded by the interface shell because the temperature may be
high if long time use the product.
Chapter 2 Common Problems
1. The wire cable is not connected.
(1) Check the appearance of the wire cable to see if there is abrasion, incompleteness and
crack.
(2) Check if the product has been connected to the host or devices normally.
(3) Supply power from the host by the USB cable between the A type receptacle of host
and the micro B type plug of U3HC.
Note:
1. The product features two studs to
conveniently mount on host.
2. Can be powered from the host by USB cable
connected between the host A type and the product
Micro B type receptacle if power supply shortage.
![](/img.php?id=2506692&img=bg4.png)
-4-
USB3.0 Hybrid Active Optical Cable
EverPro Technologies Company Ltd.
www.everprotech.com
Copyright © 2014 EverPro Technologies Company Ltd. All Rights Reserved.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise without the prior written permission of EverPro
Technologies Company Ltd. The material in this document is for information only and is subject
to change without notice. EverPro Technologies Company Ltd. reserves the right to make changes
in the product design without reservation and without notice to its users.
All trademarks are the properties of their respective owners.
No license is granted, implied or otherwise, under any patent or patent rights of EverPro
Technologies Company Ltd. EverPro Technologies Company Ltd. makes no warranties, implied or
otherwise, in regard to this document and to the products described in this document. The
information provided by this document is believed to be accurate and reliable as of the
publication date of this document. However, EverPro Technologies Company Ltd. assumes no
responsibility for any errors in this document. Furthermore, EverPro Technologies Company Ltd.
assumes no responsibility for the use or misuse of the information in this document and for any
patent infringements that may arise from the use of this document. The information and product
specifications within this document are subject to change at any time, without notice and without
obligation to notify any person of such change.
![](/img.php?id=2506692&img=bg5.png)
-5-
USB3.0 Hybrid Active Optical Cable
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
