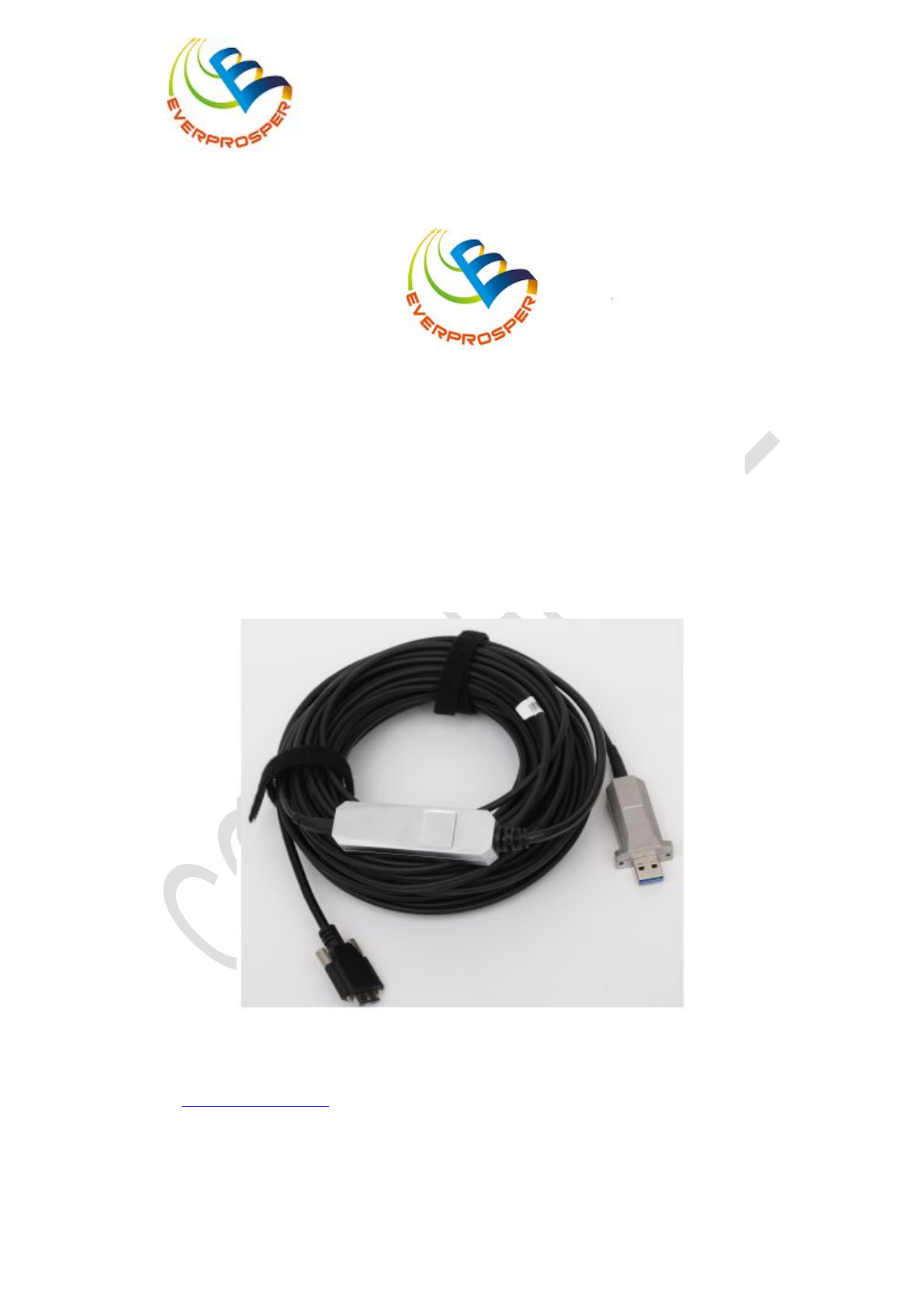

EverPro Technologies EPU3HC002 USB3.0 HYBRID ACTIVE OPTICAL CABLE User Manual 201512241702new
EverPro Technologies Company Ltd. USB3.0 HYBRID ACTIVE OPTICAL CABLE 201512241702new
User Manual 201512241702new
-2-
USB3.0 Hybrid AOC Cable
Important Safety Information
Please read the important safety information.
The information can help you safely use this product. Please read and understand
all of the information for this product firstly.
The end user’s security is very important. Our products are safe and effective.
However, the product is an electronic device with power cord and other parts that may
cause danger if not follow the user manual to use it, and lead to personal injury and
property loss. In order to reduce the risk, please follow the user manual to use the
product.
Please follow the information as below and it can help to reduce the risk of
personal injury and property loss.
Avoid wetting the product. Please keep the product away from liquid
to avoid wetting the product and the danger of electric shock.
Avoid damaging the cable. Excessive force on the cable may
damage or break it. Connect all cables appropriate to avoid being damaged
and hampering operation of the product.
Avoid external damage to the product. Do not drop, bump, scratch,
hit, strong vibration the product, and do not put heavy loads on the product.
Chapter 1 Hardware Description
1. Product Profile
U3HC-A1B3K050M is new generation of USB3.0 hybrid cable series. The length of USB3.0
Hybrid Cable can be extended up to 50m and this feature offers flexibility in extending USB3.0
devices in commercial and industrial locations such as machine vision cameras, security cameras,
and storage drives.
Features：
The maximum cable length can be up to 50m
The maximum transition speed can be up to 5Gbps
Bus Power from the Host PC: without external power supported
Providing maximum 900mA/5V (50m cable is only support
600mA/5V) for the device.
With locking screw holes
True plug and play: no software driver required
Supports all major Operating Systems: Windows, Mac OS X, and
Linux
-3-
USB3.0 Hybrid AOC Cable
Reliable operation with USB3.0 devices and hubs
Anti-jamming, Less EMI
2. Hardware Install

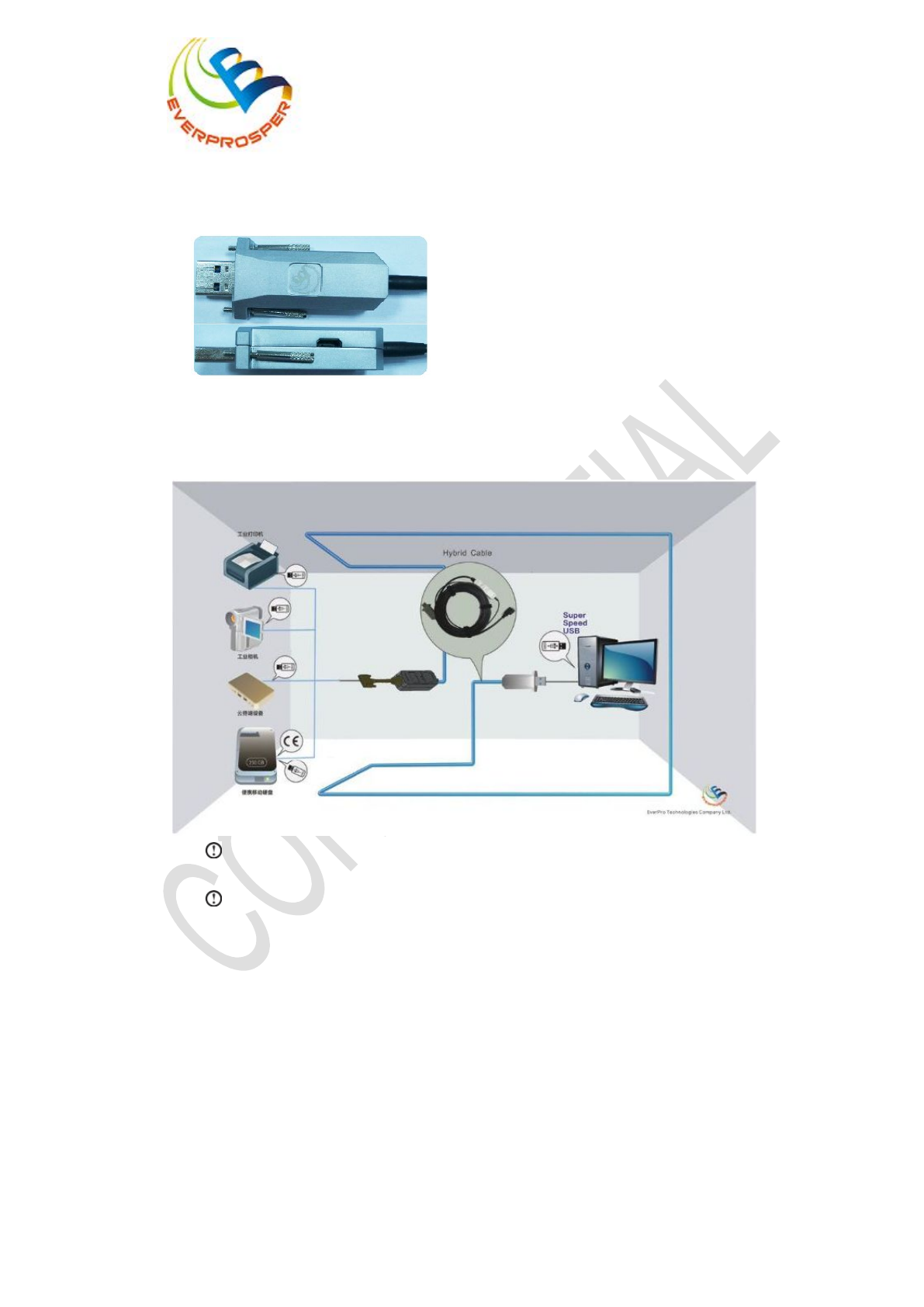

Connect U3HC USB3.0 Type A plug to the host USB3.0 Type A receptacle, and connect
U3HC USB3.0 Micro B plug to devices. Connection diagram as follows,
Requires a separate power supply for the HUB if the U3HC’s downstream port
connect to HUB.
Attention, don’t be scalded by the interface shell because the temperature may be
high if long time use the product.
Chapter 2 Common Problems
1. The wire cable is not connected.
(1) Check the appearance of the wire cable to see if there is abrasion, incompleteness and
crack.
(2) Check if the product has been connected to the host or devices normally.
(3) Supply power from the host by the USB cable between the Type A receptacle of host
and the Micro B type receptacle of U3HC.
Note:
1. The product features two studs to
conveniently mount on host.
2. Can be powered from the host by USB cable
connected between the host A type and the product
Micro B type receptacle if power supply shortage.
