Everex Electronics CLP290 INCH SLIMBOOK User Manual
Everex Electronics Ltd INCH SLIMBOOK Users Manual
Users Manual
1
Model:CLP290
2
Please setup Gmail account during initial device setup. If you are going to use a
password or a pattern unlock you must have a valid Gmail account setup in the event you
forget either.
Forgot lock pattern? Here's a way to reset it.
Enter wrong pattern 5 times and wait for 30 seconds.
Select “Forgot pattern” and enter your Gmail account username and password.
Make sure you use the same account that was used to activate the device and double
check the password by logging in to that Google account in a browser on laptop or PC.
If you don't have access to the original Gmail account, you will need to do a hard reset
and lose your settings and apps on the device. Data on the memory card will not be
erased.
4
5
6
This manual contains important safety precautions and information for correct usage. Please be
sure to read this manual carefully before use to avoid any damage to the device.
1. Do not place the product in hot, wet or dusty environments.
2. Do not place the product in hot environments. Especially in summer, do not place it in a car
with all the windows closed or in the sun.
3. Avoid dropping or smashing the product and do not shake the TFT screen excessively as it
may cause damage or abnormal display screen.
4. Select a suitable volume and avoid loud sound while using headphone/earphones. Turn
down the volume or stop using the product if your ears start hurting or ringing.
5. In the following situations, please charge the product:
A. The device shows on the top of the screen.
B. System automatically shuts down, and it turns off soon after restart.
C. Operation buttons do not work properly.
D. The unit will not turn on.
Note: Chargers of other models cannot be used for this device because they may cause damage
to the device that will void the warranty. Please contact our customer service department if
you need a replacement charger.
Do not disconnect the device while formatting, downloading and/or uploading; otherwise,
application errors may occur.
We are not responsible for any memory erasure or loss caused by damage or product
maintenance, or other personal reasons.
Do not disassemble the product, and avoid cleaning the product with ethyl alcohol, thinner, or
benzene.
Do not use this product in areas which prohibit the use of electronic devices, for example, in
an airplane.
Do not use this product while driving or walking in the street, as it may cause a car accident.
Notes:
This device is not waterproof.
All images in this manual are for reference only. Specifications and appearance of the
product and the screens are subject to change without prior notice.
7
FIRST USE:
Battery Recharge
The device has a built-in DC 3.7V, 4600 mAh rechargeable Lithium-ion Polymer battery.
Recharge as follows:
Insert the small plug from the supplied USB connection cable to the mini USB port on the
unit. Insert the other end to the AC/USB Adapter. Plug the AC/USB Adaptor into the wall
outlet having AC 100-240V~, 50/60 Hz.
This power unit is intended to be in a horizontal position.
Notes: Your battery will last longer if you follow these simple guidelines for caring for and storing
it.
A
. For charging the first time, charge the device approximately 10 hours. For normal charging,
the device needs approximately a 4 hour charge.
B. Recharge and store the device within the temperature range of 5°C~35°C (40°F~95°F).
C. Do not overcharge (longer than 24 hours). Excessive charging or running the unit until
battery goes empty will damage battery. Battery life will be extended if you keep the battery
fully charge.
D. Battery life naturally shortens slowly over time.
E. The rechargeable battery incorporated into this product is not user replaceable.
SD card
This device supports an SD Memory Card (Card not included). To increase memory size, insert
an SD
card into the card slot on the side of unit as the figure below:
Notes:
A. Insert the card (Up to 32GB, not included) into the card slot on right side of unit with metal
chip face down.
B. To take out the card, press the card until a “Click sound” is heard then pull out the card.
C. Before replacing the storage card, make sure the unit has been powered off.
D. When inserting the storage card, make sure the direction you select is correct. Never insert
violently
to
avoid damaging the card or the unit. If the storage card doesn’t work, please
check if
the direction is correct.
E. When the card is used for the first time, or it has been used in another device, please
format it first through the Computer. You also need to download the desired music, photos
and/or movie onto the card before installing into the unit
Important: Formatting the SD Card will delete all the data on the card. Download the data
to your computer before formatting the card.
USB Ports (Full size USB port)
8
This device supports USB devices such as USB thumb Drive to increase the memory size and
to read files, simply insert the device into the USB port as indicated in above.
Power on/off the Device
A. Press and hold the Power On/Off button beside the keyboard to power on the unit
B. To save power of battery. Press the Power On/Off button or (Sleep) button to turn
off the screen. Press it again to turn the unit on.
C. To power off the device, press and hold the Power On/Off button until the sub-setting
menu appears
on the screen. Move the cursor to the Power off button and then click the left
button. “Power off” menu will appear, move the cursor to “OK” button then left click it.
Notes:
Like your computer, after turning on the Device, you may have to wait a short
while to let the operating system boot up before the home page appears on the
screen.
Touch Pad:
Touch the pad to move cursor on the screen as desired. Press the Left or Right button to do click
action.
Reset:
If the device becomes abnormal, halts, freezes. Press the RESET Button.
9
Location
of Controls
1.
Front Camera
2.
LCD Panel
3.
LED indicators (from Right
to Left):
a. Power On Indicator
b. Power Charging Indicator
c. Caps Lock
4. Power button
5. Full Size USB Ports
6. Earphone Jack (Green)
7. Mic (Microphone) Jack (Pink)
8. MICRO SD Slot
9. Keyboard
10. Two Full Size USB Ports
11. Mini HDMI Port
12. Mini USB Port
13. Built - in Microphone
14. Touch Pad
15. Reset
16. Speakers
F (Function) Button’s assignment:
F1- Browser
F2-
Camera
F3- My Music
F4- Gallery
F5- Calendar
F6- Calculator
F7- Back Light -
F8- Back Light +
F9- File browser
F10- Sound -
F11- Sound +
F12- Settings
10
Connections:
Connect to HDMI TV
Connect the device to a TV (with HDMI port) via the Mini HDMI jack on the side of the unit to
the HDMI port on the TV. (Connection cable not included).
The device will activate the HDMI connection automatically and to change output resolution,
Tap on the HDMI Switch APP on the APPS page.
Important: HDMI output operates in Video playback mode only.
Earphone / Headphone jack:
For private listening, connect an Earphone/Headphone to the Headphone jack on the right side of
cabinet. The speaker will cut off automatically (Earphone/Headphone not included).
Getting Started
On home page, touch the" " button on the upper-right corner, the following picture
will appear on the screen:
11
Touch the Settings ( ) button on the screen, the setting menu will appear on the
screen, then:
Touch on the screen and move Left of Right (Up or down) to show more selections.
Choose the corresponding button you need to set. The sub-setting menu will appear on the
screen, follow on screen instructions.
WIRELESS & NETWORKS
To browse the web; connecting to apps store, use e-mail, Facebook, Twitter…you must connect
this unit to internet by Wi-Fi as below:
1. Touch on the Wi-Fi “OFF” button then slide it to the right to turn Wi-Fi ON, wait a few seconds,
the available Wi-Fi networks will appear.
2. Touch on the desired network to start connection as on screen instructions. (Maybe ask for
password).
NB:
After setting, you can turn it ON or OFF by touching the ( ) widget on the screen.
☆The device automatically scans and lists all local Wi-Fi Network found.
☆indicates secure networks that require login name/password to connect.
☆Touch the desired network which you want to connect, →enter the Network Password if
applicable, → Touch Connect.
☆Touch to return to the previous screen.
☆If your Wi-Fi network is set as hidden, it won’t be found by the auto scan. Touch “ +” and
follow the prompts to add your network.
12
BLUETOOTH
Remark：The Device Bluetooth does not support Apple products
1. Turn "Bluetooth" to "ON" status.
2. Click the on the screen top right corner, choose "Visibility timeout" then
you click to the "Never time out", if it is the option needed. Please click to again.
13
3. Click on "SEARCH FOR DEVICES" for searching Devices.
4. Choose the devices you wish to connect.
5. Once is done, the you may transfer date, photos, PDF files or even Bluetooth
speakers for music playback.
DISPLAY
Brightness: To adjust the screen brightness by moving the scaling bar.
Wallpaper: To choose and set the wallpaper screen.
Sleep: To enable sleep mode and select time to sleep while not in operation.
Font size: To adjust the display Font Size.
14
DESKTOP
Status Bar
• The Status Bar lies at the bottom of the screen.
-- At the left side there are
OperationR．R
Below are some advises on how to operate the operation zone:
• By touching the icon, you can get back to the previous screen.
• By touching the icon, you can get back to the homepage wherever interface you are
in.
• By touching the icon, a window popups which shows the latest apps in operation.
-- At the right side there are
Which stands for Time, WiFi and Battery status.
• In the main menu interface, you can open and operate any app by touching on the icons to run
applications such as Files Browser, Browser, Music, MoviePlayer, as well as during web browsing
or PDF viewing, you can drag the menu, by sliding the screen to scrolling up and down the page
as well as to enable the page to move different directions respectively.
15
Application Management
Downloading AndroidTM Applications ,

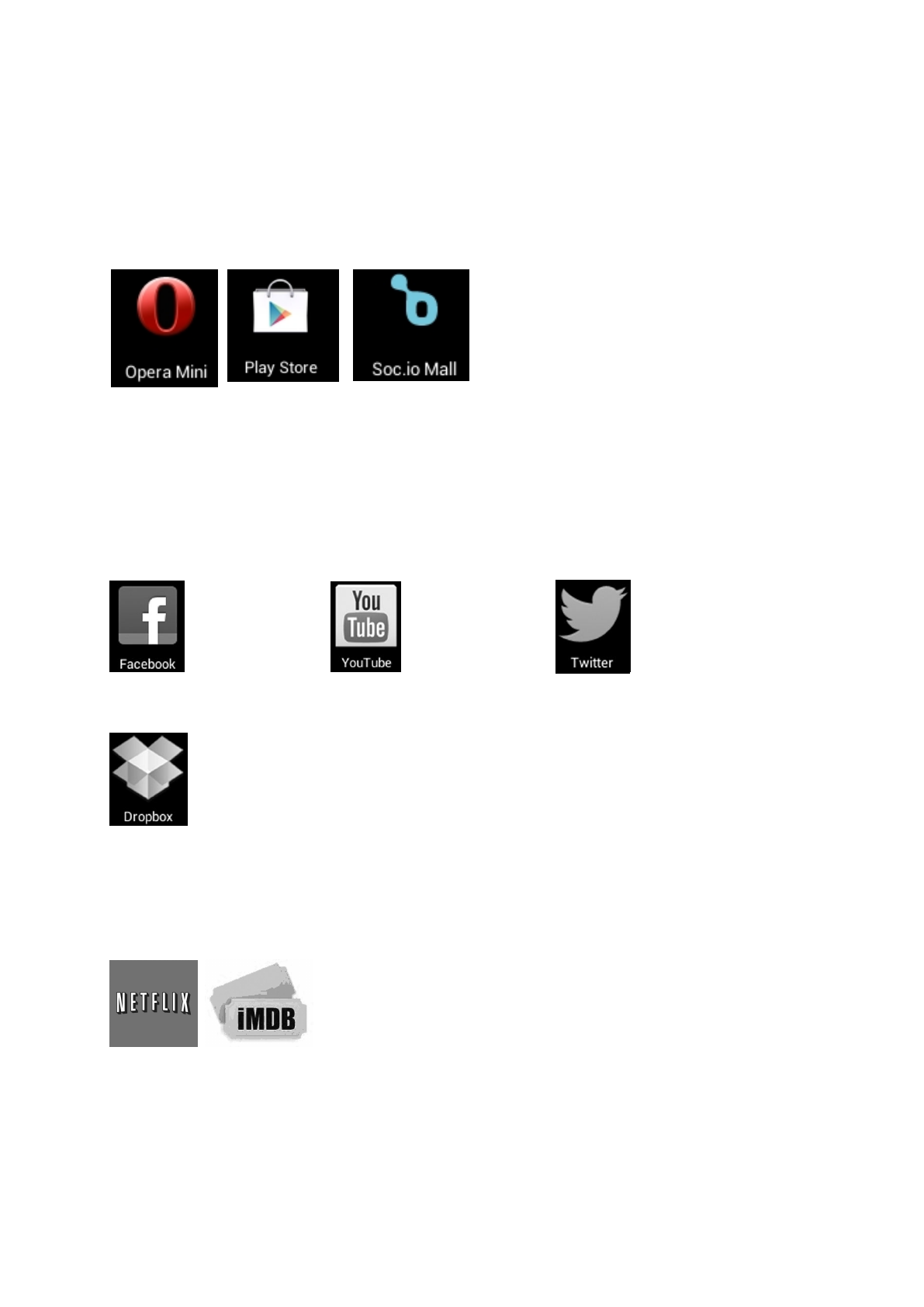

☆Pre-loaded App stores such as Amazon APP store, Opera Mini, Google Play TM , Soc.io
Mall are providing many interesting and free applications for downloads. Individual
app store may ask for credit card information and personal details. Please be caution
that some application may require to pay.
Downloading Android Applications direct from a Website
You can download Android applications directly from websites, and then quickly and easily install
them on your device.
Touch the Web application icon to launch the internet browser.
Enter the desired website URL, and touch the download link for the application you want to
install on your device.
After the download is complete, touch on the download file (in the Apps under setting
screen), Touch Open → Install.
Uninstalling Android Applications
You can also quickly and easily uninstall the Android applications that you have installed.
1. Touch → Settings →Apps.
2. Touch the application you want to uninstall, → Uninstall.
3. Touch OK to confirm the Uninstall.
Clock
Touch the Clock application icon. You can see the time and date.
AlarmR：R
☆You can use your device as an alarm clock by setting multiple alarms.
This clock icon displayed at the bottom of screens indicates that one or more
alarms have been set and are active.
Add Alarm
Touch the Clock application icon.
Touch Set Alarm → Add alarm.
Set up your alarm as desired (Input alarm time, touch “Done”)
Touch “Turn alarm on” with“√” and touch “OK”
Touch Done.
16
Delete Alarm
Touch the Clock application icon, →touch Alarm set: “desired setting time”
Touch (blank) the alarm you want to delete.
Touch Done.
Video Conferencing
Skype can be downloaded from app stores such as Google Play, Opera Mini and
Amazon APP store.
**This device built-in front camera and microphone that allow video conferencing via Skype
BROWSER
Users can connect to the Internet through a browser.
Touch the browser icon on the apps page , and then you can open the Web browser.
CALENDAR
Touch the Calendar application icon.
For the first time using the Calendar, you need to add a Gmail account. Enter Gmail address and
password. Click “Next” and follow the prompts to complete the account configuration. Then you
can use the Calendar. (Note: In Account Set up screen, manual change the server for www.
google.com)
Add Event
1. On the Calendar screen, touch on the date to which you want to add an event.
2. Touch on the event time, →touch in each entry field to enter the desired event
information.
3. Touch Done.
17
Email
Inside the apps menu, click the icon to enter the ‘Email/Gmail’ client. It’s required
to configure the account information for the first time. Pre-register and set up your email account
is necessary. Please be advised that Gmail account registration is necessary in order to access
services provided by Google and Android .
File Browser
Touch the Explorer application icon to view the files on all storage devices (Local, Micro
SD card, USB device), and to quickly & easily install Android application on your Tablet.
Use the icons across the top of the screen as follows:
he instructions below are for copying from a SD card or USB storage device in to the ROM. You
can
use the method to copy from the ROM copy to the SD card or USB storage device .
1.Click the "GOTO" choose storage devices (SD,USB) to display the contents of your storage
device
2.Click and hold in the folder/file you want to copy (Supports multiple folder/file selection) —click
COPY
3.Click the "GOTO" choose storage devices (ROM)
4.Click on the ROM.--Select the folder which you want to copy the file
5.Click Paste
DELETE files Click and hold on the folder/file you want to delete (Supports multiple folder/file
selection), →Click DELETE → OK to confirm the deletion.
18
Google Play Music
Using the pre-loaded “Play Music” Player to play audio files:
☆Audio file formats supported: MP3, .
The “Play Music” player will automatically load the music files from the SD/USB/Local Disk to
the playlist after turning on the “Play Music” player .
Frequently Asked Questions
Android
Q: What Android OS version is on my Device? A: Android 4.2,Jelly Bean
Basic Device Functionary
Q: Do I have to charge the battery before use?
A: You should charge the battery for at least 4 hours, but you can use the device while
it’s charging. Use the included power adapter to charge; this device charge via USB
cable.
Email
Q: Can I use any of my personal email addresses to send/receive email?
A: The device supports POP3 and SMTP accounts. Some free email accounts are not
supported on mobile devices. Check with your email provider to see if your account is
supported.
Media Cards
Q: Which media cards are compatible with my Device?
A: micro SD cards.
Music
Q: How do I add music files to my device?
A: Copy the music files from your computer onto a micro SD card or USB storage device,
and then use the File Browser application to copy the files into the device.
Photos
Q: How do I add photo files to my device?
A: Copy the photo files from your computer onto a micro SD card or USB storage device,
and then use the File Browser application to copy the files into the device.
Video
Q: Can I play YouTubeTM videos on my device?
A: Yes. You can tap the YouTube application icon to quick access videos.
Q: How do I add video files to my device?
A: Copy the video files from your computer onto a micro SD card or USB storage device,
and then use the File Browser application to copy the files into the device.
Wi-Fi
Q: Do I need a Wi-Fi adapter to connect to the Internet?
A: No. The Wi-Fi adapter is built-in to the device.
Storage:
Q: How do I turn the device into a USB storage device?
A: Connect the device using included USB cable with the PC, immediately a screen
will display on the screen, Tap “Turn on USB storage” to connect the device with
the PC.
UOtherOOther Applications on Home Page
19
Email,Gmail:
Touch intoTe-mail settings, after entering the email address and password, simply follow the
on screen instructions for set up. This application supports IMAP mail (such as Hotmail ,
Gmail and Yahoo Mail, POP3 mail and Exchange). Tap Menu button on screen to choose
and remove email account.T
Google Play Music:
Touch icon to access music.The list of artists, albums, songs, playlist,etc. will appear on the
screen. Click the desired music file to start playing.
GalleryR：R
Touch into photo player to play photos.
Aldiko Premium:
Touch into the book shelf to select/manage and/or read ebooks.
To turn to next page, touch on the screen then slide from right to left.
To turn to previous page, touch on the screen then slide from left to right.
Amazon App Store:
20
Click to browse the Amazon APP Store Main page.
On the right side of the screen, click on Device without mobile number, then Amazon APP
store downloading page will appear.
Click on download now and app store will be downloaded automatically
Once is done, click on install and Amazon APPs store icon will then be displayed on your
app page.
Opera Mini / Soc.io Mall / Google Play :
Touch on to the App store to choose and download the desired Apps. (Please follow on
screen instructions to register)
Social networking:T
This Device has pre-loaded with the most popular social applications for usage. Touch the
individual icon to login with pre-registered login name and passwords; otherwise, you may
register online by following the on screen instructions.
Dropbox :
Touch to open and register with 5 GB cloud storage.
** Please follow the on screen register instructions and getting start.
Netflix / iMDB :
Touch to open and input your password with user name to view movies.
iMDB: This app can be downloaded from the Amazon APP store and allow users who have
Amazon User Account and watch movies instantly.
21
Troubleshooting:
Cannot power on the Device
Connect the supplied AC/USB Adaptor.
T
Cannot go online
Check if your Wi-Fi setting is correct, proper password may be needed.
Check if your router is working properly.
Check your signal bar on the Device. It may not be connected due to weak signal.
Earphones do not transmit sound
Earphone volume is poor.
Try another music file.
Screen is flashing after power on is performed
Short of power, please charge the battery.
How to buy/download the applications from the internet
Make sure your device is already hooked up to Wi-Fi/ networks.
Press Opera Mini, Amazon Appstore, Soc.io Mall, Google Play icon on the home page.
Search, Buy, Download and Install the desired applications by following the on screen
instruction.
Warning: Personal details and Credit Card information may be required, please stay Alert !
Unable to Read Ebook
Application Amazon Kindle already installed in the device. Make sure you are using the
“Amazon Kindle” APP to read the ebooks bought from Amazon.
Some online bookshops require their own application to buy, download, read and
manage ebook purchases. Applications can be downloaded from the web or by going
into the Opera Mini or Amazon APP store and searching for a suitable one.
Barnes and Nobles uses its own reader application, called “Nook”. Most other book
stores will use third party applications such as Aldiko, which can be download from the
Opera Mini or Amazon APP store.
Media files can't be found:
If new files were added onto the device; click the "File Browser" icon on the APPS
menu to search.
Use correct Apps to open corresponding media files. Click “Gallery” to view photos.
Click “Play Music” to play music.
How to enter the Settings menu while applications/programs are running
After turning on the application/program, Touch the Option button where is normally
listed on the bottom of the screen to enter settings menu. Set each setting as
instructed by the on screen instructions (functions depend on the software of the
applications).
Cannot hook up with Wi-Fi or the Wi-Fi signal is weak
Make sure Wi-Fi is available in your location and you are authorized (with correct
password) to hook up it.
The device may be too far from the signal source. Move your device closer to the
signal
source.
How to remove personal data/email accounts from the device:
In the settings menu, select and enter “Backup & reset” setting.
Touch “Factory data reset” button to enter.
Touch “Reset tablet ” button.
Touch “Erase everything” button to start reset. Wait until the device finishes resetting by
itself. The device will turn off automatically. (It may need a few minutes).
IMPORTANT:
After Factory Data reset, all users’ data (users installed applications, passwords,
e-mail accounts, Gmail accounts, media files etc...) will be deleted. Backup this
data before resetting.
22
PRODUCT SPECIFICATIONS
Hardware Configuration:
CPU Processing Speed Cortex A9, 1.2GH DUAL Cores
Memory/ROM 4GB (Internal 2.4 GB flash memory has be assigned for Android
operating system and pre-loaded Apps, existing 1.6 GB flash
space is available for further operation needs.)
Memory/RAM DDR III 1 GB
Memory Card Slot Micro SD card(Supports up to 32GB), not included
USB 2X Full Size USB;1X Mini USB
I/O ports 1x Micro SD Card Slot, 3.5mm Phones Jack, Mini HDMI
Wireless Interface WiFi 802.11b/g/n
Power source of the unit: AC 100-240V~, 50/60Hz, 0.5A
Output of the supplied AC/DC
Adaptor
DC 5V,2A
Software Configuration:
Operating System Android 4.2
Browser Web Browser
Video file supported H.264, VC-1, AVI,RMVB
Music file supported MP3, AC3,
Photo file supported JPEG, BMP, GIF, PNG, TIFF
Email Support Web mail & Pop mail
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Accessories:
1 x Instruction booklet
1 x AC/USB Adaptor
1 x USB Connection Cable
Disclaimer
The Android robot is reproduced or modified from work created and shared by Google and used
according to terms described in the Creative Commons 3.0 Attribution License.
Android, Google, Google Play and other marks are tradmarks of Google Inc.
23
Warranty Certificate
Provisions of Warranty
1. Everex Electronics Limited( "Everex ") provides , from the date of purchase, to the Customer,
one-year warranty on all Everex products. If the product proves to be defective, although it
has been used properly (in accordance with the written User Menu supplied with it), during a
period of up to one year from the date of purchase the product will be repaired. To claim
under warranty the Customer must take the product and this Warranty Certificate before the
end of the one-year warranty period to the dealer where the product was purchased or any
Everex authorized service station and request the necessary repairs.
2. The Customer shall transport the product to the dealer or Everex authorized service station
at his own risk and shall be responsible for any costs incurred in transporting the product.
3. This Warranty does not cover the following conditions and the Customer is required to pay
repair charge , even for defects occurring within the one-year period referred to above:
(a) Any defect that occurs due to mishandling (such as an operation performed that is not
mentioned in the User Menu etc).
(b) Any defect that occurs due to installation, repair, modification, cleaning, etc, performed
by anyone other than Everex or its dealer or service station authorized by Everex.
(c) Any defect or damage that occurs due to transport, fall, shock etc. After purchase of the
product.
(d) Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt,
other natural disasters, environmental pollution and irregular voltage sources.
(e) Any defect that occurs due to improper maintenance etc.
(f) Any defect that occurs due to sand, mud etc. Entering the inside of the product casing.
(g) When this Warranty Certificate is not returned with the product.
(h) When any alterations whatsoever are made to the Warranty Certificate regarding the year,
mouth and date of purchase, the Customer's name, the dealer's name, and the serial
number.
(i) When proof of purchase is not presented with this Warranty Certificate.
4. This Warranty applies to the product only. It does not apply to any other accessory
equipment.
5. Everex sole liability under this Warranty shall be limited to repairing the product and any
liability for indirect or consequential loss or damage of any kind incurred or suffered by the
Customer due to a defect in the product, and in particular any loss or damage caused by any
equipment or accessories used with the product or for any loss resulting from delay in repair,
is excluded.
Notes
1. The Warranty will only be valid if this Warranty Certificate is duly completed by Everex or its
dealer.
2. Since this Warranty Certificate will not be re-issued, keep it in a safe place.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 2ABWOCLP290
Everex Electronics Ltd
Model No.: CLP290
Model name: INCH SLIMBOOK
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
24
Disclaimer
Everex makes no warranties, either expressed or implied, by or concerning any
content of these
written materials or software, and in no event shall be liable for any implied warranty
of merchantability or fitness for any particular purpose or for any consequential,
incidental or indirect damages (including but not limited to damages for loss of
business profits, business information) arising from the use of or inability to use these
written materials or software.
The information contained in this Warranty Certificate is subject to change without
prior notice.
+
Everex Email : marketing@everexltd.com Fax : +852 31522713
Registration
Product Name : Model Number :
Serial Number :
Purchase Date : Installation Date :
Dealer Name :
