AC123 REMOTE CONTROLLER

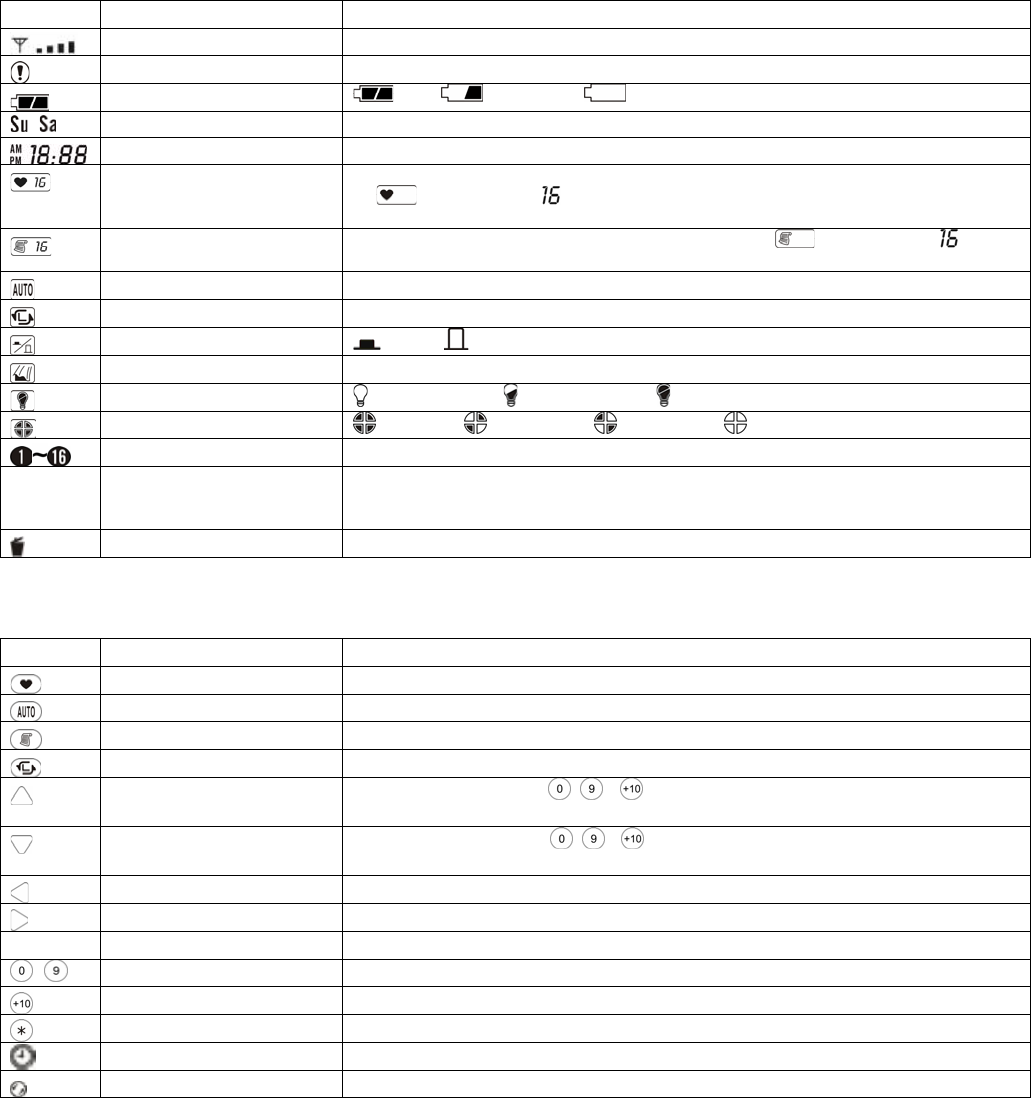

Symbol on LCD Screen
Symbol Name of Symbol Significance
Antenna The remote controller is being communicated with other device.
Not Applicable The setting made by the remote controller generates conflict.
Battery Indicator full half to full Low
~ Day of Week Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday
Real Time Time indication, AM means morning, PM means afternoon
Preferred Mode When the preferred mode is set or the preset preferred mode is chosen, an indication
of will be shown. means the preferred mode is being set or 16th is being
executed.
Program Mode When the program mode is being set, an indication of will be shown. means
16th is being set.
Auto Mode In auto mode, time-to-operate can be
Learning Mode In learning mode.
Open/close status open, close
Curtain status An indication of curtain device is applied.
Incandescent dimmer status Full brightness, Half brightness, Darkness
Arm status fully arm, part-arm 1, part-arm 2, disarm
Group code Devices to be controlled (If used for BH product, it refers to unit code)
CH
Channel Used for house code of BH series product
Delete Upon deletion is taken
Keypad Button
Symbol Name of Symbol Significance
Preferred button Used for setting or executing preferred mode
Auto button Used for entering or leaving the auto mode
Program button Used for programming mode
Learning button Used for entering learning mode
On button To operate together with ~、 or ＊(all) button, let the memorized individual or
all devices to be activated; for time setting, it is regarded as UP.
Off button To operate together with ~、 or ＊(all) button, let the memorized
Individual or all devices to be off; for time setting, it is regarded as DOWN.
Leftward Towards the left
Rightward Towards the right
OK OK button Used for confirmation while setting or saving
~ Single Digit button
Tens Digit button
＊button All
Present time button Keep pressing 3 seconds will enter present time setting
Setting BH button Keep pressing 3 seconds will enter the setting for house code of BH series
2
SPECIFICATIONS:
Frequency range 315 MHz or 433 MHz
Battery 1.5V AAA type x 4
Communication Range 70 meters min. (in an open space)
