Everspring Industry Co Ltd Wireless IP gateway
User Manual
AC134-C
Wireless IR Controller
User Manual
Version : 1.0
Date : 2016-08-23
AC134-C User Manual
Table of Contents
1. Copyright and Confidential ................................................................................. 1
2. Disclaimer ............................................................................................................. 1
3. Revision Record .................................................................................................... 1
4. Introduction .......................................................................................................... 2
5. Overview ............................................................................................................... 2
5.1. Socket &Button ................................................................................................ 2
5.2. LED ..................................................................................................................... 2
5.3. Power function ................................................................................................. 3
5.4. RF function ........................................................................................................ 3
6. How to set up the device? .................................................................................. 4
7. Warning ................................................................................................................. 5
8. Specification summary ........................................................................................ 6
AC134-C User Manual
Page 1 of 6
1. Copyright and Confidential
The information contained in this document or diagram is confidential and
proprietary to Chromagic Technologies Ltd. Co. This information may not
be distributed or used for any purpose other than the evaluation of
Chromagic’s solutions, nor may it be disclosed to any party without the
prior written consent from Chromagic. All Rights Reserved.
2. Disclaimer
This document or diagram and the information contained herein is provided
on an "AS IS" basis and Chromagic DISCLAIMS ALL WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY
THAT THE USE OF THE INFORMATION HEREIN WILL NOT INFRINGE ANY
RIGHTS OR ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
3. Revision Record
Date Version Description
2016-08-23 1.0 The first release.
AC134-C User Manual
Page 2 of 6
4. Introduction
AC134-C belongs to smart wireless Home automation solution and can support
TSC06-C. It support infrared rays learn、control、auto-reply. This device is low cost,
low complicate, low power consumption, high safety, two-way wireless
communication technology. It’s designed for desktop only, not on wall or ceiling.
5. Overview

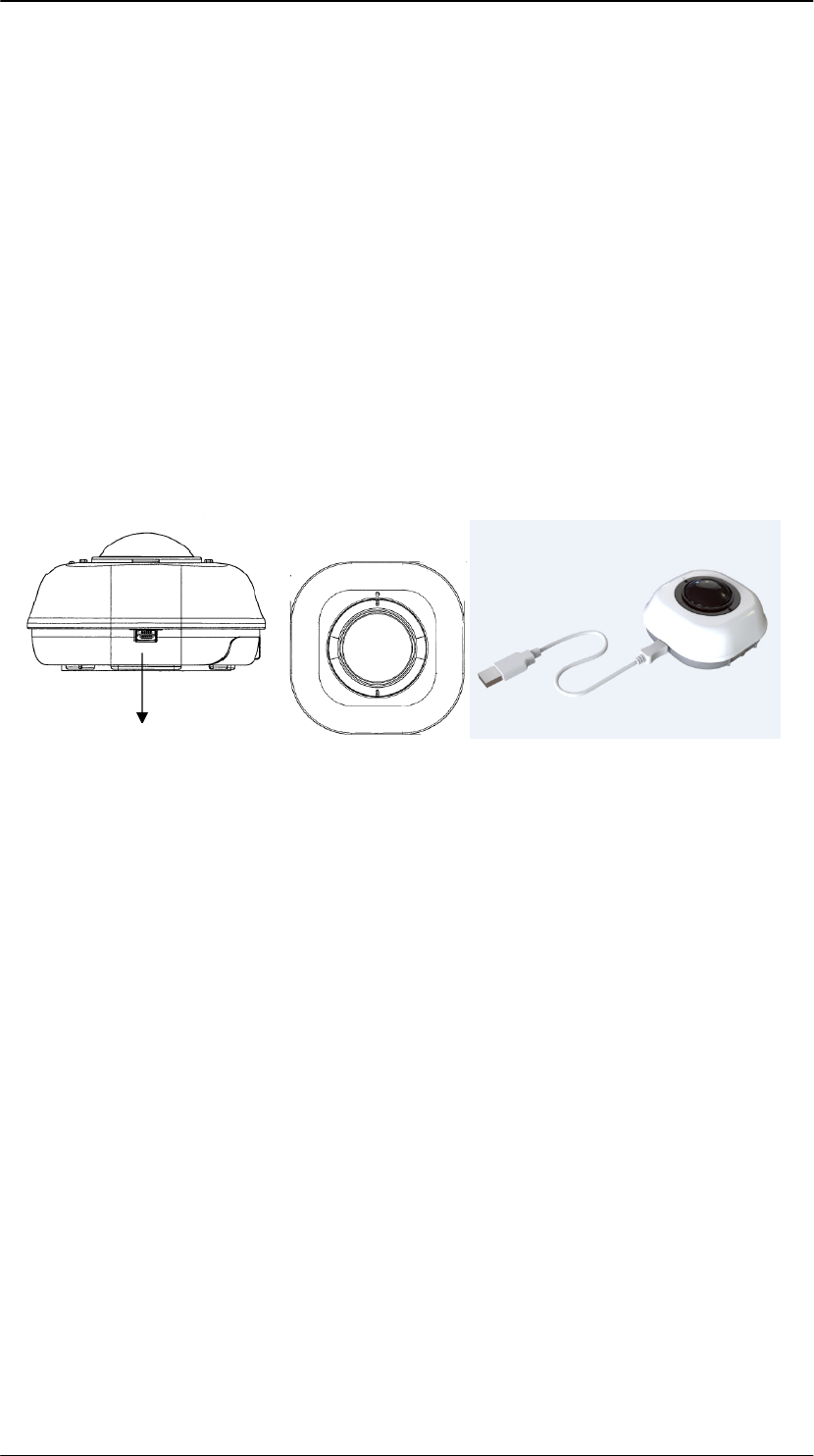

5.1. Socket &Button
Mini USB connect :
Input the DC power voltage 5V and current 1A.
U-net learn key.
5.2. LED
5.2.1 U-Net
5.2.1.1 Learning mode：The red light is blinking (0.5s on,0.5s off), it will persist
for 30 seconds.
5.2.1.2 Empty mode：The red light is blinking (0.2s on,0.2s off), it will persist for
120 seconds.
5.2.1.3 Learning Error：The red light is blinking (0.1s on,0.1s off) for 3 times.
5.2.1.4 Learning success：The red light is off.
Mini USB connect
AC134-C User Manual
Page 3 of 6
5.2.2 IR
5.2.2.1 Learning mode：The red light is blinking(0.5s on,0.5s off), it will persist for
30 seconds.
5.2.2.2 Binding error：The red light is blinking (0.1s on,0.1s off) for 3 times.
5.2.2.3 Binding success：The red light is off.
5.3. Power function
1. Operating temp : 0~40℃
2. Operating Humidity : 85%(maximum, relative humidity)
3. Storage temp : -20~60℃
4. Input : adapter(main) : 5V/battery(support, when power cut) : 4.5V
5. Battery type : AA*3
6. INPUT : AC100-240V
OUTPUT : DC 5V/1A
7. Mini USB power :
(1) this connection can use mini USB output voltage
(2) Need to be able mini USB provides voltage to 5V
5.4. RF function
1. RF Compatibility :
Protocol Stack : U-Net 4.0
Profile : Home Automation Security
2. Frequency range : 916.00MHz
3. Modulation : FSK
4. Coverage Range : Free Space 150M
5. RF Antenna : built-in antenna

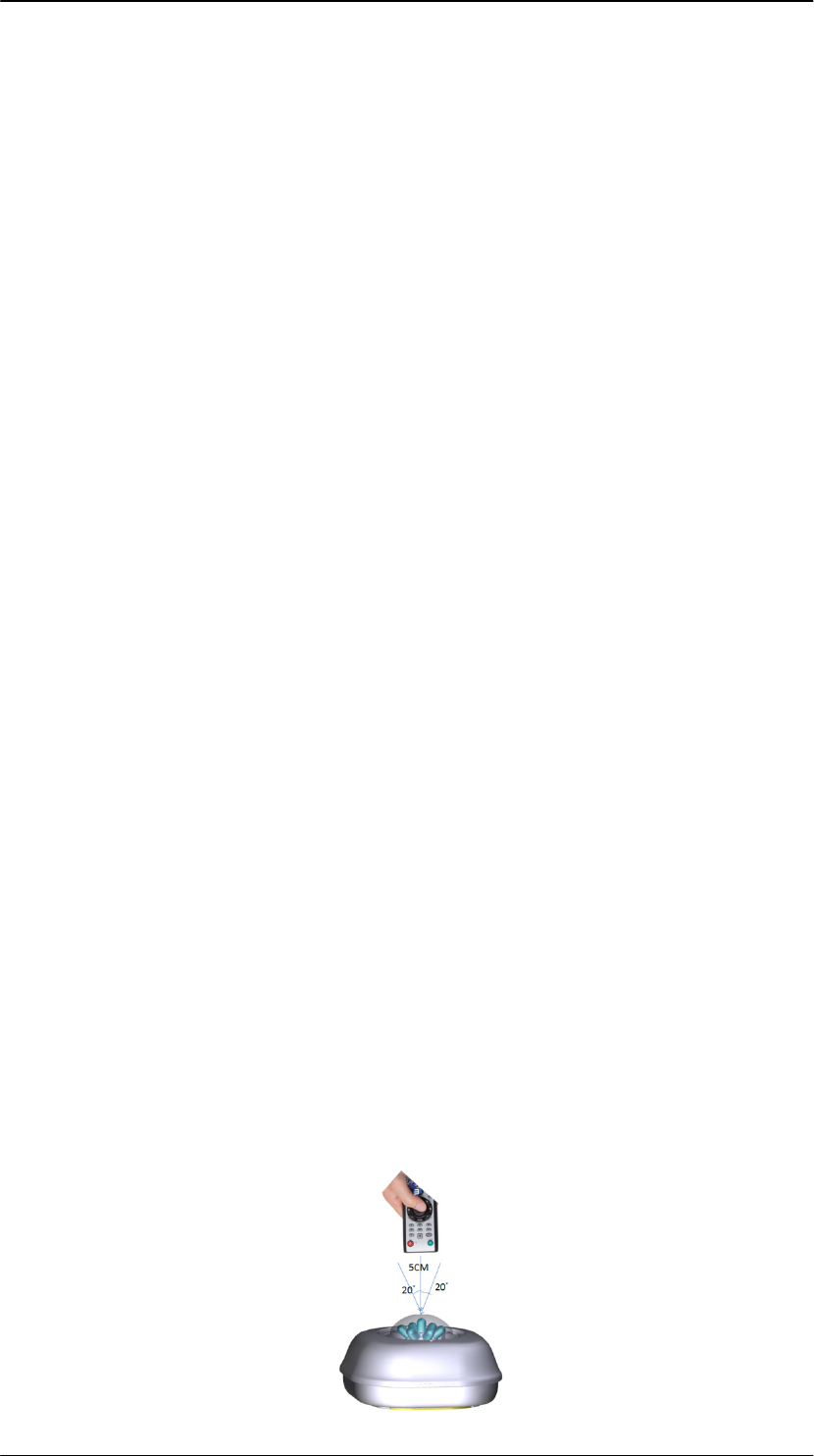

6. IR receive range: vertical ±20°,<5CM
AC134-C User Manual
Page 4 of 6
6. How to set up the device?
1. Power supply :
1.1 Mini USB adapter (main) : plug in mini USB
1.2 Battery(support, when power cut) : open back cover and put in AA*3
2. U-Net binding first :
2.1 Into the binding mode : Press the learning button at least 3 seconds
untill the LED light burn out, and unlock the button in 2 seconds. The
LED will last 30 seconds under the binding mode.
2.2 Clear the binding record : Press the learning button at least 6
seconds untill the LED light burn out under the binding mode, and
unlock the button in 2 seconds.
2.3 Quit the binding mode : Press the learning button under the binding
mode, and the LED will be blinking 3 times.(0.1s on,0.1s off)
3. IR binding :
3.1 It can memorize 16 IR.

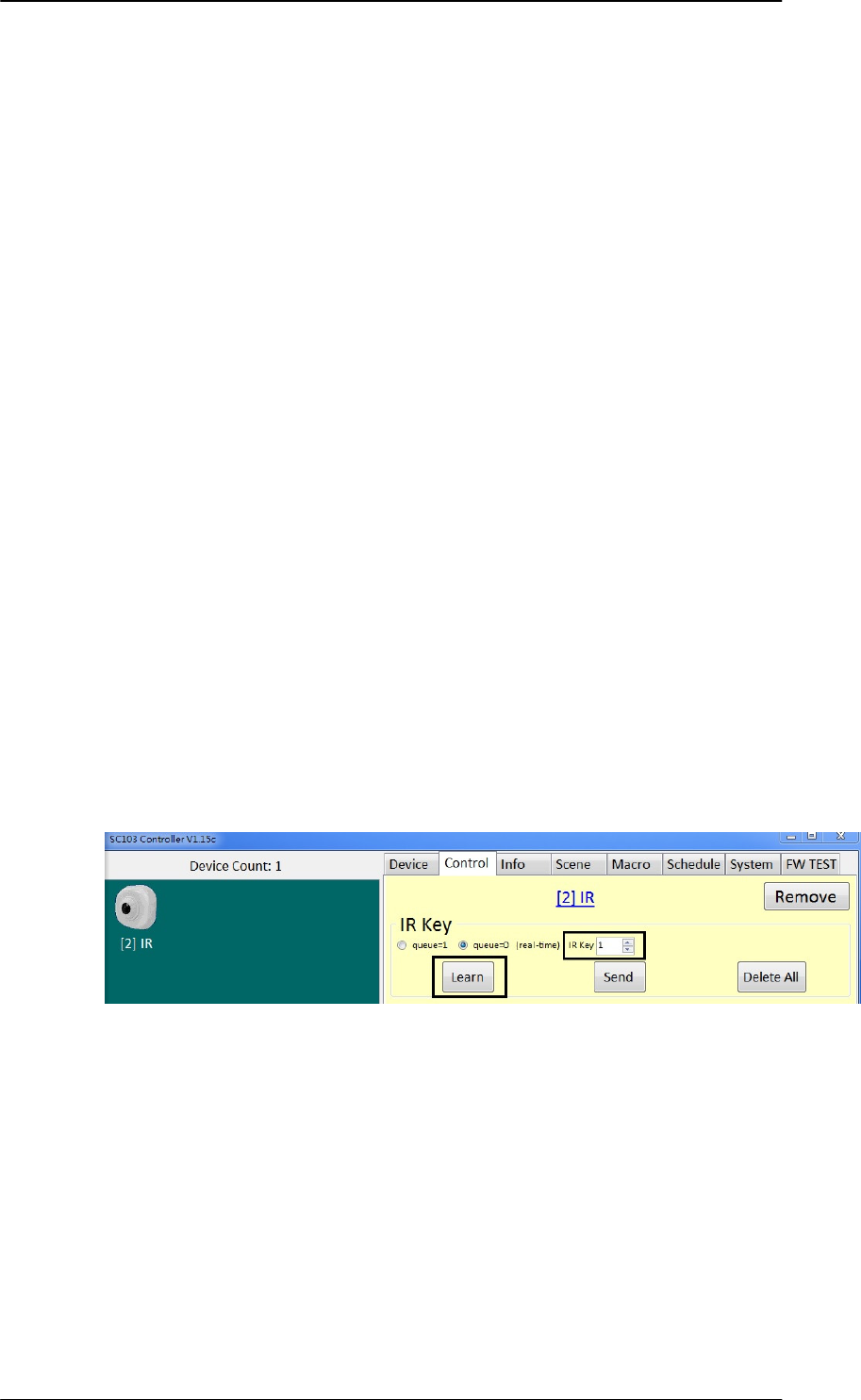

3.2 Choose SC103 Controller, set up the number of IR key (1~16), and
press “learn” button, then LED will be 0.5s on and 0.5s off, aim the
controller at the AC134, press the button of the controller. When
binding is successful, the LED light will burn out.
3.3 After the binding is successful, press the “send ”button, will send the
memorized IR key number command.
3.4 Press “Delete All”, all IR key information will be removed.
AC134-C User Manual
Page 5 of 6
4. Breakdown solution
Breakdown Reason Solution
Device can’t work,
LED is no signal Device breaks down Don’t turn on the device,
send it back to be repaired.
Can’t control the
LED
U-Net isn’t binding yet. Please bing the U-Net.
IR isn’t binding yet. Pleas bind the IR.
Frequency disturbance,
someone launch 916MHz air
waves nearby.
Pls try it later.
7. Warning
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not instalLED and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Caution : Any changes or modifications not expressly approved by the
party
responsible for compliance could void the user's authority to operate this
equipment.
AC134-C User Manual
Page 6 of 6
WARNING :
Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities instead. Please contact your local government for information
regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health and
well-being.
When replacing old appliances with new once, the retailer is legally obligated to take
back your old appliance for disposal at least for free of charge.
8. Specification summary
Operating temperature range 0°C to 40°C
Operating humidity 85% RH at 30°C
Adapter DC5V 1A
Battery type AA1.5V *3
Transmission range Outdoors >150m (Open space) for front
and sides
Frequency range 916 MHz(US/Israel)
FCC ID FU5AC134
Everspring Industry Co., Ltd.
www.everspring.com
3F., No.50, Sec. 1, Zhonghua Rd., Tucheng Dist., New Taipei City 236, R.O.C
