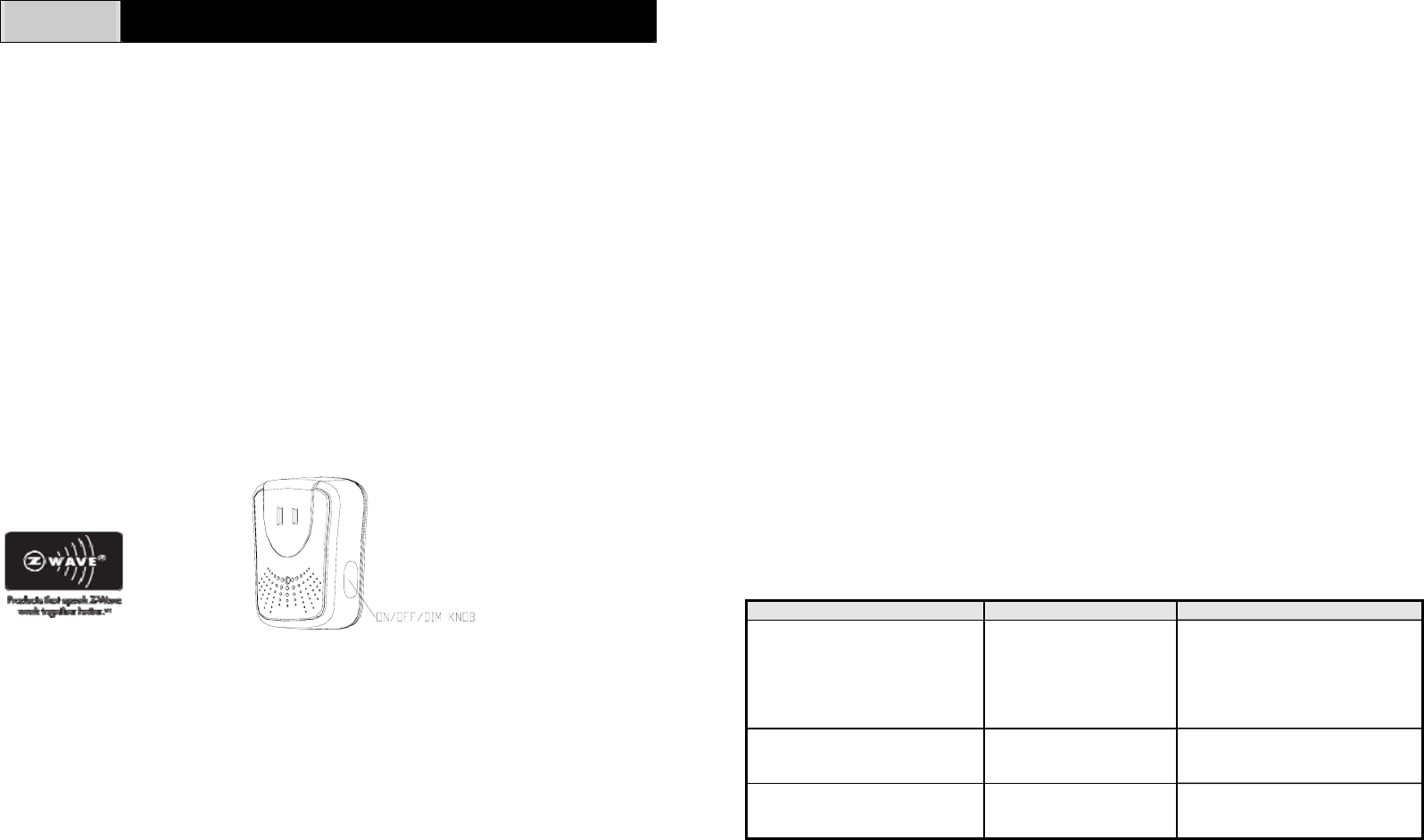

AD130 LAMP MODULE
This plug-in Lamp Module is designed to work with our Passive Infrared Detectors
SP103 and Door/Window Detectors SM103, serving as a receiver. The AD130
plug-in Lamp Module is a Z-WaveTM enabled device and is fully compatible with
any Z-WaveTM enabled network. Z-WaveTM enabled devices displaying the
Z-WaveTM logo can also be used with it regardless of the manufacturer, and ours
can also be used in other manufacturer’s Z-WaveTM enabled networks. Inclusion
of the Lamp module on other manufacturer’s Wireless Controller menu allows
remote On/Off control and dimming of lamps connected. Each module is
designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure
that the signal is received by its intended destination by routing the signal around
obstacles and radio dead spots.
Adding to Z-WaveTM Network
In the side of the casing, there is an On/Off/Dim knob which is used to carry out
inclusion, exclusion or association. Put a Z-WaveTM Wireless Controller into
inclusion/exclusion mode, press the knob on the module to complete the
inclusion/exclusion process.
Installation
1. Plug this Lamp module into a wall outlet near the lamp to be controlled.
2. Plug the lamp into the Lamp module. Make sure the lamp to be controlled
cannot exceed 200 watts.
3. Turn the knob or switch on the lamp to the ON position.
4. To manually turn ON the AD130 Lamp Module, press and release the On/Off
knob. The red indicator LED will turn ON, and the lamp plugged into the AD130
Lamp module will also turn ON.
5. To manually turn OFF the AD130 Lamp Module, simply press and release the
On/Off knob. The red indicator LED will turn OFF and the lamp plugged into
the AD130 Lamp Module will also turn OFF.
6. To manually dim the AD130 Lamp Module, press and hold the On/Off knob
until the desired lighting level has been reached.
7. If Passive Infrared Detector SP103 or Door/Window Detector SM103 has been
removed from the wall by triggering the tamper switch, the Detector (SP103 or
SM103) will send an alarm command (ALARM_REPORT, Alarm Type ==
0x01, Alarm Level == 0x11) to the AD130 Lamp Module, of which red
indicator LED and the lamp plugged into the AD130 Lamp module will flash for
10 seconds simultaneously.
Programming
The On/Off/Dim knob allows the user
- Turn on, off or dim the lamp attached
- Include or exclude the module from the Z-WaveTM system
- Control other Z-WaveTM enabled devices
See the instructions for SP103 Passive Infrared Detector or SM103 Door/Window
Detector.
Troubleshooting
Symptom Cause of Failure Recommendation
The Module not working and
LED off 1. The Module is not
plugged into the
electrical outlet
properly
2. The Module is out of
order
1. Check power connections
2. Don’t open up the Module and
send it for repair.
The Module LED illuminating,
but cannot control the ON/OFF
Switch of the lamp attached
Check if the lamp plugged
into the Module has
burned out
Replace a new lamp
The Module LED illuminating,
but the Detector cannot control
the Module
1. Not carry out
association
2. Frequency interference
1. Carry out association
2. Wait for a while to re-try
2
Specification
Operating Voltage 120V/60Hz
Maximum Load 200W, for incandescent lamps only
Minimum Load 25W, for incandescent lamps only
Range Minimum 100 feet line of sight
Frequency Range 908.42 MHz
** Specifications are subject to change and improvement without notice. A501110875R
