&RS\ULJKW(YHUVSULQJ,QGXVWU\&R/WG$OO5LJKWV5HVHUYHG



ͲtĂǀĞDŽĚƵůĞʹ

/%

/%/%

/%











FEATURES

z Integrate MCU and RF transceiver

z RF output type Dipole or IPEX

z 128kB Flash, 16kB SRAM

z 4-channel 12-bit ADC

z 4-channel 16-bit LED PWM

z Hardware AES 128 security engine

z SPI, UART,PWM

z 9.6/40/100 kbit/s data rates

z Regional modules for 868/908/921 MHz

z Regulator input voltage 2.3V ~ 3.6V

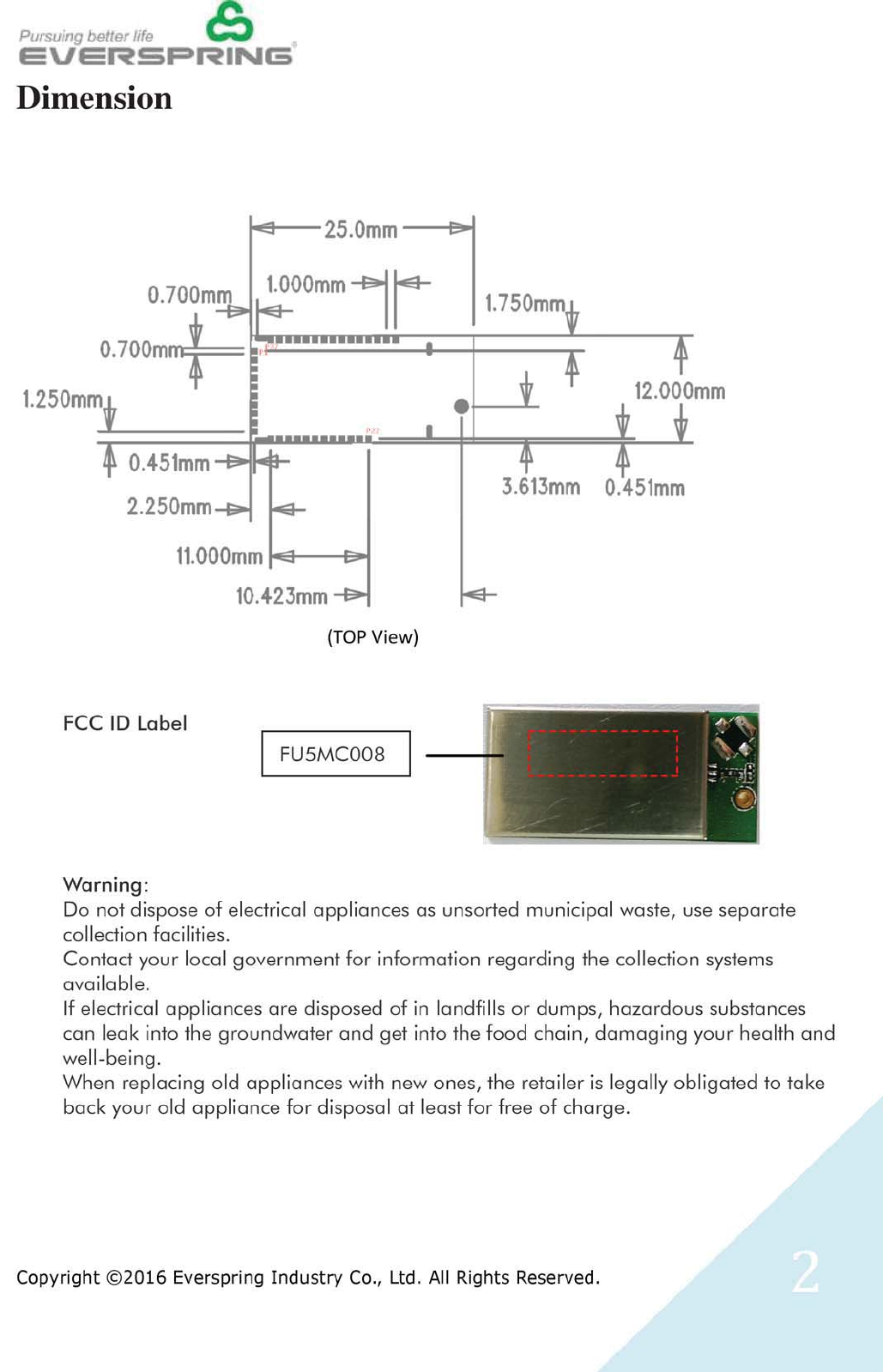

z Module size 25mm x 12mm x 3.1mm

z Firmware upgrade through SPI

APPLICATIONS

z Thermostats

z Locks

z Light Dimmers

z Sensors

z Remote Controls

z Smart Meters

z Any ITU-T G.9959 compliant devices

z (Short range, narrowband, digital radio communication

z transceivers)



EndProductLabeling

Thistransmittermoduleisauthorizedonlyforuseindevicewheretheantennamaybe

installedsuchthat20cmmaybemaintainedbetweentheantennaandusers.Thefinalend

productmustbelabeledinavisibleareawiththefollowing:"ContainsFCCID:FU5MC008

“

InformationfortheOEMsandIntegrators



Thefollowingstatementmustbeincludedwithallversionsofthisdocumentsuppliedtoan

OEMorintegrator,butshouldnotbedistributedtotheenduser.

1) ThisdeviceisintendedforOEMintegratorsonly.

2) PleaseseethefullGrantofEquipmentdocumentforotherrestrictions.


