Users Manaul

SOLAR-POWERED POOL ALARM SYSTEM FOR SAFETY AID

TO READ ATTENTIVELY AND TO PRESERVE FOR FUTURE CONSULTATION

WARNING

This system is simply a safety aid which announces a danger (or risk of danger) when an

equivalent of 8kgs (18 pounds) object falls into a unsupervised swimming pool. The fast

intervention in less than 3 min of a responsible adult is obligatory when the signal of alarm

happens. Ensure the construction of the pool wall is solid enough, thus it can stand the drilling

of the screws and wall plugs without cracking the pool wall. After installation, ensure the pool

alarm itself cannot be shaken, otherwise it will affect the performance of pool alarm detection. In

the event of any injury or death to any person arising out of misuse, abuse, negligence, accident

or alteration, Everspring Tech USA, Inc., will not be liable for any consequence caused.

This system does not replace the good direction nor with the several liability. The purpose of it is

not to either replace the vigilance of the parents and/or the responsible adults, which remains the

essential factor for the protection of the children with less than five years;

The user who turns OFF the system must be conscious that the human monitoring must take

over;

It is imperative to react when the signal of alarm happens;

The greatest vigilance of the responsible parent /adult is necessary between the end of the bathe

and the reactivation of the product;

Never leave children unattended in or around the swimming pool or spa. Children under five years of

age are at the greatest risk for injury or death in pool-related accidents.

In the event of possibility of stroke with against current: "Cancel the stroke with against current at

the end of the bathe to allow the reactivation of the product".

Some of cleaning robots as a plunger robots type are incompatible with the systems of detection

of immersion

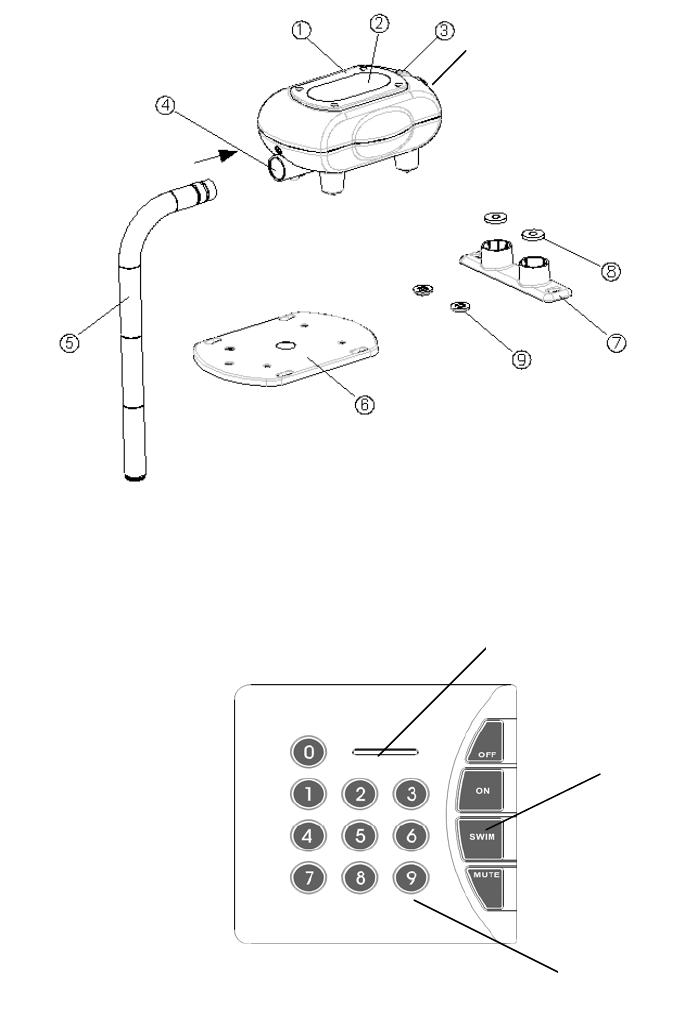

PRODUCT LAYOUT

Solar-powered Wireless Pool Alarm (ST113)

c Battery Cover

d Solar Panel

e Two Indication Light (Top & Bottom)

f Sensing Compartment

g Detachable Tube

h Flat Mounting Plate

○

7 Adjustable Mounting Plate

○

8 Spacers

○

9 Mounting Feet

Wireless Keypad (SA802)

c Setting/Low Battery LED

d Keypad

e Function Key

○

Siren & Strobe (SE802)

c Strobe Light

d Red & Green LED

e Tamper Switch

f Learning Key

g DC Jack

h Two-Phase Sound Jumper Link

i Anti-jamming Jumper Link

j Tamper Jumper Link

k Mounting Bracket

Wireless Remote Controller (SR803)

A LED indicator E Mute switch

B OFF MODE F Key Chain Ring

C ON MODE G Negative Polarity

D SWIM MODE H Positive Polarity

The kit includes one piece each of Solar-powered Wireless Pool Alarm, Siren & Strobe , Wireless Keypad and

Wireless Remote Controller, all of which products have been designed to aid in the detection of unwanted

intrusions into unclosed above ground or in ground swimming pools. THE SOLAR-POWERED WIRELESS

POOL ALARM IS NOT A LIFE SAVING DEVICE. It should be used along with other safety equipment and

precautions. It is intended to provide an additional level of security to your swimming pool and/or spa. This unit

is not intended to replace any other safety consideration: adult supervision, lifeguards, fences, gates, pool

covers, locks, and so forth… And some devices may not detect gradual entry.

INTRODUCTION

The Solar- Powered Pool Alarm uses seismic technology to detect unwanted intrusions into swimming pools.

In the event of a child or pet ( min. 18 lbs) accidentally falling into the pool the Pool Alarm would detect the

intrusion and sound an 110 db alarm at the pool and an 85db alarm in the house. Immediate adult response

is required upon activation of the alarm.

PACKAGE CONTENT

The Solar Powered Pool Alarm has specially designed packaging to minimize the chance of the contents

becoming damaged during shipping and handling. Please carefully check your unit for damage and confirm

that all the contents listed below are included. For replacement parts, please contact the retailer or store where

you purchased your Pool Alarm.

Item Qty

Base Unit 1

Flat Mounting Plate 1

Wireless Keypad (SA802) 1

Wireless Remote Controller (SR803) 1

Siren & Strobe (SE802) 1

LR20 Alkaline Battery 4

1.5V LR14 14A Size C 4

AA 1.5V alkaline battery 3

25mm Screws 2

30mm Screws 6

15mm Screws 4

18mm Screws 5

38mm Screws 2

Detachable tube 4

Plastic wall plug 9

Mounting feet 2

Adjustable Mounting Plate 1

Spacers 10

Operating instruction manual 1

SOLAR-POWERED WIRELESS POOL ALARM

INSTALLING THE POOL ALARM

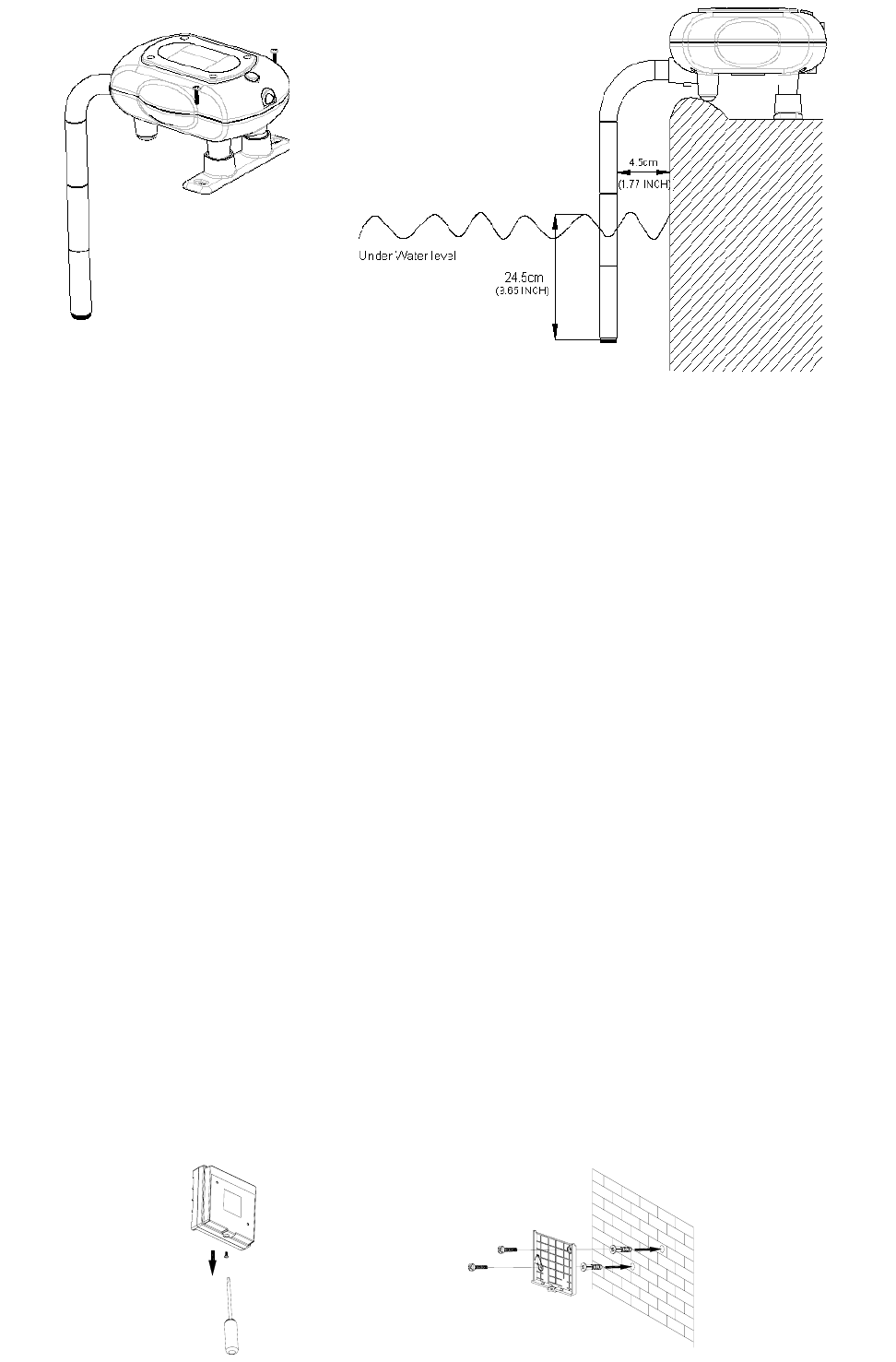

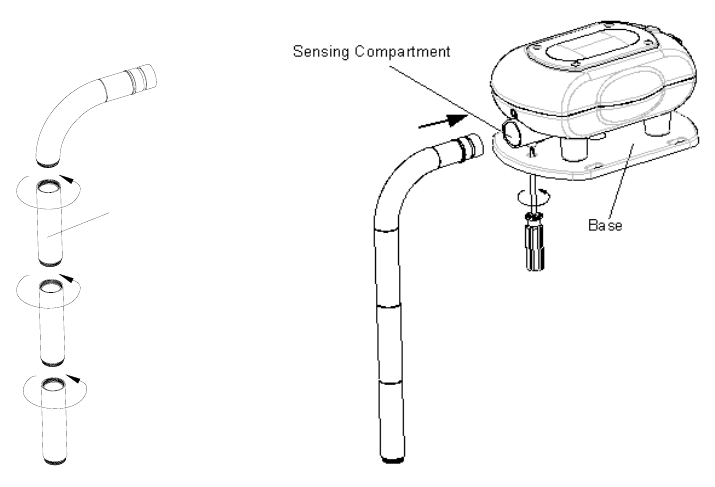

There are four detachable tubes which can be connected to create a single, long tube. (Fig.1 &Fig. 2)You will

need to connect the appropriate number of tubes to ensure that the distance from the bottom end of the tube to

the water level is 9.65 inches (24.5 cm) (Fig. 3).

Fig.1

Tube

Fig.2

1. Connect the appropriate number of tubes together to ensure that the bottom of the tube is 9.65 inches

below the water line. If the length is longer trim the tube end so that the tube is 9.65 inches below the

water line.

2. Insert the tube to the sensing compartment of the Pool Alarm base using the screws provided (Fig. 2)

3. The base unit must be placed so that the tube is approximately 1 3/4” (4.5cm) from the pool wall. (Fig. 4)

4. Mounting the Pool Alarm Base Unit:

Pool Alarm can simply be placed on the pool deck or permanently installed using the provided mounting

plates. Two styles of mounting plates are included: A flat mounting plate for mounting the unit on pool decks

with flat coping and an adjustable mounting plate designed for pools with coping edges that are sloped.

z Flat Mounting Plate

To permanently install the unit on flat coping use the attached flat mounting plate. Make sure the unit is

positioned as shown in (Fig.4) below. Using a marker – mark the deck through the 4 mounting slots located on

the sides of the mounting plate. Drill four ¼” holes through the marks. Install the plastic wall plug in the holes

with a small amount of silicone. Place the unit over the holes and attach using four 30mm screws provided.

(Fig.3)

Note: The pool alarm may not functional properly if your pool’s water level is not maintained

and the bottom of the tube is not at least 9.65 inches (24.5 cm) below the water line.

z Adjustable Mounting Plate

To permanently install the unit on coping that is sloped. Position the unit as shown in (Fig.7) Install the two

buttons on the front legs of the unit using the screws provided. Place the unit on the edge of the coping so that

the unit is positioned correctly. Place the rear leg mounting plate under the rear legs and add spacers to the

mounting plate’s cups until the Pool Alarm unit is level. Using the 30mm screws provided secure the rear leg

mounting plate to the unit (Fig.5). Next use a marker to mark the coping through the slots on the mounting

plate. Remove the unit and drill two ¼” holes through the marks. Install the plastic wall plug with a small

amount of silicone. Place the unit over the holes and attach using two of the 30mm screws provided. (Fig.6)

Fig.5

Fasten the

Mounting Feet.

Spacers can be used

to adjust the height.

Fig.4

Fig.3

Note: The pool alarm may not functional properly if your pool’s water level is not maintained

and the bottom of the tube is not at least 9.65 inches (24.5 cm) below the water line.

WIRELESS KEYPAD

The Wireless Keypad is used to control the Pool Alarm by using a four digit Administrator password. The

Keypad is powered by 3 x AA 1.5V alkaline battery. Under normal operating conditions this will provide an

expected life in excess of 1 year. When the battery level falls below an unacceptable level, the “Setting/Low

Battery” LED on the front of the Keypad will flash 4 times when pressing any key. When this occurs the

batteries should be replaced as soon as possible.

POSITIONING THE KEYPAD

The Keypad should be located and mounted inside the premises. To determine the proper location the keypad

should be placed on the interior wall closest to the pool at eye level near the door that provides access to the

pool. The range of wireless signal approximately 150” when using the device through walls. Do not fix the

keypad to metalwork or locate the unit within 3 feet of metalwork such as doorframes, radiators pipes, etc.

INSTALLING AND CONFIGURING THE KEYPAD

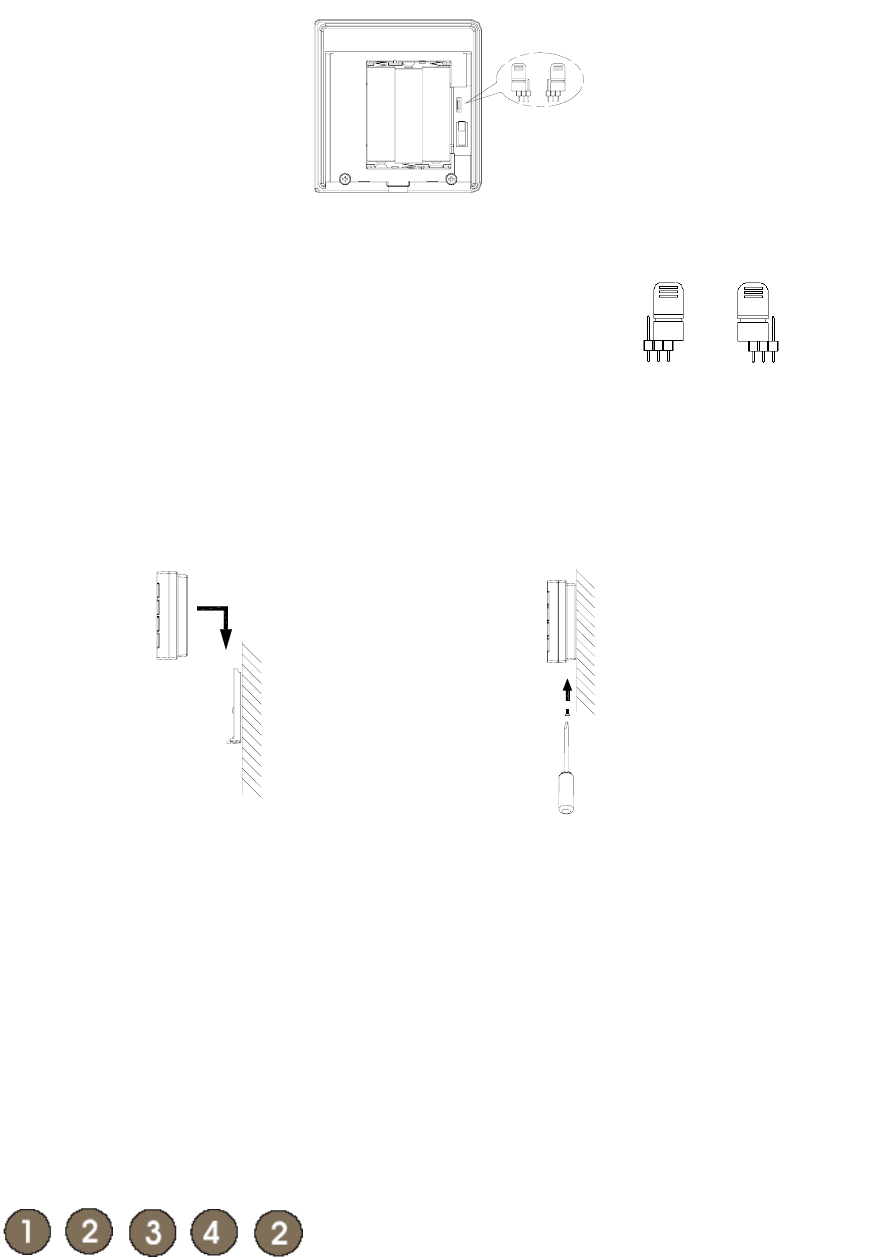

1. Undo and remove the fixing screw from the bottom edge of the Keypad and remove the wall mounting

bracket.(Fig.9)

Fig. 9

Fig.10.

Fig.6

Fig.7

2. Using the mounting bracket as a template, mark the positions of the two fixing holes on the wall.

3. Fix the mounting bracket to the wall using the screws and wall plugs provided. (Fig.10) Do not over-tighten

the fixing screws as this may distort or damage the mounting bracket.

4. There is one jumper link located above the battery compartment.(Fig .11)

Jumper link J1: Reset to Factory default

If unfortunately you forget the Administrator password, reset the Administrator password to factory default

by proceeding with the following steps in sequence:

(1) Remove the batteries.

(2) Set the Jumper link J1 to off position as shown on Fig. a

Fig. a Fig. b

(3) Refit the batteries. The keypad is reset properly by flashing back light 0~9 3 times.

(4) Set the Jumper link J1 to on position as shown on Fig. b.

5. Connect the 3 x AA alkaline batteries to the battery compartment.

6. Click the Keypad to the mounting bracket and screw the fixing screw.(Fig.4a &4b) Do not over-tighten the

fixing screw.

Note: The Keypad has back light illumination facility. The back light of digit number 0~9 won’t be off until

5-second illumination duration expires each time when you press any key. Once transmission is successful the

back light of digit number 0~9 will extinguish. Failure to input any key more than 5 seconds after each pressing

will be treated as invalid input. The back light of digit number 0~9 will flash 3 times as an indication.

CHANGING THE ADMINISTRATOR PASSWORD

The Keypad is supplied with a default Administrator password of: 1234. For security reasons, it is

recommended that this password is changed to another four digit number which only you and other users of

the system know. To change the Administrator password, press the following keys in sequence:

(1) Press

Original Administrator password

Fig. 11

Fig. 4a. Fig. 4b.

ON OFF

(2) Enter

New Administrator password

SIREN & STROBE (SE802)

The Siren & Strobe serves as an auxiliary accessory to the Pool Alarm. When the Pool Alarm detects

unwanted intrusions into unclosed swimming pools, a full alarm condition will occur. Simultaneously, the

Siren & Strobe will initiate a full alarm condition as an intensive warning.

POSITIONING THE SIREN & STROBE

The Siren & Strobe should be located and mounted inside the premises. To determine the proper location the

Siren & Strobe should be placed on the interior wall closest to the pool approximately at door height near the

door that provides access to the pool. The range of the wireless signal approximately 150’ when using the

device through walls. Do not mount the Siren & Strobe to metalwork or locate the Siren within 3 feet of

metalwork such as doorframes, radiators, pipes, etc.

INSTALLING AND CONFIGURING THE SIREN & STROBE

(1) Undo and remove the fixing screws from the mounting bracket.

(2) Place 4 x 1.5V alkaline LR14 batteries to the battery compartment.

(3) Use the mounting bracket as a template to mark the positions of fixing holes on the wall.

(4) Fix the mounting bracket to the wall using the plastic wall plugs and fixing screws provided.

(5) According to the functions of the product layout, choose or justify the ones that suit you most.

Function Description

Red & Green LED Green LED: RF transmission

confirmation

Red LED: Warning indication

When red & green LED illuminate

simultaneously, orange LED will

be indicated

Strobe Light Warning indication

Learning Key Learning and cleaning out the

preset ID code

Tamper Switch A full alarm condition will be

initiated against the unit being

removed from the wall

A full alarm condition will be

initiated if the unit is removed from

the wall.

Tamper Jumper Link Enable or disable this function Jumper link fitted – enable

Jumper link removed - disable

Anti-jamming Jumper Link Enable or disable this function Jumper link fitted – enable

Jumper link removed - disable

Two-phase Sound Jumper Link Sound volume selectable – 90 or

100 dB/ 0.3 feet

Jumper link fitted – 100 dB

Jumper link removed – 90 dB

DC Jack Use AC/DC adaptor

Jumper link fitted Jumper link removed

Enable Disable

NOTE: The Anti-jamming Jumper Link is preset disabled due to its high sensitivity easily causes

Siren &Strobe abnormal alarm.

(6) By releasing the tamper switch from being pressed if the tamper jumper link is enabled, the unit will

generate a full alarm condition by flashing its strobe light for about 6.5 minutes and red LED illuminating

shortly.

(7) If the battery level drops below unacceptable level, the red LED of the unit will flash shortly every 30

seconds. When this occurs, the batteries should be replaced as soon as possible.

Wireless Remote Controller (SR803)

The Wireless Remote Controller is a hand-held transmitter which offers the pool owner to control Pool Alarm

from a distance within 150 feet. The Remote Controller adopts a CR2032 type Lithium cell which under normal

conditions will have typical life in excess of 1 year. Under normal battery conditions the LED on the Remote

controller will only illuminate when a button is pressed. However, under low battery conditions the orange LED

will illuminate every time the button is pressed. When this occurs the batteries should be replaced as soon as

possible.

SETTING THE REMOTE CONTROLLER

1. Remove the rear cover with a coin.

2. Insert the battery ensuring that the +v terminal faces upwards away from the PCB.

OPERATING INSTRUCTIONS

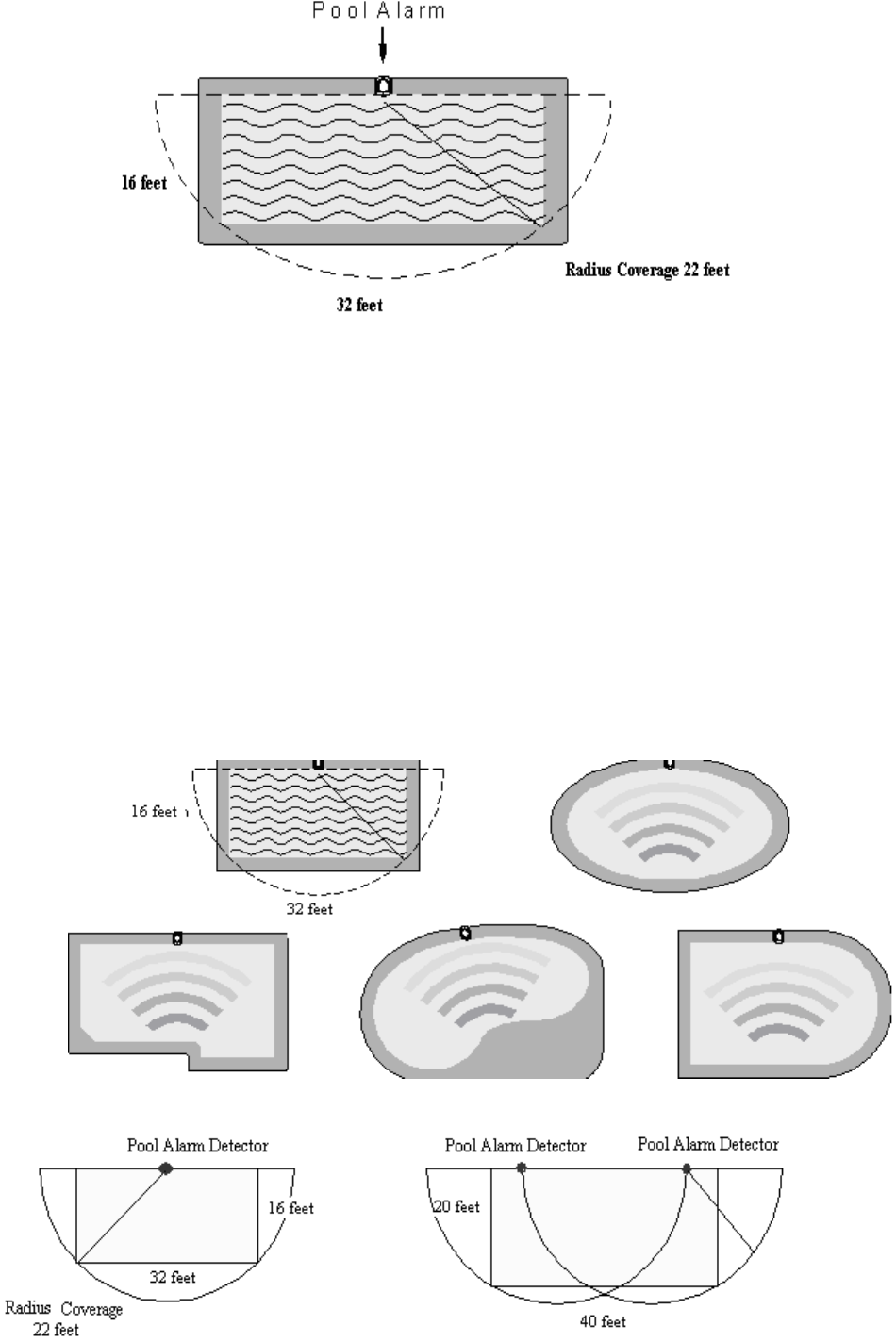

The Pool Alarm has been designed to function in pools up to 16’ x 32’ in size. For pools that are 16’ x 32’ or

smaller, the Pool Alarm must be installed at the midpoint of the longest side of the pool. (See illustration) The

unit must not be located within 18” of any water inlet or outlet in the pool. For pools with spillover spas the unit

must be located so that the water returning to the pool is at least 18” away from the Pool Alarm.

If your pool has an irregular shape more than one unit may be required to provide adequate coverage. The

coverage area of a Pool Alarm unit can be represented by sweeping a 22’ radius arc with the center point

located at the axis of the Pool Alarm sensor tube. This provides a coverage area of up to 44’ surrounding the

unit (22’ on either side of the unit) and 22’ across from the unit. The unit must be located on the pool such that

a straight line can be drawn from any point on the perimeter of the pool to the unit without any line being

obstructed by a pool wall. The length of any of the lines cannot exceed 22’.

Once the placement location has been identified Pool Alarm should be tested to insure proper operation prior

to installation.

Note : Do not mount the Pool Alram either in the corner or at the indentation of the pool side or it may

result in a blind spot.

POOL LENGTH (Y) *

POOL WIDTH (X) One Unit Required Two Units Required UNIT PLACEMENT DIMENSION (d)

10' Less than 39' 39'-80' 19' 7"

11' Less than 38' 38'-79' 19'

12' Less than 36' 36'-77' 18' 5"

13' Less than 35' 35'-75' 17' 9"

14' Less than 33' 33'-72' 16' 11"

15' Less than 32' 32'-70' 16' 1"

16' Less than 32' 32'-67' 15' 1"

17' Less than 27' 27'-63' 13' 11"

18' Less than 24' 24'-59' 12' 7"

19' Less than 22' 22'-55' 11' 1"

20' Less than 18' 18'-50' 9' 2"

21' Less than 12' 12'-41' 6' 7"

* NOTE: IF POOL LENGTH IS BELOW THE RANGE SHOWN FOR A PARTICULAR POOL WIDTH,

ONLY A SINGLE UNIT IS REQUIRED. THE SINGLE UNIT SHOULD BE PLACED AT THE MIDPOINT

OF THE LONGEST WALL

INITIAL POWER-UP

LOADING THE BATTERY

The solar panel will take approximately 6 to 8 hours to be charged and able to use. Until that is complete the

unit will function using power from the batteries. Daily exposure to normal outdoor ambient light (sun or clouds)

will keep the unit fully charged. The batteries provide back up power in the event that the solar panel is unable

to fully recharge. When Pool Alarm is under “Arm Mode” the unit detects a low battery condition the unit will

provide a low battery alert. (see Quick Reference Guide)

Follow the below steps in sequence to load the batteries.

1. Remove four rubber stoppers and undo four fixing screws from the battery cover.

2. Remove the solar panel and insert 4 x 13A LR20 1.5V alkaline batteries.

3. Plug the power supply cord to the DC jack.

4. Re-install screws and screw covers to top of the Pool Alarm base unit.

TURNING ON THE POOL ALARM

Normally, once the solar panel has been connected and the batteries have been installed. The Pool Alarm Unit

will be ready for operation. At this stage, you may switch the Pool Alarm to the desired mode or wait for 30

seconds before throwing a 8 kgs (18 pounds) object to the pool for test which will lead to a loud pulsating alarm

sound both from the Pool Alarm and the Siren & Strobe. It allows you to verify if the function of piercing alarm

sound is working properly and to be sure if the sound volume of Siren & Strobe can be heard inside your home.

There is no button on the Pool Alarm unit, you need to use keypad or controller to turn “ON” the Pool Alarm.

The ID code among Solar-powered Wireless Pool Alarm and three accessories are well learned which means

if no necessary, do not clear code or proceed with learning code process. However, if you find out the

connection between Pool alarm and accessories are poor or unstable, try to clear the code between all the kits

and re-start learning code process. Refer to instruction Page 16 and 17.

Power Cord

DC Jack

Fig.8

Pool Alarm will turn on and switch to armed mode directly subject to ambient environment detection being

taken properly.

1. The unit will start detecting ambient environment for 8 – 14 minutes. The main purpose of it is to detect

the wave intensity of water action avoiding false alarming resulted from wave being caused by strong

wind. After completion of ambient environment detection, the Pool Alarm will release a short beep for 0.1

second, confirming that the system has been armed.

2. The Pool Alarm will instantly be monitoring your pool for an intrusion.

3. In case of unwanted intrusions into a swimming pool, the Pool Alarm will generate a full alarm condition,

while the auxiliary Siren & Strobe will alarm and flash for 210 seconds.

Note: If the Pool Alarm keeps on detecting the ambient environment without being armed properly,

possible reasons are:

a. After swimming, the water in the pool will rock or bounce up and down the pool wall for some time

depending on the size of the pool and the type of swimming activity. Before initiation the unit, after

swimming, the pool must be given time to calm. Time will vary (around 5-10 minutes); once the pool

water is no longer rocking up and down the pool wall, it is time to operate the unit.

b. On extremely windy days such bad weather, the unit cannot detect correctly.

TURNING OFF THE POOL ALARM

Wireless Keypad (SA802) & Wireless Remote Controller (SR803) are both capable of turning off the Poor

Alarm.

Using the Wireless Keypad:

Press the “OFF” button and enter in the code. The remote keypad buttons will briefly illuminate and Light bar

will flash when the signal is sent. You will hear 3 short beeps and both LED indicators on the unit will stop

flashing.

Using the Wireless Remote Controller:

Press and hold “OFF” for 3 seconds. The LED on the controller will momentarily flash green. You will hear 3

short beeps and the LED indicator on the unit will stop flashing. The Pool Alarm will beep for 3 times in

response and enter the sleep mode, which means no automatic activation will occur.

SWIM MODE

Pool Alarm can be placed into Swim mode using either the Remote Keypad or the Remote controller. The

swim mode allows people to use the pool without turning off Pool Alarm. When people leave the pool, Pool

Alarm will sense that there are no longer people swimming. The unit will enter the ambient detect mode for 8 to

14 minutes and will then automatically turn ON.

Using the Wireless Keypad:

Press the “SWIM” button and enter in the code. The Wireless keypad buttons will briefly illuminate and the

Light Bar will flash when the signal is sent. You will hear 3 short beeps and both LED indicators on unit will turn

Green and flash approximately every 3 seconds. The Pool Alarm will enter the swim mode.

Using the Wireless Remote Controller:

Press and hold “SWIM” for 3 seconds. The LED on the Wireless remote controller will momentarily flash green.

You will hear 3 short beeps and both LED indicators on the unit will turn Green and will Flash approximately

every 3 seconds. The Pool Alarm will enter the swim mode.

The minimum duration of swim mode is 30 minutes, starting from the unit being set at swim mode to automatic

change to armed mode.

In swim mode, the unit will keep extending its swim mode duration persistently as long as continuous wave

intensity of water action has been detected. As a result, the unit is likely to be set at swim mode for a long time.

When you have finished swimming, there are no waves on the pool. We suggest that user switch the mode to”

ON” manually using wireless keypad or Wireless remote controller and wait for the elapse of ambient

environment detection, so that the system will enter the armed mode.

MUTE

The MUTE feature can be used to silence an alarm condition and can be initiated using the Wireless Keypad

or the Remote Controller.

Using the Wireless Keypad

Press the “MUTE” button and enter in the code. The Wireless keypad buttons will briefly illuminate and the

Light Bar will flash when the signal is sent. You will hear 1 short beep as a response.

Using the Wireless remote controller

Press the “MUTE” button. The LED on the remote controller will momentarily flash green. You will hear 1 short

beep as a response.

Once the alarm is disarmed, it is recommended that reset the mode to the desired one or the mode will switch

to armed mode directly.

LEARNING THE ID CODE

In order to prevent any unauthorized attempt to operate or disarm your system, you must configure your

system to accept radio signals only from your own system devices.

Firstly, have the Pool Alarm and the Siren & Strobe learned the ID code with each other. Secondly, have the

Pool Alarm and the Wireless Keypad learned the ID code. Thirdly, have the Pool Alarm and Wireless Remote

Controller learned the ID code. This may ensure correct operation among the units. So, please follow strictly

the sequences as mentioned below:

Note: Please refer to Quick guideline if no id code learned.

Pool Alarm and Siren & Strobe

1. Press and hold the learning key more than three seconds on the Pool Alarm. The top indication light will

turn orange and flash, which implies the unit enters the ID code learning mode.

2. Press the learning key on the Siren & Strobe for more than 3 seconds, during which continuous beeps will

be underway while the green LED will be on.

3. If learning the ID code is successful, the Siren & Strobe will end up with a medium beep and the green LED

will be changing from on to off, while the Pool Alarm will beep once as a confirmation without flashing the

orange indication light

If failed, the Siren & Strobe will initiate three rapid beeps as a notification.

Note: When putting the Siren & Strobe into use without any ID code being memorized or clearing all of the

preset ID codes, the orange LED will flash at 2 seconds interval and emit short beep at about 10 seconds

interval.

Pool Alarm and Wireless Keypad

1. Press and hold the learning key more than three seconds on the pool alarm. The top indication light will

turn orange and flash, which implies the unit enters the ID code learning mode.

2. Press on the Wireless Keypad

Administrator password

Enter

3. If learning the ID code is successful, the LED of function key on Wireless Keypad will light for 3 seconds.

Meanwhile, the Pool Alarm will beep once as a confirmation without flashing the orange indication light.

If failed, all 0~9 number buttons will flash 3 times simultaneously.

Pool Alarm and Wireless Remote Controller

1. Press and hold the learning key more than three seconds on the pool alarm. The top indication light will

turn orange and flash, which implies the unit enters the ID code learning mode.

2. Press the ”SWIM” button for more than 3 seconds until the green LED of the Remote Controller flashes.

It implies that the Remote Controller enters ID code learning mode.

3. A 30-second countdown will start. If the ID code has been learned within 30 seconds by the Pool Alarm

successfully, the LED of the Remote Controller will be on before exit the learning mode.

4. The Pool Alarm will reply a medium beep as confirmation of learning successfully.

If failed, the LED of the Remote Controller will flash three times rapidly before exit the learning mode.

Note: The Remote Controller owns only one ID code to be learned by the Pool Alarm.

CLEARING THE PRESET ID CODE

Pool Alarm

Press and hold the learning key on the Pool Alarm for more than 3 seconds and release, then

press the learning key again for 6 seconds will clear the preset ID code. 1 beep can be heard as an

acknowledgement.

Note: If you do not keep pressing for six seconds and release, it will fail to clear code, please restart the

procedure.

Siren & Strobe

Press the learning key on the Siren & Strobe for more than 3 seconds and release. Within 30 seconds,

press the learning key again for more than 6 seconds, during which medium beeps can be heard while the

green LED is on steadily. A long beep with the green LED being off represents the clearance of all of the

preset ID codes.

If failed, three rapid beeps will be emitted from the Siren & Strobe as a notification.

Wireless Keypad

If it is not necessary to use the Wireless Keypad for operation, reset the administrator password to factory

default by proceeding with the steps as shown on page 8.

Wireless Remote Controller

No need to clear code.

QUICK GUIDELINE FOR LED INDICATION AND BEEP SOUND ON THE POOL ALARM

Mode Status

System on / System off / Enter swim mode Continuous 3 short-beep

Ambient environment detection Red flashing LED (0.2 second on, 0.4 second off)

Swim mode Green flashing LED (0.3 second on, 2.3 second off)

Enter armed mode Continuous beep for 3 second with red illuminating LED

Armed mode indication Red illuminating LED 0.2 second at 10 second interval

Strong wind indication Top LED illuminate orange, bottom LED illuminate (red &

green) 0.2 second at 10 second interval and beep 0.2

second at 30 second interval

Low battery indication (under armed

mode)

Beep 0.5 second and illuminating LED 0.5 second at 30

second interval

Learning the ID code period Top LED slow flashes orange, beeps once every 3

seconds

Alarm activation Red illuminating LED

No ID code y Short-beep at 10 seconds interval repeatedly

y Top LED flashes orange, bottom LED flash (red &

green)repeatedly

QUICK GUIDELINE FOR LED INDICATION AND BEEP SOUND ON THE SIREN & STROBE

Mode Status

Press learning key for more than 3

seconds to enter ID code learning mode

y 3 short-beep and one medium beep in the end

y Green illuminating LED for 3 seconds

Learning the ID code period y Intermittent short-beep repeatedly

y Green flashing LED repeatedly

Successful learning the ID code y Medium beep once

y Green illuminating LED then off

Failed to learn the ID code y 3 intermittent short-beep

y Green flashing LED 3 times

Press learning key again for 6 seconds to y Short beep intermittently for 6 seconds

clear the preset ID code y Green illuminating LED for 6 seconds

Successful clearing the preset ID code y Long beep once

Failed to clear the preset ID code y 3 intermittent short-beep

y Green flashing LED 3 times

QUICK GUIDELINE FOR LED INDICATION ON THE WIRELESS KEYPAD

Keypad Status Success Failure

Turning off the pool alarm

back light 0~9 extinguish back light 0~9 flashing 3 times

Turning on the pool

alarm

back light 0~9 extinguish back light 0~9 flashing 3 times

Swim mode

back light 0~9 extinguish back light 0~9 flashing 3 times

Mute

back light 0~9 extinguish back light 0~9 flashing 3 times

Pressing any key or

function key

back light 0~9 will be on

Learning the ID code

mode

back light 0~9 extinguish and 4

function keys illuminate

simultaneously for 1 second

back light 0~9 flashing 3 times

Warning:

Strong wind indication:

When the Pool Alarm is under armed mode detection, the wave pattern of water action may be intensified

resulted from strong wind or other interference. For security concerned, the Pool Alarm will be converted to

strong wind indication automatically which will be shown from the LED light of Siren & Strobe flashing for 30

seconds and beeping every 3 second for 10 times. Meanwhile, Pool Alarm will beep every 30 seconds and the

top LED will light orange, the bottom LED will light red & green until the strong wind mode is ended. To turn off

the Pool alarm whenever it rains or blows strongly is recommended so as to conserve battery power and

maximize the battery life. In the presence of strong winds, or very bad weather, the Pool Alarm will not be able

to carry out correct detection.

GENERAL SWIMMING POOL SAFETY GUIDELINES

- The safety of your children depends only on you! The risk is maximum when the children have less than five

years. The accident does not arrive only at the others! Be ready to face there!

- Supervise and act :

- the monitoring of the children must be brought closer and constant;

- designate only one person in charge for safety;

- reinforce the monitoring when there are several users in the swimming pool;

- learn how to swim with your children as soon as possible;

- wet nape of the neck, arm and legs before entering water;

- learn the gestures which save and especially those specific to the children;

- prohibit the dive or the jumps in the presence of young children;

- prohibit the sharp race and plays with the accesses of the swimming pool;

- do not authorize the access to the swimming pool without waistcoat or life jacket for a child not knowing

well to swim and not accompanied in water;

- do not leave toys in the vicinity and in the basin which is not monitored;

- permanently maintain a water limpid and healthy;

- store the pesticides of water out of the range of the children;

- certain systems of stroke with against current do not allow the automatic reactivation of the system of

detection of immersion;

- certain robots of cleaning of plunger the robots type are incompatible with the systems of detection of

immersion;

- in order to prevent the access to the basin with the children of less than five years at the time of the

release of the signal of failure, to take all measurements necessary until repair.

- envisage:

- accessible telephone close to the basin not to leave your children without monitoring when you

telephone;

- buoy and pole near the basin;

- permanent information that the basin and its accesses are under electronic monitoring,

- only the change of the piles, batteries is authorized, and fuses, which must be done at the beginning of

season;

- in the event of accident:

- as soon as possible leave the child water;

- call help immediately and take the advice which will be given to you;

- replace the clothes wet by hot covers;

- to memorize and post close to the swimming pool the numbers of first aid:

- firemen: (18 for France);

- SAMU: (15 for France);

- poisons centre.

MAINTAINING THE POOL ALARM

REPLACING THE BATTERIES

Replace the batteries whenever a low battery is indicated (see page 18 for a description of the low battery

indication). Be sure to turn the unit off whenever replacing the batteries.

SPECIAL CONSIDERATIONS DURING WINTER

The unit will not operate if the water in your pool becomes frozen. Additionally, allowing water to freeze in the

tube can damage the unit’s sensing mechanism.

If your pool is located in an area where freezing normally occurs and you do not intend to maintain your pool in

a heated state throughout the winter season, you should remove the unit before freezing occurs. Store the

unit indoors and re-install when the water has thawed.

Be sure to remove the batteries from the unit when placing it in storage for a prolonged period. Corrosion

may occur if the batteries are left in the unit during storage.

PERIODIC TESTING

It is recommended that the unit be tested on quarter basis. Before testing, prepare the following test simulator.

z Fill a 2.5-gallon (11.3 liter ) water container with enough water to weigh approximately 18 pounds ( 8kg).

z Tie a 6-foot (1.8meter ) length of rope to the container handle .

Follow the steps in sequence as mentioned below for testing:

z Re-turning on the unit will initiate the system, of which operation is referred to page 13

“TURNING ON THE POOL ALARM”.

z Hold the rope, and roll the test simulator into the pool.

z Wait a moment for the unit to generate a full alarm condition.

If an alarm condition has not been occurred, refer to troubleshooting for resolution.

TROUBLESHOOTING

Symptom Possible Cause Recommendation

Upon power being connected,

the Pool Alarm cannot enter

armed mode directly

Batteries were not fitted properly

or reverse battery

polarity

Remove and refit the batteries

LED indicator not working on the

Pool Alarm

LR20 batteries or rechargeable

battery are not connected

properly

1. Remove and refit the batteries or

replace batteries

2. Call to local service for repair

Low battery indication Run out of battery power Replace LR20 batteries

Wireless keypad (SA802)

cannot control solar-powered

wireless pool alarm

Failed to learn the ID code 1. Resume ID code learning

process

2. Clear the preset ID code and

resume ID code learning process

Abnormal activation Tube is not saturated by enough

water level

1. Reallocate the mounting position of

the unit

2. Add an extra tube

3. Add much water to the pool

thus enhancing water level

LED indicator not working on the

Siren & Strobe

Did not fit the batteries or

insufficient battery level

Check if the batteries are fitted or

replace new batteries

The unit is out of order Send the unit for repair, do not open up

the casing of the unit

Siren & Strobe’s LED indicator

working, but cannot learn the ID

code or cannot control

Failed to learn the ID code

between the Pool Alarm and

Siren & Strobe

Check if the initial installation of the

Pool Alarm had been cleared the preset

ID code. According to the operating

manual of Pool Alarm, resume the ID

code learning procedure.

Interfered by radio frequency.

Someone might transmit

923MHz adjacently.

Wait for a while to retry

Siren & Strobe cannot be

controlled by the Pool Alarm

Failed to learn the ID code

between the Pool Alarm and

Siren & Strobe

Check if the initial installation of the

Pool Alarm had been cleared the preset

ID code. According to the operating

manual of Pool Alarm, resume the ID

code learning procedure.

Too far distance Relocate mounting location between

the Pool Alarm and Siren & Strobe

Siren & Strobe Abnormal Alarm RF Jamming Remove AJ Jumper to disable the

function / Eliminate the RF interference

Press key on the Keypad, LED

no reaction Low battery Replace a new battery

Batteries were not fitted properly

or reverse battery

polarity

Remove and refit the battery with

correct polarity

The connected wireless pool

alarm not working Failed to learn the ID code

between the Pool Alarm and

Keypad

Proceed with learning the ID code

Ensure correct operation of learning the

ID code

Wireless Remote Controller

cannot control the Pool Alarm

Too far distance

Low battery

Ensure the distance within 50Meter.

Replace a new battery

SPECIFICATIONS

Model No.

Item

ST113 Solar-powered Wireless Pool Alarm

Siren Twin piezo siren

Siren Output 110 dB / 1 meter

Effective Pool Alarm

Dimension

16’ x 32’, subject to Min. 8 kgs (18 pounds) object being fallen

Operating Power 6 VDC

Power Supply Solar panel with Ni-MH AA 6V rechargeable battery and 1.5V x 4 alkaline battery

LR20

Frequency 923 MHz Transceiver (USA)

Working Range Above ground pool at 36 inch height above the ground

Protection Degree IPX5

Operating Temperature 0°C ~ 45°C

Safety NF P90-307 A1(France) / CE/FCC/ASTM (USA)

Model No.

Item

SA802 Wireless Keypad

Battery Type AA 1.5V alkaline battery x 3

Operating Frequency 923 MHz

Communication Range Up to 50m (150 feet) in open space

Safety FCC

Model No.

Item

SE802 Siren & Strobe

Battery or Adapter Type 1.5V x 4 alkaline / LR14 type or 6VDC

Operating Frequency 923 MHz

Communication Range Up to 50m (150 feet) in open space

Safety FCC

Model No.

Item SR 803-2 Wireless Remote Controller

Battery Type CR2032 3V/230mAhr

Operating Frequency 923MHz

Communication Range Up to 50m (150 feet) in open space

Safety FCC

*Specifications are subject to change without prior notice.

ASTM

A501111093R

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

WARNING:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the

groundwater and get into the food chain, damaging your health and well-being.

When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance

for disposal at least for free of charge.

WARRANTY

1) Warranty period:

2 years as from the date of purchase (the sales slip or the purchase invoice will have to be provided for the

execution of the guarantee).

Please complete the Exhibit-A form and send it back for your product registration.

2) Conditions of the guarantee:

- Without damage of the legal guarantee, the products are recognized provided in good operating condition,

without apparent defect and are guaranteed if they are used according to the instructions contained in the

Instruction manual.

- The guarantee comprises the following services:

9 A helpline : help with the installation, parameter setting, brought into service and resolution of

breakdowns not requiring the return of the material in workshop

9 RMA (Repair in workshop) by repairing or standard exchange of the returned defects items.

- The guarantee does not cover:

9 transport charges as well as the expenses related with an intervention in residence.

9 Claws, stripes, glares and/or imprint etc... not noted with the delivery

9 Breakable accessories except manufacturing defect recognized by our engineering departments,

9 Batteries

- The contractual guarantee does not apply in the event of:

9 Not respect of the instructions of installation;

9 Abnormal Use of the products like use or incorrect connection;

9 Damage due to shocks of any origin;

9 Damage due to fire, sets fire to, penetration of liquid or solid substances;

9 Damage due to an overload, the lightning;

9 Damage due to a modification or intervention carried out by any unauthorized person by HZE;

9 Damage due to a natural disaster, floods or vandalism.

Please feel free to write or call us with your comments or questions at the address below.

Everspring Tech USA, INC

3200 Wilshire Blvd. South Tower, STE# 1730

Los Angeles, CA. 90010

Tel: (626) 698-1898, Fax: (626) 956-0600

Email: steve_chang@everspring.com

EXHIBIT –A–

PLEASE TAKE THE TIME TO COMPLETE YOUR DETAILS BELOW AND RETURN

With a proof of buying (Invoice or bill)

To :

Via email :

customerservice@everspringamerica.com

Via courrier :

3200 Wilshire Blvd. South Tower, STE# 1730

Los Angeles, CA. 90010

Tel: (626) 698-1898, Fax: (626) 956-0600

Customer

Title (Mr/Ms) First Name Middle Initial Last Name

Address

Zip Code City Country

Telephone (area code) Fax (area code)

Retailer

Name Date of purchase

City Country

Model No S/N

P/N

(

)

－

(

)

－

Everspring Industry Co SR803 Wireless Remote control User Manual

Everspring Industry Co Ltd Wireless Remote control

Users Manaul

Navigation menu

Namespaces

Views

Navigation
