Evigia Systems BRH-1 Fixed RFID Interrogator User Manual Active Fixed RFID Interrogator Manual

Evigia Systems, Inc. Fixed RFID Interrogator Active Fixed RFID Interrogator Manual

manual

_________________________________________________________________________________
Evigia Systems, Inc. 3801 Varsity Drive t 734 302 1140 www.evigia.com
Ann Arbor, MI 48108-2224 f 734 372 6435

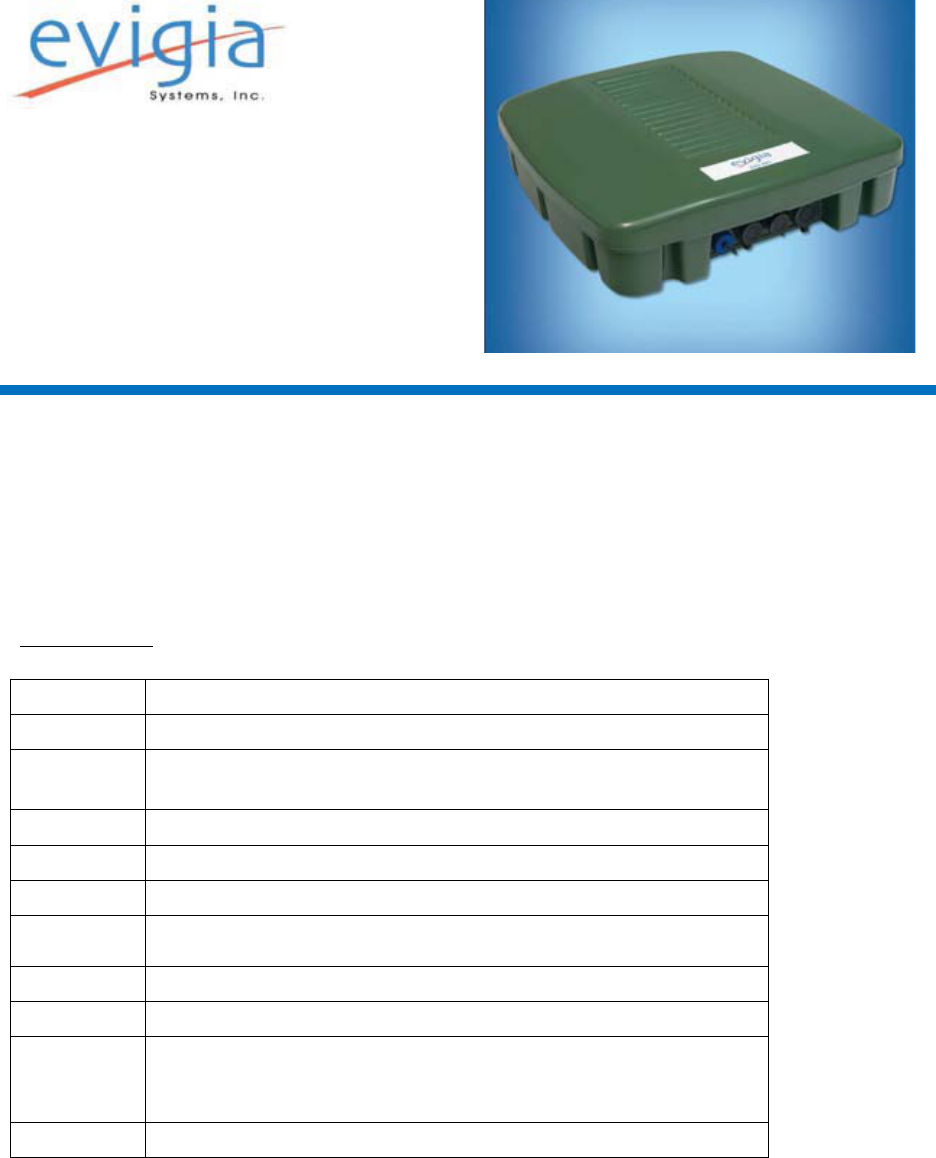

EV3-AFI is a long range, omni-directional connectable device that when net-
worked with other AFIs and other data collection devices forms the backbone of
a low cost, yet highly functional and secure active RFID reader network. When
used in conjunction with its corresponding EV3 family of active transponder tags,
this reader network provides unprecedented visibility, asset management con-
trol, and security monitoring at price-points that were unattainable previously.
Active Fixed RFID Interrogator
EV3-AFI
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
WARNING: Changes or modifcations not expressively approved by the party responsible for compliance could void
the user's authority to operate the equipment.
SPECIFICATIONS
RFID Protocol ISO 18000-7:2008
Frequency 433.92MHz
Power 50-60 Hz, 100-250 VAC, 100mA max or
9-36VDC, 900mA max, 8Watts max
Range 350 feet unobstructed
Dimensions 11.875” L x 11.875” W x 3.43” D
Weight 5.56 lb (2.52Kg)
Operating
Temperature -30⁰C to +70⁰C
Dust / Moist IP 64
Beeper Audible beeper for tag location and status indication
Memory 512 MB RAM
1 GB Flash ROM, up to 4GB optional for program and data storage
Custom applications can be implemented in reader
Compliance FCC, HERO
_________________________________________________________________________________
Evigia Systems, Inc. 3801 Varsity Drive t 734 302 1140 www.evigia.com
Ann Arbor, MI 48108-2224 f 734 372 6435
EVIGIA TAG READER INSTALLATION & COMPLIANCE INFORMATION
Information to the professional installer:
Pursuant to FCC Part 15.240 requirements, Evigia will provide the following information to the
Professional Installer to ensure continued compliance with the operational restrictions in
paragraphs FCC 15.240 (a) and (e) for TAG READERS operating under 15.240.
Use of this READER is restricted to the identification of the contents of commercial shipping
containers. Operations must be limited to commercial and industrial areas such as ports, rail
terminals and warehouses. These devices shall not be used for any form of voice
communication. Furthermore, to prevent interference to Federal Government radar systems,
these devices are not permitted to be employed within 40 kilometers of the following locations:
DoD Radar Site Latitude Longitude
Beale Air Force Base 39º 08’ 10” N 121º 21’ 04” W
Cape Cod Air Force Station 41º 45’ 07” N 070º 32’ 17” W
Clear Air Force Station 64º 55’ 16” N 143º 05’ 02” W
Cavalier Air Force Station 48º 43’ 12” N 097º 54’ 00W
Eglin Air Force Base 30º 43’ 12” N 086º 12’ 36” W
Information to FCC Office of Engineering Technology:
Pursuant to FCC Part 15.240 requirements, Evigia will provide information on the locations
where the READERS are installed to the FCC Office of Engineering and Technology to ensure
continued compliance. The information provided to the Commission shall include the name,
address, telephone number and e-mail address of the user, the address and geographic
coordinates of the operating location, and the FCC identification number of the device. The
material shall be submitted to the address at the bottom of this page.
Information to the End User:
As the end user of this device, you will be responsible for submitting updated information in the
event the operating location of this READER changes after the initial installation. You must
provide to the US Federal Communications Commission, your name, address, telephone
number and e-mail address, the address and geographic coordinates of the operating location,
and the FCC identification number of the device. The material shall be submitted to the following
address:
Experimental Licensing Branch, OET
Federal Communications Commission
445 12th Street, S.W.
Washington, D.C. 20554
ATTN: RFID Registration
