Evigia Systems, Inc. Fixed RFID Interrogator Hand Held Interrogator Module manual

User Manual

EV3-HHI-M
RFID Protocol ISO 18000-7:2008
Frequency 433.92MHz
Antenna Whip antenna
Data Rate 27.7kHz
Range 250 feet unobstructed
Weight 9.2 oz (260.8 g)
Compliance FCC, HERO
EV3-HHI-M with MC-9090
Communications 802.11a/b/g, Bluetooth,
Ethernet or USB when
connected to adapter or
cradle (EV3-HHI-M
removed)
Dimensions 10.25˝L x 4.75˝W x
7.7˝H
Weight 2.16 lb (1Kg)
Operating
Temperature -20⁰C to +50⁰C
Dust / Moist IP 64

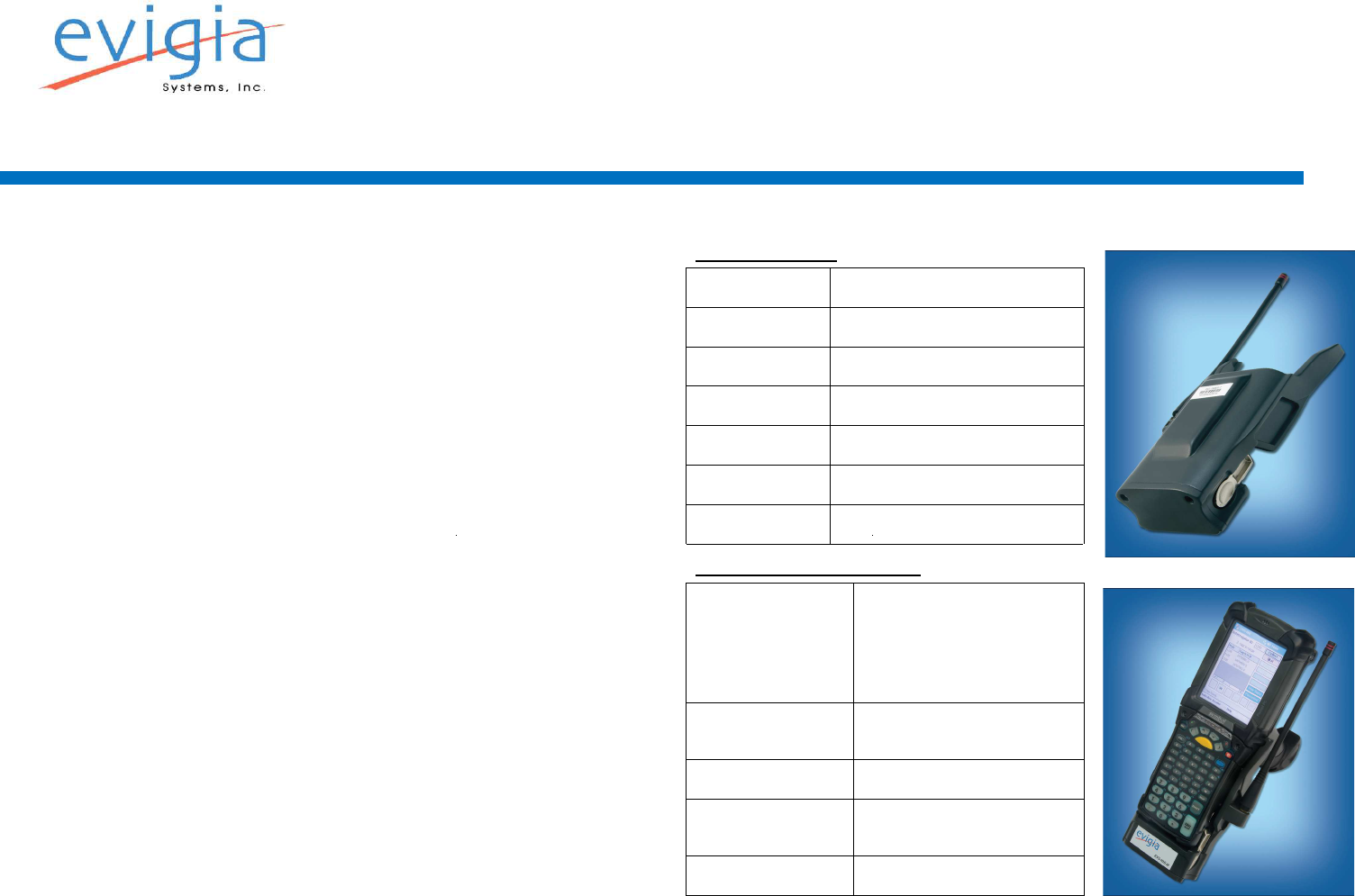

Hand Held Interrogator Module EV3-HHI-M
In the EV3 solution set, the hand-held interrogator capability can
be achieved by attaching this EV3-HHI-M clip-on-module onto the
Motorola MC9090 hand-held computer. By extending upon the
highly functional MC9090 platform, this ISO18000-7 capable
clip-on module yields a field-robust, and non-incendiary hand-
held platform through which the rest of the EV3 network can be
read, monitored and managed. Where the end-user already has
the hand-held computers on hand, addition of this EV3-HHI-M
module is a highly cost-effective, yet powerful solution path to
enhancing the network’s visibility and capabilities.
NOTE: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense.
WARNING: Changes or modifications not expressively approved
by the party responsible for compliance could void the user's authority
to operate the equipment.
EVIGIA TAG READER INSTALLATION & COMPLIANCE INFORMATION
NOTE: This system must be installed by experienced professional installers who are familiar
with radio frequency (RF) equipment operation as well as local building and safety codes.
Failure to do so may void the Product Warranty, as well as expose the end user to legal and/or
financial liabilities.
Information to the professional installer
WARNING: Changes or modifications not expressively approved by the party responsible for
compliance could void the user's authority to operate this equipment. In addition, this device has
been designed to operate only with the antenna listed below. Any antennas or cable not
included below is strictly prohibited for use with this device. The required antenna impedance is
50 ohms.
Evigia Monopole PN: 830A0002
NOTICE: Pursuant to FCC Part 15.240 requirements, Evigia provides the following information
to the Professional Installer to ensure continued compliance with the operational restrictions in
paragraphs FCC 15.240 (a) and (e) for TAG READERS operating under 15.240.
Use of this READER with part 15.240 modes is restricted to the identification of the contents of
commercial shipping containers. Operations must be limited to commercial and industrial areas
such as ports, rail terminals and warehouses. These devices shall not be used for any form of
voice communication. Furthermore, to prevent interference to Federal Government radar
systems, these devices are not permitted to be employed within 40 kilometers of the following
locations:
DoD Radar Site Latitude Longitude
Beale Air Force Base 39º 08’ 10” N 121º 21’ 04” W
Cape Cod Air Force Station 41º 45’ 07” N 070º 32’ 17” W
Clear Air Force Station 64º 55’ 16” N 143º 05’ 02” W
Cavalier Air Force Station 48º 43’ 12” N 097º 54’ 00” W
Eglin Air Force Base 30º 43’ 12” N 086º 12’ 36” W
Information to FCC Office of Engineering Technology:
Pursuant to FCC Part 15.240 requirements, Evigia will provide information on the locations
where the READERS are installed and employ 15.240 operation to the FCC Office of
Engineering and Technology to ensure continued compliance. The information provided to the
Commission shall include the name, address, telephone number and e-mail address of the user,
the address and geographic coordinates of the operating location, and the FCC identification
number of the device. The material shall be submitted to the address at the bottom of this page.
_________________________________________________________________________________
Evigia Systems, Inc. 3801 Varsity Drive t 734 302 1140 www.evigia.com
Ann Arbor, MI 48108-2224 f 734 372 6435
Information to the End User:
If your device operates in modes consistent with FCC Part 15.240, then as the end user of this
device, you will be responsible for submitting updated information in the event the operating
location of this READER changes after the initial installation. You must provide to the US
Federal Communications Commission, your name, address, telephone number and e-mail
address, the address and geographic coordinates of the operating location, and the FCC
identification number of the device. The material shall be submitted to the following address:
Experimental Licensing Branch, OET
Federal Communications Commission
445 12th Street, S.W.
Washington, D.C. 20554
ATTN: RFID Registration
_________________________________________________________________________________
Evigia Systems, Inc. 3801 Varsity Drive t 734 302 1140 www.evigia.com
Ann Arbor, MI 48108-2224 f 734 372 6435
