USER’S MANUAL
FX30 MOTORIZED TREADMILL
MODEL NUMBER: FX30
USER WEIGHT LIMITATION: 120kgs. (264lbs.)
SERIAL NUMBER (found on frame):
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
2
PRECAUTIONS
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your
Smooth Fitness treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt:
______________________
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important
precautions and information before operating the treadmill. It is the responsibility of the owner to ensure that all
users of this treadmill are adequately informed of all warnings and precautions.
• Use the treadmill only as described in this manual.
• Place on a level surface, with 2 meters (6 feet) of clearance behind it. Do not place the treadmill on any
surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the
treadmill.
• When choosing a location for the treadmill make sure that the location and position permit access to a plug.
• Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered
patio, or near water.
• Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
• Keep children under the age of 12 and pets away from the treadmill at all times.
• The treadmill should not be used by persons weighing more than 120kgs. (264lbs.)
• Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support
clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in sandals.
• When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should
be on the same circuit.
• Always straddle the belt and allow it to start moving before stepping onto the belt.
• Always examine your treadmill before using to ensure all parts are in working order.
• Allow the belt to fully stop before dismounting.
• Never insert any object or body parts into any opening.
• Follow the safety information in regards to plugging in your treadmill.
• Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill.
Do not operate the treadmill with a damaged or frayed power cord.
• Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be
performed by an authorized service representative, unless authorized and/or instructed by the
manufacturer. Failure to follow these instructions will void the treadmill warranty.
• Never leave the treadmill unattended while it is running.
• Safety area of 2,000mm X 1,000mm behind the equipment.
• Use “safety key” when operating the treadmill and make sure “safety key” clipped on the cloth.
• Remove the safety ket and store it away in a safe place when the treadmill is not in use. Keep the safety
key away from children.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
3
POWER REQUIREMENTS
• The emergency dismount function : Please hold the handle bar and step on the foot platform for emergency
dismount, the safety key unclipped from the computer automatically. The treadmill power will stop
immediately. The running belt will be slowed down, and then user can get off from the treadmill.
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN
ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS
TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH
THE PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED
ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage
spikes, surges and noise interference can result from weather conditions or from other appliances being turned on or
off. To reduce the possibility of treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge
protector with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage
rating of 400V or less and an electrical rating 220VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance
for electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having an
equipment-grounding conductor and a grounding plug. Always plug the power cord into a surge protector, and plug
the surge protector into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances.

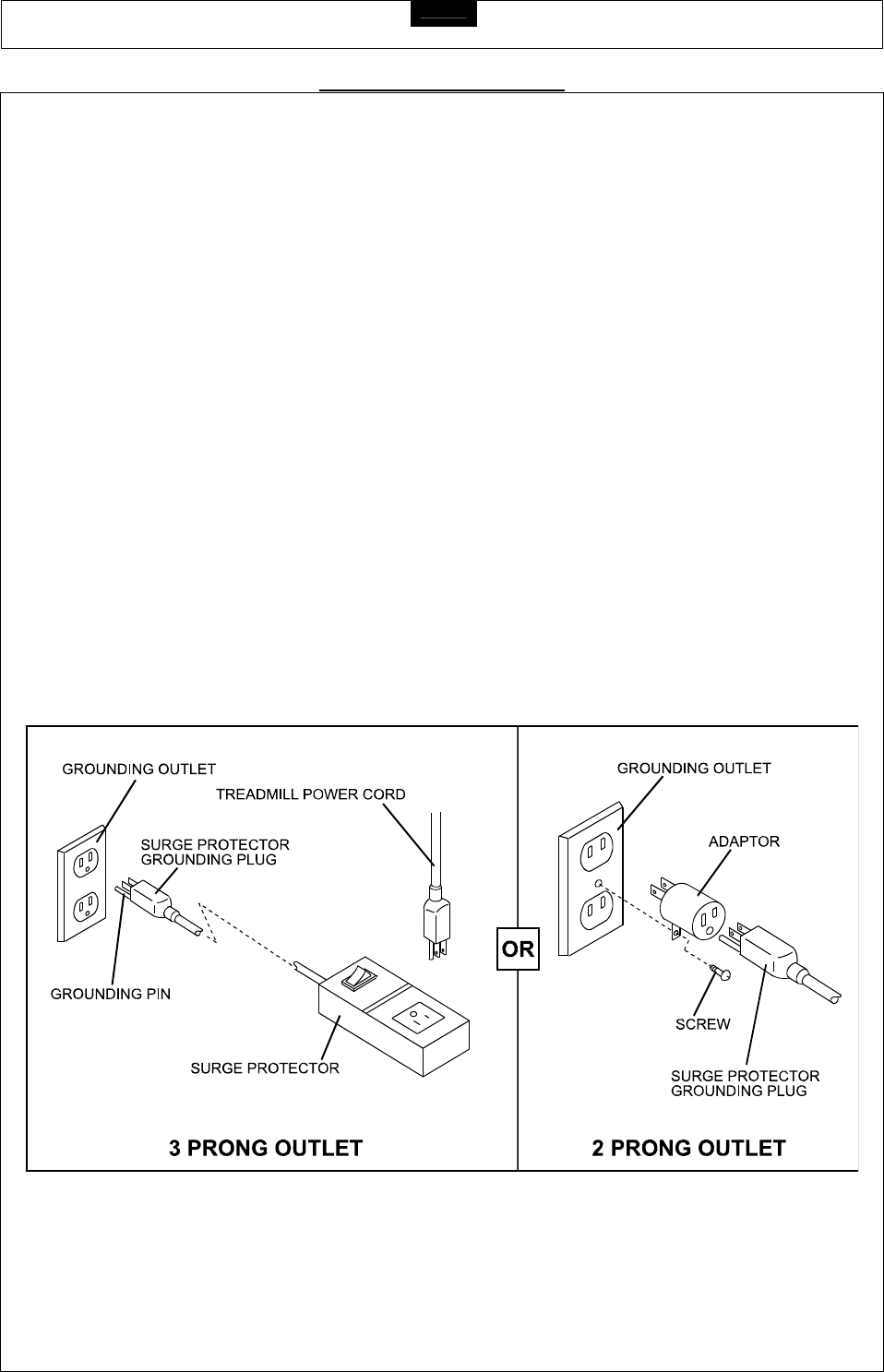

This product is for use on a nominal 220-volt circuit, and has a grounding plug that looks like the plug illustrated in the
drawing below.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
4
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are
included in the boxes. Check the Hardware Comparison Chart for a full count of the number of parts included for this
product to be assembled properly. If you are missing any parts or have any assembly questions call the
manufacturer.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require
to assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly
quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is
free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another
person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 120kgs (264lbs.) it is not
recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit
shown here. This product is not intended to support users whose weight exceeds this limit.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
5

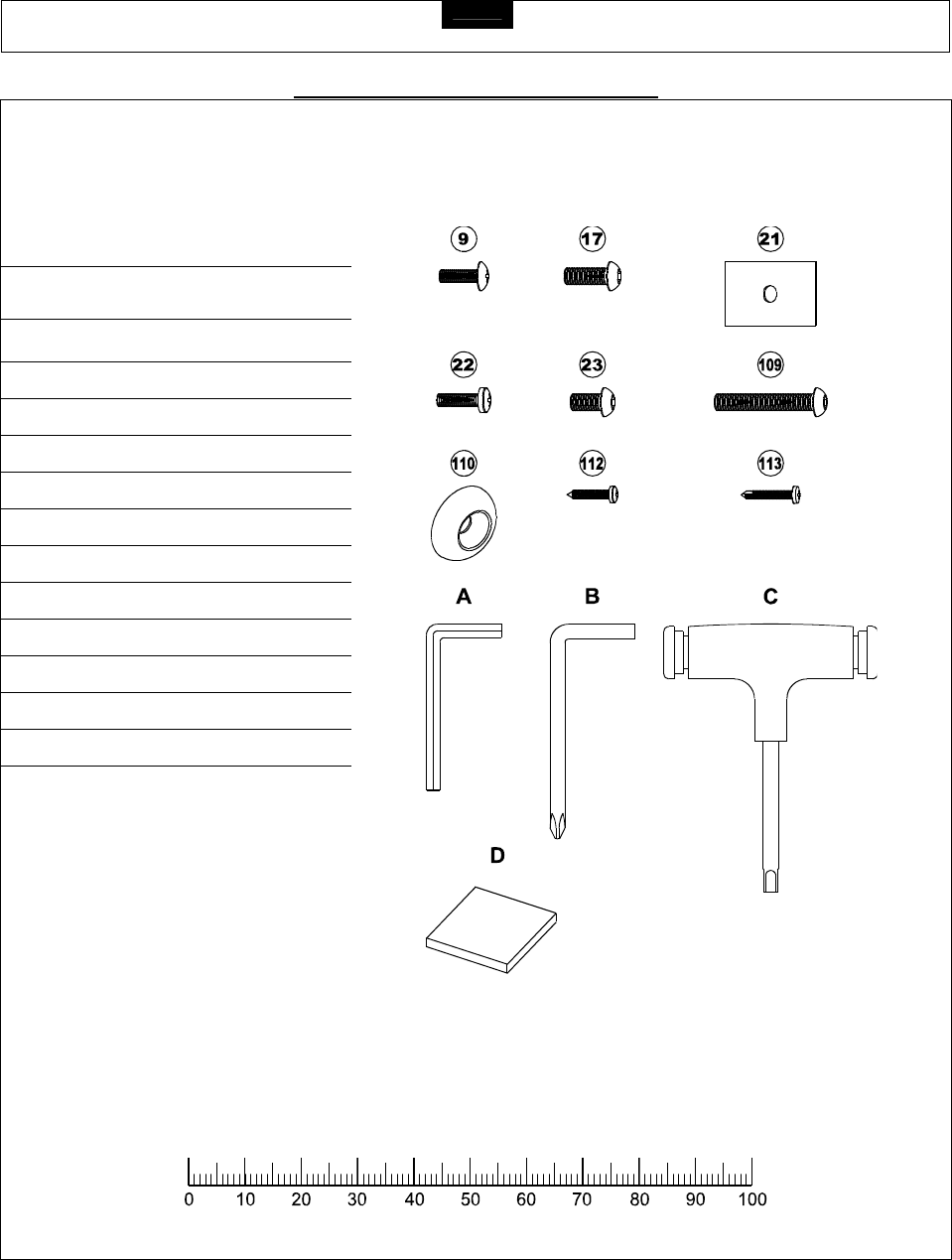

HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to
help you identify those items that may be unfamiliar to you.
NO. DESCRIPTION QTY.
9
M6 x 15mm
Screw 2
17 M8 x 15mm Allen Head
Bolt 4
21 Plastic Cover 2
22 M6 x 20mm Screw 2
23 M8 x 19mm Bolt 4
109 M8 x 76mm Screw 2
110 Metal Cap 2
112 M4 x 20mm Screw 4
113 M8 x 15mm Screw 4
A Wrench 1
B Wrench 1
C Allen Wrench 1
D Square Cushion 2
MILIMETERS
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
6
PARTS LIST
NO. DESCRIPTION QTY. ORDER NO. NO. DESCRIPTION QTY. ORDER NO.
1 Computer Frame 1 FX30-01 29 6.5 x 13mm Washer 1 XFIT2-29
2 Console 1 FX30-02 30 Fold Up Lock 1 XFIT2-30
3 Top Console Housing 1 XFIT2-03 31 Spring 1 XFIT2-31
4 Bottom Console
Housing 1 XFIT2-04 32 Base Frame End Cap 2 XFIT2-32
5 Wire Protection Ring 1 XFIT2- 33 Level Adjust 2 XFIT2-33
6 Safety Key 1 XFIT2-06 34 Base Frame 1 XFIT2-34
7 M4 x 12mm Screw 17 XFIT2-07 35 Rear Moving Wheel 2 XFIT2-35
8 Console Support
Tube 1 XFIT2-08 36 Cushion 4 XFIT2-36
9 M6 x 15mm Screw 2 XFIT2-09 37 Cap 1 XFIT2-37
10 Handlebar Front End
Cap 2 XFIT2-10 38 3/8” x 30mm Bolt 1 XFIT2-38
11 Motion Control
Sensor 2 XFIT2-11 39 Bushing 1 XFIT2-39
12 Hand Pulse Sensor 2 XFIT2-12 40 Wheel 1 XFIT2-40
13 M8 x 50 Bolt 6 XFIT2-13 41 Deck Frame Support 1 XFIT2-41
14 Handlebar - Left 1 XFIT2-14 42 Shock 1 XFIT2-42
15 Handlebar - Right 1 XFIT2-15 43 C Clip 2 XFIT2-43
16 Plastic Fixing Insert 6 XFIT2-16 44 4.5 x 12mm Washer 8 XFIT2-44
17 #8 x 25 Screw 8 XFIT2-17 45 M8 x 15mm Screw 30 XFIT2-45
18 M5 x 10mm Allen
Head Bolt 1 XFIT2-18 46 M10 Nylon Nut 4 XFIT2-46
19 Left Upright 1 XFIT2-19 47 Bushing 2 XFIT2-47
20 Right Upright 1 XFIT2-20 48 M8 x 40mm Bolt 2 XFIT2-48
21 Plastic Cover 2 XFIT2-21 49 M8 Nylon Nut 3 XFIT2-49
22 M6 x 20mm Screw 2 XFIT2-22 50 M10 x 60mm Bolt 2 XFIT2-50
23 M8 x 15mm Bolt 8 XFIT2-23 51 Caster Wheel 2 XFIT2-51
24 M5 x 8mm Bolt 2 XFIT2-24 52 Caster Bracket 2 XFIT2-52
25 Switch Plate 1 XFIT2-25 53 Console Cover - Upper 1 XFIT2-53
26 M14 x 90mm Bolt 2 XFIT2-26 54 Motor Hood Insert 1 XFIT2-54
27 Elevation Support
Tube Cover - Right 1 XFIT2-27 55 Motor Hood 1 XFIT2-55
28 M5 x 10mm Screw 1 XFIT2-28 56 M8 x 50mm Screw 2 XFIT2-56
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
7
PARTS LIST
NO. DESCRIPTION QTY. ORDER NO. NO. DESCRIPTION QTY. ORDER NO.
57 6.5 x 13mm Washer 5 XFIT2-57 85 M6 x 70mm Screw 3 XFIT2-85
58 Side Rail 2 XFIT2-58 86 Deck Cushion 8 XFIT2-86
59 Deck End Cap - Left 1 XFIT2-59 87 Front Roller with
Flywheel 1 XFIT2-87
60 Deck End Cap - Right 1 XFIT2-60 88 Front Roller Shaft 1 XFIT2-88
61 Running Belt 1 XFIT2-61 89 Fame Cover - Right 1 XFIT2-89
62 Rail Guide 8 XFIT2-62 90 10mm Shaft 1 XFIT2-90
63 M8 x 25mm Screw 8 XFIT2-63 91 Bushing 2 XFIT2-91
64 Running Deck 1 XFIT2-64 92 Plastic Clamp - Top 2 XFIT2-92
65 Washer 2 XFIT2-65 93 Plastic Clamp - Bottom 2 XFIT2-93
66 Rubber Cushion 1 XFIT2-66 94 Bracket 2 XFIT2-94
67 M8 x 135mm Bolt 1 XFIT2-67 95 M10 x 90mm Screw 1 XFIT2-95
68 Motor Bracket 1 XFIT2-68 96 Spring Washer 8 XFIT2-96
69 M8 x 15mm Screw 2 XFIT2-69 97 Rear Roller 1 XFIT2-97
70 Spring Washer 2 XFIT2-70 98 Rear Roller Shaft 1 XFIT2-98
71 8 x 16mm Washer 2 XFIT2-71 99 M8 Nut 8 XFIT2-99
72 M10 x 136mm Hex
Bolt 1 XFIT2-72 100
M8 x 19mm Allen Head
Bolt 4 XFIT2-100
73 Driving Motor 1 XFIT2-73 101 Deck Wheel 2 XFIT2-101
74 Motor Drive Belt 1 XFIT2-74 102 M8 x 43mm Bolt 2 XFIT2-102
75 Elevation Motor 1 XFIT2-75 103 Motor Belly Pan 1 XFIT2-103
76 Clip 2 XFIT2-76 104 M8 x 35mm Screw 3 XFIT2-104
77 M5 x 12mm Screw 2 XFIT2-77 105 Elevation Support Tube
Cover - Left 1 XFIT2-105
78 M10 x 63mm Bolt 1 XFIT2-78 106 Deck Frame 1 XFIT2-106
79 Motor Control Board 1 XFIT2-79 107 Cap 2 XFIT2-107
80 Transformer Board 1 XFIT2-80 108 Rubber Cushion 2 XFIT2-108
81 M10 x 35mm Screw 9 XFIT2-81 109 M8 x 76mm Screw 2 XFIT2-109
82 Elevation Support 1 XFIT2-82 110 Metal Cap 2 XFIT2-110
83 Micro Switch 1 XFIT2-83 111 Cross Brace 1 XFIT2-111
84 Frame Cover - Left 1 XFIT2-84 112 Console Cover - Bottom 1 XFIT2-112
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
8
PARTS LIST
NO. DESCRIPTION QTY. ORDER NO. NO. DESCRIPTION QTY. ORDER
NO.
113 M8 x 15mm Screw 4 XFIT2-113
114 Handlebar Rear End
Cap – Left #1 1 XFIT2-114
115 Handlebar Rear End
Cap – Left #2 1 XFIT2-115
116 Handlebar Rear End
Cap – Right #2 1 XFIT2-116
117 Handlebar Rear End
Cap – Right #1 1 XFIT2-117
118 Console Housing
Fixing Plate 1
119 Handlebar Fixing
Plate 2
120 Console Support
Tube Fixing Plate 2
121 Motion Control Wire –
Upper Section 1
122 Motion Control Wire –
Bottom Section 1
123 EKG Pulse Wire –
Upper Section 1
124 EKG Pulse Wire –
Bottom Section 1
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
9

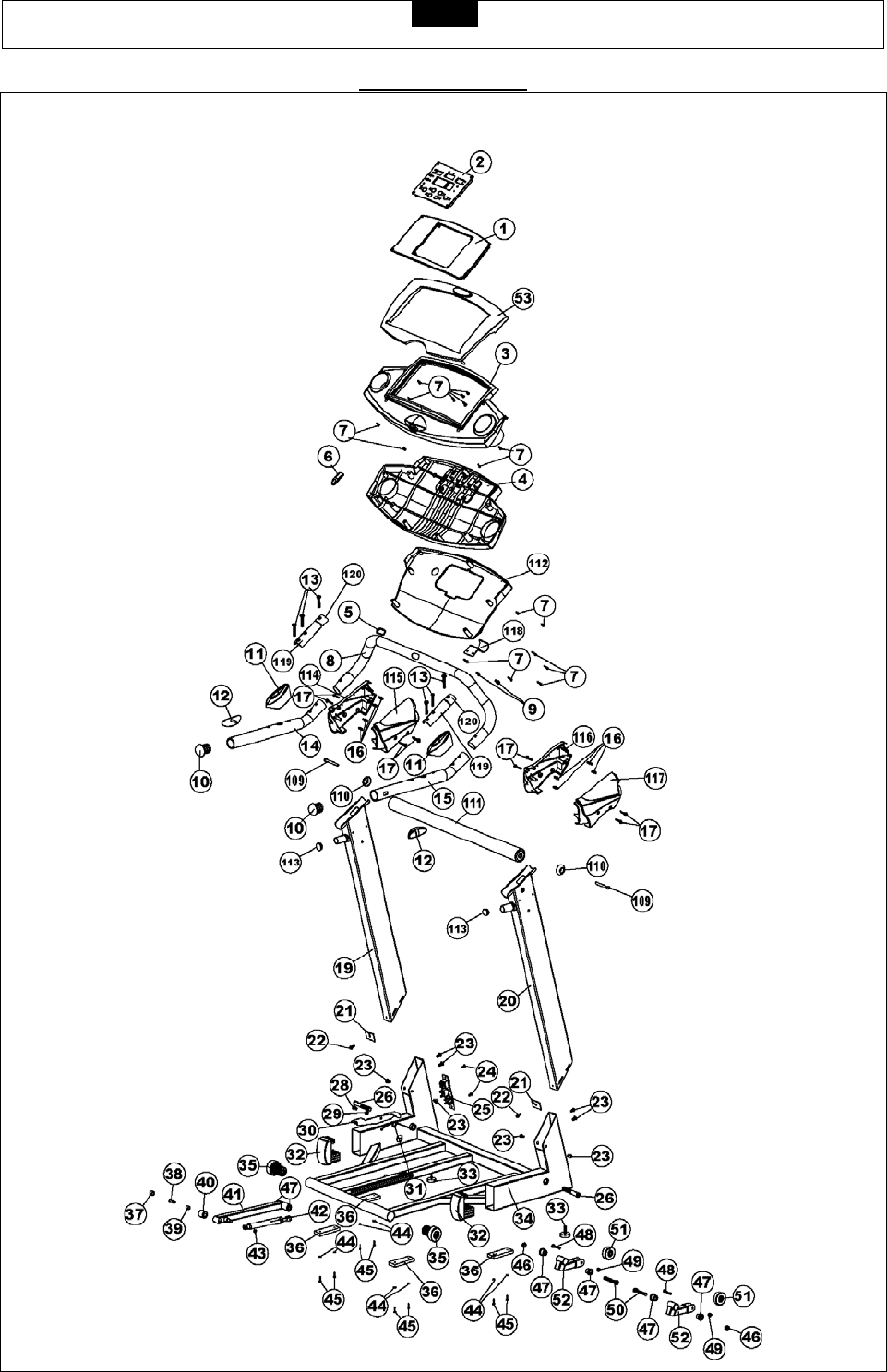

PARTS DIAGRAM

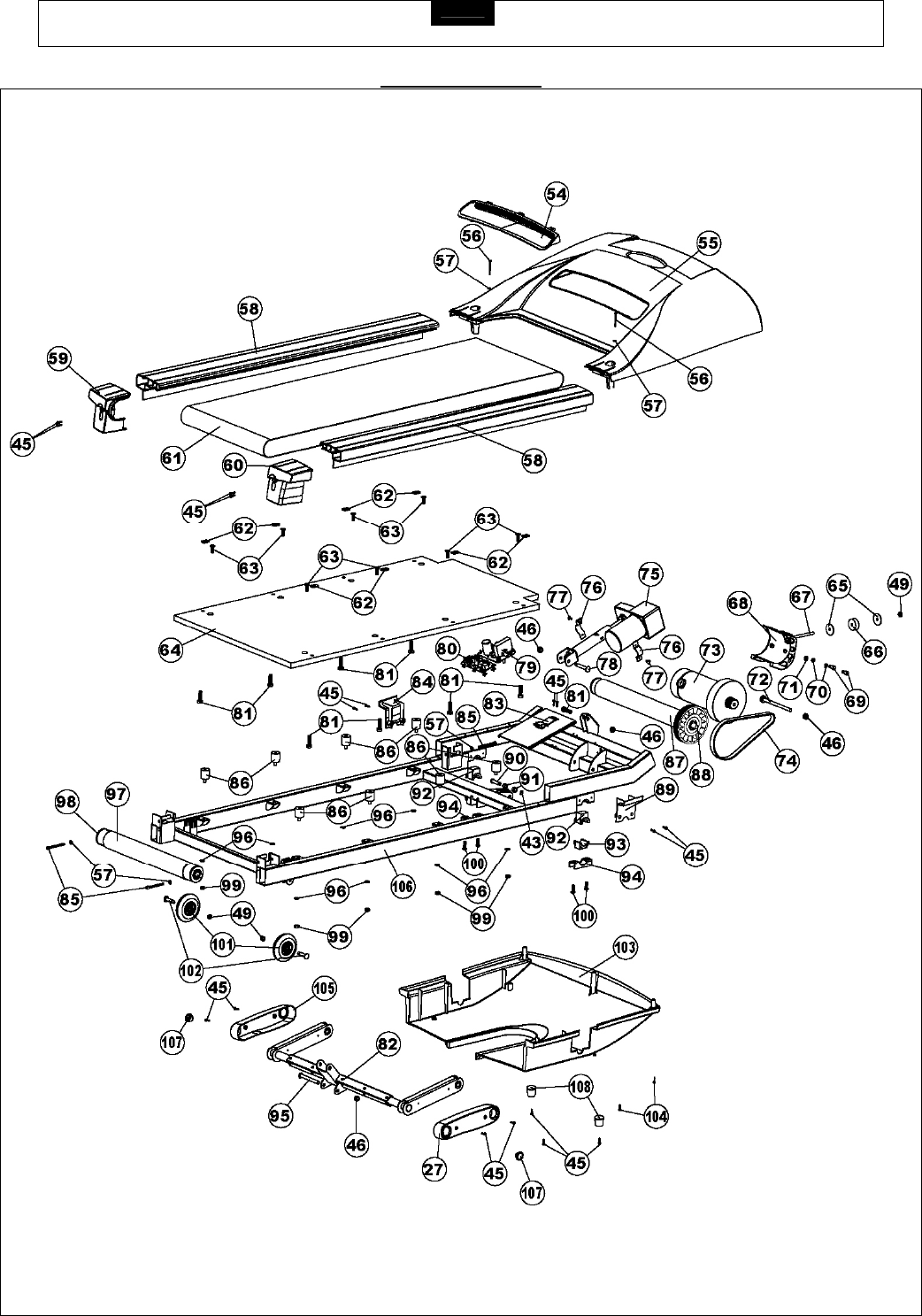

A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
10
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
11
ASSEMBLY
STEP 1:
Remove your treadmill from the carton and place it on the floor in an open area as shown in FIG-1.

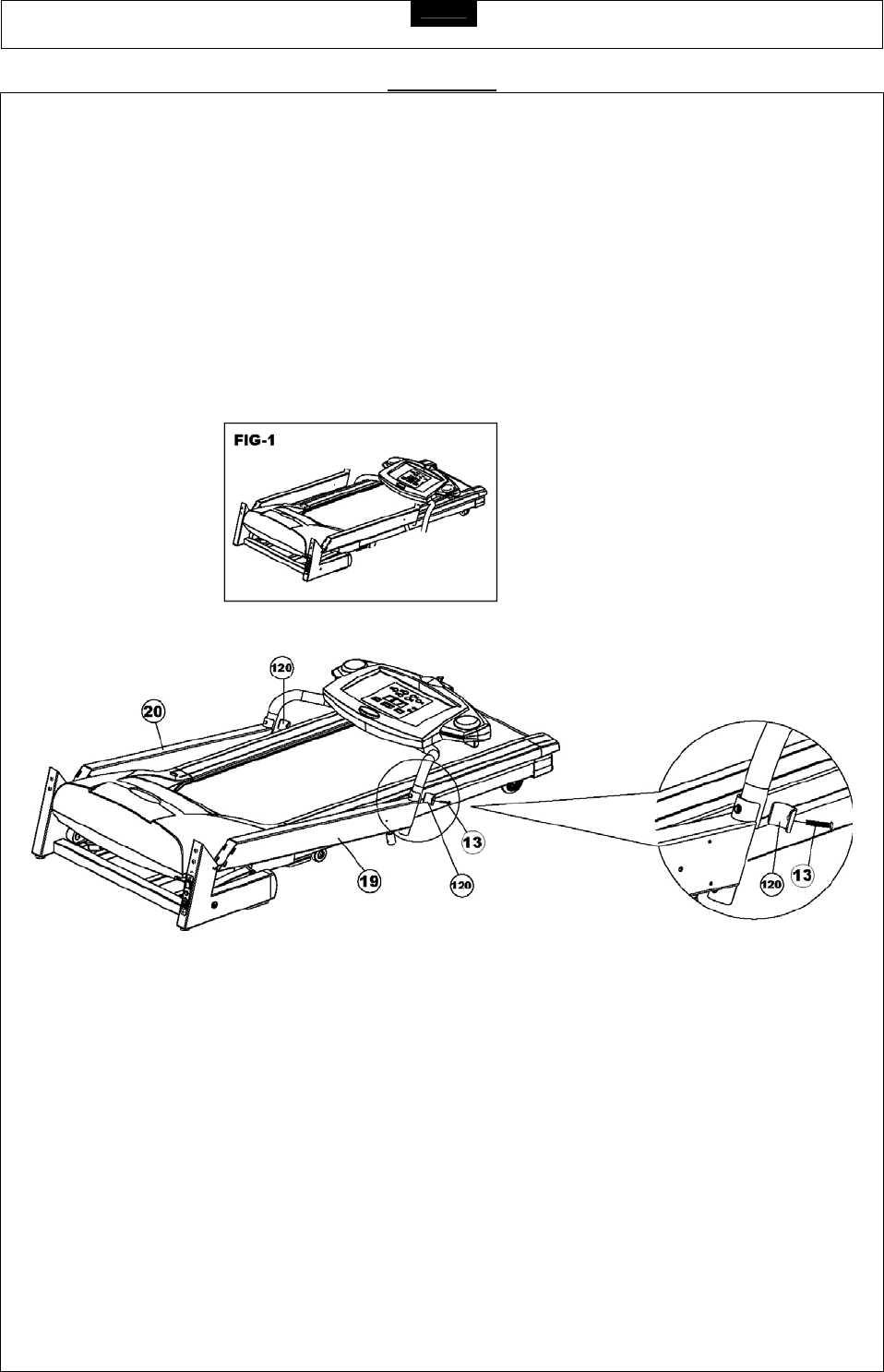

Attach the Console Support Tube (8) to the Left Upright (19) and Right Upright (20) using Console Support Tube
Fixing Plate (120) and M8 x 50 Allen Head Bolt (13).
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
12
ASSEMBLY

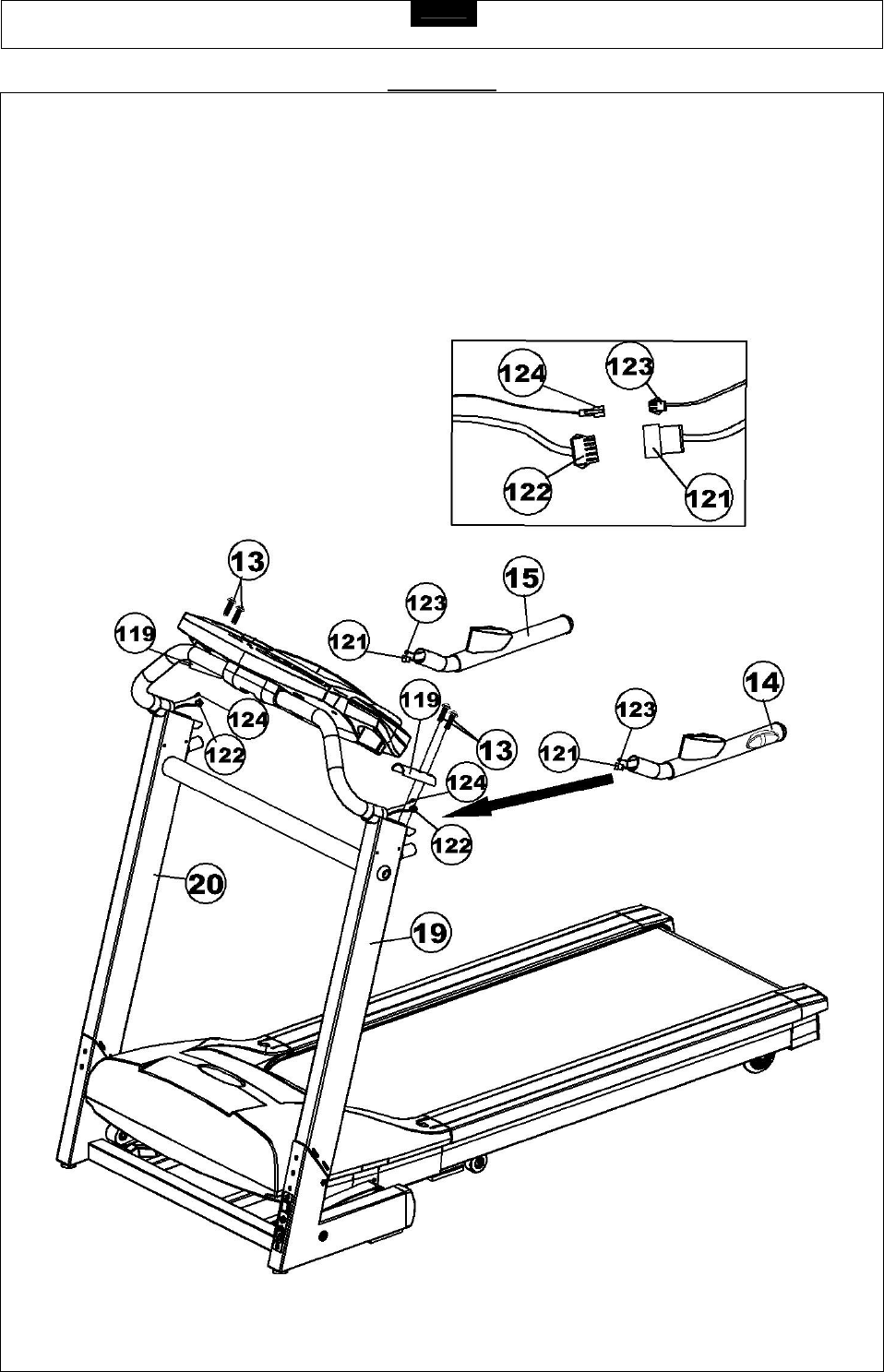

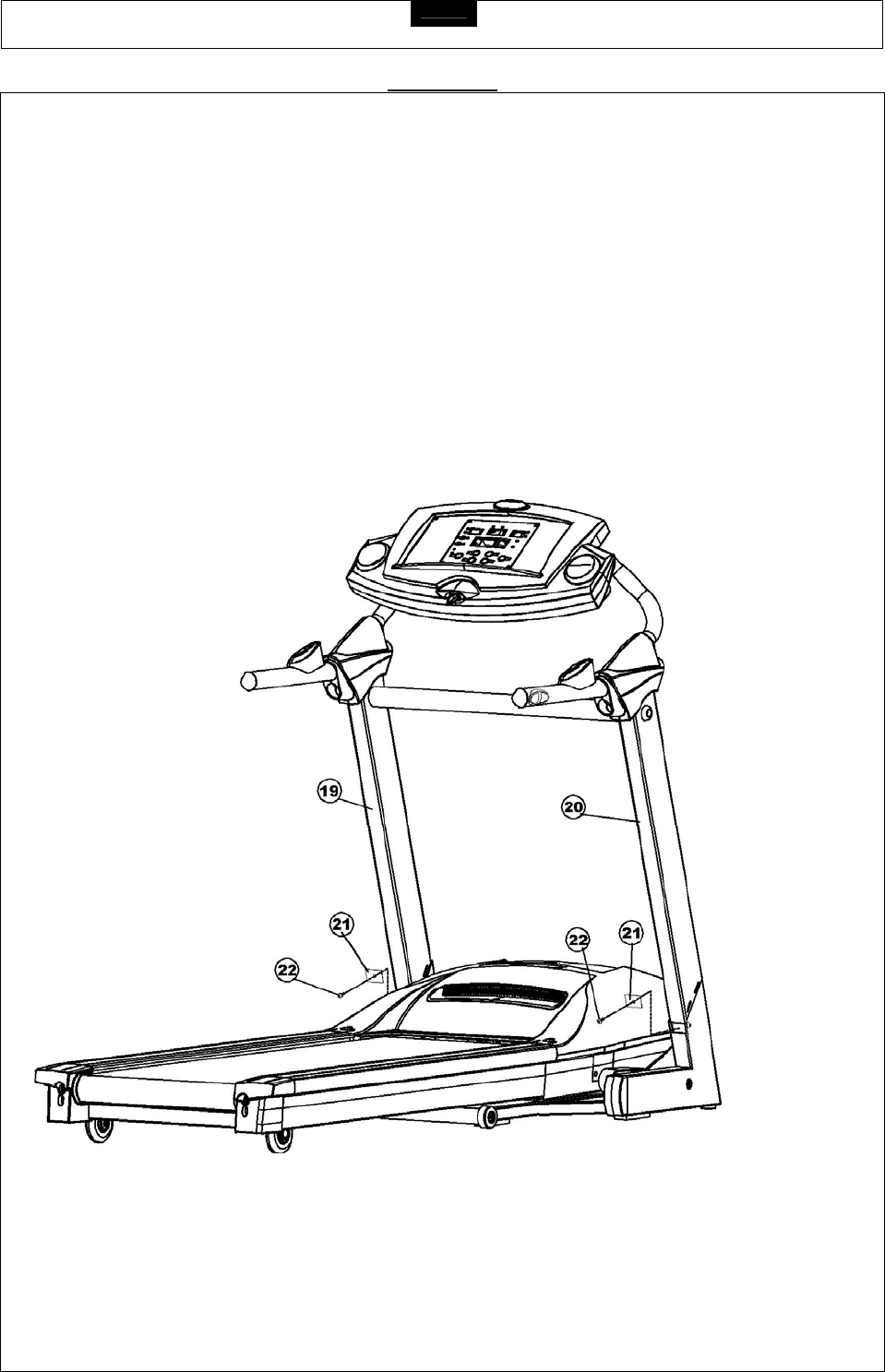

STEP 2:

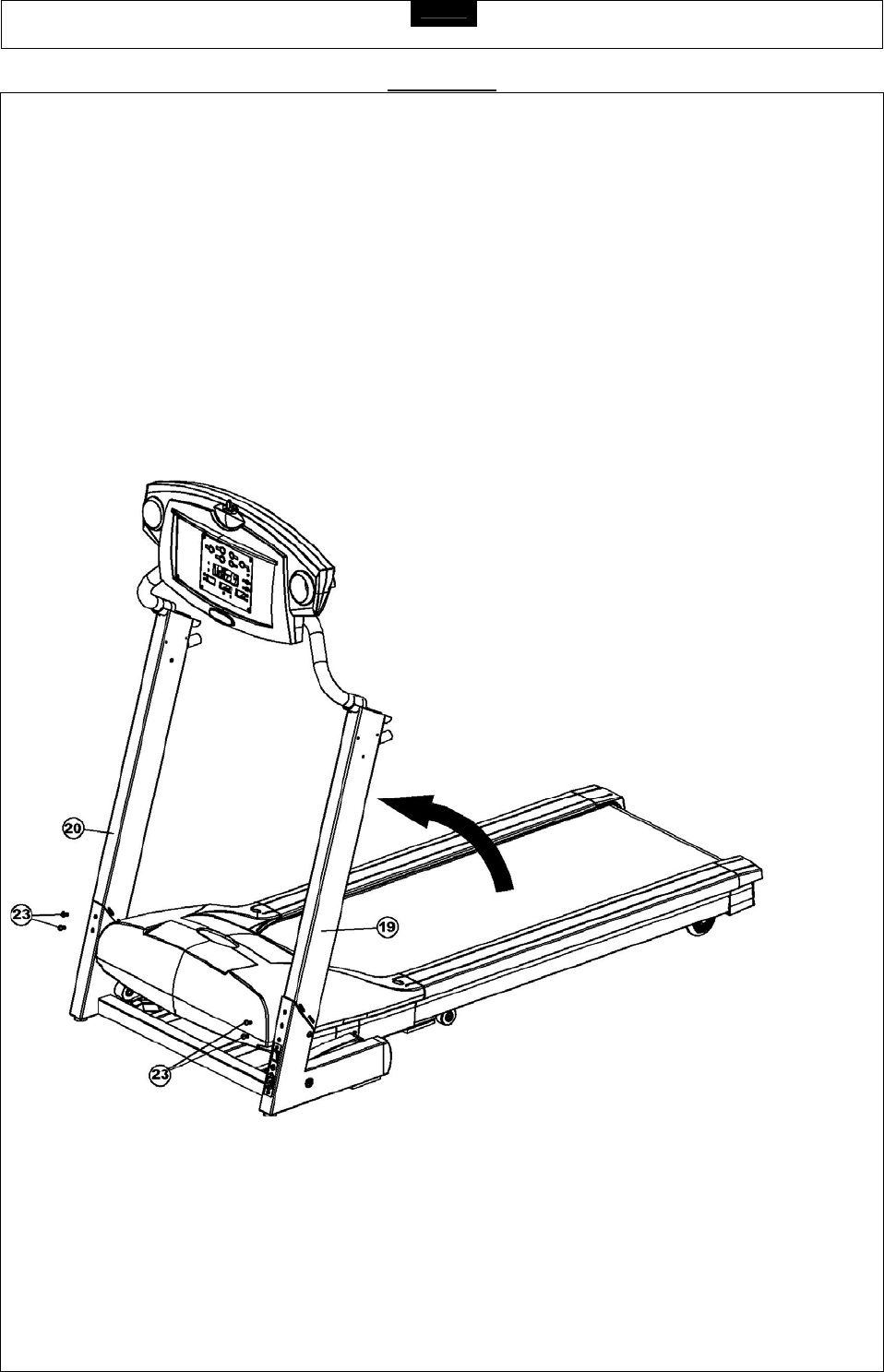

Rotate the Left Upright (19) and Right Upright (20) to the correct position as shown and secure in place using four M8
x 15 Bolt (23).
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
13
ASSEMBLY
STEP 3:

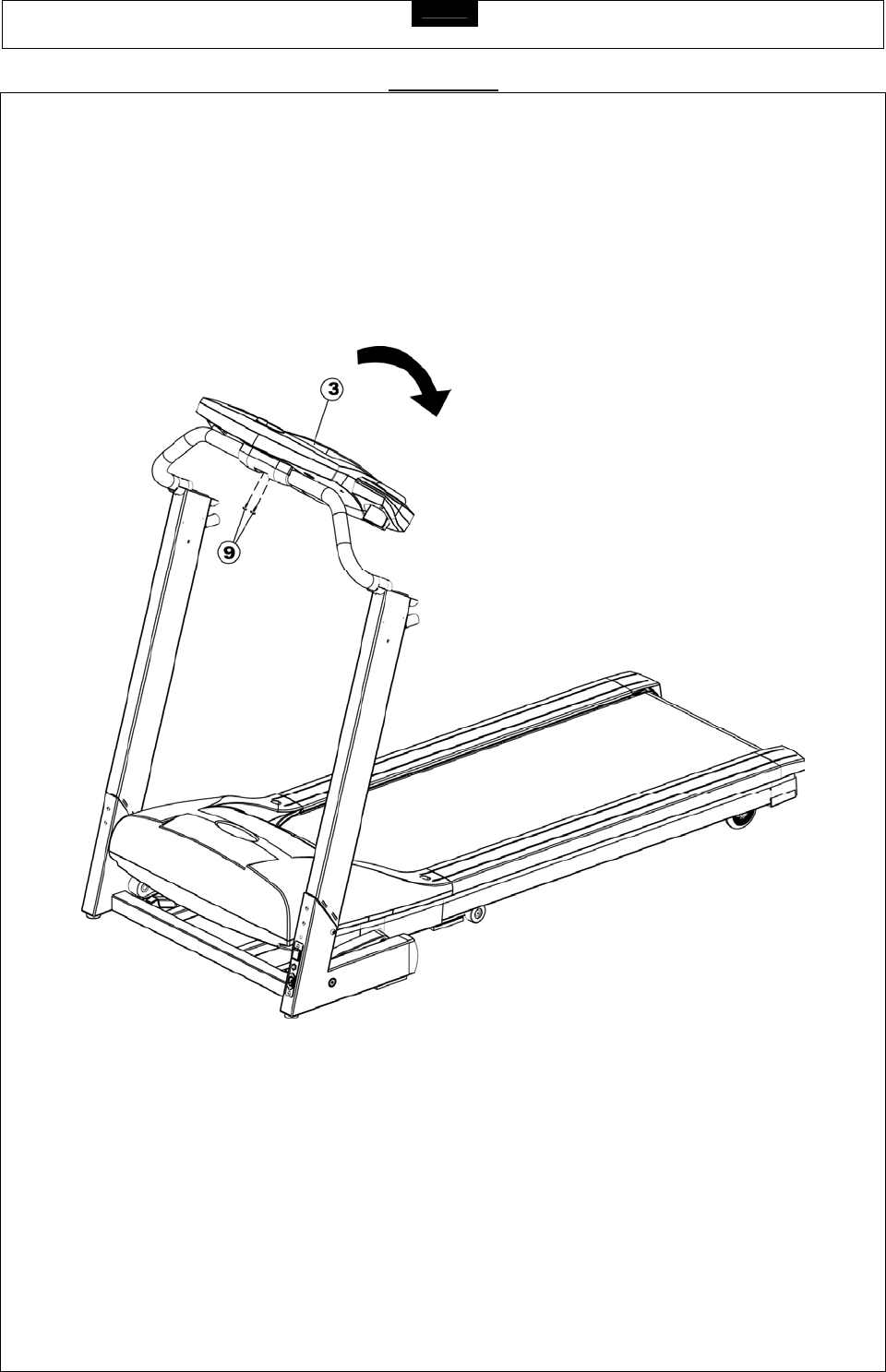

Rotate the console up to the correct position as shown and secure in place using two M6 x 15 Screws (9).
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
14
ASSEMBLY

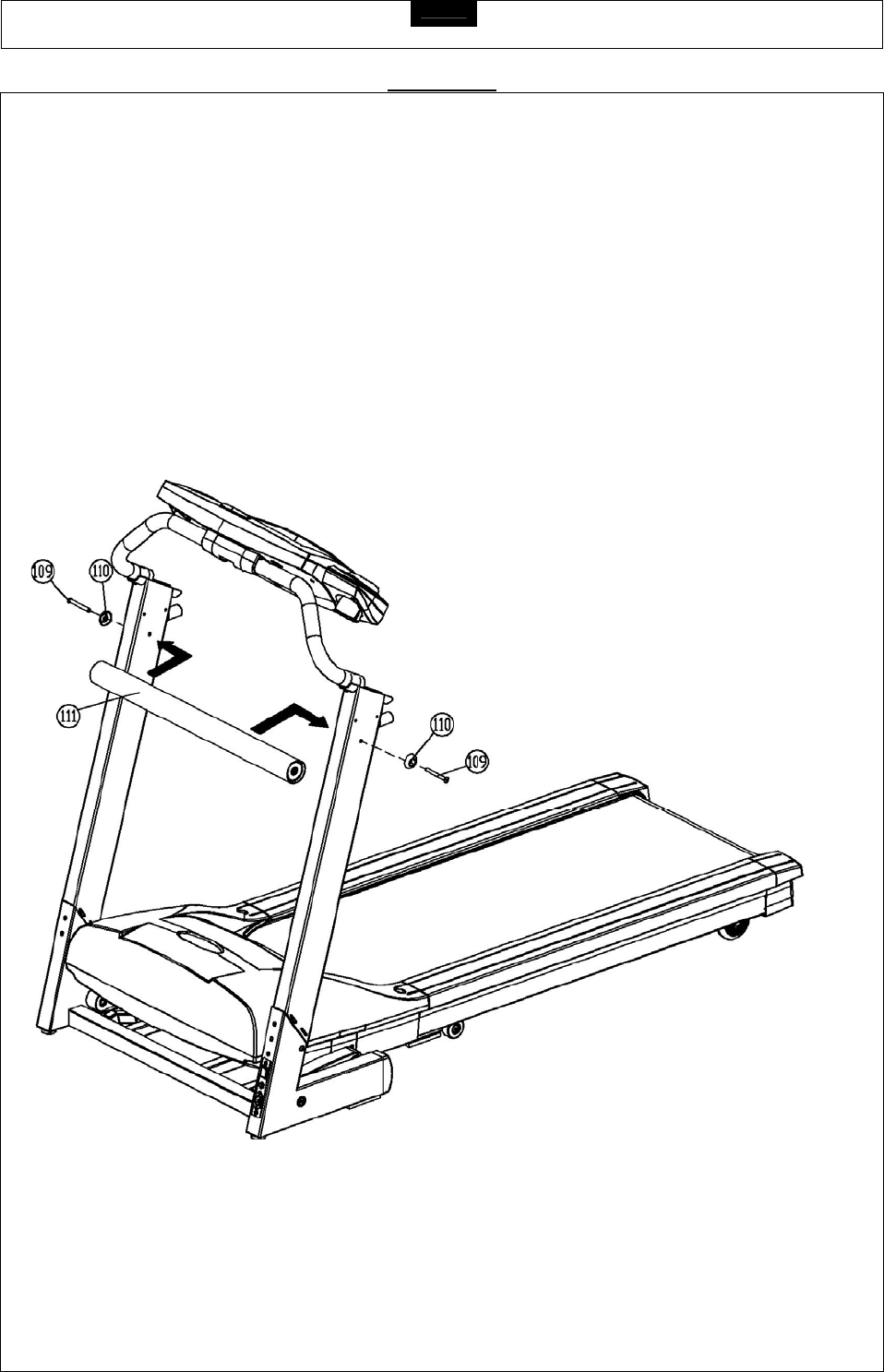

STEP 4:
Attach the Cross Brace (111) to Left and Right Upright (19 and 20) with Metal Cap (110) and M8 x 76mm Screw
(109).
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
15
ASSEMBLY
STEP 5:
First connect the wires between the Left Handlebar (14) and Left Upright (19) as shown in FIG 2 then attach the Left
Handlebar (14) to the Left Upright (19) using two M8 x 50 Bolts (13). Repeat this procedure for the Right Handlebar
(15) and Right Upright (20).
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
16
ASSEMBLY

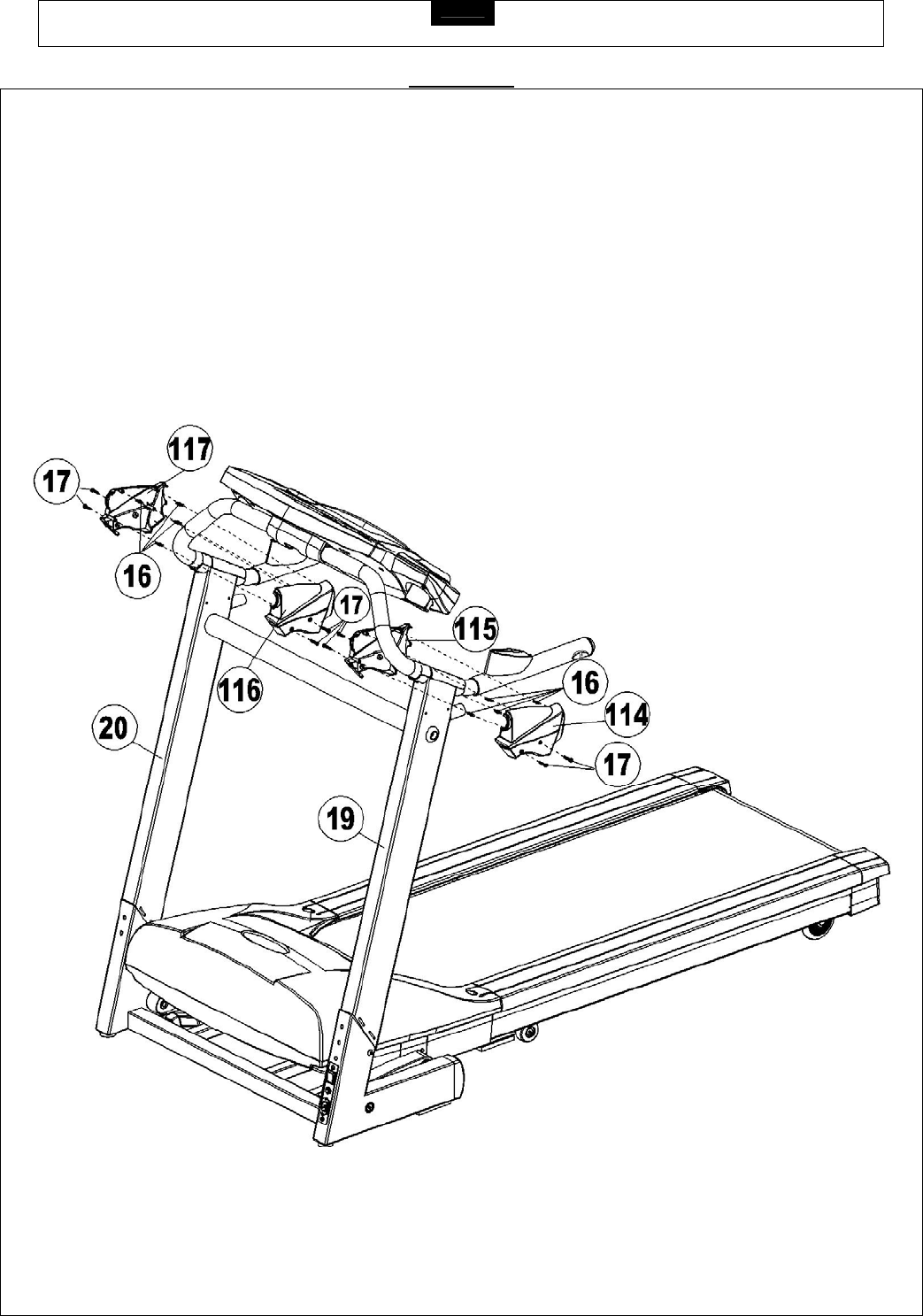

STEP 6:
Attach the Handlebar Rear End Cap – Left #1 (114) and Handlebar Rear End Cap – Left #2 (115) to Left Upright (19) using two
Plastic Fixing Insert (16) and four #8 x 18 Screw (17).
Attach the Handlebar Rear End Cap – Right #1 (117) and Handlebar Rear End Cap – Right #2 (116) to Right Upright (20) using
two Plastic Fixing Insert (16) and four #8 x 18 Screw (17).
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
17
ASSEMBLY
STEP 7:
Attach one Plastic Cover (21) to the Left Upright (19) and Right Upright (20) and secure in place using one M6 x 20
Screw (22) for each.
Your FX30 treadmill is now fully assembled.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
18
ASSEMBLY

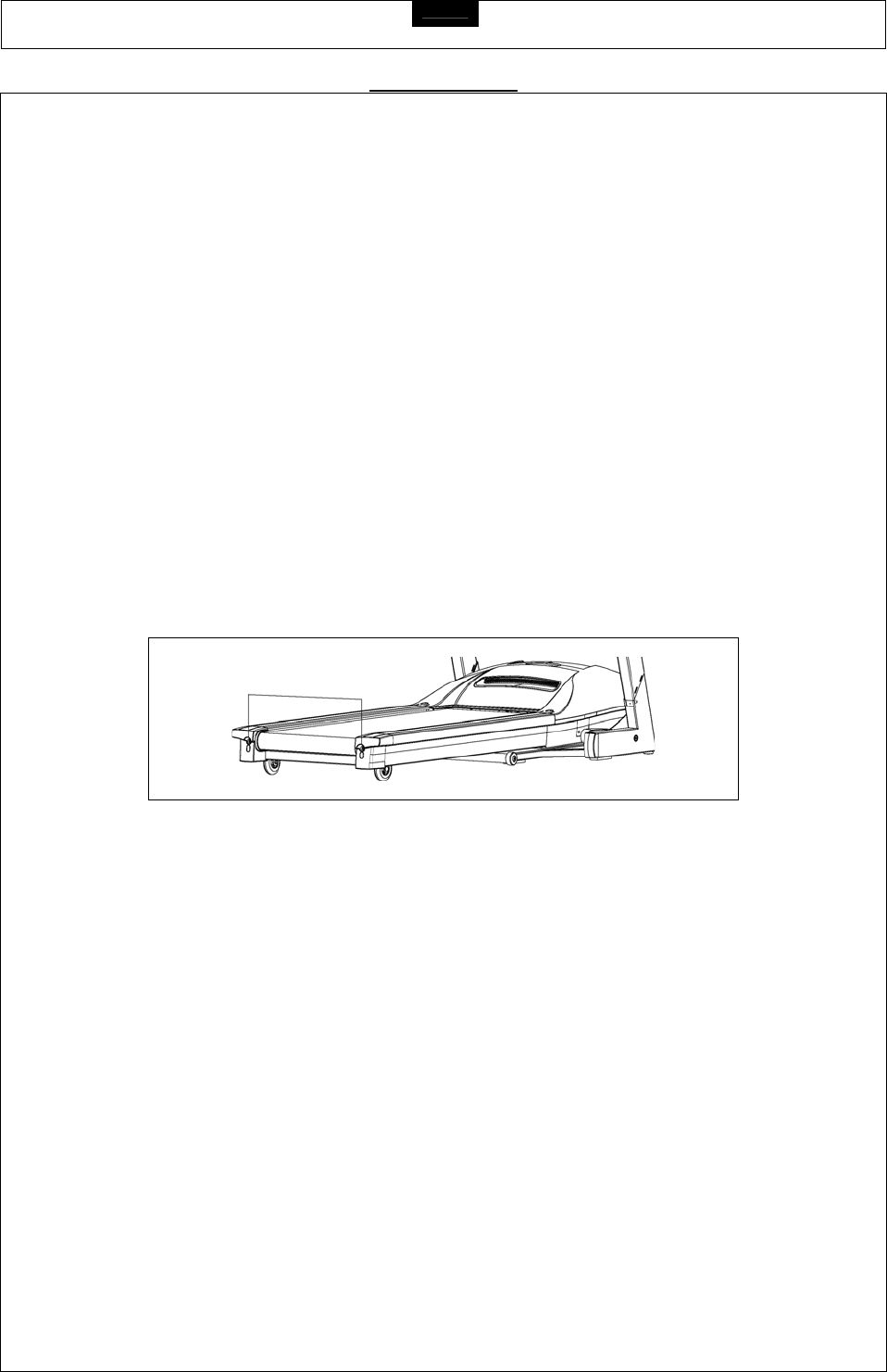

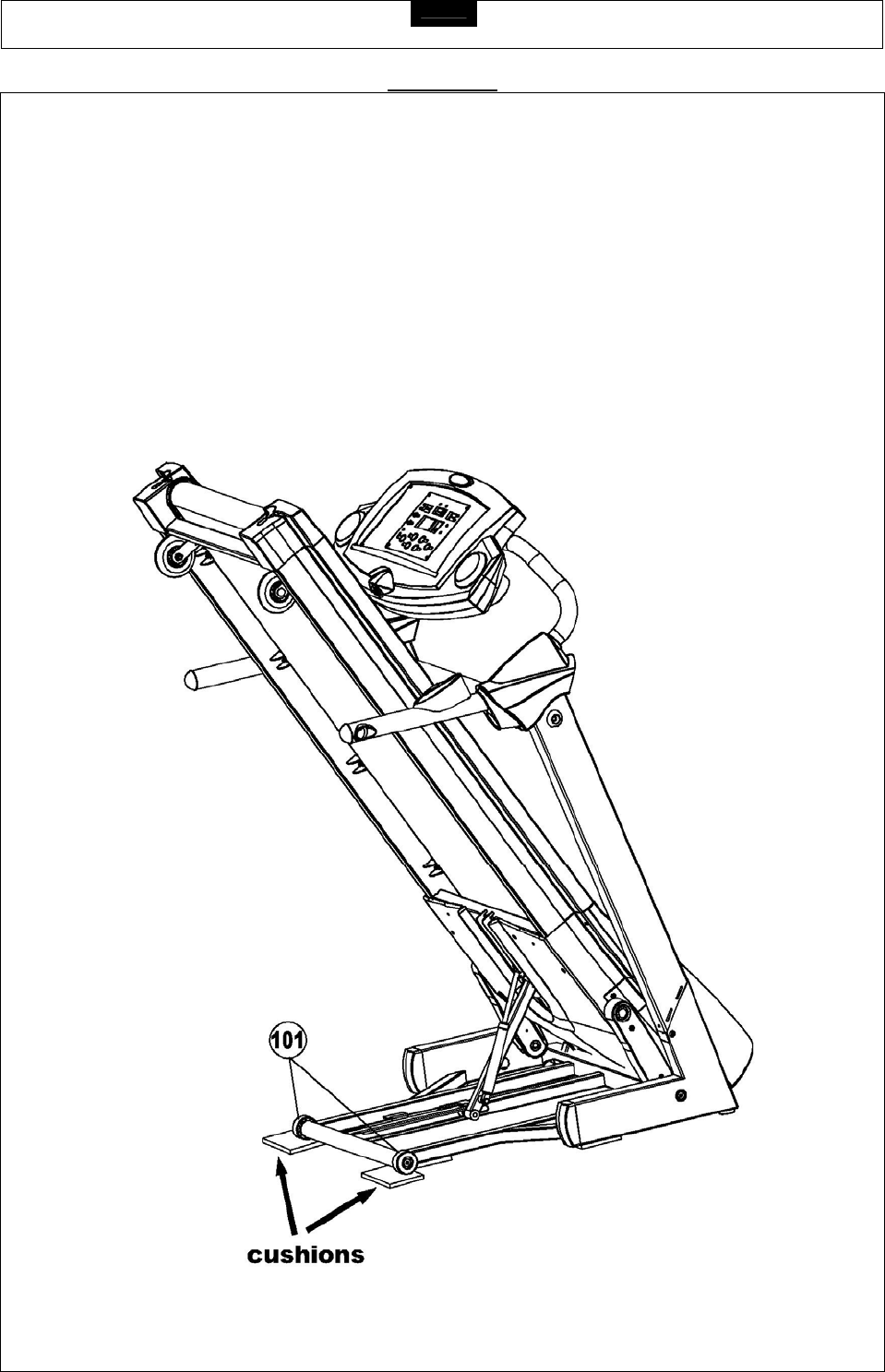

HOW TO INSTALL THE WHEEL CUSHIONS:
Two Square Cushions have been included with this treadmill. These can be placed under the two Rear Moving
Wheels (35) to keep the wheels from vibrating and making noise when exercising. To install the Square Cushions
you will need to first fold up the treadmill deck. Follow the instructions found on the FOLDING INSTRUCTIONS page
in this manual to fold up the deck. Lift each Rear Moving Wheel (35) up slightly and slide a Square Cushion under
each wheel.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
19

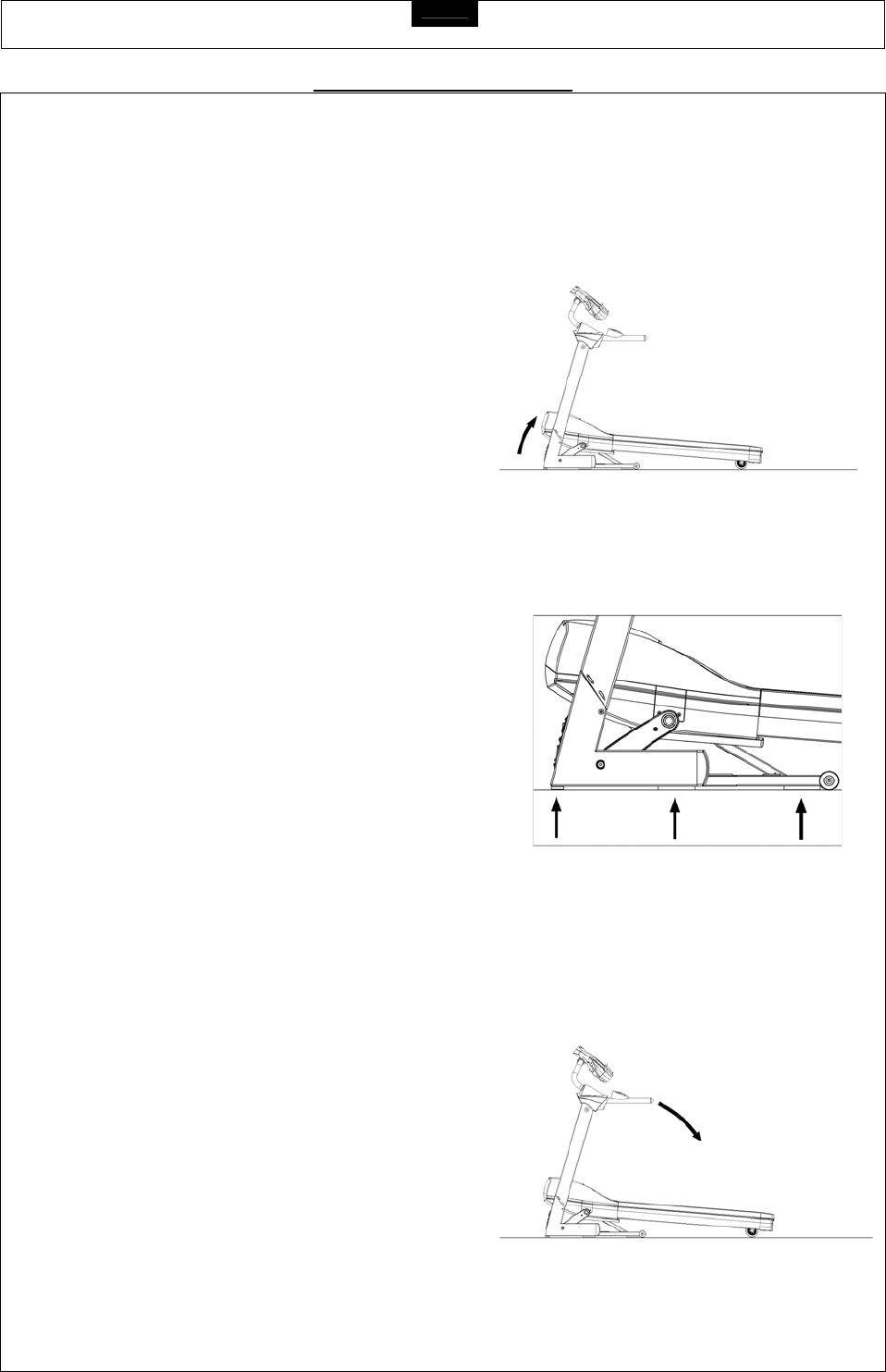

STABILIZER ADJUSTMENT
How to level the treadmill:
An uneven floor or improper stabilizer level can cause the treadmill to wobble during use as well as the incline
adjustment to function incorrectly. Please follow the procedure described below to make sure the treadmill stabilizer
is adjusted correctly prior to use. You may need the assistance of another person to perform this adjustment.
1. To perform the stabilizer adjustment you first need
to bring the treadmill to the highest incline level as
shown in drawing 1. After you’ve completed the
assembly procedure plug in the power cord and
switch on the POWER SWITCH. Insert the Safety
Key and press the START button to quick start the
treadmill. Press the INCLINE UP button until the
deck reaches its highest incline level. Now press
the STOP button and pull out the Safety Key.
Switch off the POWER SWITCH and unplug the
power cord.
1. Raise deck to highest incline level.
2. Inspect the two stabilizers (one per side) located
underneath the base frame. The treadmill should
sit on the floor with both stabilizers and all four
cushions resting firmly on the floor as shown in
drawing 2. Shake the handlebars back and forth to
check if they are resting firmly on the floor. If they
are not, pull the handlebar backward to adjust the
stabilizers as shown in drawing 3. Simply turn the
stabilizers like a screw to adjust their heights.
Repeat this until the treadmill sits firmly on the
floor.
2. Check position of stabilizers and cushions.
3. Tilt treadmill to access stabilizers.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
20

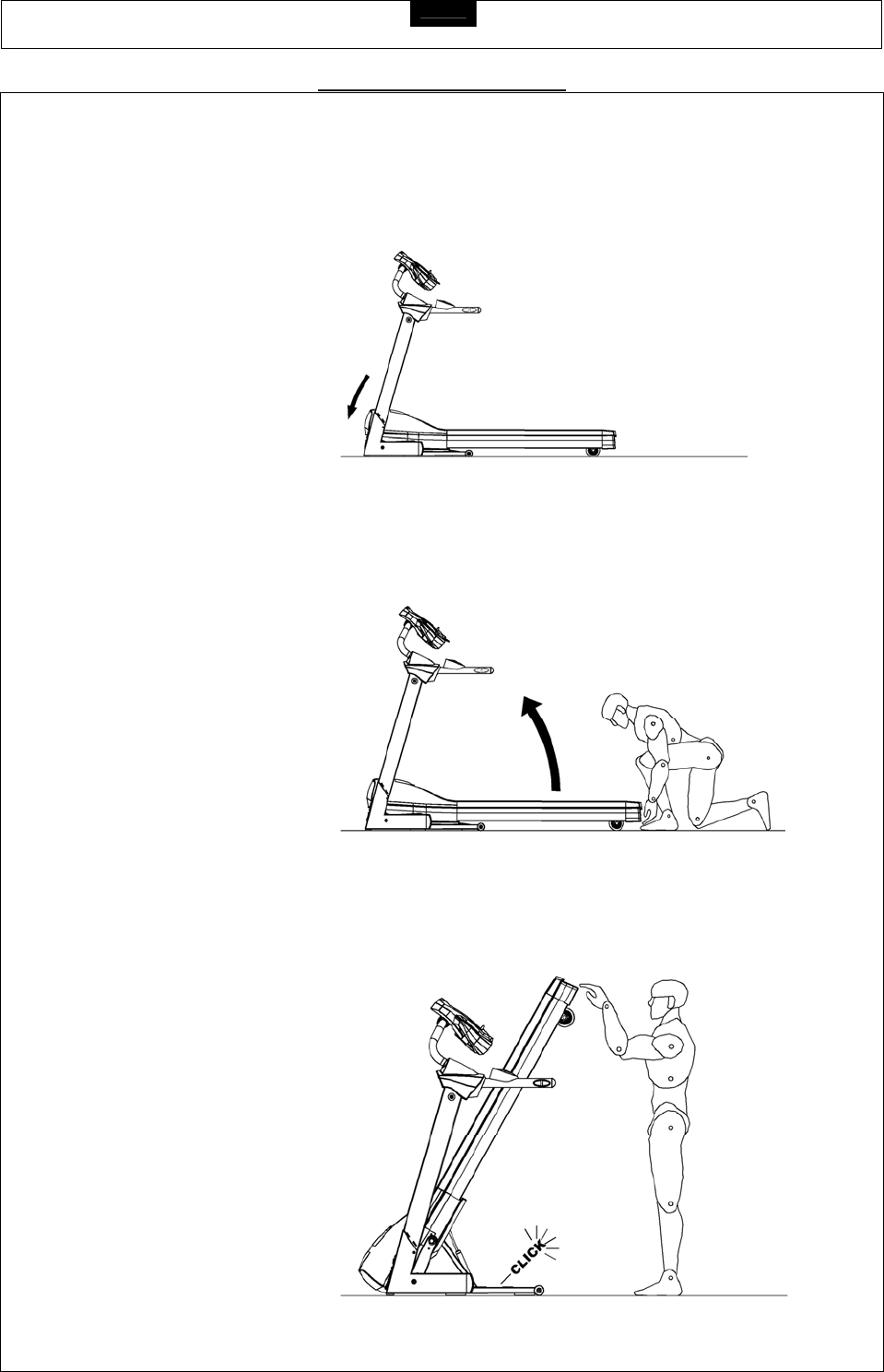

FOLDING INSTRUCTIONS
How to fold up the treadmill:
Your treadmill can be folded up for space saving storage. To do this follow the instructions here:
1. To fold the deck you first
need to bring the treadmill to
the lowest incline level.
2. Lift the deck up from the rear
of the treadmill and fold up
until it locks in place. TO
PREVENT INJURY BE
SURE YOU HAVE A FIRM
HOLD WHEN RAISING THE
DECK.
2. Lift the deck up from the rear.
3. You will hear a “click” sound
as the lock engages.
3. You will hear a “click” sound as the lock engages.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
21

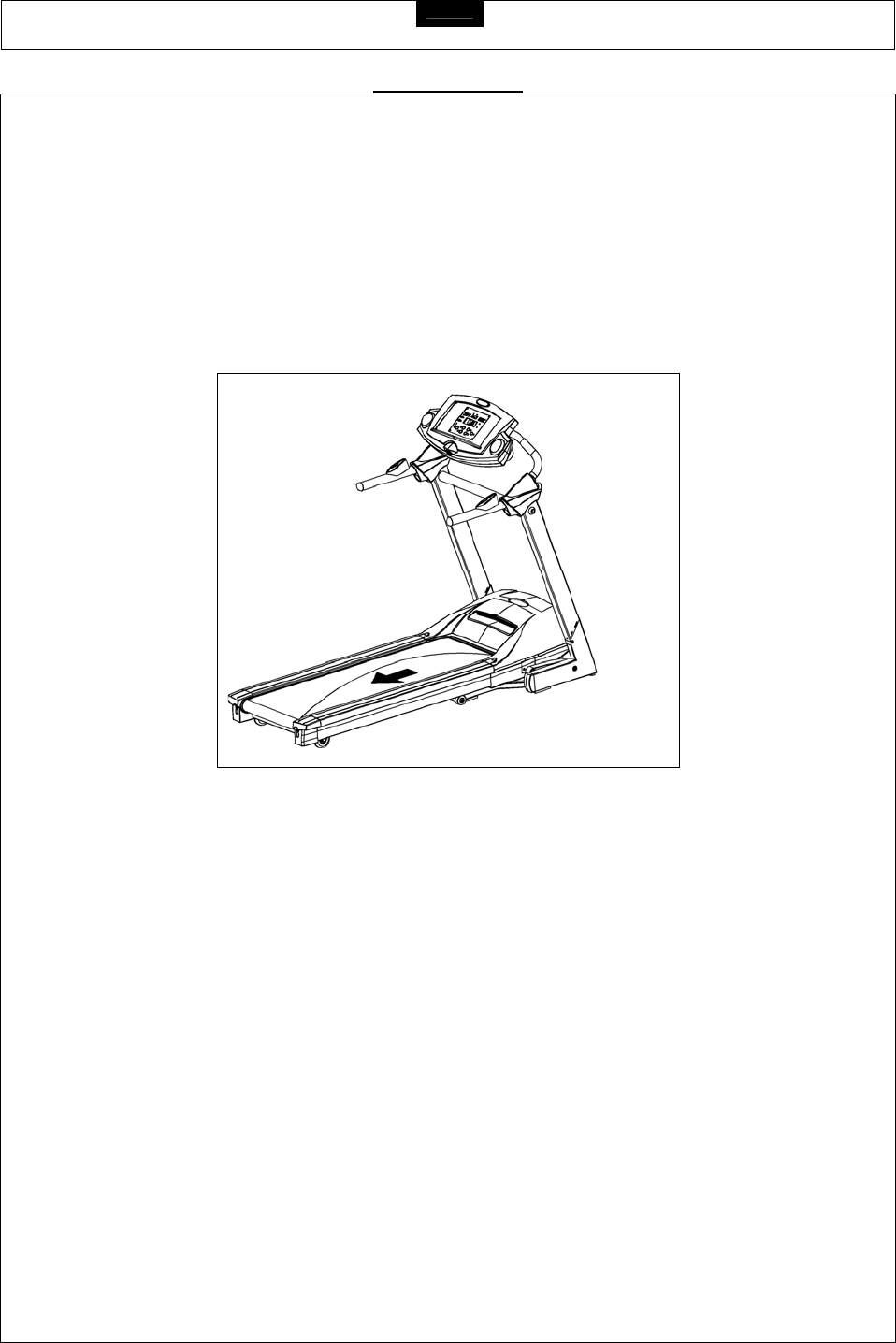

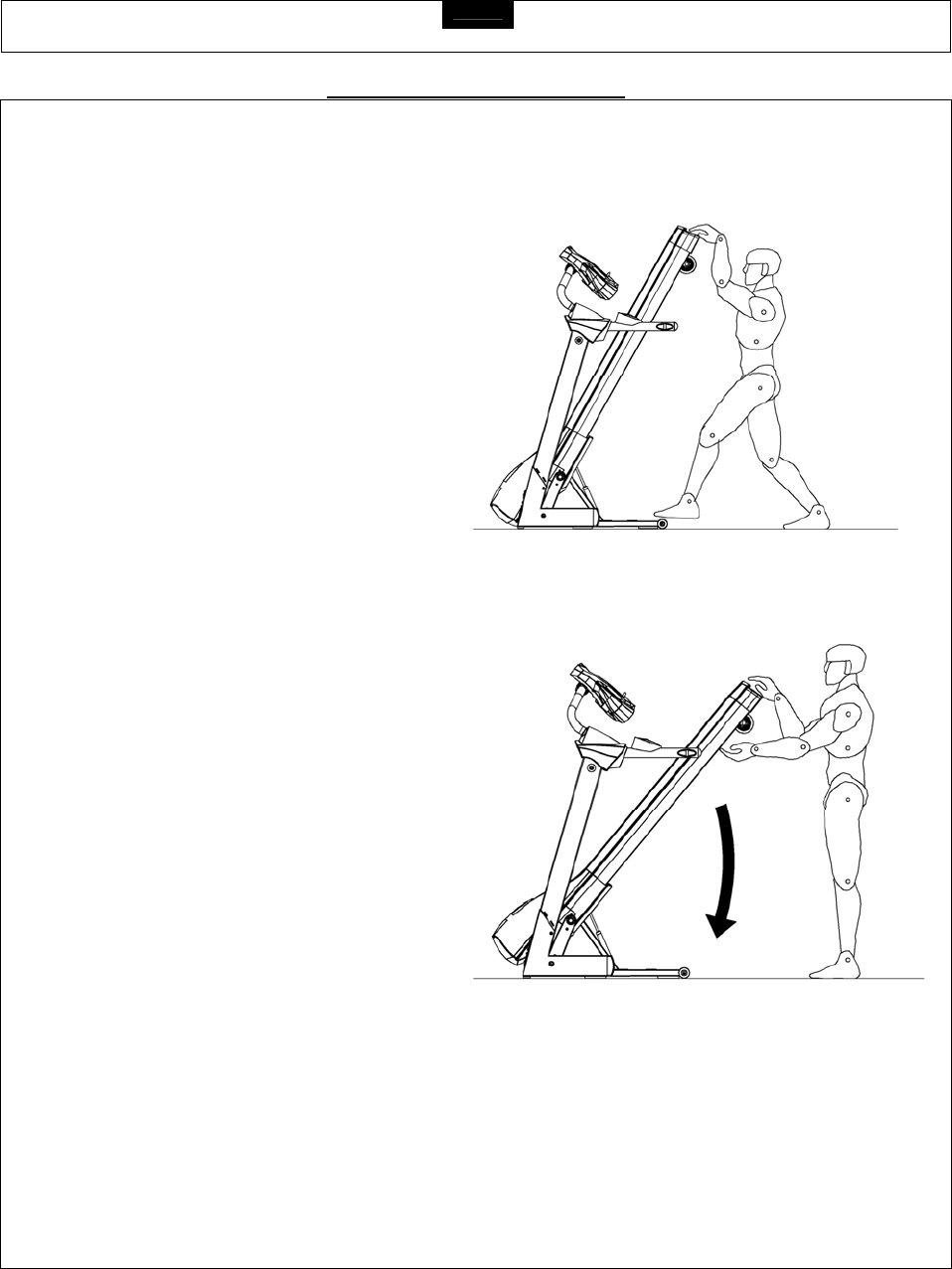

UNFOLDING INSTRUCTIONS
How to unfold the treadmill:
To unfold the treadmill for use follow the instructions here:
1. Begin by standing behind and supporting
the deck with your hands. Next release the
lock with your foot by stepping on the
release lever. TO PREVENT INJURY BE
SURE YOU HAVE A FIRM HOLD ON THE
DECK BEFORE RELEASING THE LOCK.
1. Release the lock with your foot by stepping on the
release lever.
2. Slowly lower the deck until it rests securely
on the ground.
2. Lower the deck until it rests securely on the
ground.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
22

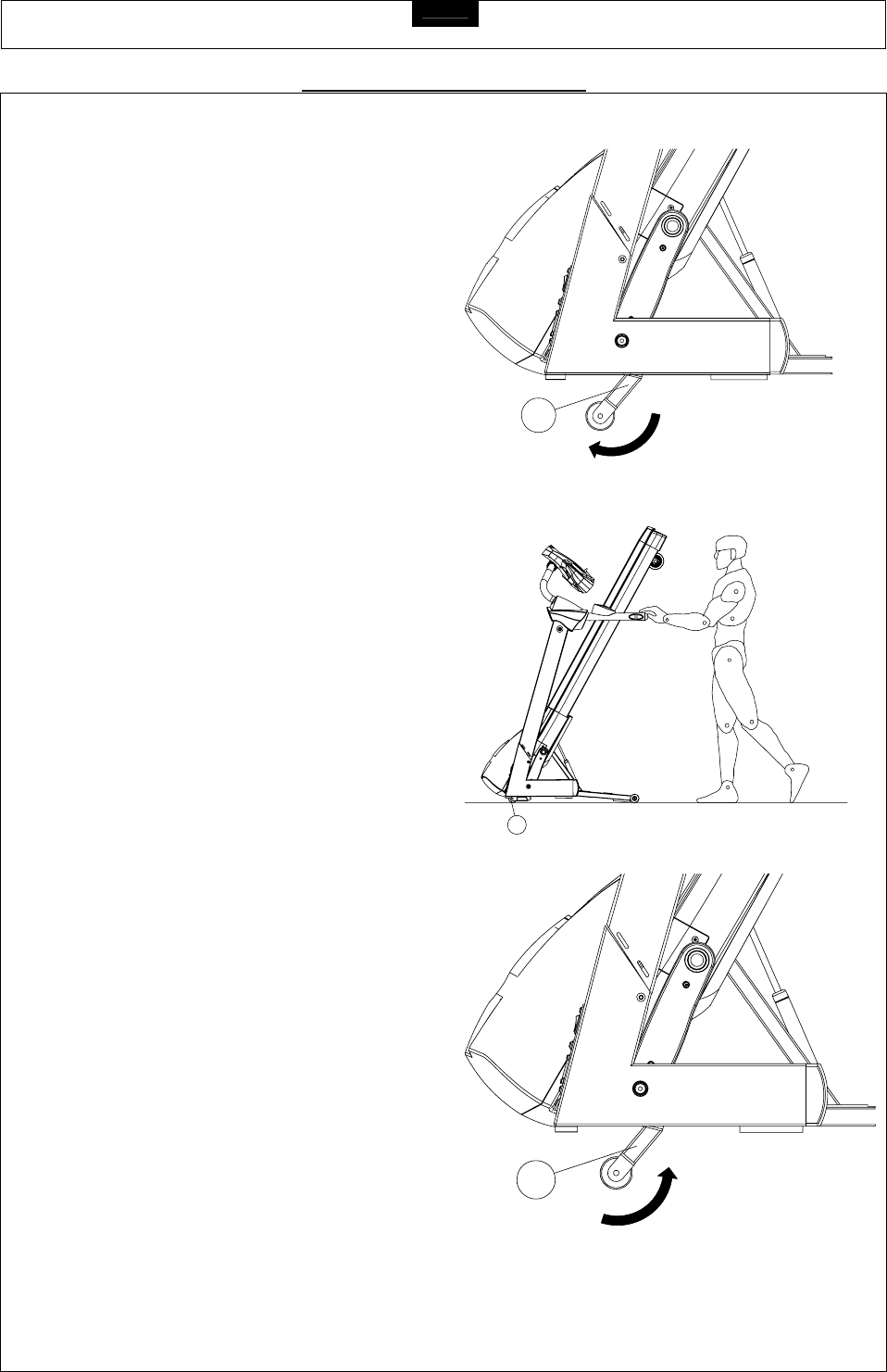

TRANSPORT INSTRUCTIONS
How to transport the treadmill:
1. After folding the treadmill tilt it to one side
(you may need the help of a friend),
reach under the base frame and pull
down the Caster Bracket (52). Repeat
this procedure on the other side.
52
2. To roll away for storage simply grab the
handlebars and push as shown.
52
3. After moving the treadmill to the desired
location, make sure to put the Caster Bracket
(52) back into base frame to stabilize the
treadmill for use.
52
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
23
MAINTENANCE
HOW TO MAINTAIN YOUR TREADMILL:
Proper maintenance is very important to ensure your treadmill is always in top working condition. Improper
maintenance could cause damage or shorten the life of your treadmill.
• Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer,
keep liquids away and keep it out of direct sunlight.
• Inspect and tighten all parts of the treadmill regularly. Replace any worn parts immediately.
BELT ADJUSTMENT:
The running belt has been properly adjusted at the factory. However transportation, uneven flooring or other
unpredicted reasons could cause the belt to shift off center resulting in the belt rubbing with the plastic side rail or end
caps and possibly causing damage. To adjust the belt back to it’s proper position please follow the directions below:
1. If your belt tends to walk to the right, rotate the right tension bolt clockwise. We recommend adjustments of
1/4 turn at a time, and follow with a test. If your belt continues to walk to the right, simply adjust the left belt
tension bolt by turning it 1/4 turn counterclockwise, and follow with a test.
2. If your belt tends to walk to the left, rotate the left tension bolt clockwise 1/4 turn at a time, and follow with a
test. If the belt continues to walk to the left, simply adjust the right tension bolt counterclockwise.
3. If your belt appears to be loose, simply tighten both bolts evenly 1/4 turn. If it appears tight, simply loosen
both bolts evenly 1/4 turn.
Right and left tension bolts are located at the rear of the treadmill.
DECK LUBRICATION:
The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be
checked periodically for lubrication to ensure optimal treadmill performance. Your treadmill should not have to be
lubricated usually within the first year or 500 hours of use.
Every 3 months of operation lift the sides of the walking belt and feel the top surface of the walking board as far as
you can reach. If you feel signs of silicone, no further lubrication is required. If it feels dry to the touch, follow the
instructions below.
Please use a non-petroleum based silicone.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
24
MAINTENANCE
To apply lubricant to the walking belt:
1. Position the walking belt so that the seam is located on top and in center of the walking board.
2. Insert the spray nozzle into the spray head of the lubricant can.
3. While lifting the side of the walking belt, position the spray nozzle between the walking belt and the board
approximately 15 cm (6 inches) from the front of the treadmill. Apply the silicone spray to the walking board,
moving from the front of the treadmill to the rear. Repeat this on the other side of the belt. Spray
approximately 4 seconds on each side.
4. Allow the silicone to "set" for 1 minute before using the treadmill.
Spray lubricant from front to back.
CLEANING:
Routine cleaning of your treadmill will extend the product's life.
• Warning: To prevent electrical shock, be sure the power to the treadmill is OFF and the power cord is
unplugged from the wall electrical outlet before attempting any cleaning or maintenance.
• Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer,
keep liquids away and keep it out of direct sunlight.
• After each workout: Wipe off the console and other treadmill surfaces with a clean, water dampened soft
cloth to remove excess perspiration.
• Weekly: Use of a treadmill mat is recommended for ease of cleaning. Dirt from your shoes contacts the
belt and eventually makes it to underneath the treadmill. Vacuum underneath treadmill once a week.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
25
WARRANTY
Warranty Coverage: Smooth Fitness, Inc. ("Smooth Fitness") warrants to the original purchaser that each new
product to be free from defects in workmanship and material, under normal use and conditions.
Period of Coverage: The Warranty on this product runs from the date of your purchase for a period of LIFETIME on
the frame, TEN (10) years on the motor, FIVE (5) years on the belt, deck and rollers, THREE (3) years on the
electronics and ONE (1) year on in house labor. Smooth Fitness reserves the right to inspect damaged parts for
misuse.
It is recommended that the Original Receipt be kept with the product manual.
Remedy Provided by Smooth Fitness: Smooth Fitness will provide a replacement part free of charge if a defect is
found during the Warranty period. You must pay any charges for shipping and handling outside of the Continental
United States and for labor. To obtain service call your local Smooth Retailer.
Any redemption may be by repair or replacement of the affected parts and/or product at the sole discretion of
Smooth Fitness, by personnel approved by Smooth Fitness. If repairs are required, the unit will be repaired at the
location of use or by return to the factory as deemed appropriate by Smooth Fitness.
Parts repaired or replaced pursuant to this Warranty shall be warranted for the unexpired portion of the Warranty
applying to the original product. Any technical advice furnished before or after delivery in regard to the use or
application of Smooth Fitness products is furnished without charge and on the basis that it represents Smooth
Fitness' best judgment under the circumstances but that the advice is used at your sole risk.
Procedure for Obtaining Your Remedy Under This Warranty: To obtain service call your local Smooth Retailer. To
help them assist you, please have the following information ready:
Model name or number from the cover of the manual;
Serial number located on the frame of the unit; and
The part description and the order number.
Limitations on Warranty: This Warranty will only apply to the original end user. This Warranty does not cover any
problems, damages or failures that are caused by accident, improper assembly, failure to observe cautionary labels
on the product, failure to operate the product correctly, abuse or freight damage. Smooth Fitness does not warrant
against any damage or defects that may result from repair or alterations made to the product by an unauthorized
repair facility.
This Warranty shall terminate if you sell or otherwise transfer this product. This Warranty does not apply to any
product shipped or handled outside of the United States or Canada. This Warranty does not apply if the product is
used for rental or commercial use. Consequential and incidental damages are not recoverable under this Warranty.
(Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.)
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ALL IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR
PURPOSE, ARE LIMITED IN DURATION TO ONE (1) YEAR FROM THE EFFECTIVE DATE OF THIS
WARRANTY. SMOOTH FITNESS IS NOT LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES
RESULTING FROM ANY DEFECT IN PARTS NOR FOR ANY BREACH OF EXPRESS OR IMPLIED
WARRANTIES. SMOOTH FITNESS' SOLE LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE TERMS
DESCRIBED IN THIS FORM. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
For assistance with assembly or to order replacement parts, simply call your local Smooth Retailer. To help them
assist you, please have the following information ready:
Model name or number from the cover of the manual;
Serial number located on the frame of the unit; and
The part description and order number.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
26
IMPORTANT STEPS
Warning:
Before using this product, please consult your personal physician for a complete physical examination. Frequent and
strenuous exercise should be approved by your doctor first. If any discomfort should result from your use of this
product, stop exercising and consult your doctor. Proper usage of this product is essential. Please read your manual
carefully before exercising.
Please keep all children away from the equipment during use and when equipment is unattended.
Always wear appropriate clothing, including athletic shoes, when exercising. Do not wear loose clothing that could
become caught during exercising.
Make sure that all bolts and nuts are tightened when equipment is in use. Periodic maintenance is required on all
exercise equipment to keep it in good condition.
Before beginning:
How you begin your exercise program depends on your physical condition. If you have been inactive for several
years, or are severely overweight, you must start slowly and increase your time gradually, a few minutes per week.
Initially you may be able to exercise only for a few minutes in your target heart rate zone. However, your aerobic
fitness will improve over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at
your own pace. Ultimately, you’ll be able to exercise continuously for 30 minutes. And the better your aerobic
fitness, the harder you will have to work to stay in your target heart rate zone. But remember these essentials:
• Contact your physician before starting a workout or training program. Have your doctor review your training
and diet programs to advise you of a workout routine you should adopt.
• Begin your training program slowly with realistic goals that have been set by you and your doctor.
• Supplement your program with some type of aerobic exercise such as walking, jogging, swimming, dancing
and/or bicycling. Monitor your pulse frequently. If you do not have an electronic heart rate monitor, have
your physician show you the proper way to manually check your pulse by using your wrist or neck.
Establish your target heart rate based on your age and condition.
• Drink plenty of fluids during the course of your routine. You must replace the water content lost from
excessive exercising to avoid dehydration. Avoid drinking large amounts of cold liquids. Fluids should be at
room temperature when consumed.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
27
TARGET HEART RATE
Finding your pulse:
To make sure your heart is beating in its target zone, you’ll need to know how to monitor your heart rate. The easiest
way is to feel the pulse in the carotid artery on either side of your neck, between the windpipe and the large neck
muscles. Count the number of beats in ten seconds, and then multiply that number by six. This gives you the
number of beats per minute.
How fast should your heart beat during aerobic exercise? Fast enough to reach and stay in its “target zone,” a range
of beats per minute that is largely determined by your age and physical condition. To determine your target zone,
consult the chart we have provided.
FIND YOUR TARGET HEART RATE
200
180
160
140
120
100
HEART RATE in beats per minute
80
20 25 30 35 40 45 50 55 60 65 70
AGE IN YEARS
ADVANCED: Sports, athletic conditioning or interval training
FITNESS: Optimal training, aerobic or cardiovascular
HEALTH: Beginner, low intensity with long duration produces fat burning
Aerobic exercise:
Is any sustained activity that sends oxygen to your muscles via your heart and lungs. It will improve the fitness of
your lungs and heart: your body’s most important muscle. Aerobic fitness is promoted by any activity that uses your
large muscle groups - arms, legs or buttocks, for example. Your heart beats quickly and you breathe deeply. An
aerobic exercise should be part of your entire exercise routine.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
28

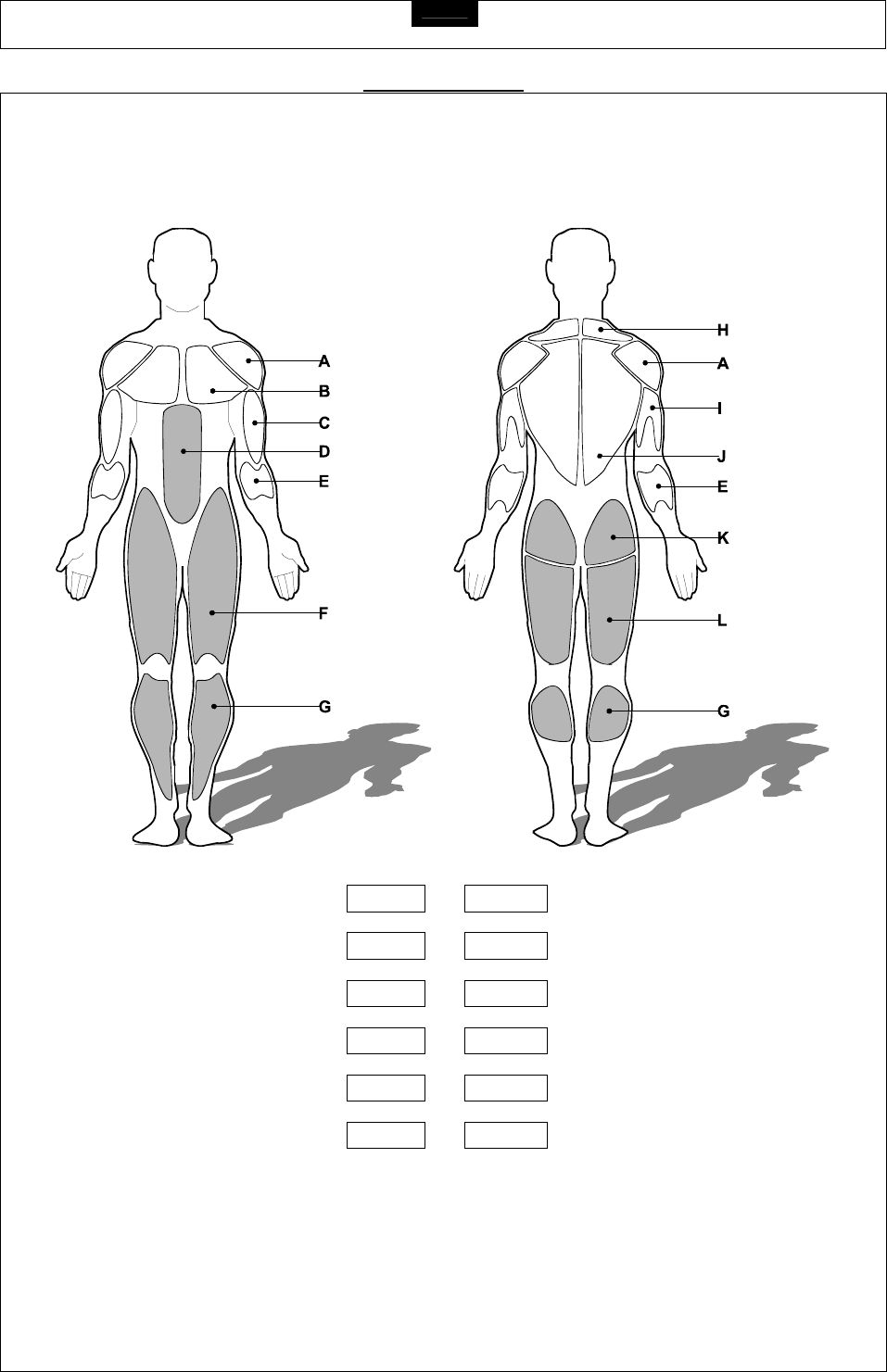

MUSCLE CHART
Targeted muscle groups:
The exercise routine that is performed on this product will develop primarily lower body muscle groups. These
muscle groups are shown in gray color on the chart below.
Shoulder muscles A B Pectoral muscles
Bicep muscle C D Abdominal muscles
Forearm muscles E F Quadricep muscles
Calf muscles G H Trapezius muscles
Tricep muscles I J Back muscles
Gluteal muscles K L Hamstring muscles
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
29
STRETCHING ROUTINE
Warm up and cool down:
A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at
least two or three times a week, resting for a day between workouts. After several months, you can increase your
workouts to four or five times per week.
Warming up is an important part of your workout, and should begin every session. It prepares your body for more
strenuous exercise by heating up and stretching out your muscles, increasing your circulation and pulse rate, and
delivering more oxygen to your muscles. At the end of your workout, repeat these exercises to reduce sore muscle
problems. We suggest the warm-up and cool-down exercises on the following pages:
Toe Touch:
Slowly bend forward from your waist, letting your back and shoulders relax as you
stretch toward your toes. Reach down as far as you can and hold for 15 counts.
Shoulder Lift:
Lift your right shoulder up toward your ear for one count. Then lift your left
shoulder up for one count as you lower your right shoulder.
Head Roll:
Rotate your head to the right for one count, feeling the stretch up the left side of
your neck. Next, rotate your head back for one count, stretching your chin to the
ceiling and letting your mouth open. Rotate your head to the left for one count,
and finally, drop your head to your chest for one count.
FX30 MOTORIZED TREADMILL
Visit us at: www.evofitness.com
30
STRETCHING ROUTINE
Hamstring Stretch:
Sit with your right leg extended. Rest the sole of your left foot against
your right inner thigh. Stretch toward your toe as far as possible. Hold
for 15 counts. Relax and then repeat with left leg extended.
Inner Thigh Stretch:
Sit with the soles of your feet together with your knees pointing outward.
Pull your feet as close into your groin as possible. Gently push your
knees towards the floor. Hold for 15 counts.
Side Stretch:
Open your arms to the side and continue lifting them until they are over
your head. Reach your right arm as far upward toward the ceiling as you
can for one count. Feel the stretch up your right side. Repeat this action
with your left arm.
Calf-Achilles Stretch:
Lean against a wall with your left leg in front of the right and your arms
forward. Keep your right leg straight and the left foot on the floor; then
bend the left leg and lean forward by moving your hips toward the wall.
Hold, and then repeat on the other side for 15 counts.
Copyright © 2003
Smooth Fitness
112 Gaither Drive
Mt. Laurel, NJ 08054
Toll Free Customer Service:
1.888.800.1167
Website:
www.evofitness.com
Copyright © 2003

Navigation menu
