Ewig Macao Commercial Offshore CDN103 RF WIRELESS SILENT ALARM CLOCK User Manual

Ewig Industries Macao Commercial Offshore Limited RF WIRELESS SILENT ALARM CLOCK

User Manual

User
CDN103
Guide
2
Features .............................................4
Functions ............................................6
Settings ..............................................9
Important Safety Instructions
This alarm clock is designed to provide an acoustic alarm or alert signal at a set time. Any
permitted. Do not open the device and attempt any repair work yourself.
Installation location
Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct
sunlight.
Heart Pacemaker
Always maintain a distance of at least 6 inches from implanted heart pacemakers to prevent
any possible interference.
3
The FCC requires that you will be advised of certain requirements involving the use of this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Consult the dealer or an experienced radio/T V technician for help.
FCC Compliance
4
Features
• Clock and calendar display
• Dual alarm clock and snooze
• Indoor temperature
• Low battery indicator
• Selectable alarm (audio, vibration or both)
• Wireless transmission to wrist alert
• Amber backlight
• Runs on 3 AAA batteries
5

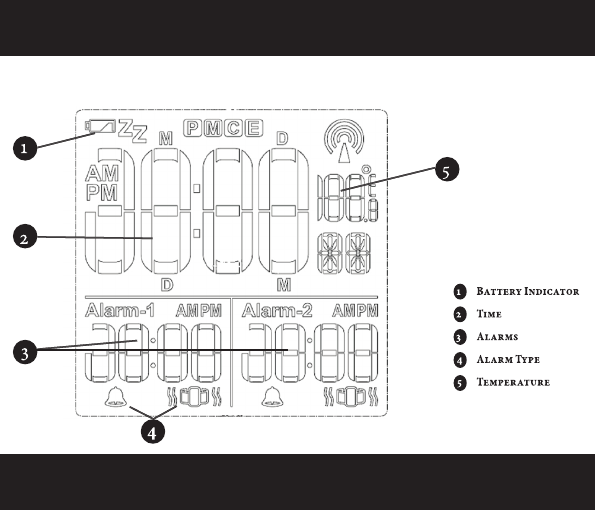

Clock Face Layout
6
Button Functions
When alarm is beeping or vibrating on wrist, press any button except for
“SNOOZE” , and alarm will stop beeping and/or vibrating.
LIGHT/SNOOZE
• Activate light for 8 seconds
• Stop alarm temporarily for 5 minutes when alarm sounds or
temporarily stop vibration on wrist
MODE/ENTER
• Single press to select the clock (Hour:Minute:Second), the clock
(Hour:Minute:weekday), calendar, buzzer volume viewing, key tone

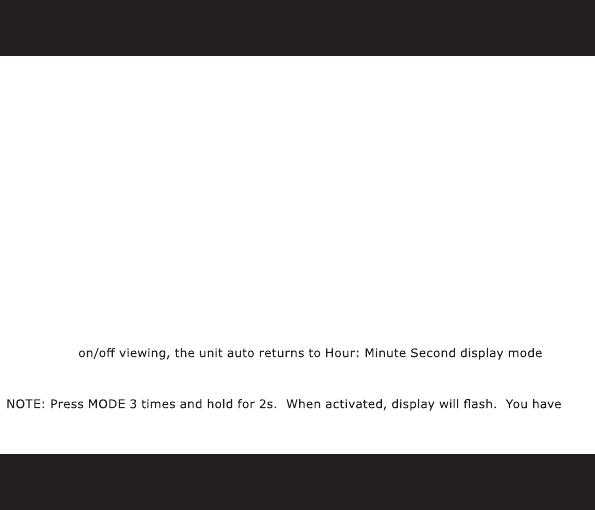

after viewing calendar or Buzzer volume viewing for 10 seconds)
• Press and hold for 2s to activate clock setting mode
10s to press up or down to select or the clock reverts back to the display.
7
UP ARROW
• In clock setting mode, increase the setting value or select 12/24hr format
or temperature unit or buzzer volume/frequency high/low;
• In alarm setting mode, increase the setting value or select alarm
mode(audio alarm/vibration alarm/both/both not)
DOWN ARROW
• In clock setting mode, decrease the setting value or select 12/24hr format
or temperature unit or buzzer volume/frequency high/low;;
• In alarm setting mode, decrease the setting value or select alarm
mode(audio alarm/vibration alarm/both/both not)
ALARM
• Single press to cycles through ‘normal mode’, ‘alarm 1 view mode’, and
‘alarm 2 view mode’;
• In alarm 1/alarm 2 view mode, press and hold key for 2s to enter alarm 1/2
setting mode
8
RESET
Reset system, It is inside the battery compartment.
Alarm and Snooze Function
When the alarm 1/2 viewing display, press and hold ALARM 2s to enter the set mode of
alarm time. The sequence is Hour--- Minute ---alarm mode---exit.
When press UP or DOWN ARROW to modify the alarm time. Press and hold UP/DOWN
ARROW 2s to enter fast set the parameter.
When press UP or DOWN ARROW to select alarm mode, cycles through audio alarm →
vibration alarm → both → disable;
Press ALARM to enter next set parameter or exit.
When the alarm display, press UP or DOWN ARROW to select alarm mode, cycles
through audio alarm → vibration alarm → both → disable;
When the current time equal with the alarm time and the alarm function enable, the
unit will beep for 90 seconds, any key except for SNOOZE key will end the beep.
While the unit is beeping, if SNOOZE Motion is triggered, the unit will enter snooze,
the snooze time is 5 minutes. After 5 minutes, the unit will beep again.
9

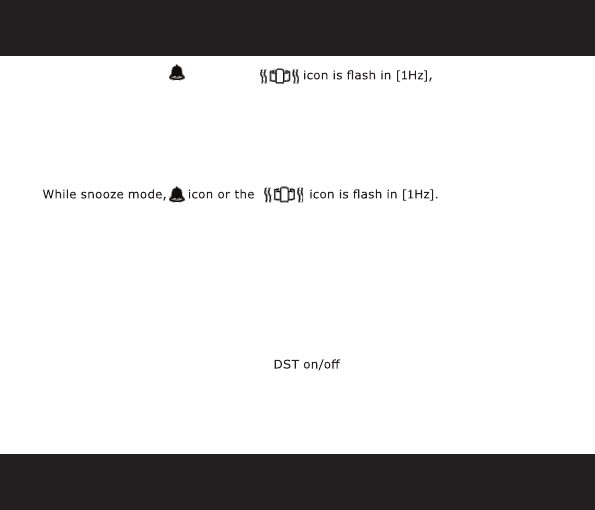

While the unit is beeping, icon or the
If alarm mode is in audio alarm mode, the alarm beep format is:
0 → 9s [B] / s
10 → 29s [BB] / s
30 → 90s [BBBB] / s
If alarm mode is in vibration alarm mode, it will send RF packet every 0.5 second, The
wrist belt will vibrate when it has received the RF packet.
Settings
Press and hold MODE/ENTER 2s to set the clock at clock viewing screen.
The setting sequence as follow:
24Hr/12Hr → Hour → Min → Year → MD/DM → Month → Day → Language →
Temperature unit → Exit.(DCF version)
24Hr/12Hr → Hour → Min → Year → MD/DM → Month → Day → Language →
Temperature unit → PMCE → → Exit.(WWVB version)
Language set follow: English → German → French → Spanish → Italian
10

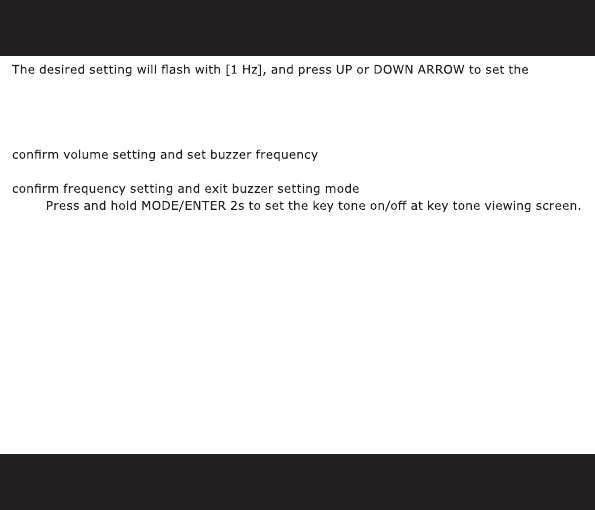

conditions of operation. Press and hold UP/DOWN ARROW 2s to fast set these conditions.
Press and hold MODE/ENTER 2s to set the buzzer volume and frequency at buzzer
volume viewing screen.
Press UP or DOWN ARROW to select volume high or low, then press MODE to
Press UP or DOWN to select buzzer high/low frequency, then press MODE to
Temperature Setting
The indoor temperature will sample every 30 sec.
The temperature range:
Indoor:
-10.0˚C (14.0˚F) → 60.0˚C (110.0˚F),
➢ > 60.0˚C, display “HH.H”;
➢ < –10.0˚C, display “LL.L”.
11
Connect-check with Wrist unit
Transmitter: If alarm 1 or alarm 2 have been set with vibration, then press and hold
DOWN ARROW 2S to send RF connect-check command, (include alarm 1 and alarm 2)
Transmitter: RF command will keep transmitting for 90s, press any key except for
SNOOZE to end connect-check with wrist unit
Transmitter:
Wrist unit: During connect-check with wrist unit, wrist unit also must enter connect-
check mode, this mode can be enter for 10s after power on
Wrist unit: If wrist unit has received connect-check command, it will check channel
connected with this transmitter;
12
Default Settings
The display mode is Hour—Minute--Second.
Language: English.
The clock time is Jan 1,2012 0:00.
The alarm time is 0:00 and the alarm is disable.
The time format is 24 Hr (DCF) or 12Hr(WWVB).
The temperature unit is ˚C (DCF) or ˚F (WWVB).
Maintenance and Warranty
Maintenance
• Please clean your equipment’s surfaces with a soft, lint-free
cloth.
• Never use cleaning agents or solvents.
13

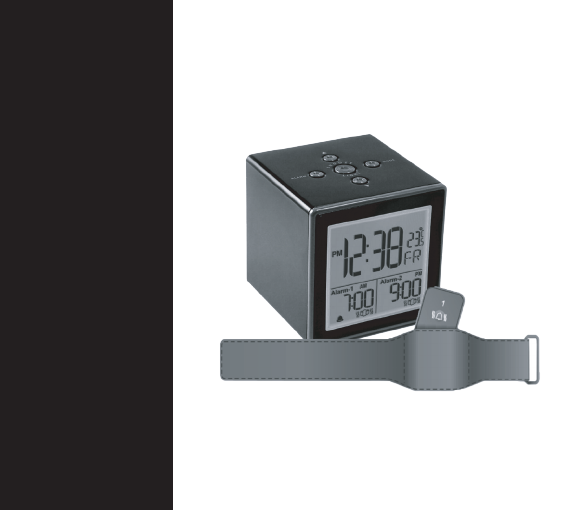

Radio-controlled alarm clock
with vibrating wristband
A 3
A 1
A 6
B 3
B 4
A 8
B 2
B 1
B 5
A 7
A 5
A 4
A 2
Fig. 1
Important information on product safety!
•
Do not place your product near extreme temperatures, vibrations or
shocks.
Radio-controlled alarm clock
Display (Fig. 1)
:
A 1: Battery symbol
A 2: Snooze symbol
A 3: DCF signal
A 4: AM or PM (12-hours system)
A 5: Time with seconds or day-of-the-week / Date
A 6: Indoor temperature
A 7: Alarm 1 / Alarm 2
A 8: Alarm symbol
Buttons (Fig. 1)
:
B 1: ALARM button
B 2: button
B 3: MODE button
B 4: button
B 5: SNOOZE/LIGHT button
14
Radio-controlled alarm clock
with vibrating wristband
Fig. 2
D 4
D 3
C 1
D 2
D 1 D 5

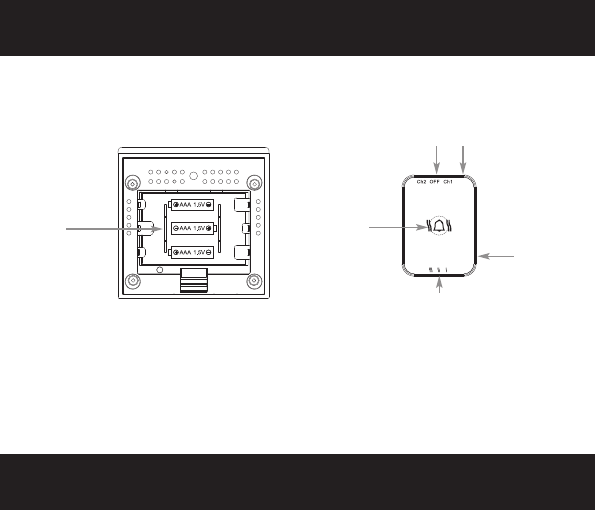

Housing (Fig. 2)
:
C 1: Battery compartment
Radio-controlled vibrating wristband (Fig. 2)
D 1: Switch CH1/OFF/CH2

Navigation menu
