Contents

users manual

Simple Wireless
Food/Meat Thermometer
User Guide
Simple Two Step Setup

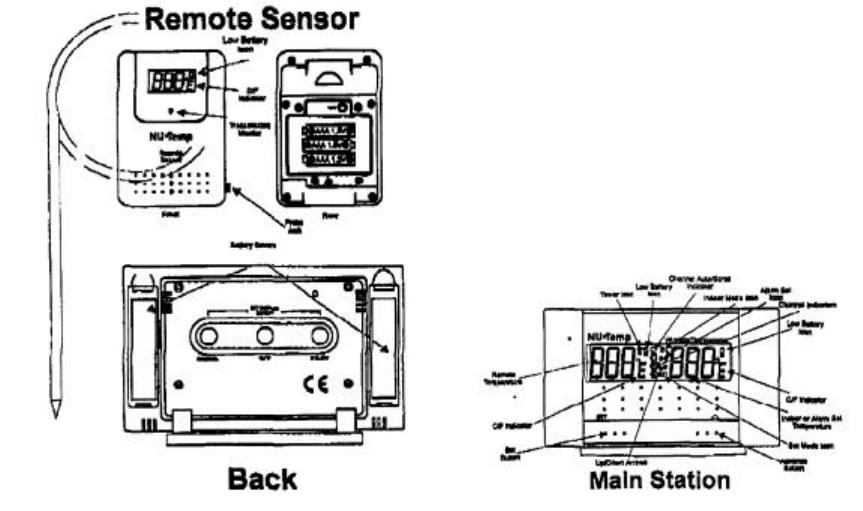

Simple Set up Instructions Remote Sensor:
1. Remove the stand clip from the four comers on back of unit.
2. Insert 3 AAA Alkaline or Lithium batteries in remote sensor by
removing the four screws on back of unit. (The stand clip must
be removed)
3. LCD display will show all segments of 3 seconds
4. Attach sensor if required for application
5. Sensor will automatically link to Main Station when Main
Station is activated.
6. Press the C/F button toggle between Centigrade and
Fahrenheit.
Simple Set up Instructions Main Station:
1. Insert two AAA Alkaline or Lithium batteries in main
station in battery compartments.
2. LCD display will show all segments for 3 seconds and
keeps and goes into to receiving mad for 1 minute.
3. Main Station automatically links remote transmitters.
Write the sensor number on back of remote sensor to
include which channel is being used for a particular
sensor.
Specifications: Operating Instructions Main Station:
Temperature Range –40F to 392F (40°C to 200°C)
LLL indicates reading less than –40F (40°C)
HHH indicates reading more than 392F (200°C)
Display resolution 1 degree C/F
Indoor temperature
Temperature range 32F to 122F (0°C - 122°C)
LLL indicates reading less than 32F (0°C)
HHH indicates reading higher than 122F (50°C)
1. Normal operation – The Main Station automatically links
up to three remote transmitters. If more than one
sensor is being used the next higher channel is
automatically selected. If all three channels are in use,
the main station will automatically replace Channel 1.
2. C/F button – on back of unit is used to toggle between
Centigrade and Fahrenheit.
3. Hi/Low Button – Pressing the Hi/Low button on back will
toggle between higher than and lower than temperature
set points. This is indicated by arrows on the LCD
screen.
4. Channel Button – on back will change channel display
when multiple sensors are used. A Channel Auto scroll
feature in enabled by holding the Channel button down
for 2 seconds. The remote temperature display will then
display each remote sensor for 2 seconds.
5. Hi/Low Button & Channel Button – When pressed
together it allows toggling between indoor temperature
display or set temperature display.
6. Set Button – on front is used to set remote temperature
alarms. Depressing the set button will allow a toggle
between channels when multiple sensors are in use.
7. Up arrow – pressing the up arrow on front is used in set
mode and will increases the set temperature 1 degree
per second.
8. Alarm Set Point Reached – When more than one
remote alarm set point is reached the left most display
will be overwritten with the temperature with the remote
sensor temperature that has reached its set point.
9. Alarm – The Alarm will sound when the set temperature
is reached until.
Battery Life – 5 months depending on use
Low Battery indicators – if remote sensor batteries or main station
batteries are low an icon will be present on main station. Caution: Do
not mix alkaline batteries with Cadmium or Lithium batteries.
Note: The temperature displayed is taken from the interior sensor
unless probe is used. When the probe is used the temperature
display is form the probe itself.
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
A. Any front key is pressed (Set or Up arrow)
B. The Alarm Times Out after 1 minute
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Remark:
Modifications not authorized by the manufacture may void users authority to operate this device
