Users Manual
EX-5r
5GHz Digital Microwave Radio
Installation & Management
Part Number: 50000007
Date: 2006-05-17
Exalt Communications Inc.
EX-5r Installation & Management
Page i
5000007
2006-05-17
Legal Notice
The information contained herein is the property of Exalt Communications, Inc. (“Exalt”) and is
supplied without liability for errors or omissions. No part of this document may be reproduced,
in any form, except as authorized by contract or other written permission from the owner.
Any brand names and product names included in this manual are trademarks, registered
trademarks, or trade names of their respective holders.
The contents of this document are current as of the date of publication. Exalt reserves the right to
change the contents without prior notice.
The publication of information in this document does not imply freedom from patent or other
rights of Exalt or others.
© Exalt Communications Inc., May 2006. All rights reserved.
The Exalt logo is a trademark of Exalt Communications, Inc.
Exalt Communications Inc.
EX-5r Installation & Management
Page ii
5000007
2006-05-17
About this Document
This manual provides a complete description of the Exalt EX-5r Digital Microwave Radio and
related software. The purpose of this manual is to provide the planner, engineer, installer, system
administrator, and technician with general and specific information related to the planning,
installation, operation, management and maintenance of the device.
Revision History
Date Detail
2006-05-17 Initial release
Icons
Throughout this document, the following icons are used to denote specific types of information
as described here.
(Warning) Denotes information pertaining to potential danger to human life.
(Caution) Denotes information pertaining to potential danger to property.
(Note) Denotes information that may be particularly useful or unique
!
CAUTION
Exalt Communications Inc.
EX-5r Installation & Management
Page iii
5000007
2006-05-17
General Compliance and Safety
The usage of radio transmission devices is subject to specific regulatory requirements governed
by regional legislation. In most cases, the specific device must be authorized for use in a given
country and must be installed and adjusted in accordance with specific radio-frequency settings
and in a manner that has been authorized specific to the device itself in accordance with the
specific location of the device. Some users may be completely or partially restricted from use of
the device. Please consult your governmental agency/agencies for regulatory requirements before
use, or contact Exalt or your Exalt authorized dealer for assistance.
This device may not be modified in any way without the express written consent of Exalt.
Modification will not only void the manufacturer warranty, but may also be expressly illegal in
accordance to government regulations. In addition, there are no user-serviceable parts or
assemblies inside the product housing. There may also be voltages, signals and mechanisms
within the device that could be harmful to human safety.
The mounting of this device and associated peripherals and connections (inclusive of antenna
mast, antenna, cabling, egress, lightning protection devices, grounding, power, etc.) may be
subject to regional requirements for health and human safety. A qualified professional installer
and an electrician are highly recommended, and may be required by law. For example, within the
USA, this device must be professionally installed to ensure that the system implementation meets
FCC regulations.
Exalt cannot warrant the device or be found liable for any unauthorized use or installation of the
device.
Regulatory Notices
Federal Communications Commission (FCC), United States
The device is allowed to be used provided it does not cause interference to other devices. It is not
guaranteed to provide protection against interference from other electronic and radio devices.
The system has been tested and found to comply with the limits of a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of more of the
following measures:
• Reorient or relocate the receiving antenna.
Exalt Communications Inc.
EX-5r Installation & Management
Page iv
5000007
2006-05-17
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC
regulations.
Changes or modifications not expressly approved in writing by Exalt may void the user’s
authority to operate this equipment.
This device must be professionally installed.
In order to comply with regulations, the output power of this device may need to be adjusted in
accordance to the associated transmission system. See section 2.3 of this manual for details.
The antenna associated with this device shall be mounted in a location that is at least 22 feet
away from humans that may be subject to long-term or continuous exposure.
Industry Canada (IC), Canada
This device complies with RSS-210 of Industry Canada. Operation is subject to the following
two conditions:
1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause
undesired operation of the device.
This device has been designed to operate with the antennas, as listed below, and having a
maximum gain of 37.5dBi. Antennas not included in the list or having a gain greater than
37.5dBi are strictly prohibited for use with this device. The required antenna impedance is 50
ohms.
Manufacturer Model # Description Gain dBi
(mid-band)
Andrew P2F-52-N 2-foot Dish 29.4
Andrew PX2F-52-N 2-foot Xpol Dish 29.4
Andrew P3F-52-N 3-foot Dish 33.4
Andrew PX3F-52-N 3-foot Xpol Dish 33.4
Andrew P4F-52-N 4-foot Dish 34.9
Andrew PX4F-52-N 4-foot Xpol Dish 34.9
Andrew HP2F-52-NPA 2-foot HP Dish 29.0
Andrew HPX2F-52-NPA 2-foot Xpol HP Dish 29.0
Andrew HP3F-52-NPA 3-foot HP Dish 33.0
Andrew HPX3F-52-NPA 3-foot Xpol HP Dish 33.0
Andrew HP4F-52-NPA 4-foot HP Dish 34.5
Andrew HPX4F-52-NPA 4-foot Xpol HP Dish 34.5
Andrew HP6F-52-NPA 6-foot HP Dish 37.2
Exalt Communications Inc.
EX-5r Installation & Management
Page v
5000007
2006-05-17
Andrew HPX6F-52-NPA 6-foot Xpol HP Dish 37.2
Andrew FPA5250D06-N 6-inch Panel 18.0
Andrew FPA5250D12-N 1-foot Panel 23.6
Exalt (Integral) 1-foot Xpol Panel 20.0
Gabriel DFPS.5-52 6-inch Panel 18.0
Gabriel DFPD1-52 1-foot Panel 23.5
Gabriel DFPD2-52 2-foot Panel 28.0
Gabriel QF2-52-N 2-foot Dish 28.5
Gabriel QF2.5-52-N 2.5-foot Dish 31.2
Gabriel QF4-52-N 4-foot Dish 34.8
Gabriel QFD2-52 2-foot Xpol Dish 28.4
Gabriel QFD2.5-52 2.5-foot Xpol Dish
31.1
Gabriel QFD4-52 4-foot Xpol Dish 34.7
Gabriel HQF2-52-N 2-foot HP Dish 28.2
Gabriel HQF4-52-N 4-foot HP Dish 34.4
Gabriel HQF6-52-N 6-foot HP Dish 37.4
Gabriel HQFD2-52 2-foot Xpol HP Dish 28.1
Gabriel HQFD2.5-52 2.5-foot Xpol HP Dish 30.7
Gabriel HQFD4-52 4-foot Xpol HP Dish 34.3
Gabriel HQFD6-52 6-foot Xpol HP Dish 37.3
MTI MT-485001 7.5-inch Panel
19.0
MTI MT-485002 1-foot Panel 23.0
MTI MT-486004 18-inch Panel
26.0
MTI MT-486001 2-foot Panel 28.0
MTI MT-485005 7.5-inch Xpol Panel
18.0
MTI MT-485025 15-inch Xpol Panel 23.0
Proxim 5054-WA-15-STN Window Panel 15.0
Radio Waves FP.5-5-18 6-inch Panel 18.0
Radio Waves FP1-5-24 1-foot Panel 23.8
Radio Waves FP2-5-28 2-foot Panel 28.0
Radio Waves FPD.5-5-18 6-inch Xpol Panel 18.0
Radio Waves SP1-5.2 1-foot Dish 22.5
Radio Waves SP2-5.2 2-foot Dish 29.0
Radio Waves HP2-5.2 2-foot HP Dish 28.6
Radio Waves SP3-5.2 3-foot Dish 32.0
Radio Waves SP4-5.2 4-foot Dish 34.8
Radio Waves SPD2-5.2 2-foot Xpol Dish 28.1
Radio Waves SPD3-5.2 3-foot Xpol Dish 31.1
Radio Waves SPD4-5.2 4-foot Xpol Dish 34.4
Radio Waves SPD6-5.2 6-foot Xpol Dish 37.5
RFS SPF2-52A 2-foot Dish 27.9
RFS SPF3-52A 3-foot Dish 31.4
RFS SPF4-52A 4-foot Dish 33.9
RFS SPF6-52A 6-foot Dish 37.4
RFS SDF4-52A 4-foot HP Dish 33.9
RFS SDF6-52A 6-foot HP Dish 37.4
RFS MA0528-19AN 7.5-inch Panel 19.0
RFS MA0528-23AN 1-foot Panel 23.0
RFS MA0528-28AN 2-foot Panel 28.0
Exalt Communications Inc.
EX-5r Installation & Management
Page vi
5000007
2006-05-17
The antenna associated with this device shall be mounted in a location that is at least 22 feet
away from humans that may be subject to long-term or continuous exposure.
Safety Notices
• Review this guide in it’s entirety for important installation instructions BEFORE you
attempt to install this product.
• This product is intended to be installed, used, and maintained by experienced
telecommunications personnel only.
• A properly licensed or authorized electrician should be employed to install or
evaluate/certify the installation of all power and grounding related to the use of this
equipment and all connected devices.
• The device(s) shall only be connected to AC power sources provided by the supplier or to
DC sources within the device’s specifications. A separate breaker circuit shall be
employed at the power source.
• Lightning, surge protection devices and earth grounding are required for most
installations to ensure human safety. Consult your qualified electrician.
• Servicing of this device should be performed by authorized personnel only. Do not
disassemble this device. By opening or removing any covers you may expose yourself to
hazardous energy parts. Incorrect reassembly of this product can cause a malfunction,
and/or electrical shock, when the unit is subsequently used.
• Do not connect or disconnect the power connection to the device when the power supply
is plugged into an AC outlet. To connect, first connect the power connection to the
device, then apply power (or plug in) at the outlet. To disconnect, disengage power at the
outlet or unplug, then disconnect the direct connection to the device.
• Do not insert any object of any shape or size inside this product at any time, whether
powered or not. Objects may contact hazardous energy parts that could result in a risk of
fire or personal injury.
• Liquids shall not come in contact with, or enter the inside of the device at any time.
• Proper ventilation and/or airflow shall be provided surrounding the equipment. Do not
block any intake or exhaust vents. Items shall not come in contact with heat-sinking
materials. Assure that ambient operational and storage temperature specifications are
maintained at all times.
• Equipment is suitable for mounting on noncombustible surfaces only.
• Do not move or alter the marking labels.
Open-Source License Information
In addition to proprietary software/firmware, which is the sole intellectual property of Exalt, the
EX-5r Digital Microwave Radio makes use of public (open-source) software/firmware (such as
Linux OS) within the terms of use of their respective shared license agreements. Interested
parties may contact Exalt Communications for copies of specific license agreements for any
open-source software/firmware utilized in this product.
Exalt Communications Inc.
EX-5r Installation & Management
Page vii
5000007
2006-05-17
Exalt Limited Hardware Warranty
Exalt Communications, Inc. (“Exalt”) warrants solely to the original purchaser (“Purchaser”) that
EX-5r (the “Product”) will substantially conform in all material respects to the relevant Exalt
published specifications that apply at the time of manufacture of such Product for two (2) years
from the date of tender of Product by Exalt from FOB point designated by Exalt (the “Warranty
Period”). Proof-of-purchase in the form of an invoice, payment of invoice, or delivery waybill
must be supplied, if requested by Exalt, in case of any dispute of warranty start date. Exalt shall
within the Warranty Period, at its own option: (A) use reasonable efforts to remedy any
reproducible Product defect covered by this limited warranty within a reasonable period of time;
(B) replace the defective Product with a functionally equivalent product (repair parts and
products may be either reconditioned or new, but, if reconditioned, shall be of the same quality
as new parts or products); or (C) if Exalt determines that it is unable to repair or replace such
Product, Exalt will refund to Purchaser the amount actually paid by Purchaser for the applicable
Product. All replaced parts become the property of Exalt. Exalt may, at its sole option, refuse to
accept as defective Product that (i) is subject to the exclusions set forth below; or (ii) cannot be
demonstrated to be defective by Exalt and Purchaser is unable to provide adequate information
describing how the Product failed. Such Product will, at Purchaser’s option and expense, either
be: (a) returned to Purchaser in the state received, or (b) repaired and returned to Purchaser.
Repaired or replaced Product will be warranted for the remainder of the original Warranty
Period, but not less than ninety (90) days.
Registration
Purchaser is required to register its Product for full warranty support. Unregistered Product will
receive a Warranty Period of only one (1) year.
Exclusions
This limited warranty will not apply to: (A) any Product that: (i) has been modified or altered by
any party other than Exalt; (ii) has been subject to accident, misuse, abnormal wear and tear,
neglect, or mistreatment; (iii) has been damaged during installation of the Product; (iv) has been
damaged by the equipment or system with which the Product is used; (v) has sustained damage
to the Products’ interface or power connectors; (vi) are determined to be stolen; or (vii) has been
damaged caused by fire, power changes, other hazards, or acts of God (including without
limitation lightning); or (B) any software included in any such Product. The warranty applies
only to Products that can be identified by the Exalt trademark, trade name, serial number or logo
affixed to them. Exalt does not warrant any Product that is not manufactured by, for, or with
permission from Exalt. The Products covered by this warranty are not consumer products and
are not intended for personal, family, or household purposes.
RMA Procedures
A return material authorization (RMA) is required prior to returning Product to Exalt for
warranty or out-of-warranty repair/evaluation. As such, Purchaser must follow the following
procedures: (1) Contact Exalt (see Section 1.0 of this document for current contact data) and
request an RMA number. Please be prepared to provide the serial number of the Product, the date
of purchase, and a description of the failure that is as complete as possible; (2) Pack the Product
Exalt Communications Inc.
EX-5r Installation & Management
Page viii
5000007
2006-05-17
in its original container and packing or an equivalent; (3) Write the RMA number CLEARLY on
the outside of the shipping box; (4) For services during the Warranty Period, cost of shipment to
Exalt’s authorized service center, taxes, duty, tariffs, risk of loss and insurance charges to Exalt
shall be borne by the Purchaser. Cost of return shipment and insurance charges shall be borne by
Exalt and will be made by Exalt’s choice of carrier and method/schedule of shipment. Purchaser
may expedite return shipments, upon request, at its own expense. PRODUCTS RETURNED
WITHOUT A DULY ISSUED RMA NUMBER WILL BE RETURNED TO PURCHASER AT
PURCHASER’S EXPENSE.
THIS EXPRESS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED,
IMPLIED OR STATUTORY, REGARDING THE PRODUCT, AND EXALT, ITS
SUPPLIERS AND LICENSORS HEREBY EXPRESSLY DISCLAIM ALL SUCH IMPLIED
AND EXPRESS WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL
IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, TITLE,
INTERFERENCE WITH QUIET ENJOYMENT, NON-INFRINGEMENT OF THIRD-PARTY
RIGHTS AND MERCHANTABILITY. FURTHER, EXALT DOES NOT WARRANT
RESULTS OF USE OR THAT PURCHASER’S USE OF THE PRODUCT WILL BE
UNINTERRUPTED OR ERROR FREE. NO WARRANTIES ARE MADE BY EXALT’S
SUPPLIERS OR LICENSORS. EXCEPT FOR THE EXPRESS WARRANTY STATED
HEREIN, THE PRODUCT IS PROVIDED “AS IS” AND WITH ALL FAULTS. THE ENTIRE
RISK AS TO SATISFACTORY QUALITY, ACCURACY, AND EFFORT IS WITH
PURCHASER.
REGARDLESS OF WHETHER ANY REMEDY SET FORTH HEREIN FAILS OF ITS
ESSENTIAL PURPOSE OR OTHERWISE, AND EXCEPT FOR BODILY INJURY, IN NO
EVENT WILL EXALT, ITS SUPPLIERS OR LICENSORS BE LIABLE TO PURCHASER
OR TO ANY THIRD PARTY UNDER ANY TORT, CONTRACT, NEGLIGENCE, STRICT
LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOST PROFITS,
LOST OR CORRUPTED DATA, COMPUTER FAILURE OR MALFUNCTION,
INTERRUPTION OF BUSINESS, OR OTHER SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND ARISING OUT OF THE USE OR
INABILITY TO USE THE PRODUCT, EVEN IF EXALT HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH LOSS OR DAMAGES AND WHETHER OR NOT SUCH LOSS OR
DAMAGES ARE FORESEEABLE.
IN NO EVENT SHALL EXALT’S AND ITS SUPPLIERS’ AGGREGATE LIABILITY
EXCEED AN AMOUNT EQUAL TO THE PURCHASE PRICE OF THE PRODUCT PAID
BY PURCHASER THAT IS THE SUBJECT OF A CLAIM. ANY CLAIM ARISING OUT OF
OR RELATING TO THIS AGREEMENT MUST BE BROUGHT WITHIN ONE (1) YEAR
AFTER THE OCCURRENCE OF THE EVENT GIVING RISE TO SUCH CLAIM. IN
ADDITION, EXALT DISCLAIMS ALL LIABILITY OF ANY KIND OF EXALT’S
SUPPLIERS.
Exalt Communications Inc.
EX-5r Installation & Management
Page ix
5000007
2006-05-17
Table of Contents
Legal Notice..................................................................................................................................... i
About this Document......................................................................................................................ii
Revision History ......................................................................................................................... ii
Icons............................................................................................................................................ii
General Compliance and Safety.....................................................................................................iii
Regulatory Notices.........................................................................................................................iii
Safety Notices................................................................................................................................ vi
Open-Source License Information.................................................................................................vi
Exalt Limited Hardware Warranty................................................................................................vii
Section 1 – Introduction.................................................................................................................. 1
1.0 Introduction to Exalt Communications........................................................................... 1
1.0.1 Other Documentation and Software........................................................................ 1
1.1 The EX-5r Digital Microwave Radio ............................................................................. 1
1.2 EX-5r Basic Features...................................................................................................... 3
Section 2 – Before Installation........................................................................................................ 5
2.0 Link Engineering and Site Planning ............................................................................... 5
2.1 Familiarizing Yourself with the EX-5r........................................................................... 6
2.1.1 Shipping Box Contents............................................................................................... 6
2.2 Back-to-Back Bench Test and Configuration................................................................. 7
2.3 RF Output Power Setting................................................................................................ 8
2.3.1 United States........................................................................................................... 8
2.3.2 Canada..................................................................................................................... 9
2.4 Time Division Duplex Factors...................................................................................... 10
2.5 Link Orientation and Synchronization.......................................................................... 11
2.5.1 Default Settings..................................................................................................... 12
Section 3 – System Installation and Initiation Process................................................................. 14
3.0 Task Overview.............................................................................................................. 14
3.1 Record Keeping ............................................................................................................ 15
Section 4 – Installation.................................................................................................................. 16
4.0 Mechanical Configuration and Mounting..................................................................... 16
4.0.1 Pole Mounting the System.................................................................................... 16
4.1 User Interfaces.............................................................................................................. 17
4.1.2 Indicator Overview ............................................................................................... 18
4.2 Applying Power............................................................................................................ 18
4.2.1 Terminating the RF Connector ............................................................................. 19
4.2.2 AC Power.............................................................................................................. 19
4.2.3 DC Power.............................................................................................................. 20
4.2.4 Reset to Critical Factory Settings ......................................................................... 20
4.3 The Antenna/Transmission System .............................................................................. 21
4.3.1 Initial Antenna Mounting...................................................................................... 22
4.3.2 Transmission Line from Antenna to Radio........................................................... 24
4.3.3 RF Lightning Arrestor........................................................................................... 26
4.3.4 Transmission Line from Egress to Radio.............................................................. 26
4.4 Antenna Alignment....................................................................................................... 27
Exalt Communications Inc.
EX-5r Installation & Management
Page x
5000007
2006-05-17
Section 5 – Configuration and Management ................................................................................ 28
5.0 Using the Command Line Interface (CLI).................................................................... 28
5.0.1 Connecting to the Radio with a Telnet Connection.............................................. 28
5.1 Using the CLI................................................................................................................ 28
5.2 Introduction to the Graphical User Interface (GUI) ..................................................... 29
5.2.1 Preparing to Connect............................................................................................. 29
5.2.2 Making the Connection......................................................................................... 30
5.2.3 Logging In............................................................................................................. 30
5.2.4 Login Privileges.................................................................................................... 31
5.3 Quick-Start.................................................................................................................... 32
5.4 Graphical User Interface Fundamentals........................................................................ 33
5.4.1 Summary Status Section ....................................................................................... 33
5.4.2 Navigation Section................................................................................................ 34
5.5 Radio Information Page................................................................................................ 34

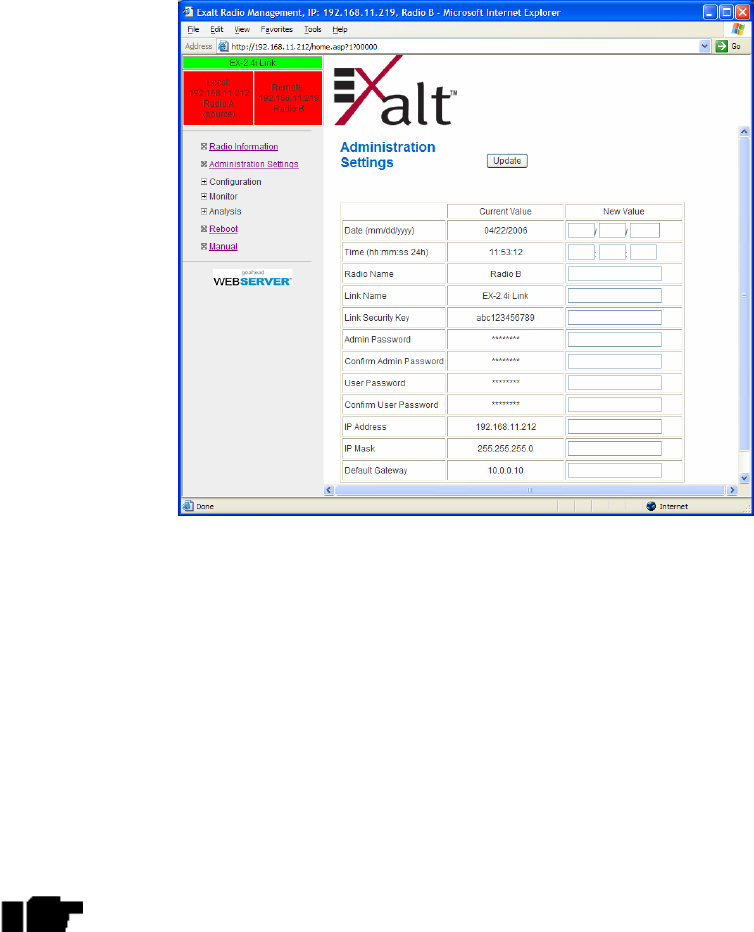

5.6 Administration Settings Page........................................................................................ 35
5.7 System Configuration Page........................................................................................... 36
5.8 Ethernet Interface Configuration Page.......................................................................... 38
5.9 T1/E1 Configuration Pages........................................................................................... 39
5.9.1 T1 Configuration Page.......................................................................................... 39
5.9.2 E1 Configuration Page.......................................................................................... 40

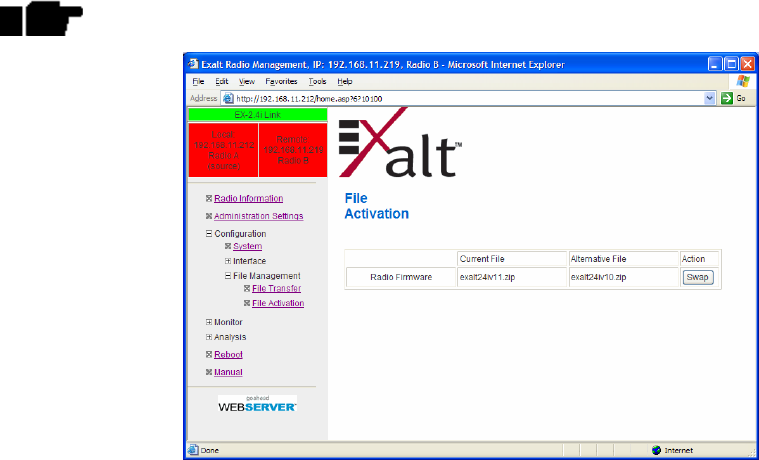

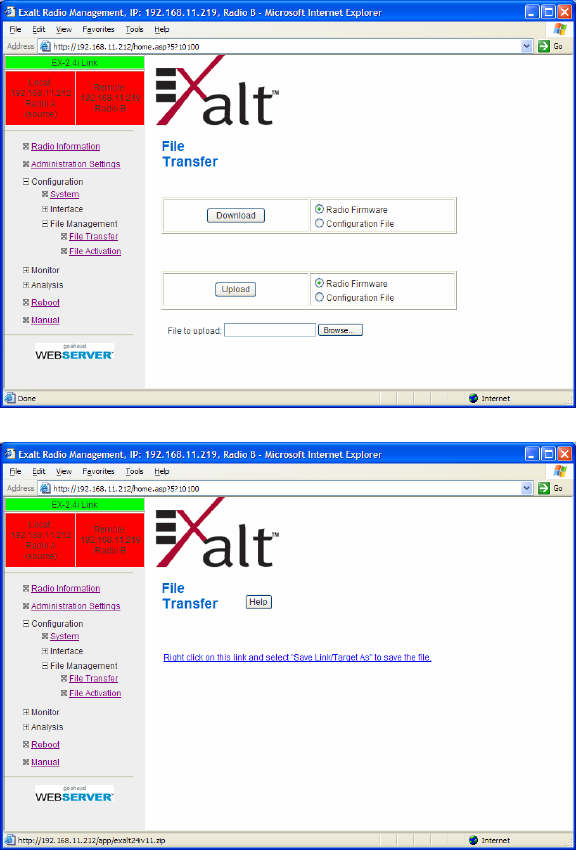

5.10 File Transfer Page......................................................................................................... 40
5.11 File Activation Page...................................................................................................... 42
5.12 Alarms Page.................................................................................................................. 43
5.13 Performance Page ......................................................................................................... 44

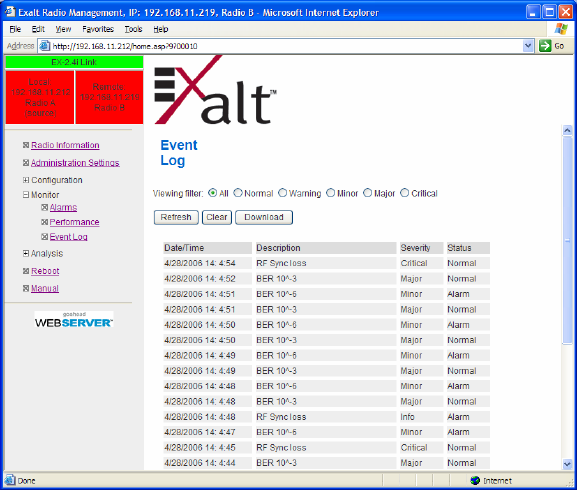

5.14 Event Log Page............................................................................................................. 46

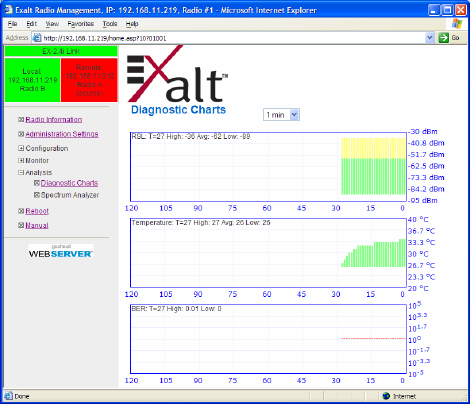

5.15 Diagnostic Charts Page................................................................................................. 47
5.16 Spectrum Analyzer Page............................................................................................... 48
5.17 Reboot Page .................................................................................................................. 48
5.18 Manual Page.................................................................................................................. 49
Section 6 – Troubleshooting......................................................................................................... 50
6.1 General Troubleshooting Practices............................................................................... 50
6.2 Typical Indications of Issues ........................................................................................ 51
6.3 Improper RF Cable Termination................................................................................... 52
6.4 Multipath Propagation .................................................................................................. 53
6.5 RF Interference ............................................................................................................. 53
6.6 Path Obstruction............................................................................................................ 54
6.7 Misaligned Antenna...................................................................................................... 54
6.8 Faulty Antenna.............................................................................................................. 54
6.9 Improper Grounding ..................................................................................................... 54
6.10 Insufficient Link Margin............................................................................................... 54
6.11 Moisture in the Transmission System........................................................................... 55
Appendix A – Specifications ........................................................................................................ 56
A-1 Physical Specifications ................................................................................................. 56
A-2 System Specifications................................................................................................... 56
A-3 Interfaces....................................................................................................................... 57
Appendix B – Back-to-back Bench Testing ................................................................................. 58
Exalt Communications Inc.
EX-5r Installation & Management
Page xi
5000007
2006-05-17
B-1 Introduction................................................................................................................... 58
B-2 Basic Test...................................................................................................................... 58
B-3 Specification Performance Verification........................................................................ 59

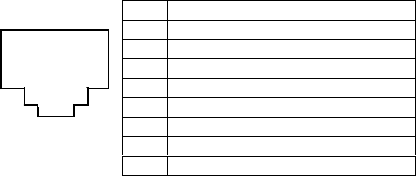

Appendix C – Interface Connections............................................................................................ 62
C-1 Introduction................................................................................................................... 62
C-2 T1/E1 Connections........................................................................................................ 62
C-3 Ethernet/Power Connection .......................................................................................... 62
C-4 Sync Connection........................................................................................................... 62
Figures and Tables
Figure 1-1: The EX-5r (Integrated Antenna Version) ............................................................... 2
Figure 1-2: Mounting and Cabling - Integrated Antenna Version............................................. 3
Figure 1-3: Mounting and Cabling - External Antenna Version ............................................... 4
Figure 3-1: Radio Installation Flowchart................................................................................. 14

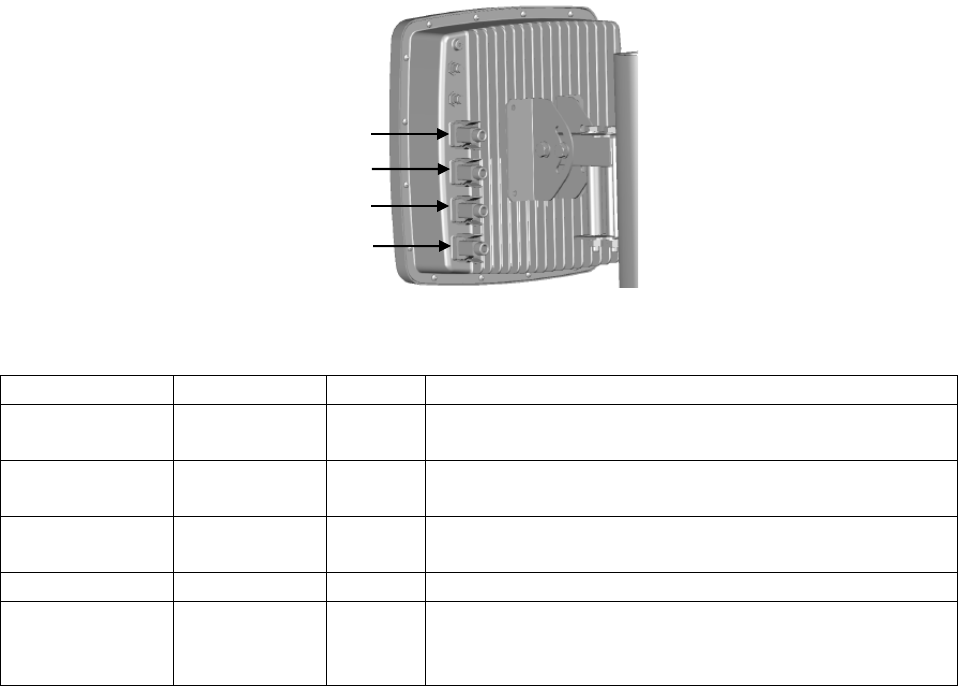

Figure 4-1: Pole Mount Mechanics ......................................................................................... 16
Figure 4-2: Connections........................................................................................................... 17
Table 4-1: Connectors ............................................................................................................ 17
Table 4-2: Indicators............................................................................................................... 18
Table 4-3: Recommended Antennas ...................................................................................... 22
Figure 5-1: Main CLI Menu .................................................................................................... 28
Table 5-1: CLI Tree Structure................................................................................................ 29
Figure 5-2: Initiating Browser Connection.............................................................................. 31

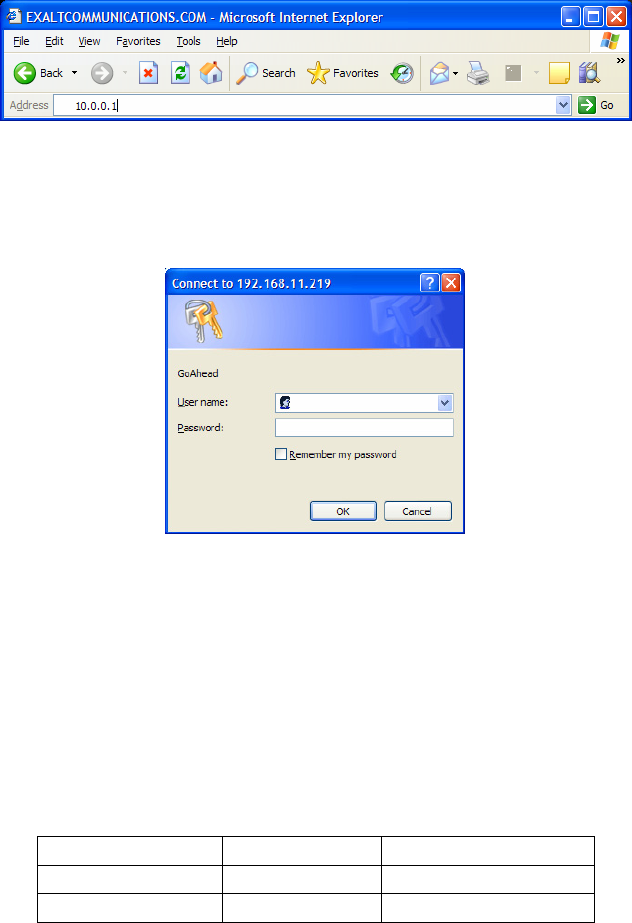

Figure 5-3: Browser Login Window........................................................................................ 31
Table 5-2: Default Login Information.................................................................................... 31

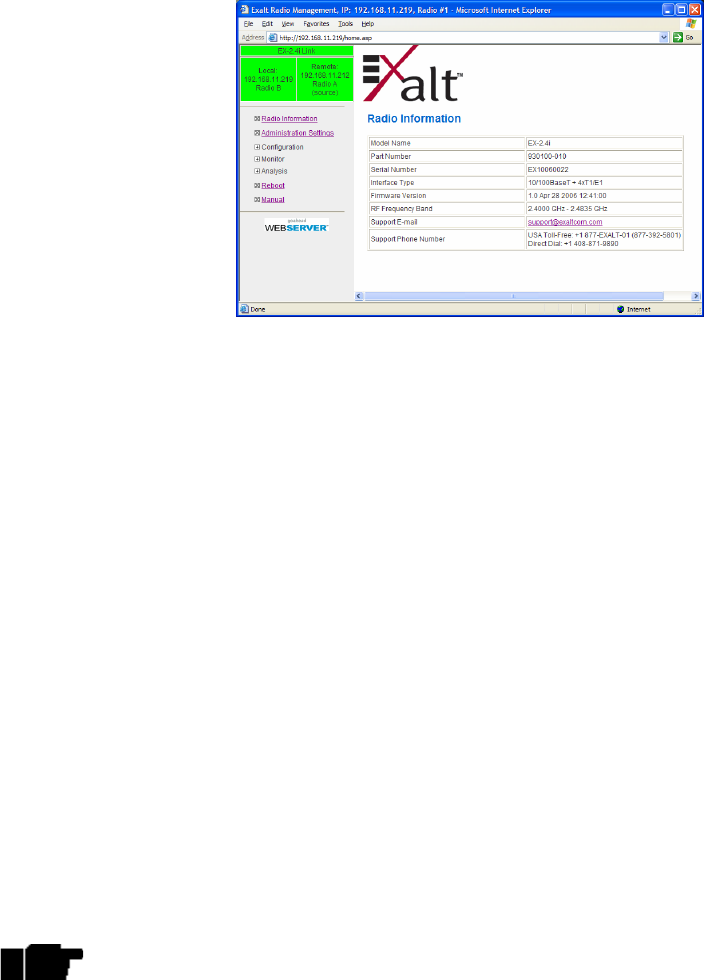

Figure 5-4: Radio Information Page........................................................................................ 32

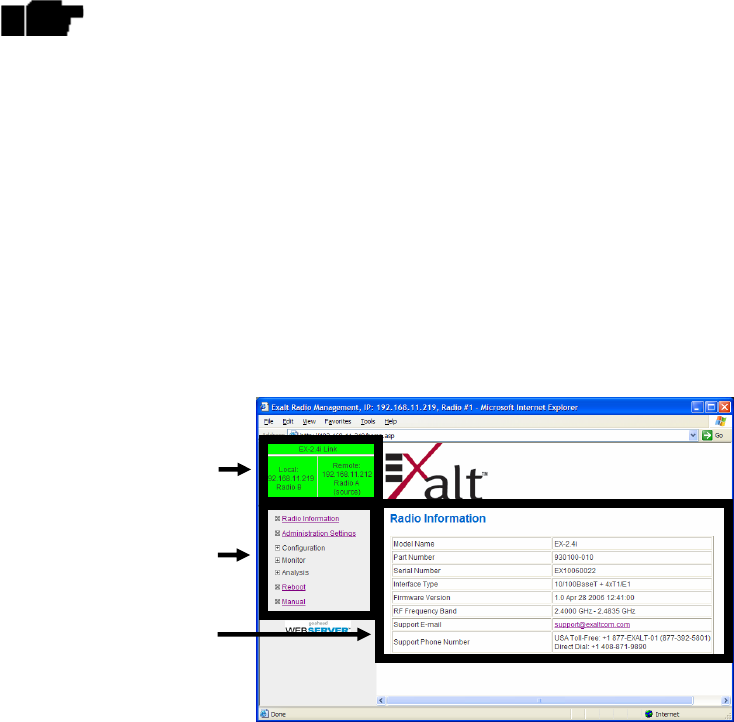

Figure 5-5: GUI Sections (Radio Information Page)............................................................... 33

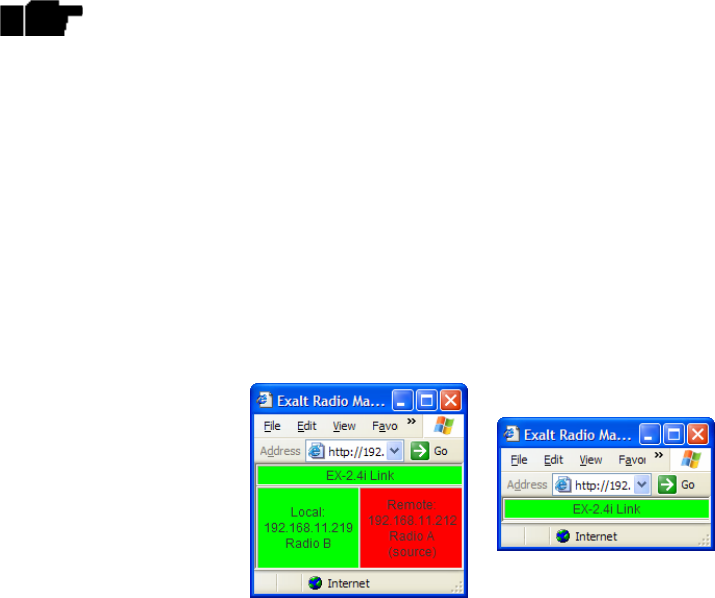

Figure 5-6: Collapsed Browser Windows for Summary Status of Multiple Radios ............... 34

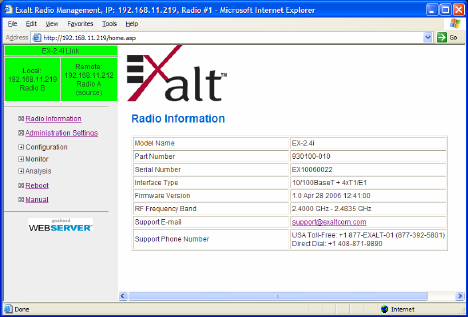

Figure 5-7: Radio Information Page........................................................................................ 35
Figure 5-8: Administration Settings Page................................................................................ 36

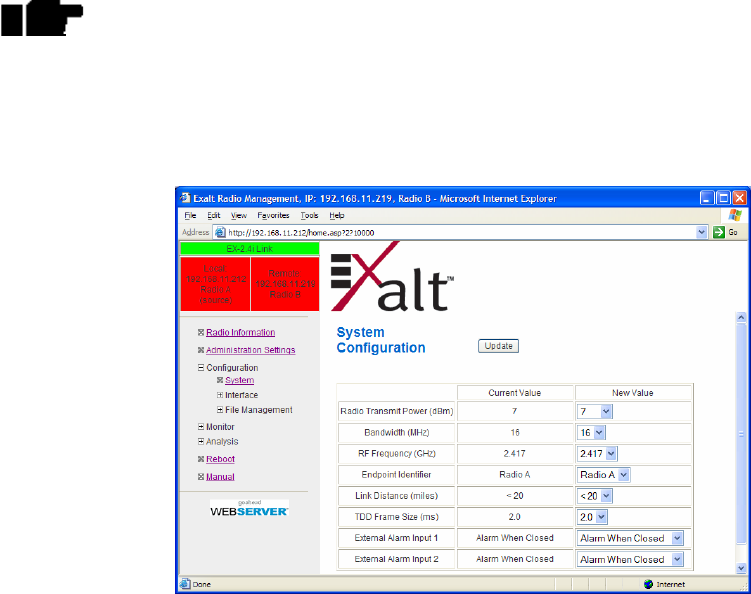

Figure 5-9: System Configuration Page................................................................................... 38

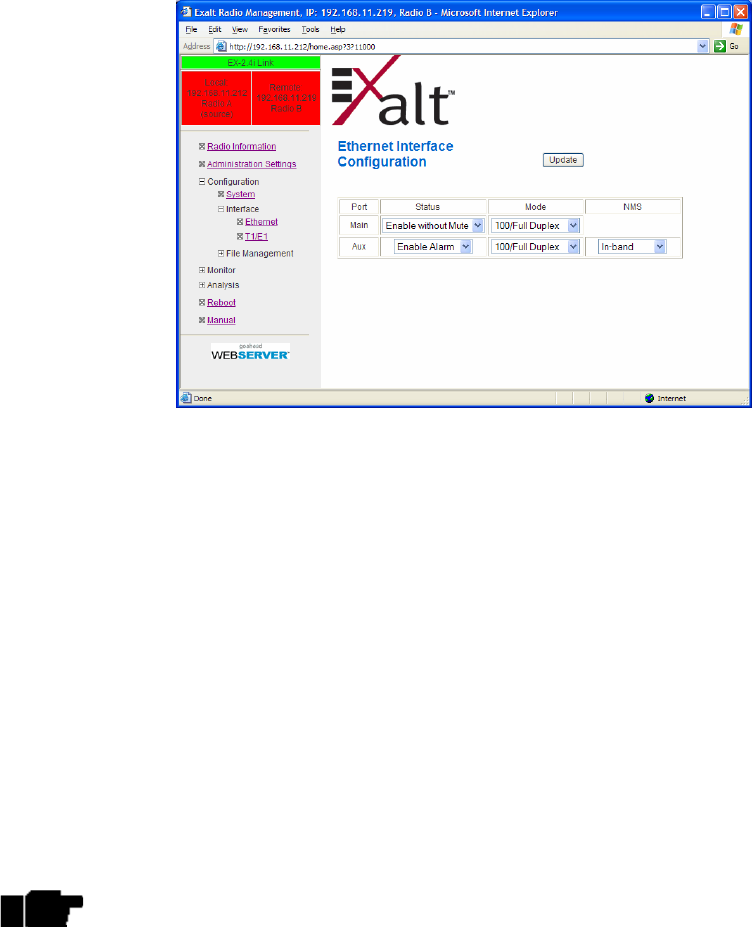

Figure 5-10: Ethernet Interface Configuration Page.................................................................. 39
Figure 5-11: T1 Configuration Page.......................................................................................... 40
Figure 5-12: E1 Configuration Page.......................................................................................... 40
Figure 5-13: File Transfer Page................................................................................................. 41
Figure 5-14: Download File Link.............................................................................................. 41
Figure 5-15: File Activation Page.............................................................................................. 42
Figure 5-16: Alarms Page.......................................................................................................... 43
Figure 5-17: Performance Page ................................................................................................. 46
Figure 5-18: Event Log Page..................................................................................................... 47
Figure 5-19: Diagnostic Charts Page......................................................................................... 48
Figure 5-20: Reboot Page .......................................................................................................... 49
Figure 5-21: Manual Page.......................................................................................................... 49
Figure B-1: Basic Back-to-Back Bench Test Configuration.................................................... 59

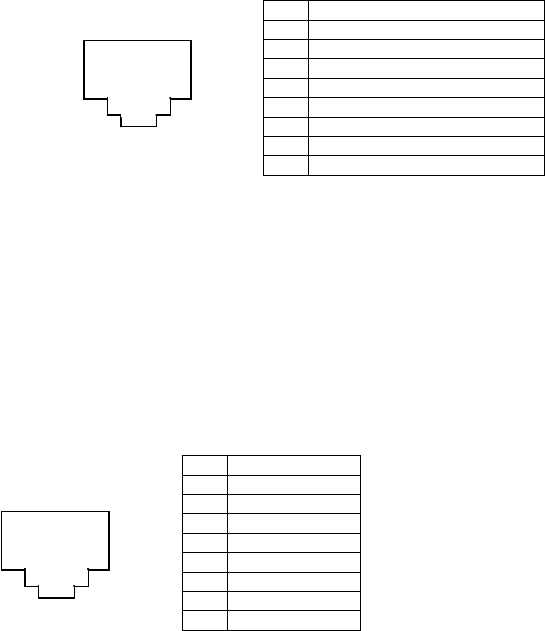

Figure C-1: T1/E1 Connectors ................................................................................................. 62
Figure C-2: Ethernet/Power Connector.................................................................................... 62
Figure C-3: Sync Connector..................................................................................................... 63
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 1
2006-05-17
Section 1 – Introduction
1.0 Introduction to Exalt Communications
Exalt Communications, Inc. thanks you for your purchase of the EX-5r Digital Microwave
Radio. Our goal is to build the highest quality, highest reliability digital microwave radio
products for our customers. This commitment to quality and reliability extends to our employees
and partners alike. We appreciate any comments on how we can improve our products, as well as
your sales and customer care experience.
Customer Care Hotline: +1 408-871-9890
USA Toll-Free Customer Care Hotline: +1 877-EXALT-01 (392-5801)
Website: www.exaltcom.com (launching June 2006)
Sales E-mail: sales@exaltcom.com
Customer Care E-mail: support@exaltcom.com
Mailing Address: Exalt Communications, Inc.
580 Division St.
Campbell, CA 95008
USA
Direct-Dial Telephone: +1 (408) 871-1804
1.0.1 Other Documentation and Software
This manual makes reference to other documentation and software files that may be necessary to
obtain. The Quick Start Guide provided with the equipment provides information on where this
documentation can be found. Or contact Exalt, as described in section 1.0.
1.1 The EX-5r Digital Microwave Radio
The EX-5r Digital Microwave Radio is the most advanced carrier class point-to-point terrestrial
radio communications device operating in the 5250 to 5850 MHz frequency range.
The EX-5r is used to connect voice and/or digital data from one location to another, obviating
the need for copper or fiber connectivity, or enhancing existing connectivity by providing a
redundancy solution, a primary solution and/or additional capacity.
Generally, the EX-5r requires clear line-of-sight and proper path clearance to achieve a high-
performance, reliable connection. Professional path engineering and site planning should be
performed BEFORE the installation of this equipment. This document primarily focuses on the
installation and maintenance of the microwave radio, and assumes that path engineering and site
planning has already been performed. Please refer to Exalt’s document “Guidance for
Engineering and Site Planning of Terrestrial Wireless Links” for detailed information on
these activities.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 2
2006-05-17
Figure 1-1: The EX-5r (Integrated Antenna Version)
The EX-5r utilizes radio frequencies in the range of 5250 to 5850MHz, in one or both of the
following bands:
• 5350 to 5350 MHz
• 5725 to 5850 MHz
In many countries, one or both of these frequency bands are considered as ‘license-exempt’ or
‘unlicensed.’ This means that virtually any user may use these frequencies freely, without paying
for access, or any type of pre-notification, post-notification or registration. As a result of this
designation, users may also move or change these systems at any time, with significant flexibility
to the location, orientation and configuration of the system. However, due also to this
designation, there may be uncontrolled interference from other similar devices that occupy this
spectrum. In these cases, it is up to engineering and maintenance personnel to design the system
with existing and future interference sources in mind, recognizing that there is a chance that the
interference conditions could be very dynamic, and outages may occur on the system as a result,
and that, in some very rare cases, the system may cause interference into another system and may
be required to be disengaged or modified/re-oriented to eliminate the interference.
If the spectrum in your country is designated as ‘license-exempt’ or similar, this does not infer
that the installer may configure the system in any manner, at any location. In most cases, there
are regulations, or device-based conditions that limit the use of the device, such as maximum
gain antenna, antenna types and maximum output power, as well as, in some cases, application
limits, limited geography of use, and other unique regulations. The link design engineer and/or
professional installer must determine these limitations and engineer/install the system
within the confines of all local regulations. Also, it is required to examine any regulations that
may apply to peripheral equipment, installation and cabling of the system, which may be
regulated for human safety, electrical code, air-traffic control, and other safety-related categories.
In certain countries, the spectrum for this product is NOT considered to be license-exempt. In
these cases, there may be additional regulatory requirements concerning the location, frequency,
power, orientation, configuration and other aspects of the system, including, in some cases, a
need for link registration, coordination and fees that may apply to the system usage. Please
consult your local regulatory organization(s) to determine the usage requirements.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 3
2006-05-17
In almost all cases, either for license-exempt or other designation, the product itself must be
authorized for use in your country. Either Exalt or Exalt’s agent must have applied for
certification or authorization to allow the sale and deployment of the system within the country.
It is also possible that only certain versions or configurations of the device are allowed within a
particular country. Please contact Exalt or your authorized Exalt representative for information
pertaining to your country.
It is the (professional) installer’s responsibility to assure that the radio
system is implemented in a legal fashion. Exalt cannot be held liable for any
unsafe or illegal installation.
1.2 EX-5r Basic Features
The EX-5r Digital Microwave Radio is intended for all-outdoor mounting. It is accompanied
with an indoor-mounted power injector. The EX-5r may also be mounted indoors or in an
enclosure, if desired. Depending on the configuration purchased, the associated antenna is either
integrated as part of the unit or connected separately. For the integrated antenna version, the
entire unit is typically mounted on a tower or rooftop mast structure, with Ethernet/Power and
other optional interface cabling running from the unit’s location, through a structure penetration,
to the power injector and connected communications equipment. For the external antenna
configuration, the unit is typically mounted very close to the external antenna to minimize RF
cabling and associated losses. Alternatively, the unit may be mounted at an easily-accessible
location with longer RF cabling to the antenna. Proper lightning or surge suppression devices
and associated grounding are required for all connections.
Figure 1-2: Mounting and Cabling - Integrated Antenna Version
Power/Ethernet Lightning Arrestor (grounded)
Power/Ethernet
Power/Ethernet
Power Injector
Structure Penetration
Ethernet Power
Optional T1/E1 Lightning Arrestors (grounded)
1-4xT1/E1
Optional GPS Antenna
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 4
2006-05-17

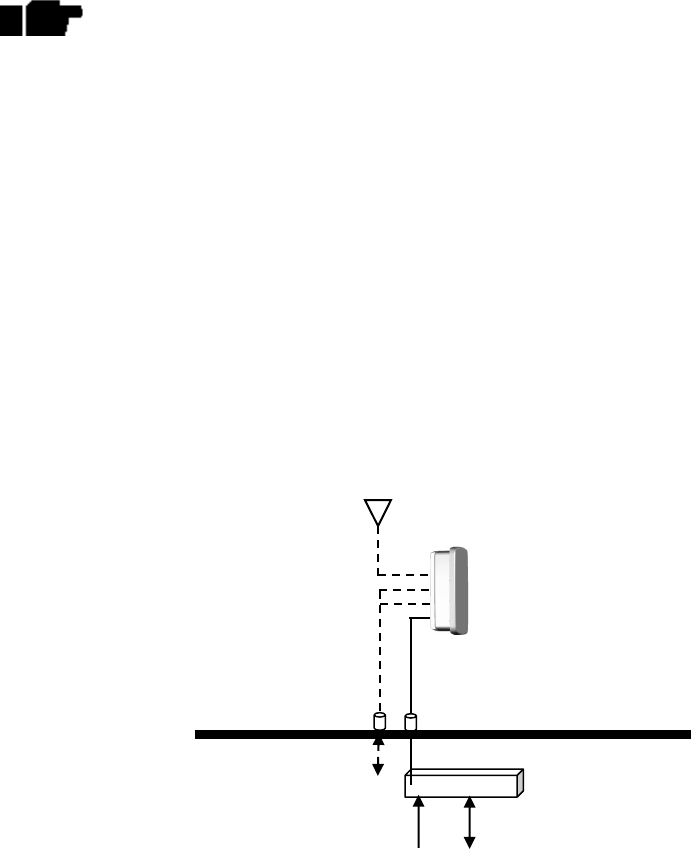

Figure 1-3: Mounting and Cabling - External Antenna Version
For highest performance and reliability, it is advised to minimize the length of RF cable, and
associated transmission system losses between the antenna and the radio’s RF port.
The EX-5r provides connection for any of the following data communication interfaces, or a
combination thereof:
• 10/100BaseT Ethernet
• 1-4xT1/E1 interfaces for synchronous voice traffic
The EX-5r is powered by a combined Power/Ethernet cable, and associated power injector. The
power injector provides 48VDC to the unit.
The EX-5r provides the following primary features and benefits:
• Low-latency optimization and control for voice and data connections
• Very high throughput and flexible interface configurations with voice+data combinations
• Encryption for extreme wireless security
• Easy-to-use management and configuration
• Flexible utilized channel bandwidth selection for interference avoidance and frequency
coordination
• Flexible center frequency tuning for interference avoidance and frequency coordination
• Flexible capacity to meet current connection requirements, and future growth needs
• Carrier-class reliability and performance
Power/Ethernet Lightning Arrestor (grounded)
Power/Ethernet
Power/Ethernet
Power Injector
Structure Penetration
Ethernet 48VDC
External Antenna
(Single or Cross-Polarized)
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 5
2006-05-17
Section 2 – Before Installation
2.0 Link Engineering and Site Planning
Any terrestrial wireless link should be designed prior to purchase and installation. Generally,
professional wireless engineering personnel are engaged to determine the viability and
requirements for a well-engineered link that will meet the users’ needs for performance and
reliability.
The reader is referred to the Exalt document “Guidance for Engineering and Site Planning of
Terrestrial Wireless Links” and the “ExaltCalc” path calculator. This document and calculator
aid in the pre-planning and engineering that is required for determination of the following
attributes:
• Antenna type/gain at each end of the link
• Antenna mounting height/location for proper path clearance
• Antenna polarization orientation
• RF cabling type, length, connectors, route and mounting
• Antenna system grounding
• Lightning arrestor type(s), location(s) and grounding
• Radio mounting location and mechanisms
• Radio grounding
• Radio transmitter output power setting
• Anticipated received signal level (RSL) at each end
• Anticipated fade margin and availability performance at each end
• Radio settings for TDD Frame Length and Occupied Bandwidth (BW)
• Anticipated throughput performance (TDM circuit support and Ethernet)
• Anticipated system latency
With respect to radio path and site planning, the EX-5r is generally identical to any other
microwave terrestrial wireless system. Engineering of these systems will require specific
knowledge about the EX-5r itself, including:
• RF specifications (transmitter output power, receiver threshold, occupied channel
bandwidth, carrier-to-interference tolerance)
• Regulatory limitations on transmitter output power setting and antenna type/gain
• Noise/interference profile for the intended location
• Impact on throughput and latency relative to link distance, occupied bandwidth and TDD
Frame Size setting, and the planned implementation of these parameters
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 6
2006-05-17
2.1 Familiarizing Yourself with the EX-5r
The EX-5r utilizes time division duplex (TDD) radio transmission. That is, that the transmitted
signal in both directions is using the same center frequency and is transmitting in one direction
for a period of time, then transmitting in the opposite direction for another period of time. This
total period of time is referred to as the “Frame Length” or “TDD Frame Length”, and is further
discussed in section 2.4.
The two radio terminals are identical hardware to one another, except for this configuration
setting in software. When the radios are in their default state (such as they are when they are
initially shipped), both radios are configured as Radio B. One end of the link must be
configured as Radio A before the two ends of the radio system will communicate. It can be
considered that Radio A is the primary radio of the link. Radio A provides the master clocking
and control to Radio B. For most applications, it is not important how the radio link is oriented,
only that one end is configured for Radio A, and the other for Radio B. For some applications,
such as multi-radio hub sites or repeaters, the orientation of the radio systems may be more
critical. Details about link orientation can be found in section 2.5.
There are two means to configure the radios for Radio A/B determination:
1) Using the browser-based graphical user interface (GUI)
2) Using Telnet command line interface (CLI)
It is encouraged to use the browser-based GUI for radio configuration, as there are many settings
that will be necessary to adjust the device to meet your operational needs, and the GUI is a very
intuitive interface. This interface requires a computer with an Ethernet port and web browser
software, such as Microsoft Internet Explorer 5.0 or above. See section 5.2 for details on how to
connect to and use the browser-based GUI interface.
2.1.1 Shipping Box Contents
Unless purchased as a spare terminal, the EX-5r is shipped as a complete ‘hop’ (radio link pair
consisting of two terminals). An outer box has labeling that indicates the contents of the box,
with the part number and serial number details for both radio terminals.
Inside the outer box are two identical boxes, each of these boxes is also marked with the part
number and serial number of the individual terminal contained inside the box. The terminal box
has the following items inside:
• Radio terminal (configured for Radio B)
• AC adapter
• DC injector
• Pole mounting kit
• Pre-terminated Ethernet/Power Cable (50 ft. each)
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 7
2006-05-17
• Registration card
• Quick-start guide
Inspect the outer packaging and the contents of the boxes upon receipt. If you suspect any
shipping damage or issues with the contents, Exalt Customer Care should be contacted to address
any issues as soon as possible.
Register your system as soon as possible. A 2-year Warranty period applies
to properly registered products. The Warranty period is reduced to 1-year
for unregistered products.
2.2 Back-to-Back Bench Test and Configuration
Every Exalt digital microwave radio goes through extensive quality testing and performance
evaluation over full temperature range prior to shipment. However, before installation, it is
strongly advised to perform several tests and tasks that can be much more difficult to perform
once the radio link endpoints are distant from one another. A back-to-back bench test and pre-
configuration will provide confidence that the radio link is operational and configured properly
prior to installation, so that if troubleshooting is necessary, the radio hardware and configuration
settings are eliminated from the troubleshooting process.
• Confirm that the radio system is generally operational
o Radios power-up with planned power and wiring solutions
o RF link can connect in both directions
o Traffic can be passed across the link
• Configure connected equipment and cabling
o Test Ethernet (CAT5) cabling, and/or T1/E1 cabling, any auxiliary connector
cabling and configure all interfaces
o Configure IP settings for configuration and management
o Configure passwords and security modes
o Become familiar with the configuration and management interfaces through the
browser-based GUI interface.
• Configure radio parameters
o Set transmitter output power to engineered or allowed level (see section 2.3)
o Set operating center frequency
o Set link distance, occupied channel bandwidth and frame length
• Make detailed radio performance measurements
o Measure transmitter output power
o Measure receiver threshold performance
o Confirm unfaded error-free performance
Some of the above tasks may not be possible or practical within a bench test environment, due to
the nature of the remote connectivity of peripheral equipment. However, it is a good practice to
perform as much as possible in this environment to minimize field/installation time and
troubleshooting efforts.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 8
2006-05-17
Detailed performance measurements are usually not required for pre-installation, but they can
typically be easily performed at this stage and may be helpful for later troubleshooting efforts or
for internal records. During troubleshooting, there may often be a point at which a back-to-back
bench test should be performed to re-verify many or all of the items above, and in the case of a
suspected faulty device to help confirm the fault, and determine which end of the system is at
fault and in need of repair/replacement.
Detailed instructions for back-to-back bench testing are included in Appendix B.
2.3 RF Output Power Setting
The maximum RF output power is bounded by one of the following criteria:
• Maximum RF output power setting capability of the radio device
• Maximum RF output power allowed/authorized by the local government regulations and
for this specific device
• Maximum EIRP (effective isotropic radiated power) of the transmission system
allowed/authorized by the local government regulations and for this specific device
• Desired RSL to not exceed the maximum RSL allowed by the device
• Desired RSL to minimize/eliminate interference into neighboring systems
In many cases, the radio must be pre-configured for legal maximum output power
before connecting to the antenna and transmission system. Instructions for
adjusting the output power can be found in this section (below) and in section 5.7.
The following information pertains to specific regulatory requirements based on up-to-date
information for countries where the EX-5r is authorized. A list of recommended antennas can be
found in section 4.3.
2.3.1 United States
The EX-5r operates under FCC Rule Parts 15.247 and 15.407 as a license-exempt device, and
must be professionally installed. It may only be used as a point-to-point transmission device for
fixed or temporary-fixed (non-mobile) installations. The device is subject to the following
restrictions:
• External amplifiers may not be used to boost the power, or to overcome transmission
system losses, unless the specific amplifier/cable/antenna combination has expressly been
authorized by the FCC. The output power must never exceed +24dBm.
• Cross-border transmissions are expressly prohibited, except with written permission from
both the FCC and the governing body of the neighboring country (Cofetel for Mexico,
Industry Canada for Canada).
• Only parabolic dish antennas or directional flat-panel antennas may be used. No other
types of antennas (omni-directional, etc.) are authorized. Parabolic dishes of either grid or
solid type are allowed. Maximum gain of each type of antenna certified is:
o Parabolic Dish: 37.5 dBi (6-foot diameter)
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 9
2006-05-17
o Directional Flat Panel: 28 dBi (~2-foot square)
• Maximum transmit power for operation within the 5725-5850 MHz band, with respect to
FCC (USA) EIRP regulations, is unlimited.
• Maximum transmit power for operation within the 5250-5350 MHz band, with respect to
FCC (USA) EIRP regulations, is determined with the following equation:
P = 30 - G + L
Where:
P = Maximum transmitter output power of radio, in dBm, not to exceed +13dBm
G = Specified gain of antenna, in dBi, from 5250-5350 MHz
L = Total transmission system losses of all elements between the radio’s RF
connector and the antenna’s RF connector (all cables, connectors, lightning
suppressors), in dB, as specified or measured between 5250 and 5350 MHz
For the 5725-5850 MHz band, the maximum EIRP allowed for this device is 67.5dBm.
The maximum output power of the radio shall never exceed +30dBm.
For the 5250-5350 MHz band, the maximum EIRP allowed for this device is 30dBm. The
maximum output power of the radio shall never exceed +20dBm.
The professional installer is responsible to assure that RF output power has been properly
adjusted so that it does not exceed the regulatory limit, per these conditions.
2.3.2 Canada
The EX-5r operates under RSS-210 of Industry Canada regulations. Operation is subject to the
following conditions, unless express permission is granted by Industry Canada to operate in a
different manner:
• External amplifiers may not be used to boost the power, or to overcome transmission
system losses, unless the specific amplifier/cable/antenna combination has expressly been
authorized by Industry Canada.
• Cross-border transmissions are expressly prohibited, except with written permission from
both Industry Canada and the governing body of the neighboring country (FCC for USA)
• Only parabolic dish antennas or directional flat-panel antennas may be used. No other
types of antennas (omni-directional, yagi, etc.) are authorized. Parabolic dishes of either
grid or solid type are allowed. Maximum gain of each type of antenna allowed is:
o Parabolic Dish: 37.5dBi (6-foot diameter)
o Directional Flat Panel: 28 dBi (~2-foot square)
A complete list of allowed antennas can be found within the Industry Canada regulatory
statement at the front section of this manual.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 10
2006-05-17
• Maximum transmit power for operation within the 5725-5850 MHz band, with respect to
Industry Canada (IC) EIRP regulations, is unlimited.
• Maximum transmit power for operation within the 5250-5350 MHz band, with respect to
Industry Canada (IC) EIRP regulations, is determined with the following equation:
P = 30 - G + L
Where:
P = Maximum transmitter output power of radio, in dBm, not to exceed +13dBm
G = Specified gain of antenna, in dBi, from 5250-5350 MHz
L = Total transmission system losses of all elements between the radio’s RF
connector and the antenna’s RF connector (all cables, connectors, lightning
suppressors), in dB, as specified or measured between 5250 and 5350 MHz
For the 5725-5850 MHz band, the maximum EIRP allowed for this device is +67.5dBm.
The maximum output power of the radio shall never exceed +30dBm.
For the 5250-5350 MHz band, the maximum EIRP allowed for this device is +30dBm.
The maximum output power of the radio shall never exceed +20dBm.
The professional installer is responsible to assure that RF output power has been properly
adjusted so that it does not exceed the regulatory limit, per these conditions.
2.4 Time Division Duplex Factors
The EX-5r is a very dynamic radio, allowing the installer to optimize and control the
performance of the radio system for the intended application. The following parameters need to
be carefully determined during the link engineering phase:
• Link Distance
• Bandwidth
• TDD Frame Size
• Mode (modulation)
The setting of the above parameters will determine the following performance factors:
• Number of T1/E1 channels supported
• Ethernet throughput
• System latency (delay)
Use the ExaltCalc calculator to help determine the optimum settings for the above parameters to
meet the needs of your application.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 11
2006-05-17
The following generalizations can be made with regards to these factors:
• The shorter the TDD Frame Size, the lower the latency
• The shorter the Link Distance, the lower the latency, the higher the throughput
• The longer the TDD Frame Size, the higher the throughput
• The higher the Bandwidth, the higher the capacity
• The higher the Mode, the higher the capacity
If there are no T1/E1 interfaces connected, all T1/E1 ports should be disabled. This
will shift the available throughput to the Ethernet interface.
If a selected combination of Link Distance, Frame Size, Bandwidth and Mode cannot
support all four (4) T1 or E1 ports, the ports that cannot be supported will be disabled
automatically. Priority is placed on the T1/E1 port number. That is, the first port to be
disabled, if necessary, is Port 4. More information on T1/E1 configuration can be
found in Section 5.9.
2.5 Link Orientation and Synchronization
Link orientation refers to the Radio A and Radio B placement in your network. Link
synchronization refers to using external or internal timing to coordinate multiple links.
As mentioned, for every link, one end of the radio link must be configured as Radio A, while the
other end configured as Radio B. In single-link systems, it does not matter which end of the
system is mounted at which end of the link, and there is typically no requirement for any link
synchronization.
Link orientation and synchronization are more important for networks that have any site(s)
where there is more than one EX-5 link or for EX-5 sites that are very close to one another.
Collocated radio terminals should be configured for the same link orientation. That is, all radios
at the same location should be Radio A or all radios should be Radio B.
In addition, it can be advantageous to utilize link synchronization for collocated links. The EX-5r
allows the use of an optional GPS synchronization kit or internal synchronization. This
synchronization controls the transmitter and receiver frame timing so that collocated radios are
transmitting at the same time and receiving at the same time. This can substantially reduce the
opportunity for self-interference. Without synchronization, collocated radios may be transmitting
and receiving at the same time, and thus, near-end interference may occur.
It is not always necessary to synchronize collocated radios. If antennas are
substantially separated, or blocked from one another, and/or frequency separation
tuning is used, the opportunity for near-end interference can be eliminated.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 12
2006-05-17
2.5.1 Default Settings
It is advised to use the browser-based GUI, or alternatively, the Telnet CLI, to configure the
radio terminals for Radio A and Radio B orientation. Since many other parameters also need to
be set, and the GUI is needed for these configurations, this is the best way to completely
configure the radio terminals.
If the radios are new from the factory or Exalt’s authorized distributor, they will be set to the
factory default configuration. In this case, both radios will be configured as Radio B. They will
also be configured to the factory default settings for:
• Frequency = 5780 MHz
• Transmit Power = 4dBm
• Link Distance = <10 miles
• Bandwidth = 8MHz
• Mode = Mode 1
• TDD Frame Size = 2ms
• Link Security Key = 000000000000
• Administration Password = admin
• User Password = user
• IP address = 10.0.0.1
• IP mask = 255.0.0.0
• IP gateway = 0.0.0.0
• Ethernet Interfaces = Enabled; 100/Full
• AUX port NMS Access = in-band
• T1/E1 enabling = all circuits disabled
• DS3 enabling = all circuits disabled
If the current IP address of the radio is unknown, it may be necessary to “reset” some of the radio
parameters to gain management access. A reset connector is provided in the accessory kit for this
purpose.
To use the reset connector, follow these steps:
1. Remove power from the radio by disconnecting power from the power injector
2. Remove the data connector from the power injector (this is the connector normally
connected to your local networking equipment NOT the connector leading up to the
radio)
3. Connect the reset connector to the data port on the power injector
4. Apply power to the power injector
5. Wait 1 minute
6. Remove the reset connector
7. Replace the original data connector to the data port on the power injector
The following configurations are changed on the radio:
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 13
2006-05-17
• IP address = 10.0.0.1
• IP mask = 255.0.0.0
• IP gateway = 0.0.0.0
• Administration password = admin
• User password = user
• Endpoint Identifier = Radio B
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 14
2006-05-17
Section 3 – System Installation and Initiation Process
3.0 Task Overview
The tasks for radio installation and initiation are outlined in the figure below.
Figure 3-1: Radio Installation Flowchart
Path & Site
Analysis
Link Design
Build Antenna
Structures &
Egress
Mount
Antennas &
Transmission
Line
Install & Test
Network &
Power Wiring
Read This
Manual
Completely
Pre-configure
Radios
Perform
Back-to-Back
Test
Mount Radios
Connect
Transmission
Line
Connect
Power
Align
Antennas to
Planned RSL
Verify LEDs
for Good Link
Test Network
Connectivity
Connect &
Test Primary
Services
Test Network
Management
System
Both Transmission
System & Radio
Preparation Tasks
Must Be Complete
Transmission System Tasks Radio Preparation Tasks
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 15
2006-05-17
3.1 Record Keeping
After installation, it is advised that the following items are recorded for the sake of ongoing
maintenance and any future troubleshooting. A record should be kept for each end of the radio
link. It is advised to store a copy of these records at the radio location, at the opposite end radio
location, and a central record-keeping storage location.
• GPS coordinates for antenna locations at each site
• Antenna heights above ground level (AGL), as mounted
• Antenna model numbers, serial numbers and specifications
• Antenna polarization as mounted
• Length/type of primary transmission lines at each site
• Model number and serial number of RF lightning arrestor used
• Length/type of secondary transmission line(s)
• Transmitter output power setting as installed at each site
• RSL as measured after antenna alignment at each site
• Designed RSL per original design at each site
• RSL reading with far-end power off (from each end)
• Spectrum analyzer plot with far end off at each site
• VSWR/Return Loss at Radio’s antenna connector at each site
• Radio’s network management IP address at each site
• Radio’s Network Management Gateway address at each site
• Radio’s operating frequency, bandwidth setting, mode of operation
• Optionally purchased extended warranty and/or emergency service contract details
In addition, certain information may be desired for central record-keeping only:
• Security codes and login passwords (should be kept in a secure place or memorized)
• Photographs of complete installation
• End-user sign-off/acceptance documentation (if any)
• Photo of rear panel label (part number, serial number, MAC address information)
• Site access information phone numbers, access codes, directions
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 16
2006-05-17
Section 4 – Installation
4.0 Mechanical Configuration and Mounting
The EX-5r is an environmentally sealed unit intended for deployment outdoors. The device must
be deployed within an ambient temperature range as specified and with non-restrictive airflow
around the chassis. The external antenna version of the EX-5r may alternatively be mounted in
an enclosure or indoors, if desired, under the same airflow and temperature conditions.
The EX-5r is accompanied by a power injector and power supply that must be placed indoors or
in an enclosure.
With respect to the connections, proper clearance shall be provided for all cables and connectors
that affix to the device. Most notably, for the external antenna version, the RF cable connector
may require significant clearance for the bend radius of the coaxial cable assembly. If desired, a
properly-specified 90-degree RF connector may be used on this connector to minimize clearance
requirements. All RF connectors, cables and adapters must be rated for operation over 5250 to
5850 MHz and their losses must be accounted for within the link engineering design and output
power settings.
4.0.1 Pole Mounting the System
Pole mounting hardware for a pole from 2 to 5 inches diameter is included. It is advised to affix
the radio to the pole mount bracket system first, then attach the entire assembly to the pole.
However, if desired, the pole mount bracket system can be mounted to the pole first, and the
radio connected after.
For the integrated antenna version, it is critical to mount the entire device at the predetermined
location for proper path clearance to the opposite end. There should be adequate space around
the mounting system and the radio to allow for antenna alignment for both azimuth and elevation
adjustments.
For the external antenna version, it is advised to mount the radio as close to the antenna as
possible, so as to minimize the length and associated losses of RF cabling.
Figure 4-1: Pole Mount Mechanics
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 17
2006-05-17
The pole-mounting bracket is affixed to the pole by using the two band clamp straps that are
provided. Thread the band clamp straps through the mounting bracket, wrap around the pole, and
thread through the adjustment end. Pull the straps by hand as much as possible, and using a
screwdriver, the band clamps should be tightened until the entire assembly is secure.
If the radio was not attached to the bracket, tighten all mechanics of the bracket, and attach the
radio.
For the integrated antenna version, gently loosen the nuts that hold the azimuth adjustment plate
in place. Roughly align the radio by sight, to the rough azimuth of the link, and tighten the
azimuth adjustment nuts.
If required, perform the same function for rough elevation adjustment.
4.1 User Interfaces
This section is intended to provide a brief familiarization of the connectors, controls and
indicators on the device. More details about each item are found in other sections of this
document. The EX-5r connections are shown here:
Figure 4-2: Connections
Table 4-1: Connectors
Connector Type Gender Function
Antenna
(0, 1 or 2) N F (External antenna version only) Transmission line
connection to antenna (on front face of unit)
T1/E1
(1&2, 3&4) RJ-48C F Primary ports for User T1 or E1 circuits to traverse
link
Ethernet/Power
(Main/Aux) RJ-45 F Primary port for power and Ethernet (10BaseT or
100BaseT) to traverse link
GPS Sync RJ-45 F External radio synchronizing source (GPS) input
(Ground) Threaded
(M5)
Receptacle
F Chassis ground connection (M5 x 0.8 thread)
GPS S
y
nc
T1/E1 3&4
T1/E1 1&2
Power/Ethernet
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 18
2006-05-17
Detailed pin structures for each connector can be found in Appendix C.
4.1.2 Indicator Overview
The following table provides detail of the indicators on the EX-5r.
Location Type Function
Power/Ethernet
Right Corner Green LED Solid = Radio is on with proper power
Blink = Radio is booting
Off = Radio is not powered, or fatal system failure
Power/Ethernet
Left Corner Green LED Solid = Negotiated @ 100Mbps
Blinking = Negotiated @ 10Mbps
Off = No Ethernet link
T1/E1 1&2
Left Corner Green LED Solid = Input 1 connection present (clocking confirmed)
Blink Fast = Input 1 connection present, coding/clock problem
Blink Slow = Input 1 connection present but unexpected
Off = Input 1 no connection/clock or interface/alarm is disabled
T1/E1 1&2
Right Corner Green LED Solid = Input 2 connection present (clocking confirmed)
Blink Fast = Input 2 connection present, coding/clock problem
Blink Slow = Input 2 connection present but unexpected
Off = Input 2 no connection/clock or interface/alarm is disabled
T1/E1 3&4
Left Corner Green LED Solid = Input 3 connection present (clocking confirmed)
Blink Fast = Input 3 connection present, coding/clock problem
Blink Slow = Input 3 connection present but unexpected
Off = Input 3 no connection/clock or interface/alarm is disabled
T1/E1 3&4
Right Corner Green LED Solid = Input 4 connection present (clocking confirmed)
Blink Fast = Input4 connection present, coding/clock problem
Blink Slow = Input 4 connection present but unexpected
Off = Input 4 no connection/clock or interface/alarm is disabled
SYNC
Left Corner Green LED On = Sync input connected
Off = Synch input not connected
SYNC
Right Corner Green LED Unused
Table 4-2: Indicators
4.2 Applying Power
The radio requires a DC power source within specifications, as stated. The DC may be provided
from a DC battery source, central lab/rack supply or from the AC adaptor supplied. Read this
section completely before applying power.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 19
2006-05-17
4.2.1 Terminating the RF Connector
Before applying power, if using the external antenna version, the device’s RF connector(s) must
be properly terminated into a 50-ohm load. If this is not performed, the radio may be damaged by
simply applying power. Also, for both the integrated and external antenna versions, there are
human safety factors to consider regarding potentially harmful RF radiation.
There are a few simple means to accommodate this proper termination:
• Connect a 50-ohm coaxial termination device to the RF port of the radio. The termination
needs to be rated to 1W (or more). Example(s) include:
o Broadwave Technologies P/N 552-200-002, or similar
• Connect the complete transmission system. That is, the RF cabling including the antenna.
The cabled antenna provides a proper termination for the RF output.
• Connect a fixed (or a series of fixed) 50-ohm attenuator(s) to the RF connector, either
directly or at the end of an RF transmission line. The attenuator should be at least 30dB
as specified between 5250 and 5850 MHz, and rated for a minimum of 0.5W input
power. Examples include:
o Broadwave Technologies P/N 352-103-xxx
o Bird 2-A-MFN-xx
o JFW Industries 50FP-xxx-H6-N
4.2.2 AC Power
The AC adaptor comes equipped for easy direct connection to the power injector. The AC rating
of the adapter accepts most worldwide standard voltages and frequencies. Please refer to the
input voltage requirements stated on the label that is affixed to the adapter to assure that the
adapter may be used with your AC mains supply. The AC plug outlet provided with the adapter
may need to be replaced to match your country configuration. The adapter cable uses a standard
connector for this cable so that you can simply use a pre-wired cable that is appropriate to your
outlet configuration. If that type of cable is not available, the existing AC plug end can be
severed and a replacement plug affixed. Consult a qualified electrician for this activity.
Do not plug the adapter into your mains power. First, verify that the RF connector is properly
terminated (per section 4.2.1 above). Next, connect the supplied CAT5 cable between the
Power/Ethernet connector on the radio and the Data+Power connector of the power injector.
Now plug in the injector-side connector from the AC adapter to the injector. If your AC mains
can be turned off by a switch, disable the power first, plug the AC side of the adapter into the AC
mains socket, and then enable power to the circuit. If your AC mains cannot be turned off,
simply plug into the AC main socket to apply power. Verify that the radio is active by observing
LED activity. All LEDs on the radio will flash at initial power cycle, for the user to verify that all
LEDs are operational.
It is strongly encouraged that the AC Mains supply be fused or on a breaker to ensure against
over-voltage and/or over-current situations to provide some form of protection to the radio
electronics and other devices that may be connected to the same supply. In addition, if your AC
power is subject to significant spikes or variation, power conditioning is a worthwhile
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 20
2006-05-17
investment, as the quality of mains power may have a direct impact on the device operation,
performance and/or reliability. Many users will deploy an Uninterruptible Power Source (UPS)
or other form of battery-backed system, to protect against brown-out and black-out conditions, as
well as to condition the power being presented to the adapter.
It is also important to evaluate the opportunity for lightning or other similar surges to become
present on the powering system, including the ability for surges to couple to the power wiring
system. If an evaluation indicates that there is a potential likelihood for these conditions to occur,
additional surge protection may be recommended for the input power wiring, especially for the
CAT5 cable running from the injector to the radio.
The above statement is similarly true for every wired connection to the device. While the
configuration for surge suppression or line conditioning is of a different type for each kind of
signal interface, the opportunity for damage to the device, loss of communications and property
can be significant. In some cases, there can also be a risk to human life by not protecting against
lightning entering a building through wiring or improper grounding. If you do not have
experience in this type of installation practice, it is strongly suggested that a qualified electrician
and/or telecoms professional is consulted during the installation of the equipment and wiring.
4.2.3 DC Power
The injector accepts direct DC power within the voltage specifications stated (48 Volts, nominal)
and with enough current delivery capacity, also per the specifications stated. Using the proper
DC connector and polarity (as shown on the injector), DC power may be directly connected to
the injector. There are different system grounding considerations depending on the nature of the
DC supply grounding, and your qualified electrician or telecoms professional should be
consulted on the proper wiring and grounding process. Often, the injector housing should be
properly grounded, and the DC source can be floating.
4.2.4 Reset to Critical Factory Settings
If necessary, the radio terminal may be reset to critical factory settings. This may be necessary if
the IP address and/or passwords for the system are not known. All other configurations are left at
their current settings. If a complete default factory configuration is desired, the Default
Configuration File may be loaded into the system, as described in sections 5.10 and 5.11.
The following parameters will be configured after a reset to critical factory settings:
• IP Address = 10.0.0.1
• IP Mask = 255.0.0.0
• IP Gateway = 0.0.0.0
• Administration password = admin
• User password = user
• Endpoint Identifier = Radio B (unless temporary hardware configuration key is
installed)
To perform a reset to critical factory settings:
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 21
2006-05-17
1. Remove power from the radio by disconnecting power from the power injector
2. Remove the data connector from the power injector (this is the connector normally
connected to your local networking equipment NOT the connector leading up to the
radio)
3. Connect the reset connector to the data port on the power injector
4. Apply power to the power injector
5. Wait 1 minute
6. Remove the reset connector
7. Replace the original data connector to the data port on the power injector
4.3 The Antenna/Transmission System
This section provides general guidance to the mounting and connecting of the RF transmission
system, consisting of the antenna, RF cabling and RF lightning arrestors. This section only
applies when using the external antenna version.
Manufacturer’s instructions for proper mounting, grounding and wiring of these devices should
be consulted for definitive direction, and those instructions supersede any of the information in
this section.
The following list of antennas is recommended in conjunction with this product. In some
countries, antennas exceeding a certain level of gain may be unlawful. Refer to section 2.3 for
details on regulatory limits.
Manufacturer Model # Description Gain dBi
(mid-band)
Andrew P2F-52-N 2-foot Dish 29.4
Andrew PX2F-52-N 2-foot Xpol Dish 29.4
Andrew P3F-52-N 3-foot Dish 33.4
Andrew PX3F-52-N 3-foot Xpol Dish 33.4
Andrew P4F-52-N 4-foot Dish 34.9
Andrew PX4F-52-N 4-foot Xpol Dish 34.9
Andrew HP2F-52-NPA 2-foot HP Dish 29.0
Andrew HPX2F-52-NPA 2-foot Xpol HP Dish 29.0
Andrew HP3F-52-NPA 3-foot HP Dish 33.0
Andrew HPX3F-52-NPA 3-foot Xpol HP Dish 33.0
Andrew HP4F-52-NPA 4-foot HP Dish 34.5
Andrew HPX4F-52-NPA 4-foot Xpol HP Dish 34.5
Andrew HP6F-52-NPA 6-foot HP Dish 37.2
Andrew HPX6F-52-NPA 6-foot Xpol HP Dish 37.2
Andrew FPA5250D06-N 6-inch Panel 18.0
Andrew FPA5250D12-N 1-foot Panel 23.6
Gabriel DFPS.5-52 6-inch Panel 18.0
Gabriel DFPD1-52 1-foot Panel 23.5
Gabriel DFPD2-52 2-foot Panel 28.0
Gabriel QF2-52-N 2-foot Dish 28.5
Gabriel QF2.5-52-N 2.5-foot Dish 31.2
Gabriel QF4-52-N 4-foot Dish 34.8
Gabriel QFD2-52 2-foot Xpol Dish 28.4
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 22
2006-05-17
Gabriel QFD2.5-52 2.5-foot Xpol Dish
31.1
Gabriel QFD4-52 4-foot Xpol Dish 34.7
Gabriel HQF2-52-N 2-foot HP Dish 28.2
Gabriel HQF4-52-N 4-foot HP Dish 34.4
Gabriel HQF6-52-N 6-foot HP Dish 37.4
Gabriel HQFD2-52 2-foot Xpol HP Dish 28.1
Gabriel HQFD2.5-52 2.5-foot Xpol HP Dish 30.7
Gabriel HQFD4-52 4-foot Xpol HP Dish 34.3
Gabriel HQFD6-52 6-foot Xpol HP Dish 37.3
MTI MT-485001 7.5-inch Panel
19.0
MTI MT-485002 1-foot Panel 23.0
MTI MT-486004 18-inch Panel
26.0
MTI MT-486001 2-foot Panel 28.0
MTI MT-485005 7.5-inch Xpol Panel
18.0
MTI MT-485025 15-inch Xpol Panel 23.0
Proxim 5054-WA-15-STN Window Panel 15.0
Radio Waves FP.5-5-18 6-inch Panel 18.0
Radio Waves FP1-5-24 1-foot Panel 23.8
Radio Waves FP2-5-28 2-foot Panel 28.0
Radio Waves FPD.5-5-18 6-inch Xpol Panel 18.0
Radio Waves SP1-5.2 1-foot Dish 22.5
Radio Waves SP2-5.2 2-foot Dish 29.0
Radio Waves HP2-5.2 2-foot HP Dish 28.6
Radio Waves SP3-5.2 3-foot Dish 32.0
Radio Waves SP4-5.2 4-foot Dish 34.8
Radio Waves SPD2-5.2 2-foot Xpol Dish 28.1
Radio Waves SPD3-5.2 3-foot Xpol Dish 31.1
Radio Waves SPD4-5.2 4-foot Xpol Dish 34.4
Radio Waves SPD6-5.2 6-foot Xpol Dish 37.5
RFS SPF2-52A 2-foot Dish 27.9
RFS SPF3-52A 3-foot Dish 31.4
RFS SPF4-52A 4-foot Dish 33.9
RFS SPF6-52A 6-foot Dish 37.4
RFS SDF4-52A 4-foot HP Dish 33.9
RFS SDF6-52A 6-foot HP Dish 37.4
RFS MA0528-19AN 7.5-inch Panel 19.0
RFS MA0528-23AN 1-foot Panel 23.0
RFS MA0528-28AN 2-foot Panel 28.0
Table 4-3: Recommended Antennas
4.3.1 Initial Antenna Mounting
The antenna should be the exact model recommended by the path and site planning engineer(s).
The antenna should be mounted at the proper height, mast/mounting location and polarization
orientation also as determined by the path and site planning engineer(s). The model type,
location and orientation of the antenna is critical with respect to achieving proper path clearance
as well as to mitigate external or self-interference from nearby or co-located systems operating in
or near the same frequency band.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 23
2006-05-17
The antenna shall be mounted in a restricted area and in a manner which prevents
long-term human exposure to the transmitted RF energy. To comply with FCC
and Industry Canada regulations, the minimum safe distance from the antenna for
continuous human exposure is 22 feet (6.7m). Warning signage may be required
in accordance to federal or local regulations.
The antenna structure must be secure and safe with respect to the mounting of the antenna,
transmission system weight, and the combined weight of any personnel that may climb or attach
to the structure. The combined weight of items and forces on the structure must be carefully
considered in the design and construction of the structure. This must include the weight bearing
on the structure in the highest wind conditions possible in the region, and with respect to all
objects that may be affixed to the structure.
If additional objects may be affixed to the structure in the future, it may be important to evaluate
both the mechanical impact of these planned additions (with respect to wind and weight loading)
as well as the potential impact to RF interference and frequency coordination if additional radio
equipment is anticipated. This is especially important if future equipment is likely to operate
within the same frequency band.
Once you have mounted, cabled and aligned the antenna, your goal will be to never require
modification, so this prior planning can be important in the path and site planning stage, and the
construction of the antenna structure.
Follow the antenna manufacturer’s instructions for mechanical mounting of the antenna. Make
sure that there will be enough room around the antenna to allow for alignment activities (moving
the antenna in vertical and horizontal arcs) and for the RF transmission line to connect to the
antenna connector unobstructed and within the specified bend radius requirements of the
transmission line.
At this point, the antenna mounts should be fully secure to the structure, the feed of the antenna
securely mounted to the antenna (if the feed is a separate assembly), and the azimuth and
elevation adjustments not completely tightened to prepare for the antenna alignment activity. It is
a good practice to connect the transmission line to the antenna connector as early in the process
as possible, so as to reduce the opportunity for debris or moisture to enter either the antenna
connector or the transmission line connector. Otherwise, a connector cover or other temporary
measures can be taken to keep the connector clear. Extra care must be taken if the antenna is
installed during inclement weather to be certain that no moisture gets inside the antenna
connector at any time.
The antenna may be aimed at this point in the general direction required for the link. Using a
compass, a reference bearing, binoculars or any other similar device, you may point the antenna
in the direction (generally) of the far-end, and slightly tighten the azimuth and elevation
adjustments enough so that the antenna maintains its general position and is safe to be left
without additional securing. See the Exalt White Paper entitled Antenna Alignment for more
information on the general topic of antenna alignment techniques.
!
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 24
2006-05-17
4.3.2 Transmission Line from Antenna to Radio
For the external antenna version, most installations use coaxial transmission line for the
connection between the antenna and the radio device. In typical EX-5r installations, this coaxial
transmission line is very short, and may not require or benefit from RF lightning protection.
However, a properly grounded RF lightning protection device is recommended, where necessary,
and is highly recommended when the RF cable length exceeds 10 feet.
Coaxial transmission line may be either solid-shield or braided-shield variety. Solid-shield cables
are more resistant to external signal coupling and interference, but are generally stiffer than
braided cables. The path or site engineer(s) should be consulted to assure that the proper
materials were chosen for the installation with all factors considered.
Generally, the larger the diameter of the transmission line, the lower the loss. So for longer runs
of transmission line, larger diameter cables are highly advised. However, at every frequency,
there is a maximum diameter cable that will support the operating frequency, so be certain to
verify the specifications. This should have all been determined during the path and site planning
process.
In some cases, the choice of transmission line will not be coaxial cable, but instead will be air-
dielectric waveguide. This is an expensive solution and is generally not necessary, but may be
required for very long transmission line runs and/or for very long link distances and/or for
systems that require extremely high reliability.
The following is a representative sample of transmission line types that are recommended for this
radio:
• Andrew HELIAX® LDF4-50, 1/2-inch solid copper shielded coaxial cable, 6dB/100ft.
• Andrew HELIAX® LDF4.5-50, 5/8-inch solid copper shielded coaxial cable, 4.7dB/100ft.
• Times LMR-600, 1/2-inch braided coaxial cable, 7.3dB/100ft.
• Times LMR-900, 5/8-inch braided coaxial cable, 4.9dB/100ft.
There are several other brands and models of transmission line that are perfectly acceptable. As
mentioned, for extremely long transmission lines and/or extremely long radio paths, it may be
necessary to use waveguide transmission line instead of coaxial transmission line. In these cases,
waveguide type EW52 is recommended, with a loss of 1.3dB/100ft.
It is critical that the transmission line and antenna be capable of supporting the same type of
connector, or easily adapted. Keep in mind that it can be important to minimize the number of
connectors and adaptors, so it is ideal if they match directly without adaptation. In most cases,
transmission line will allow for N-type male connectors and antennas have N-type female
connectors. For waveguide, the waveguide flange can typically accommodate a direct adapter to
an N connector, or alternatively, the antenna can be purchased with a direct waveguide
connection. But often a flexible coaxial jumper is needed to connect between the waveguide to
the antenna, as waveguide is generally inflexible and can be mechanically challenging to align to
the exact antenna connector location.
HELIAX is a registered trademark of Andrew Corporation
All rights reserved.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 25
2006-05-17
If possible, connect the primary transmission line directly to the antenna. It is desired to have the
fewest possible pieces of transmission line in the system, to minimize losses and points of failure
from connectors, and the antenna can typically accommodate a direct connection if planned in
advance. You may use a 90-degree adaptor for the connection to the antenna, if necessary – but
be certain to confirm that all connectors and transmission lines are properly specified for the
operating frequency (5250 to 5850 MHz, in this case) with minimum loss, proper impedance (50
ohm) and proper Voltage Standing Wave Ratio (VSWR) characteristics.
Transmission line connector termination is perhaps the most critical element of the installation.
Many ‘factory built’ RF transmission lines may actually not provide the proper characteristics
for proper transmission, despite their published specifications, often due to the fully- or semi-
automated process of factory termination, which may not have considered the frequency of your
system. When buying pre-terminated transmission line, it is strongly advised to receive
documentation of the test measurements on the connected transmission line showing that the loss
characteristics and VSWR are within specified limits specifically at your operating frequency. In
addition to factory-built transmission line, self-terminated transmission line can suffer the same
issues. Always follow the manufacturer’s termination process EXACTLY, and only use the
manufacturer’s authorized tools and connectors for a given transmission line type. The
manufacturers of transmission line typically offer instruction and certification for transmission
line termination, and may also provide videos illustrating the process. There is no amount of
extra care, education, precision and effort that can be overstated for this process.
Once the transmission line is connected to the antenna, traverse the exact route provided by the
site planner (if applicable). There may be a need for a small excess of transmission line near the
antenna to accommodate both the need for extra slack as the antenna is loosened and moved for
the alignment process, as well as to accommodate a drip loop for the transmission line, and the
initial transmission line securing hardware and grounding near the antenna. In addition, the
transmission line is typically very stiff, and can provide undue pulling force on the antenna
connector. Take care to align the cable with the connector in a manner that does not provide any
torque or strain on the connector.
Consult your transmission line manufacturer for proper transportation, hoisting, securing and
grounding process. Always be very mindful to the entire length of transmission line to assure that
the transmission line is never twisted or kinked or over-bent past the specified bend radius. Once
a transmission line is over-bent or kinked, it will likely never recover its specified characteristics,
even after straightening and will often be completely unusable.
The opposite end of this primary transmission line will typically terminate directly into the
externally-mounted radio. When the radio is mounted in an enclosure or indoors, the
transmission line will typically terminate at the building or enclosure egress point. This is the
location where the RF lightning arrestor shall be located. A proper termination to the connector-
type of the lightning arrestor shall be made at this location. Once again, a drip loop may be
required, and proper securing hardware and grounding needs to be accommodated.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 26
2006-05-17
As soon as practical, the connected ends of the transmission line to the antenna and lightning
arrestor should be weatherproofed, but this process should be delayed as long as possible to be
certain that all systems are working properly before weatherproofing is applied, as once
weatherproofing is applied, you may be required to remove it if any tests or changes are needed
before installation is complete. With this in mind, if the installation is occurring during inclement
weather, extra care must be taken at all times to assure that no moisture enters any connector at
any time. If moisture is suspected to have compromised the antenna or transmission line, it may
render those devices useless without any means for remedy except for full replacement.
It bears mention that on rare occasion, the antenna might be mounted indoors and behind a
window. In these cases, there would not be a need for drip loops or an RF lightning arrestor. In
cases such as these, a very short transmission line can typically be connected directly between
the antenna and the radio mounted nearby. In these cases, the weatherproofing process can also
be omitted.
4.3.3 RF Lightning Arrestor
The purpose of the RF lightning arrestor is to provide a direct path to ground for any lightning
strike that may couple to or directly hit the outdoor transmission system or antenna structure. As
such, the RF lightning arrestor prevents the associated voltage and current from entering the
building or enclosure, where it might harm the radio equipment, other equipment, or humans.
The following lightning arrestors are examples of proper devices for this model:
• Polyphaser AL-LSXM
• Andrew BB-BNFNFE-26
The RF lightning arrestor shall be mounted and grounded in accordance to the manufacturer’s
recommendations. It shall be placed as close as possible to the radio, if the radio is mounted
outdoors, or for indoor-mounted radios, at the egress point where the next piece of transmission
line enters the building or enclosure. Minimize the distance to the egress to lessen the
opportunity for lightning to couple to or strike the section of transmission line that is unprotected
(if any). Where possible, a bulkhead connector should be used to eliminate any opportunity for
this risk. If cable lengths behind the arrestor and into the egress are kept substantially short (less
than 1m), this is typically considered safe practice. Your qualified electrician or installer shall be
consulted in all cases of grounding and lightning arrestor implementation.
4.3.4 Transmission Line from Egress to Radio
Once again, it is desired to have a single transmission line section from the egress to the radio RF
connection. Always minimize the number of connectors and adaptors. For indoor runs, a cable
ladder or tray may be needed to properly secure the cable. In some cases, a short flexible jumper
may be needed to allow for ease of connection to the radio’s RF connector. A properly specified
90-degree connector can often eliminate this need. Or an installation with space accommodated
around the radio for a gentle bend radius of the transmission line can also accommodate a direct
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 27
2006-05-17
connection. In all cases, be certain that the transmission line is not providing any pulling force
onto the RF connector of the radio. Transmission lines can be very stiff, and can damage the
connector if not dressed properly. Also, follow the transmission line manufacturer’s instructions
for proper cable securing devices.
4.4 Antenna Alignment
Antennas must be installed at both ends of the planned link to commence precision alignment.
Refer to the Exalt White Paper entitled Antenna Alignment for more information on this topic.
Antennas are typically aligned using the radio hardware to aid in the precision alignment
process. However, there are many very useful tools available to aid in this process, inclusive of
devices that are specifically designed solely for the purpose of aligning antennas. Some examples
of these devices are:
• XL Microwave Path Align-R
• Teletronics 17-402
Using these devices can be extremely advantageous compared to using the radio, as they employ
many unique facilities to aid in this process. In addition, using these tools makes it possible to
align the antennas before the radio equipment is delivered on site. However, many installers
routinely use the radios as the means for antenna alignment, and they have much success with
this method as well.
If using the radio, there are two primary facilities to aid in antenna alignment:
• Internal alignment beeper
o This function must be enabled within the GUI or by CLI. When enabled, the
beeper frequency rises as RSL increases and falls when RSL decreases. Align the
antennas separately for azimuth and elevation, at each end separately, until the
highest beeper frequency is reached. Then disable the beeper function using the
GUI or CLI.
• Browser-based GUI interface RSL reading
o The browser-based GUI interface of the radio indicates the current RSL in dBm.
The browser-based GUI should only be used for antenna alignment if using the beeper is not
practical. If this method is required, refer to section 5.2 for instruction on using the browser-
based GUI. The RSL reading can be read on a PC or any handheld computing device that
supports an HTML browser and Ethernet connectivity.
There is a slight delay in RSL reading on the browser-based GUI as RSL levels
change. In this case, fine alignment should be done in small adjustments, with a
small gap of time, to see the impact of the adjustment on the GUI display.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 28
2006-05-17
Section 5 – Configuration and Management
5.0 Using the Command Line Interface (CLI)
The EX-5r utilizes a CLI through a Telnet (Ethernet) connection as a means to set key
parameters on the system.
5.0.1 Connecting to the Radio with a Telnet Connection
For a Telnet connection to the radio through the Ethernet AUX port, using Windows OS,
perform the following steps:
• Open a Command Prompt, or MS-DOS prompt (Start>Run>cmd)
• Enter the following at the command line of the command prompt window:
C:\>Telnet <IP Address>
Note: The default IP address of the EX-5r is 10.0.0.1
Note: You may reset the IP address to the default address by radio reset (as described in
section 4.2.4)
Note: Your computer needs to be in the same IP subnet as the radio to use the Telnet
function.
5.1 Using the CLI
Using CLI, when prompted, enter the administration level login and password:
The default administration login is admin and password is admin
You may reset to the default administration password by performing a radio reset (as described
in section 4.2.4)
After logging in, there are three menu choices available as shown.
Figure 5-1: Main CLI Menu
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 29
2006-05-17
Selecting 1 or 2 will reveal the Configuration or Status menus respectively. Selecting 3 will exit
from the CLI/Telnet session.
For all screens, the following selections can be made:
0 = back to previous screen
9 = help
Ctrl+\ (control and backslash keys) = exit session
The following table depicts the complete CLI tree structure:
1. Configuration
1. IP address and Mask
2. IP default gateway
3. Administration
1. System time and date
2. System reboot
3. Password
4. File transfer
5. File activation
2. Status
1. Refresh summary (not active in this release)
2. More…
1. Radio alarm
2. Radio performance
3. Radio performance reset
4. Radio status
5. Radio log
Table 5-1: CLI Tree Structure
5.2 Introduction to the Graphical User Interface (GUI)
The browser-based GUI provides the primary user interface for configuration and
troubleshooting of the radio and radio system.
A computer or hand-held device with a conventional html browser and Ethernet port is required.
Microsoft Internet Explorer is the preferred browser to use with the EX-5r, however other
browsers may operate without issue.
5.2.1 Preparing to Connect
If the radios are new out-of-the box, both radios will be configured as Radio B, and both radios
will have the same (default) IP address. The initial priority will be to configure one radio to
Radio A, and to have two different IP addresses assigned, one unique to each radio.
Regarding IP address, follow these instructions to change to your desired IP address:
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 30
2006-05-17
1. Connect to the browser-based GUI using the default IP address, and change the IP
address through the GUI interface, as described in this section.
The factory default IP address of the radio is 10.0.0.1
If you do not know the radio’s current IP address, you may perform a radio reset
as described in section 4.2.4.
In order to connect to the radio’s Ethernet port and use the browser-based GUI
interface, your computer will need to match the radio’s IP address subnet. With
this in mind, either change the radio’s IP address through the CLI to match the
subnet of your computer, or change your computer’s IP address to match the
subnet of the radio’s IP address (such as a computer IP address of 10.0.0.10 if
trying to connect to a radio set to the factory default IP address of 10.0.0.1).
One end of the link must be configured to Radio A configuration. Connect to the browser-based
GUI, and change the configuration through the GUI interface, as discussed in this section.
5.2.2 Making the Connection
It is best/easiest to configure one radio at a time, on a bench, before taking the radios to the field
for installation.
• If using the external antenna version, terminate the RF connector with a 50-ohm
termination or a fixed attenuator of at least 20dB. See section 4.2.1.
• Apply power to the radio. See section 4.2.2 or 4.2.3.
At this point, do not connect the radios in a back-to-back configuration. If the
radios are currently set to factory default settings, both radios are configured as
Radio B and will not communicate, and both radios will have the same IP address,
which will cause configuration issues.
As mentioned in section 5.2.1, your computer’s IP address subnet must match the
radio’s IP address subnet to connect via Ethernet.
Once you have connected to the radio using Ethernet, you are ready to login to the browser-
based GUI.
5.2.3 Logging In
Launch your computer’s browser software. Microsoft Internet Explorer is the recommended
browser, but other browsers may also provide full functionality. If there are issues with other
browsers, you are encouraged to report them to Exalt customer service, however, you may be
required to use a different browser to overcome issues immediately.
On the browser address bar, type the IP address of the radio, as shown below.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 31
2006-05-17
Figure 5-2: Initiating Browser Connection
After pressing the return/enter key on your keyboard, or the Go button on the browser, the
following window will appear.
Figure 5-3: Browser Login Window
5.2.4 Login Privileges
There are two levels of privileges for login:
• Administrator (admin) – Has complete rights to view, edit and configure
• User (user) – Has rights for limited viewing only with no edit or configuration rights
The default login names and passwords are as follows:
User name Default Password
Administrator admin admin
User user user
Table 5-2: Default Login Information
For the purposes of configuration, the Administrator login credentials will be needed. Type the
user name and passwords for Administrator level and press OK. The screen below should be
displayed.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 32
2006-05-17
Figure 5-4: Radio Information Page
5.3 Quick-Start
At this stage, it may be desirable to apply some basic configurations to the radio terminal so that
a link can be established on the bench.
Follow the steps in the Quick Start Guide that came with the radio. A summary of the items
that need to be configured is listed here.
• Set Radio IP Address at each end.
o Each end should have a different IP address from each other and also not match
your computer’s IP address or any address already assigned if the radios will be
part of a larger network.
o It may be required to change the IP address of your computer after you have
changed the IP address of the radio so that the IP subnet is matching.
o Radio IP address is on the Administration Settings Page
• Set one radio to Radio A, and the other to Radio B
o The radio selected as Radio A needs to be configured.
o Radio A/B selection is on the System Configuration Page called “Endpoint
Identifier”
o Even though both radios are defaulted as Radio B, this should configuration
should be confirmed on the radio intended to be Radio B.
If all other parameters are still configured at factory default settings, the radios may now be
connected back-to-back to verify that the link is communicating and to perform any other tests
desired. Back-to-back bench testing is described in Appendix B.
Section 5.4 describes each page of the GUI in more detail. Most of the configuration parameters
are fairly intuitive. The following parameters must match at both ends in order for the link to
communicate.
• Link Security Key (Administration Settings Page)
• Bandwidth (System Configuration Page)
• RF Frequency (System Configuration Page)
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 33
2006-05-17
• Link Distance (System Configuration Page)
• TDD Frame Size (System Configuration Page)
Changing any of these parameters will cause a temporary loss of link. The GUI will
warn of this condition and will provide an opportunity to cancel changes.
5.4 Graphical User Interface Fundamentals
The browser-based Graphical User Interface (GUI) provides the primary interface for all
configuration and management.
There are three primary sections of the GUI:
• Summary status information section (in the upper left corner)
• Navigation tree (along the left edge)
• Main window
Figure 5-5: GUI Sections (Radio Information Page)
5.4.1 Summary Status Section
This section provides an easy at-a-glance review of the system status.
The top bar illustrates the alarm condition of the link. The background color of this bar is
equivalent to the color of the LINK LED on the radio front panel(s), as described in section
4.1.2. The information inside the bar is equivalent to the entry of the Link Name, as set by the
Administrator in the Administration Settings Page, as described in section 5.6.
The background color of the left box illustrates the summary alarm conditions of the local radio
(the radio that matches the IP address to which you are connected). The color follows the same
convention as the rear panel SUMMARY LED, as described in section 4.1.2. The information
inside the bar illustrates the IP address and the Endpoint Identifier (Radio A or Radio B).
The background color of the right box illustrates the summary alarm conditions of the remote
radio (the radio that is linked to the local radio).
Main
Window
Summary
Status
Navigation
Tree
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 34
2006-05-17
The ‘local’ radio might be the near-end or the far-end radio, depending on
how you have connected to the radio’s management interface. The terms ‘local’
and ‘remote’ simply refer to the orientation of the radio terminals relative to the
IP address that you are managing. When making certain changes to a near-end
radio without first making changes to the far-end radio, it is possible to disconnect
the link unless configuration changes are made back to their original settings.
When making changes that have the opportunity to disrupt the link, always
change the far-end radio first, then the near-end radio to match.
The Summary Status Section can allow the browser-based GUI to be used as a rudimentary
management system. Shrink the browser window to display just the top bar or also the radio
information, and several separate browsers may be placed on your computer desktop
simultaneously. When a window status changes to yellow or red, you may quickly expand that
browser window to determine the issues.
Figure 5-6: Collapsed Browser Windows for Summary Status of Multiple Radios
5.4.2 Navigation Section
Navigating the browser-based GUI is similar to browsing folders on a typical window-based
computer.
The menus that can be expanded are illustrated with a plus (+) to the left of the page name.
Clicking on the plus or on the page name title will expand the menu to reveal sub-menus that are
available. Likewise, menus may be collapsed when a minus (–) sign appears to the left of the
page name.
Management pages are indicated with an X to the left of the page name. Clicking on the X or on
the page name will reveal the specific page within the main window.
5.5 Radio Information Page
This page provides general information about the local radio terminal. This information can be
very helpful in a troubleshooting situation and for your records.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 35
2006-05-17
Figure 5-7: Radio Information Page
5.6 Administration Settings Page
This page allows entry of many general parameters for the radio system. The current entries are
listed in one column, and any changes desired may be entered in the New Value column.
After all of the desired changes are entered in the New Value column, pressing the UPDATE
button will enact these changes.
Most of the entries on this page are self-explanatory. Unique or important items are listed below.
• The date and time fields should be filled in as soon as practical. Events are captured
with time/date stamps that can be very valuable information for troubleshooting.
• The link security key should be set to something other than the factory default setting
(12 characters, all zeros) at each end. The security key must match at both sides of the
link. Leaving the security key at the factory default setting makes the radio link open
for hacking by an experienced RF hacker with the same radio model. Also, it is
advisable to use a unique security key for each link. Using the same security key for
every link in your network may allow the radio to link to any other radio with the
same security key, which can be problematic in multi-radio networks.
o The security key must be exactly 12 characters long. Any printable ASCII
character may be used in any position. The security key IS case sensitive.
Changing the link security key will interrupt data transmission until the
opposite end is changed to match. Always change the far-end radio first, then
the near-end radio. The temporary mismatched security key may also mute
the Ethernet connection (depending on the selection of in-band or out-of-
band management, and which Ethernet connector is used for management).
It may be necessary to physically connect to the AUX port to gain access to
the GUI so that the second radio’s security key can be changed to match, at
which point the link and traffic will return to normal. Alternatively, the link
security key can be changed on each terminal, individually, when there is no
link between the radios.
• Admin and User passwords should be set to something other than the factory default
setting, and should not match each other. Leaving the Admin password at the factory
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 36
2006-05-17
default setting leaves an opportunity for anyone on the connected network to hack into
the radio and change settings.
o The system requires that you type the changed password twice, once in the main
window and once again in the confirmation window below. If the passwords do
not match, and the UPDATE button is pressed, the password will not change, and
will remain set to the previous password.
Figure 5-8: Administration Settings Page
5.7 System Configuration Page
The System Configuration Page allows adjustment of several critical system parameters.
Most of the entries on this page are self-explanatory. Unique or important items are listed below.
• Radio Transmit Power must be set to the designed level. The professional installer
shall set this value, or dictate the value of this setting to the system administrator per
the system design and local regulations. In many cases, the setting of this value must
be proper in order to comply with legal restrictions that apply to the use of this device.
Improper setting can result in liability to the user and/or installer.
Changing Radio Transmit Power may temporarily interrupt traffic. Small
changes in output power will normally not interrupt traffic, but larger changes may.
Do not adjust Radio Transmit Power to a value higher than is legally allowed. Do not
adjust Radio Transmit Power lower than the link budget and fade margin can afford.
The link may be lost and unrecoverable through GUI control. If the link is lost due
to reduction of Radio Transmit Power, travel to the radio location(s) may be required
to reset the value.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 37
2006-05-17
• Bandwidth must be set to the designed level. The value of this setting should have
been determined in the design/engineering stage. The Bandwidth setting must also
match at both ends of the link. The Bandwidth setting directly relates to the capacity,
latency and the number of TDM circuits that can be supported. It may also be critical
to set this with respect to the local RF noise and interference profile, and/or in relation
to any multi-link network design.
Changing Bandwidth will temporarily interrupt traffic. The Bandwidth setting
must match at each end – adjust the far-end radio first, then the near-end radio.
Changing Bandwidth will change the radio’s threshold. A narrower bandwidth has
better threshold performance, therefore if changing to a wider bandwidth, there is an
opportunity that the link may be lost and unrecoverable through GUI control. Check
the available fade margin and determine if the impact to threshold will be sufficient to
maintain the link and the desired performance. If the link is lost due to increasing
Bandwidth, travel to the radio location(s) may be required to reset the value.
• RF Frequency must be set to the designed point. The value of this setting should have
been determined in the design/engineering stage. The RF Frequency must also match
at both ends of the link. It may be critical to set the RF Frequency with respect to the
local RF noise and interference profile, and/or in relation to any multi-link network
design.
Changing RF Frequency will temporarily interrupt traffic. The RF Frequency
setting must match at each end – adjust the far-end radio first, then the near-end
radio. If the RF Frequency is changed to a frequency that has interference, there is an
opportunity that the link may be lost and unrecoverable through GUI control. If the
link is lost due to changing RF Frequency, travel to the radio location(s) may be
required to reset the value.
• Endpoint Identifier must be set so that one end of the link is set to Radio A and the
opposite end set to Radio B. In single-link networks, it is unimportant which end is
designated A or B. However, in multi-link networks, it may be important to orient the
links so that, at any co-location site (where there are multiple radios of the same type
at the same site), all radios have the same Endpoint Identifier (all A or all B). See
section 2.5 for more information.
Changing Endpoint Identifier initiates a reboot of the radio. The reboot will
temporarily interrupt traffic.
• Link Distance must be set to the range that is equal to or greater than the actual
link distance. The value of this setting should have been determined in the
design/engineering stage.
Changing Link Distance will temporarily interrupt traffic. The Link Distance
setting must match at each end and must not be less than the actual link distance
– adjust the far-end radio first, then the near-end radio. If the Link Distance is changed
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 38
2006-05-17
to a setting that is less than the actual distance there is an opportunity that the link
may be lost and unrecoverable through GUI control. If the link is lost due to this
situation, travel to the radio location(s) may be required to reset the value. If the Link
Distance setting is set to a distance that is unnecessarily higher than the actual link
distance, the radio may have substantially reduced performance with respect to
throughput and latency.
• TDD Frame Size must be set to the designed level. The value of this setting should
have been determined in the design/engineering stage. The TDD Frame Size must also
match at both ends of the link. The TDD Frame Size setting directly relates to the
capacity, latency and the number of TDM circuits that can be supported over the given
link distance. In multi-link networks, especially where there are collocated links, it
may also be important to set all radios to the same TDD Frame Size to avoid self-
interference. The (future) GPS or internal synch function may be necessary for these
types of networks. See sections 2.4 and 2.5 for more information.
Changing TDD Frame Size will temporarily interrupt traffic. The TDD Frame
Size must match at each end – adjust the far-end radio first, then the near-end radio.
If the TDD Frame Size is set to a value that cannot be supported for the link distance,
there is an opportunity that the link may be lost and unrecoverable through GUI
control. If the link is lost due to this situation, travel to the radio location(s) may be
required to reset the value.
Figure 5-9: System Configuration Page
5.8 Ethernet Interface Configuration Page
The Ethernet Interface Configuration Page allows the administrator to set the alarming and
duplex settings of the Ethernet connection.
Depending on the connected equipment, optimum Ethernet performance may be achieved by a
variety of combinations of speed/duplex settings. That is, the system may perform best if both
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 39
2006-05-17
devices (the radio and the connected equipment) are set to auto-negotiate, both hard set to
100/Full, or one set to 100/Full and the other auto-negotiate. Device performance varies widely.
Therefore, it can be advantageous to attempt different combinations of settings to determine the
best combination for your application.
Figure 5-10: Ethernet Interface Configuration Page
5.9 T1/E1 Configuration Pages
This page allows the administrator to selectively enable or disable T1 or E1 circuits, one at a
time. If T1 or E1 circuits are not going to be used, they should be disabled so that alarms are
turned off and so that more throughput is allocated to the Ethernet interface. Every T1 or E1
input enabled, even if there is no T1 or E1 signal present, reduces the aggregate throughput of
the Ethernet interface by roughly 3Mbps (for T1) or 4Mbps (for E1).
This page toggles between T1 or E1, as required, by pressing the ‘SET TO T1’ or ‘SET TO E1’
button. Pressing this button will warn the administrator that a reboot is necessary, and the radio
will reboot if the administrator continues. This will interrupt traffic, and it may be necessary to
re-login to the radio after the reboot is completed. Changing T1/E1 mode will self-coordinate
across the link if the link is active. In other words, this change only needs to occur at one side of
the link. In addition, enabling and disabling T1/E1 circuits also will self-coordinate across the
link if the link is active.
Certain combinations of TDD Frame Size, Link Distance and Bandwidth will
limit the number of T1/E1 circuits that can be carried by the radio. In these cases,
the selections on the T1/E1 Interface Configuration pages will not be available,
starting with Port 4. For example, if only three (3) circuits can be carried, Port 4
will not be available for configuration and will be disabled. If only two (2)
circuits can be carried, Port 3 and Port 4 will not be available.
5.9.1 T1 Configuration Page
The T1 Configuration Page allows the administrator to enable/disable each individual T1, set the
Line Build Out (LBO) and Line Code (either AMI or B8ZS). Also, AIS (alarm indication signal)
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 40
2006-05-17
may be enabled/disabled for each input. If enabled, the radio will place an AIS code on the
output of the associated interface if/when the link fails or there is no T1 signal available from the
far end to provide the user at the local end.
Figure 5-11: T1 Configuration Page
5.9.2 E1 Configuration Page
The E1 Configuration Page allows the administrator to enable/disable each individual E1. Also,
AIS (alarm indication signal) may be enabled/disabled for each input. If enabled, the radio will
place an AIS code on the output of the associated interface if/when the link fails or there is no E1
signal available from the far end to provide the user at the local end.
Figure 5-12: E1 Configuration Page
5.10 File Transfer Page
The File Transfer Page allows the administrator to upload and download files to and from the
radio. Uploading files will place these new files in a reserve memory space. After files are
uploaded the File Activation Page is used to enable these files. Uploading files does not
automatically enable them.
It is advisable to check the File Activation Page before uploading new files. New
file uploads will over-write the secondary file location. If important files reside in
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 41
2006-05-17
the secondary file location, you may wish to download these files first before
uploading new files.
Downloading files is a two-step process. You must first select the type of file to download, select
the DOWNLOAD button and wait for the radio to prepare the file for download. A second
page/link will appear as shown below. Follow the instructions on the page to download the file.
Figure 5-13: File Transfer Page
Figure 5-14: Download File Link
File download and upload can be useful if you are configuring several radios to very similar
settings. Also, for record-keeping, a copy of the configuration file can help restore the radio to
the original installed settings. In addition, a copy of the Exalt default configuration file can be
helpful to re-configure the radio to factory settings.
If copying the same configuration file into multiple radios, some care needs to be taken, because
some parameters will match that may be undesirable. However, it can be easier to change just a
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 42
2006-05-17
subset of parameters rather than every parameter, therefore copying configuration still serves a
very useful purpose. The following list of parameters may cause problems or confusion if they
match at each of a link.
• Radio Name
• Endpoint Identifier
• IP address
However, it is helpful to have the following parameters match:
• Link Name
• Link Security Key (although each link should be different)
• Admin and User passwords
• Bandwidth
• RF Frequency
• Link Distance
• TDD Frame Size
• T1/E1 configurations
• Ethernet configurations
5.11 File Activation Page
The File Activation Page is used to move stored files or uploaded files into use on the radio. The
page indicates which file is currently in use, and which file is available for use. Pressing the
SWAP button places the file shown in the Alternative File column into active state and moves
the Current File into the alternative file location.
In all cases, the radio will require a reboot after a new file is selected using
the SWAP function. This will place the radio out of service for a short period.
Figure 5-15: File Activation Page
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 43
2006-05-17
5.12 Alarms Page
The Alarms Page provides an easy-to-read summary of the alarm status of both the local and
remote radio. Generally, the colors shown on this page will reflect the color of alarms that are
shown on the radio front panel. However, additional detail is illustrated on this page to aid in
quick assessment of issues and status.
Refer to section 4.1.2 for more information about the front panel LEDs. Additional information
about the Alarm status is provided here.
• The Internal Fan alarm monitors all three internal fans. The radio only requires one
fan to be operational for full specification performance. The additional fans are
provided for redundancy and to increase overall reliability. If one or two fan alarms
are yellow or red, it is prudent to plan to install a spare radio at the earliest opportunity
and return the radio for repair (RMA authorization required). If all three fans are in
alarm, the radio should be taken out of service more immediately, as damage may
occur to the internal electronics, especially in hotter ambient environments or thermal
exchange from neighboring equipment.
• The Temperature alarm monitors the internal temperature of the unit, based on
specific points inside the radio chassis. It is normal for the internal temperature to be
above the ambient temperature, and thus the temperature may be higher than the
highest specified ambient temperature. When the internal electronics reach a point that
is higher than the normal temperature rise at the highest ambient temperature, the
temperature alarm will turn to yellow. In this case, the radio should be powered down
as soon as possible, and an investigation as to the cause of the temperature rise should
commence and be resolved before the radio is put back into service. In almost all
cases, a temperature alarm will be due to an external cause, unless the fans in the unit
are also in alarm, in which case, the alarmed fans are likely the cause.
Figure 5-16: Alarms Page
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 44
2006-05-17
5.13 Performance Page
The Performance Page provides statistical information about the performance of the system in
relation to the integrity of the user data and the RF link. The list below provides a brief summary
of this information.
• Current BER indicates the current Bit Error Rate of the link. If the link is operating
perfectly, this should indicate zero. Generally, the link should remain at a BER less
than 1x10-6 (1 bit out of every million bits errored). This is the threshold performance
specification and the standard to which the link was engineered. However, radio links
can and will be affected by weather, interference and other external sources and will
occasionally have a higher error rate. A link will remain operational unless the BER
exceeds 1x10-3 (1 bit out of every hundred bits errored). Consult the link design
engineer for an understanding of the predicted error rate of the radio link as it has been
designed. Many applications will be largely unaffected by bit errors, but TDM circuits
(e.g. T1 or E1) are more sensitive. Also, if the link operator is providing a service
guarantee, this value may need to be monitored or examined in cases of service issues.
The behavior of BER in relation to other alarms or measurements and external events
can be very helpful in troubleshooting activities.
• Current RSL is the measurement of the received signal level at the radio antenna port.
This is the measured level of the RF signal coming from the opposite end of the radio
link. The link was engineered to a specific RSL by the link design engineer, and this
RSL should be obtained during installation and stay relatively stable during the
operation of the link. RSL can and will vary as a result of weather changes and other
external sources, such as path obstructions. Once again, this variation was part of the
original design to achieve a certain level of performance over time. When the RSL
falls to a level within roughly 3dB of the threshold specification, bit errors will occur.
When the RSL falls below the threshold specification, the link will disconnect and
will not reconnect until the RSL is above the threshold specification. The behavior of
RSL in relation to other alarms or measurements and external events can be very
helpful in troubleshooting activities.
• Errored Seconds (ES) indicates the total number of seconds that have occurred where
there has been at least one bit error, since the last time that the radio statistics counter
has been reset. Generally, ES are not a significant concern, so long as they are not
continuous or above the anticipated performance based on the original link
engineering goals. If ES are continuous or at a high rate, this is normally an indication
of poor link performance due to poor RSL or interference, or severe impact by
weather or other environmental factors. However, similar to the performance factors
listed above, ES can and will occur in any radio link. Once again, the link engineer
should be consulted to determine the original design goals, and compare actual
performance to these expectations to determine if any improvements are necessary or
if other problems may be causing excessive ES.
SES (as described below) do not register as ES. In other words, the ES counter will
count ONLY seconds that are errored and are not SES.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 45
2006-05-17
• Severely Errored Seconds (SES) are similar to ES, but this counter keeps track of
every second where the bit error rate exceeds 1x10-3, over the period since the last
counter reset. If SES are continuous or at a high rate, this is normally an indication of
poor link performance due to poor RSL or interference, or severe impact by weather
or other environmental factors. However, similar to the performance factors listed
above, SES can and will occur in any radio link. Once again, the link engineer should
be consulted to determine the original design goals, and compare actual performance
to these expectations to determine if any improvements are necessary or if other
problems may be causing excessive SES.
• Minimum RSL indicates the worst-case Received Signal Level that has occurred since
the last counter reset. It can be helpful to know if the RSL has dropped significantly
from normal level, or has reached a level near or below threshold.
• Maximum RSL indicates the best-case RSL that has occurred since the last counter
reset. This indicates the best performance that the radio link has seen, which is
normally equal to the installed value, which is usually the designed value.
• Time Since Reset indicates the amount of time that has passed since the last counter
reset. This can help quantify the seriousness of other statistics, such as ES and SES,
such as if there have been high numbers of ES and/or SES over a relatively short
period of time.
Each end of the link statistics on this page can independently be reset using the Reset Statistics
button for the Local or Remote radio. It is good practice to reset the statistics at the time that the
link is commissioned (after all antenna alignment is complete and stable RSL at designed levels
is achieved, and no more system reboots are anticipated). It is also a good practice to re-visit this
statistics page on a regular basis, make records of the performance and reset the statistics so that
counters can more precisely pinpoint issues.
Resetting statistics from one end will also reset the statistics for the same radio at
the opposite end. That is, if the Local statistics are reset, logging into the remote
end will show the Remote statistics on that end (which is the local radio in the
first condition) as having been reset at the same time.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 46
2006-05-17
Figure 5-17: Performance Page
5.14 Event Log Page
The Event Log Page is used to review a list of the events that have been logged by the radio. At
the present radio firmware release, the following items are listed in the event log.
• Alarms
• Alarms clearing (Normal)
• Radio Reboots
Every event is tagged with the time that the event took place and a severity/type for further
categorization. The event log also allows filtering to limit the view of the log to the lowest level
of information that is desired. For example, a filter level of Minor will show Minor, Major and
Critical.
The log contains the last 200 events and will purge in a FIFO basis, erasing the oldest entries to
make room for the newest entries.
The event log may be cleared, if desired. The event log may be downloaded from the radio (this
feature may require a future software upgrade), or a screen capture of your browser window can
serve as a useful record for troubleshooting.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 47
2006-05-17
Figure 5-18: Event Log Page
5.15 Diagnostic Charts Page
The Diagnostics Charts Page is used to aid in troubleshooting. This page illustrates the historical
(and current) performance for three parameters, RSL, BER and Radio Temperature.
The horizontal scale illustrates 120 points of time measurement and is synchronized for all three
graphs. The scale may be changed from seconds, to minutes, to hours, to days. Therefore, you
may display the last two minutes (120 seconds), last two hours (120 minutes), last 5 days (120
hours) or last 4 months (120 days) of information. All of this information is stored, so it is
possible to review all of these periods for short and long-term performance analysis. The right
hand side of the graph represents the most recent measurement and data ‘marches’ from the right
towards the left at every interval.
The vertical scale of each chart independently scales to show the maximum resolution based on
the maximum variation of the data over the selected measurement period.
Using your cursor, you may point to any spot on any of the three charts and all three charts will
illustrate the measurements taken for that time interval in the upper left corner of each chart. The
time interval is indicated by T=(value). This is followed by the value of the measurement, listing
the highest value, lowest value and average value measured over that interval of time.
For example if the time interval displayed is seconds, and you hold your cursor over the graph at
the T=50 mark on the horizontal axis, the measurements shown indicate performance from 50
seconds ago. The high/low/average values shown will be measurements that were made across
the 1 second interval that data was measured.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 48
2006-05-17
Changes in RSL often have an impact to BER, and this can be confirmed by looking for
synchronized events. When BER events occur without corresponding changes in RSL, this is
normally an indication of interference, atmospheric changes, transmission system issues (such as
problems with cables, connectors or antennas) or possibly radio hardware problems.
It also can be useful to determine if changes in radio temperature are occurring, and also if they
are having any impact on RSL or BER. If the radio is mounted in an environmentally controlled
location, this has less relevance. However, temperature monitoring can be helpful to assure that
the radio is being operated within specifications.
Figure 5-19: Diagnostic Charts Page
5.16 Spectrum Analyzer Page
This page is currently not available. In a future software release, a built-in spectrum analyzer will
be provided and documentation on this feature provided.
5.17 Reboot Page
This page is used to enact a reboot of the radio. The function should never be required, but can
be used in cases of emergency. All configurations that require reboot will automatically reboot
when the administrator confirms.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 49
2006-05-17
Figure 5-20: Reboot Page
5.18 Manual Page
The Installation & Management manual (this document, or the version that matches the installed
firmware) is available within the GUI. Click on Manual and the manual will be displayed within
the browser window. Your browser must support viewing Adobe pdf files for this function to
operate. Once the manual is displayed, you may select the SAVE function within the pdf window
(typically the upper left button, with a floppy disk icon) to download the manual to your
computer.
Figure 5-21: Manual Page
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 50
2006-05-17
Section 6 – Troubleshooting
This section provides information regarding troubleshooting of common issues and alarms on the
EX-5r.
Exalt radio systems have been designed by Exalt’s expert engineers with extensive experience
through multiple generations of microwave radio design. As such, these new generation systems
contain extensive diagnostic tools, alarm indications and troubleshooting aids. And, as compared
to other systems in their class, they should be much easier to install, maintain and troubleshoot.
The GUI of the radio system provides information that will substantially aid in troubleshooting.
Refer to section 5 for details.
Please feel free to contact Exalt Customer Care if you need further assistance with issues you
may have with your Exalt radio, or for suggestions on how the radio and/or documentation may
be improved.
6.1 General Troubleshooting Practices
Troubleshooting a microwave radio link can be a complex task. In many cases, troubleshooting
should be approached as a process of elimination by proving which portions of the system are
operating properly.
In a vast majority of cases, failures or poor performance of microwave links is attributed to
something other than the microwave radio hardware. In this respect, the back-to-back bench test
(as described in Appendix B) is a very important means to determine if the radio hardware is
operating properly and to eliminate many variables in the troubleshooting process.
If a back-to-back bench test fails, then the radio hardware is either broken or the radios are
configured improperly. Upgrading the radio to the most current release of firmware, and/or
resetting the radio to critical factory settings and following the original Quick Start instructions,
and the instructions in this manual, will often help confirm if configuration issues are the cause
of failure.
The most common issues with microwave radio links are:
• An improperly terminated RF cable
• Multipath propagation
• RF interference
• Path obstruction
• Misaligned antenna
• Faulty antenna
• Improper grounding
• Insufficient link margin in the design/implementation
• Moisture in the transmission system (antenna feed and/or RF cable)
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 51
2006-05-17
If the radio link has been operating without issues, and has exhibited new behavior of poor
performance or has become completely inoperative, the troubleshooting process should pay close
attention to any conditions that may have changed between the time when the system was
working without issue and the time when issues started. Also, it can be helpful to compare some
performance parameters of the system before and after the presence of issues. Often the source of
the issues can be determined by thoughtful consideration of changes, such as:
• Changes in weather, including high winds
• Changes made to the radio equipment, transmission system or connected equipment
• New radio systems or electronic equipment nearby radio or transmission system
• New construction nearby either end of the link, or along the path
• Growth of trees, flooded fields, changes in rivers/lakes along the path
Verify that configurations are set as follows:
• RF Frequency matches at each end
• Bandwidth matches at each end
• Link distance matches at each end
• TDD Frame Length matches at each end
• Endpoint Identifier is different at each end (one end Radio A, one end Radio B)
• Ethernet interfaces are enabled, as desired
• AUX Ethernet is set for in-band, or out-of-band NMS, as desired
• T1/E1 enabling matches at each end
• Link security key matches at each end
Also, the ExaltCalc should have been used in the design phase to determine optimum setting of
Bandwidth and TDD Frame Length for the given link distance, and provides guidance to the
expected RF link performance as well as the throughput, latency and number of T1/E1 circuits
supported.
6.2 Typical Indications of Issues
In many cases, microwave radio users will not notice changes or degradation to the radio system
until the radio system fails completely or becomes highly errored or significantly intermittent.
However, regular management of the radio system can help indicate changes in performance that
have not yet impacted user performance, but may impact performance at a later date if left
unchecked or unaddressed. In this manner, the administrator has the opportunity to be very
proactive, by monitoring the radio link performance regularly, and watching for unexplained or
unexpected changes in performance and trends in performance changes.
Most importantly, monitoring radio system received signal level (RSL) over time will indicate
that the performance of the radio system is relatively steady. If there is a long-term drop in RSL,
this should be addressed. If there is erratic or unsteady RSL, this should be addressed. Some
level of RSL changes are to be expected, and weather patterns and related multipath will cause
dramatic RSL changes that may result in system outage. However, that outage should not occur
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 52
2006-05-17
at a significantly greater rate than the designed long-term performance. Consult the path design
engineer for more information about link reliability expectation and anticipated RSL deviation.
In addition, regular inspection of the transmission system (RF cables and antennas), and paying
close attention to changes along the path, such as construction or tree height, or new microwave
radio installations nearby, can be extremely helpful and proactive.
When link performance is very poor, alarms on the radio front panel and within the radio’s
management system will indicate particular failures. Consult this manual for more information
on the specific alarms and diagnostics, or contact Exalt Customer Care for assistance.
Exalt Customer Care is primarily motivated to determine if the radio hardware is faulty and
needs to be returned for repair, and to help execute an effective and efficient repair and return
process for radio terminals believed to be faulty. However, Exalt Customer Care will provide
advice regarding the rest of the radio system and RF path engineering and environment, and
advise steps that may be taken to troubleshoot the system.
End-users should get first-line support from the installer and/or designer of the system. In many
cases, an in-depth understanding of RF design is required, and on-site analysis, and special test
equipment, may be necessary. Troubleshooting will be much more expeditious if the professional
installer and/or link designer is able to review the system in-person and review the management
information from the radio’s GUI. In turn, if the professional installer and/or link designer
contacts Exalt Customer Care, the process to rectify the system will normally be much more
expedient.
6.3 Improper RF Cable Termination
Improper RF cable termination is a very common problem. In many cases, this will be a problem
that occurs during installation, and not a problem that will suddenly appear. However, if cables
are moved or flexed, especially near the termination points, and radio errors, changes in RSL or
other performance issues occur, this is a certain sign of this issue.
Another relatively easy method to test for this condition is to decrease the output power of the
radio system (at each end, one end at a time). A poor RF cable termination may be reflecting too
much RF energy back into the radio system, and reducing output power will reduce the reflected
energy at a faster rate than the transmitted energy towards the far-end. Be careful not to reduce
the output power to the point where the radio’s threshold is reached. Typically, a reduction of
just 3 to 6dB will be enough to see if this is the issue. If reduction of output power clears the
error condition, this is the likely cause.
A reflectometer, or meter that can read voltage standing wave ratio (VSWR) at the operating
frequency (5250-5850 MHz) can be used to identify poor terminations as well as poor antenna
feeds.
• The Praxsym VSWR meter is an excellent tool for this purpose
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 53
2006-05-17
6.4 Multipath Propagation
Multipath propagation is a term that encompasses changes to the RF path, such as reflections
and/or refraction, that can cause partial or complete destruction of the radio signal, and thus
excessive bit errors and/or system outages.
Rapid changes in temperature, inversion layers, humidity, air pressure, water evaporation, as
well as standing water or moisture on objects along the path, are all examples of changes that can
cause multipath propagation. New building construction near either end of the path, or along the
path, may cause new reflection characteristics.
If your system has been operating without issue and is suddenly experiencing issues that are
symptomatic of a certain time of day, or related to change in climatic events or some of the
external factors listed above, this is likely the cause.
A professional RF path engineer should be consulted in these cases. Often, minor repositioning
of the antennas at either or both ends may reduce or eliminate these problems.
6.5 RF Interference
RF interference is usually indicative of another radio system nearby either end of your radio
system, or aimed towards one or both ends of your radio system – usually at or near the same
frequency, and usually a signal level similar to the level of the signal of your own radio system.
Other forms of RF interference also exist, such as electronic equipment that may be placed close
to the radio chassis, or transmitters that may couple onto the cabling or grounding system of the
radio. Microwave ovens and wireless communication devices used nearby the equipment or
cabling are examples of electronic equipment interference.
The EX-5r operates in the 5250 to 5850 MHz band. Wireless Internet devices and
cordless phone technology may also use this frequency band. It may be necessary
to separate the EX-5r chassis, cabling system and antenna from these types of
devices.
RF interference, like most other causes of problems, will be indicated by significant bit errors
and/or system outages.
One means to determine presence of interference is the use of a spectrum analyzer that covers the
same range as the radio system. A professional RF engineer can use a spectrum analyzer to
locate sources of interference, measure these sources, and determine potential remedies that may
be taken to operate in the presence of interference.
If a spectrum analyzer is not available, the radio’s RSL port may be used to determine RSL
levels of interfering signals. By turning the far-end radio off, the residual RSL measured by the
radio indicates the level of interference seen by the radio. It is possible that interference levels
below that which can be measured will still have impact on the radio system – especially if the
radio system has low fade margin or is using a high order modulation.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 54
2006-05-17
The EX-5r provides considerable flexibility to tune to different frequencies across the band. This
is the easiest method to use to try to avoid existing interference. In addition, the occupied
bandwidth of the radio may be reduced, and along with re-tuning, this can be very effective,
however throughput will be reduced.
Repositioning the antenna and/or changing polarization, or upgrading the antenna to a higher
gain and/or using a high-performance antenna, are all secondary means that can be used. It may
be necessary to perform combinations of both radio changes (retuning, occupied bandwidth
reduction) and antenna system changes (position, polarization, upgrade).
6.6 Path Obstruction
A path obstruction is defined as an object, such as a building or tree, that is impeding the proper
path clearance of the radio system. If the system design was proper at the time of installation,
and issues have arisen at a later date, an updated path profile and survey may be necessary to
identify changes in the path clearance.
6.7 Misaligned Antenna
At the time of initial installation, it is critical that the antennas at each end are properly aligned
and that the designed RSL is achieved. However, antennas may become misaligned due to high
winds, changes in the guy-wiring systems keeping the antenna mast stable, or loosening of the
antenna mounting hardware. A reduction in the RSL of the link will be symptomatic of this
condition, but this condition is not the only condition that results in a reduction of RSL.
However, if conditions have occurred where the antenna alignment may be suspected, the
mechanics may need to be inspected, and the antennas may need to be realigned.
6.8 Faulty Antenna
A faulty antenna is rare, but still a possibility. In some cases, the mechanics of the antenna feed
can get moisture inside, or a bad or weak connection in the pin and connector structure of the
antenna may occur. A VSWR measurement of the antenna connection can be made to verify this
condition.
6.9 Improper Grounding
In addition to being a potential human safety issue, improper system grounding is a somewhat
common condition that can cause continuous bit errors, or bit errors when metal objects come in
contact with the radio, transmission system or racking system. If touching the radio causes
errors, grounding is the cause. It can be difficult to identify grounding problems, but a
professional electrician can normally inspect a system and identify if there are deficiencies in the
grounding system.
6.10 Insufficient Link Margin
Ideally, your link was designed with enough link margin (fade margin) to allow for multipath
propagation and atmospheric fading and remain reliable. In some cases, link margin is
compromised by economic factors, such as using low-cost RF cabling or lower-cost antennas
that have less gain or deficient performance compared to higher cost transmission system
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 55
2006-05-17
components. In some cases, there may be antenna size restrictions that forced the design to not
have the desired amount of link margin.
If the link was designed with poor link margin, there will likely be many cases of bit errors and
outages. The antenna system and transmission line system, can be upgraded to help reduce this
opportunity.
If the link design was installed with sufficient margin, but RSL has reduced, the remaining link
margin may no longer be enough to maintain a reliable link. Causes of RSL reduction have been
described above, but are usually due to new path obstruction(s) or antenna misalignment due to
wind or mechanical factors. The antenna height or location can be changed to overcome new
obstructions. Realignment of the antenna, and/or improvement to mechanical structures can help
overcome antenna misalignment.
6.11 Moisture in the Transmission System
If the connectors on cables and antennas and egress junctions are not properly weatherproofed,
moisture can get into the transmission system and cause significant error conditions and erratic
performance. In many cases, the transmission system will need to be replaced if this occurs. A
VSWR meter is one means to identify such issues. Physical inspection can be helpful, and if
changes to the weatherproofing occur (such as cracks), the weatherproofing should be replaced
before it leaks.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 56
2006-05-17
Appendix A – Specifications
A-1 Physical Specifications
Physical Configuration Single-piece Outdoor Unit (ODU)
Dimensions (H x W x D) 12 x 12 x 5 inches; 30.5 x 30.5 x 12.7 cm
Weight 11.3 pounds; 5.1 kg
Operating Temperature -40 to +65 degrees C; -40 to +149 degrees F
Altitude 15,000 feet; 4.6 km
Humidity 95% non-condensing
A-2 System Specifications
Frequency Bands 5250 to 5350 MHz
5725 to 5850 MHz
Tuning Resolution 1MHz
Output Power (at full power) +24dBm (0.25W), Mode 1, 5725-5850 MHz
+21dBm (0.125W), Mode 2, 5725-5850 MHz
+18dBm (0.063W), Mode 3, 5725-5850 MHz
+13dBm (0.02W), all Modes, 5250-5350 MHz
Output Power attenuation range 20dB
Power Control Step Size 0.5dB
Selectable Modulation Modes Mode 1 (QPSK), Mode 2 (16QAM), Mode 3
(64QAM)
Selectable Channel Bandwidths 8MHz, 16MHz, 32MHz, 64MHz
Receiver Threshold (BER=10e-6)
Maximum RSL Mode 1: -25dBm error-free; +3dBm no damage
Selectable Frame Lengths 0.5ms, 1ms, 2ms, 2.5ms, 4ms, 5ms
Maximum Aggregate User Capacity
Error Floor 10-12
Frequency Stability +7ppm
Link Security 96-bit Security Code
Regulatory Compliance FCC 15.247; FCC 15.407; IC RSS-210
FCC ID TTM-105P25R
IC ID 6254A-105P25R
(dBm) Mode 1 Mode 2 Mode 3
8MHz -88 -80 -74
16MHz -85 -77 -71
32MHz -82 -74 -68
64MHz -79 -71 -65
(Mbps) Mode 1 Mode 2 Mode 3
8MHz 13 27 40
16MHz 27 55 82
32MHz 55 110 165
64MHz 110 216 216
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 57
2006-05-17
Emission Designator(s)
A-3 Interfaces
RF
Connector N-type Female
Impedance 50 ohms
T1/E1 (x4)
Connector RJ-45 (RJ48C), Female
T1 Impedance 100 Ohms, balanced
T1 Line Codes AMI, B8ZS, selectable
T1 LBO Settings (in ft.) 0-133, 133-266, 266-399, 399-533, 533-655
T1 Clocking Speed 1.544Mbps
T1 Compliance ANSI T1.102-1987; ITU-T; G.823; GR-49T-CORE
E1 Impedance 120 Ohms, balanced
E1 Line Codes HDB3
E1 Clocking Speed 2.048Mbps
E1 Compliance CEPT-1; G.703; ITU-T-G703
Loopback Modes Remote Internal, Remote External, Local Line
Ethernet/Power
Connector RJ-45, Female, auto-MDIX
Interface Speed 10 or 100Mbps
Duplex Half, Full, Auto, selectable
Compliance 802.3
Input Voltage 48VDC nominal
Consumption <1.2A @ 48V (<58 Watts)
Sync
Connector RJ45, Female
Signal 1pps (GPS)
Injector Power
Connector 6-pin barrier strip
Input Voltage 40-60Vdc
Consumption <1.2A @ 48V (<58 Watts)
5250-5350MHz 5725-5850MHz
8MHz 9M1W7D 9M5W7D
16MHz 18M2W7D 17M4W7D
32MHz 36M1W7D 33M7W7D
64MHz 71M0W7D 65M1W7D
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 58
2006-05-17
Appendix B – Back-to-back Bench Testing
B-1 Introduction
Back-to-back bench testing is used to test the radio before installation, pre-configure the radio
and connected equipment before installation, or in the troubleshooting process to identify if the
radio hardware is the source of a system issue. It is a critical process, and often required or
highly desirable for any installation or troubleshooting exercise. This section describes how to
properly configure the radio hardware and accessories for a proper back-to-back bench test.
For radio testing, there are two types of back-to-back configurations:
- Basic test (test general operation)
- Specification performance verification
B-2 Basic Test
The basic test is a simple test of radio functionality. It verifies that the radios are configured
properly to communicate to one another, and verifies general radio performance to be
operational.
For the basic test on the external antenna version, the following items are needed:
- Radio pair
- Powering source
- RF interconnect cable(s) (any length – short is best)
- Fixed or variable attenuation, between 60 and 90dB at 5800 MHz (note:
attenuation for basic test does not to be calibrated or precise)
- Computer/Terminal with either Serial or Ethernet port (helpful, but not necessary)
If no computer is available, you will need the temporary hardware
configuration key
Connect the items as follows:
- Connect attenuation and (known-good) RF cable(s) between radio pair, as shown
in Figure B-1.
- Configure one radio to be Radio A, the other to be Radio B
- Power on radio pair
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 59
2006-05-17
Figure B-1: Basic Back-to-Back Bench Test Configuration
Connect the items as follows:
- Connect attenuation and (known-good) RF cable(s) between radio pair, as shown
in Figure B-1.
- Configure one radio to be Radio A, the other to be Radio B
- Power on radio pair
For the basic test on the integral antenna version, the following items are needed:
- Radio pair
- Powering source
- RF absorbing material (e.g. Emerson Cummings Echosorb, minimum 60dB at
5GHz)
Computer/Terminal with Ethernet port
The RF absorbing material is used in place of fixed cables and attenuators.
After connecting and powering on, the GUI may be observed to verify that the Link and Status
alarms both green. If they are green, the radios are communicating and all radio-related alarm
conditions are normal.
B-3 Specification Performance Verification
The specification performance verification is a more detailed test that allows you to verify that
the radio’s output power and threshold specifications are being met. This test can be challenging,
and potentially impossible, to do with the integrated antenna versions. This is typically a test that
would only be performed in a troubleshooting scenario, but can be performed before installation
if you wish to have a detailed record or be extremely certain of the radio performance before
installation.
This test is identical to the basic test, but in place of the fixed attenuation, it requires the use of
calibrated variable attenuation, or a set of calibrated fixed attenuators, or a combination of both,
adding to a total attenuation value of 120dB, as measured at the operating frequency of the radio
(roughly 5.8 GHz, in this case). In addition, a voltmeter or computer is also required.
Radio B Radio A
Attenuation
(
60-90dB
)
RF Ports
Power
(
connect last
)
Power
(
connect last
)
Computer
Console Port
Serial Port
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 60
2006-05-17
Connect the system as in figure B-1, using the combination of fixed and variable attenuation in
between the radio’s RF ports. Connect the voltmeter to either radio’s RSL test point and the
associated reference ground connection.
In this test, it is highly desirable to utilize RF cables that are pre-tested, known good and the
insertion loss is known at the operating frequency. If the cables are short (in the range of 6 feet or
less), you can estimate the loss, including connectors, to be less than 1dB each. The estimate of
cable loss is critical to the overall confidence of the measurements made in this test.
There are two critical specifications that can be tested in this configuration:
- RF output power
- Radio receiver threshold
To measure transmitter output power, simply insert any value of attenuation between the radios
between 60 and 90dB. Make sure that both of the radio’s RF output power settings are at
maximum. Using the voltmeter, measure RSL in both directions. The RSL measured value
should match the appropriate value in accordance to the inserted attenuation. Such as:
RSL = RF Output Power – cabling losses – total attenuation
You can further verify output power by adjusting output power using your computer (in
administration mode) and evaluate the corresponding change to the RSL measurement.
For threshold testing, the key is to insert a measured amount of loss that is close to, but not
exceeding the radio’s specified system gain. System gain is the difference between RF output
power and receiver threshold. At your selected modulation and bandwidth settings, determine the
specified threshold performance, and choose a value of attenuation (including cable losses) that
adds to roughly 5 to 15dB less than the system gain.
For example, if the threshold for your measurement is -88dBm and the output power is +24dBm,
so the System Gain is 112dB. Choose a value of total attenuation in the range of roughly 100-
105dB. Once this attenuation is inserted, verify RSL readings as in the first step, and then, using
your computer, reduce radio output power in 1dB steps until the receiving radio (the one whose
output power you are not adjusting) Link LED turns from green to yellow. This would indicate
that threshold has been reached. At this point, verify the equation for system gain using the new
output power level setting and verify that the threshold performance is meeting or exceeding the
published specification.
Due to the variation of measurements and accuracies involved in this test, you
may read a measurement that is 1 to as much as 2dB off of the expected value. It
should be of no concern unless the value is more than 3dB worse than expected.
Once threshold is verified in this direction, you may repeat the process in the opposite direction
by adjusting RF output power of the radio at the opposite end. You should return the first radio
to its original power setting before adjusting the second radio.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 61
2006-05-17
You may wish to perform threshold measurement tests for all combinations of bandwidth and
mode (modulation) that you are using – especially if testing for the purposes of troubleshooting.
It should not be necessary to vary center frequency, as this does not have any appreciable impact
on system gain performance – however, any combination of settings may be tried to gain
confidence in the radio performance parameters.
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 62
2006-05-17
Appendix C – Interface Connections
C-1 Introduction
This appendix provides the pin number assignment and wiring information for the connectors on
the EX-5r. All connectors are shown as viewed from the radio front panel.
C-2 T1/E1 Connections
There are two dual-T1/E1 connections. Channels 1 and 2 are on one connector, while channels 3
and 4 are on the other. Channel 1 and 2 are closest to the Power/Ethernet connector near the
corner of the unit.
Figure C-1: T1/E1 Connectors
C-3 Ethernet/Power Connection
The Ethernet/Power connection of the EX-5r implements Auto-MDIX for the Ethernet function,
and therefore either ‘straight’ or ‘crossover’ Ethernet cables may be used at the data end of the
injector, independent of the wiring of the connected device. The connector on the radio unit
carries DC power on the unused pins. The connector on the injector (the non-DC side of the
injector) is wired as a standard Ethernet connection and implements the Auto-MDIX feature.
Figure C-2: Ethernet/Power Connector
C-4 Sync Connection
The Sync connector is normally connected to a (custom) GPS antenna system.
Pin Function
1 #1 or #2 Tip Out (from radio)
2 #1 or #2 Ring Out (from radio)
3 #3 or #4 Tip Out (from radio)
4 #1 or #2 Tip In (to radio)
5 #1 or #2 Ring In (to radio)
6 #3 or #4 Ring Out (from radio)
7 #3 or #4 Tip In (to radio)
8 #3 or #4 Ring In (to radio)
Pin Function
1 Paired with Pin 2
2 Paired with Pin 1
3 Paired with Pin 6
4 DC+
5 DC+
6 Paired with Pin 3
7 DC-
8 DC-
8
1
8
1
Exalt Communications, Inc.
EX-5r Installation & Management
5000007 63
2006-05-17
Figure C-3: Sync Connector
Pin Function
1 +5V Power Out (to antenna)
2 Ground
3 Tx Data (to antenna)
4 Enable (to antenna)
5 Rx Data (from antenna)
6 1PPS Timing Signal(from antenna)
7 Unused
8 Unused
8
1
5000007
2006-05-17
© May 2006
Exalt Communications Inc.
580 Division St. Campbell, CA 95008 USA
