For Serial Nos.
720,000 & Higher
Part No. 4500-231 Rev. A
FR524/FR604/
FR724
2
3
READ OPERATOR’S MANUAL BEFORE
OPERATING OR SERVICING EXMARK EQUIPMENT.
TABLE OF CONTENTS
Description Page

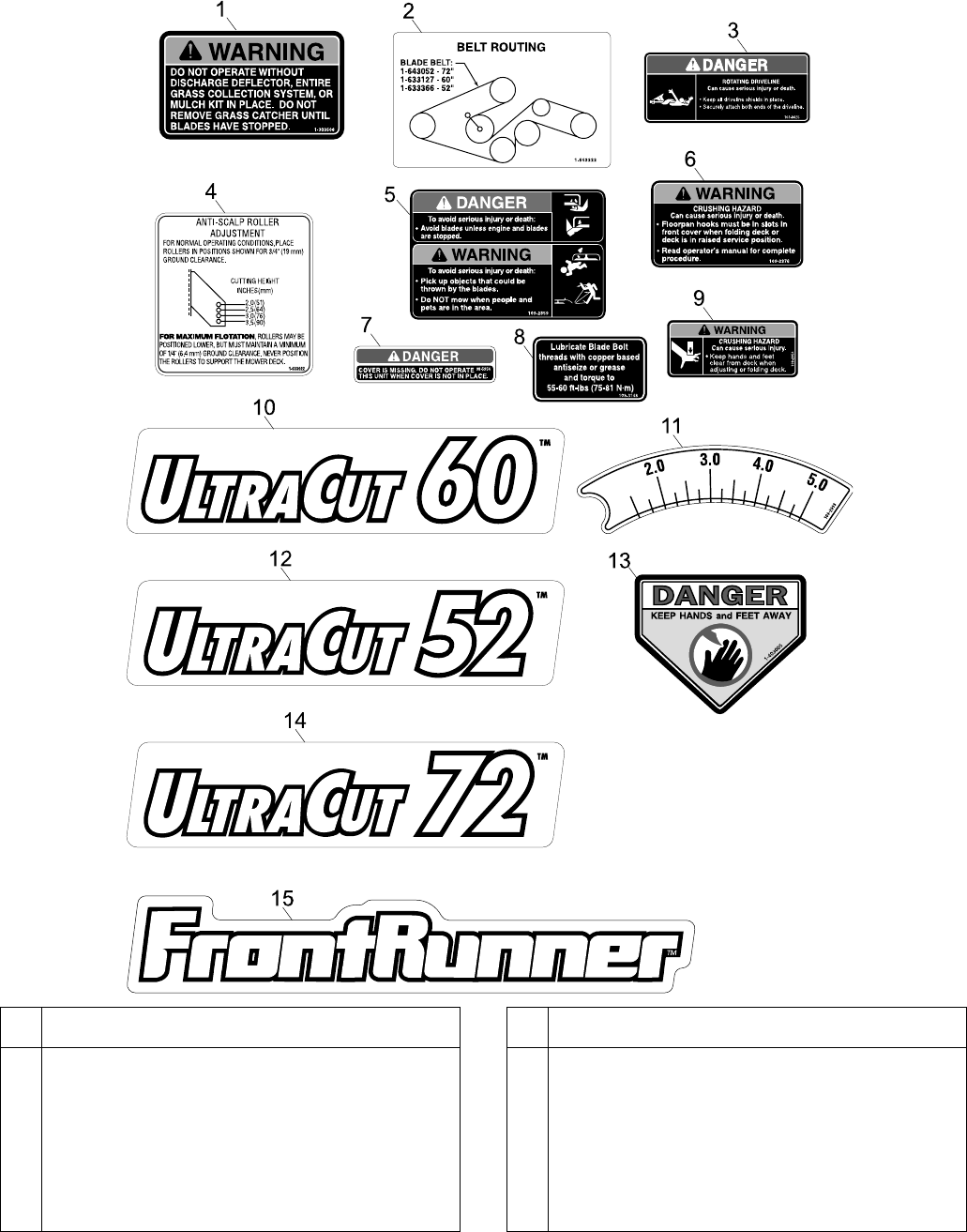

Decal Group.................................................................... 9
Deck Group..................................................................4-5
Front Frame Group ......................................................6-7
Gearbox Components ..................................................... 8

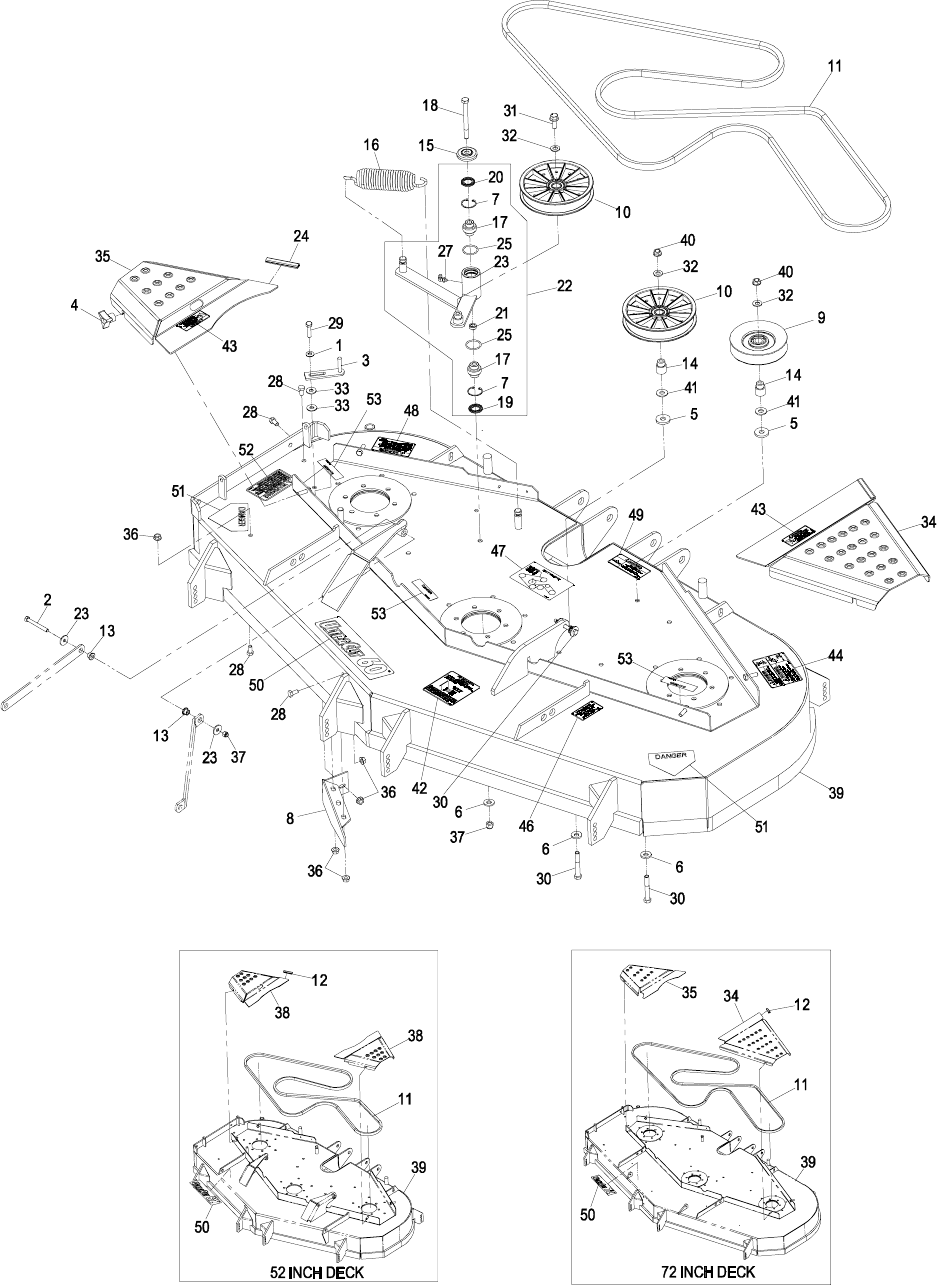

FR524, FR604, FR724 DECK GROUP
4
Item
Part No.
Description
Qty.
1 1-303334 Washer, Spring Disc 5/16 ......................1
2 323-20 Screw, HH 3/8-16 x 3-1/4.......................2
3 1-322110 Wld, Belt Guide......................................1
4 1-323385 Knob, 3 Prong........................................4
5 1-373034 Washer ..................................................2
6 98-5975 Washer, Spring Disc 3/8 ........................3
7 32120-10 Ring, Retaining ......................................2
8 1-602913 -01 Wld, Baffle Discharge ............................1
9 1-603805 Sheave, Idler..........................................1
10 109-2796 Sheave, Flat Idler...................................2
11 1-633366 Belt, Blade Drive (52”)............................1
1-633127 Belt, Blade Drive (60”)............................1
1-643052 Belt, Blade Drive (72”)............................1
12 109-2985 Strip, Seal, 2”.........................................2
13 103-3900 Spacer, Strut..........................................4
14 1-633456 Bushing, Idler.........................................2
15 103-2916 Guard, Top.............................................1
16 103-3330 Spring, Extension...................................1
17 103-3504 Bearing, Spherical..................................2
18 98-5961 Screw, HH 3/8-16 x 4 Gr8 ......................1
19 103-3505 Seal, Double Lip.....................................1
20 103-3506 Seal, Single Lip......................................1
21 103-5677 Spacer ...................................................1
22 103-5693 Asm, Deck Idler .....................................1
23 63-8410 Washer ..................................................4
24 105-7699 Strip-Seal, 3"..........................................2
25 106-7159 O-Ring ...................................................2
27 302-40 Zerk, 90° 1/4-28 .....................................1
28 322-2 Screw, HH 5/16-18 x 5/8 ........................5
29 322-6 Screw, HH 5/16-18 x 1 1/4 .....................1
30 323-12 Screw, HH 3/8-16 x 2 1/2 .......................3
Item
Part No.
Description
Qty.
31 3234-11 Screw, HH FLG 3/8-16 x 1..................... 1
32 3256-24 Washer, 3/8 SAE................................... 3
33 3256-3 Washer, 5/16 Std................................... 2
34 109-2392 Shield, Belt LH (60”) .............................. 1
109-5405 Shield, Belt LH (72”) .............................. 1
35 109-2391 Shield, Belt RH (60”).............................. 1
109-5404 Shield, Belt RH (72”).............................. 1
36 32128-20 Nut, Whizlock 5/16-18 ........................... 6
37 3296-39 Nut, Nyloc 3/8-16................................... 3
38 109-2393 Shield, Belt (52””)................................... 2
39 109-4383 Asm, Deck W/Decals (52”) .................... 1
109-5393 Asm, Deck W/Decals (60”) ....................1
109-5406 Asm, Deck W/ Decals (72”) ................... 1
40 3290-357 Nut, Whizlock 3/8-16 .............................2
41 3256-4 Washer, 3/8 Std..................................... 2
42 1-633922 Decal, Anti-Scalp................................... 1
43 109-2354 Decal, Crushing Hazard......................... 2
44 109-2359 Decal, Deck Warning............................. 1
46 109-3148 Decal, Bolt Torque................................. 1
47 1-643222 Decal, Belt Routing................................ 1
48 109-2376 Decal, Crushing Hazard......................... 1
49 103-8425 Decal, Driveline ..................................... 1
50 103-1145 Decal, Ultracut (52”)............................... 1
103-1146 Decal, Ultracut (60”)............................... 1
103-1147 Decal, Ultracut (72”)............................... 1
51 1-403005 Danger, Decal........................................ 2
52 1-303508 Decal, Discharge Warning..................... 1
53 98-5954 Decal-Danger ........................................3
54X109-4382 Asm, Deck Complete (52”) ....................1
109-4380 Asm, Deck Complete (60”) ....................1
109-5419 Asm, Deck Complete (72”) ....................1
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Kit also includes items #2. & #37
X Complete deck assembly includes all items from pages 4 & 6 except drive shaft assembly, drive shaft assembly hardware, deck
chain, and deck chain hardware on page 5.

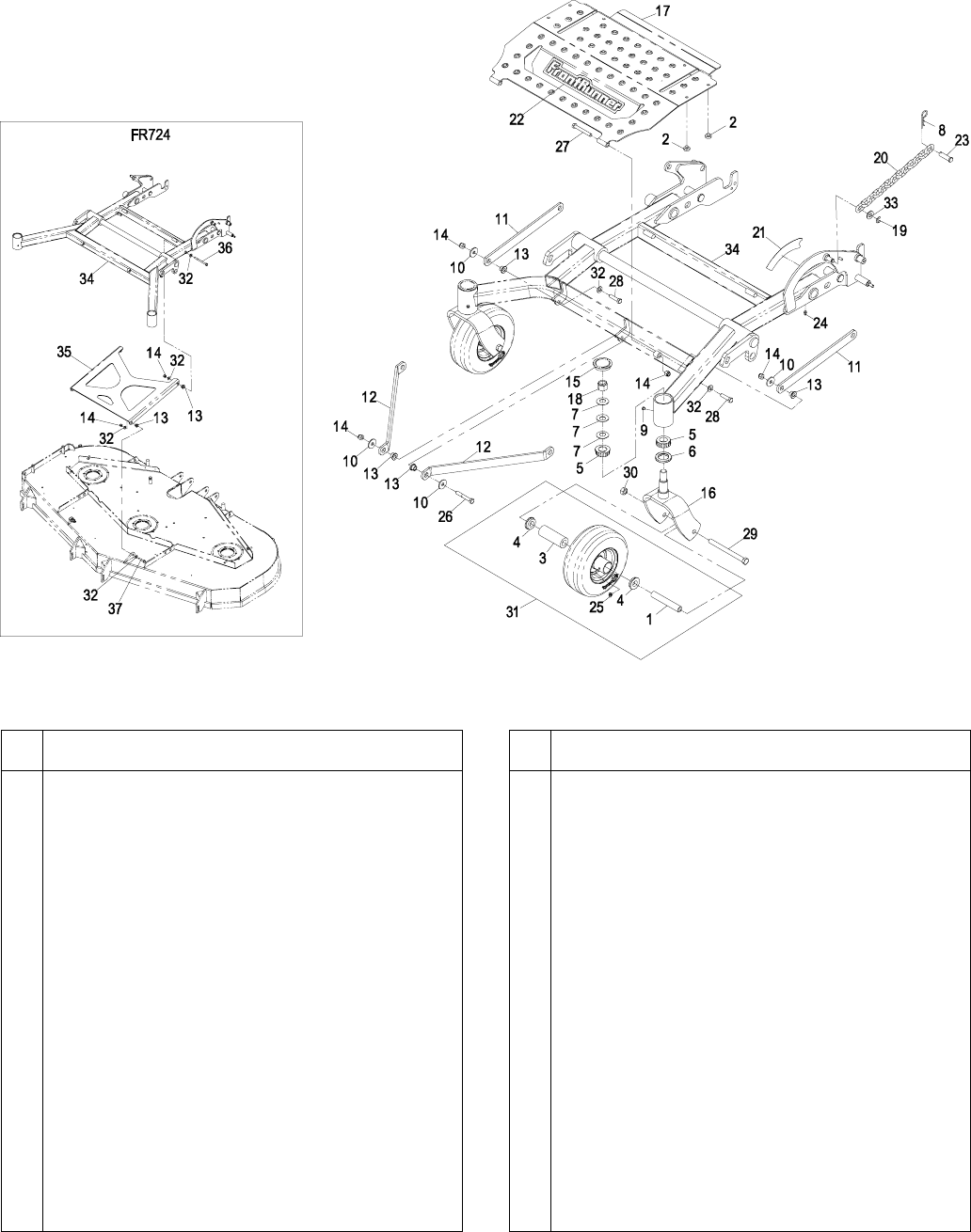

FR524, FR604, FR724 DECK GROUP
5

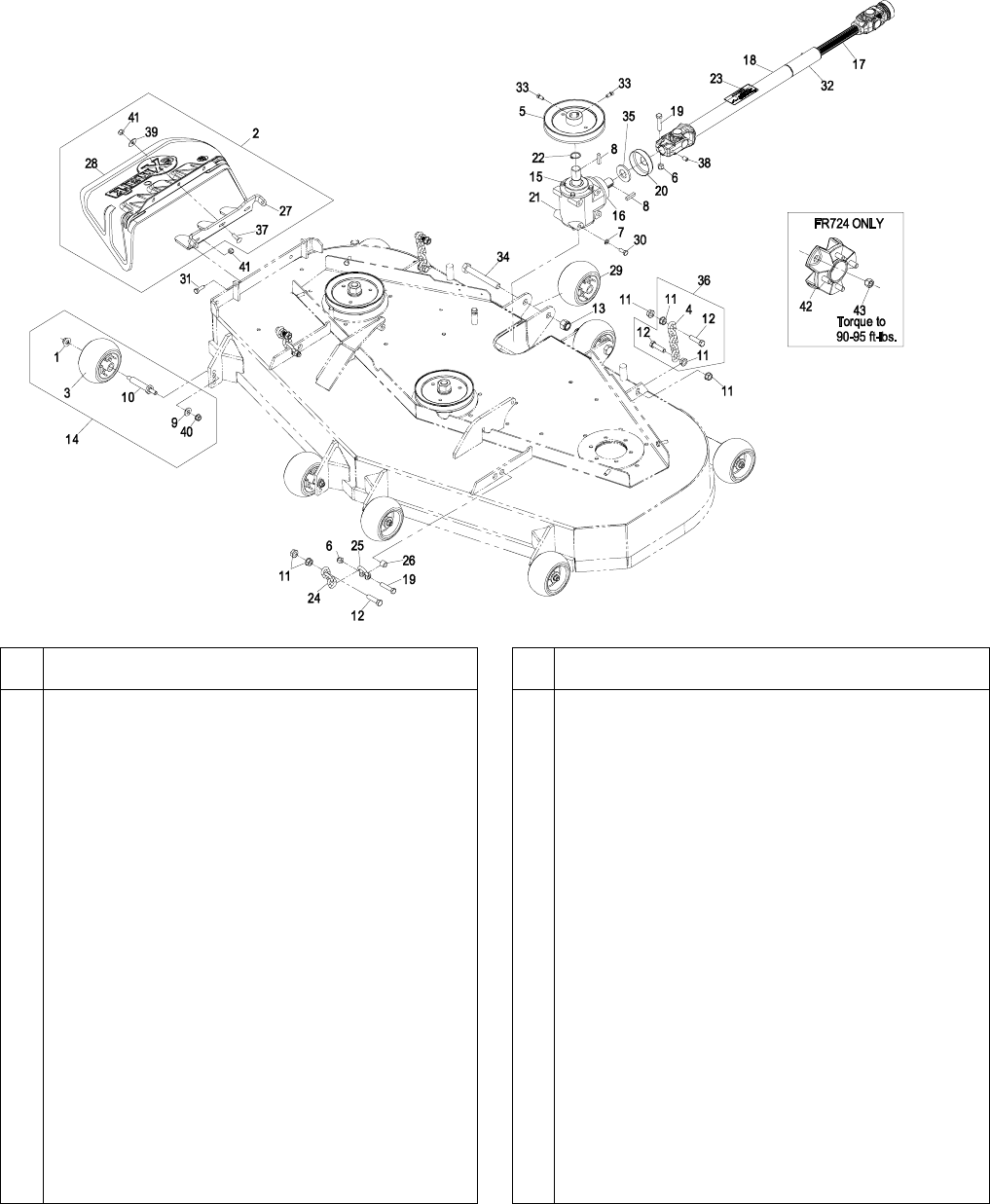

FR524, FR604, FR724 DECK GROUPS (cont.)
6
Item
Part No.
Description
Qty.
1 109-6658 Nut, Nyloc 3/8-16 Flg ............................. 6
2 109-2148 Asm, Discharge Chute........................... 1
3 1-603299 Roller, Anti Scalp ................................... 6
4 1-633447 Chain, Deck Lift ..................................... 2
5 109-2714 Sheave, Split Steel (52”) ........................ 1
1-643292 Sheave, Split Steel (60” & 72”)............... 1
6 3296-39 Nut, Nyloc 3/8-16 ................................... 3
7 1-805005 Washer, Lock 5/16 Heavy...................... 4
8 13-2840 Key, Machine 1/4 x 1/4 x 1 1/4............... 2
9 98-5975 Washer, Spring Disc 3/8 ........................ 6
10 99-2842 Spacer-Wheel........................................ 6
11 32128-37 Nut, Whizlock 7/16-14............................ 12
12 103-1898 Screw, HH 7/16-20 x 1-5/8 Sp................ 6
13 3296-53 Nut, Nyloc 5/8-11 ................................... 2
14 103-4051 Kit, Anti-scalp......................................... 6
15 100-4576 Seal, 1-1/2 X 1 X 1/4.............................. 1
16 100-4575 Seal, 2 X 1 X 1/4.................................... 1
17 109-4449 Driveshaft, Fr Splined Half ..................... 1
18 109-4448 Asm, Driveshaft Tube W/Decal............. 1
19 323-9 Screw, HH 3/8-16 x 1 3/4 ....................... 3
20 109-4941 Guard, Seal............................................ 1
21 103-7959 Gearbox................................................. 1
Item
Part No.
Description
Qty.
22 32151-29 Ring, Retaining...................................... 1
23 103-8425 Decal, Driveline ..................................... 1
24 103-9859 Chain, Decklift Front .............................. 2
25 103-9861 Shackle, Front Chain ............................. 2
26 103-9863 Bushing Shackle.................................... 2
27 109-0938-01 Bracket, Discharge Chute...................... 1
28 109-2738 Chute, Discharge .................................. 1
29 109-2965 Roller, Full Hub...................................... 2
30 322-3 Screw, HH 5/16-18 x 3/4........................ 4
31 322-5 Screw, HH 5/16-18 x 1........................... 2
32 109-2767 Asm, Driveshaft ..................................... 1
33O1-803022 Setscrew, 5/16-18 x 5/8 ......................... 2
34 327-12 Screw, HH 5/8-11 x 4 3/4....................... 2
35 109-4492 Washer, Special .................................... 1
36 103-9792 Asm, Chain Deck................................... 2
37 3230-22 Bolt, Carriage 5/16-18 x 1 Sp................. 3
38O3247-4 Setscrew, HSH 3/8-16 x 5/8................... 1
39 3256-82 Washer.................................................. 3
40 3290-357 Nut, Whizlock 3/8-16 ............................. 6
41 3296-29 Nut, Nyloc 5/16-18................................. 5
42 109-6207 Asm, Wheel Spacer............................... 2
43 242-50 Nut, Lug................................................. 8
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
O Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews, items #33 and #38.

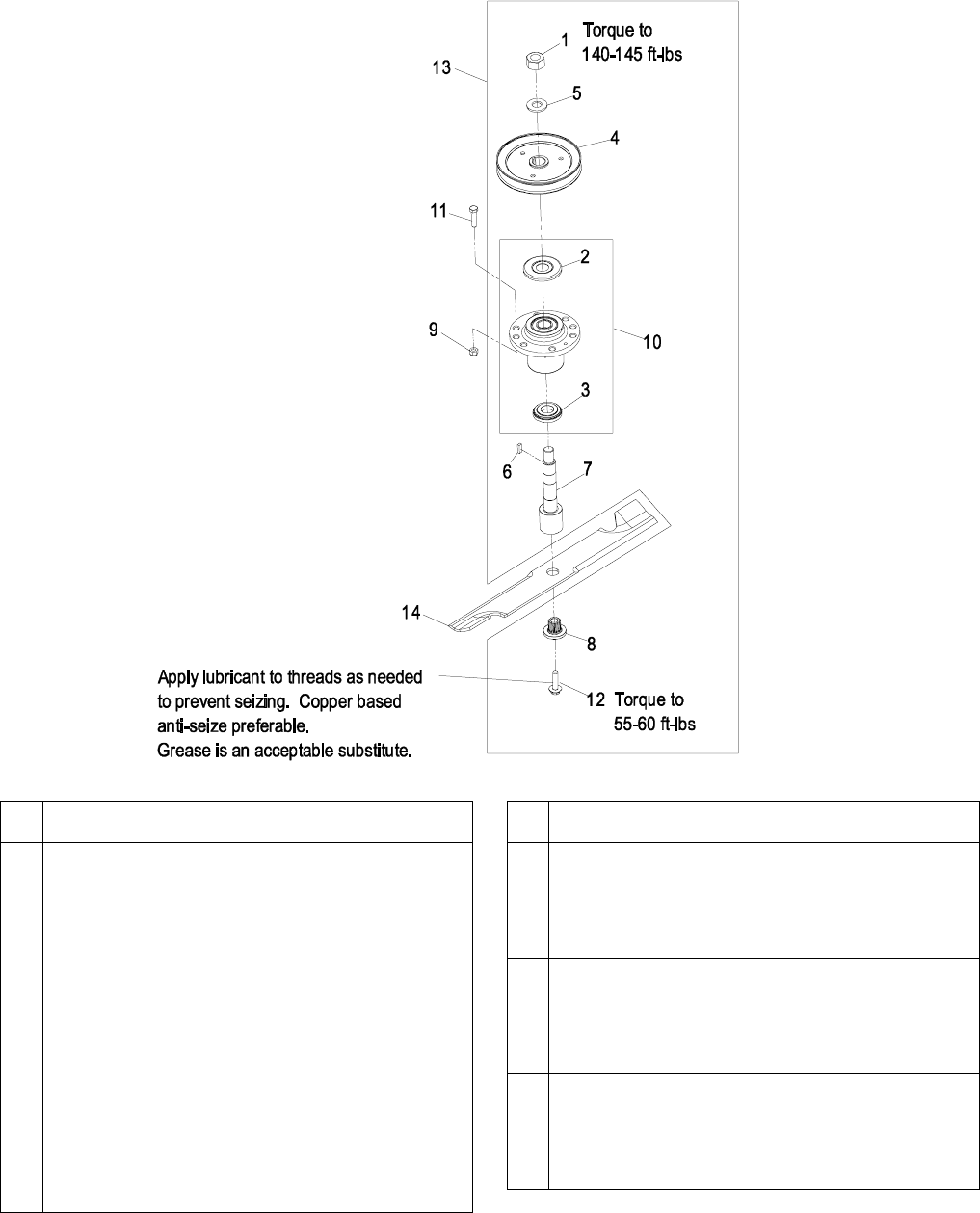

SPINDLE ASSEMBLY
7
Item
Part No.
Description
Qty.
1O 3217-46 Nut, Hex 3/4-16 Heavy...........................3
2 103-1330 Guard, Bearing Top ...............................3
3 103-2535 Spacer, Guard Bottom ...........................3
4 103-2794 Sheave, Blade Drive (52” & 60”).............3
103-2795 Sheave ,Blade Drive (72”)......................3
5 103-2802 Washer, Spring Disc 3/4 ........................3
6 103-2982 Key, Machine 1/4 x 3/16 x 3/4 ................3
7S 103-9086 Kit, Spindle ............................................3
8 103-3037 Bushing,Splined.....................................3
9 3296-39 Nut, Nyloc 3/8-16 ...................................21
10 103-8280 Asm, Cutter Housing..............................3
11 323-8 Screw, HH 3/8-16 x 1 1/2 (60” & 72”) ......18
323-7 Screw, HH 3/8-16 x 1 1/4 (52”) ...............18
12 109-5958 Screw, HH 1/2-20 x 2.............................3
13 103-9076 Asm, Cutter Housing Complete (52”& 60”).3
103-9074 Asm, Cutter Housing Complete (72”) .....3
Item
Part No.
Description
Qty.
14 103-6402 Blade, Notched (52”).............................. 3
103-6387 Blade, Low Lift (52”)............................... 3
103-6382 Blade, Solid (52”)................................... 3
103-6397 Blade, Extreme (52”).............................. 3
X 103-6392 Blade, Mulching (52”)............................. 3
103-6403 Blade, Notched (60”).............................. 3
103-6388 Blade, Low Lift (60”)............................... 3
103-6383 Blade, Solid (60”)................................... 3
103-6398 Blade, Extreme (60”).............................. 3
X 103-6393 Blade, Mulching (60”)............................. 3
103-6404 Blade, Notched (72”).............................. 3
103-6389 Blade, Low Lift (72”)............................... 3
103-6384 Blade, Solid (72”)................................... 3
103-6399 Blade, Extreme (72”).............................. 3
X 103-6394 Blade, Mulching (72”)............................. 3
X Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524Q (52”), MK604Q (60”) and MK724
S Kit includes items #1, #5, #6, #8, #12 & #13.
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles &
sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.
O Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #13.

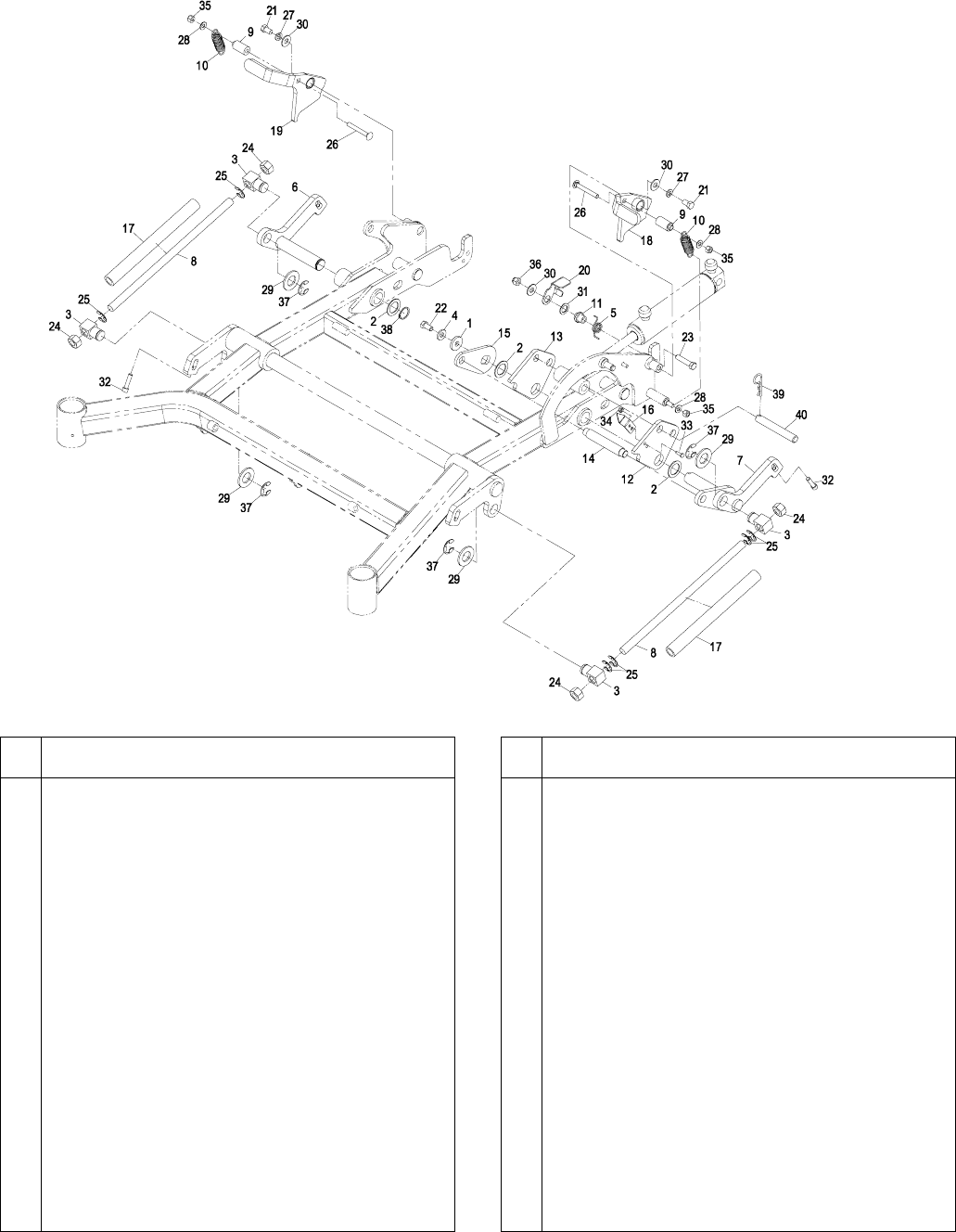

FRONT FRAME GROUP
8
Item
Part No.
Description
Qty.
1 1-513547 Spacer, Front Caster..............................2
2 1-513658 Bumper ..................................................6
3 1-513809 Bearing, Roller .......................................2
4 1-513810 Bushing, Flanged...................................4
5 1-543509 Cone, Bearing Tapered Roller................4
6 1-543511 Seal, Grease..........................................2
7 1-633508 Washer, Spring Disc ..............................6
8 1-806005 Hairpin, Cotter........................................2
9 1-811010 Plug .......................................................2
10 63-8410 Washer ..................................................4
11 103-3898 Flat, Strut ...............................................2
12 103-3899 Flat, Strut Angle .....................................2
13 103-3900 Spacer, Strut..........................................4
14 3296-39 Nut, Nyloc 3/8-16 (52” & 60”) .................5
3296-39 Nut, Nyloc 3/8-16 (72”)...........................11
15 103-4882 Cap, Grease ..........................................2
16 103-9712-01 Wld, Caster Fork....................................2
17 109-2379 Asm, Front Cover W/Decal ....................1
18 3296-51 Nut, Nyloc 3/4-10 ...................................2
19 32120-47 Ring, Retaining ......................................2
Item
Part No.
Description
Qty.
20 109-0636 Chain, Weight Transfer.......................... 2
21 109-2993 Decal, Cutting Height............................. 1
22 109-2114 Decal, FrontRunner ............................... 1
23 283-40 Pin, Clevis 1/2 x 1 3/4............................ 2
24 302-19 Zerk, 1/4-28 Str ..................................... 4
25 302-61 Zerk, 45° 1/4-28..................................... 2
26 323-12 Screw, HH 3/8-16 x 2 1/2....................... 1
27 323-13 Screw, HH 3/8-16 x 2 3/4....................... 2
28 323-8 Screw, HH 3/8-16 x 1 1/2....................... 2
29 325-20 Screw, HH 1/2-13 x 6............................. 2
30 3296-45 Nut, Hex 1/2-13 ..................................... 2
31 103-2171 Kit, Tire & Wheel Asm W/ Spacer ......... 2
32 3256-24 Washer, 3/8 SAE................................... 2
33 3256-26 Washer, 1/2 SAE................................... 2
34 109-4574 Asm, Front Frame W/Decal FR524 ....... 1
109-4575 Asm, Front Frame W/Decal FR604 ....... 1
109-5408 Asm, Front Frame W/Decal FR724 ....... 1
35 109-4455-01 Strut, Deck FR724................................. 1
36 323-16 Screw, HH 3/8-16 x 4............................. 2
37 323-9 Screw, HH 3/8-16 x 1 3/4....................... 2
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
FRONT FRAME GROUP (cont.)
9
Item
Part No.
Description
Qty.
1 1-373034 Washer ..................................................1
2 1-523157 Washer ..................................................3
3 1-633441 Swivel, Deck Mount Rear.......................4
4 98-5975 Washer, Spring Disk 3/8 ........................1
5 103-8316 Spring, Torsion ......................................1
6 103-9699-01 Wld, Decklift Arm ...................................1
7 103-9708-01 Wld, Decklift Arm ...................................1
8 103-9710 Rod, Decklift ..........................................2
9 103-9714 Spacer, Spring Anchor...........................2
10 105-1210 Spring-Extension....................................2
11 107-0075 Bushing..................................................1
12 109-3013-01 Plate, Cylinder Mount.............................1
13 109-3014-01 Plate, Cylinder Mount.............................1
14 109-0047 Pin, Decklift Stop ...................................1
15 109-0340-01 Arm, Deck Lift ........................................1
16 109-1896 Arm, Height Indicator .............................1
17 109-2065 Tube, Decklift Rod .................................2
18 109-2205 Wld, Lock Lever LH ...............................1
19 109-2206 Wld, Lock Lever RH...............................1
20 109-2760 Arm, PTO Switch ...................................1
Item
Part No.
Description
Qty.
21 323-34 Screw, HH 3/8-16 x 5/8.......................... 2
22 323-4 Screw, HH 3/8-16 x 3/4.......................... 1
23 323-9 Screw, HH 3/8-16 x 1 3/4....................... 1
24 3217-11 Nut, Hex 5/8-11 ..................................... 4
25 32151-48 E-Ring ................................................... 6
26 3230-8 Bolt, Carriage 5/16-18 x 2 1/2................ 2
27 3253-5 Washer, Lock 3/8 .................................. 2
28 3256-23 Washer, 5/16 SAE................................. 4
29 3256-29 Washer, 7/8 SAE................................... 4
30 3256-4 Washer, 3/8 Std .................................... 3
31 3256-69 Washer-Flat........................................... 1
32 3274-18 Screw, SH 5/16-18 x 1 1/4..................... 4
33 3290-500 Screw, PPH #10-24 x 5/8 ...................... 2
34 3296-2 Nut, Nyloc #10-24.................................. 2
35 3296-29 Nut, Nyloc 5/16-18................................. 4
36 3296-39 Nut, Nyloc 3/8-16................................... 1
37 32151-103 E-Ring ................................................... 4
38 32151-29 Ring, Retaining...................................... 1
39 1-806005 Hairpin, Cotter ....................................... 1
40 109-0045 Pin, Cylinder Mount ............................... 1
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
DECAL GROUP
10
Item
Part No.
Description
Qty.
1 1-303508 Decal, Discharge Warning .....................1
2 1-643222 Decal, Belt Routing ................................1
3 103-8425 Decal, Driveline......................................2
4 1-633922 Decal, Antiscalp.....................................1
5 109-2359 Decal, Deck Warning .............................1
6 109-2376 Decal, Crushing Hazard .........................1
7 98-5954 Decal, Missing Cover .............................3
8 109-3148 Decal, Bolt Torque .................................1
Item
Part No.
Description
Qty.
9 109-2354 Decal, Crushing Hazard......................... 2
10 103-1146 Decal, Ultracut 60.................................. 1
11 109-2993 Decal, Deck Height................................ 1
12 103-1145 Decal, Ultracut 52.................................. 1
13 1-403005 Decal, Danger ....................................... 2
14 103-1147 Decal, Ultracut 72.................................. 1
15 109-2114 Decal, FrontRunner ............................... 1
109-3062 Decal Kit
11
SERVICE RECORD
Date Description of Work Done Service Done By
© 2005—2008 Exmark Mfg. Co., Inc. Part No. 4500-231 Rev. A
Industrial Park Box 808 (402) 223-6300
Beatrice, NE 68310 Fax (402) 223-5489
All Rights Reserved Printed In USA.

Navigation menu
