User manual_AP3805
![](/img.php?id=2442890&img=bg1.png)
Overview of the WS-AP3805
The WS-AP3805 is designed to extend your IdentiFi
Wireless LAN around indoor locations. The WS-AP3805
supports the 802.11ac wireless standards, with full backward
compatibility with legacy 802.11a, 802.11b, 802.11g, and
802.11n devices. The WS-AP3805 interoperates fully with
other IdentiFi Wireless products and features including
support for VoWLAN, branch office mode, guest services,
RTLS, availability, and mobility features.
WS-AP3805 Features
• Radios: 2 radios (2.4 GHz and 5 GHz)
• LEDs: 3 (see Figure 2)
• Max. Power Consumption: 9.6W; 802.3af (see Ta b l e 1 )
• Antennas:
– WS-AP3805i: 4 internal single band antenna
assemblies
– WS-AP3805e: 4 external RSMA antenna connectors
(external antennas must be ordered separately)
Items Shipped with the WS-AP3805
• T-rail Mounting Hardware:
– (2) 15/16” clips, and (2) 9/16” clips
– (2) Spacers
– Mounting screws
• Wall/Ceiling Mounting Bracket
• Mounting Bracket Hardware:
– (2) Drywall anchors
– Mounting screws
WS-AP3805 Views
Figure 1, shows both the front and back views of the WS-
AP3805.
Figure 1 Front & Back Views of the WS-AP3805
Note: The WS-AP3805 is available in both an “i” model
(with internal antennas) and an “e” model (with external
antennas). In this Quick Reference, any reference to
WS-AP3805applies to both models.
1Antenna Port, Radio 1 - Right
(5.0 GHz, AP3805e only)
6External Antenna (1 of 4),
AP3805e only
2Antenna Port, Radio 2 - Right
(2.4 GHz, AP3805e only)
7External Power Supply
Port
3Antenna Port, Radio 2 - Left
(2.4GHz, AP3805e only)
8LAN port
4Antenna Port, Radio 1 - Left
(5.0 GHz, AP3805e only)
9Kensington Lock Slot
5LEDs (see Figure 2)
Ta b l e 1 shows ways to power the WS-AP3805.
Figure 2 shows the LEDs on the front of the WS-AP3805.
Figure 2 LEDs on AP Front Face
Green LEDs mean ON. Amber LEDs mean OFF.
For detailed installation information about the WS-AP3805,
see the Extreme Networks IdentiFi Wireless WS-AP3805
Installation Guide.
Mounting and Connecting the AP
A wall mount bracket is included for quick and easy
mounting of the WS-AP3805 to a wall. Additionally, a
ceiling mounting kit is provided for mounting the AP to a
drop ceiling. Use these instructions as guidelines for
mounting and connecting the WS-AP3805 easily and
safely.
Table 1 Powering the WS-AP3805
Power
Source Description
Power over
Ethernet
(PoE)
Power is provided through the RJ45 Ethernet port
(LAN port) on the top of the WS-AP3805. This is
the preferred method of powering the AP on ceiling
and high wall installations.
External 12V
DC power
supply
(optional)
The WS-AP3805 can also be powered by an
external DC power supply plugged into an AC
source. Plug the supply’s input jack into the DC-In
port (see Figure 1).
1Power 3Radio 2
2Radio 1
Electrical Hazard: Only qualified personnel should perform
installation procedures.
Mounting on a Drop Ceiling
Figure 3 and Figure 4 shows the T-rail connector being
mounted to the WS-AP3805.
Figure 3 Attaching the T-Rail Connector to the AP
1 Attach the T-rail connectors (see Figure 3, Item 2) to the
bottom cover of the AP using the provided short screws
(see Figure 3, Item 1). Two sizes of T-rail connectors are
included in the mounting hardware kit: 15/16 in (2.38 cm)
and 9/16 in (1.43 cm).
2 If extra space is required to accommodate drop ceiling
tiles, use the provided spacers and long screws (see
Figure 3, Items 1 and 3).
3 Remove the ceiling panels around the drop ceiling T-bar
rails where you intend to mount the AP.
4 Line up the connected T-rail connectors (see Figure 4,
Item 2) with an appropriately sized rail (see Figure 4,
Item 1), and press the AP onto the rail until it snaps into
place as shown in Figure 4.
5 Verify that the Ethernet cable that will connect to the AP
can reach the AP at the point where you plan to mount it.
6 With both bracket tabs over the T-bar rail lips, tap the AP
to verify it is stable and won’t fall off. Figure 4 illustrates
the AP and bracket mounted on a T-bar rail.
Figure 4 WS-AP3805 Mounted on Drop Ceiling T-bar
Rail
7 Make a hole through the ceiling panel closest to the
power slot on the AP. Run the Ethernet cable through the
hole and into an RJ45 LAN port in the recessed
connector bay.
8 Replace the displaced ceiling panels.
Mounting on a Wall or Solid Flat Ceiling
Figure 5 shows the AP3805 mounted to a wall or solid
ceiling.
Figure 5 Mounting the WS-AP3805 to a Flat Wall or
Solid Ceiling
1 Determine the spot on the wall where the AP is to be
mounted, preferably high up on the wall (near the ceiling
for maximum radio wave dispersion) but in reach of the
Ethernet cable and a wall power outlet if you are not able
to use Power over Ethernet.
2 Drill two holes in the wall (see Figure 5, Item 1) to match
the center of the two keyhole slots in the back of the AP
bracket (see Figure 5, Item 3).
3 Screw the anchors (see Figure 5, Item 2) into the holes
until they are flush with the wall, and screw the provided
mounting screws (see Figure 5 Item 5) into the anchors.
4 Screw the AP mounting screws (see Figure 5, Item 4)
into the bottom of the AP.
5 Mount the AP on the mounting bracket by aligning the
mounting screw with the slots in the bracket and rotating
the unit clockwise about 90 degrees to secure it in place.
Connecting a Power Supply to the WS-AP3805
If you need to power the WS-AP3805 with an external 12V
DC power supply, you can plug the power cord into the
power connector (see Figure 1, Item 6) on the back of the
AP. There is no wall mount for the 12V DC power supply.
Refer to the Extreme Networks IdentiFi Wireless WS-
AP3805 Installation Guide for information about the power
supply.
LAN Connection
The WS-AP3805 has one LAN (Ethernet) port (see Figure 1,
Item 7). During administration and maintenance through
the LAN, the AP must still have a power connection
through either an Ethernet PoE cable or a DC power supply.
External Antennas (WS-AP3805e Only)
Install the external antennas intended for area coverage.
For information about antenna selection and installation,
refer to the Extreme Networks IdentiFi Wireless WS-
AP3805 Installation Guide.
Note: When drilling the holes for the wall anchors, the hole
diameter should be slightly smaller than the diameter of the
wall anchors provided.
Electrical Hazard: Do not connect the WS-AP3805 to an
external power supply if the AP is plugged into the PoE
port.
Note: LAN connectors with shrouds will not fit into the AP
port. Remove the shroud or use an optional jumper cable.
![](/img.php?id=2442890&img=bg2.png)
Notice
Copyright © 2014 Extreme Networks, Inc. All Rights Reserved.
Legal Notices
Extreme Networks, Inc., on behalf of or through its wholly-owned
subsidiary, Enterasys Networks, Inc., reserves the right to make
changes in specifications and other information contained in this
document and its website without prior notice. The reader should
in all cases consult representatives of Extreme Networks to
determine whether any such changes have been made.
The hardware, firmware, software or any specifications described
or referred to in this document are subject to change without
notice.
Trademarks
Extreme Networks and the Extreme Networks logo are trademarks
or registered trademarks of Extreme Networks, Inc. in the United
States and/or other countries.
All other names (including any product names) mentioned in this
document are the property of their respective owners and may be
trademarks or registered trademarks of their respective
companies/owners.
For additional information on Extreme Networks trademarks,
please see: www.extremenetworks.com/company/legal/
trademarks/
Support
For product support, including documentation, visit:
www.extremenetworks.com/support/
Contact
Extreme Networks, Inc.
145 Rio Robles
San Jose, CA 19534
Tel: +1 408-579-2800
Toll-free: +1 888-257-3000
Regulatory and Compliance Information
Safety Guidelines
This section contains notices that are intended to protect your
personal safety and prevent damage to the equipment.
Qualified Personnel:
RF Safety Distance
The antennas used for this transmitter must be installed to provide
a separation distance of at least 22 cm from all persons and must
not be co-located or operating in conjunction with another
antenna or transmitter.
Federal Communications Commission (FCC) Notice
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Electrical Hazard: Only qualified personnel should perform
installation procedures. Within the context of the safety
notes in this documentation, qualified persons are defined
as persons who are authorized to commission, ground and
label devices, systems, and circuits in accordance with
established safety practices and standards. A qualified
person understands the requirements and risks involved
with installing outdoor electrical equipment in accordance
with national codes.
Warning: Changes or modifications made to this device
which are not expressly approved by the party responsible
for compliance could void the user’s authority to operate
the equipment.
Industry Canada Notice
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus set out in the Radio
Interference Regulations for the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits
radioélectriques dépassant les limites applicables aux appareils
numériques de la class B prescrites dans le Règlement sur le
brouillage radioélectrique édicté par le ministère des
Communications du Canada.
European Waste Electrical and Electronic
Equipment (WEEE) Notice
In accordance with Directive 2012/19/EU of the European
Parliament on waste electrical and electronic equipment (WEEE):
1 The symbol above indicates that separate collection of electrical
and electronic equipment is required.
2 When this product has reached the end of its serviceable life, it
cannot be disposed of as unsorted municipal waste. It must be
collected and treated separately.
3 It has been determined by the European Parliament that there
are potential negative effects on the environment and human
health as a result of the presence of hazardous substances in
electrical and electronic equipment.
4 It is the users’ responsibility to utilize the available collection
system to ensure WEEE is properly treated.
For information about the available collection system, please
contact Extreme Customer Support at 353 61 705500 (Ireland).

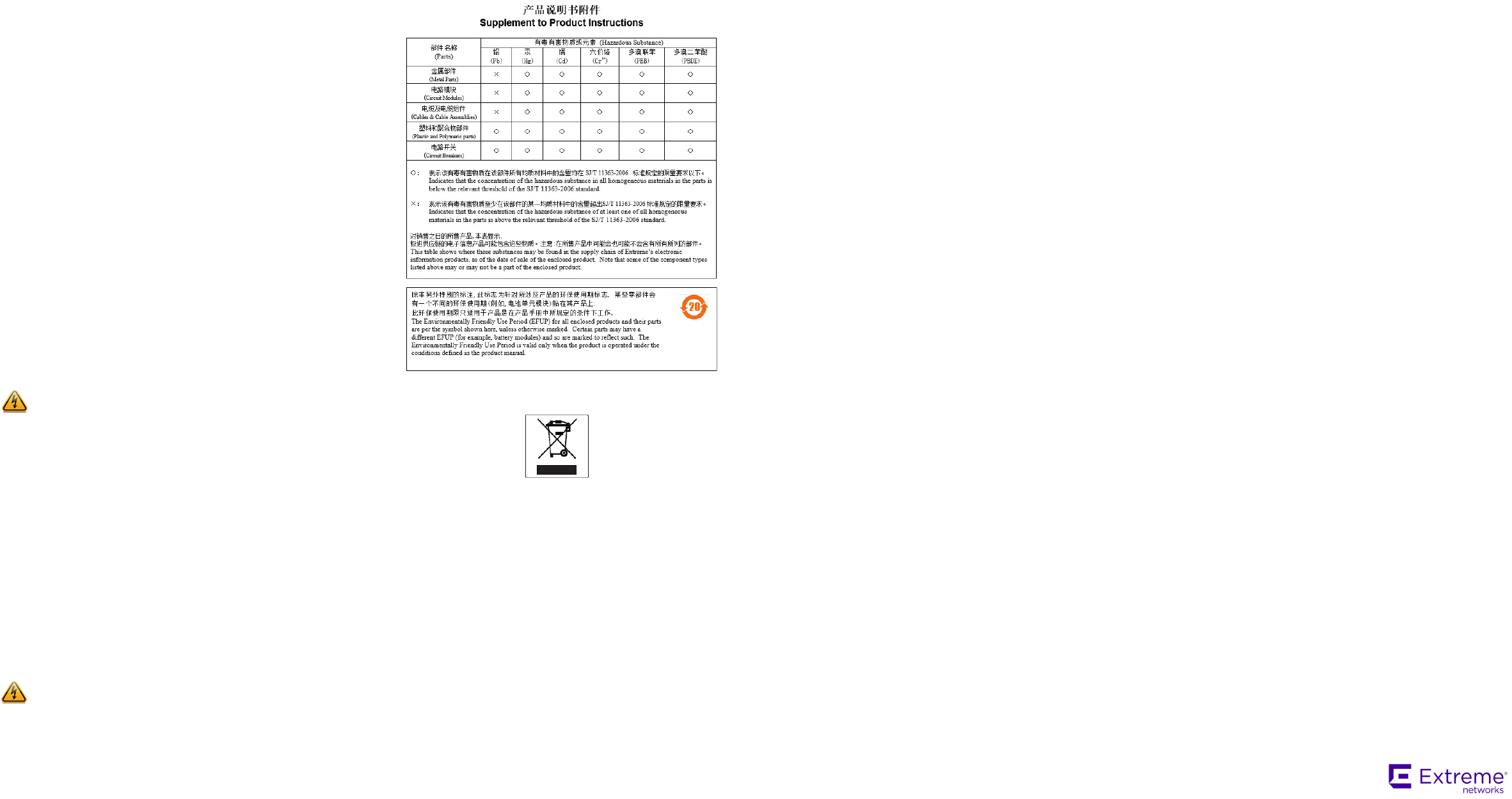

Hazardous Substances
This product complies with the requirements of Directive 2011/65/
EU of the European Parliament and of the Council of 8 June 2011
on the restriction of the use of certain hazardous substances in
electrical and electronic equipment.
Declaration of Conformity in Languages of the
European Community
English Hereby, Extreme Networks, declares that this Radio LAN
device is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Finnish Valmistaja Extreme Networks vakuuttaa täten että Radio
LAN device tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin muiden
ehtojen mukainen.
Dutch Hierbij verklaart Extreme Networks dat het toestel Radio
LAN device in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart Extreme Networks dat deze Radio LAN
device voldoet aan de essentiële eisen en aan de overige
relevante bepalingen van Richtlijn 1999/5/EC.
French Par la présente Extreme Networks déclare que l'appareil
Radio LAN device est conforme aux exigences essentielles
et aux autres dispositions pertinentes de la directive 1999/
5/CE.
Par la présente, Extreme Networks déclare que ce Radio
LAN device est conforme aux exigences essentielles et aux
autres dispositions de la directive 1999/5/CE qui lui sont
applicables.
Swedish Härmed intygar Extreme Networks att denna Radio LAN
device står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
Danish Undertegnede Extreme Networks erklærer herved, at
følgende udstyr Radio LAN device overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/
EF.
German Hiermit erklärt Extreme Networks die Übereinstimmung des
"WLAN Wireless Controller bzw. Access Points" mit den
grundlegenden Anforderungen und den anderen relevanten
Festlegungen der Richtlinie 1999/5/EG.
Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Extreme Networks ∆ΗΛΩΝΕΙ ΟΤΙ Radio
LAN device ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ
Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Icelandic Extreme Networks lysir her med yfir að thessi bunadur,
Radio LAN device, uppfyllir allar grunnkrofur, sem gerdar
eru i R&TTE tilskipun ESB nr 1999/5/EC.
Italian Con la presente Extreme Networks dichiara che questo
Radio LAN device è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/
CE.
Spanish Por medio de la presente Extreme Networks declara que el
Radio LAN device cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Portuguese Extreme Networks declara que este Radio LAN device está
conforme com os requisitos essenciais e outras disposições
da Directiva 1999/5/CE.
Malti Hawnhekk, Extreme Networks, jiddikjara li dan Radio LAN
device jikkonforma mal-htigijiet essenzjali u ma
provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/
5/EC.
Extreme Networks
Wireless Access Points
Quick Reference
WS-AP3805i
WS-AP3805e
9034815
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the
US/CANADA
“Operation of this device is restricted to indoor use only”
Professional installation instruction
1. Installation personal
This product is designed for specific application and needs to be installed by a
qualified personal who has RF and related rule knowledge. The general user shall
not attempt to install or change the setting.
2. Installation location
The product shall be installed at a location where the radiating antenna can be kept
20 cm from nearby person in normal operation condition to meet regulatory RF
exposure requirement.
3. External antenna
Use only the antennas which have been approved by the applicant. The
non-approved antenna(s) may produce unwanted spurious or excessive RF
transmitting power which may lead to the violation of FCC limit and is prohibited.
4. Installation procedure
Please refer to user’s manual for the detail.
5. Warning
Please carefully select the installation position and make sure that the final output
power does not exceed the limit set force in relevant rules. The violation of the rule
could lead to serious federal penalty.
Industry Canada statement:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite systems;
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This radio transmitter (IC: 4141B-4200) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
![](/img.php?id=2442890&img=bg6.png)
Le présent émetteur radio (IC: 4141B-4200) a été approuvé par Industrie Canada
pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal et l'impédance requise pour chaque type d'antenne. Les types
d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
EUT
Model
Type
Connector
2.4G
5.15~5.25GHz
5.725~5.85GHz
For
WS-AP3805i
Ant 1: 5718A0075300
PIFA
I-Pex
3.52
na
na
Ant 2: 5718A0074300
PIFA
I-Pex
3.16
na
na
Ant 3: 5718A0077300
PIFA
I-Pex
na
5.4
5.23
Ant 4: 5718A0076300
PIFA
I-Pex
na
4.08
5.68
For
WS-AP3805e
2.4G Ant: 7102A0300000
Dipole
R SMA
4.42
na
na
5G Ant: 7102A0301000
Dipole
R SMA
na
3.18
2.95
For
WS-AP3805e
WS-AI-DQ04360
Directional Panel
RPSMA Plug
4
7
7
For
WS-AP3805e
WS-AI-DD05120
Directional Panel
RPSMA Plug
5
5
5
