Extreme Networks, Inc.
PCE4552AH Confidential Page 1
Product Specification
PCE4552AH
V. 0.2
Revision History
Version Date Revision Description
0.1 2013/04/15 Preliminary
0.2 2013/10/25 Update the TX power and dimension information
Extreme Networks, Inc.
PCE4552AH Confidential Page 2
PRODUCT DESCRIPTION
The PCE4552AH is adapting the next generation Wi-Fi technology, 802.11ac. It provides
the great improvement in the performance compare with 802.11n. PCE4552AH is equipped
with MMCX connector to provide more secure connection.
K
EY
F
EATURES
Main Chip: Qualcomm QCA9890B
It support data rate at 1.3Gbps
Operating frequency: 5GHz
The module is using 4.2V input for PA.
P
RODUCT
S
PECIFICATION
Hardware Specification
Standard IEEE802.11a;IEEE802.11n;802.11ac
RF For PCE4552AH: QCA9890
Interface 64-bit PCI-E
Operating Voltage 3.3V / 4.2V for PA
Antenna Connectors MMCX
Radio specification
Data rate 1300Mbps
Channel Data rate
Typical AVG. Power
@ per chain
(dB) with
tolerance ±1.5
Typical Rx Sensitivity
@ per chain
(dBm) with
tolerance ±1.5
Operating Frequency: 4.9~5.825GHz
802.11a (5.18~5.825GHz) 6Mbps 23 -88
54 Mbps 19 -72
802.11a/n_HT20(5.18~5.825GHz) MCS 0 (BPSK) 22 -88
MCS 1 (QPSK) 22 -86
MCS 2 (QPSK) 22 -82
MCS 3 (16-QAM) 22 -79
MCS 4 (16-QAM) 22 -76
MCS 5 (64-QAM) 21 -72
MCS 6 (64-QAM) 20 -71
Extreme Networks, Inc.
PCE4552AH Confidential Page 3
MCS 7 (64-QAM) 19 -69
802.11n_HT40 MCS 0 (BPSK) 22 -84
MCS 1 (QPSK) 22 -81
MCS 2 (QPSK) 22 -79
MCS 3 (16-QAM) 22 -76
MCS 4 (16-QAM) 22 -73
MCS 5 (64-QAM) 21 -71
MCS 6 (64-QAM) 20 -70
MCS 7 (64-QAM) 19 -68
802.11ac_HT80 MCS 0 (BPSK) 22 -82
MCS 1 (QPSK) 22 -80
MCS 2 (QPSK) 22 -78
MCS 3 (16-QAM) 22 -74
MCS 4 (16-QAM) 22 -72
MCS 5 (64-QAM) 21 -71
MCS 6 (64-QAM) 20 -70
MCS 7 (64-QAM) 19 -68
MCS 8 (256-QAM) 17 -60
MCS 9 (256-QAM) 15 -58
Package content
Bulk pack
Environment & Mechanical
Power consumption 5.9W (max)
Temperature Range -40
O
C ~ 70
O
C (Operating temperature for PCE4552AH)
--45
O
C ~ 90
O
C (Storage temperature)
Humidity (non-condensing) 5%～90% typical
Dimensions 30(W) * 50(L) * 4.1(H) mm
Weight TBD
Compliance Standard
Radio Approvals Prescan only
(FCC Part 15.247, 15.407
CE EN300.328, EN301.893)
MTBF TBD
* All RF parameters tolerance are +- 1.5dBm
Extreme Networks, Inc.
PCE4552AH Confidential Page 4
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 55cm
between the radiator & your body.
Extreme Networks, Inc.
PCE4552AH Confidential Page 5
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 55 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 55 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains FCC ID: QXO-57G45”. The grantee's
FCC ID can be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout
Extreme Networks, Inc.
PCE4552AH Confidential Page 6
brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 55cm
between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
55cm de distance entre la source de rayonnement et votre corps.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350
MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to
LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour
une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes
de satellites mobiles utilisant les mêmes canaux;
(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes
5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
This device is intended only for OEM integrators under the following conditions: (For module
device use)
1) The antenna must be installed such that 55 cm is maintained between the antenna and users,
and
2) The transmitter module may not be co-located with any other transmitter or antenna.
Extreme Networks, Inc.
PCE4552AH Confidential Page 7
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes:
(Pour utilisation de dispositif module)
1) L'antenne doit être installée de telle sorte qu'une distance de 55cm est respectée entre
l'antenne et les utilisateurs, et
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne
seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur
son produit final pour toutes exigences de conformité supplémentaires requis pour ce module
installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or
co-location with another transmitter), then the Canada authorization is no longer considered
valid and the IC ID can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines
configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur),
l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur
le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit
final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 55 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains IC: 4141B-57G32”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où l'antenne
Extreme Networks, Inc.
PCE4552AH Confidential Page 8
peut être installée de telle sorte qu'une distance de 55cm peut être maintenue entre l'antenne et
les utilisateurs. Le produit final doit être étiqueté dans un endroit visible avec l'inscription
suivante: "Contient des IC: 4141B-57G32".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final quant
à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur du produit
final qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises et
avertissements comme indiqué dans ce manuel.
Professional installation instruction
1. Installation personal
This product is designed for specific application and needs to be installed by a qualified personal
who has RF and related rule knowledge. The general user shall not attempt to install or change
the setting.
2. Installation location
The product shall be installed at a location where the radiating antenna can be kept 55cm from
nearby person in normal operation condition to meet regulatory RF exposure requirement.

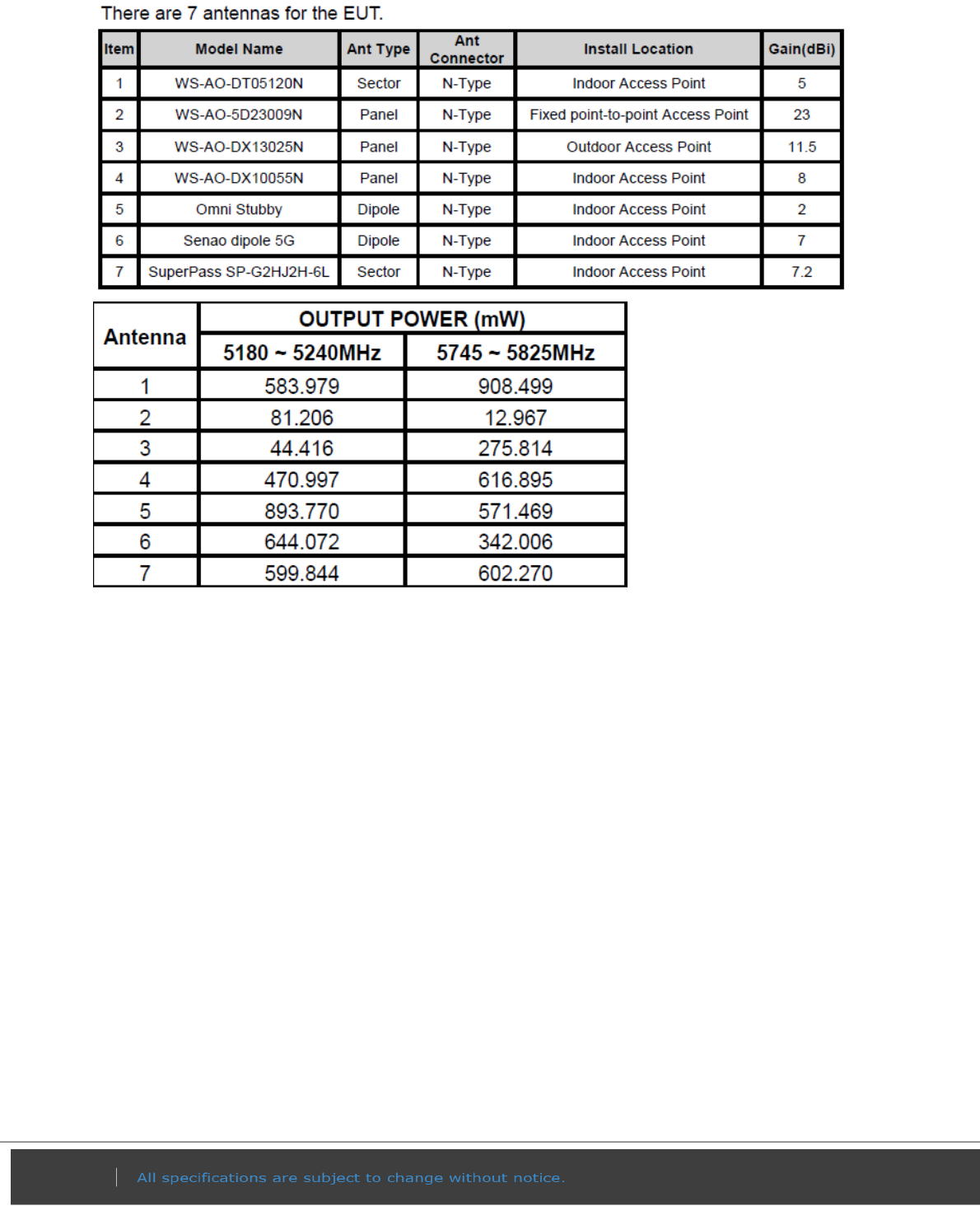

3. External antenna
Use only the antennas which have been approved by the applicant. The non-approved
antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead
to the violation of FCC/IC limit and is prohibited.
4. Installation procedure
Please refer to user’s manual for the detail.
Extreme Networks, Inc.
PCE4552AH Confidential Page 9
5. Warning
Please carefully select the installation position and make sure that the final output power does
not exceed the limit set force in relevant rules. The violation of the rule could lead to serious
federal penalty.
Instructions d'installation professionnelle
1. Installation
Ce produit est destine a un usage specifique et doit etre installe par un personnel qualifie
maitrisant les radiofrequences et les regles s'y rapportant. L'installation et les reglages ne
doivent pas etre modifies par l'utilisateur final.
2. Emplacement d'installation
En usage normal, afin de respecter les exigences reglementaires concernant l'exposition aux
radiofrequences, ce produit doit etre installe de facon a respecter une distance de 55 cm
entre l'antenne emettrice et les personnes.
3. Antenn externe.
Utiliser uniiquement les antennes approuvees par le fabricant. L'utilisation d'autres antennes
peut conduire a un niveau de rayonnement essentiel ou non essentiel depassant les niveaux
limites definis par FCC/IC, ce qui est interdit.
4. Procedure d'installation
Consulter le manuel d'utilisation.
5. Avertissement
Choisir avec soin la position d'installation et s'assurer que la puissance de sortie ne depasse
pas les limites en vigueur. La violation de cette regle peut conduire a de serieuses penalites
federales.
Extreme Networks, Inc.
PCE4552AH Confidential Page 10
